Perspective

3D Printed Polymeric Hydrogels for Nerve Regeneration

1
Institute of Organic Chemistry, University of Regensburg, Universitätstr. 31, 93053 Regensburg, Germany
2
Instituto de Química Avanzada de Cataluña-Consejo Superior de Investigaciones Científicas (IQAC-CSIC), Jordi Girona 18-26, 08034 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(9), 1041; https://doi.org/10.3390/polym10091041
Submission received: 11 August 2018 / Revised: 12 September 2018 / Accepted: 14 September 2018 / Published: 19 September 2018
(This article belongs to the Special Issue Hydrogels in Tissue Engineering and Regenerative Medicine)

Abstract

:
The human nervous system lacks an inherent ability to regenerate its components upon damage or diseased conditions. During the last decade, this has motivated the development of a number of strategies for nerve regeneration. However, most of those approaches have not been used in clinical applications till today. For instance, although biomaterial-based scaffolds have been extensively used for nerve reparation, the lack of more customized structures have hampered their use in vivo. This highlight focuses mainly on how 3D bioprinting technology, using polymeric hydrogels as bio-inks, can be used for the development of new nerve guidance channels or devices for peripheral nerve cell regeneration. In this concise contribution, some of the most recent and representative examples are highlighted to discuss the challenges involved in various aspects of 3D bioprinting for nerve cell regeneration, specifically when using polymeric hydrogels.

Graphical Abstract

1. Introduction

Nerve injuries are very common and serious clinical trauma that may cause partial or total loss of motor, sensory, and autonomic functions. Every year more than 200,000 nerve repair procedures are performed by surgeons with a consequent cost of millions of dollars only in the United States [1]. Most commonly, the autograft method (i.e., tissue transplanted from one part of the body to another in the same individual) has been used as first-line therapy for repairing damaged peripheral nerves [2,3,4]. Nevertheless, there are many unavoidable disadvantages associated to the autograft method. For example, it requires an additional secondary surgical site, from where the donor nerve should be taken, while being also a time-consuming and costly process. Moreover, a diameter mismatch between defected nerves and newly grafted nerves, limited the donor sources [5]. In some cases, the autograft method achieves limited success in clinical practices mainly due to immunogenic rejection and disease transmission [6]. In this regard, alternative approaches involving the use of artificial biomaterials have received increasing attention in the field of nerve regeneration. Initially, two-dimensional (2D) models [7] or prefabricated hollow channels filled with polymeric scaffolds have been used to stimulate neurons growth [8]. However, the main disadvantages of 2D models lie on the facts that they do not provide a natural three-dimensional (3D) environment for neuronal cell growth under in vivo conditions. Significant efforts have already been made by numerous research groups to regulate the neuronal growth by using 3D polymeric hydrogel networks [9]. Polysaccharides such as chitosan, ref. [10] alginate, refs. [11,12,13] hyaluronic acid and derivatives [14,15] constitute attractive candidates for in vivo nerve regeneration due to their biocompatible and biodegradable nature. In this sense, the use of biodegradable polymers for constructing nerve guide channels is ideal because it eliminates the need of a second surgery to remove the nerve guide channels from the body to avoid chronic tissue responses or nerve compression. In particular, poly (phosphoester) [16,17], collagen [18,19], polyglycolide [20], collagen and poly-glycolide [21], poly (l-lactide-co-glycolide) (PLGA) [22,23], and poly-l-lactic acid/caprolactone [24] are among the most common biodegradable polymers used for this purpose.
Moreover, the evaluation of nerve injuries is not an obvious process, especially when the damage affects several nerves with different lengths and geometries (e.g., branched structures). Different patient anatomies and injury profiles have encouraged researchers to develop more personalized treatments for peripheral nerve injuries. In this case, standard nerve conduits with simpler architectures made from polymeric scaffolds using conventional manufacturing methodologies are not enough to solve this problem because more customized architectures are needed to mimic the same anatomical structure of the damaged nerve. In this context, 3D printing techniques have drawn great attention during the last decade, allowing the preparation of personalized medical devices such as amputee prosthetics, airway splints, and a variety scaffolds for tissue engineering [25]. 3D printing technology helps to fabricate more precise nerve growth channels, providing an open inner structure that enhances the supply of nutrients and nerve growth factors to embedded cells. The toxicity and insufficient mechanical strength of different synthetic materials constitutes two of the most important limitations generally found in 3D printing applications (vide infra).
This concise highlight briefly describes how 3D printing of polymeric hydrogels has been used for nerve regeneration, and what are the main limitations that have been found in such processes. Thereafter, the most recent progress in 3D bioprinting for nerve regeneration are also discussed along with a description of the most relevant criteria that must be considered for the selection of suitable hydrogel scaffolds. The description of biomaterial-based hydrogels for nerve regeneration that have not been prepared using 3D printing techniques are described elsewhere [9,26] and are out of the scope of this contribution.

2. 3D Printing Technology

In general, 3D printing refers to any process in which a particular material is joined or solidified under computer control to create a 3D object of specific geometry, usually by successively adding material layer-by-layer. Two of the most common technologies for this purpose are the stereolithography (SLA), where photopolymerization is primarily used to produce a solid part from a liquid, and fused deposit modeling (FDM), where the desired part is produced by extruding small beads or streams of material that harden immediately to form layers. The term “3D bioprinting” alludes to the use of 3D printing techniques to combine cells, growth factors, and biomaterials to fabricate biomedical parts that mimic natural tissue features [27].
3D bioprinting is based on three main approaches: Biomimicry, autonomous self-assembly and mini-tissue building blocks [28]. The main objective of the biomimicry approach is to fabricate structures that are identical to those found in natural tissues and organs. For this, it is necessary to understand the microenvironment, the nature of the biological forces in such microenvironment, the specific organization of functional and supporting cell types, solubility factors, and the composition of extracellular matrix. The autonomous self-assembly approach relies on the physical process of embryonic organ development as a model to replicate the tissues of interest. In other words, autonomous self-assembly demands a deeper understanding of the mechanisms involved in the formation of embryonic tissues. Finally, in the mini-tissue approach, small functional components manufactured and arranged into larger framework to build organs and tissues.
From the manufacturing point of view, 3D bioprinting generally follows three steps [29,30]: (1) Pre-bioprinting or creation of the model, (2) bioprinting using the liquid mixture of cells, matrix and nutrients known as bioinks, and (3) post-bioprinting, a final process to create a stable structure from the biological material. Nowadays, sophisticated bioreactor technologies [27] have allowed the rapid maturation of tissues, vascularization of tissues and the ability to survive transplants [30]. Inkjet, laser-assisted, and extrusion printers are the three major types of printers used for 3D bioprinting [29]. Inkjet printers are mainly used in bioprinting for fast and large-scale products, while extrusion printers print cells or hydrogels infused with cells layer-by-layer to create 3D constructs. In addition to just cells, extrusion printers may also use hydrogels infused with cells.

3. Recent Reports on 3D Printing Technology for Nerve Regeneration

Conventional nerve guidance channels are generally fabricated around tubular structures, and the resultant devices are integrally restricted to linear structures. For more complex anatomical structures and internal biofunctionalization, Johnson and co-workers developed a new 3D printing strategy using silicone as a raw material (Figure 1) [31]. The first step consisted in collecting all the information about the missing nerve pieces and fed those data into the 3D printer. Subsequently, printing of the computational model of the image and simultaneous functionalization with physical cues and path-specific biochemical gradients was carried out (Figure 1) to stimulate the nerve growth in a specific direction. The obtained silicone 3D printed conduit was then inserted into the rat body by surgically grafting it onto the damaged ends of the nerve. This successfully resulted in the regeneration of bifurcated injuries across a 10 mm complex nerve gap in rats (Figure 2) within ca. 10 to 12 weeks. This method provides a mechanism for redeveloping injured nerve plexuses, which is difficult to achieve using conventional nerve guidance channels. Although these results open the door for making different types of nerve regeneration implants more precisely with complex shapes, the main disadvantage of this approach is the use of non-biocompatible silicone, which should be replaced by biodegradable alternatives in future studies.
In many cases, nerve conduits made of synthetic materials may be toxic to the patients, being often associated to various infections. To address these potential problems, Ikeguchi’s team has recently developed a novel approach for nerve regeneration without the use of synthetic material by 3D bioprinting [32]. The authors made scaffold-free bio 3D conduits using human dermal fibroblasts as base material (i.e., a cell generated ECM support). Subsequently, the conduits were tested for nerve regeneration in adult male rats and the results were compared to those obtained using synthetic silicone-based nerve conduits. After 8 weeks of post-surgery, the bio 3D conduits composed entirely of fibroblast cells showed better nerve regeneration ability than the silicone-based nerve conduits (Figure 3). However, further studies are still required to determine the efficiency of 3D bio-conduits in clinical applications. In this sense, the degradation mechanisms of the bio-conduits as well as their mechanical strength and flexibility should be evaluated in detail.
By using 3D printing technology Hu and co-workers have also developed an interesting bio-conduit for peripheral nerve regeneration that consist of a cryopolymerized gelatin methacryloyl (cryoGelMA) gel cellularized with adipose-derived stem cells (ASCs) [33]. The cryoGelMA gel was designed into conduits with customized architectures such as multichannels and bifurcated structures by using 3D-printed “lock and key” molds (Figure 4). The main advantage of using cryoGelMA conduit is that it is biodegradable and could be completely degraded in vivo within 2–4 months, eliminating the need of a second removal surgery.
The model nervous system, composed of different biomaterials and cells have different neurological properties. In order to capture different neurological phenomena such as cell signalling, communication, infection, regeneration and degradation, advanced in vitro models are required. Herein, microfluidics, chamber-based technologies, and 3D cell culture models are emerging as the most effective technologies to study different such processes associated with different biomaterials and cells. Recently, McAlpine and co-workers have developed a 3D printed peripheral nervous system on a chip (3DNSC) to study viral infection in the nervous system. The 3D printed system is partitioned into three chambers by dividers and consists of parallel microchannels and a sealant layer. Peripheral neurons are cultured in the first chamber, Schwann cells in the middle chamber, and terminal cell junctions containing successfully formed axon termini and epithelial cells in the third chamber (Figure 5) [34].

4. Basic Criteria for Hydrogel Selection

Various nerve conduits for nerve regeneration made from different hydrogels, but not using 3D printing technology, have been reported elsewhere [35,36]. However, in vivo experiments have demonstrated that 60% of those tubes showed similar responses to autografts, while 40% were significantly worse likely due to tube collapse [37]. The development of new suitable and customized 3D printed scaffolds that can direct neuronal growth in the desired direction constitutes a major scientific challenge. Within this context, hydrogels are very attractive candidates due to their high water content, and the fact that they provide a suitable 3D environment for cell growth. In addition, during the gelation process it is possible to incorporate different drug molecules and/or nerve growth factors into the gel matrix for subsequent release. However, there are a few critical aspects that should be considered before using any hydrogel for 3D bioprinting such as sufficient biocompatibility, effective cell adhesion to the gel matrix, and good mechanical stability right after printing and during culture. For example, collagen is a naturally occurring polymer that possesses low toxicity and has been widely used for nerve regeneration [38,39]. However, the mechanical strength of the hydrogel made from collagen is low compared to other synthetic polymers. Thus, in order to increase the mechanical strength and other critical properties such as permeability rate, compressive modulus, cell number, and cell metabolic activity, collagen has been modified with other natural and synthetic polymers [40]. Furthermore, rheological properties such as viscosity, storage modulus, yield stress, and shear thinning play also a key role in 3D bioprinting [41,42,43]. Note that for different printing processes, the values of the above-mentioned parameters are crucial for selecting the optimal gel formulation. Within this context, Table 1 outlines the main properties of the most representative hydrogels reported so far as bioinks for 3D bioprinting. Additionally, the swelling behavior of the hydrogels depends on the crosslinking density. Thus, increasing the crosslinking density in the gel results in lower swelling ratios, thereby reducing the circulation of oxygen and other nutrients that are required for the embedded cells to survive into the 3D hydrogel environment.

5. Conclusions and Future Perspectives

Significant progress has been made over the past few decades in the area of nerve regeneration and target reinnervation [62]. However, full recovery of complex injuries containing mixed nerves at a bifurcation is extremely challenged due to imprecise customized shape of nerve guidance channels. Moreover, nerve regeneration across gaps greater than 30 mm remains a critical challenge, particularly for patients who suffer multiple injuries due to trauma. Very recently, 3D printing and additive manufacturing technology have successfully evolved into printing more specified customized scaffolds for peripheral nerve repair. In this context, polymer chemists and material scientists are called to develop unique biodegradable hydrogel scaffolds that will fulfill all biological and mechanical requirements for developing tissue-engineered constructs via automated 3D printing processes. Advanced 3D in vitro mathematical models are required to mimic faster and more precisely the anatomical structure and physiological properties of specific nerves. Moreover, better preclinical models and optimized in vitro–in vivo translatability have been identified in numerous studies as major needs. In this sense, novel nerve-on-a chip technologies constitute a promising approach for developing more translatable in vitro models [63].
It should be considered that a successful regenerative process is established not only at the injured nerve, but also on distal sites that are also affected upon peripheral injuries (e.g., muscle atrophy, sensory receptor degeneration). Thus, a deeper understanding of the biology and biochemistry associated to nerve damage is of utmost importance to maximize the interaction between injured nerves and 3D printed scaffolds. Moreover, continuous improvements in the accuracy of 3D printers and optimized bioinks are expected in the next few years [64].
Further advances from preclinical animal models in research laboratories to human clinical trials will require not only a significant reduction of financial costs, but also intense interdisciplinary cooperations between polymer chemists, material scientists, physicists, computationalists, pharmacists, and physicians.

Author Contributions

B.M. and D.D.D. wrote the paper.

Acknowledgments

The authors thank the University of Regensburg and the Deutsche Forschungsgemeinschaft (DFG, DI 1748/3-1; 1748/3-2) for financial support. D.D.D. thanks the DFG for the Heisenberg Professorship Award.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. National Institute of Neurological Disorders and Stroke. Peripheral Neuropathy Fact Sheet; National Institute of Neurological Disorders and Stroke: Bethesda, MA, USA, 2014.
  2. Haftek, J. Autogenous cable nerve grafting instead of end to end anastomosis in secondary nerve suture. Acta Neurochir. 1976, 34, 217–221. [Google Scholar] [CrossRef] [PubMed]
  3. Lundborg, G. A 25-year perspective of peripheral nerve surgery: Evolving neuroscientific concepts and clinical significance. J. Hand Surg. Am. 2000, 25, 391–414. [Google Scholar] [CrossRef] [PubMed]
  4. Milleisi, H. Techniques for nerve grafting. Hand Clin. 2000, 16, 73–91. [Google Scholar] [PubMed]
  5. Johnson, E.O.; Zoubos, A.B.; Soucacos, P.N. Regeneration and repair of peripheral nerves. Injury 2005, 36, S24–S49. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, D.H.; Han, K.; Tiel, R.L.; Murovic, J.A.; Kline, D.G. Surgical outcomes of 654 ulnar nerve lesions. J. Neurosurg. 2003, 98, 993–1004. [Google Scholar] [CrossRef] [PubMed]
  7. Zhu, N.; Li, M.G.; Guan, Y.J.; Schreyer, D.J.; Chen, X.B. Effects of laminin blended with chitosan on axon guidance on patterned substrates. Biofabrication 2010, 2, 045002. [Google Scholar] [CrossRef] [PubMed]
  8. Ciardelli, G.; Chiono, V. Materials for peripheral nerve regeneration. Macromol. Biosci. 2006, 6, 13–26. [Google Scholar] [CrossRef] [PubMed]
  9. Caminero, R.A.; Herrera, L.P.; Martinez, C.A.R.; Almodovar, J. Polymeric scaffolds for three-dimensional culture of nerve cells: A model of peripheral nerve regeneration. MRS Commun. 2017, 7, 391–415. [Google Scholar] [CrossRef] [PubMed]
  10. Meyer, C.; Stenberg, L.; Gonzalez-Perez, F.; Wrobel, S.; Ronchi, G.; Udina, E.; Suganuma, S.; Geuna, S.; Navarro, X.; Dahlin, L.B.; et al. Chitosan-film enhanced chitosan nerve guides for long-distance regeneration of peripheral nerves. Biomaterials 2016, 76, 33–51. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, S.; Sandner, B.; Nicholson, L.S.; Schackel, T.; Tenenbaum, L.; Puttagunta, R.; Müller, R.; Weidner, N.; Blesch, A. Regulated viral brain-derived neurotrophic factor delivery in combination with Schwann cells promotes axonal regeneration through alginate capillary hydrogels after spinal cord injury. Acta Biomater. 2017, 60, 167–180. [Google Scholar] [CrossRef] [PubMed]
  12. Günther, M.I.; Weidner, N.; Müller, R.; Blesch, A. Cell-seeded alginate hydrogel scaffolds promote directed linear axonal regeneration in the injured rat spinal cord. Acta Biomater. 2015, 27, 140–150. [Google Scholar] [CrossRef] [PubMed]
  13. Prang, P.; Müller, R.; Eljaouhari, A.A.; Heckmann, K.; Kunz, W.; Weber, T.; Faber, C.; Vroemen, M.; Bogdahn, U.; Weidner, N. The promotion of oriented axonal regrowth in the injured spinal cord by alginate-based anisotropic capillary hydrogels. Biomaterials 2006, 27, 3560–3569. [Google Scholar] [CrossRef] [PubMed]
  14. Thomas, R.C.; Vu, P.; Modi, P.; Chung, P.E.; Landis, R.C.; Khaing, Z.Z.; Hardy, J.G.; Schmidt, C.E. Sacrificial crystal templated hyaluronic acid hydrogels as biomimetic 3D tissue scaffolds for nerve tissue regeneration. ACS Biomater. Sci. Eng. 2017, 3, 1451–1459. [Google Scholar] [CrossRef]
  15. Ozgenel, G.Y. Effects of hyaluronic acid on peripheral nerve scarring and regeneration in rats. Microsurgery 2003, 23, 575–581. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, S.; Wan, A.C.; Xu, X.; Gao, S.; Mao, H.Q.; Leong, K.W.; Yu, H. A new nerve guide conduit material composed of a biodegradable poly(phosphoester). Biomaterials 2001, 22, 1157–1169. [Google Scholar] [CrossRef]
  17. Wan, A.C.; Mao, H.Q.; Wang, S.; Leong, K.W.; Ong, L.K.; Yu, H. Fabrication of poly(phosphoester) nerve guides by immersion precipitation and the control. Biomaterials 2001, 22, 1147–1156. [Google Scholar] [CrossRef]
  18. Chamberlain, L.J.; Yannas, I.V.; Arrizabalaga, A.; Hsu, H.P.; Norregaard, T.V.; Spector, M. Early peripheral nerve healing in collagen and silicone tube implants: Myofibroblasts and the cellular response. Biomaterials 1998, 19, 1393–1403. [Google Scholar] [CrossRef]
  19. Yoshii, S.; Oka, M. Peripheral nerve regeneration along collagen filaments. Brain Res. 2001, 888, 158–162. [Google Scholar] [CrossRef]
  20. Keeley, R.D.; Nguyen, K.D.; Stephanides, M.J.; Padilla, J.; Rosen, J.M. The artificial nerve graft: A comparison of blended elastomer hydrogel with polyglycolic acid conduits. J. Reconstr. Microsurg. 1991, 7, 93–100. [Google Scholar] [CrossRef] [PubMed]
  21. Kiyotani, T.; Nakamura, T.; Shimizu, Y.; Endo, K. Experimental study of nerve regeneration in a biodegradable tube made from collagen and polyglycolic acid. ASAIO J. 1995, 41, M657–M661. [Google Scholar] [CrossRef] [PubMed]
  22. Hadlock, T.; Elisseeff, J.; Langer, R.; Vacanti, J.; Cheney, M. A tissue-engineered conduit for peripheral nerve repair. Arch. Otolaryngol. Head Neck Surg. 1998, 124, 1081–1086. [Google Scholar] [CrossRef] [PubMed]
  23. Hadloc, K.T.; Sundback, C.; Hunter, D.; Cheney, M.; Vacanti, J.P. A polymer foam conduit seeded with Schwann cells promotes guided peripheral nerve regeneration. Tissue Eng. 2000, 6, 119–127. [Google Scholar] [CrossRef] [PubMed]
  24. Mligiliche, N.L.; Tabata, Y.; Kitada, M.; Endoh, K.; Okamato, K.; Fujimoto, E.; Ide, C. Poly lactic acid–caprolactone copolymer tube with a denatured skeletal muscle segment inside as a guide for peripheral nerve regeneration: A morphological and electrophysiological evaluation of the regenerated nerves. Anat. Sci. Int. 2003, 78, 156–161. [Google Scholar] [CrossRef] [PubMed]
  25. Morrison, R.J.; Hollister, S.J.; Niedner, M.F.; Mahani, M.G.; Park, A.H.; Mehta, D.K.; Ohye, R.G.; Green, G.E. Mitigation of tracheobronchomalacia with 3D-printed personalized medical devices in pediatric patients. Sci. Transl. Med. 2015, 7, 285ra264. [Google Scholar] [CrossRef] [PubMed]
  26. Siemionow, M.; Bozkurt, M.; Zor, F. Regeneration and repair of peripheral nerves with different biomaterials: Review. Microsurgery 2010, 30, 574–588. [Google Scholar] [CrossRef] [PubMed]
  27. Singh, D.; Thomas, D. Advances in medical polymer technology towards the panacea of complex 3D tissue and organ manufacture. Am. J. Surg. 2018. [Google Scholar] [CrossRef] [PubMed]
  28. Murphy, S.; Atala, A. 3D bioprinting of tissues and organs. Nat. Biotechnol. 2014, 32, 773–785. [Google Scholar] [CrossRef] [PubMed]
  29. Shafiee, A.; Atala, A. Printing technologies for medical applications. Trends Mol. Med. 2016, 22, 254–265. [Google Scholar] [CrossRef] [PubMed]
  30. Ozbolat, I.T. Bioprinting scale-up tissue and organ constructs for transplantation. Trends Biotechnol. 2015, 33, 395–400. [Google Scholar] [CrossRef] [PubMed]
  31. Johnson, B.N.; Lancaster, K.Z.; Zhen, G.; He, J.; Gupta, M.K.; Kong, Y.L.; Engel, E.A.; Krick, K.D.; Ju, A.; Meng, F.; et al. A 3D printed anatomical nerve regeneration pathways. Adv. Funct. Mater. 2015, 25, 6205–6217. [Google Scholar] [CrossRef] [PubMed]
  32. Yurie, H.; Ikeguchi, R.; Aoyama, T.; Kaizawa, Y.; Tajino, J.; Ito, A.; Ohta, S.; Oda, H.; Takeuchi, H.; Akieda, S.; et al. The efficacy of a scaffold-free Bio 3D conduit developed from human fibroblasts on peripheral nerve regeneration in a rat sciatic nerve model. PLoS ONE 2017, 12, e0171448. [Google Scholar] [CrossRef] [PubMed]
  33. Hu, Y.; Wu, Y.; Gou, Z.; Tao, J.; Zhang, J.; Liu, Q.; Kang, T.; Jiang, S.; Huang, S.; He, J.; et al. 3D-engineering of cellularized conduits for peripheral nerve regeneration. Sci. Rep. 2016, 6, 32184. [Google Scholar] [CrossRef] [PubMed]
  34. Johnson, B.N.; Lancaster, K.Z.; Hogue, I.B.; Meng, F.; Kong, Y.L.; Enquist, L.W.; McAlpine, M.C. 3D printed nervous system on a chip. Lab Chip 2016, 16, 1393–1400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Martin, B.C.; Minner, E.J.; Wiseman, S.L.; Klank, R.L.; Gilbert, R.J. Agarose and methylcellulose hydrogel blends for nerve regeneration applications. J. Neural Eng. 2008, 5, 221–231. [Google Scholar] [CrossRef] [PubMed]
  36. Soucy, J.R.; Sani, E.S.; Lara, R.P.; Diaz, D.; Dias, F.; Weiss, A.S.; Koppes, A.N.; Koppes, R.A.; Annabi, N. Photocrosslinkable Gelatin/Tropoelastin Hydrogel Adhesives for Peripheral Nerve Repair. Tissue Eng. Part A 2018, 24. [Google Scholar] [CrossRef] [PubMed]
  37. Belkasa, J.S.; Munroa, C.A.; Shoichetb, M.S.; Midha, R. Peripheral nerve regeneration through a synthetic hydrogel nerve tube. Restor. Neurol. Neurosci. 2005, 23, 19–29. [Google Scholar]
  38. Klein, S.; Vykoukal, J.; Felthaus, O.; Dienstknecht, T.; Prantl, L. Collagen type I conduits for the regeneration of nerve defects. Materials 2016, 9, 219. [Google Scholar] [CrossRef] [PubMed]
  39. Madduri, S.; Feldman, K.; Tervoort, T. Collagen nerve conduits releasing the neurotrophic factors GDNF and NGF. J. Control. Release 2010, 143, 168–174. [Google Scholar] [CrossRef] [PubMed]
  40. Murphy, C.M.; Matsiko, A.; Haugh, M.G.; Gleeson, J.P.; O’Brien, F.J. Mesenchymal stem cell fate is regulated by the composition and mechanical properties of collagen-glycosaminoglycan scaffolds. J. Mech. Behav. Biomed. Mater. 2012, 11, 53–62. [Google Scholar] [CrossRef] [PubMed]
  41. Koo, Y.W.; Kim, G.H. New strategy for enhancing in situ cell viability of cell-printing process via piezoelectric transducer-assisted three-dimensional printing. Biofabrication 2016, 8, 025010. [Google Scholar] [CrossRef] [PubMed]
  42. Guvendiren, M.; Lu, H.D.; Burdick, J.A. Shear-thinning hydrogels for biomedical applications. Soft Matter 2012, 8, 260–272. [Google Scholar] [CrossRef]
  43. Rezende, R.A.; Bartolo, P.J.; Mendes, A.; Maciel, R. Rheological behavior of alginate solutions for biomanufacturing. J. Appl. Polym. Sci. 2009, 113, 3866–3871. [Google Scholar] [CrossRef]
  44. Khalil, S.; Sun, W. Bioprinting endothelial cells with alginate for 3D tissue constructs. J. Biomech. Eng. 2009, 131, 111002. [Google Scholar] [CrossRef] [PubMed]
  45. Boland, T.; Xu, T.; Damon, B.; Cui, X. Application of inkjet printing to tissue engineering. Biomater. Biotechnol. J. 2006, 1, 910–917. [Google Scholar] [CrossRef] [PubMed]
  46. Guillotin, B.; Souquet, A.; Catros, S.; Duocastella, M.; Pippenger, B.; Bellance, S.; Bareille, R.; Remy, M.; Bordenave, L.; Amedee, J.; et al. Laser assisted bioprinting of engineered tissue with high cell density and microscale organization. Biomaterials 2010, 31, 7250–7256. [Google Scholar] [CrossRef] [PubMed]
  47. Yin, J.; Yan, M.; Wang, Y.; Fu, J.; Suo, H. 3D Bioprinting of low-concentration cell-laden gelatin methacrylate (GelMA) bioinks with a two-step cross-linking strategy. ACS Appl. Mater. Interfaces 2018, 10, 6849–6857. [Google Scholar] [CrossRef] [PubMed]
  48. Jia, W.; Gungor-Ozkerim, P.S.; Zhang, Y.S.; Yue, K.; Zhu, K.; Liu, W.; Pi, Q.; Byambaa, B.; Dokmeci, M.R.; Shin, S.R. Direct 3D bioprinting of perfusable vascular constructs using a blend bioink. Biomaterials 2016, 106, 58–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Colosi, C.; Shin, S.R.; Manoharan, V.; Massa, S.; Costantini, M.; Barbetta, A.; Dokmeci, M.R.; Dentini, M.; Khademhosseini, A. Microfluidic bioprinting of heterogeneous 3D tissue constructs using low-viscosity bioink. Adv. Mater. 2016, 28, 677–684. [Google Scholar] [CrossRef] [PubMed]
  50. Brown, G.C.; Lim, K.S.; Farrugia, B.L.; Hooper, G.J.; Woodfield, T.B. Covalent incorporation of heparin improves chondrogenesis in photocurable gelatinmethacryloyl hydrogels. Macromol. Biosci. 2017, 17, 1700158. [Google Scholar] [CrossRef] [PubMed]
  51. Cui, X.; Breitenkamp, K.; Finn, M.G.; Lotz, M.; D’Lima, D.D. Direct human cartilage repair using three-dimensional bioprinting technology. Tissue Eng. Part A 2012, 18, 1304. [Google Scholar] [CrossRef] [PubMed]
  52. Hockaday, L.A.; Kang, K.H.; Colangelo, N.W.; Cheung, P.Y.; Duan, B.; Malone, E.; Wu, J.L.; Girardi, N.; Bonassar, L.J.; Lipson, H.; et al. Rapid 3D printing of anatomically accurate and mechanically heterogeneous aortic valve hydrogel scaffolds. Biofabrication 2012, 4, 035005. [Google Scholar] [CrossRef] [PubMed]
  53. Skardal, A.; Zhang, J.; McCoard, L.; Xu, X.; Oottamasathien, S.; Prestwich, G.D. Photocrosslinkable hyaluronan-gelatin hydrogels for two-step bioprinting. Tissue Eng. Part A 2010, 16, 2675–2685. [Google Scholar] [CrossRef] [PubMed]
  54. Schuurman, W.; Levett, P.A.; Pot, M.W.; van Weeren, P.R.; Dhert, W.J.A.; Hutmacher, D.W.; Melchels, F.P.W.; Klein, T.J.; Malda, J. Gelatin-methacrylamide hydrogels as potential biomaterials for fabrication of tissue-engineered cartilage constructs. Macromol. Biosci. 2013, 13, 551–561. [Google Scholar] [CrossRef] [PubMed]
  55. Pescosolido, L.; Schuurman, W.; Malda, J.; Matricardi, P.; Alhaique, F.; Coviello, T.; van Weeren, P.R.; Dhert, W.J.; Hennink, W.E.; Vermonden, T. Hyaluronic acid and dextran-based semi-IPN hydrogels as biomaterials for bioprinting. Biomacromolecules 2011, 12, 1831–1838. [Google Scholar] [CrossRef] [PubMed]
  56. Skardal, A.; Zhang, J.; Prestwich, G.D. Bioprinting vessel-like constructs using hyaluronan hydrogels crosslinked with tetrahedral polyethylene glycol tetracrylates. Biomaterials 2010, 31, 6173–6181. [Google Scholar] [CrossRef] [PubMed]
  57. Law, N.; Doney, B.; Glover, H.; Qin, Y.; Aman, Z.M.; Sercombe, T.B.; Liew, L.J.; Dilley, R.J.; Doyle, B.J. Characterisation of hyaluronic acid methylcellulose hydrogels for 3D bioprinting. J. Mech. Behav. Biomed. Mater. 2018, 77, 389–399. [Google Scholar] [CrossRef] [PubMed]
  58. Suri, S.; Han, L.-H.; Zhang, W.; Singh, A.; Chen, S.; Schmidt, C.E. Solid freeform fabrication of designer scaffold of hyaluronic acid for nerve tissue engineering. Biomed. Microdevices 2011, 13, 983–993. [Google Scholar] [CrossRef] [PubMed]
  59. Censi, R.; Schuurman, W.; Malda, J.; di Dato, G.; Burgisser, P.E.; Dhert, W.J.A.; van Nostrum, C.F.; di Martino, P.; Vermonden, T.; Hennink, W.E. A printable photopolymerizable thermosensitive p(HPMAm-lactate)-PEG hydrogel for tissue engineering. Adv. Funct. Mater. 2011, 21, 1833–1842. [Google Scholar] [CrossRef]
  60. Lee, S.-J.; Nowicki, M.; Harris, B.; Zhang, L.G. Fabrication of a highly aligned neural scaffold via a table top stereolithography 3D printing and electrospinning. Tissue Eng. Part A 2017, 23, 491–502. [Google Scholar] [CrossRef] [PubMed]
  61. Hsieh, F.-Y.; Lin, H.-H.; Hsu, S.-H. 3D bioprinting of neural stem cell-laden thermoresponsive biodegradable polyurethane hydrogel and potential in central nervous system repair. Biomaterials 2015, 71, 48–57. [Google Scholar] [CrossRef] [PubMed]
  62. Jones, S.; Eisenberg, H.M.; Jia, X. Advances and future applications of augmented peripheral nerve Regeneration. Int. J. Mol. Sci. 2016, 17, 1494. [Google Scholar] [CrossRef] [PubMed]
  63. Mobini, S.; Spearman, B.S.; Lacko, C.S.; Schmidt, C.E. Recent advances in strategies for peripheral nerve tissue engineering. Curr. Opin. Biomed. Eng. 2017, 4, 134–142. [Google Scholar] [CrossRef]
  64. Johnson, B.N.; McAlpine, M.C. From print to patient: 3D-printed personalized nerve regeneration. Biochemist 2016, 38, 28–31. [Google Scholar]

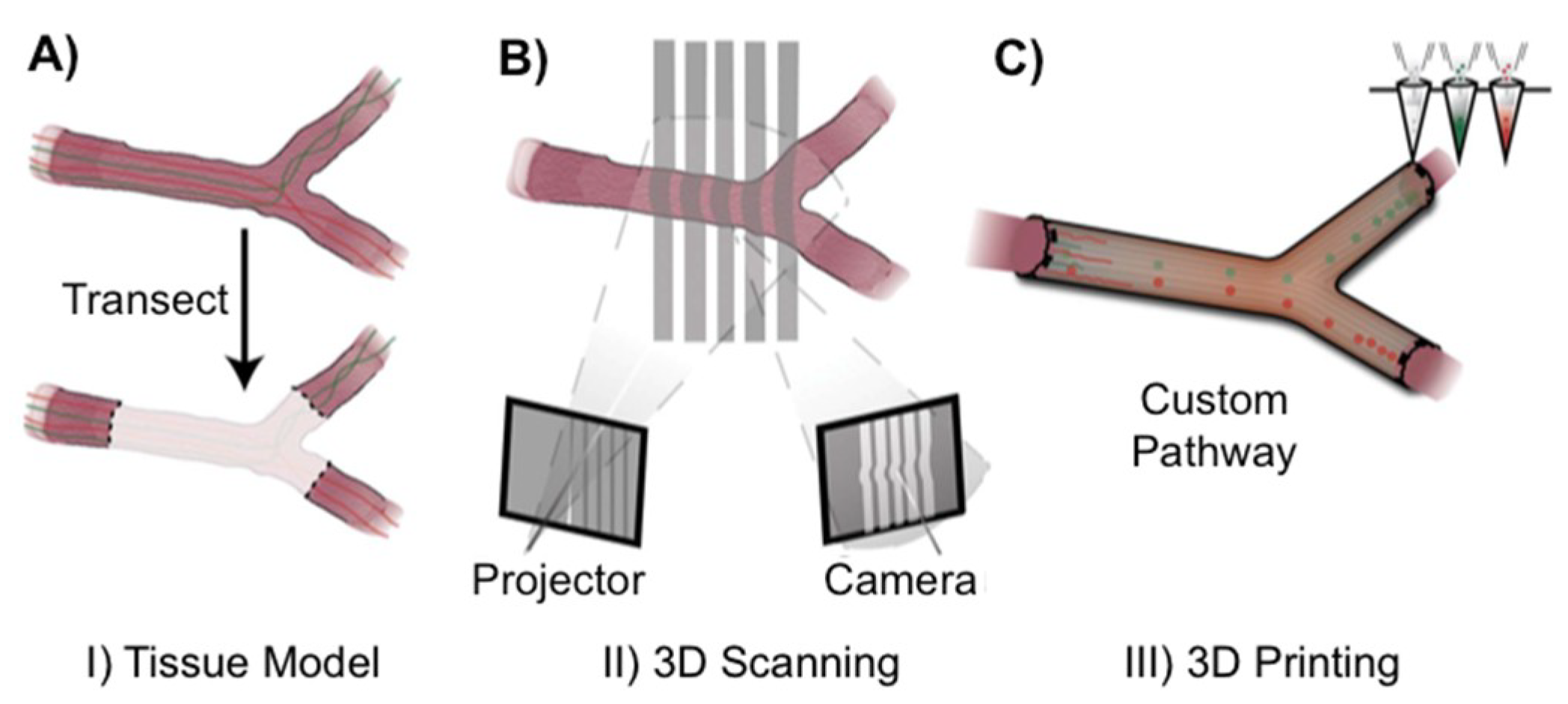

Figure 1. Schematic representation of 3D printing, (A) transection of complex nerve (B) Imaging of transected nerve (C) functionalization of the 3D printed model with physical cues, and path-specific biochemical cues. Adapted with permission from ref. [31]. Copyright 2015, Wiley-VCH.
Figure 1. Schematic representation of 3D printing, (A) transection of complex nerve (B) Imaging of transected nerve (C) functionalization of the 3D printed model with physical cues, and path-specific biochemical cues. Adapted with permission from ref. [31]. Copyright 2015, Wiley-VCH.
Polymers 10 01041 g001
Figure 2. (A) Schematic of implanted nerve guide showing bifurcation into sensory and motor nerve paths. (B) Photograph of an implanted 3D printed nerve guide prior to suturing. Adapted with permission from ref. [31]. Copyright 2015, Wiley-VCH.
Figure 2. (A) Schematic of implanted nerve guide showing bifurcation into sensory and motor nerve paths. (B) Photograph of an implanted 3D printed nerve guide prior to suturing. Adapted with permission from ref. [31]. Copyright 2015, Wiley-VCH.
Polymers 10 01041 g002
Figure 3. (A) Bio 3D conduit was implanted into the nerve defect, and the proximal and distal nerve stumps were secured 1.5 mm into the tube to create a 5-mm interstump gap in the conduit. (B) The silicone tube with 8 mm length was implanted in the same procedure. (C) Regenerated sciatic nerve eight weeks after surgery in the bio 3D group and (D) silicone tube. Scale bar in (C,D) = 5 mm. Adapted with permission from ref. [32]. Copyright 2017, Public Library of Science.
Figure 3. (A) Bio 3D conduit was implanted into the nerve defect, and the proximal and distal nerve stumps were secured 1.5 mm into the tube to create a 5-mm interstump gap in the conduit. (B) The silicone tube with 8 mm length was implanted in the same procedure. (C) Regenerated sciatic nerve eight weeks after surgery in the bio 3D group and (D) silicone tube. Scale bar in (C,D) = 5 mm. Adapted with permission from ref. [32]. Copyright 2017, Public Library of Science.
Polymers 10 01041 g003

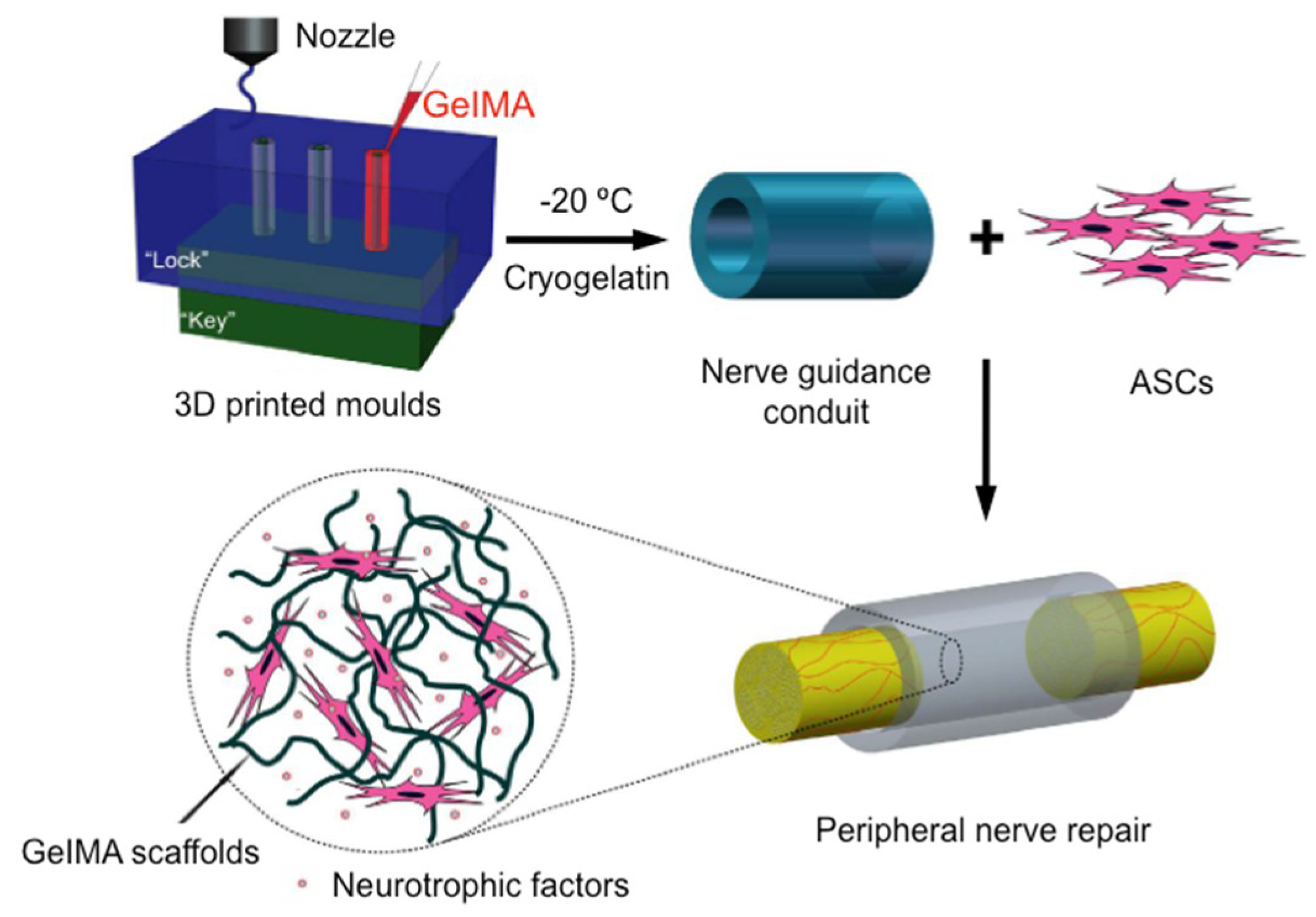

Figure 4. Schematic presentation of the 3D engineered bio-conduit for peripheral nerve regeneration. Adapted with permission from ref. [33]. Copyright 2016, Nature Publishing Group.
Figure 4. Schematic presentation of the 3D engineered bio-conduit for peripheral nerve regeneration. Adapted with permission from ref. [33]. Copyright 2016, Nature Publishing Group.
Polymers 10 01041 g004

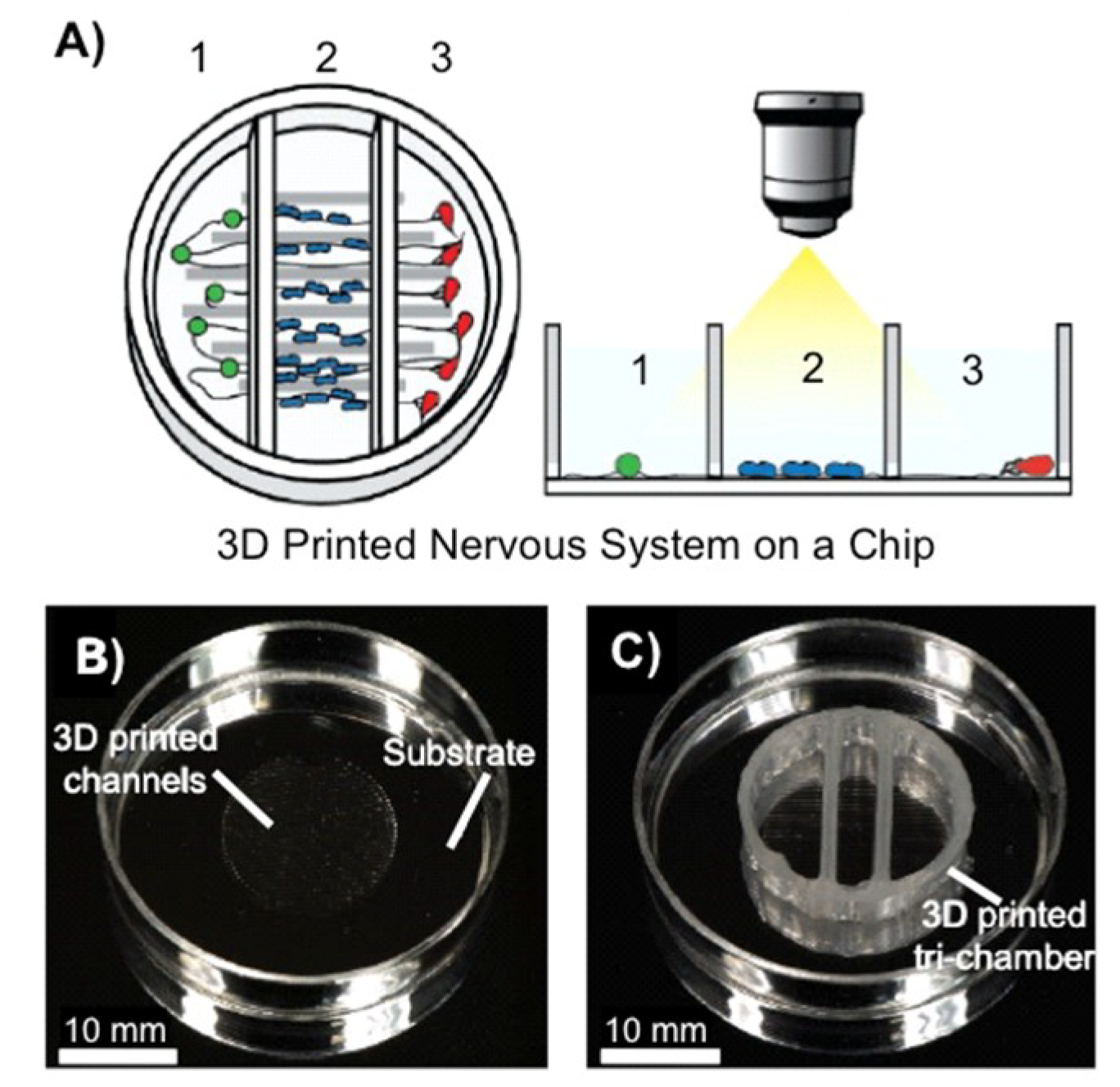

Figure 5. (A) Scheme of a representative 3DNSC for peripheral nervous system applications, showing (1) PNS neurons in chamber 1, (2) Schwann cells in chamber 2, and (3) terminal cell junctions in chamber 3. The Schwann cells and the terminal cells interact with the neurons and each other solely via the axonal network. (B) Circular pattern of 3D printed silicone microchannels for axonal guidance in the center of a plastic 35 mm dish. (C) A 3DNSC showing perpendicular assembly of microchannel and tri-chamber components. Adapted with permission from ref. [34]. Copyright 2016, The Royal Society of Chemistry.
Figure 5. (A) Scheme of a representative 3DNSC for peripheral nervous system applications, showing (1) PNS neurons in chamber 1, (2) Schwann cells in chamber 2, and (3) terminal cell junctions in chamber 3. The Schwann cells and the terminal cells interact with the neurons and each other solely via the axonal network. (B) Circular pattern of 3D printed silicone microchannels for axonal guidance in the center of a plastic 35 mm dish. (C) A 3DNSC showing perpendicular assembly of microchannel and tri-chamber components. Adapted with permission from ref. [34]. Copyright 2016, The Royal Society of Chemistry.
Polymers 10 01041 g005
Table 1. Properties of different hydrogels used in 3D bioprinting.
Table 1. Properties of different hydrogels used in 3D bioprinting.
HydrogelApplied Material
Oncentration (w/v)
Mechanical
Roperties a
Viscosity
(Pa/s)
Gelation
Method b
Bioprinting Technique cCell type
Density Cells/mL d
Cytocompatibility
/Biodegradability
Refs.
AlginateAlginate/Ca2+ 1%–3%/0.5%Elastic modulus
λ = 21.35 kPa
2.9 at a shear rate of 91 s−1ICInjectRHECs 500,00083%/yes[44,45]
Sodium alginate 1%-0.12 shear rate not reportedICLaser-assistedHUEVCs (Eahy926), 6 × 107 and Rabbit carcinoma cells (B16) 4 × 107High, day 1/-[46]
GelatinMethacrylate GelMA/gelatin 5%/8%Young’s modulus Y = 4.85 ± 0.41 kPa10−100 at a shear rate of 1–500 s−1PCEBBMSCs 5.0 × 106<90%/yes[47]
GelMA/alginate/4-arm PEGTA 5%–7%/1%–3%/1%–3%Compressive moduli = 24.2–50.7 kPa28−54 at a shear rate of 7.74 s−1
0.08 Pa s−1
PCInjectHUVECs MSCs
3 × 106
80%–90%, day 7/yes[48]
GelMA/alginate/Ca2+
4.5%/1%–4%/0.3–0.6 M
λ = 15 – 55 kPa0.08 shear rate not reportedPC/ICEBHUVECs-75%, day 5/-[49]
GelMA/GelSH & heparin 10%/1%Compressive moduli = 1 ± 2 kPa-Thiol-ene-Human articular chondrocytes
15 × 106
74%–86%, week 5/-[50]
Poly
(ethylene glycol)
Dimethacrylate 10%; 20%Compressive moduli = 395.73 ± 80.40 kPa-PCInjectHuman articular chondrocytes
5 × 106
89%, day 1/-[51]
Diacrylate/alginate 20%/12.5%λ = 5.3 ± 0.9 to 74.6 ± 1.5 kPa-PCEBPAVIC 20 × 106ca. 100%, day 21/-[52]
Hyaluron-ic acid
(HA)
Methacrylate (HA-MA)/GelMA 1.5%/-Storage modulus
G′ = 80–90 Pa
Loss modulus
G″ = 40 Pa
-PCInjectHepG2 C3A
Int-407
NIH 3T3
2.5 × 105
Cell proliferation
p < 0.05/yes
[53]
Gelatin-methacrylamide/HA 20%/2.4%Compressive modulus = 7995 kPa-PCInjectChondrocytes
5 × 106
82% ± 8%, day 3/yes[54]
HA/hydroxyethyl-methacrylate derivatized-dextran (dex-HEMA) 2%–6%/10%G′ = 10 kPa70 at a shear rate of 0.1 s−1 and >10 at a shear rate <10 s−1 for 2% HA and 10% DexHEMAPCEBChondrocytes-75%±19%, day 3/yes[55]
PEG-tetraacrylate/yaluronic acid
3%–5%/1.5%–2.5%
G′ = 100–800 Pa-Michael additionMicrocapillary tube-style printingNIH 3T3; HepG2 C3A; Int 407
25 × 106
ca. 100%, week 4/yes[56]
HA/methyl cellulose
0.25%–2.0%/0.5%–9%
G′ = 10–1000 Pa-ThermalEBMSCs-75%, day 15/-[57]
Hyaluronic acid hydrogels grafted with laminin---PCPhotopatterned layer-by-layerSchwann cells-Cells retained at 36 h/yes (enzymatically)[58]
p(HPMAm-lac)-PEG-p(HPMAm-lac)25%–35%λ = 119 kPa-Thermal/PCEBChondrocytes
5.0 × 106
94%, day 1/yes[59]
Polycaprolactone
(PCL)
PCL with gelatin/PEGDA-Y = 1.43 ± 0.33 mPa-PCStereolithography and electrospinningNE-4C NSCs -Enhancement in cell proliferation,
day 5/-
[60]
PolyurethanePolyurethane with PCL 25%–30%G′ = 680–4000 Pa-Supramolecular (hydrogen bonding)Fused-deposition manufacturingNSCs 4 × 106 ca. 100%, day 3/yes[61]
a Storage modulus = G′; loss modulus = G″; b Ionic crosslinking = IC; photocrosslinking = PC; c Extrusion-based = EB; d Rat heart endothelial cells = RHECS; bone marrow stem cells = BMSCs; human umbilical vein endothelial cells = HUVECs; human mesenchymal stem cells = MSCs; porcine aortic valve interstitial cells = PAVICs; human hepatoma cells = HepG2 C3A; human intestinal epithelial cells = Int-407; murine fibroblasts = NIH 3T3; neural stem cells = NSCs.
