Open AccessArticle
Polymers 2018, 10(7), 725; https://doi.org/10.3390/polym10070725

Enhanced Performance of Inverted Non-Fullerene Organic Solar Cells by Using Metal Oxide Electron- and Hole-Selective Layers with Process Temperature ≤150 °C

1
State Key Discipline Laboratory of Wide Band Gap Semiconductor Technology, School of Microelectronics, Xidian University, 2 South Taibai Road, Xi’an 710071, China
2
School of Electronic Engineering and Automation, Guilin University of Electronic Technology, No. 1 Jinji Road, Guilin 541004, China
*
Author to whom correspondence should be addressed.
Received: 12 May 2018 / Revised: 30 May 2018 / Accepted: 31 May 2018 / Published: 2 July 2018
(This article belongs to the Special Issue Polymers for Energy Applications)
Full-Text   |   PDF [2378 KB, uploaded 2 July 2018]   |

Abstract

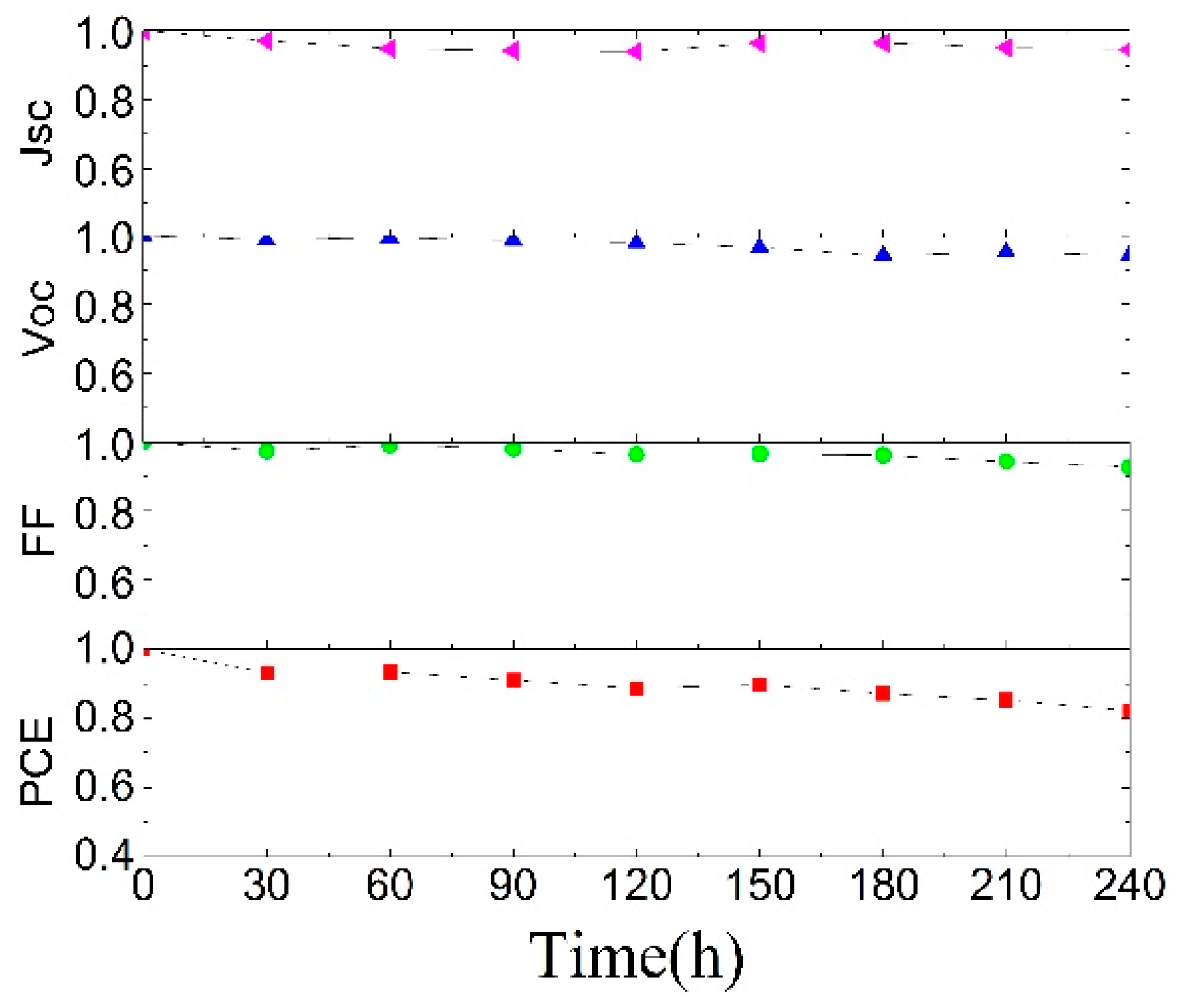

In this work, an efficient inverted organic solar cell (OSC) based on the non-fullerene PBDB-T:IT-M blend system is demonstrated by using an aqueous solution processed ZnO electron-selective layer with the whole process temperature ≤150 °C and a thermally evaporated MoO3 hole-selective layer The ZnO selective layer is deposited by aqueous solution and prepared in a low-temperature process, so that it can be compatible with the roll-to-roll process. The proposed device achieves an enhanced power conversion efficiency (PCE) of 9.33% compared with the device based on the high-temperature sol-gel-processed ZnO selective layer, which achieves a PCE of 8.62%. The inverted device also shows good stability, keeping more than 82% of its initial PCE after being stored under ambient air conditions and a humidity of around 40% without any encapsulation for 240 h. The results show the potential for the fabrication of efficient non-fullerene OSCs with low-temperature metal oxide selective layers. View Full-Text
Keywords: organic solar cells; non-fullerene acceptor; electron-selective layer; aqueous solution organic solar cells; non-fullerene acceptor; electron-selective layer; aqueous solution
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
