Optical Characterization of Cesium Lead Bromide Perovskites

1
Department of Industrial Engineering, University of Rome Tor Vergata, Via del Politecnico 1, 00133 Rome, Italy
2
Istituto di Struttura della Materia (ISM), Consiglio Nazionale delle Ricerche CNR, Via del Fosso del Cavaliere 100, 00133 Rome, Italy
3
Istituto per la Microelettronica e i Microsistemi (IMM), Consiglio Nazionale delle Ricerche CNR, Via del Fosso del Cavaliere 100, 00133 Rome, Italy
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(6), 280; https://doi.org/10.3390/cryst9060280
Received: 3 April 2019 / Revised: 23 May 2019 / Accepted: 25 May 2019 / Published: 28 May 2019
(This article belongs to the Section Crystalline Materials)

Abstract

:
CsPbBr3 and Cs4PbBr6 perovskite powders have been synthesized through a relatively simple low-temperature and low-cost method. Nanocrystalline films have also been deposited from solutions with four different molar compositions of binary salt precursors. Optical absorption, emission and excitation spectra have been performed in the UV-visible spectral range while X-ray diffraction (XRD) has been recorded to characterize the nanocrystal morphology for the different molar compositions. A preferential orientation of crystallites along the (024) crystalline plane has been observed as a function of the different deposition conditions in films growth. All the crystals show an absorption edge around 530 nm; Tauc plots of the absorption returned bandgaps ranging from 2.29 to 2.35 eV characteristic of CsPbBr3 phase. We attribute the UV absorption band peaked at 324 nm to the fundamental band-to-band transition for Cs4PbBr6. It was observed that the samples with the most ordered Cs4PbBr6 crystals exhibited the most intense emission of light, with a bright green emission at 520 nm, which are however due to the luminescence of the inclusion of CsPbBr3 nanoclusters into the Cs4PbBr6. The latter shows instead an intense UV emission. Differently, the pure CsPbBr3 powder did not show any intense fluorescent emission. The excitation spectra of the green fluorescent emission in all samples closely resemble the CsPbBr3 absorption with the peculiar dip around 324 nm as expected from density of state calculations reported in the literature.

1. Introduction

Calcium titanium oxide mineral (CaTiO3) was the first crystal to be named perovskite. Then its name has been extended to a class of compounds which have the same type of crystal structure, known as the perovskite structure. Many different cations can be embedded in this structure, allowing the development of diverse engineered materials.
Metal halide perovskites, with the chemical formula AnBX(2+n), where A and B are respectively the monovalent and divalent (Pb, Sn) cations and X is a monovalent anion (Cl, Br, I), are a large family of materials with a wide range of compositional and structural flexibilities [1].
Perovskites are typically divided into two main categories depending on the chemical component of the cation A. When A is an organic cation (e.g., the well-known methyl ammonium MA = CH3NH3+) and B an inorganic one, the perovskite is considered as hybrid organic–inorganic. On the contrary, if A is inorganic (mostly Cs+) the perovskite is all-inorganic.
Hybrid organic–inorganic metal halides (HOIMHs) have been extensively investigated for a wide range of applications, such as photovoltaics [2,3,4,5,6,7], light emitting diodes (LED) or lasers [8,9,10,11,12,13], radiation detection [14], and down-converting phosphors [15,16,17]. Interesting carrier transport properties have been observed in Pb- and Sn-based 3D halide perovskites [18,19]. HOIMHs, like MAPbI3, have been broadly studied as solar absorber materials in photovoltaic cells [20].
Distinct crystalline forms with the general formula AnBX2+n give rise to an extended perovskite family [21]. They differ in the spatial coordination of the metal-halide octahedra XBr64- where the value of n determines the perovskite’s structural dimensionality expressing the coordination of octahedra: n = 1 characterizes three-dimensional (3D) perovskites with corner-shared octahedra along every axis, n = 4 identifies zero-dimensional (0D) perovskites with isolated octahedra, as shown in Figure 1a for cesium lead perovskites. Efficient photoluminescence is associated to the intrinsic geometric structures or the different network dimensionalities due to the occurrence of quantum confinement into the isolated octahedra of 0D-crystals [22]. The Frenkel excitons result self-trapped in correspondence of the octahedron centered on the Pb ions: the lower the perovskite structural dimensionality the higher the binding energy of the electron-hole couple. The 3D CsPbBr3 and the 0D Cs4PbBr6 structures show an exciton binding-energy of 19–62 meV and 353 meV, respectively [22]. The latter value leads to a dominant radiative recombination in correspondence of the lead ion sites, as shown by calculations based on density functional theory (DFT) [23,24]. The photoluminescence quantum yield (PLQY) is reported to differ considerably between the two structures from 0.1% (3D) to 45% (0D) [22,25]. The high PLQY of the 0D phase suggests the application of the inorganic perovskite to solid state optoelectronic devices such as LEDs or solar cells making critical a proper understanding of this perovskite. The origin of the green photoluminescence, however, has been subject of a large debate: Nikl et al. [26] were the first to suggest that unavoidable CsPbBr3 nanocrystal impurities in Cs4PbBr6 gives origins to the green photoluminescence. A recent article has yielded further convincing experimental evidence of the latter [27].
With our contribution, we aim to bring further evidence that the efficient green fluorescence comes from the CsPbBr3 nano-inclusions inside the Cs4PbBr6 matrix. The Cs4PbBr6 perovskite phase is not fluorescent in the visible range, but it shows a strong UV luminescence.

2. Materials and Methods

2.1. Synthesis of CsPbBr3 and Cs4PbBr6 Powders

An equimolar mixture of CsBr (0.25 M; 212 mg) and PbBr2 (0.25 M; 370 mg) was dissolved in 1 mL dimethyl sulfoxide (DMSO) at room temperature. DMSO is a good aprotic polar solvent commonly used to dissolve inorganic salts and small molecules. The mixture was stirred for 1 hour and heated at 120 °C for 3 hours with the result of the precipitation of Cs4PbBr6 grains together with undesired CsPbBr3 and CsPb2Br5 phases. In the absence of any washing, an orange powder was obtained largely composed of CsPbBr3. The precipitate was washed with DMSO, a procedure that was meant for removing the undesired phases and, due to the poor solubility of Cs4PbBr6, the washed powder (enriched with Cs4PbBr6) appeared with a brilliant green-yellow color and exhibited a bright and strong photoluminescence under UV light, in contrast with the starting (predominantly CsPbBr3) powder which appeared weakly or not fluorescent (Figure 1b). In both cases, the powders had been dried at 70 °C overnight in an evacuated oven.
The ternary diagram (Cs-Pb-Br) predicted the presence of both Cs4PbBr6 and CsPbBr3 crystalline phases for an equimolar ratio between the two precursors. However, the content of a certain phase can be determined, to some extent, by the synthesis procedure. Indeed, if the CsBr concentration is increased in the precursor solution, the formation of Cs4PbBr6 becomes dominant [9]. This phase is thermodynamically favored since the enthalpy of formation for the 0D phase (Cs4PbBr6) is lower than the 3D one (CsPbBr3) [28].
To this purpose we prepared precursor solutions in DMSO of mixed CsBr and PbBr2 salts with different molar ratios and deposited films on glass slides from such solutions.

2.2. Synthesis of Cs4PbBr6 Nanocrystal (NC) Films

CsBr and PbBr2 were dissolved at different relative molar ratios of 1:1, 2:1, 3:1 and 4:1 in order to control the final product composition. Since the CsBr is scarcely soluble in DMSO at high concentration, the two salts were initially dissolved in different solvents: aprotic DMSO for PbBr2 (0.1 M: 370 mg in 10 mL) and deionized water for CsBr (1M: respectively 212 mg, 424 mg, 636 mg and 848 mg in 1 mL). Then the CsBr/H2O solution was slowly poured into the PbBr2/DMSO solution and the mixture was stirred for 3 hours at RT. The solution was centrifuged at 5000 rpm for 10 min and a yellowish precipitate was separated from the supernatant. The precipitate in DMSO was spin-coated on 2 × 2 cm2 glass substrates to obtain nanocrystal (NC) films. The spin-coating procedure was performed in a glove box with inert nitrogen atmosphere and a spin velocity of 1000 rpm for 30 s. During the spinning, 100 µL of acetone were sprayed on the sample to favor a rapid nucleation of the crystallites due to its anti-solvent property with respect to the inorganic perovskites [9]. The films were finally annealed on a hot-plate to complete the solvent evaporation and to obtain the films at different molar ratios shown in Figure 2.

2.3. X-Ray Diffraction Measurements

X-ray diffraction measurements (XRD) were performed in reflection mode on a Panalytical Empyrean Diffractometer, using the kα fluorescence line of a Cu-anode emitting tube as X-ray source (40kV–40mA). Bragg Brentano configuration was used as incident optical pathway (1/4°–1/2° divergent slits) and a solid-state hybrid Pix’cel 3D detector, working in 1D linear mode, accomplished the detection. Samples were studied in the range 10° < 2θ < 50°.

2.4. Spectral Measurements

Absorption spectra were collected in the spectral interval 300–600 nm by means of a double beam Shimadzu UV-2500 equipped with a Xenon lamp and an integrating sphere for diffuse reflection measurements. The steady-state luminescence spectra were excited by the 458 nm line of an Ar+ laser with 0.014 W/mm2 and collected by a compact spectrophotometer (Flame, OceanOptics, Largo, FL, USA) [29]. A different set-up has been used for the time-resolved luminescence and to study the UV emission from the samples. For those measurements, different lines (in the 260–320 nm range) of an Optical Parametric Amplifier (OPA) have been used. The pulse length was about 50 fs and the repetition frequency 1 kHz. The luminescence was revealed with the spectrometer Halcyon of the Ultrafast Systems. The time resolved measurements were made with the time correlated single photon counting (TCSPC) method with an instrument response function (IRF) of 0.9 ns. The fluences were in the 0.1–100 μJ/cm2 range. The excitation spectra were recorded using a conventional 90° geometry on a dedicated laboratory setup equipped with a 200 W continuous Hg(Xe) discharge lamp (Oriel instruments, Stratford, CT, USA), an excitation 25-cm monochromator (Photon Technology International, Inc., Birmingham NJ, USA) and an emission 25-cm monochromator (Cornerstone 260, Stratford, CT, USA) equipped with specific excitation-rejection filters and a R3896 photomultiplier (Hamamatsu Photonics Corp., Bridgewater, NJ, USA) [30,31].

3. Results and Discussion

Microcrystal powders have been characterized by X-ray diffraction measurements in order to investigate the distribution of the different crystalline phases. Figure 3a shows the spectra of the samples obtained with the first synthesis (equimolar mixture) without any washing procedure (orange powder, Figure 1b). Figure 3b shows the spectra after washing with DMSO (yellow powder, Figure 1b).
The XRD patterns, cross-checked with powder diffraction databases, perfectly match the coexistence of three phases. The 3D CsPbBr3 phase is monoclinic with lattice constants a = 5.83 Å, b = 5.83 Å, and c = 5.89 Å (ICDD Nr 00-018-0364, [32] peaks are marked by a blue square). The 0D Cs4PbBr6 phase is rhombohedral with lattice constants a = 13.73 Å, b = 13.73 Å, and c = 17.32 Å (ICDD Nr 01-073-2478, [33] the reflections are labelled by a black square). A third 3D spurious phase CsPb2Br5 was also detected, corresponding to a tetragonal crystal system: a = 8.48 Å, b = 8.48 Å, and c = 15,25 Å (ICDD Nr 01-025-0211, [34] the peaks are highlighted by a green square).
According to the literature [8,35], the characteristic crystalline phase signatures attributed to 3D-CsPbBr3 and 0D-Cs4PbBr6 respectively, are present in the two samples: the first sample has a dominant contribution from the monoclinic 3D phase while the second one from the rhombohedral 0D phase with traces from the tetragonal one.
Subsequently, measurements were performed in the same experimental conditions on the films obtained from solutions at different molar ratios of CsBr:PbBr2 (4:1, 3:1, 2:1 and 1:1) to determine the effect of deposition on the crystallographic properties of the material and the effects of precursor molar ratio as shown in Figure 4.
Peaks at 2ϑ = 21.40°, 2ϑ = 30.60° and 2ϑ = 43.60° are clearly present in the 1:1 film, confirming the presence of the 3D CsPbBr3 perovskite dominant phase (see Figure 4a). Moreover, peaks at 2ϑ = 12.80°, 2ϑ = 30.20° and ϑ = 38.90° characterize the XRD spectra of the 3:1 film, leading to the attribution of the 0D-Cs4PbBr6 perovskite phase (see Figure 4b). Similar XRD spectra are obtained for films with exceeding CsBr precursor with respect to the PbBr2, i.e., 2:1 and 4:1 (see inset in Figure 4b).
All films presented polycrystalline texture, therefore all possible diffraction peaks relative to the structure were observed. In a perfectly powder-like material, i.e., completely anisotropic, the relative intensities of the different reflections are theoretically stated (for example the intensity of the diffraction peak relative to the (110) crystalline plane is expected to be 93% while that of the (024) one is 50%), while preferential orientation of crystallites can create a systematic variation in the diffraction peak intensities.
This specific effect was observed in the films as a function of the varied deposition conditions and was quantitatively analyzed studying the variation of the (024)/(110) reflections intensity ratio as a function of molar concentration ratio as shown in Figure 5. As visible, the thermodynamically favored (110) peak decreases at higher molar ratio values down to a minimum reached at a (3:1) ratio: a trend could be observed and correlated to a similar behavior of the fluorescence intensity, as will be discussed below.
Furthermore, the films grain size analysis was also performed, by means of the Scherrer formula:
D = K λ β C cos θ ,
with K being the Scherrer constant (0.89), λ the X-ray wavelength (0.15418 nm Kα Cu anode), β the average full width half maximum of the crystalline reflections and ϑ the scattering angle. Grain size was calculated for the differently composed films and the average size was found to be comparable in all samples: D = (80 ± 5) nm. The value of the grain size thus obtained is comparable to published results for this type of preparation of perovskite NCs [36].
The absorption spectra of the films prepared with different molar ratios are reported in Figure 6. Extended absorption in the UV spectral range (down to 280 nm) highlights interesting features of the optical behavior of this material. Two main absorption structures are recognized in the spectra of all the films: one in the UV and the other in the visible spectral range [9,24,37]. The structure which peaked at 324 nm corresponds to the band–band excitation for Cs4PbBr6 crystal as reported by direct measurements and density of state calculations [38]. The absorption in the visible region is characteristic of the CsPbBr3 with an absorption edge at wavelength below 550 nm. The inset in Figure 6 shows the Tauc plots for the absorption spectra which allow the determination of the absorption edges for the different samples. The data are reported in Table 1. The 1:1 film has an absorption edge at 2.29 eV (λ = 541 nm) while the others (3:1 and 4:1) at 2.35 eV (λ = 528 nm), in very good agreement with the values reported in the literature [25]. The 2:1 sample shows an absorption edge intermediate between the two.
The onset of the absorption at 2.35 eV is apparently in contrast with the 3.3 eV band gap [39] expected for the presence of Cs4PbBr6 phase (3:1 and 4:1 samples). However, it has been showed that CsPbBr3 inclusion in Cs4PbBr6 crystals, even at a very low weight ratio, can generate components in the visible absorption spectra in addition to the UV absorption band characteristic of the Cs4PbBr6 phase [40]. Therefore, the absorptions of both phases are present in the spectra of all samples with different contributions: the Cs4PbBr6 increases from 1:1 to 4:1 samples while the other decreases. The absorption edge of the CsPbBr3 phase moves from the bulk value 2.29 eV in the equimolar sample to 2.35 eV as a consequence of quantum confinement effects for the electronic excitation of CsPbBr3 nano-inclusions [37,41,42]. Tian and Scheblykin [43] have recently sounded a note of caution about the absorption measurements in this type of samples due to poor surface coverage, high optical density of individual crystals, and light scattering. Therefore, one should be cautious to draw too detailed and quantitative conclusions from the absorption measurements.
The photoluminescence spectra are shown in Figure 7. An intense green photoluminescence (PL) emission band is present with a peak at 520 nm for the excitation wavelength of 458 nm and a radiant flux of 14 mW/mm2. An increase of the emitted intensity was observed with the increase of the molar ratio of Cs/Pb precursors in accordance with the literature [36,43,44]. The trend observed for the fluorescence intensity with the increase of the CsBr content in the precursor solution is shown in the inset in Figure 7 and follows the increase of concentration of CsPbBr3 inclusions in the different samples. The 4:1 precursor molar ratio, which represents the right stoichiometry in order to obtain the Cs4PbBr6 phase, maximizes the formation of this phase at expenses of the other type and hence of the possibility of inclusions. That could explain the decrease of the intensity for 4:1 sample in agreement with the attribution of the green fluorescence to CsPbBr3 inclusions in the Cs4PbBr6.
Time correlated single photon counting (TCSPC) measurements have been performed in order to study the radiative decay originating the VIS-PL in the different samples. The radiative decay of the PL at 521 nm for excitation at 360 nm is shown in Figure 8; the results of a fit to a double exponential decay model have been reported in Table 2. The values do not significantly change within the excitation intensity range used. Similarly, no significant difference is observed for the different samples indicating that for all the samples the green luminescence has the same origin.
It is noteworthy that the fluorescence intensity trend clearly mirrors the variation of the (024)/(110) reflection intensity ratio in the XRD measurements (Figure 5), although the origin of such a correlation between crystalline rearrangement along a preferred plane (024) of the Cs4PbBr6 phase and fluorescence of CsPbBr3 nano-inclusions is not clear.
In order to clarify the role of the two different crystalline phases, we report in Figure 9 and Figure 10 the map of excitation for the fluorescence in the visible spectral range. On the left, the excitation spectrum of the 520 nm emission is reported for each sample. The related absorption spectra are reported for comparison. It clearly appears that, in correspondence of the UV absorption band, a strong reduction of the luminescence intensity occurs. This evidence demonstrates that Cs4PbBr6 phases do not directly produce visible luminescence. In order to correctly attribute the different spectral contributions, PL spectra have been generated by optical excitation with light having sufficient photon energy to excite both phases. The UV-PL spectra are shown in Figure 11 for sample 4:1. The strong UV fluorescence at 375 nm, which we attribute to the Cs4PbBr6 [26,39], turns on progressively as the excitation wavelength approaches the UV absorption peak at 320 nm; the ratios of the UV- to VIS-PL peak intensities resulted as being 10%, 45% and 165%, respectively, for 260 nm, 305 nm and 320 nm. The intensity of the visible PL as a function of the exciting wavelength (Figure 9 and Figure 10) reflects, with an inverse relationship, the light absorption by Cs4PbBr6 that becomes more and more important as the Cs4PbBr6 amount in the powder increases, as suggested by the less structured absorption band for high Cs4PbBr6 content and the ensuing decrease of relative importance of the absorption by the CsPbBr3. This feature suggests a shadowing of the CsPbBr3 inclusions by the surrounding Cs4PbBr6. However, the overall picture must also include a possible charge transfer between the two phases. To this scope we have performed the time-resolved measurements on the UV luminescence (not reported) showing that the UV luminescence lifetime is shorter than the IRF of our set-up. This result suggests the presence of some trapping into the CsPbBr3 of photoexcited carriers in the Cs4PbBr6, with a characteristic time shorter than the radiative recombination time, expected to be in the ns range.

4. Conclusions

The structural and optical properties of an inorganic metal halide perovskite (cesium lead bromide) as a function of the composition were investigated. The samples have been characterized by X-ray diffraction measurements in order to investigate the distribution of the different crystalline phases. The XRD patterns match the presence of three phases: a monoclinic CsPbBr3 phase associated with a spurious tetragonal CsPb2Br5 and rhombohedral Cs4PbBr6 phase. The former two structures were observed in the samples which had been deposited from equimolar Cs/Pb precursor solution while the latter in those from the precursor solutions with a cesium excess.
A preferential orientation of Cs4PbBr6 crystallites along the (024) crystalline plane has been observed as a function of the molar ratio of the Cs/Pb precursor salts. The degree of preferential orientation of the crystallites is mirrored in an increase in fluorescence intensity although the correlation between the two properties is not clear. The excitation spectra of the green fluorescence (520 nm) was recorded over an extended spectral range down to 280 nm. We observed a sharp reduction of the excitation efficiency in correspondence of the characteristic UV absorption band at 324 nm. The Cs4PbBr6 photoluminescence which peaked at 365 nm has been measured by optical excitation in correspondence of the UV absorption band. This allowed us to relate the UV absorption structure to the fundamental band–band transition of Cs4PbBr6.
Overall, the present study supports the hypothesis that the Cs4PbBr6 perovskite phase is not fluorescent in the visible range, but it shows a strong UV luminescence, while the efficient green fluorescence comes from the CsPbBr3 nano-inclusions inside the Cs4PbBr6 matrix.

Author Contributions

Supervision, F.D.M.; investigation, F.V., S.P., E.C., A.G., L.D.M., and J.S.P.C.; writing—review & editing, F.D.M., R.P., B.P., F.M. and P.P.; funding acquisition P.P.

Funding

This research was funded by Regione Lazio, through Progetto di ricerca 85-2017-15125, according to L.R.13/08.

Acknowledgments

The authors gratefully acknowledge V. Mirruzzo for diffuse absorption measurements at Choose Lab (Polo Solare Organico Regione Lazio) and Marco Guaragno (ISM-CNR) for his technical support with XRD experiments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Editorial. Perovskites keep on giving. Nat. Mater. 2018, 17, 371. [Google Scholar] [CrossRef] [PubMed]
  2. Green, M.A.; Ho-Baillie, A.; Snaith, H.J. The emergence of perovskite solar cells. Nature Phot. 2014, 8, 506–514. [Google Scholar] [CrossRef]
  3. Berry, J.; Buonassisi, T.; Egger, D.A.; Hodes, G.; Kronik, L.; Loo, Y.-L.; Lubomirsky, I.; Marder, S.R.; Mastai, Y.; Miller, J.S.; et al. Hybrid Organic-Inorganic Perovskites (HOIPs): Opportunities and Challenges. Adv. Mater. 2015, 27, 5102–5112. [Google Scholar] [CrossRef]
  4. Snaith, H.J. Present status and future prospects of perovskite photovoltaics. Nature Mater. 2018, 17, 372–376. [Google Scholar] [CrossRef]
  5. Paci, B.; Generosi, A.; Wright, J.; Ferrero, C.; Di Carlo, A.; Brunetti, F. Planar Perovskite Solar Cells: Local Structure and Stability Issues. Sol. RRL 2017, 1, 1700066. [Google Scholar] [CrossRef]
  6. Kakavelakis, G.; Paradisanos, I.; Paci, B.; Generosi, A.; Papachatzakis, M.; Maksudov, T.; Najafi, L.; Esaú Del Rio Castillo, A.; Kioseoglou, G.; Stratakis, E. Extending the Continuous Operating Lifetime of Perovskite Solar Cells with a Molybdenum Disulfide Hole Extraction Interlayer. Adv. Energy Mater. 2018, 8, 1702287. [Google Scholar] [CrossRef]
  7. Barettin, D.; Di Carlo, A.; De Angelis, R.; Casalboni, M.; Prosposito, P. Effect of dielectric Bragg grating nanostructuring on dye sensitized solar cells. Opt. Expr. 2012, 20, A888–A897. [Google Scholar] [CrossRef]
  8. Yantara, N.; Bhaumik, S.; Yan, F.; Sabba, D.; Dewi, H.A.; Mathwes, N.; Boix, P.P.; Demir, H.V.; Mhaisalkar, S. Inorganic Halide Perovskites for Efficient Light-Emitting Diodes. J. Phys. Chem. Lett. 2015, 6, 4360–4364. [Google Scholar] [CrossRef]
  9. Xu, J.; Huang, W.; Li, P.; Onken, D.R.; Dun, C.; Guo, Y.; Ucer, K.B.; Lu, C.; Wang, H.; Geyer, S.M.; et al. Imbedded Nanocrystals of CsPbBr3 in Cs4PbBr6: Kinetics, Enhanced Oscillator Strength, and Application in Light-Emitting Diodes. Adv. Mater. 2017, 29, 1703703. [Google Scholar] [CrossRef]
  10. Chakraborty, A.; Pizzoferrato, R.; Agresti, A.; De Matteis, F.; Orsini, A.; Medaglia, P.G. Wet-chemical synthesis of ZnO nanowires on low temperature photo-activated ZnO-rGO composite thin film with enhanced photoconduction. J. Electr. Mater. 2018, 10, 5863–5869. [Google Scholar] [CrossRef]
  11. Veldhuis, S.A.; Boix, P.P.; Yantara, N.; Li, M.; Sum, T.C.; Mathews, N.; Mhaisalkar, S.G. Perovskite Materials for Light-Emitting Diodes and Lasers. Adv. Mater. 2016, 28, 6804–6834. [Google Scholar] [CrossRef]
  12. Suzuki, H.; Ogura, K.; Matsumoto, N.; Schutzmann, S. Polymethine Dyes as Novel Efficient Infrared Electroluminescence Materials. Mol. Cryst. Liq. Cryst. 2006, 444, 51–59. [Google Scholar] [CrossRef]
  13. Lamastra, F.R.; De Angelis, R.; Antonucci, A.; Salvatori, D.; Prosposito, P.; Casalboni, M.; Congestri, R.; Melino, S.; Nanni, F. Polymer composite random lasers based on frustules as scatterers. RSC Adv. 2014, 4, 61809–61816. [Google Scholar] [CrossRef]
  14. Wei, H.; Fang, Y.; Mulligan, P.; Chuirazzi, W.; Fang, H.-H.; Wang, C.; Ecker, B.R.; Gao, Y.; Loi, M.A.; Cao, L. Sensitive X-ray detectors made of methylammonium lead tribromide perovskite single crystals. Nat. Photonics 2016, 10, 333–339. [Google Scholar] [CrossRef]
  15. Dohner, E.R.; Hoke, E.T.; Karunadasa, H.I. Self-Assembly of Broadband White-Light Emitters. J. Am. Chem. Soc. 2014, 136, 1718–1721. [Google Scholar] [CrossRef]
  16. Yuan, Z.; Zhou, C.; Tian, Y.; Shu, Y.; Messier, J.; Wang, J.C.; van de Burgt, L.J.; Kountouriotis, K.; Xin, Y.; Holt, E.; et al. One-dimensional organic lead halide perovskites with efficient bluish white-light emission. Nat. Commun. 2017, 8, 14051. [Google Scholar] [CrossRef]
  17. Zhou, C.; Lin, H.; Tian, Y.; Yuan, Z.; Clark, R.J.; Chen, B.; van de Burgt, B.; Wang, J.C.; Zhou, Y.; Hanson, K. Luminescent zero-dimensional organic metal halide hybrids with near-unity quantum efficiency. Chem. Sci. 2018, 9, 586–593. [Google Scholar] [CrossRef] [PubMed]
  18. Dong, Q.; Fang, Y.; Shao, Y.; Mulligan, P.; Qiu, J.; Cao, L.; Huang, J. Electron-hole diffusion lengths > 175 μm in solution-grown CH3NH3PbI3 single crystals. Science 2015, 347, 967–970. [Google Scholar] [CrossRef] [PubMed]
  19. Xing, G.; Mathews, N.; Sun, S.; Lim, S.S.; Lam, Y.M.; Graetzel, M.; Mhaisalkar, S.; Sum, T.C. Long-Range Balanced Electron- and Hole-Transport Lengths in Organic-Inorganic CH3NH3PbI3. Science 2013, 342, 344–347. [Google Scholar] [CrossRef] [PubMed]
  20. Zuo, C.; Bolink, H.J.; Han, H.; Huang, J.; Cahen, D.; Ding, L. Advances in Perovskite Solar Cells. Adv. Sci. 2016, 3, 1500324. [Google Scholar] [CrossRef]
  21. Han, D.; Shi, H.; Ming, W.; Zhou, C.; Ma, B.; Saparov, B.; Ma, Y.Z.; Chen, S.; Du, M.H. Unraveling luminescence mechanisms in zero-dimensional halide perovskites. J. Mater. Chem. C 2018, 6, 6398. [Google Scholar] [CrossRef]
  22. Saidaminov, M.I.; Almutlaq, J.; Sarmah, S.; Dursun, I.; Zhumekenov, A.A.; Begum, R.; Pan, J.; Cho, N.; Mohammed, O.F.; Bakr, O.M. Pure Cs4PbBr6: Highly Luminescent Zero-Dimensional Perovskite Solids. ACS Energy Lett. 2016, 1, 840–845. [Google Scholar] [CrossRef]
  23. De Bastiani, M.; Dursun, I.; Zhang, Y.; Alshankiti, B.A.; Miao, X.H.; Yin, J.; Yengel, E.; Alarousu, E.; Turedi, B.; Almutlaq, J.M.; et al. Inside Perovskites: Quantum Luminescence from Bulk Cs4PbBr6 Single Crystals. Chem. Mater. 2017, 29, 7108. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Saidaminov, M.I.; Dursun, I.; Yang, H.; Alarousu, B.E.; Yengel, E.; Alshankiti, B.A.; Bakr, O.M.; Mohammed, O.F. Zero-dimensional Cs4PbBr6 Perovskite Nanocrystals. J. Phys. Chem. Lett. 2017, 8, 961–965. [Google Scholar] [CrossRef]
  25. Cha, J.-H.; Han, J.; Yin, W.; Park, C.; Park, Y.; Ahn, T.K.; Cho, J.H.; Jung, D.-Y. Photoresponse of CsPbBr3 and Cs4PbBr6 Perovskite Single Crystals. J. Phys. Chem. Lett. 2017, 8, 565–570. [Google Scholar] [CrossRef]
  26. Nikl, M.; Mihokova, E.; Nitsch, K.; Somma, F.; Giampaolo, C.; Pazzi, G.P.; Fabeni, P.; Zazubovich, S. Photoluminescence of Cs PbBr crystals and thin films. Chem. Phys. Lett. 1999, 306, 280–284. [Google Scholar] [CrossRef]
  27. Riesen, N.; Lockrey, M.N.; Badek, K.; Riesen, H. On the origins of the green luminescence in the “zero-dimensional perovskite” Cs4PbBr6: Conclusive results from cathodoluminescence imaging. Nanoscale 2019, 11, 3925–3932. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, X.; Zhang, F.; Ge, Y.; Shi, L.; Huang, S.; Tang, J.; Lv, Z.; Zhang, L.; Zou, B.; Zhong, H. Centimeter-Sized Cs4PbBr6 Crystals with Embedded CsPbBr3 Nanocrystals Showing Superior Photoluminescence: Nonstoichimetry Induced Transformation and Light-Emitting Applications. Adv. Funct. Mater. 2018, 28, 1706567. [Google Scholar] [CrossRef]
  29. Burratti, L.; De Matteis, F.; Casalboni, M.; Francini, R.; Pizzoferrato, R.; Prosposito, P. Polystyrene photonic crystals as optical sensors for volatile organic compounds. Mat. Chem. Phys. 2018, 212, 274–281. [Google Scholar] [CrossRef]
  30. Ciotta, E.; Paoloni, S.; Richetta, M.; Prosposito, P.; Tagliatesta, P.; Lorecchio, C.; Venditti, I.; Fratoddi, I.; Casciardi, S.; Pizzoferrato, R. Sensitivity to Heavy-Metal Ions of Unfolded Fullerene Quantum Dots. Sensors 2017, 17, 2614. [Google Scholar] [CrossRef]
  31. Ricci, A.; Chiarini, M.; Sterzo, C.L.; Pizzoferrato, R.; Paoloni, S. Synthesis and photophysical properties of poly (arylene ethynylene) small-molecules and polymers derivatized with leucine substituents. J. Photochem. Photobiol. A Chem. 2015, 298, 1–8. [Google Scholar] [CrossRef]
  32. Moller, C.K. The structure of perovskite-like caesium plumbo CsPbI3. Mat.-Fys. Medd. K. Dan. Vidensk. Selsk. 1959, 32, 1. [Google Scholar]
  33. Moller, C.K. Electrochemical investigation of the transition from tetragonal to cubic cæsium plumbo chloride. Mat.-Fys. Medd. K. Dan. Vidensk. Selsk. 1960, 32, 3. [Google Scholar]
  34. Cola, M.; Massarotti, V.; Riccardi, R.; Sinistri, C.Z. Binary Systems Formed by Lead Bromide with (Li, Na, K, Rb, Cs and Tl)Br: a DTA and Diffractometric Study. Naturforsch. A 1971, 26, 1328. [Google Scholar] [CrossRef]
  35. Rakita, Y.; Kedem, N.; Gupta, S.; Sadhanala, A.; Kalchenko, V.; Bohm, M.L.; Kulbak, M.; Friend, R.H.; Cahen, D.; Hodes, G. Low-Temperature Solution-Grown CsPbBr3 Single Crystals and Their Characterization. Cryst. Growth Des. 2016, 16, 5717–5725. [Google Scholar] [CrossRef]
  36. Shi, Z.; Li, Y.; Zhang, Y.; Chen, Y.; Li, X.; Wu, D.; Xu, T.; Shan, C.; Du, G. High-efficiency and air-stable perovskite quantum dots light-emitting diodes with all-inorganic heterostructure. Nano Lett. 2017, 17, 313–321. [Google Scholar] [CrossRef]
  37. Yang, L.; Li, D.; Wang, C.; Yao, W.; Wang, H.; Huang, K. Room-temperature synthesis of pure perovskite-related Cs4PbX6 nanocrystals and their ligand-mediated evolution into highly luminescent CsPbBr3 nanosheets. J. Nanopart. Res. 2017, 19, 258. [Google Scholar] [CrossRef]
  38. Akkerman, Q.A.; Radicchi, E.; Park, S.; Nunzi, F.; Mosconi, E.; De Angelis, F.; Brescia, R.; Rastogi, P.; Prato, M.; Manna, L. Nearly Monodisperse Insulator Cs4PbX6 (X = Cl, Br, I) Nanocrystals, Their Mixed Halide Compositions, and Their Transformation into CsPbX3 Nanocrystals. Nano Lett. 2017, 17, 1924–1930. [Google Scholar] [CrossRef] [PubMed]
  39. Babin, V.; Fabeni, P.; Mihokova, E.; Nikl, M.; Pazzi, G.P.; Zazubovich, N.; Zazubovich, S. Luminescence of Cs4PbBr6 aggregates in As-grown and in annealed CsBr:Pb single crystals. Phys. Status Solidi B 2000, 219, 205–214. [Google Scholar] [CrossRef]
  40. Chen, Y.-M.; Zhou, Y.; Zhao, Q.; Zhang, J.-Y.; Ma, J.-P.; Xuan, T.-T.; Guo, S.-Q.; Yong, Z.-J.; Wang, J.; Kuroiwa, Y.; et al. Cs4PbBr6/CsPbBr3 Perovskite Composites with Near-Unity Luminescence Quantum Yield: Large-Scale Synthesis, Luminescence and Formation Mechanism, and White Light-Emitting Diode Application. ACS Appl. Mater. Interfaces 2018, 10, 15905–15912. [Google Scholar] [CrossRef] [PubMed]
  41. Quan, L.N.; Quintero-Bermudez, R.; Voznyy, O.; Walters, G.; Jain, A.; Fan, J.Z.; Zheng, X.; Yang, Z.; Sargent, E.H. Highly Emissive Green Perovskite Nanocrystals in a Solid State Crystalline Matrix. Adv. Mater. 2017, 29, 1605945. [Google Scholar] [CrossRef]
  42. De Angelis, R.; Casalboni, M.; De Matteis, F.; Hatami, F.; Masselink, W.T.; Zhang, H.; Prosposito, P. Chemical sensitivity of InP/In0.48Ga0.52P surface quantum dots studied by time-resolved photoluminescence spectroscopy. J. Lumin. 2015, 168, 54–58. [Google Scholar] [CrossRef]
  43. Tian, Y.; Scheblykin, I.G. Artifacts in Absorption Measurements of Organometal Halide Perovskite Materials: What Are the Real Spectra? J. Phys. Chem. Lett. 2015, 6, 3466–3470. [Google Scholar] [CrossRef][Green Version]
  44. Seth, S.; Samanta, A. Photoluminescence of Zero-Dimensional Perovskites and Perovskite-Related Materials. J. Phys. Chem. Lett. 2018, 9, 176–183. [Google Scholar] [CrossRef]

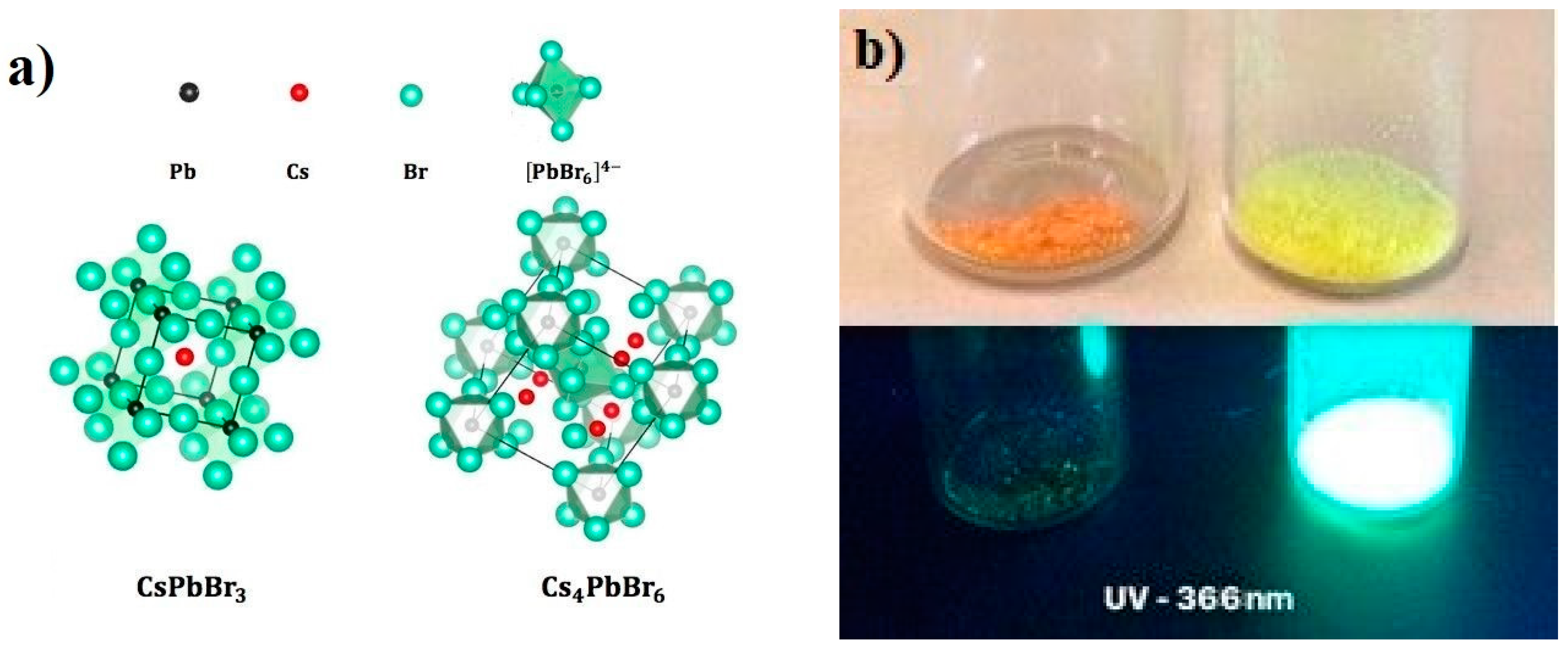

Figure 1. (a) Crystal structures of CsPbBr3, and Cs4PbBr6 perovskite; (b) photos of powders of Cs4PbBr6 orange crystals and DMSO washed Cs4PbBr6 yellow crystals with room light (top) and UV-A light (bottom).
Figure 1. (a) Crystal structures of CsPbBr3, and Cs4PbBr6 perovskite; (b) photos of powders of Cs4PbBr6 orange crystals and DMSO washed Cs4PbBr6 yellow crystals with room light (top) and UV-A light (bottom).
Crystals 09 00280 g001

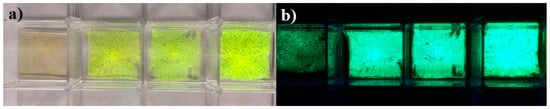

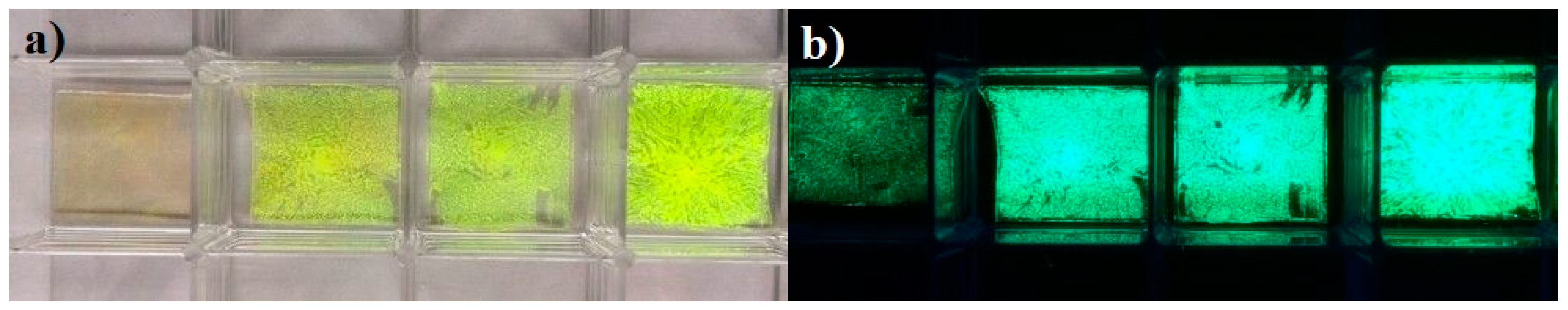

Figure 2. (a) Films of perovskite nanocrystals (NCs) with precursor molar ratios, respectively, from the left 1:1, 2:1, 3:1 and 4:1 under room light; (b) the same under UV-A illumination (broad band 366 nm).
Figure 2. (a) Films of perovskite nanocrystals (NCs) with precursor molar ratios, respectively, from the left 1:1, 2:1, 3:1 and 4:1 under room light; (b) the same under UV-A illumination (broad band 366 nm).
Crystals 09 00280 g002

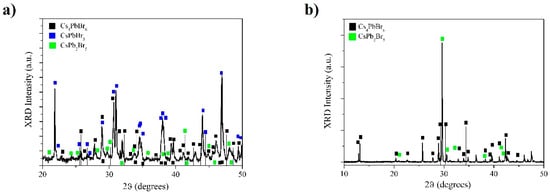

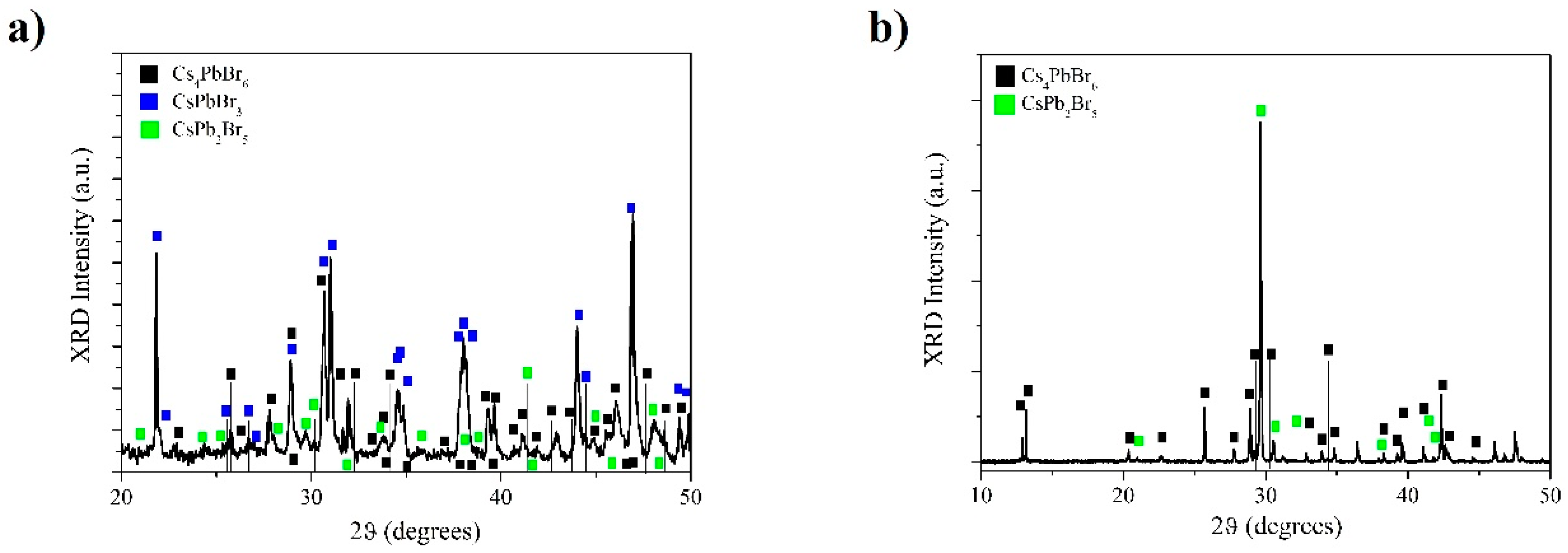

Figure 3. XRD spectra of perovskite: (a) unwashed powder; (b) powder washed with DMSO.
Figure 3. XRD spectra of perovskite: (a) unwashed powder; (b) powder washed with DMSO.
Crystals 09 00280 g003

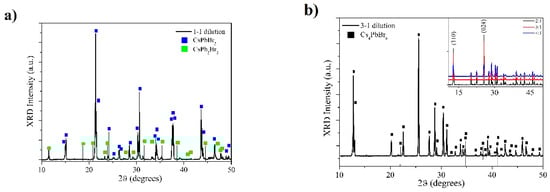

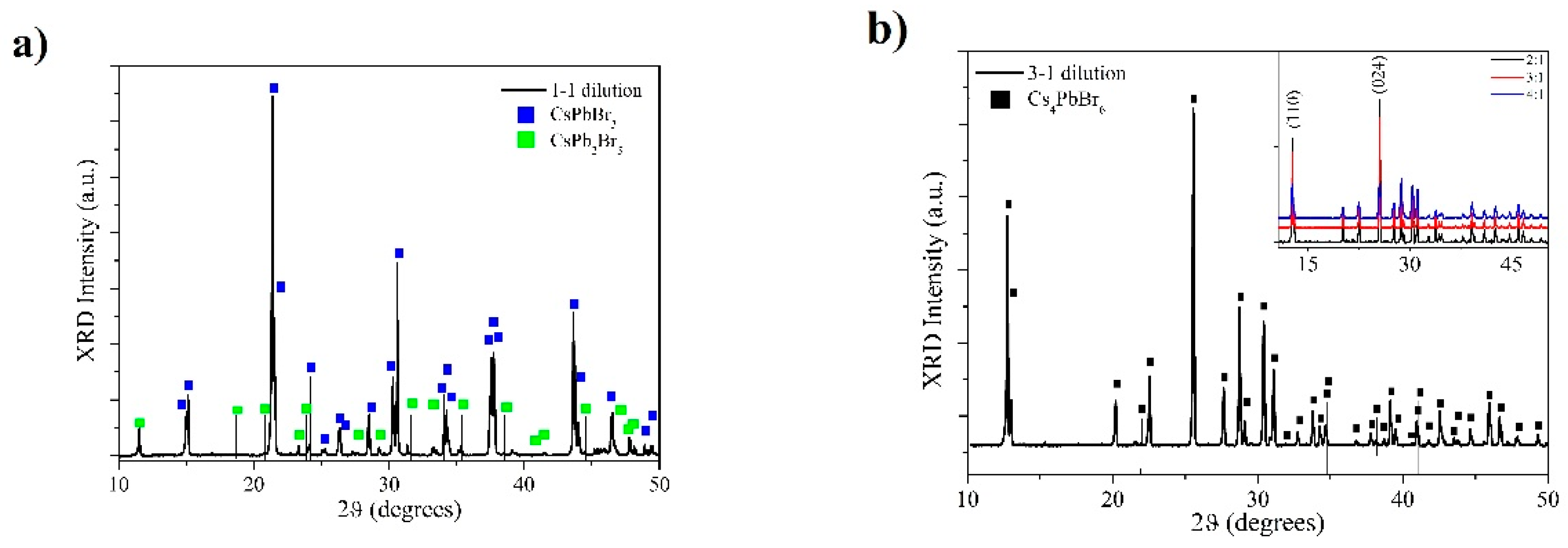

Figure 4. XRD spectra of perovskite films obtained from (a) 1:1 and (b) 3:1 precursor solution. In the inset of figure (b), patterns collected from films at different molar ratios are shown.
Figure 4. XRD spectra of perovskite films obtained from (a) 1:1 and (b) 3:1 precursor solution. In the inset of figure (b), patterns collected from films at different molar ratios are shown.
Crystals 09 00280 g004

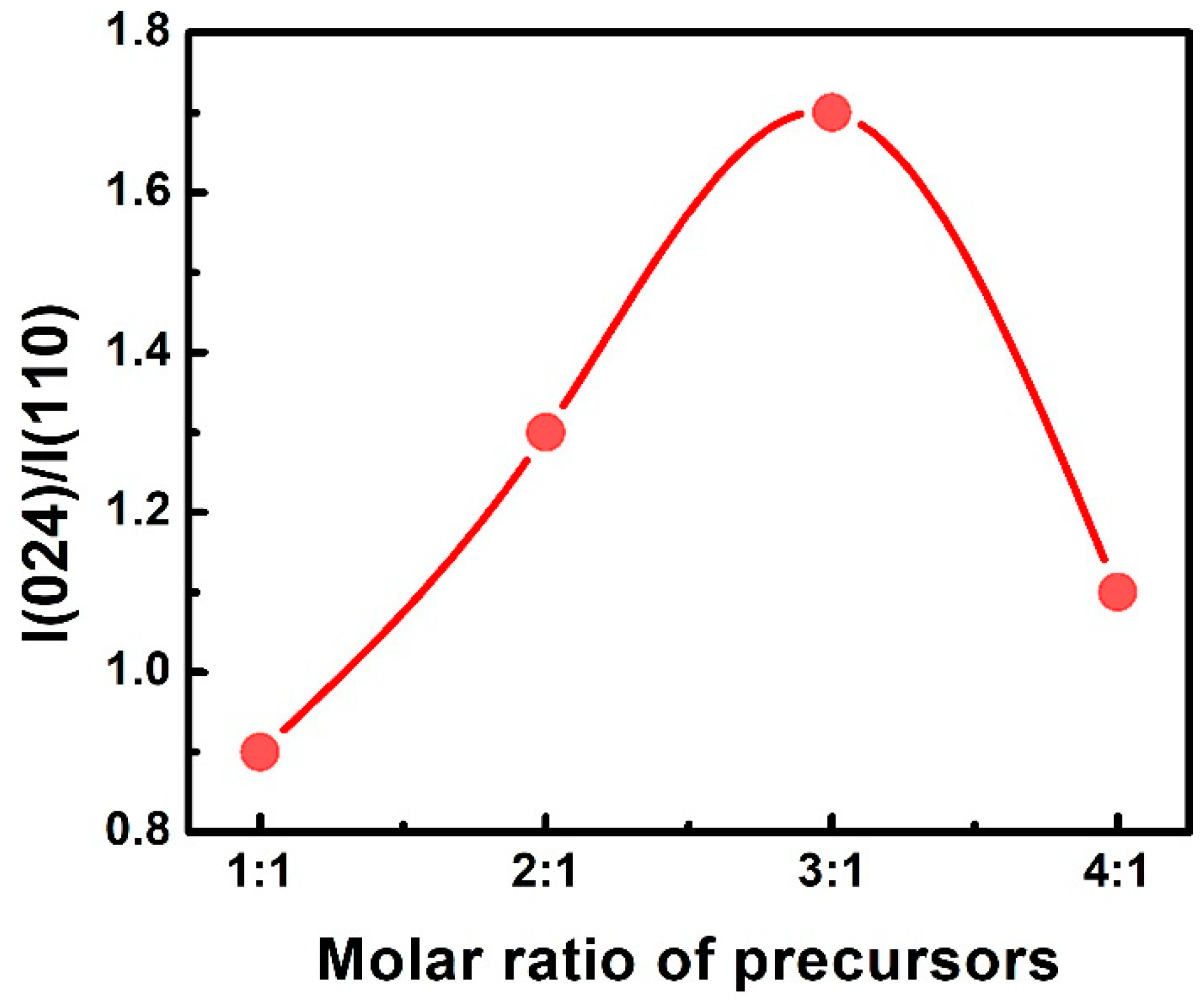

Figure 5. Intensity ratio of the (024) reflection vs. the (110) reflection as a function of different film concentrations. A trend of the structural rearrangement can be observed occurring as a function of the relative concentration parameter.
Figure 5. Intensity ratio of the (024) reflection vs. the (110) reflection as a function of different film concentrations. A trend of the structural rearrangement can be observed occurring as a function of the relative concentration parameter.
Crystals 09 00280 g005

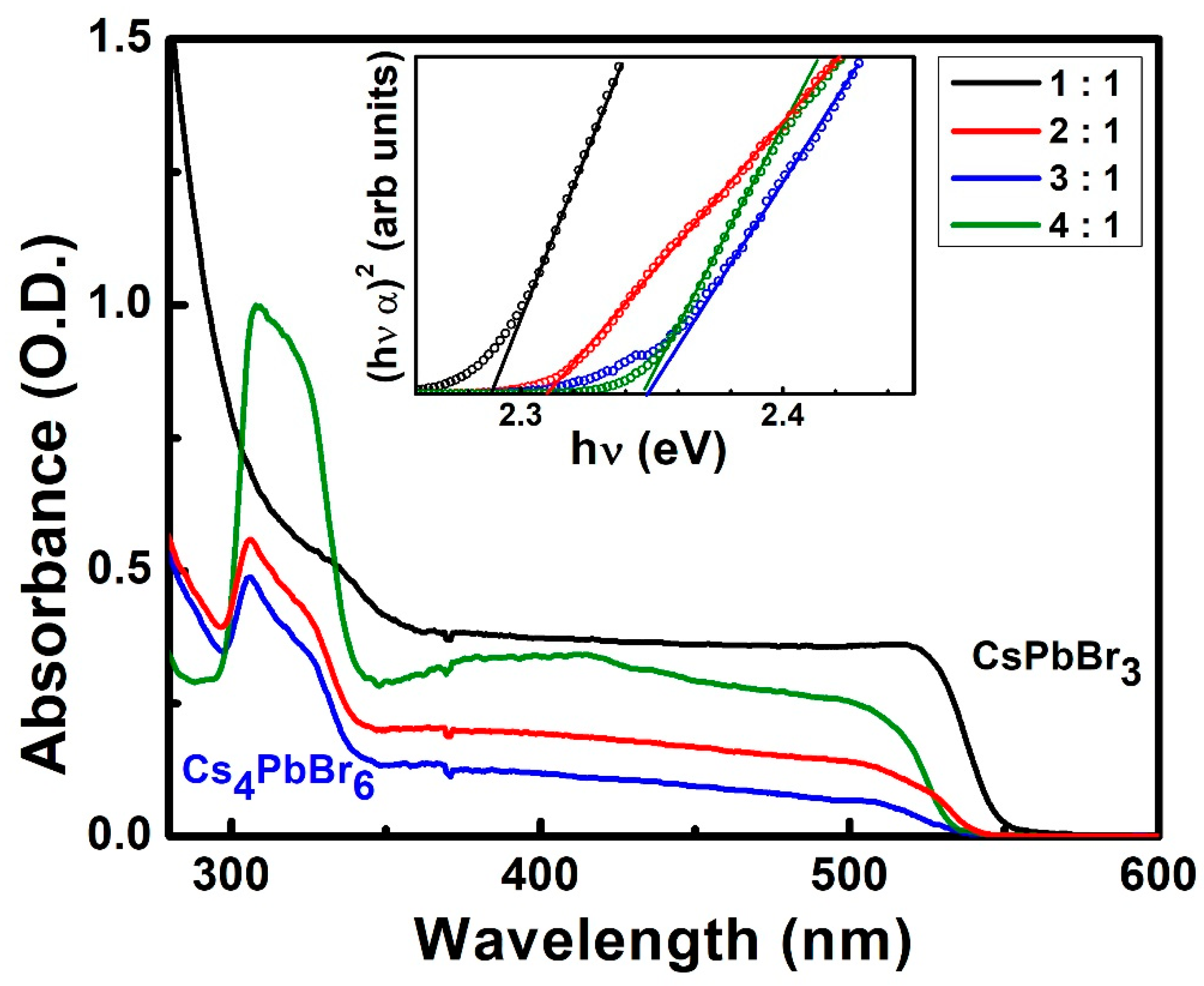

Figure 6. Absorption spectra of the films with different molar ratios of precursors indicated in the label. The inset reports the Tauc plots for the determination of the absorption edge.
Figure 6. Absorption spectra of the films with different molar ratios of precursors indicated in the label. The inset reports the Tauc plots for the determination of the absorption edge.
Crystals 09 00280 g006

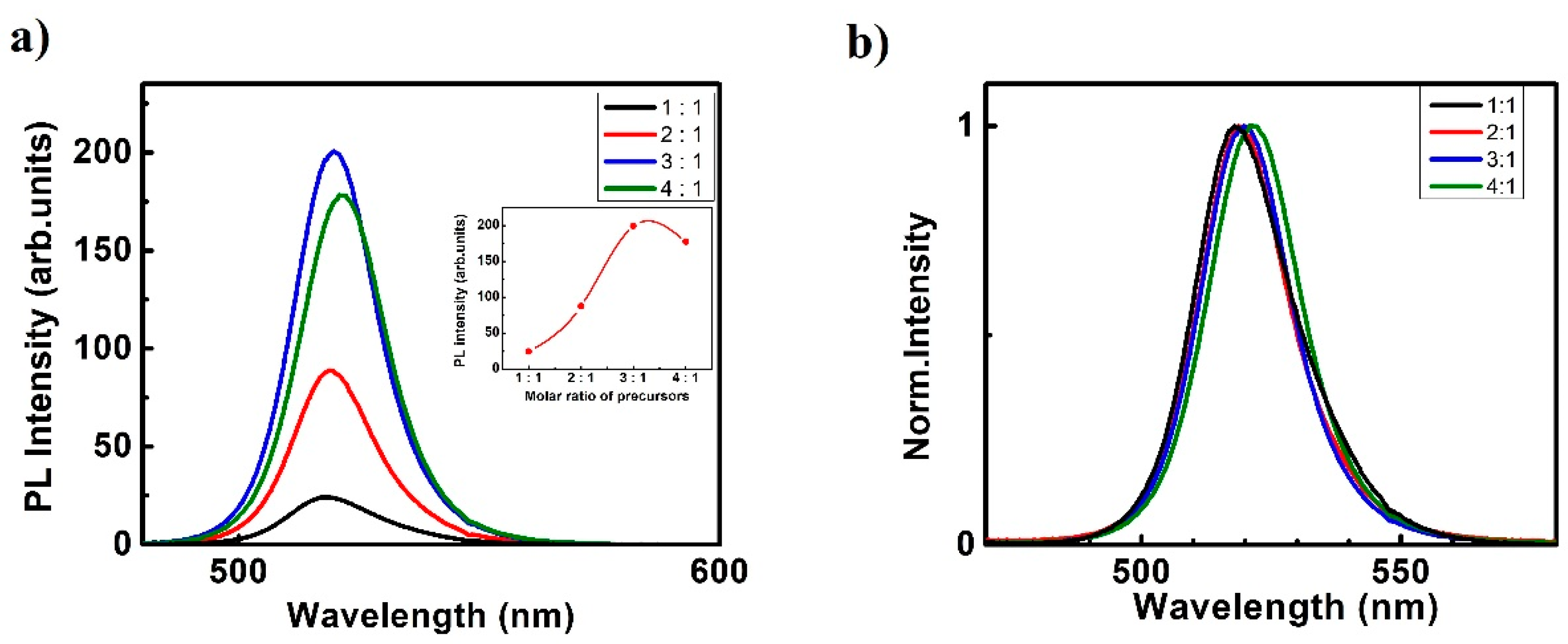

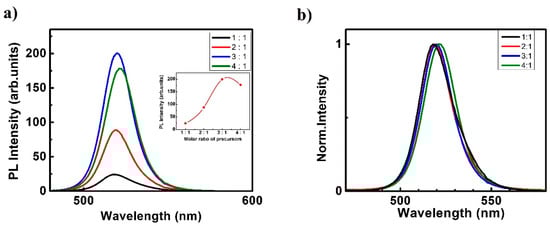

Figure 7. (a) Photoluminescence (PL) spectrum for different molar ratio of precursors. Excitation wavelength was 458 nm. The inset shows the peak intensity as a function of precursor composition. (b) Normalized PL spectra.
Figure 7. (a) Photoluminescence (PL) spectrum for different molar ratio of precursors. Excitation wavelength was 458 nm. The inset shows the peak intensity as a function of precursor composition. (b) Normalized PL spectra.
Crystals 09 00280 g007

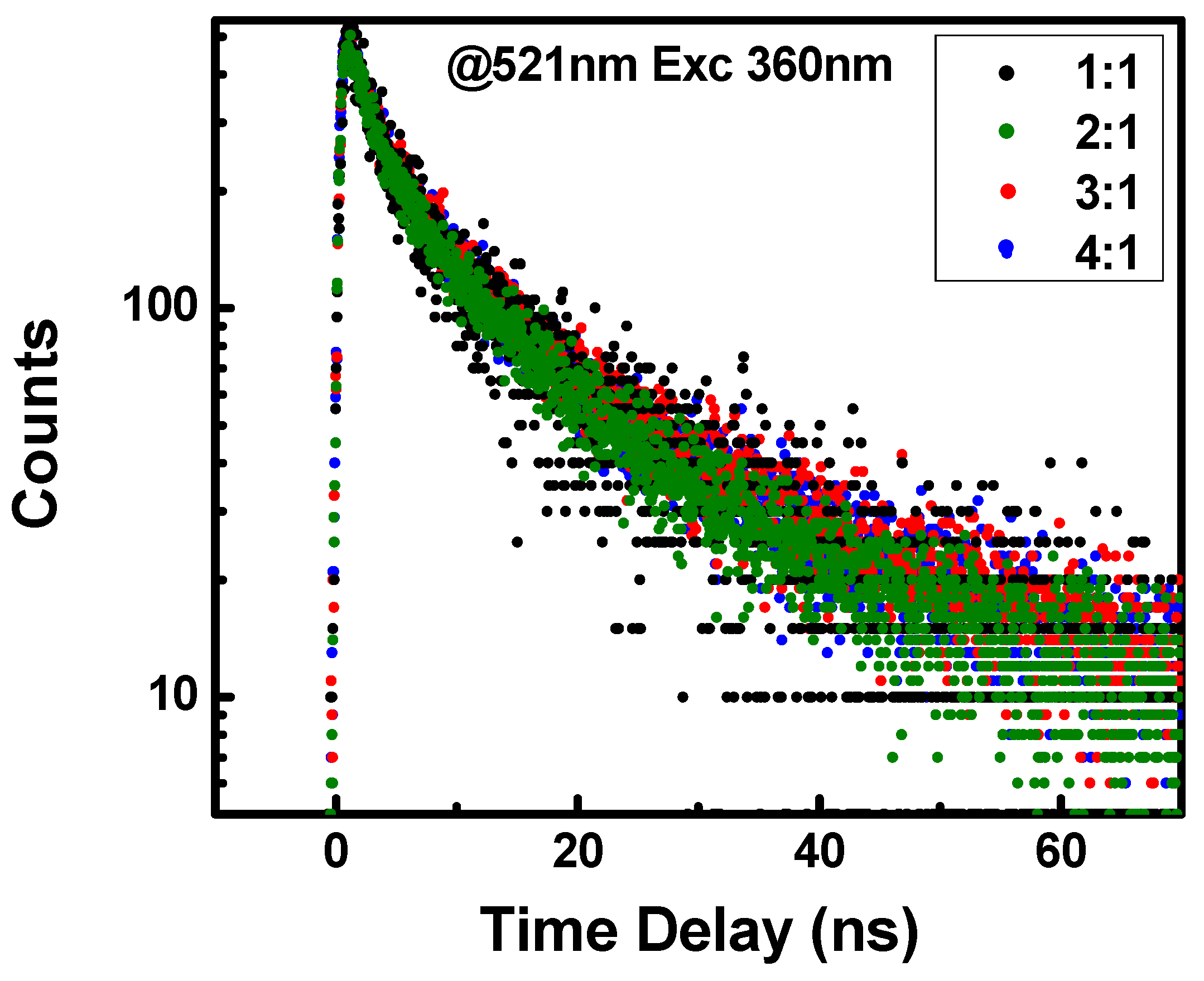

Figure 8. TCSPC measurements of 521 nm fluorescence excited at 360 nm for different molar ratios of precursors. The amplitude of the decay signal has been normalized to compare the behavior of the different samples.
Figure 8. TCSPC measurements of 521 nm fluorescence excited at 360 nm for different molar ratios of precursors. The amplitude of the decay signal has been normalized to compare the behavior of the different samples.
Crystals 09 00280 g008

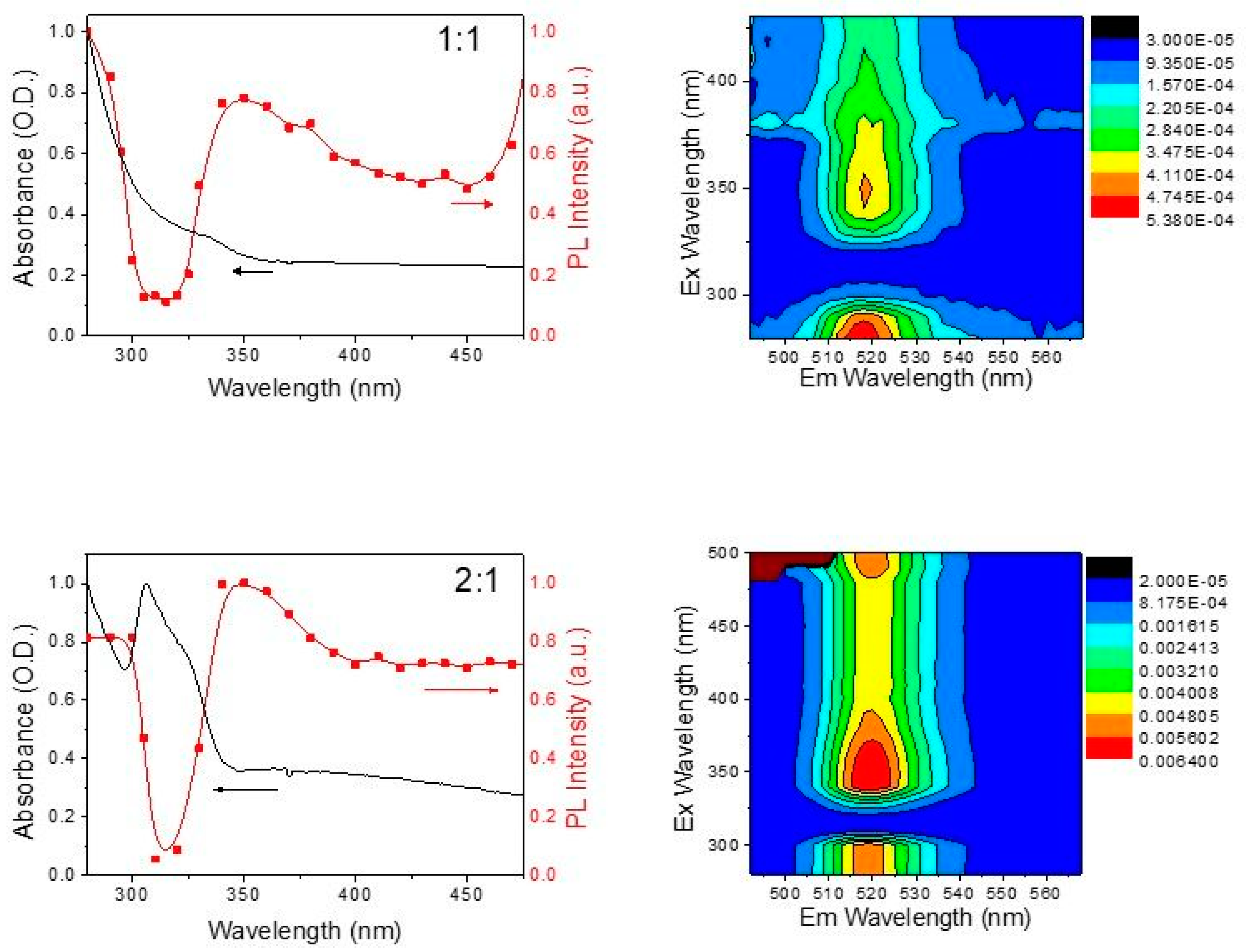

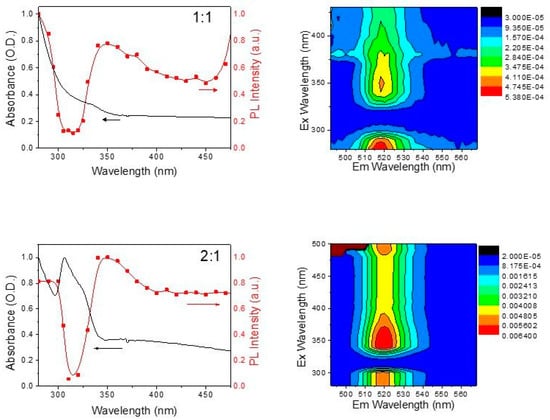

Figure 9. Excitation spectra (λem = 520 nm, red squares) and contour curves of the fluorescence for 1:1 and 2:1 samples. The respective absorption spectra (black lines) from Figure 6 are also reported for comparison.
Figure 9. Excitation spectra (λem = 520 nm, red squares) and contour curves of the fluorescence for 1:1 and 2:1 samples. The respective absorption spectra (black lines) from Figure 6 are also reported for comparison.
Crystals 09 00280 g009

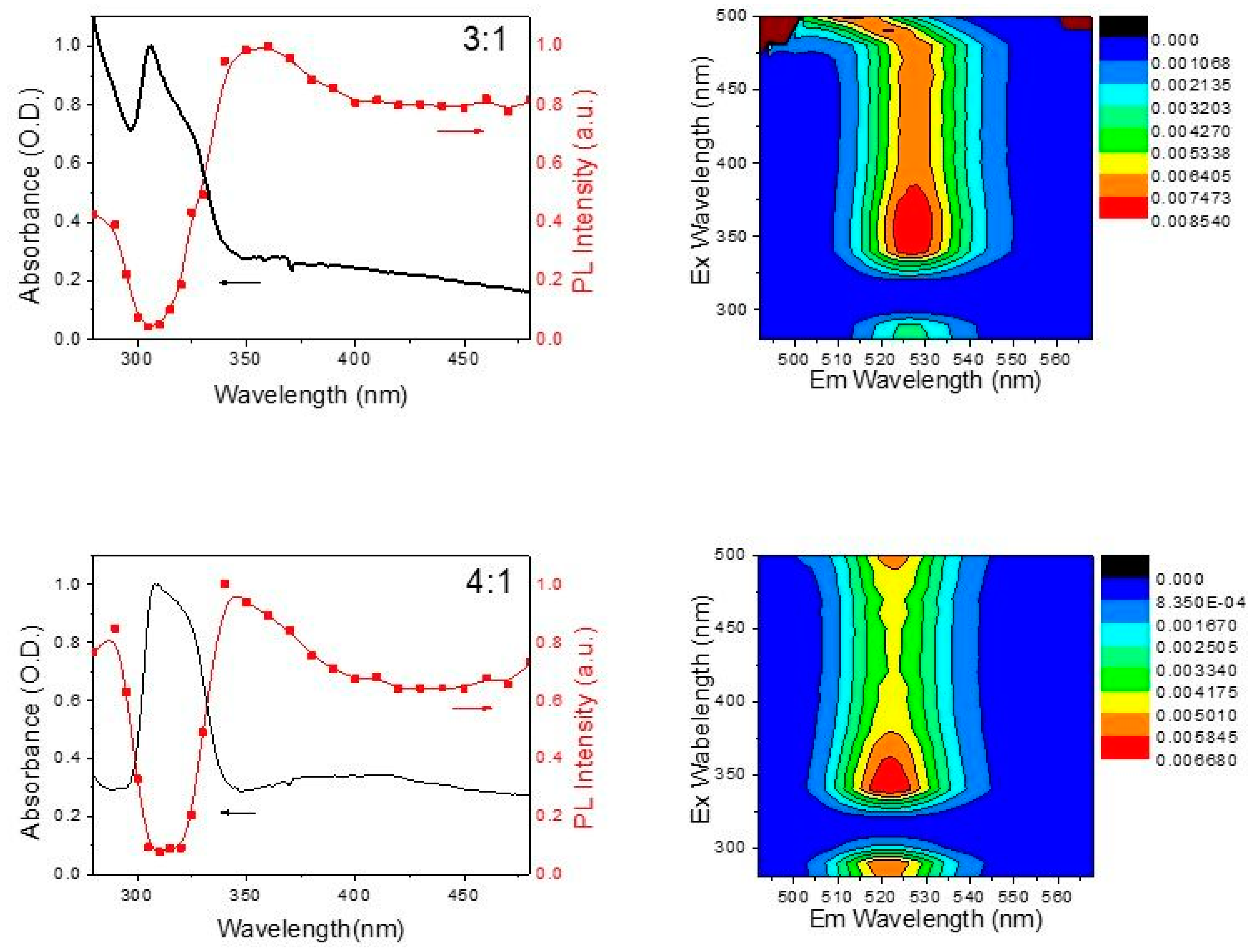

Figure 10. Excitation spectra (λem = 520 nm, red squares) and contour curves of the fluorescence for 3:1 and 4:1 samples. The respective absorption spectra (black lines) from Figure 6 are also reported for comparison.
Figure 10. Excitation spectra (λem = 520 nm, red squares) and contour curves of the fluorescence for 3:1 and 4:1 samples. The respective absorption spectra (black lines) from Figure 6 are also reported for comparison.
Crystals 09 00280 g010

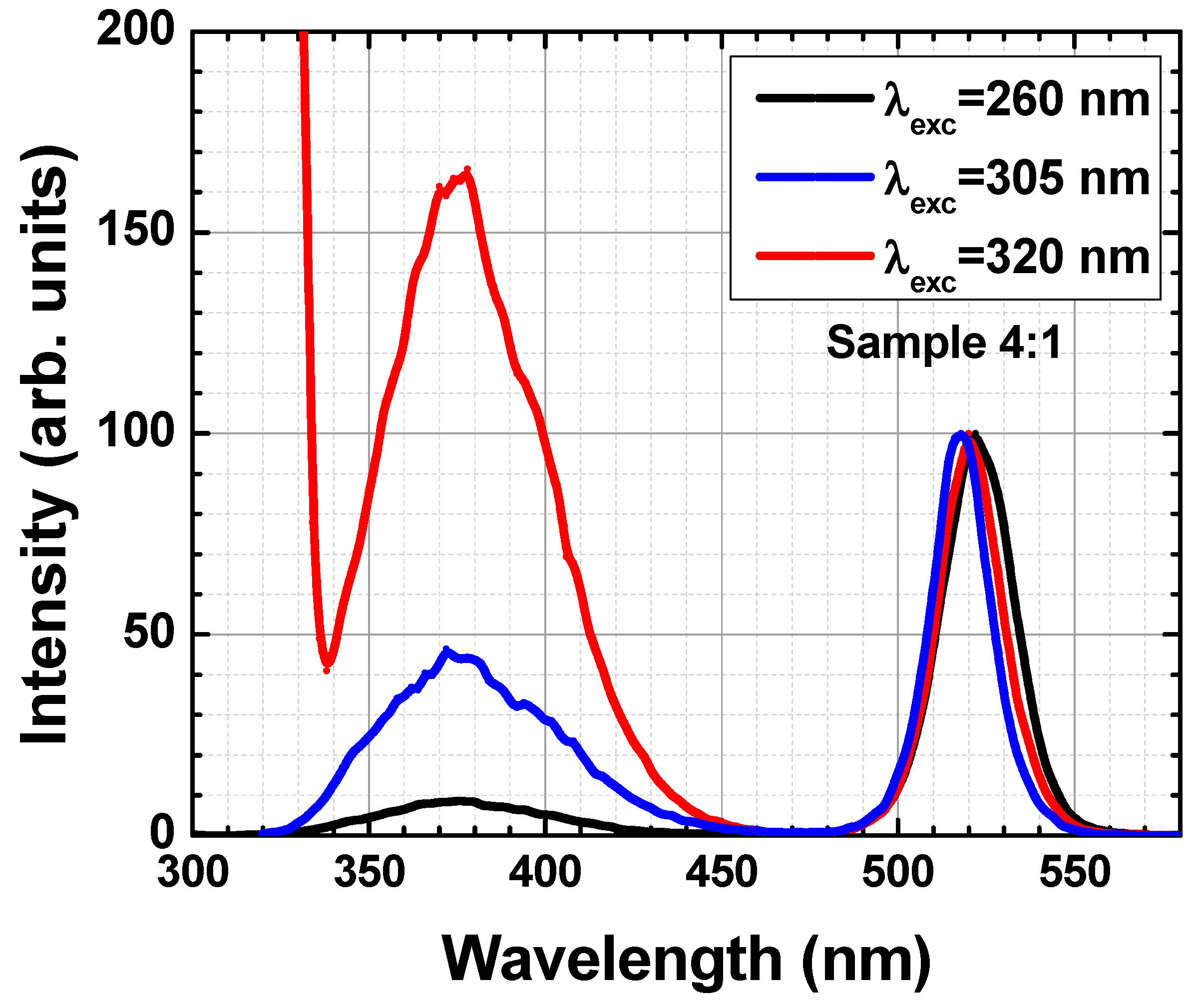

Figure 11. PL spectrum for 4:1 sample excited at different wavelengths in the UV spectral range. The intensity is normalized at the VIS-PL peak.
Figure 11. PL spectrum for 4:1 sample excited at different wavelengths in the UV spectral range. The intensity is normalized at the VIS-PL peak.
Crystals 09 00280 g011
Table 1. Edges of absorption for each samples.
Table 1. Edges of absorption for each samples.
SampleEdge of Absorption
(nm)(eV)
1:15412.29
2:15372.31
3:15282.35
4:15282.35
Table 2. TCSPC fit parameters.
Table 2. TCSPC fit parameters.
Sampleτ1 (ns)τ2 (ns)
1:13.3 ns17.0 ns
2:13.0 ns14.7 ns
3:13.4 ns16.0 ns
4:13.3 ns15.1 ns
