Open AccessReview
Crystals 2019, 9(1), 27; https://doi.org/10.3390/cryst9010027

Ion Irradiation for Planar Patterning of Magnetic Materials

1
Department of Electronics, Nagoya University Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
2
Institute of Materials and Systems for Sustainability, Nagoya University Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
*
Author to whom correspondence should be addressed.
Received: 26 November 2018 / Revised: 25 December 2018 / Accepted: 26 December 2018 / Published: 4 January 2019
  |
PDF [4075 KB, uploaded 4 January 2019]
  |

Abstract

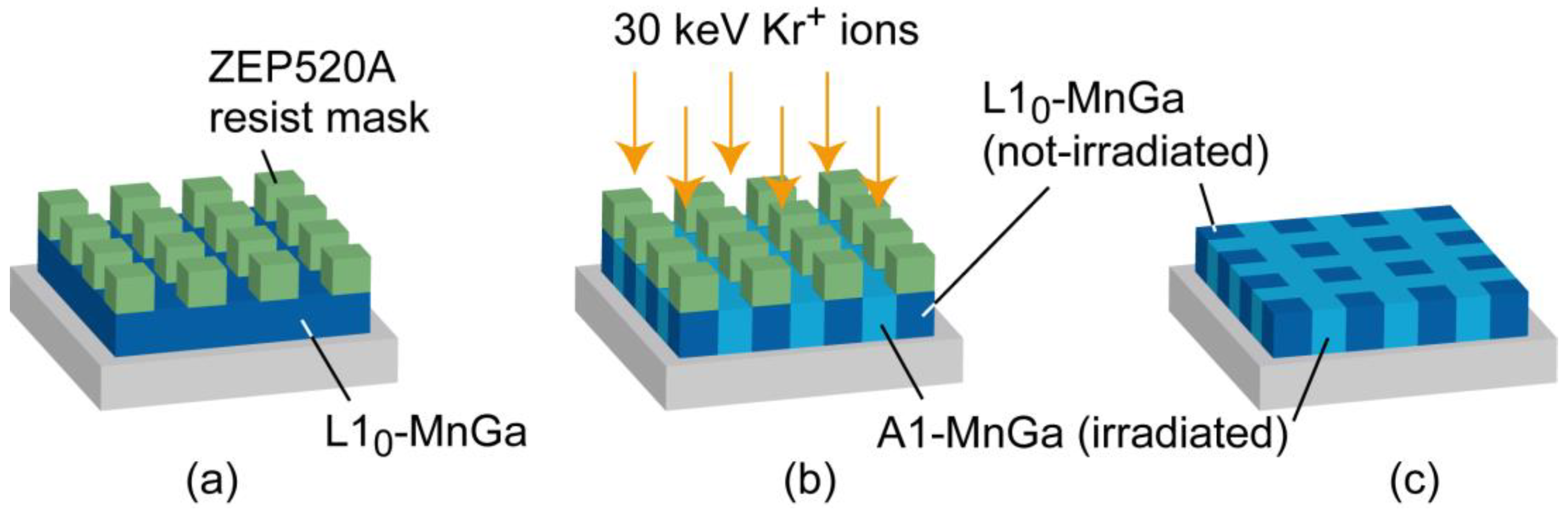

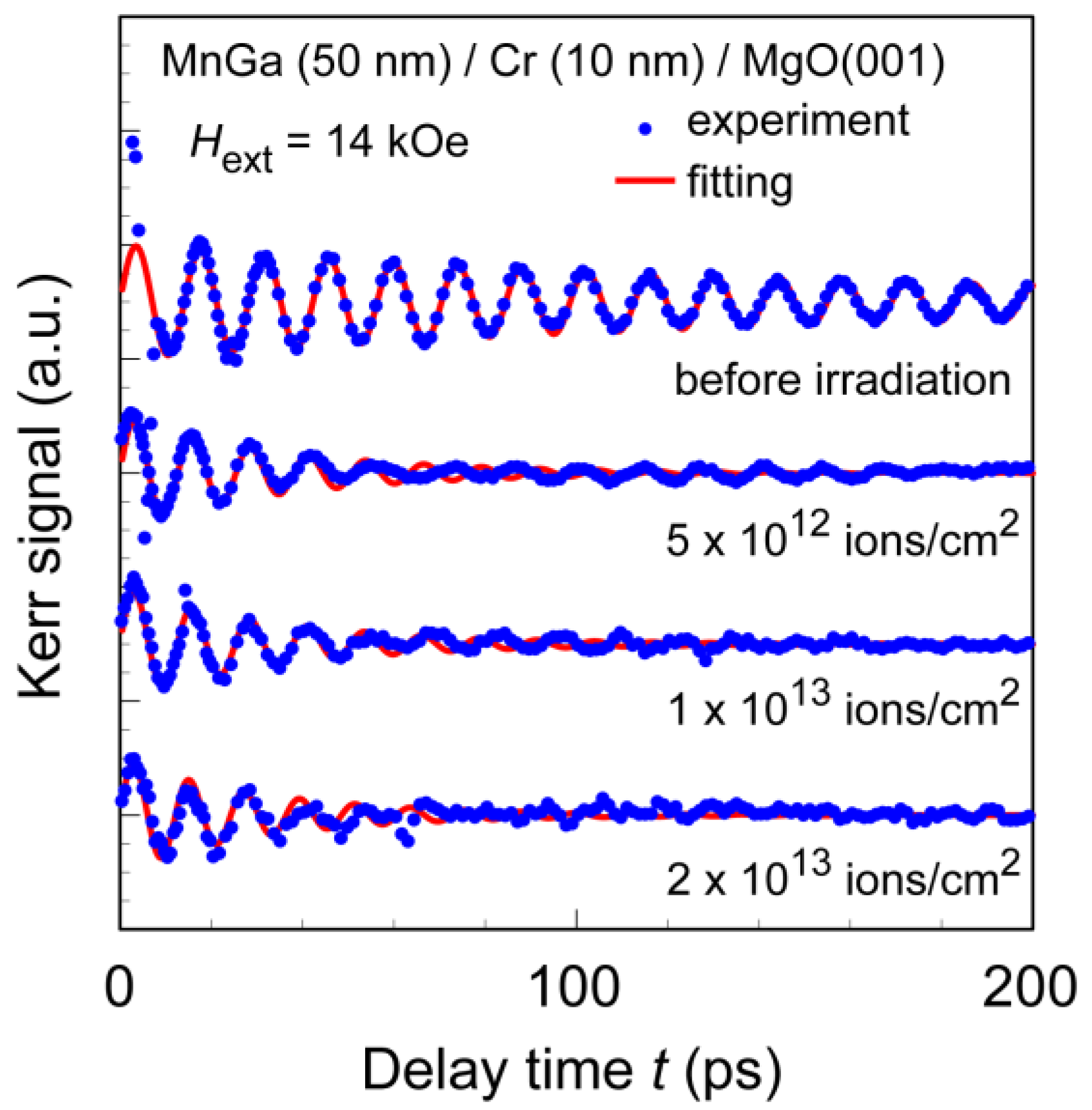

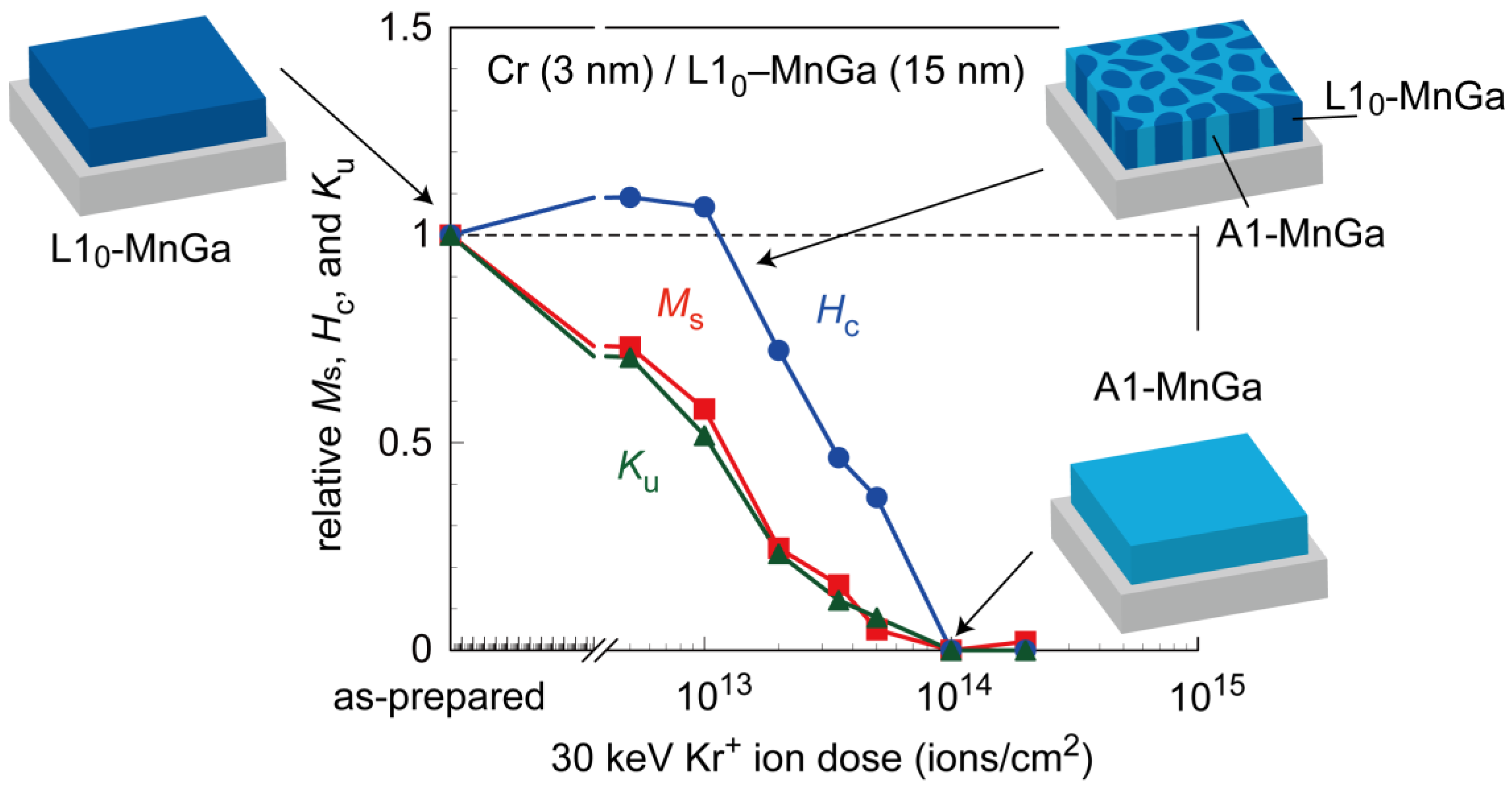

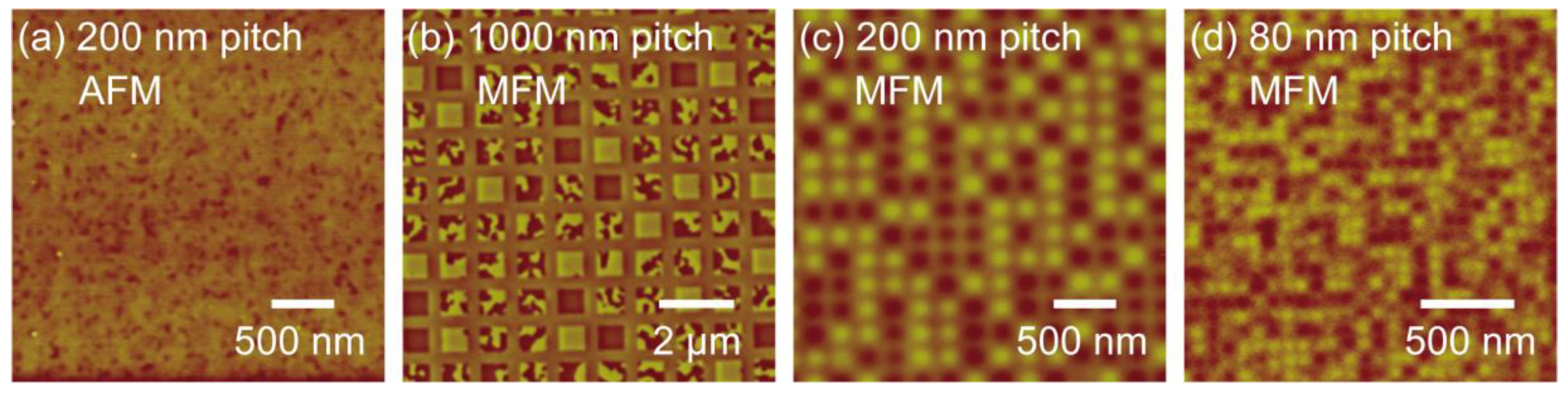

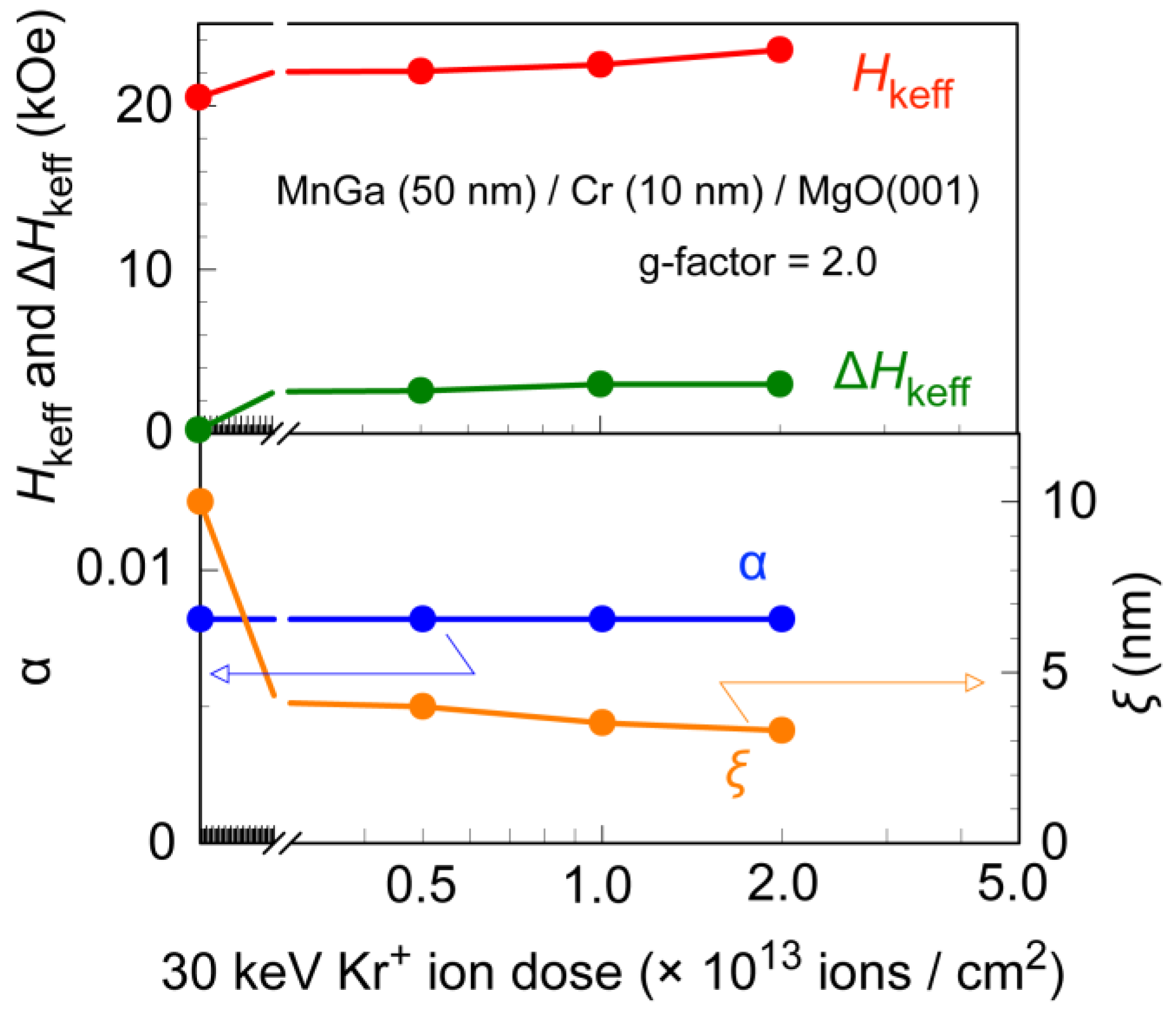

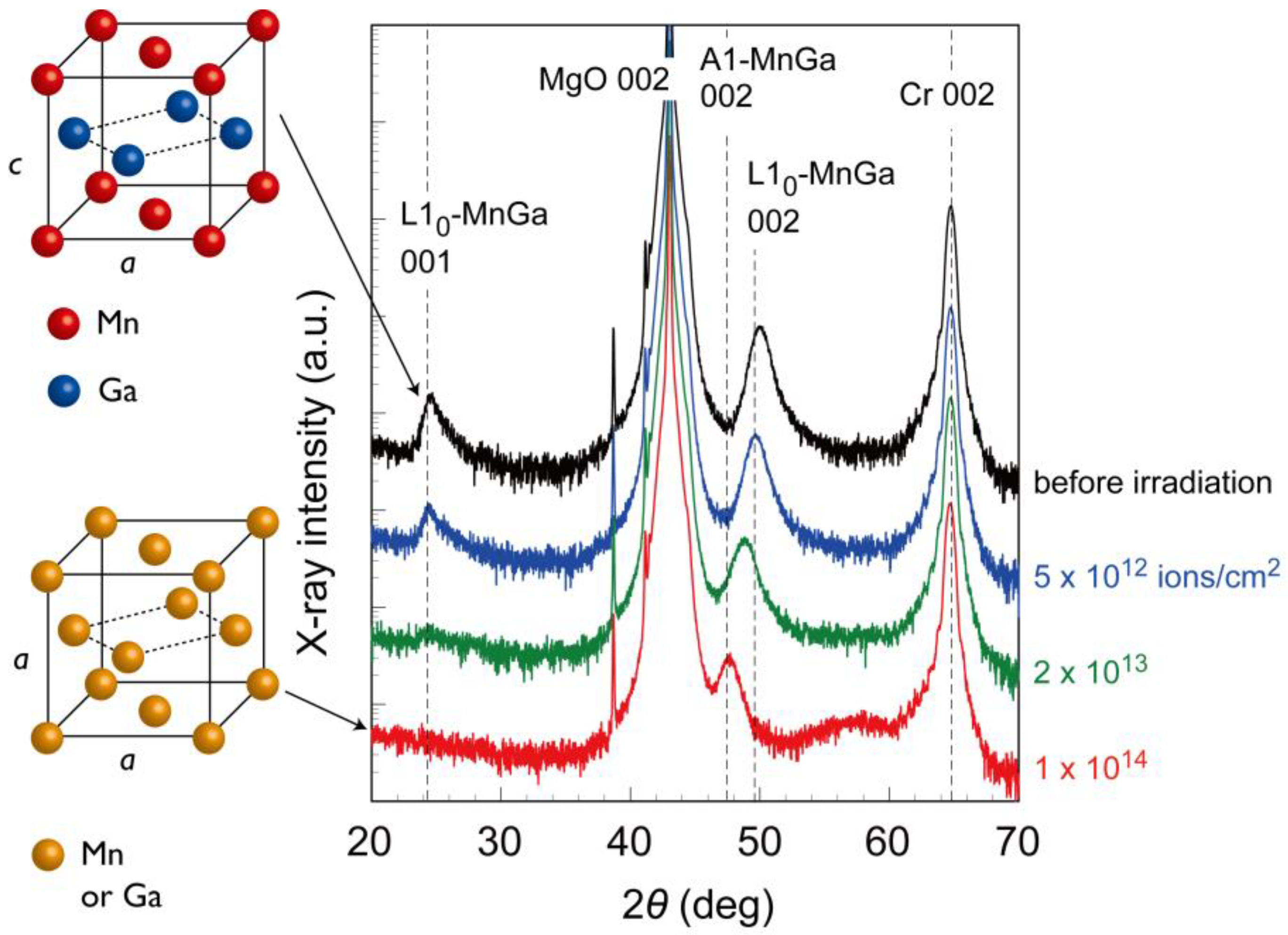

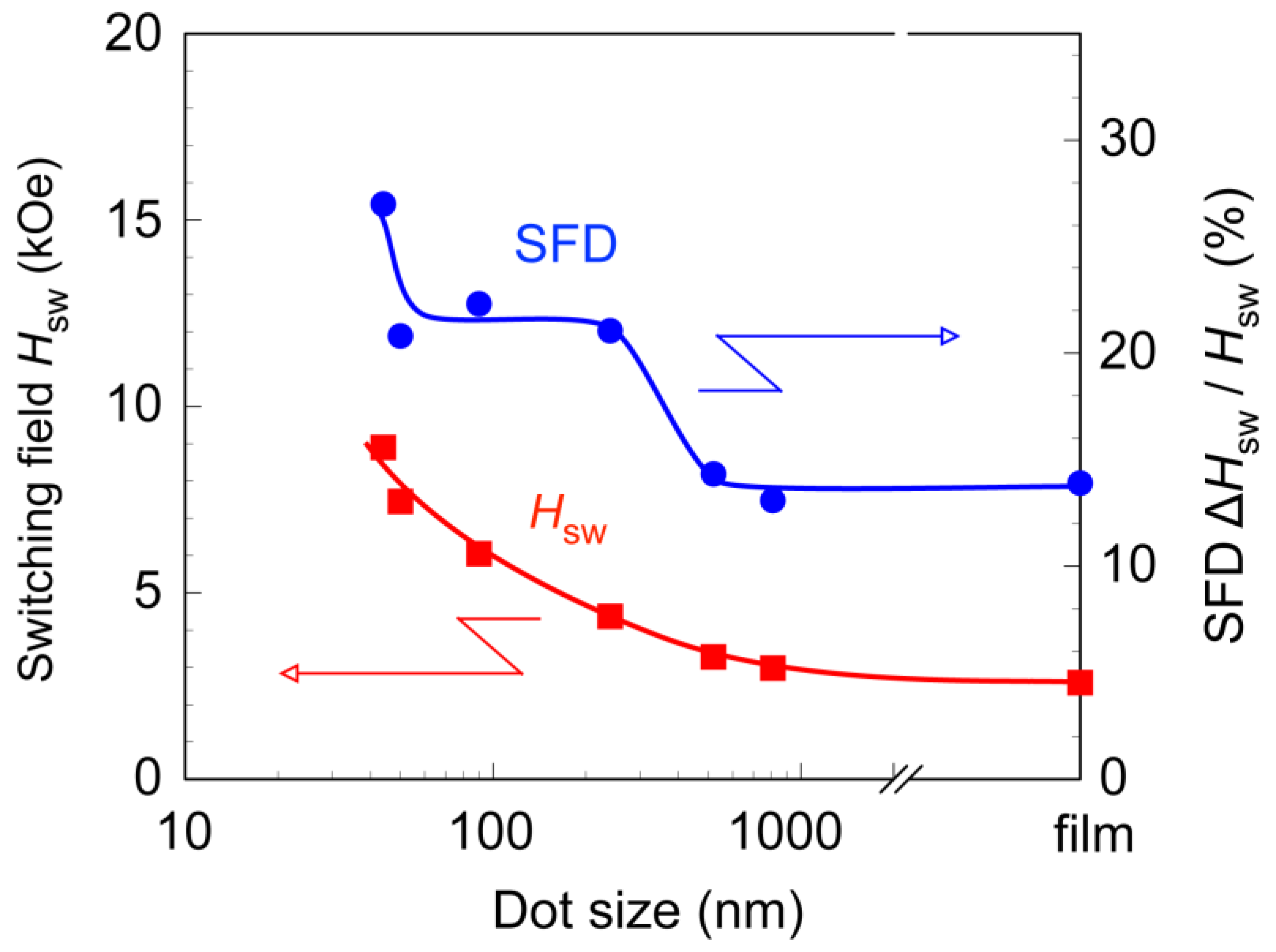

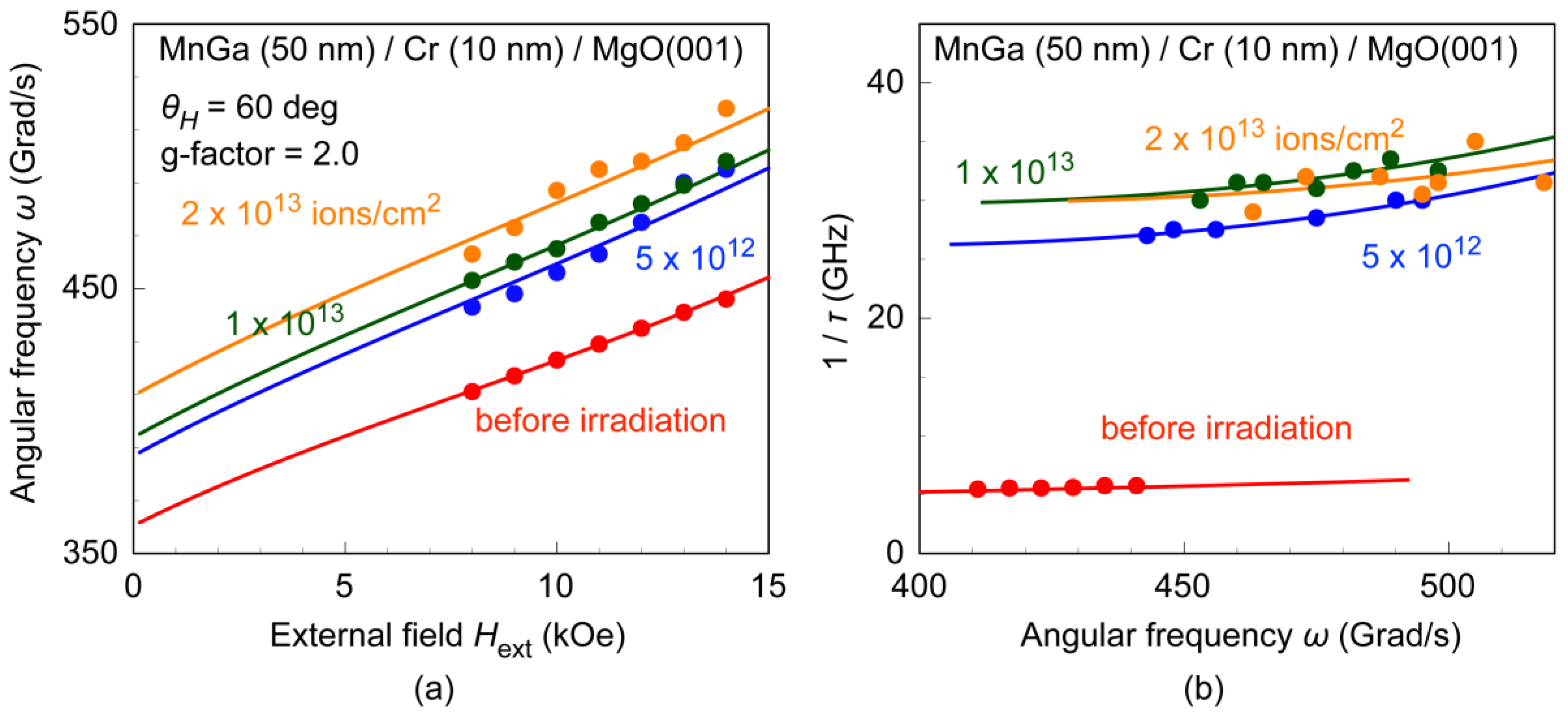

Kr+ ion dose dependence of the magnetic properties of MnGa films and the fabrication of planar-patterned MnGa films by the local ion irradiation technique were reviewed. The magnetization and perpendicular anisotropy of the MnGa vanished at an ion dose of 1 × 1014 ions/cm2 due to the phase change of the MnGa from ferromagnetic L10 to paramagnetic A1 phase. The average switching field Hsw of the planar-patterned MnGa increased with decreasing the bit size, implying low bit edge damage in the patterned MnGa, whereas a rather large switching field distribution (SFD) of 25% was confirmed for a bit size of ~40 nm. Time resolved magneto-optical Kerr effect measurements revealed that as-prepared MnGa exhibits an effective anisotropy field Hkeff = 20 kOe, its distribution ΔHkeff = 200 Oe, and Gilbert damping α = 0.008. The ion-irradiated MnGa films exhibited larger Hkeff = 22–23 kOe than that of the MnGa before the ion dose. Thus, ion irradiation does not decrease the perpendicular anisotropy, which suggests a small bit edge in the patterned MnGa. ΔHkeff increased from 0.2 kOe to 3 kOe, whereas the length of disorder in the film ξ decreased from 10 nm to 3 nm by ion irradiation. View Full-Text
Keywords: ion irradiation; bit patterned media; magnetic recording; phase change; surface flatness ion irradiation; bit patterned media; magnetic recording; phase change; surface flatness
Figures

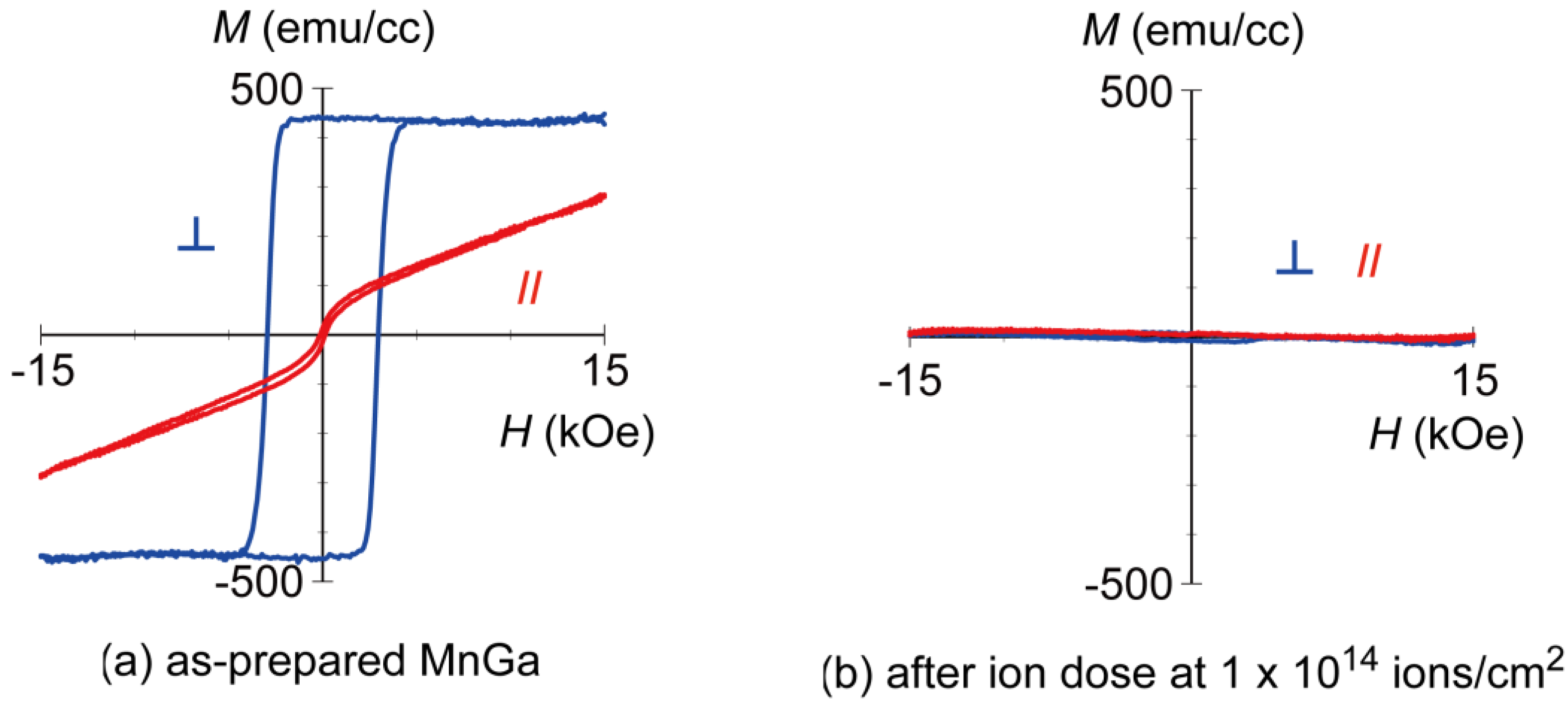

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
