Next Article in Journal
A Novel Approach to Modelling Nanoindentation Instabilities
Next Article in Special Issue
Layered Indium Selenide under High Pressure: A Review
Previous Article in Journal
Study on Neutron Irradiation-Induced Structural Defects of GaN-Based Heterostructures
Previous Article in Special Issue
The Jahn-Teller Distortion at High Pressure: The Case of Copper Difluoride
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Crystals 2018, 8(5), 199;

Structural Phase Transition and Compressibility of CaF2 Nanocrystals under High Pressure

Key Laboratory of Functional Materials Physics and Chemistry of the Ministry of Education, National Demonstration Center for Experimental Physics Education, Jilin Normal University, Siping 136000, China
State Key Laboratory of Superhard Materials, Jilin University, Changchun 130012, China
Author to whom correspondence should be addressed.
Received: 19 March 2018 / Revised: 26 April 2018 / Accepted: 26 April 2018 / Published: 3 May 2018
(This article belongs to the Special Issue High-Pressure Studies of Crystalline Materials)
Full-Text   |   PDF [2187 KB, uploaded 9 May 2018]   |

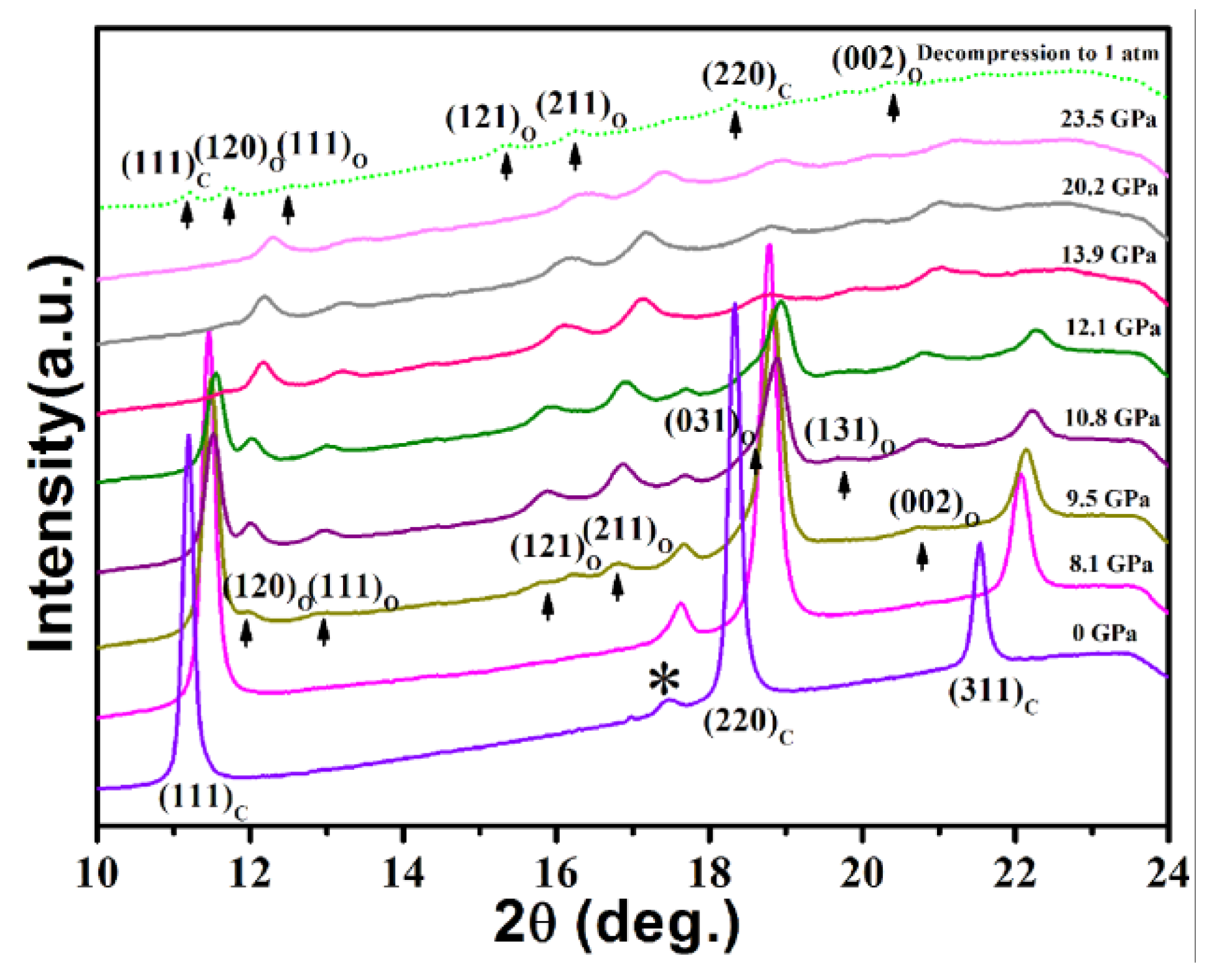

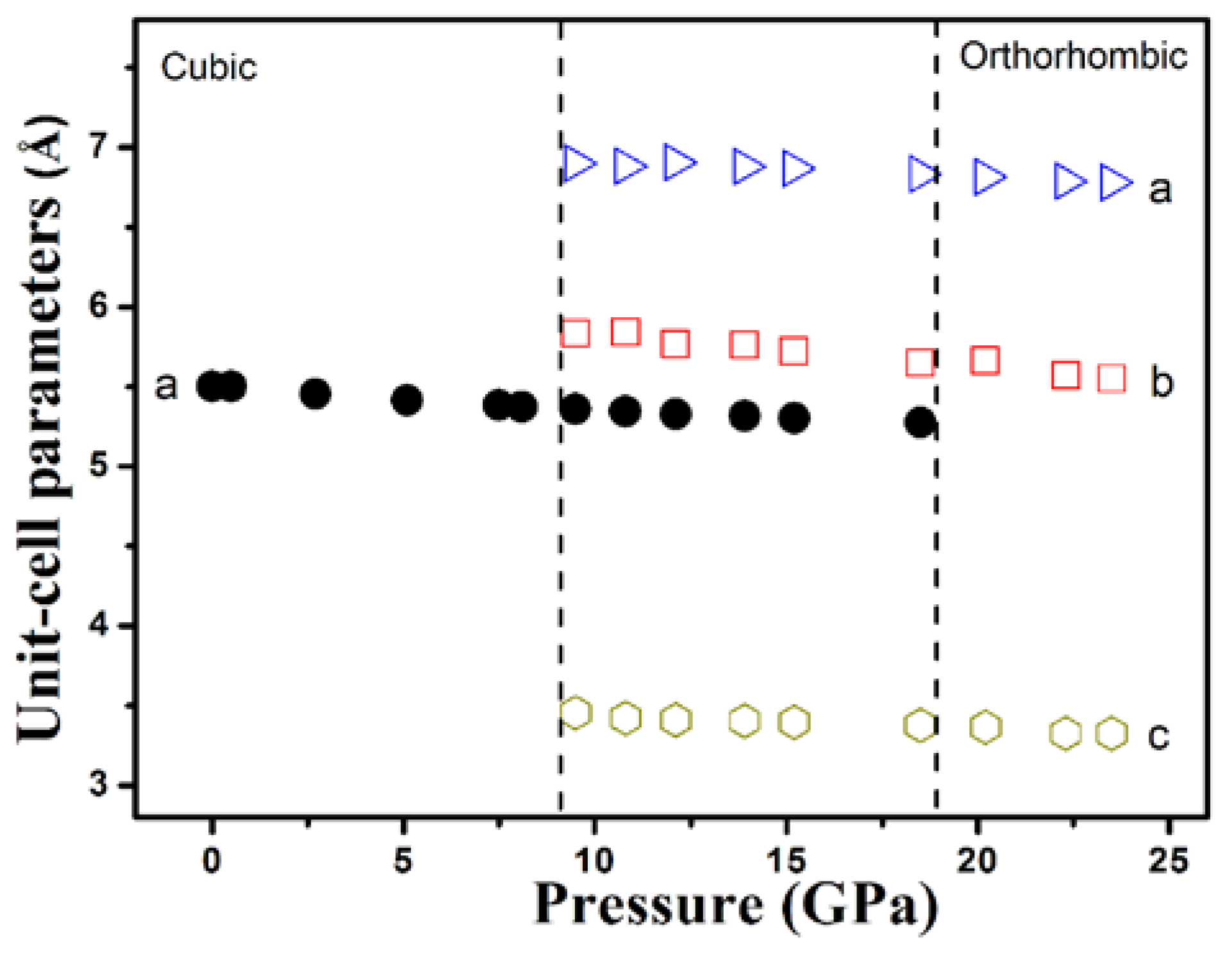

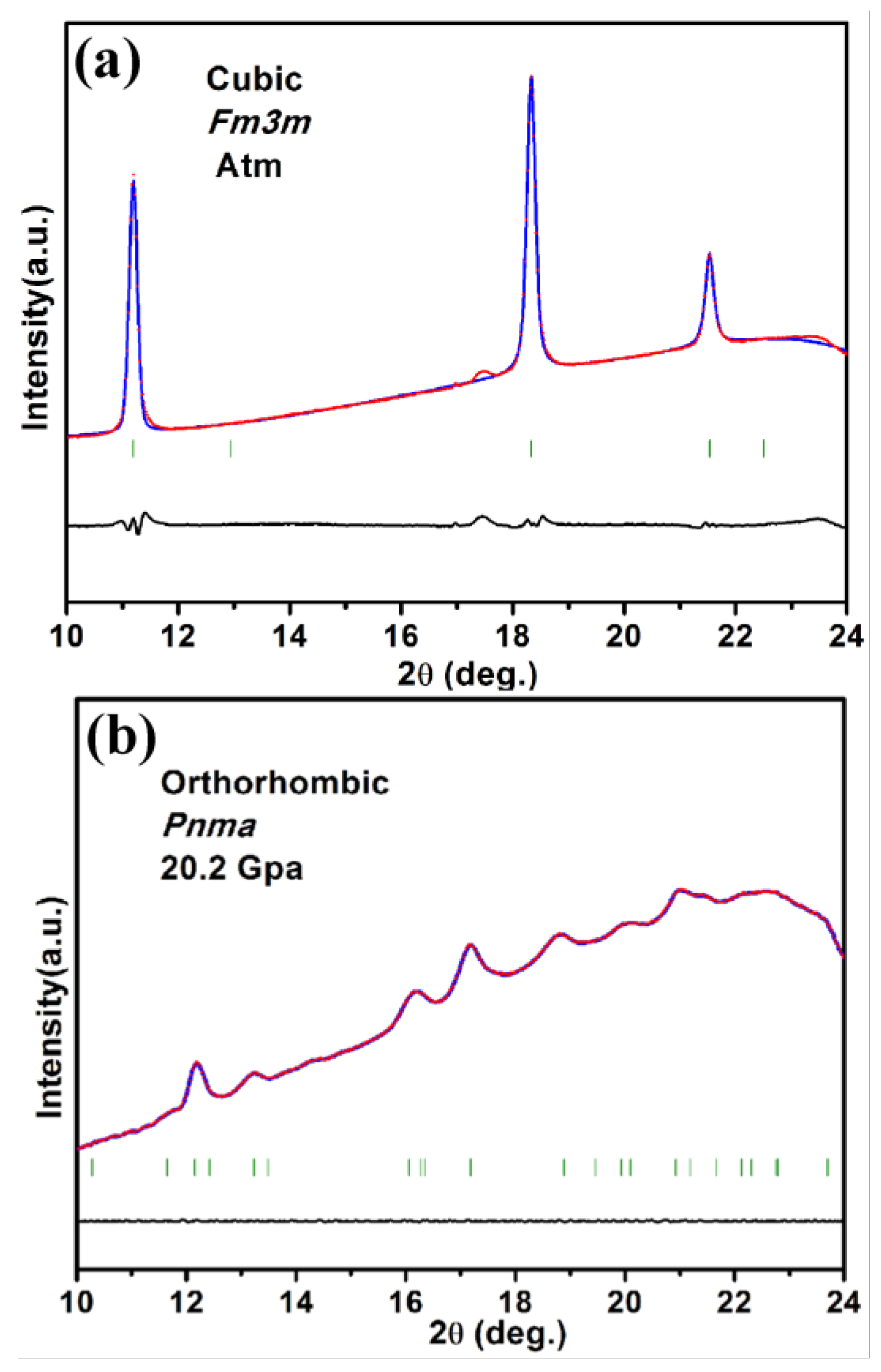

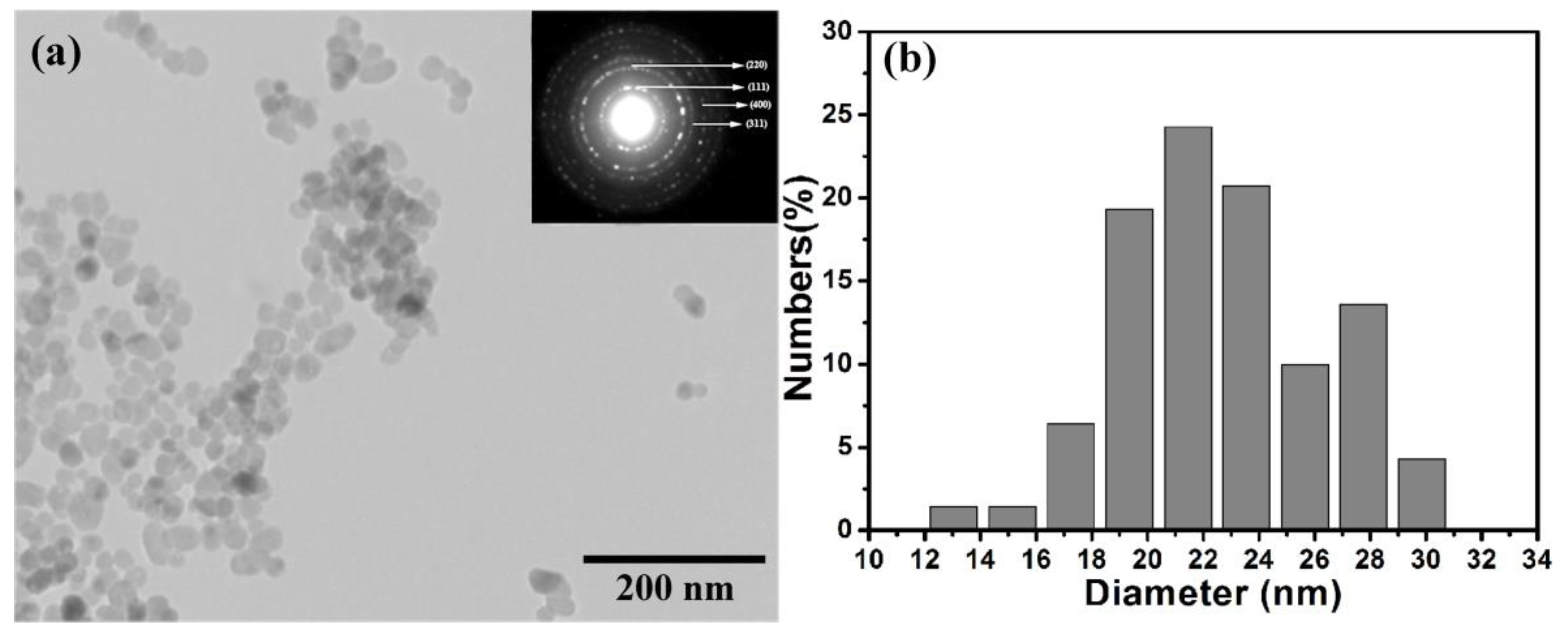

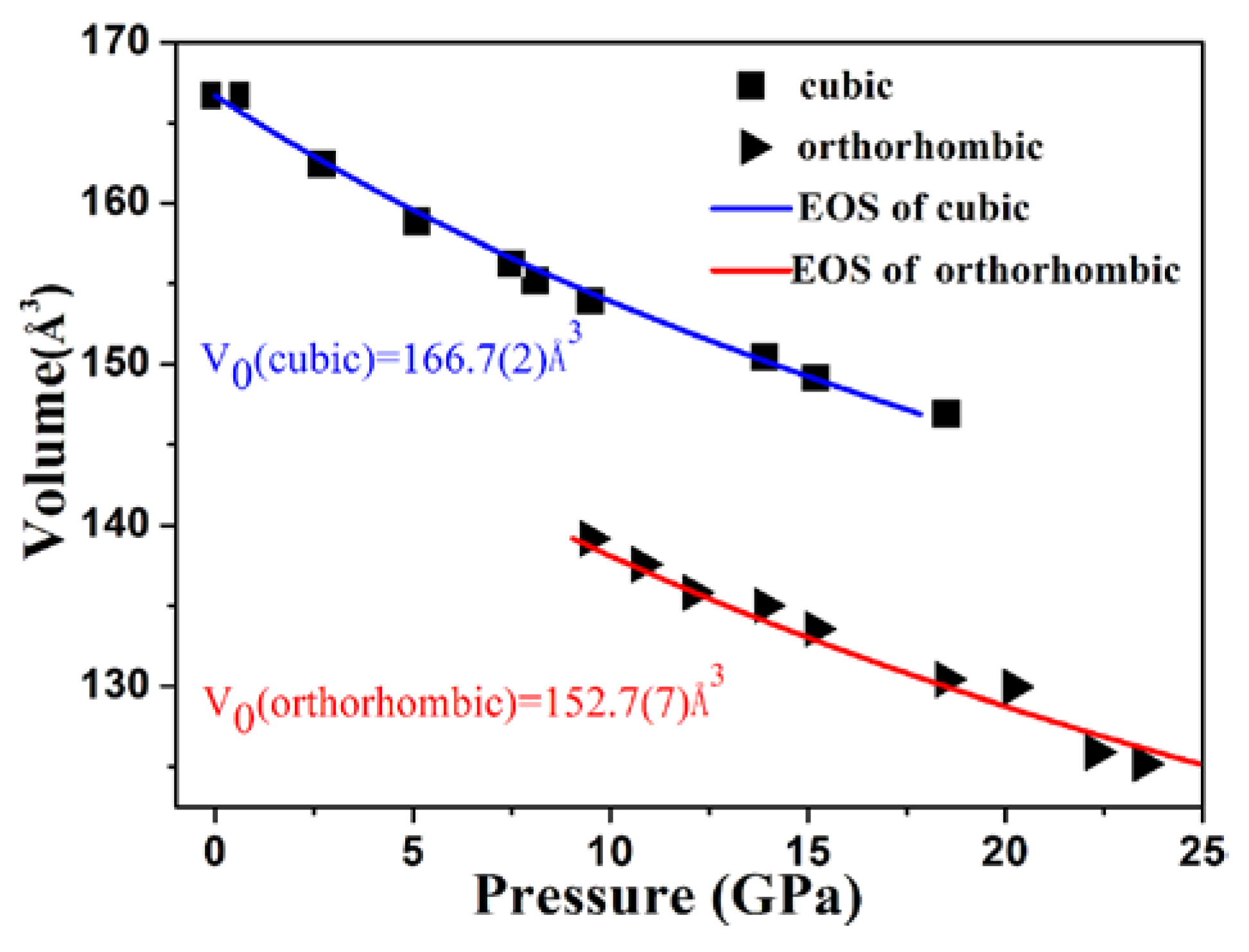

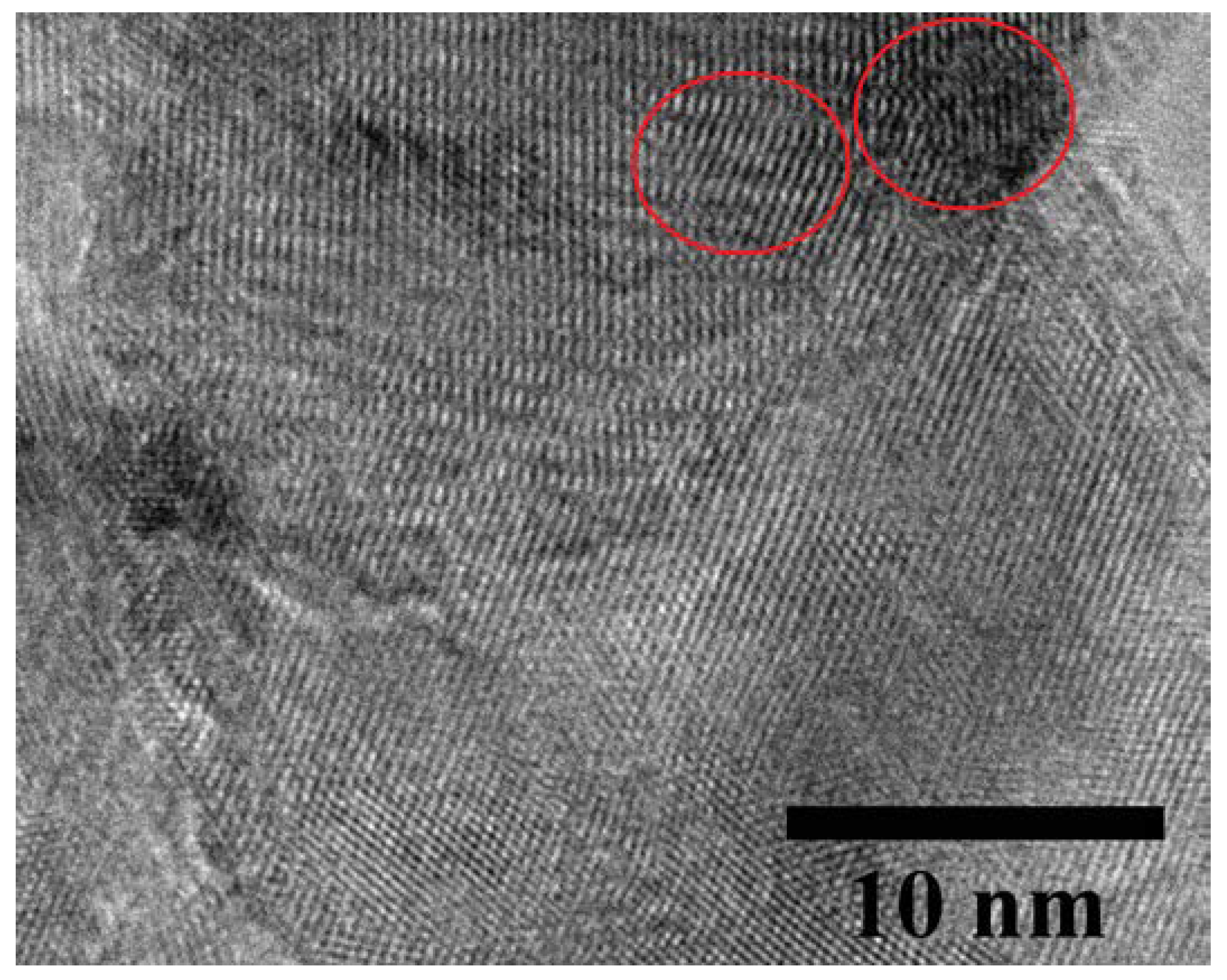

The structural phase transition and compressibility of CaF2 nanocrystals with size of 23 nm under high pressure were investigated by synchrotron X-ray diffraction measurement. A pressure-induced fluorite to α-PbCl2-type phase transition starts at 9.5 GPa and completes at 20.2 GPa. The phase-transition pressure is lower than that of 8 nm CaF2 nanocrystals and closer to bulk CaF2. Upon decompression, the fluorite and α-PbCl2-type structure co-exist at the ambient pressure. The bulk modulus B0 of the 23 nm CaF2 nanocrystals for the fluorite and α-PbCl2-type phase are 103(2) and 78(2) GPa, which are both larger than those of the bulk CaF2. The CaF2 nanocrystals exhibit obviously higher incompressibility compare to bulk CaF2. Further analysis demonstrates that the defect effect in our CaF2 nanocrystals plays a dominant role in the structural stability. View Full-Text
Keywords: high pressure; CaF2 nanocrystals; phase transitions; X-ray; bulk modulus high pressure; CaF2 nanocrystals; phase transitions; X-ray; bulk modulus

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Wang, J.; Yang, J.; Hu, T.; Chen, X.; Lang, J.; Wu, X.; Zhang, J.; Zhao, H.; Yang, J.; Cui, Q. Structural Phase Transition and Compressibility of CaF2 Nanocrystals under High Pressure. Crystals 2018, 8, 199.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
