Atomic-Site-Specific Analysis on Out-of-Plane Elasticity of Convexly Curved Graphene and Its Relationship to
s
p
2
to
s
p
3
Re-Hybridization

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results

#### 3.1. Interatomic Forces Obtained at Atomically Specific Sites

#### 3.2. Quantitative Evaluation of Out-of-Plane Elastic Stiffness

## 4. Discussions

## 5. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Lord, E.A.; Mackay, A.L.; Ranganathan, S. New Geometries for New Materials, 1st ed.; Cambridge University Press: Cambridge, UK, 2006. [Google Scholar]
- Saito, R.; Dresselhaus, G.; Dresselhaus, M.S. Physical Properties of Carbon Nanotubes, 1st ed.; Imperial College Press: London, UK, 1998. [Google Scholar]
- Dresselhauss, M.S.; Terrones, M. Carbon-Based nanomaterials from a historical perspective. Proc. IEEE
**2013**, 101, 1522–1535. [Google Scholar] [CrossRef] - Novoselov, K.S.; Jiang, D.; Schedin, F.; Booth, T.J.; Khotkevich, V.V.; Morozov, S.V.; Geim, A.K. Two-Dimensional atomic crystals. Proc. Natl. Acad. Sci. USA
**2005**, 102, 10451–10453. [Google Scholar] [CrossRef] [PubMed] - Nelson, D.; Piran, T.; Weinberg, S. Statistical Mechanics of Membranes and Surfaces, 2nd ed.; World Scientific Publishing: Singapore, 2004. [Google Scholar]
- Kühnel, W. Differential Geometry, 1st ed.; American Mathematical Society: Providence, RI, USA, 2002. [Google Scholar]
- Sullivan, J.M. Discrete Differential Geometry, 1st ed.; Bobenko, A.I., Schröder, P., Sullivan, J.M., Ziegler, G.M., Eds.; Oberwolfach Seminars; Springer: Berlin, Germany, 2008; Vol. 38. [Google Scholar]
- Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the elastic properties and intrinsic strength of monolayer graphene. Science
**2008**, 321, 385–388. [Google Scholar] [CrossRef] [PubMed] - Klimov, N.N.; Jung, S.; Zhu, S.; Li, T.; Wright, C.A.; Solares, S.D.; Newell, D.B.; Zhitenev, N.B.; Stroscio, J.A. Electromechanical properties of graphene drumheads. Science
**2012**, 336, 1557–1561. [Google Scholar] [CrossRef] [PubMed] - Ortix, C.; Kiravittaya, S.; Schmidt, O.G.; van den Brink, J. Curvature-induced geometric potential in strain-driven nanostructures. Phys. Rev. B
**2011**, 84, 045438. [Google Scholar] [CrossRef] - Pacheco Sanjuan, A.A.; Mehboudi, M.; Harriss, E.O.; Terrones, H.; Barraza-Lopez, S. Quantitative chemistry and the discrete geometry of conformal atom-thin crystals. ACS Nano
**2014**, 8, 1136–1146. [Google Scholar] [CrossRef] [PubMed] - Geim, A.K.; Novoselov, K.S. The rise of graphene. Nature Materials
**2007**, 6, 183–191. [Google Scholar] [CrossRef] [PubMed] - Bonaccorso, F.; Colombo, L.; Yu, G.; Stoller, M.; Tozzini, V.; Ferrari, A.C.; Ruoff, R.S.; Pellegrini, V. Graphene, related two-dimensional crystals, and hybrid systems for energy conversion and storage. Science
**2015**, 347, 1246501. [Google Scholar] [CrossRef] [PubMed] - Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless Dirac fermions in graphene. Nature
**2005**, 438, 197–200. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Meyer, J.C.; Geim, A.K.; Katsnelson, M.I.; Novoselov, K.S.; Booth, T.J.; Roth, S. The structure of suspended graphene sheets. Nature
**2007**, 446, 60–63. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fasolino, A.; Los, J.H.; Katsnelson, M.I. Intrinsic ripples in graphene. Nature Materials
**2007**, 6, 858–861. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kim, E.-A.; Castro Neto, A.H. Graphene as an electronic membrane. Euro. Phys. Lett.
**2008**, 84, 57007. [Google Scholar] [CrossRef] - Castro Neto, A.H.; Guinea, F.; Peres, N.M.R.; Novoselov, K.S.; Geim, A.K. The electronic properties of graphene. Rev. Mod. Phys.
**2009**, 81, 109–162. [Google Scholar] [CrossRef] [Green Version] - Cortijo, A.; Vozmediano, M.A.H. Effects of topological defects and local curvature on the electronic properties of planar graphene. Nucl. Phys. B
**2007**, 763, 293–308. [Google Scholar] [CrossRef] - Guinea, F.; Geim, A.K.; Katsnelson, M.I.; Novoselov, K.S. Generating quantizing pseudomagnetic fields by bending graphene ribbons. Phys. Rev. B
**2010**, 81, 035408. [Google Scholar] [CrossRef] [Green Version] - San-Jose, P.; González, J.; Guinea, F. Electron-Induced Rippling in Graphene. Phys. Rev. Lett.
**2011**, 106, 045502. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Elias, D.C.; Nair, R.R.; Mohiuddin, T.M.G.; Morozov, S.V.; Blake, P.; Halsall, M.P.; Ferrari, A.C.; Boukhvalov, D.W.; Katsnelson, M.I.; Geim, A.K.; et al. Control of graphene’s properties by reversible hydrogenation: Evidence for graphane. Science
**2009**, 323, 610–613. [Google Scholar] [CrossRef] [PubMed] - Gazit, D. Correlation between charge inhomogeneities and structure in graphene and other electronic crystalline membranes. Phys. Rev. B
**2010**, 80, 161406(R). [Google Scholar] [CrossRef] - Boukhvalov, D.W.; Katsnelson, M.I. Enhancement of chemical activity in corrugated graphene. J. Phys. Chem. C
**2009**, 113, 14176–14178. [Google Scholar] [CrossRef] [Green Version] - Goler, S.; Coletti, C.; Tozzini, V.; Piazza, V.; Mashoff, T.; Beltram, F.; Pellegrini, V.; Heun, S. Influence of graphene curvature on hydrogen adsorption: Toward hydrogen storage devices. J. Phys. Chem. C
**2013**, 117, 11506–11513. [Google Scholar] [CrossRef] - Hickenboth, C.R.; Moore, J.S.; White, S.R.; Sottos, N.R.; Baudry, J.; Wilson, S.R. Biasing reaction pathways with mechanical force. Nature
**2007**, 446, 423–427. [Google Scholar] [CrossRef] [PubMed] - Gilman, J.J. Mechanochemistry. Science
**1996**, 274, 65–66. [Google Scholar] [CrossRef] - Ashino, M.; Schwarz, A.; Behnke, T.; Wiesendanger, R. Atomic-resolution dynamic force microscopy and spectroscopy of a single-walled carbon nanotube: characterization of interatomic van der Waals forces. Phys. Rev. Lett.
**2004**, 93, 136101. [Google Scholar] [CrossRef] [PubMed] - Thess, A.; Lee, R.; Nikolaev, P.; Dai, H.; Petit, P.; Robert, J.; Xu, C.; Lee, Y.H.; Kim, S.G.; Rinzler, A.G.; et al. Crystalline ropes of metallic carbon nanotubes. Science
**1996**, 273, 483–487. [Google Scholar] [CrossRef] [PubMed] - Sader, J.E.; Jarvis, S.P. Accurate formulas for interaction force and energy in frequency modulation force spectroscopy. Appl. Phys. Lett.
**2004**, 84, 1801–1803. [Google Scholar] [CrossRef] - DeBorde, T.; Joiner, J.C.; Leyden, M.R.; Minot, E.D. Identifying individual single-walled and double-walled carbon nanotubes. Nano Lett.
**2008**, 8, 3568. [Google Scholar] [CrossRef] [PubMed] - Ashino, M.; Wiesendanger, R.; Khlobystov, A.N.; Berber, S.; Tománek, D. Revealing subsurface vibrational modes by atom-resolved damping force spectroscopy. Phys. Rev. Lett.
**2009**, 102, 195503. [Google Scholar] [CrossRef] [PubMed] - Ashino, M.; Wiesendanger, R. Attractive force-driven superhardening of graphene membranes as a pin-point breaking of continuum mechanics. Sci. Rep.
**2017**, 7, 46083. [Google Scholar] [CrossRef] [PubMed] - Horcas, I.; Fernández, R.; Gomez-Rodriguez, J.M.; Colchero, J.; Gómez-Herrero, J.; Baro, A.M. WSXM: A software for scanning probe microscopy and a tool for nanotechnology. Rev. Sci. Instrum.
**2007**, 78, 013705. [Google Scholar] [CrossRef] [PubMed] - Ashino, M.; Obergfel, D.; Haluška, M.; Yang, S.; Khlobystov, A.N.; Roth, S.; Wiesendanger, R. Atomically resolved mechanical response of individual metallofullerene molecules confined inside carbon nanotubes. Nat. Nanotechnol.
**2008**, 3, 337–341. [Google Scholar] [CrossRef] [PubMed] - Colussi, M.L.; Neves, L.P.; Baierle, R.J. Silicon adsorption in single walled nanotubes. Braz. J. Phys.
**1991**, 36, 886–889. [Google Scholar] [CrossRef] - Kittel, C. Introduction to Solid State Physics, 6th ed.; John Wiley & Sons Inc.: New York, NY, USA, 1986. [Google Scholar]
- Ashino, M.; Wiesendanger, R. Atomic-Resolution dynamic force microscopy/spectroscopy of individual single-walled carbon nanotube. Jpn. J. Appl. Phys.
**2006**, 45, 2286–2289. [Google Scholar] [CrossRef] - Dresselhaus, M.S.; Dresselhaus, G.; Saito, R. Physics of carbon nanotubes. Carbon
**1995**, 33, 883–891. [Google Scholar] [CrossRef] - Wei, Y.; Wang, B.; Wu, J.; Yang, R.; Dunn, M.L. Bending rigidity and Gaussian bending stiffness of single-layered graphene. Nano Lett.
**2013**, 13, 26–30. [Google Scholar] [CrossRef] [PubMed] - Rogers, J.A.; Lagally, M.G.; Nuzzo, R.G. Synthesis, assembly and applications of semiconductor nanomembranes. Nature
**2011**, 477, 45–53. [Google Scholar] [CrossRef] [PubMed] - Paulus, G.L.C.; Wang, Q.H.; Strano, M.S. Covalent electron transfer chemistry of graphene with diazonium salts. Acc. Chem. Res.
**2013**, 46, 160–170. [Google Scholar] [CrossRef] [PubMed] - Yang, Y.H.; Li, W.Z. Radial elasticity of single-walled carbon nanotube measured by atomic force microscopy. Appl. Phys. Lett.
**2011**, 98, 041901. [Google Scholar] [CrossRef] - Haddon, R.C. Hybridization and the orientation and alignment of .pi.-orbitals in nonplanar conjugated organic molecules: .pi.-orbital axis vector analysis (POAV2). J. Am. Chem. Soc.
**1986**, 108, 2837–2842. [Google Scholar] [CrossRef]

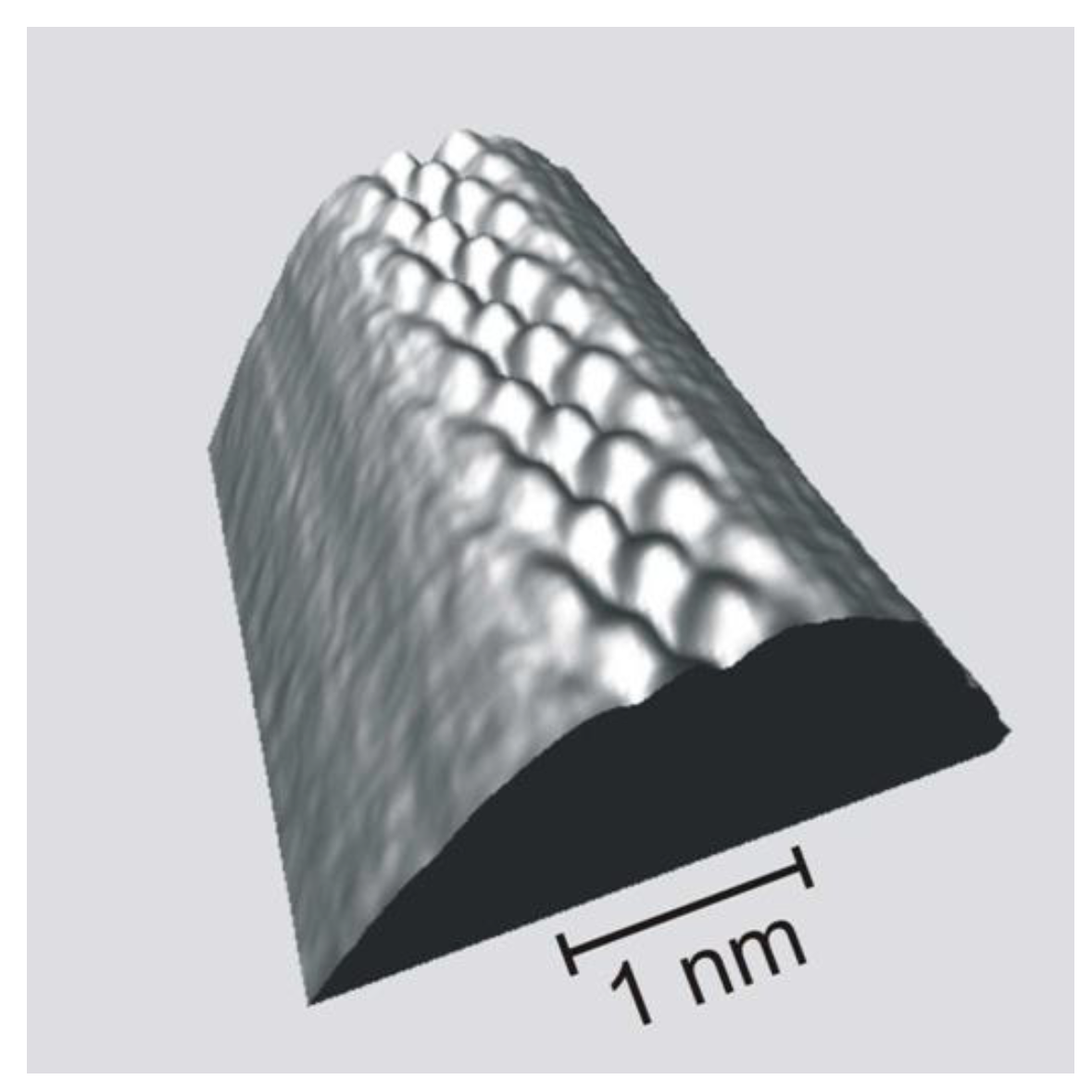

**Figure 1.**Atomic-resolution AFM topography of a single-walled carbon nanotube (SWNT) with a well-defined radius ${\mathrm{R}}_{\mathrm{o}}=6.9\pm 0.1\text{}\AA $ in 3D view. The image size is $3\times 3\times 1\text{}{\mathrm{nm}}^{3}$. The atomically resolved depressing and protruding features are observed on the topmost part of a convexly curved surface.

**Figure 2.**(

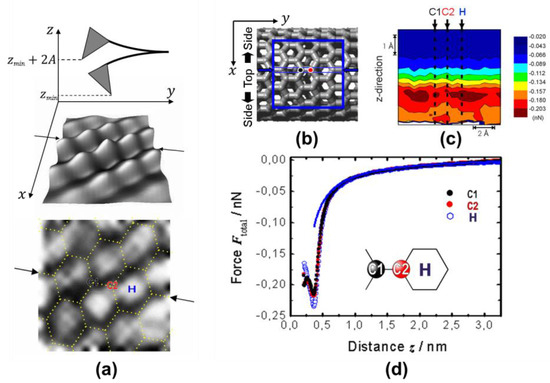

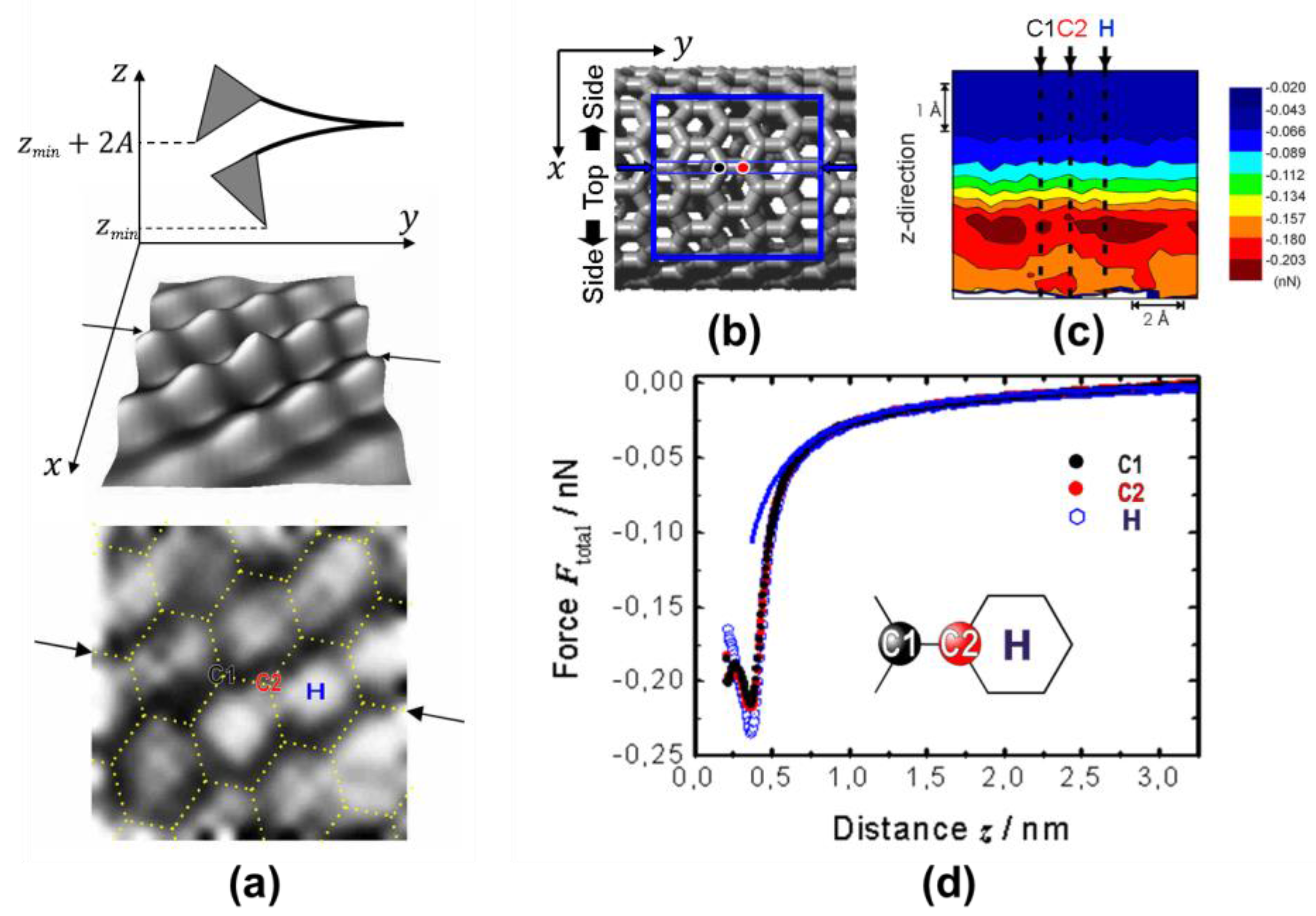

**a**) Schematic illustration of a 3D-FFS measurement over the topmost $1\times 1\text{}{\mathrm{nm}}^{2}$ area of the SWNT as depicted in (

**b**). The upper (3D) and lower (2D) images in (a) are the surface topographies obtained before and during the measurement, respectively. The elongation of the honeycomb structure (dotted line) can be explained geometrically by assuming a point-like tip scanning across a curved surface (see text). (

**c**) 2D force field map obtained along the line indicated by a pair of counter arrows in (a). (

**d**) Force vs. distance relationships along the dashed lines in (c), corresponding the C1, C2, and H sites marked in (a) and (c) (for details see text).

**Figure 3.**(

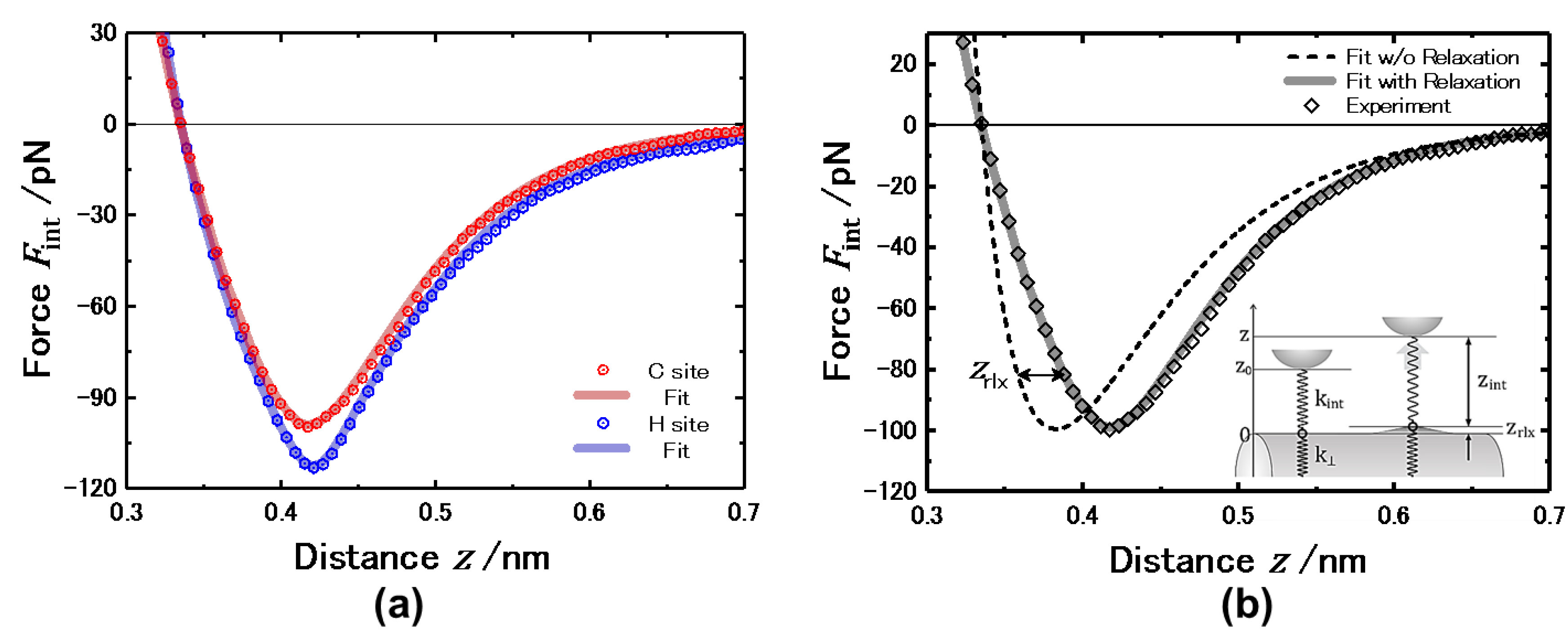

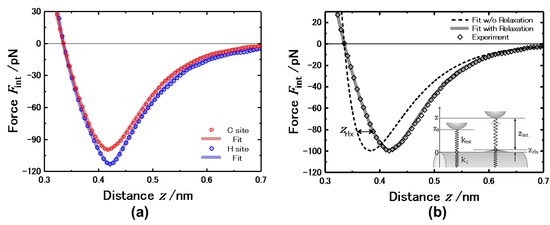

**a**) Interatomic force ${F}_{\mathrm{int}}$ vs. vertical distance $z$ relationship at atomically specific C and H sites over the topmost part of convexly curved graphene. The C and H sites are respectively corresponding to the atomically specific sites representing depressing and protruding features in the topography image (i.e., the lower panel in Figure 2a) obtained during the 3D-FFS measurement. The interatomic forces ${F}_{\mathrm{int}}$ obtained at those sites were respectively averaged and plotted with the simulation curves (solid lines). (

**b**) The relationship between the simulation curves of solid and dashed lines obtained with and without taking relaxation into account, respectively. Those simulation curves are drawn together with the experimental-data plots obtained at the C site. The out-of-plane relaxation of the closest carbon atom due to the interatomic attractive force acting to the tip-apex atom is schematically illustrated in the inset of (b).

**Figure 4.**Quantitative relationship of (

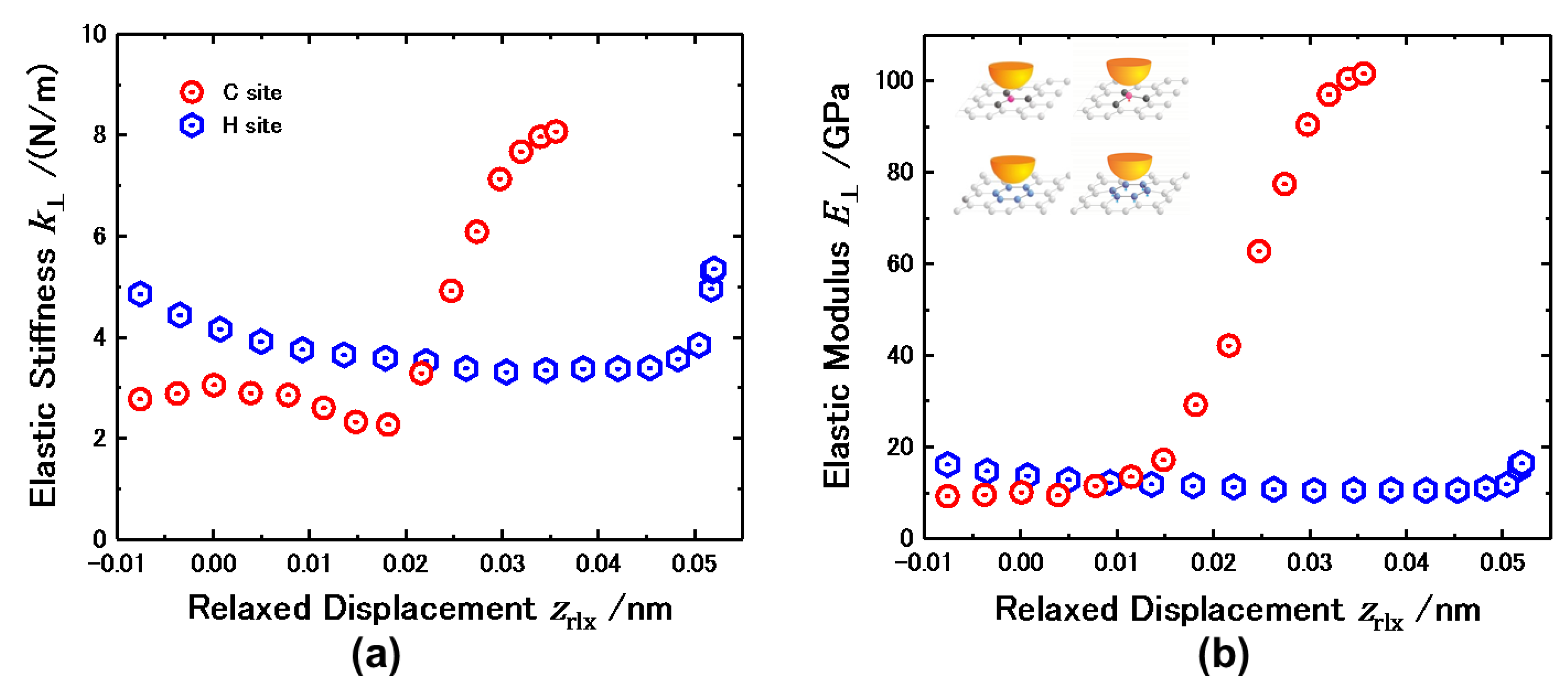

**a**) out-of-plane elastic stiffness ${k}_{\perp}$ and (
