Open AccessArticle
Crystals 2017, 7(3), 85;

The Syntheses, Crystal Structure and Luminescence Properties of Cone-Like Octadentate Europium (III) Complexes with Four Short Alkoxy Substituents

Department of Applied Chemistry, Faculty of Engineering, Kyushu Institute of Technology, 1-1 Sensui-cho, Tobata-ku, Kitakyushu 804-8550, Japan
Japan Bruker AXS K.K, 3-9, Moriya-cho Kanagawaku, Yokohama 221-0022, Japan
Author to whom correspondence should be addressed.
Academic Editor: Ingo Hartenbach
Received: 27 February 2017 / Accepted: 8 March 2017 / Published: 13 March 2017
(This article belongs to the Special Issue Luminescent Properties of Lanthanoid Doped Crystals)
Full-Text   |   PDF [2628 KB, uploaded 15 March 2017]   |

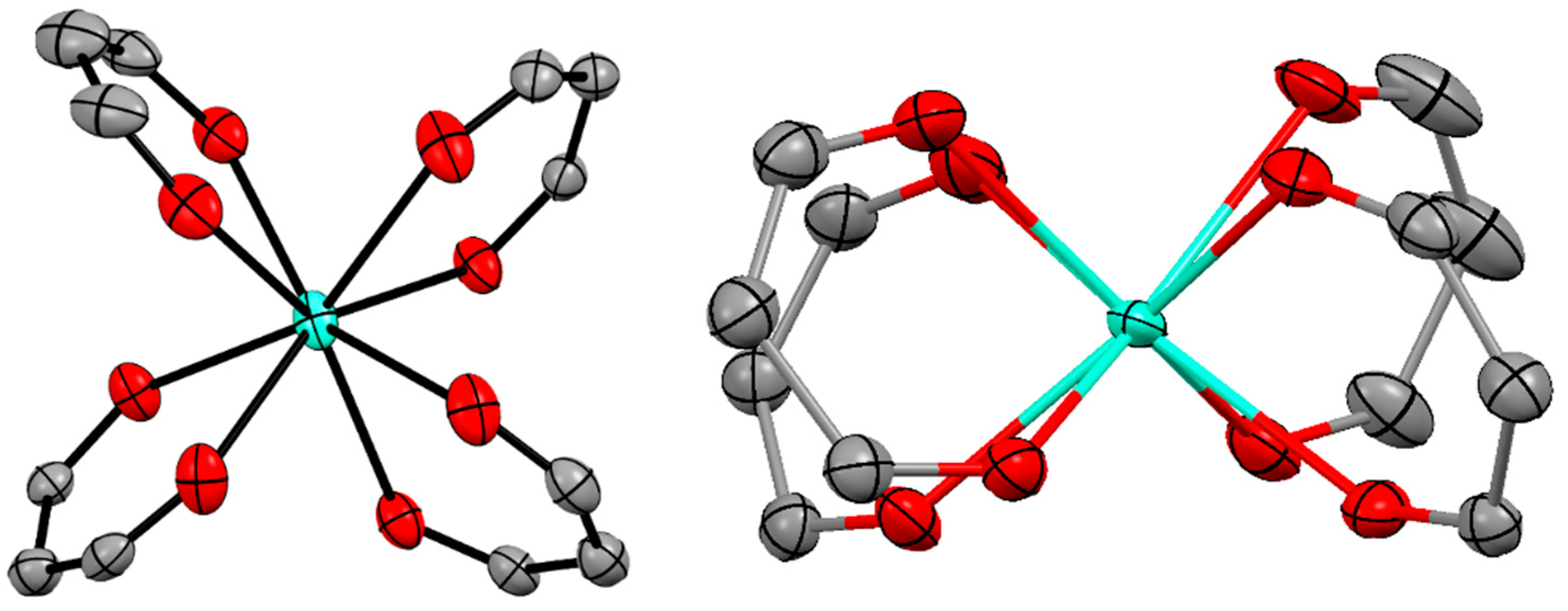

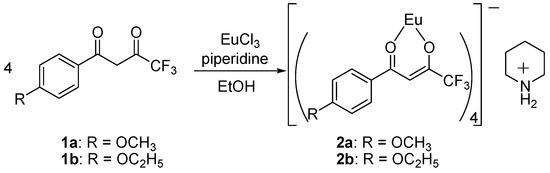

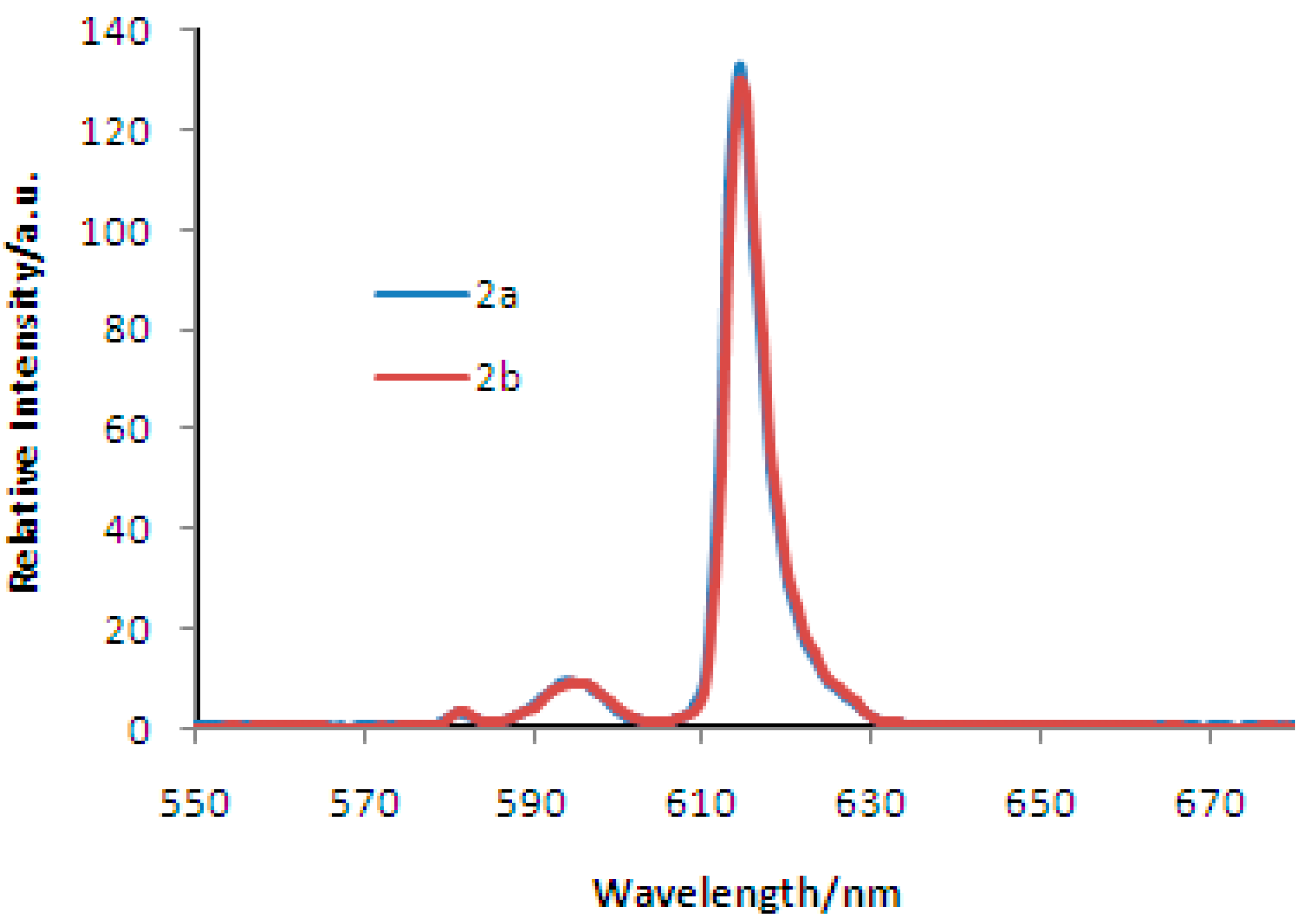

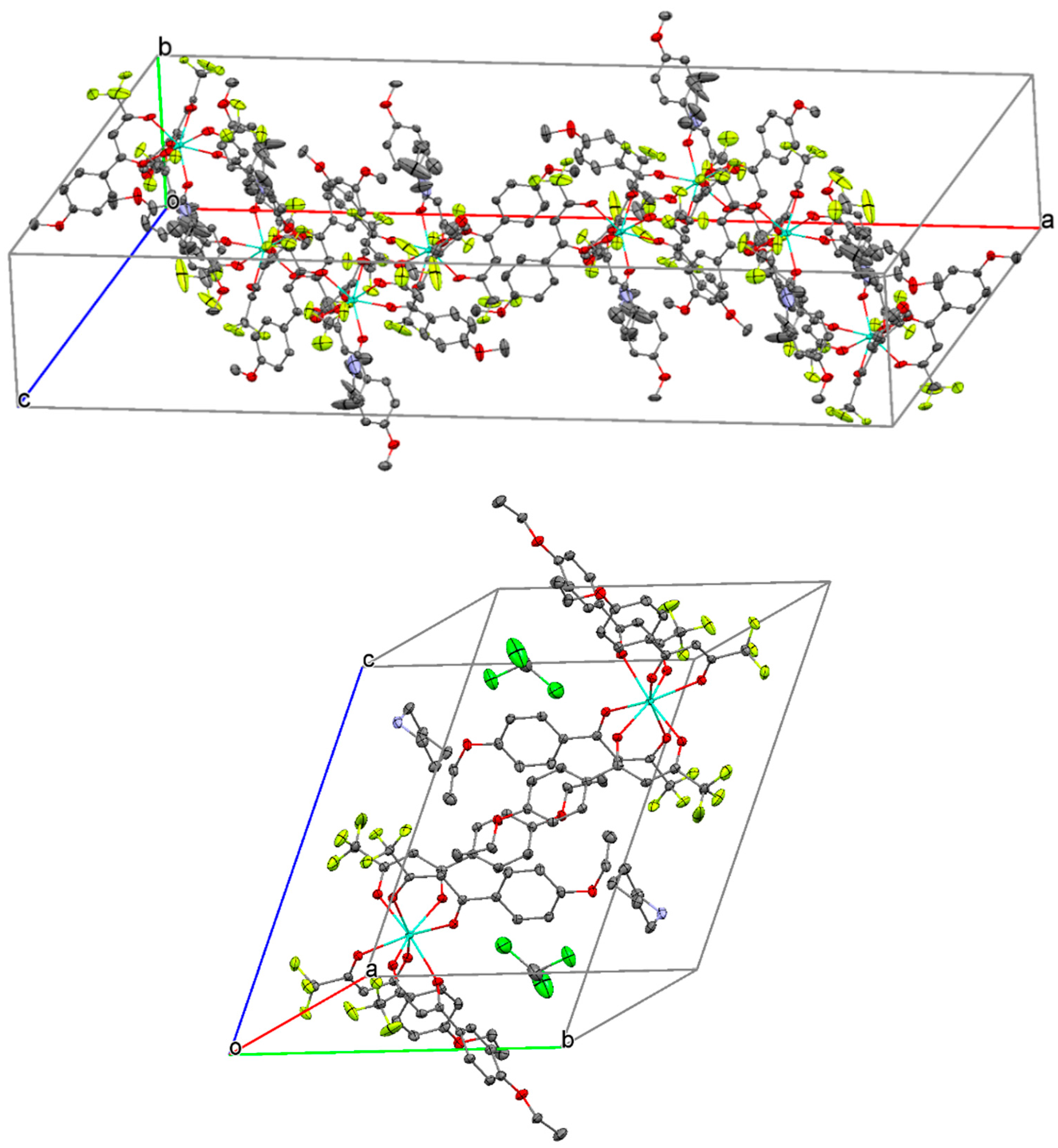

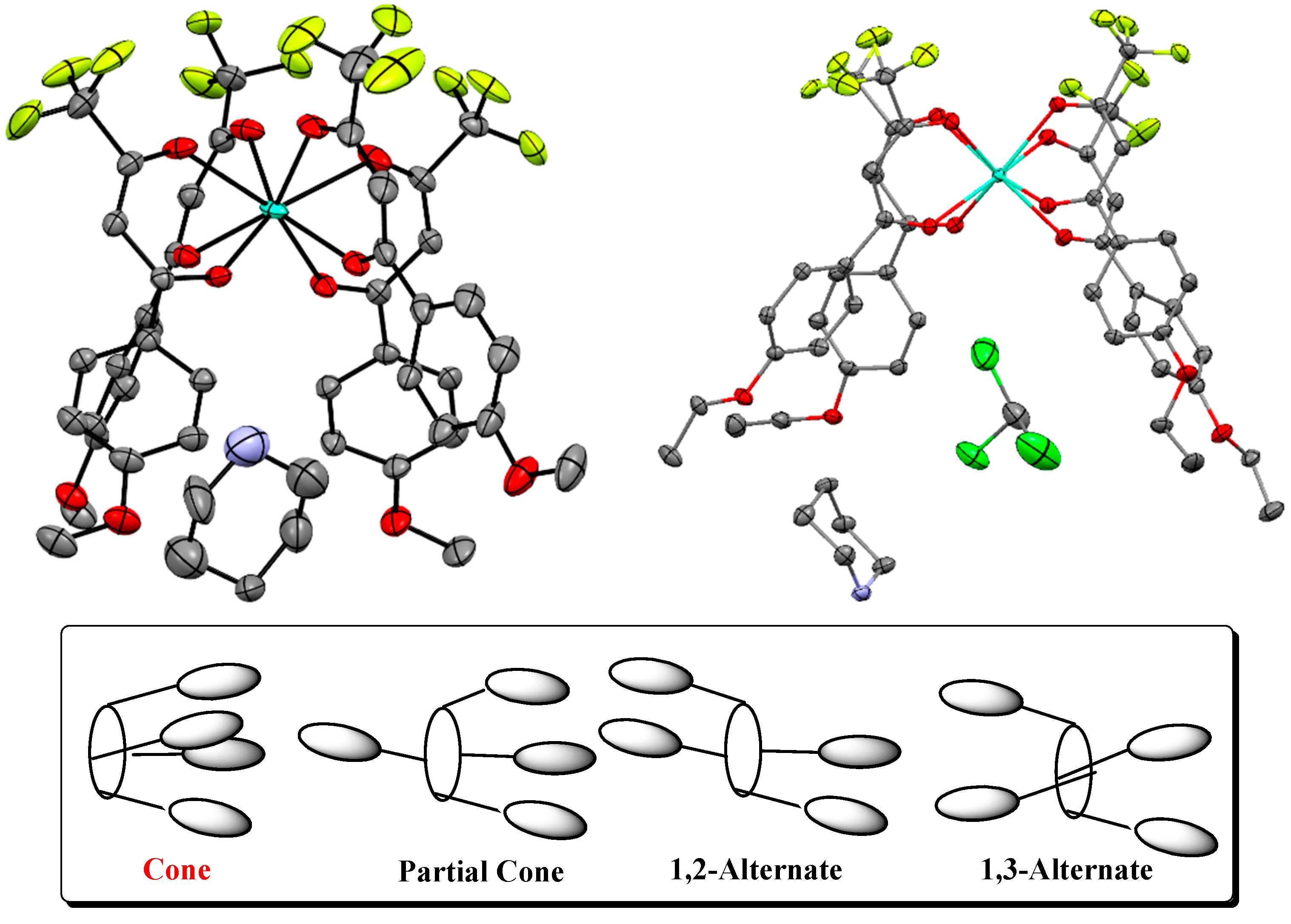

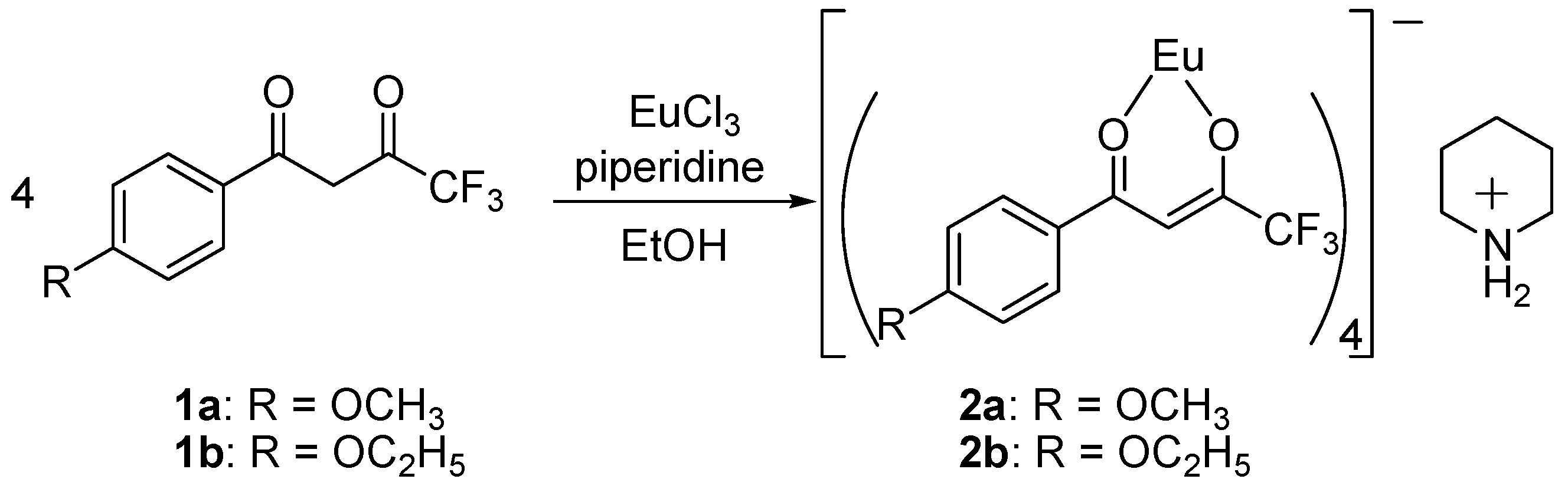

Treatment of 1-(4′-methoxy or ethoxy phenyl)-4,4,4-trifluoro-1,3-butanedione with europium (III) chloride in the presence of piperidine resulted in the halide ligands exchange yielded new piperidinium tetrakis{1-(4′-methoxy or ethoxy phenyl)-4,4,4-trifluoro-1,3-butanedionato} europate (III) complexes 2a and 2b. Complexes 2a and 2b have been characterized by elemental analysis, 1H NMR spectroscopy, and FAB-MS, and their absolute structures were determined by single crystal X-ray diffraction analysis. The complexes 2a and 2b have the monoclinic space groups C2/c (No. 15, 4′-substituent = OCH3) and with P − 1 (No. 2, 4′-substituent = OC2H5), respectively. X-ray analysis results showed that eight coordinate structures of the complexes 2a and 2b have conelike structures, like calix[4]arenes, but their structures were slightly different due to the crystal packing and the existence of the solvent molecule. The complexes 2a and 2b exhibited identical, strong photoluminescence emissions in the solution phase. View Full-Text
Keywords: europium complex; fluorescence; X-ray analyses; crystallization solvent europium complex; fluorescence; X-ray analyses; crystallization solvent

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
