The First Homoleptic Complex of Seven-Coordinated Osmium: Synthesis and Crystallographical Evidence of Pentagonal Bipyramidal Polyhedron of Heptacyanoosmate(IV)

Eugenia V. Peresypkina
Anatolie Gavriluta
3 and
Kira E. Vostrikova
Nikolaev Institute of Inorganic Chemistry SB RAS, Novosibirsk 630090, Russia
Novosibirsk State University, Novosibirsk 630090, Russia
Laboratoire des Multimatériaux et Interfaces (UMR 5615), Université Claude Bernard Lyon 1, 69622 Villeurbanne Cedex, France
Author to whom correspondence should be addressed.
Crystals 2016, 6(9), 102;
Submission received: 9 August 2016 / Revised: 17 August 2016 / Accepted: 18 August 2016 / Published: 23 August 2016
(This article belongs to the Special Issue Crystal Structure of Complex Compounds)


The ligand exchange in (n-Bu4N)2OsIVCl6 (n-Bu4N = tetra-n-butylammonium) leads to the formation of the osmium(IV) heptacyanide, the first fully inorganic homoleptic complex of heptacoordinated osmium. The single-crystal X-ray diffraction (SC-XRD) study reveals the pentagonal bipyramidal molecular structure of the [Os(CN)7]3− anion. The latter being a diamagnetic analogue of the highly anisotropic paramagnetic synthon, [ReIV(CN)7]3− can be used for the synthesis of the model heterometallic coordination compounds for the detailed study and simulation of the magnetic properties of the low-dimensional molecular nanomagnets involving 5d metal heptacyanides.

Graphical Abstract

1. Introduction

The cyanide ligand occupies a special place in coordination chemistry. The exclusive nature of CN species results from its capacity to act both as a σ-donor and a π-acceptor combined with its negative charge and ambidentate character. The ability of the cyano group to link different transition metal ions is applied for the construction of the diverse molecular assemblies. The history of cyanometallate chemistry began long before the creation of the coordination theory by Alfred Werner [1,2]. At the beginning of the 18th century, the German painter Diesbach by chance prepared a dark-blue pigment [3]. Almost 300 years later this compound, the mixed iron cyanide FeIII4[FeII(CN)6]3·xH2O, named Prussian Blue became a focus of one of the most developed and extensively studied fields of coordination chemistry [4,5]. Cyanide-based compounds were found to act as photoswitchable magnetic solids [6,7,8,9,10], antidotes for radioactive poisoning [11], molecular sieves [12], hydrogen storage materials [13,14], high-temperature molecular magnets [15,16,17] and low-dimensional nanomagnets [18,19,20,21,22].
The research in the area of cyanides has been the subject of several reviews over the years [4,5,23,24,25,26]. However, the scarce amount of information on homoleptic osmium cyanide complexes is astounding [23,27,28,29,30,31,32]. Only cyanometallates(II) and (III) were structurally characterized to date despite the existence of higher oxidation states for osmium. Moreover, the homoleptic coordination compounds of Os with purely inorganic ligands comprise mainly hexaligated complexes, unlike its nearest neighbor of the 5d row, Re, which demonstrates coordination numbers from six to eight [33,34,35,36]. The recent isolation of heptacyanotungstate(IV) as a salt (n-Bu4N)3[WIV(CN)7] (n-Bu4N = tetra-n-butylammonium) [37] has widened the family of rare heptacyanometallate anions. Here, we present the pioneering results in osmium coordination chemistry involving the synthesis and exhaustive structural study of the (n-Bu4N)3[OsIV(CN)7], (1)—the only homoleptic complex with heptacoordinated osmium (Figure 1), which also represents the first example of fully characterized cyanoosmate(IV).

2. Experimental

2.1. Materials and Physical Methods

Dry, stored over molecular sieves solvents, OsO4 (99.8%) and tetra-n-butylammonium salts were purchased from Johnson Matthey and Sigma-Aldrich, respectively. The (n-Bu4N)2[OsCl6] was obtained by the precipitation from aqueous solution of H2[OsCl6] [38] using (n-Bu4N)Cl. Elemental analyses were performed by means of a Euro-Vector 3000 analyzer (Eurovector, Redavalle, Italy). IR spectra were recorded in the solid state with a NICOLET spectrophotometer (Thermo Electron Scientific Instruments LLC, Madison, WI, USA) in the 375–4000 cm−1 range. Mass spectra were obtained using an ion trap mass spectrometer (LCQ, Thermo, Bremen, Germany) equipped with an electro spray (ESI) ion source in the positive and negative ion mode. The spray voltage for the positive and negative ion mode is respectively 4 kV and −3 kV. The capillary transfer temperature is 200 °C. Magnetic susceptibility data were collected over a 2–300 K temperature range with an applied field of 5 T using a MPMS SQUID magnetometer (Quantum Design, Inc., San Diego, CA, USA). The raw data were corrected for the sample holder and for the diamagnetic contribution of the constituent atoms using Pascal’s constants [39].

2.2. Synthesis

(Bu4N)3[Os(CN)7]·0.5H2O (1). A mixture of (n-Bu4N)2[OsCl6] (1 g, 1.13 mmol) and (n-Bu4N)CN from freshly opened bottle (2.15 g, 8 mmol) in dimethylformamide (DMF) (3 mL) was heated at 100 °C for 16 h. After the cooling to ambient temperature the green-bluish solution was reduced in volume to 1 mL using rotary evaporator, and tetrahydrofuran (THF) (10 mL) was added to the reaction mixture. The clear yellow crystalline product was formed after two days, which was filtered off and washed with 3 × 2 mL of THF. Yield: 0.208 g (17%). (Found: C, 59.8; H, 10.0; N, 12.7. C55H109N10O0.5Os (Mw = 1108.72): requires C, 59.47; H, 9.9; N, 12.62%.) ESI-MS in MeCN (negative): m/z 1956 {(n-Bu4N)5[Os(CN)7]2}, 1931 {(n-Bu4N)5[Os(CN)7] [Os(CN)6]}, 858 {(n-Bu4N)2[Os(CN)7]}, 832 {(n-Bu4N)2 [Os(CN)6]}, 294 {[Os(CN)4]}. ESI-MS in CH3CN (positive): m/z 1343 {(n-Bu4N)4[Os(CN)7]}+, 1317 {(n-Bu4N)4[Os(CN)6]}+. IR, cm–1: 418, 464, 500, 515, 603, 734, 799, 884, 1028, 1059, 1108, 1154, 1382, 1463, 1487, 1651, 2077, 2108, 2131, 2875, 2962, 3465. Crystals suitable for X-ray diffraction study were obtained by slow diffusion of THF vapors in MeCN solution of 1.

2.3. X-Ray Crystallography

The diffraction experiment for 1 was performed on a SuperNova diffractometer equipped with Atlas detector and a micro-source CuKα tube. The absorption corrections were applied empirically using equivalent reflections [40]. The structure was solved and refined with SHELX-97 program [41] using least squares method on |F|2 in anisotropic approximation for non-H atoms. More details are presented in Table 1. Hydrogen atoms were located in idealized positions and refined in isotropic approximation using the riding on pivot model. One of the n-butyl groups is disordered over three close positions with 0.45, 0.35 and 0.2 occupancies. The disordered atoms were refined in isotropic approximation, and some geometric restraints have to be applied for the disordered group. Powder X-ray diffraction measurements were performed with Cu-Kα radiation (λ = 1.5418 Å) using an PAN analytical X’Pro powder diffractometer (PANalytical Inc., Almelo, Netherlands).

3. Results and Discussion

3.1. Synthesis and Characterization

The number of osmium homoleptic complex cyanides is limited to the hexacoordinated coordination compounds of two metal oxidation states—two and three. If the hexacyanoosmate(II) was known for a long time [42], its crystal structure having been determined for the sodium salt Na4[OsII(CN)6]·10H2O [28], the paramagnetic hexacyanoosmate(III) was only recently structurally characterized and magnetically investigated as Ph4P+ salt [30] despite the successful synthesis of n-Bu4N analog almost 50 years ago [43]. Both paramagnetic cyanides were prepared starting from the diamagnetic precursor K4[OsII(CN)6]·3H2O.
As cyanide is a stronger ligand than halides, a promising route to cyanometallates is an exchange of the halides in the corresponding [MHaln]m− complexes by the CN anion (Scheme 1). Inspired by a successful ligand exchange preparation of (n-Bu4N)3[ReIV(CN)7] performed by M.V. Bennett and J.R. Long [36], we have adapted this procedure for the synthesis of osmium cyanides starting from (n-Bu4N)2OsIVCl6. Indeed, after the addition of the cyanide agent to a cold solution of (n-Bu4N)2OsIVCl6 in dry DMF followed by the heating of the reaction mixture at 100 °C for 16 h, a dark green-bluish solution was obtained (see Experimental Section). The layering of THF on the reaction mixture gave a batch of clear yellow crystals, which according to both elemental and SC-XRD analyses were tetra-n-butylammonium heptacyanoosmate(IV) hemihydrate, (n-Bu4N)3[Os(CN)7]·0.5H2O (1). In the IR spectrum of 1 (Supplementary Materials, Figure S1), the characteristics of the H2O νOH stretch at 3465 cm−1 and a set of three cyanide stretches at 2131, 2108, 2077 cm−1 are present which are in excellent agreement with the data for (n-Bu4N)3[Re(CN)7] [36] (2135sh, 2114 and 2074 cm−1) (Supplementary Materials, Figure S2). Magnetic measurements at 2–300 K have confirmed the diamagnetic character of the compound.

3.2. Crystal Structure Description

X-ray analysis of a single crystal of 1 revealed that both symmetrically non-equivalent [Os(CN)7]3– anions adopt the pentagonal bipyramidal geometry (Figure 2). Bond lengths and bond angles for the anions are summarized in Table 2. The complexes have C1 symmetry being in general position of the monoclinic P21/c space group. However, the geometry of the coordination polyhedra is almost undistorted. The carbon atoms of the five equatorial cyanide ligands form a planar equilateral pentagon (deviations of the C atoms from the equatorial plane are ~0.15°) with angular distortion that does not exceed 2° are compared with the ideal value 360°/5 = 72° for C-Os-C angles. The axial atoms are slightly tilted with respect to the equatorial plane; the maximal distortion is ~4°. The Os‑C distances fall within the range of 2.046(7)–2.093(7) Å and the apical Os‑C distances vary in the range of 2.043(8)–2.090(8) Å. These values are comparable to those observed in related cyanide complexes (n-Bu4N)3[Re(CN)7] (2.064(10)–2.123(11) Å) and K4[Re(CN)7]·2H2O (2.077(3)–2.099(6) [36] and 2.077(3) Å) [44], respectively.
The [Os(CN)7]3– anions are well separated from each other by a cationic surrounding involving six n-Bu4N+, each tetra-n-butylammonium unit (Supplementary Materials, Figure S4) having two nearest heptacyanoosmate moieties (Figure 2). Only one complex [Os(CN)7]3– anion, comprising a Os(1) center, is involved in a hydrogen bonding with a water molecule, forming an intermolecular N…O contact of 2.88(1) Å.
The powder diffractogram of the polycrystalline sample for 1 corresponds well to the diffractogram calculated from the single-crystal data (Figure 3).
To the best of our knowledge, it is the first structurally characterized heptacoordinated osmium complex involving seven equivalent ligands. The coordination number of seven and more is known for the Os central atom only in carbonyl-containing clusters as well as heteroleptic mononuclear hydrides of the metal [45,46,47]. The neutral osmium heptafluoride, reported by O. Glemser et al. [48], was not reproduced by H. Shorafa and K. Seppelt later [49]. Moreover, the theoretical calculations performed by A. K. Srivastava and N. Misra demonstrate that [OsF7] is unstable and dissociates into OsF6 and F fragments, unlike its hypothetical anion [OsF7], which should be stable with respect to loss of fluoride [50].

3.3. Magnetic Properties

Complex 1 is diamagnetic (see Supplementary Materials, Figure S5) due to the d4 electronic configuration of the Os4+ ion in the pentagonal bipyramidal environment (Figure 4). However, being a diamagnetic analogue of the highly anisotropic paramagnetic complex, [ReIV(CN)7]3− can be used for the synthesis of the model heterometallic coordination compounds for the detail study and simulation of the magnetic properties of low-dimensional molecular nanomagnets involving 5d metal heptacyanides. For example, in the case of the single-molecule magnet, Et4N[MnIII(5-Br-salen)MeOH]2[RuIII(CN)6] [51,52,53], an isostructural complex incorporating diamagnetic [IrIII(CN)6]3−, was used to determine the parameters of magnetic anisotropy for the complex [MnIII(5-Br-salen)MeOH]+, which is a part of the former [54].

4. Conclusions and Perspectives

The ligand exchange process in (n-Bu4N)2OsIVCl6 was used for the synthesis of the osmium(IV) heptacyanide. The latter, prepared as its tetra-n-butylammonium salt, is the first structurally characterized purely inorganic homoleptic complex anion of osmium involving seven ligands. The pentagonal bipyramidal structure of the anion [Os(CN)7]3− was confirmed by single-crystal XRD. The discovery of compound 1 is an outstanding result in the coordination chemistry of osmium.
We are working now on the development of an improved synthetic protocol in order to obtain 1 in higher yield which will allow us to obtain more information about their properties both in solid and solution. Furthermore, as [OsIV(CN)7]3− is a diamagnetic analogue of [ReIV(CN)7]3−, it therefore can be used for the synthesis of the model systems for [(MparaL)Re(CN)7]m−, the highly anisotropic heterobimetallic molecular magnetic materials, to experimentally determine the magnetic anisotropy contribution of their paramagnetic constituent [MparaL]n+. In the near future we have the intention to synthesize 1D polymer (Ph4P)2[Mn(acacen)Re(CN)7], a rhenium congener of the recently studied single-chain magnet (Ph4P)2[Mn(acacen)Os(CN)6] [22] and its model compound (Ph4P)2[Mn(acacen)Os(CN)7] for better understanding the magnetic properties of the former.

Supplementary Materials

The following are available online at, Figure S1: IR spectrum of (n-Bu4N)3[Os(CN)7]·0.5H2O (1) (reflectance), Figure S2: CN valance stretch region in the IR spectra of: (n-Bu4N)3[Os(CN)7](H2O)0.5 (red) and (n-Bu4N)3[Re(CN)7] (black) (reflectance), Figure S3: MS-ESI spectrum of the reaction mixture of 1: (a)-cationic part; (b) and (c)-anionic part, Figure S4: The crystal packing in 1, Figure S5: The temperature dependence for the effective magnetic moment of the polycrystalline sample of 1. CCDC 1020688 (Bu4N)3[Os(CN)7]·0,5H2O contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via data_request/cif.


This work was supported in part by European Commission (PIIFR-GA-2011-911689) and RFBR (gr. 08-03-00459-a). Eugenia V. Peresypkina thanks Michael Bodensteiner for access to the SuperNova diffractometer. We express our gratitude to Ruben Checa for the magnetic measurements.

Author Contributions

Kira E. Vostrikova conceived, designed and performed the experiment, as well as wrote the paper; Anatolie Gavriluta reproduced some experiments and grew the single crystals; Eugenia V. Peresypkina performed the crystallographic studies and participated in the article redaction.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Werner, A. Beitrag zur Konstitution anorganischer Verbindungen. Z. Anorg. Allg. Chem. 1893, 3, 267–330. [Google Scholar] [CrossRef]
  2. Constable, E.C.; Housecroft, C.E. Coordination chemistry: The scientific legacy of Alfred Werner. Chem. Soc. Rev. 2013, 42, 1429–1439. [Google Scholar] [CrossRef] [PubMed]
  3. Woodward, J. Praeparatio Caerulei Prussiaci. Philos. Trans. 1724, 33, 15–17. [Google Scholar] [CrossRef]
  4. Verdaguer, M.; Bleuzen, A.; Marvaud, V.; Vaissermann, J.; Seuleiman, M.; Desplanches, C.; Scuiller, A.; Train, C.; Garde, R.; Gelly, G.; et al. Molecules to build solids: high TC molecule-based magnets by design and recent revival of cyano complexes chemistry. Coord. Chem Rev. 1999, 192, 1023–1047. [Google Scholar] [CrossRef]
  5. Verdaguer, M.; Girolami, G.S. Magnetic Prussian Blue Analogs. In Magnetism: Molecules to Materials, V; Miller, J.S., Drillon, M., Eds.; Wiley-VCH Verlag GmbH and Co. KGaA: Weinheim, Germany, 2005; Volume 3, pp. 283–346. [Google Scholar]
  6. Sato, O.; Iyoda, T.; Fujishima, A.; Hashimoto, K. Photoinduced Magnetization of a Cobalt-Iron Cyanide. Science 1996, 272, 704–705. [Google Scholar] [CrossRef] [PubMed]
  7. Bleuzen, A.; Marvaud, V.; Mathoniere, C.; Sieklucka, B.; Verdaguer, M. Photomagnetism in Clusters and Extended Molecule-Based Magnets. Inorg. Chem. 2009, 48, 3453–3466. [Google Scholar]
  8. Carvajal, M.-A.; Caballol, R.; de Graaf, C. Insights on the photomagnetism in copper octacyanomolybdates. Dalt. Trans. 2011, 40, 7295–7303. [Google Scholar] [CrossRef] [PubMed]
  9. Lejeune, J.; Cafun, J.-D.; Fornasieri, G.; Brubach, J.-B.; Creff, G.; Roy, P.; Bleuzen, A. Microscopic Origin for Multistability in a Photomagnetic CoFe Prussian Blue Analogue. Eur. J. Inorg. Chem. 2012, 3980–3983. [Google Scholar]
  10. Mondal, A.; Chamoreau, L.-M.; Li, Y.; Journaux, Y.; Seuleiman, M.; Lescouëzec, R. W-Co discrete complex exhibiting photo- and thermo-induced magnetization. Chem. Eur. J. 2013, 19, 7682–7685. [Google Scholar] [CrossRef] [PubMed]
  11. U.S. Food and Drug Administration. Available online: (accessed on 28 May 2016).
  12. Boxhoorn, G.; Moolhuysen, J.; Coolegem, J.G.F.; Van Santen, R.A. Cyanometallates: An underestimated class of molecular sieves. J. Chem. Soc. Chem. Commun. 1985, 19, 1305–1307. [Google Scholar] [CrossRef]
  13. Chapman, K.W.; Southon, P.D.; Weeks, C.L.; Kepert, C.J. Reversible hydrogen gas uptake in nanoporous Prussian Blue analogues. Chem. Commun. 2005, 26, 3322–3324. [Google Scholar] [CrossRef] [PubMed]
  14. Kaye, S.S.; Long, J.R. Hydrogen Storage in the Dehydrated Prussian Blue Analogues M3[Co(CN)6]2 (M = Mn, Fe, Co, Ni, Cu, Zn). J. Am. Chem. Soc. 2005, 127, 6506–6507. [Google Scholar] [CrossRef] [PubMed]
  15. Ferlay, S.; Mallah, T.; Ouahes, R.; Veillet, P.; Verdaguer, M. A room-temperature organometallic magnet based on Prussian blue. Nature 1995, 378, 701–703. [Google Scholar] [CrossRef]
  16. Entley, W.R.; Girolami, G.S. High-temperature molecular magnets based on cyanovanadate building blocks: Spontaneous magnetization at 230 K. Science 1995, 268, 397–400. [Google Scholar] [CrossRef] [PubMed]
  17. Holmes, S.M.; Girolami, G.S. Sol−Gel Synthesis of KVII[CrIII(CN)6]·2H2O: A crystalline molecule-based magnet with a magnetic ordering temperature above 100 °C. J. Am. Chem. Soc. 1999, 121, 5593–5594. [Google Scholar] [CrossRef]
  18. Wang, X.-Y.; Avendaňo, C.; Dunbar, K.R. Molecular magnetic materials based on 4d and 5d transition metals. Chem. Soc. Rev. 2011, 40, 3213–3238. [Google Scholar] [CrossRef] [PubMed]
  19. Pedersen, K.S.; Bendix, J.; Clérac, R. Single-molecule magnet engineering: Building-block approaches. Chem. Commun. 2014, 50, 4396–4415. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, W.-X.; Breedlove, B.; Ishikawa, R.; Yamashita, M. Single-chain magnets: Beyond the Glauber model. RSC Adv. 2013, 3, 3772–3798. [Google Scholar] [CrossRef]
  21. Rams, M.; Peresypkina, E.V.; Mironov, V.S.; Wernsdorfer, W.; Vostrikova, K.E. Magnetic Relaxation of 1D Coordination Polymers (X)2[Mn(acacen)Fe(CN)6], X = Ph4P+, Et4N+. Inorg. Chem. 2014, 53, 10291–10300. [Google Scholar] [CrossRef] [PubMed]
  22. Peresypkina, E.V.; Majcher, A.; Rams, M.; Vostrikova, K.E. A single chain magnet involving hexacyanoosmate. Chem. Commun. 2014, 50, 7150–7153. [Google Scholar] [CrossRef] [PubMed]
  23. Sharpe, A.C. The Chemistry of Cyano Complexes of the Transition Metals; Academic Press: New York, NY, USA, 1976. [Google Scholar]
  24. Babel, D. Magnetism and Structure: Model Studies on Transition Metal Fluorides and Cyanides. Comments Inorg. Chem. 1986, 5, 285–320. [Google Scholar] [CrossRef]
  25. Dunbar, K.R.; Heintz, R.A. Chemistry of Transition Metal Cyanide Compounds: Modern Perspectives. In Progress in Inorganic Chemistry; Karlin, K.D., Ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 1997; Volume 45, pp. 283–391. [Google Scholar]
  26. Shatruk, M.; Avendaňo, C.; Dunbar, K.R. Cyanide-Bridged Complexes of Transition Metals: A Molecular Magnetism Perspective. In Progress in Inorganic Chemistry; Karlin, K.D., Ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2009; Volume 56, pp. 155–334. [Google Scholar]
  27. Curtis, J.C.; Meyer, T.J. Outer-sphere charge transfer in mixed-metal ion pairs. Inorg. Chem. 1982, 21, 1562–1571. [Google Scholar] [CrossRef]
  28. Gentil, L.A.; Navaza, A.; Olabe, J.A.; Rigotti, G.E. The crystal and molecular structure of sodium hexacyanoosmate(II) decahydrate and related hexacyanometalate complexes. Inorg. Chim. Acta 1991, 179, 89–96. [Google Scholar] [CrossRef]
  29. Kang, H.W.; Moran, G.; Krausz, E. Magnetic circular dichroism spectroscopy of the hexacyano complexes of Ru(III) and Os(III). Inorg. Chim. Acta 1996, 249, 231–235. [Google Scholar] [CrossRef]
  30. Albores, P.; Slep, L.D.; Baraldo, L.M.; Baggio, R.; Garland, M.T.; Rentschler, E. Crystal Structure and Electronic and Magnetic Properties of Hexacyanoosmate(III). Inorg. Chem. 2006, 45, 2361–2363. [Google Scholar] [CrossRef] [PubMed]
  31. Van den Heuvel, W.; Hendrickx, M.F.A.; Ceulemans, A.A. CASPT2 Study of the Electronic Spectrum of Hexacyanoosmate(III). Inorg. Chem. 2007, 46, 8032–8037. [Google Scholar] [CrossRef] [PubMed]
  32. Vostrikova, K.E.; Peresypkina, E.V. Facile Preparation of Paramagnetic RuIII and OsIII Hexacyanides. Eur. J. Inorg. Chem. 2011, 6, 811–815. [Google Scholar] [CrossRef]
  33. Pombeiro, J.L.; Guedes da Silva, M.F.C.; Crabtree, R.H. Technetium & Rhenium: Inorganic & Coordination Chemistry. In Encyclopedia of Inorganic and Bioinorganic Chemistry; Wiley-VCH Verlag GmbH and Co. KGaA: Weinheim, Germany, 2006. [Google Scholar]
  34. Alberto, R. Comprehensive Coordination Chemistry II; Elsevier: Amsterdam, The Netherlands, 2004; Volume V, p. 127. [Google Scholar]
  35. Colton, R.; Peacock, R.D.; Wilkinson, G. 275. Complex cyanides of rhenium. J. Chem. Soc. 1960, 1374–1378. [Google Scholar] [CrossRef]
  36. Bennett, M.V.; Long, J.R. New Cyanometalate Building Units: Synthesis and Characterization of [Re(CN)7]3− and [Re(CN)8]3−. J. Am. Chem. Soc. 2003, 125, 2394–2395. [Google Scholar] [CrossRef] [PubMed]
  37. Birk, F.J.; Pinkowicz, D.; Dunbar, K.R. The Heptacyanotungstate(IV) Anion: A New 5d ransition-Metal Member of the Rare Heptacyanometallate Family of Anions. Angew. Chem. Int. Ed. 2016, 55, 1–4. [Google Scholar]
  38. Synthesis of the Complex Compounds of Platinum Group; Cherniaev, I.I. (Ed.) Publishing House “Nauka”: Moscow, Russia, 1964; p. 294.
  39. Bain, G.A.; Berry, J.F. Diamagnetic Corrections and Pascal’s Constants. J. Chem. Educ. 2008, 85, 532–536. [Google Scholar] [CrossRef]
  40. Clark, R.C.; Reid, J.S. The analytical calculation of absorption in multifaceted crystals. Acta Cryst. 1995, A51, 887–897. [Google Scholar] [CrossRef]
  41. Sheldrick, G.M. A short history of SHELX. Acta Cryst. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  42. Krauss, А.; Schrader, G. Zur Kenntnis der Cyanverbindungen der Platinmetalle. III. Über die Cyanverbindungen des Osmiums. J. Pract. Chem. 1928, 119, 279–286. [Google Scholar] [CrossRef]
  43. Alexander, J.J.; Gray, H.B. Electronic Structures of Hexacyanometalate Complexes. J. Am. Chem. Soc. 1968, 90, 4260–4271. [Google Scholar] [CrossRef]
  44. Manoli, J.-M.; Potvin, C.; Brégeault, J.-M.; Griffith, W.P. Crystal structure of potassium heptacyanorhenate(III) dehydrate. J. Chem. Soc. Dalton Trans. 1980, 192–195. [Google Scholar] [CrossRef]
  45. Teller, R.G.; Bau, R. Crystallographic studies of transition metal hydride complexes. In Structure and Bonding; Springer-Verlag: Berlin, Germany, 1981; Volume 44, pp. 1–82. [Google Scholar]
  46. Moore, D.S.; Robinson, S.D. Hydrido complexes of the transition metals. Chem. Soc. Rev. 1983, 12, 415–452. [Google Scholar] [CrossRef]
  47. McGrady, G.S.; Guilera, G. The Multifarious World of Transition Metal Hydrides. Chem. Soc. Rev. 2003, 32, 383–392. [Google Scholar] [CrossRef] [PubMed]
  48. Glemser, O.; Roesky, H.W.; Hellberg, K.-H.; Werther, H.-H. Darstellung und Eigenschaften von Osmiumheptafluorid. Chem. Ber. 1966, 99, 2652–2662. [Google Scholar] [CrossRef]
  49. Shorafa, H.; Seppelt, K. Osmium(VII) Fluorine Compounds. Inorg. Chem. 2006, 45, 7929–7934. [Google Scholar] [CrossRef] [PubMed]
  50. Srivastava, A.K.; Misra, N. Theoretical investigation on the structure, stability and superhalogen properties of OsFn (n = 1–7) species. J. Fluorine Chem. 2014, 158, 65–68. [Google Scholar] [CrossRef]
  51. Pedersen, K.S.; Dreiser, J.; Nehrkorn, J.; Gysler, M.; Schau-Magnussen, M.; Schnegg, A.; Holldack, K.; Bittl, R.; Piligkos, S.; Weihe, H.; et al. A linear single-molecule magnet based on [RuIII(CN)6]3−. J. Chem. Commun. 2011, 47, 6918–6920. [Google Scholar] [CrossRef]
  52. Dreiser, J.; Pedersen, K.S.; Schnegg, A.; Holldack, K.; Nehrkorn, J.; Sigrist, M.; Tregenna-Piggott, P.; Mutka, H.; Weihe, H.; Mironov, V.S.; et al. Three-axis anisotropic exchange coupling in the single-molecule magnets NEt4[MnIII2(5-Brsalen)2(MeOH)2MIII(CN)6] (M = Ru, Os). Chem. Eur. J. 2013, 19, 3693–3701. [Google Scholar] [CrossRef] [PubMed]
  53. Vostrikova, K.; Homoleptic, E. Osmium Cyanide Complexes: Synthesis and Perspective Application in Molecular Magnetism. In Osmium: Synthesis Characterization and Applications; Wise, G., Ed.; Nova Science Publishers: Hauppauge, NY, USA, 2015; pp. 43–78. [Google Scholar]
  54. Pedersen, K.S.; Sigrist, M.; Weihe, H.; Tregenna-Piggott, P.L.W.; Schau-Magnussen, M.; Dreiser, J.; Mutka, H.; Barra, A.-L.; Bendix, J. MnIII zero-field splitting parameters and weak exchange interactions in a cyanide-bridged {MnIII–IrIII–MnIII} cluster. Inorg. Chem. Commun. 2012, 24, 24–28. [Google Scholar] [CrossRef]

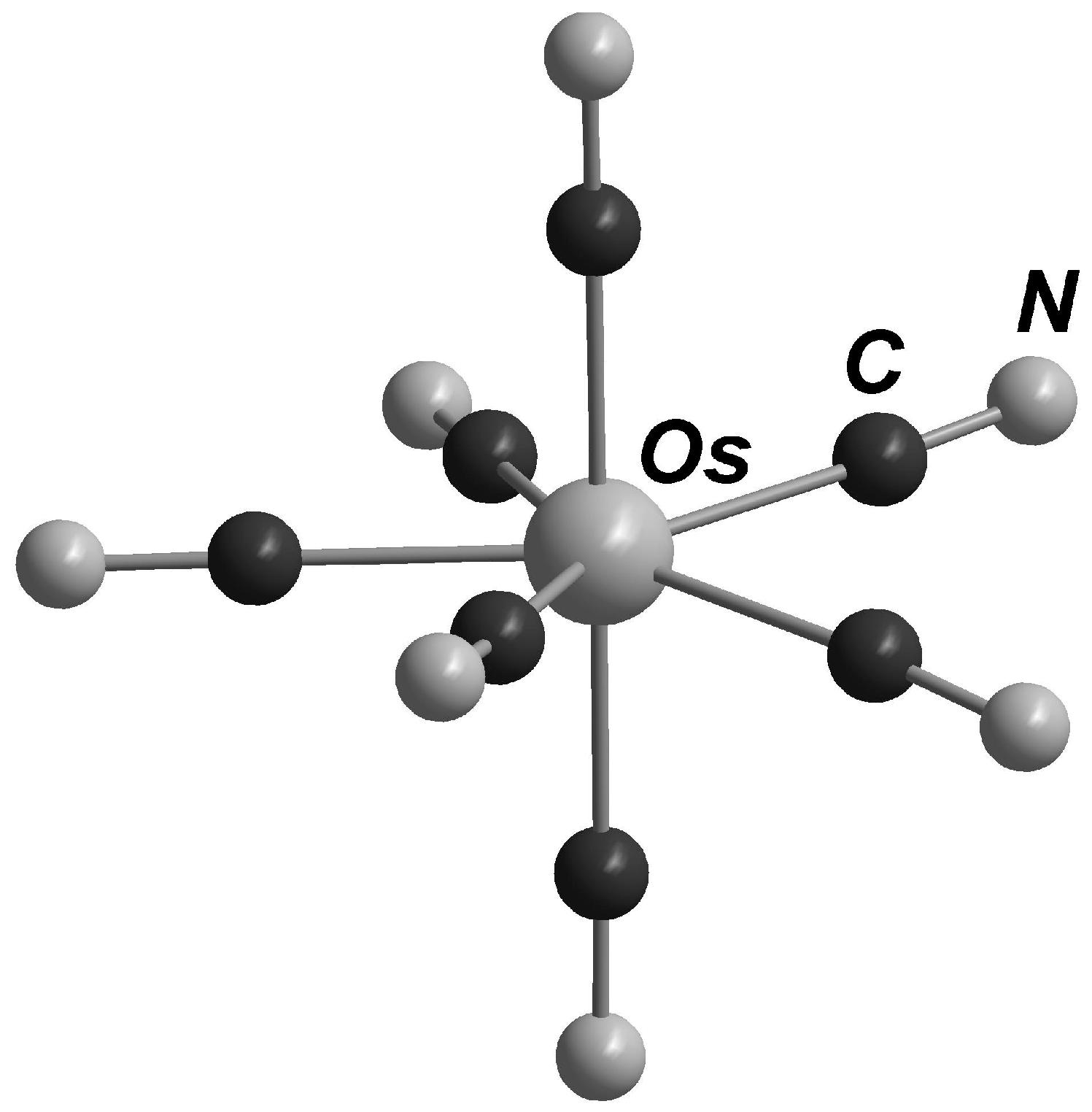

Figure 1. Structure of pentagonal bipyramidal [Os(CN)7]3− complex in 1.
Figure 1. Structure of pentagonal bipyramidal [Os(CN)7]3− complex in 1.
Crystals 06 00102 g001
Scheme 1. Ligand exchange procedure.
Scheme 1. Ligand exchange procedure.

Km[MHal6] + mBu4N(Hal) → (Bu4N)m[MHal6]
(Bu4N)m[MHal6] + (6+x)Bu4N(CN) → (Bu4N)m+x[M(CN)6+x]

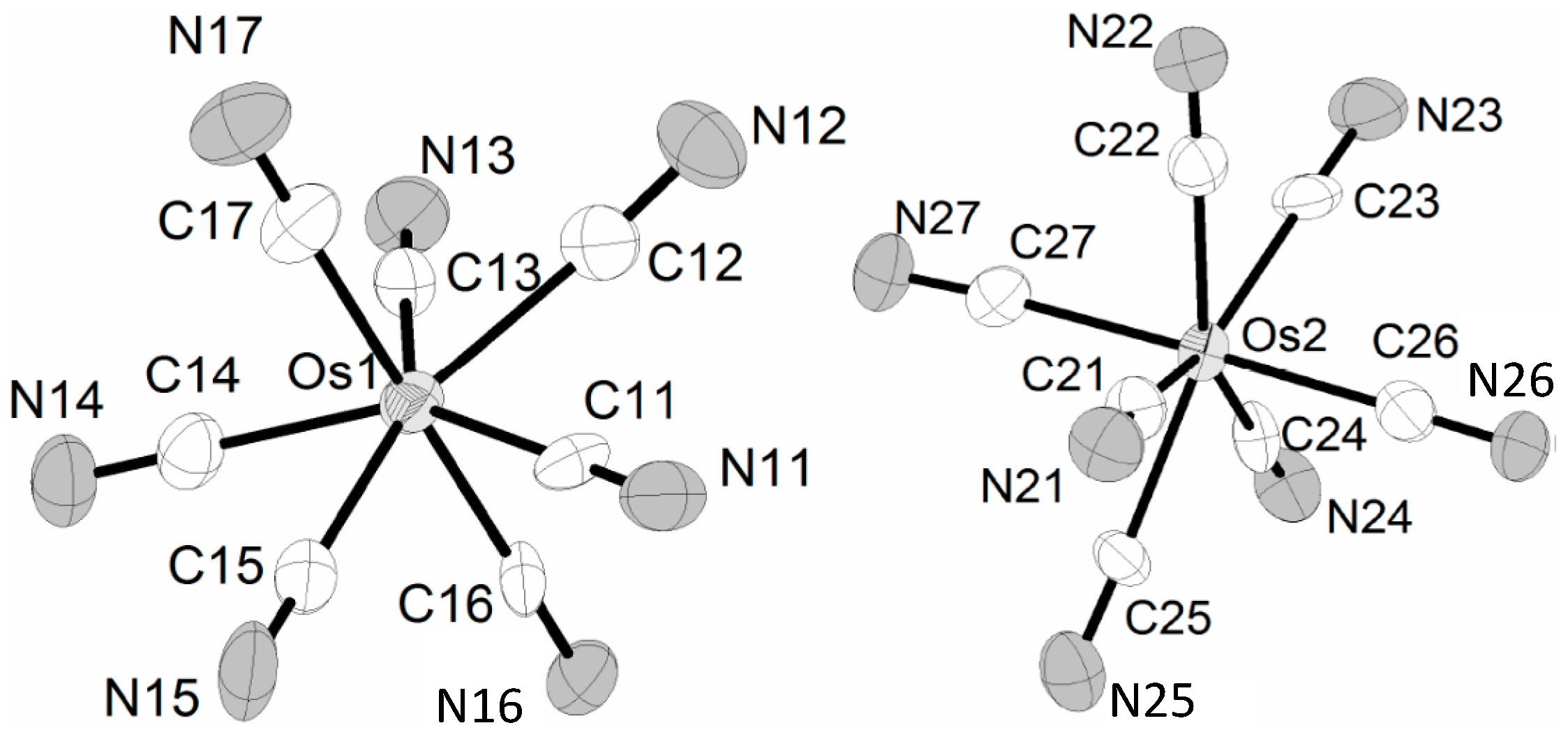

Figure 2. The numbering scheme in two independent molecules of the [Os(CN)7]3− complex.
Figure 2. The numbering scheme in two independent molecules of the [Os(CN)7]3− complex.
Crystals 06 00102 g002

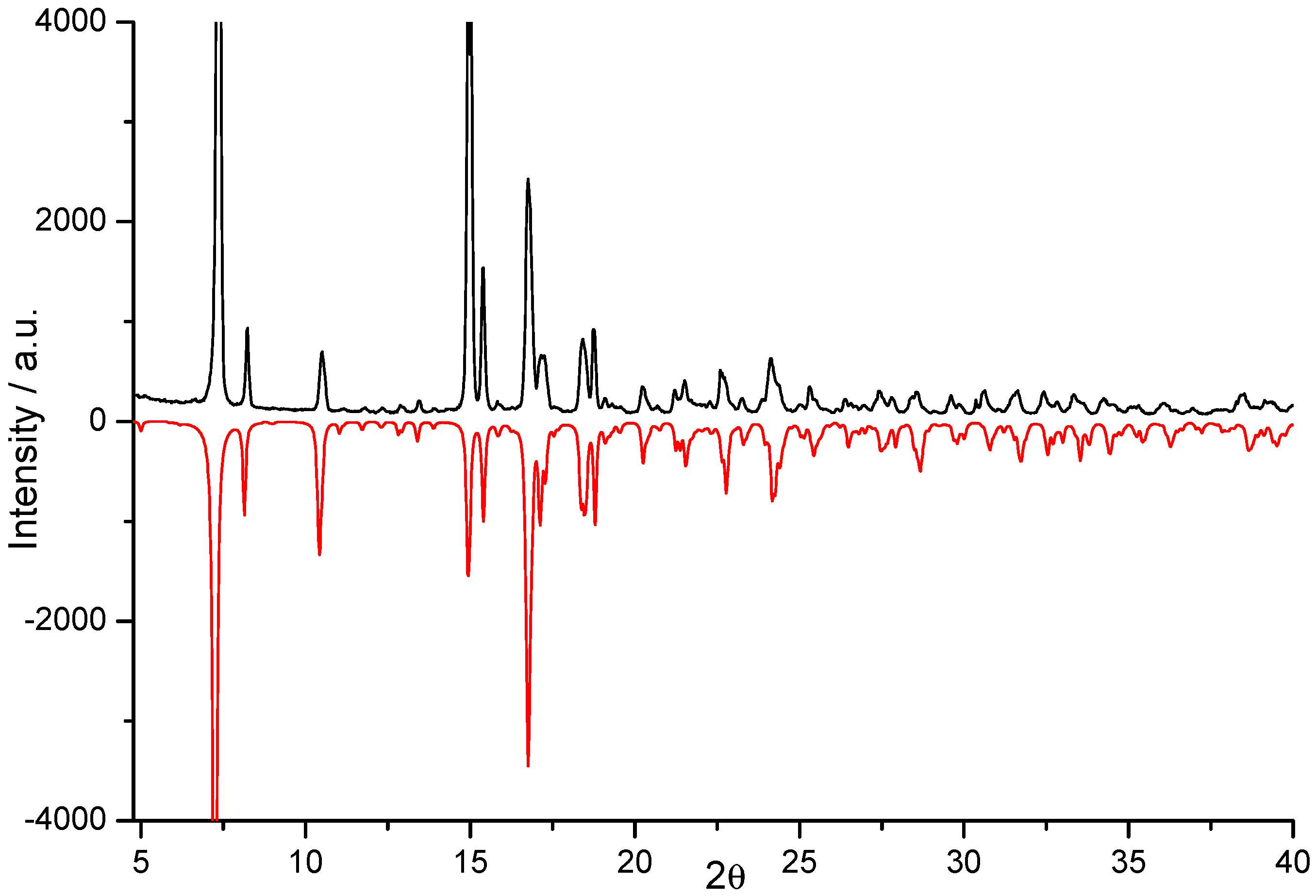

Figure 3. Calculated from the single-crystal diffraction data (red) and experimental powder XRD (black) diffractograms for 1.
Figure 3. Calculated from the single-crystal diffraction data (red) and experimental powder XRD (black) diffractograms for 1.
Crystals 06 00102 g003

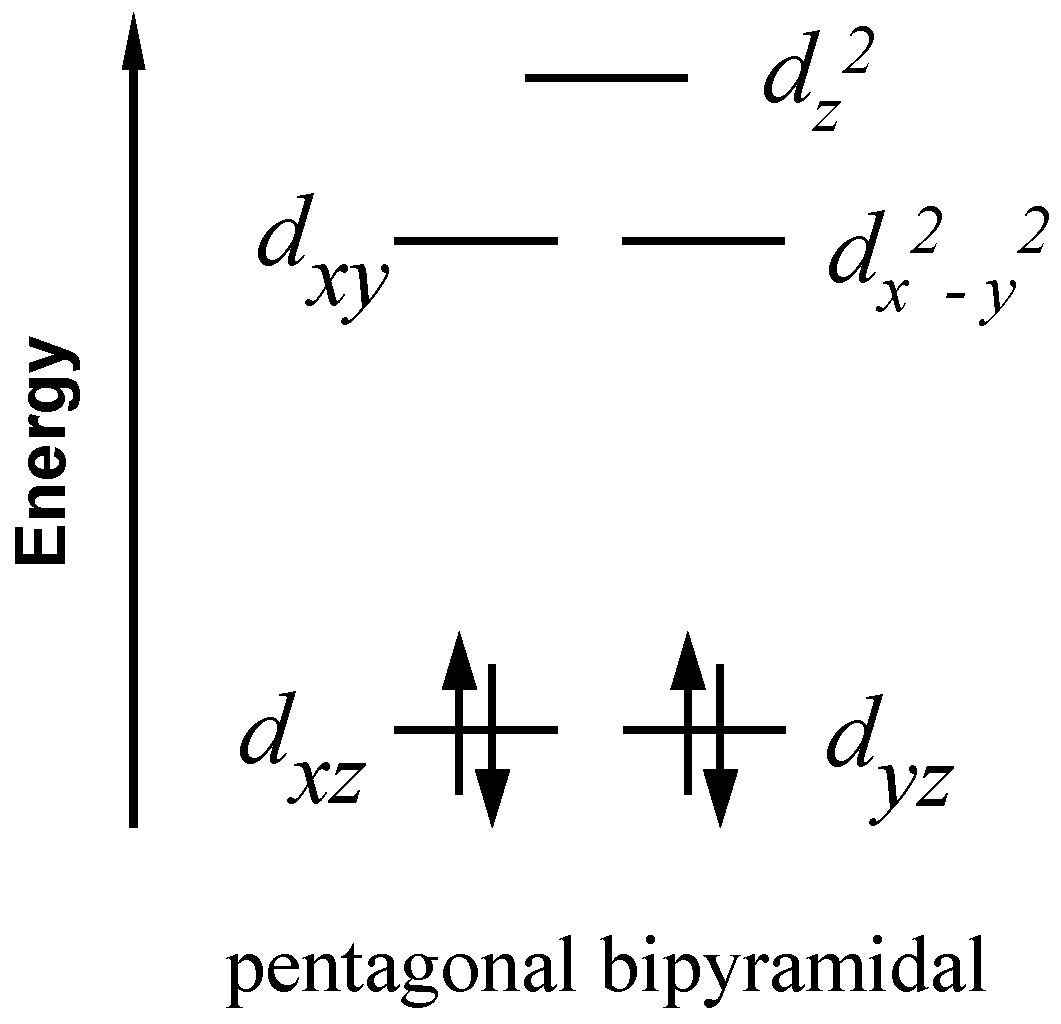

Figure 4. The qualitative d-orbital energy-splitting diagram for pentagonal bipyramidal geometry and the ground-state electronic configuration of 1.
Figure 4. The qualitative d-orbital energy-splitting diagram for pentagonal bipyramidal geometry and the ground-state electronic configuration of 1.
Crystals 06 00102 g004
Table 1. Single-crystal X-ray diffraction analysis data and structure refinement parameters of 1.
Table 1. Single-crystal X-ray diffraction analysis data and structure refinement parameters of 1.
Crystal Data
Chemical formula(C16H36N)3(C7N7Os)(H2O)0.5
Crystal system, space groupMonoclinic, P21/c
Temperature (K)150
a, b, c (Å)22.8582(3), 23.0300(4), 23.0373 (3)
β (°)90.840 (1)
V3)12126.1 (3)
Radiation typeCu Kα
μ (mm−1)4.28
Dcalcd (g·cm−1)1.215
Crystal shaperod
Colorpale yellow
Crystal size (mm)0.11 × 0.07 × 0.02
Data Collection
Super Nova diffractometer (Atlas), Single source at offset
Absorption correctionMulti-scan
Tmin, Tmax0.900, 1.000
Number of measured, independent and observed
[I > 2σ (I)] reflections
42839, 23015, 14167
(sin θ/λ)max−1)0.619
R[F2 > 2σ(F2)], wR(F2), S0.054, 0.142, 0.93
No. of reflections23015
No. of parameters1234
No. of restraints15
H-atom treatmentH-atom parameters constrained
Δ〉max, Δ〉min (e Å−3)4.39, −1.51
Table 2. Some geometrical characteristics of [Os(Cn)7]3– in 1.
Table 2. Some geometrical characteristics of [Os(Cn)7]3– in 1.
BondBond Length, ÅBondBond Length, Å
Os1–C112.093 (7)Os2–C212.070 (6)
Os1–C122.066 (8)Os2–C222.079 (7)
Os1–C132.046 (8)Os2–C232.046 (7)
Os1–C142.054 (7)Os2–C242.055 (6)
Os1–C152.066 (8)Os2–C252.072 (6)
Os1–C162.043 (8)Os2–C262.060 (7)
Os1–C172.090 (8)Os2–C272.078 (7)
N11–C111.124 (10)N21–C211.155 (9)
N12–C121.173 (10)N22–C221.142 (9)
N13–C131.164 (10)N23–C231.171 (9)
N14–C141.161 (10)N24–C241.158 (8)
N15–C151.141 (10)N25–C251.153 (9)
N16–C161.180 (10)N26–C261.166 (9)
N17–C171.114 (10)N27–C271.145 (9)
Bond AngleAngle, °Bond AngleAngle, °
C11–Os1–C1271.6 (3)C21–Os2–C2273.3 (3)
C12–Os1–C1371.3 (3)C22–Os2–C2372.9 (3)
C13–Os1–C1473.9 (3)C23–Os2–C2472.9 (3)
C14–Os1–C1573.1 (3)C24–Os2–C2572.6 (3)
C15–Os1–C1171.9 (3)C25–Os2–C2170.9 (3)
C16–Os1–C17179.3 (3)C26–Os2–C27178.7 (3)
