Growth Mechanism of Eutectic Si in Super-Gravity Solidified Al-Si Alloy during Annealing
Abstract
:1. Introduction

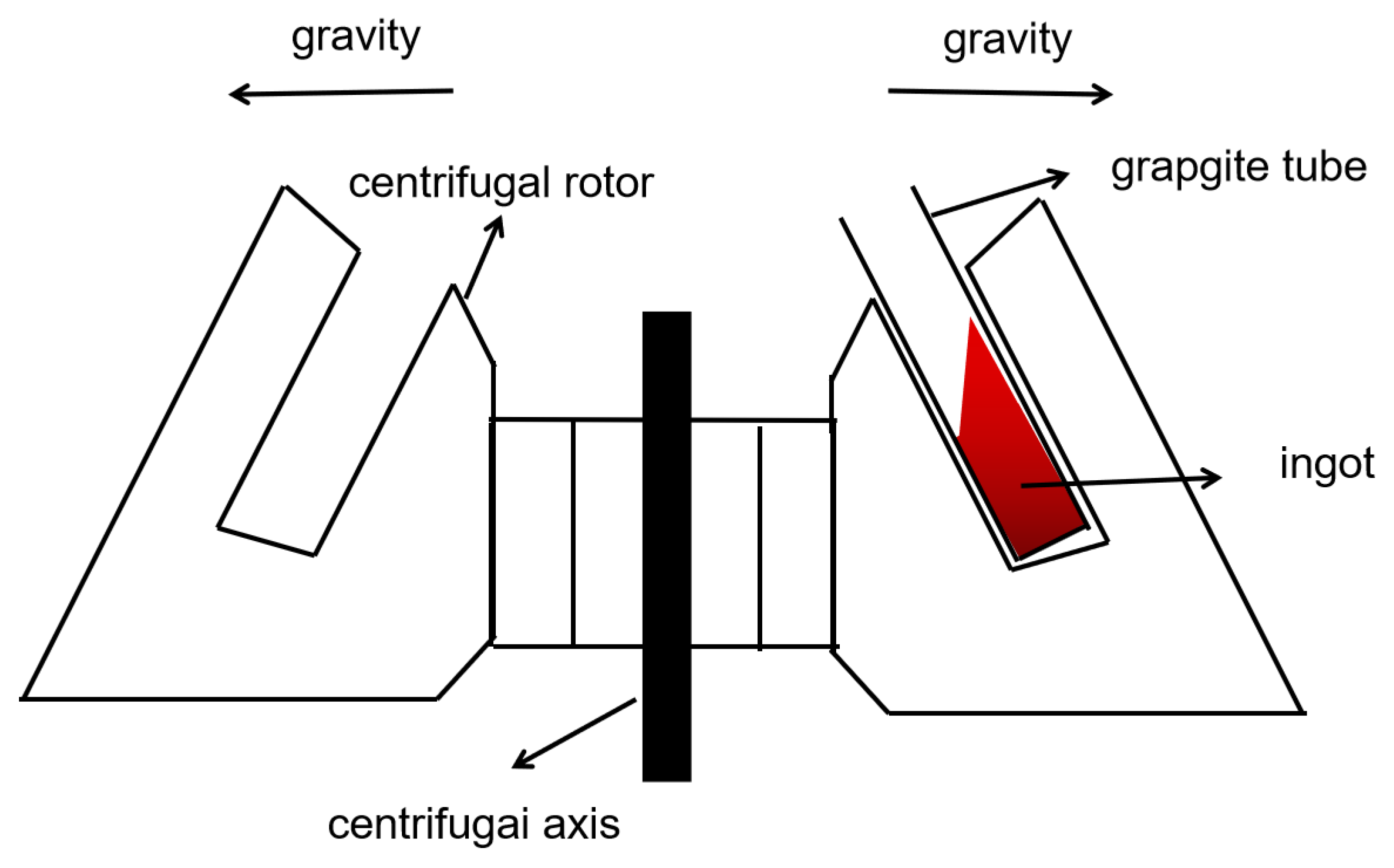

2. Experimental Process
3. Results
3.1. Microstructure
3.2. Mechanical Behavior

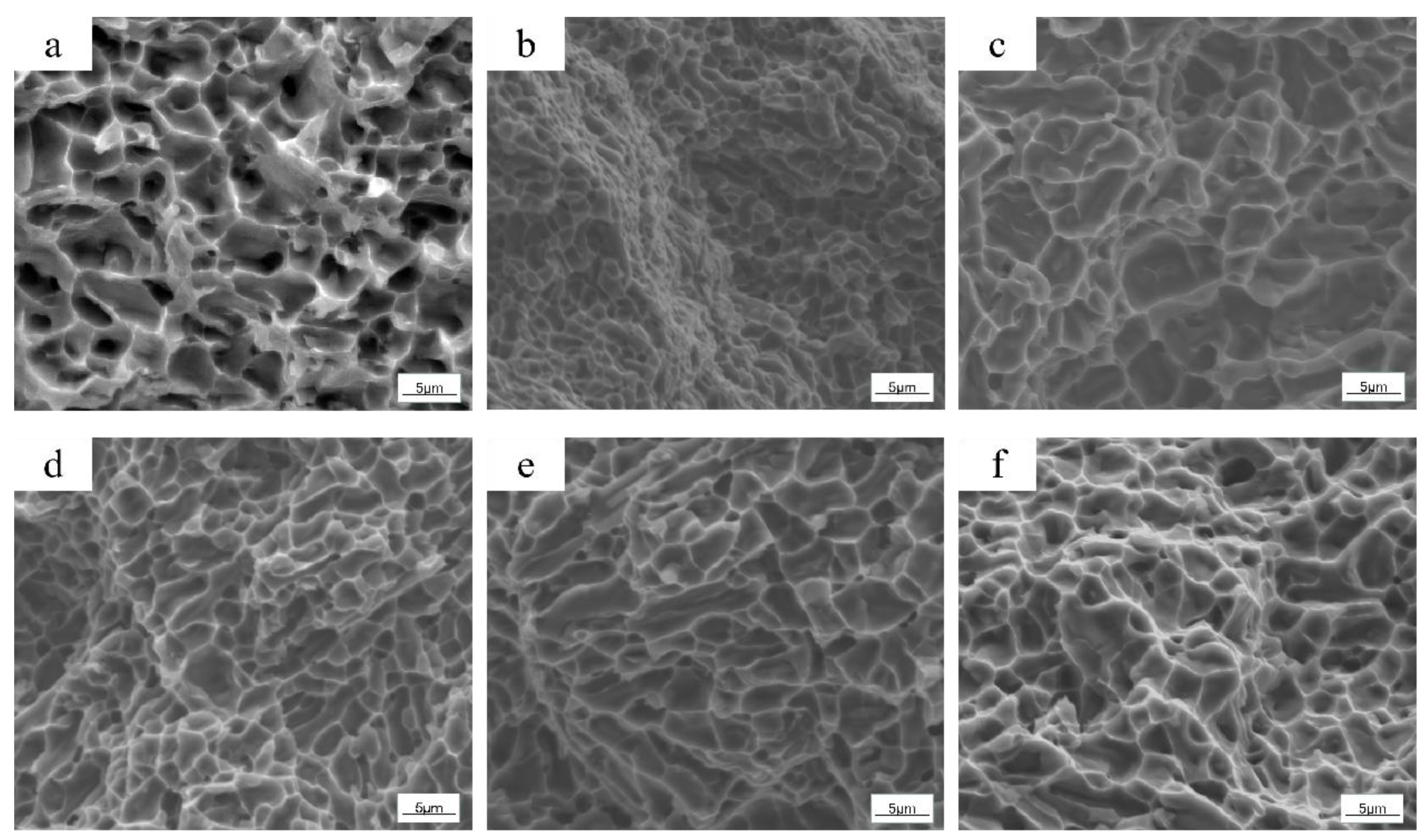

3.3. Fractography
4. Discussion
4.1. Refining Mechanism of Eutectic Si during Super-Gravity Solidification
4.2. Growth Mechanism of Si
5. Conclusions
- (1)

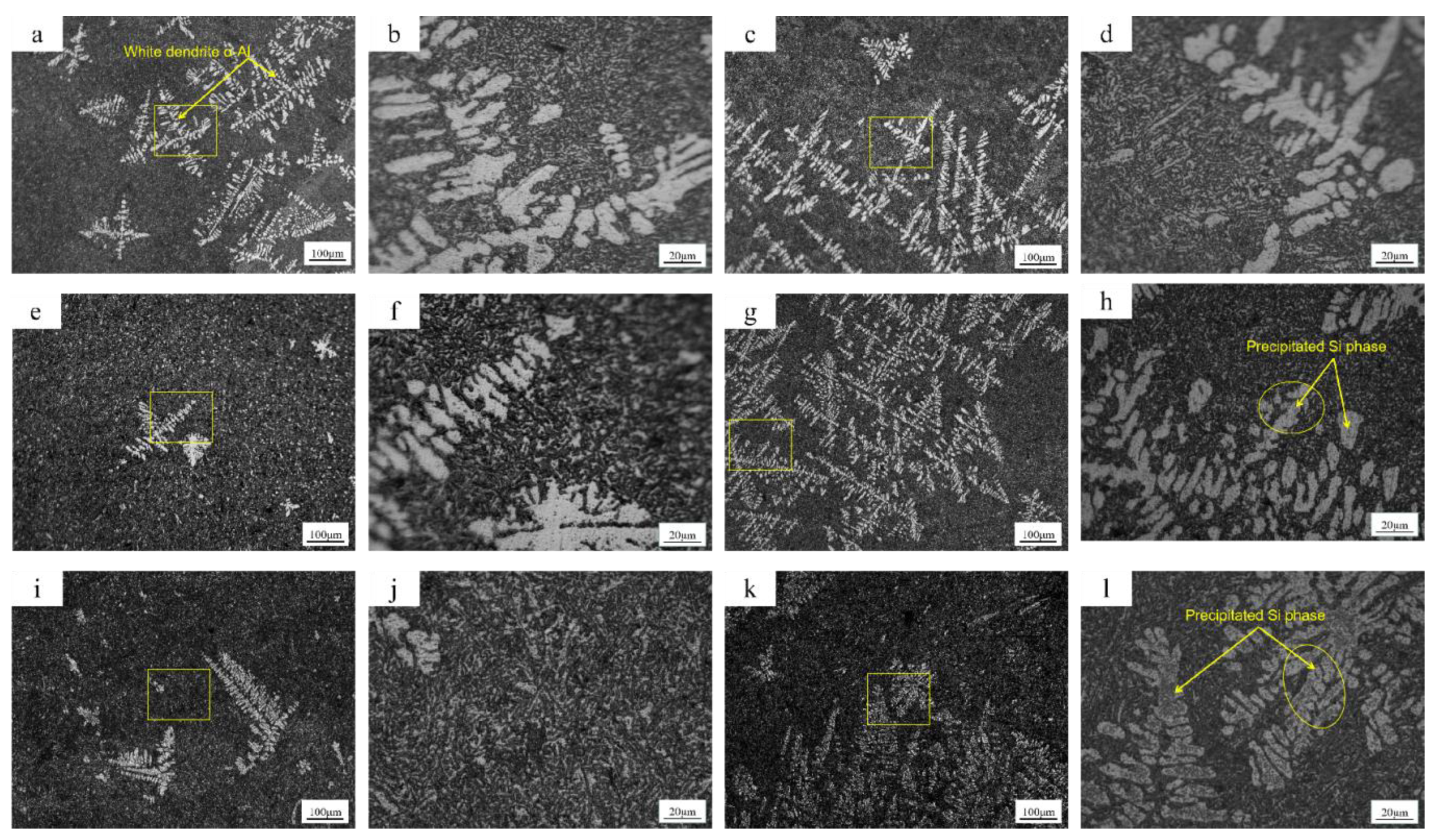

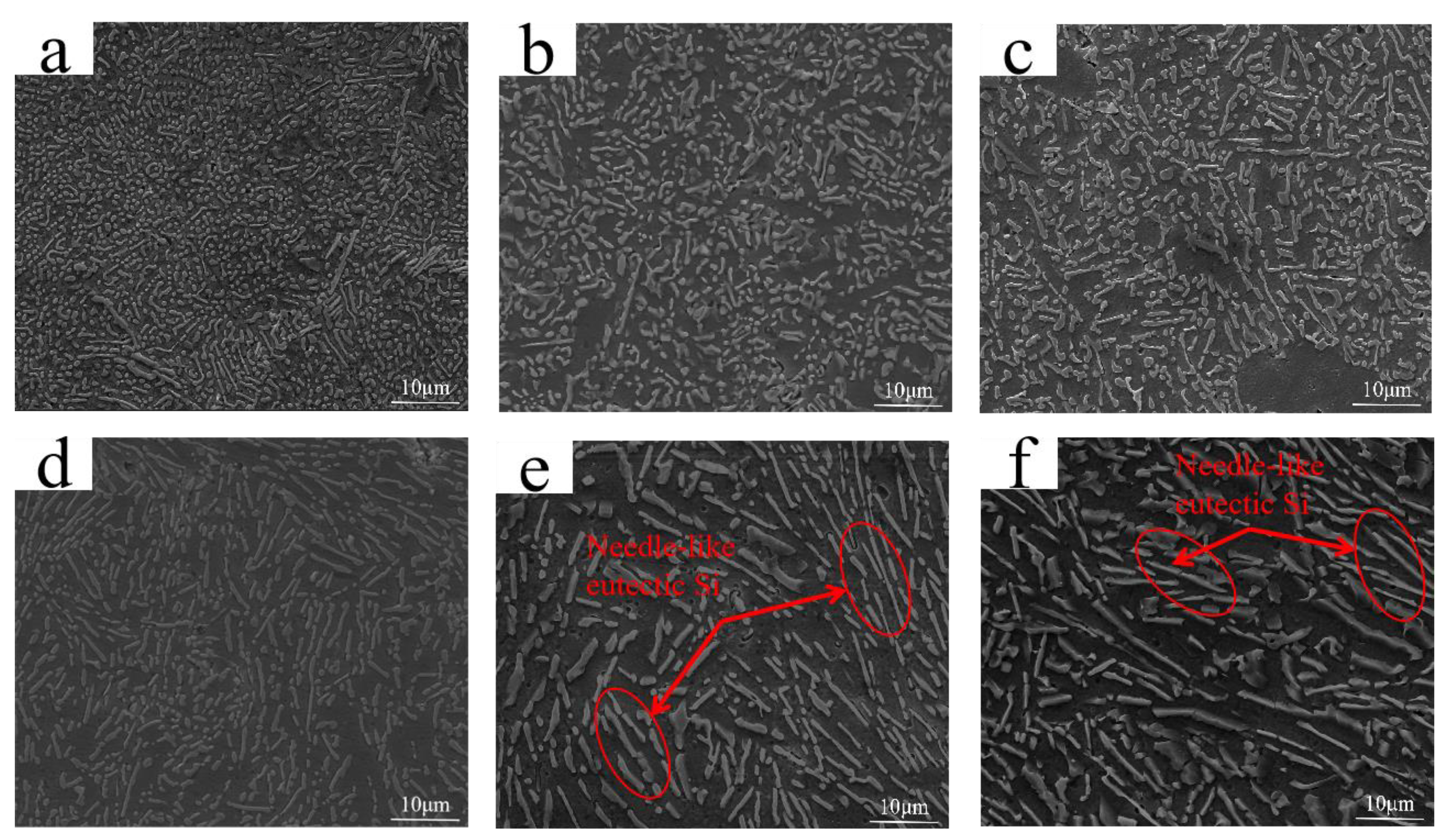

- With an increase in annealing time, growth and coarsening of metastable eutectic Si could be observed. Interestingly, coalescence of rod-like Si could be observed after annealing, forming several long, needle-like Si particles with dozens of microns. In addition, the formation of precipitated Si was detected in α-Al, which grew during the annealing process.
- (2)

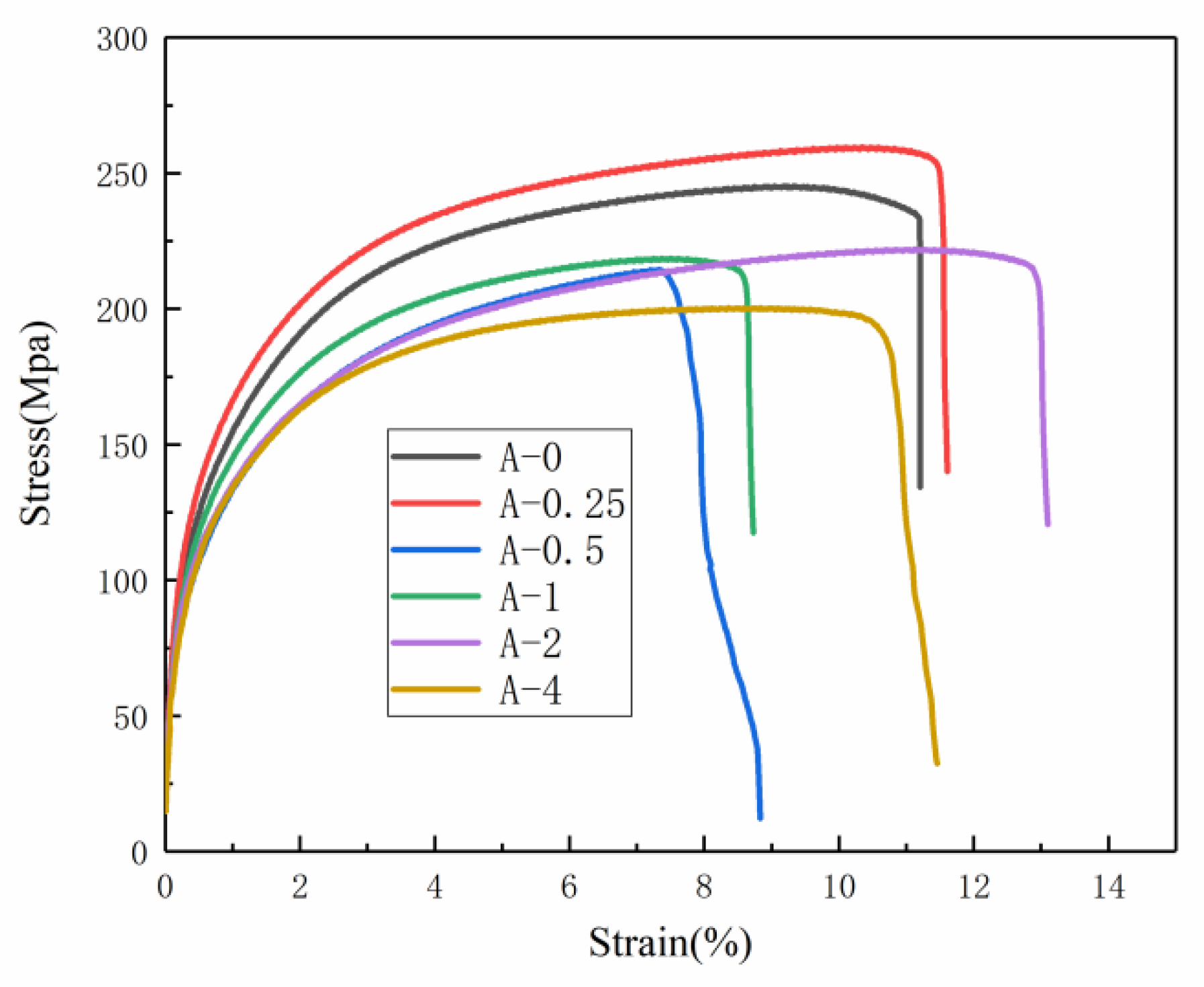

- The yield (~121.5 MPa) and tensile strength (~235.9 MPa) of the A-0.25 sample were ~9.8% and ~5.1% higher than those of the A-0 sample, respectively. Slight increases in the yield strength and tensile strength could be observed in the A-0.25 sample, which can be ascribed to the formation of precipitated Si of limited size during the early stage of annealing. A decrease in tensile stress was observed with further extension of the annealing time.
- (3)

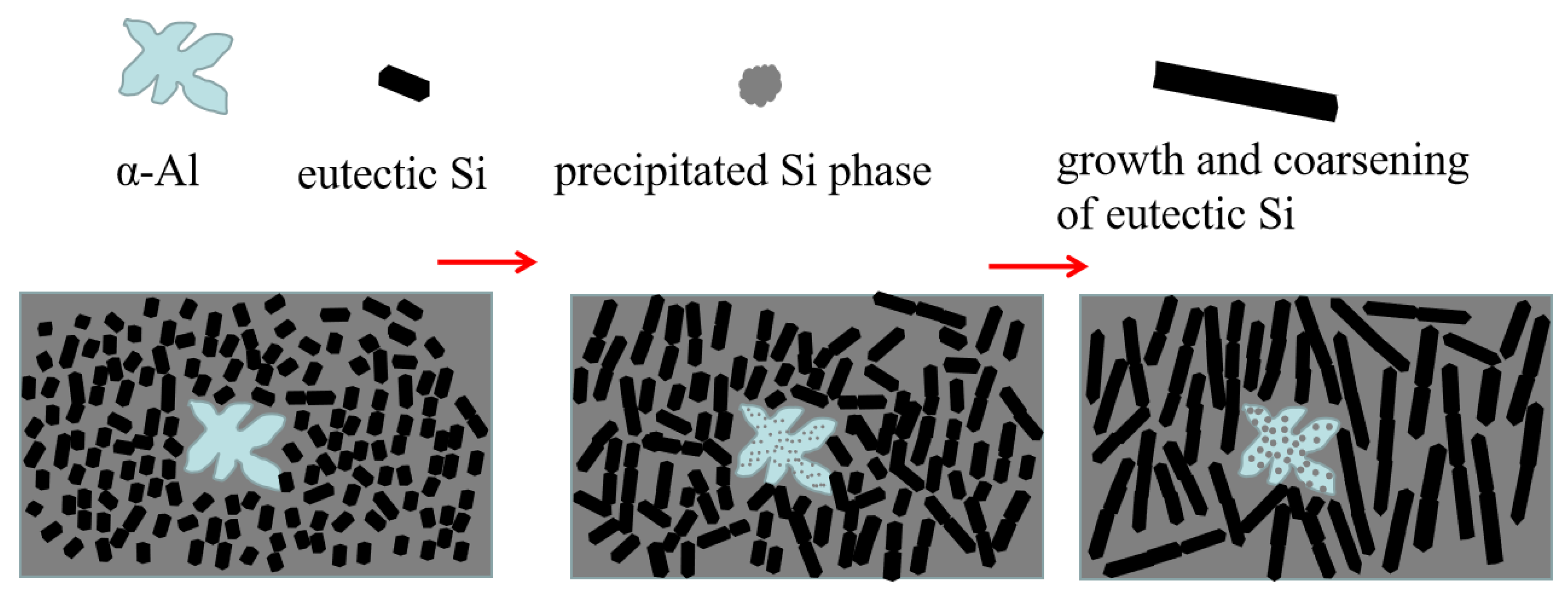

- Heat exposure had an influence on the size and distribution of eutectic Si in the super-gravity solidified bulks. The mutual diffusion of Al and Si during annealing led to the coarsening and coalescence of the eutectic Si, as well as the coarsening of precipitated Si.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Jiandon, P.; Talangkun, S. Microstructural Modification Hardness and Surface Roughness of Hypereutectic Al-Si Alloys by a Combination of Bismuth and Phosphorus. Crystals 2022, 12, 1026. [Google Scholar] [CrossRef]
- Kang, H.J.; Jang, H.S.; Oh, S.H.; Yoon, P.H.; Lee, G.H.; Park, J.Y.; Kim, E.S.; Choi, Y.S. Effects of solution treatment temperature and time on the porosities and mechanical properties of vacuum die-casted and T6 heat-treated Al–Si–Mg Alloys. Vacuum 2021, 193, 110536. [Google Scholar] [CrossRef]
- Jeon, J.; Shin, J.; Bae, D. Si phase modification on the elevated temperature mechanical properties of Al-Si hypereutectic alloys. Mater. Sci. Eng. A 2019, 748, 367–370. [Google Scholar] [CrossRef]
- Li, K.; Zhang, G.; Yi, A.; Zhu, W.; Liao, Z.; Chen, K.; Li, W.; Luo, Z. Effects of Matrix Silicon Content on the Plasma Electrolytic Oxidation of Al-Si Alloys Using Different Power Modes. Crystals 2022, 12, 123. [Google Scholar] [CrossRef]
- Dang, B.; Jian, Z.; Xu, J. Effect of cerium-rich mischmetal content on the growth morphology and microstructure evolution of undercooled Al-70 wt% Si alloys. Vacuum 2022, 205, 111427. [Google Scholar] [CrossRef]
- Wang, X.H.; Chen, Z.P.; Ma, T.F.; Zhu, D.D.; Dong, D.; Yang, X.H.; Li, L.; Wang, G. Evolution of primary and eutectic si phase and mechanical properties of Al2O3/Al-20Si composites under high pressure. Crystals 2021, 11, 364. [Google Scholar] [CrossRef]
- Al-Omari, K.; Roósz, A.; Rónaföldi, A.; Veres, Z. Effect of Forced Melt Flow on Al–Si Eutectic-Alloy Microstructures. Crystals 2022, 12, 731. [Google Scholar] [CrossRef]
- Haghayeghi, R.; Kapranos, P. Grain refinement of AA7075 alloy under combined magnetic fields. Mater. Lett. 2015, 151, 38–40. [Google Scholar] [CrossRef]
- Ho, C.R.; Cantor, B. Heterogeneous nucleation of solidification of Si in Al-Si and Al-Si-P alloys. Acta Met. Mater. 1995, 43, 3231–3246. [Google Scholar] [CrossRef]
- Nogita, K.; Yasuda, H.; Yoshida, K.; Uesugi, K.; Takeuchi, A.; Suzuki, Y.; Dahle, A. Determination of strontium segregation in modified hypoeutectic Al–Si alloy by micro X-ray fluorescence analysis. Scr. Mater. 2006, 55, 787–790. [Google Scholar] [CrossRef]
- Zhang, Z.; Liu, X.; Bao, L.; Hu, W.; Le, Q.; Cui, J. Three-dimensional morphology of eutectic silicon in as-cast Al-20 wt% Si alloy with ultrasonic treatment. Mater. Und Werkst. 2017, 48, 177–182. [Google Scholar] [CrossRef]
- Srivastava, N.; Chaudhari, G. Grain refinement in ultrasonicated binary aluminium alloys. J. Cryst. Growth 2020, 532, 125415. [Google Scholar] [CrossRef]
- Yu, J.; Ren, Z.; Ren, W.; Deng, K.; Zhong, Y. Solidification structure of eutectic Al-Si alloy under a high magnetic field-aid-electromagnetic vibration. Acta Met. Sin. 2009, 22, 191–196. [Google Scholar] [CrossRef]
- Gan, Z.; Wu, H.; Sun, Y.; Jiang, P.; Su, Y.; Wu, C.; Liu, J. Super-gravity field assisted homogeneous distribution of sub-micron eutectic Si in Al–Si Alloys. J. Alloys Compd. 2020, 817, 152701. [Google Scholar] [CrossRef]
- Yang, Y.; Song, B.; Cheng, J.; Song, G.; Yang, Z.; Cai, Z. Effect of Super-gravity Field on Grain Refinement and Tensile Properties of Cu–Sn Alloys. ISIJ Int. 2018, 58, 98–106. [Google Scholar] [CrossRef]
- Zhao, L.; Guo, Z.; Wang, Z.; Wang, M. Influences of Super-Gravity Field on Aluminum Grain Refining. Met. Mater. Trans. A 2010, 41, 670–675. [Google Scholar] [CrossRef]
- Chang, S.R.; Kim, J.M.; Hong, C.P. Numerical Simulation of Microstructure Evolution of Al Alloys in Centrifugal Casting. ISIJ Int. 2001, 41, 738–747. [Google Scholar] [CrossRef]
- Chen, K.; Hu, Z.; Ding, B. Nucleation in metallic melt on the ground and under elevated gravity. J. Mater. Sci. Technol. 1994, 10, 307–309. [Google Scholar]
- Ping, W.S.; Liu, D.R.; Guo, J.J.; Li, C.Y.; Su, Y.Q.; Fu, H.Z. Numerical simulation of microstructure evolution of Ti-6Al-4V alloy in vertical centrifugal casting. Mat. Sci. Eng. A. 2006, 426, 240–249. [Google Scholar] [CrossRef]
- Wu, H.; Wu, C.D.; Lu, Y.H.; Jiang, P.H.; Gan, Z.H.; Liu, J. Toward Enhanced Strength and Ductility of Al-14.5 Si Alloy via Solidification Under Super-Gravity Field. Adv. Eng. Mater. 2020, 22, 2000360. [Google Scholar] [CrossRef]
- Gan, Z.; Wu, H.; Sun, Y.; Su, Y.; Wang, Y.; Wu, C.; Liu, J. Influence of Co contents and super-gravity field on refinement of in-situ ultra-fined fibers in Al-2.5Ni eutectic alloys. J. Alloys Compd. 2020, 822, 153607. [Google Scholar] [CrossRef]
- Yang, Y.; Song, B.; Yang, Z.; Song, G.; Cai, Z.; Guo, Z. The Refining Mechanism of Super Gravity on the Solidification Structure of Al-Cu Alloys. Materials 2016, 9, 1001. [Google Scholar] [CrossRef] [PubMed]
- Li, C.; Gao, J.; Wang, Z.; Ren, H.; Guo, Z. Separation of Fe-bearing and P-bearing Phase from the Steelmaking Slag by Super Gravity. ISIJ Int. 2017, 57, 767–769. [Google Scholar] [CrossRef]
- Lu, Y.; Gao, J.; Wang, F.; Guo, Z. Separation of Anosovite from Modified Titanium-Bearing Slag Melt in a Reducing Atmosphere by Supergravity. Met. Mater. Trans. B 2017, 48, 749–753. [Google Scholar] [CrossRef]
- Lan, X.; Gao, J.; Du, Y.; Guo, Z. Mineral evolution and separation of rare-earth phases from Bayan Obo rare-earth concentrate in a super-gravity field. J. Alloys Compd. 2018, 731, 873–880. [Google Scholar] [CrossRef]
- Galenko, P.; Danilov, D. Model for free dendritic alloy growth under interfacial and bulk phase nonequilibrium conditions. J. Cryst. Growth 1999, 197, 992–1002. [Google Scholar] [CrossRef]
- Walter, H. Fluid Sciences and Materials Science in Space: A European Perspective; Springer: Berlin/Heidelberg, Germany, 1987. [Google Scholar]
- Gan, Z.; Hu, Z.; Su, Y.; Liu, Y.; Ni, Q.; Li, Y.; Wu, C.; Liu, J. Influence of super-gravity coefficient on spatial distribution of solidification structure in Al-14.5Si alloys. J. Mater. Res. Technol. 2021, 15, 4955–4969. [Google Scholar] [CrossRef]
- Cai, Z.Y.; Zhang, C.; Wang, R.C.; Peng, C.Q.; Wu, X.; Li, H.P.; Yang, M. Improvement of deformation capacity of gas-atomized hypereutectic Al-Si alloy powder by annealing treatment. Trans. Nonferrous Met. Soc. China 2018, 28, 1475–1483. [Google Scholar] [CrossRef]
- Li, X.; Wang, X.; Saunders, M.; Suvorova, A.; Zhang, L.; Liu, Y.; Fang, M.; Huang, Z.; Sercombe, T. A selective laser melting and solution heat treatment refined Al–12Si alloy with a controllable ultrafine eutectic microstructure and 25% tensile ductility. Acta Mater. 2015, 95, 74–82. [Google Scholar] [CrossRef]
- Liu, M.; Fu, H.; Xu, C.; Xiao, W.; Peng, Q.; Yamagata, H.; Ma, C. Precipitation kinetics and hardening mechanism in Al-Si solid solutions processed by high pressure solution treatment. Mater. Sci. Eng. A 2018, 712, 757–764. [Google Scholar] [CrossRef]
- Liu, M.; Zheng, R.; Xiao, W.; Yu, X.; Peng, Q.; Ma, C. Concurrent enhancement of strength and ductility for Al-Si binary alloy by refining Si phase to nanoscale. Mater. Sci. Eng. A 2019, 751, 303–310. [Google Scholar] [CrossRef]
- Takata, N.; Liu, M.; Kodaira, H.; Suzuki, A.; Kobashi, M. Anomalous strengthening by supersaturated solid solutions of selectively laser melted Al–Si-based alloys. Addit. Manuf. 2020, 33, 101152. [Google Scholar] [CrossRef]
- Ma, P.; Zou, C.; Wang, H.; Scudino, S.; Fu, B.; Wei, Z.; Kühn, U.; Eckert, J. Effects of high pressure and SiC content on microstructure and precipitation kinetics of Al–20Si alloy. J. Alloys Compd. 2014, 586, 639–644. [Google Scholar] [CrossRef]
- Lifshitz, I.M.; Slyozov, V.V.J. The kinetics of precipitation from supersaturated solid solutions. J. Phys. Chem. Solids. 1961, 19, 35–50. [Google Scholar] [CrossRef]
- Wanger, C. Theory of precipitate change by redissolution. Elektrochemical 1961, 65, 581–591. [Google Scholar]
- Liu, X.R.; Zhang, Y.D.; Benoit, B.; Liu, F.; Esling, C.; Yu, F.; Zhao, X.; Zuo, L. Twin-controlled growth of eutectic Si in unmodified and Sr-modified Al-12.7% Si alloys investigated by SEM/EBSD. Acta. Mater. 2015, 97, 338–347. [Google Scholar] [CrossRef]

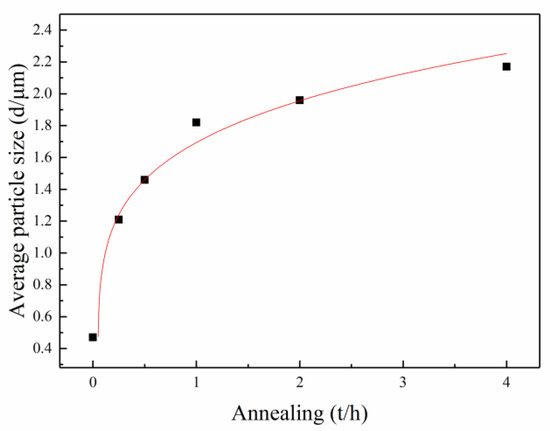

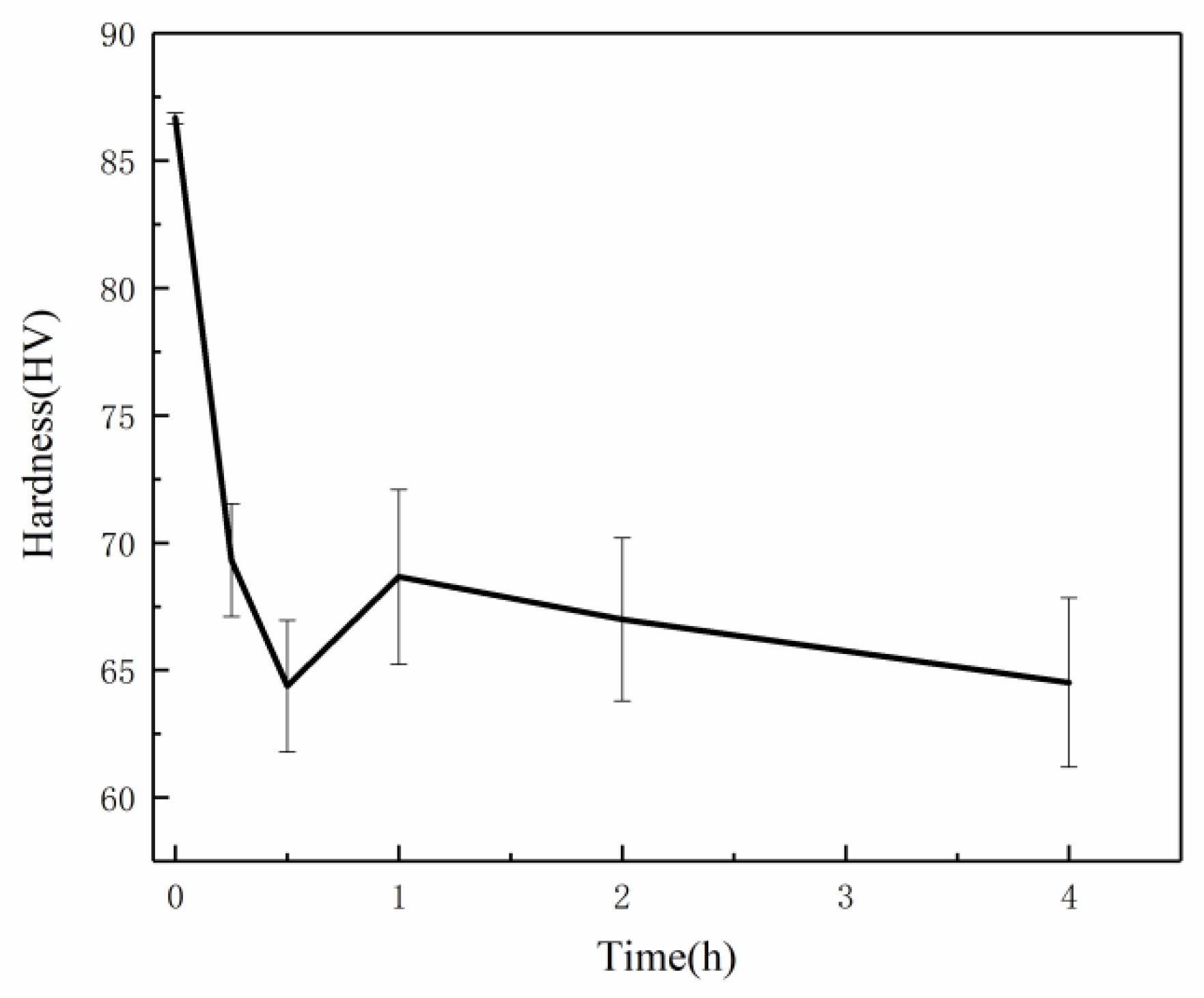

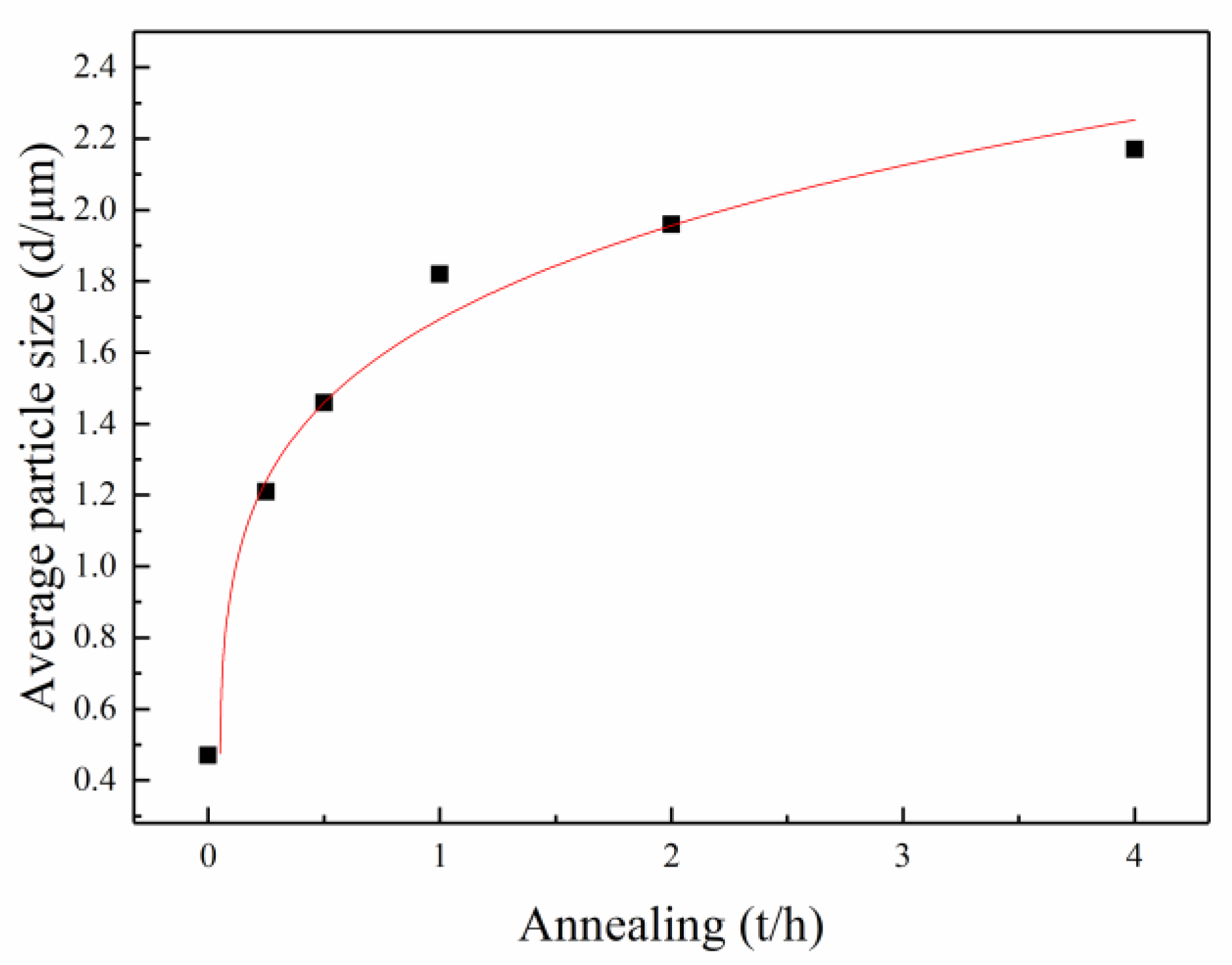

Annealing Time (h) | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Length (μM) | Width (μM) | Hardness (HV) |
---|---|---|---|---|---|---|
0 h | 110.7 | 224.4 | 11.9 | 0.47 | 0.25 | 86.7 |
0.25 h | 121.5 | 235.9 | 12.2 | 1.21 | 0.34 | 69.3 |
0.5 h | 95.6 | 194.1 | 9.8 | 1.46 | 0.43 | 64.3 |
1 h | 105.4 | 203.5 | 9.1 | 1.82 | 0.40 | 68.7 |
2 h | 98.9 | 199.7 | 13.9 | 1.96 | 0.43 | 67.0 |
4 h | 89.9 | 179.3 | 12.8 | 2.17 | 0.56 | 64.5 |
