The Effect of SrO Addition on the Recrystallization of ZrSiO4 in Raw Glass–Ceramic Glazes from the SiO2-Al2O3-CaO-MgO-K2O-ZrO2 System

by
Janusz Partyka
*,
Katarzyna Pasiut
and
Dawid Kozień
Department of Ceramics and Refractory Materials, Faculty of Materials Science and Technology, AGH University of Science and Technology, Mickiewicza Av. 30, 30-059 Krakow, Poland
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(10), 1435; https://doi.org/10.3390/cryst13101435
Submission received: 31 August 2023 / Revised: 21 September 2023 / Accepted: 25 September 2023 / Published: 27 September 2023
(This article belongs to the Topic Multi-Process and Interdisciplinary Approaches in Modern Coating and Surface Design)
Browse Figures
Versions Notes

Abstract

:
The aim of this experiment was to determine the effect of the addition of strontium oxide on the recrystallization of zirconium silicate when adding strontium oxide to the glaze composition. Zirconia glazes (four different contents) were prepared, to which strontium oxide was added in amounts of 0, 1, 3, 6, and 12 mass% SrO. The characteristic temperatures of the raw glazes were measured, based on which the maximum firing temperatures were determined. The fired glazes were subjected to a study of their phase compositions and an observation of their microstructures. An analysis of the characteristic temperatures showed a fluxing effect, but it was not as strong for all glazes. Differences in the amount of the crystalline phase of zirconium silicate obtained in the fired glazes, as well as the partial transition of zirconium silicate to the amorphous phase, were observed. Observations of the microstructure clearly indicated an increase in the homogeneity of the distribution of zirconium silicate.

1. Introduction

Ceramic glazes are a group of materials that contain, apart from the amorphous phase, crystalline phases. Their presence is significant due to the role they play in the glaze-type materials. The crystalline phases have greater mechanical strength than the glaze itself, increasing the mechanical strength of the entire system, as well as the resistance to abrasion or chemical corrosion [1,2].
The crystallization process in glazes is usually desirable, except for in the group of transparent glazes, where the presence of crystalline phases could reduce the transparency of the glaze layer. Depending on what crystalline phase is planned for in the finished product, it is necessary to conduct the design process and glaze production in a specific way. Some crystalline phases are formed in glazes very easily; others require the meeting of specific conditions related to the chemical composition of the glaze, i.e., the number of substrates for crystallization, the firing temperature, the holding temperature, or the viscosity of the system [3,4,5,6].
Zirconium silicate as a crystalline phase is desirable in glazes with a high brightness, increased mechanical parameters, and chemical resistance. The crystalline phase of this mineral is obtained by adding the raw material, zirconium silicate (or, rarely, zirconium oxide), in the amount of at least 3% by mass. Adding a smaller amount may cause no crystallization and the transition of the entire amount of zircon to the amorphous phase [1,5,6,7,8,9,10,11,12,13,14,15].
The zirconium silicate crystallization process is described in numerous publications. The introduction of zirconium silicate into the system causes its partial decomposition in the temperature range of 1100–1150 °C, and its recrystallization occurs above these temperatures. An important element here is the phase composition; in the case of a low molar ratio, only partial recrystallization is observed, while the remaining amount of zirconium in the fired product is present as zirconium oxide, usually in a monoclinic form [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23].
As already mentioned, the crystallization processes are influenced by the chemical composition. One of the important elements of glazes is the flux, the main role of which is to reduce the firing temperature of glazes. Fluxes’ actual participation in crystallization processes depends on the type of flux used. In addition to the most widely used oxides, such as potassium, sodium, calcium, or magnesium oxides, strontium oxide seems to be interesting. It is usually added in the form of a carbonate. Its presence improves the gloss of the surface; however, the addition of a larger amount may cause crystallization on the surface of the glazes [1,2,3,20,21,22,23,24,25,26,27].
Strontium oxide also has a structure-depolymerizing effect. Its role is to break the aluminum and silica oxide bonds of the amorphous phase of glaze. The depolymerization effect and loosening of the structure may favor crystallization processes. The mechanism was established for the easier migration of substrates (through a looser structure) and a simultaneous reduction in the viscosity of the system [28,29].
Zirconium silicate is added to glazes to obtain the same crystalline phase after the firing process. As shown above, zirconium silicate may dissolve and partially transform into the amorphous phase, so its amount in the glaze after the firing process will be lower than the amount of zirconium silicate used as a raw material. Therefore, to obtain the designed amount of the crystalline phase of zirconium silicate, it will be necessary to add a larger amount of this raw material [30,31,32].
The final phase of the composition depends not only on the amount of zirconium silicate used, but also on other glaze components. Fluxing raw materials play an important role; their presence and action can influence the crystallization processes of new phases, as the well as dissolution and recrystallization. Flux raw materials are one of the components of glazes, but their selection and quantity will have an actual impact on the phase composition of the fired glaze and the resulting properties [21,22,23,24,25,33,34,35,36,37].
In summary, it can be clearly stated that the number of studies on the crystallization of zirconium silicate is significant, but most of these studies are based on frits. However, much of the focus is on the amount of this crystalline phase and the resulting properties of the glass–crystalline material. On the other hand, the knowledge on fluxes is also discussed in many works. Still, it mainly focuses on the role of fluxes—reducing the firing temperature, and their impact on the structure and resulting properties of the material. There are no publications in which the influence of changing the amount of feldspar on the phase composition, as well as changes in the microstructure of the glass–crystalline material, was examined in a wide range of compositions.
The aim of this experiment is to determine the effect of the addition of strontium oxide to zirconia glazes on the amount of crystalline-phase zirconium silicate obtained, as well as the changes occurring in the microstructure of the analyzed glazes with a variable amount of strontium oxide. Glazes with a wide range of amounts of zirconium silicate and five different contents of strontium oxide were tested. Such activities will allow us to systematically trace the relationship between the amount of zirconium silicate and the added strontium oxide on the phase composition and microstructure of the analyzed glazing system.

2. Preparation

The compositions of the glazes were designed on the basis of the composition of the glaze used in the production of sanitary ceramics. The only variables in the compositions that were analyzed during the design process were the amount of strontium oxide added (five different amounts) and the varying amount of zirconia in the composition (four different amounts). The high molar fraction of SiO2/Al2O3 is because zirconium oxide was introduced into the glaze as zirconium silicate, and it also introduced silicon oxide into the composition of the glaze. The simplified compositions of the analyzed glazes are presented in Table 1.
Glazes were prepared from natural raw materials such as quartz powder MK 40 (Strzeblowskie Kopalnie Surowców Mineralnych Sobótka, Sobótka, Poland), KOC kaolin (Surmin Kaolin, Nowogrodziec, Poland), potassium feldspar Quantum DS (Sibelco Polska, Bukowno, Poland), wollastonite (Ottavi, Rome, Italy), talc (Luzenac, Occitania, France), zirconium silicate (Kreuzonit, Haiger, Germany), and strontium carbonate (Sigma Aldrich, Darmstadt, Germany).
The weighted glazes were ground wet in a planetary mill for 30 min. This process was carried out in wet conditions with water, with the ratio of water/grinding medium/weighted raw material = 1.5:1:1. After that, they were dried in a laboratory dryer at 110 °C. The dried glazes were used to determine the characteristic temperatures and the maximum glaze firing temperature. Then, 60 g of each glaze was placed in biscuit containers and fired according to a designated curve.
The characteristic temperatures were determined using a Misura 3 high-temperature microscope, along with dedicated data analysis software. Each glaze was pressed into a pellet and then placed on a base made of aluminum oxide. Each sample was heated at a rate of 10 °C/min to a temperature 20 degrees higher than the flow temperature. The characteristic temperatures were determined based on the geometric dimensions of the samples—the data obtained from measurements. Four temperatures were determined for the analyzed samples: the sintering temperature, the sphere temperature, the hemisphere temperature, and the melting temperature.
The fired glazes were ground to a grain size of less than 63 µm. The grain size was controlled on a 63 µm sieve. This powder was used to determine the phase composition of the fired glaze. The phase composition (qualitative and quantitative) of the examined glazes was determined via X-ray diffraction. The analysis was performed using a Philips X’Pert Pro X-ray diffractometer. The qualitative identification of the phases was carried out by comparing the positions of the reflections and their intensity, obtained during the measurement, with the data collected in the JCPDS ICCD database (Join Committee for Powder Diffraction Standards, International Center for Diffraction Data). The quantitative determination of the phase composition, including the amount of the amorphous phase, was performed using the internal standard method. An analysis of the diffractograms (quantitative and qualitative) was carried out using the HighScore Plus program. The quantitative share of the crystalline phases was determined using the Rietveld method. As an internal standard for quantitative analysis, zinc oxide (Huta Oława) was used, which was added to the samples in the amount of 5% by weight.
On the remaining pieces of glaze, microsections were made that were used to observe the microstructure of the fired glazes. These observations were carried out using the NOVA NANO SEM 200 scanning electron microscope, manufactured by FEI Europe, which allows for the observation of the surface of materials in the backscattered electron detection (BSE) system with a resolution of up to 2 nm. Microstructure observations were carried out each time at magnifications of 1000, 3000 and 5000 times, which greatly facilitated the comparison of sample images. For the selected interesting crystalline phases, visual inspection was carried out at a 10,000-time magnification. During the microscopic observations, the individual crystalline phases present in the image were also identified using the EDS X-ray microanalyzer manufactured by EDAX, (Ringbaan Noord 103, 5046 AA Tilburg, The Netherlands).

3. Results and Discussion

3.1. Hot-Stage Microscopy (HSM)

Table 2 presents the characteristic temperatures determined for the fired glazes. Their analysis was carried out as a function of the amount of strontium oxide added and the amount of zirconium oxide in the glazes.
On the basis of the analysis of the obtained values of the sintering temperatures (Table 2, Figure 1), it can be observed that the obtained glazes belong to the group of high-temperature glazes. The values obtained unequivocally indicate that all processes that are significant from the point of view of crystallization take place above the temperature of 1100 °C.
The addition of strontium oxide to the glazes reduces the value of this temperature, which is consistent with data from the literature and the fluxing effect of this oxide. However, not in all cases, a decrease in the value of the sintering temperature was observed with the addition of strontium oxide. This may be due to the chemical composition of the glazes, which changes the rate of subsequent reactions in the glazes.
In terms of the values of the sintering temperatures for the different contents of zirconium oxide in the glazes, it is difficult to notice any dependence. Both an increase and a decrease in the value of this temperature are observed with the same addition of strontium oxide.
The determined sphere temperatures (Figure 2) for the analyzed glazes clearly indicate a decrease in the value of this temperature during the addition of strontium oxide. The higher the content of strontium oxide in the glazes, the lower the designated temperature of the hemisphere. The decrease in temperature shows a relationship with the amount of strontium oxide added to the glazes. For glazes with the same strontium oxide content, a slight increase in the hemispheric temperatures is observed, along with a higher zirconium content in the glaze. This is especially noticeable with low-strontium-oxide glazes. For a larger amount of strontium oxide in the glazes, this relationship is not observable.
Similar results were observed for the hemispheric temperatures (Figure 3), and with an increase in the amount of strontium oxide added, a decrease in the determined hemispheric temperatures was observed. However, the hemispheric temperature values of glazes with a higher zirconium content have higher values only for glazes without the addition of strontium oxide. The addition of this oxide causes the determined hemispheric temperatures to show a clear upward or downward trend with the higher zirconium content in the glazes. This may indicate that the presence of strontium oxide in the glaze affects the processes that take place, while its fluxing effect is not directly proportional to the amount of SrO added and strongly depends on the chemical composition of the glaze.
The addition of strontium oxide to the glazes has a slightly different effect on the determined melting temperatures (Figure 4). For the group of glazes with the lowest zirconium content, a decrease in the value of this temperature is observed with an increase in the amount of strontium oxide in the glaze. For glazes with higher zirconium oxide contents, a decrease in the value of the reflow temperature is observed, but it is less proportional than in the case of the other characteristic temperatures. The decrease in the reflow temperature value is most visible for the highest addition of strontium oxide, compared to the glaze without the addition of SrO, with the same content of zirconium oxide.
Because the crystallization processes are also strongly influenced by the chemical composition of the glaze and its viscosity, the maximum firing temperatures were determined based on the hemisphere temperatures, so that the conditions for the crystallization process were as close to each other as possible. According to the literature, the characteristic temperature of the hemisphere is the temperature at which the glaze sample assumes the shape of a hemisphere; the geometric dimensions of the glaze sample at the temperature of the hemisphere, observed using a high-temperature microscope, are the following: the length of the base is equal to half the height of the sample, and the viscosity of the glazes for such a shape is 104 dPas [38,39].
The selected firing temperature based on the hemisphere temperature is not accidental. The maximum temperature used in the ceramics industry is the temperature between the characteristic temperature of the ball and the characteristic temperature of the flow. Because the firing process is intended to achieve a uniform baked glaze layer, it was decided that all glazes would be fired at the designated characteristic temperature of the hemisphere. The obtained results of the characteristic temperatures show significant discrepancies; therefore, firing all glazes at one temperature would result in some glazes being fired at too high or too low a temperature. Because viscosity is an additional factor that influences the crystallization processes, it was decided that each glaze would be fired to a hemispherical temperature, which is characterized by a constant viscosity.

3.2. Phase Composition

The fired glazes were characterized by a high transparency. This may indicate a high degree of amorphousness. The exception here was glazes from the 12Zr group, whose transparency was significantly low and can be classified as cloudy glazes. To determine the amount and type of the amorphous phases, we subjected the glazes to X-ray radiation, and the results are presented in Table 3.
The results obtained indicate the presence of only two crystalline phases in varying amounts: zirconium silicate (ICSD 98-000-9582) and quartz (ICSD 98-000-0174).
When analyzing the content of the crystalline phase of zirconium silicate in the fired glazes, greater amounts can be observed, especially in the glazes of the 6Zr and 12Zr series. In the glazes of the 1Zr and 3Zr series, the determined amount of zirconium silicate is small. This clearly suggests that the added zirconium silicate passed almost completely into the amorphous phase. Data from the literature indicate that, in the case of glazes to which zirconium silicate or zirconium oxide is added, there is no recrystallization of the crystalline zirconium phases, and zirconium cations are present in the amorphous matrix. For the group of 6Zr and 12Zr glazes, a decrease in the amount of the crystalline phase of zirconium silicate is observed with an increase in the amount of strontium oxide added. This suggests the depolymerizing effect of strontium oxide, which breaks the bonds of the alumina and silica sublattices and loosens the structure, due to which large zirconium cations can fit into the amorphous phase of the glazes.
The second crystalline phase obtained is quartz. Its amount varies depending on the amount of zirconium silicate used and the addition of strontium oxide. For glazes of the 1Zr and 3Zr series, a decrease in the amount of quartz in the fired glaze is observed with the addition of strontium oxide in the amount of 1 and 3% by weight, and then the further addition of strontium oxide causes an increase in the amount of the crystalline phase of quartz in the glaze. For glazes of the 6Zr and 12Zr series, the determined amount of quartz in the glaze decreases with the increasing strontium oxide, while in the case of glazes with the highest zirconium content, quartz appeared in a small amount only for glazes 12Zr0Sr and 12Zr1Sr. The fluxing and depolymerizing effect of strontium oxide will cause a faster dissolution of the quartz grains and a reduction in its amount in the fired glaze. However, the decomposition of zirconium silicate and the partial dissolution of zirconium cations in the amorphous matrix will result in an incomplete dissolution of quartz grains due to their excess in the amorphous phase.

3.3. SEM Observations

Observations of the microstructure glazes of the 1Zr series (Figure 5) showed the presence of fine crystals of high brightness levels. An EDS analysis confirmed that these were zirconium silicate crystals. Their presence was observed during the observation of the 0Sr, 1Sr, and 3Sr glazes, which is consistent with the results obtained from the composition of the analysis of the XRD phase. In the glaze without the addition of strontium oxide, the distribution of zirconium silicate is even over the entire surface. This is different for the microstructure of the 1Sr and 3Sr glazes, for which clusters of zirconium silicate were observed, as well as areas containing more of this crystalline phase and areas completely without this crystalline phase. Glazes with a higher addition of strontium oxide show a full amorphism, but no zirconia-crystalline phases were observed.
The microstructure of the glazes of the 1Zr series also showed the presence of cracks (Figure 5). These are probably related to the stresses present in the glazes of this composition. Their occurrence was observed especially in the 1Zr1Sr and 1Zr12Sr glazes. This indicates that significant stresses occur in these glazes. The occurrence of significant stresses that cause visible cracks may significantly reduce the mechanical strength and thermal resistance of such glazes. No cracks were observed in the remaining glazes in this series. This may be due to the chemical compositions of the glazes, which do not cause stresses in the entire system during the processes that occur during cooling.
The microstructures of the glazes of the 3Zr series (Figure 6) show an uneven distribution of the crystalline zirconium phases. This is especially evident for the glazes to which strontium oxide was added. For glazes without the addition of this oxide, small areas devoid of zirconium silicate crystals are areas that, according to the EDS analysis, correspond to residual quartz crystals, although they do not have clearly marked inter-grain boundaries. The addition of strontium oxide causes zirconium silicate to occur in clusters that constitute a larger or smaller area of the microstructure. For the 3Zr1Sr glaze, a photo magnified 500 times is shown, in which smaller and larger areas with the crystalline phase of zirconium silicate are visible. Residual quartz crystals and empty areas without any crystalline phases are also visible.
The glazes of the 6Zr series (Figure 7) show a much greater homogeneity than those of the series with a lower zirconium content in the glaze. Areas with more crystals are still observed, but they are much fewer, and their amount decreases with the increasing strontium oxide content in the glazes. However, there is a greater diversity in terms of the crystal size; there are also small ZrSiO4 crystals, but slightly larger ones can be observed. The areas in which zirconium silicate crystals are not observed correspond to the composition of quartz.
The 12Zr series of glazes (Figure 8) shows considerable variation in the distribution of zirconium silicate crystals. An increase in the homogeneity of the microstructure can be observed with an increase in the amount of strontium oxide. Glaze 12Zr0Sr, without the addition of strontium oxide, shows significant inhomogeneity, which is visible microscopically—there are bright streaks on the glaze. The addition of strontium oxide causes this macroscopic inhomogeneity to decrease, and with the addition of 6Sr, the glazes appear uniform. The microstructure confirms this, since from the content of 3% mass % SrO, the glaze is more homogeneous than the reference glaze.
Observations of the microstructure of the glaze showed the presence of voids (Figure 5, Figure 6, Figure 7 and Figure 8). They can be divided into two types. Firstly, there are holes created during the sample preparation, most likely grains torn out during surface polishing or the chipping of glaze fragments, which are observed as black areas. The second type is spherical voids that were created during the firing of the samples. Due to the natural raw materials used, gases are released during heating. They are formed from the decomposition of kaolin, talc, and strontium carbonate. The presence of such voids is due to the inability to remove gases associated with the significant viscosity of the system. The result is these types of defects in the microstructure of glazes. In industrial processes, this is treated as a glaze defect, and efforts are made to remove or minimize its presence.
The different arrangements of the crystalline zirconia phases may be due to the difference in the viscosity of the glazes during the firing process. The inhomogeneity of the glazes at the microscale results from the individual processes that take place with the individual raw materials; some of them undergo reactions at a lower temperature, and others require a higher one. Thus, there are areas where the liquid phase appears much faster, and, in these areas, further reactions occur earlier than those where the liquid phase appears later.
The addition of strontium oxide causes a significant reduction in this inhomogeneity because of its fluxing effect, the appearance of the liquid phase, and the migration of system elements. Strontium oxide also has a depolymerizing effect, i.e., it loosens the structure and reduces the viscosity, which promotes mixing and the homogenization of the entire system.
Due to the changes caused by the flux effect of strontium oxide and the depolymerizing structure, its presence significantly affects the obtained crystalline phases and the microstructure of the glazes. Strontium oxide belongs to the group of fluxes that do not participate in crystallization themselves and do not create crystalline phases; therefore, its effect is more visible in terms of changes in the microstructure, unlike fluxes with a similar effect, such as barium oxide, which has a much greater ability to crystallize into barium feldspar. In the case of strontium oxide, strontium feldspar does not occur in ceramic glazes. In some cases, the strontium cation may substitute cations in the structure of sodium or potassium feldspar, but such a phenomenon is observed very rarely because of the significant size of the strontium cation and its mismatch with the overall structure.
Despite the positive conclusion drawn from these studies, i.e., the increased homogenization of zirconium silicate crystals in the structure, the risks associated with the use of strontium oxide in glazes must be considered. The use of this oxide in larger quantities may result in a decrease in the mechanical properties of the glazes as a result of the significant depolymerizing properties of this oxide. This may reduce the hardness, abrasion resistance, and corrosion resistance of surfaces. The use of significant amounts of strontium oxide, in addition to lowering the firing temperature, can significantly reduce the viscosity and surface tension of the glaze, which can cause it to run off the surface.

3.4. SEM-EDS Observations

The main purpose of determining the chemical compositions via the means of an EDS analysis of the visible crystallites was to confirm the phase composition. The XRD analysis of the phase composition showed the presence of only two crystalline phases (Table 3), zirconium silicate and residual quartz. The low content of crystalline phases (4 to 18% vol.) made it difficult to find crystallites. The SEM and EDS photos on Figure 9, Figure 10 and Figure 11 presented the 1Zr group with a variable amount (12, 6, 3, 1, and 0% mass) of SrO. All EDS measurements indicate the presence in all sets of only quartz and zirconium silicate. This confirms the XRD results (Table 3). The shell around the SiO2 crystallites confirms the residual form of the quartz crystals; it is a high concentration zone of SiO2 from the melting of the quartz crystals.

4. Conclusions

This paper presents the effect of the addition of strontium oxide on the recrystallization of zirconium silicate. The characteristic temperatures of the prepared glazes were measured, and the maximum firing temperatures were determined on the basis of the temperature of the hemisphere. The results obtained from the measurement of the characteristic temperatures indicated that strontium oxide exhibits a fluxing effect; however, it is not observed for each glaze with its addition and depends on the chemical composition of the entire system. Additionally, an increase in the amount of zirconium silicate in the glaze does not cause a proportional increase or decrease in the characteristic temperatures, depending on the presence of other components in the glaze.
An analysis of the phase composition showed that some of the added zirconium silicate dissolves in the amorphous matrix, which is particularly evident at a lower zirconium content in the glazes. The amount of dissolved zirconium increases slightly with the addition of strontium oxide, but does not exceed 3% by mass. This is due to the structure and geometric dimensions of the zirconium cation.
A microstructure analysis showed that the addition of strontium oxide increased the homogeneity of the distribution of zirconium silicate crystals. This phenomenon is most desirable because of the lack of microareas of a purely amorphous nature. These areas will probably be characterized by reduced mechanical properties and the entire glaze as a material will be much weaker than one that is microstructurally homogeneous. The presence of crystalline phases affects the mechanical properties, whereas their uneven distribution, e.g., large areas with a predominance of the amorphous phase, will be characterized by a much lower mechanical strength and will constitute the weakest element of the entire system.
The information obtained constitutes essential information on the use of strontium oxide in glazes in which the final phase composition is zirconium silicate. The data obtained show how the addition of strontium oxide affects the phase composition and microstructure of glass–crystalline materials. The described crystal parameters and their arrangement, depending on the amount of zirconium silicate and strontium oxide, will significantly facilitate the design of this type of glaze.

Author Contributions

Conceptualization, J.P. and K.P.; methodology, J.P. and K.P.; formal analysis, J.P. and K.P.; investigation, J.P. and K.P.; data curation, J.P., K.P. and D.K.; writing—original draft preparation, J.P. and K.P.; writing—review and editing, J.P. and K.P.; visualization, J.P. and K.P.; funding acquisition, J.P. All authors have read and agreed to the published version of the manuscript.

Funding

Polish Ministry of Education and Science for the AGH University of Science and Technology in Krakow (Project No 16.16.160.557).

Data Availability Statement

Data available in a publicly accessible repository.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eppler, A.; Eppler, D.R. Glazes and Glass Coatings; The American Ceramic Society: Columbus, OH, USA, 2000. [Google Scholar]
  2. Shaw, K. Ceramic Glazes; Elsevier Publishing Company: Amsterdam, The Netherlands, 1971. [Google Scholar]
  3. Escardino, A. Crystalline Glazes; Qualicer: Castellon, Spain, 1996. [Google Scholar]
  4. Meija, J.F. Understanding the Role of Fluxes in Single-Fire Porcelain Glaze Development; Alfred University, Faculty of Ceramic Engineering, Kazuo Inamori School of Engineering: New York, NY, USA, 2004. [Google Scholar]
  5. Kirk, L.R. Function and action of opacifiers. J. Am. Ceram. Soc. 1932, 15, 226. [Google Scholar] [CrossRef]
  6. Beam, J.K. Effect of opacifiers on fused viscosity of feldspathic glazes. J. Am. Ceram. Soc. 1943, 26, 205–212. [Google Scholar] [CrossRef]
  7. McCoy, M.; Lee, W.E.; Heuer, A.H. Crystallization of MgO-Al2O3-SiO2-ZrO2 glasses. J. Am. Ceram. Soc. 1986, 69, 292–296. [Google Scholar] [CrossRef]
  8. Dittmer, M.; Yamamoto, C.F.; Bocker, C.; Russel, C. Crystallization and mechanical properties of MgO/Al2O3/SiO2/ZrO2. Solid State Sci. 2011, 13, 2146–2153. [Google Scholar] [CrossRef]
  9. Castilone, R.J.; Carty, W.M.; Sriram, D.; Snyder, R.L. Crystallization of zircon in stoneware glazes. J. Am. Ceram. Soc. 1999, 82, 2819. [Google Scholar] [CrossRef]
  10. Pasiut, K.; Partyka, J.; Leśniak, M.; Jeleń, P.; Olejniczak, Z. Raw glass-ceramics glazes from SiO2–Al2O3–CaO–MgO–Na2O–K2O system modified by ZrO2 addition—Changes of structure, microstructure and surface properties. Open Ceram. 2021, 8, 100188. [Google Scholar] [CrossRef]
  11. Harman, C.G.; Howard, R. Swept, Raw leadless whiteware glazes. J. Am. Ceram. Soc. 1945, 28, 48–52. [Google Scholar] [CrossRef]
  12. Partyka, J.; Pasiut, K.; Jeleń, P.; Leśniak, M.; Sitarz, M. Comparison of the impact of the addition of three alkaline earth metal oxides BaO, SrO and ZnO on sintering of glass-ceramic glazes from the SiO2-Al2O2-CaO-MgO-Na2O-K2O system. J. Therm. Anal. Calorim. 2019, 138, 4341–4347. [Google Scholar] [CrossRef]
  13. Pasiut, K.; Partyka, J. The influence of ZrO2 addition on the thermal properties of glass-ceramic materials from SiO2-Al2O3-Na2O-K2O-CaO system. J. Therm. Anal. Calorim. 2017, 130, 343–350. [Google Scholar] [CrossRef]
  14. Pasiut, K.; Partyka, J. Thermal properties of glass-ceramic glazes with zirconium oxide added to multicomponent system SiO2-Al2O3-CaO-MgO-Na2O. J. Therm. Anal. Calorim. 2023, 148, 1867–1874. [Google Scholar] [CrossRef]
  15. Sheikhattar, M.; Attar, H.; Sharafi, S.; Carty, W.M. Influence of surface crystallinity of the surface roughness of different ceramic glazes. Mater. Charact. 2016, 118, 570–574. [Google Scholar] [CrossRef]
  16. Boudeghdegh, K.; Diella, V.; Bernasconi, A.; Roula, A.; Amirouche, Y. Composition effects on the whiteness and physical-mechanical properties of traditional sanitary-ware glaze. J. Eur. Ceram. Soc. 2015, 35, 3735–3741. [Google Scholar] [CrossRef]
  17. Popa, M.; Kakihana, M.; Yoshimura, M.; Calderon-Moreno, J.M. Zircon formation from amorphous powder and melt in the silica-rich region of the alumina-silica-zirconia system. J. Non-Cryst. Solids 2006, 352, 5663–5669. [Google Scholar] [CrossRef]
  18. Levitskii, I.A.; Barantseva, S.E.; Lugin, V.G.; Poznyak, A.I. Optimization of the composition of the fritted component of the raw material mix of durable coatings. Glass Ceram. 2011, 67, 291–294. [Google Scholar] [CrossRef]
  19. Rasterio, M.G.; Gassman, T.; Santos, R.; Antunes, E. Crystalline phase characterization of glass-ceramic glazes. Ceram. Int. 2007, 33, 345–354. [Google Scholar] [CrossRef]
  20. Wang, S.; Peng, C.; Huiyin, X.; Wu, J. Microstructural evolution and crystallization mechanism of zircon from frit glaze. J. Eur. Ceram. Soc. 2015, 35, 2671–2678. [Google Scholar] [CrossRef]
  21. Jacobs, C.W.F. Opacifying crystalline phases present in zirconium-type glazes. J. Am. Ceram. Soc. 1954, 37, 216–220. [Google Scholar] [CrossRef]
  22. Yekta, B.E.; Alizadeh, P.; Rezazadeh, L. Floor tile glass-ceramic glaze for improvement of glaze surface properties. J. Eur. Ceram. Soc. 2006, 26, 3809–3812. [Google Scholar] [CrossRef]
  23. Amoros, J.L.; Blasco, E.; Feliu, C.; Moreno, A. Effect of particle size distribution on the evaluation of porous, microstructural, and dimensional characteristics during sinter-crystallisation of a glass-ceramic glaze. J. Non-Cryst. Solids 2021, 572, 121093. [Google Scholar] [CrossRef]
  24. Earl, D.A.; Clark, D.E. Effects of glass frit oxides on crystallization and zircon pigment dissolution in whiteware coatings. J. Am. Ceram. Soc. 2000, 83, 2170–2176. [Google Scholar] [CrossRef]
  25. Tiwari, B.; Dixit, A.; Pillai, C.G.S.; Gadkari, S.C.; Kothiyal, G.P. Crystallization kinetics and mechanism of strontium zinc silicate glass. J. Am. Ceram. Soc. 2012, 95, 1290–1296. [Google Scholar] [CrossRef]
  26. Karasu, B.; Cable, M. The chemical durability of SrO-MgO-ZrO2-SiO2 glasses in strongly alkaline environments. J. Eur. Ceram. Soc. 2000, 20, 2499–2508. [Google Scholar] [CrossRef]
  27. Kaczmarczyk, K.; Partyka, J.; Pasiut, K.; Michałek, J. Strontium carbonate in glazes from the SiO2-Al2O2-CaO-MgO-Na2O-K2O system, sintering and surface properties. Open Ceram. 2022, 9, 1–8. [Google Scholar]
  28. Licheron, M.; Montouillout, V.; Millot, F.; Neuville, D.R. Raman and 27Al NMR structure investigations of aluminate glasses: (1 − x)Al2O3−x MO, with M = Ca, Sr, Ba and 0.5 < x < 0.75). J. Non-Cryst. Solids 2011, 357, 2796–2801. [Google Scholar]
  29. Novikov, A.N.; Neuville, D.R.; Hennet, L.; Gueguen, Y.; Thiaudière, D.; Charpentier, T.; Florian, P. Al and Sr environment in tectosilicate glasses and melts: Viscosity, Raman and NMR investigation. Chem. Geol. 2017, 461, 115–127. [Google Scholar] [CrossRef]
  30. Voevodin, V.I. Unfritted opaque glaze for ceramic sanitaryware. Glass Ceram. 2000, 57, 23–24. [Google Scholar] [CrossRef]
  31. Myung-Whun, C. Properties of glasses based on the CaO-MgO-SiO2 system for low-temperature co-fired ceramic. Ceram. Int. 2009, 35, 2513–2515. [Google Scholar]
  32. Beal, G.H. Refractory glass-ceramics based on alkaline earth aluminosilicates. J. Ceram. Soc. 2009, 29, 1211–1219. [Google Scholar] [CrossRef]
  33. Silva, L.D.; Rodrigues, A.M.; Rodrigues, A.C.M.; Pascual, M.J.; Durán, A.; Cabral, A.A. Sintering and crystallization of SrO-CaO-B2O3-SiO2 glass-ceramics with different TiO2 contents. J. Non-Cryst. Solids 2017, 473, 33–40. [Google Scholar] [CrossRef]
  34. Enriquez, E.; Fuertes, V.; Cabrera, M.J.; Seores, J.; Munoz, D.; Galiana, B.; Fernandez, J.F. Study of the crystallization in fast sintered Na-rich plagioclase glass-ceramic. Ceram. Int. 2019, 45, 8899–8907. [Google Scholar] [CrossRef]
  35. Thieme, K.; Thieme, C. Determination of the crystallization mechanism of glasses in the system BaO/SrO/ZnO/SiO2 with differental scanning calorimetry. J. Therm. Anal. Calorim. 2020, 142, 1193–1206. [Google Scholar] [CrossRef]
  36. Amoros, J.L.; Blasco, E.; Moreno, A.; Marin, N.; Feliu, C. Effect of particle size distribution on the sinter-crystallizsation kinetics of a SiO2-Al2O3-CaO-MgO-Sro glass-ceramic glaze. J. Non-Cryst. Solids 2020, 542, 120148. [Google Scholar] [CrossRef]
  37. Karasu, B. Crystallisation in the SrO-MgO-ZrO2-SiO2 (SMZS) system glasses. J. Mater. Sci. 2002, 37, 271–285. [Google Scholar] [CrossRef]
  38. Paganelli, M.; Sighinolfi, D. Understanding the behaviour of glazes: New possibilities using the automatic hot stage microscope Misura. Ind. Ceram. 1997, 17, 69–73. [Google Scholar]
  39. Sighinolfi, D. Misura equipment, solving ceramic problems. Ind. Ceram. 2010, 30, 1–8. [Google Scholar]
Crystals 13 01435 g001

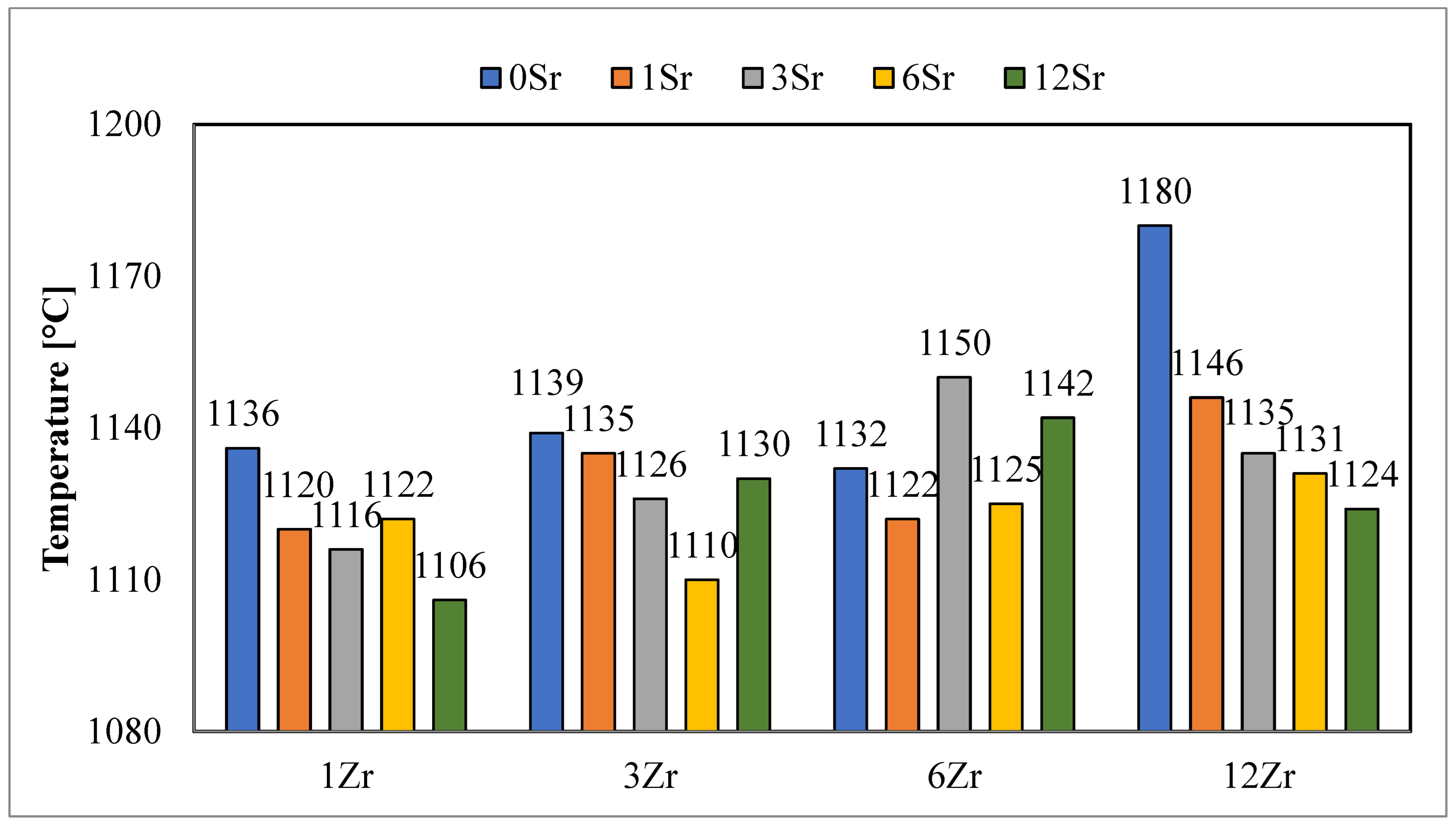

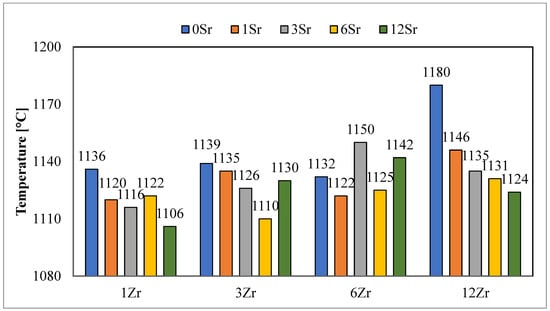

Figure 1. Determined sintering temperatures of tested samples with variable contents of strontium oxide.
Figure 1. Determined sintering temperatures of tested samples with variable contents of strontium oxide.
Crystals 13 01435 g001
Crystals 13 01435 g002

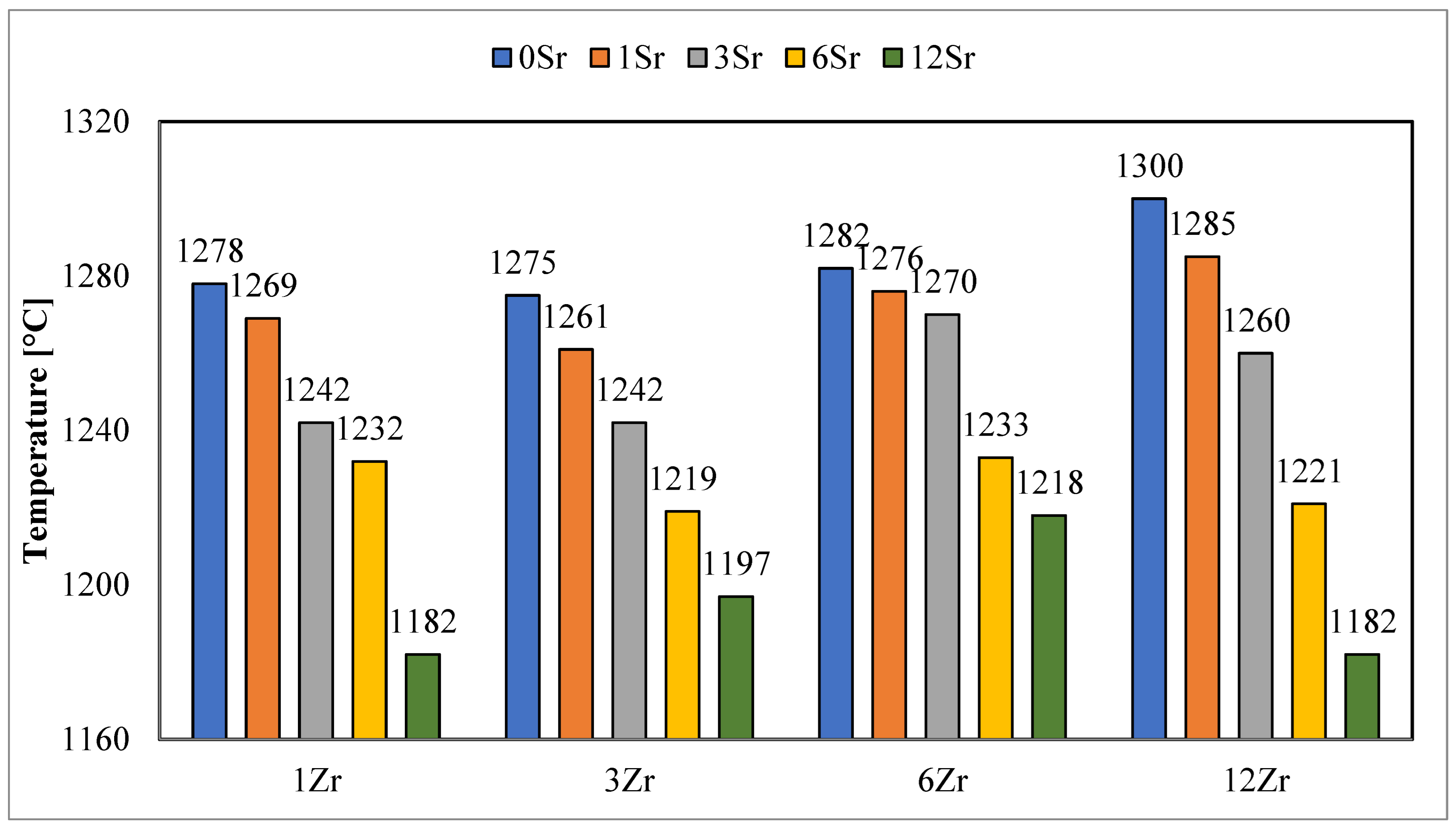

Figure 2. Determined sphere temperatures of tested samples with variable contents of strontium oxide.
Figure 2. Determined sphere temperatures of tested samples with variable contents of strontium oxide.
Crystals 13 01435 g002
Crystals 13 01435 g003

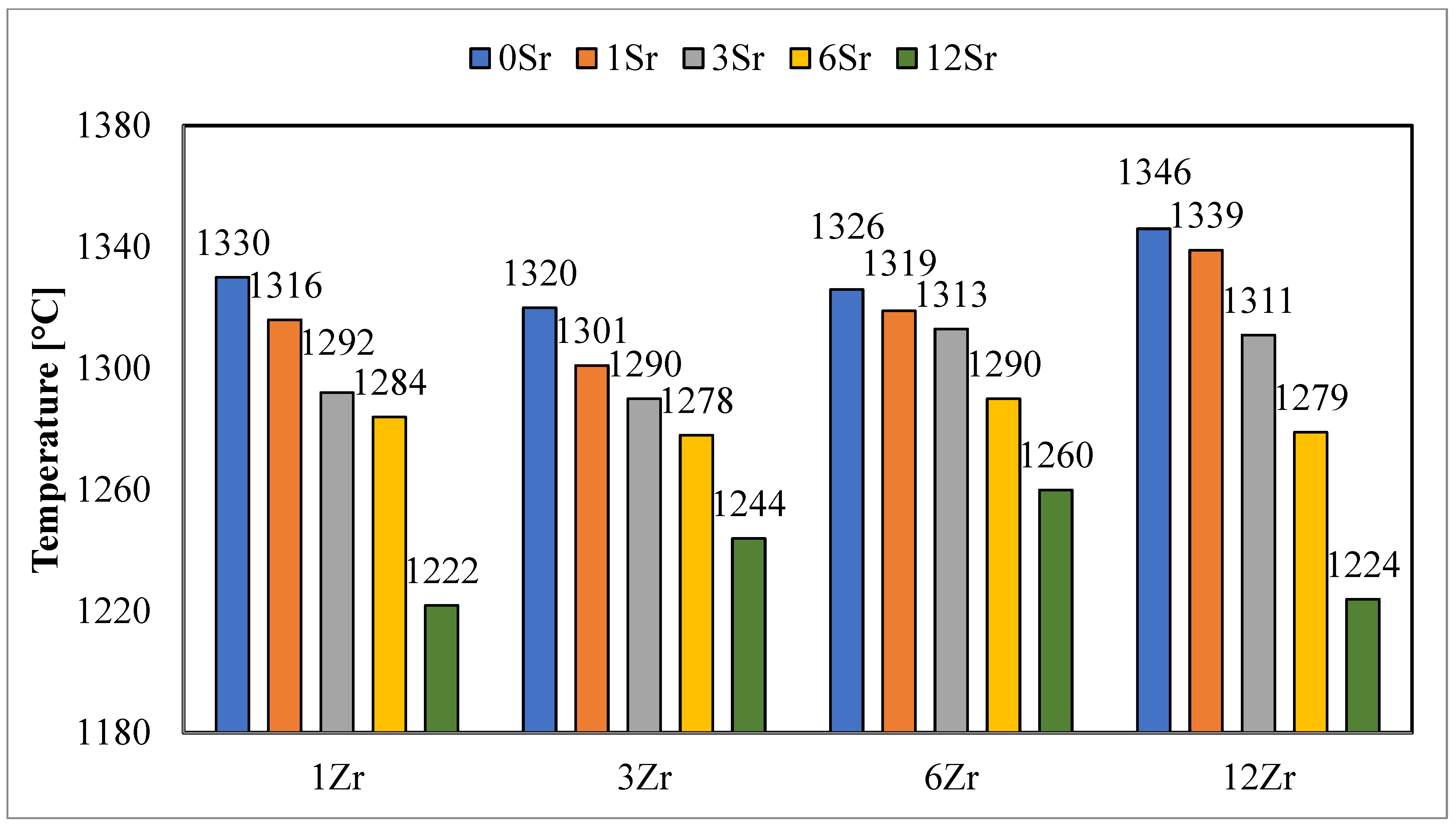

Figure 3. Determined half-sphere temperatures of tested samples with variable contents of strontium oxide.
Figure 3. Determined half-sphere temperatures of tested samples with variable contents of strontium oxide.
Crystals 13 01435 g003
Crystals 13 01435 g004

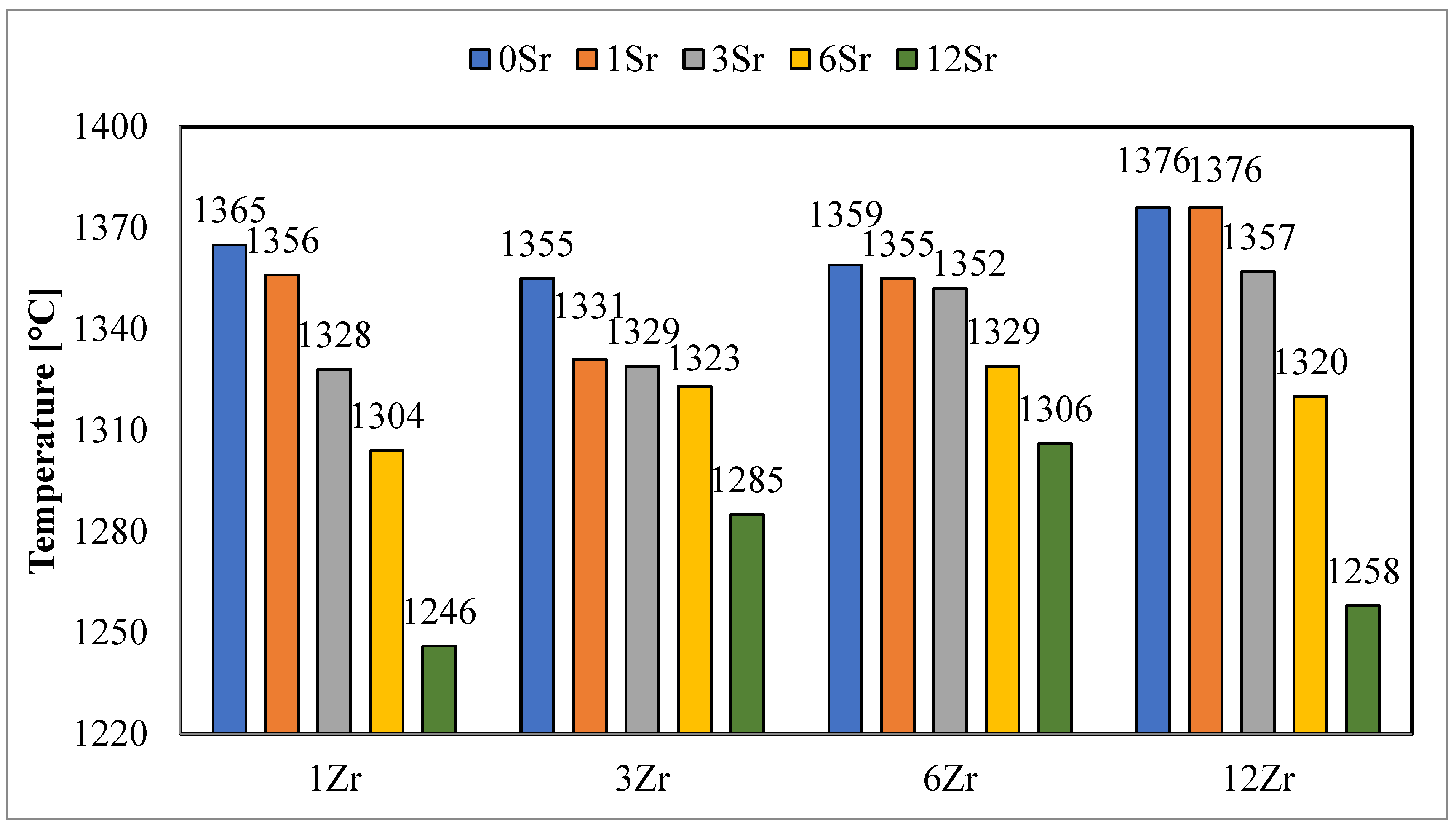

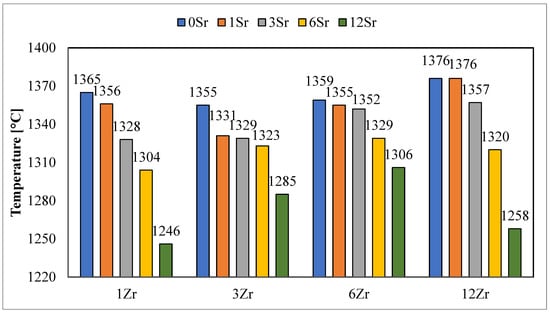

Figure 4. Determined melting temperatures of samples tested with variable contents of strontium oxide.
Figure 4. Determined melting temperatures of samples tested with variable contents of strontium oxide.
Crystals 13 01435 g004
Crystals 13 01435 g005
Figure 5. Microphotographs from SEM observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 5. Microphotographs from SEM observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g005
Crystals 13 01435 g006

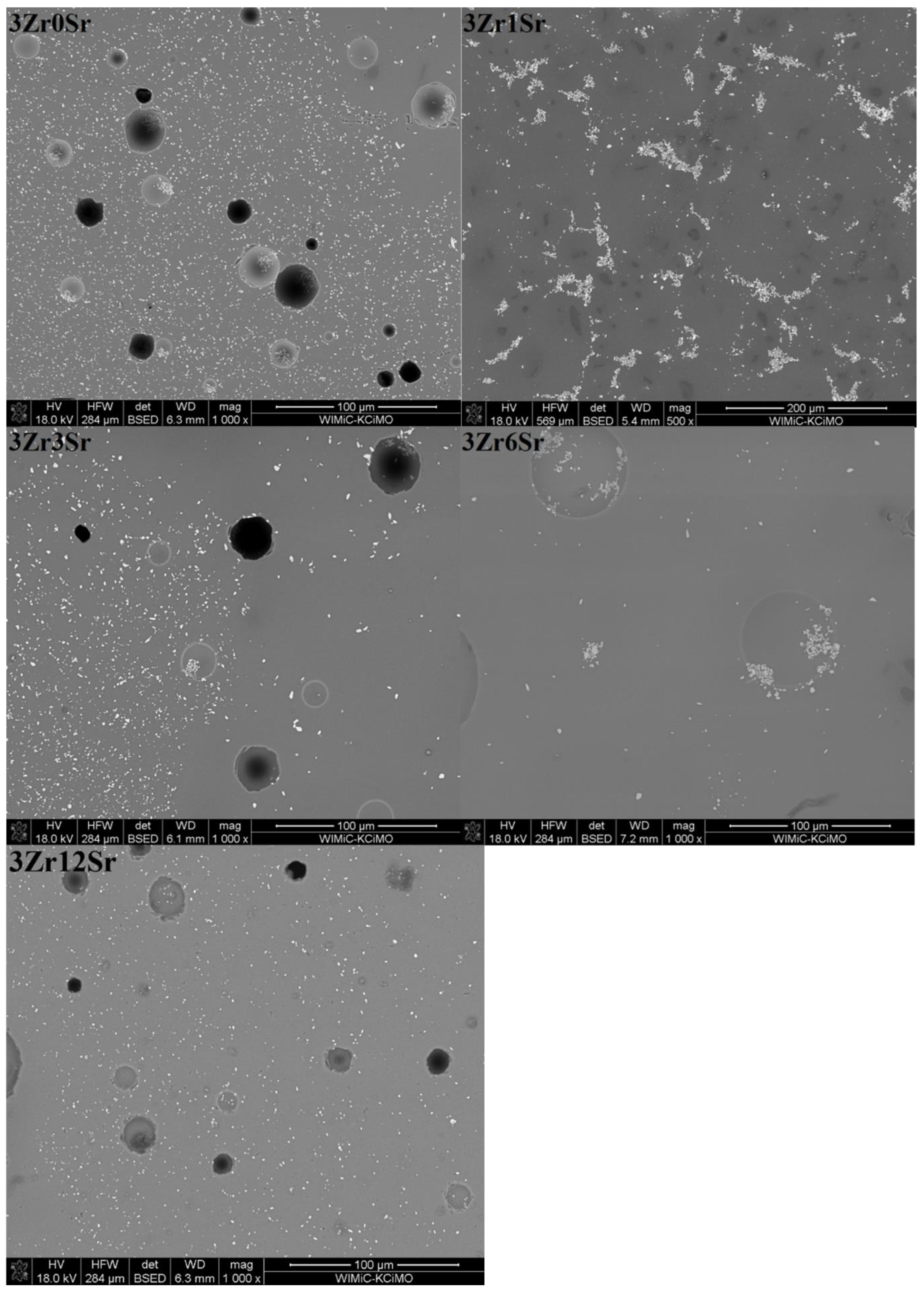

Figure 6. Microphotographs from SEM observations of the 3Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 6. Microphotographs from SEM observations of the 3Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g006
Crystals 13 01435 g007
Figure 7. Microphotographs from SEM observations of the 6Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 7. Microphotographs from SEM observations of the 6Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g007
Crystals 13 01435 g008
Figure 8. Microphotographs from SEM observations of the 12Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 8. Microphotographs from SEM observations of the 12Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g008
Crystals 13 01435 g009

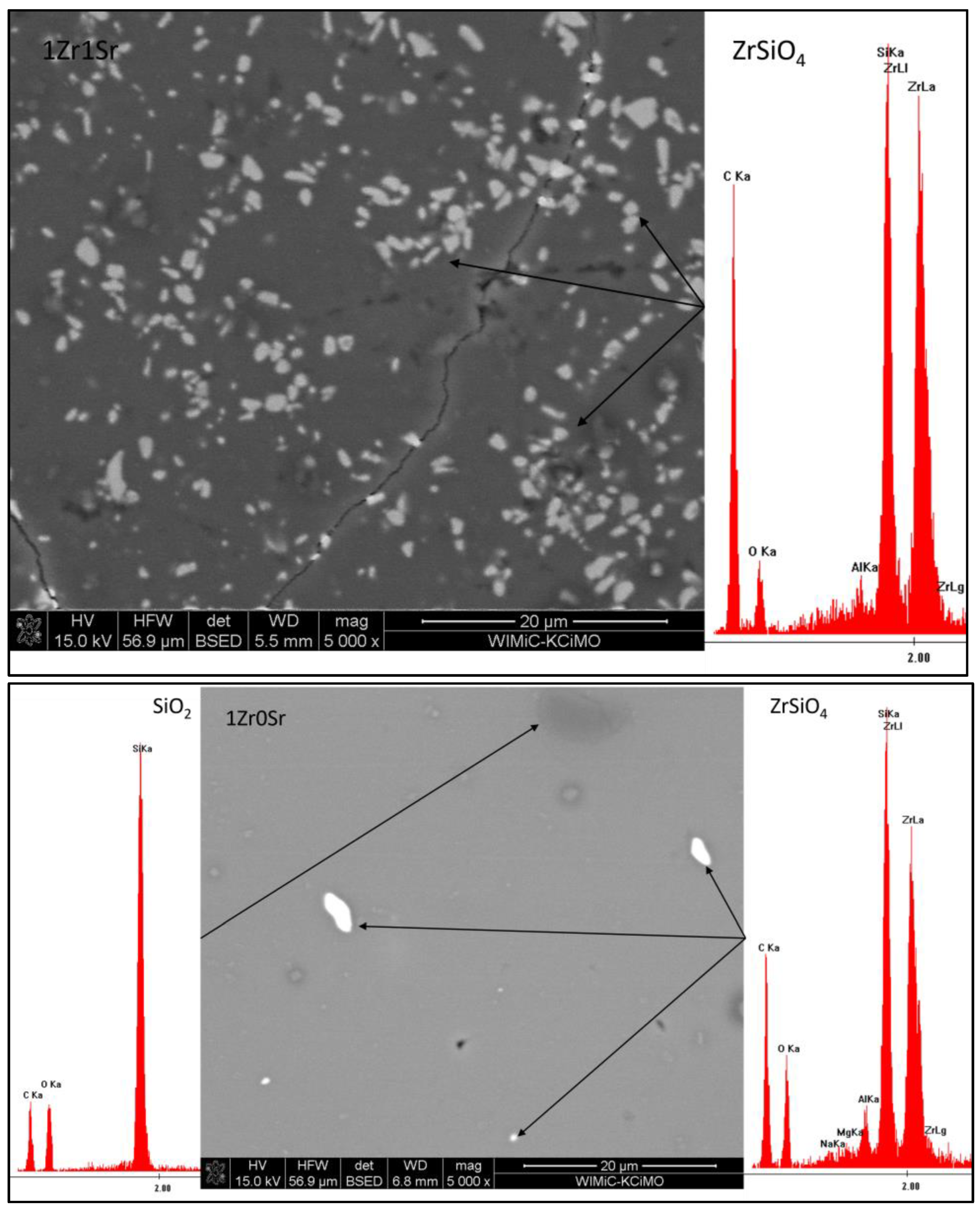

Figure 9. Microphotographs–1 from SEM-EDS observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 9. Microphotographs–1 from SEM-EDS observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g009
Crystals 13 01435 g010

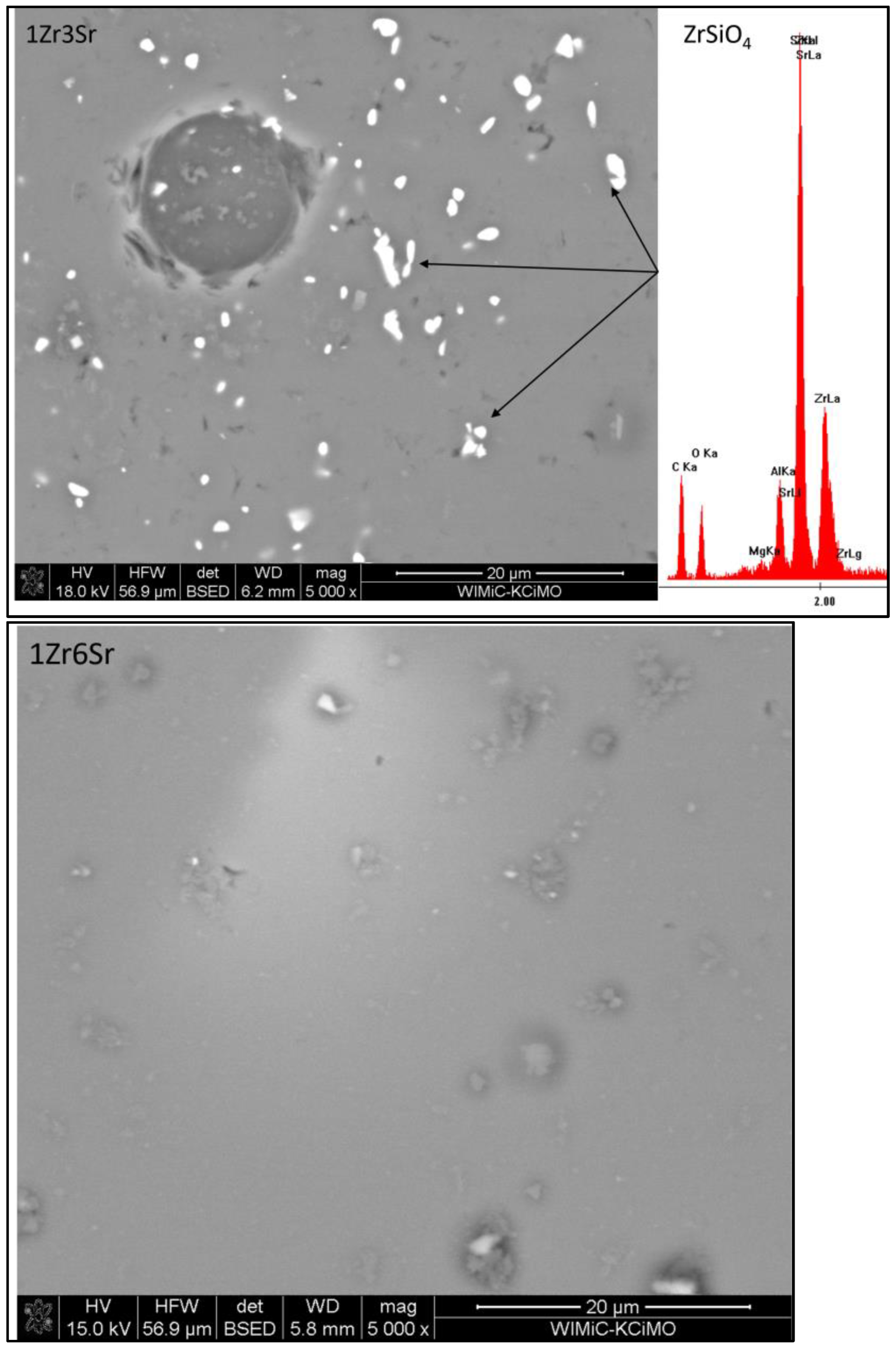

Figure 10. Microphotographs–2 from SEM-EDS observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 10. Microphotographs–2 from SEM-EDS observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g010
Crystals 13 01435 g011

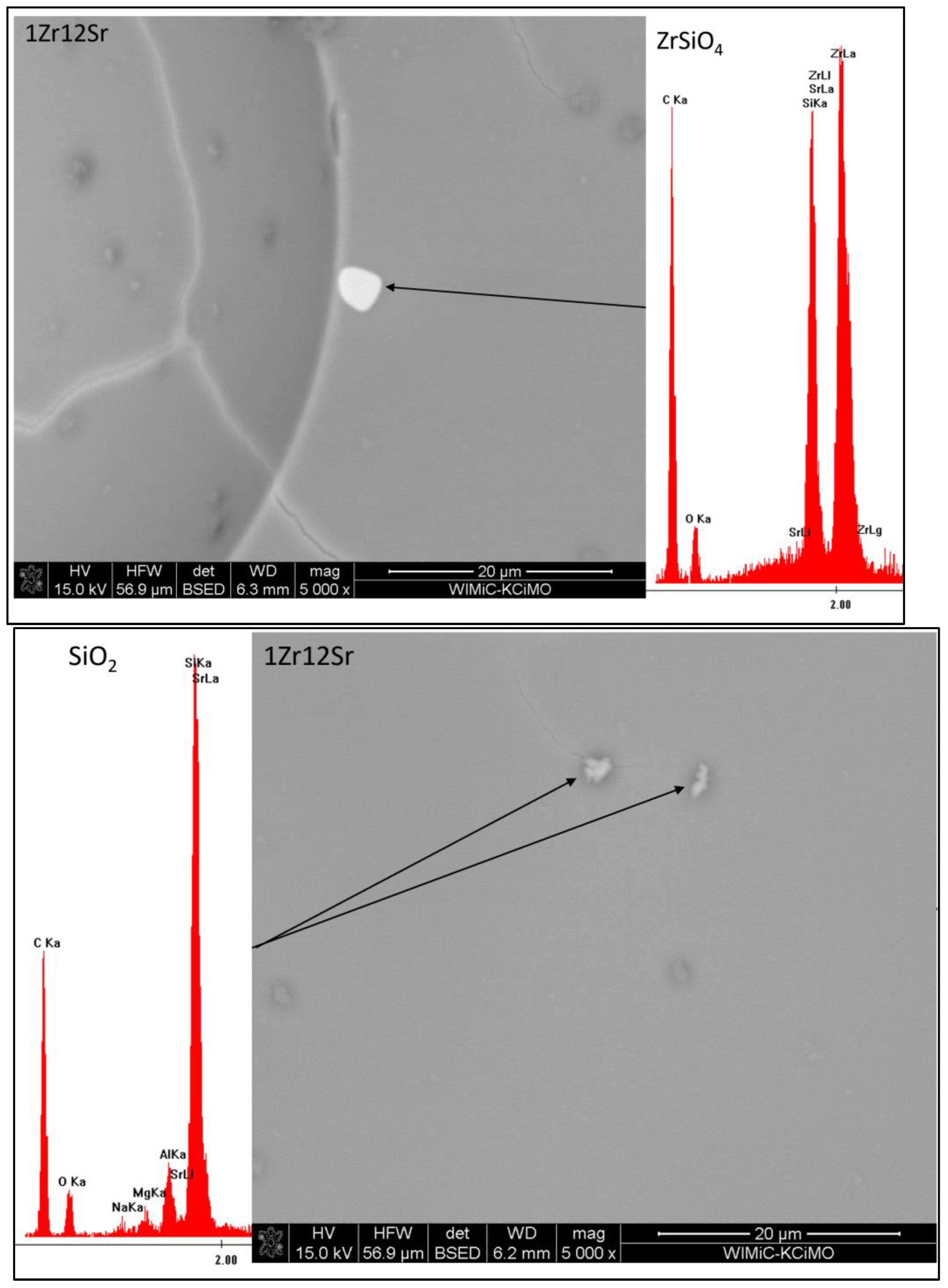

Figure 11. Microphotographs–3 from SEM-EDS observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Figure 11. Microphotographs–3 from SEM-EDS observations of the 1Zr series (ZrSiO4—light crystals, SiO2—dark-grey spot).
Crystals 13 01435 g011
Table 1. Simplified composition of the analyzed glazes.
Table 1. Simplified composition of the analyzed glazes.
GlazeSeger Formula (Molar Friction)Amount of SrO (%mass.)
SiO2/Al2O3CaO/MgOK2OZrO2
1Zr0Sr8.521.010.370.050
1Zr1Sr1
1Zr3Sr3
1Zr6Sr6
1Zr12Sr12
3Zr0Sr0.10
3Zr1Sr1
3Zr3Sr3
3Zr6Sr6
3Zr12Sr12
6Zr0Sr0.210
6Zr1Sr1
6Zr3Sr3
6Zr6Sr6
6Zr12Sr12
12Zr0Sr0.430
12Zr1Sr1
12Zr3Sr3
12Zr6Sr6
12Zr12Sr12
Table 2. Characteristic temperatures of analyzed glazes.
Table 2. Characteristic temperatures of analyzed glazes.
GlazeCharacteristic Temperatures (°C)Firing
Temperature (°C)
SinteringSphereHalfsphereMelting
1Zr0Sr11361278133013651330
1Zr1Sr11201269131613561315
1Zr3Sr11161242129213281290
1Zr6Sr11221262130413421305
1Zr12Sr11061182122212461220
3Zr0Sr11391275132013551320
3Zr1Sr11351261130113311300
3Zr3Sr11261242129013291290
3Zr6Sr11101219127813231280
3Zr12Sr11301197124412851245
6Zr0Sr11321282132613591325
6Zr1Sr11221276131913551320
6Zr3Sr11501270131313521315
6Zr6Sr11251233129013291290
6Zr12Sr11421218126013061260
12Zr0Sr11801300134613761345
12Zr1Sr11461285133913761340
12Zr3Sr11351260131113571310
12Zr6Sr11311221127913201280
12Zr12Sr11241182122412581225
Table 3. Phase composition of the glazes analyzed.
Table 3. Phase composition of the glazes analyzed.
GlazeCrystalline Phases (%vol.)Amorphous Phase (%vol.)
Zirconium SilicateQuartz
1Zr0Sr11882
1Zr1Sr1793
1Zr3Sr1891
1Zr6Sr 1486
1Zr12Sr 1288
3Zr0Sr2593
3Zr1Sr2494
3Zr3Sr1396
3Zr6Sr1990
3Zr12Sr 1387
6Zr0Sr7588
6Zr1Sr5491
6Zr3Sr4492
6Zr6Sr4393
6Zr12Sr3196
12Zr0Sr16183
12Zr1Sr13186
12Zr3Sr12 88
12Zr6Sr12 88
12Zr12Sr9 91
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Partyka, J.; Pasiut, K.; Kozień, D. The Effect of SrO Addition on the Recrystallization of ZrSiO4 in Raw Glass–Ceramic Glazes from the SiO2-Al2O3-CaO-MgO-K2O-ZrO2 System. Crystals 2023, 13, 1435. https://doi.org/10.3390/cryst13101435

AMA Style

Partyka J, Pasiut K, Kozień D. The Effect of SrO Addition on the Recrystallization of ZrSiO4 in Raw Glass–Ceramic Glazes from the SiO2-Al2O3-CaO-MgO-K2O-ZrO2 System. Crystals. 2023; 13(10):1435. https://doi.org/10.3390/cryst13101435

Chicago/Turabian Style

Partyka, Janusz, Katarzyna Pasiut, and Dawid Kozień. 2023. "The Effect of SrO Addition on the Recrystallization of ZrSiO4 in Raw Glass–Ceramic Glazes from the SiO2-Al2O3-CaO-MgO-K2O-ZrO2 System" Crystals 13, no. 10: 1435. https://doi.org/10.3390/cryst13101435

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
