Article

Structural and Electronic Properties of Cu3InSe4

1
Department of Physics, University of South Florida, Tampa, FL 33620, USA
2
Materials Measurement Science Division, National Institute of Standards and Technology, Gaithersburg, MD 20899, USA
3
ChemMatCARS, University of Chicago, Argonne, IL 60439, USA
*
Author to whom correspondence should be addressed.
Crystals 2022, 12(9), 1310; https://doi.org/10.3390/cryst12091310
Submission received: 12 August 2022 / Revised: 9 September 2022 / Accepted: 11 September 2022 / Published: 17 September 2022
(This article belongs to the Section Crystal Engineering)

Abstract

:
Single crystals of a new ternary chalcogenide Cu3InSe4 were obtained by induction melting, allowing for a complete investigation of the crystal structure by employing high-resolution single-crystal synchrotron X-ray diffraction. Cu3InSe4 crystallizes in a cubic structure, space group P 4 ¯ 3 m , with lattice constant 5.7504(2) Å and a density of 5.426 g/cm3. There are three unique crystallographic sites in the unit cell, with each cation bonded to four Se atoms in a tetrahedral geometry. Electron localization function calculations were employed in investigating the chemical bonding nature and first-principle electronic structure calculations are also presented. The results are discussed in light of the ongoing interest in exploring the structural and electronic properties of new chalcogenide materials.

1. Introduction

Multinary metal chalcogenides consisting of primarily earth-abundant, low-cost, and non-toxic constituents exhibit physical properties that can be tuned via composition, specific bonding scheme, lattice defects or disorder, and have been investigated for a variety of different applications of interest including thermoelectrics [1,2,3,4,5,6], photovoltaics [7,8,9,10], superconductivity [11,12,13], and as potential topological insulators [14,15]. The interest in ternary Cu-based compositions has recently intensified in pursuit of commercially viable solar cells [16,17,18] and thermoelectrics [19,20,21,22]. The ternary Cu-In-Se system is of particular interest [23], with a number of compounds possible along the Cu2Se-InSe3 tie-line [24,25] such as CuInSe2 [26,27], Cu3In5Se9 [28], Cu7In19Se32 [23], CuIn5Se8 [25], Cu2In4Se7 [29] and CuIn3Se5 [30]. The crystal structure of CuInSe2 was reported to be either tetragonal with space group I 4 ¯ 2 m [31,32] or cubic, F 4 ¯ 3 m [23,33], where the latter structure can be considered as two interpenetrating face-centered cubic sub-lattices. In the case of Cu3MSe4, where M is V, Ta, Nb or Sb, both cubic [34,35] and tetragonal [36,37] structure types were reported.
To the best of our knowledge, the synthesis and crystal structure of Cu3InSe4 has not been previously reported. Wei et al. [38] predicted Cu3InSe4 to be metallic, with “holes in the valence band”, however structural information and details of the electronic structure were not reported. Therefore, we have undertaken to synthesize and investigate the crystal structure and electronic properties of Cu3InSe4. We employed high-resolution single crystal synchrotron measurements to determine the structure of this previously unascertained ternary compound. The structural features and bonding were investigated in detail, including analyses of calculated electron localization, and the electronic properties were obtained using density functional theory. Our results are compared to that of other ternary chalcogenides.

2. Materials and Methods

Single crystals of Cu3InSe4 were initially obtained in an attempt to prepare CuFe2InSe4, resulting in FeSe as well as the shiny metallic ternary chalcogenide crystals identified as Cu3InSe4. This procedure was repeated with a stoichiometric ratio of the starting high-purity elements, Cu powder (99.9 % purity, Alfa Aesar, Thermo Fisher Scientific, Ward Hill, MA, USA), In shot (99.99 % purity, Alfa Aesar, Thermo Fisher Scientific, Ward Hill, MA, USA) and Se ingot (99.999 % purity, Alfa Aesar, Thermo Fisher Scientific, Ward Hill, MA, USA) [39]. The elements were placed in a silica ampoule and vacuum-sealed inside a quartz tube, then melted via a water-cooled 3-coil induction (Superior Induction, SI-7KWHF) furnace resulting in an agglomeration of gray Cu3InSe4 crystals.
Single-crystal synchrotron measurements were carried out at NSF’s ChemMatCARS, Sector 15 of the Advanced Photon Source, Argonne National Laboratory. Data were collected using a Huber 3-circle diffractometer (Huber diffraction, Lancaster, CA, USA) equipped with a Pilatus3X 2M detector (Dectris USA Inc., Philadelphia, PA, USA) using an Oxford Cryojet (American Laboratory Trading, East Lyme, CT, USA). The ω-angle was set at −180°, κ-angle was set at 0° and 30°, with ϕ-angle scanned over the range of 360° using the shutterless mode of the detector. Data integration was performed with the Bruker APEX 3 suite software. The reduction of the data was obtained with the SAINT v.8.38A and SADABS v.2016 programs (Bruker AXS Inc., Madison, WI, USA) that are included in the APEX suite. The structure was solved directly and refined by the full-matrix least-squares method.
Ab initio calculations based on density functional theory, plane-waves basis set, and pseudopotentials were carried out using the Quantum Espresso software package [40]. Projector-augmented waves (PAW) pseudopotentials [41], the generalized gradient approximation of Perdew-Burke-Ernzehof [42,43] plus Hubbard correction [44] (GGA-PBE + U) exchange-correlation functional were applied. A U parameter of 4 eV for the cations was used based on previous studies on Cu-based chalcogenide materials [45,46] that provide for good agreement between calculated and experimental structure values. For the pseudopotentials, Cu 3d104s1, In 4d105s25p1 and Se 4s24p4 valence configurations were considered. For self-consistent field (SCF) calculations, a k-point mesh of 6 × 6 × 6 was applied to sample the Brillouin zone. The kinetic energy cutoff for wavefunctions and charge density was set to 70 Ry and 300 Ry, respectively, and an energy convergence threshold of 10−7 eV was utilized. The electron localization function (ELF) distribution was analyzed and visualized using VESTA v.3.5.8 software [47].
CCDC 2172956 contains the supplementary crystallographic data. These data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/search?access=referee&pid=ccdc:2172956&author=ng, accessed on 10 September 2022, (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

3. Results

The crystallographic data and structural refinement results are shown in Table 1. Cu3InSe4 crystallizes in the cubic space group P 4 ¯ 3 m (No. 215) with cell parameter a = 5.7504(2) Å, Z = 1 and density = 5.426 g/cm3. The atomic coordinates and equivalent isotropic displacement parameters, Ueq, are shown in Table 2. The anisotropic displacement parameters are presented in Table 3. As shown in Figure 1, the structure consists of CuSe4 (Cu-Se distance of 2.4622(4) Å) and InSe4 (In-Se distance of 2.5775(13) Å) tetrahedra connected by corner-sharing Se atoms. Selenium is surrounded by three Cu atoms and by an In atom, as shown in Figure 1a. The CuSe4 and InSe4 tetrahedra are illustrated in Figure 1b. The tetrahedron about the In site is a regular tetrahedron with Se-In-Se angles of 109.471(11)°, while that of Cu is somewhat distorted with Se-Cu-Se angles ranging from 105.63(6)° to 111.42(3)°. The Cu-Se distance (2.4622(4) Å) is similar to that reported for sulvanite and adamantine compounds [36,48,49], while the In-Se distance (2.5775(13) Å) is similar to that for CuInSe2 (2.591 Å) [49] and LiInSe2 (2.57 Å) [50]. It is important to note that the structure of Cu3InSe4 is related to that of sulvanites Cu3XQ4 (X = V, Nb, Ta; Q = S, Se, Te) [19,51,52]; however, the Cu atoms occupy different Wyckoff sites in these two different ternary chalcogenides thus resulting in corner sharing and edge sharing tetrahedra for Cu3InSe4 and Cu3XQ4, respectively.
The electron density distribution was investigated by calculating the ELF, revealing the ionic nature of the bonding in Cu3InSe4, as shown in Figure 2. Figure 2 shows the calculated ELF along the (110) plane. ELF values of 0.0, 0.5 and 1.0 represent fully delocalized, electron-gas-like pair probability and perfect localization, respectively [53]. The atomic core regions of the cations have localization domains with ELF values close to unity and low ELF values away from these regions. This suggests electrons transfer from both Cu and In atoms to adjacent Se atoms, indicating ionic bonding. In comparing the Cu3XSe4 compounds [54] with Cu3InSe4, the X-Se bonds in the former show a higher degree of covalency as compared with the primarily ionic character for In-Se in Cu3InSe4.
The oxidation states of Cu, In and Se are 1+, 3+ and 2−, respectively, resulting in 30 electrons per formula unit, or two fewer than required for the tetrahedral bonds in Cu3InSe4 thus resulting in p-type metallic behavior. Our detailed structural analyses allow for an investigation of the electronic structure of Cu3InSe4 by calculating the energy band structure and density of states (DOS). As shown in Figure 3, the Fermi level, Ef, crosses the valence band in multiple regions, thus, Cu3InSe4 is a p-type metal [46,55], confirming the simple charge imbalance argument. This is also in agreement with the early conjecture [38], and corroborated by our room temperature conductivity measurements indicating metallic conduction [56]. The orbital-projected DOS indicates that the valence band maximum has contributions mainly from the Cu 3d and Se 4p orbitals, while the conduction band maximum is mainly composed of In 5s and Se 4p and minor contributions from Cu 3d4s4p, In 5p and Se 4s orbitals. The orbital interactions between the CuSe4 tetrahedra therefore play a dominant role in the metallic conductivity of Cu3InSe4. It is instructive to compare the electronic structure of Cu3InSe4 to that of Cu3XSe4 in light of the fact that the crystal structure of Cu3InSe4 is not isostructural to that of the later compositions. Specifically, for the case of the Cu3XSe4 compositions [19,57,58], an energy gap opens between the valence and conduction bands in these materials. These compositions are therefore semiconductors and are being investigated for thermoelectric [19,20] and photovoltaic [59,60] applications, whereas in the case of Cu3InSe4 Ef falls relatively deep in the valence band and will therefore not be of interest for such applications.

4. Conclusions

Single crystals of a new ternary chalcogenide Cu3InSe4 were obtained by induction melting, and the structural and electronic properties are reported for the first time. Cu3InSe4 forms in a cubic crystal structure that consists of CuSe4 and InSe4 tetrahedra connected by corner sharing Se atoms. Electron localization function analyses indicated partially ionic bonding between the cations and Se atoms, with highly delocalized electrons in the regions between cation and selenium. Electronic structure calculations reveal this ternary chalcogenide to be metallic. Given that ternary chalcogenide compounds are of interest for potential thermoelectric and optoelectronic applications, our findings will be useful for investigations on new materials for applications of interest. The results and analyses in this work add to our understanding of the structural and electronic properties of ternary chalcogenides.

Author Contributions

Conceptualization, G.S.N.; methodology, O.P.O.; data curation, O.P.O., W.W.-N., T.C. and Y.-S.C.; formal analysis, O.P.O., W.W.-N., T.C. and Y.-S.C.; writing—original draft preparation, O.P.O.; writing—review and editing, G.S.N.; visualization, O.P.O.; supervision, G.S.N. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported, in part, by the National Science Foundation, Grant No. DMR-1748188. W.W.-N., T.C. and Y.-S.C. gratefully acknowledge NSF’s ChemMatCARS Sector 15 which is supported by the Divisions of Chemistry (CHE) and Materials Research (DMR), National Science Foundation, under grant number NSF/CHE- 1834750. Use of the Advanced Photon Source, an Office of Science User Facility operated for the U.S. Department of Energy (DOE) Office of Science by Argonne National Laboratory, was supported by the U.S. DOE under Contract No. DE-AC02-06CH11357.

Data Availability Statement

Not applicable.

Acknowledgments

The contribution of all authors is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pal, K.; Xia, Y.; Shen, J.; He, J.; Luo, Y.; Kanatzidis, M.G.; Wolverton, C. Accelerated Discovery of a Large Family of Quaternary Chalcogenides with Very Low Lattice Thermal Conductivity. Npj Comput. Mater. 2021, 7, 82. [Google Scholar] [CrossRef]
  2. Patschke, R.; Zhang, X.; Singh, D.; Schindler, J.; Kannewurf, C.R.; Lowhorn, N.; Tritt, T.; Nolas, G.S.; Kanatzidis, M.G. Thermoelectric Properties and Electronic Structure of the Cage Compounds A2BaCu8Te10 (A = K, Rb, Cs):  Systems with Low Thermal Conductivity. Chem. Mater. 2001, 13, 613–621. [Google Scholar] [CrossRef]
  3. Qiu, P.; Shi, X.; Chen, L. Cu-Based Thermoelectric Materials. Energy Storage Mater. 2016, 3, 85–97. [Google Scholar] [CrossRef]
  4. Wei, K.; Beauchemin, L.; Wang, H.; Porter, W.D.; Martin, J.; Nolas, G.S. Enhanced Thermoelectric Properties of Cu2ZnSnSe4 with Ga-Doping. J. Alloys Compd. 2015, 650, 844–847. [Google Scholar] [CrossRef]
  5. Dong, Y.; Wang, H.; Nolas, G.S. Synthesis and Thermoelectric Properties of Cu Excess Cu2 ZnSnSe4. Phys. Status Solidi-Rapid Res. Lett. 2014, 8, 61–64. [Google Scholar] [CrossRef]
  6. Dong, Y.; Wang, H.; Nolas, G.S. Synthesis, Crystal Structure, and High Temperature Transport Properties of p-Type Cu2Zn1-XFexSnSe4. Inorg. Chem. 2013, 52, 14364–14367. [Google Scholar] [CrossRef]
  7. Pal, K.; Singh, P.; Bhaduri, A.; Thapa, K.B. Current Challenges and Future Prospects for a Highly Efficient (>20%) Kesterite CZTS Solar Cell: A Review. Sol. Energy Mater. Sol. Cells 2019, 196, 138–156. [Google Scholar] [CrossRef]
  8. Ravindiran, M.; Praveenkumar, C. Status Review and the Future Prospects of CZTS Based Solar Cell—A Novel Approach on the Device Structure and Material Modeling for CZTS Based Photovoltaic Device. Renew. Sustain. Energy Rev. 2018, 94, 317–329. [Google Scholar] [CrossRef]
  9. Nolas, G.S.; Hassan, M.S.; Dong, Y.; Martin, J. Synthesis, Crystal Structure and Electrical Properties of the Tetrahedral Quaternary Chalcogenides CuM2InTe4 (M = Zn, Cd). J. Solid State Chem. 2016, 242, 50–54. [Google Scholar] [CrossRef]
  10. Sahu, M.; Minnam Reddy, V.R.; Park, C.; Sharma, P. Review Article on the Lattice Defect and Interface Loss Mechanisms in Kesterite Materials and Their Impact on Solar Cell Performance. Sol. Energy 2021, 230, 13–58. [Google Scholar] [CrossRef]
  11. Denisov, D.V.; Tsendin, K.D. Application of Chalcogenides for Creation of New Superconductors. J. Optoelectron. Adv. Mater. 2003, 5, 1011–1016. [Google Scholar]
  12. Deguchi, K.; Takano, Y.; Mizuguchi, Y. Physics and Chemistry of Layered Chalcogenide Superconductors. Sci. Technol. Adv. Mater. 2012, 13, 054303. [Google Scholar] [CrossRef] [PubMed]
  13. Mizuguchi, Y.; Takano, Y. Review of Fe Chalcogenides as the Simplest Fe-Based Superconductor. J. Phys. Soc. Jpn. 2010, 79, 102001. [Google Scholar] [CrossRef]
  14. Feng, W.; Xiao, D.; Ding, J.; Yao, Y. Three-Dimensional Topological Insulators in I-III-VI2 and II-IV-V2 Chalcopyrite Semiconductors. Phys. Rev. Lett. 2011, 106, 016402. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, S.; Gong, X.G.; Duan, C.G.; Zhu, Z.Q.; Chu, J.H.; Walsh, A.; Yao, Y.G.; Ma, J.; Wei, S.H. Band Structure Engineering of Multinary Chalcogenide Topological Insulators. Phys. Rev. B-Condens. Matter Mater. Phys. 2011, 83, 245202. [Google Scholar] [CrossRef]
  16. Xing, C.; Lei, Y.; Liu, M.; Wu, S.; He, W.; Zheng, Z. Environment-Friendly Cu-Based Thin Film Solar Cells: Materials, Devices and Charge Carrier Dynamics. Phys. Chem. Chem. Phys. 2021, 23, 16469–16487. [Google Scholar] [CrossRef] [PubMed]
  17. Tsiba Matondo, J.; Malouangou Maurice, D.; Chen, Q.; Bai, L.; Guli, M. Inorganic Copper-Based Hole Transport Materials for Perovskite Photovoltaics: Challenges in Normally Structured Cells, Advances in Photovoltaic Performance and Device Stability. Sol. Energy Mater. Sol. Cells 2021, 224, 111011. [Google Scholar] [CrossRef]
  18. Suresh, S.; Uhl, A.R. Present Status of Solution-Processing Routes for Cu(In,Ga)(S,Se)2 Solar Cell Absorbers. Adv. Energy Mater. 2021, 11, 2003743. [Google Scholar] [CrossRef]
  19. Haque, E. Outstanding Thermoelectric Performance of MCu3X4(M = V, Nb, Ta; X = S, Se, Te) with Unaffected Band Degeneracy under Pressure. ACS Appl. Energy Mater. 2021, 4, 1942–1953. [Google Scholar] [CrossRef]
  20. Chen, K.; Du, B.; Bonini, N.; Weber, C.; Yan, H.; Reece, M.J. Theory-Guided Synthesis of an Eco-Friendly and Low-Cost Copper Based Sulfide Thermoelectric Material. J. Phys. Chem. C 2016, 120, 27135–27140. [Google Scholar] [CrossRef]
  21. Skoug, E.J.; Cain, J.D.; Morelli, D.T. High Thermoelectric Figure of Merit in the Cu3SbSe4-Cu3SbS4 Solid Solution. Appl. Phys. Lett. 2011, 98, 261911. [Google Scholar] [CrossRef]
  22. Ge, Z.H.; Salvador, J.R.; Nolas, G.S. Selective Synthesis of Cu2SnSe3 and Cu2SnSe4 Nanocrystals. Inorg. Chem. 2014, 53, 4445–4449. [Google Scholar] [CrossRef] [PubMed]
  23. Boehnke, U.C.; Kühn, G. Phase Relations in the Ternary System Cu-In-Se. J. Mater. Sci. 1987, 22, 1635–1641. [Google Scholar] [CrossRef]
  24. Manolikas, C.; van Landuyt, J.; de Ridder, R.; Amelinckx, S. Electron Microscopic Study of the Domain Structure and of the Transition State in Cu0.5In2.5Se4. Phys. Status Solidi 1979, 55, 709–722. [Google Scholar] [CrossRef]
  25. Folmer, J.C.W.; Turner, J.A.; Noufi, R.; Cohen, D. Structural and Solar Conversion Characteristics of the (Cu2Se) x (In2Se3) 1 − x System. J. Electrochem. Soc. 1985, 132, 1319–1327. [Google Scholar] [CrossRef]
  26. Rockett, A.; Birkmire, R.W. CuInSe2 for Photovoltaic Applications. J. Appl. Phys. 1998, 70, R81. [Google Scholar] [CrossRef]
  27. Wang, K.; Qin, P.; Ge, Z.H.; Feng, J. Highly Enhanced Thermoelectric Properties of P-Type CuInSe2 Alloys by the Vacancy Doping. Scr. Mater. 2018, 149, 88–92. [Google Scholar] [CrossRef]
  28. Parlak, M.; Erçelebi, Ç.; Günal, I.; Özkan, H.; Gasanly, N.M.; Çulfaz, A. Crystal Data, Electrical Resisitivity and Mobility in Cu3In5Se9 and Cu3In5Te9 Single Crystals. Cryst. Res. Technol. 1997, 32, 395–400. [Google Scholar] [CrossRef]
  29. Rincón, C.; Wasim, S.M.; Marín, G.; Sánchez Pérez, G. Optical Absorption Spectra near the Fundamental Band Edge in Cu2In4Se7 Bulk Crystals. J. Appl. Phys. 2003, 93, 8939. [Google Scholar] [CrossRef]
  30. Merino, J.M.; Mahanty, S.; León, M.; Diaz, R.; Rueda, F.; Martin De Vidales, J.L. Structural Characterization of CuIn2Se3.5, CuIn3Se5 and CuIn5Se8 Compounds. Thin Solid Films 2000, 361–362, 70–73. [Google Scholar] [CrossRef]
  31. Takei, K.; Maeda, T.; Gao, F.; Yamazoe, S.; Wada, T. Crystallographic and Optical Properties of CuInSe2-ZnSe System. Jpn. J. Appl. Phys. 2014, 53, 05FW07. [Google Scholar] [CrossRef]
  32. Schorr, S.; Geandier, G. In-Situ Investigation of the Temperature Dependent Structural Phase Transition in CuInSe2 by Synchrotron Radiation. Cryst. Res. Technol. 2006, 41, 450–457. [Google Scholar] [CrossRef]
  33. Li, S.; Zhao, Z.; Liu, Q.; Huang, L.; Wang, G.; Pan, D.; Zhang, H.; He, X. Alloyed (ZnSe)x(CuInSe2)1-x and CuInSexS2-x Nanocrystals with a Monophase Zinc Blende Structure over the Entire Composition Range. Inorg. Chem. 2011, 50, 11958–11964. [Google Scholar] [CrossRef] [PubMed]
  34. Golovej, M.I.; Voroshilov, Y.V.; Potorii, M.V. Investigation of the System Cu(Ag,Tl)-B(V)-Se. Izv. Vyss. Uchebn. Zaved. Khim. Khim. Tekhnol. 1985, 28, 7. [Google Scholar]
  35. Fan, J.; Schnelle, W.; Antonyshyn, I.; Veremchuk, I.; Carrillo-Cabrera, W.; Shi, X.; Grin, Y.; Chen, L. Structural Evolvement and Thermoelectric Properties of Cu3−xSnxSe3 Compounds with Diamond-like Crystal Structures. Dalt. Trans. 2014, 43, 16788–16794. [Google Scholar] [CrossRef]
  36. Pfitzner, A. Crystal Structure of Tricopper Tetraselenoantimonate (V), Cu3SbSe4. Z. Fur Krist.-New Cryst. Struct. 1994, 209, 685. [Google Scholar] [CrossRef]
  37. Richard, V. Gaines Luzonite, Famatinite and Some Related Minerals. Am. Mineral. 1957, 42, 766–779. [Google Scholar]
  38. Wei, S.H.; Ferreira, L.G.; Zunger, A. First-Principles Calculation of the Order-Disorder Transition in Chalcopyrite Semiconductors. Phys. Rev. B 1992, 45, 2533. [Google Scholar] [CrossRef]
  39. Certain trade names and company products are mentioned in the text or identified in illustrations in order to adequately specify the experimental procedures and equipment used. In no case does such identification imply recommendation or endorsement by the National Institute of Standards and Technology.
  40. Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.L.; Cococcioni, M.; Dabo, I.; et al. QUANTUM ESPRESSO: A Modular and Open-Source Software Project for Quantum of Materials. J. Phys. Condens. Matter 2009, 21, 395502. [Google Scholar] [CrossRef]
  41. Blöchl, P.E. Projector Augmented-Wave Method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef]
  42. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple [Phys. Rev. Lett. 77, 3865 (1996)]. Phys. Rev. Lett. 1997, 78, 1396. [Google Scholar] [CrossRef]
  43. Perdew, J.P.; Ernzerhof, M.; Burke, K. Rationale for Mixing Exact Exchange with Density Functional Approximations. J. Chem. Phys. 1998, 105, 9982. [Google Scholar] [CrossRef]
  44. Cococcioni, M.; De Gironcoli, S. Linear Response Approach to the Calculation of the Effective Interaction Parameters in the LDA+U Method. Phys. Rev. B-Condens. Matter Mater. Phys. 2005, 71, 035105. [Google Scholar] [CrossRef] [Green Version]
  45. Zhang, Y.; Xi, L.; Wang, Y.; Zhang, J.; Zhang, P.; Zhang, W. Electronic Properties of Energy Harvesting Cu-Chalcogenides: P–d Hybridization and d-Electron Localization. Comput. Mater. Sci. 2015, 108, 239–249. [Google Scholar] [CrossRef]
  46. Hobbis, D.; Shi, W.; Popescu, A.; Wei, K.; Baumbach, R.E.; Wang, H.; Woods, L.M.; Nolas, G.S. Synthesis, Transport Properties and Electronic Structure of p-Type Cu1+: XMn2- XInTe4 (x = 0, 0.2, 0.3). Dalt. Trans. 2020, 49, 2273–2279. [Google Scholar] [CrossRef] [PubMed]
  47. Momma, K.; Izumi, F. VESTA: A Three-Dimensional Visualization System for Electronic and Structural Analysis. J. Appl. Crystallogr. 2008, 41, 653–658. [Google Scholar] [CrossRef]
  48. Roque Infante, E.; Delgado, J.M.; Lopez Rivera, S.A. Synthesis and Crystal Structure of Cu2FeSnSe4, a I2 II IV VI4 Semiconductor. Mater. Lett. 1997, 33, 67–70. [Google Scholar] [CrossRef]
  49. Knight, K.S. The Crystal Structures of CuInSe2 and CuInTe2. Mater. Res. Bull. 1992, 27, 161–167. [Google Scholar] [CrossRef]
  50. Hönle, W.; Kühn, G.; Neumann, H. Die Kristallstruktur von LiInSe2. Z. Für Anorg. Und Allg. Chem. 1986, 543, 161–168. [Google Scholar] [CrossRef]
  51. Pauling, L.; Hultgren, R. The Crystal Structure of Sulvanite, Cu3VS4. Z. Für Krist.-Cryst. Mater. 1933, 84, 204–212. [Google Scholar] [CrossRef]
  52. Van Arkel, A.E.; Crevecoeur, C. Quelques Sulfures et Séléniures Complexes. J. Less Common Met. 1963, 5, 177–180. [Google Scholar] [CrossRef]
  53. White-Drayton, K.; Liu, S.; Moeller, K.D.; Bhowmik, A.; Hansen, H.A.; Vegge, T.; Hui, Y.; Chang, R.; Koumpouras, K.; Larsson, J.A. Distinguishing between Chemical Bonding and Physical Binding Using Electron Localization Function (ELF). J. Phys. Condens. Matter 2020, 32, 315502. [Google Scholar] [CrossRef]
  54. Espinosa-García, W.F.; Ruiz-Tobón, C.M.; Osorio-Guillén, J.M. The Elastic and Bonding Properties of the Sulvanite Compounds: A First-Principles Study by Local and Semi-Local Functionals. Phys. B Condens. Matter 2011, 406, 3788–3793. [Google Scholar] [CrossRef]
  55. Dong, Y.; Khabibullin, A.R.; Wei, K.; Ge, Z.-H.; Martin, J.; Salvador, J.R.; Woods, L.M.; Nolas, G.S. Synthesis, Transport Properties, and Electronic Structure of Cu2CdSnTe4. Appl. Phys. Lett. 2014, 104, 252107. [Google Scholar] [CrossRef]
  56. Room temperature resistivity (0.07 mΩ-cm) was determined by utilizing a custom-built device to measure small crystals employing a two-point probe method.
  57. Ali, M.A.; Jahan, N.; Islam, A.K.M.A. Sulvanite Compounds Cu3TMS4 (TM = V, Nb and Ta): Elastic, Electronic, Optical and Thermal Properties Using First-Principles Method. J. Sci. Res. 2015, 6, 407–419. [Google Scholar] [CrossRef]
  58. Bougherara, K.; Litimein, F.; Khenata, R.; Uçgun, E.; Ocak, H.Y.; Uǧur, S.; Uǧur, G.; Reshak, A.H.; Soyalp, F.; Omran, S.B. Structural, Elastic, Electronic and Optical Properties of Cu3TMSe4 (TM = V, Nb and Ta) Sulvanite Compounds via First-Principles Calculations. Sci. Adv. Mater. 2013, 5, 97–106. [Google Scholar] [CrossRef]
  59. Liu, M.; Lai, C.Y.; Zhang, M.; Radu, D.R. Cascade Synthesis and Optoelectronic Applications of Intermediate Bandgap Cu3VSe4 Nanosheets. Sci. Rep. 2020, 10, 21679. [Google Scholar] [CrossRef] [PubMed]
  60. Syu, W.J.; Hsu, R.Y.; Lin, Y.C. Growth and Photovoltaic Device Using Cu3VS4 Films Prepared via Co-Sputtering from Cu–V and V Targets. Mater. Chem. Phys. 2022, 277, 125547. [Google Scholar] [CrossRef]

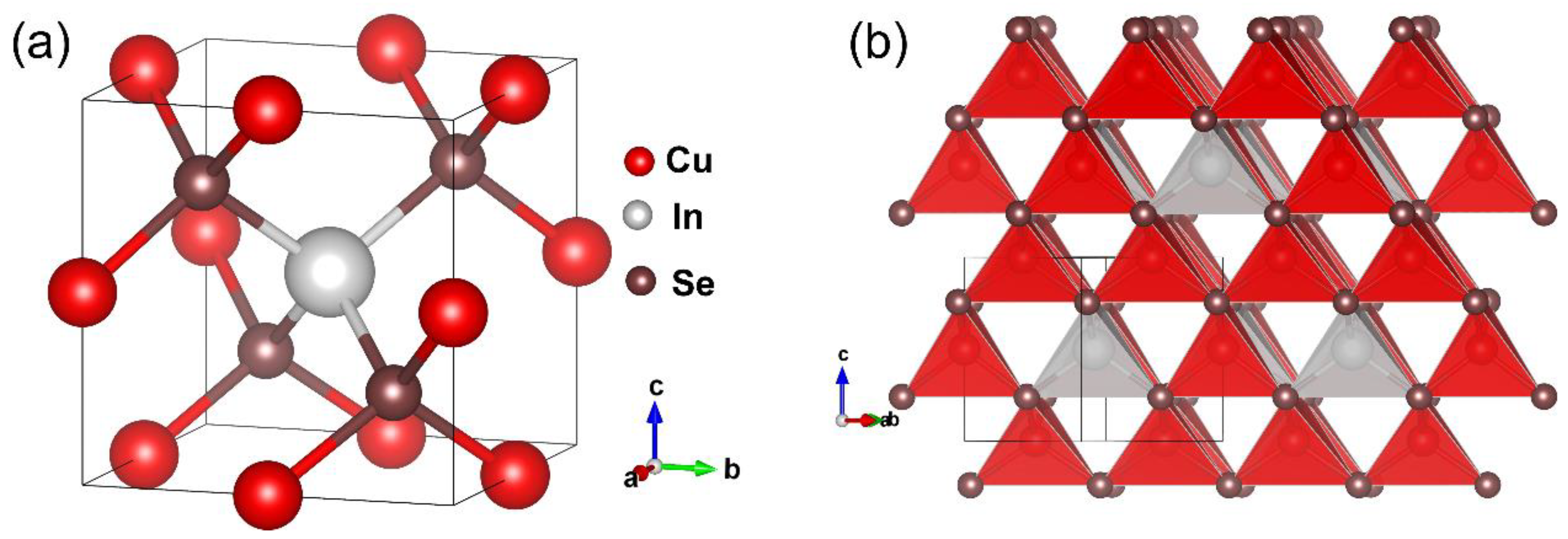

Figure 1. Schematic illustrating the crystal structure of Cu3InSe4 showing the (a) unit cell and (b) stacking of the CuSe4 (red) and InSe4 (gray) tetrahedra.
Figure 1. Schematic illustrating the crystal structure of Cu3InSe4 showing the (a) unit cell and (b) stacking of the CuSe4 (red) and InSe4 (gray) tetrahedra.
Crystals 12 01310 g001

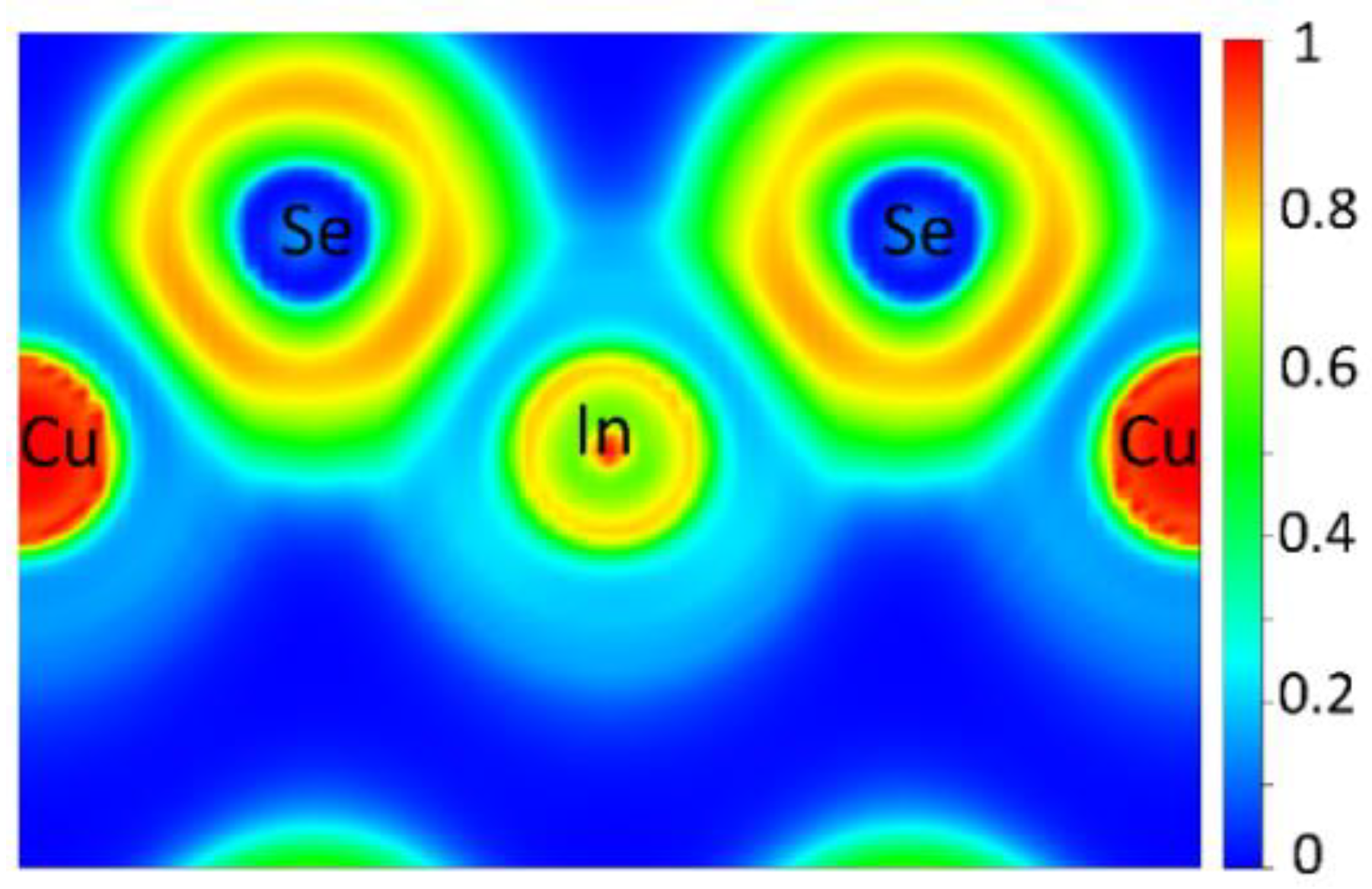

Figure 2. ELF calculated along the (110) plane.
Figure 2. ELF calculated along the (110) plane.
Crystals 12 01310 g002

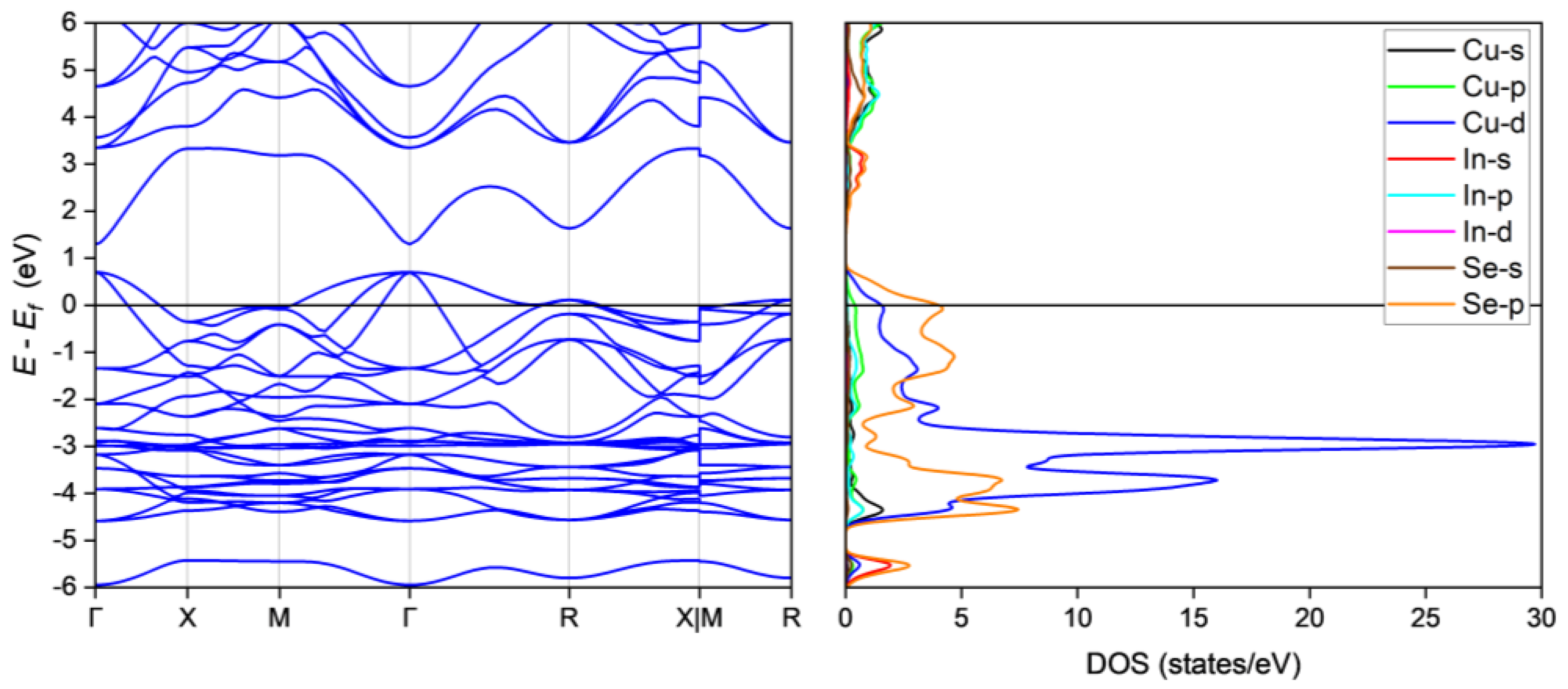

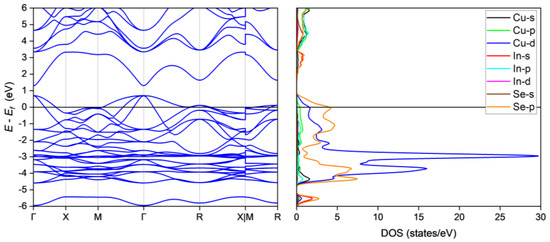

Figure 3. Calculated energy band structure and orbital-projected DOS.
