Use of Thermally Modified Jarosite for the Removal of Hexavalent Chromium by Adsorption

Abstract

Jarosites are residues generated during the purification of zinc and are composed mainly of iron sulfates ((Na, K)Fe₃(SO₄)₂(OH)₆). Due to the large volume of jarosite generated during the process, these residues tend to be deposited in large land areas and are not used. In the present work, jarosite was used without heat treatment (JST) as an adsorbent of hexavalent chromium contained in a sample of wastewater from a chrome plating industry under the following conditions: C₀ = 200 mg/L of Cr, T = 25 °C, and pH = 3. It was only possible to remove 34% of Cr (VI). Subsequently, a thermal treatment of a jarosite sample (JTT) was carried out at 600 °C. The heat-treated sample was later used as an adsorbent in the same conditions as those for JST. The maximum chromium removal was 53%, and the adsorption capacity was 10.99 mg/g. The experimental data were fitted to the Langmuir model and to the pseudo-second-order kinetic model. It was determined that the adsorption process involved electrostatic attractions between the surface of the positively charged adsorbent and the chromium anions contained in industrial wastewater.

1. Introduction

The electrolytic process to obtain zinc is one of the most widely used hydrometallurgical processes. It consists of subjecting zinc to roasting and subsequently leaching it in a sulfuric acid solution. However, in addition to zinc, the solution contains iron, which in the subsequent process (zinc electrolysis), can cause short circuits. For this reason, to eliminate iron, the solution is neutralized with calcine, thus obtaining jarosite as a precipitate [1,2,3]. The precipitate is generated in large quantities and contains mainly iron sulfates and jarosite ((Na, K)Fe₃(SO₄)₂(OH)₆. Due to the large volumes of jarosite generated during the process, these residues are commonly deposited in large land areas [4,5,6,7].

Some researchers have proposed to recover the valuable elements contained in jarosite [8,9], and others have proposed to use jarosite in various applications, among which are nanoparticle synthesis [10], as a catalytic material for the precipitation of iron in the process of obtaining zinc [11], pigment elaboration [12], construction of road embankments [13]. Xiaoa et al. [14] synthesized a biogenic jarosite in the presence of Acidithiobacillus ferrooxidans (A. ferrooxidans), which they used as an adsorbent of hexavalent chromium.

Cr (VI) is one of the heavy metals most harmful to health and the environment, widely used in the metallurgical, refractory, and chemical industries for the production of chromium alloys, chrome plating, pigments, tanning, and the synthesis of oxidizing agents and corrosion inhibitors; therefore, it can be present in the effluents from these industries. The tolerable levels of hexavalent chromium in surface water and drinking water are 0.1 mg/L and 0.05 mg/L, respectively [15].

Various techniques such as precipitation, adsorption, ion exchange, and electrocoagulation have been used for the treatment of wastewater containing Cr (VI); however, the adsorption process is flexible in design and operation and, in most cases, offers high removal efficiency [15,16,17,18,19].

Some adsorbents have been applied in the removal of hexavalent chromium, such as activated carbon and nanoparticles synthesized from iron oxides [20,21,22,23] and have given good results, but in addition to being expensive, they are difficult to use on an industrial scale. In recent years, the application of low-cost adsorbent materials such as natural minerals (sand, coal, moss, peat etc.), agricultural wastes (fruits and vegetables peels, nuts, shells, pulps, stones, etc.), forests wastes (barks, roots, leaves, and sawdust), and industrials wastes (sludge, furnace slag, fly ash, and waste smelters) has been developed [24,25].

The application of jarosite as an adsorbent of metal ions is promising, because it is a cheap and abundant by-product and, in particular, it would be a good option for the adsorption of metal ions present in polluted waters. Jarosites can be structurally modified through thermal and hydrothermal treatments, which can activate it and enhance its natural properties as an adsorbent [26,27,28,29,30,31].

The present study was limited to evaluating the capacity of jarosite with and without heat treatment as a low-cost adsorbent for hexavalent chromium present in real industrial waters, with the aim applying it as an adsorbent material in the treatment of industrial effluents. The tests were carried out at a pH 3, which is normally found in wastewater derived from the chrome plating process. Increasing the pH in an industrial process implies the additional consumption of reagents which generates economic and negative environmental impacts. On the other hand, hexavalent chromium, which is the most dangerous chromium species, is found in water at acidic pH. In the present work, the study of the adsorption mechanisms of hexavalent chromium contained in a sample of industrial wastewater from a chrome plating process was carried out, using jarosites thermally treated at 600 °C (JTT) as a low-cost adsorbent material.

2. Materials and Methods

In the present work, a sample of jarosite, generated as a residue in a hydrometallurgical process to obtain zinc, was evaluated as an adsorbent material. It was decided to use both the residue generated directly from the process (JST) and a sample thereof heat-treated at 600 °C in a muffle for 1 hour (JTT).

A wastewater solution from the metal coating industry was used in the adsorption tests, containing 200 mg/L of chromium (as chromic acid), Fe, 25 mg/L, and ${\mathrm{SO}}_4^{2–}$, 130 mg/L, at pH = 3. At this pH, hexavalent Cr is present as HCr${\mathrm{O}}_4^{–}$ ions [21,32], as shown in Figure 1 which reports a species distribution diagram with the actual concentrations of HCr${\mathrm{O}}_4^{–}$ and Fe²⁺.

Batch tests were performed to remove chromium from electroplating effluent solutions. The batch experiments were carried out in 100 mL beakers. The adsorption tests were carried out using a specific amount of jarosites without heat treatment (JST) (in a range of 0 to 10 g) and subsequently repeated with jarosite treated at 600 °C (JTT). The adsorbent materials were added to 100 mL of aqueous Cr (VI) solution and then stirred for a certain period of time at 25 °C. The resulting solution was then filtered using a filter paper. Chemical analysis of the solutions was performed by atomic absorption spectroscopy (AAS, Perkin Elmer 3100) (PerkinElmer, Waltham, MA, USA).

The amount of Cr (VI) adsorbed by jarosite and the percentage removal of Cr (VI) were calculated using Equations (1) and (2), respectively:

$$\mathrm{qe}=\frac{{(\mathrm{C}}_0–\mathrm{Ce})\mathrm{V}}{\mathrm{W}}$$

(1)

$${ \mathrm{Cr}}_{\mathrm{adsorbed}},\%=\frac{{(\mathrm{C}}_{\mathrm{i}}{–\mathrm{C}}_0)}{{\mathrm{C}}_{\mathrm{i}}}\ast 100$$

(2)

where, qe is the adsorption capacity in mg/g, C_i, C₀, and Ce are the initial, outlet, and equilibrium concentration of Cr (VI) in mg/L, V is the volume of Cr (VI) solution in mL, and W is the total amount of adsorbent in g.

It is important to emphasize that this research sough to determine if jarosite can be a good option for a low-cost adsorbent in industrial wastewater treatment processes; therefore, in this study, as a first approach, we carried out tests at room temperature (25 °C), which is the preferred temperature for industrial processes, mainly for its economic and environmental benefits.

Jarosite Characterization

The chemical composition of JST and JTT was determined by an X-ray fluorescence spectrometer (Panalytical model Epsylon) (Panalytical, Malvern, Worcestershire, UK). The results are shown in

Table 1. Chemical composition (%) of the JTT sample.

Sample	%Fe	%S°	%Zn	%Si	%Ca	%Pb
JST	43.74	7.364	12.85	2.96	2.604	2.606
JTT	46.02	7.46	13.56	3.107	2.79	2.57

.

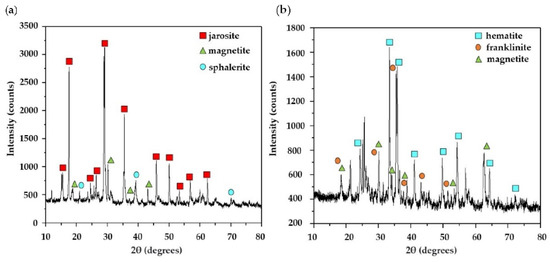

The determination of the phases presents in JST and JTT was carried out by X-ray diffraction in a Bruker D8 diffractometer. Figure 2 shows the jarosite diffraction patterns before and after heat treatment.

Table 2. Iron phases distribution (%) in JTT.

Sample	Jarosite $\left({\mathbf{Fe}}_3^{3+}\right({\mathbf{SO}}_4{)}_2(\mathbf{OH}{)}_6$	Hematite (Fe2O3)	Magnetite (Fe3O4)	Franklinite (ZnFe2O4)	Sphalerite (ZnS)	Zinc Oxide (ZnO)	Others
JST	52		13		7.5
JTT		47	20	23		6.5	3.5

shows the mineralogical reconstruction of samples of JST and JTT, which was determined by X-ray diffraction and chemical analysis, using the HSC 8.0 software (D8, Bruker, Ettlingen, Karlsruhe, Germany) in the Species Converter module.

Originally, before being heat-treated, the waste (JST) consisted of 52% jarosite (${\mathrm{Fe}}_3^{3+}$(SO₄)₂(OH)₆; after heat treatment, jarosite decomposed into different species of iron (JTT), as shown in Table 2. As can be seen in this table, JTT was composed mostly of hematite (47%, Fe₂O₃) and to a lesser extent of other iron oxides such as magnetite (Fe₃O₄) and Franklinite (ZnFe₂O₄), as reported by Ristić et al. [28], who performed thermal decomposition of a synthetic ammonium jarosite sample at 600 °C and found that the treated sample was composed mostly of hematite. It should be noted that iron oxides are known for their high capacity to adsorb certain metals, among which, the most common found in nature are magnetite (Fe₃O₄ ferric oxide (Fe₂O₃), maghemite (γ-Fe₂O₃), hematite (α-Fe₂O₃), and goethite (FeOOH) [33,34].

The particle size of the JTT sample, given as D₉₀ (90% of the particles passed or havd a size smaller that the corresponding mesh) was 100 μm.

The specific surface area of JST and JTT was determined with the classic BET method (the Brunauer–Emmett–Teller isotherm) (Quantachrome instruments, Boynton Beach, FL, USA). The point of zero charge was determined as follows:

(a)

15 mL of deionized water was placed in 50 mL tubes, and the initial pH was measured.

(b)

Subsequently, 0.05 g of the JST and JTT samples was added to each tube.

(c)

The tubes with the samples were then partially submerged in a bath at a constant temperature of 25 °C and shaken manually 4 times a day (in total, the test was developed in 48 h).

(d)

The pH of the suspension was measured after 12 h, and the addition of 0.5 g of sample was continued sequentially every 12 h, with pH measurements until reaching the equilibrium condition; the measurement was carried out in an inert atmosphere. The asymptotic pH condition that was reached after several sample additions corresponded to the point of zero charge.

Table 3. Surface area and point of zero charge of JST and JTT.

Sample	Surface Area (m2·g−1)	Point of Zero Charge (pzc)
JST	11.37	8.17
JTT	11.70	6.81

shows the results of the surface area and point of zero charge.

3. Results and Discussion

3.1. Effect of Adsorbent Dosage

The adsorbent dose was studied. This is an important variable to analyze, since it indicates from an economic point of view how viable the process is, in addition to indicating the degree of removal of chromium.

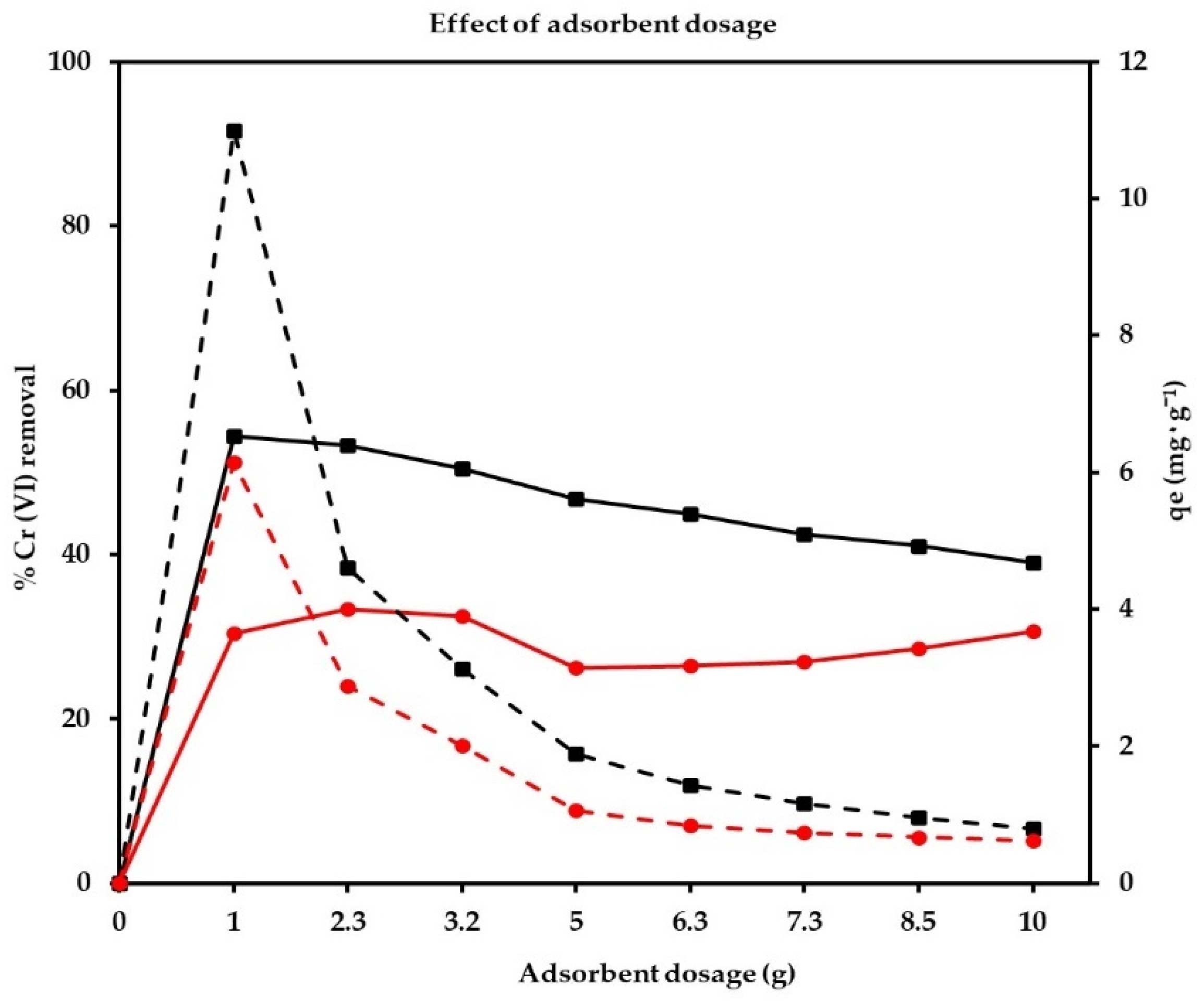

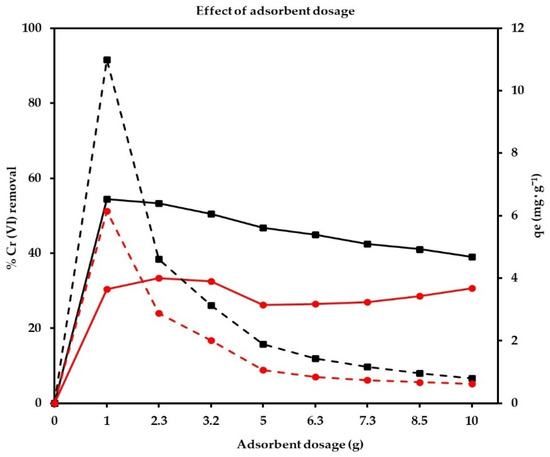

To analyze the effect of the adsorbent dose, chromium adsorption tests were carried out. Different amounts of JST and JTT were used in the range of 1–10 g, at T = 25 °C (this is the temperature of the solution during the chrome plating process), with a contact time of 10 min and with a fixed initial Cr (VI) concentration (C0) of 200 mg/L; the pH was adjusted to 3 using nitric acid. In Figure 3, it is shown how the removal of chromium increased from 30 to 34% when we increased the amount of adsorbent from 1 to 2.5 g. Increasing the dose of the adsorbent above 2.5 g did not have a significant effect on the removal of chromium. However, with JTT, the removal of chromium increased from 50 to 53% when we increased the amount of adsorbent from 1 to 2.5 g.

The drop in Cr (VI) adsorption capacity in both cases was basically due to the presence of unsaturated sites during the adsorption process. In the case of the wastewater solution, the optimal Cr (VI) removal values and the adsorption capacity were 53% and 10.99 mg/g, respectively, for 1 g of the adsorbent JTT; therefore, we observed that heat treatment had a significant effect on the removal of chromium. Based on the above, the rest of the study was focused on the JTT adsorbent.

In the present work, the pH of the adsorption tests was kept at a value of 3, as mentioned above. The JTT adsorbent consists of 90% iron oxides. In accordance with Cornell and Schwertmann, iron minerals usually exhibit the so-called points of zero charge at neutral pH and therefore are often used as anion and cation adsorbents. The researchers mentioned that the values of isoelectric point (iep) and point of zero charge (pzc) for natural hematite are 7.0 and 7.8, respectively, and for magnetite, they are 6.2 and 6.4 [35]. This agrees with the pzc values shown in the Table 3, in which JST appears to have a pzc of 8.17, and JTT of 6.81. It is important to mention that according to these researchers, at pH < pzc, the ${\mathrm{FeOH}}_2^{+}$ groups predominate over the ${\mathrm{FeO}}^{–}$ groups; therefore, the surface has a net positive charge, which facilitates the absorption of chromium anions that may be present in aqueous solutions mainly as chromate, dichromate, hydrogen chromate, chromic acid, and hydrogen dichromate. The last two species have been detected only in strongly acidic solutions [36].

Based on the above, the high protonated adsorbent surface generated a strong electrostatic attraction between chromium species and positively charged JTT, which led to the removal of 53% of the chromium present in the industrial effluent. One aspect that must be considered is that in a chromium solution, other anions also coexist, such as ${\mathrm{Fe}}^{2+}{\mathrm{and} \mathrm{SO}}_4^{–2}$, which could be competing for the active adsorption sites of iron oxides, and consequently the ability of the adsorbent to remove hexavalent chromium would decrease [37,38].

3.2. Effect of the Contact Time

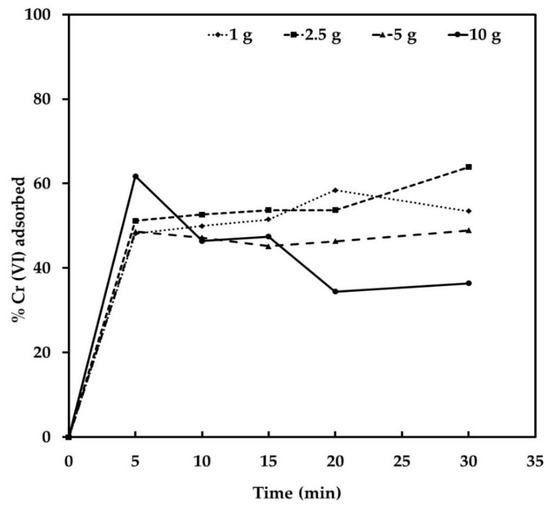

Different tests were carried out to evaluate the chromium removal efficiency using different amounts of JTT. The effects of Cr contact time and its adsorption on JTT were investigated to study the Cr elimination rate. Figure 4 shows the percentage of Cr elimination for an initial concentration of 200 mg/L of Cr at pH 3.

It is evident from the Figure 4 that time is an important parameter for the adsorption of Cr on JTT, since the increase in the percentage of removal was from 0% to 50% during the first 5 min of contact. The rate of Cr removal using JTT increased rapidly up to 5 min. A further increase in contact time had a negligible effect on the rate of Cr adsorption. The nature of the adsorbent and the presence of available adsorption sites affected the rate of Cr adsorption. The mechanism of transfer from a solute state to a solid one includes diffusion through the fluid film around the adsorbent particles and diffusion through the pores to the internal adsorption sites. In the initial stages of Cr (VI) adsorption, the concentration gradient between the film and the available pore sites is large, and therefore the rate of Cr (VI) adsorption is high. The adsorption rate decreases in the later stages of Cr (VI) adsorption, probably due to the slow pore diffusion of solute ions into the bulk of the adsorbent. The rapid adsorption of chromium by iron oxides can be attributed to external surface adsorption; chromium access to active adsorption sites is easy, resulting in rapid chromium uptake.

On the other hand, it is important to mention that during the experiments, it was observed that as the dose of the adsorbent increased, the iron in the solution increased proportionally. When 2.5 g of JTT was used, we found that the iron concentration in the solution increased from 25 mg/L to 60 mg/L. According to the following equations, the iron oxides present in JTT, in an acidic medium, can dissolve to Fe²⁺_.

$$\begin{array}{}\mathrm{(R1)}& {2{\mathrm{e}}^{-}+\mathrm{Fe}}_2{\mathrm{O}}_3{ + 6\mathrm{H}}^{+}{=2\mathrm{Fe}}^{2+}{ + 3\mathrm{H}}_2\mathrm{O} \Delta \mathrm{G}=-36.70 \mathrm{kcal} \mathrm{(R2)}& {2{\mathrm{e}}^{-}+\mathrm{Fe}}_3{\mathrm{O}}_4{ + 8\mathrm{H}}^{+}{=2\mathrm{Fe}}^{2+}{ + 4\mathrm{H}}_2\mathrm{O} \Delta \mathrm{G}=-49.81 \mathrm{kcal} \mathrm{(R3)}& {2{\mathrm{e}}^{-}+\mathrm{ZnFe}}_2{\mathrm{O}}_4{ + 8\mathrm{H}}^{+}{=2\mathrm{Fe}}^{2+}{+\mathrm{Zn}}^{2+}{ + 4\mathrm{H}}_2\mathrm{O} \Delta \mathrm{G}=-49.81 \mathrm{kcal} \end{array}$$

Some researchers reported that Fe²⁺ acts as a reducer of Cr (VI) [39]; therefore, it could be inferred that Cr (VI) could be reduced by dissolved iron in the solution, which would inhibit its adsorption on JTT, as shown in the following equation:

$${3\mathrm{Fe}}^{2+}{+\mathrm{HCrO}}_4^{-}{ + 7\mathrm{H}}^{+}{=3\mathrm{Fe}}^{3+}{+\mathrm{Cr}}^{3+}{ + 4\mathrm{H}}_2\mathrm{O} \Delta \mathrm{G}=-49.81 \mathrm{kcal}$$

(R4)

3.3. Adsorption Isotherm Analysis

Various studies of metal adsorption have evaluated the models of Langmuir, Freundlich, Tempkin, and Dubinin–Radushkevich describing the adsorption process [40,41].

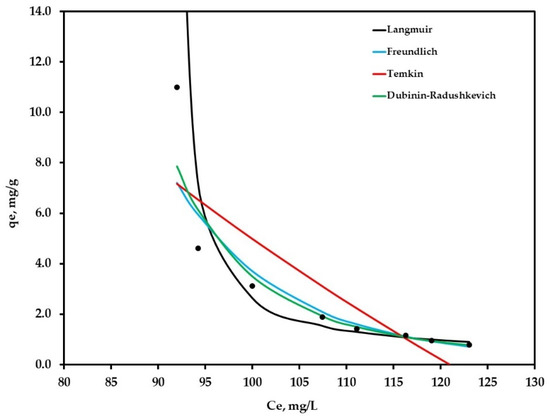

The mentioned models were used to fit the experimental adsorption data of Cr (VI) removal from industrial wastewater using JTT. Figure 5 shows the adsorption isotherms of the evaluated models.

Table 4. Cr (VI) adsorption isotherm parameters for the JTT sample.

Isotherm Model	Parameter	K	r2
Freundlich	n	−0.125	0.944
	k	2.01 × 10−3
Langmuir	qm	0.233	0.949
	K	−0.011
	RL	0.514
Tempkin	A	2.77 × 10–5	0.688
	bt	−94.58
Dubinin–Radushkevich	K	−0.007	0.962
	Qm	0.039
	E	0.008

summarizes the results obtained from fitting the experimental data to the adsorption models.

According to Figure 5 and Table 4, Dubinin isotherm was the model that best fit the experimental data, showing r² = 0.962. Dabrowski mentioned in his study that the Dubinin–Radushkevich equation with its numerous modifications is very important to describe the characteristics of the adsorption methods of most industries. Generally, the adsorbents have a complex and well-developed porous structure, where micropores play the most important role during adsorption [42]. If the data fitted this model, it would indicate that JTT might be a microporous adsorbent.

On the other hand, the data reasonably fitted the Langmuir model. This model is based on the assumption that adsorption occurs at specific homogeneous sites within the adsorbent, and once a chromate molecule occupies a site, no further adsorption can occur there. This coincides with what is shown in Figure 4, where chromium adsorption took place in the first 5 min and subsequently reached equilibrium. Therefore, it was inferred that the process inhibition at 5 min might be due to the formation of a layer on the particles.

3.4. Kinetic Study of the Cr (VI) Removal Process

A kinetic study of Cr (VI) removal was conducted at atmospheric pressure, 25 °C, and using an aqueous solution with an initial Cr (VI) concentration of 200 mg/L. Kinetic models of pseudo-first-order, pseudo-second-order, and intraparticle diffusion were studied in the present work [43,44].

Fitting the experimental data with the kinetic models previously described and corresponding kinetics parameters yielded the results summarized in

Table 5. Kinetic parameters values determined by fitting the experimental data of Cr(VI) removal under dynamic conditions for JTT.

Kinetic Model	Parameters			r2
Pseudo-1st order	Qe	Kad		0.51
	271.89	0.02
Pseudo-2nd order	Qe	K2	h	0.98
	12.15	0.01	2.36
Intraparticle diffusion	BL effect	Kid		0.92
	7.81	0.43

and Figure 6.

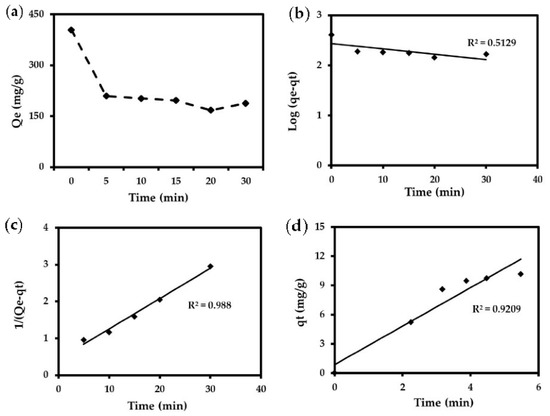

As can be seen in Table 5 and Figure 6, the kinetic model that best fit the experimental data was the pseudo-second-order model (r² = 0.98), which describes the transient Cr (VI) removal process. These results support the hypothesis mentioned above that Cr (VI) removal occurred through ion exchange, which would facilitate the regeneration of the adsorbent.

The fast adsorption of Cr (VI) observed at short contact times may be attributed to surface reactions between the positively charged iron groups and the chromium anions.

4. Conclusions

In the present work, it was decided to evaluate the use of jarosite with and without heat treatment as a low-cost adsorbent for the removal of hexavalent chromium contained in a solution from the chrome plating industry. It is worth mentioning that there is not much information in the literature on the use of jarosites as adsorbents.

When using jarosite without heat treatment (JST), the maximum removal of Cr (VI) was 34%. Later, jarosite was previously thermally modified at 600 °C (JTT), obtaining a material composed of the iron oxides Fe₂O₃ (47%), Fe₃O₄ (20%), ZnFe₂O₄ (23%), and it was possible to increase the removal of hexavalent chromium to 53%; this percentage corresponds to a chromium adsorption capacity of 10.99 mg/g.

Several models of adsorption isotherms were evaluated, i.e., Langmuir, Freundlich, Tempkin, and Dubinin–Radushkevich. This last model was the one that best fits to the experimental data (r² = 0.9962). On the other hand, it was found that the pseudo-second-order kinetic model was the one that best fit the test data.

It was found that part of the iron in the iron oxides of the JTT adsorbent dissolves during the process, and this could reduce hexavalent chromium to trivalent chromium, which does not represent a risk to health and the environment like Cr (VI). Therefore, this could explain the fact that after 5 min of testing, the equilibrium was reached in the process, since trivalent chromium, which is a cation, has no affinity to the surface of the adsorbent.

In future experiments, we plan to study more treatment options for jarosites, the regeneration of used jarosites to determine the adsorption–desorption cycles, as well as the development of new products based on spent adsorbent material, such as pigments, magnets, and construction materials, which could be good options because heat-treated jarosite contains iron oxides.
