The Isocyanide Complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd, Pt; X = Cl, Br) as Tectons in Crystal Engineering Involving Halogen Bonds

by
Maria V. Kashina
,
Daniil M. Ivanov
* and
Mikhail A. Kinzhalov
*
Institute of Chemistry, Saint Petersburg State University, 7/9 Universitetskaya Nab., 199034 Saint Petersburg, Russia
*
Authors to whom correspondence should be addressed.
Crystals 2021, 11(7), 799; https://doi.org/10.3390/cryst11070799
Submission received: 15 June 2021 / Revised: 1 July 2021 / Accepted: 5 July 2021 / Published: 8 July 2021
(This article belongs to the Special Issue Advanced Research in Halogen Bonding)
Browse Figures
Review Reports Versions Notes

Abstract

:
The isocyanide complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd; X = Cl, Br; M = Pt; X = Br) form isomorphous crystal structures exhibiting the Cl/Br and Pd/Pt exchanges featuring 1D chains upon crystallisation. Crystal packing is supported by the C–X···X–C halogen bonds (HaBs), C–H···X–C hydrogen bonds (HB), X···M semicoordination, and C···C contacts between the C atoms of aryl isocyanide ligands. The results of DFT calculations and topological analysis indicate that all the above contact types belong to attractive noncovalent interactions. A projection of the electron localization function (ELF) and an inspection of the electron density (ED) and the electrostatic potential (ESP) reveal the amphiphilic nature of X atoms playing the role of HaB donors, HaB and HB acceptors, and a nucleophilic partner in X···M semicoordination.

1. Introduction

Strategies of crystal engineering towards the design of solids with controllable structure and tunable physicochemical properties are amongst the well-recognized tools for material chemistry [1,2,3,4,5]. The emergence of halogen bonding (HaB; for reviews on HaB see references [6,7,8,9,10]) during the construction of supramolecular aggregates opens up a route for the optimisation of their valuable properties, such as catalytic activity [11,12,13,14,15], solubility [16,17], melting point [18], thermal expansion [19,20,21,22], colour [23,24,25,26,27], luminescence [28,29,30,31,32,33,34,35,36,37,38,39,40,41], sensing [42,43], biological [44], and magnetic [45] properties. Various tectons [46], including organic species or metal complexes featuring organic ligands, are widely used in crystal engineering involving HaBs [5,6,47,48,49].
In the course of our previous studies, we have developed a new class of organometallic tectons involving HaBs, i.e., palladium(II) and platinum(II) complexes with halogen-substituted aryl isocyanides trans-[MX’2(CNC6H4-4-X)2] (M = Pd, Pt; X’ = Br, I; X = Cl, Br, I) [16,50,51]. Throughout experimental and theoretical studies [16,50,51], we have shown that halogen atoms in isocyanide ligands (X) have areas with a positive ESP corresponding to a σ-hole position, which makes these halogens potential HaB donors. At the same time, halides (X’) bonded to a metal centre carry a negative ESP on the whole of their surface and can act solely as HaB acceptors. These metal complexes simultaneously bear two σhD (X) and two σhA (X’) that are oriented perpendicularly. We discovered that the crystallization of trans-[PdI2(CNC6H4-4-X)2] (X = Br, I) led to isostructural 1D chains linked by two-centre C–X···I–Pd HaBs [16]. Furthermore, we showed that the isocyanide complexes trans-[MBr2(CNC6H4-4-X)2] (M = Pd, Pt; X = Br, I) exhibit similar structural motifs in the solid state, defined by four-centre nodes supported by the cyclic HaB [51] and, in the presence of CH2XS2 (XS = Cl, Br, I), form hexagon-like structures including two-centre HaBs with dihalomethanes as the structure-directing interactions [50].
Pursuing our interest in crystal engineering involving halogen bonding and their effect on properties and reactivity (for our recent works on HaBs see references [16,50,51,52,53,54,55] and references therein), in the current study we undertook a joint synthetic and theoretical study concerning cis-bisisocyanide complexes cis-[PdCl2(CNC6H4-4-X)2] (X = Cl 1, Br 2) and cis-[PtCl2(CNC6H4-4-Br)2] (3), in which we explored the potential of these organometallics as useful 2σhD/2σhA systems for HaB-involving crystal engineering.

2. Materials and Methods

2.1. Materials and Instrumentation

Solvents, PdCl2, K2PtCl4, formic acid, and anilines were obtained from commercial sources and used as received. Complexes [PdCl2(MeCN)2], cis/trans-[PtCl2(EtCN)2] and isocyanides [16] were prepared using the literature methods. Complexes cis-[PdCl2(CNC6H4-4-X)2] (X = Cl 1, Br 2) and cis-[PtCl2(CNC6H4-4-Br)2] (3) were synthesised as reported earlier [16]. The authenticity of known species 1–3 was established upon comparison of their 1H NMR spectra with those previously reported [16].

2.2. X-ray Structure Determination

Single crystals for the X-ray diffraction experiments were grown by slow evaporation of C2H4Cl2 solutions. Suitable single crystals were selected and mounted on a MiTeGen tip via crystallographic oil. Data were collected using Xcalibur, Eos diffractometer (monochromated MoKα radiation, λ = 0.71073 Å) at 100(2) K. In each case, the structure was solved with a ShelXT [56] structure solution program using Intrinsic Phasing and refined with a ShelXL [56] refinement package incorporated in the OLEX2 program package [57] using Least Squares minimization. Empirical absorption correction was applied in the CrysAlisPro [58] program complex using spherical harmonics, implemented in SCALE3 ABSPACK scaling algorithm. For crystallographic data and refinement parameters, see Supplementary Material (Tables S1–S4, Figures S1 and S2). CCDC 2,089,926–2,089,928 contain the supplementary crystallographic data for this paper. These data are provided free of charge by The Cambridge Crystallographic Data Centre.

2.3. Computational Details

The DFT calculations of dimeric clusters based on experimentally obtained coordinates were performed using Gaussian-09 [59]. The Douglas–Kroll–Hess 2nd-order scalar relativistic calculations requesting relativistic core Hamiltonian were carried out using the DZP-DKH basis sets for all atoms [60,61,62,63]. The topological analysis [64], ELF [65] projections, and ED and ESP profiles [66] along bond paths were performed by applying Multiwfn 3.8 [67]. Views of dimeric clusters were created using Chemcraft [68].

3. Results and Discussion

3.1. General Description of the X-ray Structures

We found that the crystallisation of cis-[MCl2(CNC6H4-4-X)2] (M = Pd, X = Cl (1); Br (2); M = Pt, X = Br (3)) from C2H4Cl2 solutions at RT leads to unsolvated structures 1–3 (Figure 1). In each case, only one type of crystal was obtained, despite significant variation of the crystallisation conditions (e.g., temperature, rate of evaporation). Compounds 1–3 crystallise in the same P21/c space group and are isomorphous; each crystallographically independent part contains one molecule of complex. In all the structures, the metal centre adopts a slightly distorted square-planar geometry. The isocyanide ligands are in the cis-position and this observation agrees with the availability of two ν(C≡N) bands in the FTIR spectra. The metal–carbon distances (1.905(6)–1.941(4) Å) are comparable to those reported for the related palladium and platinum isocyanide complexes [50,69,70,71,72,73]. The M–C≡N–C fragments in all structures are almost linear (Table S2). In the isocyanide ligand, the CN triple bond length (1.138(4)–1.150(7) Å) has a normal value for the typical triple CN bond (1.136–1.144 Å) and is close to those observed in the related isocyanide complexes [50,69,70,71,72,73].
The inspection of the XRD data (Figure 2, Figures S1 and S2) combined with the Hirshfeld surface analysis [74] (Figures S5–S7) revealed intrinsic intermolecular contacts. In the structures of 1–3, several types of noncovalent contacts define their crystal packing (Figure 2, Figures S1 and S2), i.e., C–X···X’–C interactions (supporting by C–H···X–C hydrogen bonds), a pair of X···M, and C···’C contacts between the C atoms from an isocyano group and from a benzene ring. The detailed discussion of the parameters and nature of these interactions is given in Section 3.2, Section 3.3, Section 3.4 and Section 3.5. These cooperative interactions connect molecules of the metal complex, providing their association to give 1D chains (Figure S3). These 1D chains are bound by the intermolecular C–H···Cl–M contacts discussed in Section S2, complementing a 3D crystal packing (Figure S4).

3.2. C–X···X’–C Halogen Bonding

In the structures of 1–3, the C–X···X’–C short contacts between the halogen substitutes in the benzene rings comprise 99–103% of the sum of the Bondi vdW radii [75]; the corresponding angles around the X centre are close to 180° (C–X···X’ = 155.78(11)–162.69(9)°; Table 1) and those around X’ are close to 90° (X···X’–C = 96.87(6)–101.05(11)°; Table 1).
These data indicate that these short contacts are of HaB nature, according to the IUPAC criteria for Type II halogen interactions [77], and the halogen atom from X acts as an σh donor, which interacts with a nucleophilic lump of an X’ atom. In these structures, the target organometallic molecule serves as both an HaB donor and an HaB acceptor. The HaB combination of C–X···X’–C between different isocyanide ligands linking neighbouring complexes provides their association to give 1D supramolecular chains (Figure S3).
The nature of the C–X···X’–C interactions and the supporting C–H···X–C hydrogen bonds were further evaluated for the analogous complex–complex dimeric clusters of type I (Figure 3).
The topological analysis of electron density [78] allows the (3, −1) bond critical points (BCPs) for halogen bonding in the clusters to be found. Negative [79] and small values of sign(λ2)ρ at the BCPs confirm the attractive and noncovalent nature of the interactions (Table 2). The Lagrangian kinetic energy G(r) and potential energy density V(r) at the BCPs are in the ratio −G(r)/V(r) > 1, and these interactions can be considered as purely noncovalent [80]. The same observations can be performed for all the other analysed noncovalent interactions (see below).
The positions of lone pairs can be illustrated using the electron localization function (ELF) [65,81,82,83] projections (Figure 4). The X···X’ bond paths go through the lone pair blue areas of X’ with high ELF values and less blue areas with low ELF values around X corresponding to σh.
The partner philicities in the C–X···X’–C interactions can also be confirmed by the analysis of electron density (ED) and electrostatic potential (ESP) 1D profiles along the corresponding bond paths [66,81,83,84]. In noncovalent interactions, the ED minimum along the bond path is closer to the electrophilic partner nuclear critical point, whereas the ESP minimum is located nearer to the nucleophilic partner nuclear critical point. For the C–X···X’–C HaBs (Figure 5), the positions of ED and ESP minima confirm the roles of interacting atoms.
It should be noted that the interatomic C–X···X’–C distances are roughly equivalent to the sum of the Bondi vdW radii, and the critical point parameters are small, therefore, these C–X···X’–C interactions can be classified as weak HaBs.

3.3. C–H···X–C Hydrogen Bonding

The C–H···X–C interactions in structures 1–3 correspond to the IUPAC criteria for hydrogen bonding [85]: the C–H···X distances between the hydrogen atoms in the benzene rings and the halogen substituents comprise 103–104% of the sum of the Bondi vdW radii [75]; the corresponding angles around the H centre are close to 180° (C–H···X = 149.6(4)–159.13(18)°; Table 3).
The nature of the supporting C–H···X–C hydrogen bonds were also explored for the clusters of type I (Figure 3). The H···X bond paths, similar to the HaBs, lie on the X lone pair areas, according to the ELF projections (Figure 4). Hence, the X atoms possess an amphiphilic nature being HaB donors toward X’ and HB acceptors toward H. The position of ED and ESP minima for the C–H···X–C HBs confirms the roles of the interacting atoms (Figure 6). The interatomic H···X distances are larger than the sum of the Bondi vdW radii and the electron density at the BCP for these HB contacts is lower than the threshold value, 0.005 a.u.; therefore, these contacts can be classified as very weak.

3.4. M···X Semicoordination

The M···X semicoordination can be treated as a 2-center/2-electron (from one atom) noncovalent linkage, where X is an appropriate nucleophilic atom. In case of semicoordination bonding, the M···X distance is less than the sum of their vdW radii but significantly larger than an average value of the corresponding M−X coordination bond [86]. The angles around M···X contact relative to other ligands tend to 90°, due to the tetragonal position of X in an otherwise square-planar complex [86]. The forces involved in the formation of the semicoordination are primarily electrostatic, but the polarisation, charge transfer, and dispersion contributions all play an important role [86].
In the crystal structures of 1–3, the halogen atoms X are located opposite to a metal centre of another complex (the angles between M···X and M coordination planes are 79.12(3)–80.959(19)°), and the distances M···X (3.6450(4)–3.7445(6) Å) are larger than the sum of the Bondi vdW radii [75], but less than the sum of the Alvarez radii [87] (Table 4) and, as conventionally required in such cases, the existence of semicoordination required further evaluation by theoretical calculations.
The existence and noncovalent nature of the M···X semicoordination was indeed confirmed using the topological analysis (Table 2) of type II dimeric clusters (Figure 7).
The ELF projections for the M···X semicoordination show the corresponding bond paths lying in the increased ELF areas, i.e., lone pair areas of halogen atoms (Figure 8). This observation confirms the nucleophilicity of halogens toward the metal centre.
Similar conclusions can be withdrawn from the inspection of 1D profiles of electron density and electrostatic potential along the bond paths (Figure 9), where ED minima are closer to metal nuclei.

3.5. C···C’ Contacts Involving CNR Species

In compounds 1–3 the isocyano group is located strictly over a phenyl ring from another complex and this observation favours C···C’ interactions in head-to-tail oriented species. The distances between the C atoms of the isocyano moiety and C atoms of the benzene rings comprise 97–100% of the Rowland vdW radii [76] (Table 5).
The existence of π-stacking interactions was also confirmed by the theoretical calculations for the dimeric clusters of type II (Figure 7). The parameters of electron density in the BCPs confirmed the attractive and noncovalent nature of the interactions. ELF projections (Figure 8) for the interactions cannot give any information about the philicities of partners.
However, the nonpolar nature of the stacking C···C’ interactions can be confirmed by very close or even the same positions of ED and ESP minima along the corresponding bond paths (Figure 10).

4. Conclusions

In the course of this study, we have prepared a series of isomorphous crystalline complexes exhibiting the double Cl/Br and Pd/Pt exchanges. The isocyanide complexes cis-[MCl2(CNC6H4-4-X)2] feature both HaB donor and acceptor sites and their interplay produces HaB-supported 1D chains. The results of DFT calculations, topological analysis, ELF projections, and the inspection of the 1D profiles of ED and ESP indicate that all three types of contacts are attractive noncovalent interactions. These findings open a direction for the application of the isocyanide complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd, Pt; X = Cl, Br) as tectons for HaB-involving crystal engineering.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cryst11070799/s1. Table S1. Crystal data and structure refinement for 1–3. Table S2. Selected bond lengths (Å) and angles (°) in 1–3. Table S3. Characteristic parameters of C–H···Cl–M hydrogen bonds in 1–3. Table S4. Results of the Hirshfeld surface analysis. Figure S1. Noncovalent interactions in 2. Dotted line indicates the C–Br···Br’–C HaBs (a), C–H···Br–C hydrogen bonds (b), Cl···Pd semicoordination (c), and C···C contacts (d). Figure S2. Noncovalent interactions in 3. Dotted line indicates the C–Br···Br’–C HaBs (a), C–H···Br–C hydrogen bonds (b), Br···Pt semicoordination (c), and C···C contacts (d). Figure S3. 1D chains of HaB-bonded hexagon-like structures of 1–3. Figure S4. 1D chains of 1–3 complex molecules bound by C–H···Cl–M hydrogen bonds. Figure S5. Hirshfeld surfaces for 1–3. Figure S6. Contributions of various intermolecular contacts to the molecular Hirshfeld surfaces of 1–3 complex molecules. Figure S7. HOMO and LUMO orbital diagrams of 1–3 obtained by XX.

Author Contributions

M.V.K. performed synthetic work, crystallization, and analysed the data. D.M.I. performed the X-ray experiment, structure determinations, and theoretical calculations. M.A.K. performed synthetic work and supervised the research. All authors made equal contributions in the manuscript’s preparation. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ministry of Science and Higher Education of the Russian Federation in frame of “Mega-grant project” (075-15-2021-585).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Contact the authors directly for the data used in this article.

Acknowledgments

X-ray diffraction experiments were performed at the Center for X-ray Diffraction Studies belonging to Saint Petersburg State University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lusi, M. Engineering Crystal Properties through Solid Solutions. Cryst. Growth Des. 2018, 18, 3704–3712. [Google Scholar] [CrossRef] [Green Version]
  2. Lusi, M. A rough guide to molecular solid solutions: Design, synthesis and characterization of mixed crystals. CrystEngComm 2018, 20, 7042–7052. [Google Scholar] [CrossRef]
  3. Moulton, B.; Zaworotko, M.J. From Molecules to Crystal Engineering:  Supramolecular Isomerism and Polymorphism in Network Solids. Chem. Rev. 2001, 101, 1629–1658. [Google Scholar] [CrossRef]
  4. Adolf, C.R.R.; Ferlay, S.; Hosseini, M.W. Molecular tectonics: Control of crystalline sequences. CrystEngComm 2018, 20, 2233–2236. [Google Scholar] [CrossRef]
  5. Nemec, V.; Lisac, K.; Bedeković, N.; Fotović, L.; Stilinović, V.; Cinčić, D. Crystal engineering strategies towards halogen-bonded metal–organic multi-component solids: Salts, cocrystals and salt cocrystals. CrystEngComm 2021, 23, 3063–3083. [Google Scholar] [CrossRef]
  6. Bertani, R.; Sgarbossa, P.; Venzo, A.; Lelj, F.; Amati, M.; Resnati, G.; Pilati, T.; Metrangolo, P.; Terraneo, G. Halogen bonding in metal–organic–supramolecular networks. Coord. Chem. Rev. 2010, 254, 677–695. [Google Scholar] [CrossRef]
  7. Turunen, L.; Hansen, J.H.; Erdelyi, M. Halogen Bonding: An Odd Chemistry? Chem. Rec. 2021, 21, 1252–1257. [Google Scholar] [CrossRef] [PubMed]
  8. Costa, P.J. The halogen bond: Nature and applications. Phys. Sci. Rev. 2017, 2. [Google Scholar] [CrossRef]
  9. Li, B.; Zang, S.Q.; Wang, L.Y.; Mak, T.C.W. Halogen bonding: A powerful, emerging tool for constructing high-dimensional metal-containing supramolecular networks. Coord. Chem. Rev. 2016, 308, 1–21. [Google Scholar] [CrossRef]
  10. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
  11. Bulfield, D.; Huber, S.M. Halogen Bonding in Organic Synthesis and Organocatalysis. Chem. Eur. J. 2016, 22, 14434–14450. [Google Scholar] [CrossRef] [PubMed]
  12. Shixaliyev, N.Q.; Gurbanov, A.V.; Maharramov, A.M.; Mahmudov, K.T.; Kopylovich, M.N.; Martins, L.M.D.R.S.; Muzalevskiy, V.M.; Nenajdenko, V.G.; Pombeiro, A.J.L. Halogen-bonded tris(2,4-bis(trichloromethyl)-1,3,5-triazapentadienato)-M(III) [M = Mn, Fe, Co] complexes and their catalytic activity in the peroxidative oxidation of 1-phenylethanol to acetophenone. New J. Chem. 2014, 38, 4807–4815. [Google Scholar] [CrossRef]
  13. Zubkov, F.I.; Mertsalov, D.F.; Zaytsev, V.P.; Varlamov, A.V.; Gurbanov, A.V.; Dorovatovskii, P.V.; Timofeeva, T.V.; Khrustalev, V.N.; Mahmudov, K.T. Halogen bonding in Wagner-Meerwein rearrangement products. J. Mol. Liq. 2018, 249, 949–952. [Google Scholar] [CrossRef]
  14. Asgarova, A.R.; Khalilov, A.N.; Brito, I.; Maharramov, A.M.; Shikhaliyev, N.G.; Cisterna, J.; Cardenas, A.; Gurbanov, A.V.; Zubkov, F.I.; Mahmudov, K.T. Hydrogen and halogen bonding in the haloetherification products in chalcone. Acta Crystallogr. Sect. C Struct. Chem. 2019, 75, 342–347. [Google Scholar] [CrossRef] [PubMed]
  15. Kaasik, M.; Kanger, T. Supramolecular Halogen Bonds in Asymmetric Catalysis. Front. Chem. 2020, 8, 64. [Google Scholar] [CrossRef]
  16. Kinzhalov, M.A.; Kashina, M.V.; Mikherdov, A.S.; Mozheeva, E.A.; Novikov, A.S.; Smirnov, A.S.; Ivanov, D.M.; Kryukova, M.A.; Ivanov, A.Y.; Smirnov, S.N.; et al. Dramatically Enhanced Solubility of Halide-Containing Organometallic Species in Diiodomethane: The Role of Solvent⋅⋅⋅Complex Halogen Bonding. Angew. Chem. Int. Ed. 2018, 57, 12785–12789. [Google Scholar] [CrossRef] [PubMed]
  17. von der Heiden, D.; Vanderkooy, A.; Erdélyi, M. Halogen bonding in solution: NMR spectroscopic approaches. Coord. Chem. Rev. 2020, 407, 213147. [Google Scholar] [CrossRef]
  18. Cinčić, D.; Friščić, T.; Jones, W. Isostructural Materials Achieved by Using Structurally Equivalent Donors and Acceptors in Halogen-Bonded Cocrystals. Chem. Eur. J. 2008, 14, 747–753. [Google Scholar] [CrossRef]
  19. Hutchins, K.M.; Kummer, K.A.; Groeneman, R.H.; Reinheimer, E.W.; Sinnwell, M.A.; Swenson, D.C.; MacGillivray, L.R. Thermal expansion properties of three isostructural co-crystals composed of isosteric components: Interplay between halogen and hydrogen bonds. CrystEngComm 2016, 18, 8354–8357. [Google Scholar] [CrossRef]
  20. Jones, R.H.; Knight, K.S.; Marshall, W.G.; Clews, J.; Darton, R.J.; Pyatt, D.; Coles, S.J.; Horton, P.N. Colossal thermal expansion and negative thermal expansion in simple halogen bonded complexes. CrystEngComm 2014, 16, 237–243. [Google Scholar] [CrossRef]
  21. Saraswatula, V.G.; Saha, B.K. The effect of temperature on interhalogen interactions in a series of isostructural organic systems. New J. Chem. 2014, 38, 897–901. [Google Scholar] [CrossRef]
  22. Saraswatula, V.G.; Saha, B.K. A thermal expansion investigation of the melting point anomaly in trihalomesitylenes. Chem. Commun. 2015, 51, 9829–9832. [Google Scholar] [CrossRef] [Green Version]
  23. Adonin, S.A.; Gorokh, I.D.; Novikov, A.S.; Abramov, P.A.; Sokolov, M.N.; Fedin, V.P. Halogen Contacts-Induced Unusual Coloring in BiIII Bromide Complex: Anion-to-Cation Charge Transfer via Br⋅⋅⋅Br Interactions. Chem. Eur. J. 2017, 23, 15612–15616. [Google Scholar] [CrossRef] [PubMed]
  24. Adonin, S.A.; Gorokh, I.D.; Novikov, A.S.; Samsonenko, D.G.; Yushina, I.V.; Sokolov, M.N.; Fedin, V.P. Halobismuthates with halopyridinium cations: Appearance or non-appearance of unusual colouring. CrystEngComm 2018, 20, 7766–7772. [Google Scholar] [CrossRef]
  25. Maharramov, A.M.; Shikhaliyev, N.Q.; Suleymanova, G.T.; Gurbanov, A.V.; Babayeva, G.V.; Mammadova, G.Z.; Zubkov, F.I.; Nenajdenko, V.G.; Mahmudov, K.T.; Pombeiro, A.J.L. Pnicogen, halogen and hydrogen bonds in (E)-1-(2,2-dichloro-1-(2-nitrophenyl)vinyl)-2-(para-substituted phenyl)-diazenes. Dyes Pigm. 2018, 159, 135–141. [Google Scholar] [CrossRef]
  26. Shikhaliyev, N.Q.; Ahmadova, N.E.; Gurbanov, A.V.; Maharramov, A.M.; Mammadova, G.Z.; Nenajdenko, V.G.; Zubkov, F.I.; Mahmudov, K.T.; Pombeiro, A.J.L. Tetrel, halogen and hydrogen bonds in bis(4-((E)-(2,2-dichloro-1-(4-substitutedphenyl)vinyl)diazenyl)phenyl)methane dyes. Dyes Pigm. 2018, 150, 377–381. [Google Scholar] [CrossRef]
  27. Shikhaliyev, N.Q.; Kuznetsov, M.L.; Maharramov, A.M.; Gurbanov, A.V.; Ahmadova, N.E.; Nenajdenko, V.G.; Mahmudov, K.T.; Pombeiro, A.J.L. Noncovalent interactions in the design of bis-azo dyes. CrystEngComm 2019, 21, 5032–5038. [Google Scholar] [CrossRef]
  28. Sivchik, V.V.; Solomatina, A.I.; Chen, Y.T.; Karttunen, A.J.; Tunik, S.P.; Chou, P.T.; Koshevoy, I.O. Halogen Bonding to Amplify Luminescence: A Case Study Using a Platinum Cyclometalated Complex. Angew. Chem. Int. Ed. 2015, 54, 14057–14060. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, W.; Zhang, Y.; Jin, W.J. Halogen bonding in room-temperature phosphorescent materials. Coord. Chem. Rev. 2020, 404, 213107. [Google Scholar] [CrossRef]
  30. Bhowal, R.; Biswas, S.; Adiyeri Saseendran, D.P.; Koner, A.L.; Chopra, D. Tuning the solid-state emission by co-crystallization through σ- and π-hole directed intermolecular interactions. CrystEngComm 2019, 21, 1940–1947. [Google Scholar] [CrossRef]
  31. Xiao, L.; Fu, H. Enhanced Room-Temperature Phosphorescence through Intermolecular Halogen/Hydrogen Bonding. Chem. Eur. J. 2019, 25, 714–723. [Google Scholar] [CrossRef]
  32. Maity, S.K.; Bera, S.; Paikar, A.; Pramanik, A.; Haldar, D. Halogen bond induced phosphorescence of capped γ-amino acid in the solid state. Chem. Commun. 2013, 49, 9051–9053. [Google Scholar] [CrossRef] [PubMed]
  33. Xiao, L.; Wu, Y.; Yu, Z.; Xu, Z.; Li, J.; Liu, Y.; Yao, J.; Fu, H. Room-Temperature Phosphorescence in Pure Organic Materials: Halogen Bonding Switching Effects. Chem. Eur. J. 2018, 24, 1801–1805. [Google Scholar] [CrossRef] [PubMed]
  34. Cai, S.; Shi, H.; Tian, D.; Ma, H.; Cheng, Z.; Wu, Q.; Gu, M.; Huang, L.; An, Z.; Peng, Q.; et al. Enhancing Ultralong Organic Phosphorescence by Effective π-Type Halogen Bonding. Adv. Funct. Mater. 2018, 28, 1705045. [Google Scholar] [CrossRef]
  35. Sivchik, V.; Sarker, R.K.; Liu, Z.-Y.; Chung, K.-Y.; Grachova, E.V.; Karttunen, A.J.; Chou, P.-T.; Koshevoy, I.O. Improvement of the Photophysical Performance of Platinum-Cyclometalated Complexes in Halogen-Bonded Adducts. Chem. Eur. J. 2018, 24, 11475–11484. [Google Scholar] [CrossRef]
  36. Li, S.; Lin, Y.; Yan, D. Two-component molecular cocrystals of 9-acetylanthracene with highly tunable one-/two-photon fluorescence and aggregation induced emission. J. Mater. Chem. C 2016, 4, 2527–2534. [Google Scholar] [CrossRef]
  37. Fan, G.; Yan, D. Positional isomers of cyanostilbene: Two-component molecular assembly and multiple-stimuli responsive luminescence. Sci. Rep. 2014, 4, 4933. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, H.; Hu, R.X.; Pang, X.; Gao, H.Y.; Jin, W.J. The phosphorescent co-crystals of 1,4-diiodotetrafluorobenzene and bent 3-ring-N-heterocyclic hydrocarbons by C-I center dot center dot center dot N and C-I center dot center dot center dot pi halogen bonds. CrystEngComm 2014, 16, 7942–7948. [Google Scholar] [CrossRef]
  39. Yan, D.; Evans, D.G. Molecular crystalline materials with tunable luminescent properties: From polymorphs to multi-component solids. Mater. Horiz. 2014, 1, 46–57. [Google Scholar] [CrossRef]
  40. Varughese, S. Non-covalent routes to tune the optical properties of molecular materials. J. Mater. Chem. C 2014, 2, 3499–3516. [Google Scholar] [CrossRef]
  41. Katkova, S.A.; Luzyanin, K.V.; Novikov, A.S.; Kinzhalov, M.A. Modulation of luminescence properties for [cyclometalated]-PtII(isocyanide) complexes upon co-crystallisation with halosubstituted perfluorinated arenes. New J. Chem. 2021, 45, 2948–2952. [Google Scholar] [CrossRef]
  42. Brown, A.; Beer, P.D. Halogen bonding anion recognition. Chem. Commun. 2016, 52, 8645–8658. [Google Scholar] [CrossRef] [PubMed]
  43. Cavallo, G.; Metrangolo, P.; Pilati, T.; Resnati, G.; Sansotera, M.; Terraneo, G. Halogen bonding: A general route in anion recognition and coordination. Chem. Soc. Rev. 2010, 39, 3772–3783. [Google Scholar] [CrossRef]
  44. Ho, P.S. Biomolecular Halogen Bonds. In Halogen Bonding I: Impact on Materials Chemistry and Life Sciences; Metrangolo, P., Resnati, G., Eds.; Springer International Publishing: Cham, Switzerland, 2015; pp. 241–276. [Google Scholar]
  45. Amjad, A.; Clemente-Juan, J.M.; Coronado, E.; Luis, F.; Evangelisti, M.; Espallargas, G.M.; del Barco, E. Tunable crossover between one- and three-dimensional magnetic dynamics in Co(II) single-chain magnets organized by halogen bonding. Phys. Rev. B 2016, 93, 224418. [Google Scholar] [CrossRef] [Green Version]
  46. Simard, M.; Su, D.; Wuest, J.D. Use of hydrogen bonds to control molecular aggregation. Self-assembly of three-dimensional networks with large chambers. J. Am. Chem. Soc. 1991, 113, 4696–4698. [Google Scholar] [CrossRef]
  47. Mukherjee, A.; Tothadi, S.; Desiraju, G.R. Halogen Bonds in Crystal Engineering: Like Hydrogen Bonds yet Different. Acc. Chem. Res. 2014, 47, 2514–2524. [Google Scholar] [CrossRef] [PubMed]
  48. Saccone, M.; Catalano, L. Halogen Bonding beyond Crystals in Materials Science. J. Phys. Chem. B 2019, 123, 9281–9290. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Teyssandier, J.; Mali, K.S.; De Feyter, S. Halogen Bonding in Two-Dimensional Crystal Engineering. ChemistryOpen 2020, 9, 225–241. [Google Scholar] [CrossRef] [PubMed]
  50. Kashina, M.V.; Kinzhalov, M.A.; Smirnov, A.S.; Ivanov, D.M.; Novikov, A.S.; Kukushkin, V.Y. Dihalomethanes as Bent Bifunctional XB/XB-Donating Building Blocks for Construction of Metal-involving Halogen Bonded Hexagons. Chem. Asian J. 2019, 14, 3915–3920. [Google Scholar] [CrossRef] [PubMed]
  51. Kryukova, M.A.; Ivanov, D.M.; Kinzhalov, M.A.; Novikov, A.S.; Smirnov, A.S.; Bokach, N.A.; Kukushkin, V.Y. Four-Center Nodes: Supramolecular Synthons Based on Cyclic Halogen Bonding. Chem. Eur. J. 2019, 25, 13671–13675. [Google Scholar] [CrossRef]
  52. Buldakov, A.V.; Kinzhalov, M.A.; Kryukova, M.A.; Ivanov, D.M.; Novikov, A.S.; Smirnov, A.S.; Starova, G.L.; Bokach, N.A.; Kukushkin, V.Y. Isomorphous Series of PdII-Containing Halogen Bond Donors Exhibiting Cl/Br/I Triple Halogen Isostructural Exchange. Cryst. Growth Des. 2020, 3, 1975–1984. [Google Scholar] [CrossRef]
  53. Eliseeva, A.A.; Ivanov, D.M.; Rozhkov, A.V.; Ananyev, I.V.; Frontera, A.; Kukushkin, V.Y. Bifurcated Halogen Bonding Involving Two Rhodium(I) Centers as an Integrated σ-Hole Acceptor. JACS Au 2021. [Google Scholar] [CrossRef]
  54. Efimenko, Z.M.; Eliseeva, A.A.; Ivanov, D.M.; Galmés, B.; Frontera, A.; Bokach, N.A.; Kukushkin, V.Y. Bifurcated μ2-I···(N,O) Halogen Bonding: The Case of (Nitrosoguanidinate)NiII Cocrystals with Iodine(I)-Based σ-Hole Donors. Cryst. Growth Des. 2021, 21, 588–596. [Google Scholar] [CrossRef]
  55. Eliseeva, A.A.; Ivanov, D.M.; Novikov, A.S.; Rozhkov, A.V.; Kornyakov, I.V.; Dubovtsev, A.Y.; Kukushkin, V.Y. Hexaiododiplatinate(II) as a useful supramolecular synthon for halogen bond involving crystal engineering. Dalton Trans. 2020, 49, 356–367. [Google Scholar] [CrossRef]
  56. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A Found. Crystallogr. 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2008, 42, 339–341. [Google Scholar] [CrossRef]
  58. Agilent, C. CrysAlis PRO.; Agilent Technologies Ltd.: Yarnton, UK, 2014. [Google Scholar]
  59. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision B.01; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  60. Barros, C.L.; de Oliveira, P.J.P.; Jorge, F.E.; Canal Neto, A.; Campos, M. Gaussian basis set of double zeta quality for atoms Rb through Xe: Application in non-relativistic and relativistic calculations of atomic and molecular properties. Mol. Phys. 2010, 108, 1965–1972. [Google Scholar] [CrossRef]
  61. de Berrêdo, R.C.; Jorge, F.E. All-electron double zeta basis sets for platinum: Estimating scalar relativistic effects on platinum(II) anticancer drugs. J. Mol. Struct. 2010, 961, 107–112. [Google Scholar] [CrossRef]
  62. Jorge, F.E.; Canal Neto, A.; Camiletti, G.G.; Machado, S.F. Contracted Gaussian basis sets for Douglas–Kroll–Hess calculations: Estimating scalar relativistic effects of some atomic and molecular properties. J. Chem. Phys. 2009, 130, 064108. [Google Scholar] [CrossRef]
  63. Canal Neto, A.; Jorge, F.E. All-electron double zeta basis sets for the most fifth-row atoms: Application in DFT spectroscopic constant calculations. Chem. Phys. Lett. 2013, 582, 158–162. [Google Scholar] [CrossRef]
  64. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  65. Savin, A.; Nesper, R.; Wengert, S.; Fässler, T.F. ELF: The Electron Localization Function. Angew. Chem. Int. Ed. 1997, 36, 1808–1832. [Google Scholar] [CrossRef]
  66. Mata, I.; Molins, E.; Alkorta, I.; Espinosa, E. Topological Properties of the Electrostatic Potential in Weak and Moderate N···H Hydrogen Bonds. J. Phys. Chem. A 2007, 111, 6425–6433. [Google Scholar] [CrossRef]
  67. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  68. Zhurko, G.A. Chemcraft 1.8—Graphical Software for Visualization of Quantum Chemistry Computations; Ivanovo, Russia, 2005. Available online: https://scholar.google.com/scholar_lookup?hl=en&publication_year=2004&author=G.+A.+Zhurko&author=D.+A.+Zhurko&title=Chemcraft+-+Graphical+Program+for+Visualization+of+Quantum+Chemistry+Computations (accessed on 7 July 2021).
  69. Kinzhalov, M.A.; Kashina, M.V.; Mikherdov, A.S.; Katkova, S.A.; Suslonov, V.V. Synthesis of Platinum(II) Phoshine Isocyanide Complexes and Study of Their Stability in Isomerization and Ligand Disproportionation Reactions. Russ. J. Gen. Chem. 2018, 88, 1180–1187. [Google Scholar] [CrossRef]
  70. Kinzhalov, M.A.; Zolotarev, A.A.; Boyarskiy, V.P. Crystal structure of cis-[PdCl2(CNMes)2]. J. Struct. Chem. 2016, 57, 822–825. [Google Scholar] [CrossRef]
  71. Kinzhalov, M.A.; Luzyanin, K.V.; Boyarskaya, I.A.; Starova, G.L.; Boyarskiy, V.P. Synthetic and structural investigation of [PdBr2(CNR)2] (R = Cy, Xyl). J. Mol. Struct. 2014, 1068, 222–227. [Google Scholar] [CrossRef]
  72. Vicente, J.; Arcas, A.; Fernández-Hernández, J.M.; Aullón, G.; Bautista, D. Acetonyl Platinum(II) Complexes. Organometallics 2007, 26, 6155–6169. [Google Scholar] [CrossRef]
  73. Sluch, I.M.; Miranda, A.J.; Elbjeirami, O.; Omary, M.A.; Slaughter, L.M. Interplay of Metallophilic Interactions, π–π Stacking, and Ligand Substituent Effects in the Structures and Luminescence Properties of Neutral PtII and PdII Aryl Isocyanide Complexes. Inorg. Chem. 2012, 51, 10728–10746. [Google Scholar] [CrossRef]
  74. Spackman, M.A.; Jayatilaka, D. Hirshfeld surface analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
  75. Bondi, A. Van der Waals Volumes and Radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  76. Rowland, R.S.; Taylor, R. Intermolecular Nonbonded Contact Distances in Organic Crystal Structures: Comparison with Distances Expected from van der Waals Radii. J. Phys. Chem. 1996, 100, 7384–7391. [Google Scholar] [CrossRef]
  77. Desiraju, G.R.; Ho, P.S.; Kloo, L.; Legon, A.C.; Marquardt, R.; Metrangolo, P.; Politzer, P.; Resnati, G.; Rissanen, K. Definition of the halogen bond (IUPAC Recommendations 2013). Pure Appl. Chem. 2013, 85, 1711–1713. [Google Scholar] [CrossRef]
  78. Bader, R.F.W.; Nguyen-Dang, T.T. Quantum Theory of Atoms in Molecules–Dalton Revisited. In Advances in Quantum Chemistry; Löwdin, P.-O., Ed.; Academic Press: Cambridge, MA, USA, 1981; Volume 14, pp. 63–124. [Google Scholar]
  79. Johnson, E.R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Espinosa, E.; Alkorta, I.; Elguero, J.; Molins, E. From weak to strong interactions: A comprehensive analysis of the topological and energetic properties of the electron density distribution involving X–H⋯F–Y systems. J. Chem. Phys. 2002, 117, 5529–5542. [Google Scholar] [CrossRef]
  81. Bartashevich, E.; Yushina, I.; Kropotina, K.; Muhitdinova, S.; Tsirelson, V. Testing the tools for revealing and characterizing the iodine-iodine halogen bond in crystals. Struct. Sci. Cryst. Eng. Mater. 2017, B73, 217–226. [Google Scholar] [CrossRef] [PubMed]
  82. Dabranskaya, U.; Ivanov, D.M.; Novikov, A.S.; Matveychuk, Y.V.; Bokach, N.A.; Kukushkin, V.Y. Metal-Involving Bifurcated Halogen Bonding C–Br···η2(Cl–Pt). Cryst. Growth Des. 2019, 19, 1364–1376. [Google Scholar] [CrossRef]
  83. Bulatova, M.; Ivanov, D.M.; Haukka, M. Classics Meet Classics: Theoretical and Experimental Studies of Halogen Bonding in Adducts of Platinum(II) 1,5-Cyclooctadiene Halide Complexes with Diiodine, Iodoform, and 1,4-Diiodotetrafluorobenzene. Cryst. Growth Des. 2021, 21, 974–987. [Google Scholar] [CrossRef]
  84. Lamberts, K.; Handels, P.; Englert, U.; Aubert, E.; Espinosa, E. Stabilization of polyiodide chains via anion⋯anion interactions: Experiment and theory. CrystEngComm 2016, 18, 3832–3841. [Google Scholar] [CrossRef]
  85. Arunan, E.; Desiraju, G.R.; Klein, R.A.; Sadlej, J.; Scheiner, S.; Alkorta, I.; Clary, D.C.; Crabtree, R.H.; Dannenberg, J.J.; Hobza, P.; et al. Definition of the hydrogen bond (IUPAC Recommendations 2011). Pure Appl. Chem. 2011, 83, 1637–1641. [Google Scholar] [CrossRef]
  86. Bikbaeva, Z.M.; Ivanov, D.M.; Novikov, A.S.; Ananyev, I.V.; Bokach, N.A.; Kukushkin, V.Y. Electrophilic–Nucleophilic Dualism of Nickel(II) toward Ni···I Noncovalent Interactions: Semicoordination of Iodine Centers via Electron Belt and Halogen Bonding via σ-Hole. Inorg. Chem. 2017, 56, 13562–13578. [Google Scholar] [CrossRef] [PubMed]
  87. Alvarez, S. A cartography of the van der Waals territories. Dalton Trans. 2013, 42, 8617. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Crystals 11 00799 g001 550

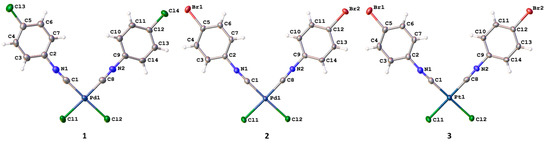

Figure 1. View of complexes 1–3 with the atomic numbering scheme. Thermal ellipsoids are drawn with the 50% probability. Hydrogen labels are omitted for simplicity.
Figure 1. View of complexes 1–3 with the atomic numbering scheme. Thermal ellipsoids are drawn with the 50% probability. Hydrogen labels are omitted for simplicity.
Crystals 11 00799 g001
Crystals 11 00799 g002 550

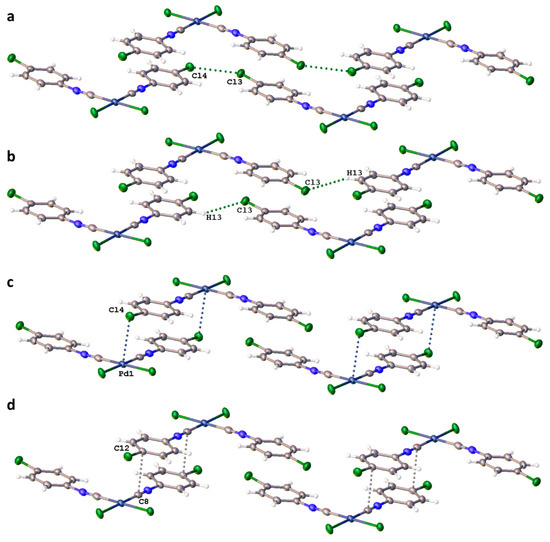

Figure 2. Noncovalent interactions in 1. Dotted line indicates the C–Cl···Cl’–C HaBs (a), C-H···Cl-C hydrogen bonds (b), Cl···Pd semicoordination (c), and C···C contacts (d). All other crystal structures look similar, and they are reported in Figures S2 and S3 (Supporting Information).
Figure 2. Noncovalent interactions in 1. Dotted line indicates the C–Cl···Cl’–C HaBs (a), C-H···Cl-C hydrogen bonds (b), Cl···Pd semicoordination (c), and C···C contacts (d). All other crystal structures look similar, and they are reported in Figures S2 and S3 (Supporting Information).
Crystals 11 00799 g002
Crystals 11 00799 g003 550
Figure 3. View of dimeric cluster of type I for 1.
Figure 3. View of dimeric cluster of type I for 1.
Crystals 11 00799 g003
Crystals 11 00799 g004 550

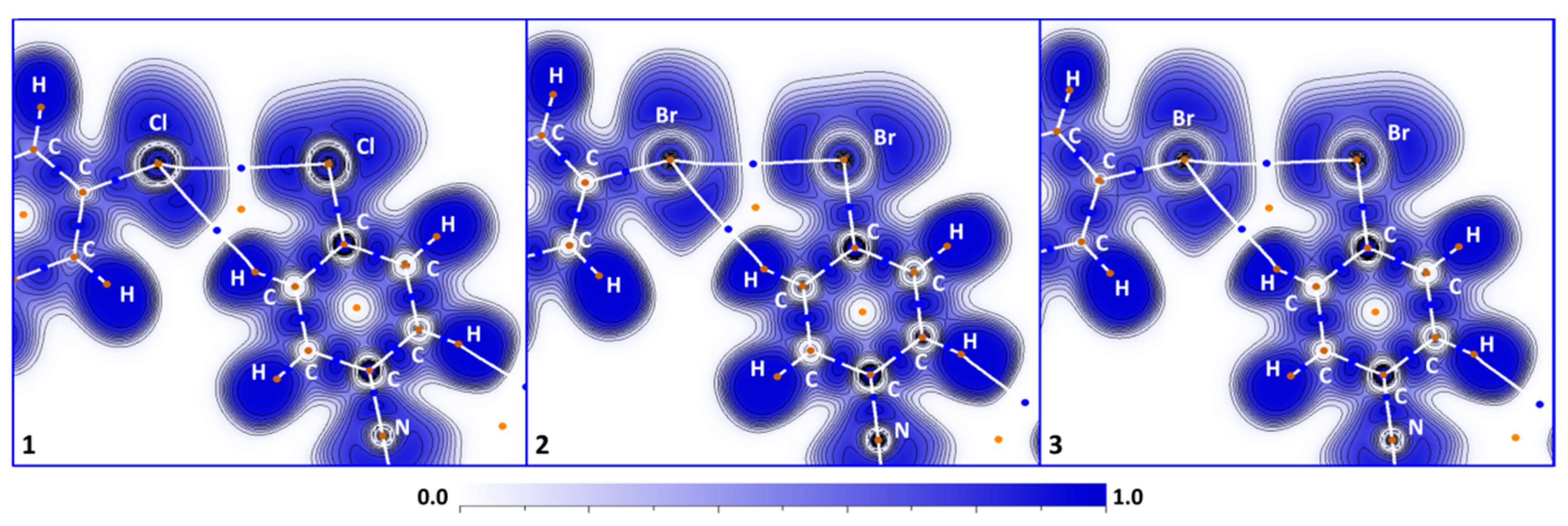

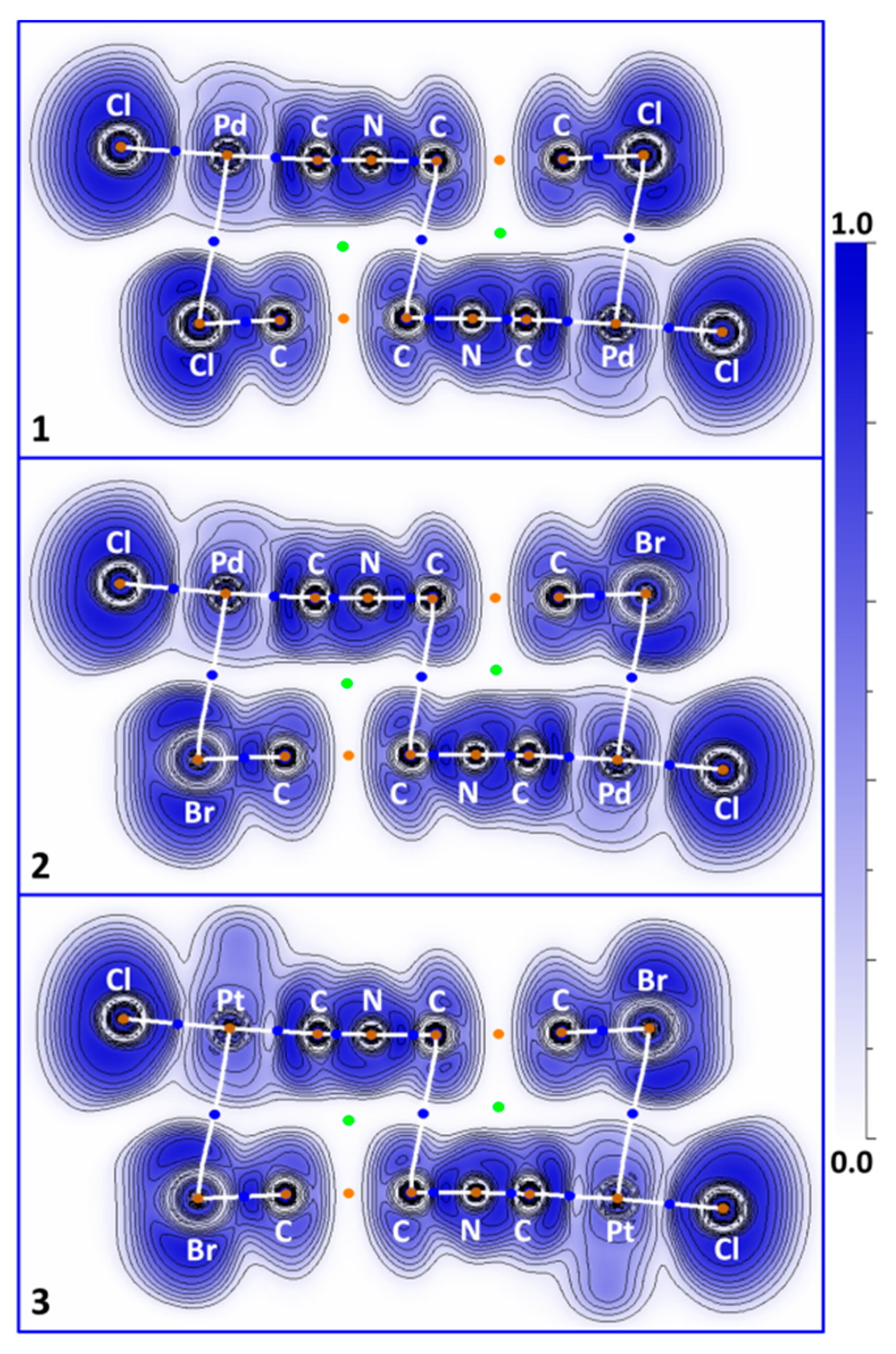

Figure 4. ELF projections and bond paths (white lines), BCPs (blue dots), nuclear critical points (brown dots), and ring critical points (orange dots) for the C–X···X’–C and C–H···X–C interactions in the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type I.
Figure 4. ELF projections and bond paths (white lines), BCPs (blue dots), nuclear critical points (brown dots), and ring critical points (orange dots) for the C–X···X’–C and C–H···X–C interactions in the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type I.
Crystals 11 00799 g004
Crystals 11 00799 g005 550
Figure 5. The ED and ESP 1D profiles along the X···X’ bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type I.
Figure 5. The ED and ESP 1D profiles along the X···X’ bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type I.
Crystals 11 00799 g005
Crystals 11 00799 g006 550

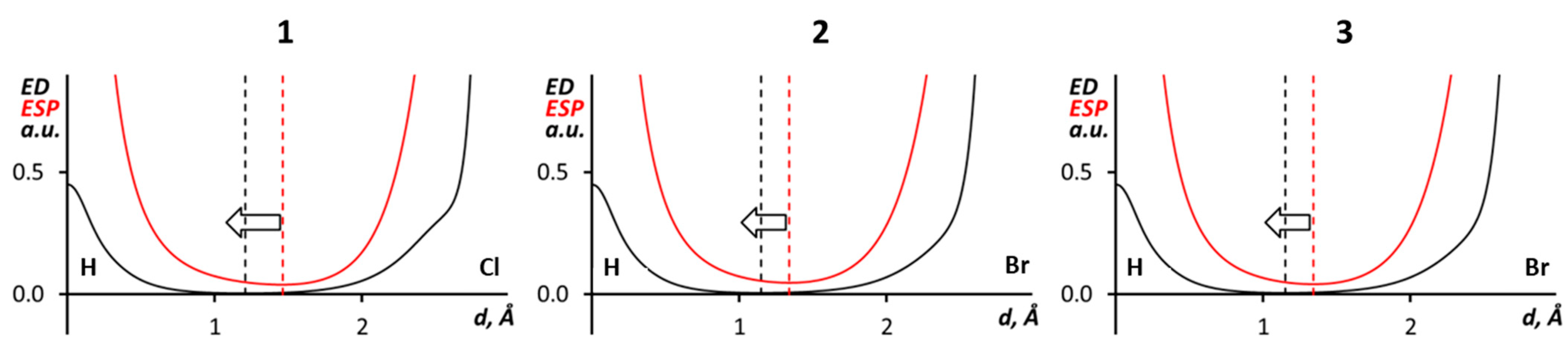

Figure 6. The ED and ESP 1D profiles along the H···X bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type I.
Figure 6. The ED and ESP 1D profiles along the H···X bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type I.
Crystals 11 00799 g006
Crystals 11 00799 g007 550
Figure 7. View of dimeric cluster of type II for 1.
Figure 7. View of dimeric cluster of type II for 1.
Crystals 11 00799 g007
Crystals 11 00799 g008 550
Figure 8. ELF projections and bond paths (white lines), BCPs (blue dots), nuclear critical points (brown dots), ring critical points (orange dots), and cell critical points (green dots) for the M···X and C···C’ interactions in the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type II.
Figure 8. ELF projections and bond paths (white lines), BCPs (blue dots), nuclear critical points (brown dots), ring critical points (orange dots), and cell critical points (green dots) for the M···X and C···C’ interactions in the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type II.
Crystals 11 00799 g008
Crystals 11 00799 g009 550

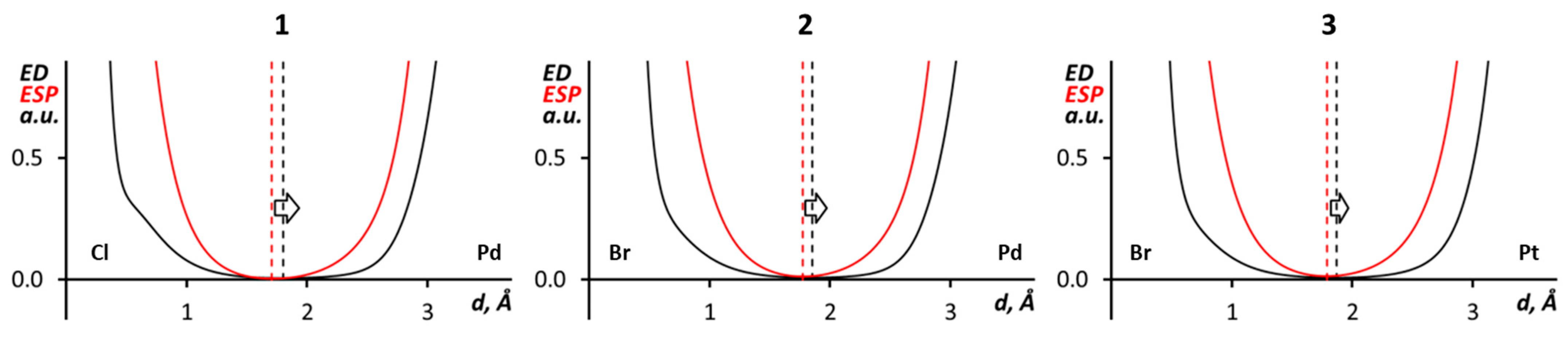

Figure 9. The ED and ESP 1D profiles along the M···X bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type II.
Figure 9. The ED and ESP 1D profiles along the M···X bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type II.
Crystals 11 00799 g009
Crystals 11 00799 g010 550

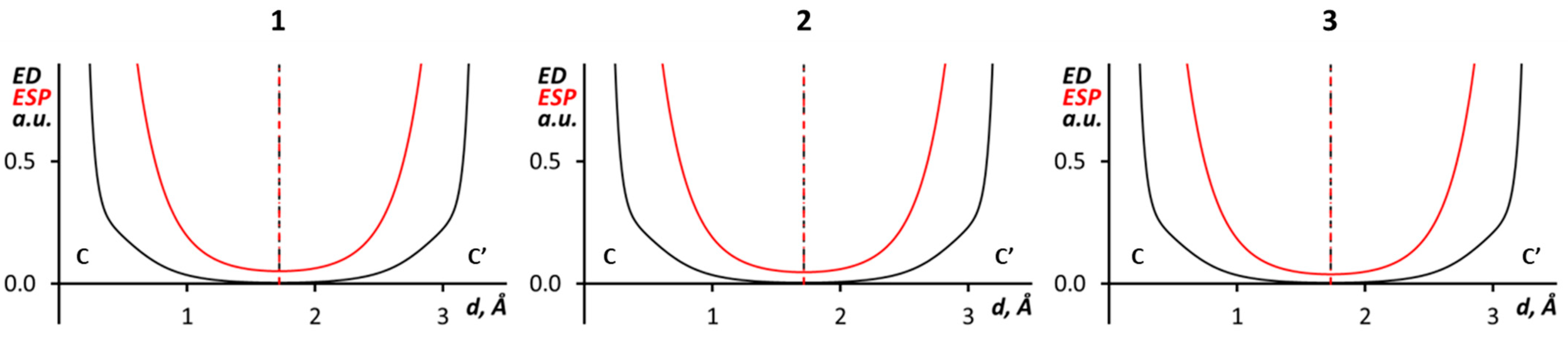

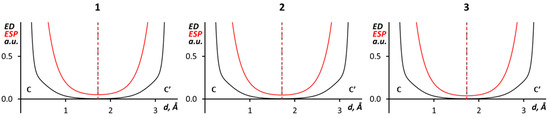

Figure 10. The ED and ESP 1D profiles along the C···C’ bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type II.
Figure 10. The ED and ESP 1D profiles along the C···C’ bond paths for the (1)2 (left), (2)2 (middle), and (3)2 (right) dimeric clusters of type II.
Crystals 11 00799 g010
Table
Table 1. Characteristic parameters of C–X···X’–C HaBs in 1–3.
Table 1. Characteristic parameters of C–X···X’–C HaBs in 1–3.
Structured(X···X’), Å∠(C–X···X’), °∠(X···X’–C), °R
13.5933(13)155.78(11)101.05(11)1.03 1/1.01 2
23.6923(5)162.69(9) 97.01(9)0.99 1
33.6759(9)161.87(17) 96.87(16)0.99 1
1 R is the ratio of the X···X’ distance to the sum of Bondi vdW radii [75]. 2 R is the ratio of the X···X’ distance to the sum of Rowland vdW radii [76].
Table
Table 2. Values of the density of all electrons with λ2 sign—sign(λ2)ρ, potential energy density—V(r), Lagrangian kinetic energy—G(r) (a.u.) at the BCPs, corresponding to different noncovalent interactions in dimeric clusters of all types.
Table 2. Values of the density of all electrons with λ2 sign—sign(λ2)ρ, potential energy density—V(r), Lagrangian kinetic energy—G(r) (a.u.) at the BCPs, corresponding to different noncovalent interactions in dimeric clusters of all types.
ClusterInteractionSign(λ2)ρV(r)G(r)
(1)2Cl···Cl’−0.006−0.0030.004
(2)2Br···Br’−0.007−0.0040.004
(3)2Br···Br’−0.007−0.0040.004
(1)2H···Cl−0.004−0.0020.003
(2)2H···Br−0.006−0.0030.004
(3)2H···Br−0.006−0.0030.004
(1)2Pd···Cl−0.007−0.0040.004
(2)2Pd···Br−0.009−0.0050.005
(3)2Pd···Br−0.008−0.0040.004
(1)2C···C’−0.005−0.0020.003
(2)2C···C’−0.005−0.0020.003
(3)2C···C’−0.005−0.0020.003
Table
Table 3. Characteristic parameters of C–H···X–C hydrogen bonds in 1–3.
Table 3. Characteristic parameters of C–H···X–C hydrogen bonds in 1–3.
Structured(H···X), Åd(C(H)···X), Å∠(C–H···X), °R 1R 2
13.0615(9)3.891(3)146.87(17)1.041.07
23.0447(3)3.906(3)159.13(18)1.031.06
33.04776(11)3.896(7)149.6(4)1.031.07
1 R is the ratio of the H···X distance to the sum of Bondi vdW radii [75]. 2 R is the ratio of the H···X distance to the sum of Rowland vdW radii [76].
Table
Table 4. Characteristic parameters of M···X semicoordination in 1–3.
Table 4. Characteristic parameters of M···X semicoordination in 1–3.
Structured(X···M), Å∠(M···X and M
Coordination Plane), °		∠(C–X···M), °R 1R 2
13.6687(9)79.12(2)77.93(11)1.090.92
23.6450(4)80.950(19)78.35(10)1.050.91
33.7445(6)79.76(4)76.68(16)1.070.90
1 R is the ratio of the X···M distance to the sum of Bondi vdW radii [75]. 2 R is the ratio of the X···M distance to the sum of Alvarez vdW radii [87].
Table
Table 5. Characteristic parameters of C···C’ contacts involving CNR species in 1–3.
Table 5. Characteristic parameters of C···C’ contacts involving CNR species in 1–3.
Structured(C···C’), ÅR
13.430(6)0.97
23.497(5)0.99
33.454(11)0.98
R is the ratio of the C···C’ distance to the sum of Rowland vdW radii [76].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kashina, M.V.; Ivanov, D.M.; Kinzhalov, M.A. The Isocyanide Complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd, Pt; X = Cl, Br) as Tectons in Crystal Engineering Involving Halogen Bonds. Crystals 2021, 11, 799. https://doi.org/10.3390/cryst11070799

AMA Style

Kashina MV, Ivanov DM, Kinzhalov MA. The Isocyanide Complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd, Pt; X = Cl, Br) as Tectons in Crystal Engineering Involving Halogen Bonds. Crystals. 2021; 11(7):799. https://doi.org/10.3390/cryst11070799

Chicago/Turabian Style

Kashina, Maria V., Daniil M. Ivanov, and Mikhail A. Kinzhalov. 2021. "The Isocyanide Complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd, Pt; X = Cl, Br) as Tectons in Crystal Engineering Involving Halogen Bonds" Crystals 11, no. 7: 799. https://doi.org/10.3390/cryst11070799

APA Style

Kashina, M. V., Ivanov, D. M., & Kinzhalov, M. A. (2021). The Isocyanide Complexes cis-[MCl2(CNC6H4-4-X)2] (M = Pd, Pt; X = Cl, Br) as Tectons in Crystal Engineering Involving Halogen Bonds. Crystals, 11(7), 799. https://doi.org/10.3390/cryst11070799

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
