Efficient Synthesis of Mesoporous Nano ZSM-5 Zeolite Crystals without a Mesoscale Template

by
Changsheng Zhang
1,*,
Kai Fan
2,
Ge Ma
1,
Chi Lei
2,
Wei Xu
1,*,
Jie Jiang
1,*,
Bing Sun
1,
Hongxing Zhang
1,
Yunfeng Zhu
1 and
Song Wen
1
1
Research Institute of Safety Engineering, Sinopec, Qingdao 266100, China
2
Department of Chemistry, Zhejiang University, Hangzhou 310028, China
*
Authors to whom correspondence should be addressed.
Crystals 2021, 11(10), 1247; https://doi.org/10.3390/cryst11101247
Submission received: 15 September 2021 / Revised: 11 October 2021 / Accepted: 13 October 2021 / Published: 15 October 2021
Browse Figures
Versions Notes

Abstract

:
Hierarchical zeolites attract people’s attention due to their enhanced mass transfer properties in catalytic reactions. The research over obtaining these zeolites in green and efficient methods is of great significance for the current post-treatments and templating strategies tend to be costly for hierarchical zeolite synthesis. In this research, nanosized mesoporous ZSM-5 (SN-ZSM-5) zeolites have been synthesized without the addition of mesoscale templates under highly concentrated conditions. The physicochemical characteristics were systematically investigated by XRD, SEM, N2 sorption, TEM, and NMR. The SEM images showed ZSM-5 crystals with sizes between 50–110 nm were obtained. N2 sorption and high-resolution TEM images gave direct evidence for the hierarchical structure of SN-ZSM-5. The forming mechanism for the hierarchical structure was proposed that the etching effect of the highly alkaline environment for the starting gels played a critical role in the formation of hierarchical structure. Catalytic tests in methanol-to-olefins (MTO) showed the SN-ZSM-5 performed a longer catalyst lifetime and higher propylene selectivity than the conventional ZSM-5 zeolites (C-ZSM-5) obtained from a traditional hydrothermal method. The features of hierarchical structure in the SN-ZSM-5 crystals and the sustainability for synthesis method could show a promising choice for wide applications of these SN-ZSM-5 zeolites in the future.

1. Introduction

Zeolitic materials have always been drawing people’s attention due to their important applications in catalysis and adsorption [1,2,3,4,5]. However, zeolitic crystals easily encounter severe coke depositions and fast deactivation as the limitation of mass diffusion in the micropores with a size of less than 2 nm. In order to weaken the mass transfer disadvantage in catalytic reactions, nanosized and hierarchical zeolites have been constructed to obtain better performance in catalytic reactions [6,7,8]. For instance, nanosized and hierarchical aluminosilicate ZSM-5 zeolites with MFI topological structure could obtain superior catalyst lifetime in the methanol-to-olefin (MTO) reaction, which is regarded as a promising route for light olefins production from natural gas, coal, and biomass with methanol as the intermediate [9,10,11,12,13,14,15,16,17,18,19,20,21]. It is pointed out that the lower cokes deposition rate makes direct contributions to the superior catalytic performance of nanosized and hierarchical zeolites.
Traditionally, zeolites are synthesized under hydrothermal conditions. In these cases, the construction of nanosized zeolite usually needs more organic template consumptions to produce more crystal nuclei, leading to the cost increase and large water consumption for zeolite synthesis [1,21,22,23]. In the early days, the preparations of hierarchical zeolites were usually performed by post-treatments such as high-temperature steaming and acid or base leaching [24,25,26]. In recent years, scientists reported that we could prepare hierarchical zeolites from templating strategies using organic directing agents such as nanosized carbon, polymers, and amphiphilic surfactants [27,28]. Both post-treatments and templating strategies are confirmed to be successful for the preparation of hierarchical zeolite crystals, but the relatively high cost still hinders their wide applications in industrial processes. For the hierarchical nano zeolite crystals, it is of great challenge to find proper methods to make them greener and more economical for industrial applications.
Zeolite scientists tried various methods towards the green synthesis of zeolites with excellent catalytic performance. Xiao’s group reported that zeolite could be synthesized under solvent-free conditions, which makes a contribution to the much less water solvent consumption and higher production yields for zeolite synthesis [29,30]. There have been several reports that mesoporous zeolite could be prepared under solvent-free conditions, but these zeolite crystals are usually on a micron-scale [31,32]. The green and economical acquisition for hierarchical nano zeolites are still of great significance to make further investigations.
Herein, we successfully one-step synthesize nano ZSM-5 crystals with rich mesoporosity inside the crystals without the addition of mesoscale templates and water solvents. The obtained nano ZSM-5 crystals show greatly extended catalyst lifetime and higher propene selectivity in the MTO process compared with the traditional ZSM-5 samples obtained in a hydrothermal method. The forming mechanism of the hierarchical structure is also proposed, which could originate from the etch of starting amorphous phase via the highly alkaline environment. The convenient and efficient synthesis for hierarchical nano ZSM-5 zeolites combined with the excellent catalytic performance provides a sustainable methodology for efficient zeolite catalysts in the future.

2. Materials and Methods

2.1. Materials

Fumed silica, silica gel, ethyl acetate, potassium carbonate, ethanol, tripropylamine, 1, 6-dibromohexane were purchased from Aladdin. Tetrapropylammonium hydroxide (TPAOH of 40 wt.%) was supplied by Macklin Reagent Co. NaOH, NaAlO2, and methanol were received from Sinopharm Chemical Reagent Co. All the materials were used as received without any further treatments.

2.2. OSDA Synthesis

The organic template was synthesized according to published literatures with partial changes [33]. Bis-1, 6-(tripropylammonium) hexamethylene was prepared by exhaustive alkylation of tripropylamine with 1, 6-dibromohexane. Typically, 90 g of 1, 6-dibromohexane, and 110 g of tripropylamine were dissolved in 150 g of ethanol, and then 50 g of potassium carbonate was added. After reflux condensation with the stirring condition under 80 °C for 24 h, the solution was cooled and filtered to remove potassium salts. Ethanol was removed by rotary evaporation until yielded the semi-solid. The samples were recrystallized with ethyl acetate. After being washed by ethanol and dried under vacuum conditions, the white solid was obtained. The product was converted from the bromide to the hydroxide form (denoted as ROH) with an anion exchange resin. Detailly, the white solid was dissolved in a certain amount of deionized water, followed by stirring with excessive anion exchange resin (hydroxide form) for 3 h under room temperature. The anion exchange process was repeated twice to assure the anion exchange degree. The obtained ROH solution was concentrated to 19 wt.% by rotary evaporation (denoted as ROH-19).

2.3. Synthesis of Mesoporous Nano ZSM-5 Zeolite (SN-ZSM-5)

Nanosized ZSM-5 zeolite was synthesized by grinding the solid raw materials and heated at 180 °C with molar relations at 300SiO2/Al2O3/8.8OSDA/46Na2O/820H2O. As a typical run, 0.027 g of NaAlO2 was added into 3.0 g of ROH-19. Then the mixed solution was added into a mortar and ground with 3.0 g of fumed silica and 0.6 g of NaOH. After grinding for 10–20 min, the mixtures were transferred to an autoclave for crystallization. After heating at 180 °C for 4 h, the samples were completely crystallized. The products were washed with deionized water, centrifuged at room temperature to get zeolite powder, and calcined at 550 °C for 5 h to remove the organic templates. The H-form of the samples was prepared from ion-exchange with NH4Cl solution (1 M) at 80 °C for 2 h, and this procedure was repeated twice followed by calcination at 550 °C for 5 h again. The obtained samples were designed as SN-ZSM-5.

2.4. Synthesis of Conventional ZSM-5 Zeolite (C-ZSM-5)

The conventional ZSM-5 zeolite was synthesized under hydrothermal conditions with molar relations at 300SiO2/Al2O3/117OSDA/Na2O/9610H2O. In a typical run, 0.055 g of NaAlO2 and 40.0 g of TPAOH (20 wt.%) were added into 26.0 g of distilled water. After fully dissolved, 6.0 g of solid silica gel was added. After stirring for 4 h, the finally obtained gels were transferred into an autoclave and heated at 180 °C for 48 h, followed by calcination at 550 °C for 5 h. The H-form of the samples was obtained by ion-exchange with NH4Cl solution (1 M) at 80 °C for 2 h. The ion-exchange procedure was repeated twice, followed by calcination at 550 °C for 5 h. The obtained samples were designed as C-ZSM-5.

2.5. Characterization

X-ray powder diffraction (XRD) patterns were measured with a Rigaku Smartlab X-ray diffractometer (45 kV, 200 mA) (Rigaku, Qingdao, China), step size at 0.02 degree, and counting time at 0.03 s using CuK∝ radiation. The morphology of these samples was observed on Hitachi SU 1510 and Hitachi S4800 scanning electron microscope (SEM) (Hitachi, Qingdao, China). The samples were ultrasonically treated for 30 min before SEM characterization. High-resolution transmission electron microscopy (HR-TEM) images of the samples were obtained on a JEM-2100F transmission electron microscope (JEOL, Qingdao, China). The calcined samples were dispersed in absolute ethyl alcohol and ultrasonically treated for 20 min before TEM characterization. 29Si and 27Al MAS NMR spectra were recorded on a Bruker AVANCEIII 400M spectrometer. The nitrogen sorption isotherms at the temperature of liquid nitrogen were measured using Micromeritics ASAP 2460 (Micromeritics, Qingdao, China). The NH4-exchanged and calcined zeolite samples were degassed at 200 °C for 12 h before being measured at the temperature of liquid nitrogen.

2.6. Catalytic Tests

The MTO reaction was carried out with a fixed-bed tubular steel reactor with a length of 30 cm at atmospheric pressure. After 0.50 g of catalyst (20–40 mesh) was loaded in the middle of tubular steel between two layers of quartz wool, it was pre-treated in flowing nitrogen at 500 °C for 2 h and cooled down to a reaction temperature of 480 °C. Methanol was injected into the catalyst bed using a pump with a weight hourly space velocity (WHSV) of 1.0 h−1. The products from the reactor were analyzed online using an Agilent 6890N gas chromatograph equipped with an FID detector (detector temperature at 180 °C, inlet temperature at 180 °C) and a PLOT-Al2O3 capillary column (the temperature is controlled by a temperature program: 80 °C for 5 min, then increased to 160 °C with the speed of 10 °C/min, followed by keeping for 15 min). Selectivity towards the products was expressed as the mass percentage of each product among all the detectable products except dimethyl ether.

3. Results

Figure 1 shows the X-ray diffraction (XRD) pattern, N2 sorption isotherms, scanning electron microscopy (SEM), and high magnification transmission electron microscopy (TEM) images of SN-ZSM-5 prepared at 180 °C for 4 h. Figure 1a shows the XRD pattern of the samples, exhibiting the well-resolved peaks with an MFI-type zeolite structure in the range of 5–40°. We could find the characteristic diffraction peaks of MFI topology with 2θ at 7.92° (011), 8.79° (200), 23.07° (501), 23.93° (303), and 24.41° (133) [34]. N2 sorption isotherms of the samples (Figure 1b, the black points represent the adsorption curve and the red points represent the desorption curve) give a steep increase in the curve at the relative pressure at 10−6 < P/P0 < 0.01, which is due to the rapid filling of the micropores in the zeolite samples [35,36]. It is worth noting that an apparent gradual increase can be observed at the relative pressure of 0.01–0.9, suggesting there may be mesopores in these samples. It has been reported the hierarchical structure in zeolite crystals would give advantages to the mass transfer and longer catalyst lifetime in catalytic reactions [6,7,8]. In addition, a fast increase with relative pressure higher than 0.9 can also be observed, which is likely related to the agglomeration of zeolite crystals. Accordingly, the obtained ZSM-5 zeolite gives BET surface area at 386 m2/g, micropore volume at 0.099 cm3/g, and mesopore volume at 0.176 cm3/g. Figure 1c shows the high magnification SEM image of SN-ZSM-5. Clearly, the obtained SN-ZSM-5 gives nanocrystals with sizes ranging 50–110 nm measured from more than 100 zeolite particles [37]. Figure 1d shows the high magnification TEM image of SN-ZSM-5. Interestingly, we could directly observe the presence of mesopores with pore sizes ranging 5–15 nm inside the zeolite crystals. The BET and micropore volume values of the obtained zeolite crystals are relatively small compared to standard ZSM-5 zeolites, which may be caused by the effect of nano size and internal mesopores, as previously reported [38,39]. These results agree with the N2 sorption information. XRD pattern, SEM images, and N2 sorption isotherms of C-ZSM-5 and TEM image of SN-ZSM-5 with higher magnification are shown by Figures S1–S4.
Normally, the acid sites in zeolites originate from the Al species in the zeolite framework [36]. Figure 2 shows the 29Si and 27Al MAS NMR spectra of SN-ZSM-5. The 29Si spectrum (Figure 2a) gives significant signals centered at −113 ppm, representing the Si(Si, Al)4 in the zeolite framework. The 27Al spectrum (Figure 2b) gives a sharp band at about 58 ppm associated with the tetrahedrally coordinated Al species in the zeolite framework. These results indicate the high crystallinity of SN-ZSM-5 zeolite. The 29Si and 27Al MAS NMR spectrum of C-ZSM-5 samples are shown in Figure S5.
Figure 3 shows the dependence of methanol conversion in time over SN-ZSM-5 and C-ZSM-5 catalysts in MTO, which is regarded as the most promising method to obtain light olefins in non-petrochemical routes. The MTO reaction has been proposed as a dual-cycle mechanism, where the methylbenzenes and olefins serve as the intermediate species. According to this mechanism, fast mass transfer properties would be of great significance for the preparation of highly efficient MTO catalysts [40,41]. Remarkably, the SN-ZSM-5 catalyst exhibits a greatly extended catalyst lifetime as long as 147 h (Figure 3b), while C-ZSM-5 couldn’t give full methanol conversion at 43 h (Figure 3a). Table 1 gives the product selectivities over these two catalysts at a reaction time of 1.0 h. SN-ZSM-5 and C-ZSM-5 both give high selectivity for light olefins (ethylene, propylene, and butylene). But SN-ZSM-5 performs higher propylene selectivity at 42.4%, lower selectivity for ethylene (15.7%), and similar selectivity for butylene (12.6%), while C-ZSM-5 gives product selectivity for ethylene, propylene, and butylene at 20.1, 39.7, and 12.8%, respectively. In addition, we test the TG properties of the two deactivated catalysts. In the temperature range of 450–650 °C, the TG curves of deactivated SN-ZSM-5 and C-ZSM-5 catalysts display quite different weight loss at 21.7% and 4.7%, respectively, shown by Figures S6 and S7. Considering the much longer resistance to deactivation, we could infer the superior anti-coke-deposition ability of SN-ZSM-5. Our research shows comparative results with the reported literatures [41,42,43]. Considering the acidity of zeolites could greatly influence the olefins formation and hydrogenation process in MTO [36,37,38], we have performed the NH3-TPD curves of the two obtained ZSM-5 catalysts, shown by Figure 4. Clearly, both examples give very similar desorption peaks and peak intensities, indicating the two ZSM-5 zeolites exhibiting quite similar acidic strength. Considering the similar Si/Al ratios (SN-ZSM-5 at 121 and C-ZSM-5 at 116 measured by ICP), these catalytic differences in MTO could be reasonably attributed to the different crystal sizes and mesoporosity properties.
In order to further understand the synthesis nature, we investigate the crystallization process of SN-ZSM-5 with different crystallization times by XRD and SEM technologies, shown in Figure 5A,B. Figure 5(Aa) shows the amorphous phase nature of starting mixtures without crystallization. Correspondingly, we cannot find the zeolite crystals in Figure 5(Ba). As crystallization time increases, the samples with various crystallization times (Figure 5(Ac–Ag)) give characteristic peaks associated with MFI topology except for the sample with crystallization time at 60 min (Figure 5(Ab)), as the crystallization of zeolite requires the induction time. We can find more and more zeolite crystals with sizes ranging 50–110 nm as crystallization time increased (Figure 5(Bb,Bc)), until all the amorphous phase disappears in the SEM images with crystallization time increased to 240 min (Figure 1a). In addition, it is worth noting that these ZSM-5 samples exhibit similar crystallinity with more than 3 h, suggesting that we could efficiently obtain the well-crystallized nanosized ZSM-5 zeolites with rich mesopores inside the zeolite crystals with the crystallization time at 3–4 h. The elemental mapping results of the SN-ZSM-5 with different crystallization times are shown in Figure S8.
The synthesis of hierarchical zeolite with no additional mesoscale organic templates is a novel and significant area in the catalysis field. For instance, Yu et al. synthesized the hierarchical porous SAPO-34 zeolites with the assistance of organosilane [41]. Xiao et al. reported the synthesis of hierarchical SAPO-11 molecular, where the released gaseous species were reported as the key factor for the hierarchical structure [33]. Herein, it is interesting to construct the hierarchical structure inside the ZSM-5 crystals without the presence of mesoporous templates. In order to understand the origination of hierarchical structure, we systematically characterized the ZSM-5 zeolites at different crystallization processes with HR-TEM (Figure S9). Accordingly, the proposed mechanism forming the hierarchical zeolite crystals is shown by Scheme 1. In the early stage of gels crystallization, the amorphous fumed silica species are intended to be etched by the highly alkaline environment, considering the zeolite samples are synthesized under highly concentrated conditions and sodium hydroxide is added as the alkalinity resource. The etching effect of strong alkalinity for the starting raw materials portrays the role of a sculptor to construct the mesopores inside the amorphous and partially crystallized fumed silica (Figure S9a,b), which is similar to the post-treatment of zeolites to introduce mesopores via alkali [41,42]. As the crystallization time is prolonged, the formed pores are reserved while the amorphous species were continuously transformed to zeolite crystals (Figure S9c). After the samples are fully crystallized, we could obtain the nano ZSM-5 zeolite crystals with hierarchical structures (Figure S9d). In our research, the synthesis performed under a highly alkaline environment originated from the OH− in the template and the addition of NaOH. The strong alkalinity makes contributions to the formation of zeolite crystals with a hierarchical structure. Weakening the alkalinity of the synthetic gels by adding a certain amount of water, we should obtain the zeolite crystal with less or no mesopores. As predicted, we couldn’t get the mesoporous ZSM-5 zeolite samples when water solvent is added, shown in Figures S10–S12. It is reasonable that the highly concentrated conditions play a critical key to obtain the nanosized crystals and hierarchical structure without the presence of the mesoscale templates.

4. Conclusions

In summary, we have developed an efficient and convenient method to synthesize hierarchical nano ZSM-5 zeolites (SN-ZSM-5) without the addition of mesoporogens under highly concentrated conditions. Such obtained ZSM-5 zeolites show high crystallinity and mesoporosity features. Catalytic tests in MTO show that the SN-ZSM-5 shows greatly extended catalyst lifetime and higher propylene selectivity compared with that of the conventional ZSM-5 zeolite obtained by the hydrothermal route. The combination of efficient preparation and excellent catalytic performance of hierarchical nano ZSM-5 zeolite crystals enables the potential application of these obtained zeolite catalysts in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cryst11101247/s1, Figure S1: XRD pattern of C-ZSM-5, Figure S2: SEM images of C-ZSM-5, Figure S3: N2 sorption isotherms of C-ZSM-5, Figure S4: A TEM image of SN-ZSM-5 with different magnification compared with figure 1d, Figure S5: (a) 29Si, and (b) 27Al MAS NMR spectrum of C-ZSM-5 samples, Figure S6: TG curve of deactivated SN-ZSM-5 catalysts, Figure S7: TG curve of deactivated C-ZSM-5 catalysts, Figure S8: Element mapping images of SN-ZSM-5 with crystallization time at (a) 0, (b) 90, (c) 110 and (d) 240 min, Figure S9: HR-TEM images of SN-ZSM-5 synthesized with different crystallization time at (a) 0, (b) 60, (c) 110, and (d) 240 min, Figure S10: XRD pattern of ZSM-5 (calcined) synthesized with H2O/SiO2 ratio at 26, Figure S11: SEM images of ZSM-5 zeolite synthesized with H2O/SiO2 ratio at 26, Figure S12: N2 sorption isotherms and TEM image of ZSM-5 synthesized with H2O/SiO2 ratio at 26.

Author Contributions

Conceptualization, C.Z.; methodology, C.Z.; validation, C.Z., J.J. and W.X.; formal analysis, C.Z.; investigation, K.F., G.M., C.L., H.Z., Y.Z., S.W. and C.Z.; resources, C.Z., J.J. and W.X.; writing—original draft preparation, C.Z.; writing—review and editing, C.Z., J.J. and W.X.; visualization, C.Z.; supervision, C.Z., J.J. and W.X.; project administration, J.J., B.S. and W.X.; funding acquisition, J.J., B.S. and W.X.; All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key R&D Program of China (2018YFC0808500). The authors would like to thank Xiaoli Fan from Shiyanjia Lab (www.shiyanjia.com, 2021) for the NH3-TPD tests.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Valtchev, V.; Tosheva, L. Porous Nanosized Particles: Preparation, Properties, and Applications. Chem. Rev. 2013, 113, 6734–6760. [Google Scholar] [CrossRef] [PubMed]
  2. Meng, X.J.; Xiao, F.-S. Green Routes for Synthesis of Zeolites. Chem. Rev. 2014, 114, 1521–1543. [Google Scholar] [CrossRef] [PubMed]
  3. Shin, J.; Camblor, M.A.; Woo, H.C.; Miller, S.R.; Wright, P.A.; Hong, S.B. PST-1: A Synthetic Small-Pore Zeolite that Selectively Adsorbs H2. Angew. Chem. Int. Ed. 2009, 48, 6647–6649. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Liang, J.; Liang, Z.B.; Zou, R.Q.; Zhao, Y.L. Heterogeneous Catalysis in Zeolites, Mesoporous Silica, and Metal-Organic Frameworks. Adv. Mater. 2017, 29, 1701139. [Google Scholar] [CrossRef] [PubMed]
  5. Gallego, E.M.; Portilla, M.T.; Paris, C.; Escamilla, A.L.; Boronat, M.; Moliner, M.; Corma, A. “Ab initio” synthesis of zeolites for preestablished catalytic reactions. Science 2017, 355, 1051–1054. [Google Scholar] [CrossRef] [Green Version]
  6. Lopez-Orozco, S.; Inayat, A.; Schwab, A.; Selvam, T.; Schwieger, W. Zeolitic Materials with Hierarchical Porous Structures. Adv. Mater. 2011, 23, 2602–2615. [Google Scholar] [CrossRef]
  7. Choi, M.; Na, K.; Kim, J.; Sakamoto, Y.; Tarasaki, O.; Ryoo, R. Stable single-unit-cell nanosheets of zeolite MFI as active and long-lived catalysts. Nature 2009, 461, 246–249. [Google Scholar] [CrossRef]
  8. Tosheva, L.; Valtchev, V.P. Nanozeolites: Synthesis, Crystallization Mechanism, and Applications. Chem. Mater. 2005, 17, 2494–2513. [Google Scholar] [CrossRef]
  9. Kim, J.; Choi, M.; Ryoo, R. Effect of mesoporosity against the deactivation of MFI zeolite catalyst during the methanol-to-hydrocarbon conversion process. J. Catal. 2010, 269, 219–228. [Google Scholar] [CrossRef]
  10. Bleken, F.L.; Chavan, S.; Olsbye, U.; Boltz, M.; Ocampo, F.; Louis, B. Conversion of methanol into light olefins over ZSM-5 zeolite: Strategy to enhance propene selectivity. Appl. Catal. A 2012, 447–448, 178–185. [Google Scholar] [CrossRef]
  11. Yang, G.J.; Wei, Y.X.; Xu, S.T.; Chen, J.R.; Li, J.Z.; Liu, Z.M.; Yu, J.H.; Xu, R.R. Nanosize-Enhanced Lifetime of SAPO-34 Catalysts in Methanol-to-Olefin Reactions. J. Phys. Chem. C 2013, 117, 8214–8222. [Google Scholar] [CrossRef]
  12. Mintova, S.; Gilsona, J.-P.; Valtchev, V. Advances in nanosized zeolites. Nanoscale 2013, 5, 6693–6703. [Google Scholar] [CrossRef]
  13. Zhu, Z.G.; Xu, H.; Jiang, J.G.; Wu, H.H.; Wu, P. Hydrophobic Nanosized All-Silica Beta Zeolite: Efficient Synthesis and Adsorption Application. ACS Appl. Mater. Interfaces 2017, 9, 27273–27283. [Google Scholar] [CrossRef]
  14. Tsapatsis, M. Hydrothermal Synthesis of Zeolites with Three Dimensionally Ordered Mesoporous-Imprinted Structure. J. Am. Chem. Soc. 2011, 133, 12390–12393. [Google Scholar]
  15. Wang, Z.; Dornath, P.; Chang, C.C.; Chen, H.; Fan, W. Confined synthesis of three-dimensionally ordered mesoporous-imprinted zeolites with tunable morphology and Si/Al ratio. Micropor. Mesopor. Mater. 2013, 181, 8–16. [Google Scholar] [CrossRef]
  16. Chang, C.C.; Teixeira, A.R.; Li, C.; Dauenhauer, P.J.; Wei, F. Enhanced Molecular Transport in Hierarchical Silicalite-1. Langmuir 2013, 29, 13943. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, D.; Li, G.; Liu, J.X.; Wei, Y.; Guo, H.C. Mesoporous Titanium-Silicalite Zeolite Containing Organic Templates as a Bifunctional Catalyst for Cycloaddition of CO2 and Epoxides. ACS Appl. Mater. Interfaces 2018, 10, 22119–22129. [Google Scholar] [CrossRef] [PubMed]
  18. Zhu, Q.J.; Kondo, J.N.; Ohnuma, R.; Kubota, Y.; Yamaguchi, M.; Tatsumi, T. The study of methanol-to-olefin over proton type aluminosilicate CHA zeolites. Micropor. Mesopor. Mater. 2008, 112, 153–161. [Google Scholar] [CrossRef]
  19. Tian, P.; Wei, Y.; Ye, M.; Liu, Z. Methanol to Olefins (MTO): From Fundamentals to Commercialization. ACS Catal. 2015, 5, 1922. [Google Scholar] [CrossRef]
  20. Wang, S.; Li, S.Y.; Zhang, L.; Qin, Z.F.; Chen, Y.Y.; Dong, M.; Li, J.F.; Fan, W.B.; Wang, J.G. Mechanistic insights into the catalytic role of various acid sites on ZSM-5 zeolite in the carbonylation of methanol and dimethyl ether. Catal. Sci. Technol. 2018, 8, 3193–3204. [Google Scholar] [CrossRef]
  21. Liu, Z.M. Methanol to Olefins; Science Press: Beijing, China, 2015. [Google Scholar]
  22. Verboekend, D.; Nuttens, N.; Locus, R.; Van Aelst, J.; Verolme, P.; Groen, J.C.; Peirez-Ramirez, J.; Sels, B.F. Synthesis, characterisation, and catalytic evaluation of hierarchical faujasite zeolites: Milestones, challenges, and future directions. Chem. Soc. Rev. 2016, 45, 3331–3352. [Google Scholar] [CrossRef] [Green Version]
  23. Yoshioka, M.; Yokoi, T.; Tatsumi, T. Development of the CON-type Aluminosilicate Zeolite and Its Catalytic Application for the MTO Reaction. ACS Catal. 2015, 5, 4268–4275. [Google Scholar] [CrossRef]
  24. Majano, G.; Darwiche, A.; Mintova, S.; Valtchev, V. Seed Induced Crystallization of Nanosized Na-ZSM-5 Crystals. Ind. Eng. Chem. Res. 2009, 48, 7084–7091. [Google Scholar] [CrossRef]
  25. Tao, Y.; Kanoh, H.; Abrams, L.; Kaneko, K. Mesopore-Modified Zeolites: Preparation, Characterization, and Applications. Chem. Rev. 2006, 106, 896–910. [Google Scholar] [CrossRef] [PubMed]
  26. Groen, J.C.; Zhu, W.D.; Brouwer, S.; Huynink, S.J.; Kapteijn, F.; Moulijn, J.A.; Perez-Ramirez, J. Direct Demonstration of Enhanced Diffusion in Mesoporous ZSM-5 Zeolite Obtained via Controlled Desilication. J. Am. Chem. Soc. 2007, 129, 355–360. [Google Scholar] [CrossRef] [PubMed]
  27. Maria, M.; Sharon, M.; Paolo, C.; David, C.; Javier, P.-R. Mesopore quality determines the lifetime of hierarchically structured zeolite catalysts. Nat. Comm. 2014, 5, 3922. [Google Scholar] [CrossRef] [Green Version]
  28. Chen, L.; Li, X.; Tian, G.; Li, Y.; Rooke, J.C.; Zhu, G.; Qiu, S.; Yang, X.; Su, B. Highly Stable and Reusable Multimodal Zeolite TS-1 Based Catalysts with Hierarchically Interconnected Three-Level Micro−Meso−Macroporous Structure. Angew. Chem. Int. Ed. 2011, 50, 11156–11161. [Google Scholar] [CrossRef]
  29. Xiao, F.-S.; Wang, L.; Yin, C.; Lin, K.; Di, Y.; Li, J.; Xu, R.; Su, D.; Schlogl, R.; Yokoi, T.; et al. Catalytic properties of hierarchical mesoporous zeolites templated with a mixture of small organic ammonium salts and mesoscale cationic polymers. Angew. Chem. Int. Ed. 2006, 45, 3090–3093. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Ren, L.M.; Wu, Q.M.; Yang, C.G.; Zhu, L.F.; Li, C.J.; Zhang, P.L.; Zhang, H.Y.; Meng, X.J.; Xiao, F.-S. Solvent-free synthesis of zeolites from solid raw materials. J. Am. Chem. Soc. 2012, 134, 15173–15176. [Google Scholar] [CrossRef]
  31. Wu, Q.M.; Wang, X.; Qi, G.D.; Guo, Q.; Pan, S.X.; Meng, X.; Xu, J.; Deng, F.; Fan, F.T.; Feng, Z.C.; et al. Sustainable synthesis of zeolites without addition of both organotemplates and solvents. J. Am. Chem. Soc. 2014, 136, 4019–4025. [Google Scholar] [CrossRef]
  32. Zhang, C.S.; Wu, Q.M.; Lei, C.; Pan, S.X.; Bian, C.Q.; Wang, L.; Meng, X.J.; Xiao, F.-S. Solvent-free and mesoporogen-free synthesis of mesoporous aluminosilicate ZSM-5 zeolites with superior catalytic properties in the Methanol-to-Olefins Reaction. Ind. Eng. Chem. Res. 2017, 56, 1450–1460. [Google Scholar] [CrossRef]
  33. Sheng, N.; Xu, H.; Liu, X.L.; Chu, Y.Y.; Han, S.C.; Meng, X.J.; Liu, Y.Q.; Liu, C.G.; Xiao, F.-S. Self-formation of hierarchical SAPO-11 molecular sieves as an efficient hydroisomerization support. Catal. Today 2020, 350, 165–170. [Google Scholar] [CrossRef]
  34. Keoh, S.H.; Chaikittisilp, W.; Muraoka, K.; Mukti, R.R.; Shimojima, A.; Kumar, P.; Tsapatsis, M.; Okubo, T. Factors governing the formation of hierarchically and sequentially intergrown MFI zeolites by using simple diquaternary ammonium structure-directing agents. Chem. Mater. 2016, 28, 8997–9007. [Google Scholar] [CrossRef]
  35. Baerlocher, C.; McCusker, L.B.; Olson, D.H. Atlas of Zeolite Framework Types, 6th ed.; Elsevier: Amsterdam, The Netherlands, 2007. [Google Scholar]
  36. Sel, O.; Kuang, D.; Thommes, M.; Smarsly, B. Principles of Hierarchical Meso- and Macropore Architectures by Liquid Crystalline and Polymer Colloid Templating. Langmuir 2006, 22, 2311–2322. [Google Scholar] [CrossRef]
  37. Liang, T.; Chen, J.; Qin, Z.; Li, J.; Wang, P.; Wang, S.; Wang, G.; Dong, M.; Fan, W.; Wang, J. Conversion of Methanol to Olefins over H-ZSM-5 Zeolite: Reaction Pathway Is Related to the Framework Aluminum Siting. ACS Catal. 2016, 6, 7311–7325. [Google Scholar] [CrossRef]
  38. Thommes, M.; Mitchell, S.; Pérez-Ramírez, J. Surface and Pore Structure Assessment of Hierarchical MFI Zeolites by Advanced Water and Argon Sorption Studies. J. Phys. Chem. C 2012, 116, 18816–18823. [Google Scholar] [CrossRef]
  39. Camblor, M.A.; Corma, A.; Valencia, S. Characterization of nanocrystalline zeolite Beta. Micropor. Mesopor. Mater. 1998, 25, 59–74. [Google Scholar] [CrossRef]
  40. Yang, M.; Fan, D.; Wei, Y.X.; Tian, P.; Liu, Z.M. Recent Progress in Methanol-to-Olefins (MTO) Catalysts. Adv. Mater. 2019, 31, 1902181–1902195. [Google Scholar] [CrossRef]
  41. Yarulina, A.D.; Chowdhury, F.; Meirer, B.M.; Weckhuysen, J.; Gascon, J. Recent trends and fundamental insights in the methanol-to-hydrocarbons process. Nat. Catal. 2018, 1, 398–411. [Google Scholar] [CrossRef]
  42. Wang, R.W.; Liu, W.T.; Ding, S.; Zhang, Z.T.; Li, J.X.; Qiu, S.L. Mesoporous MFI zeolites with self-stacked morphology templated by cationic polymer. Chem. Commun. 2010, 46, 7418–7420. [Google Scholar] [CrossRef]
  43. Sun, Q.M.; Wang, N.; Xi, D.Y.; Yang, M.; Yu, J.H. Organosilane surfactant-directed synthesis of hierarchical porous SAPO-34 catalysts with excellent MTO performance. Chem. Commun. 2014, 50, 6502–6505. [Google Scholar] [CrossRef] [PubMed]
Crystals 11 01247 g001 550

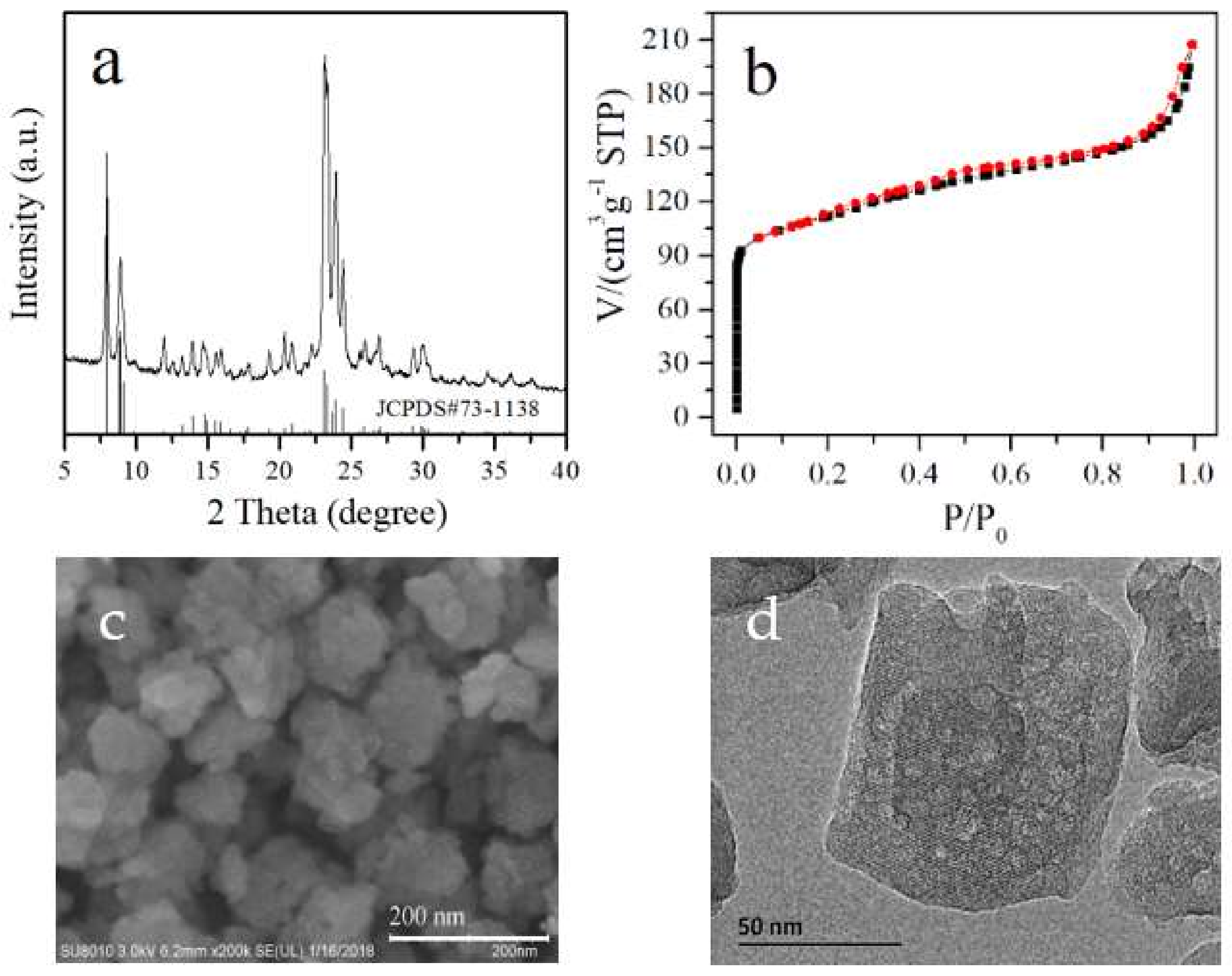

Figure 1. (a) XRD pattern, (b) N2-sorption isotherms, (c) SEM image, and (d) high magnification TEM image of obtained SN-ZSM-5 zeolite.
Figure 1. (a) XRD pattern, (b) N2-sorption isotherms, (c) SEM image, and (d) high magnification TEM image of obtained SN-ZSM-5 zeolite.
Crystals 11 01247 g001
Crystals 11 01247 g002 550

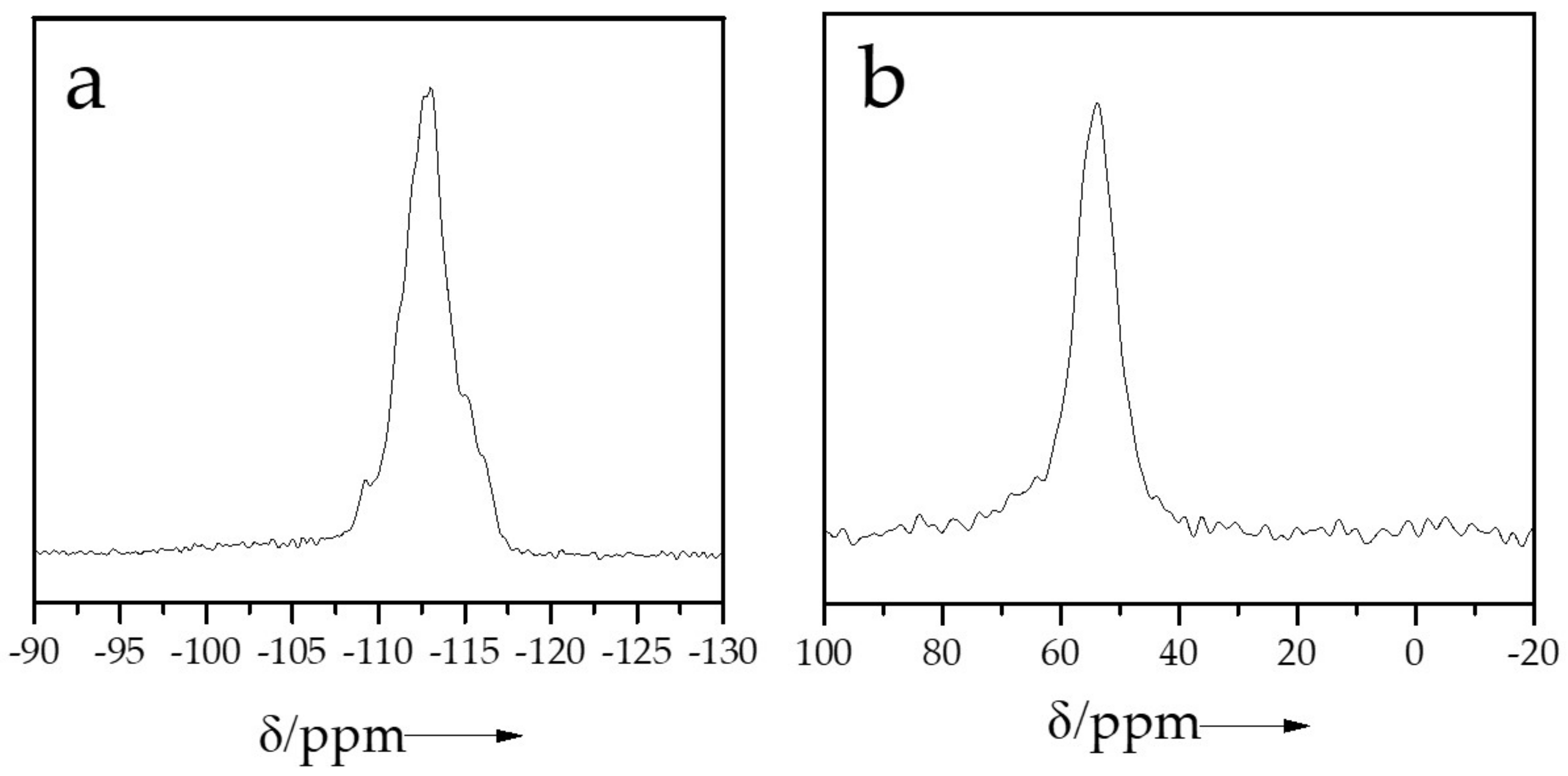

Figure 2. (a) 29Si, and (b) 27Al MAS NMR spectrum of SN-ZSM-5 samples.
Figure 2. (a) 29Si, and (b) 27Al MAS NMR spectrum of SN-ZSM-5 samples.
Crystals 11 01247 g002
Crystals 11 01247 g003 550

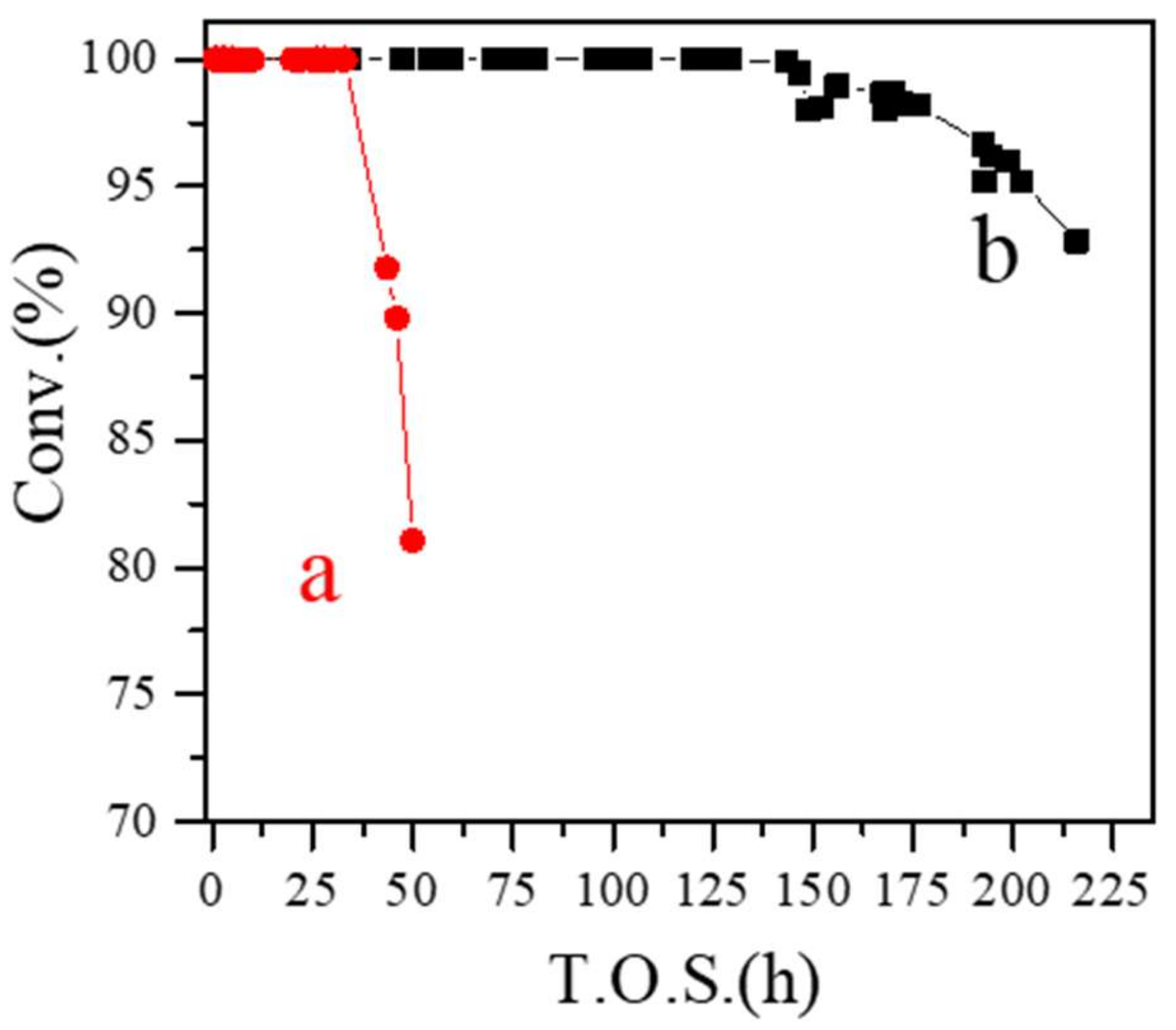

Figure 3. Dependence of methanol conversion on time in MTO reaction over (a) C-ZSM-5 and (b) SN-ZSM-5 catalysts.
Figure 3. Dependence of methanol conversion on time in MTO reaction over (a) C-ZSM-5 and (b) SN-ZSM-5 catalysts.
Crystals 11 01247 g003
Crystals 11 01247 g004 550

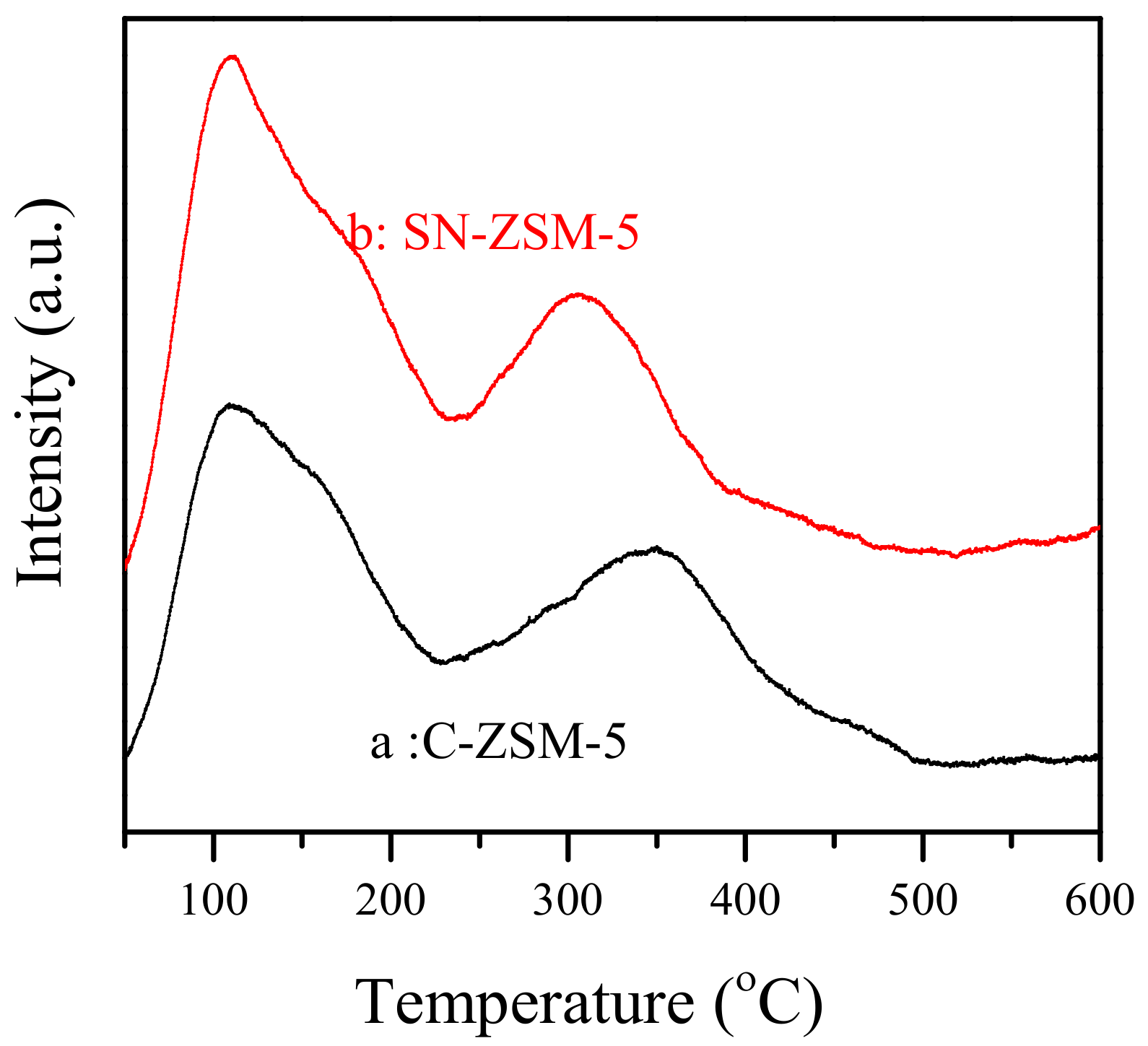

Figure 4. Dependence of NH3-TPD signals on temperature over (a) C-ZSM-5 and (b) SN-ZSM-5 catalysts. The data of b curve is vertically offset for clarity.
Figure 4. Dependence of NH3-TPD signals on temperature over (a) C-ZSM-5 and (b) SN-ZSM-5 catalysts. The data of b curve is vertically offset for clarity.
Crystals 11 01247 g004
Crystals 11 01247 g005 550

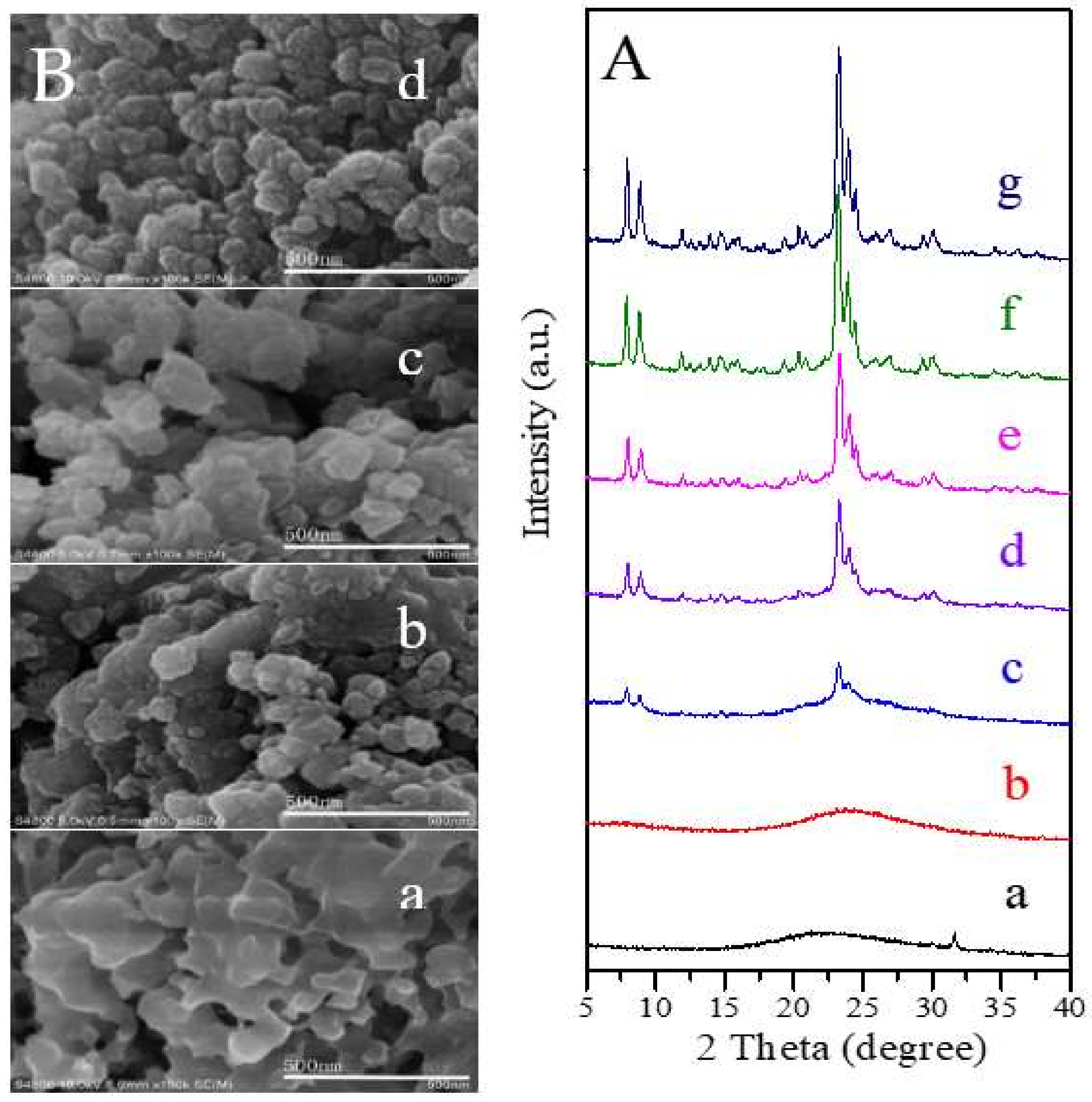

Figure 5. (A) XRD patterns of the SN-ZSM-5 zeolites with crystallization time of (a) 0, (b) 60, (c) 90, (d) 100, (e) 110, (f) 120, (g) 180 min; (B) SEM images of SN-ZSM-5 with crystallization time at (a) 0, (b) 90, (c) 110 and (d) 180 min.
Figure 5. (A) XRD patterns of the SN-ZSM-5 zeolites with crystallization time of (a) 0, (b) 60, (c) 90, (d) 100, (e) 110, (f) 120, (g) 180 min; (B) SEM images of SN-ZSM-5 with crystallization time at (a) 0, (b) 90, (c) 110 and (d) 180 min.
Crystals 11 01247 g005
Crystals 11 01247 sch001 550

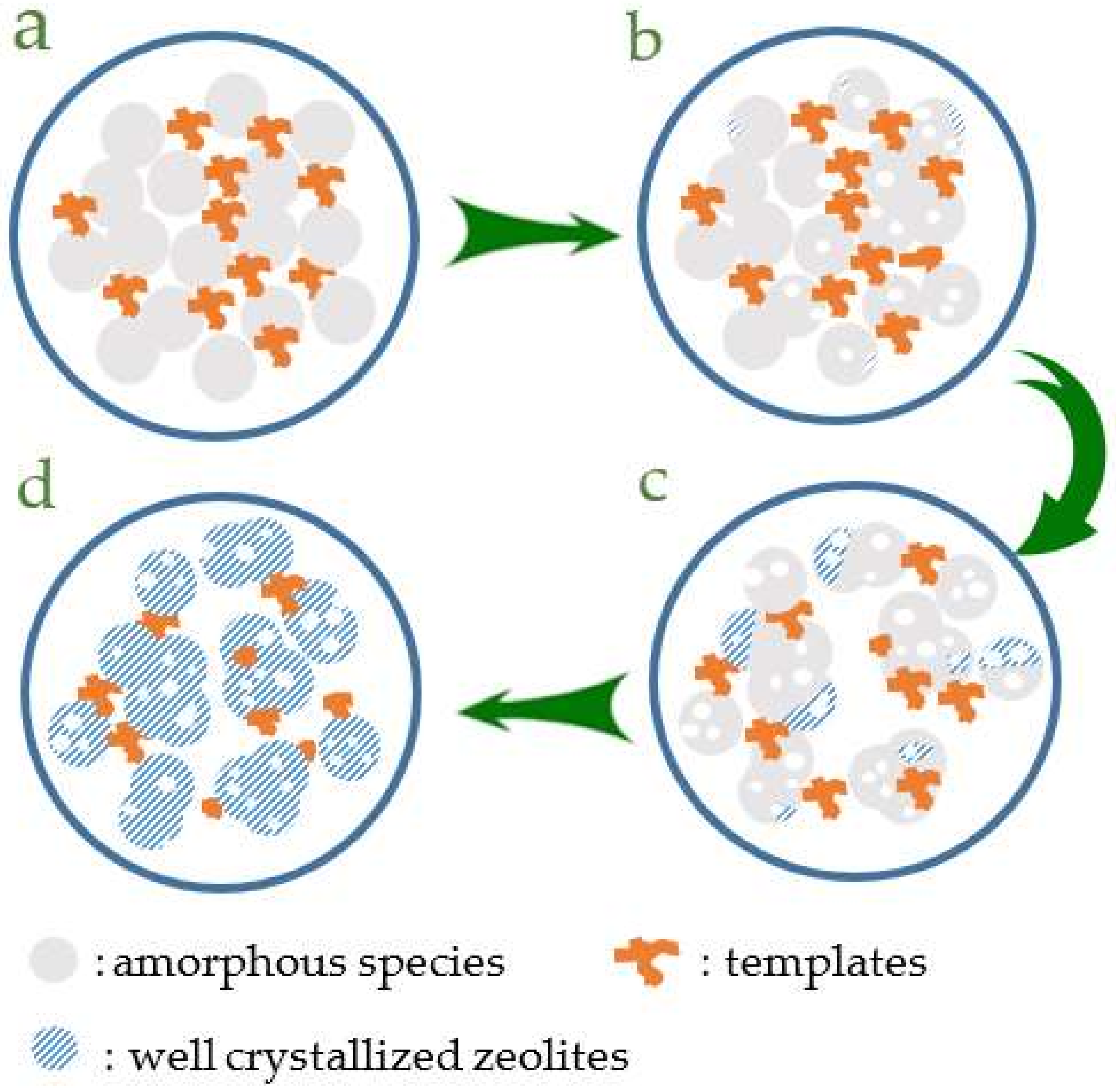

Scheme 1. Formation mechanism for hierarchical structure of the SN-ZSM-5 zeolite (a–d represent the different crystallization periods).
Scheme 1. Formation mechanism for hierarchical structure of the SN-ZSM-5 zeolite (a–d represent the different crystallization periods).
Crystals 11 01247 sch001
Table
Table 1. Product selectivities in MTO over the SN-ZSM-5 and C-ZSM-5 catalysts at reaction time of 1.0 h a.
Table 1. Product selectivities in MTO over the SN-ZSM-5 and C-ZSM-5 catalysts at reaction time of 1.0 h a.
CatalystC1C2−4C2=C3=C4=≥C5
SN-ZSM-52.28.015.742.412.619.1
C-ZSM-52.09.120.139.712.816.3
a: Reaction temperature at 480 °C and WHSV at 1.0 h−1.
