Penetration of Chitosan into the Single Walled Armchair Carbon Nanotubes: Atomic Scale Insight

Abstract

(1) Background: Currently, nanomaterials have been broadly used in various applications including engineering, medicine and biology. One of the carbon allotropes such as carbon nanotubes (CNTs) implemented for fabrication of nanocomposite materials due to the hypersensitivity. The combined design of nanomaterial with chitosan (CS) and CNT expands the field of exploitation from biosensing and tissue engineering to water desalination. Therefore, the penetration of CS into CNT provides a valuable insight into the interactions between CS and CNT. (2) Methods: We performed molecular dynamics simulations, applying the umbrella sampling method, in order to calculate the potential mean force between CS and CNT. (3) Results: The estimated penetration free energies showed that CS is favorable to the penetration into CNT cavities. However, the penetration nature differs depending on the CNT’s architecture. (4) Conclusions: Our finding revealed the CS penetration process into CNT with nanoscale precision. The investigation results assist in a better understanding of the nanocomposite materials based on CS-CNT.

1. Introduction

Carbon nanotubes (CNTs) have been extensively studied due to their unique mechanical strength, electrical conductivity and thermal stability [1,2]. These properties have gained great attention from the scientific community, including academia and industries [3,4,5]. In recent years, the application of CNT-based materials for biomedical purposes such as drug delivery, antimicrobial activity, tissue engineering and biosensors also significantly increased [6,7,8,9,10,11]. Despite the promising features of CNT, the latter itself exhibits cytotoxicity towards the various cell lines [12,13]. Thus, the high toxicity of CNT demands a careful approach in order to design CNT-based nanomaterials. In order to decrease the harmful effects, specifically the cytotoxicity, of these nanomaterials, the modifications or a combined use of CNTs by biopolymers might be an alternative solution [14,15]. Biopolymers such as chitosan (CS) maintains biocompatibility due to its unique biophysical and biochemical properties [16].

CS is a linear polysaccharide, i.e., β-(1 → 4)-linked 2-acetamido-2-deoxy-β-d-glucopyranose and 2-amino-2-deoxy-β-d-glucopyranose, which can be derived by deacetylation of chitin [17]. The human body is able to degrade CS into amino sugars, which become a nontoxic byproduct to the organism. Therefore, CS is quite suitable in biomedical applications [18,19]. In previous studies, a CNT-CS nanomaterial was obtained by depositing CS on the surface of the CNT [20]. The SEM images showed that the CNT structure was not compromised after covering CNT with the cross-linked CSs and it can be used for various biological purposes. Multi-walled CNT (MWCNT) was fabricated in combination with CS and β-Glycerophosphate (i.e., scaffold) with an improved electrical conductivity and mechanical strength [21]. This kind of scaffold might be employed for bone tissue repair and regeneration with the desired mechanical properties. In the literature [8], an antimicrobial porous CNT-CS hydrogel was developed. The hydrogel was found to be effective against the Staphylococcus aureus, Escherichia coli and Candida tropicalis. The controlled drug delivery was achieved by MWCNT-CS, incorporated with the thermosensitive hydrogel [22]. The photothermal irradiation disrupts the hydrogel and consequently leads to the release of the entrapped drug in CNT. Moreover, the special drug-loaded CNT-based systems, which are designed to release encapsulated drugs, have been investigated via molecular level simulations [23,24,25]. The above-mentioned investigations are evidence of the importance of CNT-CS-based nanomaterials in biomedical applications. Despite the advances in the field, the molecular-level interactions between CNT and CS have not been studied in detail yet. Mainly, the adsorption processes of CS on the surface of CNT have been investigated by computer simulations [26,27,28,29,30]. However, the penetration of CS into CNTs with the atomic scale resolution is still unknown.

In this study, we perform umbrella sampling (US) molecular dynamic (MD) [31] simulations to calculate the free energy profiles (FEPs) of chitosan penetrated into the armchair CNTs. We consider three types of armchair nanotubes in our simulations, which differ by their diameters. Specifically, we compare the calculated FEPs of chitosan penetrated into the CNTs in order to elucidate the penetration capability of CS into the CNT cavity.

2. Materials and Methods

2.1. Molecular Dynamics Simulations

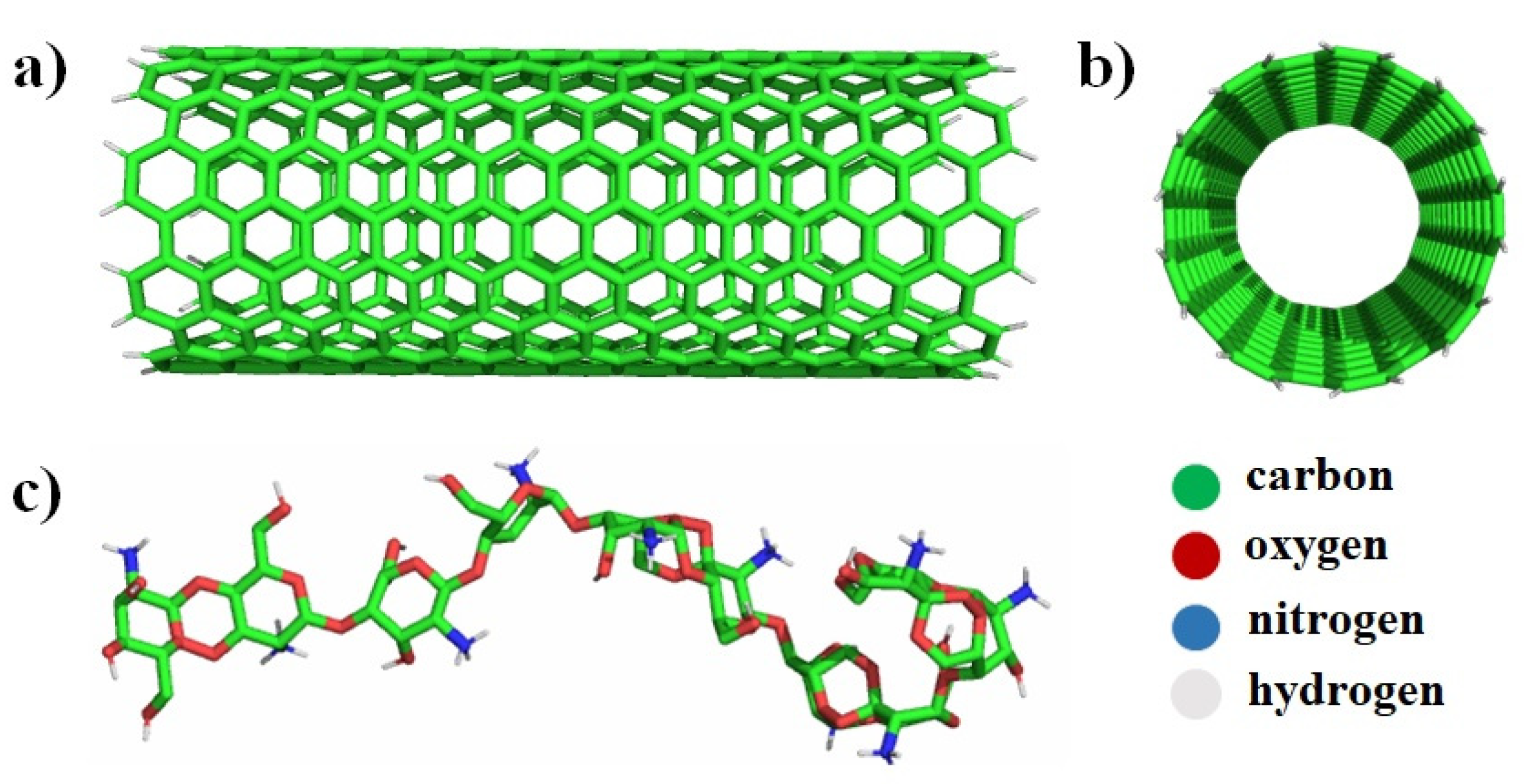

The non-reactive MD simulations were performed by means of GROMACS-5.1 (developed by University of Groningen, Royal Institute of Technology and Uppsala University) program package [32]. The armchair nanotubes 3D structures was created with nanotube builder which is one of the options of VMD software (version 1.9.2, University of Illinois at Urbana-Champaign, Champaign, IL, USA) (see Figure 1a,b) [33]. The three types of CNTs were created with the following parameters: CNT1(9:9), CNT2(11:11) and CNT3(13:13). In our simulations, we used three different model systems MOD1, MOD2 and MOD3, which contains CNT1, CNT2 and CNT3, respectively. The length of the all CNT’s is the same, i.e., 3.26 nm, and the radii of the latter differs one to another. The hydrogen atoms were added to the terminal ends of the CNT using a Jmol software [34].

The opening of CNT can be achieved with H-molecules at relatively low temperatures by assisting various transitional metals such as Co, Ni or Cu [35,36]. These catalysts break H-H and C-C bonds, and consequently hydrogen diffuses to a C atom to create a terminal C-H bond in CNT. The QM/MM and DFT calculations showed forming C-H bonds in the terminal ends of CNT [37,38]. Therefore, we also used H-capped CNT in our model systems.

The all-atom OPLS-AA force field was used to carry out MD simulations [32,39]. The non-bonded interaction parameters and the partial charges were obtained from the literature only for the case of CS [27]. The OPLS-AA force field parameters were applied for CNT, which is available in the database of GROMACS. In order to create model systems, we placed CNT and CS in a tetragonal box with the adequate size, as illustrated in Figure 2, and the 1.0 nm buffer interval was set up between CNT/CS and the boundary of the simulation box. The current dimension was chosen in order to escape long distance interactions between the periodic images of molecules. The space between the closest atoms of CNT and CS is 1.2 nm. In other words, they do not interact during the equilibration and production MD simulations. The reason for this is the mentioned distance is larger than the cut-off radius which was 1.0 nm as applied in our simulations.

The simulation box is filled with the SPC water model [40]. Furthermore, energy minimization runs are performed by applying a steepest descent algorithm [41]. Note that, to fix the positions of CNT, four atoms in terminal ends and one atom of CS, which is close to CNT, were frozen in the X, Y and Z direction. Next, short 100 ps equilibration be carried out using an NVT ensemble (i.e., a system with constant number of particles N, volume V and temperature T) followed by 20 ns productions run employing an NPT ensemble (i.e., a system with constant number of particles N, pressure P and temperature T). During the production run, 300 K temperature and 1 bar of pressure was maintained. The velocity-rescaling thermostat and isotropic Parrinello–Rahman barostat were employed with a coupling constant and a compressibility of 2 ps and 4.5 × 10⁻⁵ bar⁻¹, respectively [42,43]. The long range electrostatic interactions were treated by the particle mesh Ewald (PME) method [44]. The final structure after the production run was extracted from the last snapshot of the simulation trajectory. The obtained model system was further used for the US simulations [31]. The same procedures were implemented for other model systems, such as MOD2 and MOD3.

2.2. Umbrella Sampling Simulations

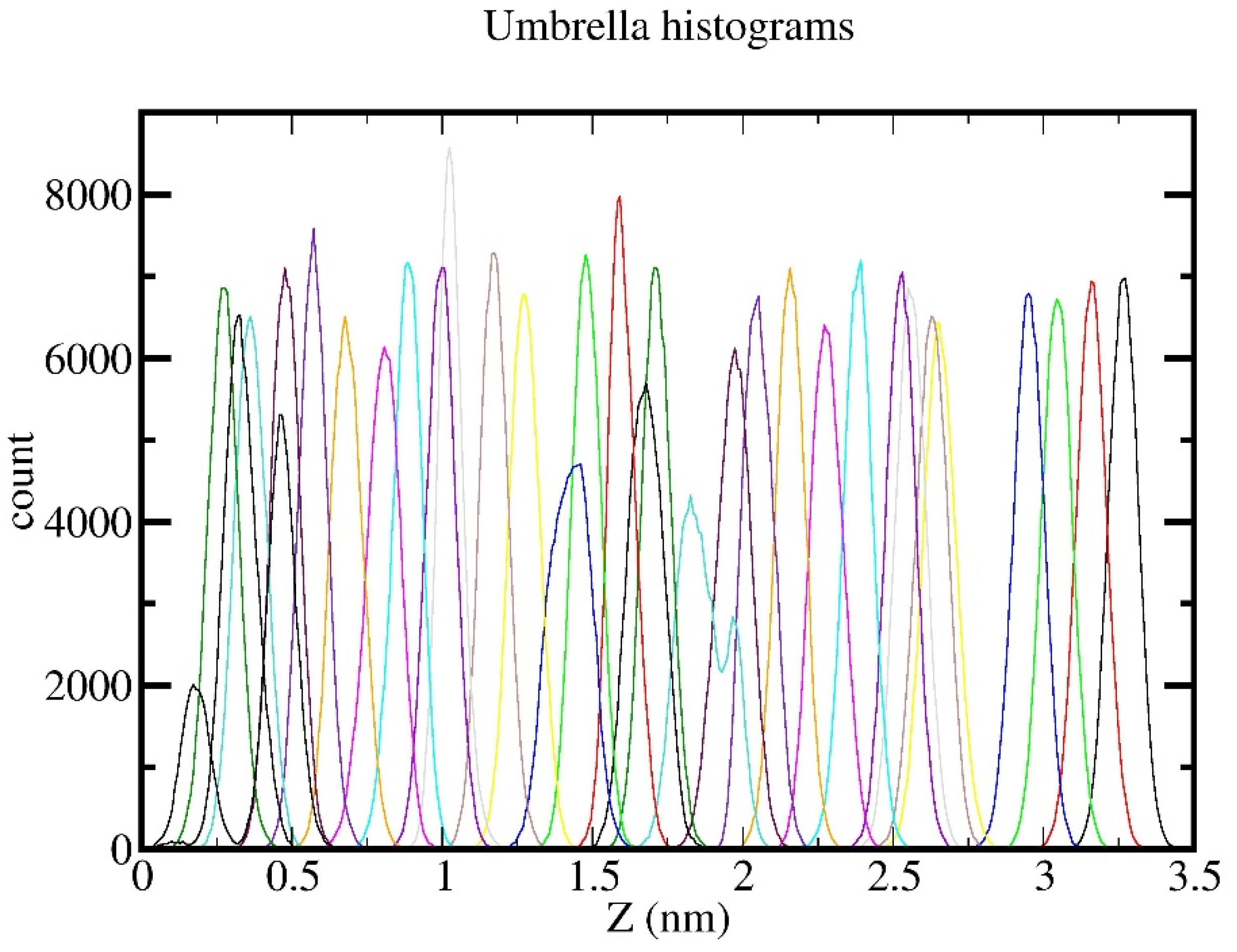

The equilibrated model systems were employed to perform pulling simulations. As a reaction to coordinate the center of mass (COM) of the CNT, one of the oxygen atoms of the CS was set. The external perturbation was applied along the Z-axis on an oxygen atom of CS, while the COM of CNT was restrained. As a result, the external force caused a displacement of the CS towards the CNT and it enabled a calculation of the energy along the reaction coordinate. During the pulling simulation, 1000 kJ/(mol*nm²) spring constant with a pulling rate of 0.01 nm/ps was specified. The current simulation lasted for 300 ps. Furthermore, 30 windows were extracted from the trajectory file by calculating the distance between the COM, each separated by 0.1 nm along the Z-axis. Subsequently, each individual window was run through another 10 ns of US simulations. Afterwards, the obtained output files were used to calculate the potential mean force by making use of the weighted histogram analysis method (WHAM) [45]. The umbrella histograms were calculated for the case of MOD1 system (see Figure A1 in Appendix A). The degree of overlapping positions of these histograms serves as a hallmark for reliable sampling of US simulations. In total, 3 model systems × 30 US = 90 US simulations were performed to obtain the FEPs.

3. Results and Discussion

The production run was performed in order to obtain the equilibrated simulation box for further simulations. The equilibrated simulation box was used to perform a pulling simulation (see above). As is clear from Figure 3, the external force applied to CS relocates it along the Z-axis towards the CNT. Step-by-step CS enters into the CNT and the penetration process takes place until the distance between the reaction coordinates (e.g., COM) reaches zero (see Figure 3c,d). Subsequently, 30 windows were extracted from the simulation trajectory and were used to carry out 10 ns US simulations for each individual window by applying the production run conditions with a zero pulling rate.

The final simulation system, which is CS, was sufficiently embedded into the CNT and further analyzed (see Figure 3d). Interestingly, we found that the part of CS exposed to water was bended and adsorbed on to the surface of CNT1 during the US simulations (cf. Figure 3d and Figure 4a). Moreover, the penetrated part of the CS was almost linear in CNT1 (see Figure 4a). The position of CS in CNT2 changes and most of the part of the CS escapes from the aqueous media by entering into CNT2 (see Figure 4b). In contrast, CS was fully penetrated into CNT3 in the MOD3 system by twirling and rotating its structure (see Figure 4c). The calculated radius of gyration of CS in the MOD3 system shows a comparatively smaller value than MOD1 and MOD2 systems (see

Table A1. The calculated solvent accessible surface area (SASA) and radius of gyration of CS for the case of MOD1, MOD2 and MOD3.

Model System	SASA (nm2)	Rg (Å)
MOD1	19.32 + 0.36	9.60 ± 0.17
MOD2	16.99 + 0.43	9.58 ± 0.22
MOD3	16.43 + 0.77	7.13 ± 0.32

in Appendix A). This means that the tightest packing of CS occurs inside the cavity of CNT in the MOD3 system. Apparently, if the radii of CNT increases, the chance of a full penetration of CS into CNTs also enhances. The calculated average value of E_{CS_CNT} non-bonded interaction energy between CS and CNT rises upon an increase of the radii of CNT (see

Table 1. The calculated non-bonded interaction energy between CS and CNT and CS and water.

Model System	ECS_CNT (kJ/mol)	ECS_water (kJ/mol)
MOD1	−432.42 ± 12.51	−177.08 ± 12.02
MOD2	−452.64 ± 16.44	−104.05 ± 13.97
MOD3	−484.05 ± 12.11	−68.94 ± 12.42

). In these cases, the solvent accessible surface area of CS to water decreases in MOD2 and in MOD3 in comparison with MOD1 (see Table A1 in Appendix A). The calculated average values of E_{CS_water} non-bonded interaction energy between CS and water drops in model systems which include CNT2 and CNT3 (see Table 1).

In order to quantitatively estimate the interaction energy between CS and CNTs, we carried out US simulations to identify the penetration free energy of CS into CNTs. The penetration FEPs help us to draw a conclusion of the penetration capability of CS into CNTs. Figure 5 exhibits the FEPs of CS pulled towards the COM of CNTs. Note that the difference between the maximum and minimum FEP gives the penetration free energy. Indeed, there is no interaction energy between CS and CNTs in the initial stage of the US simulations (see Figure 5). It is clear that FEPs start to decrease as CS enters into the interaction range of CNTs. Based on the graph, the calculated penetration-free energies of CS are found to be −201.87 ± 11.41, −161.13 ± 13.10 and −127.93 ± 5.13 kJ/mol for MOD1, MOD2 and MOD3 systems, respectively. Apparently, the penetration free energy of CS in the MOD1 system was lowest. This means that the partial penetration of CS into CNT1 and adsorption of remained part of CS on the surface of CNT1 shows the most stable state of CS. The penetration free energy also showed negative values in MOD2 and MOD3 systems in comparison with the MOD1 system. The negative values of penetration free energy in all three systems indicate that in aqueous media, CS favorably permeates into CNTs.

4. Conclusions

We studied the penetration capability of CS in three different kinds of CNTs employed in US MD simulations. The calculated FEP results indicate that CS partial penetration into CNT1, and the adsorption which remained partly on the surface of the latter, was the most energetically favorable position compared to other model systems. Interestingly, we observed that the CS penetration nature considerably changed in MOD2 and MOD3 systems. When the radii of CNT increased (e.g., in CNT2 and CNT3), CS moved further into the CNT. Specifically, CS rotated and maintained the spiral shape inside the CNT3 and the CS was entirely encapsulated in it.

Overall, the results of this study reveal the molecular level mechanisms of linear penetration and the full encapsulation process of CS into CNTs. The fully encapsulated CS into CNT3 can be employed to understand the targeted delivery system for biomedical purposes [46,47]. Moreover, these kinds of CS-CNT fabricated nanocomposites were also used for water desalination [48,49]. In general, our findings help to understand CS and CNT interactions in detail with the nanoscale resolution.
