Design, Synthesis, Crystal Structure, and Fungicidal Activity of Two Fenclorim Derivatives

Abstract

Two fenclorim derivatives (compounds 6 and 7) were synthesized by linking active sub-structures using fenclorim as the lead compound. The chemical structures of the two compounds were confirmed by NMR spectroscopy, high resolution mass spectrometry, and X-ray diffraction analysis. Their fungicidal activity against six plant fungal strains was tested. Compounds 6 and 7 both crystallized in the monoclinic system, with a P2₁/c space group (a = 8.4842(6) Å, b = 24.457(2) Å, c = 8.9940(6) Å, V = 1855.0(2) ų, Z = 4) and Cc space group (a = 10.2347(7) Å, b = 18.3224(10) Å, c = 7.2447(4) Å, V = 1357.50(14) ų, Z = 4), respectively. The crystal structure of compound 6 was stabilized by C–H···N and C–H···O hydrogen bonding interactions and N–H···N hydrogen bonds linked the neighboring molecules of compound 7 to form a three-dimensional framework. Compound 6 displayed the most excellent activity, which is much better than that of pyrimethanil against Botrytis cinerea in vivo. Additionally, compound 6 exhibited greater in vitro activity against Pseudoperonospora cubensis compared to that of pyrimethanil. Moreover, compound 7 exhibited strong fungicidal activity against Erysiphe cichoracearum at 50 mg/L in vitro, while pyrimethanil did not. Compounds 6 and 7 could be used as new pyrimidine fungicides in the future.

1. Introduction

Plant diseases caused by fungi can significantly affect the growth and development of crops such as potato, soybean, and rice, and reduce the yield (20% perennial yield losses and 10% postharvest losses) of crop plants globally [1,2,3,4]. Meanwhile, fungal plant diseases also cause fresh fruit yield loss due to the shortening of storage times and secretion of fungal toxins that can damage human health [5,6]. Chemically synthesized fungicides are a major tool that producers use to protect against plant diseases. However, long-term and unreasonable application of fungicides has led to the emergence of resistance [7,8,9,10,11]. Hence, novel and efficient fungicides are necessary to solve problems arising from current fungicide resistance.

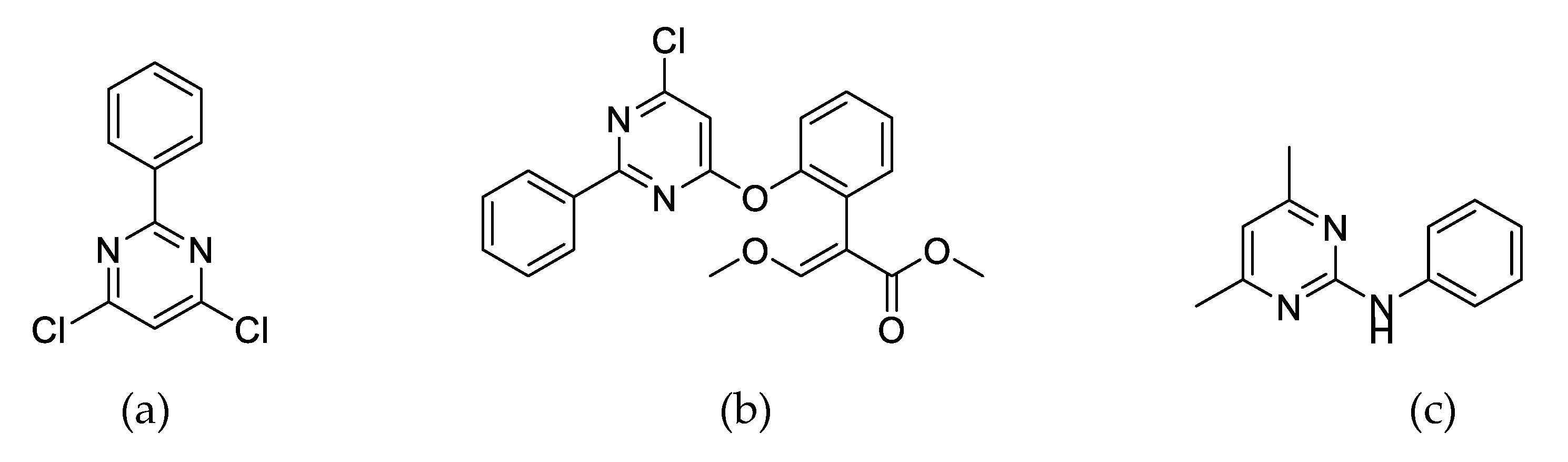

Fenclorim (4,6-dichloro-2-phenyl-pyrimidine, Figure 1a) is a commercial herbicide safener, which could alleviate the injury caused by chloroacetanilide herbicides, especially pretilachlor, without affecting their herbicide activity [12,13]. Zheng et al. [12] showed that fenclorim exhibited excellent in vivo fungicidal activity against Sclerotinia sclerotiorum, Fusarium oxysporum, Fusarium graminearum, and Thanatephorus cucumeris, and could be used as a lead compound to design novel pyrimidine-type fungicides. A fenclorim derivative, named N-(4,6-dichloropyrimidine-2-yl) benzamide, was synthesized by inserting an amide group between the phenyl ring and the pyrimidine ring in fenclorim to study the activity relationship (SAR) against fenclorim. This derivative displayed greater fungicidal activity than that of lead fenclorim and the positive control of pyrimethanil against Sclerotinia sclerotiorum and Fusarium oxysporum, with in vivo IC₅₀ values of 1.23 and 9.97 mg/L, respectively. These results indicate that the modification of fenclorim can produce highly active fungicidal compounds and that fenclorim provides broad potential as a lead compound for screening fungicides.

Azoxystrobin (Figure 1b) and pyrimethanil (Figure 1c) are commercial pyrimidine fungicides. Azoxystrobin, named methyl (E)-2-{[6-(2-cyanophenoxy)-4-pyrimidinyl]oxy}-alpha-(methoxy methylene)benzeneacetate, belongs to the strobilurin fungicides, and was commercialized in 1996. Azoxystrobin stably held 23–25% of the fungicide market share until 2016. Azoxystrobin is a broad-spectrum fungicide and that displays strong activity against plant fungi such as ascomycetes, deuteromycetes, and oomycetes in crop plants, vegetables, and fruits [14]. Azoxystrobin causes the mitochondrial respiration of pathogenic fungi to be hindered, by binding to the Q₀ site of cytochrome bc1 enzyme complex to block electron transfer and freeze adenosine triphosphate (ATP) production [15]. Pyrimethanil, named 4,6-dimethyl-N-phenylpyrimidin-2-amine, was commercialized in 1991 and controlled plant fungi such as pear scab (Venturia pirina) and gray mold (Botrytis cinerea) in agricultural product [16]. It acts as an athogenesis inhibitor to inhibit the secretion of cell wall degrading enzymes in plant fungi [17].

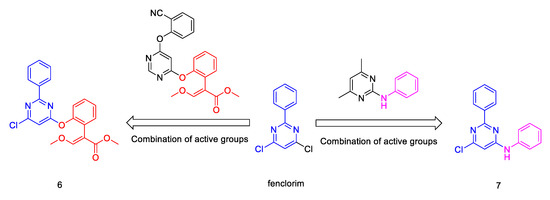

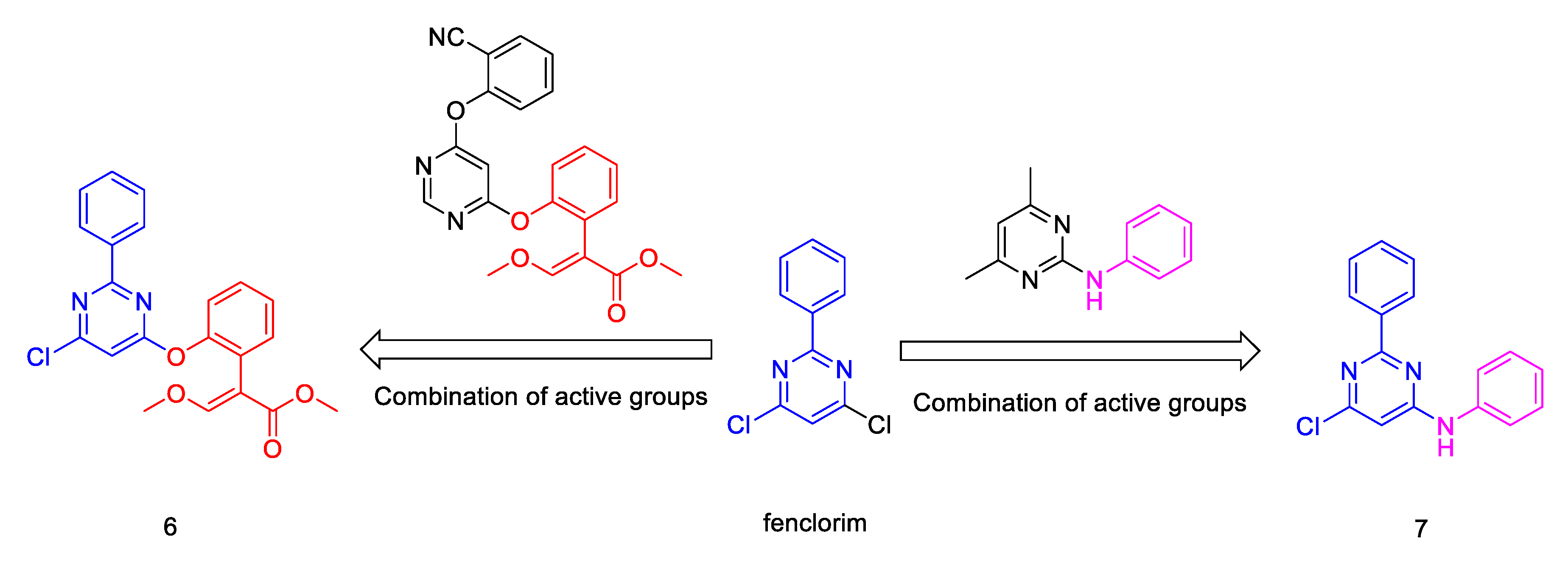

The linking of active sub-structures to compounds is a common method for identifying novel pesticides [18,19,20]. Here, in order to find new fungicide candidates with high efficiency, two fenclorim derivatives (compound 6 and 7) were synthesized via the linking of active sub-structures. This was achieved by combining the (Z)-methyl 2-iodo-3-methoxyacrylate group substituted phenoxy group (red) in azoxystrobin and the aminophenyl group (pink) in pyrimethanil (Scheme 1). The chemical structures of compounds 6 and 7 were confirmed by NMR spectroscopy, high-resolution mass spectrometry (HRMS) and X-ray diffraction analysis. Their fungicidal activity against Botrytis cinerea (B. cinerea), Pseudoperonospora cubensis (P. cubensis), Erysiphe cichoracearum (E. cichoracearum), Blumeria graminis (B. graminis), Rhizoctonia solani (R. solani), and Puccinia polysora (P. polysora) were evaluated. These results provide useful guidance for designing novel fungicides using fenclorim as a lead compound.

2. Materials and Methods

2.1. Chemicals

All chemicals used in this research, including reagents and starting materials, were obtained from the Jilin Chinese Academy of Sciences, Yanshen Technology Co., Ltd., Jilin, China. ¹H and ¹³C NMR spectra were recorded using a Bruker Avance-300 spectrometer (Bruker AXS, Karlsruhe, BW, Germany) operating at 300 MHz (¹H) and 75 MHz (¹³C), respectively, with chemical shifts reported in ppm (δ). Deuterated chloroform (CDCl₃) was used as the solvent and tetramethylsilane (TMS) was used as the internal standard. HRMS analysis data was obtained on an FTICR-MS Varian 7.0 T FTICR-MS instrument (Varian IonSpec, Lake Forest, CA, USA). Melting points were measured using a Hanon MP100 automatic melting point instrument (Jinan Hanon Instruments Co., Ltd., Jinan, Shandong, China) using an open capillary tube. X-ray crystal structures of compounds 6 and 7 were measured using a Bruker SMART APEX II X-ray single-crystal diffractometer (Bruker AXS, Karlsruhe, BW, Germany). Reagents obtained from commercial sources were used without further purification.

2.2. Synthetic Procedure

Target compounds 6 and 7 were synthesized based on methods reported in the literature [21,22,23]. The synthetic routes of target compounds 6 and 7 are described in Scheme 2; Scheme 3.

2.2.1. Synthesis of (Z)-methyl 2-iodo-3-methoxyacrylate (2)

A mixture of 1 (1.00 g, 8.61 mmol), N-iodosuccinimide (NIS, 2.32 g, 10.33 mmol), glacial acetic acid (0.98 mL, 17.22 mmol), and dichloromethane (15 mL) was stirred at 20 °C for 24 h. Afterwards, triethylamine (TEA, 4.2 mL, 30 mmol) was added dropwise. The reaction mixture was then stirred at 20 °C for another 12 h and water (30 mL) was added to quench the reaction. The mixture was extracted with dichloromethane (20 mL) twice. The organic extract was washed with saturated aqueous sodium thiosulfate (30 mL) twice, saturated aqueous sodium bicarbonate (30 mL) twice, and water (30 mL) twice. The mixtures were dried using anhydrous sodium sulfate and concentrated under vacuum. The residue was further purified by silica gel column chromatography (1:6 ethyl EtOAc /hexane) to obtain 3 (white solid, 1.56 g, 75.1%).

2.2.2. (E)-Methyl-3-methoxy-2-(2-phenoxyphenyl)acrylate (3)

A mixture of intermediate 2 (1.00 g, 4.13 mmol), arylboronic acid (1.23 g, 5.37 mmol), Pd(PPh₃)₄ (0.24 g, 0.21 mmol) and K₃PO₄ (2.63 g, 12.40 mmol) was dissolved into a mixture of 6 mL dioxane and 2 mL water, and this mixture was stirred under nitrogen atmosphere at 90 °C for 10 h. Then, the reaction mixture was cooled down, poured into ice water (100 mL) and extracted with EtOAc (30 mL) twice. The mixture was dried using anhydrous sodium sulfate and the solvent was evaporated under vacuum. Next, the residue was purified by silica gel column chromatography (1:8 EtOAc /hexane) to obtain 4 (white solid, 1.56 g, 90.3%).

2.2.3. (E)-Methyl-3-methoxy-2-(2-hydroxyphenyl)acrylate (4)

A mixture of 10 wt. % Pd/C (0.18 g, 0.085 mmol) was added into a solution of compound 4 (1.00 g, 3.36 mmol) in 30 mL EtOAc. The mixed solution was then stirred under a H₂ atmosphere (1 atm) at 35 °C for 12 h. Then, the reaction mixture was filtered and the filtrate was concentrated under vacuum. The residue was further purified by silica gel column chromatography (1:3 EtOAc /hexane) to afford 4 (1.34 g, 95.4%).

2.2.4. Methyl (E)-2-{2-[(6-chloro-2-phenylpyrimidin-4-yl)oxy]phenyl}-3-methoxyacrylate (6)

A mixture of intermediate 4 (1.00 g, 4.80 mmol), fenclorim 5 (2.16 g, 9.60 mmol), and K₂CO₃ (1.33 g, 9.60 mmol) was dissolved in dry dimethylformamid (DMF, 50 mL) at 0 °C under nitrogen atmosphere. The mixture was then stirred at this temperature for a further 12 h. The mixture was then poured into ice water (100 mL) and extracted with EtOAc (20 mL) twice. The organic extract was evaporated under vacuum and the residue was purified by silica gel column chromatography (1:7 EtOAc /hexane) to afford compound 6 (2.99 g, 79%). Compound 6 was a white solid with the following characteristics: m.p. 121–122 °C; ¹H NMR (300 MHz, CDCl₃) δ [ppm]: 3.54 (s, 3H, OCH₃), 3.67 (s, 3H, OCH₃), 6.63 (s, 1H, PyH), 7.24–7.26 (m, 2H, ArH), 7.32–7.35 (m, 2H, ArH), 7.39–7.44 (m, 4H, ArH+CH), 8.28–8.32 (m, 2H, ArH); ¹³C NMR (75 MHz, CDCl₃) δ [ppm]:170.5, 167.4, 165.0, 162.0, 161.0, 150.3, 135.7, 132.7, 131.6, 129.1, 128.7, 128.5, 126.1, 125.9, 122.0, 107.2, 104.5, 61.8, 50.8 HRMS (ESI+) m/z: 397.0950 ([M+H]⁺); found: 397.0946.

2.2.5. 6-chloro-N-2-diphenylpyrimidin-4-amine (7)

A mixture of fenclorim 5 (1.00 g, 4.44 mmol), phenylamine (0.34 g, 3.70 mmol) and TEA (0.50 g, 4.44 mmol), was dissolved in dry N-methylpyrolidin-2-one (NMP, 20 mL) at 120 °C under nitrogen atmosphere for 24 h. The mixture was then cooled to room temperature, and a mixture of EtOAc (20 mL) and saturated sodium chloride solution (20 mL) was added. Then, this mixture was stirred for 30 min. The organic layer was separated, dried using anhydrous sodium sulfate, filtered, and concentrated under a vacuum. Next, the residue was purified using silica gel column chromatography (1:6 EtOAc/hexane) to obtain compound 7 (0.90 g, 72%). Compound 7 was a white solid with the following characteristics: m.p. 95-96 °C; ¹H NMR (300 MHz, CDCl₃) δ [ppm]: 6.61 (s, 1H, PyH), 6.92 (s, 1H, NH), 7.21–7.27 (m, 1H, ArH), 7.36–7.50 (m, 7H, ArH), 8.37–8.41 (m, 2H, ArH); ¹³C NMR (75 MHz, CDCl₃) δ [ppm]: 164.9, 162.1, 160.9, 137.5, 136.5, 131.1, 129.5, 128.4, 128.3, 125.4, 122.6, 100.5; HRMS (ESI+) m/z: 282.0790 ([M+H]⁺); found: 282.0793.

2.3. Structural Determination

Colorless single crystals of compounds 6 and 7 were obtained by slowly evaporating a methanol solution containing pure compounds 6 and 7 at room temperature. Single crystal X-ray diffraction data of compounds 6 and 7 were obtained using a SuperNova, Dual, Cu at zero, AtlasS2 diffractometer (Agilent, CA, USA) equipped with MoKα radiation (λ = 1.54184 Å) at 100.00(10) K. The crystal dimensions of compounds 6 and 7 were 0.11 × 0.11 × 0.08 mm³ and 0.14 × 0.13 × 0.12 mm³, respectively.

A total of 3608 reflections were collected by employing an ω scan mode for compound 6, 6797 of which were independent with R_int = 0.1240, R_sigma = 0.1384. The final R₁ was 0.0697 (I > 2σ(I)) and wR2 was 0.1869 for compound 6. A total of 4819 reflections were collected by using ω scan mode for compound 7, 1795 of which were unique with R_int = 0.0317 and R_sigma = 0.0245. The final R₁ was 0.0372 (I > 2σ(I)) and wR₂ was 0.0990. The structures of compounds 6 and 7 were solved using the ShelXT structure solution program by Intrinsic Phasing and refined with the ShelXL refinement package via Least Squares minimization, using Olex2 [24,25,26].

The crystal data and structure refinement details of the compounds 6 and 7 are provided in

Table 1. Crystal data and structural refinements of compounds 6 and 7.

Compound	6	7
CCDC No.	1878381	1870401
Empirical formula	C21H17ClN2O4	C16H12ClN3
Formula weight	396.82	281.74
Temperature/K	100.00(10)	100.00(10)
Crystal system	monoclinic	monoclinic
Space group	P21/c	Cc
a/Å	8.4842(6)	10.2347(7)
b/Å	24.457(2)	18.3224(10)
c/Å	8.9940(6)	7.2447(4)
α/°	90	90
β/°	96.305(6)	92.266(6)
γ/°	90	90
Volume/Å3	1855.0(2)	1357.50(14)
Z	4	4
ρcalcg/cm3	1.421	1.379
μ/mm−1	2.092	2.418
F(000)	824.0	584.0
Crystal size/mm3	0.11 × 0.11 × 0.08	0.14 × 0.13 × 0.12
Radiation	CuKα (λ = 1.54184)	CuKα (λ = 1.54184)
2Θ range for data collection/°	7.228 to 177.332	9.654 to 148.926
Index ranges	−10 ≤ h ≤ 10, −29 ≤ k ≤ 30, −8 ≤ l ≤ 10	−12 ≤ h ≤ 8, −22 ≤ k ≤ 21, −8 ≤ l ≤ 8
Reflections collected	6427	4819
Independent reflections	3608 [Rint = 0.1240, Rsigma = 0.1384]	1795 [Rint = 0.0317, Rsigma = 0.0245]
Data/restraints/parameters	3608/54/255	1795/2/181
Goodness-of-fit on F2	1.053	1.053
Final R indexes [I ≥ 2σ (I)]	R1 = 0.0697, wR2 = 0.1650	R1 = 0.0372, wR2 = 0.0985
Final R indexes [all data]	R1 = 0.0835, wR2 = 0.1869	R1 = 0.0376, wR2 = 0.0990
Largest diff. peak/hole/ e Å−3	1.17/−1.33	0.22/−0.30

. The crystallographic data for compounds 6 and 7 are available from the Cambridge Crystallographic Data Centre (CCDC) (www.ccdc.cam.ac.uk/structures/), with CCDC No. 1878381 and 1870401, respectively.

2.4. Fungicidal Activity

The in vivo fungicidal activity (EC₅₀ values) of compounds 6, 7, fenclorim, and pyrimethanil against P. cubensis were tested according to methods in the reported literature [27,28]. The fungicidal activities of compounds 6, 7, fenclorim and pyrimethanil against P. cubensis, E. cichoracearum, B. graminis, R. solani, and P. polysora were tested at different concentrations in vitro using methods reported previously [5].

3. Results and Discussion

3.1. Synthesis and Spectroscopic Properties

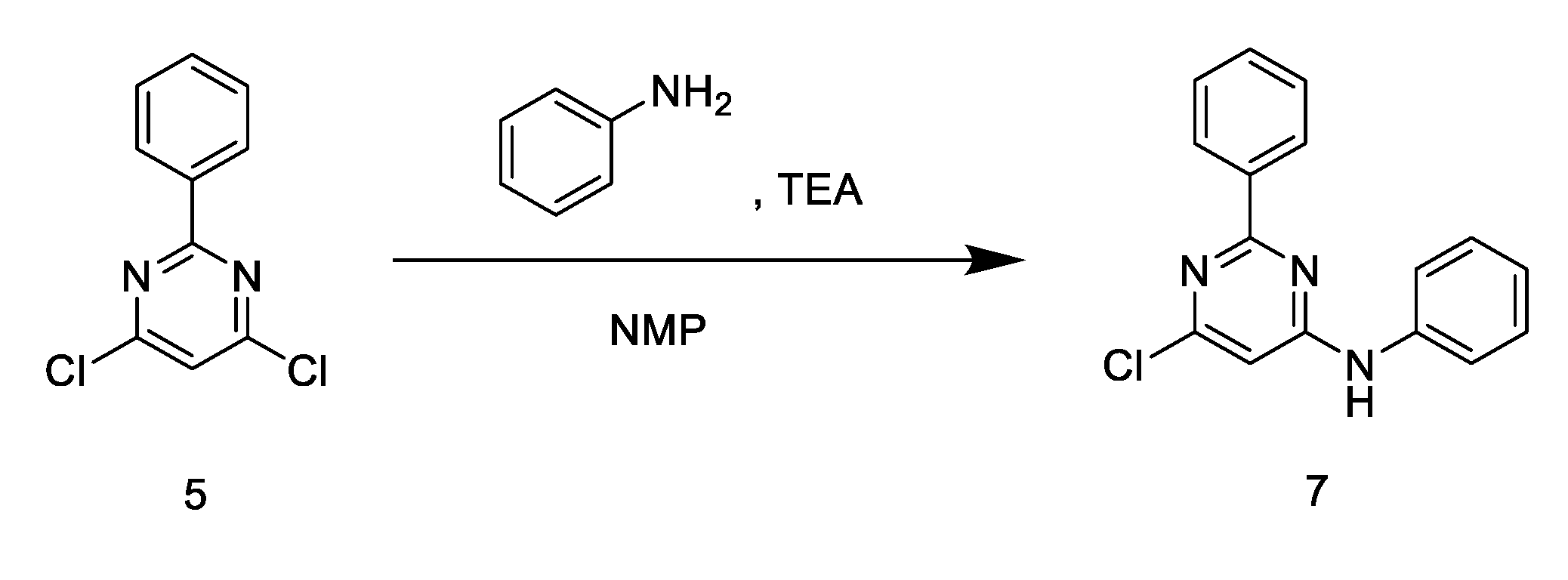

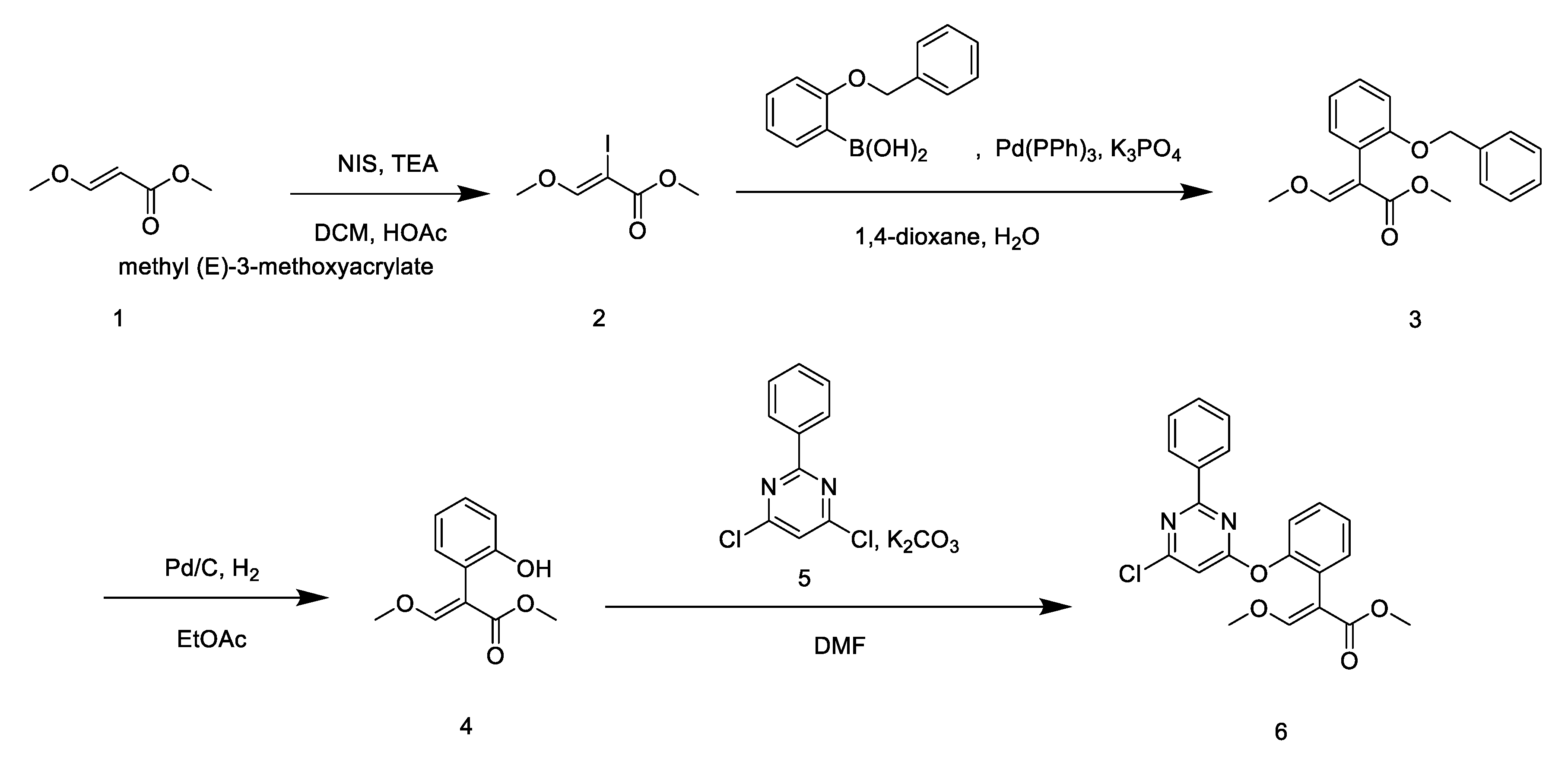

The synthetic routes for compounds 6 and 7 are described in Scheme 2; Scheme 3. Intermediate 2 was synthesized through the nucleophilic substitution of the acrylate group of methyl (E)-3-methoxyacrylate by N-iodosuccinimide. The formation of intermediate 3 from intermediate 2 and arylboronic acid was achieved via the Suzuki–Miyaura cross-coupling reaction. The synthesis of intermediate 4, the precursor of compound 6, was achieved via the reduction of intermediate 4 using Pd(PPh₃)₄ as the catalyst under nitrogen atmosphere. Compound 6 was afforded by the condensation of intermediate 4 and fenclorim 5. Compound 7 was synthesized by a one-step condensation method, using fenclorim and phenylaline as starting materials.

The chemical structures of compound 6 and 7 were characterized by NMR spectroscopy, HRMS, and X-ray diffraction analysis. For compound 6, signals corresponding to C–H protons in the phenyl ring and pyrimidine were observed at δ 7.21–8.41 and δ 6.61, respectively; signals corresponding to the C–H proton to N–H proton in imino group were observed δ 6.69. For compound 7, signals corresponding to C–H protons in methoxyl groups were observed at δ 3.54 and δ 3.67, respectively; signals corresponding to the C–H proton to C–H proton in pyrimidine ring were observed at δ 6.63, and signals corresponding to the C–H proton in the phenyl ring were at δ 7.24–8.32. In the compound 6 ¹³C-NMR spectra, chemical shifts of carbons that resonated at δ 107.18–170.47 were assigned to carbons in the phenyl ring and pyridine ring. The chemical shifts of carbons that resonated at δ 51.59 and 61.93, respectively, were assigned to the carbons in methoxyl groups. The signal at δ 104.46 can be assigned to carbon (C-7) in the acrylate group. In the ¹³C-NMR spectra of compound 7, chemical shifts linked to aromatic rings (phenyl ring and pyrimidine ring) appeared at 100.5–164.94. All HRMS data for compounds 6 and 7 were well-matched with theoretical values calculated from their chemical formula.

3.2. Crystal Structures of Compounds 6 and 7

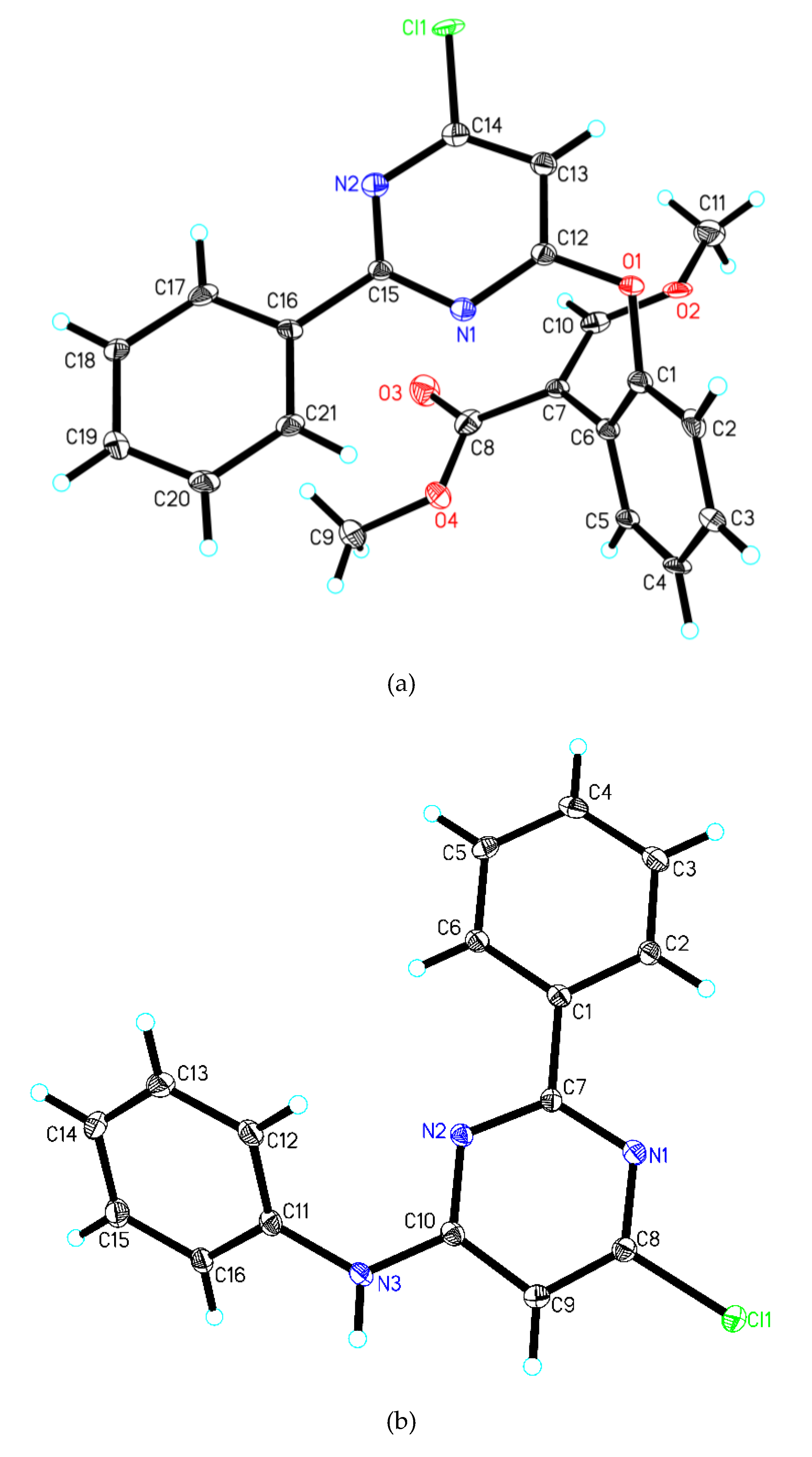

Compounds 6 and 7 both crystallized in the monoclinic system, with a P2₁/c space group and Cc space group, respectively. The molecular structures of compounds 6 and 7 are described in Figure 2a,b, and selected molecular structure parameters, including bond lengths and bond angles for compound 6 and 7, are listed in

Table 2. Selected bond lengths (Å) and bond angles (°) for compound 6.

Bond	Distance (Å)	Bond	Distance (Å)
C(12)–O(1)	1.338(5)	C(1)–O(1)	1.362(5)
C(10)–O(2)	1.386(6)	C(15)–N(1)	1.338(5)
C(11)–O(2)	1.472(6)	C(15)−N(2)	1.308(6)
C(8)–O(4)	1.353(6)	C(14)−N(2)	1.396(6)
C(9)–O(4)	1.537(6)	C(8)−O(3)	1.229(6)
C(12)–N(1)	1.412(5)	C(14)−Cl(1)	1.692(5)
C(15)−C(16)	1.556(5)	C(14)−C(13)	1.367(6)
C(1)−C(6)	1.397(6)	C(5)−C(4)	1.380(6)
C(12)−C(13)	1.362(6)	C(20)−C(19)	1.371(6)
C(15)−C(16)	1.556(5)	C(7)−C(10)	1.391(6)
Angle	(°)	Angle	(°)
C(12)−O(1)−C(1)	115.3(3)	O(1)−C(12)−C13	112.2(4)
C(10)−O(2)−C(11)	116.7(4)	N(1)−C(15)−C16	118.7(4)
C(8)−O(4)−C(9)	118.7(4)	N(2)−C(15)−N1	121.5(4)
C(15)−N(1)−C(12)	117.7(4)	N(2)−C(15)−C16	119.8(3)
C(15)−N(2)−C(14)	118.2(4)	O(1)−C(1)−C2	115.0(4)
O(1)−C(12)−N(1)	122.2(4)	O(1)−C(1)−C(6)	119.9(4)
N(2)−C(14)−C(11)	118.7(3)	C(13)−C(14)−N(2)	126.4(4)
O(4)−C(8)−C(7)	115.5(3)	O(3)−C(8)−O(4)	118.3(4)

and

Table 3. Selected bond lengths (Å) and bond angles (°) for compound 7.

Bond	Distance (Å)	Bond	Distance (Å)
Cl(1)–C(8)	1.732(3)	C(1)−C(2)	1.399(4)
N(3)−C(11)	1.413(4)	C(1)−C(6)	1.401(4)
N(3)−C(10)	1.356(4)	C(5)−C(6)	1.384(4)
N(1)−C(7)	1.343(4)	C(5)−C(4)	1.389(4)
N(1)−C(8)	1.339(4)	C(9)−C(8)	1.360(4)
N(2)−C(7)	1.337(3)	C(9)−C(10)	1.412(4)
N(2)−C(10)	1.341(4)	C(15)−C(14)	1.390(4)
C(11)−C(16)	1.393(4)	C(2)−C(3)	1.383(4)
C(11)−C(12)	1.395(4)	C(3)−C(4)	1.395(4)
C(1)−C(7)	1.482(4)	C(14)−C(13)	1.383(5)
Angle	(°)	Angle	(°)
C(10)−N(3)−C(11)	126.5(2)	N(2)−C(7)−C(1)	117.3(2)
C(8)−N(1)–C(7)	114.6(2)	N(1)−C(8)−Cl(1)	114.9(2)
C(7)−N(2)−C(10)	117.3(2)	N(1)−C(8)−C(9)	125.2(3)
C(16)−C(11)−N(3)	118.5(2)	C(9)−C(8)−Cl(1)	119.9(2)
C(16)−C(11)−C(12)	119.6(3)	N(3)−C(10)−C(9)	119.5(2)
C(12)−C(11)−N(3)	121.9(2)	N(2)−C(10)−N(3)	119.4(2)
C(15)−C(16)−C(11)	120.3(3)	N(2)−C(10)−C(9)	121.1(2)
C(2)−C(1)−C(7)	120.7(2)	C(3)−C(2)−C(1)	120.7(3)
C(2)−C(1)−C(6)	118.6(3)	C(2)−C(3)−C(4)	120.2(3)
C(6)−C(1)−C(7)	120.7(2)	C(5)−C(6)−C1)	120.6(3)

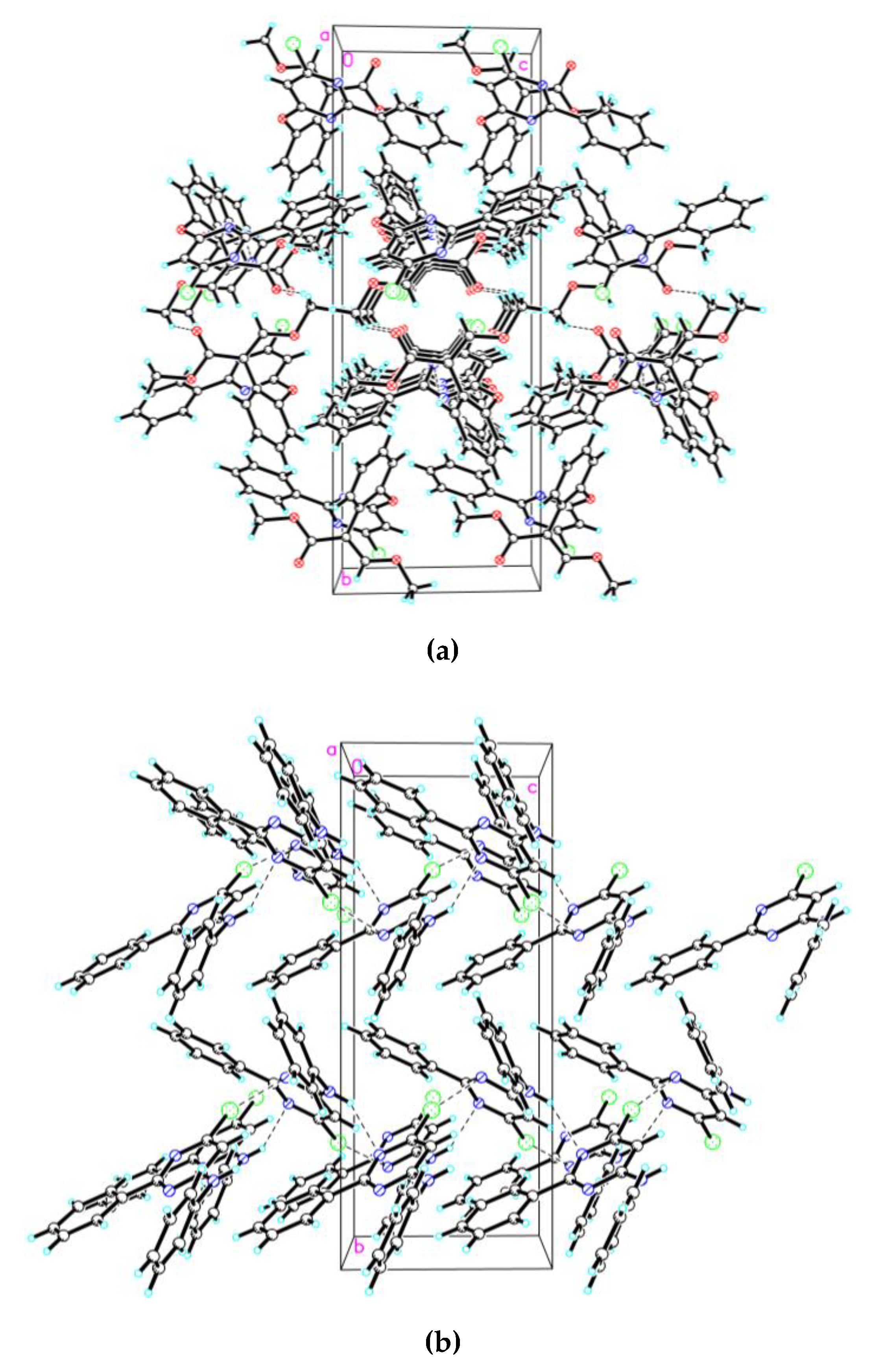

, respectively. Packing diagrams of compounds 6 and 7 are shown in Figure 3a,b respectively.

The selected bond lengths and bond angles of the phenyl ring and pyrimidine ring in the crystal structure of compounds 6 and 7 are similar to those of compounds reported in the literature, which are in accordance with normal ranges [29,30,31,32]. According to the data in Figure 2a, compound 6 is composed of four molecular moieties (two phenyl rings, a chlorine-substituted pyrimidine ring, and a (Z)-methyl 2-iodo-3-methoxyacrylate group). The phenyl ring, formed by C(16)–C(17)–C(18)– C(19)–C(20)–C(21), and the pyrimidine ring, formed by C(15)–N(2)–C(14)–C(13)– C(12)–N(1), are linked by a C(15)–C(16) bridge. The bond length of C(15)–C(16), a single bond, is 1.556(5) Å, and the torsion angle of N(2)−C(15)−C(16) is 119.8(3) Å. The phenyl ring, defined as C(1)–C(2)–C(3)–C(4)– C(5)–C(6), and the pyrimidine ring, are linked by an oxygen atom. The bond angle of C(12)−O(1)−C(1) is 115.3(3) Å. The acrylate moiety assumes an E configuration double bond C(7)=C(10) (1.391(6) Å) of the vinyl group. The bond lengths of C(8)–O(3) in the acrylate group are 1.229(6) Å, which is similar to the general length reported for C=O, indicating that it is a double bond [33,34,35]. The dihedral angles between the mean planes of C(15), N(2), C(14), C(13), C(12), N(1) with C(16), C(17), C(18), C(19), C(20), C(21), C (19) and C(1), C(2), C(3), C(4), C(5), C(6) are 3.368(109)° and 66.294(120)°, respectively.

Compound 7 is composed of a chlorine-substituted pyrimidine ring and two phenyl rings (Figure 2b). The phenyl ring, formed by C(1)–C(2)–C(3)–C(4)–C(5)–C(6), is linked with the pyrimidine ring, formed by C(7)–N(1)–C(8)–C(9)–C(10)–N(2) via a C(1)–C(7) bridge. The bond length of C(1)–C(7) is 1.482(4) Å and the torsion angle of N(2)−C(7)−C(1) is 117.3(2) Å. The pyrimidine ring above and phenyl ring defined as C(11)–C(12)–C(13)–C(14)–C(15)–C(16) are linked by a nitrogen atom, with a torsion angle C(10)−N(3)−C(11) of 126.5(2) Å. The dihedral angles between the mean planes of C(7), N(1), C(8), C(9), C(10), N(2) with C(1), C(2), C(3), C(4), C(5), C(6)and C(11), C(12), C(13), C(14), C(15), C(16) are 8.447(74)° and 45.236(88)°, respectively.

Based on whole structural analysis, molecule 6, forms C–H···N (symmetry code: 1 − x, 1 − y, 1 − z) and C–H···O hydrogen bonding interactions (symmetry code: 1 + x, y, z) with the phenyl C atom (

Table 4. Hydrogen bonding interactions in compound 7.

D–H···A	d(D–H)/(Å)	d(H···A)/(Å)	d(D···A)/(Å)	<(DHA)/(°)
C(5)–H(5)···N(2)	0.93	2.53	3.341(6)	146
C(11)–H(11B)···O(3)	0.96	2.30	3.162(7)	148

Symmetry transformations used to generate the equivalent atoms: #1: 1 − x, 1 − y, 1 − z; #2: 1 + x, y, z.

), to from three-dimensional networks. The C···N distances between donor (D) and acceptor (A) molecules were 3.341(6) Å for C(5)–H(5)···N(2), and 2.8711(16) Å for C(11)–H(11B)···O(3), respectively. The distances between hydrogen atom and acceptor atom were 2.53 Å for H(5)···N(2), and 2.30 Å for H(11B)···O(3), respectively. Both of the bond lengths were shorter than sum of van der Waals radii (2.66 Å for H(5)···N(2) and 2.63 Å for H(11B)···O(3)) [36]. As shown in

Table 5. Hydrogen bonding interactions in compound 6.

D–H···A	d(D–H)/(Å)	d(H···A)/(Å)	d(D···A)/(Å)	<(DHA)/(°)
N(3)–H(3)···N(1)	0.86	2.44	3.190(3)	146
C(2)–H(2)···N(1)	0.93	2.48	2.802(4)	100
C(6)–H(6)···N(2)	0.93	2.50	2.817(4)	100
C(12)–H(12)···N(2)	0.93	2.57	2.930(4)	104

Symmetry transformations used to generate the equivalent atoms: ½ + x, −1/2 − y, ½ + z.

, N(3)–H(3)···N(1) hydrogen bonds (N···N 3.190(3) Å,N–H···N 146°; symmetry code: ½ + x, −1/2 − y, ½ + z) link the neighboring molecules of compound 7 to form a three-dimensional framework. Weak hydrogen bonds C(2)–H(2)···N(1), C(6)–H(6)···N(2), and C(12)–H(12)···N(2) also stabilize the crystal structure.

3.3. Fungicidal Activities

The in vivo fungicidal activities (EC₅₀ values) of compound 6, compound 7, positive control fenclorim and pyrimethanil against B. cinerea are listed in

Table 6. The in vivo EC₅₀ values of compounds 6 and 7 and pyrimethanil against Botrytis cinerea.

Comp.	EC50 (± SD) (mg/L)	Comp.	EC50 (± SD) (mg/L)
6	20.84 ± 4.04	7	215.45 ± 55.43
fenclorim	319.95 ± 30.62	pyrimethanil	30.72 ± 3.78

. Compound 6 displayed the greatest activity with an EC₅₀ value of 20.84 mg/L, which was much greater than that of compound 7 (215.45 mg/L), fenclorim (319.95 mg/L) and pyrimethanil (30.72 mg/L). This result indicates that the combination of the (Z)-methyl-2-iodo-3-methoxyacrylate group substituted phenoxyl group with fenclorim could improve the in vivo fungicidal activity of fenclorim against Botrytis cinerea.

To further study the fungicidal activity of compounds 6 and 7, the in vitro inhibitory rate of compounds 6, 7, fenclorim, and pyrimethanil against P. cubensis, E. cichoracearum, B. graminis, R. Solani, and P. polysora were evaluated at different concentrations (

Table 7. The in vitro fungicidal activities of compounds 6 and 7.

Compounds	Dose (mg/L)	P. Cubensis	E. Cichoracearum	B. Graminis	R. Solani	P. Polysora
		Inhibitory Rate (%)
6	200	94.00 ± 1.73	1.67 ± 2.88	40.67 ± 1.15	91.67 ± 2.89	50.00 ± 0
	50	90.00 ± 2.00	0	41.33 ± 1.15	59.33 ± 1.15	8.33 ± 2.89
	12.5	80.33 ± 1.53	0	27.00 ± 1.73	58.33 ± 2.89	0
7	200	93.33 ± 2.89	91.00 ± 3.61	90.67 ± 1.15	70.67 ± 1.15	90.67 ± 2.31
	50	71.67 ± 2.89	89.00 ± 3.61	59.33 ± 1.15	11.67 ± 2.89	58.33 ± 2.89
	12.5	26.67 ± 2.89	31.67 ± 2.89	14.00 ± 1.73	7.67 ± 2.52	0
Fenclorim	200	92.33 ± 2.52	0	23.33 ± 2.89	26.67 ± 2.89	38.33 ± 2.89
	50	85.67 ± 2.08	0	22.33 ± 2.52	28.33 ± 2.89	21.67 ± 1.89
	12.5	22.33 ± 2.52	0	0	6.67 ± 2.89	0
Pyrimethanil	200	89.00 ± 3.61	31.00 ± 3.61	28.33 ± 2.89	10 ± 0	31.33 ± 1.15
	50	80.67 ± 1.15	6.00 ± 1.73	26.00 ± 1.73	9.33 ± 1.15	9.33 ± 1.15
	12.5	20.67 ± 1.15	0	19.33 ± 1.15	0	0

P. cubensis: Pseudoperonospora cubensis; E. cichoracearum: Erysiphe cichoracearum; B. graminis: Blumeria graminis; R. solani: Rhizoctonia solani; and P. polysora: Puccinia polysora.

). At 200 mg/L, compound 6 displayed the strongest fungicidal activity against P. cubensis (94.00% control) and against R. Solani (91.67% control), while compound 7 showed the strongest fungicidal activity against E. cichoracearum (91.00% control), B. graminis (90.67% control) and P. polysora (90.67% control). Furthermore, fenclorim exhibited no activity against the E. cichoracearum control and pyrimethanil only displayed good fungicidal activity against P. cubensis (89.00% control). As the concentration decreased, most of the fungicidal activity of these compounds brought to gradually. Surprisingly, compound 6 exhibited 80.33% activity of that of the control against P. cubensis, when pyrimethanil displayed only 20.67% of that of the control, when at 25 mg/L. These results revealed that the combination of active groups in commercial fungicides with the lead fenclorim could improve the in vitro fungicidal activity of fenclorim significantly.

4. Conclusions

In conclusion, two fenclorim derivatives (compounds 6 and 7) were synthesized by the linking of active sub-structures method. The chemical structures of the two compounds were confirmed by NMR spectroscopy, HRMS, and X-crystal diffraction, and their fungicidal activity against plant fungi were tested. Compound 6 displayed the greatest activity (EC₅₀ value of 20.84 mg/L), which was much greater than that of pyrimethanil (30.72 mg/L) against B. cinerea in vivo. Additionally, compound 6 at 25 mg/mL exhibited 80.33% of the control EC₅₀ value against P. cubensis, when pyrimethanil displayed only 20.67% control EC₅₀ value at 25 mg/L in vitro. Moreover, compound 7 exhibited 89% of the control EC₅₀ value against E. cichoracearum at 50 mg/L in vitro, while pyrimethanil only exhibited 6% of that of the control. Compounds 6 and 7 could be used further as pyrimidine fungicides in the future.
