LPE Growth of Composite Thermoluminescent Detectors Based on the Lu_3−xGd_xAl₅O₁₂:Ce Single Crystalline Films and YAG:Ce Crystals

Abstract

This work is dedicated to the development of new types of composite thermoluminescent (TL) detectors for simultaneous registration of the different components of ionization radiation based on the single crystalline films (SCFs) of Ce³⁺-doped Lu_3−xGd_xAl₅O₁₂:Ce (x = 0–1.5) garnet and Y₃Al₅O₁₂:Ce (YAG:Ce) substrates using the liquid phase epitaxy (LPE) growth method. For this purpose, the TL properties of the mentioned epitaxial structures were examined in Risø TL/OSL-DA-20 reader under excitation by α- and β-particles from ²⁴²Am and ⁹⁰Sr-⁹⁰Y sources. We have shown that the cation engineering of SCF content can result in more significant separation of the TL glow curves of SCFs and substrates under α- and β-particle excitations in comparison with the prototype of such composite detectors based on the Lu₃Al₅O₁₂:Ce (LuAG:Ce)/YAG:Ce epitaxial structure. Specifically, the difference between the TL glow curves of Lu_1.5Gd_1.5Al₅O₁₂:Ce SCFs and YAG:Ce substrates increases up to 120 K in comparison with a respective value of 80 degrees in the prototype based on the LuAG:Ce/YAG:Ce epitaxial structure. Therefore, the LPE-grown epitaxial structures containing Lu_1.5Gd_1.5Al₅O₁₂:Ce SCFs and Ce³⁺-doped YAG:Ce substrate can be successfully applied for simultaneous registration of α- and β-particles in mixed fluxes of ionization radiation.

1. Introduction

The advancement of composite scintillators (CSs) and thermoluminescent (TL) detectors for the registration of the components of mixed ionization fluxes is now an actual subject of luminescent materials engineering. The basis for such novel engineering are the latest decisions in creating bulk single crystal (SC) and single crystalline film (SCF) scintillators [1,2] as well as the technologies of their production using the Czochralski method [3,4] and the liquid phase epitaxy (LPE) growth technique, respectively [5,6,7,8,9,10,11]. Namely, in our previous work, we have shown the possibility of simultaneous registration of α-particles and γ-quanta using the separation of the scintillation decay kinetics of the film (SCF) and crystal (SC) parts of composite scintillators, based on the epitaxial structures of different garnet compounds [12,13,14,15,16].

The application of composite scintillators presupposes the active in situ mode of the registration of incoming ionization fluxes. Meanwhile, such a mode of registration is not always possible to use in the case of low doses of radiation and a long-time exposition of radiation. Namely, particles and quanta with different energies cannot be registered using the separation between scintillation decay kinetics curves. There are also restrictions in application of the above-mentioned materials regarding the analysis of liquid and gaseous radioactive materials or the registration of high-dose sources.

The problems described above stimulated us to developing new approaches in the production of composite ionizing radiation detectors. One solution is to develop TL detectors for the simultaneous registration of different components of mixed ionization fluxes using the differences in the thermoluminescence (TL) glow curves. Particularly, such differences can be described by ΔT = T_F − T_S parameter, e.g., the difference between the position of the main TL peaks, recording from the film (T_F) and substrate (T_S) parts of the composite detector (Figure 1a).

The possibility of the creation of such types of composite TL detectors for the simultaneous registration of α- and β-particle excitation was shown firstly by us in [17]. This work is a continuation of the research in this direction and dedicated to the development of new types of composite TL detectors for the simultaneous registration of the different components of mixed ionization fluxes based on the SCFs of Ce³⁺-doped Lu_3−xGd_xAl₅O₁₂:Ce (x = 0–1.5) garnet and Y₃Al₅O₁₂:Ce (YAG:Ce) SC substrates using the LPE growth method.

Recently, the SCFs of Lu_3−xGd_xAl₅O₁₂:Ce garnet with the Gd content, x, from 0 up to 2.5 has been successfully crystallized by the LPE method onto undoped YAG substrates from the melt-solutions based on PbO-B₂O₃ flux, and their optical properties have been investigated as well [12]. In the present work, we used the LPE-grown epitaxial structures, containing Lu_3−xGd_xAl₅O₁₂:Ce SCFs with different Gd concentrations in the x = 0–1.5 range, and Ce³⁺-doped YAG:Ce substrates for the simultaneous registration of α- and β-particles in the mixed ionization fluxes. For this purpose, the TL properties of the epitaxial structures were examined under excitation by α- and β-particles from ²⁴²Am and ⁹⁰Sr-⁹⁰Y sources, respectively. We expected that the cation engineering of SCF content would result in more significant separation of the TL glow curves of SCFs and substrates in comparison with the prototype of such composite detectors based on the LuAG:Ce SCF/YAG:Ce SC epitaxial structure [17].

2. Growth of Composite Detectors

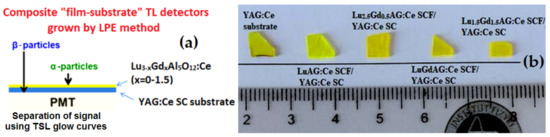

Four sets of composite detectors, based on the epitaxial structures containing Lu_3−xGd_xAl₅O₁₂:Ce SCFs with Gd content x = 0, 0.5, 1, and 1.5 and YAG:Ce substrates with the (110) orientation and a thickness of 0.5 mm, were crystallized using the LPE method from the melt-solution based on PbO-B₂O₃ flux (Figure 1). The conditions of the growth of these structures are presented in

Table 1. Conditions of the LPE growth of Lu_3−xGd_xAl₅O₁₂:Ce SCFs at x = 0–1.5 onto YAG:Ce substrates. H—SCF thickness; f and T—velocity and temperature of the SCFs growth; a—SCF lattice constants, m—SCF/substrate misfit, LY—relative photoelectron light yield (LY) of SCFs under α-particle excitation in comparison with the LY of YAG:Ce SCF standard samples with a LY of 2.65 ph/KeV.

Nominal Content of SCFs in Melt-Solution	Substrate	m, %	h, µm	T, °C	f, μm/min	LY, %
YAG:Ce SC	YAG					128
LuAG:Ce SCF	YAG:Ce	0.83	37	973	0.43	98
Lu2.5Gd0.5AG:Ce SCF	YAG:Ce	0.49	51	970	0.73	63
Lu2GdAG:Ce SCF	YAG:Ce		16	970	0.53	54
Lu1.5Gd1.5AG:Ce SCF	YAG:Ce	0.04	20	975	0.4	45

.

Due to the fact that the segregation coefficient of Gd³⁺ ions in the LPE growth of LuAG-based SCF onto YAG substrates is equal to 0.95–1.05 [18], the content of SCFs was close to a nominal content of garnets in the melt-solution. The concentration of Ce³⁺ ions in SCFs and YAG:Ce substrates was in the 0.25–0.5 at % range.

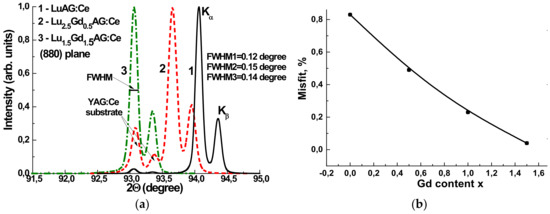

XRD measurements were used for the characterization of the structural quality of Lu_3−xGd_x Al₅O₁₂:Ce SCF samples with different Gd content and determination of the SCF lattice constants and SCF/substrate misfit m (Figure 2).

From the respective XRD patterns of the Lu3−xGdxAl5O12:Ce SCFs at x value ranging from 0 to 1.5 we also calculated the lattice constant of the different garnet compositions and estimated the misfit between the lattice constants of SCF and YAG substrate Δa = (a_SCF − a_sub/a_sub) × 100% (Table 1). We found that the lattice constant of Lu3−xGdxAl5O12:Ce SCF and the misfit value m steeply depends on the Gd content in accordance with Vegard’s law. Namely, the lattice constant changed from 11.902 Ȧ for LuAG SCFs to 11.998 Ȧ for Lu_1.5Gd_1.5Al₅O₁₂:Ce SCFs. The value of misfit m varies from −0.83% for LuAG SCF to 0.04% for Lu_1.5Gd_1.5Al₅O₁₂:Ce SCF (Figure 1b), i.e., the last sample was grown practically without SCF/substrate misfit.

The full width at half maximum (FWHM) of the XRD peaks of the garnet samples under study was also determined from the respective patterns. As can be seen from this figure, the structural quality of Lu_2.5Gd_0.5AG:Ce and Lu_1.5Gd_1.5AG:Ce SCF samples, proportional to the FHWM of the respective XRD peaks (0.15 and 0.14 degree, respectively), is very close to that of LuAG:Ce SC (0.12 degree).

3. Experimental Technique

For the characterization of the luminescent properties of the Lu3−xGdxAl5O12:Ce SCF/YAG:Ce SC structures, we used absorption spectra, cathodoluminescence (CL), and thermoluminescent (TL) spectra. The absorption spectra were measured using a Jasco 760 UV-Vis spectrometer (Jasco Int. Co. Ltd., Tokyo, Japan) in the 200–1100 nm range. The CL spectra were measured at room temperature (RT) using a SEM JEOL JSM-820 electron microscope (JEOL, Tokyo, Japan) additionally equipped with a spectrometer Stellar Net with a TE-cooled Charge Coupled Device (CCD) detector working in the 200–925 nm range (StellarNet Inc, Tampa, FL, USA).

The TL glow curves were measured under the excitation by α- and β-particles from ²⁴¹Am and ⁹⁰Sr + ⁹⁰Y sources. For measuring the TL in a Risø TL/OSL-DA-20 reader (Risø DTU, Roskilde, Denmark) we used the triangular fragment of samples with 3.75 mm × 3.75 mm × 5.25mm dimensions.

It is worth to note here that the mechanism of TL in the SCF samples under study was connected with the electron liberation from deeper electron traps and their subsequent recombination with the holes localized around Ce³⁺ ions [17,18]. Therefore, for the registration of the TL glow curves, a “green” Schott BG 39 filter was used. The transmittance range of this filter, extending from 350 to 700 nm, was well matched with the emission range of the Ce³⁺ luminescence in the SCF samples.

4. Optical Properties of Lu_3−xGd_xAl₅O₁₂:Ce SCFs/YAG:Ce Epitaxial Structures

4.1. Absorption Spectra

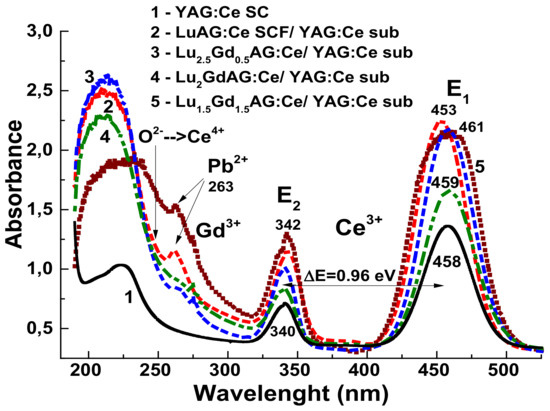

The absorption spectra of Lu_3−xGd_xAl₅O₁₂:Ce SCF/YAG:Ce SC epitaxial structures in comparison with the absorption spectrum of the YAG:Ce substrate are shown in Figure 3. It is worth noting that the absorption spectra of the epitaxial structures represent the mixes of the spectra of the YAG:Ce substrate and the respective SCF sample with a total thickness in the 32–100 μm range (see Table 1).

The absorption bands peaked within 453–461 nm and at the 340–342 nm range in the spectra of all the composite detector samples and YAG:Ce substrates were related to the 4f(²F_5/2)→5d^1,2(²E) transitions of Ce³⁺ ions E₁ and E₂ bands, respectively. The ΔE values, proportional to the crystal field strength on the dodecahedral position of the garnet lattice [18,19], were equal approximately to 1 eV for these samples.

The bands that peaked around 263 nm correspond to the absorption of Pb²⁺ flux-related impurity in Lu_3−xGd_xAl₅O₁₂:Ce SCFs and caused by the ¹S₀→³P₁ transitions of these ions [18]. The intensity of this band increased with raising the Gd content in SCFs. Such behavior was connected with increasing the lattice constant of the garnet and respective dimension of the dodecahedral sites for the localization of the Pb²⁺ ions with large ionic radii (1.29 Å) in comparison with Lu³⁺ (0.997 Å) and Gd³⁺ (1.078 Å) cations. Meanwhile, the concentration of this impurity even in the highly Gd-doped SCFs was still below the detection limit (100 ppm) of a SEM JEOL JSM-820 electron microscope used for the microanalyses of the samples’ content and only the intensity of Pb²⁺-related absorption bands (Figure 3) could be used for the estimation of the concentration of these ions.

The large Pb²⁺ ion content in Gd-doped samples could also be contributed to the decrease of the scintillation LY of these SCFs (see Table 1). A negative influence of Pb²⁺ on the LY of SCF scintillators was recently observed for many types of SCF scintillators [6,9,18]. Such influence can also be connected with the possible creation of Pb²⁺-Ce⁴⁺ pairs with local charge and local compensation at relatively large concentration of lead ions in SCF samples. Indeed, the absorption spectrum of Lu_1.5Gd_1.5Al₅O₁₂:Ce SCF (Figure 2, curve 5) shows the presence of an additional broad band peak at approximately 255 nm. Most probably, this band was related to the O²⁺→Ce⁴⁺ charge transfer transitions (CTT). The confirmation of this conclusion was a close position of these bands in the mentioned SCF sample to the similar O²⁺→Ce⁴⁺ CTT band in Ca²⁺- and Mg²⁺-doped LuAG:Ce SCs [20,21].

4.2. Cathodoluminescence Spectra

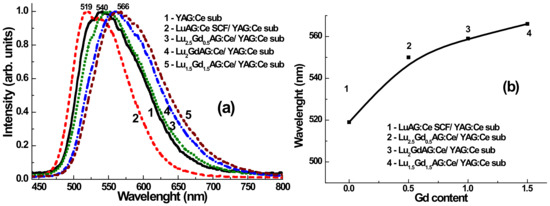

The normalized CL spectra of Lu_3−xGd_xAl₅O₁₂:Ce SCFs at x = 0, 0.5, and 1.5 in comparison with the CL spectrum of YAG:Ce substrate are shown in Figure 4. The maximum of Ce³⁺ emission bands was shifted (see Figure 4b) to the red range with increasing Gd content in the SCF samples due to increasing crystal field strength in the dodecahedral position of the garnet lattice, see also [18,19].

4.3. Thermoluminescence Spectra

The first attempt to create a composite TL detector based on the LuAG:Ce SCF/YAG:Ce epitaxial structures was described in our previous work [17]. The observed difference (about 80 degrees) between the position of the main TSL peaks of the SC and SCF parts of the composite detector under α- and β-particle excitation enabled the simultaneous registration of these particles in the mixed ionization fluxes. Meanwhile, the optimization of the TSL properties of such a type of composite detector is also possible and was considered in this work.

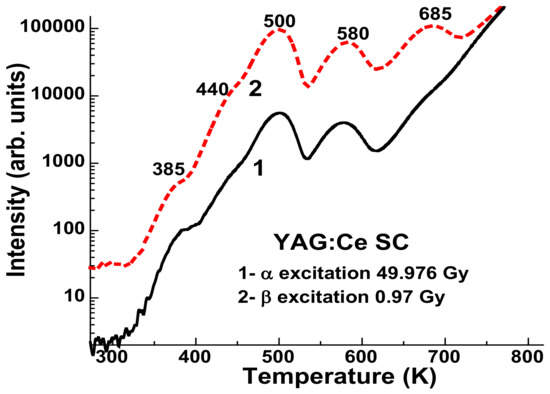

In the first stage, we analyzed the thermoluminescent curves for substrate. Figure 5 shows the similar TSL properties under excitation by α- and β-particles, but the integral intensity of the TSL peaks is strongly determined by the absorbed dose of radiation (curves 1 and 2, respectively). The TSL glow curves of Lu_3−xGd_xAl₅O₁₂:Ce SCFs/YAG:Ce SC epitaxial structures with different Gd content x under excitation by α- and β-particles from ²⁴¹Am and ⁹⁰Sr + ⁹⁰Y sources, respectively, are shown in Figure 6.

As mentioned above, the α-particles from an ²⁴¹Am (5.5 MeV) source with a typical passway in the LuAG of 12–15 μm were fully stopped in the SCF parts of a composite detector with a thickness of several tens of microns, when β-particles from a ⁹⁰Sr + ⁹⁰Y source with an average energy of 1.1 MeV could penetrate in the whole substrates. Therefore, due to the high thickness of the SCF samples in the 16–51 μm range (Table 1), the TSL glow curves under α-particle excitation correspond exclusively to SCFs.

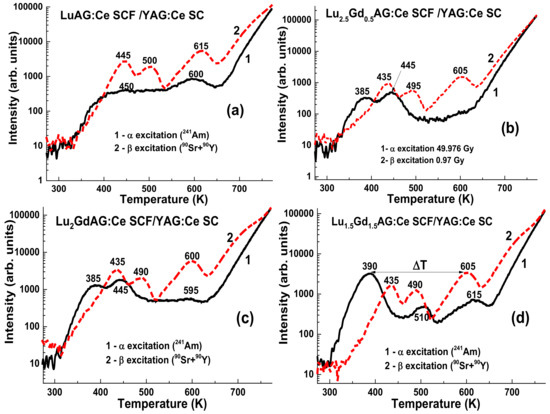

As can be seen from Figure 6a, after α-particle irradiation, the main peak of the LuAG:Ce SCF/YAG:Ce SC structure was observed at 600 K. This result is consistent with the results of our previous work [17]. In accordance with the results of the work in [18], increasing the Gd content in the Lu_3−xGd_x Al₅O₁₂:Ce SCFs led to the shift of position of the main TSL peaks to the low temperature range, to 390 K in the Lu_1.5Gd_1.5Al₅O₁₂:Ce SCF sample (

Table 2. Position of the main TL peaks in Lu_3−xGd_xAl₅O₁₂:Ce SCF/YAG:Ce SC composite structures after irradiation by α- and β-particles. * the main TL peaks.

SC and SCF Content	α-Particles (241Am)	β-Particles (90Sr + 90Y)
LuAG:Ce SCF/YAG:Ce SC	450, 600 *	445, 500, 615 *
Lu2.5Gd0.5AG:Ce SCF/YAG:Ce SC	385, 445 *	435, 495, 605 *
Lu2GdAG:Ce SCF/YAG:Ce SC	385, 445 *, 593	435, 490, 600 *
Lu1.5Gd1.5AG:Ce SCF/YAG:Ce SC	390 *, 510, 615	435, 490, 605 *

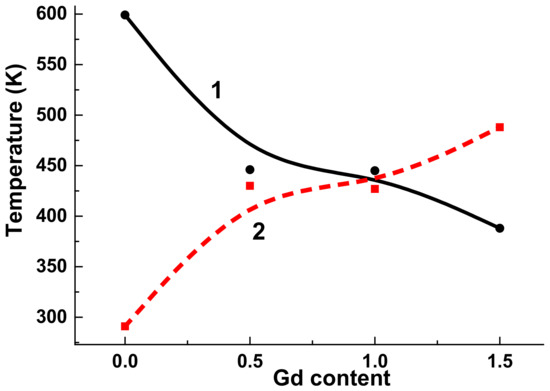

and Figure 6d). Meanwhile, the position of the main TL peaks in the Lu_3−xGd_xAl₅O₁₂:Ce SCF/YAG:Ce SC structure after β-particle irradiation did not change notably (Table 1) due to the fact that the β-particles a were mainly absorbed by the YAG:Ce substrate. Therefore, the difference ΔT between the main TL peaks of SCF and substrate parts of a composite detector, corresponding to the registration of α- and β-particles, increased steeply with an increasing Gd content x in the Lu_3−xGd_xAl₅O₁₂:Ce SCFs. Namely, ΔT value is equal of 215 degrees for Lu_1.5Gd_1.5Al₅O₁₂:Ce SCFs (Figure 6d and Figure 7, curve 2).

It is important to note that due to the large feeding in the case of the TL peak positions in the low temperature range, of the most optimal was the location of the TL peaks of Lu_3−xGd_xAl₅O₁₂:Ce SCFs in the range above 150 K. For this reason, the creation of a composite detector based on the Lu₂GdAl₅O₁₂:Ce SCF/YAG:Ce SC epitaxial structure was the optimal option. For such a type of composite detector the ΔT value is equal to 155 degrees, which is completely enough for the simultaneous registration of TL signals coming from the SCF and SC parts of a composite detector in the case of the registration of α- and β-particles, respectively.

5. Conclusions

The creation of novel types of composite TL detectors based on the Lu_3−xGd_xAl₅O₁₂:Ce SCF/YAG:Ce SC epitaxial structures for simultaneous registration of the mixed ionization fluxes, containing α- and β-particles, is reported in this work. The detectors, consisting of Lu_3−xGd_xAl₅O₁₂:Ce SCFs with Gd content in the x = 0–1.5 range, were fabricated using the liquid phase epitaxy (LPE) growth method onto YAG:Ce substrates. The registration of α- and β-particles by the SCF and SC components of composite detectors was performed using the differences between TL glow curves of these components of composite detectors.

The results of testing of Lu_3−xGd_xAl₅O₁₂:Ce SCF/YAG:Ce SC epitaxial structures are encouraging. In the Lu_3−xGd_xAl₅O₁₂:Ce SCF/YAG:Ce SC detector, the difference between the positions of the main TL peaks of the glow curves of the SCF and SC components after α- and β-particle irradiation, ΔT, increases steeply from 15 to 215 degrees with an increasing Gd content in the 0–1.5 range. Therefore, such a ΔT value is significantly larger than the 80 degrees obtained recently for an LuAG:Ce SCF/YAG:Ce SC epitaxial structure. Meanwhile, due to feeding influence, the optimal garnet combination for the creation of a composite detector is the Lu₂GdAl₅O₁₂:Ce SCF/YAG:Ce SC epitaxial structure with the ΔT value above 150 degrees.

The obtained results confirm the assumption that the cation engineering of SCF content enables the significant improvement of the TL properties of composite detectors. Namely, the application of such an approach leads to an increase in the difference between the TL glow curves of Lu_2–1.5Gd_1–1.5Al₅O₁₂:Ce SCFs and YAG:Ce substrates up to 150–215 degrees in comparison with a respective value of 80 degrees for the prototype of a composite detector based on LuAG:Ce/YAG:Ce epitaxial structures [17].
