Article

The Effects of Ferric Sulfate (Fe2(SO4)3) on the Removal of Cyanobacteria and Cyanotoxins: A Mesocosm Experiment

1
Department of Civil, Geological and Mining Engineering, Polytechnique de Montréal, Montréal, QC H3C 3A7, Canada
2
Department of Chemistry, University of Montréal, Montréal, QC H3C 3J7, Canada
3
NSERC Industrial Chair on Drinking Water, Department of Civil, Geological and Mining Engineering, Polytechnique de Montréal, Montréal, QC H3C 3A7, Canada
*
Author to whom correspondence should be addressed.
Toxins 2021, 13(11), 753; https://doi.org/10.3390/toxins13110753
Received: 22 September 2021 / Revised: 15 October 2021 / Accepted: 20 October 2021 / Published: 23 October 2021

Abstract

:
Cyanobacterial blooms are a global concern. Chemical coagulants are used in water treatment to remove contaminants from the water column and could potentially be used in lakes and reservoirs. The aims of this study was to: 1) assess the efficiency of ferric sulfate (Fe2(SO4)3) coagulant in removing harmful cyanobacterial cells from lake water with cyanobacterial blooms on a short time scale, 2) determine whether some species of cyanobacteria can be selectively removed, and 3) determine the differential impact of coagulants on intra- and extra-cellular toxins. Our main results are: (i) more than 96% and 51% of total cyanobacterial cells were removed in mesocosms with applied doses of 35 mgFe/L and 20 mgFe/L, respectively. Significant differences in removing total cyanobacterial cells and several dominant cyanobacteria species were observed between the two applied doses; (ii) twelve microcystins, anatotoxin-a (ANA-a), cylindrospermopsin (CYN), anabaenopeptin A (APA) and anabaenopeptin B (APB) were identified. Ferric sulfate effectively removed the total intracellular microcystins (greater than 97% for both applied doses). Significant removal of extracellular toxins was not observed after coagulation with both doses. Indeed, the occasional increase in extracellular toxin concentration may be related to cells lysis during the coagulation process. No significant differential impact of dosages on intra- and extra-cellular toxin removal was observed which could be relevant to source water applications where optimal dosing is difficult to achieve.
Key Contribution: Determining short-term effects of ferric sulfate on cyanobacterial cells and cyanotoxins removal during coagulation in in-situ scales by mesocosms experiment approach

1. Introduction

Cyanobacteria are well adapted to survive and proliferate in water bodies worldwide. Eutrophication and climate change are the main drivers of cyanobacterial blooms [1]. Many cyanobacterial genera are commonly associated with toxicity, including Microcystis, Planktothrix, Dolichospermum, Cylindrospermopsis, Nodularia, and Schizotrix [2]. Cyanotoxins are the byproducts of metabolite formation processes. They may appear within the cell (intracellular) or released into in the water column (extracellular). Cyanotoxins can be classified into several main groups: hepatotoxins (microcystins and nodularins), cytotoxins (cylindrospermopsins), neurotoxins (e.g., anatoxin-a), dermatotoxins (e.g., lyngbyatoxin), endotoxins (lipopolysaccharides) and other toxins [3,4]. Microcystins are the most commonly detected hepatotoxins associated with cyanobacterial blooms worldwide [5,6]. Several health impacts, such as gastroenteritis and cutaneous reactions, have been identified [7]. Moreover, they are one of the many potential causes of water quality degradation in aquatic systems, having potential consequences for biological communities [8].
Given the challenges that cyanobacteria pose to drinking water production, effective remediation practices and safety measures are needed to protect aquatic communities and human health. Coagulation is a widely used water treatment technology for effectively removing cyanobacteria and undissolved toxin compounds in drinking water treatment plants [9] and some of these compounds have been used to treat lakes affected by blooms. For instance, aluminium sulfate has been applied in the U.S.A. to reduce cyanobacterial biomass from water bodies and remove internal phosphate [10]. In 2008, Lürling and van Oosterhout [11] also used polyaluminium chloride (PAC) to remove cyanobacteria blooms of Aphanizomenon flos-aquae in Lake Rauwbraken (Berkel-Enschot, The Netherlands). In a eutrophic fishpond in the Czech Republic, a polyaluminium hydrochloride coagulant (PAX-18) was used to remove Planktothrix agardhii blooms [12]. However, at laboratory scales, several studies have shown that some conventional types of coagulants (for example polyaluminium chloride, aluminium sulfate, and ferric chloride) can cause cell lysis, resulting cell bound toxin release into the water during the coagulation process [13,14,15].
Among the conventional chemical coagulants, ferric based-coagulants (e.g., ferric chloride (FeCl3), ferric sulfate (Fe2(SO4)3)) have been used in natural water sources to effectively remove cyanobacterial cells [10,16]. Previous studies have demonstrated that ferric coagulants can also reduce phosphorus concentrations in the water column and in the sediment, reducing the internal phosphorus loading from sediment and subsequently inhibiting cyanobacteria growth [17]. Iron supplementation, on the other hand, was thought to increase the abundance of cyanobacteria in eutrophic environments [18] and it was also considered as one of the inducing factors of the microcystin synthesis [19].
To the best of our knowledge, no short term outdoor mesocosm experiments with fresh blooms have been conducted to investigate the removal cyanobacterial cells and their toxins by ferric sulfate coagulants. Differences in the removal of cyanobacterial species has been observed in drinking water treatment, and it is unclear whether coagulants will selectively remove particular species [20]. There is a need to investigate the differential removal of cyanobacterial species in the water column. Although long term remediation efforts are critical for mitigating harmful cyanobacterial blooms, specific uses such as drinking or recreational waters require immediate attention. Therefore, our research aims to investigate the feasibility of the coagulation process in an in-situ scale, specifically, in cyanobacteria dominated lakes. The main objectives of this study are to: 1) assess the efficiency of ferric sulfate coagulant in removing harmful cyanobacterial cells, and their related toxins from lake water with cyanobacterial blooms on a short time scale, 2) determine whether some species of cyanobacteria are selectively removed, and 3) determine the differential impact of coagulants on intra- and extra-cellular toxins.

2. Results and Discussions

2.1. Impact of Ferric Sulfate on Cyanobacterial Cell Counts

2.1.1. Taxonomic Cyanobacterial Cell Counts and Composition

In the beginning of the experiment (T0), several genera such as Dolichospermum spp., Microcystis spp., Aphanothece spp., Aphanocapsa spp., Aphanizomenon spp., Chroococcus spp., Coelosphaerium spp., Merismopedia spp. and Pseudanabaena spp. were identified in Missisquoi Bay (MB) and Petit Lac Saint-François (PLSF) (Table S1). The genera Dolichospermum, Microcystis, Aphanizomenon were found in both control and coagulated mesocosms at both studied sites and they accounted for more than 70% of total taxonomic cell counts (Figure S1). The initial average total taxonomic cell counts varied across the study sites and the experimental events, as shown in Figure 1. Most mesocosms at both MB and PLSF sites had average total taxonomic cell counts greater than 105 cells/mL. On 13 August 2019, the total taxonomic cell counts were recorded with more than 107 cells/mL in MB. These above-mentioned cyanobacteria genera frequently occured at both study sites and varied in time with wide ranges of taxonomic cell counts, with Microcystis, Dolichospermum, and Aphanizomenon being the most common genera [9,21,22,23].
Except for an incident in MB on 13 August 2019, Microcystis was a common genus in all of the mesocosms, with dominance or representative percentages as shown in Figure 2 and Figure S1. The relative cell abundance of Microcystis (as measured by total taxonomic cell counts) ranged from more than 16.3% in MB (10 September 2018) up to 61.5% in PLSF (24 July 2019). Microcystis aeruginosa (M. aeruginosa) was a dominant species in MB while Microcystis flos-aquae (M. flos-aquae) was a dominant species in PLSF (Figure S2). Similarly, Dolichospermum spp. was present in high relative abundance in almost all of our experiments with Dolichospermum spiroides (D. spiroides) most frequently observed in samples. Their relative abundance ranged from 3.16% in PLSF (24 July 2019) to more than 73% in PLSF (26 June 2019) (Figure S1). In terms of biovolume, Dolichospermum was the dominant genus in all events at both sites with the exception of the event on 13 August 2019 where the biovolume of Aphanizomenon was more important (Figures S5 and S6).
Interestingly, within MB (on 13 August 2019), Aphanizomenon flos-aquae was the dominant species (more than 86% of total cell counts and 87% of total cyanobacterial biovolume) in all mesocosms (Figures S2 and S5). Several studies have also indicated that Aphanizomenon flos-aquae was frequently identified as the dominant species in MB [20,24]. That Aphanizomenon genus became dominant during this sampling event is likely due to a large variability of dissolved phosphorus (DP). The DP concentration increased approximately 18 times in the water as compared to previous events (10 September 2018 and 24 September 2018) (Table 1). The historical total phosphorus (TP) monitoring data in Missisquoi Bay has also shown an increasing trend in TP concentrations in August and that additional TP could be from the sediment TP concentration at that time [25]. Increases in P-loading in water bodies can indeed cause the dominance of cyanobacteria in the phytoplankton community, especially for diazotrophic cyanobacteria such as Aphanizomenon spp. [26,27,28]. The Aphanizomenon genus might be adapted to environments with higher P concentrations having been sensitive to changes in ambient DP [29,30].
Aphanothece clathrata was also observed in some events at both sites (MB, 10 and 24 September 2018; PLSF 24 July and 5 August 2019) (Figure S2). Small numbers of the Pseudanabaena genus was found in MB in 2018 and it was not present at either MB or PLSF in 2019. The Aphanocapsa genus was occasionally observed in MB in 2018, while it appeared only once in a control mesocosm in PLSF on 24 July 2019 (Figure S1). Taxonomic cell counts of “Other” include the genera Chroococcus, Merismopedia, and Coelosphaerium were extremely small and were negligible compared to the dominant genera (Figure 2). “Other” genera accounted for less than 1% of total taxonomic cell counts as well as total cyanobacterial biovolume (Figures S1 and S5).

2.1.2. Removal of Cyanobacterial Cells

In the control mesocosms, after two days of exposure (T48), the average total taxonomic cell counts did not decrease in all of the control mesocosms in MB in 2018 and PLSF in 2019, except for MB on 15 August 2019 (Figure 1). The cyanobacterial genus composition was similar to that observed at T0, as demonstrated in Figures S1 and S2. In the natural environment, cyanobacteria in high numbers may be maintained for up to a week or two [31,32]. For the event on 15 August 2019, total taxonomic cell counts suddenly decreased by more than 90% in the control mesocosm in MB (Figure 1), and D. spiroides became a dominant species in the control mesocosm accounting for 43.1% of total taxonomic cell counts, followed by Aphanizomenon flos-aquae (36.2%) (Figure S2). Since the total cell abundance in MB (13 August 2019) exceeded 107 cells/mL at T0, the decomposition process would release CO2 and organic acids into the water body leading to a decrease in pH [30,33]. A decrease in pH (<7.1) (Table S7) may cause growth suppression of Aphanizomenon flos-aquae in the control mesocosms [34]. Moreover, a decrease in genus Aphanizomenon may be caused by the appearence of Synechococcus in the blooms [35].
In contrast, the overall cell concentration at T48 in the ferric-sulfate-coagulated mesocosms decreased considerably in all coagulant treated mesocosms, dropping down from around 106 or 105 to 105 or 103 cells/mL (MB September 2018 and PLSF July and August 2019) or from 107 or 106 to 105 or 104 cells/mL (MB August 2019 and PLSF June 2019) (Figure 1). Mesocosms exposed to 35 mgFe/L coagulant had a total cell count reduction of more than 98% when compared to T0 (Table S2). Mesocosms exposed to 20 mgFe/L showed a decrease in cell count ranging from 71% in MB on 26 September 2018 to more than 85% in other treated mesocosms, except for the PLSF (26 July 2019) mesocosm with the lowest decrease (approximately 51% reduction) (Table S2).
During two study periods (2018 and 2019), taxonomic cell counts of Dolichospermum spp., Microcystis spp., Aphanizomenon spp., and Pseudanabaena spp. decreased in the mesocosms containing 20 mgFe/L and 35 mgFe/L at both sites (Figure 2). Other species (Chroococcus, Merismopedia, and Coelosphaerium) were removed to below detection limits for both doses in mesocosms in MB in 2018 and 2019; however, they were stable in the lower dose mesocosm and removed to below detection limits in the higher dose mesocosm in PLSF in 2019 (Figure 2). The dose of 35 mgFe/L was more effective than the dose of 20 mgFe/L for removing total taxonomic cell counts and individual dominant cyanobacteria at both study sites (Figure 1, Tables S2 and S3). In June and July 2019, in PLSF, Aphanothece spp. was increased and Coelosphaerium spp. were less removed after coagulation in mesocosms with the dose of 20 mgFe/L (Table S2).
Coagulation of cyanobacteria, especially mixed-species bloom samples, may be harder than other pollutants as they are living organisms and complex interactions exist among species. Most drinking water research has focused on coagulation process performance for total cyanobacterial cells rather than studying the efficiency of removing individual cyanobacterial species. However, in some cases, the less effectively removed cyanobacteria can impact drinking water quality after treatment. A previous study reported that Aphanizomenon cells were poorly coagulated in a drinking treatment plant and passed through water treatment [20]. The impact of cyanobacterial physical and chemical characteristics on coagulation processes has been studied, and it was found that variable surface charges or algogenic organic matter (AOM) may interfere and prevent agglomeration [36,37,38,39,40]. Moreover, some types of cell morphologies can prevent close contact of cells or cell liberation from flocs by cell motility [37,41,42]. Types and doses of coagulants also impact coagulation processes. Higher cell removal efficiency by using ferric coagulant in comparison to alum for the removal of M. aeruginosa has also been observed [43]. Flocs of ferric coagulant with a large size and high density could increase separation performance by sedimentation [44]. The pH values at studied sites ranged between 6 and 8 (Table 1, Tables S7–S9) wherein cyanobacterial cells easily combine with ferric-based coagulants [40,45].
A considerable change in cyanobacterial species composition was detected in several events in the coagulated mesocosms after 48 h (Figures S1 and S2). Aphanothece clathrata became a dominant species in both coagulated mesocosms on 12 September 2018 in MB and in the higher dose mesocosm in July and August 2019 in PLSF. In contrast, there was negligible change in cyanobacterial relative abundance on 15 August 2019 in MB and on 28 June 2019 in PLSF.
Application of coagulants for intense blooms (>105 cells/mL) in lake or reservoir drinking water sources may help to prevent the accumulation and breakthrough of cyanobacteria cells and their related toxins [9]. However, coagulation in the water source has the potential to lead to lower cell counts at the water intake and reduce cyanobacterial cell buildup in the clarifier sludge bed [46]. Therefore, treatment plant processes need to be carefully adjusted during the algal bloom season. For example, preozonation of raw water before coagulation may also help cell removal during clarification [46].
Principal component analysis (PCA) was performed to evaluate the relationship between environmental conditions and cyanobacterial cell counts in MB and PLSF (Figure S7). No relationship was found between dominant genus and the environmental conditions in the beginning of study period at both sites. Overall, the PCA plot for PLSF showed that the genus Aphanothece was associated with total dissolved solid (TDS), pH, temperature, total nitrogen (TN), total phosphorus (TP) and total organic carbon (TOC) in mesocosm with dose of 35 mgFe/L but not 20 mgFe/L at T48. A relationship was observed between these above mentioned parameters with genera Aphanothece and Dolichospermum in mesocosms with doses of 20 and 35 mgFe/L at T48 in MB.

2.2. Impact of Ferric Sulfate on Intracellular Cyanotoxins

2.2.1. Intracellular Cyanotoxin Concentration and Composition

At the time of experiment (T0), twelve intracellular microcystins (MCs) including MC-RR, MC-YR, MC-HtyR, MC-LR, MC-HilR, MC-WR, MC-LA, MC-LY, MC-LW, MC-LF, [Asp3]MC-RR and [Asp3]MC-LR, anatoxin-a (ANA-a), cylindrospermopsin (CYN), and some rarely monitored cyanopeptides (anabaenopeptin A (AP-A) and anabaenopeptin B (AP-B)) were detected (Figure 3 and Figure S3). The concentration of total intracellular microcystins (intracellular ΣMCs) at T0 varied across the sites and study periods but was greater than 103 ng/L with the highest quantity of more than 105 ng/L documented in PLSF on 26 June 2019 (Figure 3). The initial concentration of intracellular AP-A was higher than 103 ng/L in MB on 13 August 2019 (Figure 4). Several studies found intracellular toxins including MC-LR, MC-YR, MC-LY, MC-RR, MC-LW, MC-LA, CYN in MB, and MC-LR, MC-LA, [Asp3]MC-LR in PLSF [9,23,47].
Except for one sampling event in MB on 13 August 2019, MC-LR was frequently detected, accounting for at least 40% and up to 75% (count on total intracellular toxin concentration) in all mesocosms (Figure S3). While the percentage of MC-RR was between 17%–23% in all sampling events in MB, MC-LY accounted for around 20%–27% of total intracellular toxin concentration in most PLSF sampling events. A small amount (less than 3%) of MC-LA was observed on 10 September 2018 and 13 August 2019, and up to 14% of total intracellular toxin concentration during 24 September 2018 sampling event in MB. AP-B was also detected in MB, ranging from 5% (10 September 2018) to 9% (13 August 2019) of total intracellular toxin concentration. In MB on 13 August 2019, the individual toxin with highest concentration was AP-A representing nearly 50% of total intracellular toxin concentration, followed by MC-LR and MC-RR (around 20%). Other MC’s relative abundance were negligible (Figure S3).
Those detected were toxins associated with the cyanobacteria taxa at T0 in both MB and PLSF [2]. A significant correlation between intracellular microcystin and toxigenic genera such as Dolichospermum and Microcystis was found after sampling a series of 22 lakes in southern Québec [48]. Previous studies indicated that the maximum intracellular cyanotoxins concentration was related to amounts of potentially toxic cyanobacterial increase sing in the water body, which is consistent with our findings [21]. For instance, the highest intracellular toxin ΣMCs, which occurred during the event on 26 June 2019, coincided with the predominance of Microcystis and Dolichospermum and the highest total taxonomic cell counts. The opposite trend was observed on 05 August 2019, where the total taxonomic counts were the lowest.

2.2.2. Intracellular Cyanotoxin Removal

In the control mesocosms, the concentration of intracellular ΣMCs did not change considerably after 2 days except for MB on 13–15 August 2019, where its concentration was reduced up to 90% (Figure 3). Furthermore, the composition of cyanobacterial toxins including MC-LR, MC-RR, MC-LY and AP-A remained stable after two days (Figure S3). In MB in August 2019, AP-A concentrations also decreased by 90%, although it remained the toxin with the highest concentration, followed by MC-LR (14% of total intracellular toxin concentration) and MC-RR (12%). A reduction in the concentration of intracellular ΣMCs and AP-A in MB was probably due to a decrease in total taxonomic cell counts.
MCs retained in intact cells may persist for several months and may increase under conditions which are most favorable for their growth [49]. Several studies have indicated that the dominance of toxigenic strains and the subsequent increase in microcystins production were affected by environmental factors, such as temperature, light, intensity, pH, nutrient concentration (NO, NH4+, PO43−, Fe2+), salinity, CO2 concentration, and turbidity [49,50,51].
On the contrary, in all mesocosms with ferric sulfate addition, the concentration of intracellular ΣMCs remarkedly decreased by more than 97% for the two applied doses (Figure 3 and Table S4). Ferric sulfate is also efficient in removing individual microcystins such as MC-LR, MC-LY, MC-RR and MC-LA (Figure 4 and Table S4). In that table, we also observed a remarkable reduction in the concentration of intracellular AP-A (80%–99% of reduction) and AP-B (90%–99% of reduction) in MB. From a statistical perspective, there is no significant difference in removing intracellular ΣMCs and individual intracellular cyanotoxins between two applied dosages (Table S5).
A coagulation process is one of the most important steps for the removal of cyanotoxins because the majority of cyanobacterial toxins naturally exist intracellularly and are retained within the cell [49]. However, several toxins are frequently found extracellularly (i.e., cylindropermopsin) in lake water or culture medium [52,53]. Our results for intracellular toxins may also include toxins adsorbed into particulate matter and the cells themselves in the water column. Microcystins toxin can be retained on natural suspended solids in rivers and reservoirs [49]. Several studies have indicated conventional coagulation is effective (up to 98%) for removing intracellular microcystin at the lab-scale [54,55].

2.3. Effect of Ferric Sulfate on Extracellular Cyanotoxins

2.3.1. Extracellular Cyanotoxin Concentration and Composition

The concentration of extracellular ΣMCs at the time of experiment may vary within the same location. For instance, at the MB experiment site, an extremely high concentration of extracellular ΣMCs, around 115 μg/L, was observed in July 2010 [9] while lower concentrations, ranging from 50 to 191 ng/L, were recorded from June to September 2017 [22]. In PLSF, the concentration of ΣMCs was high, approximately 1.7 μg/L, in June 2010 and lower, around 35 ng/L, in the summer 2017 [23]. In our research, the initial concentration of extracellular ΣMCs was higher than 102 ng/L with highest value (more than 103 ng/L) documented in PLSF on 26 June 2019 (Figure 5). We also observed an initial extracellular concentration of more than 102 ng/L of AP-A in MB on 13 August 2019 (Figure 6).
In Figure S4 we describe the percentages of all extracellular cyanotoxins observed in our experiments. In control and coagulated mesocosms, while MC-LR was dominant at the PLSF site, representing 75%–90% of total extracellular toxin concentration in almost all events in PLSF, it was also dominant or significant at the MB site, accounting for at least 11% (10 September 2018) and up to 37% (24 September 2018) of the total extracellular toxin concentration. CYN toxin accounted for 40% to 67% (10 September 2018) and around 12%–55% (13 August 2019) of the total toxin concentration. In addition, relative abundance of AP-A toxin accounted for around 13% in MB on 24 September 2018 while it occasionally appeared in the control mesocosms on 12 September 2018 and 13 August 2019.

2.3.2. Extracellular Cyanotoxins Removal

After 48 h, in the control mesocosms, we observed a trend of either a slight increase in the concentration of extracellular ΣMCs in MB (2018 and 2019), or a negligible change in PLSF (2019) (Figure 5). Concentrations of individual cyanotoxins after 48 h are presented in the Figure 6. The change in the relative abundance of individual cyanotoxins is documented in Figure S4. In MB, the relative abundance of AP-A remained unchanged on 12 September 2018, but markedly decreased in two other experiments (26 September 2018, and 15 August 2019). In term of relative abundance, extracellular CYN decreased from 67% to 35.5% on 12 September 2018. An increase in the relative abundance of MC-LR and MC-RR was observed in MB in 2018 and 2019. In PLSF, the relative abundance of MC-LR decreased remarkably while MC-LY increased highly on 26 July 2019 (Figure S4). Overall, MC-LR remained as a representative toxin in MB and PLSF.
The stability of extracellular toxin concentration over a wide range of temperatures and pH in water has been observed [56,57,58,59]. For instance, a previous study examined the stability of variant MCs, ANA-a, CYN, AP-A and AP-B during short-term storage at the lab-scale by inoculating a mixture of these toxins into surface water with no detectable cyanotoxin levels collected in PLSF and samples were stored at ambient temperate (20 °C). Results of that paper showed that extracellular toxins MC-LR, CYN and ANA-a changed negligibly while MC-LA, MC-LY, MC-RR, AP-A and AP-B slightly decreased in surface water after two days [60]. Moreover, it also indicated that microcystins degraded more slowly in mixtures compared to individual toxins [61].
In the coagulated mesocosms, an increase in the concentration of extracellular ΣMCs was observed at both MB (26 September 2018, and 15 August 2019) and PLSF (28 June 2019) in coagulated mesocosms (Figure 5). Besides, AP-A, AP-B and CYN toxins also increased after 48 h (Figure 6). The increase in the concentration of the total extracellular toxins in coagulated mesocosms after treatment was likely due to cell lysis and desorption of cyanotoxins from sediments or particulate matter. Several laboratory experiments have shown that following coagulation, cyanobacterial cells are lysed, and their toxins are released into the water [62,63,64,65]. Moreover, extracellular cyanotoxins were found not just in the water column but also in sediments and other organic debris [61,66]. As a result, cyanotoxins may desorb and be released into aqueous water in these locations where toxins accumulate, causing their concentration in water to rise [66,67].
In contrast, a decreasing trend of concentration of extracellular ΣMCs was observed in MB (12 September 2018) and PLSF (26 July and 7 August 2019) (Figure 5) for coagulated mesocosms which could be related to biodegradation and adsorption [68]. However, in this study, biodegradation was not observed in the control mesocosms. In this case, the reduction in extracellular ΣMCs is probably more associated to adsorption on to the sediment at the bottom of the coagulated mesocosms. It was discovered that cyanotoxins including CYN, MC-RR, MC-LF and MC-LW showed high adsorption (36.4% and 72.6%) in sandy sediments [66]. There is no significant difference between control and coagulated mesocosms as well as two applied doses (20 and 35 mgFe/L) on removing extracellular toxins (Table S6).

3. Conclusions

  • Dolichospermum, Microcystis, and Aphanizomenon were the dominant genera throughout the experimental period. Aphanothece spp. and Coelosphaerium spp. were also documented at some events;
  • Total cyanobacterial cells were efficiently removed, with more than 96% and 51% removal in mesocosms with applied dose of 35 mgFe/L and 20 mgFe/L, respectively. Significant differences in removing total cyanobacterial cells and several dominant cyanobacterial genera were observed between applied doses;
  • Both applied doses of ferric sulfate help to efficiently remove Dolichospermum, Microcystis, and Aphanizomenon. Aphanothece and Coelosphaerium had a lower removal rate in mesocosms with a dose of 20 mgFe/L in PLSF;
  • Intracellular microcystins (MC-RR, MC-YR, MC-HtyR, MC-LR, MC-HilR, MC-WR, MC-LA, MC-LY, MC-LW, MC-LF, [Asp3]MC-RR and [Asp3]MC-LR), anatoxin-a (ANA-a), cylindrospermopsin (CYN), anabaenopeptin A (AP-A) and anabaenopeptin B (AP-B) were detected throughout the experiment;
  • Ferric sulfate effectively removes detected intracellular cyanotoxins but not extracellular cyanotoxins. More than 97% removal of total intracellular microcystins were achieved for both applied doses;
  • Different dosages of ferric sulfate have almost the same effectiveness in removing intra- and extra-cellular cyanotoxins meaning that source water treatment will not be highly sensitive to suboptimal dosing.

4. Material and Methods

4.1. Study Site Description

Petit Lac St. François (PLSF) and Missisquoi Bay (MB) were selected as study locations because they are both eutrophic lakes that are prone to cyanobacterial blooms during growing season. PLSF is located in south-western Quebec (Canada; 45°32′16′′ N; 72°02′11′′ W; max depth (Z) = 1.8 m). PLSF is relatively small, shallow lake with approximately 50% agricultural land use in its catchment. Phosphorus and dissolved organic carbon concentrations were found to be high [23]. MB is a shallow embayment of Lake Champlain, situated in southern part of Quebec (Canada; 45°02′23′′ N; 73°04′41′′ W; depth (Z) = 4.75 m). This site was chosen because of frequent occurrence of intense cyanobacterial blooms [21,22]. The presence of cyanobacteria in this bay poses a threat to drinking water treatment and recreational activities [9,20].

4.2. Mesocosms Experiments Description

The mesocosm experiments were conducted over 6 different cyanobacterial bloom events, September 2018 and from June to August 2019 (Table 1) and each experiment lasted for 48 h. The mesocosm design followed the study of Wood [69], including the series of treatments and controls as described below. Cylindrical low-density polyethylene bags of 21 L mesocosms were suspended by floats on the shore of Lake Champlain and PLSF, Québec, Canada. Surface lake water and cyanobacteria harvested from scums at the field site were pooled and mixed thoroughly in a large (200 L) container to achieve as homogeneous starting mixture as possible. To conduct the experiment, 6 mesocosms were sets of duplicates, then filled with that mixed water of 21L and were left unamended to serve as a control (control mesocosm) or amended with 2 doses of the ferric sulfate coagulant: 20 mgFe/L (mesocosm 20) and 35 mgFe/L (mesocosm 35). Samples were mixed immediately after addition of coagulant. The mesocosms floated at the surface and were not covered. All of the environmental conditions are presented in Table 1.

4.3. Preparation and Application of Chemical Coagulant

Standard liquid grade ferric sulfate Fe2(SO4)3 with Fe content 12.2% was purchased from Kemira Water Solution, Inc. (Canada). Two different doses of ferric sulfate coagulant (20 mgFe/L and 35 mgFe/L) were administered in a mesocosms. The dosages were chosen based on previous study [20].

4.4. Sampling and Filtration Procedure

Sterilized high density 1-L polypropylene bottles were used to collect water samples from center of each mesocosm before adding the coagulant (T0) and after the addition of the coagulant at 48 h (T48). Water in mesocosm was mixed thoroughly before pouring into sterilized 1-L bottles at T0 while mixing was avoided to take the supernatant water at T48. For taxonomic samples, water samples were taken in 40 mL glass vials and preserved in Lugol’s iodine solution. Subsamples were taken for cyanotoxin, total organic carbon (TOC), dissolved organic carbon (DOC) and specific nutrients: total nitrogen (TN), total phosphorus (TP), dissolved nitrogen (DN), dissolved phosphorus (DP).
Subsamples of 120 mL were filtered on hydrophilic polypropylene GHP, 0.45 µm filters (PALL, Mississauga, ON, Canada). After filtration, the filter for intracellular toxin (sorbed to particulate matter or cell-bound) was placed in a petri dish (Millipore Sigma, Oakville, ON, Canada) while the filtrate for extracellular toxin (dissolved toxin) was transferred into 125 mL amber Nalgene™ polyethylene terephthalate glycol (PETG) bottles (Thermo Scientific, Mississauga, ON, Canada). Samples for TOC, TN, and TP were filled directly. The DOC samples were filtered by a pre-rinsed (1 L MilliQ water) 0.45 µm membrane filters (PALL, Mississauga, ON, Canada). A filter membrane 0.45 μm, 47 mm (Millipore Sigma, Oakville, ON, Canada) was used for subsample of DN/DP. Toxin and nutrient samples were taken in duplicate.
Toxin followed by storage at −25 °C. TN/TP/TOC/DOC samples were stored at 4 °C until analysis. Taxonomic samples were stored in a dark place at room temperature.

4.5. Analysis Methods

Taxonomic identification was achieved by using inverted microscopy in a Sedgwick-Rafter chamber with 40× magnification (Leica Microsystems GmbH, Wetzlar, Germany) [20,70,71], at the Université du Québec à Montréal’s (UQAM) Biological Sciences Department.
A total of 17 cyanobacterial toxins were tested with 12 microcystins (MC-RR, MC-YR, MC-HtyR, MC-LR, MC-HilR, MC-WR, MC-LA, MC-LY, MC-LW, MC-LF, [Asp3]MC-RR and [Asp3]MC-LR), anatoxin-a (ANA-a), cylindrospermopsin (CYN), anabaenopeptin A (AP-A) and anabaenopeptin B (AP-B). Total microcystins samples were detected via a Lemieux oxidation step and an online solid phase extraction (SPE) and salting coupled to ultrahigh performance liquid chromatography tandem mass spectrometry (UHPLC-MS/MS). The limit of detection was 0.5 ng/L and accuracy was in the range of 93%–110%, deemed satisfactory. An online solid phase extraction ultra-high performance liquid chromatography high-resolution mass spectrometry (SPE-UHPLC-HRMS) was developed for those multi-toxins with a limit of detection between 8 and 53 ng/L and recoveries ranging from 81% to 113%. More detail in [72,73].
The TOC and DOC were measured on a OI Instrument, Aurora 1030 according to method 415.1 [74]. TN and DN were analyzed on a Lachat, Quickchem 8500 based on the method 353.2 and the method 350.1 [75]. Standard method numbered 365.3 and 365.1 [76] were applied for phosphorus and phosphate with machine of Astoria-Pacific, Astoria 2. TOC/DOC and specific nutrient samples were analyzed at Groupe de Recherche Interuniversitaire en Limnologie, University of Montréal.
An online YSI EXO2 water-quality multi-probe (YSI, Yellow Springs, Greene County, OH, USA) was fitted with total algae sensor (chlorophyll-a/phycocyanin) was applied in this paper to measure phycocyanin, chlorophyll a, pH, total dissolved solid (TDS) and temperature [9,20].

4.6. Statistical Analysis

Statistical analysis was performed by R (R Core Team, 2020). All of the plots in this paper were generated by ggplot2 package in R (https://ggplot2.tidyverse.org, accessed on 12 March 2021). Principal component analysis (PCA) was performed to evaluate the impact of environmental conditions on total cell counts and cyanobacterial species in MB and PLSF, it is with the vegan (https://cran.r-project.org/package=vegan, accessed on 10 October 2021) and missMDA (https://cran.r-project.org/package=missMDA, accessed on 22 April 2021). Statistical tests were normalited by the Shapiro-Wilk test in mvnormtest package (https://cran.r-project.org/package=mvnormtest, accessed on 03 July 2021) and one-way ANOVA (Analysis of variance) test. Statistical significance was set at a 0.05 p-value cut-off (p < 0.05). Imputation of missing value is conducted by using the left-censored imputation method in MICE (https://cran.r-project.org/package=mice, accessed on 05 July 2021) and QGCOMP packages (https://cran.r-project.org/package=qgcomp, accessed on 20 June 2021).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/toxins13110753/s1, Figure S1: Relative abundance of cyanobacterial cells at level genus, Figure S2: Relative abundance of cyanobacterial cells at species level, Figure S3: Relative abundance of intracellular cyanotoxins, Figure S4: Relative abundance of extracellular cyanotoxins, Figure S5: Relative abundance of cyanobacterial biovolume at genus level, Figure S6: Total cyanobacterial biovolume (Mean ± standard deviations): A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019, Figure S7: Principal component analysis (PCA) of cyanobacterial cell counts respect to water conditions in control, 20 mgFe/L and 35 mgFe/L mesocosms in Missisquoi Bay and Petit Lac St. François, Table S1: List of cyanobacteria species, Table S2: Removal effectiveness (%) of taxonomic cell counts of individual cyanobacterial genus after 48 h (Mean ± Standard deviation), Table S3: Pairwise Kruskal-Wallis test, showing differences in removal of total cell counts and individual cyanobacterial genus between control mesocosms and mesocosms with dose 20 mgFe/L, control mesocosms and mesocosms with dose 35 mgFe/L, mesocosms with dose 20 mgFe/L and 35 mgFe/L in Missisquoi Bay and Petit-Lac-St-François (p-value < 0.05 is significant), Table S4: Removal effectiveness (%) of total intracellular microcystins (intracellular ΣMCs) and individual intracellular cyanotoxins in mesocosms with dose of 20 mgFe/L and 35 mgFe/L after 48 h (Mean ± Standard deviation), Table S5: Pairwise Kruskal-Wallis test, showing differences in removal of total intracellular microcystins (intracellular ΣMCs) and individual intracellular cyanotoxins between control mesocosms and mesocosms with dose of 20 mgFe/L, control mesocosms and mesocosms with dose of 35 mgFe/L, mesocosms with dose of 20 mgFe/L and 35 mgFe/L in Missisquoi Bay and Petit-Lac-St-François (p-value < 0.05 is significant), Table S6: Pairwise Kruskal-Wallis test, showing differences in removal of total extracellular microcystins (extracellular ΣMCs) and individual extracellular cyanotoxins between control mesocosms and mesocosms with dose of 20 mgFe/L, control mesocosms and mesocosms with dose of 35 mgFe/L, mesocosms with dose of 20 mgFe/L and 35 mgFe/L in Missisquoi Bay and Petit-Lac-St-François (p-value < 0.05 is significant), Table S7: Environmental conditions of lake water samples in control mesocosms at T48 (Mean ± standard deviation), Table S8: Environmental conditions of lake water samples in mesocosms with dose of 20 mgFe/L at T48 (Mean ± standard deviation), Table S9: Environmental conditions of lake water samples in mesocosms with dose of 35 mgFe/L at T48 (Mean ± standard deviation).

Author Contributions

Conceptualization, K.T.N.L., E.G., H.T., S.D.; Formal analysis, K.T.N.L., E.G., H.T.; Methodology: K.T.N.L., H.T., S.D.; Software, K.T.N.L.; Visualization, E.G., H.T., S.D.; Writing—original draft, K.T.N.L., E.G., H.T., S.D.; Writing—review and editing, K.T.N.L., E.G., H.T., S.S., M.P., S.D. Supervision, S.D.; Project administration, S.D., S.S., and M.P.; Funding acquisition, S.D., S.S., and M.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was carried out as a part of the Algal Blooms, Treatment, Risk Assessment, Prediction and Prevention (ATRAPP) through Genomics project with the financial support of Genome Canada and Genome Québec.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and supplementary material.

Acknowledgments

The authors acknowledge support from Algal Blooms, Treatment, Risk Assessment, Prediction and Prevention through Genomics Project (ATRAPP), the authors sincerely thank the staff at NSERC Industrial Chair on Drinking Water at Polytechnique Montreal, GRIL lab, Dana F. Simon, Quoc-Tuc Dinh and Sung Vo Duy (University of Montréal), Irina Moukhina (Université du Québec à Montréal), Léonie Lambert-Gosselin and Thanh-Luan Nguyen (Polytechnique Montréal) and staff at the Philipsburg drinking water treatment plant for their valuable contributions to this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Paerl, H.W.; Paul, V.J. Climate change: Links to global expansion of harmful cyanobacteria. Water Res. 2012, 46, 1349–1363. [Google Scholar] [CrossRef] [PubMed]
  2. Merel, S.; Walker, D.; Chicana, R.; Snyder, S.; Baurès, E.; Thomas, O. State of knowledge and concerns on cyanobacterial blooms and cyanotoxins. Environ. Int. 2013, 59, 303–327. [Google Scholar] [CrossRef]
  3. Svirčev, Z.; Lalić, D.; Savić, G.B.; Tokodi, N.; Backović, D.D.; Chen, L.; Meriluoto, J.; Codd, G.A. Global geographical and historical overview of cyanotoxin distribution and cyanobacterial poisonings. Arch. Toxicol. 2019, 93, 2429–2481. [Google Scholar] [CrossRef]
  4. Carmichael, W. Cyanobacteria secondary metabolites-the cyanotoxins. J. Appl. Bacteriol. 1992, 72, 445–459. [Google Scholar] [CrossRef]
  5. Harke, M.J.; Steffen, M.M.; Gobler, C.J.; Otten, T.G.; Wilhelm, S.; Wood, S.A.; Paerl, H.W. A review of the global ecology, genomics, and biogeography of the toxic cyanobacterium, Microcystis spp. Harmful Algae 2016, 54, 4–20. [Google Scholar] [CrossRef][Green Version]
  6. Kotak, B.G.; Zurawell, R. Cyanobacterial toxins in Canadian freshwaters: A review. Lake Reserv. Manag. 2007, 23, 109–122. [Google Scholar] [CrossRef]
  7. Lévesque, B.; Gervais, M.-C.; Chevalier, P.; Gauvin, D.; Anassour-Laouan-Sidi, E.; Gingras, S.; Fortin, N.; Brisson, G.; Greer, C.; Bird, D. Prospective study of acute health effects in relation to exposure to cyanobacteria. Sci. Total Environ. 2014, 466, 397–403. [Google Scholar] [CrossRef]
  8. Havens, K. Cyanobacteria blooms: Effects on aquatic ecosystems. Cyanobacterial Harmful Algal Bloom. State Sci. Res. Needs 2008, 619, 733–747. [Google Scholar]
  9. Zamyadi, A.; MacLeod, S.L.; Fan, Y.; McQuaid, N.; Dorner, S.; Sauvé, S.; Prévost, M. Toxic cyanobacterial breakthrough and accumulation in a drinking water plant: A monitoring and treatment challenge. Water Res. 2012, 46, 1511–1523. [Google Scholar] [CrossRef] [PubMed]
  10. Cooke, G.D.; Welch, E.B.; Peterson, S.; Nichols, S.A. Restoration and Management of Lakes and Reservoirs; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
  11. Lürling, M.; van Oosterhout, F. Controlling eutrophication by combined bloom precipitation and sediment phosphorus inactivation. Water Res. 2013, 47, 6527–6537. [Google Scholar] [CrossRef] [PubMed]
  12. Lelkova, E.; Rulík, M.; Hekera, P.; Dobias, P.; Dolejs, P.; Borovickova, M.; Poulickova, A. The influence of the coagulant PAX-18 on Planktothrix agardhii blow in a shallow eutrophic fishpond. Fottea 2008, 8, 147–154. [Google Scholar] [CrossRef][Green Version]
  13. Sun, F.; Hu, W.; Pei, H.; Li, X.; Xu, X.; Ma, C. Evaluation on the dewatering process of cyanobacteria-containing AlCl3 and PACl drinking water sludge. Sep. Purif. Technol. 2015, 150, 52–62. [Google Scholar] [CrossRef]
  14. Sun, F.; Pei, H.-Y.; Hu, W.-R.; Li, X.-Q.; Ma, C.-X.; Pei, R.-T. The cell damage of Microcystis aeruginosa in PACl coagulation and floc storage processes. Sep. Purif. Technol. 2013, 115, 123–128. [Google Scholar] [CrossRef]
  15. Sun, F.; Pei, H.-Y.; Hu, W.-R.; Ma, C.-X. The lysis of Microcystis aeruginosa in AlCl3 coagulation and sedimentation processes. Chem. Eng. J. 2012, 193–194, 196–202. [Google Scholar] [CrossRef]
  16. Jančula, D.; Maršálek, B. Critical review of actually available chemical compounds for prevention and management of cyanobacterial blooms. Chemosphere 2011, 85, 1415–1422. [Google Scholar] [CrossRef]
  17. Orihel, D.; Schindler, D.W.; Ballard, N.C.; Wilson, L.R.; Vinebrooke, R. Experimental iron amendment suppresses toxic cyanobacteria in a hypereutrophic lake. Ecol. Appl. 2016, 26, 1517–1534. [Google Scholar] [CrossRef] [PubMed]
  18. Molot, L.A.; Li, G.; Findlay, D.L.; Watson, S.B. Iron-Mediated suppression of bloom-forming cyanobacteria by oxine in a eutrophic lake. Freshw. Biol. 2010, 55, 1102–1117. [Google Scholar] [CrossRef]
  19. Sevilla, E.; Martin-Luna, B.; Vela, L.; Bes, M.T.; Fillat, M.F.; Peleato, M.L. Iron availability affects mcyD expression and microcystin-LR synthesis in Microcystis aeruginosa PCC7806. Environ. Microbiol. 2008, 10, 2476–2483. [Google Scholar] [CrossRef] [PubMed]
  20. Zamyadi, A.; Dorner, S.; Sauvé, S.; Ellis, D.; Bolduc, A.; Bastien, C.; Prévost, M. Species-Dependence of cyanobacteria removal efficiency by different drinking water treatment processes. Water Res. 2013, 47, 2689–2700. [Google Scholar] [CrossRef] [PubMed]
  21. McQuaid, N.; Zamyadi, A.; Prevost, M.; Bird, D.F.; Dorner, S. Use of in vivophycocyanin fluorescence to monitor potential microcystin-producing cyanobacterial biovolume in a drinkingwater source. J. Environ. Monit. 2011, 13, 455–463. [Google Scholar] [CrossRef] [PubMed]
  22. Jalili, F.; Trigui, H.; Maldonado, J.F.G.; Dorner, S.; Zamyadi, A.; Shapiro, B.J.; Terrat, Y.; Fortin, N.; Sauvé, S.; Prévost, M. Can Cyanobacterial Diversity in the Source Predict the Diversity in Sludge and the Risk of Toxin Release in a Drinking Water Treatment Plant? Toxins 2021, 13, 25. [Google Scholar] [CrossRef] [PubMed]
  23. Monchamp, M.-E.; Pick, F.R.; Beisner, B.E.; Maranger, R. Nitrogen Forms Influence Microcystin Concentration and Composition via Changes in Cyanobacterial Community Structure. PLoS ONE 2014, 9, e85573. [Google Scholar] [CrossRef] [PubMed]
  24. Bowling, L.C.; Blais, S.; Sinotte, M. Heterogeneous spatial and temporal cyanobacterial distributions in Missisquoi Bay, Lake Champlain: An analysis of a 9 year data set. J. Great Lakes Res. 2015, 41, 164–179. [Google Scholar] [CrossRef]
  25. International Joint Commission Report. Nutrient Loading and Impacts in Lake Champlain, Missisquoi Bay, and the Richelieu River. Available online: https://ijc.org/sites/default/files/2019-11/20191114_Missisquoi%20Bay%20Lit%20Review_LCBP_OBVBM_FR.pdf (accessed on 13 September 2021).
  26. Davis, T.; Harke, M.; Marcoval, M.; Goleski, J.; Orano-Dawson, C.; Berry, D.; Gobler, C. Effects of nitrogenous compounds and phosphorus on the growth of toxic and non-toxic strains of Microcystis during cyanobacterial blooms. Aquat. Microb. Ecol. 2010, 61, 149–162. [Google Scholar] [CrossRef][Green Version]
  27. Schindler, D.W.; Hecky, R.E.; Findlay, D.L.; Stainton, M.P.; Parker, B.R.; Paterson, M.J.; Beaty, K.G.; Lyng, M.; Kasian, S.E.M. Eutrophication of lakes cannot be controlled by reducing nitrogen input: Results of a 37-year whole-ecosystem experiment. Proc. Natl. Acad. Sci. USA 2008, 105, 11254–11258. [Google Scholar] [CrossRef][Green Version]
  28. Paerl, H. Nuisance Phytoplankton Blooms in Coastal, Estuarine, and Inland Waters. Limnol. Oceanogr. 1988, 33, 823–843. [Google Scholar] [CrossRef]
  29. Degerholm, J.; Gundersen, K.; Bergman, B.; Söderbäck, E. Phosphorus-Limited growth dynamics in two Baltic Sea cyanobacteria, Nodularia sp. and Aphanizomenon sp. FEMS Microbiol. Ecol. 2006, 58, 323–332. [Google Scholar] [CrossRef][Green Version]
  30. Chen, X.; Dolinova, I.; Sevcu, A.; Jurczak, T.; Frankiewicz, P.; Wojtal-Frankiewicz, A.; Wan, L.; Deng, Q.; Song, C.; Zhou, Y.; et al. Strategies adopted by Aphanizomenon flos-aquae in response to phosphorus deficiency and their role on growth. Environ. Sci. Eur. 2020, 32, 1–13. [Google Scholar] [CrossRef]
  31. Saad, A.; Atia, A. Review on Freshwater Blue-Green Algae (Cyanobacteria): Occurrence, Classification and Toxicology. Biosci. Biotechnol. Res. Asia 2014, 11, 1319–1325. [Google Scholar] [CrossRef]
  32. Crayton, M. Toxic cyanobacteria blooms. In A Field/Laboratory Guide; Office of Environmenta1 Health Assessments Washington, Department of Health: Olympia, WA, USA, 2004. [Google Scholar]
  33. de Maagd, P.-J.; Hendriks, A.; Seinen, W.; Sijm, D.T. pH-Dependent hydrophobicity of the cyanobacteria toxin microcystin-LR. Water Res. 1999, 33, 677–680. [Google Scholar] [CrossRef]
  34. Yamamoto, Y.; Nakahara, H. The formation and degradation of cyanobacterium Aphanizomenon flos-aquae blooms: The importance of pH, water temperature, and day length. Limnology 2005, 6, 1–6. [Google Scholar] [CrossRef]
  35. Li, H.; Alsanea, A.; Barber, M.; Goel, R. High-Throughput DNA sequencing reveals the dominance of pico- and other filamentous cyanobacteria in an urban freshwater Lake. Sci. Total Environ. 2019, 661, 465–480. [Google Scholar] [CrossRef] [PubMed]
  36. Henderson, R.; Parsons, S.A.; Jefferson, B. Successful Removal of Algae through the Control of Zeta Potential. Sep. Sci. Technol. 2008, 43, 1653–1666. [Google Scholar] [CrossRef]
  37. Henderson, R.; Parsons, S.A.; Jefferson, B. The impact of differing cell and algogenic organic matter (AOM) characteristics on the coagulation and flotation of algae. Water Res. 2010, 44, 3617–3624. [Google Scholar] [CrossRef] [PubMed][Green Version]
  38. Takaara, T.; Sano, D.; Konno, H.; Omura, T. Affinity isolation of algal organic matters able to form complex with aluminium coagulant. Water Supply 2004, 4, 95–102. [Google Scholar] [CrossRef]
  39. Pivokonsky, M.; Kloucek, O.; Pivokonska, L. Evaluation of the production, composition and aluminum and iron complexation of algogenic organic matter. Water Res. 2006, 40, 3045–3052. [Google Scholar] [CrossRef] [PubMed]
  40. Henderson, R.; Parsons, S.A.; Jefferson, B. The impact of algal properties and pre-oxidation on solid–liquid separation of algae. Water Res. 2008, 42, 1827–1845. [Google Scholar] [CrossRef]
  41. Bernhardt, H.; Clasen, J. Flocculation of Micro-Organisms; Water Supply Res. Technol.-AQUA: London, UK, 1991; Volume 40, pp. 76–87. [Google Scholar]
  42. Algal cells and coagulation, flocculation and sedimentation processes. Water Sci. Technol. 1997, 36, 111–118. [CrossRef]
  43. Gonzalez-Torres, A.; Putnam, J.; Jefferson, B.; Stuetz, R.; Henderson, R. Examination of the physical properties of Microcystis aeruginosa flocs produced on coagulation with metal salts. Water Res. 2014, 60, 197–209. [Google Scholar] [CrossRef]
  44. Xu, H.; Pei, H.; Xiao, H.; Jin, Y.; Li, X.; Hu, W.; Ma, C.; Sun, J.; Li, H. Behaviors of Microcystis aeruginosa cells during floc storage in drinking water treatment process. Sci. Rep. 2016, 6, 34943. Available online: https://www.nature.com/articles/srep34943#supplementary-information (accessed on 9 August 2020). [CrossRef][Green Version]
  45. Načeradská, J.; Pivokonska, L.; Pivokonský, M. On the importance of pH value in coagulation. J. Water Supply Res. Technol. 2019, 68, 222–230. [Google Scholar] [CrossRef]
  46. Zamyadi, A.; Dorner, S.; Ndong, M.; Ellis, D.; Bolduc, A.; Bastien, C.; Prévost, M. Low-Risk cyanobacterial bloom sources: Cell accumulation within full-scale treatment plants. J. Am. Water Work. Assoc. 2013, 105, E651–E663. [Google Scholar] [CrossRef][Green Version]
  47. Fortin, N.; Aranda-Rodriguez, R.; Jing, H.; Pick, F.; Bird, D.; Greer, C.W. Detection of Microcystin-Producing Cyanobacteria in Missisquoi Bay, Quebec, Canada, Using Quantitative PCR. Appl. Environ. Microbiol. 2010, 76, 5105–5112. [Google Scholar] [CrossRef][Green Version]
  48. Giani, A.; Bird, D.F.; Prairie, Y.; Lawrence, J.F. Empirical study of cyanobacterial toxicity along a trophic gradient of lakes. Can. J. Fish. Aquat. Sci. 2005, 62, 2100–2109. [Google Scholar] [CrossRef]
  49. Chorus, I.; Bartram, J. Toxic Cyanobacteria in Water: A Guide to Their Public Health Consequences, Monitoring and Management/Edited by Ingrid Chorus and Jamie Bertram; Taylor & Francis: Abingdon, UK, 1999. [Google Scholar]
  50. Pineda-Mendoza, R.; Zúñiga, G.; Martínez-Jerónimo, F. Microcystin production in Microcystis aeruginosa: Effect of type of strain, environmental factors, nutrient concentrations, and N:P ratio on mcyA gene expression. Aquat. Ecol. 2015, 50, 103–119. [Google Scholar] [CrossRef]
  51. Kaebernick, M.; Neilan, B.A.; Börner, T.; Dittmann, E. Light and the Transcriptional Response of the Microcystin Biosynthesis Gene Cluster. Appl. Environ. Microbiol. 2000, 66, 3387–3392. [Google Scholar] [CrossRef][Green Version]
  52. Preußel, K.; Wessel, G.; Fastner, J.; Chorus, I. Response of cylindrospermopsin production and release in Aphanizomenon flos-aquae (Cyanobacteria) to varying light and temperature conditions. Harmful Algae 2009, 8, 645–650. [Google Scholar] [CrossRef]
  53. Rücker, J.; Stüken, A.; Nixdorf, B.; Fastner, J.; Chorus, I.; Wiedner, C. Concentrations of particulate and dissolved cylindrospermopsin in 21 Aphanizomenon-dominated temperate lakes. Toxicon 2007, 50, 800–809. [Google Scholar] [CrossRef]
  54. Büşra Şengül, A.; Ersan, G.; Tufekci, N. Removal of Intra- and Extracellular Microcystin by Submerged Ultrafiltration (UF) Membrane Combined with Coagulation/Flocculation and Powdered Activated Carbon (PAC) Adsorption. J. Hazard. Mater. 2017, 343, 29–35. [Google Scholar] [CrossRef]
  55. Dixon, M.B.; Richard, Y.; Ho, L.; Chow, C.; O’Neill, B.K.; Newcombe, G. A coagulation–powdered activated carbon–ultrafiltration—Multiple barrier approach for removing toxins from two Australian cyanobacterial blooms. J. Hazard. Mater. 2011, 186, 1553–1559. [Google Scholar] [CrossRef]
  56. Massey, I.Y.; Yang, F. A Mini Review on Microcystins and Bacterial Degradation. Toxins 2020, 12, 268. [Google Scholar] [CrossRef] [PubMed][Green Version]
  57. Tsuji, K.; Naito, S.; Kondo, F.; Ishikawa, N.; Watanabe, M.F.; Suzuki, M.; Harada, K.-I. Stability of microcystins from cyanobacteria: Effect of light on decomposition and isomerization. Environ. Sci. Technol. 1994, 28, 173–177. [Google Scholar] [CrossRef] [PubMed]
  58. de Figueiredo, D.; Azeiteiro, U.M.; Esteves, S.M.; Gonçalves, F.J.M.; Pereira, M.J. Microcystin-Producing blooms—A serious global public health issue. Ecotoxicol. Environ. Saf. 2004, 59, 151–163. [Google Scholar] [CrossRef]
  59. Harada, K.-I.; Tsuji, K.; Watanabe, M.F.; Kondo, F. Stability of microcystins from cyanobacteria—III. Effect of pH and temperature. Phycologia 1996, 35, 83–88. [Google Scholar] [CrossRef]
  60. Dinh, Q.T.; Munoz, G.; Simon, D.F.; Duy, S.V.; Husk, B.; Sauvé, S. Stability issues of microcystins, anabaenopeptins, anatoxins, and cylindrospermopsin during short-term and long-term storage of surface water and drinking water samples. Harmful Algae 2020, 101, 101955. [Google Scholar] [CrossRef]
  61. Maghsoudi, E.; Fortin, N.; Greer, C.; Duy, S.V.; Fayad, P.; Sauvé, S.; Prévost, M.; Dorner, S. Biodegradation of multiple microcystins and cylindrospermopsin in clarifier sludge and a drinking water source: Effects of particulate attached bacteria and phycocyanin. Ecotoxicol. Environ. Saf. 2015, 120, 409–417. [Google Scholar] [CrossRef]
  62. Han, J.; Jeon, B.-S.; Futatsugi, N.; Park, H.-D. The effect of alum coagulation for in-lake treatment of toxic Microcystis and other cyanobacteria related organisms in microcosm experiments. Ecotoxicol. Environ. Saf. 2013, 96, 17–23. [Google Scholar] [CrossRef] [PubMed]
  63. Li, H.; Pei, H.; Xu, H.; Jin, Y.; Sun, J. Behavior of Cylindrospermopsis raciborskii during coagulation and sludge storage—Higher potential risk of toxin release than Microcystis aeruginosa? J. Hazard. Mater. 2018, 347, 307–316. [Google Scholar] [CrossRef]
  64. Ho, L.; Dreyfus, J.; Boyer, J.; Lowe, T.; Bustamante, H.; Duker, P.; Meli, T.; Newcombe, G. Fate of cyanobacteria and their metabolites during water treatment sludge management processes. Sci. Total Environ. 2012, 424, 232–238. [Google Scholar] [CrossRef] [PubMed]
  65. Dreyfus, J.; Monrolin, Y.; Pestana, C.; Reeve, P.J.; Sawade, E.; Newton, K.; Ho, L.; Chow, C.W.K.; Newcombe, G. Identification and assessment of water quality risks associated with sludge supernatant recycling in the presence of cyanobacteria. J. Water Supply Res. Technol. AQUA 2016, 65, 441–452. [Google Scholar] [CrossRef]
  66. Maghsoudi, E.; Prévost, M.; Duy, S.V.; Sauvé, S.; Dorner, S. Adsorption characteristics of multiple microcystins and cylindrospermopsin on sediment: Implications for toxin monitoring and drinking water treatment. Toxicon 2015, 103, 48–54. [Google Scholar] [CrossRef]
  67. Jones, G.J.; Negri, A.P. Persistence and degradation of cyanobacterial paralytic shellfish poisons (PSPs) in freshwaters. Water Res. 1997, 31, 525–533. [Google Scholar] [CrossRef]
  68. Chen, W.; Song, L.; Peng, L.; Wan, N.; Zhang, X.; Gan, N. Reduction in microcystin concentrations in large and shallow lakes: Water and sediment-interface contributions. Water Res. 2008, 42, 763–773. [Google Scholar] [CrossRef] [PubMed]
  69. Wood, S. Increasing Microcystis cell density enhances microcystin synthesis: A mesocosm study. Inland Waters 2012, 2, 17–22. [Google Scholar] [CrossRef][Green Version]
  70. Edler, L.; Elbrächter, M. The Utermöhl method for quantitative phytoplankton analysis. Microsc. Mol. Methods Quant. Phytoplankton Anal. 2010, 110, 13–20. [Google Scholar]
  71. Lund, J.W.G. A Simple Counting Chamber for Nannoplankton1. Limnol. Oceanogr. 1959, 4, 57–65. [Google Scholar] [CrossRef]
  72. Munoz, G.; Duy, S.V.; Roy-Lachapelle, A.; Husk, B.; Sauvé, S. Analysis of individual and total microcystins in surface water by on-line preconcentration and desalting coupled to liquid chromatography tandem mass spectrometry. J. Chromatogr. A 2017, 1516, 9–20. [Google Scholar] [CrossRef] [PubMed]
  73. Roy-Lachapelle, A.; Duy, S.V.; Munoz, G.; Dinh, Q.T.; Bahl, E.; Simon, D.F.; Sauvé, S. Analysis of multiclass cyanotoxins (microcystins, anabaenopeptins, cylindrospermopsin and anatoxins) in lake waters using on-line SPE liquid chromatography high-resolution Orbitrap mass spectrometry. Anal. Methods 2019, 11, 5289–5300. [Google Scholar] [CrossRef][Green Version]
  74. United States Environmental Protection Agency (USEPA). Method 415.1. Organic Carbon, Total (Combustion or Oxidation); United States Environmental Protection Agency: Washington, DC, USA, 1974; pp. 1–3.
  75. United States Environmental Protection Agency (USEPA). Method 353.2, Revision 2.0: Determination of Nitrate-Nitrite Nitrogen by Automated Colorimetry; United States Environmental Protection Agency: Washington, DC, USA, 1993; pp. 1–15.
  76. United States Environmental Protection Agency (USEPA). Method 365.3: Phosphorous, All Forms (Colorimetric, Ascorbic Acid, Two Reagent); United States Environmental Protection Agency: Washington, DC, USA, 1978; pp. 1–5.

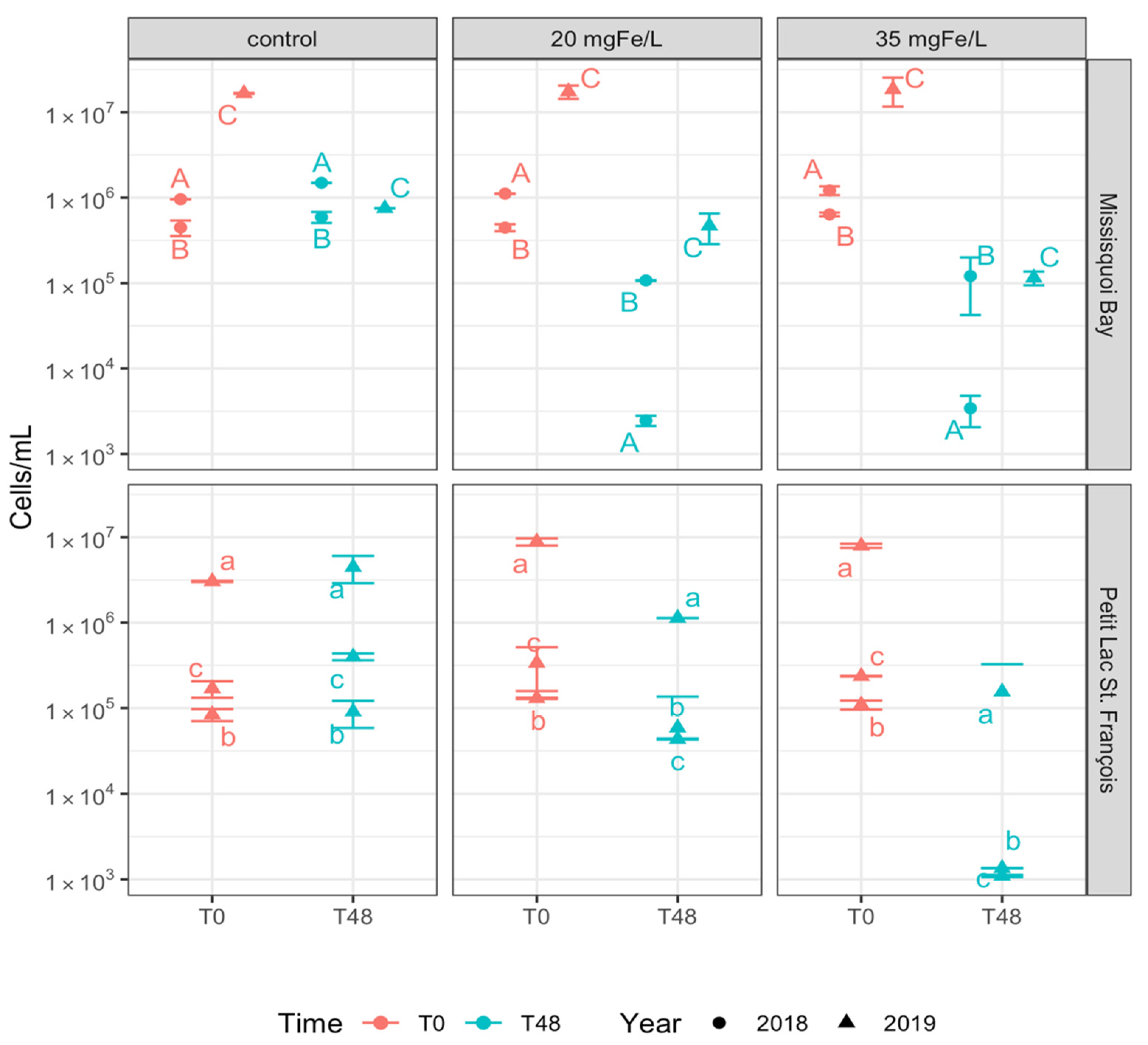

Figure 1. Total taxonomic cell counts in control, 20 mgFe/L, and 35 mgFe/L mesocosms (Mean ± standard deviation): A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019.
Figure 1. Total taxonomic cell counts in control, 20 mgFe/L, and 35 mgFe/L mesocosms (Mean ± standard deviation): A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019.
Toxins 13 00753 g001

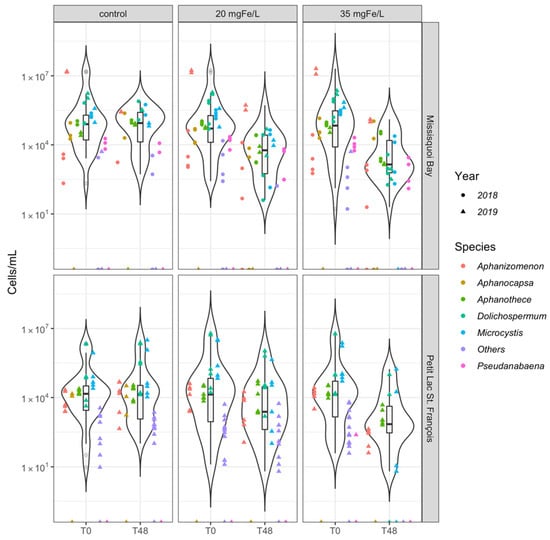

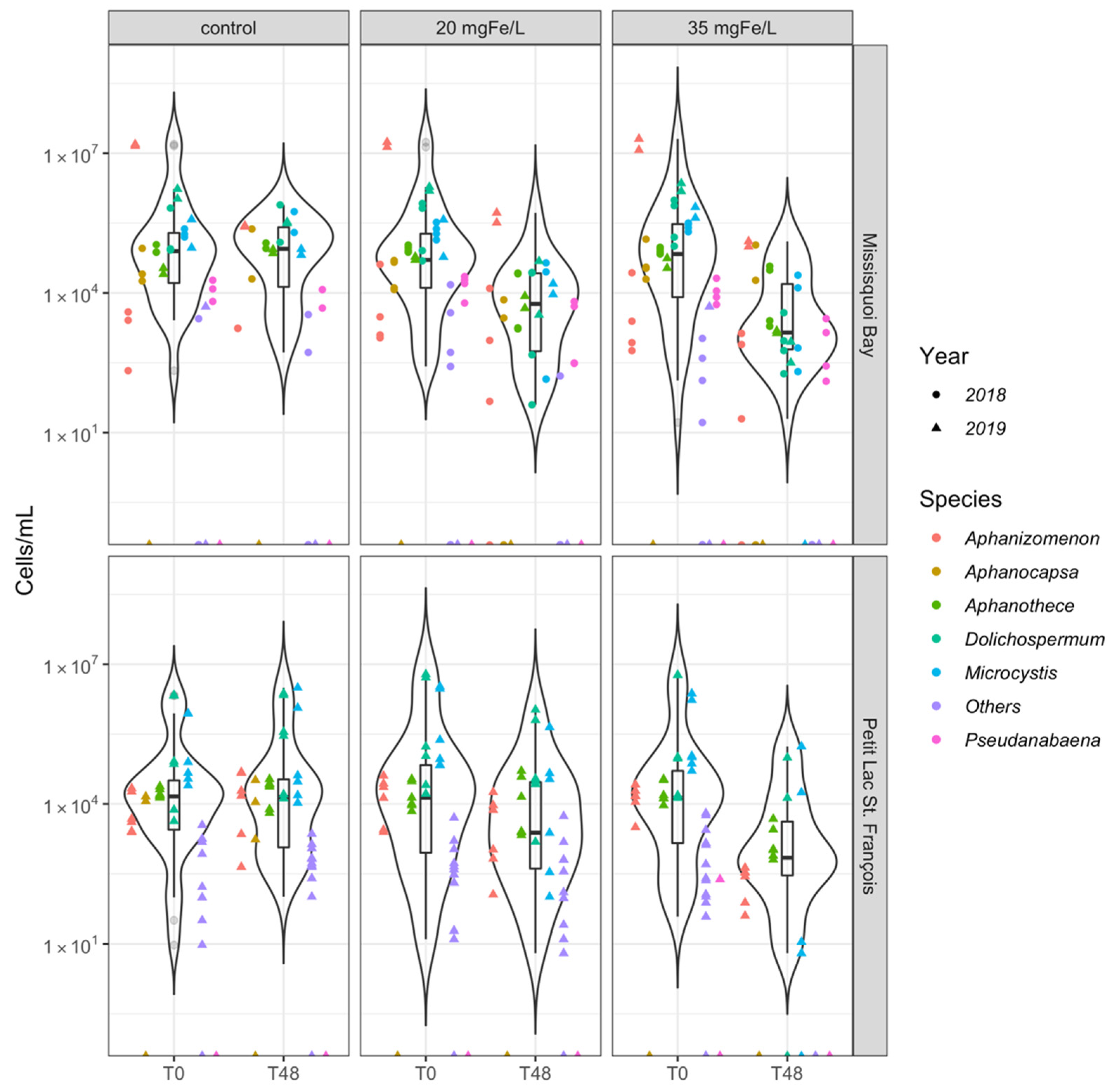

Figure 2. Violin plot shows the distribution of taxonomic cell counts at level genus in control, 20 mgFe/L, and 35 mgFe/L mesocosms. (Others include Chroococcus, Coelosphaerium, Merismopedia). The bottom and top of the box shows the lower and upper quartiles, the band in between them shows the median, whiskers show the minimum and maximum (excluding outliers) and circles show the outliers. Outliers are values more than 1.5 times the length of the interquartile range greater than the upper quartile or smaller than the lower quartile.
Figure 2. Violin plot shows the distribution of taxonomic cell counts at level genus in control, 20 mgFe/L, and 35 mgFe/L mesocosms. (Others include Chroococcus, Coelosphaerium, Merismopedia). The bottom and top of the box shows the lower and upper quartiles, the band in between them shows the median, whiskers show the minimum and maximum (excluding outliers) and circles show the outliers. Outliers are values more than 1.5 times the length of the interquartile range greater than the upper quartile or smaller than the lower quartile.
Toxins 13 00753 g002

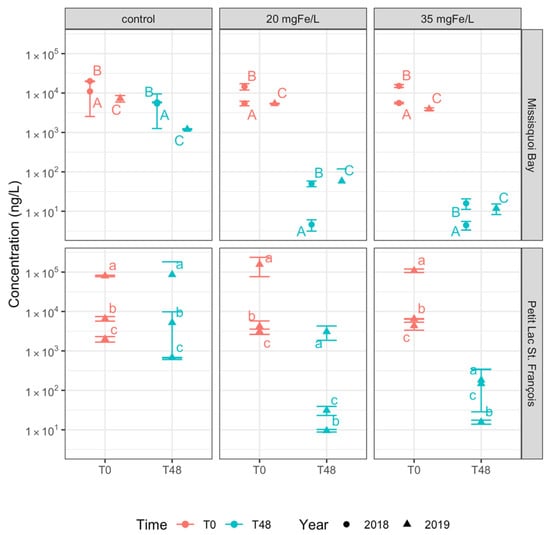

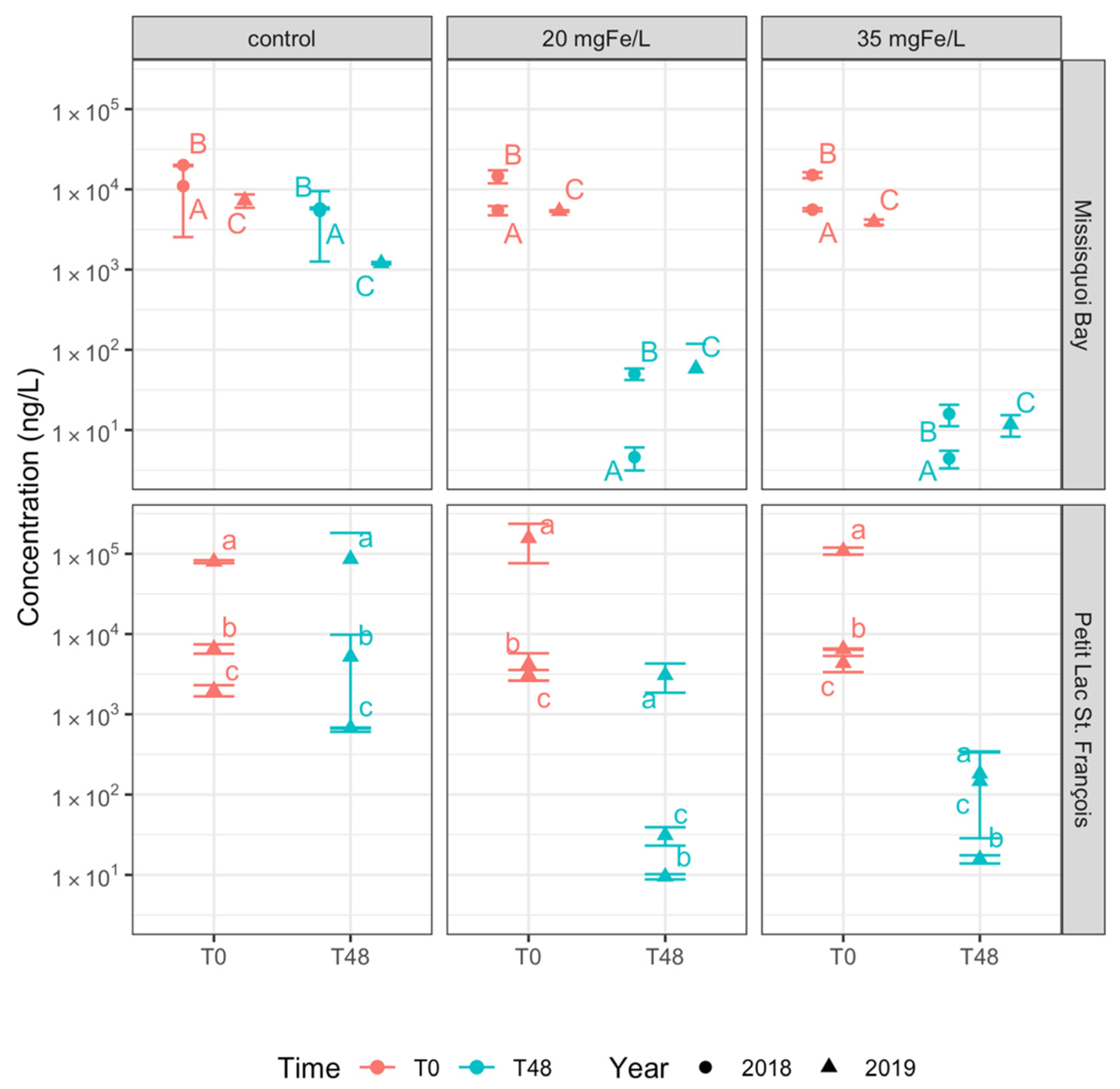

Figure 3. Concentration of total intracellular microcystins in control, 20 mgFe/L, and 35 mgFe/L mesocosms (Mean ± standard deviation): A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019.
Figure 3. Concentration of total intracellular microcystins in control, 20 mgFe/L, and 35 mgFe/L mesocosms (Mean ± standard deviation): A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019.
Toxins 13 00753 g003

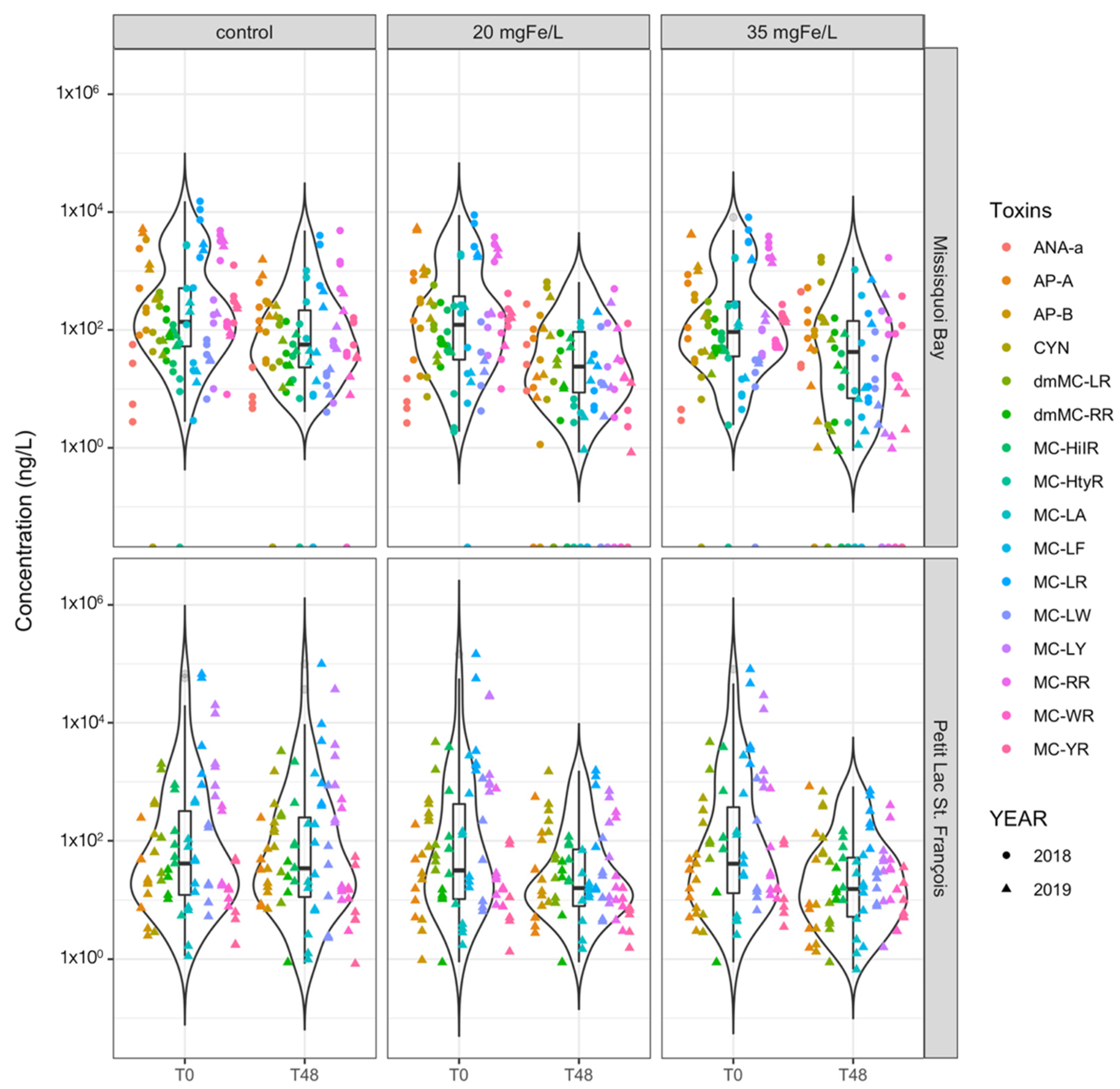

Figure 4. Violin lot shows the distribution of intracellular toxin concentration of individual cyanotoxins in control, 20 mgFe/L, and 35 mgFe/L mesocosms in Missisquoi Bay (MB) and Petit Lac St. Francois (PLSF). The bottom and top of the box show the lower and upper quartiles, the band in between them shows the median, whiskers show the minimum and maximum (excluding outliers) and circles show the outliers. Outliers are values more than 1.5 times the length of the interquartile range greater than the upper quartile or smaller than the lower quartile.
Figure 4. Violin lot shows the distribution of intracellular toxin concentration of individual cyanotoxins in control, 20 mgFe/L, and 35 mgFe/L mesocosms in Missisquoi Bay (MB) and Petit Lac St. Francois (PLSF). The bottom and top of the box show the lower and upper quartiles, the band in between them shows the median, whiskers show the minimum and maximum (excluding outliers) and circles show the outliers. Outliers are values more than 1.5 times the length of the interquartile range greater than the upper quartile or smaller than the lower quartile.
Toxins 13 00753 g004

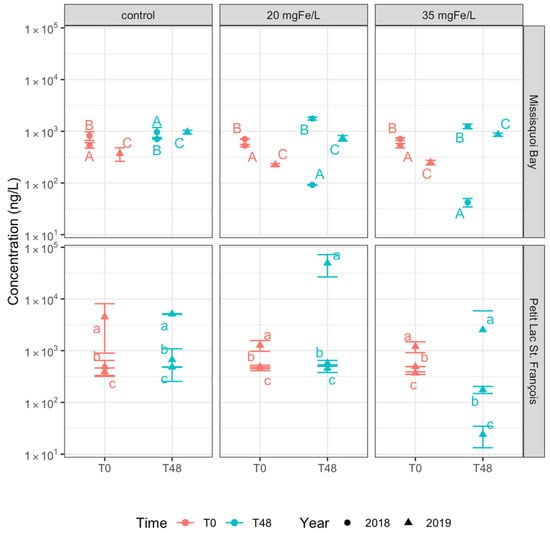

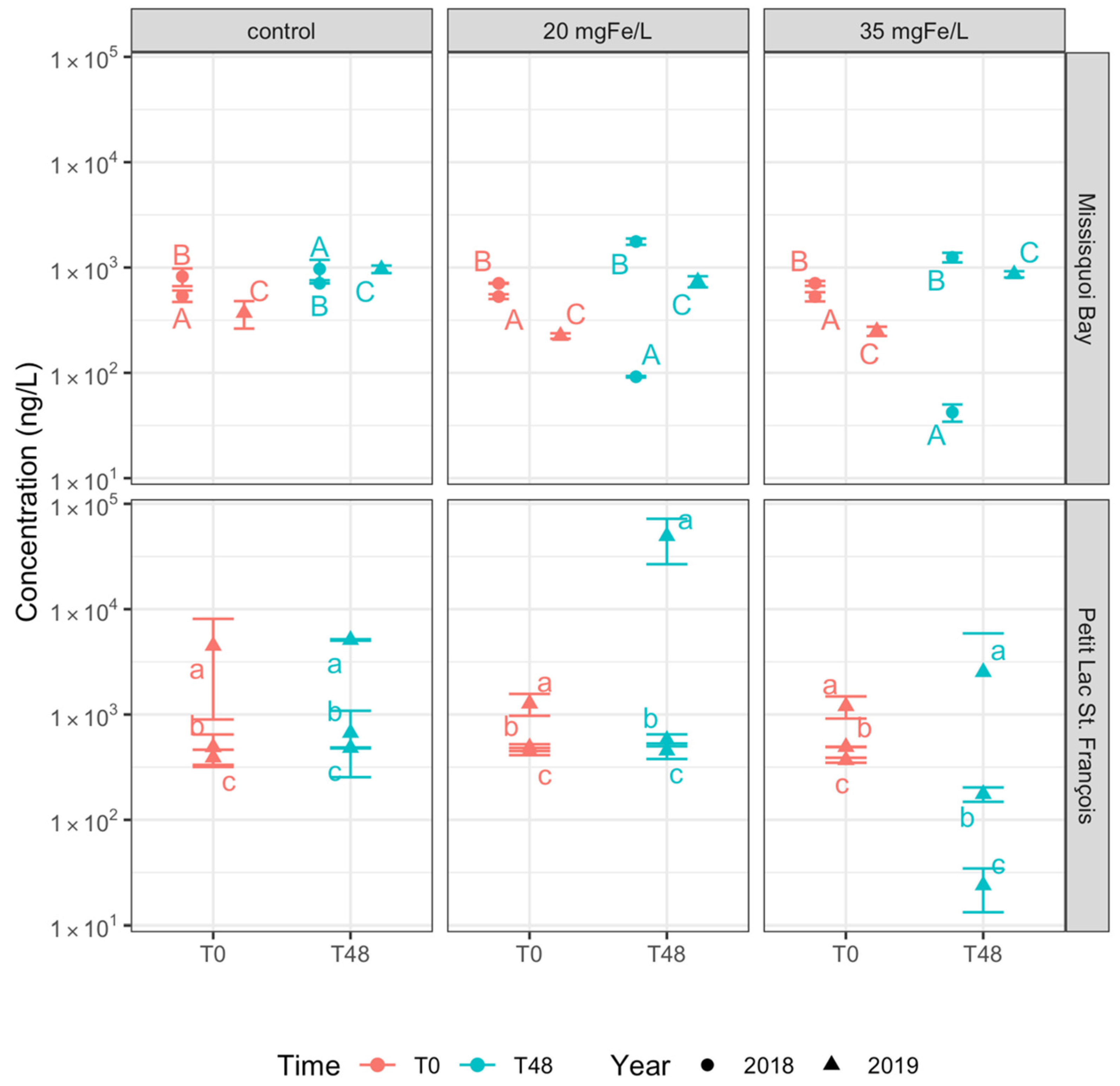

Figure 5. Concentration of total extracellular microcystins in control, 20 mgFe/L, and 35 mgFe/L mesocosms (Mean ± Standard deviation). A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019.
Figure 5. Concentration of total extracellular microcystins in control, 20 mgFe/L, and 35 mgFe/L mesocosms (Mean ± Standard deviation). A) 10–12 September 2018; B) 24–26 September 2018; C) 13–15 August 2019; a) 26–28 June 2019; b) 24–26 July 2019; c) 05–07 August 2019.
Toxins 13 00753 g005

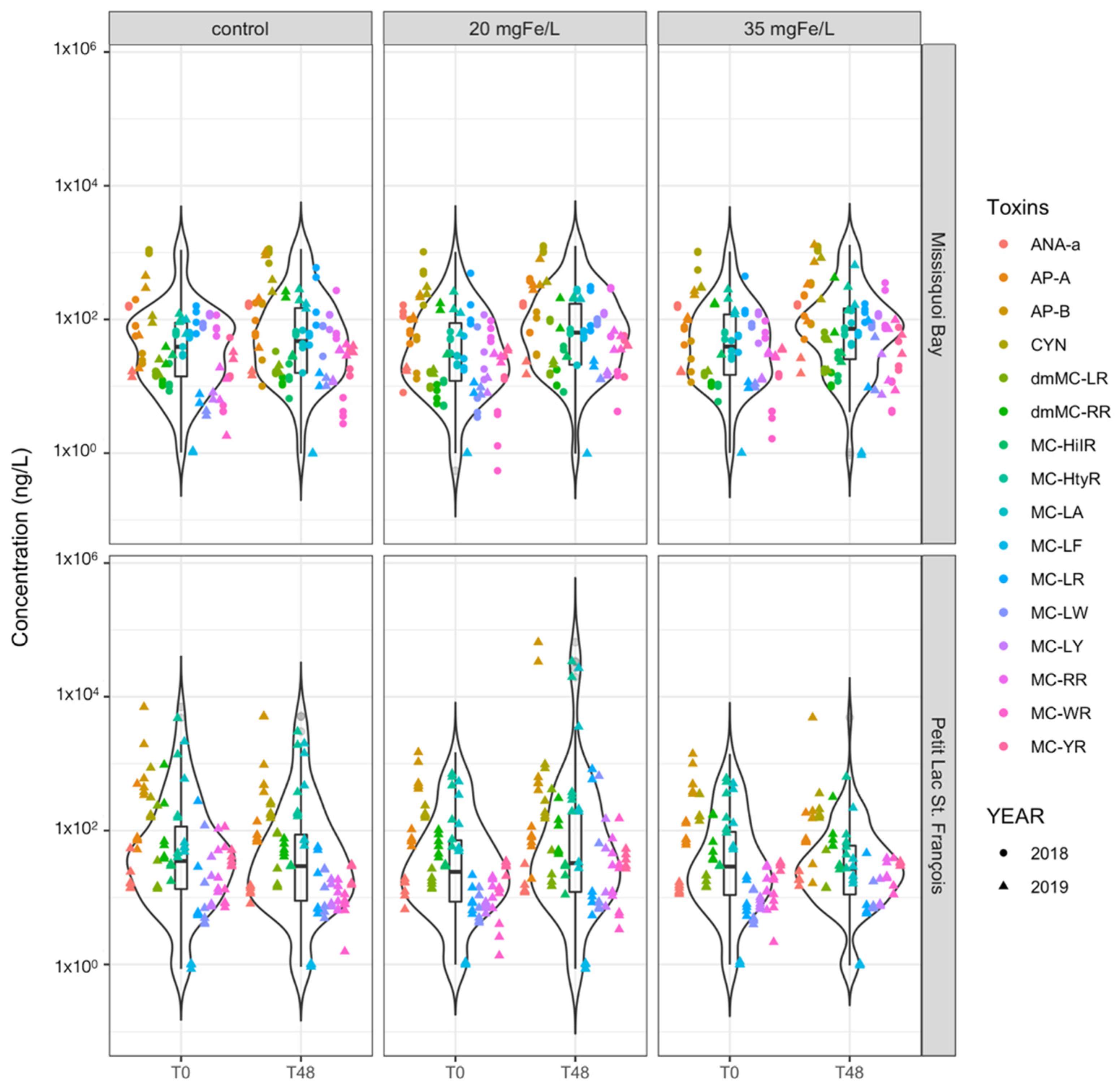

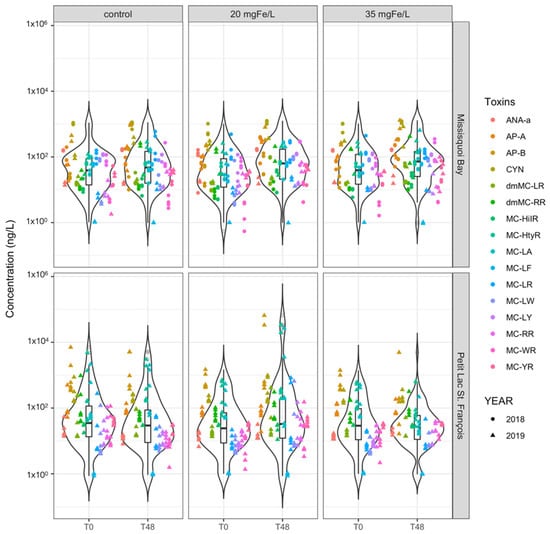

Figure 6. Violin plot shows the distribution of extracellular toxin concentration of individual cyanotoxins in control, 20 mgFe/L, and 35 mgFe/L in Missisquoi Bay (MB) and Petit Lac St. François (PLSF). The bottom and top of the box show the lower and upper quartiles, the band in between them shows the median, whiskers show the minimum and maximum (excluding outliers) and circles show the outliers. Outliers are values more than 1.5 times the length of the interquartile range greater than the upper quartile or smaller than the lower quartile.
Figure 6. Violin plot shows the distribution of extracellular toxin concentration of individual cyanotoxins in control, 20 mgFe/L, and 35 mgFe/L in Missisquoi Bay (MB) and Petit Lac St. François (PLSF). The bottom and top of the box show the lower and upper quartiles, the band in between them shows the median, whiskers show the minimum and maximum (excluding outliers) and circles show the outliers. Outliers are values more than 1.5 times the length of the interquartile range greater than the upper quartile or smaller than the lower quartile.
Toxins 13 00753 g006
Table 1. Environmental conditions of lake water samples in mesocosms (n = 6) at T0 (Mean ± standard deviation).
Table 1. Environmental conditions of lake water samples in mesocosms (n = 6) at T0 (Mean ± standard deviation).
ParametersMissisquoi BayPetit Lac St. François
(A)
10 September
2018
(B)
24 September
2018
(C)
13 August
2019
(a)
26 June
2019
(b)
24 July
2019
(c)
05 August
2019
Total cell counts (cells/mL) 998,183 ± 35,034547,325 ± 16,57817,408,158 ± 138,8986,033,197 ± 316,425109,193 ± 3578235,723 ± 5986
Chlorophyll-a (RFU)--62.22 ± 1.033.97 ± 0.045.14 ± 0.066.27 ± 0.08
Phycocyanin (RFU)--93.43 ± 0.5216.51 ± 1.541.77 ± 0.044.83 ± 0.13
pH6.5 ± 0.086.4 ± 0.078.05 ± 0.248.08 ± 0.077.84 ± 0.038.01 ± 0.01
TDS (mg/L)101 ± 0.00100 ± 0.0098.00 ± 0.00122.50 ± 0.71116.00 ± 0.00115.00 ± 0.00
Temp (°C)21.8 ± 0.0118.7 ± 0.1226.89 ± 0.2125.96 ± 0.4925.14 ± 0.1224.43 ± 0.24
TOC (mg C/L)15.22 ± 0.255.55 ± 0.07885.00 ± 33.34175.00 ± 9.5011.10 ± 0.3810.76 ± 0.13
DOC (mg C/L)7.50 ± 0.055.00 ± 0.0019.34 ± 1.679.80 ± 0.119.83 ± 0.1311.34 ± 1.58
TN (mg N/L)5.55 ± 0.652.75 ± 0.087.84 ± 2.9512.85 ± 0.571.11 ± 0.051.29 ± 0.008
TP (μg P/L)360.51 ± 0.01292.11 ± 13.284336.92 ± 74.65723.55 ± 24.97110.38 ± 1.89131.78 ± 7.71
DN (mg N/L)0.45 ± 0.0040.52 ± 0.0092.66 ± 0.120.73 ± 0.080.60 ± 0.020.50 ± 0.02
DP (μg P/L)17.05 ± 0.0717.99 ± 0.45302.17 ± 12.98139.06 ± 3.3523.92 ± 4.9142.86 ± 1.13
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Le, K.T.N.; Goitom, E.; Trigui, H.; Sauvé, S.; Prévost, M.; Dorner, S. The Effects of Ferric Sulfate (Fe2(SO4)3) on the Removal of Cyanobacteria and Cyanotoxins: A Mesocosm Experiment. Toxins 2021, 13, 753. https://doi.org/10.3390/toxins13110753

AMA Style

Le KTN, Goitom E, Trigui H, Sauvé S, Prévost M, Dorner S. The Effects of Ferric Sulfate (Fe2(SO4)3) on the Removal of Cyanobacteria and Cyanotoxins: A Mesocosm Experiment. Toxins. 2021; 13(11):753. https://doi.org/10.3390/toxins13110753

Chicago/Turabian Style

Le, Kim Thien Nguyen, Eyerusalem Goitom, Hana Trigui, Sébastien Sauvé, Michèle Prévost, and Sarah Dorner. 2021. "The Effects of Ferric Sulfate (Fe2(SO4)3) on the Removal of Cyanobacteria and Cyanotoxins: A Mesocosm Experiment" Toxins 13, no. 11: 753. https://doi.org/10.3390/toxins13110753

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
