Influence of In Situ Calcium Pectinate Coating on Metoprolol Tartrate Pellets for Controlled Release and Colon-Specific Drug Delivery
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation of Metoprolol Tartrate Pellets
2.3. Preparation of Coated Metoprolol Tartrate Pellets
2.4. Evaluation of Coated Metoprolol Tartrate Pellets
2.4.1. Morphology
2.4.2. In Vitro Drug Release
3. Results and Discussion
3.1. Solution Layering of Metoprolol Tartrate Pellets

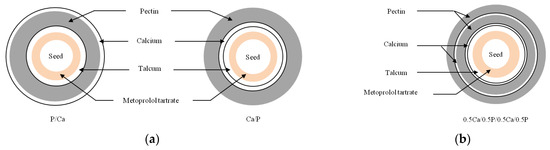

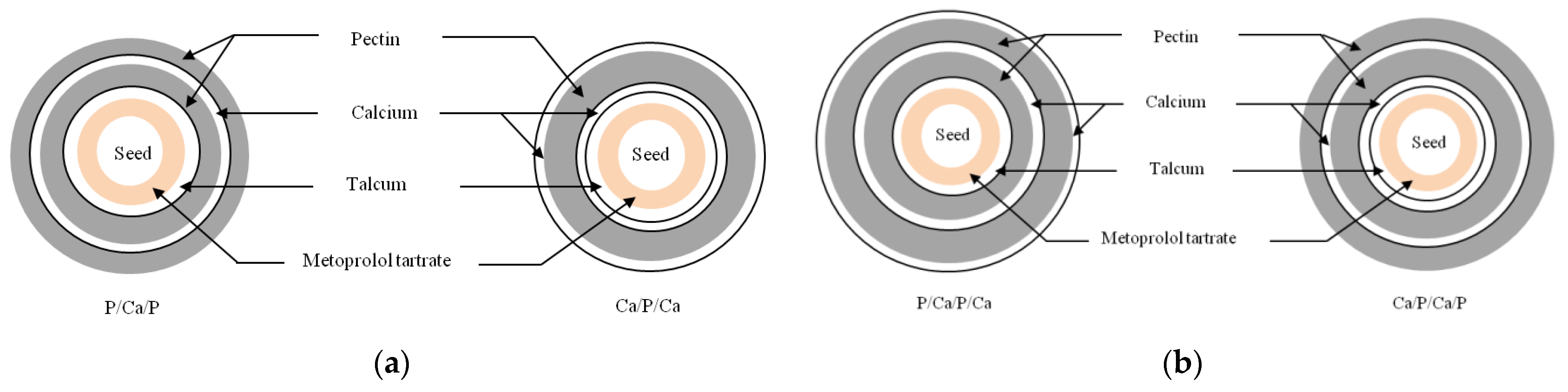

3.2. Subcoating and Alternate Coating of Metoprolol Tartrate Pellets
3.2.1. Morphology of Coated Metoprolol Tartrate Pellets

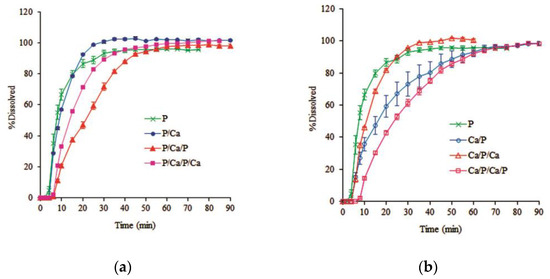

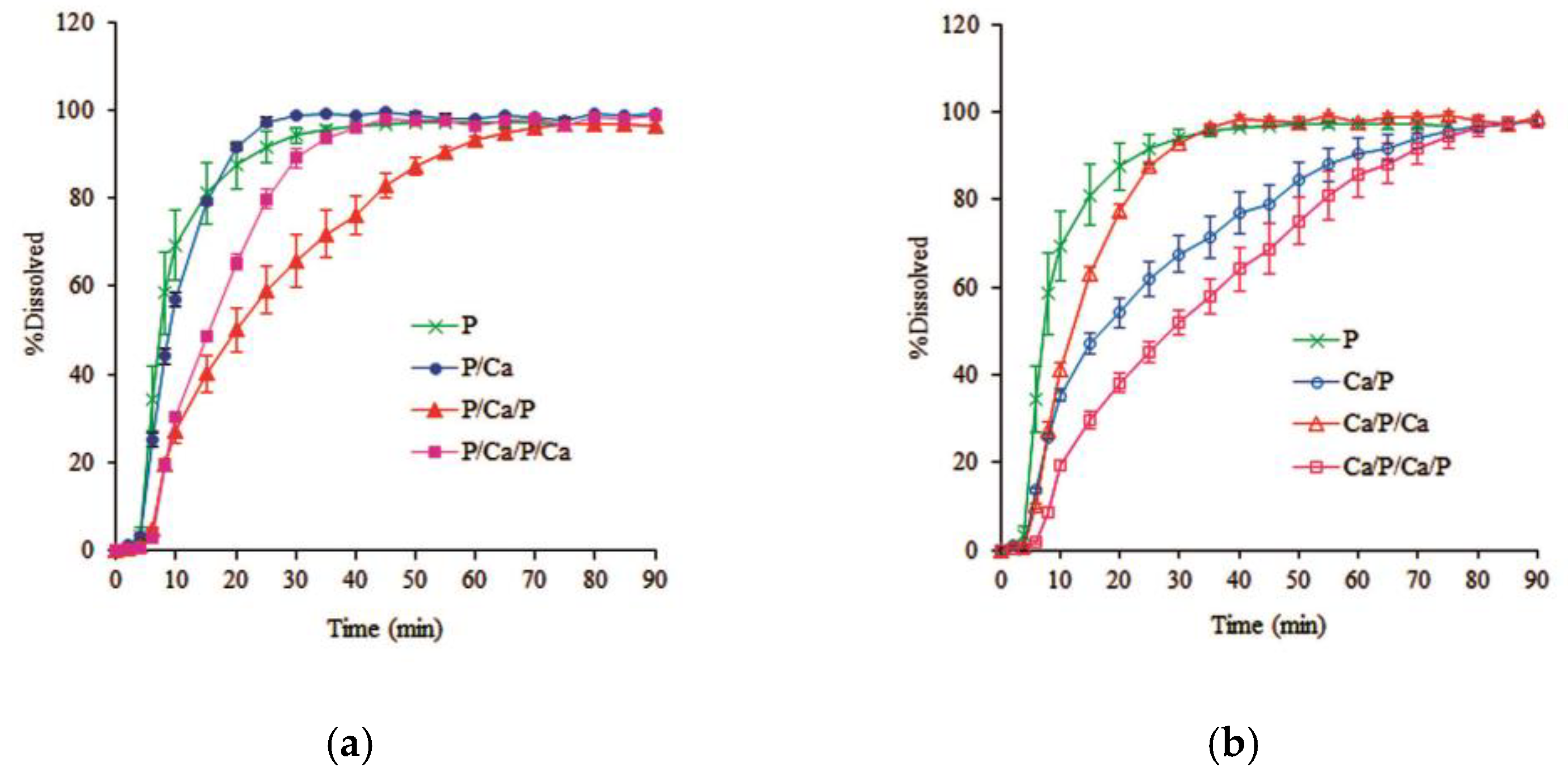

3.2.2. In Vitro Drug Release

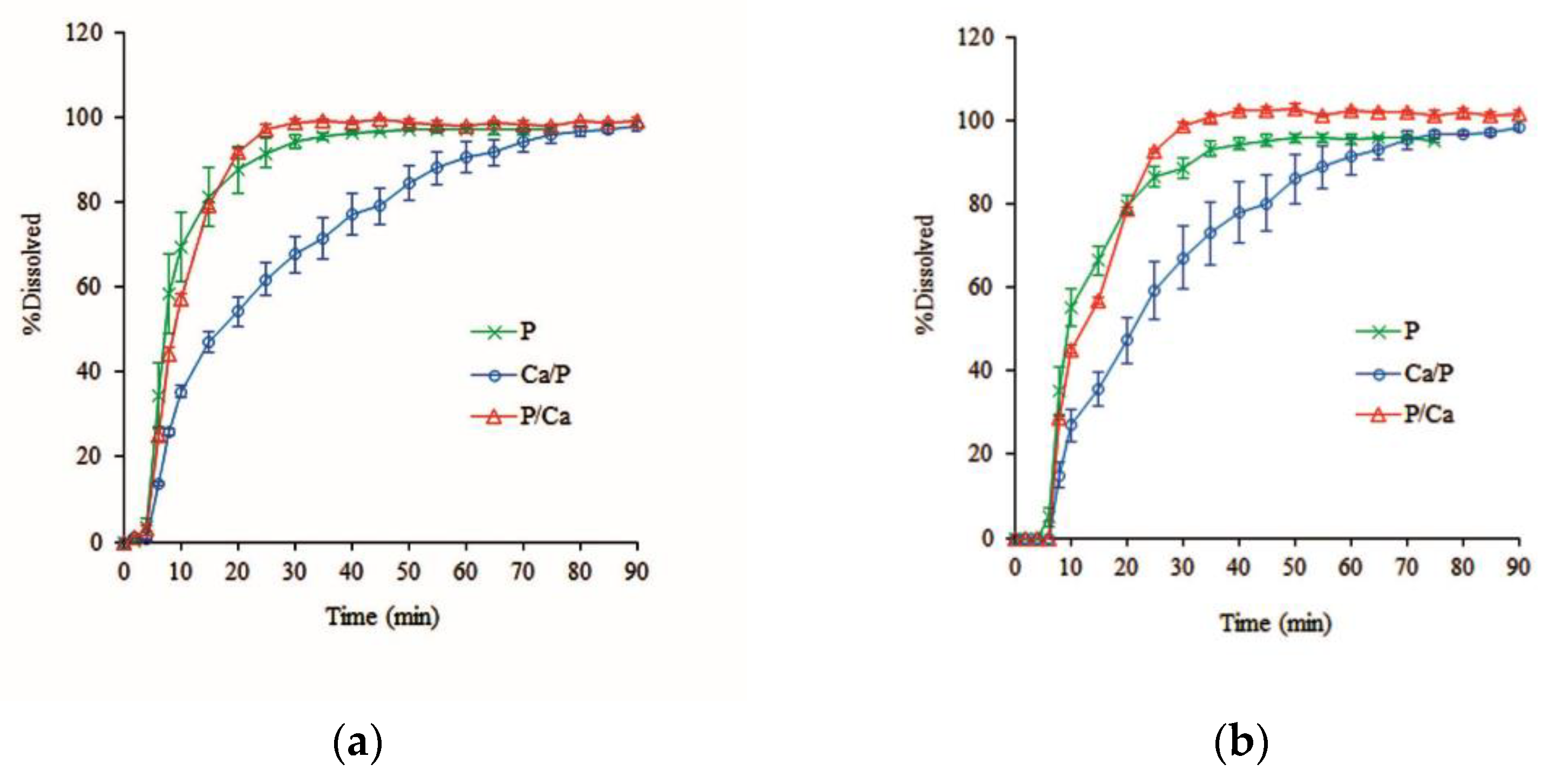

- Effect of the inner and outer calcium layer of alternate layer coating
- 2.
- Effect of the number of layers of alternate layer coating
- 3.

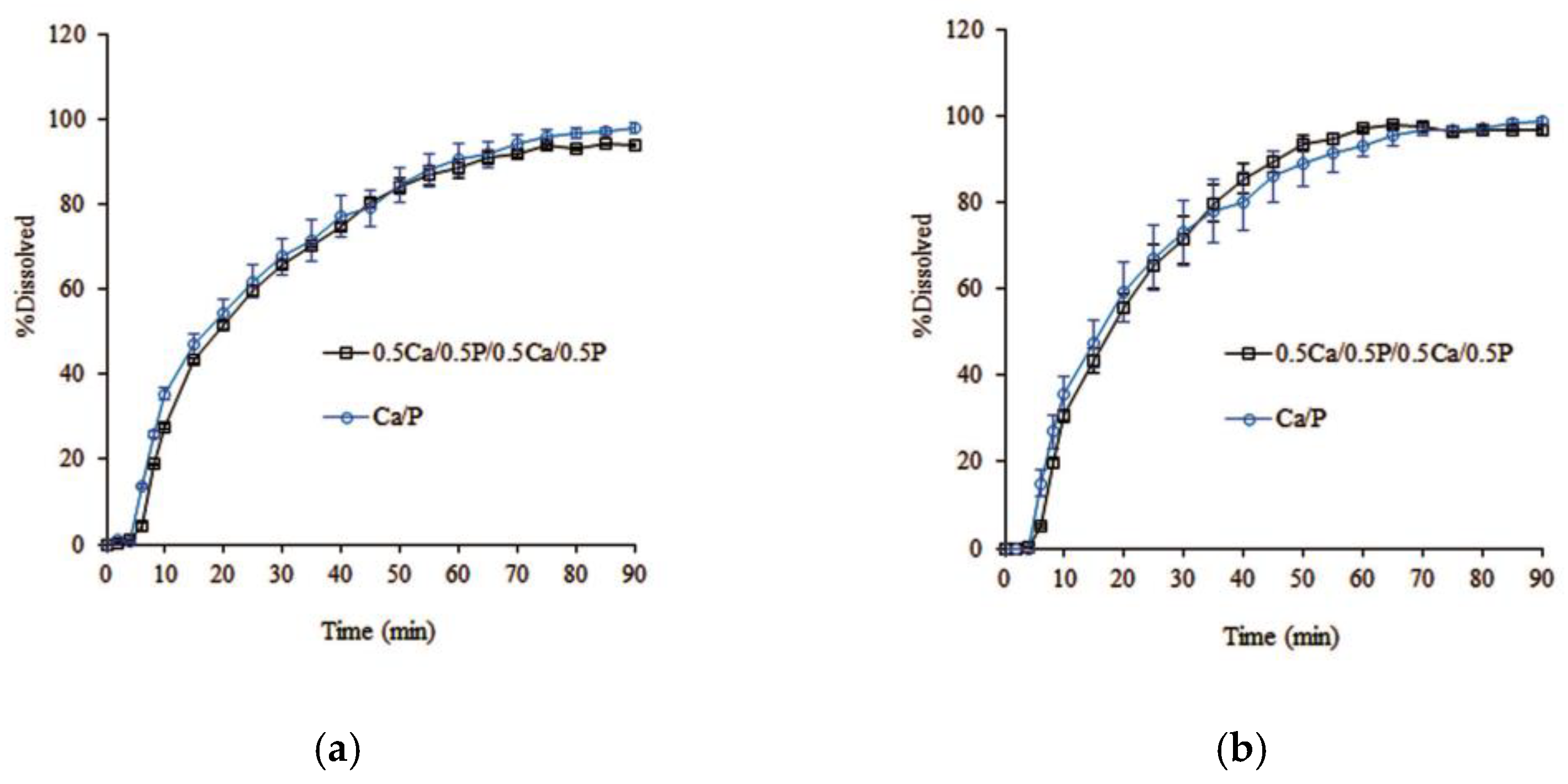

- Effect of coating quantity and sequence of alternate layer coating
- 4.
- Mathematical models of alternate-layer-coated pellets
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Bechgaard, H.; Nielsen, G.H. Controlled release multiple-units and single-unit dose: A literature review. Drug Dev. Ind. Pharm. 1978, 4, 53–67. [Google Scholar] [CrossRef]
- Hunter, E.; Fell, J.T.; Sharma, H. The gastric emptying of pellets contained in hard gelatin capsules. Drug Dev. Ind. Pharm. 1982, 8, 751–757. [Google Scholar] [CrossRef]
- Vandamme, T.F.; Lenourry, A.; Charrueau, C.; Chaumeil, J.C. The use of polysaccharides to target drugs to the colon. Carbohydr. Polym. 2002, 48, 219–231. [Google Scholar] [CrossRef]
- Liu, L.; Fishman, M.; Hicks, K. Pectin in controlled drug delivery—A review. Cellulose 2007, 14, 15–24. [Google Scholar] [CrossRef]
- Khotimchenko, M. Pectin polymers for colon-targeted antitumor drug delivery. Int. J. Biol. Macromol. 2020, 158, 1110–1124. [Google Scholar] [CrossRef]
- Xu, C.; Zhang, J.S.; Mo, Y.; Tan, R.X. Calcium pectinate capsules for colon-specific drug delivery. Drug Dev. Ind. Pharm. 2005, 31, 127–134. [Google Scholar] [CrossRef]
- Semde, R.; Amighi, K.; Devleeschouwer, M.J.; Moes, A.J. Effect of pectinolytic enzymes on the theophylline release from pellets coated with water insoluble polymers containing pectin HM or calcium pectinate. Int. J. Pharm. 2000, 197, 169–179. [Google Scholar] [CrossRef]
- Sriamornsak, P. Investigation of pectin as a carrier for oral delivery of proteins using calcium pectinate gel beads. Int. J. Pharm. 1998, 169, 213–220. [Google Scholar] [CrossRef]
- Dupuis, G.; Chambin, O.; Genelot, C. Colonic drug delivery: Influence of cross-linking agent on pectin beads properties and role of the shell capsule type. Drug Dev. Ind. Pharm. 2006, 32, 847–855. [Google Scholar] [CrossRef]
- Wanasawas, P.; Sinchaipanid, N.; Fell, J.T.; Mitrevej, A. Influence of pectin and calcium pectinate films on in vitro drug release from coated theophylline pellets. J. Drug Deliv. Sci. Technol. 2013, 23, 465–470. [Google Scholar] [CrossRef]
- Sriamornsak, P.; Kennedy, R.A. Development of polysaccharide gel-coated pellets for oral administration: Swelling and release behavior of calcium pectinate gel. Aaps Pharmscitech 2007, 8, 79. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sriamornsak, P.; Kennedy, R.A. A novel gel formation method, microstructure and mechanical properties of calcium polysaccharide gel films. Int. J. Pharm. 2006, 323, 72–80. [Google Scholar] [CrossRef] [PubMed]
- Sriamornsak, P.; Prakongpan, S.; Puttipipatkhachorn, S.; Kennedy, R.A. Development of sustained release theophylline pellets coated with calcium pectinate. J. Control Release 1997, 47, 221–232. [Google Scholar] [CrossRef]
- Bhagat, H.R.; Mendes, R.W.; Mathiowitz, E.; Bhargava, H.N. A novel, self-correcting membrane coating technique. Pharm. Res. 1991, 8, 576–583. [Google Scholar] [CrossRef]
- Luch, J.R. Metoprolol tartrate. In Analytical Profiles of Drug Substances; Florey, K., Ed.; Academic Press: New York, NY, USA, 1983; pp. 325–356. [Google Scholar]
- Ghebre-Sellassie, I.; Knoch, A. Pelletization techniques. In Encyclopedia of Pharmaceutical Technology; Swarbrick, J., Boylan, J.C., Eds.; Marcel Dekker: New York, NY, USA, 1995; pp. 369–394. [Google Scholar]
- Jones, D. Air suspension coating for multiparticulates. Drug Dev. Ind. Pharm. 1994, 20, 3175–3206. [Google Scholar] [CrossRef]
- Hu, L.D.; Liu, Y.; Tan, X.; Zhang, Q. Preparation and in vitro/in vivo evaluation of sustained-release metformin hydrochloride pellets. Eur. J. Pharm. Biopharm. 2006, 64, 185–192. [Google Scholar] [CrossRef]
- Atyabi, F.; Majzoob, S.; Iman, M.; Salehi, M.; Dorkoosh, F. In vitro evaluation and modification of pectinate gel beads containing trimethyl chitosan, as a multi-particulate system for delivery of water-soluble macromolecules to colon. Carbohydr. Polym. 2005, 61, 39–51. [Google Scholar] [CrossRef]
- Hiorth, M.; Tho, I.; Sande, S.A. The formation and permeability of drugs across free pectin and chitosan films prepared by a spraying method. Eur. J. Pharm. Biopharm. 2003, 56, 175–181. [Google Scholar] [CrossRef]
- Pillay, V.; Fassihi, R. In vitro release modulation from crosslinked pellets for site-specific drug delivery to the gastrointestinal tract: I. Comparison of pH-responsive drug release and associated kinetics. J. Control Release 1999, 59, 229–242. [Google Scholar] [CrossRef]
- Ashford, M.; Fell, J.; Attwood, D.; Sharma, H.; Woodhead, P. Studies on pectin formulations for colonic drug delivery. J. Control. Release 1994, 30, 225–232. [Google Scholar] [CrossRef]
- Paul, D.R. Elaborations on the Higuchi model for drug delivery. Int. J. Pharm. 2011, 418, 13–17. [Google Scholar] [CrossRef] [PubMed]
Ingredients | % w/w | |||
---|---|---|---|---|
Drug Layering | Sub-Coating | Coating | ||
Pectin (P) | Calcium (Ca) | |||
Metoprolol tartrate | 30.0 | - | - | - |
HPMC E15 LV | 3.0 | 4.0 | - | 4.0 |
Pectin | - | - | 3.0 | - |
Calcium chloride | - | - | - | 4.0 |
PEG 6000 | - | 0.8 | - | 0.8 |
Talcum | 2.0 | 0.8 | - | 0.8 |
Glycerol | - | - | 0.6 | - |
Silicone emulsion, 10% | 0.2 | 0.2 | - | 0.2 |
Ethanol and water (1:1) qs | 100 | - | - | - |
Water qs | - | 100.0 | 100.0 | 100.0 |
Parameters | Operating Conditions | ||
---|---|---|---|
Sub-Coating | Pectin Coating | Calcium Coating | |
Inlet temperature, °C | 50 | 65 | 50 |
Fluidized air velocity, m3/h | 75 | 75 | 75 |
Product and outlet temperature, °C | 32–34 | 35–38 | 32–34 |
Atomization pressure, MPa | 0.25 | 0.25 | 0.25 |
Spray rate, g/min | 10–12 | 15–18 | 10–12 |
pH | Coating Sequence | Zero Order Qt = K0t + Q0 | First Order log Qt = K1t + log Q0 | Higuchi Qt = KHt1/2 |
---|---|---|---|---|
7.4 | P | 0.8190 | 0.7128 | 0.8734 |
P/Ca | 0.9663 | 0.8732 | 0.9864 | |
P/Ca/P | 0.9582 | 0.8458 | 0.9929 | |
P/Ca/P/Ca | 0.9826 | 0.9009 | 0.9974 | |
Ca/P | 0.9154 | 0.7374 | 0.9725 | |
Ca/P/Ca | 0.9468 | 0.7616 | 0.9799 | |
Ca/P/Ca/P | 0.9867 | 0.9009 | 0.9992 | |
6.0 | P | 0.8225 | 0.7270 | 0.8845 |
P/Ca | 0.9779 | 0.9076 | 0.9934 | |
P/Ca/P | 0.9840 | 0.8567 | 0.9974 | |
P/Ca/P/Ca | 0.9517 | 0.8584 | 0.9819 | |
Ca/P | 0.9152 | 0.7647 | 0.9714 | |
Ca/P/Ca | 0.9269 | 0.7540 | 0.9663 | |
Ca/P/Ca/P | 0.9517 | 0.8101 | 0.9898 |
