Article

A General Small-Angle X-ray Scattering-Based Screening Protocol for Studying Physical Stability of Protein Formulations

1
Key Laboratory of Gastrointestinal Cancer, Ministry of Education, School of Basic Medical Sciences, Fujian Medical University, Fuzhou 350122, China
2
Gottfried Schatz Research Center for Cell Signaling, Metabolism and Aging, Molecular Biology and Biochemistry, Medical University of Graz, 8010 Graz, Austria
3
Anton Paar GmbH, 8054 Graz, Austria
4
BioTechMed-Graz, 8010 Graz, Austria
*
Author to whom correspondence should be addressed.
Pharmaceutics 2022, 14(1), 69; https://doi.org/10.3390/pharmaceutics14010069
Received: 28 November 2021 / Revised: 22 December 2021 / Accepted: 23 December 2021 / Published: 28 December 2021

Abstract

:
A fundamental step in developing a protein drug is the selection of a stable storage formulation that ensures efficacy of the drug and inhibits physiochemical degradation or aggregation. Here, we designed and evaluated a general workflow for screening of protein formulations based on small-angle X-ray scattering (SAXS). Our SAXS pipeline combines automated sample handling, temperature control, and fast data analysis and provides protein particle interaction information. SAXS, together with different methods including turbidity analysis, dynamic light scattering (DLS), and SDS-PAGE measurements, were used to obtain different parameters to provide high throughput screenings. Using a set of model proteins and biopharmaceuticals, we show that SAXS is complementary to dynamic light scattering (DLS), which is widely used in biopharmaceutical research and industry. We found that, compared to DLS, SAXS can provide a more sensitive measure for protein particle interactions, such as protein aggregation and repulsion. Moreover, we show that SAXS is compatible with a broader range of buffers, excipients, and protein concentrations and that in situ SAXS provides a sensitive measure for long-term protein stability. This workflow can enable future high-throughput analysis of proteins and biopharmaceuticals and can be integrated with well-established complementary physicochemical analysis pipelines in (biopharmaceutical) research and industry.

1. Introduction

Biopharmaceuticals have revolutionized the treatment of a wide range of diseases and are used in almost all branches of medicine [1]. Therapeutic proteins are the fastest growing category of biopharmaceuticals for use in many clinical settings, including cancers, infectious diseases, organ transplantation, chronic inflammatory, and cardiovascular diseases [2]. Biopharmaceutical products represent an increasing percentage in drug development and new drug applications for market approval [3], but their commercial and academic usage is currently limited by their physical stability. In contrast to small-molecule drugs, biopharmaceuticals are potentially immunogenic. Even slight alterations in the structure of the active ingredients in biopharmaceuticals can significantly affect their efficacy and immunogenicity [4,5]. Stabilization of biopharmaceuticals is generally performed during drug development, which involves ensuring not only their proper function but also that their structure is preserved [6]. When the protein is stored in a non-optimal condition, this can lead to degradation or aggregation, which may, in turn, affect the drug’s effectiveness and cause adverse immunological responses [7,8].
Several factors determine physical stability, including concentration, pH, temperature, surfactants, salts, sugars, amino acids, or excipients [9,10]. In addition, the balance between attractive and repulsive interactions between proteins and between proteins and small molecules (additives) can affect protein stability [11]. On the molecular level, driving forces are combinations of hydrogen bonding, hydrophobic and electrostatic interactions [12]. The approaches used most frequently to stabilize proteins include controlling solution pH, surfactants, and co-solvents like amino acids, sugars, and salts in order to suppress protein aggregation, reduce surface adsorption, or simply provide physiological osmolality [13,14]. In these ways, repulsive unspecific protein-protein interactions are considered to be favorable for protein stability [15,16]. Summarizing, identification of suitable conditions for protein purification, storage, and formulation, is a critical step for all protein-based biopharmaceuticals. However, this is often a complex, time-consuming, and cost-intensive effort.
A toolbox of techniques is available for the characterization of protein physicochemical properties, with dynamic light scattering (DLS), size-exclusion HPLC (SE-HPLC), and differential scanning calorimetry (DSC) being the most widely used techniques in biopharmaceutical research and industry. DLS has been widely used for detecting protein aggregation/mean radius. However, DLS is limited by the lower resolution used to distinguish features of polydisperse samples and is susceptible to interference from dispersants [17]. Protein suspensions are often highly heterogeneous and polydisperse and may contain monomers (native, partially unfolded, unfolded), dimers, and oligomers or aggregates [18,19,20,21]. Multiple scattering, a high concentration of small particles whose scattering intensity is interfered with, or a small number of large particles, hamper accurate DLS measurements [22]. It has been shown that SE-HPLC can be used to characterize the composition of therapeutic proteins, mainly for the analysis of purified protein [23,24]. However, SE-HPLC has limited resolution, which can determine the presence of aggregates but not clearly reveal structural changes, and requires a long operating time [25]. DSC provides a thermodynamic profile of the protein, including change in heat capacity (∆Cp), enthalpy (∆H), entropy (∆S), and Gibbs free energy (∆G)) and can be used to assess the structural conformation [26,27]. Its accuracy and sensitivity are limited; for example, only >10% of denatured proteins can be detected [28].
Small-angle X-ray scattering (SAXS) is a robust technique providing insight into the physicochemical properties of biological macromolecules in solution [29]. SAXS is suitable to characterize equilibrium mixtures and dynamic processes, providing structural information through parameters such as the radius of gyration (Rg) [30,31]. SAXS can be utilized to monitor biomacromolecule conformational changes, protein-protein interactions, assembly states (oligomerization and aggregation), intermolecular attraction and repulsion, and dynamics [32,33,34,35,36]. In situ SAXS studies also allow real-time monitor of the structural changes of proteins [37,38]. Consequently, SAXS could be an extremely beneficial technique for high throughput formulation screening.
In this study, we present a SAXS methodology to investigate proteins in a high-throughput formulation screening setup that can be combined with available information derived from well-established techniques such as DLS and SE-HPLC. We used lysozyme, human serum albumin (HSA), and therapeutic antibody fragments as model proteins to demonstrate and validate our proposed workflow. We sought to create a generalizable analytical workflow that can be applied to a wide range of formulations by SAXS aimed at the identification of optimal formulations and prediction of long-term storage stability. The storage stability progress was followed in situ and in real-time using SAXS. A comprehensive analysis of the physical stability of model protein formulations has been carried out in this study. In situ SAXS-based investigations should be very effective in disclosing biochemical processes accompanied by measurable structural changes.

2. Materials and Methods

2.1. Materials

Albumin from human serum (10 mg/mL; Sigma, Vienna, Austria) and lysozyme (Applichem, Darmstadt, Germany) were dissolved into ddH2O. Antibody fragments were provided by Boehringer Ingelheim RCV GmbH and Co KG (Vienna, Austria). All samples are from the same protein batch, and several methods were applied under the same experimental conditions. The formulation screen was performed at different pH values and buffer stocks (0.5 M concentration) using the JBScreen Buffers (Jena Bioscience, Jena, Germany, Table S1), where SPG buffer (column 12) is produced by mixing succinic acid:sodium dihydrogen phosphate:glycine in the molar ratio 2:7:7.

2.2. Turbidity Assay

Model protein samples (final concentration: 5 mg/mL) were mixed with different buffer/pH from JBScreen Buffers (final concentration: 25 mM from 0.5 M buffer stocks). Turbidity measurements were conducted at 600 nm in 96-well plates with 80 µL samples using a FLUOstar Omega Microplate Reader (BMG Labtech). All experiments were performed in triplicate. When the OD600 nm approached 0.5, the solution showed turbidity by visual inspection. Therefore, we use 0.5 as an OD600 nm threshold for the initial formation of aggregates.

2.3. Small-Angle X-ray Scattering

The formulation setup is the same as for the turbidity assay at room temperature (25 °C). SAXS data for model protein formulations were recorded on an in-house SAXS instrument (SAXSpace, Anton Paar, Graz, Austria) equipped with a Kratky camera, a sealed X-ray tube source, and a Mythen2 R 1 K Detector (Dectris). Samples were loaded using the automated sample changer or the sealed sampler loader (in situ analysis). One frame with a 10-min exposure time was measured for each of the different pH/buffers at 5 mg/mL concentrations. A range of momentum transfer of 0.012 < q < 0.63 Å−1 was covered (q = 4π sin(θ)/λ, with 2θ the scattering angle and λ = 1.5 Å the X-ray wavelength). All SAXS data were analyzed and processed with the SAXSanalysis package by Anton Paar (version 4.0). We have generated a script (Supplementary Script in Supplementary Materials) that can be used to combine all SAXS data in one Excel sheet (extract q range, file names, and scattering intensity) and can be used to automatically calculate radius of gyration (Rg) values for comparison using the following formula (Supplementary analysis template in Supplementary Materials):
R g = 3 × ( ln   I 0 ln I q q
The script runs a series of commands and can be executed on Linux/Unix (sub)systems. The SAXS input data must be provided in a format containing three columns (q, intensity, error). The protocol has been deposited at http://smallangle.org/ (accessed on 22 December 2021).

2.4. Dynamic Light Scattering

The DLS analyses were carried out using a newly developed instrument, the SpectroLight 610 (XtalConcepts GmbH, Hamburg, Germany). Samples were pipetted onto a 96-well Terasaki plate (Nunclon Delta; catalog No. 1-36528, Nunc GmbH, Wiesbaden, Germany) in volumes of ∼2 µL. Prior to use, the plates were filled with paraffin oil (paraffin oil light; catalog No. A4692, AppliChem, Darmstadt, Germany) to protect the sample solutions from drying out. The laser wavelength used was 660 nm at a power of 100 mW. The scattering angle for the placement of the detector was fixed at 150°. All investigated sample solutions were aqueous; therefore, the refractive index of water (1.33) was used for all calculations. All samples were measured at 293 K.

2.5. SDS-PAGE

NuPAGE 4–12% Bis-tris gels, NuPAGE MOPS SDS running buffer, and NuPAGE LDS Sample Buffer (Invitrogen, Milan, Italy) were prepared for SDS PAGE. Prior to electrophoresis, protein samples were denatured by mixing 10 μL of protein solution (8 μg/μL) and 10 μL of NuPAGE sample buffer. The mixture was heated at 80 °C for 5 min to reduce the protein. The reduced protein samples (10 μL) were loaded into the wells of the gels, and electrophoresis was run at a voltage of 200 mV for 50 min. Once the dye front reached the bottom of the gel, the gel was stained with 0.15% Coomassie Brilliant Blue in 50% (v/v) methanol and 7% acetic acid. After the staining, the gels were destained with a solution composed of 7% acetic acid and 20% methanol. The molecular weights of proteins were determined by comparing the molecular weights of the proteins present in the sample against the protein standards (10–175 kDa, ROTI®Mark BI-PINK).

3. Results

We developed a generalizable analytical workflow that can be applied to a wide range of formulations by SAXS (Figure 1). A set of 22 different reagents covering a pH range from 5.5 to 8.5 were used for the screening study. These chemicals are frequently used buffer conditions for academic and industrial applications, including five major categories: (i) phosphate; (ii) carboxylic acids (citrate, succinate, malonate, MES, malate, ADA); (iii) amines (Tris and Bis-Tris) and (iv) amino acids (glycylglycine, AMPO, bicine, tricine); (iv) others (imidazole, MOPS, PIPES, DIPSO, TAPS, TAPSO, SPG, HEPES, AMPD). Here, we utilized 84-conditions JBScreen Buffer with a broad range of pH, ionic strength, and additive types. It allows the separation of the influence of the pH and the buffering substance while evaluating the effect of pH. The broad pH ranges and common additives are frequently used in protein purification or storage. Firstly, we carried out a turbidity analysis, where an increase in OD600 indicates an increase in protein size or an aggregation behavior. This was followed by the SAXS experiments, and the Rg values were automatically generated by our script. According to the Rg value, different colors were used to visualize the Rg differences. The color green showed smaller Rg values indicating repulsive forces, while larger values indicated aggregation or increasing size (red). We chose water as the reference and selected extreme Rg values as the optimal storage condition or the worst storage condition. Prolonged storage in a stable manner of proteins is more challenging for optimal formulations [39]. The accelerated stability studies are typically performed at 40 °C and carried out to predict the aggregation or degradation over prolonged storage periods at standard conditions. Using in situ SAXS, we performed a real-time analysis, recording the changes in Rg values over 48 h with 10 min increments. As a complementary assay, we also used SDS-PAGE to monitor protein degradation before and after storage at 40 °C for 48 h. In addition, DLS has been used to evaluate aggregation behavior in the same conditions. Here, a comprehensive study of formulation screening has been thoroughly studied, integrating the different techniques and at the same time allowing us to compare the differences among techniques.

3.1. Lysozyme as a Model Protein

This study utilized lysozyme as a model protein, a 14.3 kDa basic protein, which has provided detailed properties and reasonable insights into its biological activity [40,41,42,43]. It is still unclear whether intrinsic properties of proteins are associated with solubility and stability, so systematic screening is necessary to identify optimal conditions for samples. As shown in Figure 2A, the rise in OD600 of lysozyme has been observed in AMPD buffer with pH 8 (OD600: 0.456) and 8.5 (OD600:0.436), indicating an increase in the size and/or formation of aggregates. Compared to the OD600 turbidity study, SAXS seemed to show multi-layers and more sensitive results (Figure 2B). The higher Rg values are consistent with higher OD600 values from the turbidity analysis. Notably, the turbidity analysis did not monitor the changes among some conditions that could be observed in SAXS. Lysozyme shows extremely basic pI (around 11), and an increased Rg value can be investigated at pH > 8, which may be due to the solubility of proteins being minimal at pH solution conditions close to their pI [44]. In addition, lysozyme disfavors the storage condition as an SPG buffer. Here, H2O (as reference); bis-tris propane buffer, pH 7.0; phosphate buffer, pH 8.0; TAPS buffer, pH 8.5 were selected as extreme buffer conditions for the next step in the accelerated stability study (Figure 2C). Lysozyme with H2O and bis-tris propane buffer underwent structural changes at 40 °C over time, as indicated by increasing Rg. The sample in the most destabilizing buffer conditions (phosphate buffer, pH 8.0; TAPS buffer, pH 8.5) exhibited a higher invariable Rg value, suggesting that aggregation-like behavior occurs from the beginning in these buffers. The optimal buffer condition (bis-tris propane buffer, pH 7.0) was observed to yield the smallest Rg up to the maximal duration of 48 h compared to the other buffers tested. Mean radii were measured by DLS with these buffer conditions before and after 48 h storage at 40 °C to understand protein conformational stability of lysozyme. All buffer conditions showed a minor impact at the first time point since the mean radii of lysozyme were similar. After incubation at 40 °C for 48 h, bis-tris propane buffer seemed more effective as an additive to prevent aggregation, whereas the mean radius of lysozyme significantly increased with other additives (Figure 2D). Data in Figure 2E suggests that degradation did not occur in all buffers evenly after 48 h of heating (40 °C).

3.2. HSA as a Model Protein

HSA is a monomeric 66.5 kDa protein synthesized by the liver. It represents the most abundant protein in the blood serum and associates with many substances consisting of hormones or drug processes [45]. HSA can form well-defined aggregates: dimers, oligomers, and even larger structures [46,47,48,49]. HSA is a well-studied and highly-available protein and was therefore selected as a model protein. Turbidity analysis did not observe a very significant aggregation behavior (Figure 3A), but the results in SAXS showed more pronounced variations depending on the buffer conditions (Figure 3B). Citrate buffer (pH < 7), glycylglycine buffer, and imidazole buffer (pH < 7) can be satisfactory protein aggregation suppressors. The three extreme conditions (phosphate, pH 8.0; citrate, pH 7.0; TAPS, pH 7.7) and water have been chosen for 48 h storage at 40 °C, and SAXS data were recorded every 10 min. The time-dependent increase in Rg detected by SAXS for HSA may reflect a shift in population from monomer to dimer or aggregate formation in H2O, phosphate pH 8.0, and citrate pH 7.0. Slight changes of Rg of HSA were detected in TAPS, pH 7.7 buffer, indicating that HSA is stable in this buffer (Figure 3C). The mean radius of HSA with different buffer conditions was determined by DLS measurements (Figure 3D). At the initial time point, HSA showed the same mean radius in all buffer conditions tested. The resulting DLS distribution histogram indicated an increase in both the amount and mean radius of aggregated particles for HSA with different buffer conditions after 48 h storage at 40 °C. The effects of temperature on the aggregation of HSA have been studied, and the dependence of structural alterations is correlated with free —SH groups at thermal denaturation [50]. Heat treatment raises the proportion of β structures, which is relevant to the aggregation of HSA [51]. Here, the increased mean radius of HSA at high temperatures further illustrates its temperature sensitivity. The control SDS-PAGE profiles are shown in Figure 3E. Proteolytic degradation has not been observed in all buffer conditions before and after 48 h storage at 40 °C.

3.3. Therapeutic Antibody Fragment as a Model Protein

The therapeutic antibody fragment was provided by Boehringer Ingelheim RCV GmbH and Co KG (Vienna, Austria). The antibody fragment is a highly water-soluble trimeric protein with a molecular weight of 44.4 kDa, consisting of 439 amino acid residues. Here, the buffer screen enables an extensive systematic comparative analysis of different additives, pH, and temperature for this biopharmaceutical model protein. The maximum OD600 for the antibody fragment was 0.60 in DPSD buffer, pH 8.0, and elevated OD600 of 0.34 and 0.36 were detected for samples in DPSD buffer, pH 7.5 and bicine, pH 7.5 compared to other buffer conditions, respectively (Figure 4A). SAXS data resolved more differences among buffers compared to turbidity analysis. Overall, the antibody fragment seems to generally disfavor extreme acidic or basic buffer conditions. The highest and second highest Rgs values were observed in PIPES pH 6.1 and imidazole pH 7.5, and therefore we selected these two as the worst storage conditions. AMPD pH 8.5 was selected as an optimal buffer condition for further stability studies. In accordance with the observed Rg screen results of additives for the antibody fragment, increasing aggregation (Rg) was observed in PIPES pH 6.1 and imidazole pH 7.5 buffer conditions. In contrast, only slight changes were observed after 48 h 40 °C storage in AMPD pH8.5. Rgs values were also increased in H2O; hence, aggregation was most pronounced in the absence of any additives during 48 h 40 °C storage compared to the worse storage conditions. DLS data showed the most obvious resistance of the antibody fragment in AMPD pH 8.5 to aggregation at the initial time point. All selected buffer conditions show aggregation after 48 h at 40 °C storage. Using the same experimental conditions as for the DLS analysis, degradation has not been detected by SDS-PAGE (Figure 4E).

4. Discussion

According to a report by Mordor Intelligence, the biopharmaceuticals market was USD 325.17 billion in 2020. It has been estimated that the revenue will grow up to USD 496.71 billion in 2026. In contrast to small molecules, biopharmaceuticals are notoriously sensitive to manufacturing processes, starting materials, and storage conditions [52]. The development of biopharmaceuticals involves extensive physical stability characterizations which require intensive labor and costs. The selection of a suitable storage environment is crucial for the biopharmaceuticals’ physical stability and efficacy [53]. Currently, the most common and largest class of biopharmaceuticals is therapeutic proteins [54]. Buffers or additives are selected to minimize the self-association of proteins and thus prevent aggregation while ensuring that the protein structure is not altered [55]. An optimized formulation condition (pH, buffer, ionic strength) can be used to suppress the formation of protein aggregates and preserve therapeutic function [56,57]. Providing a robust formulation screening strategy would help reduce costs and make biologic therapies affordable. Consequently, it is important to establish a fast, robust, and highly automated characterization strategy for physical stability.
In this study, we have setup a pipeline for the analysis of protein aggregation by using laboratory SAXS as a key technique. The physical stability of therapeutic protein, i.e., lysozyme, HSA, and antibody fragments, were analyzed using standard techniques like light spectroscopy, DLS, and SDS-PAGE. DLS can qualitatively detect aggregates and offer long-term measurements by comparing the mean radii in different formulations/time points and has been applied widely [58,59,60,61]. Based on the observations here, turbidity analysis can be used as a preliminary assessment of stability. After checking the formation of visible aggregation by measuring absorption at 600 nm, we propose to use laboratory SAXS to detect particle interactions, such as particle repulsion and formation of soluble aggregates. Comparing OD600 measurements, SAXS, and DLS, we found that SAXS is more sensitive in detecting aggregation than light spectroscopy and DLS.
In situ SAXS helps to improve real-time monitoring of protein conformational changes or turnover time points complementing the DLS analysis [43]. We found that SAXS measurements can provide valuable hints for the prediction of long-term storage stability, as higher radii of gyration correlated with poor stability in buffers in accelerated aging experiments at 40 °C. Moreover, different proteins showed different sensitivities to temperature. For example, lysozyme has higher conformational stability at 40 °C in optimal buffers, which is consistent with DLS data and DLS-Raman [62]. In a suitable buffer, lysozyme activity seems to be largely preserved below 60 °C [63,64]. HSA is temperature sensitive and tends to form aggregates at elevated temperatures [65]. Correspondingly, proteins exhibited different sensitivity to additives and pH. Low concentrations of TAPS (<0.5 M) have been reported to preserve the secondary structure of HSA, which is in line with our result [66]. pH is thought to be used as a chemical stressor, with extreme acidic or basic environments triggering the formation of aggregates [67]. pH 7 presented the strongest lysozyme activity in bis-tris propane buffer, which is consistent with our optimal storage conditions found for lysozyme [68]. To check for proteolytic degradation, we used SDS-PAGE, a method commonly used in the biopharmaceutical industry [69,70]. The different buffers, as well as the storage at 40 °C, did not induce protein degradation as observed by SDS-PAGE for all three model proteins.
Despite its rapidly growing use in biomedicine, SAXS is not yet the standard method for formulation screening in the biopharmaceutical industry [35,71]. This is primarily due to the fact that most SAXS studies are carried out using synchrotron SAXS, which limits its availability in the biopharmaceutical industry. The recent improvements in affordable laboratory SAXS instrumentation have made it possible to investigate biomolecular structure and dynamics in-house [72,73,74,75,76,77,78] and therefore enabled a plethora of additional possibilities for SAXS, including SAXS analysis of biopharmaceuticals. With the use of autosamplers, laboratory SAXS can easily deal with hundreds of samples in a short period, which makes it highly suitable for high-throughput screening [29,79]. In the current study, we used laboratory SAXS to screen for optimal protein buffer conditions using a simple parameter, Rg, as a read-out. In line with results from turbidity experiments, DLS, and SDS-PAGE, SAXS measurements indicate similar aggregation behaviors with protein in specific buffers.

5. Limitation

Fast aggregation processes might not be picked up by SAXS due to the required measurement times. The development of sample cells with rapid mixing combined with in situ SAXS might help to overcome these limitations in the future. Alternatively, FPLC-SAXS might be used to reduce the time difference for immediate analysis [80]. Here, we do not provide further structural information for more advanced data analyses. For example, conformational differences in IgG in different solutions have been revealed [81,82]. Here, we have performed turbidity and SAXS analyses on all buffer conditions to compare various methods. The prepared 96-well plates from the same sample can first be subjected to turbidity analysis to exclude some buffers that already show aggregation behavior to decrease the analyses time of the SAXS screen. In its current implementation, the analysis script can be executed on Unix/Linus subsystems. In the future, implementation of the pipeline in SAXS analysis software would be desired.

6. Conclusions

SAXS can provide an effective tool for formulation screening, strongly supporting the selection and development of formulations for biopharmaceuticals. By using an automated setup, high throughput analysis of up to 192 samples can be achieved. For the model proteins tested in this study, SAXS was more sensitive for protein-protein interactions or conformational changes under different formulation conditions, and these differences correlated with protein stability in accelerated stability studies. Together with a straightforward analysis, this will facilitate the development of SAXS as a rapid screening method for formulation development. In addition, ongoing developments in SAXS instrumentations, such as high-flux MetalJet X-ray sources and low-volume autosamplers, may further facilitate [83,84,85] the establishment of SAXS as a key technique in biopharmaceutical research and industry in the near future. It can be envisioned that SAXS big datasets obtained from screenings described here, together with sequence and structural information, could be a useful database for training AI algorithms in the future. First studies have demonstrated the synergy of SAXS and machine learning to predict the physical properties of biomolecules based on SAXS data [86,87,88,89]. Our pipeline can provide high-throughput SAXS datasets as a function of the plethora of variables such as pH, concentration, temperature, surfactants, salts, sugars, amino acids, or excipients and may be used to predict physical stability via machine learning in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pharmaceutics14010069/s1, Table S1: Complete additive and buffer list of JBScreen Buffers (Jena Bioscience, Germany); Analysis template excel sheet: An automation excel sheet for calculating Rg value. Script S1: An automation script that can be used to combine all SAXS data in one Excel sheet (extract q range, file names, and scattering intensity) and can be used automatically.

Author Contributions

Conceptualization, T.M., F.Z.; methodology, F.Z., G.R.; software, F.Z., G.R., B.B., E.S., A.M., A.K.; validation, F.Z.; formal analysis, F.Z.; investigation, F.Z.; resources, A.M., A.K., P.K.; data curation, F.Z.; writing—original draft preparation, F.Z., T.M.; writing—review and editing, F.Z., G.R., B.B., E.S., A.M., A.K., P.K., T.M.; visualization, F.Z., T.M.; supervision, T.M.; project administration, T.M.; funding acquisition, T.M. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the Austrian Science Fund (FWF) grants P28854, I3792, doc.funds BioMolStruct DOC 130, DK-MCD W1226, BioTechMed-Graz (Flagship project DYNIMO) Austrian Research Promotion Agency (FFG) grants 864690 and 870454, the Integrative Metabolism Research Center Graz; Austrian Infrastructure Program 2016/2017, the Styrian Government (Zukunftsfonds, doc.fund program), the City of Graz, and Startup Fund for High-level Talents of Fujian Medical University (XRCZX2021020). F.Z. was trained within the frame of the PhD program Molecular Medicine, Medical University of Graz.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding author.

Acknowledgments

Antibody fragments were provided by Boehringer Ingelheim RCV GmbH and Co KG (Austria). Open Access Funding by the Austrian Science Fund (FWF).

Conflicts of Interest

The authors declare no conflict of interest. Armin Moser, Andreas Keilbach, and Petra Kotnik are employees of Anton Paar GmbH and contributed as listed in the section Author Contributions, and Anton Paar GmbH has no role in this manuscript.

References

  1. Lagassé, H.D.; Alexaki, A.; Simhadri, V.L.; Katagiri, N.H.; Jankowski, W.; Sauna, Z.E.; Kimchi-Sarfaty, C. Recent advances in (therapeutic protein) drug development. F1000Research 2017, 6, 113. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Chennamsetty, N.; Voynov, V.; Kayser, V.; Helk, B.; Trout, B.L. Design of therapeutic proteins with enhanced stability. Proc. Natl. Acad. Sci. USA 2009, 106, 11937–11942. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Walsh, G. Biopharmaceutical benchmarks 2018. Nat. Biotechnol. 2018, 36, 1136–1145. [Google Scholar] [CrossRef] [PubMed]
  4. Kessler, M.; Goldsmith, D.; Schellekens, H. Immunogenicity of biopharmaceuticals. Nephrol. Dial. Transplant. 2006, 21, v9–v12. [Google Scholar] [CrossRef] [PubMed]
  5. Sauerborn, M.; Brinks, V.; Jiskoot, W.; Schellekens, H. Immunological mechanism underlying the immune response to recombinant human protein therapeutics. Trends Pharmacol. Sci. 2010, 31, 53–59. [Google Scholar] [CrossRef]
  6. Berkowitz, S.A.; Engen, J.R.; Mazzeo, J.R.; Jones, G.B. Analytical tools for characterizing biopharmaceuticals and the implications for biosimilars. Nat. Rev. Drug Discov. 2012, 11, 527–540. [Google Scholar] [CrossRef][Green Version]
  7. Hermeling, S.; Crommelin, D.J.; Schellekens, H.; Jiskoot, W. Structure-immunogenicity relationships of therapeutic proteins. Pharm. Res. 2004, 21, 897–903. [Google Scholar] [CrossRef]
  8. Braun, A.; Kwee, L.; Labow, M.A.; Alsenz, J. Protein aggregates seem to play a key role among the parameters influencing the antigenicity of interferon alpha (IFN-α) in normal and transgenic mice. Pharm. Res. 1997, 14, 1472–1478. [Google Scholar] [CrossRef]
  9. Xu, A.Y.; Castellanos, M.M.; Mattison, K.; Krueger, S.; Curtis, J.E. Studying excipient modulated physical stability and viscosity of monoclonal antibody formulations using small-angle scattering. Mol. Pharm. 2019, 16, 4319–4338. [Google Scholar] [CrossRef]
  10. Zapadka, K.L.; Becher, F.J.; Gomes dos Santos, A.; Jackson, S.E. Factors affecting the physical stability (aggregation) of peptide therapeutics. Interface Focus 2017, 7, 20170030. [Google Scholar] [CrossRef][Green Version]
  11. Chi, E.Y.; Krishnan, S.; Randolph, T.W.; Carpenter, J.F. Physical stability of proteins in aqueous solution: Mechanism and driving forces in nonnative protein aggregation. Pharm. Res. 2003, 20, 1325–1336. [Google Scholar] [CrossRef]
  12. Dumetz, A.C.; Snellinger-O’Brien, A.M.; Kaler, E.W.; Lenhoff, A.M. Patterns of protein–protein interactions in salt solutions and implications for protein crystallization. Protein Sci. 2007, 16, 1867–1877. [Google Scholar] [CrossRef]
  13. Garidel, P.; Hegyi, M.; Bassarab, S.; Weichel, M. A rapid, sensitive and economical assessment of monoclonal antibody conformational stability by intrinsic tryptophan fluorescence spectroscopy. Biotechnol. J. Healthc. Nutr. Technol. 2008, 3, 1201–1211. [Google Scholar] [CrossRef] [PubMed]
  14. Kamerzell, T.J.; Esfandiary, R.; Joshi, S.B.; Middaugh, C.R.; Volkin, D.B. Protein–excipient interactions: Mechanisms and biophysical characterization applied to protein formulation development. Adv. Drug Deliv. Rev. 2011, 63, 1118–1159. [Google Scholar] [CrossRef] [PubMed]
  15. Bhattacharya, A.; Kim, Y.C.; Mittal, J. Protein–protein interactions in a crowded environment. Biophys. Rev. 2013, 5, 99–108. [Google Scholar] [CrossRef][Green Version]
  16. Kim, Y.C.; Best, R.B.; Mittal, J. Macromolecular crowding effects on protein–protein binding affinity and specificity. J. Chem. Phys. 2010, 133, 11B608. [Google Scholar] [CrossRef] [PubMed]
  17. Tomaszewska, E.; Soliwoda, K.; Kadziola, K.; Tkacz-Szczesna, B.; Celichowski, G.; Cichomski, M.; Szmaja, W.; Grobelny, J. Detection limits of DLS and UV-Vis spectroscopy in characterization of polydisperse nanoparticles colloids. J. Nanomater. 2013, 2013, 60. [Google Scholar] [CrossRef][Green Version]
  18. Corvari, V.; Narhi, L.O.; Spitznagel, T.M.; Afonina, N.; Cao, S.; Cash, P.; Cecchini, I.; DeFelippis, M.R.; Garidel, P.; Herre, A. Subvisible (2–100 μm) particle analysis during biotherapeutic drug product development: Part 2, experience with the application of subvisible particle analysis. Biologicals 2015, 43, 457–473. [Google Scholar] [CrossRef][Green Version]
  19. Patel, A.R.; Lau, D.; Liu, J. Quantification and characterization of micrometer and submicrometer subvisible particles in protein therapeutics by use of a suspended microchannel resonator. Anal. Chem. 2012, 84, 6833–6840. [Google Scholar] [CrossRef] [PubMed]
  20. Ripple, D.C.; Dimitrova, M.N. Protein particles: What we know and what we do not know. J. Pharm. Sci. 2012, 101, 3568–3579. [Google Scholar] [CrossRef]
  21. Vasudev, R.; Mathew, S.; Afonina, N. Characterization of submicron (0.1–1 μm) particles in therapeutic proteins by nanoparticle tracking analysis. J. Pharm. Sci. 2015, 104, 1622–1631. [Google Scholar] [CrossRef] [PubMed]
  22. Gross-Rother, J.; Blech, M.; Preis, E.; Bakowsky, U.; Garidel, P. Particle Detection and Characterization for Biopharmaceutical Applications: Current Principles of Established and Alternative Techniques. Pharmaceutics 2020, 12, 1112. [Google Scholar] [CrossRef]
  23. Garcia-Cañas, V.; Lorbetskie, B.; Girard, M. Rapid and selective characterization of influenza virus constituents in monovalent and multivalent preparations using non-porous reversed-phase high performance liquid chromatography columns. J. Chromatogr. A 2006, 1123, 225–232. [Google Scholar] [CrossRef] [PubMed]
  24. Garcia-Canas, V.; Lorbetskie, B.; Cyr, T.D.; Hefford, M.A.; Smith, S.; Girard, M. Approach to the profiling and characterization of influenza vaccine constituents by the combined use of size-exclusion chromatography, gel electrophoresis and mass spectrometry. Biologicals 2010, 38, 294–302. [Google Scholar] [CrossRef]
  25. Yang, Y.; Li, H.; Li, Z.; Zhang, Y.; Zhang, S.; Chen, Y.; Yu, M.; Ma, G.; Su, Z. Size-exclusion HPLC provides a simple, rapid, and versatile alternative method for quality control of vaccines by characterizing the assembly of antigens. Vaccine 2015, 33, 1143–1150. [Google Scholar] [CrossRef]
  26. Durowoju, I.B.; Bhandal, K.S.; Hu, J.; Carpick, B.; Kirkitadze, M. Differential scanning calorimetry—A method for assessing the thermal stability and conformation of protein antigen. JoVE J. Vis. Exp. 2017, 121, e55262. [Google Scholar] [CrossRef][Green Version]
  27. Cueto, M.; Dorta, M.J.; Munguía, O.; Llabrés, M. New approach to stability assessment of protein solution formulations by differential scanning calorimetry. Int. J. Pharm. 2003, 252, 159–166. [Google Scholar] [CrossRef]
  28. Wen, J.; Arthur, K.; Chemmalil, L.; Muzammil, S.; Gabrielson, J.; Jiang, Y. Applications of differential scanning calorimetry for thermal stability analysis of proteins: Qualification of DSC. J. Pharm. Sci. 2012, 101, 955–964. [Google Scholar] [CrossRef]
  29. Hura, G.L.; Menon, A.L.; Hammel, M.; Rambo, R.P.; Poole Ii, F.L.; Tsutakawa, S.E.; Jenney, F.E., Jr.; Classen, S.; Frankel, K.A.; Hopkins, R.C. Robust, high-throughput solution structural analyses by small angle X-ray scattering (SAXS). Nat. Methods 2009, 6, 606–612. [Google Scholar] [CrossRef]
  30. Dixit, S.M.; Ruotolo, B.T. A Semi-Empirical Framework for Interpreting Traveling Wave Ion Mobility Arrival Time Distributions. J. Am. Soc. Mass Spectrom. 2019, 30, 956–966. [Google Scholar] [CrossRef] [PubMed]
  31. Chan-Yao-Chong, M.; Durand, D.; Ha-Duong, T. Molecular Dynamics Simulations Combined with Nuclear Magnetic Resonance and/or Small-Angle X-ray Scattering Data for Characterizing Intrinsically Disordered Protein Conformational Ensembles. J. Chem. Inf. Model. 2019, 59, 1743–1758. [Google Scholar] [CrossRef]
  32. Mertens, H.D.; Svergun, D.I. Structural characterization of proteins and complexes using small-angle X-ray solution scattering. J. Struct. Biol. 2010, 172, 128–141. [Google Scholar] [CrossRef]
  33. Rambo, R.P.; Tainer, J.A. Characterizing flexible and intrinsically unstructured biological macromolecules by SAS using the Porod-Debye law. Biopolymers 2011, 95, 559–571. [Google Scholar] [CrossRef][Green Version]
  34. Zhang, F.; Skoda, M.W.; Jacobs, R.M.; Martin, R.A.; Martin, C.M.; Schreiber, F. Protein interactions studied by SAXS: Effect of ionic strength and protein concentration for BSA in aqueous solutions. J. Phys. Chem. B 2007, 111, 251–259. [Google Scholar] [CrossRef]
  35. Mosbæk, C.R.; Konarev, P.V.; Svergun, D.I.; Rischel, C.; Vestergaard, B. High concentration formulation studies of an IgG2 antibody using small angle X-ray scattering. Pharm. Res. 2012, 29, 2225–2235. [Google Scholar] [CrossRef] [PubMed]
  36. Jacques, D.A.; Trewhella, J. Small-angle scattering for structural biology—Expanding the frontier while avoiding the pitfalls. Protein Sci. 2010, 19, 642–657. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Silva, B.F. SAXS on a chip: From dynamics of phase transitions to alignment phenomena at interfaces studied with microfluidic devices. Phys. Chem. Chem. Phys. 2017, 19, 23690–23703. [Google Scholar] [CrossRef]
  38. Yaghmur, A.; Rappolt, M.; Jonassen, A.L.U.; Schmitt, M.; Larsen, S.W. In situ monitoring of the formation of lipidic non-lamellar liquid crystalline depot formulations in synovial fluid. J. Colloid Interface Sci. 2021, 582, 773–781. [Google Scholar] [CrossRef]
  39. Xu, J.; Wang, R.; Li, Y. A review of available technologies for seasonal thermal energy storage. Sol. Energy 2014, 103, 610–638. [Google Scholar] [CrossRef]
  40. Johnson, L.N. The structure and function of lysozyme. Sci. Progress 1933 1966, 54, 367–385. [Google Scholar]
  41. Jollès, P.; Jollès, J. What’s new in lysozyme research? Mol. Cell. Biochem. 1984, 63, 165–189. [Google Scholar] [CrossRef] [PubMed]
  42. Ghosh, A.; Brinda, K.; Vishveshwara, S. Dynamics of lysozyme structure network: Probing the process of unfolding. Biophys. J. 2007, 92, 2523–2535. [Google Scholar] [CrossRef][Green Version]
  43. Phan-Xuan, T.; Bogdanova, E.; Millqvist Fureby, A.; Fransson, J.; Terry, A.E.; Kocherbitov, V. Hydration-Induced Structural Changes in the Solid State of Protein: A SAXS/WAXS Study on Lysozyme. Mol. Pharm. 2020, 17, 3246–3258. [Google Scholar] [CrossRef] [PubMed]
  44. Schwenzfeier, A.; Lech, F.; Wierenga, P.A.; Eppink, M.H.; Gruppen, H. Foam properties of algae soluble protein isolate: Effect of pH and ionic strength. Food Hydrocoll. 2013, 33, 111–117. [Google Scholar] [CrossRef]
  45. Sugio, S.; Kashima, A.; Mochizuki, S.; Noda, M.; Kobayashi, K. Crystal structure of human serum albumin at 2.5 Å resolution. Protein Eng. Des. Sel. 1999, 12, 439–446. [Google Scholar] [CrossRef]
  46. Chubarov, A.; Spitsyna, A.; Krumkacheva, O.; Mitin, D.; Suvorov, D.; Tormyshev, V.; Fedin, M.; Bowman, M.K.; Bagryanskaya, E. Reversible dimerization of human serum albumin. Molecules 2021, 26, 108. [Google Scholar] [CrossRef]
  47. Sollenne, N.P.; Wu, H.-L.; Means, G.E. Disruption of the tryptophan binding site in the human serum albumin dimer. Arch. Biochem. Biophys. 1981, 207, 264–269. [Google Scholar] [CrossRef]
  48. Reščič, J.; Vlachy, V.; Jamnik, A.; Glatter, O. Osmotic pressure, small-angle X-ray, and dynamic light scattering studies of human serum albumin in aqueous solutions. J. Colloid Interface Sci. 2001, 239, 49–57. [Google Scholar] [CrossRef] [PubMed]
  49. Zunszain, P.; Monie, T.; Konarev, P.; Svergun, D.; Curry, S. A Structural Analysis of Conformational Changes in Human Serum Albumin Associated with Ligand Binding and pH. 2003. Available online: http://hasyweb.desy.de/science/annual_reports/2003_report/part2/contrib/73/9952.pdf (accessed on 22 December 2021).
  50. Pandey, N.K.; Ghosh, S.; Tripathy, D.R.; Dasgupta, S. Effect of temperature and solvent on fibrillation of human serum albumin. Protein Pept. Lett. 2015, 22, 112–118. [Google Scholar] [CrossRef]
  51. Maciążek-Jurczyk, M.; Janas, K.; Pożycka, J.; Szkudlarek, A.; Rogóż, W.; Owczarzy, A.; Kulig, K. Human Serum Albumin Aggregation/Fibrillation and its Abilities to Drugs Binding. Molecules 2020, 25, 618. [Google Scholar] [CrossRef] [PubMed][Green Version]
  52. Makurvet, F.D. Biologics vs. small molecules: Drug costs and patient access. Med. Drug Discov. 2021, 9, 100075. [Google Scholar] [CrossRef]
  53. Song, J.G.; Lee, S.H.; Han, H.-K. The stabilization of biopharmaceuticals: Current understanding and future perspectives. J. Pharm. Investig. 2017, 47, 475–496. [Google Scholar] [CrossRef]
  54. Kesik-Brodacka, M. Progress in biopharmaceutical development. Biotechnol. Appl. Biochem. 2018, 65, 306–322. [Google Scholar] [CrossRef][Green Version]
  55. Wang, W.; Nema, S.; Teagarden, D. Protein aggregation—Pathways and influencing factors. Int. J. Pharm. 2010, 390, 89–99. [Google Scholar] [CrossRef]
  56. Wang, W.; Roberts, C.J. Protein aggregation—Mechanisms, detection, and control. Int. J. Pharm. 2018, 550, 251–268. [Google Scholar] [CrossRef]
  57. Manning, M.C.; Liu, J.; Li, T.; Holcomb, R.E. Rational design of liquid formulations of proteins. Adv. Protein Chem. Struct. Biol. 2018, 112, 1–59. [Google Scholar]
  58. Mahler, H.-C.; Müller, R.; Frieβ, W.; Delille, A.; Matheus, S. Induction and analysis of aggregates in a liquid IgG1-antibody formulation. Eur. J. Pharm. Biopharm. 2005, 59, 407–417. [Google Scholar] [CrossRef] [PubMed]
  59. Arakawa, T.; Philo, J.S.; Ejima, D.; Tsumoto, K.; Arisaka, F. Aggregation analysis of therapeutic proteins, part 2. Bioprocess Int. 2007, 5, 36–47. [Google Scholar]
  60. Den Engelsman, J.; Garidel, P.; Smulders, R.; Koll, H.; Smith, B.; Bassarab, S.; Seidl, A.; Hainzl, O.; Jiskoot, W. Strategies for the assessment of protein aggregates in pharmaceutical biotech product development. Pharm. Res. 2011, 28, 920–933. [Google Scholar] [CrossRef][Green Version]
  61. Fang, C.; Bhattarai, N.; Sun, C.; Zhang, M. Functionalized nanoparticles with long-term stability in biological media. Small 2009, 5, 1637–1641. [Google Scholar] [CrossRef] [PubMed][Green Version]
  62. Lewis, E.N.; Qi, W.; Kidder, L.H.; Amin, S.; Kenyon, S.M.; Blake, S. Combined dynamic light scattering and Raman spectroscopy approach for characterizing the aggregation of therapeutic proteins. Molecules 2014, 19, 20888–20905. [Google Scholar] [CrossRef][Green Version]
  63. Bisht, M.; Kumar, A.; Venkatesu, P. Analysis of the driving force that rule the stability of lysozyme in alkylammonium-based ionic liquids. Int. J. Biol. Macromol. 2015, 81, 1074–1081. [Google Scholar] [CrossRef] [PubMed]
  64. Aminlari, L.; Mohammadi Hashemi, M.; Aminlari, M. Modified lysozymes as novel broad spectrum natural antimicrobial agents in foods. J. Food Sci. 2014, 79, R1077–R1090. [Google Scholar] [CrossRef]
  65. Wetzel, R.; Becker, M.; Behlke, J.; Billwitz, H.; Böhm, S.; Ebert, B.; Hamann, H.; Krumbiegel, J.; Lassmann, G. Temperature behaviour of human serum albumin. Eur. J. Biochem. 1980, 104, 469–478. [Google Scholar] [CrossRef]
  66. Pavani, P.; Kumar, K.; Rani, A.; Venkatesu, P.; Lee, M.-J. The influence of sodium phosphate buffer on the stability of various proteins: Insights into protein-buffer interactions. J. Mol. Liq. 2021, 331, 115753. [Google Scholar] [CrossRef]
  67. Vlasak, J.; Ionescu, R. Fragmentation of monoclonal antibodies. In Proceedings of the MAbs; Taylor & Francis: Abingdon, UK, 2011; pp. 253–263. [Google Scholar]
  68. Borzooeian, Z.; Taslim, M.; Borzooeian, G.; Ghasemi, O.; Aminlari, M. Activity and stability analysis of covalent conjugated lysozyme-single walled carbon nanotubes: Potential biomedical and industrial applications. RSC Adv. 2017, 7, 48692–48701. [Google Scholar] [CrossRef][Green Version]
  69. Goda, D.A.; Bassiouny, A.R.; Abdel Monem, N.M.; Soliman, N.A.; Abdel-Fattah, Y.R. Feather protein lysate optimization and feather meal formation using YNDH protease with keratinolytic activity afterward enzyme partial purification and characterization. Sci. Rep. 2021, 11, 14543. [Google Scholar] [CrossRef] [PubMed]
  70. Sadeghi, A.; Nikkhah, A.; Shawrang, P.; Shahrebabak, M. Protein degradation kinetics of untreated and treated soybean meal using SDS-PAGE. Anim. Feed Sci. Technol. 2006, 126, 121–133. [Google Scholar] [CrossRef]
  71. Fukuda, M.; Moriyama, C.; Yamazaki, T.; Imaeda, Y.; Koga, A. Quantitative correlation between viscosity of concentrated MAb solutions and particle size parameters obtained from small-angle X-ray scattering. Pharm. Res. 2015, 32, 3803–3812. [Google Scholar] [CrossRef]
  72. Schmid, P.W.; Lim, N.C.; Peters, C.; Back, K.C.; Bourgeois, B.; Pirolt, F.; Richter, B.; Peschek, J.; Puk, O.; Amarie, O.V. Imbalances in the eye lens proteome are linked to cataract formation. Nat. Struct. Mol. Biol. 2021, 28, 143–151. [Google Scholar] [CrossRef]
  73. Schilcher, I.; Ledinski, G.; Radulović, S.; Hallström, S.; Eichmann, T.; Madl, T.; Zhang, F.; Leitinger, G.; Kolb-Lenz, D.; Darnhofer, B. Endothelial lipase increases antioxidative capacity of high-density lipoprotein. Biochim. Biophys. Acta BBA Mol. Cell Biol. Lipids 2019, 1864, 1363–1374. [Google Scholar] [CrossRef] [PubMed]
  74. Janowski, R.; Scanu, S.; Niessing, D.; Madl, T. Crystal and solution structural studies of mouse phospholipid hydroperoxide glutathione peroxidase 4. Acta Crystallogr. Sect. F Struct. Biol. Commun. 2016, 72, 743–749. [Google Scholar] [CrossRef] [PubMed][Green Version]
  75. Sonntag, M.; Jagtap, P.K.A.; Simon, B.; Appavou, M.S.; Geerlof, A.; Stehle, R.; Gabel, F.; Hennig, J.; Sattler, M. Segmental, Domain-Selective Perdeuteration and Small-Angle Neutron Scattering for Structural Analysis of Multi-Domain Proteins. Angew. Chem. 2017, 129, 9450–9453. [Google Scholar] [CrossRef]
  76. Kooshapur, H.; Choudhury, N.R.; Simon, B.; Mühlbauer, M.; Jussupow, A.; Fernandez, N.; Jones, A.N.; Dallmann, A.; Gabel, F.; Camilloni, C. Structural basis for terminal loop recognition and stimulation of pri-miRNA-18a processing by hnRNP A1. Nat. Commun. 2018, 9, 2479. [Google Scholar] [CrossRef] [PubMed][Green Version]
  77. Trewhella, J.; Duff, A.P.; Durand, D.; Gabel, F.; Guss, J.M.; Hendrickson, W.A.; Hura, G.L.; Jacques, D.A.; Kirby, N.M.; Kwan, A.H. 2017 publication guidelines for structural modelling of small-angle scattering data from biomolecules in solution: An update. Acta Crystallogr. Sect. D Struct. Biol. 2017, 73, 710–728. [Google Scholar] [CrossRef][Green Version]
  78. Gao, J.-L.; Kwan, A.H.; Yammine, A.; Zhou, X.; Trewhella, J.; Hugrass, B.M.; Collins, D.A.; Horne, J.; Ye, P.; Harty, D. Structural properties of a haemophore facilitate targeted elimination of the pathogen Porphyromonas gingivalis. Nat. Commun. 2018, 9, 4097. [Google Scholar] [CrossRef] [PubMed][Green Version]
  79. Damoiseaux, R.; George, S.; Li, M.; Pokhrel, S.; Ji, Z.; France, B.; Xia, T.; Suarez, E.; Rallo, R.; Mädler, L. No time to lose—High throughput screening to assess nanomaterial safety. Nanoscale 2011, 3, 1345–1360. [Google Scholar] [CrossRef] [PubMed]
  80. David, G.; Pérez, J. Combined sampler robot and high-performance liquid chromatography: A fully automated system for biological small-angle X-ray scattering experiments at the Synchrotron SOLEIL SWING beamline. J. Appl. Crystallogr. 2009, 42, 892–900. [Google Scholar] [CrossRef]
  81. Blanchet, C.E.; Svergun, D.I. Small-angle X-ray scattering on biological macromolecules and nanocomposites in solution. Annu. Rev. Phys. Chem. 2013, 64, 37–54. [Google Scholar] [CrossRef]
  82. Lilyestrom, W.G.; Shire, S.J.; Scherer, T.M. Influence of the cosolute environment on IgG solution structure analyzed by small-angle X-ray scattering. J. Phys. Chem. B 2012, 116, 9611–9618. [Google Scholar] [CrossRef] [PubMed]
  83. Blanchet, C.E.; Zozulya, A.V.; Kikhney, A.G.; Franke, D.; Konarev, P.V.; Shang, W.; Klaering, R.; Robrahn, B.; Hermes, C.; Cipriani, F. Instrumental setup for high-throughput small-and wide-angle solution scattering at the X33 beamline of EMBL Hamburg. J. Appl. Crystallogr. 2012, 45, 489–495. [Google Scholar] [CrossRef]
  84. Frewein, M.P.; Doktorova, M.; Heberle, F.A.; Scott, H.L.; Semeraro, E.F.; Porcar, L.; Pabst, G. Structure and Interdigitation of Chain-Asymmetric Phosphatidylcholines and Milk Sphingomyelin in the Fluid Phase. Symmetry 2021, 13, 1441. [Google Scholar] [CrossRef]
  85. Kaltenegger, M.; Kremser, J.; Frewein, M.P.; Bonthuis, D.J.; Ziherl, P.; Pabst, G. Intrinsic lipid curvatures of mammalian plasma membrane outer leaflet lipids and ceramides. bioRxiv 2021. preprint. [Google Scholar] [CrossRef]
  86. Scherdel, C.; Miller, E.; Reichenauer, G.; Schmitt, J. Advances in the Development of Sol-Gel Materials Combining Small-Angle X-ray Scattering (SAXS) and Machine Learning (ML). Processes 2021, 9, 672. [Google Scholar] [CrossRef]
  87. Franke, D.; Jeffries, C.M.; Svergun, D.I. Machine learning methods for X-ray scattering data analysis from biomacromolecular solutions. Biophys. J. 2018, 114, 2485–2492. [Google Scholar] [CrossRef][Green Version]
  88. Do, C.; Chen, W.-R.; Lee, S. Small angle scattering data analysis assisted by machine learning methods. MRS Adv. 2020, 5, 1577–1584. [Google Scholar] [CrossRef]
  89. Demerdash, O.; Shrestha, U.R.; Petridis, L.; Smith, J.C.; Mitchell, J.C.; Ramanathan, A. Using small-angle scattering data and parametric machine learning to optimize force field parameters for intrinsically disordered proteins. Front. Mol. Biosci. 2019, 6, 64. [Google Scholar] [CrossRef][Green Version]

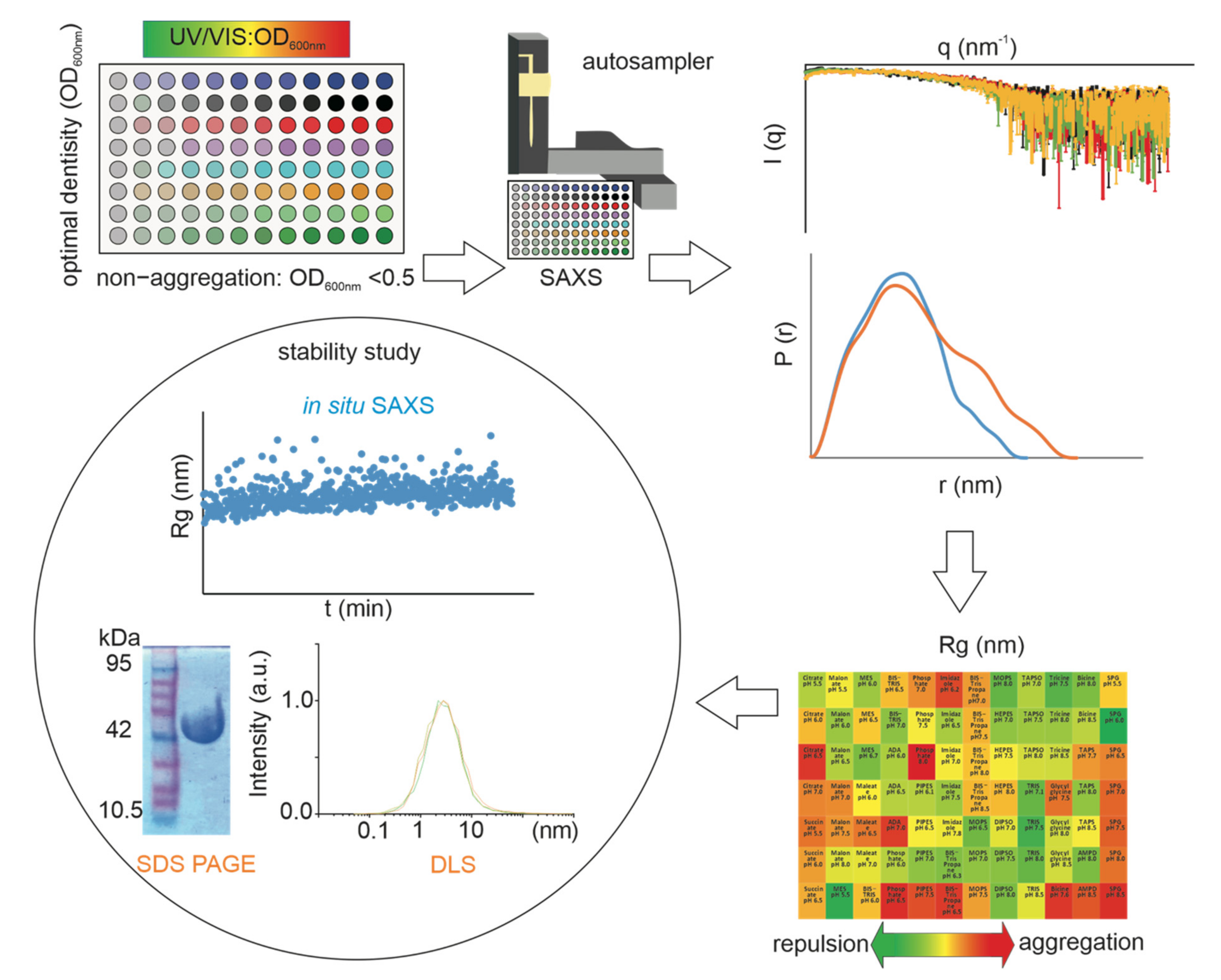

Figure 1. Illustration of the SAXS Screen workflow on a single screening for studying physical stability of protein formulations.
Figure 1. Illustration of the SAXS Screen workflow on a single screening for studying physical stability of protein formulations.
Pharmaceutics 14 00069 g001

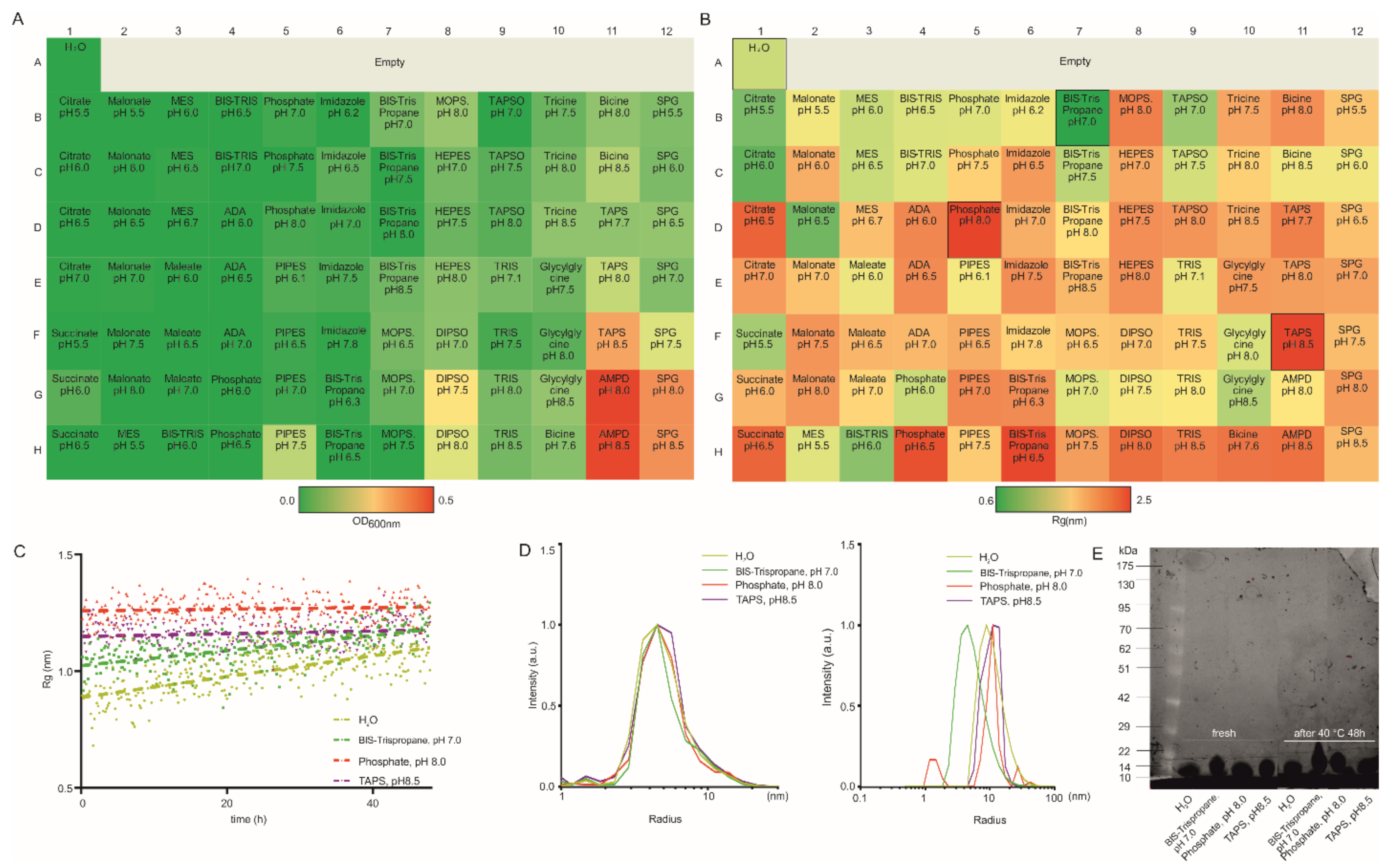

Figure 2. (A) A microplate assay for measuring OD 600 nm of lysozyme (5 mg/mL) colored by value (>0.5 corresponds to aggregation). (B) SAXS-based screening of lysozyme (5 mg/mL) colored by the radius of gyration (Rg). (C) Changes in Rg were obtained for lysozyme at extreme formulations with 40 °C. (D) Mean radii distribution of lysozyme at extreme formulations with 40 °C before and after 48 h measured by DLS. (E) SDS-polyacrylamide gel electrophoresis (SDS-PAGE) of lysozyme incubated at extreme formulations with 40 °C before and after 48 h.
Figure 2. (A) A microplate assay for measuring OD 600 nm of lysozyme (5 mg/mL) colored by value (>0.5 corresponds to aggregation). (B) SAXS-based screening of lysozyme (5 mg/mL) colored by the radius of gyration (Rg). (C) Changes in Rg were obtained for lysozyme at extreme formulations with 40 °C. (D) Mean radii distribution of lysozyme at extreme formulations with 40 °C before and after 48 h measured by DLS. (E) SDS-polyacrylamide gel electrophoresis (SDS-PAGE) of lysozyme incubated at extreme formulations with 40 °C before and after 48 h.
Pharmaceutics 14 00069 g002

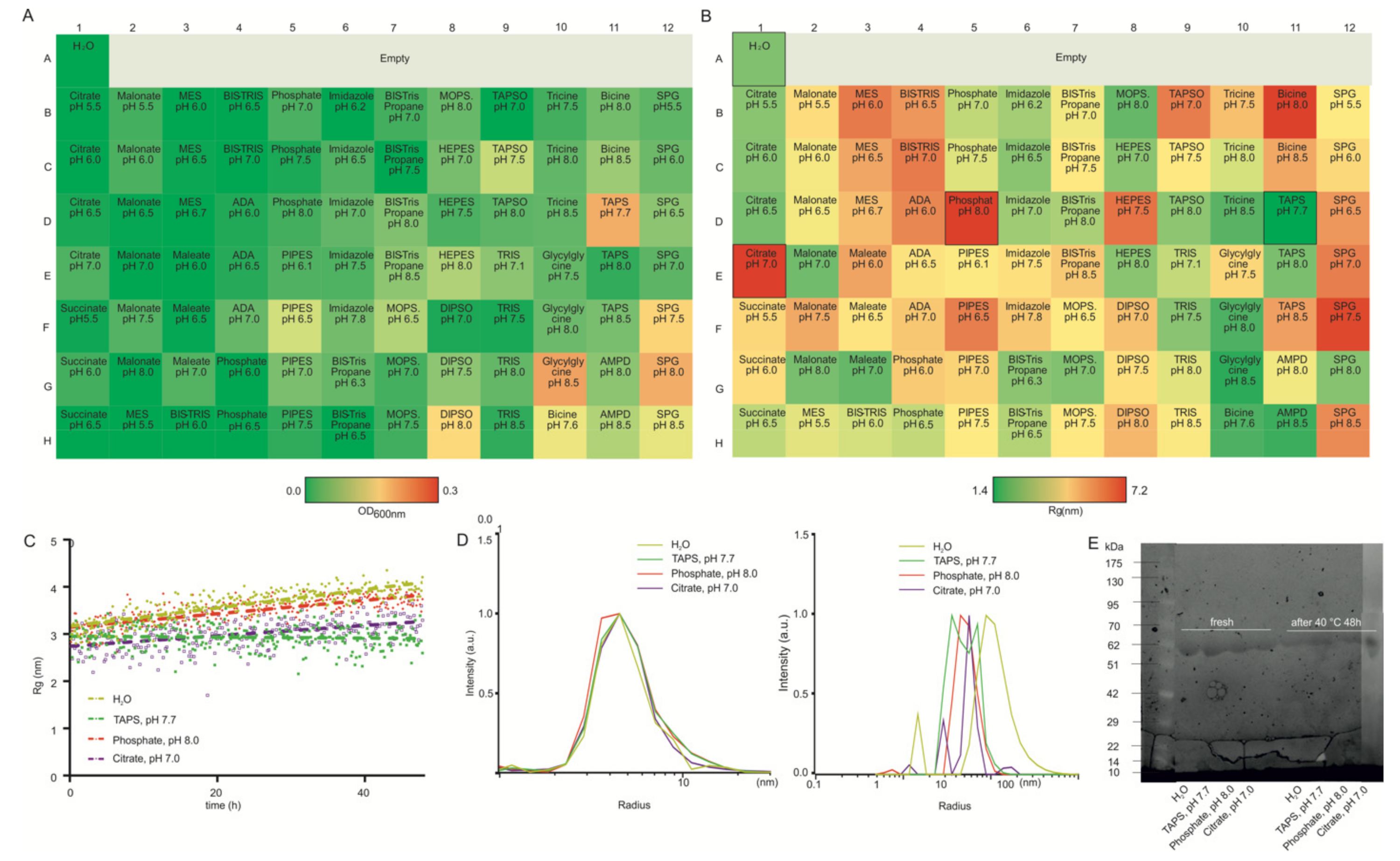

Figure 3. (A) A microplate assay for measuring OD 600 nm of HSA (5 mg/mL) colored by value (>0.5 means aggregation). (B) SAXS-based screening of HSA (5 mg/mL) colored by the value of the radius of gyration Rg. (C) Changes in Rg value were obtained for HSA at extreme formulations with 40 °C. (D) Mean radii distribution of HSA at extreme formulations with 40 °C before and after 48 h measured by DLS. (E) SDS-polyacrylamide gel electrophoresis (SDS-PAGE) of HSA incubated at extreme formulations with 40 °C before and after 48 h.
Figure 3. (A) A microplate assay for measuring OD 600 nm of HSA (5 mg/mL) colored by value (>0.5 means aggregation). (B) SAXS-based screening of HSA (5 mg/mL) colored by the value of the radius of gyration Rg. (C) Changes in Rg value were obtained for HSA at extreme formulations with 40 °C. (D) Mean radii distribution of HSA at extreme formulations with 40 °C before and after 48 h measured by DLS. (E) SDS-polyacrylamide gel electrophoresis (SDS-PAGE) of HSA incubated at extreme formulations with 40 °C before and after 48 h.
Pharmaceutics 14 00069 g003

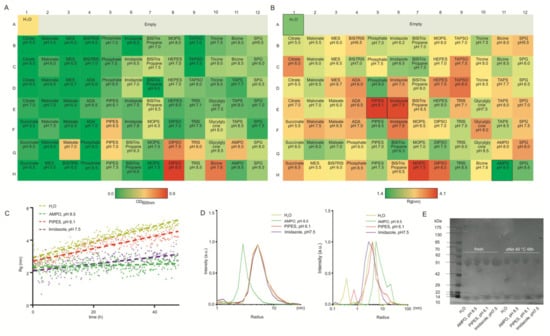

Figure 4. (A) A microplate assay for measuring OD 600 screening of the antibody fragment (5 mg/mL) colored by value (>0.5 means aggregation). (B) SAXS-based screening of the antibody fragment (5 mg/mL) colored by the value of the radius of gyration Rg. (C) Changes in Rg value were obtained for the antibody fragment at extreme formulations with 40 °C. (D) Mean radii distribution of the antibody fragment at extreme formulations with 40 °C before and after 48 h measured by DLS. (E) SDS-polyacrylamide gel electrophoresis (SDS-PAGE) of the antibody fragment was incubated at extreme formulations at 40 °C before and after 48 h.
Figure 4. (A) A microplate assay for measuring OD 600 screening of the antibody fragment (5 mg/mL) colored by value (>0.5 means aggregation). (B) SAXS-based screening of the antibody fragment (5 mg/mL) colored by the value of the radius of gyration Rg. (C) Changes in Rg value were obtained for the antibody fragment at extreme formulations with 40 °C. (D) Mean radii distribution of the antibody fragment at extreme formulations with 40 °C before and after 48 h measured by DLS. (E) SDS-polyacrylamide gel electrophoresis (SDS-PAGE) of the antibody fragment was incubated at extreme formulations at 40 °C before and after 48 h.
Pharmaceutics 14 00069 g004
