Review

Recent Advances to Augment NK Cell Cancer Immunotherapy Using Nanoparticles

by
Kwang-Soo Kim
1,2,
Dong-Hwan Kim
2,* and
Dong-Hyun Kim
1,3,4,5,*
1
Department of Radiology, Feinberg School of Medicine, Northwestern University, Chicago, IL 60611, USA
2
School of Chemical Engineering, Sungkyunkwan University (SKKU), Suwon 16419, Korea
3
Department of Biomedical Engineering, McCormick School of Engineering, Evanston, IL 60208, USA
4
Robert H. Lurie Comprehensive Cancer Center, Chicago, IL 60611, USA
5
Department of Bioengineering, University of Illinois at Chicago, Chicago, IL 60607, USA
*
Authors to whom correspondence should be addressed.
Pharmaceutics 2021, 13(4), 525; https://doi.org/10.3390/pharmaceutics13040525
Submission received: 28 February 2021 / Revised: 29 March 2021 / Accepted: 2 April 2021 / Published: 9 April 2021
(This article belongs to the Special Issue Nanopharmaceuticals for Image-Guided Cancer Therapy and Diagnosis)
Browse Figures
Versions Notes

Abstract

Among various immunotherapies, natural killer (NK) cell cancer immunotherapy using adoptive transfer of NK cells takes a unique position by targeting tumor cells that evade the host immune surveillance. As the first-line innate effector cell, it has been revealed that NK cells have distinct mechanisms to both eliminate cancer cells directly and amplify the anticancer immune system. Over the last 40 years, NK cell cancer immunotherapy has shown encouraging reports in pre-clinic and clinic settings. In total, 288 clinical trials are investigating various NK cell immunotherapies to treat hematologic and solid malignancies in 2021. However, the clinical outcomes are unsatisfying, with remained challenges. The major limitation is attributed to the immune-suppressive tumor microenvironment (TME), low activity of NK cells, inadequate homing of NK cells, and limited contact frequency of NK cells with tumor cells. Innovative strategies to promote the cytolytic activity, durable persistence, activation, and tumor-infiltration of NK cells are required to advance NK cell cancer immunotherapy. As maturing nanotechnology and nanomedicine for clinical applications, there is a greater opportunity to augment NK cell therapeutic efficacy for the treatment of cancers. Active molecules/cytokine delivery, imaging, and physicochemical properties of nanoparticles are well equipped to overcome the challenges of NK cell cancer immunotherapy. Here, we discuss recent clinical trials of NK cell cancer immunotherapy, NK cell cancer immunotherapy challenges, and advances of nanoparticle-mediated NK cell therapeutic efficacy augmentation.

Graphical Abstract

1. Introduction

Cancer is the second cause of death worldwide and still needs much effort to cure the desperate disease [1]. In the past decade, immunotherapies modulating anticancer immune responses for cancer elimination have made a remarkable revolution in cancer treatments [2]. The 2018 Nobel Prize in Physiology or Medicine selected immunotherapy pioneers. More understanding of immune system-related cancer biology at the cellular and molecular levels has allowed cancer immunotherapy to be rapidly advanced for clinical applications. Subsequently, various cancer immunotherapies, including immune checkpoint blockades, chimeric antigen receptor (CAR) T-cell therapy, cytokine therapy, natural killer (NK) cell therapy, and cancer vaccines, are able to exhibit notable successes in the clinics [3,4,5,6,7,8,9]. However, immune-suppressive tumor microenvironment (TME), immuno-therapeutic resistance, immuno-therapeutic ignorance, and off-target toxicity, i.e., immune-related adverse effects (irAEs), permitted only a small percentage of patients to experience a positive response [10,11,12]. Substantial effort to overcome the limitation of cancer immunotherapy and further development of cancer immunotherapy strategies are needed to advance this effective strategy to treat cancers [13].
NK cell cancer immunotherapy using adoptive transfer of NK cells takes a unique position to target tumor cells that evade the host immune surveillance [14,15,16]. NK cells belonging to innate lymphoid cells are cytotoxic, play roles in producing cytokines and essential immunosurveillance for viral infection and cancers [17,18]. NK cells are mainly localized at epithelial surfaces and quickly responding to pathogen invasion to maintain tissue homeostasis [19]. The lack of antigen receptors in NK cells is different from T and B lymphocytes. A wide range of germline-encoded activating and inhibitory receptors of NK cells can be engaged by particular ligands displayed on various kinds of cells (Figure 1). NK cell’s selective cytotoxic functions killing disease cells are finely tuned by the signaling balance between the activating and inhibitory receptors [20]. For healthy cells, NK cells preserve tolerance towards surrounding normal cells. The tolerance is mainly controlled through inhibitory receptors such as killer immunoglobulin-like receptors (KIRs) and natural killer group 2A (NKG2A) recognizing self-major histocompatibility complex (MHC) class I molecules (Figure 1) [21]. In the process of NK cell education, the strength of these inhibitory receptor/ligand interactions also strongly correlates with the generation of functional NK cells. The activation of the “turn on” signal for the selective cytotoxic effect is involving several activation receptors, including natural cytotoxicity receptors (NCRs: NKp46, NKp44, and NKp30) and natural killer group 2D (NKG2D), whose ligands are mainly stress-inducible molecules UL16 binding proteins (ULBPs), MHC class I chain-related protein A and B (MICA/B). With the activation receptors, NK cells can selectively attack virally infected cells or cancer cells that are expressing downregulated MHC class I molecules through “missing self-recognition” and “induced self-recognition” (Figure 1) [22].
These well-orchestrated selective cytotoxic functions of NK cells have prompted their use in many clinical trials to control tumor growth via their effector capacity. NK cell cancer immunotherapy has been considered an effective cancer treatment and a potent adjuvant to standard cancer treatment [23]. A total of 288 clinical trials are investigating NK cell immunotherapies to treat hematologic and solid malignancies in 2021 (www.clinicaltrials.gov). Those clinical trials using autologous NK cells, allogeneic NK cells, NK cell lines, and genetically modified NK cells have shown encouraging results in the response rate for various malignancies [24,25,26]. However, there are still considerable challenges in NK cell therapy to treat cancer patients. The TME structure and altered tumor immunogenicity lead to functional damage of NK cells and poor tumor trafficking and infiltration of NK cells into tumors [27]. Thus, various strategies to promote the expansion, cytolytic activity, durable persistence, activation, and tumor-infiltration of NK cells have been studied [28,29,30,31]. Recently, various multifunctional nanoparticles have been suggested to augment NK cell therapy for the treatment of cancers [32,33]. Active molecules/cytokine delivery, imaging, and physicochemical properties of nanomaterials are well equipped to overcome NK cell cancer immunotherapy challenges [34,35]. As maturing nanotechnology and nanomedicine for the clinical applications, there is greater opportunity for NK cell cancer immunotherapy. Here, we discuss recent NK cell adoptive cell transfer (ACT) clinical trials, challenges, and advances of nanoparticle-mediated NK cell therapeutic efficacy augmentation.

2. NK Cell Cancer Immunotherapy Clinical Trials

Adoptive transfer of ex vivo expanded autologous NK cells have been examined for the treatment of patients with lymphoma, colon cancer, breast cancer, and lung cancer in clinical trials (Figure 2A). The first remarkable clinical benefit of NK cell adoptive transfer was reported in 2002. KIR ligand mismatched alloreactive NK cells from peripheral blood mononuclear cells (PBMC) were applied to acute myeloid leukemia (AML) patients with human leukocyte antigen (HLA) mismatch hematopoietic transplantation. The first results showed 34% complete remission without graft versus host disease (GVHD) [36]. Later in 2005, IL-2 and IL-15 were added to ex vivo activated allogeneic KIR/KIR ligand mismatch PBMC derived NK cells were treated for AML patients [16]. Subsequently, alloreactive PBMC derived NK cells have been more investigated as immunotherapy of hematologic malignancies. Several results in phase I and II trials have demonstrated that allogeneic NK cell adoptive transfer has a clinical benefit with low severe adverse effects [16,36]. In 2011, a phase I trial showed IL-2 pre-activated NK cells from allogeneic KIR/KIR ligand mismatch donors were effective in highly-risk AML. In total, 6/13 patients obtained complete remission (NCT00799799) [37]. Another phase I trial reported that IL-12, IL-15, and IL-18 induced memory like allogeneic NK cells demonstrated robust responses against myeloid leukemia with 5/9 clinical responses including four complete remissions (NCT01898793) [24]. Then, the latest phase II clinical trial tested the efficacy of allogeneic haploidentical NK cells. It demonstrated only 29% (4/14) had objective responses in non-Hodgkin lymphoma patients (NCT01181258) [25]. The outcomes of NK cell therapy are still limited compared to other therapeutic options.
The initial successes of adoptive NK cell transfer in treating hematological cancers also prompted clinical endeavors in using the strategy against solid cancers (Figure 2B). Unfortunately, the clinical efficacy of NK cell transfer to the solid tumor has been disappointing [27]. One of the clinical trials for solid tumor treatment is autologous NK cell therapy. Ex vivo expanded NK cells with IL-2 and IFN-β were used for the malignant glioma patients, but the systemically applied NK cell cancer immunotherapy resulted in only 5/16 responses [38]. In another study, pre-treated autologous NK cells with IL-2 and HSP70 had been infused for colorectal or non-small-cell lung solid tumor patients. Immunological responses were observed, but no clinical treatment-related response was reported [39]. More recent clinical trials of IL-2 activated autologous NK cells evaluated their efficacy for metastatic melanoma and renal cell carcinoma patients. However, the response rate was 0% (0/8 responses) [15]. Another phase II trial used allogeneic NK cells for recurrent ovarian and breast cancer patients. IV injected IL-2 activated allogeneic haploidentical NK cell adoptive transfer showed the partial response of 4/20 response [40].
With the limited response of NK cells in solid tumors, current clinical trials of NK cell therapy have more focused on the combination therapy with NK cells and chemotherapy (Table 1). A combination of NK cell therapy with 5-Fu and oxaliplatin was tested for advanced colon carcinoma patients. The 5-year progression-free survival and overall survival rates in the combination NK cell therapy group were significantly higher than those in the control group of pure chemotherapy (51.1% versus 35%, p = 0.044; 72.5% versus 51.6%, p = 0.037, respectively) [41]. However, another phase I clinical trial results of adoptive transfer of IL-2 activated autologous NK cells in combination with IgG1 antibody (Trastuzumab or cetuximab) showed poor response rate in gastric or colorectal cancer patients (0/6 responses) [42]. Despite these various endeavors for NK cell cancer immunotherapy, such clinical responses have been diverse and not been robust as it has been expected.

3. Challenges of NK Cell Cancer Immunotherapy

The primary reason for the therapeutic limitation of NK cell cancer immunotherapy was attributed to the immune-suppressive TME, low activity of NK cells, inadequate homing of NK cell adoptive transfer, and limited contact frequency of NK cells with tumor cells (Figure 3) [23,43].
One of NK cell therapy’s limitations is the immunosuppressive effect of the TME (Figure 3) [6,44]. TME has unique environments built with various cancer cell-derived cytokines and following abnormal metabolic profiles. NK cells in the TME are changed to be low proliferation, decreased cytokine release, and downregulation of activation receptors [27]. Especially, there are immune-suppressive TME cytokines such as TGF-β, prostaglandin E2 (PGE2), and indoleamine 2,3-dioxygenase (IDO) [45]. Along with immune suppressive cytokines from tumor cells, regulatory T cells and myeloid-derived suppressor cells usually inhibit both the expansion and the function of effector NK cells with downregulating NK cell-activating receptors, IFN-γ, and cytolytic molecules [46]. To overcome this immune-suppressive TME, TME modulation involved with TGF-β, PGE2, and IDO cytokines and NK cell activation using IL-2, IL-12, IL-18, and IFN-γ have been actively studied for the augmentation of NK cell cytotoxicity against tumor cells in TME [47].
Tumors also exploit several defense mechanisms to limit NK cell homing and infiltration [48]. Deregulation of chemokine expression in the tumor is an important mechanism preventing NK cell infiltration and homing (Figure 3). Vascular endothelial growth factor (VEGF) and basic fibroblast growth factor (bFGF) signaling on endothelial cells can repress adhesion molecule expression and prevent NK-cell infiltration [49,50]. So, there are many ongoing efforts toward improving tumor infiltration of adoptively transferred NK cells. The modification of NK cells with tumor-specific molecules and chemokine-chemokine receptor axis has been tried [51]. CCR5-CCL5 axis was induced to enhance NK cell infiltration in tumor tissue, and CXCR3 on NK cells also could interact with CXCL9, CXCL10, and CXCL11 from tumor cells [52,53]. The local delivery of those modified NK cells and catalytic molecules for migration was also studied to enhance NK cell therapy approaches. Ultrasound-mediated-, magnetic field-mediated-, and catheter-directed-NK cell delivery have demonstrated improved NK cell homing and infiltration [54,55,56].
Another critical challenge of NK cell adoptive transfer is the immune escape of tumor cells (Figure 3) [6,27]. Mutated tumor cells are expressing immune checkpoint molecules, rendering the immune system to be ineffective. Although the NK cell activation process involves more than one receptor–ligand interaction, NK-cell-mediated anticancer efficacy is often hindered by the low expression of NK cell activation receptor–ligand [57]. Subsequently, NK cell recognition in the tumor site is hampered due to the lack of NK–tumor contact. Highly effective immune cell engagers and specifically designed receptors effectively enhance the recognition and contact of NK cell-activating receptors [58]. Recently, CAR expressed NK cells showed an efficient cancer cell killing effect in CD19 positive leukemia and lymphoma cells [26]. Anti-CD19 CAR T cells were approved by the US Food and Drug Administration (FDA) in 2017. Despite the robust clinical response, the severe adverse effect was recognized [59]. Further studies for preventing immune escaping tumor cells are needed.

4. Nanomaterials for NK Cell Cancer-Immunotherapy

Nanomaterial functionality, including various payloads delivery, reactivity with cellular ligands, and imaging contrast, facilitates effective chemical or biological modification of cells and cancer therapeutic applications [34,60,61,62,63]. Versatile multifunctionality of nanomaterials and their compatibility with NK cells also have a great potential to boost NK cell function in the ex vivo expansion of NK cells, activation of NK cells, and intra/post-operative procedures of NK cell therapy (Figure 4). Recent reports demonstrating augmented NK cell cancer immunotherapy using nanoparticles are summarized here (Table 2).

4.1. Nanoparticle-Mediated Conversion of Immune Suppressive TME for NK Cell Cancer Immunotherapy

The vitality of NK cells is strongly influenced by tumor secreted TGF-β. Particularly, TGF-β is a negative regulator of IFN-γ production and downregulates the surface expression of the NK cell-activating receptors such as NKG2D, NKp46, and NKp30, causing reduction of the cytotoxic activity and anticancer function of NK cells. Thus, there were many attempts to moderate the immune-suppressive TGF-β signaling in TME. In 2014, Xu et al. reported a strategy to manipulate TGF-β signaling with lipid calcium phosphate nanoparticles and liposome protamine hyaluronic acid nanoparticles. Successfully delivered TGF-β siRNA downregulated ~50% TGF-β in TME. It resulted in increased NK cell infiltration and decreased level of regulatory T cells in the melanoma model [64]. Another revolutionary research using liposomal polymeric gels showed the reversed antitumor activity of NK cells in the immune suppressive TME. TGF-β inhibitor and IL-2 were co-delivered with a liposome polymeric gel into the tumor site. Significant tumor inhibition and enhanced survival were demonstrated in melanoma and triple negative breast cancer-bearing mice [65]. Recently, Chang Liu et al. developed nano-emulsion with selenocysteine and TGF-β antagonists. The local treatment of nano-emulsion reduced the side effects of TGF-β antagonists and effectively suppressed TGF-β/TGF-βRI/Smad2/3 signaling. Subsequently, the locally delivered TGF-β antagonists reinforced the upregulation of NKG2DLs on cancer cells [76]. Various bio-nanoparticle formulations, which can modulate immune-suppressive TME, are expected to be a novel tool for supporting NK cell cancer immunotherapy.

4.2. Nanoparticle-Mediated NK Cell Homing and Infiltration

In the past few decades, CXCL/CXCR axis and cytokines such as IL-2 and IL-15 were regarded as appropriate options to improve NK cell homing and infiltration to tumor sites [52,66]. Recent nanotechnology further enables developing a diverse spectrum of strategies to achieve better homing properties of NK cells. NK cell homing and infiltration are strongly related to the efficacy of NK cell cancer immunotherapy. Recently, various nanoparticle-mediated approaches showed a promise to enhance NK cell tumor infiltration for NK cell cancer immunotherapy. A study utilized chitosan-based nanoparticles to deliver a fused dsNKG2D–IL-21 gene to the tumor region. The delivered DNA fragments encoding NKG2D ligand increased secretion of the NKG2D ligand and IL-21, resulting in NK cell infiltration and enhanced NK cell and T cell activation in the tumor tissue. Intravenous administration of dsNKG2D–IL-21-chitosan nanoparticles considerably delayed tumor growth and prolonged the life span of treated mice [67]. Another report by Meraz et al. developed tumor suppressor candidate 2 (TUSC2) plasmid DNA-loaded cationic liposomes to investigate its potential for NK cell activation and the increase of NK cell population in the TME. TUSC2 is one of the strong tumor suppressor genes to control various kinds of tumors. However, TUCS2 mRNA is commonly downregulated or suppressed in TME and resulted in low overall survival rate. In this research, the systemic delivery of TUSC2 nanovesicle converted gene expression profile in TME and resulted in immune effector NK cell infiltration for a survival benefit in the preclinical model [68]. In the same context of nanoparticle-mediated cytokine treatment facilitating NK homing and infiltration to tumors, a PEGylated liposome was used to deliver various TLR-4 agonists, such as cdGMP, a STING agonist, and MPLA for inducing type I interferons in the TME [69]. Another study used nanocomposite to enhance tumor-specific migration on NK cells via modulating chemokine signaling. Park et al. developed immunomodulatory nanocomposite microspheres containing recombinant IFN-γ. Their delivery of IFN-γ eluting nanocomposite microspheres induced a significant increase of NK cell infiltration. This strategy showed improved accumulation and retention of NK in tumors, resulting in significantly enhanced therapeutic efficacy [70]. Additionally, NK cell guiding IL-2 [23] was delivered with nanoparticles. Zhang et al. reported that liposome-anchored IL-2/anti-CD137 achieved antitumor activity without systemic toxicity of IL-2 [77]. Frick et al. also demonstrated the enhanced in vivo targeting of NK cells with starch nano-capsules coupled with IL-2 [78,79].
As another approach, external magnetic-field-responsive magnetic nanoparticles were used to guide NK cells to the tumor. Jang et al. developed fluorophore Cyanine 5.5-silica-decorated superparamagnetic iron oxide nanoparticles and conjugated with NK cells. The magnetic nanoparticle-conjugated NK cells were intravenously injected into B cell lymphoma-bearing mice, and a neodymium magnet (340 G/mm) was put adjacently to the tumor site. Consequently, NK cell infiltration in tumors was increased by 17-fold when applying the magnetic field [71]. Wu et al. also used polydopamine-coated iron oxide nanoparticles and an implanted plate magnet in the hypodermic tumor. The injection of magnetic nanoparticles loaded NK cells significantly improved the accumulation and retention of NK in tumors [55].

4.3. Nanoparticle-Mediated NK Cell Receptor-Ligand Activation and Nano-Engagers

Another strategy for robust tumor regression by NK cells is to upregulate the NK cell-activating responses and trigger the production of NK cell stimulatory cytokines in the TME. Direct interaction between NK cells and tumor cells has been shown to coordinate adaptive immunity by recruiting dendritic cells and T cells [80]. Chandrasekaran et al. adorned liposomes with TRAIL and anti-NK1.1 proteins via maleimide-thiol chemistry, and the liposomes were conjugated with NK cells. The nano-liposome conjugated NK cells prolonged their presence within the tumor-draining lymph nodes, and continuous NK cell activation effectively inhibited the spread of cancer cells from the primary site [72]. Another novel strategy used cationic nanoparticles to improve NK cell activation. A simple and efficient method using polyethyleneimine coated-cationic iron oxide nanoparticles enhanced over 2-fold higher cytotoxicity against triple negative breast cancer. Cationic nanoparticle-treated NK cells expressed higher CCR4 and CXCR4 and showed better interaction with breast cancer cells [73]. Zheng et al. successfully modified the tumor cell surface with rationally designed immunomodulating nanoparticles. Nanoparticles were composed of bovine serum albumin nano-capsule core and Immunoglobulin G (IgG)/phenylboronic acid (PBA) shell structure for enhancing NK cell (IgG) binding to tumor cell (PBA). In vivo study exhibited NK-cell-mediated direct conjugation to tumor cells and effective tumor growth inhibition [74]. As an advanced study, Bi- or Tri- specific targeting materials that can connect different types of cells and stimulate activating receptors on effecter cells were suggested. Au et al. fabricated PLGA nanoparticle-based tri-specific NK cell engagers that can target epidermal growth factor receptors on tumor cells and CD16+/4-1BB+ NK cells. This multi-specific nano-platform successfully allowed the NK cell engagement to tumor cells and NK cell activation to attack EGFR positive colorectal adenocarcinoma, triple negative breast cancer, epidermoid carcinoma, and melanoma, respectively [75]. Further, since remarkable success in CAR-T cell therapy, the engagement of immune effector NK cells to the tumor cells is one of the promising approaches in NK cell cancer immunotherapy.

5. Conclusions and Future Outlook

NK-cell-based therapy has attracted significant attention in research on cancer treatment. Considering the tumor-specific cytotoxic function of NK cell cancer immunotherapy, NK cell cancer immunotherapy can be useful in many clinical cases. However, achieving meaningful therapeutic outcomes in the clinic is still challenging, owing to difficulties with the numerous immune-suppressive factors in the TME and poor NK cells’ homing and infiltration. Further development and refining of NK cell cancer immunotherapy are required. One promising direction would be the combinational NK cell cancer immunotherapy with other synergistic cancer therapies. Because NK cell infusion appeared to be safe and NK cells do not need a particular process of antigen recognition by antigen-presenting cells, there is the strength as a combination therapy regime. Utilizing distinct mechanisms of NK cells will be critical to have synergistic effects in combination with other cancer therapies, including chemotherapy, immune-modulating cytokines (IL-2 and IFN-γ) therapy, and immune checkpoint blockades immunotherapy. In advance of NK cell cancer therapy, nanoparticles will be a key tool, as they have recently shown great potential for augmenting the therapeutic efficacy of NK cell cancer immunotherapy. Engineered nanoparticles delivering various therapeutic agents, including antibodies, stimulatory cytokines, genes, or adjuvants, will enhance the NK cell activity, NK cell proliferation, and NK cell migration to tumor sites, thus markedly inhibiting tumor progression. The development of nanoparticles targeting the TME can also readily upregulate NK cell-activating ligands and stimulatory cytokines (Figure 4). Further, the medical imaging contrast effect of nanoparticles will allow image-guided NK cell cancer immunotherapy that can monitor NK cells and therapeutic prognosis. Indeed, the multifunctionality of nanoparticles interplaying between the immune system and tumors will allow the synergistic combinational anticancer effect, broaden the capacity of NK cell cancer immunotherapy, and contribute to developing safe and controlled NK cell cancer immunotherapies.

Author Contributions

K.-S.K., D.-H.K. (Dong-Hwan Kim) and D.-H.K. (Dong-Hyun Kim) carried out the literature review and wrote the manuscript; K.-S.K. and D.-H.K. (Dong-Hyun Kim) conceptualized the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This review was supported by grants R01CA218659 and R01EB026207 from the National Cancer Institute and National Institute of Biomedical Imaging and Bioengineering. This review was also supported by the MOTIE (Ministry of Trade, Industry, and Energy) in Korea, under the Fostering Global Talents for Innovative Growth Program (P0008746) supervised by the Korea Institute for Advancement of Technology (KIAT).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Figures created with BioRender.com.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2021. [Google Scholar] [CrossRef] [PubMed]
  2. Mellman, I.; Coukos, G.; Dranoff, G. Cancer immunotherapy comes of age. Nature 2011, 480, 480–489. [Google Scholar] [CrossRef]
  3. Wei, S.C.; Duffy, C.R.; Allison, J.P. Fundamental Mechanisms of Immune Checkpoint Blockade Therapy. Cancer Discov. 2018, 8, 1069–1086. [Google Scholar] [CrossRef]
  4. June, C.H.; Sadelain, M. Chimeric Antigen Receptor Therapy. N. Engl. J. Med. 2018, 379, 64–73. [Google Scholar] [CrossRef]
  5. Waldmann, T.A. Cytokines in Cancer Immunotherapy. Cold Spring Harb. Perspect. Biol. 2018, 10. [Google Scholar] [CrossRef]
  6. Bald, T.; Krummel, M.F.; Smyth, M.J.; Barry, K.C. The NK cell-cancer cycle: Advances and new challenges in NK cell-based immunotherapies. Nat. Immunol. 2020, 21, 835–847. [Google Scholar] [CrossRef]
  7. Banchereau, J.; Palucka, K. Immunotherapy: Cancer vaccines on the move. Nat. Rev. Clin. Oncol. 2018, 15, 9–10. [Google Scholar] [CrossRef]
  8. Farkona, S.; Diamandis, E.P.; Blasutig, I.M. Cancer immunotherapy: The beginning of the end of cancer? BMC Med. 2016, 14, 73. [Google Scholar] [CrossRef]
  9. Falzone, L.; Salomone, S.; Libra, M. Evolution of Cancer Pharmacological Treatments at the Turn of the Third Millennium. Front. Pharmacol. 2018, 9, 1300. [Google Scholar] [CrossRef] [PubMed]
  10. Fares, C.M.; Van Allen, E.M.; Drake, C.G.; Allison, J.P.; Hu-Lieskovan, S. Mechanisms of Resistance to Immune Checkpoint Blockade: Why Does Checkpoint Inhibitor Immunotherapy Not Work for All Patients? Am. Soc. Clin. Oncol. Educ. Book 2019, 39, 147–164. [Google Scholar] [CrossRef] [PubMed]
  11. Jenkins, R.W.; Barbie, D.A.; Flaherty, K.T. Mechanisms of resistance to immune checkpoint inhibitors. Br. J. Cancer 2018, 118, 9–16. [Google Scholar] [CrossRef] [PubMed]
  12. Alsaab, H.O.; Sau, S.; Alzhrani, R.; Tatiparti, K.; Bhise, K.; Kashaw, S.K.; Iyer, A.K. PD-1 and PD-L1 Checkpoint Signaling Inhibition for Cancer Immunotherapy: Mechanism, Combinations, and Clinical Outcome. Front. Pharmacol. 2017, 8, 561. [Google Scholar] [CrossRef] [PubMed]
  13. Riley, R.S.; June, C.H.; Langer, R.; Mitchell, M.J. Delivery technologies for cancer immunotherapy. Nat. Rev. Drug Discov. 2019, 18, 175–196. [Google Scholar] [CrossRef] [PubMed]
  14. Ljunggren, H.G.; Malmberg, K.J. Prospects for the use of NK cells in immunotherapy of human cancer. Nat. Rev. Immunol. 2007, 7, 329–339. [Google Scholar] [CrossRef]
  15. Parkhurst, M.R.; Riley, J.P.; Dudley, M.E.; Rosenberg, S.A. Adoptive Transfer of Autologous Natural Killer Cells Leads to High Levels of Circulating Natural Killer Cells but Does Not Mediate Tumor Regression. Clin. Cancer Res. 2011, 17, 6287–6297. [Google Scholar] [CrossRef]
  16. Miller, J.S.; Soignier, Y.; Panoskaltsis-Mortari, A.; McNearney, S.A.; Yun, G.H.; Fautsch, S.K.; McKenna, D.; Le, C.; Defor, T.E.; Burns, L.J.; et al. Successful adoptive transfer and in vivo expansion of human haploidentical NK cells in patients with cancer. Blood 2005, 105, 3051–3057. [Google Scholar] [CrossRef] [PubMed]
  17. Vivier, E.; Artis, D.; Colonna, M.; Diefenbach, A.; Di Santo, J.P.; Eberl, G.; Koyasu, S.; Locksley, R.M.; McKenzie, A.N.J.; Mebius, R.E.; et al. Innate Lymphoid Cells: 10 Years On. Cell 2018, 174, 1054–1066. [Google Scholar] [CrossRef]
  18. Huntington, N.D.; Cursons, J.; Rautela, J. The cancer-natural killer cell immunity cycle. Nat. Rev. Cancer 2020, 20, 437–454. [Google Scholar] [CrossRef] [PubMed]
  19. Farag, S.S.; Caligiuri, M.A. Human natural killer cell development and biology. Blood Rev. 2006, 20, 123–137. [Google Scholar] [CrossRef]
  20. Lanier, L.L. Natural killer cell receptor signaling. Curr. Opin. Immunol. 2003, 15, 308–314. [Google Scholar] [CrossRef]
  21. Orr, M.T.; Lanier, L.L. Natural Killer Cell Education and Tolerance. Cell 2010, 142, 847–856. [Google Scholar] [CrossRef] [PubMed]
  22. Wensveen, F.M.; Jelencic, V.; Polic, B. NKG2D: A Master Regulator of Immune Cell Responsiveness. Front. Immunol. 2018, 9, 441. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, S.; Galat, V.; Galat, Y.; Lee, Y.K.A.; Wainwright, D.; Wu, J. NK cell-based cancer immunotherapy: From basic biology to clinical development. J. Hematol. Oncol. 2021, 14, 7. [Google Scholar] [CrossRef] [PubMed]
  24. Romee, R.; Rosario, M.; Berrien-Elliott, M.M.; Wagner, J.A.; Jewell, B.A.; Schappe, T.; Leong, J.W.; Abdel-Latif, S.; Schneider, S.E.; Willey, S.; et al. Cytokine-induced memory-like natural killer cells exhibit enhanced responses against myeloid leukemia. Sci. Transl. Med. 2016, 8, 357ra123. [Google Scholar] [CrossRef]
  25. Bachanova, V.; Sarhan, D.; DeFor, T.E.; Cooley, S.; Panoskaltsis-Mortari, A.; Blazar, B.R.; Curtsinger, J.M.; Burns, L.; Weisdorf, D.J.; Miller, J.S. Haploidentical natural killer cells induce remissions in non-Hodgkin lymphoma patients with low levels of immune-suppressor cells. Cancer Immunol. Immunother. 2018, 67, 483–494. [Google Scholar] [CrossRef]
  26. Liu, E.; Marin, D.; Banerjee, P.; Macapinlac, H.A.; Thompson, P.; Basar, R.; Nassif Kerbauy, L.; Overman, B.; Thall, P.; Kaplan, M.; et al. Use of CAR-Transduced Natural Killer Cells in CD19-Positive Lymphoid Tumors. N. Engl. J. Med. 2020, 382, 545–553. [Google Scholar] [CrossRef]
  27. Nayyar, G.; Chu, Y.; Cairo, M.S. Overcoming Resistance to Natural Killer Cell Based Immunotherapies for Solid Tumors. Front. Oncol. 2019, 9, 51. [Google Scholar] [CrossRef] [PubMed]
  28. Muller, T.; Uherek, C.; Maki, G.; Chow, K.U.; Schimpf, A.; Klingemann, H.G.; Tonn, T.; Wels, W.S. Expression of a CD20-specific chimeric antigen receptor enhances cytotoxic activity of NK cells and overcomes NK-resistance of lymphoma and leukemia cells. Cancer Immunol. Immunother. 2008, 57, 411–423. [Google Scholar] [CrossRef] [PubMed]
  29. Imai, C.; Iwamoto, S.; Campana, D. Genetic modification of primary natural killer cells overcomes inhibitory signals and induces specific killing of leukemic cells. Blood 2005, 106, 376–383. [Google Scholar] [CrossRef]
  30. Cerwenka, A.; Lanier, L.L. Natural killer cell memory in infection, inflammation and cancer. Nat. Rev. Immunol. 2016, 16, 112. [Google Scholar] [CrossRef]
  31. Fehniger, T.A.; Cooper, M.A. Harnessing NK Cell Memory for Cancer Immunotherapy. Trends Immunol. 2016, 37, 877–888. [Google Scholar] [CrossRef]
  32. De Lazaro, I.; Mooney, D.J. A nanoparticle’s pathway into tumours. Nat. Mater. 2020, 19, 486–487. [Google Scholar] [CrossRef]
  33. Nam, J.; Son, S.; Park, K.S.; Zou, W.; Shea, L.D.; Moon, J.J. Cancer nanomedicine for combination cancer immunotherapy. Nat. Rev. Mater. 2019, 4, 398–414. [Google Scholar] [CrossRef]
  34. Irvine, D.J.; Dane, E.L. Enhancing cancer immunotherapy with nanomedicine. Nat. Rev. Immunol. 2020, 20, 321–334. [Google Scholar] [CrossRef] [PubMed]
  35. Phung, C.D.; Tran, T.H.; Kim, J.O. Engineered nanoparticles to enhance natural killer cell activity towards onco-immunotherapy: A review. Arch. Pharmacal. Res. 2020, 43, 32–45. [Google Scholar] [CrossRef]
  36. Ruggeri, L.; Capanni, M.; Urbani, E.; Perruccio, K.; Shlomchik, W.D.; Tosti, A.; Posati, S.; Rogaia, D.; Frassoni, F.; Aversa, F.; et al. Effectiveness of Donor Natural Killer Cell Alloreactivity in Mismatched Hematopoietic Transplants. Science 2002, 295, 2097–2100. [Google Scholar] [CrossRef]
  37. Curti, A.; Ruggeri, L.; D’Addio, A.; Bontadini, A.; Dan, E.; Motta, M.R.; Trabanelli, S.; Giudice, V.; Urbani, E.; Martinelli, G.; et al. Successful transfer of alloreactive haploidentical KIR ligand-mismatched natural killer cells after infusion in elderly high risk acute myeloid leukemia patients. Blood 2011, 118, 3273–3279. [Google Scholar] [CrossRef] [PubMed]
  38. Ishikawa, E.; Tsuboi, K.; Saijo, K.; Harada, H.; Takano, S.; Nose, T.; Ohno, T. Autologous natural killer cell therapy for human recurrent malignant glioma. Anticancer Res. 2004, 24, 1861–1871. [Google Scholar] [PubMed]
  39. Krause, S.W.; Gastpar, R.; Andreesen, R.; Gross, C.; Ullrich, H.; Thonigs, G.; Pfister, K.; Multhoff, G. Treatment of Colon and Lung Cancer Patients with ex Vivo Heat Shock Protein 70-Peptide-Activated, Autologous Natural Killer Cells: A clinical phase i trial. Clin. Cancer Res. 2004, 10, 3699–3707. [Google Scholar] [CrossRef]
  40. Geller, M.A.; Cooley, S.; Judson, P.L.; Ghebre, R.; Carson, L.F.; Argenta, P.A.; Jonson, A.L.; Panoskaltsis-Mortari, A.; Curtsinger, J.; McKenna, D.; et al. A phase II study of allogeneic natural killer cell therapy to treat patients with recurrent ovarian and breast cancer. Cytotherapy 2011, 13, 98–107. [Google Scholar] [CrossRef]
  41. Li, L.; Li, W.; Wang, C.; Yan, X.; Wang, Y.; Niu, C.; Zhang, X.; Li, M.; Tian, H.; Yao, C.; et al. Adoptive transfer of natural killer cells in combination with chemotherapy improves outcomes of patients with locally advanced colon carcinoma. Cytotherapy 2018, 20, 134–148. [Google Scholar] [CrossRef]
  42. Ishikawa, T.; Okayama, T.; Sakamoto, N.; Ideno, M.; Oka, K.; Enoki, T.; Mineno, J.; Yoshida, N.; Katada, K.; Kamada, K.; et al. Phase I clinical trial of adoptive transfer of expanded natural killer cells in combination with IgG1 antibody in patients with gastric or colorectal cancer. Int. J. Cancer 2018, 142, 2599–2609. [Google Scholar] [CrossRef]
  43. Oh, S.; Lee, J.H.; Kwack, K.; Choi, S.W. Natural Killer Cell Therapy: A New Treatment Paradigm for Solid Tumors. Cancers 2019, 11, 1534. [Google Scholar] [CrossRef] [PubMed]
  44. Fang, F.; Xiao, W.; Tian, Z. Challenges of NK cell-based immunotherapy in the new era. Front. Med. 2018, 12, 440–450. [Google Scholar] [CrossRef] [PubMed]
  45. Domogala, A.; Madrigal, J.A.; Saudemont, A. Natural Killer Cell Immunotherapy: From Bench to Bedside. Front. Immunol. 2015, 6, 264. [Google Scholar] [CrossRef] [PubMed]
  46. Melaiu, O.; Lucarini, V.; Cifaldi, L.; Fruci, D. Influence of the Tumor Microenvironment on NK Cell Function in Solid Tumors. Front. Immunol. 2019, 10, 3038. [Google Scholar] [CrossRef] [PubMed]
  47. Abel, A.M.; Yang, C.; Thakar, M.S.; Malarkannan, S. Natural Killer Cells: Development, Maturation, and Clinical Utilization. Front. Immunol. 2018, 9, 1869. [Google Scholar] [CrossRef] [PubMed]
  48. Melero, I.; Rouzaut, A.; Motz, G.T.; Coukos, G. T-cell and NK-cell infiltration into solid tumors: A key limiting factor for efficacious cancer immunotherapy. Cancer Discov. 2014, 4, 522–526. [Google Scholar] [CrossRef]
  49. Vitale, M.; Cantoni, C.; Pietra, G.; Mingari, M.C.; Moretta, L. Effect of tumor cells and tumor microenvironment on NK-cell function. Eur. J. Immunol. 2014, 44, 1582–1592. [Google Scholar] [CrossRef]
  50. Melder, R.J.; Koenig, G.C.; Witwer, B.P.; Safabakhsh, N.; Munn, L.L.; Jain, R.K. During angiogenesis, vascular endothelial growth factor and basic fibroblast growth factor regulate natural killer cell adhesion to tumor endothelium. Nat. Med. 1996, 2, 992–997. [Google Scholar] [CrossRef]
  51. Myers, J.A.; Miller, J.S. Exploring the NK cell platform for cancer immunotherapy. Nat. Rev. Clin. Oncol. 2021, 18, 85–100. [Google Scholar] [CrossRef]
  52. Susek, K.H.; Karvouni, M.; Alici, E.; Lundqvist, A. The Role of CXC Chemokine Receptors 1-4 on Immune Cells in the Tumor Microenvironment. Front. Immunol. 2018, 9, 2159. [Google Scholar] [CrossRef]
  53. Li, F.; Sheng, Y.; Hou, W.; Sampath, P.; Byrd, D.; Thorne, S.; Zhang, Y. CCL5-armed oncolytic virus augments CCR5-engineered NK cell infiltration and antitumor efficiency. J. Immunother. Cancer 2020, 8. [Google Scholar] [CrossRef]
  54. Alkins, R.; Burgess, A.; Kerbel, R.; Wels, W.S.; Hynynen, K. Early treatment of HER2-amplified brain tumors with targeted NK-92 cells and focused ultrasound improves survival. Neuro Oncol. 2016, 18, 974–981. [Google Scholar] [CrossRef]
  55. Wu, L.; Zhang, F.; Wei, Z.; Li, X.; Zhao, H.; Lv, H.; Ge, R.; Ma, H.; Zhang, H.; Yang, B.; et al. Magnetic delivery of Fe3O4@polydopamine nanoparticle-loaded natural killer cells suggest a promising anticancer treatment. Biomater. Sci. 2018, 6, 2714–2725. [Google Scholar] [CrossRef]
  56. Su, Z.; Wang, X.; Zheng, L.; Lyu, T.; Figini, M.; Wang, B.; Procissi, D.; Shangguan, J.; Sun, C.; Pan, L.; et al. MRI-guided interventional natural killer cell delivery for liver tumor treatment. Cancer Med. 2018, 7, 1860–1869. [Google Scholar] [CrossRef] [PubMed]
  57. Khan, M.; Arooj, S.; Wang, H. NK Cell-Based Immune Checkpoint Inhibition. Front. Immunol. 2020, 11, 167. [Google Scholar] [CrossRef] [PubMed]
  58. Gleason, M.K.; Ross, J.A.; Warlick, E.D.; Lund, T.C.; Verneris, M.R.; Wiernik, A.; Spellman, S.; Haagenson, M.D.; Lenvik, A.J.; Litzow, M.R.; et al. CD16xCD33 bispecific killer cell engager (BiKE) activates NK cells against primary MDS and MDSC CD33+ targets. Blood 2014, 123, 3016–3026. [Google Scholar] [CrossRef] [PubMed]
  59. Brudno, J.N.; Kochenderfer, J.N. Recent advances in CAR T-cell toxicity: Mechanisms, manifestations and management. Blood Rev. 2019, 34, 45–55. [Google Scholar] [CrossRef]
  60. Choi, B.; Choi, H.; Yu, B.; Kim, D.-H. Synergistic Local Combination of Radiation and Anti-Programmed Death Ligand 1 Immunotherapy Using Radiation-Responsive Splintery Metallic Nanocarriers. ACS Nano 2020. [Google Scholar] [CrossRef] [PubMed]
  61. Kim, D.H.; Guo, Y.; Zhang, Z.; Procissi, D.; Nicolai, J.; Omary, R.A.; Larson, A.C. Temperature-Sensitive Magnetic Drug Carriers for Concurrent Gemcitabine Chemohyperthermia. Adv. Healthc. Mater. 2014, 3, 714–724. [Google Scholar] [CrossRef]
  62. Yu, B.; Choi, B.S.; Li, W.G.; Kim, D.H. Magnetic field boosted ferroptosis-like cell death and responsive MRI using hybrid vesicles for cancer immunotherapy. Nat. Commun. 2020, 11. [Google Scholar] [CrossRef]
  63. Kim, D.H.; Larson, A.C. Deoxycholate bile acid directed synthesis of branched Au nanostructures for near infrared photothermal ablation. Biomaterials 2015, 56, 154–164. [Google Scholar] [CrossRef] [PubMed]
  64. Xu, Z.; Wang, Y.; Zhang, L.; Huang, L. Nanoparticle-Delivered Transforming Growth Factor-β siRNA Enhances Vaccination against Advanced Melanoma by Modifying Tumor Microenvironment. ACS Nano 2014, 8, 3636–3645. [Google Scholar] [CrossRef]
  65. Park, J.; Wrzesinski, S.H.; Stern, E.; Look, M.; Criscione, J.; Ragheb, R.; Jay, S.M.; Demento, S.L.; Agawu, A.; Licona Limon, P.; et al. Combination delivery of TGF-beta inhibitor and IL-2 by nanoscale liposomal polymeric gels enhances tumour immunotherapy. Nat. Mater. 2012, 11, 895–905. [Google Scholar] [CrossRef]
  66. Fauriat, C.; Long, E.O.; Ljunggren, H.G.; Bryceson, Y.T. Regulation of human NK-cell cytokine and chemokine production by target cell recognition. Blood 2010, 115, 2167–2176. [Google Scholar] [CrossRef] [PubMed]
  67. Tan, L.; Han, S.; Ding, S.; Xiao, W.; Ding, Y.; Qian, L.; Wang, C.; Gong, W. Chitosan nanoparticle-based delivery of fused NKG2D-IL-21 gene suppresses colon cancer growth in mice. Int. J. Nanomed. 2017, 12, 3095–3107. [Google Scholar] [CrossRef] [PubMed]
  68. Meraz, I.M.; Majidi, M.; Cao, X.; Lin, H.; Li, L.; Wang, J.; Baladandayuthapani, V.; Rice, D.; Sepesi, B.; Ji, L.; et al. TUSC2 Immunogene Therapy Synergizes with Anti-PD-1 through Enhanced Proliferation and Infiltration of Natural Killer Cells in Syngeneic Kras-Mutant Mouse Lung Cancer Models. Cancer Immunol. Res. 2018, 6, 163–177. [Google Scholar] [CrossRef] [PubMed]
  69. Atukorale, P.U.; Raghunathan, S.P.; Raguveer, V.; Moon, T.J.; Zheng, C.; Bielecki, P.A.; Wiese, M.L.; Goldberg, A.L.; Covarrubias, G.; Hoimes, C.J.; et al. Nanoparticle Encapsulation of Synergistic Immune Agonists Enables Systemic Codelivery to Tumor Sites and IFNbeta-Driven Antitumor Immunity. Cancer Res. 2019, 79, 5394–5406. [Google Scholar] [CrossRef] [PubMed]
  70. Park, W.; Gordon, A.C.; Cho, S.; Huang, X.; Harris, K.R.; Larson, A.C.; Kim, D.H. Immunomodulatory Magnetic Microspheres for Augmenting Tumor-Specific Infiltration of Natural Killer (NK) Cells. ACS Appl. Mater. Interfaces 2017, 9, 13819–13824. [Google Scholar] [CrossRef]
  71. Jang, E.S.; Shin, J.H.; Ren, G.; Park, M.J.; Cheng, K.; Chen, X.; Wu, J.C.; Sunwoo, J.B.; Cheng, Z. The manipulation of natural killer cells to target tumor sites using magnetic nanoparticles. Biomaterials 2012, 33, 5584–5592. [Google Scholar] [CrossRef] [PubMed]
  72. Chandrasekaran, S.; Chan, M.F.; Li, J.; King, M.R. Super natural killer cells that target metastases in the tumor draining lymph nodes. Biomaterials 2016, 77, 66–76. [Google Scholar] [CrossRef]
  73. Kim, K.S.; Han, J.H.; Choi, S.H.; Jung, H.Y.; Park, J.D.; An, H.J.; Kim, S.E.; Kim, D.H.; Doh, J.; Han, D.K.; et al. Cationic Nanoparticle-Mediated Activation of Natural Killer Cells for Effective Cancer Immunotherapy. ACS Appl. Mater. Interfaces 2020, 12, 56731–56740. [Google Scholar] [CrossRef] [PubMed]
  74. Zheng, C.; Wang, Q.; Wang, Y.; Zhao, X.; Gao, K.; Liu, Q.; Zhao, Y.; Zhang, Z.; Zheng, Y.; Cao, J.; et al. In Situ Modification of the Tumor Cell Surface with Immunomodulating Nanoparticles for Effective Suppression of Tumor Growth in Mice. Adv. Mater. 2019, 31, e1902542. [Google Scholar] [CrossRef]
  75. Au, K.M.; Park, S.I.; Wang, A.Z. Trispecific natural killer cell nanoengagers for targeted chemoimmunotherapy. Sci. Adv. 2020, 6, eaba8564. [Google Scholar] [CrossRef] [PubMed]
  76. Liu, C.; Lai, H.; Chen, T. Boosting Natural Killer Cell-Based Cancer Immunotherapy with Selenocystine/Transforming Growth Factor-Beta Inhibitor-Encapsulated Nanoemulsion. ACS Nano 2020, 14, 11067–11082. [Google Scholar] [CrossRef]
  77. Zhang, Y.; Li, N.; Suh, H.; Irvine, D.J. Nanoparticle anchoring targets immune agonists to tumors enabling anti-cancer immunity without systemic toxicity. Nat. Commun. 2018, 9, 6. [Google Scholar] [CrossRef]
  78. Frick, S.U.; Domogalla, M.P.; Baier, G.; Wurm, F.R.; Mailander, V.; Landfester, K.; Steinbrink, K. Interleukin-2 Functionalized Nanocapsules for T Cell-Based Immunotherapy. ACS Nano 2016, 10, 9216–9226. [Google Scholar] [CrossRef]
  79. Yao, H.; Ng, S.S.; Huo, L.F.; Chow, B.K.; Shen, Z.; Yang, M.; Sze, J.; Ko, O.; Li, M.; Yue, A.; et al. Effective Melanoma Immunotherapy with Interleukin-2 Delivered by a Novel Polymeric Nanoparticle. Mol. Cancer Ther. 2011, 10, 1082–1092. [Google Scholar] [CrossRef] [PubMed]
  80. Paust, S.; Senman, B.; von Andrian, U.H. Adaptive immune responses mediated by natural killer cells. Immunol. Rev. 2010, 235, 286–296. [Google Scholar] [CrossRef]
Pharmaceutics 13 00525 g001

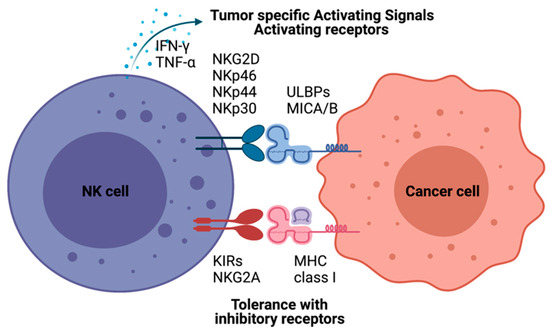

Figure 1. Natural killer (NK)-cell-mediated cytotoxicity. NK cell recognizes cells with NK cell receptors. MHC class I on target cells plays an inhibitory role binding to KIRs and NKG2A molecules resulting tolerance of NK cells as “self-recognition”. Otherwise, malignant cells inducing MICA/B, UL16 binding proteins (ULBPs), are detected by NK cells with NK-cell-activating receptors, including KG2D and NKRs. NK cells also have immune modulatory functions by producing IFN-γ and TNF-α to recruit other immune cells, such as dendritic cells and T cells.
Figure 1. Natural killer (NK)-cell-mediated cytotoxicity. NK cell recognizes cells with NK cell receptors. MHC class I on target cells plays an inhibitory role binding to KIRs and NKG2A molecules resulting tolerance of NK cells as “self-recognition”. Otherwise, malignant cells inducing MICA/B, UL16 binding proteins (ULBPs), are detected by NK cells with NK-cell-activating receptors, including KG2D and NKRs. NK cells also have immune modulatory functions by producing IFN-γ and TNF-α to recruit other immune cells, such as dendritic cells and T cells.
Pharmaceutics 13 00525 g001
Pharmaceutics 13 00525 g002

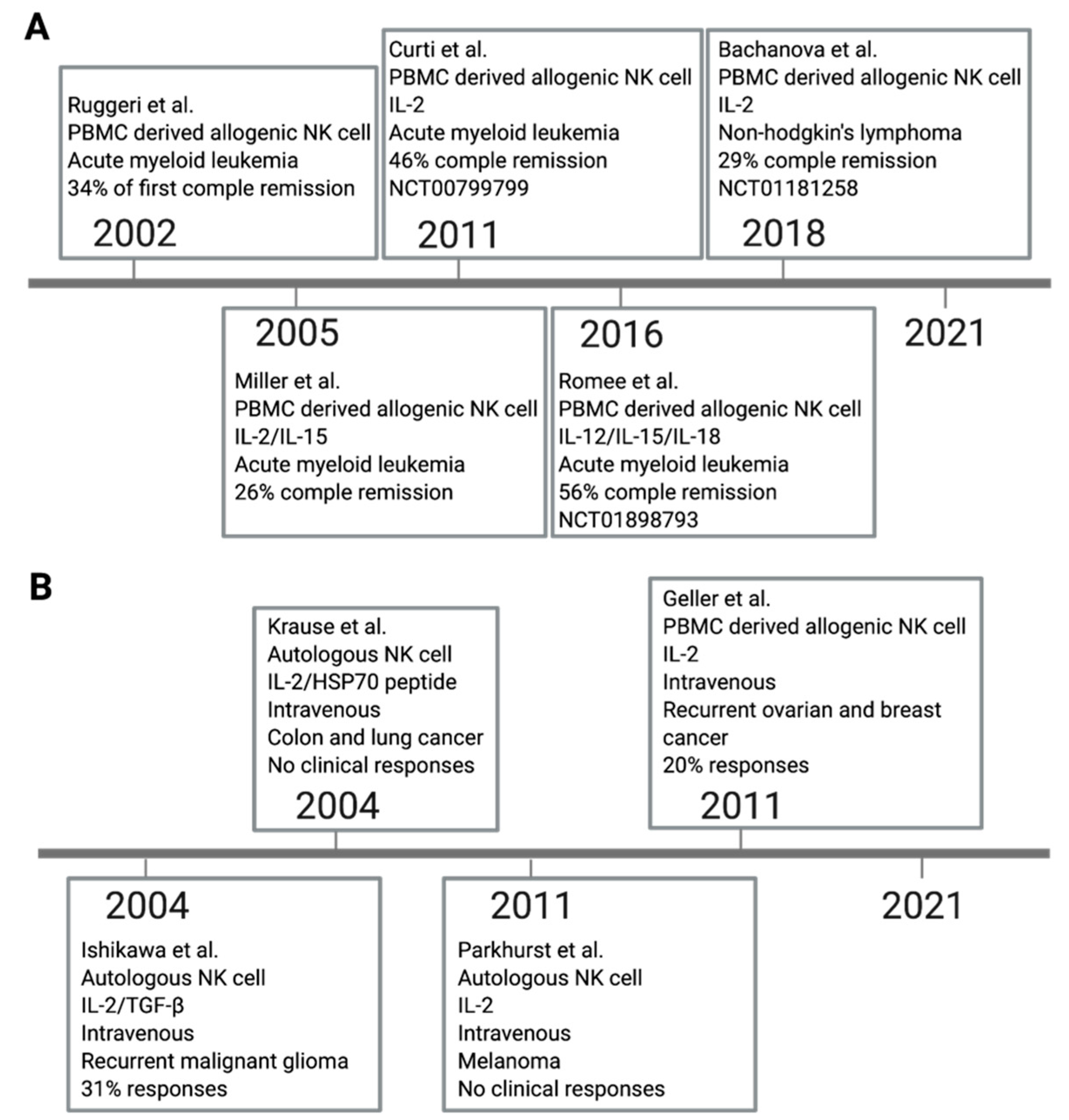

Figure 2. Clinical trials of NK-cell-based cancer therapy. A large number of NK cell clinical trials have been studied, and some remarkable studies in hematologic cancers (A) and solid tumors (B) were selected.
Figure 2. Clinical trials of NK-cell-based cancer therapy. A large number of NK cell clinical trials have been studied, and some remarkable studies in hematologic cancers (A) and solid tumors (B) were selected.
Pharmaceutics 13 00525 g002
Pharmaceutics 13 00525 g003

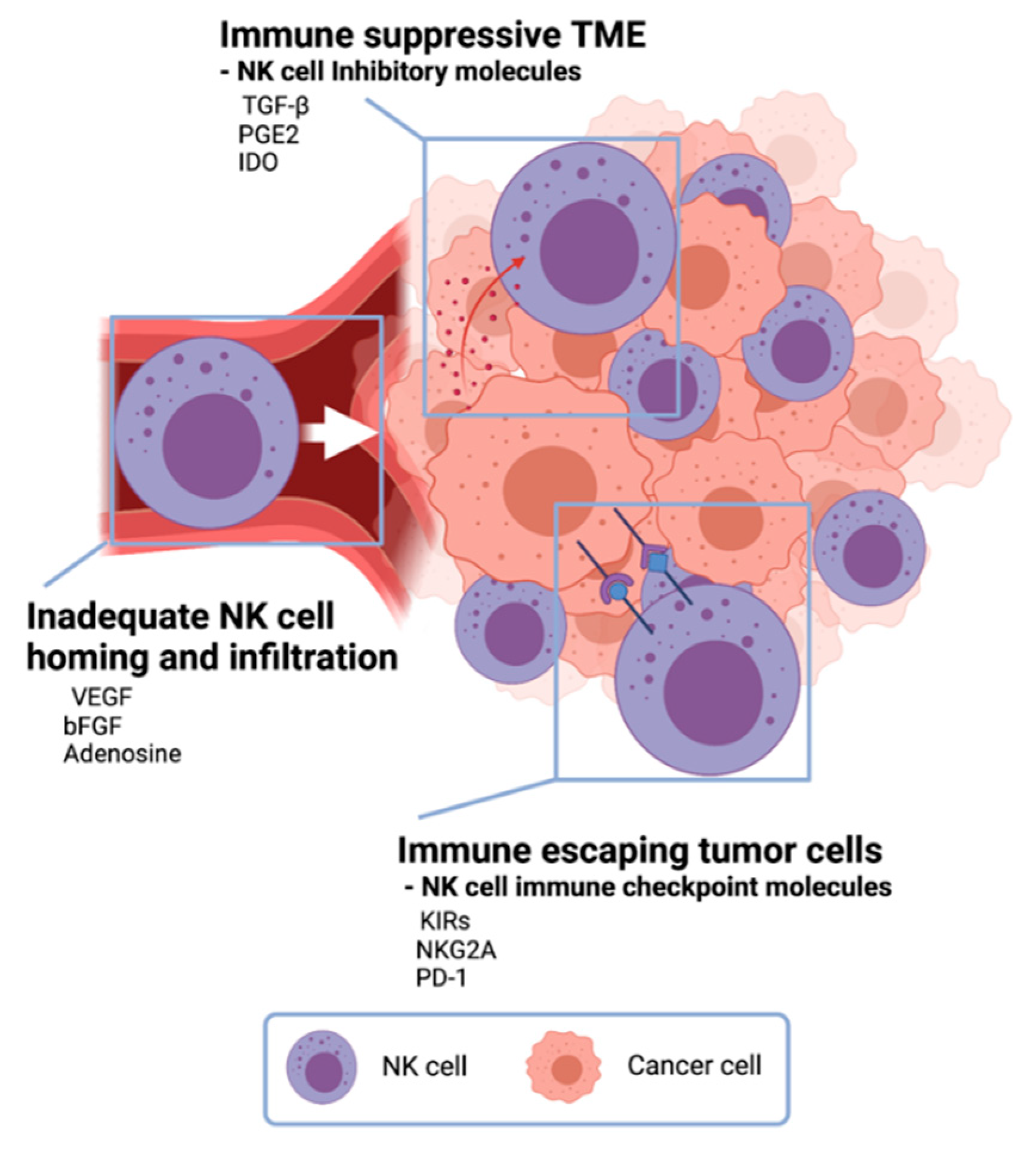

Figure 3. Challenges in NK cell cancer immunotherapy. In the tumor microenvironment, cancer cells secrete anti-immune molecules TGF- β, PGE2, and indoleamine 2,3-dioxygenase (IDO) to evade NK-cell-mediated tumor-cell lysis. Vascular endothelial growth factor (VEGF), basic fibroblast growth factor (bFGF), and adenosine inhibit NK cells from homing to tumors resulting inadequate NK cell infiltration in tumors. Tumor cells express NK cell immune checkpoint molecules to escape from NK cells.
Figure 3. Challenges in NK cell cancer immunotherapy. In the tumor microenvironment, cancer cells secrete anti-immune molecules TGF- β, PGE2, and indoleamine 2,3-dioxygenase (IDO) to evade NK-cell-mediated tumor-cell lysis. Vascular endothelial growth factor (VEGF), basic fibroblast growth factor (bFGF), and adenosine inhibit NK cells from homing to tumors resulting inadequate NK cell infiltration in tumors. Tumor cells express NK cell immune checkpoint molecules to escape from NK cells.
Pharmaceutics 13 00525 g003
Pharmaceutics 13 00525 g004

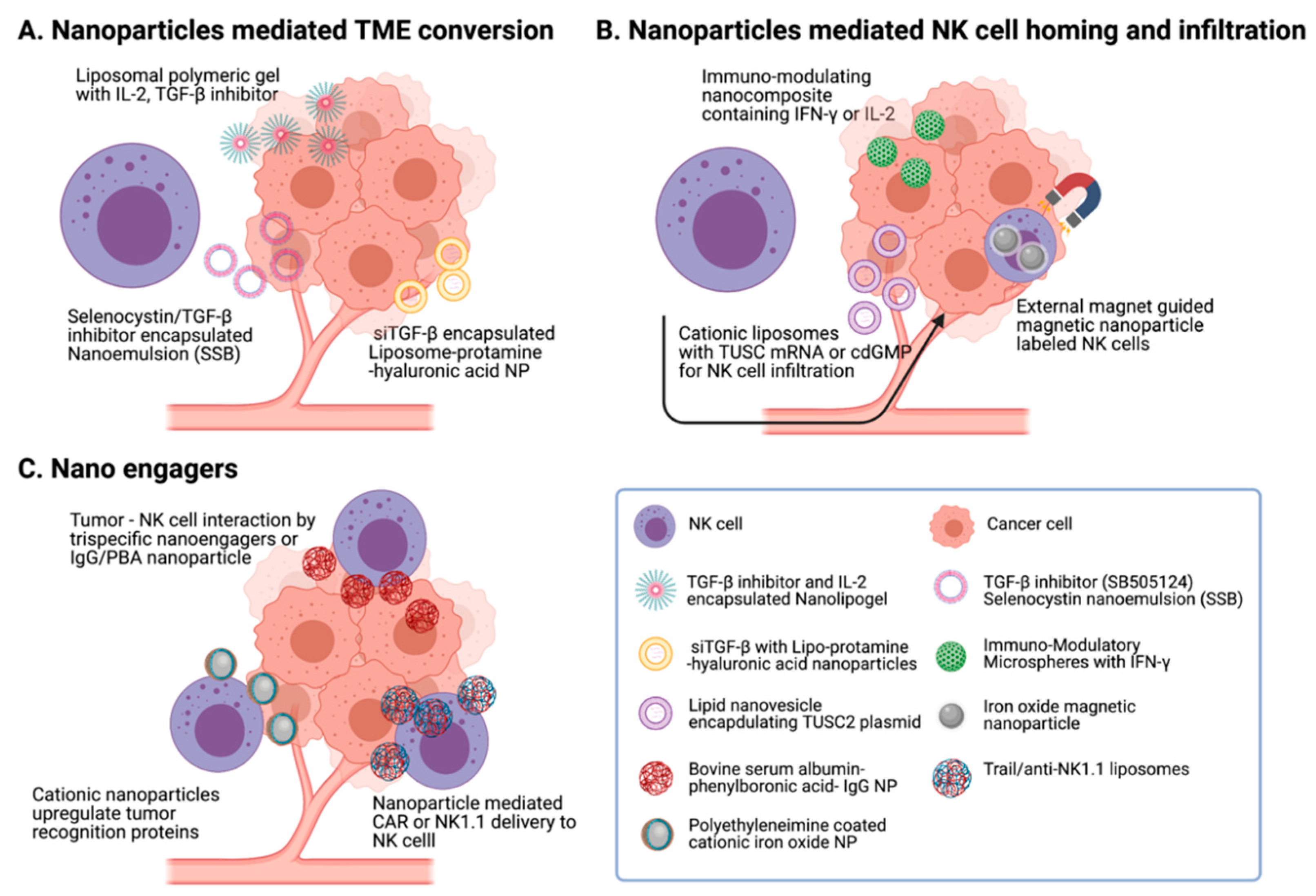

Figure 4. Nanomaterials for NK cell cancer-immunotherapy. Various nanoparticle-mediated strategies have been developed to augment NK cell therapeutic efficacy. (A) Liposome and nano-emulsion were used to modify tumor microenvironment with the inhibition of TGF-β signals. (B) Nanoparticles or liposomes encapsulating IFN-γ or tumor suppressor candidate (TUSC) improve NK cell homing. Magnetic nanoparticles labeled NK cells were guided into the tumor site, using external magnetic field applications. (C) Nanoengagers that enhance NK cells’ tumor recognition reinforced NK-cell-mediated tumor-cell-killing efficacy.
Figure 4. Nanomaterials for NK cell cancer-immunotherapy. Various nanoparticle-mediated strategies have been developed to augment NK cell therapeutic efficacy. (A) Liposome and nano-emulsion were used to modify tumor microenvironment with the inhibition of TGF-β signals. (B) Nanoparticles or liposomes encapsulating IFN-γ or tumor suppressor candidate (TUSC) improve NK cell homing. Magnetic nanoparticles labeled NK cells were guided into the tumor site, using external magnetic field applications. (C) Nanoengagers that enhance NK cells’ tumor recognition reinforced NK-cell-mediated tumor-cell-killing efficacy.
Pharmaceutics 13 00525 g004
Table 1. Selected recent ongoing NK cell-based combination clinical trials.
Table 1. Selected recent ongoing NK cell-based combination clinical trials.
YearCell SourcePre-TreatmentTumor TypeCombinationRef.
2008AutologousIL-2CML, Pancreatic cancer, Colorectal cancer, Multiple myeloma, Non-small cell lung cancerBortezomibNCT00720785
2012UCB Allogenic Multiple MyelomaElotuzumab, Lenalidomide, MelphalanNCT01729091
2013PBMC AllogenicIL-12, IL-15, IL-18AML, MDSALT-803.NCT01898793
2013PBMC Allogenic NeuroblastomaAnti-GD2NCT01857934
2014AutologousIL-2HER2+ Breast and Gastric CancerTrastuzumabNCT02030561
2015AutologousIL-2Head and Neck CancerCetuximabNCT02507154
2016PBMC AllogenicIL-2NeuroblastomaAnti-GD2NCT02650648
2016PBMC Allogenic Hematologic, solid cancersALT803NCT02890758
2016AutologousIL-15Multiple MyelomaElotuzumabNCT03003728
2017PBMC AllogenicIL-15, GSK3beta inhibitorAdvanced solid tumorsTrastuzumab, CetuximabNCT03319459
2017PBMC AllogenicIL-15, GSK3beta inhibitorOvarian cancerIL-2NCT03213964
2017UCB Allogenic NHLRituximabNCT03019640
2017PBMC AllogenicIL-2Neuroblastoma RecurrentAnti-GD2NCT03242603
2018UCB Allogenic Relapsed or Refractory Solid TumorsCyclophosphamide, EtoposideNCT03420963
2018PBMC AllogenicK562-mbIL15-41BBL.Relapsed or Refractory NeuroblastomaAnti-GD2
2019PBMC Allogenic Recurrent Ovarian Carcinoma
Table 2. Preclinical strategy of nanoparticle-based NK cell therapy.
Table 2. Preclinical strategy of nanoparticle-based NK cell therapy.
YearCell SourceNanoparticleTumor TypeCombinationRef.
2014EndogenousLipid-calcium-phosphate nanoparticle and liposome-protamine-hyaluronic acid nanoparticleMelanomasiTGF-β[64]
2012EndogenousLiposomal polymeric gelMetastatic melanomaTGF-β inhibitor (SB505124)[65]
2020NK-92NanoemulsionTriple negative breast cancerSelenocysteine, TGF-β inhibitor (SB505124)[66]
2017EndogenousChitosan nanoparticleColon cancerNKG2D, IL-21[67]
2018EndogenousDOTAP:cholesterol nanovesicleLung cancerTUSC2 gene, anti-PD-1[68]
2019EndogenousLipid nanoparticleTriple negative breast cancercdGMP, monophosphoryl lipid A[69]
2017EndogenousPLGA microsphereHepatocellular carcinomaIFN-γ, Transcatheter intra-arterial infusion[70]
2012NK-92MIMagnetic nanoparticleB cell lymphomaExternal magnetic field[71]
2018Human primary NK cellMagnetic nanoparticleNon-small cell lung cancerExternal magnetic field[55]
2015Mouse primary NK cellTRAIL-coated liposomeLymph node metastatic cancerTRAIL, anti-NK1.1[72]
2020NK-92MICationic magnetic nanoparticleTriple negative breast cancer-[73]
2019Human primary NK cellImmunomodulating nanoparticleTriple negative breast cancerphenylboronic acid, IgG[74]
2020Mouse primary NK cellTrifunctional PLGA nanoparticleEGFR positive solid tumorEpirubicin[75]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kim, K.-S.; Kim, D.-H.; Kim, D.-H. Recent Advances to Augment NK Cell Cancer Immunotherapy Using Nanoparticles. Pharmaceutics 2021, 13, 525. https://doi.org/10.3390/pharmaceutics13040525

AMA Style

Kim K-S, Kim D-H, Kim D-H. Recent Advances to Augment NK Cell Cancer Immunotherapy Using Nanoparticles. Pharmaceutics. 2021; 13(4):525. https://doi.org/10.3390/pharmaceutics13040525

Chicago/Turabian Style

Kim, Kwang-Soo, Dong-Hwan Kim, and Dong-Hyun Kim. 2021. "Recent Advances to Augment NK Cell Cancer Immunotherapy Using Nanoparticles" Pharmaceutics 13, no. 4: 525. https://doi.org/10.3390/pharmaceutics13040525

APA Style

Kim, K.-S., Kim, D.-H., & Kim, D.-H. (2021). Recent Advances to Augment NK Cell Cancer Immunotherapy Using Nanoparticles. Pharmaceutics, 13(4), 525. https://doi.org/10.3390/pharmaceutics13040525

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
