Long Terminal Repeat Circular DNA as Markers of Active Viral Replication of Human T Lymphotropic Virus-1 in Vivo

by
James M Fox
1,
Silva Hilburn
2,
Maria-Antonietta Demontis
2,3,
David W Brighty
4,
Maria Fernanda Rios Grassi
5,
Bernardo Galvão-Castro
6,
Graham P Taylor
2,3 and
Fabiola Martin
1,*
1
Centre for Immunology and Infection, Department of Biology & Hull York Medical School, University of York, York YO10 5DD, UK
2
Section of Infectious Diseases, Department of Medicine, Imperial College, London W2 1PG, UK
3
The National Centre for Human Retrovirology/HTLV Clinic, Imperial College Healthcare NHS Trust, St Mary’s Hospital, London W2 1NY, UK
4
Division of Cancer Research, Ninewells Hospital & Medical School, University of Dundee, Dundee DD1 9SY, UK
5
Oswaldo Cruz Foundation, Gonçalo Moniz Research Center-BA, Advanced Laboratory of Public Health, Salvador, Bahia, Candeal 40296-710, Brazil
6
HTLV-Centre Bahian School of Medicine, Salvador, Bahia 40050-420, Brazil
*
Author to whom correspondence should be addressed.
Viruses 2016, 8(3), 80; https://doi.org/10.3390/v8030080
Submission received: 7 December 2015 / Revised: 24 February 2016 / Accepted: 4 March 2016 / Published: 14 March 2016
Browse Figures
Versions Notes

Abstract

:
Clonal expansion of human T-lymphotropic virus type-1 (HTLV-1) infected cells in vivo is well documented. Unlike human immunodeficiency virus type 1 (HIV-1), HTLV-1 plasma RNA is sparse. The contribution of the “mitotic” spread of HTLV-1 compared with infectious spread of the virus to HTLV-1 viral burden in established infection is uncertain. Since extrachromosomal long terminal repeat (LTR) DNA circles are indicators of viral replication in HIV-1 carriers with undetectable plasma HIV RNA, we hypothesised that HTLV-1 LTR circles could indicate reverse transcriptase (RT) usage and infectious activity. 1LTR and 2LTR DNA circles were measured in HTLV-1 cell lines and peripheral blood mononuclear cells (PBMC) of asymptomatic carriers (ACs) and patients with HTLV-1-associated myelopathy/tropical spastic paraparesis (HAM/TSP) or adult T cell leukaemia/lymphoma (ATLL). 1LTR DNA circles were detected in 14/20 patients at a mean of 1.38/100 PBMC but did not differentiate disease status nor correlate with HTLV-1 DNA copies. 2LTR DNA circles were detected in 30/31 patients and at higher concentrations in patients with HTLV-1-associated diseases, independent of HTLV-1 DNA load. In an incident case the 2LTR DNA circle concentration increased 2.1 fold at the onset of HAM/TSP compared to baseline. Detectable and fluctuating levels of HTLV-1 DNA circles in patients indicate viral RT usage and virus replication. Our results indicate HTLV-1 viral replication capacity is maintained in chronic infection and may be associated with disease onset.

1. Introduction

Human T-lymphotropic virus type-1 (HTLV-1) is a complex retrovirus, in the genus Deltaretrovirus of the subfamily Orthoretrovirinae of the Retroviridae family of viruses. It is an oncovirus causing adult T cell leukaemia/lymphoma (ATLL) [1,2] and is associated with a variety of inflammatory conditions, most notably HTLV-1-associated myelopathy/tropical spastic paraparesis (HAM/TSP) [3,4]. Retroviruses carry a diploid plus-strand RNA genome [5] as well as viral enzymes reverse transcriptase (RT), integrase, protease and RNase H. Once released into the cytoplasm, viral RNA is transcribed into double stranded linear DNA flanked directly by long terminal repeats (LTRs). The DNA is transported into the nucleus within the pre-integration complex. In the nucleus the linear un-integrated DNA is either inserted into the host genome or circularised (Figure S1) [6,7,8]. The circular DNA has been found in different configurations such as 1LTR [7,9,10], tandem 2LTR [11,12] and heterogeneous 2LTR DNA circles [13] depending on the number and position of the LTRs. They are generally assumed to be dead-end by-products but it has been suggested that they are functional or even cytotoxic [14,15]; at times, un-integrated DNA can represent 99% of total viral DNA [16].
Human immunodeficiency virus type 1 (HIV-1) 2LTR circles have been used as an experimental marker of RT activity [17], the nuclear transport of linear DNA [18] and the ongoing replication of the HIV-1 latent reservoir in patients on antiretroviral therapy [19]. HIV-1 2LTR circle concentration decreases with RT inhibition and increases with integrase inhibition; its consistent detection and change in concentration shows that even with long-term quadruple antiretroviral therapy HIV-1 continues to produce new DNA and is therefore not latent [19].
Recent reviews model HTLV-1 replication [20,21] but, at least in vivo, HTLV-1 viral replication capacity is still not fully understood. HTLV-1 transmission is known to be preferentially cell associated as cell free products of HTLV-1 patients have often, though not always [22], been found to be non-infectious [23]. More recently, however, cell-free virus biofilm assemblies have been shown to be capable of infecting lymphocytes and, by preference, dendritic cells [24]. HTLV-1 RNA is virtually undetectable in patients’ plasma [25] leading to the assumption of no or little RT usage in vivo. However, we believe that a number of viral replicative cycles must occur in a new host to establish infection [26] and sequence variations have been observed within families following mother-to-child transmission (MTCT) [27]. Indeed, the kinetics of acute HTLV-1 infection in patients that had received organ transplantation from an HTLV-1 infected individual have recently been demonstrated, revealing that proviral load set point and seroconversion was reached within six weeks through clonal expansion but also via a high rate of infectious spread [28].
The HTLV-1 viral load is reported as the total viral DNA detected in 100 peripheral blood mononuclear cells (% PBMCs) often referred to as proviral load (PVL). This can vary from <0.001% to >100%; is known to be low (<1%) in 50% of asymptomatic carriers (ACs) and high (>1%) in all patients with ATLL and HAM/TSP, but remains remarkably stable over several years in patients without ATLL [29]. Several HIV-1 antiretrovirals have been shown to be effective HTLV-1 enzyme inhibitors in vitro [30,31]. However no drug intervention to date has consistently decreased the HTLV-1 total DNA in humans [32,33,34,35], although a significant reduction was detected in STLV-1 infected macaques treated with sodium valproate (used as a histone deacetylase inhibitor) and the nucleoside analogue RT inhibitor, zidovudine [36]. HTLV-1 infection is maintained through Tax driven clonal expansion of HTLV-1 infected CD4+/CD25+ T cells, but the virus is able to spread in vitro from cell-to-cell through the virological synapse [37,38,39,40] and through the exchange of transient biofilm-like extracellular virus particles held on the surface of an infected cell [41]. How much this spread is contributing to the DNA concentration in vivo remains unknown [42]. An interference with viral replication may reduce transmission and the risk of developing HTLV-1 associated disease through resetting the total DNA burden at a lower set point.
The detection and quantification of 1 and 2LTR HTLV-1 DNA circles in vivo could be a biomarker of continuous HTLV-1 viral replication in parallel to its mitotic expansion; this study was designed to address this hypothesis.

2. Materials and Methods

2.1. Cell Culture

MT-2 cells were cultured at 37 °C with 5% CO2 in Roswell Park Memorial Institute (RPMI) 1640 medium, supplemented with 100 IU/mL penicillin, 100 μg/mL streptomycin, 2 mM L-glutamine, 10 mM HEPES and 10% heat inactivated FCS; HuT 102 cells were cultured in the same media with the inclusion of 1 mM sodium pyruvate and 4500 mg/mL glucose (all cells were purchased from the ATCC, Teddington , UK; reagents were from Invitrogen, Paisley, UK or PAA Laboratories, Yeovil, UK).

2.2. In-Vivo Studies

Stored DNA samples from PBMCs of 48 HTLV-1 positive, HIV negative, patients were tested retrospectively. Forty-seven samples donated by patients attending the National Centre for Human Retrovirology (NCHR) at Imperial College Healthcare NHS Trust, St Mary’s Hospital, London, UK and DNA from one patient at the HTLV Centre at Bahiana Medical School, Salvador, Brazil were studied. All samples were donated after written informed consent to participate in research approved by the UK National Research Ethics Service, Oxford “A” Local Research Ethics Committee (Ref: 09/H0606/106) or the institutional review board of the Oswaldo Cruz Foundation, and the National Commission on Ethics in Research (CONEP record: 15271), Brazilian Ministry of Health. Insufficient DNA was available to test all samples for 1 and 2LTR. For the 1LTR studies 20 samples were available: six patients were ACs, ten had HAM/TSP and four ATLL; for the 2LTR studies 31 patient samples were available: 13 ACs, ten HAM/TSP and eight ATLL (five with lymphoma, an aggressive type of ATLL and three with more indolent disease: one with chronic ATLL in complete remission and two with cutaneous lymphoma). Four samples were duplicated in 1LTR and 2LTR testing, giving a total of 47 patient samples.

2.3. DNA Extraction and Amplification

All DNA were extracted from the cell lines and PBMCs as previously published [43]. Circular, low molecular weight DNA was extracted from total genomic DNA through QIAprep spin miniprep kit (Qiagen, Manchester, UK) according to the manufacturer’s protocol and quantified using a nanodrop spectrophotometer (ThermoScientific, Loughborough, UK). Primers (Table 1 and Figure S1) for detection of 1 and 2LTR HTLV-1 DNA circles using classical and nested PCR were designed using Primer3 [44,45] by alignment of the AKT strain of the complete HTLV-1 genome, accession number J02029.1 [5]. For the detection of 1LTR circle DNA using the classical PCR protocol the primers were designed in the pX and gag region. For the 2LTR DNA circles, primers were seated either side of the LTR-LTR junction. Primers used for the detection of low copy number 1 and 2LTR DNA circle in the nested PCR protocol were designed in the same fashion (Table 1). National Center for Biotechnology Information (NCBI) Blast database program was used to confirm that the designed sequences did not match other published DNA sequences. Primers were manufactured by Invitrogen or Sigma (Dorset, UK). Concentrations of LTR circles were measured at two time points, immediately and four hours post venepuncture, to observe whether there were time dependent variations.

2.4. PCR Reaction Protocol

Classical PCR: DNA extracted from 6 × 105 cells was used for amplification in 50 μL reaction volumes containing 100 pM of each primer, 200 μM dNTPs, 2 mM MgCl, 1 x green GoTaq reaction buffer (Promega, Southampton, UK) and 1U GoTaq polymerase (Promega). The cycling conditions on an MJ research PTC 200 Thermal Cycler were: denaturation step 5 min at 94 °C, followed by 35 cycles of amplification consisting of 1 min at 95 °C, 30 s at 62 °C (1LTR) or 66 °C (2LTR), 5 min at 72 °C, and a final elongation step at 72 °C for 5 min. Where necessary, one microliter of the first round (classical) product was transferred to 49 μL of reaction mix containing the reagents at the same final concentrations as described for the classical PCR for the nested PCR. Cycling conditions for the nested PCR were as follows: denaturation step 5 min at 94 °C, followed by 35 cycles of amplification consisting of 1 min at 95 °C, 30 s at 66 °C, 5 min at 72 °C, and a final elongation step at 72 °C for 5 min. 12 µL from each reaction was separated on a 2% agarose gel (NuSieve 3:1, Lonza, Cambridge, UK) and visualised by ethidium bromide (Sigma) staining under UV light using the Syngene gel documentation system and GeneSys software. The identity of the amplicons were confirmed through purification of the PCR product from the gel through PCR Purification Kit (Qiagen) according to the manufacturer’s protocol and sequencing 400 bp on each side with the forward and reverse primers. The sequencing was carried out by the MRC CSC Genomic Core Laboratory at Hammersmith Hospital, London, UK. Standard sequencing generates 700–800 bases of readable sequence from a single sequence. The NCBI Blast program was used to identify the DNA sequence.

2.5. Quantification of LTR DNA Circles and HTLV-1 PVL

LTR DNA circles were determined by serial dilution of purified sample DNA in distilled water followed by amplification of quadruplicates at each dilution. The quantity of LTR circles were determined from Poisson’s distribution at the lowest concentration of DNA that resulted in amplification in at least one of the replicates, where load = −logn·Fox dilution, and Fo is the number of negative tests/the number of tests. HTLV-1 PVL was measured using real-time PCR (LightCycler, Roche, Mannheim, Germany) as previously described [46].

2.6. Controls

One hundred base-pair DNA was designed to spike HTLV-1 negative DNA as positive controls for primer amplification. MT-2 cells were found to contain LTR DNA circles and were used as positive controls thereafter. Negative controls were DNA isolated from HTLV-1 negative cord and donor PBMCs or water.

2.7. LTR DNA Localisation

MT-2 cells were treated with triton-sucrose buffer (0.32 M sucrose, 1% Triton X-100, 5 mM MgCl2, 10 mM Trio-HCL, pH 7.5) and centrifuged for 1 min at 14,000 g in order to separate cytoplasm from nucleus. DNA was extracted using Qiagen DNA mini kit according to the manufacturer’s protocol and 1LTR DNA circles were quantified as above.

2.8. Reverse Transcriptase Inhibitory Study

Tenofovir disoproxil fumarate (TDF) was obtained through the AIDS Research and Reference Reagent Program, NIAID, NIH. MT-2 cells were cultured in the presence or absence of TDF at its known inhibitory concentration 50 (IC50), 0.01 µmol/L with media changes and TDF refreshment at three-day intervals. Growth rates were compared by taking regular cell counts. 1LTR DNA circles were quantified in MT-2 DNA extracted and purified by QIAprep spin miniprep on days 0, 17 and 28.

2.9. Cell Entry Inhibitor Study

MT-2 cells were cultured as previously described for 10 days with and without 10 μM Pcr-400 with media changes and drug refreshment at three-day intervals [47]. Aliquots of 6 × 106 cells were obtained on days 3, 7 and 10; DNA was extracted and purified from both treated and control cells by QIAprep spin miniprep and 1LTR DNA circles were quantified as described above.

2.10. Statistical Analysis

Data were analysed in SPSS (v14) or GraphPad Prism (v6.02) using parametric (t-test) and linear regression model for comparing two or more continuous variable. Non-parametric tests (Mann-Whitney Test) were used for correlating categorical with continuous variables and chi-square (Pearson Chi-Square Test for large >5, and Fisher’s Exact test <5 sample size) for categorical variables. One way non-parametric ANOVA tests with Dunn’s multiple comparison correction or non-parametric t-test were used where appropriate. Results were considered statistically significant if a p-value < 0.05 was achieved.

3. Results

3.1. Detection, Localisation, Quantification of LTR DNA Circles

We previously presented preliminary data on circularised LTR DNA concentration in MT2 cells [48] but now with revised methodology and using matched cell extracts we have found both 1 and 2LTR DNA circles in two cell lines: MT-2 and HuT 102 (Table 2) originally derived from HTLV-1 infected individuals [2,49,50]. 1LTR DNA circles were approximately half as frequent as 2LTR DNA circles in MT-2 and HuT 102 cell lines. In localisation studies, LTR DNA circles were detected at 1 copy/6000 MT-2 cells in cytoplasm and at 1 copy/87 MT-2 cells in the nuclei.

3.2. Biomarker for Persistent RT Usage

MT-2 cells were cultured with and without TDF, a potent RT inhibitor, or Pcr-400, a HTLV-1 entry inhibitor at their respective inhibitory concentration 50 (IC50); the drugs did not impair cell proliferation or viability (data not shown). Whilst LTR circle concentration decreased in the presence of TDF: 1 copy/0.6 MT-2 cells (day 0) compared with 1 copy /2.1 MT-2 cells (day 17 and day 28), it did not change over time with entry inhibitor Pcr-400 indicating, albeit futile, persistent viral RT enzyme usage and potential recycling of virus intracellularly.

3.3. LTR DNA Circles in HTLV-1 Infected Patients

In total, PBMCs of 47 chronically infected HTLV-1 carriers were tested. 1LTR DNA circles were measured in 20- and 2LTR DNA circles in 31-PBMC samples with dual testing in four samples. Patient demographics are outlined in Table S1. In order to detect a potential decrease of LTR DNA circle concentration in blood samples over time due to sample aging, LTR DNA circle levels were compared in four blood samples where DNA was extracted immediately or after a four hour delay post venepuncture of patients. LTR DNA circle levels were found to be independent of the timing of DNA extraction (data not shown).
As expected [29], PVL was significantly lower, p = 0.0019, among ACs (median of 4.5%) compared with patients with HAM/TSP (median of 16.40) or ATLL (median of 20.20), p = 0.0010, with no significant difference between HAM/TSP and ATLL patients (Figure 1). 1LTR DNA circles were detected in 14/20 (67%) patients: 4/6 (67%) ACs, 7/10 (70%), HAM/TSP and 3/4 (75%) ATLL. The presence of 1LTR DNA circles did not differ between ACs and patients with HAM/TSP (Fisher’s Exact test, p = 0.15) or ATLL (p = 0.6). 1LTR DNA circle concentration did not differ significantly between the ACs, HAM/TSP or ATLL groups and was not a predictor of clinical status (Table 3).
2LTR DNA circles were detected in 28/31 (90%) PBMCs from patients using classical PCR and in 30/31 (97%) by nested PCR. 2LTR DNA circles were not detected even with nested PCR in one patient, who had a PVL of 0.01%. 2LTR DNA circles were detected at significantly higher concentrations in patients with diagnosed disease (HAM/TSP and ATLL) compared to ACs (p = 0.003) (Figure 2A), whilst there was no significant difference between patients with HAM/TSP and ATLL (Figure 2B). This association with disease was also detected when ACs with high PVL, similar to patients with HAM/TSP, were compared to HAM/TSP and ATLL patients (Table 4). It is important to point out that none of the patients with ATLL suffered from the acute leukemic form and that the patient with chronic ATLL was in complete remission. Therefore the DNA was extracted from non-cancerous HTLV-1 infected PBMCs reflecting the background HTLV infection rather than the transformed cells. This makes the results comparable to asymptomatic patients and those with HAM/TSP.
From our patient samples, we calculated that based upon patient PVL, on average, DNA from 529 ± 296 infected cells (2800 ± 1350 total PBMCs) were required to detect one 2LTR DNA circle in ACs. DNA from 163 ± 73 (1811 ± 852 PBMCs) infected cells were required for the detection of one 2LTR DNA circle in patients with HAM/TSP and DNA from 148 ± 49 (1484 ± 477 PBMCs) infected cells were required for detection of one 2LTR DNA circle in patients with ATLL.
A correlation between PVL and 2LTR DNA circle concentration was not detected (Figure 3A–C). This indicates the on-going usage of viral RT and viral DNA production, despite established, chronic cellular infection, which is independent of the number of PBMCs infected.

3.4. Biomarker for HTLV Disease Progression

Stored DNA of PBMCs of one HTLV-1 positive patient with documented onset of definite HAM/TSP was tested. DNA samples were available from two time points: in 2004 when the individual was asymptomatic and in 2012 following the onset of HAM/TSP. The 2LTR DNA circle concentration was 2.06 fold higher at onset of disease, after adjusting for the rise in HTLV-1 PVL, which had increased 1.86 fold (1.62% to 3.01%) when symptomatic compared to the asymptomatic status (Figure S2). 1LTR DNA circles were undetectable in the DNA from this patient using classical or nested PCR.

4. Discussion

LTR DNA circles are used to detect on-going viral replication in HIV infected individuals receiving antiretroviral therapy. Two randomised clinical trials and two cohort studies of antiretroviral therapy in patients with HTLV-1 did not show a significant change in in vivo PVL [32,33,34,35], which is thought to be mainly maintained through clonal expansion. Typically, in vivo HTLV-1 DNA levels are established early in infection and do not vary over time [51]. However, very little is known about HTLV-1 RT usage, the production of de novo virus and LTR DNA circle by-products, its effects on the total HTLV-1 viral load, disease development and progression during chronic HTLV-1 infection.
HTLV-1 extrachromosomal DNA was reported to be present up to 24 months after virus integration in HTLV-1 positive HL-60 cell lines; the amount of extrachromosomal DNA fluctuated over time possibly due to the replication and re-infection capacity of the virus [52]. Clones with multiple integrated HTLV-1 DNA were those with persistent extrachromosomal DNA. This was presumed to be the result of intracellular virus production and cell re-infection [14,15,17,18]. Another group detected 2LTR DNA circles in HTLV-1 and -2 positive cell lines but only in the PBMCs of one of seven patients with HTLV-1 ATLL, and not in any asymptomatics or HAM/TSP patients [53]. We recently contributed to findings assessing 2LTR levels in organ transplant recipients from an HTLV-1 infected donor: 2LTR DNA circles were detectable in all three recipients and the levels largely mirrored PVL fluctuations [28] suggestive of acute infectious spread.
Twenty years on, the relative contribution of cell proliferation and infectious spread to HTLV-1 viral load in chronic infection remains relatively unknown. We therefore decided to explore a marker of the HTLV-1 viral replication activity, and detected 1 and 2LTR DNA circles in both cell lines and patients’ samples. Typically, 2LTR DNA circles are investigated in HIV-1 research and we confirm that 2LTR DNA circles were more consistently found in HTLV-1.
In order to increase specificity we aimed to capture mainly small molecule DNA through a selective purification methodology and by using a low concentration of DNA molecules (~ 400 ng). This reduced the risk of hybridization of any linear compounds and linear amplification, as suggested previously [54]. Traditionally the whole LTR DNA circle is not amplified due to its large product size (~ 10 kb), but the orientation of the specifically designed primers allows the amplification across one LTR (1LTR) or the junction of two LTRs (2LTR), which are flanked by viral genome only. This excludes the amplification of integrated DNA.
With the assumption that RT usage precedes LTR circle production, we attempted to inhibit entry and reverse transcription. In cell lines, LTR circle concentrations decreased in the presence of the most potent ex vivo RT inhibitor [30], TDF, but not with an HTLV-1 entry inhibitor Pcr-400. This indicates recycling of viral RNA through persistent RT usage and LTR circle production in chronic infection, which is independent from new viral entry. Other publications also support the perception that HTLV-1 has a replicative potential in vivo via dendritic cell infection and potential continuous spread to lymphocytes [24,55,56].
Unlike previous reports, in our study LTR circles were detected not only in chronically infected cells lines, but also in the PBMCs of almost all HTLV-1 positive patients (46/47). The formation of LTR circles seems to be less common in HTLV-1 than in HIV-1 infected cells, which supports the perception that HTLV-1 is less replication active. This might provide the virus with survival benefits. It has been suggested that an accumulation of DNA circles is highly cytopathic, increasing cell death in HIV infected cells [14,57]. Also T cells containing less replicative viruses may more readily escape a HTLV-1 specific cytotoxic T cell response [58].
Although 1 and 2LTR DNA circles could be found in HTLV-1 infected patients, 2LTR circles were more commonly detected. The finding that 2LTR DNA circle concentration consistently differentiated symptomatic patients from ACs, independent of total, linear, DNA concentration, was surprising. This difference persisted, even when 2LTR DNA circle levels of ACs with high PVL were compared to patients with HAM/TSP or with chronic/cutaneous ATLL. 2LTR DNA circles did not differentiate between HAM/TSP and ATLL patients. In addition, we observed a significantly higher 2LTR DNA circle level in the patient with recent onset of HAM/TSP compared to their asymptomatic state. Together, these observations suggest an association between 2LTR DNA levels and clinical disease activity. To confirm this LTR DNA circles should be monitored longitudinally in a considerable cohort of ACs to measure variations of LTRs over time with and without disease onset.
These results not only indicate that HTLV-1 actively replicates in chronic infection, but also raise the following four questions. (1) How much does on-going RT usage contribute to PVL and promote cell-to-cell perhaps even human-to-human transmission? The reduction of LTR DNA circles with the RT inhibitor TDF in vitro poses the question (2) as to whether HTLV-1’s infectivity may be modifiable? (3) Could active viral replication contribute to pathogenesis and is viral replication increased in patients with active disease? Increased viral activity may lead to increased viral antigen expression and local recruitment of HTLV-1 specific cytotoxic T lymphocytes, cytokine release and tissue damage. 2LTR DNA circle levels may be a potential biomarker of disease onset/risk or treatment response; (4) Are HTLV-1 LTR DNA circles functional in themselves? It has been suggested that HIV-1 circles are transcriptionally active, producing functionally active proteins such as tat, env, nef [59,60,61,62,63,64].

5. Conclusions

Despite presumed latency or inactivity of HTLV-1, 1 and 2LTR DNA circles are present in chronically infected cell lines and in patient PBMCs, indicating ongoing viral RT usage. Monitoring 2LTR DNA circle concentration might be useful to identify early patients in the process of disease development and in this manuscript we provide novel methodology for this assessment. The clinical application of HTLV-1 2LTR DNA circles needs to be tested further in larger patient cohorts longitudinally and is likely to be achieved in multicentre collaborations.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4915/8/3/80/s1. Table S1: Demographics of the study participants; Figure S1: Structures of extrachromosomal DNA in HTLV infected cells and primer design rational; Figure S2: PVL and 2LTR levels increase in an incident patient progressing from asymptomatic HTLV-1 carrier to being diagnosed with HAM.

Acknowledgments

We wish to acknowledge the patients that provided the samples used in this study. Funding for the in vitro and ex vivo studies was from a University of York and Hull York Medical School pump priming fund awarded to FM; purchase of the HuT 102 cells and JMF was funded by a University of York biology departmental fellowship funded by a Wellcome Trust Value in People award, reference 092430/Z/10/Z. GPT is supported by Imperial NIHR Biomedical Research Centre (BRC). BGC and MFRG are funded by Fundação de Amparo a Pesquisa do Estado da Bahia (FAPESB) and Brazilian National Council of Technological and Scientific Development (CNPq). DWB is funded by the Leukaemia and Lymphoma Research (LLR) grants LLR 12041 and LLR 09006.

Author Contributions

F.M., G.PT. and J.M.F. designed the experiments that were performed and analysed by F.M. and J.M.F. M.A.D. and S.H. isolated D.N.A., from patients attending clinic with G.P.T., and performed P.V.L. quantifications. D.W.B. provided us with Pcr-400 whilst M.F.R.G. and B.G.C. provided the sample from the patient with incident HAM/TSP. F.M. and J.M.F. wrote the manuscript; all co-authors reviewed the manuscript.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Hinuma, Y.; Nagata, K.; Hanaoka, M.; Nakai, M.; Matsumoto, T.; Kinoshita, K.I.; Shirakawa, S.; Miyoshi, I. Adult T-cell leukemia: antigen in an ATL cell line and detection of antibodies to the antigen in human sera. Proc. Natl. Acad. Sci. USA 1981, 78, 6476–6480. [Google Scholar] [CrossRef] [PubMed]
  2. Poiesz, B.J.; Ruscetti, F.W.; Gazdar, A.F.; Bunn, P.A.; Minna, J.D.; Gallo, R.C. Detection and isolation of type C retrovirus particles from fresh and cultured lymphocytes of a patient with cutaneous T-cell lymphoma. Proc. Natl. Acad. Sci. USA 1980, 77, 7415–7419. [Google Scholar] [CrossRef] [PubMed]
  3. Osame, M.; Usuku, K.; Izumo, S.; Ijichi, N.; Amitani, H.; Igata, A.; Matsumoto, M.; Tara, M. HTLV-I associated myelopathy, a new clinical entity. Lancet 1986, 1, 1031–1032. [Google Scholar] [CrossRef]
  4. Gessain, A.; Barin, F.; Vernant, J.C.; Gout, O.; Maurs, L.; Calender, A.; de The, G. Antibodies to human T-lymphotropic virus type-I in patients with tropical spastic paraparesis. Lancet 1985, 2, 407–410. [Google Scholar] [CrossRef]
  5. Seiki, M.; Hattori, S.; Hirayama, Y.; Yoshida, M. Human adult T-cell leukemia virus: complete nucleotide sequence of the provirus genome integrated in leukemia cell DNA. Proc. Natl. Acad. Sci. USA 1983, 80, 3618–3622. [Google Scholar] [CrossRef] [PubMed]
  6. Brown, P.O.; Bowerman, B.; Varmus, H.E.; Bishop, J.M. Retroviral integration: structure of the initial covalent product and its precursor, and a role for the viral IN protein. Proc. Natl. Acad. Sci. USA 1989, 86, 2525–2529. [Google Scholar] [CrossRef] [PubMed]
  7. Shank, P.R.; Hughes, S.H.; Kung, H.J.; Majors, J.E.; Quintrell, N.; Guntaka, R.V.; Bishop, J.M.; Varmus, H.E. Mapping unintegrated avian sarcoma virus DNA: termini of linear DNA bear 300 nucleotides present once or twice in two species of circular DNA. Cell 1978, 15, 1383–1395. [Google Scholar] [CrossRef]
  8. Gianni, A.M.; Weinberg, R.A. Partially single-stranded form of free Moloney viral DNA. Nature 1975, 255, 646–648. [Google Scholar] [CrossRef] [PubMed]
  9. Dina, D.; Benz, E.W., Jr. Structure of murine sarcoma virus DNA replicative intermediates synthesized in vitro. J. Virol. 1980, 33, 377–389. [Google Scholar] [PubMed]
  10. Gilboa, E.; Goff, S.; Shields, A.; Yoshimura, F.; Mitra, S.; Baltimore, D. In vitro synthesis of a 9 kbp terminally redundant DNA carrying the infectivity of Moloney murine leukemia virus. Cell 1979, 16, 863–874. [Google Scholar] [CrossRef]
  11. Swanstrom, R.; DeLorbe, W.J.; Bishop, J.M.; Varmus, H.E. Nucleotide sequence of cloned unintegrated avian sarcoma virus DNA: viral DNA contains direct and inverted repeats similar to those in transposable elements. Proc. Natl. Acad. Sci. USA 1981, 78, 124–128. [Google Scholar] [CrossRef] [PubMed]
  12. Katz, R.A.; Omer, C.A.; Weis, J.H.; Mitsialis, S.A.; Faras, A.J.; Guntaka, R.V. Restriction endonuclease and nucleotide sequence analyses of molecularly cloned unintegrated avian tumor virus DNA: structure of large terminal repeats in circle junctions. J. Virol. 1982, 42, 346–351. [Google Scholar] [PubMed]
  13. Farnet, C.M.; Haseltine, W.A. Circularization of human immunodeficiency virus type 1 DNA in vitro. J. Virol. 1991, 65, 6942–6952. [Google Scholar] [PubMed]
  14. Pauza, C.D.; Galindo, J.E.; Richman, D.D. Reinfection results in accumulation of unintegrated viral DNA in cytopathic and persistent human immunodeficiency virus type 1 infection of CEM cells. J. Exp. Med. 1990, 172, 1035–1042. [Google Scholar] [CrossRef] [PubMed]
  15. Robinson, H.L.; Zinkus, D.M. Accumulation of human immunodeficiency virus type 1 DNA in T cells: results of multiple infection events. J. Virol. 1990, 64, 4836–4841. [Google Scholar] [PubMed]
  16. Chun, T.W.; Carruth, L.; Finzi, D.; Shen, X.; DiGiuseppe, J.A.; Taylor, H.; Hermankova, M.; Chadwick, K.; Margolick, J.; Quinn, T.C.; et al. Quantification of latent tissue reservoirs and total body viral load in HIV-1 infection. Nature 1997, 387, 183–188. [Google Scholar] [CrossRef] [PubMed]
  17. Sharkey, M.E.; Teo, I.; Greenough, T.; Sharova, N.; Luzuriaga, K.; Sullivan, J.L.; Bucy, R.P.; Kostrikis, L.G.; Haase, A.; Veryard, C.; et al. Persistence of episomal HIV-1 infection intermediates in patients on highly active anti-retroviral therapy. Nat. Med. 2000, 6, 76–81. [Google Scholar] [PubMed]
  18. Zennou, V.; Petit, C.; Guetard, D.; Nerhbass, U.; Montagnier, L.; Charneau, P. HIV-1 genome nuclear import is mediated by a central DNA flap. Cell 2000, 101, 173–185. [Google Scholar] [CrossRef]
  19. Buzon, M.J.; Massanella, M.; Llibre, J.M.; Esteve, A.; Dahl, V.; Puertas, M.C.; Gatell, J.M.; Domingo, P.; Paredes, R.; Sharkey, M.; et al. HIV-1 replication and immune dynamics are affected by raltegravir intensification of HAART-suppressed subjects. Nat. Med. 2010, 16, 460–465. [Google Scholar] [CrossRef] [PubMed]
  20. Carpentier, A.; Barez, P.Y.; Hamaidia, M.; Gazon, H.; de Brogniez, A.; Perike, S.; Gillet, N.; Willems, L. Modes of Human T Cell Leukemia Virus Type 1 Transmission, Replication and Persistence. Viruses 2015, 7, 3603–3624. [Google Scholar] [CrossRef] [PubMed]
  21. Martin, J.L.; Maldonado, J.O.; Mueller, J.D.; Zhang, W.; Mansky, L.M. Molecular Studies of HTLV-1 Replication: An Update. Viruses 2016, 8. [Google Scholar] [CrossRef] [PubMed]
  22. Jones, K.S.; Petrow-Sadowski, C.; Huang, Y.K.; Bertolette, D.C.; Ruscetti, F.W. Cell-free HTLV-1 infects dendritic cells leading to transmission and transformation of CD4(+) T cells. Nat. Med. 2008, 14, 429–436. [Google Scholar] [CrossRef] [PubMed]
  23. Matsuoka, M.; Jeang, K.T. Human T-cell leukaemia virus type 1 (HTLV-1) infectivity and cellular transformation. Nature reviews. Cancer 2007, 7, 270–280. [Google Scholar] [PubMed]
  24. Alais, S.; Mahieux, R.; Dutartre, H. Viral Source-Independent High Susceptibility of Dendritic Cells to Human T-Cell Leukemia Virus Type 1 Infection Compared to That of T Lymphocytes. J. Virol. 2015, 89, 10580–10590. [Google Scholar] [CrossRef] [PubMed]
  25. Demontis, M.A.; Sadiq, M.T.; Golz, S.; Taylor, G.P. HTLV-1 viral RNA is detected rarely in plasma of HTLV-1 infected subjects. J Med Virol 2015, 87, 2130–2134. [Google Scholar] [CrossRef] [PubMed]
  26. Derse, D.; Mikovits, J.; Waters, D.; Brining, S.; Ruscetti, F. Examining the molecular genetics of HTLV-I with an infectious molecular clone of the virus and permissive cell culture systems. J. Acquir. Immune Defic. Syndr. Hum. Retrovirol. 1996, 12, 1–5. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, H.F.; Vandamme, A.M.; Kazadi, K.; Carton, H.; Desmyter, J.; Goubau, P. Familial transmission and minimal sequence variability of human T-lymphotropic virus type I (HTLV-I) in Zaire. AIDS Res. Hum. Retroviruses. 1994, 10, 1135–1142. [Google Scholar] [CrossRef] [PubMed]
  28. Cook, L.B.; Melamed, A.; Demontis, M.A.; Laydon, D.J.; Fox, J.M.; Tosswill, J.H.; de Freitas, D.; Price, A.D.; Medcalf, J.F.; Martin, F.; et al. Rapid dissemination of human T-lymphotropic virus type 1 during primary infection in transplant recipients. Retrovirology 2016, 13, 3. [Google Scholar] [CrossRef] [PubMed]
  29. Demontis, M.A.; Hilburn, S.; Taylor, G.P. Human T cell lymphotropic virus type 1 viral load variability and long-term trends in asymptomatic carriers and in patients with human T cell lymphotropic virus type 1-related diseases. AIDS Res. Hum. Retrovir. 2013, 29, 359–364. [Google Scholar] [CrossRef] [PubMed]
  30. Hill, S.A.; Lloyd, P.A.; McDonald, S.; Wykoff, J.; Derse, D. Susceptibility of human T cell leukemia virus type I to nucleoside reverse transcriptase inhibitors. J. Infect. Dis. 2003, 188, 424–427. [Google Scholar] [CrossRef] [PubMed]
  31. Ratner, L. Adult T cell leukemia lymphoma. Front. Biosci. 2004, 9, 2852–2859. [Google Scholar] [CrossRef] [PubMed]
  32. Macchi, B.; Balestrieri, E.; Ascolani, A.; Hilburn, S.; Martin, F.; Mastino, A.; Taylor, G.P. Susceptibility of primary HTLV-1 isolates from patients with HTLV-1-associated myelopathy to reverse transcriptase inhibitors. Viruses 2011, 3, 469–483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Trevino, A.; Parra, P.; Bar-Magen, T.; Garrido, C.; de Mendoza, C.; Soriano, V. Antiviral effect of raltegravir on HTLV-1 carriers. J. Antimicrob. Chemother. 2012, 67, 218–221. [Google Scholar] [CrossRef] [PubMed]
  34. Matutes, E.; Taylor, G.P.; Cavenagh, J.; Pagliuca, A.; Bareford, D.; Domingo, A.; Hamblin, M.; Kelsey, S.; Mir, N.; Reilly, J.T. Interferon alpha and zidovudine therapy in adult T-cell leukaemia lymphoma: response and outcome in 15 patients. Br. J. Haematol. 2001, 113, 779–784. [Google Scholar] [CrossRef] [PubMed]
  35. Taylor, G.P.; Goon, P.; Furukawa, Y.; Green, H.; Barfield, A.; Mosley, A.; Nose, H.; Babiker, A.; Rudge, P.; Usuku, K.; et al. Zidovudine plus lamivudine in Human T-Lymphotropic Virus type-I-associated myelopathy: a randomised trial. Retrovirology 2006, 3, 63. [Google Scholar] [CrossRef] [PubMed]
  36. Afonso, P.V.; Mekaouche, M.; Mortreux, F.; Toulza, F.; Moriceau, A.; Wattel, E.; Gessain, A.; Bangham, C.R.; Dubreuil, G.; Plumelle, Y.; et al. Highly active antiretroviral treatment against STLV-1 infection combining reverse transcriptase and HDAC inhibitors. Blood 2010, 116, 3802–3808. [Google Scholar] [CrossRef] [PubMed]
  37. Nejmeddine, M.; Negi, V.S.; Mukherjee, S.; Tanaka, Y.; Orth, K.; Taylor, G.P.; Bangham, C.R. HTLV-1-Tax and ICAM-1 act on T-cell signal pathways to polarize the microtubule-organizing center at the virological synapse. Blood 2009, 114, 1016–1025. [Google Scholar] [CrossRef] [PubMed]
  38. Igakura, T.; Stinchcombe, J.C.; Goon, P.K.; Taylor, G.P.; Weber, J.N.; Griffiths, G.M.; Tanaka, Y.; Osame, M.; Bangham, C.R. Spread of HTLV-I between lymphocytes by virus-induced polarization of the cytoskeleton. Science 2003, 299, 1713–1716. [Google Scholar] [CrossRef] [PubMed]
  39. Nejmeddine, M.; Barnard, A.L.; Tanaka, Y.; Taylor, G.P.; Bangham, C.R. Human T-lymphotropic virus, type 1, tax protein triggers microtubule reorientation in the virological synapse. J. Biol. Chem. 2005, 280, 29653–29660. [Google Scholar] [CrossRef] [PubMed]
  40. Majorovits, E.; Nejmeddine, M.; Tanaka, Y.; Taylor, G.P.; Fuller, S.D.; Bangham, C.R. Human T-lymphotropic virus-1 visualized at the virological synapse by electron tomography. PLoS ONE 2008, 3, e2251. [Google Scholar] [CrossRef] [PubMed]
  41. Pais-Correia, A.M.; Sachse, M.; Guadagnini, S.; Robbiati, V.; Lasserre, R.; Gessain, A.; Gout, O.; Alcover, A.; Thoulouze, M.I. Biofilm-like extracellular viral assemblies mediate HTLV-1 cell-to-cell transmission at virological synapses. Nat. Med. 2010, 16, 83–89. [Google Scholar] [CrossRef] [PubMed]
  42. Overbaugh, J.; Bangham, C.R. Selection forces and constraints on retroviral sequence variation. Science 2001, 292, 1106–1109. [Google Scholar] [CrossRef] [PubMed]
  43. Tosswill, J.H.; Taylor, G.P.; Clewley, J.P.; Weber, J.N. Quantification of proviral DNA load in human T-cell leukaemia virus type I infections. J. Virol. Methods 1998, 75, 21–26. [Google Scholar] [CrossRef]
  44. Koressaar, T.R.M. Enhancements and modifications of primer design program Primer3. Bioinformatics 2007, 23, 1289–1291. [Google Scholar] [CrossRef] [PubMed]
  45. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.; Remm, M.; Rozen, S. Primer3 - new capabilities and interfaces. Nucleic Acids Res. 2012, 40, e115. [Google Scholar] [CrossRef] [PubMed]
  46. Goon, P.K.; Hanon, E.; Igakura, T.; Tanaka, Y.; Weber, J.N.; Taylor, G.P.; Bangham, C.R. High frequencies of Th1-type CD4(+) T cells specific to HTLV-1 Env and Tax proteins in patients with HTLV-1-associated myelopathy/tropical spastic paraparesis. Blood 2002, 99, 3335–3341. [Google Scholar] [CrossRef] [PubMed]
  47. Pinon, J.D.; Kelly, S.M.; Price, N.C.; Flanagan, J.U.; Brighty, D.W. An antiviral peptide targets a coiled-coil domain of the human T-cell leukemia virus envelope glycoprotein. J. Virol. 2003, 77, 3281–3290. [Google Scholar] [CrossRef] [PubMed]
  48. Fox, J.M.; Hilburn, S.; Cook, L.B.; Demontis, M.A.; Rowan, A.G.; Martin, F.; Taylor, G.P. Circularised 1 and 2 LTR DNA circles are present in freshly- and chronically-infected cell lines and patient PBMCs, indicating ongoing reverse transcriptase usage. Retrovirology 2011, 8 (Suppl 1), A51. [Google Scholar] [CrossRef]
  49. Salahuddin, S.Z.; Markham, P.D.; Wong-Staal, F.; Franchini, G.; Kalyanaraman, V.S.; Gallo, R.C. Restricted expression of human T-cell leukemia--lymphoma virus (HTLV) in transformed human umbilical cord blood lymphocytes. Virology 1983, 129, 51–64. [Google Scholar] [CrossRef]
  50. Harada, S.; Koyanagi, Y.; Yamamoto, N. Infection of HTLV-III/LAV in HTLV-I-carrying cells MT-2 and MT-4 and application in a plaque assay. Science 1985, 229, 563–566. [Google Scholar] [CrossRef] [PubMed]
  51. Martin, F.; Fedina, A.; Youshya, S.; Taylor, G.P. A 15-year prospective longitudinal study of disease progression in patients with HTLV-1 associated myelopathy in the UK. J. Neurol. Neurosurg. Psychiatry 2010, 81, 1336–1340. [Google Scholar] [CrossRef] [PubMed]
  52. Hiramatsu, K.; Yonemoto, R.; Yoshikura, H. Epigenetic control and reintegration of extrachromosomal proviral DNA in HL60 cells chronically infected with human T cell leukaemia virus type 1. J. Gen. Virol. 1988, 69 (Pt 3), 651–658. [Google Scholar] [CrossRef] [PubMed]
  53. Kitamura, K.; Besansky, N.J.; Rudolph, D.; Nutman, T.B.; Folks, T.M.; Lal, R.B. Unintegrated two-long terminal repeat circular human T lymphotropic virus DNA accumulation during chronic HTLV infection. AIDS Res. Hum. Retrovir. 1993, 9, 1167–1172. [Google Scholar] [CrossRef] [PubMed]
  54. Yoder, K.E.; Fishel, R. PCR-based detection is unable to consistently distinguish HIV 1LTR circles. J. Virol. Methods 2006, 138, 201–206. [Google Scholar] [CrossRef] [PubMed]
  55. Macatonia, S.E.; Cruickshank, J.K.; Rudge, P.; Knight, S.C. Dendritic cells from patients with tropical spastic paraparesis are infected with HTLV-1 and stimulate autologous lymphocyte proliferation. AIDS Res. Hum. Retrovir. 1992, 8, 1699–1706. [Google Scholar] [CrossRef] [PubMed]
  56. Hishizawa, M.; Imada, K.; Kitawaki, T.; Ueda, M.; Kadowaki, N.; Uchiyama, T. Depletion and impaired interferon-alpha-producing capacity of blood plasmacytoid dendritic cells in human T-cell leukaemia virus type I-infected individuals. Br. J. Haematol. 2004, 125, 568–575. [Google Scholar] [CrossRef] [PubMed]
  57. Pauza, C.D.; Galindo, J. Persistent human immunodeficiency virus type 1 infection of monoblastoid cells leads to accumulation of self-integrated viral DNA and to production of defective virions. J. Virol. 1989, 63, 3700–3707. [Google Scholar] [PubMed]
  58. Kattan, T.; MacNamara, A.; Rowan, A.G.; Nose, H.; Mosley, A.J.; Tanaka, Y.; Taylor, G.P.; Asquith, B.; Bangham, C.R. The avidity and lytic efficiency of the CTL response to HTLV-1. J. Immunol. 2009, 182, 5723–5729. [Google Scholar] [CrossRef] [PubMed]
  59. Wu, Y.; Marsh, J.W. Early transcription from nonintegrated DNA in human immunodeficiency virus infection. J. Virol. 2003, 77, 10376–10382. [Google Scholar] [CrossRef] [PubMed]
  60. Wu, Y.; Marsh, J.W. Gene transcription in HIV infection. Microbes Infect. 2003, 5, 1023–1027. [Google Scholar] [CrossRef]
  61. Wu, Y.; Marsh, J.W. Selective transcription and modulation of resting T cell activity by preintegrated HIV DNA. Science 2001, 293, 1503–1506. [Google Scholar] [CrossRef] [PubMed]
  62. Poon, B.; Chen, I.S. Human immunodeficiency virus type 1 (HIV-1) Vpr enhances expression from unintegrated HIV-1 DNA. J. Virol. 2003, 77, 3962–3972. [Google Scholar] [CrossRef] [PubMed]
  63. Fang, J.Y.; Mikovits, J.A.; Bagni, R.; Petrow-Sadowski, C.L.; Ruscetti, F.W. Infection of lymphoid cells by integration-defective human immunodeficiency virus type 1 increases de novo methylation. J. Virol. 2001, 75, 9753–9761. [Google Scholar] [CrossRef] [PubMed]
  64. Cara, A.; Cereseto, A.; Lori, F.; Reitz, M.S., Jr. HIV-1 protein expression from synthetic circles of DNA mimicking the extrachromosomal forms of viral DNA. J. Biol. Chem. 1996, 271, 5393–5397. [Google Scholar] [CrossRef] [PubMed]
Viruses 08 00080 g001 1024

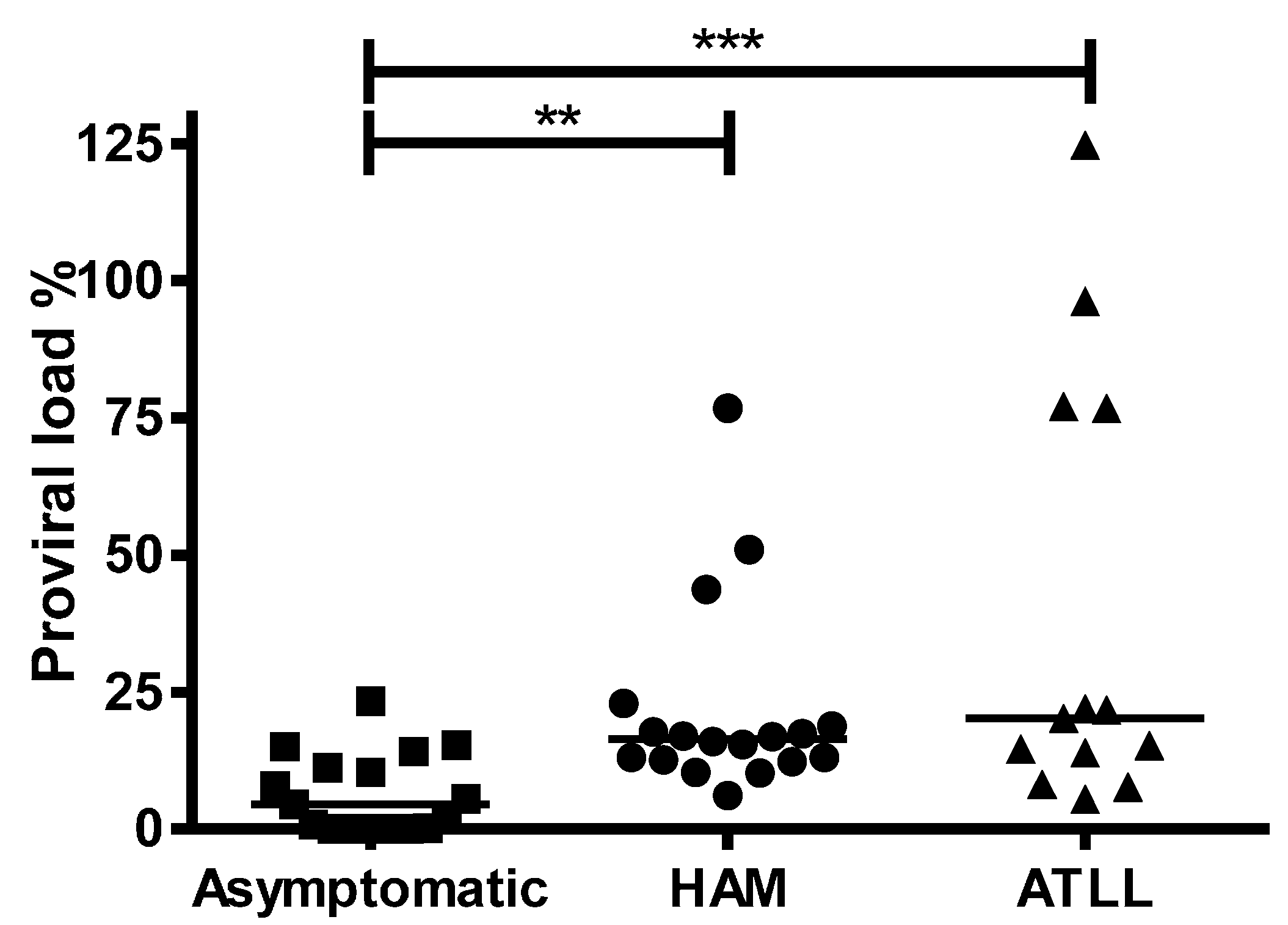

Figure 1. Human T-lymphotropic virus type-1 (HTLV-1) proviral load (PVL) is higher in HTLV-1 infected patients with HTLV-1 associated disease than in asymptomatics. PVL from patients in three diagnostic groups: asymptomatic (n = 19), HTLV-1-associated myelopathy/tropical spastic paraparesis (HAM/TSP) (n = 20) or adult T cell leukaemia/lymphoma (ATLL) (n = 12) are displayed. Horizontal line represents median PVL within each group. Statistical differences between groups were calculated using non-parametric one-way ANOVA with Dunn’s multiple comparison correction. **: p < 0.01, ***: p < 0.001.
Figure 1. Human T-lymphotropic virus type-1 (HTLV-1) proviral load (PVL) is higher in HTLV-1 infected patients with HTLV-1 associated disease than in asymptomatics. PVL from patients in three diagnostic groups: asymptomatic (n = 19), HTLV-1-associated myelopathy/tropical spastic paraparesis (HAM/TSP) (n = 20) or adult T cell leukaemia/lymphoma (ATLL) (n = 12) are displayed. Horizontal line represents median PVL within each group. Statistical differences between groups were calculated using non-parametric one-way ANOVA with Dunn’s multiple comparison correction. **: p < 0.01, ***: p < 0.001.
Viruses 08 00080 g001
Viruses 08 00080 g002 1024

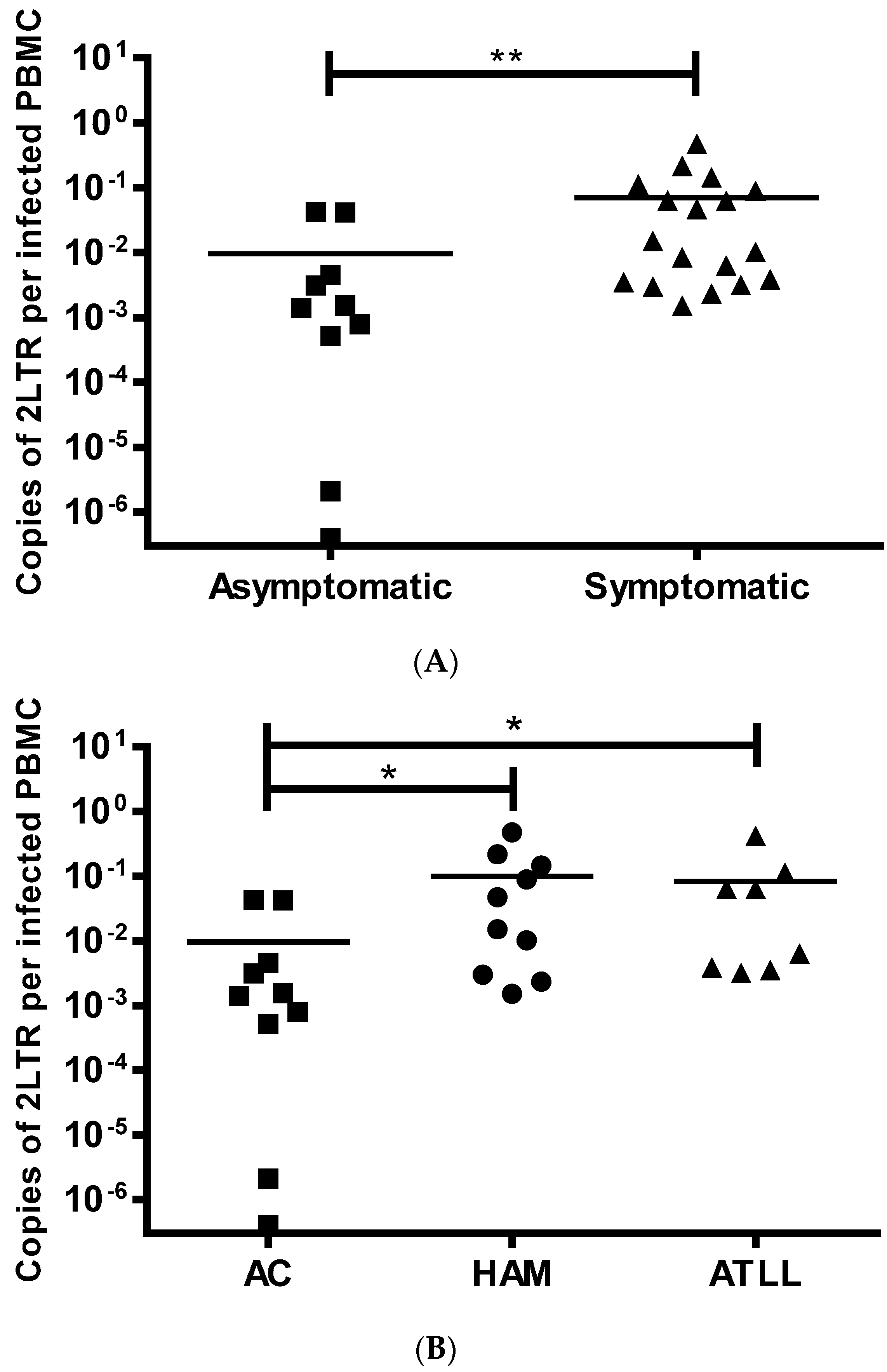

Figure 2. 2LTR DNA circle level is higher in HTLV-1 infected patients with HTLV-1 associated diseases compared to asymptomatics. In panel (A), 2LTR DNA circle levels in individual patients are plotted for asymptomatics (■ n = 10) or symptomatics (▲ n = 18). In (B), the same data is plotted for patients diagnosed as asymptomatic (■), HAM/TSP (● n = 10) or ATLL (▲ n = 8). Mean 2LTR DNA circle levels within each group are depicted by the horizontal bar; statistical comparisons are performed using non-parametric t-test (A) or a non-parametric one-way ANOVA with Dunn’s multiple comparisons correction. *: p < 0.05, **: p < 0.01.
Figure 2. 2LTR DNA circle level is higher in HTLV-1 infected patients with HTLV-1 associated diseases compared to asymptomatics. In panel (A), 2LTR DNA circle levels in individual patients are plotted for asymptomatics (■ n = 10) or symptomatics (▲ n = 18). In (B), the same data is plotted for patients diagnosed as asymptomatic (■), HAM/TSP (● n = 10) or ATLL (▲ n = 8). Mean 2LTR DNA circle levels within each group are depicted by the horizontal bar; statistical comparisons are performed using non-parametric t-test (A) or a non-parametric one-way ANOVA with Dunn’s multiple comparisons correction. *: p < 0.05, **: p < 0.01.
Viruses 08 00080 g002
Viruses 08 00080 g003 1024

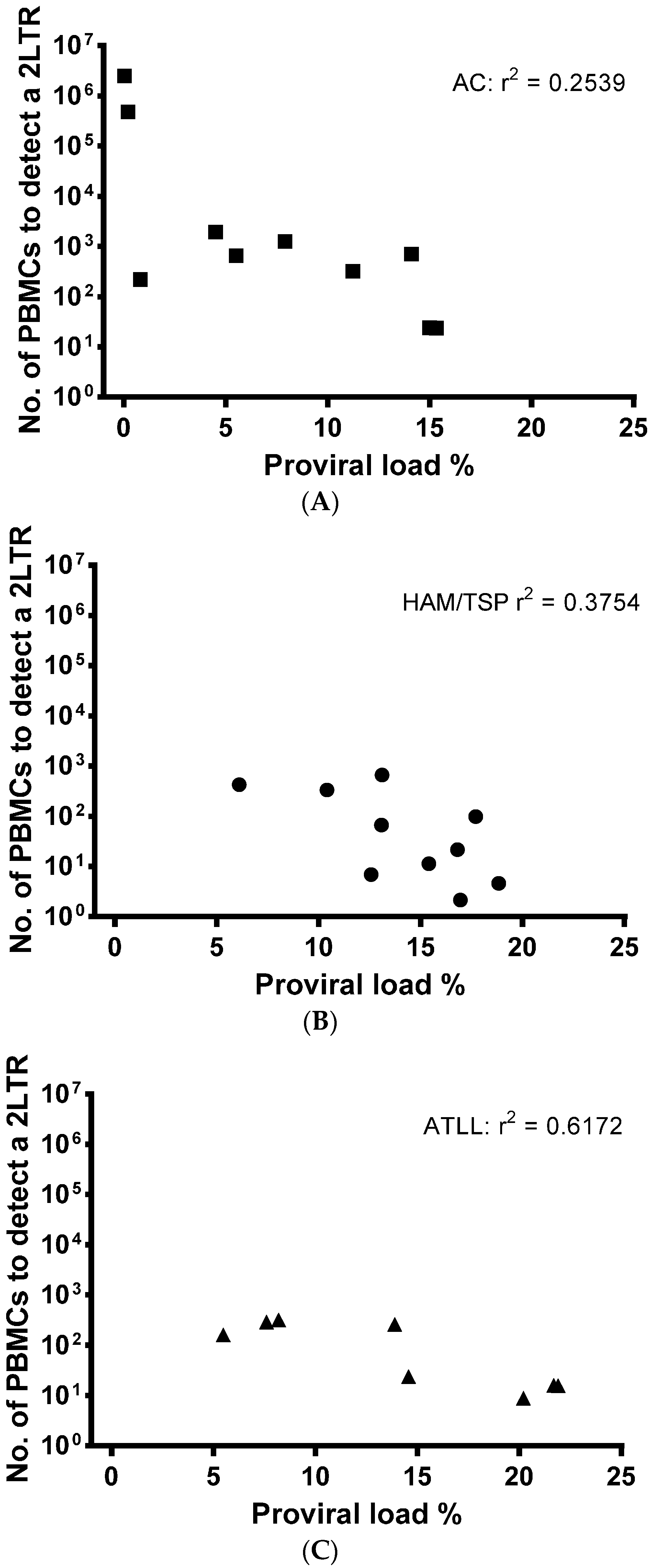

Figure 3. There is no correlation between PVL and 2LTR DNA circle levels. The number of PBMCs from patients with HTLV-1 required to detect 2LTR DNA circles in those diagnosed as asymptomatic (n = 10) (A); HAM/TSP (n = 10) (B) or ATLL (n = 8); (C) is plotted against the patients’ PVL (%). Correlation regression was calculated using line of best fit and r2 in PRISM software.
Figure 3. There is no correlation between PVL and 2LTR DNA circle levels. The number of PBMCs from patients with HTLV-1 required to detect 2LTR DNA circles in those diagnosed as asymptomatic (n = 10) (A); HAM/TSP (n = 10) (B) or ATLL (n = 8); (C) is plotted against the patients’ PVL (%). Correlation regression was calculated using line of best fit and r2 in PRISM software.
Viruses 08 00080 g003
Table
Table 1. Sequences of the primers and probes used.
Table 1. Sequences of the primers and probes used.
Primer/ProbeSequenceProduct Size
1LTR probeCTCTCACACGGCCTCATACAGTACTCTTCCTTTCATAGTTTACATCTCCTGTTTGAATTATTCCCTAGGCAATGGGCCAAATCTTTTCCCGTAGCGCTAG100 bp
1LTR FWDCTCTCACACGGCCTCATACA940 bp
1LTR REVCTAGCGCTACGGGAAAAGAT
1LTR nested probeCACCAACATCCCCATTTCTCGTACTCTTCCTTTCATAGTTTACATCTCCTGTTTGAATTATTCCCTAGGCAATGGGCCAAACTGGCAATGGGCCAAATCT100 bp
1LTR nested FWDCACCAACATCCCCATTTCTC840 bp
1LTR nested REVAGATTTGGCCCATTGC
2LTR probeATGAGCCCCAAATATCCCCCGGGGGTACTCTTCCTTTCATAGTTTACATCTCCTGTTAGTTGAATTATTCCCTAGGCAGTTCTGCGCCGTTACAGATCGA100 bp
2LTR FWDATGAGCCCCAAATATCCCCCGGGG611 bp
2LTR REVTCGATCTGTAACGGCGCAGAAC
2LTR nested probeAGCCACCGGGAACCACCCATGTACTCTTCCTTTCATAGTTTACATTTGTTTGAATTATTCCCTAGGCAATGGGCCAGGTCGAGACCGGGCCTTTGTC100 bp
2LTR nested FWDAGCCACCGGGAACCACCCAT307 bp
2LTR nested REVGACAAAGGCCCGGTCTCGACCT
Table
Table 2. Quantification and ratio calculation of 1 long terminal repeat (LTR) and 2LTR DNA circles in two cell lines carrying human T-lymphotropic virus type-1 (HTLV-1).
Table 2. Quantification and ratio calculation of 1 long terminal repeat (LTR) and 2LTR DNA circles in two cell lines carrying human T-lymphotropic virus type-1 (HTLV-1).
Cell LineLimit of Detection in 1 μg DNARatio of 1:2 LTR
1LTR2LTR
MT-28.79 copies14.67 copies1:1.7
HuT 1025.51 copies11.03 copies1:2
Table
Table 3. 1LTR DNA circle detection in samples from patients with HTLV-1. Patients are denoted a code. VL% = HTLV-1 DNA copies/100 PBMCs, 1LTR% = number of 1LTR DNA circles/100 PBMCs. Code prefix H = ACs, prefix T = HAM/TSP, prefix L = ATLL. * denotes acute ATLL.
Table 3. 1LTR DNA circle detection in samples from patients with HTLV-1. Patients are denoted a code. VL% = HTLV-1 DNA copies/100 PBMCs, 1LTR% = number of 1LTR DNA circles/100 PBMCs. Code prefix H = ACs, prefix T = HAM/TSP, prefix L = ATLL. * denotes acute ATLL.
PatientVL% (Range)1LTR1LTR%
HBK129+0
HBU3.94+0
HCT0.08+0.0023
HEF2.39+0
HT23.4-0
HX0.02-0
ACs mean26.5 (0.02–129)
TAF76.8+0.0048
TAN16+0.0048
TAQ12.3+0.0023
TAS17.4+0.00048
TBW12.8+0.0023
TBX13.28+0.000048
TBR22.9+0
TBJ51-0
TBU10.2-0
TCD43.7-0
HAM mean27.6 (10–77)
LER76.75+0.00023
LEV*124.7+0.11547
LEY77.1+0.0048
LP496.3-0
ATLL mean94 (77–125)
Table
Table 4. 2LTR DNA circle detection in samples from patients with HTLV-1. Patients are denoted a code. VL% = HTLV-1 DNA copies/100 PBMCs, 2LTR% = number of 2LTR DNA circles/100 PBMCs. Code prefix H = ACs, prefix T = HAM/TSP, prefix L = ATLL. * denotes acute ATLL.
Table 4. 2LTR DNA circle detection in samples from patients with HTLV-1. Patients are denoted a code. VL% = HTLV-1 DNA copies/100 PBMCs, 2LTR% = number of 2LTR DNA circles/100 PBMCs. Code prefix H = ACs, prefix T = HAM/TSP, prefix L = ATLL. * denotes acute ATLL.
PatientVL% (Range)2LTR2LTR%
HBU4.5+0.0005184
HBZ5.5+0.0015246
HBF7.9+0.00079
HBE14.1+0.00141
HAO0.21+0.0000021
HBK10.3Nested +
HBX11.23+0.003112956
HCH15+0.04158
HDH0.04+0.0000004
HDO0.01-Undetectable
HDY0.06Nested +
HFE15.33+0.04249476
HT-UV10.82+0.00454608
ACs mean6.54 (0.01–15)
TBP6.1+0.0023424
TBW13.1+0.00150912
TBG16.8+0.0465696
TBA17.7+0.0101952
TAL15.4+0.088704
TAT10.4+0.0029952
TBZ18.83+0.2169216
TCJ16.95+0.469854
TCP13.07+0.01505664
TCQ12.57+0.1448064
HAM mean14.09 (6–19)
LEU7.6+0.00347776
LGH13.88+0.003847536
LGA21.68+0.0624384
LFE15.2+0.210672
TBX14.57+0.00839232
LFK *8.2+0.0031488
LFA *21.9+0.063072
LFP *5.48+0.00631296
ATLL mean13.56 (5–22)

Share and Cite

MDPI and ACS Style

Fox, J.M.; Hilburn, S.; Demontis, M.-A.; Brighty, D.W.; Rios Grassi, M.F.; Galvão-Castro, B.; Taylor, G.P.; Martin, F. Long Terminal Repeat Circular DNA as Markers of Active Viral Replication of Human T Lymphotropic Virus-1 in Vivo. Viruses 2016, 8, 80. https://doi.org/10.3390/v8030080

AMA Style

Fox JM, Hilburn S, Demontis M-A, Brighty DW, Rios Grassi MF, Galvão-Castro B, Taylor GP, Martin F. Long Terminal Repeat Circular DNA as Markers of Active Viral Replication of Human T Lymphotropic Virus-1 in Vivo. Viruses. 2016; 8(3):80. https://doi.org/10.3390/v8030080

Chicago/Turabian Style

Fox, James M, Silva Hilburn, Maria-Antonietta Demontis, David W Brighty, Maria Fernanda Rios Grassi, Bernardo Galvão-Castro, Graham P Taylor, and Fabiola Martin. 2016. "Long Terminal Repeat Circular DNA as Markers of Active Viral Replication of Human T Lymphotropic Virus-1 in Vivo" Viruses 8, no. 3: 80. https://doi.org/10.3390/v8030080

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
