Forests 2016, 7(12), 318; doi:10.3390/f7120318

Article
Identification and Target Prediction of MicroRNAs in Ulmus pumila L. Seedling Roots under Salt Stress by High-Throughput Sequencing
Research Center of Saline and Alkali Land of State Forestry Administration, Beijing 100091, China
*
Author to whom correspondence should be addressed.
Academic Editors: Stephen DiFazio and John MacKay
Received: 8 September 2016 / Accepted: 9 December 2016 / Published: 20 December 2016

Abstract

:
MicroRNAs (miRNAs) are a class of endogenous small RNAs with important roles in plant growth, development, and environmental stress responses. Ulmus pumila L., a deciduous broadleaved tree species of northern temperate regions, is widely distributed in central and northern Asia and has important economic and ecological value. With the spread and aggravation of soil salinization, salt stress has become a major abiotic stress affecting the normal growth and development of U. pumila. However, the influence of salt stress on U. pumila miRNA expression has not been investigated. To identify miRNAs and predict their target mRNA genes under salt stress, three small RNA libraries were generated and sequenced from roots of U. pumila seedlings treated with various concentrations of NaCl corresponding to no salt stress, light short-term salt stress, and medium-heavy long-term salt stress. Integrative analysis identified 254 conserved miRNAs representing 29 families and 49 novel miRNAs; 232 potential targets of the miRNAs were also predicted. Expression profiling of miRNAs between libraries was performed, and the expression of six miRNAs was validated by quantitative reverse transcription polymerase chain reaction (qRT-PCR). Our findings provide an overview of potential miRNAs and corresponding targets involved in regulating U. pumila salt defense responses. These results lay the foundation for further research into molecular mechanisms involved in salt stress resistance in U. pumila and other Ulmaceae species.
Keywords:
Ulmus pumila L.; MicroRNA; MicroRNA target; salt stress; high-throughput sequencing; qRT-PCR

1. Introduction

MicroRNAs (miRNAs) are a class of endogenous non-coding, single-stranded RNAs approximately 22 nt long that are widely present and evolutionarily conserved in eukaryotes [1]. They modulate gene expression by guiding target mRNA cleavage or translational repression in plants and animals [2,3]. Evidence exists that miRNAs play crucial roles in many biological and metabolic processes in higher plants, such as growth, development, and responses to biotic and abiotic stresses [4,5,6,7,8] including salt stress [9]. For instance, transgenic plants overexpressing osa-miR319a exhibited enhanced salt tolerance associated with increased leaf wax content and water retention but reduced sodium uptake [10]. Conversely, transgenic rice and Arabidopsis thaliana (L.) Heynh. plants overexpressing osa-miR393 were more sensitive to salt and alkali treatment compared with wild-type plants [11], while overexpression of miR402 accelerated A. thaliana seed germination and seedling growth under salt stress conditions [12].
Ulmus pumila L. is naturally distributed from northern subtropical to cold temperate zones. As a major tree species used for timber, shelter, food, medicine, fodder, and ecological protection in East Asia, U. pumila is economically and ecologically important [13,14,15,16]. Several ecological and pharmaceutical studies of U. pumila have been previously carried out, including investigations of the phenological responses of U. pumila to climate change in the temperate zone of China [14], the effects of sand burial on survival and growth of U. pumila seedlings [13], adipogenesis inhibition by U. pumila extracts [17], and the inhibition of clinically isolated antibiotic-resistant bacteria by U. pumila [16]. A few molecular biological studies of U. pumila have also been performed, such as the isolation and characterization of U. pumila microsatellite markers [18] and research on reactive oxygen species-provoked mitochondria-dependent cell death during ageing of U. pumila seeds [19]. However, neither the genome nor transcriptome of U. pumila has been published, and only 209 U. pumila DNA and RNA sequences have been deposited in the National Center for Biotechnology Information (NCBI) database (until October 2016).
Salt stress is one of the major abiotic stresses limiting plant growth and development [20]. With the spread and aggravation of soil salinization [21], salt stress has become a major abiotic stress affecting U. pumila growth and factors such as its landscape value, timber yield, and role in ecological protection. In recent years, several groups have studied the physiology and biochemistry of U. pumila under these conditions [22,23], but none have investigated U. pumila miRNAs under salt stress. High-throughput sequencing of small RNAs associated with transcriptome sequences is an effective way to identify miRNAs and their targets.
The aim of this study was to identify U. pumila miRNAs and predict their target mRNA genes, and to provide an overview of potential miRNAs and their corresponding targets involved in the regulation of salt defense responses in U. pumila. In the present study, we consequently performed high-throughput sequencing of three small-RNA sequencing libraries constructed from roots of U. pumila seedlings treated with different salt stresses. Comparison of the resulting U. pumila transcriptome sequences allowed us to identify miRNAs and predict their targets. Expression profiles of miRNAs between the different libraries were also analyzed. The generated data (254 conserved miRNAs, 49 novel miRNAs, 232 potential miRNA targets, and miRNA differential expression profiles) will provide new insights into salt stress response regulation in U. pumila and facilitate the improvement of salt resistance of U. pumila and other Ulmaceae species.

2. Materials and Methods

2.1. Plant Materials and Salt Stress Treatment

U. pumila seeds produced by one maternal parent are half sibs family, and the pollen source was relatively fixed in our Experimental Base (Dongying, China), Research Center of Saline and Alkali Land of State Forestry Administration, which previously showed smaller salt-tolerant differences [23]. Seeds were washed thoroughly with water and then sown in peat pots filled with equal amounts of perlite and vermiculite in a greenhouse with a 14 h light/10 h dark photoperiod under 25/18 °C day/night temperatures and a relative humidity of 70%–75%. Five days after germination, seedlings were irrigated with half-strength Hoagland’s culture liquid; this was repeated every seven days. Approximately 30 days after germination, three salt stress treatments were implemented: (1) culturing of seedlings under normal conditions without NaCl stress (CK); (2) addition of 50 mM NaCl to a final concentration of 50 mM followed by culturing with salt (50 mM) for 6 h (light salt stress for a short time, LSS); and (3) gradual stepwise acclimation over four days to a final NaCl concentration of 200 mM (from 50 mM to 100 mM, then 150 mM, and finally 200 mM NaCl), followed by culturing with 200 mM salt for 24 h (medium-heavy salt stress for a long time, MSL) (Table 1) [24,25].
After treatment, uniformly developed seedling roots were collected from each treatment and immediately frozen in liquid nitrogen before being stored at −80 °C for small RNA library construction and quantitative reverse transcription polymerase chain reaction (qRT-PCR) assays.

2.2. Small RNA Library Construction and Sequencing

Three seedling roots from each treatment were mixed evenly and ground to a powder under liquid nitrogen using a mortar and pestle; 100 mg of the powder was then added to a 2.0-mL sterile Eppendorf tube. After the addition of 1 mL TRIzol reagent (Invitrogen, CA, USA), the contents were homogenized for 3 min, and then total RNA was extracted according to the TRIzol manufacturer’s instructions. RNA degradation and contamination were monitored on 1% agarose gels and integrity was assessed using a bioanalyzer (Agilent 2100, CA, USA; RNA Integrity Number ≥ 7.5). The purified RNAs were used to construct three small RNA libraries (CK, LSS, and MSL). Sequencing libraries were generated using a NEBNext multiplex small RNA library preparation kit (NEB, MA, USA) following the manufacturer’s recommendations. Index codes were added to attribute sequences to each sample. Briefly, a NEB 3′ SR Adaptor was directly specifically ligated to the 3′ ends of miRNA, small interfering (si)RNA, and piwi-interacting (pi)RNA. SR RT Primer was then hybridized to an excess of 3′ SR Adaptor to transform the single-stranded DNA adaptor into a double-stranded DNA molecule. The 5′ end adaptors were ligated to the 5′ ends of miRNA, siRNA, and piRNA, then first-strand cDNA was synthesized using M-MuLV Reverse Transcriptase (RNase H). PCR amplification was performed using LongAmp Taq 2× Master Mix, Illumina SR Primer (Illumina, CA, USA), and the index (X) primer. PCR products were purified on an 8% polyacrylamide gel (at 100 V for 80 min), and DNA fragments corresponding to 140–160 bp (the length of small noncoding RNA plus the 3′ and 5′ adaptors) were recovered and dissolved in 8 μL elution buffer. Library quality was assessed on an Agilent Bioanalyzer 2100 system using DNA high-sensitivity chips. Clustering of the index-coded samples was performed on a cBot Cluster Generation System using a TruSeq SR Cluster Kit v3-cBot-HS (Illumina) according to the manufacturer’s instructions. The prepared libraries were then sequenced on an Illumina Hiseq 2500 platform at the Novogene Company (Beijing, China). The small-RNA sequencing data used in this study have been deposited in the NCBI Gene Expression Omnibus (GEO) database under accession number GSE84937.

2.3. Identification of Conserved and Novel miRNAs

After removing reads containing poly-N, with 5′ adaptor contaminants, without 3′ adaptors or the insert tag, containing poly-A, T, G, C, and low-quality reads from the raw data, unique sequences of 18–30 nt were used for further analysis. First, small RNA tags with fewer than two mismatches were mapped to the U. pumila transcriptome in the Sequence Read Archive (SRA) database (SRP080724) using Bowtie-0.12.9 (main parameters: −v 1 −k 1) [26]. Second, the mapped small RNA tags were queried against non-coding RNAs (Ribosomal RNA (rRNA), Transfer RNA (tRNA), Small nuclear RNA (snRNA), and Small nucleolar RNA (snoRNA)) from GenBank and Rfam databases with no mismatches allowed using Bowtie-0.12.9 (main parameters: −v 0 −k 1). Any small RNA sequences with matches to these sequences were removed from the downstream analysis. Third, the remaining mapped small RNA tags were used to search conserved miRNAs in miRBase 21.0 with a maximum of two mismatches allowed using a modification of the software package mirdeep2 [27] and srna-tools-cli to obtain potential miRNAs and draw secondary structures [28]. Finally, the mapped small RNA tags that were not annotated in the previous steps were used to predict novel miRNAs.
These predictions were accomplished by exploring the secondary structure, Dicer cleavage site, and minimum free energy of the unannotated small RNA tags using available software packages miREvo [29] and mirdeep2 [27]. A potential novel miRNA precursor was required to meet the following criteria: (1) the formation of a characteristic stem-loop structure; (2) a miRNA sequence length of 20–24 nt; (3) a minimum free energy for the miRNA precursor of <−20 kcal·mol−1; and (4) the existence of at least 16 common base pairs between sense and antisense miRNAs, no more than four bulges, and a maximum asymmetry of four bases between sense and antisense miRNA duplexes [30].

2.4. Prediction of miRNA Target Genes

Sequence complementarity between a miRNA and its target mRNA offers a fundamental advantage for computational analysis [31]. Target predictions were performed using psRobot_tar in psRobot [32] and through alignment with the U. pumila transcriptome (SRA database, SRP080724). The following criteria were then used to identify potential miRNA targets: (1) no more than four mismatches between the mature miRNA and its potential target site; (2) no more than one mismatch at nucleotide positions 1–9; (3) no more than two consecutive mismatches; and (4) no mismatches at positions 10 and 11 [30,33,34]. The extracted sequences, corresponding to U. pumila putative miRNA targets, were used in BLASTx searches against non-redundant protein sequences from the NCBI database to identify potential protein-coding genes in U. pumila. Similarities with an e-value lower than 1 × e−10 were considered consistent hits.

2.5. Expression Analysis of miRNAs between Libraries

Expression levels of miRNA families as well as conserved and novel individual miRNAs were estimated as TPM (transcript per million) [35]. Expression profiles of miRNAs between different libraries and p-values were obtained using the DEGseq R package [36]. Comparisons of expression levels of each miRNA family and individual miRNA in LSS, MSL, and CK libraries was performed using the following formula:
fold change = log2(LSS or MSL/CK)

2.6. Verification of miRNAs by qRT-PCR

Small RNAs were extracted using a small RNA extraction kit (BioTek, Beijing, China), according to the manufacturer’s instructions. Small RNAs from each sample were then reverse-transcribed using a miRcute miRNA First-Strand cDNA Synthesis kit (Tiangen, Beijing, China) following the manufacturer’s instructions. Forward primers for the miRNAs were designed based on the mature miRNA sequences, and the reverse primer was provided in the kit. 5.8S rRNA and U6 were used as endogenous internal reference genes for the miRNAs. qRT-PCR primers are listed in Table S1. Three biological replicates were run for each sample. qRT-PCR amplifications were performed on an ABI7900HT Sequence Detection System (Applied Biosystems, Carlsbad, CA, USA) using SYBR FAST qPCR Kit Universal Master Mix (2×) (Kapa Biosystems, Wilmington, MA, USA). Reaction conditions were the following: an initial denaturation step of 95 °C for 3 min, followed by 40 cycles of 95 °C for 3 s and 60 °C for 30 s. A dissociation curve was obtained by heating the amplicon from 60 to 95 °C. Technical repetitions were performed three times for each sample. Following qRT-PCR data collection, fold changes were calculated by the 2−ΔΔCT method [37].

3. Results

3.1. Deep Sequencing of U. pumila Small RNAs

Three small RNA libraries were constructed and sequenced using total RNAs from U. pumila roots under three treatment conditions: CK, without salt stress; LSS, light salt stress for a short time; and MSL, medium-heavy salt stress for a long time. This process generated approximately 11 million, 8 million, and 9 million raw reads from the CK, LSS, and MSL libraries, respectively. After removing adaptor sequences, low-quality tags, and reads shorter than 18 nt or longer than 30 nt, we obtained approximately 8 million, 6 million, and 7 million clean reads from the corresponding three libraries. A total of 4,175,143 reads (748,789 unique), 2,953,860 reads (602,673 unique), and 3,893,883 reads (676,645 unique) from the three respective libraries were subsequently mapped to the U. pumila transcriptome sequence. These mapped small RNAs comprised rRNAs, tRNAs, snRNAs, snoRNAs, known miRNAs, and unannotated small RNAs (Table 2). Among the mapped small RNAs of the three libraries, 5.24%–7.06% were additionally found to be known miRNAs and 75.28%–76.40% were unannotated small RNAs. The high proportion of small RNAs that could not be annotated suggests that some unknown sRNAs remain to be discovered in U. pumila. The unannotated small RNAs were used to predict novel miRNAs.
Most small RNAs in the three libraries were 20–24 nt in size. The most abundant small RNA sequences were 24 nt long (24.97%–30.07%), followed by 21 nt (12.59%–13.98%) and 22 nt (11.00%–12.33%) (Figure 1). These sizes and proportions are consistent with typical small RNA distributions in angiosperms such as cotton [7], Lycium chinense Mill. [28], Punica granatum L. [38], and potato [39].

3.2. Identification of Conserved miRNAs in U. pumila

To identify conserved miRNAs in U. pumila, small RNA sequences were aligned with known mature plant miRNAs in the miRBase database (release 21.0, June 2014), with transcriptome sequences of U. pumila used to find inverted repeats and stem-loop structures. In total, 254 conserved miRNAs were identified in the three libraries (Table S2). The criteria used to assign these miRNAs to distinct families were described by Meyers [40], and the classification of miRNA families referenced the miRbase database. After a comprehensive analysis, 217 miRNAs have been classified into 29 miRNA families, while 37 miRNAs have not been classified. The number of members of each miRNA family was also analyzed (Figure 2A), which revealed that most families contained more than one member, with only seven miRNA families having a single member. MIR159 was the largest family with 31 members, while MIR171, MIR156, MIR166, MIR167, and MIR399 possessed 24, 20, 17, 12, and 13 members, respectively. Only a few members were identified for MIR319, MIR394, MIR477, and MIR482 families. The size of a miRNA family may be indicative of its function [41]. Different miRNA families also displayed drastically different expression levels (Figure 2B), with some miRNA families having low expression while others had high expression. Notably, MIR159, MIR162, MIR166, MIR167, MIR482, and MIR858 families were highly abundant in the three libraries, while others, such as MIR169, MIR319, MIR395, MIR477, and MIR1511, were much less abundant.

3.3. Discovery of Novel miRNA in U. pumila

Novel miRNAs were predicted on the basis of the characteristics of the hairpin structure of their precursor, a feature that distinguishes them from other endogenous small RNAs [40,42]. A total of 49 novel miRNAs were identified, of which 15 had corresponding miRNAs (Table S3). Among these miRNAs, 46 were detected in at least two independent small RNA libraries, and 38 were detected in all three. The novel mature miRNA sequences were 20–24 nt long; approximately half of them were 21 nt in length. We also found that the novel miRNAs were less abundant than the conserved miRNAs. These candidate novel miRNAs are likely to be new miRNAs or new members of known miRNA families in U. pumila.

3.4. Prediction of Potential miRNAs Targets in U. pumila

To understand the functions and potential regulatory roles of the novel and conserved miRNAs identified in this study, putative targets were predicted using the criteria and methods described above. In total, 232 target genes of U. pumila miRNAs were predicted (Table S4). In addition, 49 target genes were predicted for MIR156, while MIR159, MIR172, and MIR396 possessed 34, 16, and 14 target genes, respectively. Only a few target genes were predicted for MIR162, MIR166, MIR171, MIR394, MIR398, MIR535, and MIR1511 families. A number of upu-miRNAs (including upu-miR156/157, 159, 164, 397, and 398) were predicted to target known genes that play roles in plant responses to salt stress. These included SQUAMOSA-PROMOTER BINDING-LIKE (SPL) [43], MYB [44], NAM/ATAF/CUC (NAC) [45], several laccase genes [46], and copper/zinc superoxide dismutase genes [30].

3.5. miRNA Expression Profiles Between Libraries

To explore miRNA expression patterns under salt stress, the normalized expression of miRNA families in the CK library was compared with that in the LSS and MSL libraries, and their fold-changes were calculated. Compared with expressions in CK, 14 miRNA families showed an up-regulated tendency and 13 miRNA families showed a down-regulated tendency in LSS. Of these, five miRNA families (MIR399, MIR827, MIR393, MIR529, and MIR1536) were highly expressed and five miRNA families (MIR395, MIR1511, MIR172, MIR398, and MIR408) were weakly expressed (Figure 3A). In MSL, 15 miRNA families exhibited an up-regulated tendency and 12 miRNA families showed a down-regulated tendency compared with CK. Of these, seven miRNA families (MIR529, MIR1511, MIR1536, MIR162, MIR827, MIR398, and MIR159) were highly expressed and three (MIR164, MIR172, and MIR160) were weakly expressed (Figure 3B). The expression profiles of individual conserved miRNAs and novel miRNAs are shown in Tables S2 and S3. The expression patterns of these miRNAs suggest that they may play important roles in U. pumila under salt stress conditions.

3.6. Validation of Deep Sequencing Results by qRT-PCR

qRT-PCR, a reliable method to detect and measure miRNA expression levels, was used to experimentally validate the sequencing data [6,7]. In this study, six miRNAs (four conserved and two novel) were selected for validation. qRT-PCR results revealed similar expression patterns to the sequencing results (Figure 4) and confirmed the observed changes in miRNA expression in response to salt stress. For example, upu-miR399n expression showed a 2.08-fold decline under medium-heavy salt stress for a long time (Table S2), and a similar result was reflected in the qRT-PCR results, where an approximately two-fold reduction in expression was observed (Figure 4B).

4. Discussion

miRNAs are a class of non-coding small RNAs that play crucial roles in many developmental processes and in responses to various abiotic stresses in plants [3,4]. Many efforts have therefore been made to discover and identify miRNAs from different plant species. Traditional methods to identify miRNAs, such as Sanger sequencing and computational prediction, are slow and complicated. Moreover, such techniques do not always detect non-conserved or species-specific miRNAs that may accumulate at lower levels [30]. High-throughput sequencing technologies provide a rapid and more efficient approach for identifying novel species-specific or low-abundance miRNAs and for profiling populations of small RNAs at different plant developmental stages and under various environmental conditions [6,38].
Since its first use in the model species A. thaliana [47], high-throughput sequencing has contributed greatly to miRNA discovery and has been successfully applied to many different species, including peanut [48], barley [49], peach [50], moso bamboo [51], rubber tree [52], Nicotiana benthamiana Domin. [53], and Eucheuma denticulatum (N.L.Burman) F.S.Collins & A.B.Hervey [54]. To date, 6547 hairpin sequences and 7956 mature sequences have been identified from 66 species of angiosperms. These sequences have been deposited in the miRBase database (miRBase 21.0); however, sequence information for U. pumila miRNAs and indeed miRNAs of Ulmaceae plants is entirely absent from miRBase.
In the present study, we obtained tens of millions of small RNA sequences from salt stressed seedling roots of U. pumila. The small RNA sequences were aligned with Viridiplantae miRNAs in miRBase, enabling the identification of 254 conserved miRNAs representing 29 families. This result indicated that the majority of these miRNAs, already known from A. thaliana and other plant species, were detectable in U. pumila (Table 3). We also found that MIR159 was the largest miRNA family, with 31 members. In A. thaliana, the MIR159 family includes only three miRNAs, while the number of MIR159 family members in Populus trichocarpa Torr. & Gray, Malus domestica Borkh., Oryza sativa L., and Sorghum bicolor (L.) Moench is five, three, six, and two, respectively. MIR166, MIR171, and MIR399 had 17, 24 and 13 members, respectively, which are higher numbers than in other analyzed plant species (Table 3). Although these large miRNA families were usually expressed in U. pumila at relatively high levels (Table S2), some low-abundance miRNA families, such as MIR1536 and MIR2111, were also detected. A total of 49 novel miRNAs were identified. We also observed 15 pairs of sense and antisense miRNAs, with the antisense miRNA sequence usually paired to the corresponding miRNA with two overhanging 3′ nucleotides (Table S3). This observation indicates that the pairs of novel sense and antisense miRNAs originated from DCL1 processing, providing further evidence that they are true miRNAs [47,55,56].
Because of the unavailability of U. pumila genome sequences and the limited number of DNA and RNA sequences in public databases, a mRNA transcriptome (poly(A) enrichment of the mRNA) from U. pumila seedlings under different salt treatments was sequenced as a reference (SRA Database, SRP080724). Transcriptomes, however, cannot capture true pre-miRNA sequences because the latter are very short and devoid of poly-A tails; consequently, the sequences mapped by miRNA were likely pri-miRNAs [57]. Based on the hairpin structural characteristics of pre-miRNA, pre-miRNA sequences could subsequently be obtained from pri-miRNA sequences using bioinformatics approaches [27,28].
To help understand the functions of miRNAs in the regulation of salt defense responses in U. pumila, a total of 232 target genes were predicted, and miRNA expression patterns between different libraries were analyzed. Unlike most miRNA families, MIR393, MIR403, and MIR2111 had no predicted target genes. Many predicted miRNA targets are functional genes that play crucial roles in plant defense against different abiotic stresses. For instance, the copper/zinc superoxide dismutase gene, a predicted target of upu-miR398, is involved in plant response to abiotic stresses [58]. The MIR398 family tended to be down-regulated in LSS compared with CK, consistent with previous studies in A. thaliana and Caragana intermedia Kuang et H. C. Fu where miR398 expression was inhibited under salt stress [30,59]. The phosphoinositide phosphatase gene was predicted to be a target of upu-miR399, a result that has been verified in other plants [60,61]. The MIR399 family showed a down-regulated tendency in MSL compared with CK, consistent with previous research on Brassica napus L. in which miR399 expression was inhibited under salt stress [62]. Finally, the expressions of upu-miR398d and upu-miR399d were validated by qRT-PCR. These results suggest that the target mRNAs (stress tolerance-related genes) may be modulated by the different expression of their corresponding miRNAs in U. pumila during adaptation to salt stress.
This is the first report on U. pumila miRNAs and their target genes under salt stress. Our findings provide an overview of potential miRNAs and corresponding targets involved in the regulation of salt defense responses in U. pumila. Future investigations using supplementary experimental methods to verify the targets and determine the regulatory gene network underlying differential miRNA expression are required to provide novel information about the regulatory network of U. pumila under salt stress.

5. Conclusions

In this study, we used small RNA high-throughput sequencing and transcriptome sequences of U. pumila to identify 254 conserved miRNAs representing 29 families as well as 49 novel miRNAs and 232 potential miRNA targets. Expression profiling of miRNAs between libraries was performed, with the expressions of six miRNAs validated by qRT-PCR. This study provides data that can be used for further research into the molecular mechanisms involved in salt stress resistance of U. pumila and other Ulmaceae species.

Supplementary Materials

The following is available online at www.mdpi.com/1999-4907/7/12/318/s1. Table S1: qRT-PCR-validated miRNAs and their primers, Table S2: Conserved miRNAs identified in Ulmus pumila L., Table S3: Novel miRNAs identified in Ulmus pumila L., Table S4: Identification of putative targets for Ulmus pumila L. miRNAs.

Acknowledgments

The authors are grateful to the anonymous reviewers for their constructive comments. This research was supported by the Fundamental Research Funds for the Central Non-profit Research Institution of CAF (Project No. CAFYBB2014QA040) and the National Key Research and Development Program of China (Project No. 2016YFC0501303).

Author Contributions

J.Z. and H.Z. conceived and designed the experiments; J.Z. performed the experiments, analyzed the data, and drafted the manuscript; X.Y. and Z.L. aided in analyzing the data and performing the experiments; H.Z., J.Z., X.Y., and Z.L. contributed reagents/materials/analysis tools. All authors have read and approved this version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bartel, D.P. MicroRNAs: Genomics, Biogenesis, Mechanism, and Function. Cell 2004, 116, 281–297. [Google Scholar] [CrossRef]
  2. Carrington, J.C.; Ambros, V. Role of microRNAs in plant and animal development. Science 2003, 301, 336–338. [Google Scholar] [CrossRef] [PubMed]
  3. Jones-Rhoades, M.W.; Bartel, D.P.; Bartel, B. MicroRNAs and their regulatory roles in plants. Annu. Rev. Plant. Biol. 2006, 57, 19–53. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, X. MicroRNA biogenesis and function in plants. FEBS Lett. 2005, 579, 5923–5931. [Google Scholar] [CrossRef] [PubMed]
  5. Mallory, A.C.; Vaucheret, H. Functions of microRNAs and related small RNAs in plants. Nat. Genet. 2006, 38, S31–S36. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, Y.; Zhao, Z.; Deng, M.; Liu, R.; Niu, S.; Fan, G. Identification and functional analysis of microRNAs and their targets in Platanus acerifolia under lead (Pb) stress. Int. J. Mol. Sci. 2015, 16, 7098–7111. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, Y.; Wang, W.; Chen, J.; Liu, J.; Xia, M.; Shen, F. Identification of miRNAs and their targets in cotton inoculated with Verticillium dahliae by high-throughput sequencing and degradome analysis. Int. J. Mol. Sci. 2015, 16, 14749–14768. [Google Scholar] [CrossRef] [PubMed]
  8. Zhao, D.; Gong, S.; Hao, Z.; Tao, J. Identification of miRNAs responsive to Botrytis cinerea in herbaceous peony (Paeonia lactiflora pall.) by high-throughput sequencing. Genes 2015, 6, 918–934. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, B. MicroRNA: A new target for improving plant tolerance to abiotic stress. J. Exp. Bot. 2015, 66, 1749–1761. [Google Scholar] [CrossRef] [PubMed]
  10. Zhou, M.; Li, D.; Li, Z.; Hu, Q.; Yang, C.; Zhu, L.; Luo, H. Constitutive expression of a miR319 gene alters plant development and enhances salt and drought tolerance in transgenic creeping bentgrass. Plant Physiol. 2013, 161, 1375–1391. [Google Scholar] [CrossRef] [PubMed]
  11. Gao, P.; Bai, X.; Yang, L.; Lv, D.; Pan, X.; Li, Y.; Cai, H.; Ji, W.; Chen, Q.; Zhu, Y. Osa-MIR393: A salinity- and alkaline stress-related microRNA gene. Mol. Biol. Rep. 2011, 38, 237–242. [Google Scholar] [CrossRef] [PubMed]
  12. Kim, J.Y.; Kwak, K.J.; Jung, H.J.; Lee, H.J.; Kang, H. MicroRNA402 affects seed germination of Arabidopsis thaliana under stress conditions via targeting DEMETER-LIKE Protein3 mRNA. Plant Cell Physiol. 2010, 51, 1079–1083. [Google Scholar] [CrossRef] [PubMed]
  13. Shi, L.; Zhang, Z.J.; Zhang, C.Y.; Zhang, J.Z. Effects of sand burial on survival, growth, gas exchange and biomass allocation of Ulmus pumila seedlings in the hunshandak sandland, China. Ann. Bot. 2004, 94, 553–560. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, X.; Xu, L. Phenological responses of Ulmus pumila (siberian elm) to climate change in the temperate zone of China. Int. J. Biometeorol. 2012, 56, 695–706. [Google Scholar] [CrossRef] [PubMed]
  15. MA, C.G. A provenance test of white elm (Ulmus pumila L.) in China. Silvae. Genet. 1989, 38, 2. [Google Scholar]
  16. You, Y.O.; Choi, N.Y.; Kim, K.J. Ethanol extract of Ulmus pumila root bark inhibits clinically isolated antibiotic-resistant bacteria. Evid. Based Complement. Altern. Med. 2013, 2013, 269874. [Google Scholar] [CrossRef] [PubMed]
  17. Ghosh, C.; Chung, H.Y.; Nandre, R.M.; Lee, J.H.; Jeon, T.I.; Kim, I.S.; Yang, S.H.; Hwang, S.G. An active extract of Ulmus pumila inhibits adipogenesis through regulation of cell cycle progression in 3T3-L1 cells. Food Chem. Toxicol. 2012, 50, 2009–2015. [Google Scholar] [CrossRef] [PubMed]
  18. Zalapa, J.E.; Brunet, J.; Guries, R.P. Isolation and characterization of microsatellite markers for red elm (Ulmus rubra Muhl.) and cross-species amplification with siberian elm (Ulmus pumila L.). Mol. Ecol. Resour. 2008, 8, 109–112. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, Y.; Li, Y.; Xue, H.; Pritchard, H.W.; Wang, X. Reactive oxygen species-provoked mitochondria-dependent cell death during ageing of elm (Ulmus pumila L.) seeds. Plant J. 2015, 81, 438–452. [Google Scholar] [CrossRef] [PubMed]
  20. Cristiano, G.; Camposeo, S.; Fracchiolla, M.; Vivaldi, G.; De Lucia, B.; Cazzato, E. Salinity differentially affects growth and ecophysiology of two mastic tree (Pistacia lentiscus L.) accessions. Forests 2016, 7, 156. [Google Scholar] [CrossRef]
  21. Abbas, A.; Khan, S.; Hussain, N.; Hanjra, M.A.; Akbar, S. Characterizing soil salinity in irrigated agriculture using a remote sensing approach. Phys. Chem. Earth 2013, 55–57, 43–52. [Google Scholar] [CrossRef]
  22. Liu, B.X.; Wang, Z.G.; Liang, H.Y.; Yang, M.S. Effects of salt stress on physiological characters and salt-tolerance of Ulmus pumila in different habitats. Chin. J. Appl. Ecol. 2012, 23, 1481–1489. [Google Scholar]
  23. Zhu, J.F.; Yang, X.Y.; Zhang, Q.G.; Liu, Z.X.; Zhang, H.X. Effect of NaCl stress on seed germination and seedling growth in different families of Ulmus pumila. Seed 2016, 35, 29–32. [Google Scholar]
  24. Shavrukov, Y. Salt stress or salt shock: Which genes are we studying? J. Exp. Bot. 2013, 64, 119–127. [Google Scholar] [CrossRef] [PubMed]
  25. Sanchez, D.H.; Lippold, F.; Redestig, H.; Hannah, M.A.; Erban, A.; Kramer, U.; Kopka, J.; Udvardi, M.K. Integrative functional genomics of salt acclimatization in the model legume Lotus japonicus. Plant J. 2008, 53, 973–987. [Google Scholar] [CrossRef] [PubMed]
  26. Langmead, B.; Trapnell, C.; Pop, M.; Salzberg, S.L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009, 10, R25. [Google Scholar] [CrossRef] [PubMed]
  27. Friedlander, M.R.; Mackowiak, S.D.; Li, N.; Chen, W.; Rajewsky, N. miRdeep2 accurately identifies known and hundreds of novel microRNA genes in seven animal clades. Nucleic Acids Res. 2012, 40, 37–52. [Google Scholar] [CrossRef] [PubMed]
  28. Khaldun, A.B.; Huang, W.; Liao, S.; Lv, H.; Wang, Y. Identification of microRNAs and target genes in the fruit and shoot tip of Lycium chinense: A traditional chinese medicinal plant. PLoS ONE 2015, 10, e0116334. [Google Scholar] [CrossRef] [PubMed]
  29. Wen, M.; Shen, Y.; Shi, S.; Tang, T. miREvo: An integrative microRNA evolutionary analysis platform for next-generation sequencing experiments. BMC Bioinform. 2012, 13, 140. [Google Scholar] [CrossRef] [PubMed]
  30. Zhu, J.; Li, W.; Yang, W.; Qi, L.; Han, S. Identification of microRNAs in Caragana intermedia by high-throughput sequencing and expression analysis of 12 microRNAs and their targets under salt stress. Plant Cell Rep. 2013, 32, 1339–1349. [Google Scholar] [CrossRef] [PubMed]
  31. Ekimler, S.; Sahin, K. Computational methods for microRNA target prediction. Genes 2014, 5, 671–683. [Google Scholar] [CrossRef] [PubMed]
  32. Wu, H.J.; Ma, Y.K.; Chen, T.; Wang, M.; Wang, X.J. psRobot: A web-based plant small RNA meta-analysis toolbox. Nucleic Acids Res. 2012, 40, W22–W28. [Google Scholar] [CrossRef] [PubMed]
  33. De Paola, D.; Cattonaro, F.; Pignone, D.; Sonnante, G. The miRNAome of globe artichoke: Conserved and novel microRNAs and target analysis. BMC Genom. 2012, 13, 41. [Google Scholar] [CrossRef] [PubMed]
  34. Xie, F.; Frazier, T.P.; Zhang, B. Identification and characterization of microRNAs and their targets in the bioenergy plant switchgrass (Panicum virgatum). Planta 2010, 232, 417–434. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, L.; Chen, J.; Li, Z.; Li, X.; Hu, X.; Huang, Y.; Zhao, X.; Liang, C.; Wang, Y.; Sun, L.; et al. Integrated profiling of microRNAs and mRNAs: MicroRNAs located on Xq27.3 associate with clear cell renal cell carcinoma. PLoS ONE 2010, 5, e15224. [Google Scholar] [CrossRef] [PubMed]
  36. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome Biol. 2010, 11, R106. [Google Scholar] [CrossRef] [PubMed]
  37. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  38. Saminathan, T.; Bodunrin, A.; Singh, N.V.; Devarajan, R.; Nimmakayala, P.; Jeff, M.; Aradhya, M.; Reddy, U.K. Genome-wide identification of microRNAs in pomegranate (Punica granatum L.) by high-throughput sequencing. BMC Plant Biol. 2016, 16, 122. [Google Scholar] [CrossRef] [PubMed]
  39. Lakhotia, N.; Joshi, G.; Bhardwaj, A.R.; Katiyar-Agarwal, S.; Agarwal, M.; Jagannath, A.; Goel, S.; Kumar, A. Identification and characterization of miRNAome in root, stem, leaf and tuber developmental stages of potato (Solanum tuberosum L.) by high-throughput sequencing. BMC Plant Biol. 2014, 14, 6. [Google Scholar] [CrossRef] [PubMed]
  40. Meyers, B.C.; Axtell, M.J.; Bartel, B.; Bartel, D.P.; Baulcombe, D.; Bowman, J.L.; Cao, X.; Carrington, J.C.; Chen, X.; Green, P.J.; et al. Criteria for annotation of plant microRNAs. Plant Cell 2008, 20, 3186–3190. [Google Scholar] [CrossRef] [PubMed]
  41. Zhang, B.; Pan, X.; Cannon, C.H.; Cobb, G.P.; Anderson, T.A. Conservation and divergence of plant microRNA genes. Plant J. 2006, 46, 243–259. [Google Scholar] [CrossRef] [PubMed]
  42. Ambros, V.; Bartel, B.; Bartel, D.P.; Burge, C.B.; Carrington, J.C.; Chen, X.; Dreyfuss, G.; Eddy, S.R.; Griffiths-Jones, S.; Marshall, M.; et al. A uniform system for microRNA annotation. RNA 2003, 9, 277–279. [Google Scholar] [CrossRef] [PubMed]
  43. Stief, A.; Altmann, S.; Hoffmann, K.; Pant, B.D.; Scheible, W.R.; Baurle, I. Arabidopsis miR156 regulates tolerance to recurring environmental stress through SPL transcription factors. Plant Cell 2014, 26, 1792–1807. [Google Scholar] [CrossRef] [PubMed]
  44. Achard, P.; Herr, A.; Baulcombe, D.C.; Harberd, N.P. Modulation of floral development by a gibberellin-regulated microRNA. Development 2004, 131, 3357–3365. [Google Scholar] [CrossRef] [PubMed]
  45. Guo, H.S.; Xie, Q.; Fei, J.F.; Chua, N.H. MicroRNA directs mRNA cleavage of the transcription factor NAC1 to downregulate auxin signals for Arabidopsis lateral root development. Plant Cell 2005, 17, 1376–1386. [Google Scholar] [CrossRef] [PubMed]
  46. Lu, S.; Li, Q.; Wei, H.; Chang, M.J.; Tunlaya-Anukit, S.; Kim, H.; Liu, J.; Song, J.; Sun, Y.H.; Yuan, L.; et al. Ptr-miR397a is a negative regulator of laccase genes affecting lignin content in Populus trichocarpa. Proc. Natl. Acad. Sci. USA 2013, 110, 10848–10853. [Google Scholar] [CrossRef] [PubMed]
  47. Rajagopalan, R.; Vaucheret, H.; Trejo, J.; Bartel, D.P. A diverse and evolutionarily fluid set of microRNAs in Arabidopsis thaliana. Gene Dev. 2006, 20, 3407–3425. [Google Scholar] [CrossRef] [PubMed]
  48. Chi, X.; Yang, Q.; Chen, X.; Wang, J.; Pan, L.; Chen, M.; Yang, Z.; He, Y.; Liang, X.; Yu, S. Identification and characterization of microRNAs from peanut (Arachis hypogaea L.) by high-throughput sequencing. PLoS ONE 2011, 6, e27530. [Google Scholar] [CrossRef] [PubMed]
  49. Lv, S.; Nie, X.; Wang, L.; Du, X.; Biradar, S.S.; Jia, X.; Weining, S. Identification and characterization of microRNAs from barley (Hordeum vulgare L.) by high-throughput sequencing. Int. J. Mol. Sci. 2012, 13, 2973–2984. [Google Scholar] [CrossRef] [PubMed]
  50. Zhang, C.; Zhang, B.; Ma, R.; Yu, M.; Guo, S.; Guo, L.; Korir, N.K. Identification of known and novel microRNAs and their targets in peach (Prunus persica) fruit by high-throughput sequencing. PLoS ONE 2016, 11, e0159253. [Google Scholar] [CrossRef] [PubMed]
  51. Gao, J.; Ge, W.; Zhang, Y.; Cheng, Z.; Li, L.; Hou, D.; Hou, C. Identification and characterization of microRNAs at different flowering developmental stages in moso bamboo (Phyllostachys edulis) by high-throughput sequencing. Mol. Genet. Genom. 2015, 290, 2335–2353. [Google Scholar] [CrossRef] [PubMed]
  52. Lertpanyasampatha, M.; Gao, L.; Kongsawadworakul, P.; Viboonjun, U.; Chrestin, H.; Liu, R.; Chen, X.; Narangajavana, J. Genome-wide analysis of microRNAs in rubber tree (Hevea brasiliensis L.) using high-throughput sequencing. Planta 2012, 236, 437–445. [Google Scholar] [CrossRef] [PubMed]
  53. Baksa, I.; Nagy, T.; Barta, E.; Havelda, Z.; Varallyay, E.; Silhavy, D.; Burgyan, J.; Szittya, G. Identification of Nicotiana benthamiana microRNAs and their targets using high throughput sequencing and degradome analysis. BMC Genom. 2015, 16, 1025. [Google Scholar] [CrossRef] [PubMed]
  54. Gao, F.; Nan, F.; Feng, J.; Lv, J.; Liu, Q.; Xie, S. Identification and characterization of microRNAs in Eucheuma denticulatum by high-throughput sequencing and bioinformatics analysis. RNA. Biol. 2016, 13, 343–352. [Google Scholar] [CrossRef] [PubMed]
  55. Kulcheski, F.R.; de Oliveira, L.F.V.; Molina, L.G.; Almerão, M.P.; Rodrigues, F.A.; Marcolino, J.; Barbosa, J.F.; Stolf-Moreira, R.; Nepomuceno, A.L.; Marcelino-Guimarães, F.C.; et al. Identification of novel soybean microRNAs involved in abiotic and biotic stresses. BMC Genom. 2011, 12, 307. [Google Scholar] [CrossRef] [PubMed]
  56. Axtell, M.J.; Snyder, J.A.; Bartel, D.P. Common functions for diverse small RNAs of land plants. Plant Cell 2007, 19, 1750–1769. [Google Scholar] [CrossRef] [PubMed]
  57. Xu, L.; Wang, Y.; Zhai, L.; Xu, Y.; Wang, L.; Zhu, X.; Gong, Y.; Yu, R.; Limera, C.; Liu, L. Genome-wide identification and characterization of cadmium-responsive microRNAs and their target genes in radish (Raphanus sativus L.) roots. J. Exp. Bot. 2013, 64, 4271–4287. [Google Scholar] [CrossRef] [PubMed]
  58. Wu, G.; Wilen, R.W.; Robertson, A.J.; Gusta, L.V. Isolation, chromosomal localization, and differential expression of mitochondrial manganese superoxide dismutase and chloroplastic copper/zinc superoxide dismutase genes in Wheat. Plant Physiol. 1999, 120, 513–520. [Google Scholar] [CrossRef] [PubMed]
  59. Jagadeeswaran, G.; Saini, A.; Sunkar, R. Biotic and abiotic stress down-regulate miR398 expression in Arabidopsis. Planta 2009, 229, 1009–1014. [Google Scholar] [CrossRef] [PubMed]
  60. Bari, R.; Datt Pant, B.; Stitt, M.; Scheible, W.R. PHO2, MicroRNA399, and PHR1 define a phosphate-signaling pathway in plants. Plant Physiol. 2006, 141, 988–999. [Google Scholar] [CrossRef] [PubMed]
  61. Pant, B.D.; Buhtz, A.; Kehr, J.; Scheible, W.R. MicroRNA399 is a long-distance signal for the regulation of plant phosphate homeostasis. Plant J. 2008, 53, 731–738. [Google Scholar] [CrossRef] [PubMed]
  62. Jian, H.; Wang, J.; Wang, T.; Wei, L.; Li, J.; Liu, L. Identification of rapeseed microRNAs involved in early stage seed germination under salt and drought stresses. Front. Plant Sci. 2016, 7, 658. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Small RNA length distribution in Ulmus pumila L.. CK, without salt stress; LSS, light salt stress for a short time; and MSL, medium-heavy salt stress for a long time.
Figure 1. Small RNA length distribution in Ulmus pumila L.. CK, without salt stress; LSS, light salt stress for a short time; and MSL, medium-heavy salt stress for a long time.
Forests 07 00318 g001

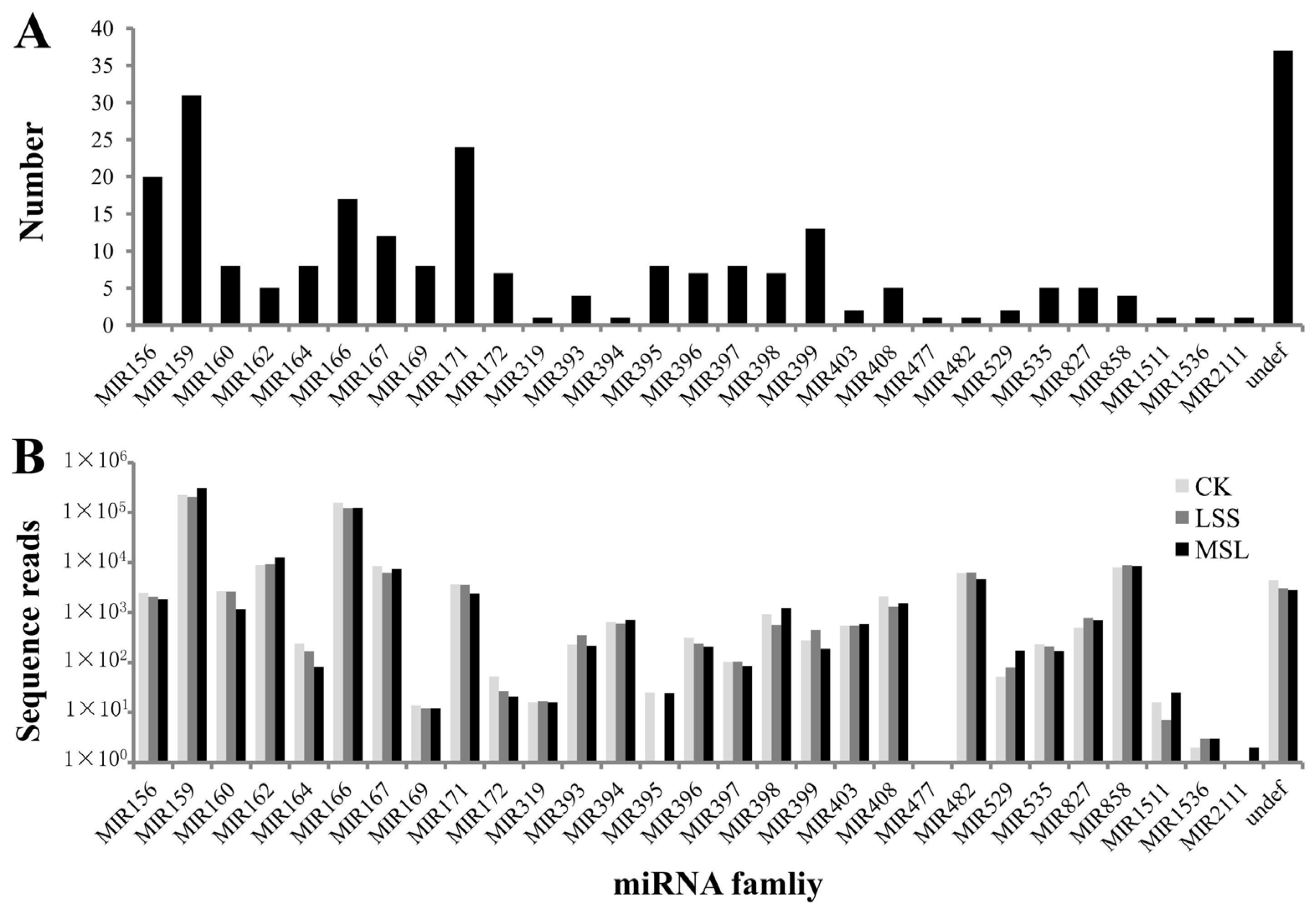

Figure 2. Number and abundance of conserved miRNAs for each miRNA family. (A) Number of conserved miRNAs for each miRNA family; (B) Abundance of conserved miRNAs for each miRNA family. CK, without salt stress; LSS, light salt stress for a short time; and MSL, medium-heavy salt stress for a long time; Undef, conserved miRNAs that have not been classified into miRNA families in the miRbase database.
Figure 2. Number and abundance of conserved miRNAs for each miRNA family. (A) Number of conserved miRNAs for each miRNA family; (B) Abundance of conserved miRNAs for each miRNA family. CK, without salt stress; LSS, light salt stress for a short time; and MSL, medium-heavy salt stress for a long time; Undef, conserved miRNAs that have not been classified into miRNA families in the miRbase database.
Forests 07 00318 g002

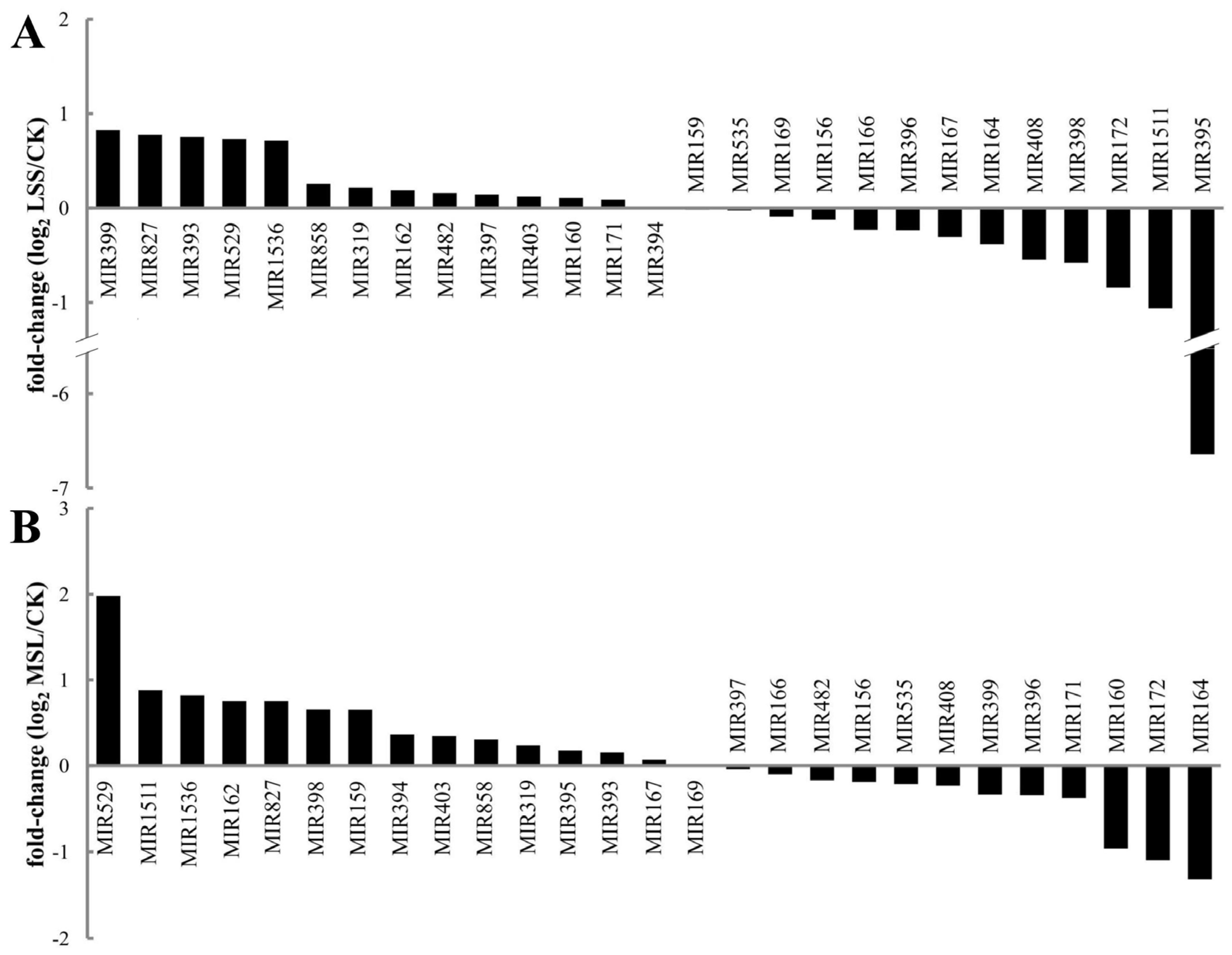

Figure 3. Expression profiles of miRNA families generated via deep sequencing. (A) Expression profiles of miRNA families between LSS (light salt stress for a short time) and CK (without salt stress) libraries; (B) Expression profiles of miRNA families between MSL (medium-heavy salt stress for a long time) and CK libraries.
Figure 3. Expression profiles of miRNA families generated via deep sequencing. (A) Expression profiles of miRNA families between LSS (light salt stress for a short time) and CK (without salt stress) libraries; (B) Expression profiles of miRNA families between MSL (medium-heavy salt stress for a long time) and CK libraries.
Forests 07 00318 g003

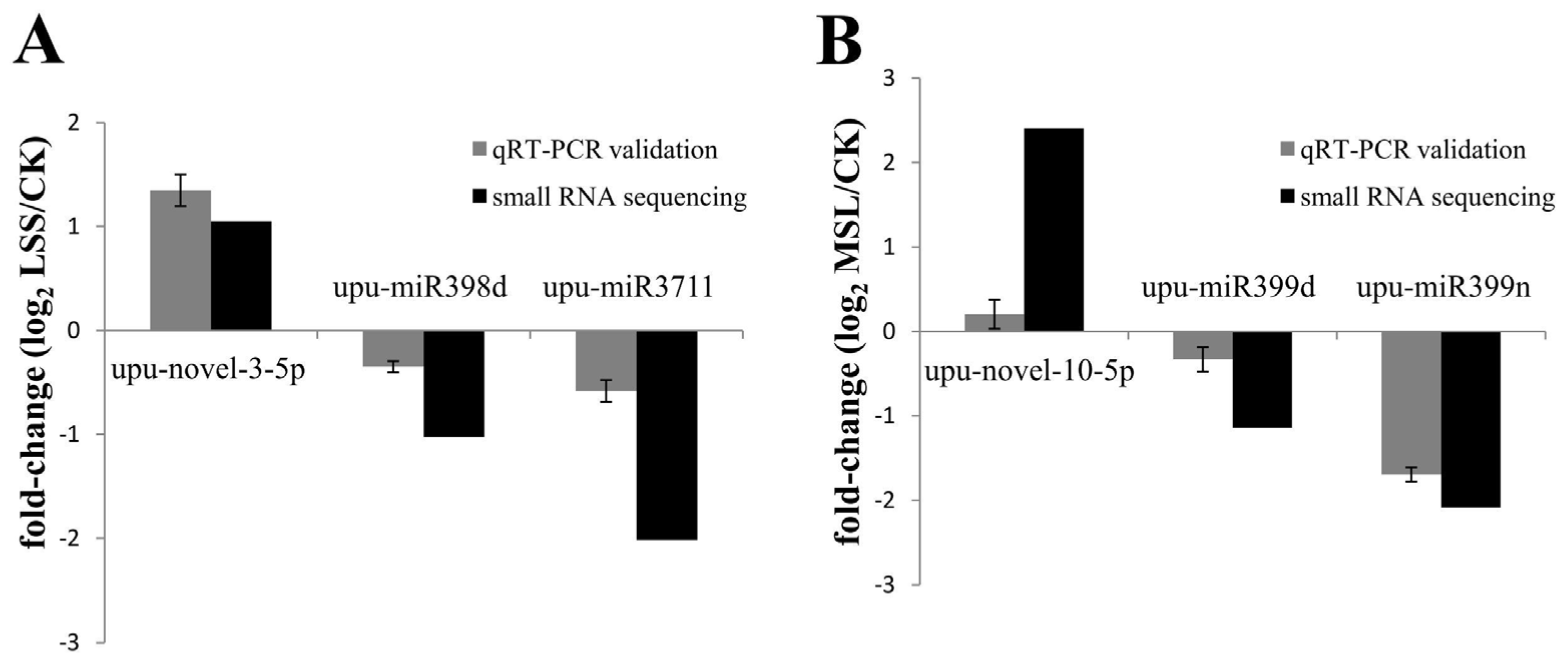

Figure 4. qRT-PCR validation of differentially expressed miRNAs in Ulmus pumila L. roots under salt stress. (A) Relative expression analysis of miRNAs by qRT-PCR analysis and high-throughput sequencing between LSS (light salt stress for a short time) and CK (without salt stress) libraries; (B) Relative expression analysis of miRNAs by qRT-PCR analysis and high-throughput sequencing between MSL (medium-heavy salt stress for a long time) and CK libraries. Error bars indicate standard deviations.
Figure 4. qRT-PCR validation of differentially expressed miRNAs in Ulmus pumila L. roots under salt stress. (A) Relative expression analysis of miRNAs by qRT-PCR analysis and high-throughput sequencing between LSS (light salt stress for a short time) and CK (without salt stress) libraries; (B) Relative expression analysis of miRNAs by qRT-PCR analysis and high-throughput sequencing between MSL (medium-heavy salt stress for a long time) and CK libraries. Error bars indicate standard deviations.
Forests 07 00318 g004
Table 1. Experimental design and sample collection of salt-treated 30-day-old seedlings.
Table 1. Experimental design and sample collection of salt-treated 30-day-old seedlings.
Sample NamesThe Time Points of Salt Treatment and Sample Collection
−102 h−72 h−48 h−24 h−6 h0 h
CK (0) sample collection
LSS (50 mM) 50 mMsample collection
MSL (200 mM)50 mM50 mM50 mM50 mM sample collection
CK, without salt stress; LSS, light salt stress for a short time; MSL, medium-heavy salt stress for a long time.
Table 2. Overview of small RNA reads from three small RNA libraries.
Table 2. Overview of small RNA reads from three small RNA libraries.
CategoryCKLSSMSL
Total Small RNAs (%)Unique Small RNAs (%)Total Small RNAs (%)Unique Small RNAs (%)Total Small RNAs (%)Unique Small RNAs (%)
Raw reads11,073,886 8,469,247 9,159,614
Clean reads (18–30 nt)7,655,6413,162,2546,291,0432,930,4177,153,7802,877,526
Clean reads mapping to transcriptome of Ulmus pumila L.4,175,143 (100%)748,789 (100%)2,953,860 (100%)602,673 (100%)3,893,883 (100%)676,645 (100%)
rRNA, snRNA, snoRNA, and tRNA802,856 (19.23%)44,528 (5.95%)527,510 (17.86%)38,240 (6.35%)644,135 (16.54%)37,383 (5.52%)
Known miRNA218,706 (5.24%)824 (0.11%)202,718 (6.86%)820 (0.14%)274,876 (7.06%)774 (0.11%)
Unannotated3,153,581 (75.53%)703,437 (93.94%)2,223,632 (75.28%)563,613 (93.52%)2,974,872 (76.40%)638,488 (94.36%)
CK, without salt stress; LSS, light salt stress for a short time; MSL, medium-heavy salt stress for a long time.
Table 3. miRNA family members in Ulmus pumila L. and other plant species according to miRBase 21.0, and U. pumila miRNA family predicted targets.
Table 3. miRNA family members in Ulmus pumila L. and other plant species according to miRBase 21.0, and U. pumila miRNA family predicted targets.
miRNA familyUlmus pumila L. *Arabidopsis thaliana (L.) Heynh.Populus trichocarpa Torr. & GrayMalus domestica Borkh.Oryza sativa L.Sorghum bicolor (L.) MoenchPredicted Targets #
MIR1562014122912949
MIR159313536234
MIR1608385661
MIR1625222212
MIR1648366653
MIR16617917913112
MIR1671248101093
MIR16981433618176
MIR17124413159112
MIR172759154616
MIR3191393222
MIR3934536220
MIR3941222122
MIR39586119251212
MIR39672778514
MIR3978232315
MIR3987333612
MIR399136101011119
MIR4032142000
MIR4085114114
MIR4771042000
MIR4821044004
MIR52920002111
MIR5355004102
MIR8275111100
MIR8584201006
MIR15111001002
MIR15361000000
MIR21111222000
* number of miRNA family members for U. pumila according to our study data; # number of U. pumila miRNA family predicted targets.
