Article

Assessing the Likelihood of Failure Due to Stem Decay Using Different Assessment Techniques

1
Department of Environmental Conservation, University of Massachusetts—Amherst, Amherst, MA 01003, USA
2
Center for Agriculture, Food and the Environment, University of Massachusetts—Amherst, Amherst, MA 01003, USA
3
HortScience|Bartlett Consulting, Berkeley, CA 94710, USA
4
Department of Horticulture and Landscape Architecture, Colorado State University, Fort Collins, CO 80523, USA
*
Author to whom correspondence should be addressed.
Forests 2023, 14(5), 1043; https://doi.org/10.3390/f14051043
Submission received: 24 April 2023 / Revised: 10 May 2023 / Accepted: 16 May 2023 / Published: 18 May 2023
(This article belongs to the Special Issue Prediction and Management of Urban Forest Storm Damage)

Abstract

:
Arborists commonly investigate the extent of stem decay to assess the likelihood of stem failure when conducting tree risk assessments. Studies have shown that: (i) arborists can sometimes judge the extent of internal decay based on external signs; (ii) sophisticated tools can reliably illustrate the extent of internal decay; and (iii) assessing components of tree risk can be highly subjective. We recruited 18 experienced tree risk assessors who held the International Society of Arboriculture’s Tree Risk Assessment Qualification (TRAQ) to assess the likelihood of stem failure due to decay after each of five consecutive assessments on 30 individuals of 2 genera. The five assessment techniques, in stepwise order, were: (1) observing visually, (2) sounding the trunk with a mallet, (3) viewing a scaled diagram of the cross-section that revealed sound and decayed wood ascertained from resistance drilling, (4) viewing sonic and electrical resistance tomograms, and (5) consulting with a peer. For each technique, the assessors assigned two or more likelihood of failure ratings (LoFRs) for at least 83% of trees, which were proportionally greatest after the assessors viewed the tomograms; the proportions did not differ among the other four assessment techniques. Covariates that influenced the distribution of the LoFRs included percent of the cross-section that was decayed, and assessors’ experience using resistance drilling devices and tomography in regular practice. Practitioners should be aware that disagreement on the likelihood of tree failure exists even among experienced arborists.

1. Introduction

Urban forests and greenspaces are increasingly considered an important priority for improving the sustainability, resilience, and livability of the urban landscape [1]. Trees in the urban forest provide many benefits such as air pollution reduction [2], storm water runoff attenuation [3], carbon sequestration [4], and building energy conservation [5]. Benefits generally increase as the size of trees increase [6], but as trees mature they are more likely to develop decay, which increases their likelihood of failure [7]. In built environments, tree failures can result in fatalities [8], power outages [9], and catastrophic fires [10], and damage from failures is associated with higher costs [11] and legal liability [12].
Arborists have assessed tree risk for many years. Recent revisions have brought the process into better alignment with risk assessment practices used in other disciplines. The current U.S. standard considers (1) the likelihood of a tree failure, (2) the likelihood of the impact of a tree or tree part on a target, and (3) the severity of the consequence if impact were to occur. Arborists assign one of four ratings regarding the likelihood of failure (improbable, possible, probable, or imminent) that are defined as follows [13]:
  • Improbable: The tree or tree part is not likely to fail during normal weather conditions and may not fail in extreme weather conditions within the specified time frame.
  • Possible: Failure may be expected in extreme weather conditions, but it is unlikely during normal weather conditions within the specified time frame.
  • Probable: Failure may be expected under normal weather conditions within the specified time frame.
  • Imminent: Failure has started or is most likely to occur in the near future, even if there is no significant wind or increased load. This is a rare occurrence for a risk assessor to encounter and may require immediate action to protect people from harm. The imminent category overrides the stated time frame.
Decay is a common defect that is often associated with tree failure [7,14,15]. Decay reduces load-bearing capacity by reducing wood strength and, if wood components are completely digested, by creating voids that reduce the cross-sectional area. Many tools and techniques to detect and assess the extent of decay have been developed. Some are simple (e.g., sounding the stem with a mallet), whereas others are sophisticated (e.g., resistance drills and tomography) [16]. Many studies have investigated how well decay detection tools and techniques work [17,18,19,20,21,22,23,24].
Despite advancements in decay detection tools and techniques, many aspects of risk assessment remain uncertain because of the lack of knowledge about how trees grow and fail. Uncertainty may also be exacerbated by assessor bias, including an assessor’s personal risk tolerance [25]. Cognitive studies on human risk perception attribute an individual’s attitude towards risk to personal experiences [26,27], personal fears [28], and biases shared by communities [29]. An assessor’s training also influences ratings: trained professionals tend to return lower likelihood of failure ratings (LoFRs) than those without training [25,30].
Our objectives for this study were as follows:
  • To determine whether more detailed information about the extent of trunk decay influences experienced assessors’ LoFRs and, if so,
  • To identify factors related to assessors and trees that explain the influence.

2. Materials and Methods

The study took place on the campus of the University of Massachusetts in Amherst, Mass., USA (USDA Hardiness Zone 5b). In July 2021, 18 experienced arborists who held the International Society of Arboriculture’s (ISA) Tree Risk Assessment Qualification (TRAQ) (among other credentials) assessed the likelihood of stem failure due to decay of 30 trees using 5 (basic and advanced) assessment techniques.
We selected trees for the field assessment based on practical considerations. The first was the availability of sonic and electrical resistance (ER) tomograms taken of the trunk, which were taken within 2 m of the ground. These tomograms had been previously obtained using a PiCUS Sonic Tomograph 3, a TreeTronic 3 for ERT, and the Caliper 3 Geometry Measurement System (Argus Electronic GMBH, Rostock, Germany) following the methods of [23]. A second consideration was variation in the compartmentalization response: weak (Pinus) and strong (Quercus). Finally, only (i) larger individuals (>50 cm stem diameter measured 1.4 m above ground (“DBH”)) and (ii) individuals that were close enough to one another that they could be grouped by location were selected. In the latter case, we selected individuals in six discrete clusters around the campus. We selected clusters of individuals for two reasons: (i) they included a variety of landscape settings (open space or near infrastructure such as roads, buildings, and parking lots); and (ii) they limited travel time to maximize the number of individuals that could be assessed in the two days when assessors visited campus. Prior to conducting the study, we pre-tested the methods and determined an efficient route to assess as many trees as possible in two days.
We recruited assessors from our professional networks, inviting only experienced assessors who (i) held the TRAQ credential, (ii) regularly performed risk assessments as part of their professional practice, and (iii) were familiar with advanced decay detection techniques such as resistance drilling and tomography. We offered continuing education units to assessors, but did not offer financial compensation nor reimbursement of travel expenses.
Before assessors arrived on campus in July 2020 to participate in the study, we used a Resistograph® F500-S (IML North America, Moultonborough, NH, USA) to determine the thickness of sound wood (t) between three and six locations spaced at approximately even intervals around the stem circumference and at the same height as the tomogram. For each location, we computed the t/R ratio, where R is the trunk radius [31]. We flagged the stem to indicate the locations of the tomography and Resistograph measurements (Figure 1).
We provided each assessor a binder that included a sheet for each tree. The sheet contained the following information: genus and species, the DBH, height, the Resistograph output (Figure 2), and the sonic and ERT tomograms (Figure 3). Output from the Resistograph included a scaled diagram of the cross-section of the stem and lines indicating where the drillings were made, the height and stem diameter where the drillings were made, the mean t value, and a table of all t/R values. The tomograms included the percentage of the cross-sectional area that was sound or decayed. The decayed proportion of the cross-section was computed automatically from the combined areas of blue and purple in the sonic tomogram. Since we used the default settings (SoT1 calculation option and minimum velocity established at 50%), the resulting tomogram depicts the greatest possible area of decay in comparison to those generated using SoT2 and an expanded color space to view the minimum percent velocities. However, the computed proportion of decayed wood indicated at the top of the tomogram that assessors viewed during the study (e.g., Figure 3) did not include areas of intermediate velocities. We explained this to the assessors prior to the field study. After the field study, we computed the loss in section modulus due to decay (ZLOSS) from each sonic tomogram following the method of [32].
We instructed assessors to assign a rating of the likelihood of stem failure due to decay (“LoFR”) within 2 m of the ground and reminded them not to assess the likelihood of failure of other parts of the tree. We used LoFRs from [13] and provided assessors with the definitions (listed in the Introduction). We instructed assessors to assign their LoFR based on a timeframe of three years.
The assessors performed five consecutive assessments of the LoFR. In order, the assessments were as follows:
  • Performing a visual assessment of the tree and its surroundings;
  • Sounding the trunk with a plastic mallet;
  • Viewing the Resistograph output (Figure 2);
  • Viewing the tomograms (Figure 3);
  • Consulting with a randomly assigned assessor.
Assessment techniques (a) and (b) are part of the Level 2 (“basic”) risk assessment [13]. Assessment techniques (c) and (d) are more sophisticated techniques to assess the amount and location (i.e., the “extent”) of decay and are part of the Level 3 (“advanced”) risk assessment [13]. For odd-numbered trees, assessors viewed the resistance drilling output (c) before viewing the tomogram (d); for even-numbered trees, assessors viewed the tomogram first. Consulting with a peer is not explicitly recommended in common professional guidelines [13,33]. Within each cluster of trees, assessors were randomly paired and inspected individual trees at their own pace.
After each of the five assessments ((a)–(e)) on a tree, the assessors completed a survey to indicate their LoFR and describe the factor(s) (e.g., species, decay severity, tree size, exposure, lean, crown, etc.) that most influenced their LoFR, and if the additional information gained in the assessment technique changed their LoFR.
Assessors also self-reported the following information on the survey: years of experience performing tree risk assessments; number of trees assessed annually; relevant credentials in addition to the TRAQ; and how frequently they use assessment techniques (b), (c), and (d) as part of their professional practice.
During the field study, not every assessor completed all five assessments of every tree. As a result, approximately 15% of the expected dataset was missing values. We used multivariate imputation by chained equations [34,35] to impute the most likely value for each missing value to obtain a full dataset prior to OLR analyses.
The university campus is well maintained, and no assessor assigned an LoFR of four (“imminent”) to any tree. Consequently, we coded the LoFRs ordinally as one (“improbable”), two (“possible”), or three (“probable”) and built ordinal logistic regression (OLR) models to investigate the effect of assessment technique on the LoFR. All analyses were performed using the statistical language R, v4.1.2 [36]. In the OLR models, we included covariates describing trees (genus; DBH; percent of cross-sectional area with decay (from tomograms); average sound wood thickness (t) from the Resistograph output; t/R, where R is the stem radius; ZLOSS) and participants (years of experience; frequency of using a mallet, resistance drilling, and tomography when conducting risk assessments). We also included tree and assessor identification as random effects in each OLR model. We built models with the “clmm” function from the “Ordinal” package by iteratively adding covariates as single effects or interactions with the main effect of the assessment technique [37]. Since the order of assessments differed between even- (viewed tomogram before Resistograph output) and odd-numbered (viewed Resistograph output before tomogram) trees, the variable “assessment technique” contained ten levels that represented an interaction between the five assessment techniques and even- or odd-numbered trees. We then selected the best model using the lowest AICc scores.
In addition to the OLR analyses, we created a contingency table with four rows (one for each of the assessment techniques that followed the initial visual assessment) and two columns (to indicate whether the additional information gained for the assessment technique changed (“Yes”) or did not change (“No”) assessors’ LoFRs). We used a χ 2 test to determine whether the proportion of affirmative and negative responses varied among assessment techniques.
Lastly, we investigated the influence of the random variables in the OLR model (assessor and tree) on the LoFR. To investigate the influence of assessors, we evaluated if the consistency in assessor LoFRs changed among the five assessment techniques or four frequency-of-use categories of the tomogram or Resistograph. We quantified LoFR consistency with the “betadisper” function in the “vegan” package, which performed a multivariate test of homogeneity of variances on a Bray–Curtis (rank-based) dissimilarity matrix of the proportional distribution of LoFRs [38]. A multivariate approach was needed to evaluate inconsistencies in LoFRs with a single test.
To investigate the influence of trees between the initial visual assessment and each subsequent assessment technique, we computed the ratio of the weighted mean change in the LoFR to the proportion of unchanged LoFRs for each tree. The ratio illustrated the frequency, magnitude, and direction of changes in the LoFRs from the initial visual assessment. We computed the ratio ( R ) as follows:
  • Compute the difference in the LoFR from the initial visual LoFR:
    Δ LoFR i j k = LoFR i j k LoFR v j k ,
    where i , j , and k , are indices for the 4 assessment techniques following the initial visual assessment (indicated by the subscript v ), the 30 trees, and the 18 assessors, respectively.
  • Compute the proportion of unchanged LoFRs (i.e., Δ LoFR = 0 ) for each tree and assessment technique:
    κ i j = Δ LoFR i j = 0 Δ LoFR i j .
  • Compute the weighted mean change in the LoFR:
    Δ LoFR i j ¯ = i j Δ LoFR i j ω i j Δ LoFR i j ,
    where ω is a weighting factor of 1 (for LoFRs that changed one level from the initial visual assessment, e.g., from probable to possible or improbable to possible) or 2 (for LoFRs that changed two levels, e.g., from probable to improbable).
  • For each tree and assessment technique,
    R i j = Δ LoFR i j ¯ κ i j .
We thus computed 30 values of R for each of the 4 assessment techniques that followed the initial visual assessment. From the resulting distribution of 120 values of R , we considered only values in the upper and lower quartiles as having an increased and decreased LoFR, respectively. We considered values of R within the interquartile range (IQR) as having the same LoFR as the initial visual assessment. In the rest of the paper, we refer to “increased”, “decreased”, or “unchanged” LoFRs rather than values of R in the upper quartile, lower quartile, and IQR, respectively.
We described the basic assessment techniques as “consistent” if the LoFR assigned in the mallet assessment was unchanged from the initial visual assessment, and “inconsistent” if the LoFR assigned in the mallet assessment was greater or less than in the initial visual assessment. We described the advanced assessment techniques as consistent if the change in the LoFR from the initial visual assessment was the same for both advanced assessment techniques. We described the advanced assessment techniques as inconsistent if the change in the LoFR from the initial visual assessment was not the same for both advanced assessment techniques. With respect to changes in LoFRs from the initial visual assessment, we described the effect of the consultation assessment as “confirming” (or not) the basic and advanced assessments. If the LoFR assigned in the mallet and consultation assessments was unchanged from the initial visual assessment, the consultation assessment confirmed the basic assessment techniques. Similarly, if the LoFR was greater than or less than the initial visual assessment for both advanced assessment techniques and the consultation assessment, the consultation confirmed the advanced assessment techniques.

3. Results

3.1. Assessors

On average, assessors held the TRAQ credential for 6.1 years (standard deviation of 3.1 years). Some assessors additionally held the following credentials: ISA Board Certified Master Arborist (39%), American Society of Consulting Arborists (ASCA) Registered Consulting Arborist (39%), and an advanced degree (M.S. or Ph.D.) in arboriculture or a related field (67%). All assessors conducted tree risk assessments as part of their job; the mean years of practice was 14.3 (standard deviation of 10.8 years) with a mean of 425 trees assessed annually (standard deviation of 737 trees). Table 1 includes assessors’ responses to inquiries about their level of experience with the techniques and tools used in the study. Nearly all “often” conduct basic visual assessments using a mallet, whereas a majority often or “occasionally” use a resistance recording drill, sonic tomography, or both.

3.2. Trees

Trees were semimature to mature and large, with proportions typical of open-grown trees (Table 2). Table 2 also includes (i) the stem height at which tomography and Resistograph drilling were conducted, and (ii) the following covariates included in the OLR models for each tree: mean t value, minimum t/R ratio, percent of decayed wood in the stem cross-section, and ZLOSS.
Table 3 includes the fixed effects and interactions of the best OLR model to predict the LoFR. The assessment technique influenced the predicted proportions of improbable, possible, and probable LoFRs (Table 3). The proportion of improbable LoFRs was the smallest after assessors viewed tomograms; meanwhile, the proportions of improbable, possible, and probable LoFRs were statistically similar among the other four assessment techniques (Figure 4). There were also significant interactions between the assessment technique and the following covariates: percentage of decayed wood in the cross-section, mean t, and how often a participant uses resistance drilling in professional practice (Table 3).
As the percentage of the cross-section with decay increased, the proportional response revealed greater LoFRs for the Resistograph, tomography, and consultation assessments (Figure 5). However, the opposite was true for the visual and mallet assessments: the proportional response revealed lower LoFRs as the percentage of decay in the cross-section increased. The findings applied whether assessors viewed the Resistograph output or tomogram first. As the average thickness of sound wood increased, the proportional response revealed lower LoFRs, but the effect was proportionally greater for odd-numbered trees in each assessment technique (Figure 5). Assessors who use resistance drilling more often to assess tree risk assigned a greater proportion of lower LoFRs for all assessment techniques except in the initial visual assessment (Figure 5). For the latter, assessors who use resistance drilling more often in their tree risk assessments assigned a greater proportion of higher LoFRs.
The other statistically significant influence on the distribution of LoFRs was how often assessors use tomography when conducting risk assessments (Table 3). Those who “often” use tomography assigned proportionally more improbable LoFRs than those who “never” use tomography (Figure 6). Additionally, variance was homogeneous among the four levels of assessors’ frequency of tomography use (Table 4).

3.3. Variability in Likelihood of Failure Ratings

Despite obtaining more information following each assessment technique, the variance among assessment techniques was also homogeneous (Table 4). Additionally, more information did not substantially reduce variability among assessors (Table 5). In the initial visual assessment, assessors did not assign the same LoFRs for any tree, and most trees (77%) received two LoFRs. The proportion of trees that received a single LoFR increased for the subsequent assessments, but for the mallet and tomogram assessments, the proportion of trees that received three LoFRs also increased. Even after the consultation assessment, most trees (77%) still received two LoFRs.

3.4. Changes in Likelihood of Failure Ratings

More assessors reported that they changed their LoFR following the Resistograph and tomogram assessments compared to the mallet and consultation assessments ( χ 2 = 30.58, p < 0.0001, Table 6). Changes in LoFRs from the initial visual assessment helped identify trees that were more (or less) difficult to assess (Table 7). For four trees, after the initial visual assessment the LoFRs were unchanged for all of the four subsequent assessment techniques. For 16 of the remaining 26 trees, the LoFRs assigned in the basic assessments were consistent and confirmed by the consultation assessment in 9 of the 16 trees. For 12 of the remaining 26 trees, the advanced assessments consistently changed the LoFRs from the initial visual assessment, and the change was confirmed by the consultation assessment for 11 of the 12 trees. For 9 of the remaining 26 trees, only the LoFRs assigned in the tomogram assessment were greater than those from the initial visual assessment.
The most commonly reported factors that assessors noted when assigning LoFRs to trees were the presence/absence of decay, the degree to which the tree was exposed to the wind, and the presence/absence of root problems (Figure 7). Together, these factors accounted for nearly half of the responses.

4. Discussion

Our results demonstrate that detailed information about the extent of trunk decay influenced experienced TRAQ-credentialed assessors’ LoFRs, but neither consistently nor in a straightforward way. The effect was most noticeable in greater LoFRs assigned following the tomogram assessment. However, covariates related to trees (percent of decay and t) and assessors (frequency of using resistance drilling tools for risk assessments) led to significant interactions with the assessment technique, indicating the need for a more nuanced interpretation. A larger sample of assessors may have improved our understanding of their effect on LoFRs. It is also important to note that we could not confirm any of the LoFRs as “correct” because none of the trees failed in the interval between when the assessors assigned LoFRs (July 2021) and the publication of this manuscript (May 2023).
Because the Resistograph output and tomogram helped assessors visualize the extent of decay, we expected that the advanced assessment techniques would influence LoFRs—particularly for assessors who use advanced techniques less frequently. The influence was obvious in the changing proportions of LoFRs as the percent of decay changed, but only after assessors viewed the Resistograph output and tomogram. The pattern persisted following the consultation assessment, further supporting the idea that visualizing decay affected assessors’ LoFRs. However, the overall trend did not apply to every tree. Our observation that the consultation assessment confirmed the basic assessment nearly as often as the advanced assessment was the result of greater LoFRs assigned following the tomogram assessment.
We speculate that the significant increase in the LoFR following the tomogram assessment was due, in part, to the visual presentation of tomograms themselves. Our choice of the default (and more liberal) SoT1 calculation with a minimum velocity set at 50% created tomograms with the largest area of decay. Assessors who often use tomography for risk assessments would more likely have understood that the tomograms may have overestimated the extent of decay using the default calculation, whereas assessors who only rarely use tomography may have been more inclined to increase the LoFR they assigned, as our findings suggest. Especially on stems of a larger diameter and less regular shape, it is imperative that assessors are familiar with the uncertainty associated with interpreting tomograms [39].
It is also plausible that the complete and in-color view of decayed areas in tomograms may have been perceived as a more definitive depiction of decay, especially for assessors who use tomography less frequently. For instance, the number of holes drilled for the Resistograph may not have been adequate to precisely define the extent of decay, which could, in turn, result in assessors experiencing greater uncertainty in how to interpret the Resistograph outputs. The Resistograph outputs also were truncated and did not traverse the entire diameter. In contrast, the tomograms presumably presented more visually compelling cross-sectional images than the black and white line drawings of the Resistograph output. For example, the extent of decay presented in the Resistograph outputs and tomograms was similar for trees 22 and 27 (Figure 8), but the change in the LoFR from the visual assessment was only greater after viewing the tomograms. Without comparing the tomograms and the outputs from the Resistograph to pictures of the cross-sections themselves, it was not possible to know which portrayal of internal decay was more accurate. Many studies have demonstrated the accuracy and limitations of each technique [18,19,21,22,23,24], which is why using both techniques to investigate the extent of decay is helpful [40].
For assessments that followed the initial visual assessment, the decreasing proportion of probable LoFRs assigned by assessors who more frequently use a resistance drilling tool in practice was intuitive. With visual assessments, however, the trend was inverted: the proportion of probable LoFRs increased with assessors who more frequently use a resistance drilling tool. It was not clear why this occurred. It may reflect assessors being accustomed to using simple and advanced tools to detect decay rather than focusing on a tree’s outward visual appearance. However, previous studies have found for several species that the visual assessment of a tree’s appearance often aligns with the extent of internal decay [14,15,17].
Statistically significant differences, however, do not imply that the trends applied to all trees, assessors, and techniques. Trees 3 and 4 (Figure 9) highlighted both the advantage of using more than one technique to assess the likelihood of failure due to stem decay and the challenges of individual assessment techniques. Both trees were Q. bicolor with nearly identical DBHs; they were in the same location and presumably exposed to the same wind loads. Both trees also showed signs of past lightning strikes, with wound wood formed around the lightning damage, and superficial trunk decay. Their tomograms showed nearly identical percentages of sound wood (86% and 87%), but with areas of green indicating intermediate velocities and the possibility of decay. The Resistograph output for tree 3 (t/R ≥ 0.59, average t = 30 cm) aligned neatly with the tomogram, confirming—at least for an assessor who appreciates the nuanced interpretation of green areas using the SoT1 setting—that the extent and severity of decay were minimal. However, the Resistograph output for tree 4 (minimum t/R = 0.22, average t = 18 cm) contradicted the tomogram: the extent and severity of decay presented more of a concern. The detailed description of each tree was reflected in the changes in LoFRs: LoFRs assigned following the Resistograph and tomogram assessments decreased compared to the initial visual assessment of tree 3, but the LoFRs of tree 4 decreased compared to the initial visual assessment only following the tomogram assessment.
Individual trees also illustrated the limitations of using simple tools and techniques. Trees 14 and 26 (both P. strobus) thwarted assessors’ attempts to assess the extent of decay by sounding the trunk with a mallet, even though all but one assessor “often” sound trunks in practice. Following the mallet assessment, the LoFR of each tree increased from the visual assessment. Assessors described the trunk as sounding hollow, but the advanced techniques revealed little decay. There were only five P. strobus in the study; that two were problematic suggests that sounding with a mallet may not be reliable for some species. Future studies should investigate this technique’s reliability.
Previous studies have shown that risk assessments are prone to bias related to an assessor’s training, experience, and perceptions of risk [25,41,42,43]. To manage subjectivity, clear definitions of categories in a risk matrix (e.g., the four LoFRs in [13]) [44] and sufficient training to calibrate assessors [45] are imperative. Yet, despite assessors (i) holding the TRAQ credential (which requires continual training to obtain and maintain), and (ii) receiving more information about the extent of decay through five successive assessments of stem decay, some variation among their LoFRs persisted. For most trees and all assessment techniques, assessors assigned two or three LoFRs, and the non-significant beta dispersion test demonstrated that obtaining more information about the extent of decay did not reduce assessors’ variation, aligning with the findings of [42]. None of the covariates that described assessors’ experience adequately explained this finding. We speculate that this reflects the innate imprecision of assessing the likelihood of failure. The persistent variation in LoFRs in our study and [42] may not be as problematic as one might suppose because studies have shown that assigned LoFRs were broadly consistent with the measured likelihood of failure following storms [46,47].
Another advanced technique to assess the likelihood of failure is the static pulling test [48]. Unfortunately, we were not able to include the pulling test in the experiment because of travel restrictions imposed by the COVID-19 pandemic.

5. Conclusions

In this study, experienced, credentialed tree risk assessors often changed their rating of the likelihood of failure due to stem decay in response to obtaining new information about the extent of decay. The pattern was only statistically significant after viewing tomograms, but individual assessors and trees were plainly influential overall (as demonstrated by the significant random effects of assessor and tree in OLR models) and for specific assessment techniques (e.g., trees 14 and 26 with the mallet assessment). As expected, the amount of decay in the cross-section—reflected in the covariates’ percent of decay (from the tomogram) and t (from the Resistograph output)—predicted assessors’ LoFRs, particularly in concert with their experience using each of the advanced decay assessment tools.
In the short term, it is essential for arborists who assess tree risk to appreciate that variation among individual ratings is common but can be reduced with additional information, training, and experience. Even among the group of experienced tree risk assessors assembled for our study, responses typically focused on two of four possible LoFRs: either improbable and possible or possible and probable. Individual tree risk assessors base rating decisions on a wide variety of factors, with each assessor weighing factors differently. This also occurs with the other components of tree risk assessment, such as the likelihood of impact and the severity of consequences, perhaps increasing variability even further.

Author Contributions

Conceptualization, B.K.; methodology, B.K. and N.J.B.; formal analysis, A.O., B.K., M.J.C.-M., N.J.B., and D.C.B.; investigation, A.O., J.R.C., and B.K.; resources, B.K., N.J.B., D.C.B., and J.R.C.; data curation, B.K. and M.J.C.-M.; writing—original draft preparation, B.K. and A.O.; writing—review and editing, B.K., N.J.B., J.R.C., M.J.C.-M., and D.C.B.; visualization, B.K., M.J.C.-M., N.J.B., and D.C.B.; supervision, B.K.; project administration, A.O. and B.K.; funding acquisition, B.K. and N.J.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in part by the TREE Fund, grant number 19-JD-01.

Institutional Review Board Statement

The Human Research Protection Office (HRPO) of The University of Massachusetts – Amherst determined (HRPO Determination Number: 21-44) that the project did not meet the definition of human subject research under federal regulations [45 CFR 46.102(d)], and consequently, we were not required to submit an application for IRB review.

Informed Consent Statement

Not applicable.

Data Availability Statement

The corresponding author will provide data upon request.

Acknowledgments

We gratefully acknowledge the participants in the study who spent time away from work to generate the knowledge we present in this paper. We also thank A. Halperin and R. Suttle (Department of Environmental Conservation, University of Massachusetts—Amherst) for helping to pre-test the experimental methods and D. Hawkins (Urban Forestry Solutions, Inc., Pelham, MA, USA) for assistance with Resistograph drilling.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. McPherson, E.G.; Simpson, J.R.; Xiao, Q.; Wu, C. Million trees: Los Angeles canopy cover and benefit assessment. Landsc. Urban Plan. 2011, 99, 40–50. [Google Scholar] [CrossRef]
  2. Cavanagh, J.E.; Zawar-Reza, P.; Wilson, J.G. Spatial attenuation of ambient particulate matter air pollution within an urbanized native forest patch. Urban Green 2009, 8, 21–30. [Google Scholar] [CrossRef]
  3. Hunt, W.F.; Smith, J.T.; Jadlocki, S.J.; Hathaway, J.M.; Eubanks, P.R. Pollutant removal and peak flow mitigation by a bioretention cell in urban Charlotte. N.C. J. Environ. Eng. 2008, 134, 403–408. [Google Scholar] [CrossRef]
  4. Nowak, D.J.; Greenfield, E.J.; Hoehn, R.E.; Lapoint, E. Carbon storage and sequestration by trees in urban and community areas of the United States. Environ. Pollut. 2013, 178, 229–236. [Google Scholar] [CrossRef] [PubMed]
  5. Hwang, W.H.; Wiseman, P.E.; Thomas, V.A. Enhancing the energy conservation benefits of shade trees in dense residential developments using an alternative tree placement strategy. Urban Plan. 2017, 158, 62–74. [Google Scholar] [CrossRef]
  6. Nowak, D. Assessing the benefits and economic value of trees. In Routledge Handbook of Urban Forestry; Ferrini, F., Konijnendijk van den Bosch, C.C., Fini, A., Eds.; Routledge: London, UK, 2017; pp. 152–162. [Google Scholar]
  7. Luley, C.; Nowak, D.; Greenfield, E. Frequency and severity of trunk decay in street tree maples in four New York cities. Arboric. Urban For. 2009, 35, 94–99. [Google Scholar] [CrossRef]
  8. Schmidlin, T.W. Human fatalities from wind-related tree failures in the United States, 1995–2007. Nat. Hazards 2008, 50, 13–25. [Google Scholar] [CrossRef]
  9. Poulos, H.M.; Camp, A.E. Decision Support for Mitigating the Risk of Tree Induced Transmission Line Failure in Utility Rights-of-Way. Environ. Manag. 2010, 45, 217–226. [Google Scholar] [CrossRef]
  10. Mitchell, J.W. Power line failures and catastrophic wildfires under extreme weather conditions. Eng. Fail. Anal. 2013, 35, 726–735. [Google Scholar] [CrossRef]
  11. Vogt, J.; Hauer, R.J.; Fischer, B.C. The cost of maintaining and not maintaining the urban forest: A review of urban forestry and arboriculture literature. Arboric. Urban For. 2015, 41, 293–323. [Google Scholar] [CrossRef]
  12. Mortimer, M.J.; Kane, B. Hazard tree law in the United States. Urban Green 2004, 2, 208–215. [Google Scholar]
  13. Smiley, E.; Matheny, N.; Lilly, S. Best Management Practices–Tree Risk Assessment, 2nd ed.; International Society of Arboriculture: Atlanta, GA, USA, 2017. [Google Scholar]
  14. Terho, M. An assessment of decay among urban Tilia, Betula, and Acer trees felled as hazardous. Urban Green 2009, 8, 77–85. [Google Scholar] [CrossRef]
  15. Koeser, A.K.; McLean, D.C.; Hasing, G.; Allison, R.B. Frequency, severity, and detectability of internal trunk decay of street tree Quercus spp. in Tampa, Florida, US. Arboric. Urban For. 2016, 42, 217–226. [Google Scholar]
  16. Leong, E.C.; Burcham, D.C.; Fong, Y.K. A purposeful classification of tree decay detection tools. Arboric. J. 2012, 34, 94–115. [Google Scholar] [CrossRef]
  17. Kennard, D.; Putz, F.; Neiederhofer, M. The predictability of tree decay based on visual assessments. J. Arboric. 1996, 22, 249–254. [Google Scholar] [CrossRef]
  18. Costello, L.; Quarles, S. Detection of wood decay in blue gum and elm: An evaluation of the IML-Resistograph and the portable drill. J. Arboric. 1999, 25, 311–317. [Google Scholar] [CrossRef]
  19. Gilbert, E.A.; Smiley, E.T. Quantification of decay in White Oak. Arboric. Urban For. 2004, 30, 277–281. [Google Scholar] [CrossRef]
  20. Deflorio, G.; Fink, S.; Schwarze, F.W.M.R. Detection of incipient decay in tree stems with sonic tomography after wounding and fungal inoculation. Wood Sci. Technol. 2007, 42, 117–132. [Google Scholar] [CrossRef]
  21. Johnstone, D.M.; Ades, P.K.; Moore, G.M.; Smith, I.W. Predicting wood decay in eucalypts using an expert system and the IML Resistograph drill. Arboric. Urban For. 2007, 33, 76–82. [Google Scholar] [CrossRef]
  22. Wang, X.; Allison, R.B. Decay detection in red oak trees using a combination of visual inspection, acoustic testing, and resistance micro drilling. Arboric. Urban For. 2008, 34, 1–4. [Google Scholar] [CrossRef]
  23. Brazee, N.J.; Marra, R.E.; Göcke, L.; Van Wassenaer, P. Non-destructive assessment of internal decay in three hardwood species of northeastern North America using sonic and electrical impedance tomography. Forestry 2011, 84, 33–39. [Google Scholar] [CrossRef]
  24. Marra, R.E.; Brazee, N.J.; Fraver, S. Estimating carbon loss due to internal decay in living trees using tomography: Implications for forest carbon budgets. Environ. Res. Lett. 2018, 13, 105004. [Google Scholar] [CrossRef]
  25. Koeser, A.K.; Smiley, E.T. Impact of assessor on tree risk assessment ratings and prescribed mitigation measures. Urban For. Urban Green 2017, 24, 109–115. [Google Scholar] [CrossRef]
  26. Rundmo, T.; Oltedal, S.; Moen, B.; Klempe, H. Explaining Risk Perception: An Evaluation of Cultural Theory; Norwegian University of Science and Technology: Trondheim, Norway, 2004. [Google Scholar]
  27. Botterill, L.; Mazur, N. Risk and Perception: A Literature Review; Australian Rural Industries Research and Development Corporation: Canberra, Australia, 2004; pp. 1–22. [Google Scholar]
  28. Slovic, P. Trust, emotion, sex, politics, and science: Surveying the risk-assessment battlefield. Risk Anal. 1999, 19, 689–701. [Google Scholar] [CrossRef]
  29. Scherer, C.W.; Cho, H. A social network contagion theory of risk perception. Risk Anal. 2003, 23, 261–267. [Google Scholar] [CrossRef]
  30. Koeser, A.K.; Klein, R.W.; Hasing, G.; Northrop, R.J. Factors driving professional and public urban tree risk perception. Urban For. Urban Green 2015, 14, 968–974. [Google Scholar] [CrossRef]
  31. Mattheck, C.; Breloer, H. Field guide for visual tree assessment (VTA). Arboric. J. 1994, 18, 1–23. [Google Scholar] [CrossRef]
  32. Burcham, D.C.; Brazee, N.J.; Marra, R.E.; Kane, B. Can sonic tomography predict loss in load-bearing capacity for trees with internal defects? A comparison of sonic tomograms with destructive measurements. Trees 2019, 33, 681–695. [Google Scholar] [CrossRef]
  33. Dunster, J.A.; Smiley, E.T.; Matheny, N.; Lilly, S. Tree Risk Assessment Manual; International Society of Arboriculture: Atlanta, GA, USA, 2017. [Google Scholar]
  34. Azur, M.J.; Stuart, E.A.; Frangakis, C.; Leaf, P.J. Multiple imputation by chained equations: What is it and how does it work? Int. J. Methods Psychiatr. Res. 2011, 20, 40–49. [Google Scholar] [CrossRef]
  35. Van Buuren, S.; Groothuis-Oudshoorn, K. mice: Multivariate Imputation by Chained Equations in R. Int. J. Stat. Soft 2011, 45, 1–67. [Google Scholar] [CrossRef]
  36. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2021. [Google Scholar]
  37. Christensen, R. Ordinal—Regression Models for Ordinal Data. R Package Version 2019.12-10. Available online: https://CRAN.R-project.org/package=ordinal (accessed on 19 February 2022).
  38. Dixon, P. VEGAN, a package of R functions for community ecology. J. Veg. Sci. 2003, 14, 927–930. [Google Scholar] [CrossRef]
  39. Burcham, D.C.; Brazee, N.J.; Marra, R.E.; Kane, B. Geometry matters for sonic tomography of trees. Trees 2023, 37, 1–12. [Google Scholar] [CrossRef]
  40. Wang, X.; Wiedenbeck, J.K.; Ross, R.J.; Forsman, J.W.; Erickson, J.R.; Pilon, C.L.; Brashaw, B.K. Nondestructive Evaluation of Incipient Decay in Hardwood Logs; U.S. Department of Agriculture Forest Service Forest Products Laboratory: Madison, WI, USA, 2005. [Google Scholar]
  41. Klein, R.W.; Koeser, A.K.; Hauer, R.J.; Hansen, G.; Escobedo, F.J. Relationship between perceived and actual occupancy rates in urban settings. Urban Green 2016, 19, 194–201. [Google Scholar] [CrossRef]
  42. Koeser, A.K.; Hauer, R.J.; Klein, R.W.; Miesbauer, J.W. Assessment of likelihood of failure using limited visual, basic, and advanced assessment techniques. Urban For. Urban Green 2017, 24, 71–79. [Google Scholar] [CrossRef]
  43. Klein, R.W.; Koeser, A.K.; Hauer, R.J.; Miesbauer, J.W.; Hansen, G.; Warner, L.; Dale, J.; Watt, J. Assessing the consequences of tree failure. Urban For. Urban Green 2021, 65, 127307. [Google Scholar] [CrossRef]
  44. Cox, T.L. What’s Wrong with Risk Matrices? Risk Anal. 2008, 28, 497–512. [Google Scholar]
  45. Matheny, N.P.; Clark, J.R. A Photographic Guide to the Evaluation of Hazard Trees in Urban Areas; International Society of Arboriculture: Champaign, IL, USA, 1994. [Google Scholar]
  46. Koeser, A.K.; Smiley, E.T.; Hauer, R.J.; Kane, B.; Klein, R.W.; Landry, S.M.; Sherwood, M. Can Professionals Gauge Likelihood of Failure?—Insights from Tropical Storm Matthew. Urban For. Urban Green 2020, 52, 126701. [Google Scholar] [CrossRef]
  47. Nelson, M.F.; Klein, R.W.; Koeser, A.K.; Landry, S.M.; Kane, B. The Impact of Visual Defects and Neighboring Trees on Wind-related Tree Failures. Forests 2022, 13, 978. [Google Scholar] [CrossRef]
  48. Rust, S.; van Wassenaer, P. Tools for Tree Risk Assessment. In Routledge Handbook of Urban Forestry; Ferrini, F., Konijnendijk van den Bosch, C.C., Fini, A., Eds.; Routledge: London, UK, 2017; pp. 489–499. [Google Scholar]
Figure 1. Lower trunk of tree 1 (Pinus strobus) with flagging to indicate the height at which the Resistograph drillings and tomograms were taken.
Figure 1. Lower trunk of tree 1 (Pinus strobus) with flagging to indicate the height at which the Resistograph drillings and tomograms were taken.
Forests 14 01043 g001

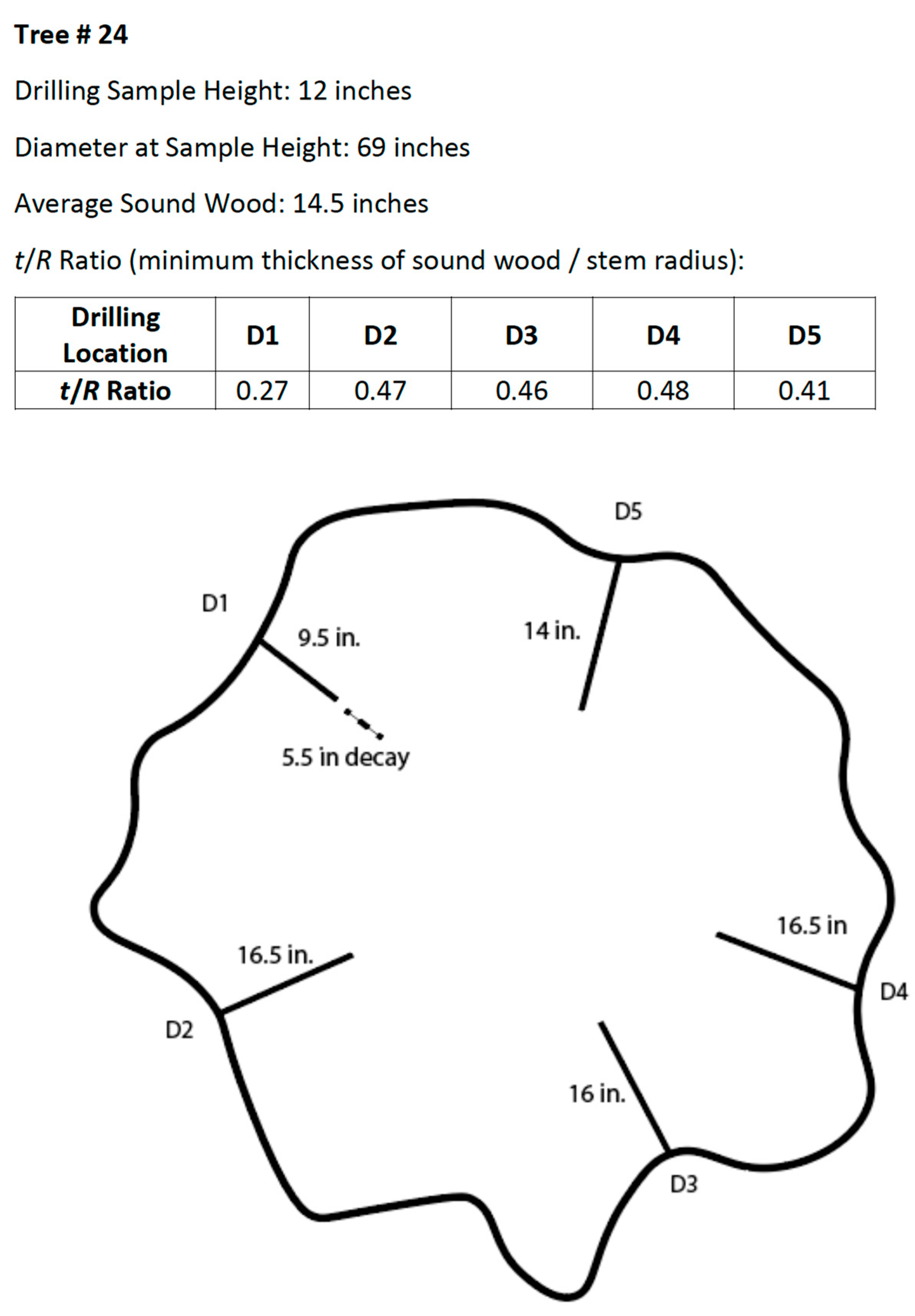

Figure 2. Output of Resistograph for tree 24, including the height at which the trunk was drilled, the diameter at that height, the average sound wood thickness from five drillings, and the ratio of sound wood thickness (T) to trunk radius (R) at each drilling (D) location.
Figure 2. Output of Resistograph for tree 24, including the height at which the trunk was drilled, the diameter at that height, the average sound wood thickness from five drillings, and the ratio of sound wood thickness (T) to trunk radius (R) at each drilling (D) location.
Forests 14 01043 g002

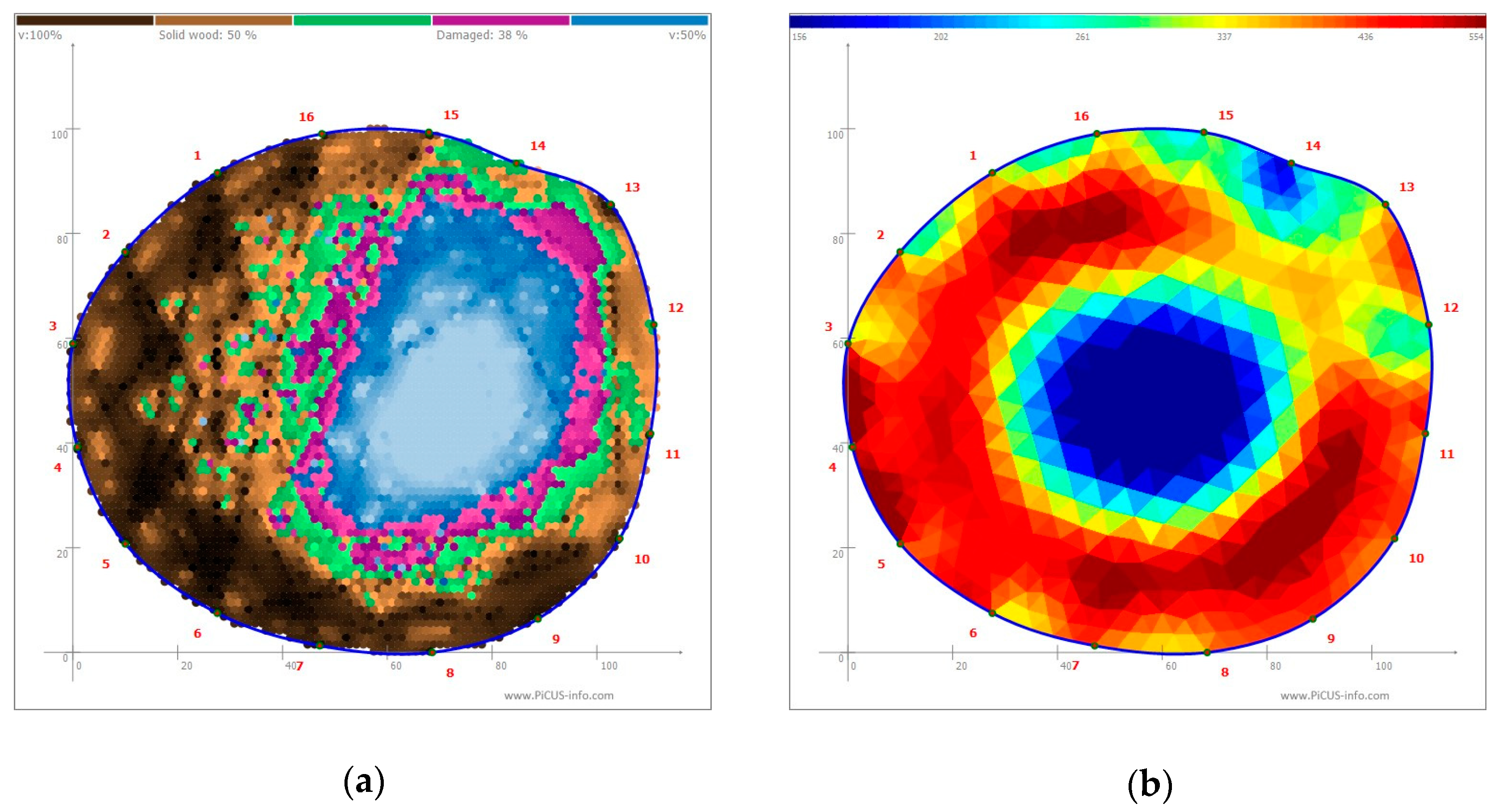

Figure 3. (a) Sonic and (b) electrical resistance tomograms of a tree; color coding along the top margin of the sonic tomogram indicates the areas of sound (in brown) and damaged (in violet and blue) wood expressed as proportions of the total cross-sectional area. Areas of green in the sonic tomogram represent intermediate velocities that are not utilized by the software to report the “damaged” cross-sectional area. In the ER tomogram, areas of relatively lower electrical resistance (higher relative conductivity) appear as blue, while areas of relatively higher resistance appear as red.
Figure 3. (a) Sonic and (b) electrical resistance tomograms of a tree; color coding along the top margin of the sonic tomogram indicates the areas of sound (in brown) and damaged (in violet and blue) wood expressed as proportions of the total cross-sectional area. Areas of green in the sonic tomogram represent intermediate velocities that are not utilized by the software to report the “damaged” cross-sectional area. In the ER tomogram, areas of relatively lower electrical resistance (higher relative conductivity) appear as blue, while areas of relatively higher resistance appear as red.
Forests 14 01043 g003

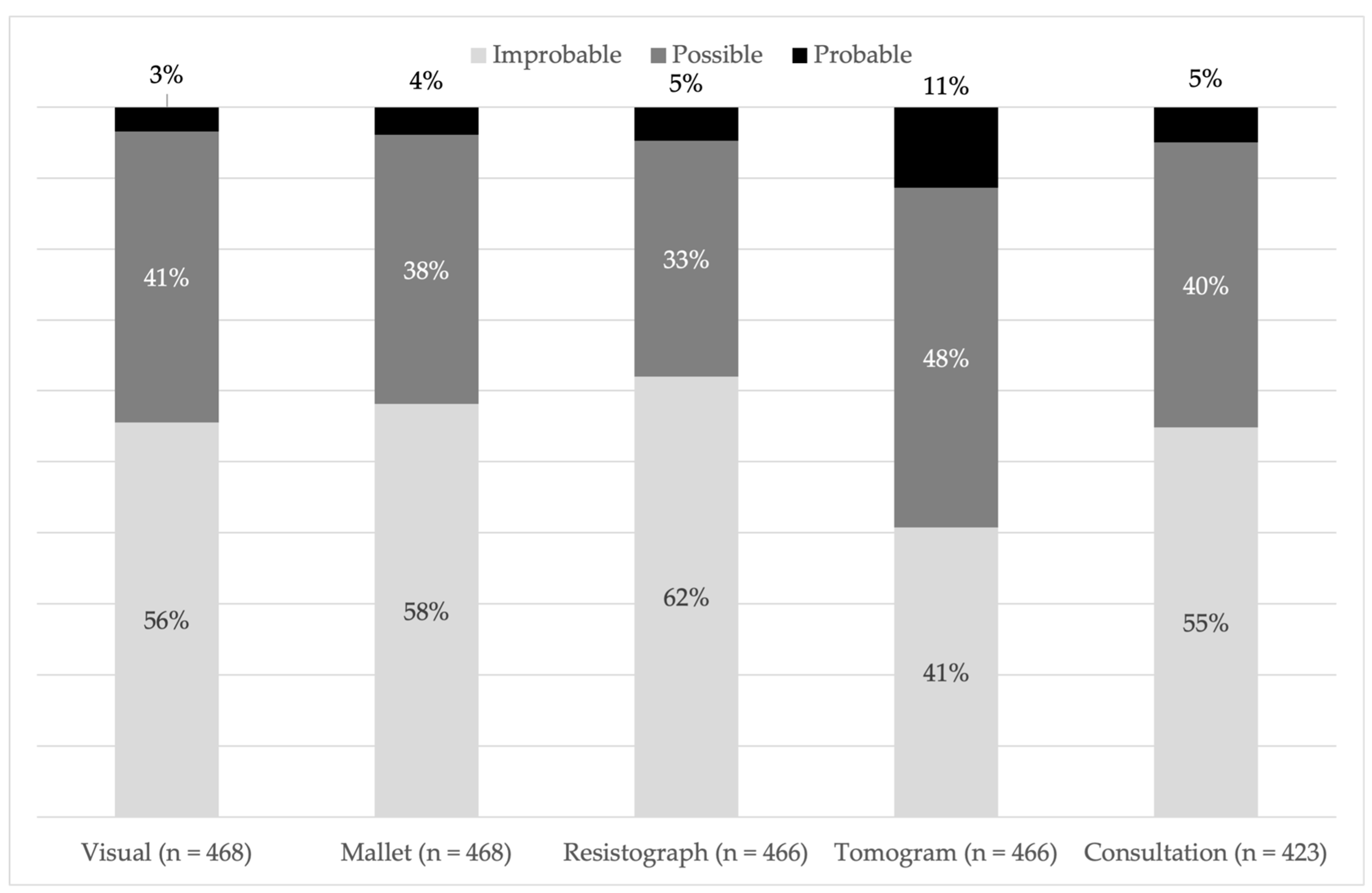

Figure 4. Proportional likelihood of failure ratings assigned following each assessment technique, which are listed, from left to right, in the order they were conducted for odd-numbered trees. For even-numbered trees, the tomogram assessment was conducted before the resistance drill assessment.
Figure 4. Proportional likelihood of failure ratings assigned following each assessment technique, which are listed, from left to right, in the order they were conducted for odd-numbered trees. For even-numbered trees, the tomogram assessment was conducted before the resistance drill assessment.
Forests 14 01043 g004

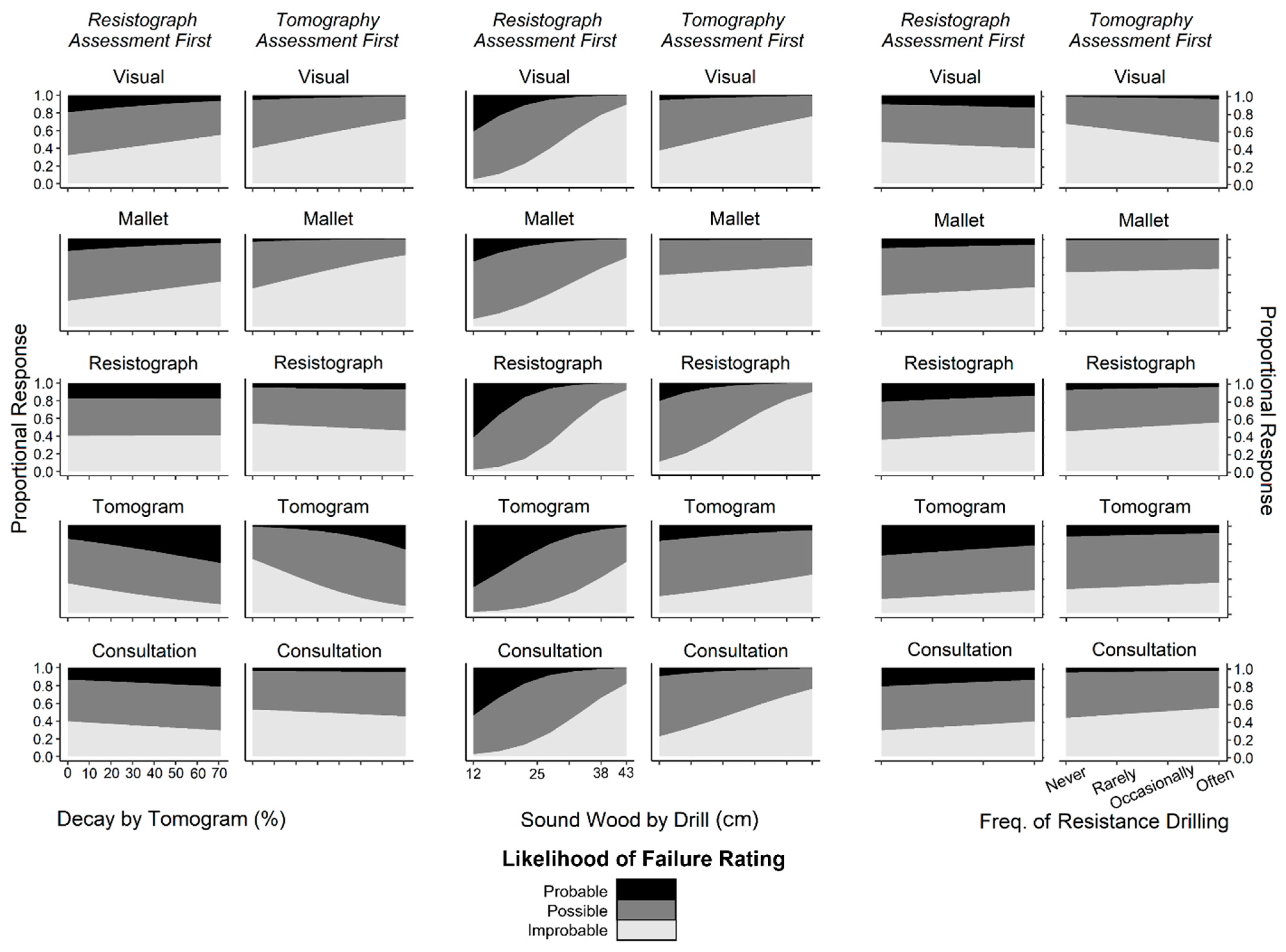

Figure 5. Proportional response of likelihood of failure ratings—improbable (light shading), possible (gray shading), and probable (black shading)—vs. continuous covariates (left-hand panels: percent of the cross-section with decay, assessed by tomography; middle panels: average thickness of sound wood, assessed by Resistograph; right-hand panels: frequency that assessors employed resistance drilling in risk assessments) for each assessment technique. The vertical ordering of plots in columns labeled “Resistograph Assessment First” indicates the order in which assessments were conducted. The order was the same for plots in columns labeled “Tomography Assessment First” except that the tomography assessment preceded the Resistograph assessment. The presentation facilitates comparison between techniques for each covariate.
Figure 5. Proportional response of likelihood of failure ratings—improbable (light shading), possible (gray shading), and probable (black shading)—vs. continuous covariates (left-hand panels: percent of the cross-section with decay, assessed by tomography; middle panels: average thickness of sound wood, assessed by Resistograph; right-hand panels: frequency that assessors employed resistance drilling in risk assessments) for each assessment technique. The vertical ordering of plots in columns labeled “Resistograph Assessment First” indicates the order in which assessments were conducted. The order was the same for plots in columns labeled “Tomography Assessment First” except that the tomography assessment preceded the Resistograph assessment. The presentation facilitates comparison between techniques for each covariate.
Forests 14 01043 g005
Figure 6. Proportional response of likelihood of failure ratings as related to how frequently assessors use tomography for risk assessments.
Figure 6. Proportional response of likelihood of failure ratings as related to how frequently assessors use tomography for risk assessments.
Forests 14 01043 g006

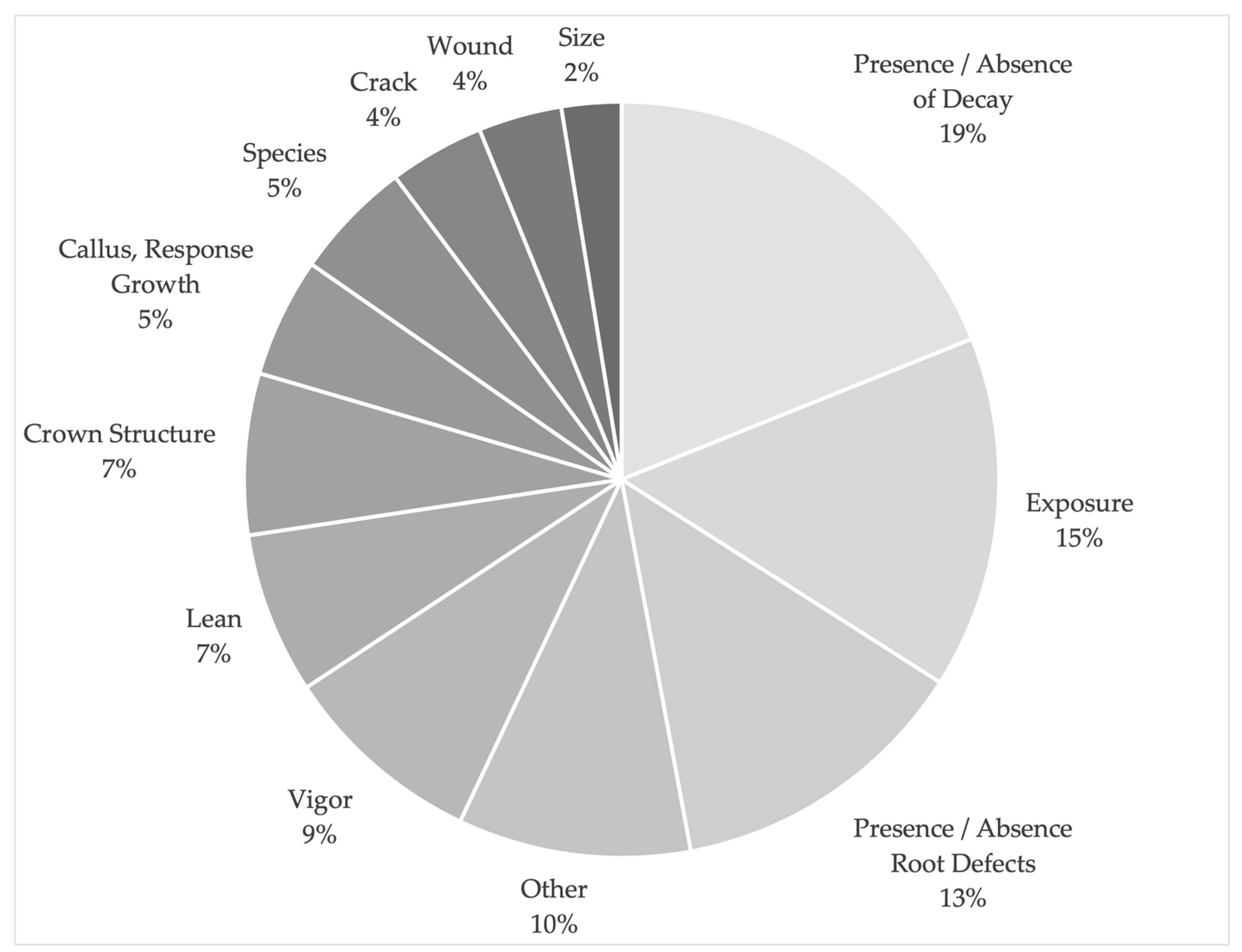

Figure 7. Factors that assessors reported as influencing their likelihood of failure ratings.
Figure 7. Factors that assessors reported as influencing their likelihood of failure ratings.
Forests 14 01043 g007
Figure 8. (a) Resistograph output of tree 22; (b) tomogram of tree 22; (c) Resistograph output of tree 27; (d) tomogram of tree 27.
Figure 8. (a) Resistograph output of tree 22; (b) tomogram of tree 22; (c) Resistograph output of tree 27; (d) tomogram of tree 27.
Forests 14 01043 g008

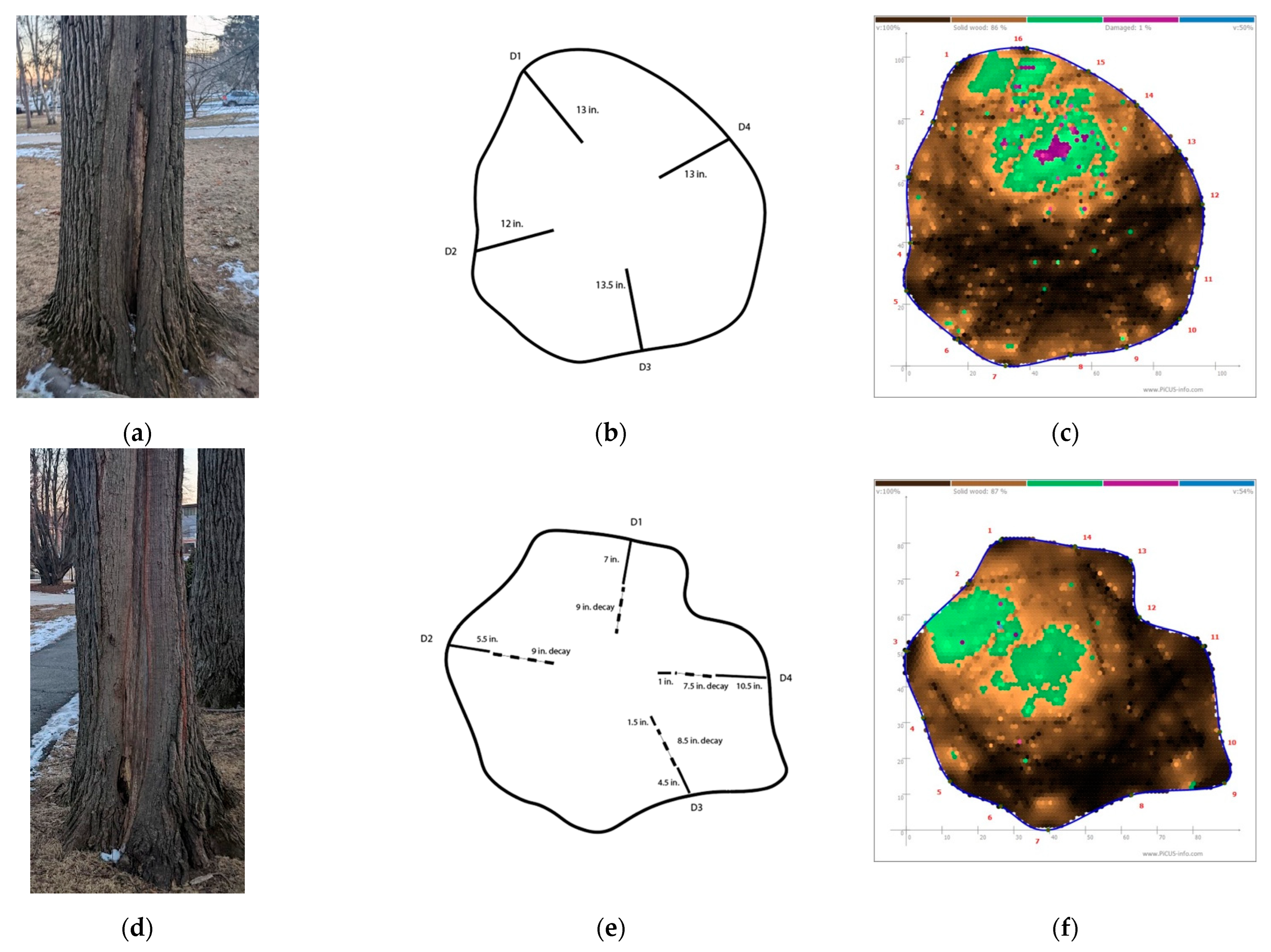

Figure 9. (a) Tree 3 in situ; (b) Resistograph output of tree 3; (c) tomogram of tree 3; (d) tree 4 in situ; (e) Resistograph output of tree 4; (f) tomogram of tree 4.
Figure 9. (a) Tree 3 in situ; (b) Resistograph output of tree 3; (c) tomogram of tree 3; (d) tree 4 in situ; (e) Resistograph output of tree 4; (f) tomogram of tree 4.
Forests 14 01043 g009
Table 1. Assessors’ (n = 18) frequency of use with techniques and tools used in the study.
Table 1. Assessors’ (n = 18) frequency of use with techniques and tools used in the study.
InquiryNeverRarelyOccasionallyOften
How frequently do you conduct basic visual risk assessments?00117
How frequently do you use a sounding mallet when conducting risk assessments?00216
How frequently do you use a resistance recording drill when conducting risk assessments?2448
How frequently do you use a sonic tomography system when conducting risk assessments?1557
Table 2. Morphological data for individuals of the two genera (Pinus and Quercus) in the study, including tree number, species, diameter 1.4 m above ground (DBH), tree height, crown width, height of tomography and Resistograph, mean thickness (t) of sound wood from Resistograph, minimum ratio of thickness of sound wood to stem radius (t/R), percentage of the stem cross-section with decay (% Decay) from the sonic tomogram, and percentage loss in section modulus (% ZLOSS) from Burcham et al. (2019).
Table 2. Morphological data for individuals of the two genera (Pinus and Quercus) in the study, including tree number, species, diameter 1.4 m above ground (DBH), tree height, crown width, height of tomography and Resistograph, mean thickness (t) of sound wood from Resistograph, minimum ratio of thickness of sound wood to stem radius (t/R), percentage of the stem cross-section with decay (% Decay) from the sonic tomogram, and percentage loss in section modulus (% ZLOSS) from Burcham et al. (2019).
TreeSpeciesDBH (cm)Height (m)Width (m)Sample Height (cm)t (cm)t/R% Decay% ZLOSS
1P. strobus89241450310.52616
2Q. bicolor84202830250.500
3Q. bicolor71171530310.611
4Q. bicolor69171330180.2130
5Q. palustris122232430340.33647
6Q. rubra7617930290.21821
7Q. rubra152232630230.03214
8Q. alba81201830410.800
9Q. alba84181730370.62619
10P. strobus71211240381.000
11Q. palustris84231930400.64932
12Q. bicolor91201430360.14077
13Q. bicolor91231430300.36354
14P. strobus972416100450.900
15P. strobus66201150381.004
16Q. alba6119830340.700
17Q. palustris91231940330.04423
18Q. palustris97252340200.05365
19Q. alba107212030400.67173
20Q. velutina107181760300.500
21Q. velutina145262550220.06592
22Q. velutina104212330220.25635
23Q. bicolor155273030380.34465
24Q. rubra124212730370.36688
25Q. palustris102231930410.55185
26P. strobus862116100310.06n/a 1
27Q. rubra132241740130.17385
28Q. velutina74201030330.21220
29Q. velutina84211540410.83322
30Q. velutina94241740300.03781
Overall Mean96211840320.393135
Odd-numbered trees 2105221936330.414142
Even-numbered trees 388211743310.372028
1 Not computed. 2 The Resistograph assessment preceded the tomogram assessment. 3 The tomogram assessment preceded the Resistograph assessment.
Table 3. Analysis of variance table for the ordinal logistic regression model used to predict likelihood of stem failure rating from the main effect of assessment technique, covariates that quantified the random effects of trees and assessors, and their interactions (*); the table includes the χ2 value of the likelihood ratio (LR) and the degrees of freedom (Df) and p-value of the effect or interaction.
Table 3. Analysis of variance table for the ordinal logistic regression model used to predict likelihood of stem failure rating from the main effect of assessment technique, covariates that quantified the random effects of trees and assessors, and their interactions (*); the table includes the χ2 value of the likelihood ratio (LR) and the degrees of freedom (Df) and p-value of the effect or interaction.
EffectLR χ2Dfp-Value
Technique93.879<0.0001
% decay in cross-section 0.00510.9419
Mean sound wood thickness 0.00610.9404
Frequency of using a resistance drill0.00110.9780
Frequency of using tomography4.27910.0386
Genus2.47410.1157
Technique ∗ % decay in cross-section167.39<0.0001
Technique ∗ mean sound wood thickness42.709<0.0001
Technique ∗ frequency of using a resistance drill27.4790.0012
Table 4. Analysis of variance table for beta dispersion tests for homogeneity of variance among (a) assessors’ self-reported frequency of sonic tomography use for tree risk assessment and (b) assessment techniques.
Table 4. Analysis of variance table for beta dispersion tests for homogeneity of variance among (a) assessors’ self-reported frequency of sonic tomography use for tree risk assessment and (b) assessment techniques.
ParameterDfSum SqMean SqF-Valuep-Value
(a)Groups170.072370.0042571.14380.3173
Residuals1620.602940.003722
(b)Groups30.000410.0001350.03930.9896
Residuals1760.605470.003440
Table 5. Distribution of the number of different likelihood of failure ratings (LoFRs) within each assessment technique.
Table 5. Distribution of the number of different likelihood of failure ratings (LoFRs) within each assessment technique.
Assessment Technique 1
Number of LoFRsVisualMalletResistographTomogramConsultation
105524
22314201523
37115133
1 From left to right, techniques are listed in chronological order for odd-numbered trees; for even-numbered trees, the tomogram assessment preceded the Resistograph assessment.
Table 6. For each assessment technique, the distribution of assessors’ responses to the question: Did the technique change your likelihood of failure rating?
Table 6. For each assessment technique, the distribution of assessors’ responses to the question: Did the technique change your likelihood of failure rating?
Assessment Techniques After Visual Assessment 1
ResponseMalletResistographTomogramConsultation
Yes210252270170
No223165153178
1 From left to right, techniques are listed in chronological order for odd-numbered trees; for even-numbered trees, the tomogram assessment preceded the Resistograph assessment.
Table 7. For each tree and the four assessment techniques that followed the initial visual assessment (n = 120), the ratio ( R ) of the weighted mean change in the likelihood of failure rating (LoFR) from the initial visual rating to the proportion of unchanged ratings for the tree and technique. Values in the upper quartile (underlined) indicate higher LoFRs than the initial visual assessment; values in the lower quartile (bolded) indicate lower LoFRs. Interquartile values in plain text indicate unchanged LoFRs.
Table 7. For each tree and the four assessment techniques that followed the initial visual assessment (n = 120), the ratio ( R ) of the weighted mean change in the likelihood of failure rating (LoFR) from the initial visual rating to the proportion of unchanged ratings for the tree and technique. Values in the upper quartile (underlined) indicate higher LoFRs than the initial visual assessment; values in the lower quartile (bolded) indicate lower LoFRs. Interquartile values in plain text indicate unchanged LoFRs.
TreeConsistent Basic Assessment 1Consistent Advanced Assessment 2Consultation Confirmed 3MalletDrillTomogramConsultation
1NoYesNeither0.600.461.110.42
2NoYesAdvanced−0.29−0.38−0.29−0.31
3YesYesAdvanced0.00−0.70−0.42−0.78
4YesNoBasic−0.200.31−0.30−0.08
5YesNoBasic−0.13−0.130.780.18
6NoYesAdvanced−0.450.200.20−0.11
7NoNoNeither−0.380.270.560.00
8YesYesn/a−0.14−0.20−0.14−0.23
9YesNoNeither−0.17−0.292.600.50
10YesYesAdvanced−0.09−0.80−0.80−0.36
11YesNoBasic0.330.080.890.44
12NoNoNeither−0.27−0.270.83−0.14
13YesYesAdvanced0.250.786.000.60
14NoNoNeither1.50−0.300.000.09
15YesYesn/a0.22−0.25−0.25−0.20
16YesYesn/a−0.07−0.07−0.07−0.07
17YesYesAdvanced−0.150.502.200.75
18YesYesAdvanced0.003.676.003.33
19YesNoBasic−0.18−0.184.000.00
20NoYesAdvanced−0.86−6.00−6.00−3.67
21YesYesAdvanced0.290.632.500.50
22YesNoBasic−0.080.4413.000.20
23YesNoBasic0.30−0.380.570.40
24YesNoBasic−0.170.082.200.18
25YesNoBasic0.330.091.000.25
26NoYesAdvanced0.75−0.67−0.43−0.80
27NoNoNeither−0.500.431.001.00
28NoYesAdvanced−0.40−3.67−2.50−2.25
29YesNoBasic0.27−0.270.09−0.20
30YesYesn/a−0.17−0.110.400.25
1 “Consistent” indicates that the LoFR assigned in the mallet assessment was the same as that in the initial visual assessment. 2 “Consistent” indicates that the advanced assessments (Resistograph and tomogram) produced the same change in the LoFR from the initial visual assessment. 3 Confirmation of the advanced assessments occurred when the advanced and consultation assessments produced the same change in the LoFR as that in the initial visual assessment; confirmation of the basic assessments occurred when the LoFRs assigned in the mallet and consultation assessments were unchanged from the initial visual assessment; “n/a” indicates that confirmation was not applicable because all LoFRs were unchanged from the initial visual assessment.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Okun, A.; Brazee, N.J.; Clark, J.R.; Cunningham-Minnick, M.J.; Burcham, D.C.; Kane, B. Assessing the Likelihood of Failure Due to Stem Decay Using Different Assessment Techniques. Forests 2023, 14, 1043. https://doi.org/10.3390/f14051043

AMA Style

Okun A, Brazee NJ, Clark JR, Cunningham-Minnick MJ, Burcham DC, Kane B. Assessing the Likelihood of Failure Due to Stem Decay Using Different Assessment Techniques. Forests. 2023; 14(5):1043. https://doi.org/10.3390/f14051043

Chicago/Turabian Style

Okun, Ari, Nicholas J. Brazee, James R. Clark, Michael J. Cunningham-Minnick, Daniel C. Burcham, and Brian Kane. 2023. "Assessing the Likelihood of Failure Due to Stem Decay Using Different Assessment Techniques" Forests 14, no. 5: 1043. https://doi.org/10.3390/f14051043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
