1. Introduction
Tropical forests are important for the rural livelihoods and economic development of a country like Nepal. The quantification of timber volume in forests is necessary to assess the economic potential of resources [
1,
2,
3]. It requires timely, appropriate and effective quantification techniques which provide consistent and reliable timber volumes in forests [
4,
5,
6,
7]. For this, volume of individual trees in sample plots are estimated and aggregated to obtain tree volume on plot level. These data are scaled up to obtain total tree volume in forests. Hence, the estimation of stem volume of individual trees in a sample plot provides basic but important information on forest management planning. In addition, an accurate estimate of timber volume is important to understand their benefits from forest restoration and climate change impact mitigation, as the largest share of live tree carbon is stored in the stem [
8].
The commonly used method to calculate tree volume is based on three factors: diameter at breast height (DBH), height (h) and the form factor (is also denotes by FF). The form factor is the reduction factor of the tree cylinder to the actual size of the tree [
5]. Assessment of the form factor is important for volume estimation [
5,
9], as trees differ in shape due to aging and different forest management practices [
10]. The accuracy of the volume predictions can be improved by deriving empirically measured form factors and the error associated in using the form factor to estimate volume will be minimized [
3,
11]. Moreover, the form factor has practical relevance for forest managers, as it allows for an easy estimation of standing volume by multiplying the basal area with the mean tree height and the predicted form factor. Especially for commercial tree species that are to be traded in the market, accurate planning of thinning regimes and harvesting time is important.
Shorea robusta (Sal in Nepali) is one of the major commercial species of Nepal, timber of which is primarily used for construction purposes. It is also the main source of income for rural communities and provides several employment opportunities [
12]. Volume estimations of Sal tree forests are prominent in the Nepalese context since the government of Nepal is promoting the scientific forest management approach extensively. This approach is aimed at enhancing the productivity of forests and contribute to human well-being and national economic development [
12,
13]. In addition, the demand for timber has increased significantly in Nepal, a country where 0.83 million cubic meters of timber is imported annually [
14,
15,
16]. Terai forests of Nepal—where
Shorea robusta forests mainly occur—have the potential to fulfill this timber demand. In the current forest management plans for all tree species (including
Shorea robusta), an approximation of the form factor, 0.5 is used irrespective of diameter and height [
17]. Very few studies have focused on the development of volume equations for
Shorea robusta [
18,
19,
20], which cannot be easily computed in the field to estimate tree volume and required numeracy skills. Nevertheless, Thakur (2006) [
21], attempted to estimate the form factor of
Shorea robusta trees by climbing trees and measuring the diameter at every 3 m interval of the standing tree; however, this time-consuming and labour-intensive study did not provide a reliable data source for volume predictions. Similarly, Shrestha et al. (2018) [
22], estimated the form factors of the
Shorea robusta in the western part of the country based on observation of 52 felled trees. However, we could not find any studies that were carried out in the central part of the country. In addition, form factor varies by diameter and height of the tree; however, there has been no equation developed so far that supports deriving form factors by diameter. Hence, there is limited knowledge of accurate form factors using robust methods, especially targeting economically important species.
The Ministry of Forests and Environment is giving priority to scientific forest management for economic use of forest products, particularly timber. However, it lacks site-specific form factors or volume equations for calculating tree volume, resulting in risk of over- or under- estimation of annual harvest rates. In addition, the lack of accurate form factor questions the scientific forest management itself for being scientific. Therefore, this study aims to (1) estimate the form factors of Shorea robusta trees for the central Terai region of Nepal for different diameter classes and (2) to compare the results of the analysis with the tree volume estimated by taking form factor as 0.5, which will enable forest management to estimate stem volume and merchantable tree volume more accurately for this important tree species of Nepal.
2. Materials and Methods
2.1. Description of Study Site
The study was conducted in the Bara district in central Terai, located between the latitudes 26°51′ and 27°21′ N and the longitudes 84°51′ and 85°16′ E. (
Figure 1), a tropical part of Nepal. The study site was selected considering the tree felling activities in preparation for a pipeline construction along the East-West Highway. The elevation of the area was 300 m above sea level. The average temperature was 24.0 °C, with a mean annual precipitation of 1830 mm [
23]. The forests were dominated by
Shorea robusta, along with other associated tree species such as
Semecarpus anacardium L.f.,
Holarrhena pubescens Wall. ex G.Don 1837,
Terminalia alata Heyne ex Roth and
Adina cardifolia. However,
Shorea robusta was the only species that is used for construction purposes, whereas other species are mostly used as firewood. According to Rautiainen (1999), the estimated age of the stand with average diameter above 48 cm is 120 years, with a mean annual increment of 5.87 m
3/ha [
24]. Hence, the study assumed the age of the stand at around 120 years. In addition, the
Shorea robusta tree has high dominance in the studied area (above 70%).

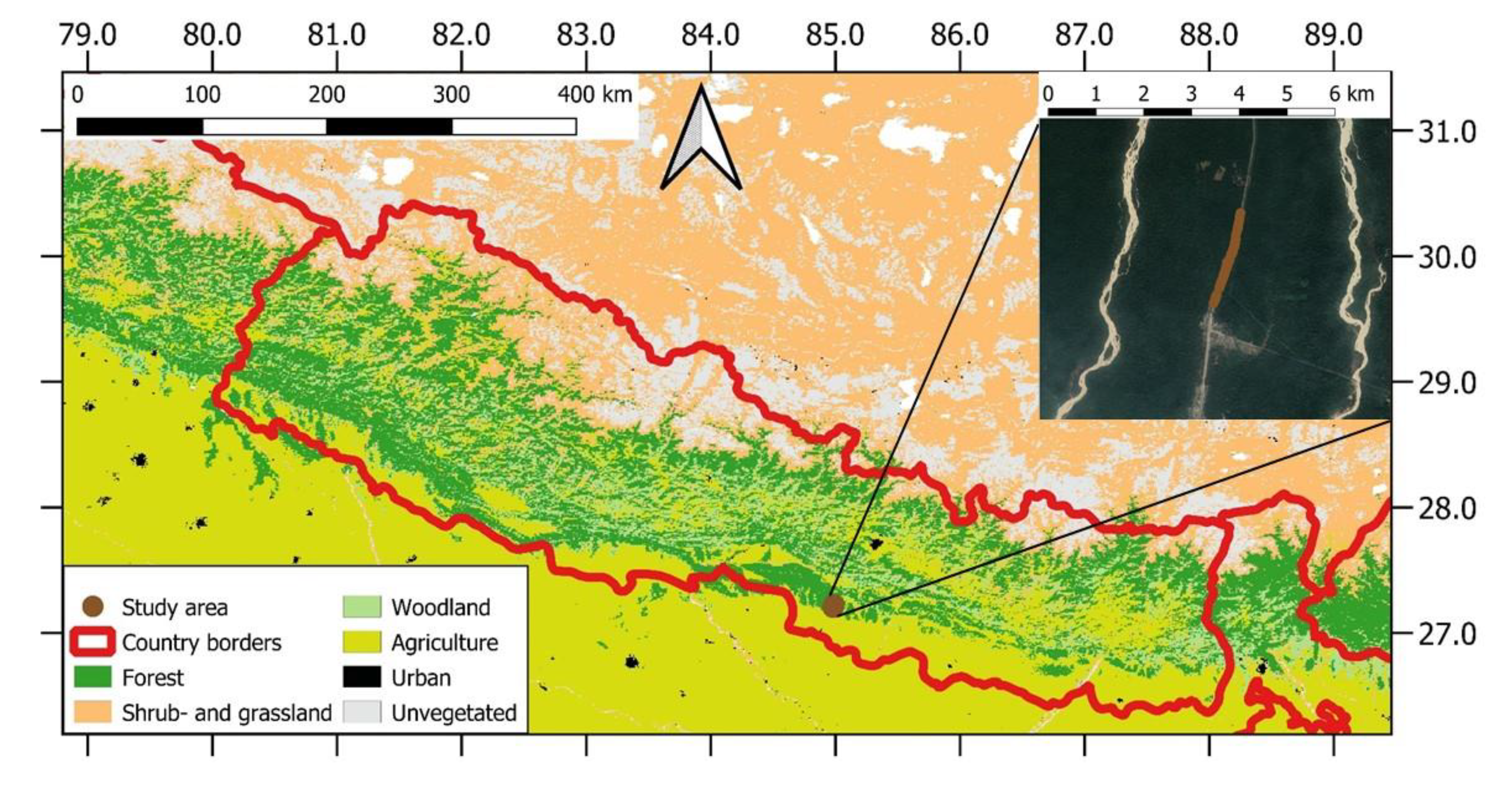

Figure 1 shows the location of the study area within Nepal and aggregate satellite-based land cover, MOD12Q1 Version 5 [
25]. This land cover map uses a supervised classification method with reflectance information from the MODIS sensor mounted on Terra and Aqua satellites of NASA (National Aeronautics and Space Administration). The spatial resolution is 0.5 arc minutes (~ 1 km at the equator). We aggregated the 14 original land cover types into six broad groups (forests, woodland and savannas, shrub- and grasslands, agriculture, urban and unvegetated).
The Timber Corporation of Nepal (TCN), a parastatal government organisation, was given responsibility for tree felling in the selected study site. They had divided the felling site into seven blocks, with 2 km length for each block. TCN had measured all trees above 10 cm diameter, including height, to estimate the volume of each harvested block. Since our interest was on Shorea robusta, we reviewed the inventory data and selected two blocks randomly, among the blocks which had high dominance and extensive representation of diameter classes between 10 cm and 100 cm.
2.2. Sampling Protocol
A total of 100 felled trees were measured, representing all diameter classes. We separated standing trees into eight diameter classes of 10 cm intervals, (10–20, 20–30, 30–40, 40–50, 50–60, 60–70, 70–80, 80 and above). We randomly selected at least 10 trees from each diameter class of good quality for the form factor measurement up to 80 cm diameter, whereas a few additional trees (4 in total) were selected for the replacement in later stages (if required) due to the quality of the trees or errors in measurement. Good quality trees include those trees which have high potential to produce timber. According to the Department of Forests, good quality tree includes trees with the straight bole having limited butt and attack of termites. We followed the grading of the TCN to select good quality trees, which was further verified by field observation. Of the total samples (100 trees) 12 percent were replaced by other trees, either because the quality of trees was poor, or because difficulties were encountered in tree measurement.
The height of the tree, crown length and crown width of the standing tree were measured before harvesting. Tree height and crown length were measured with the clinometer. The crown width is the average diameter of the maximum and minimum axes of the crown, which is measured before the tree is felled in both the axis manually. The horizonal distance of the crown spread was measured in the longest part of the tree and then in the perpendicular direction of the first measurement at the centre. The average was computed between the two measurements. The GPS coordinate and the neighbourhood tree species, including the distance from the selected tree and diameter, were also recorded. After the tree was felled, we measured the diameter over bark and bark thickness at stump height. The bark gauge was used for measuring the thickness of the barks. Two measurements of barks were carried out in opposite directions and the average was used to estimate barks.
2.3. Volume Estimation
In Nepal, only trees with a diameter above 30 cm is used for timber purpose. However, we measured down to 10 cm diameter for estimating the form factor as people use smaller
Shorea robusta trees as poles and shafts for constructing cattle sheds and, small houses, and making furniture. Likewise, the diameter of the main branches and sub-branches were measured at every 1 m interval till it reached 10 cm. We also measured the bark thickness using a bark gauge. This allowed calculating volume: (a) including and (b) excluding bark. For this, we used the over bark measurements of diameter and segment lengths for estimating the volume following Equation (1).
where V is the volume (m
3) of a tree’s segment with measurements of length (L) in meter and two diameters over bark measurements at the base (Dob1) and the top (Dob2), both unit in m. For volume under bark, we calculated diameter under bark (Dub) by subtracting double bark thickness (BT) (Equation (2). We then used Equation (1) to estimate volume under bark.
We calculated four different volume values for each tree, (1) volume of stem over bark, (2) volume stem under bark, (3) wood (>10 cm) volume over bark and (4) wood (>10cm) volume under the bark. “Wood” included both central stems and branches with larger than 10 cm diameters.
2.4. Form Factor Calculation
We calculated the form factor values for each tree for all four classes following Equation (3).
where, (“i” represents stem over bark, stem under bark, wood over bark or wood under bark), DBH the diameter at breast height (m), and H the tree height (m).
Only limited research has been carried out to estimate form factor for
Shorea robusta. They were developed locally and lack the ability to explain the variation in form factors for the
Shorea robusta trees growing in the region with higher site variabilities. In case of missing form factor, the default form factor (i.e., 0.5) is being used, specifically by the GoN [
17]. In this study, we derived form factor using the volume functions from the literature [
18,
19] with the DBH and tree height measurements of our trees and using Equation (3). The derived form factors were compared with published and default form factors. This provided us with three reference form factors to compare with our new form factors. As Subedi (2017) and Sharma and Pukkala (1990) [
18,
19] do not provide volume functions for wood >10 cm, we had to first derive a consistent volume. We first applied the total volume with bark functions for
Shorea robusta (including 0–10 cm stem tip and branches, Equation (4) [
18] and Equation (5) [
19].
Next we calculated the share of volume 0–10 cm to total volume with Equation (6) [
18] and Equation (7) [
19].
Equations (4)–(7) use DBH in cm and height in meters, and are presented here as they appear in literature [
18,
19]. We then deducted the volume 0–10cm (Equations (6) and (7)) from total volume to get the wood volume >10 cm for each tree, which is now comparable to the wood volume used in this study. We then calculated the corresponding form factor of volume estimated using models [
18,
19] using Equation (3).
2.5. Form Factor Models and Diameter-Height Function

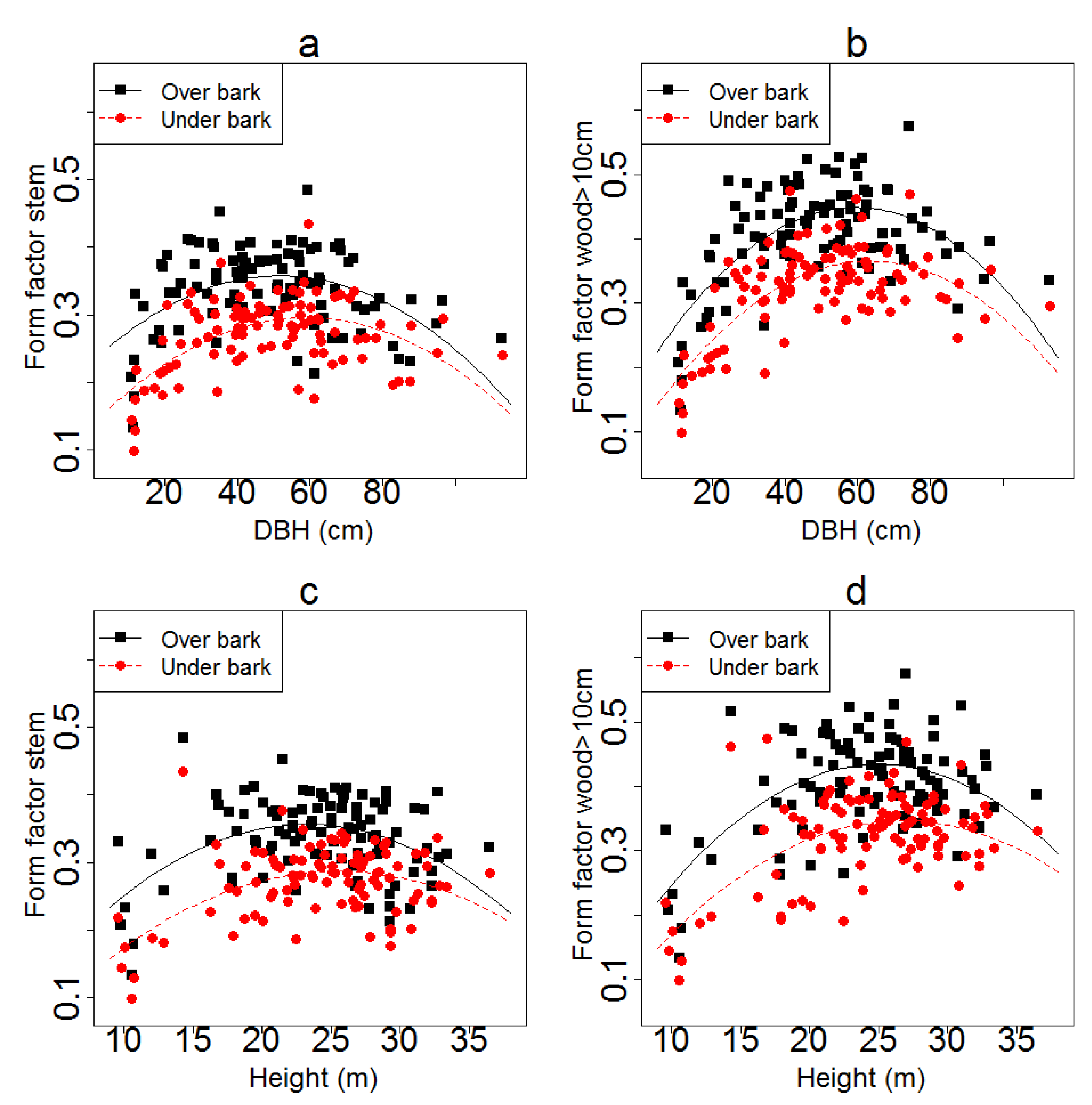

We used form factor derived for 100 trees to develop simple models using DBH and tree height as input. We used second order polynomial functions (y= a + bx + cx2) to test for non-linear relationships. We fitted models for form factor of stem and for form factor of wood (>10cm) and including and excluding bark. This resulted in eight form factor models; four based on DBH and four on tree height. We calculated coefficient of determination R2 and p value. We did not perform a validation of the models as we lacked an independent dataset and as splitting the dataset further would have reduced model accuracy.
We also calculated a diameter-height function using the Pettersen function to enable calculating tree height based on DBH.
4. Discussion
In Nepal, there is no published form factor for
Shorea robusta, and government officials of the district forest office use 0.5 as a default form factor for all species irrespective of diameter and height classes, including bark [
17]. This study estimated the form factor of
Shorea robusta for the stem and wood at 0.27 and 0.32 (DBH > 10 cm, excluding bark) respectively, based on the destructive sampling of 100 trees. Thus, the currently used method for estimating the standing volume of
Shorea robusta using the form factor of 0.5 overestimates the actual tree volume. In other words, the actual harvest volume may be lower by 36% than the actual estimates. In discussions with government officials, it became evident that nobody was aware of how the form factor of 0.5 was derived and should be used in the Nepali context, which is also reflected Shrestha et al., (2018) and Baral et al., (2019) [
22,
26]. It is often justified that the use of the default form factors allows for maximum flexibility for volume prediction and estimation, and, hence, its use is still part of the forest planning for ecological and economic sustainability [
1].
Our estimate of the form factor is quite low compared to that of other regional studies which estimate the form factor. Shrestha et al., (2018) [
22] study in the central Terai of Nepal, estimates the form factor of the
Shorea robusta trees up to 10 cm top diameter ranging from 0.51 to 0.65 in the western region of the country. Likewise, Thakur, (2006) [
21], which is an analysis of the major tree species, such as
Shorea robusta,
Schima wallichii,
Castanopsis indica and
Pinus species, and miscellaneous species of Parbat district, estimates the form factor of 0.58 for the western hills of Nepal. The reasons for this deviation are manifold and may include (a) inconsistent definition of stem or wood between the two studies, and (b), methods used for quantifying the form factor are not the same.

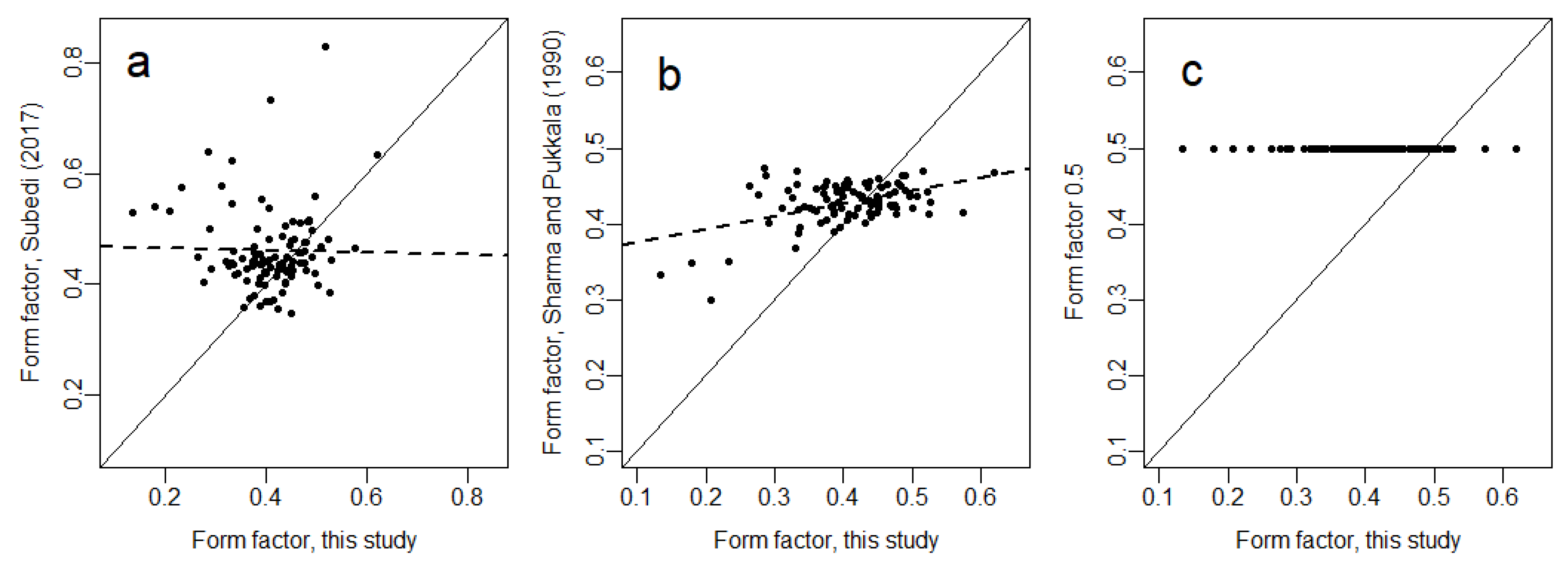

Comparing the recalculated form factor (Equation (3)) using the estimated volume from the functions of the two previous studies allows for assessing the quality of the derived form factor of wood, including bark, of this study. This study provides form factors, with or without bark, stem, or tree (including stem). We used existing volume functions for studying the effects of using the newly developed factors. Subedi, (2017) and Sharma, & Pukkala, (1990) [
18,
19] provide functions for wood volume (including branches smaller than 10 cm). Our study excluded the stem tip and branches smaller than 10 cm since the study only focused on merchantable volume. [
18] shows that the stem tip (smaller 10 cm) contains between 1% and 11% of total stem volume, and so excluding wood smaller than 10 cm may explain a deviation of up to 10%. We used diameter measurements every meter until the stems or branches were smaller than 10 cm and have on average 20 diameter measurements per tree, supporting a more accurate calculation of the stem taper. In comparison, Sharma and Pukkala, (1990) [
18] had 10–15 measurements per tree, [
19] did not specify the number of measurements per tree, but states that measurement intervals increased from 0.5 to 2 m from stump to tip. Thus, the data measured by [
18,
19] should have comparable accuracy to the data investigations in this study.
This, to our knowledge, is the first study that provides form factor for
Shorea robusta in the central region of the country, which also allows us to examine the share of barks and branches in estimating standing volume. The form factor of wood over bark is about 0.407, which is 26% higher compared to the wood under the bark. Similarly, form factor of stem over bark is 0.336, where the share of the bark was about 24%. This reveals that bark influences nearly one-fourth of the form factor, which is similar to the results of [
18]. The form factor of stem over bark (the central shoot until the first bifurcation) is 0.336 and thus about 83% of the wood larger 10cm is allocated into the stem. In turn, the branches contain a considerable share of merchantable wood volume in
Shorea robusta and cannot be undermined. Branches, rather, have to be measured as accurately as possible. A shortcoming of our study is that we did not measure branches smaller than 10 cm. However, the number of branches in tropical species, like
Shorea robusta makes measurement often unreliable [
5,
19]. While these small branches may not have immediate economic value, they may contain a substantial share of tree carbon and probably an even large amounts of the nutrient stored in tree biomass [
13,
27,
28,
29]. Further research is required to test the proposed models in other parts of the country, conduct validation using an independent dataset and expand the introduced methodology for tree volume or carbon.
