Land Use Zoning at the County Level Based on a Multi-Objective Particle Swarm Optimization Algorithm: A Case Study from Yicheng, China

Abstract

Comprehensive land-use planning (CLUP) at the county level in China must include land-use zoning. This is specifically stipulated by the China Land Management Law and aims to achieve strict control on the usages of land. The land-use zoning problem is treated as a multi-objective optimization problem (MOOP) in this article, which is different from the traditional treatment. A particle swarm optimization (PSO) based model is applied to the problem and is developed to maximize the attribute differences between land-use zones, the spatial compactness, the degree of spatial harmony and the ecological benefits of the land-use zones. This is subject to some constraints such as: the quantity limitations for varying land-use zones, regulations assigning land units to a certain land-use zone, and the stipulation of a minimum parcel area in a land-use zoning map. In addition, a crossover and mutation operator from a genetic algorithm is adopted to avoid the prematurity of PSO. The results obtained for Yicheng, a county in central China, using different objective weighting schemes, are compared and suggest that: (1) the fundamental demand for attribute difference between land-use zones leads to a mass of fragmentary land-use zones; (2) the spatial pattern of land-use zones is remarkably optimized when a weight is given to the sub-objectives of spatial compactness and the degree of spatial harmony, simultaneously, with a reduction of attribute difference between land-use zones; (3) when a weight is given to the sub-objective of ecological benefits of the land-use zones, the ecological benefits get a slight increase also at the expense of a reduction in attribute difference between land-use zones; (4) the pursuit of spatial harmony or spatial compactness may have a negative effect on each other; (5) an increase in the ecological benefits may improve the spatial compactness and spatial harmony of the land-use zones; (6) adjusting the weights assigned to each sub-objective can generate a corresponding optimal solution, with a different quantity structure and spatial pattern to satisfy the preference of the different decision makers; (7) the model proposed in this paper is capable of handling the land-use zoning problem, and the crossover and mutation operator can improve the performance of the model, but, nevertheless, leads to increased time consumption.

2. Data

2.1. Study Area

The study area (31°26′–31°54′N, 111°57′–112°57′E) is located in Hubei Province, central China, with an area of 2,114.75 km² (Figure 1). The area, whose average elevation is between 50 and 150 m, accounts for 76.8% of the total county area, and a dense river network and many ponds cover the whole area. The average annual rainfall in this area, which has a typical subtropical monsoon climate, is between 800 and 1,000 mm. For this area, the population was 5.15 × 10⁵ and the average annual growth rate of total gross domestic product (GDP) in the 11th five-year period was more than 10%. The study area has abundant mineral resources, including silica, limestone, and the biggest deposits of bauxite in Hubei Province. Extensive industrial development of the area has led to a great threat to the local ecological environment.

In accordance with the CLUP (2006–2020) for Yicheng, the land-use zone of CLTV should continue to be divided into two zones comprising the construction land for towns (CLT) and construction land for villages (CLV). In addition, because there is little grassland for animal agriculture in this study area, the zone of LLA is excluded. In the end, the scenario of land-use zoning for Yicheng makes sure that eight land-use zones, including BFPA, GALA, FLA, CLV, CLT, IIMLA, TLA and NHLPA, are obtained.

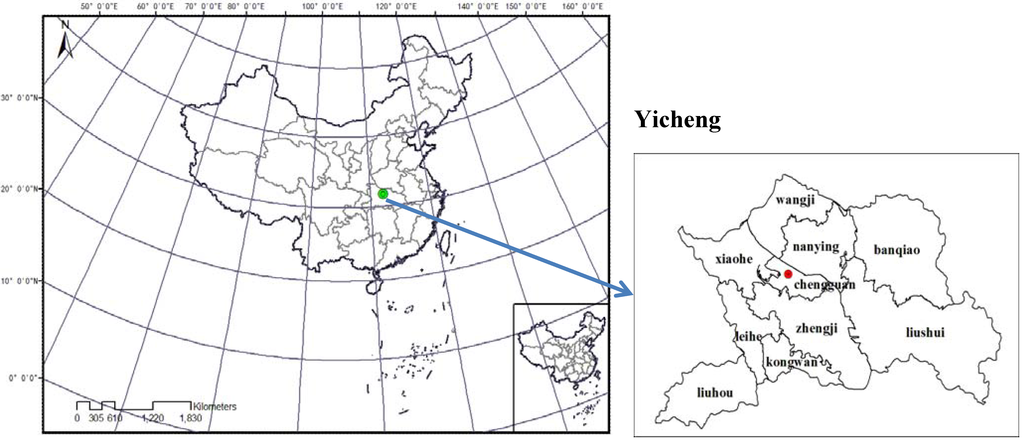

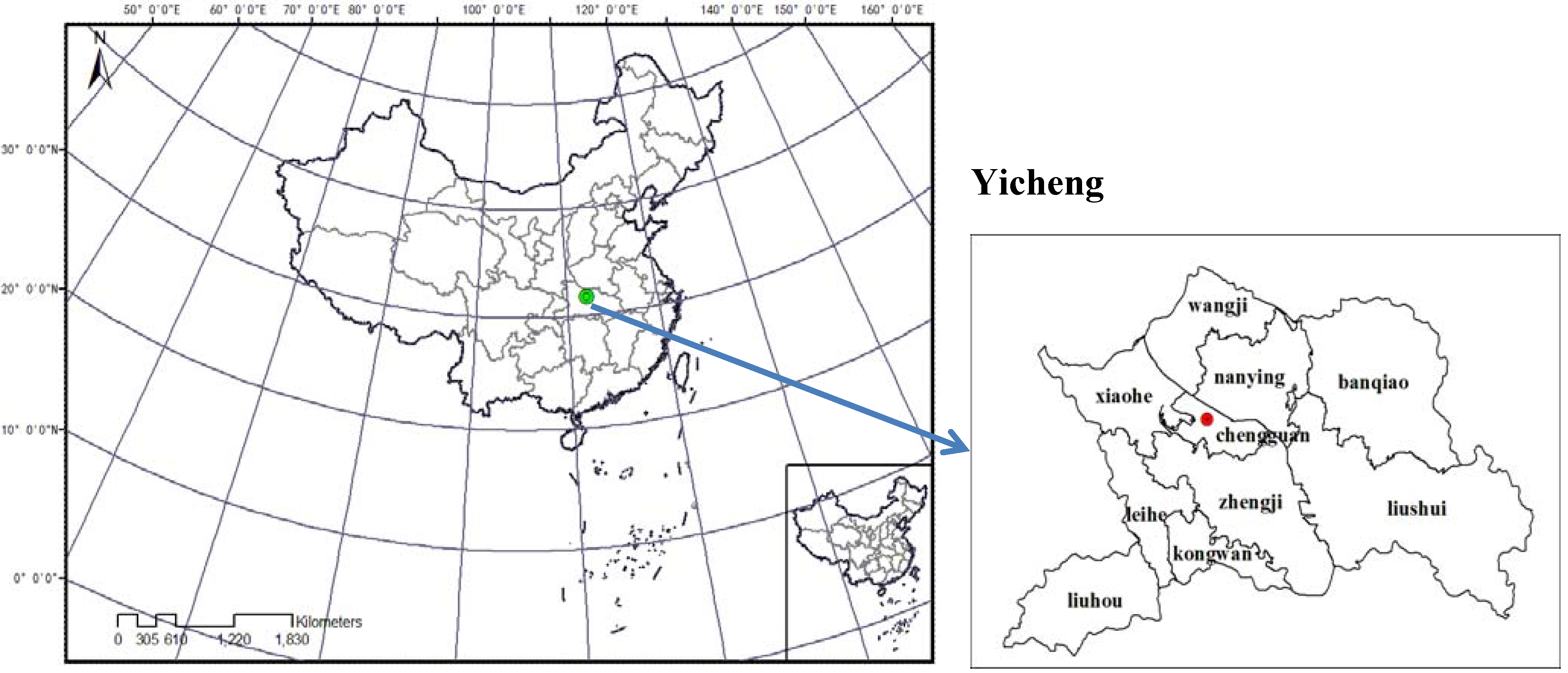

Figure 1. Location of the study area.

2.2. Data Collection and Processing

The natural and social characteristics of each land-use patch should be considered when the work of land-use zoning is conducted, so we chose some indices that can reflect these characteristics and list them in Table 1.

Table 1. Land-use zoning indices.

Target	Criteria	Indices
Land-use zoning	soil quality	surface soil type, soil organic matter content, pH value,
		soil depth, soil erosion intensity, soil profile construction
	topographic	elevation, slope
	infrastructure	irrigation guarantee rate,
	for farmland	drainage conditions, rural road density
	land location	distance from rural settlements,
		distance to center of towns, distance from roads
	land-use status	land-use type

Land-use type can be quantized as an integer number such as 1, 2…n.

Table 1. Land-use zoning indices.

Target	Criteria	Indices
Land-use zoning	soil quality	surface soil type, soil organic matter content, pH value,
		soil depth, soil erosion intensity, soil profile construction
	topographic	elevation, slope
	infrastructure	irrigation guarantee rate,
	for farmland	drainage conditions, rural road density
	land location	distance from rural settlements,
		distance to center of towns, distance from roads
	land-use status	land-use type

Land-use type can be quantized as an integer number such as 1, 2…n.

The soil quality data such as pH value, soil depth, soil erosion intensity, etc., were obtained from the soil quality survey map (1:50,000). Slope and elevation were derived from a digital elevation model (DEM of 30 m resolution, provided by the International Scientific & Technical Data Mirror Site, Computer Network Information Center, Chinese Academy of Sciences). Some vector traffic maps (1:10,000) were used to provide the spatial information such as centers of towns, railways, highways, roads, and administrative boundaries (provided by local bureau of land and resources). The type of each land-use patch, the percentage area of each land-use type and the distribution of rural settlements were obtained from the actual vector land-use map (1:10,000, provided by the local Bureau of Land and Resources). The actual land-use map contains 47,851 patches, with each patch considered to be a land unit which should be assigned to a certain land-use zone. Several fields were added to the actual land-use map to store the values of the aforementioned indices, after being standardized by Equation (1):

(1)

where x_i’ is the value of variable i before standardization, x_i is the value after standardization, x_min is the minimum value of the variable, and x_max is the maximum.

All the spatial data were processed and computed by the spatial analysis tool in ArcGIS 9.3. To ensure consistency of the data, all the images and maps were geometrically rectified with each other and subsequently referenced to the Gauss-Kruger projection Xian_1980_3_ Degree_GK_Zone_37 Projected Coordinate System. Figure 2 represents the main spatial data after GIS processing.

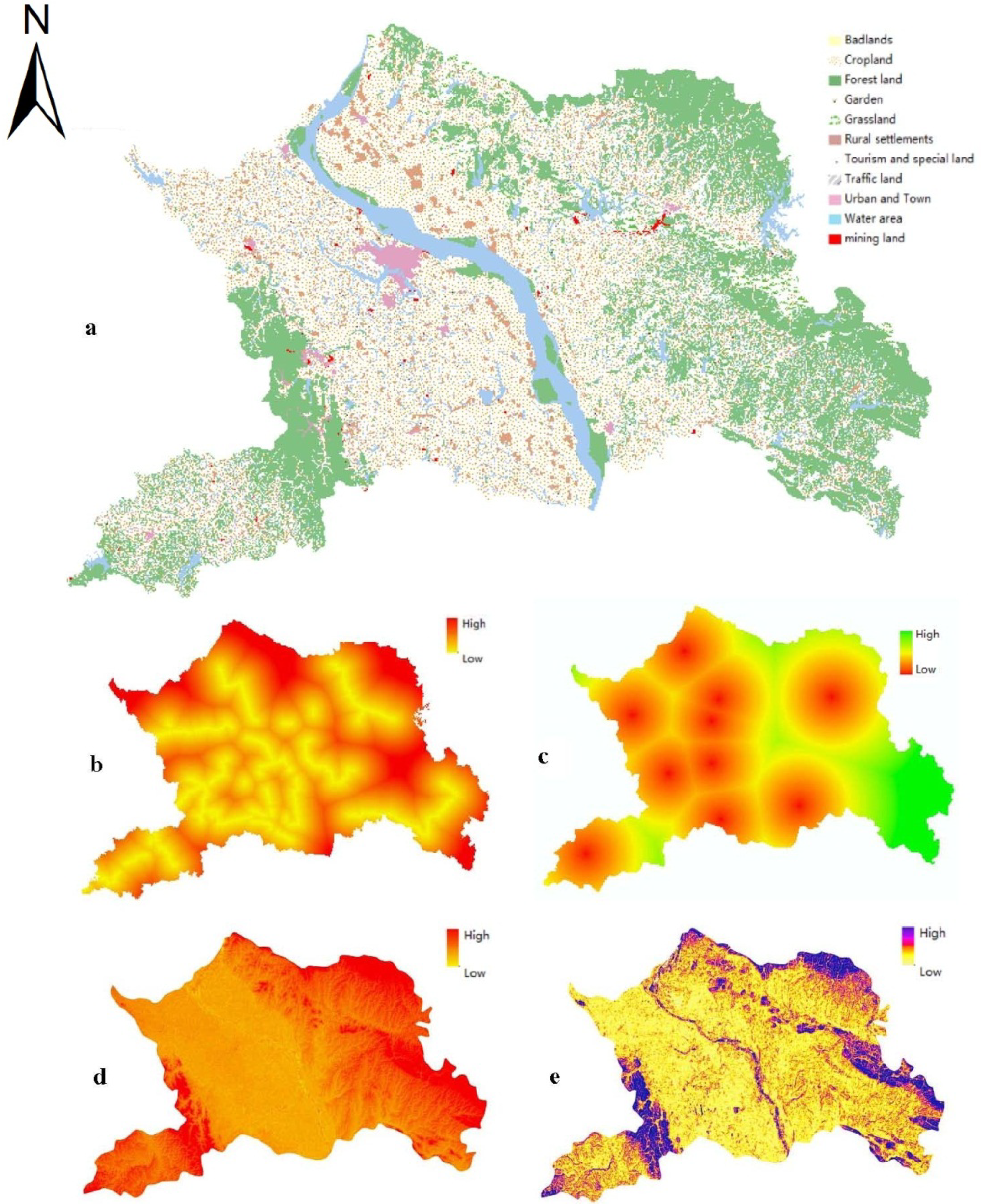

Figure 2. Main spatial data for the land-use zoning model: (a) Actual land-use map; (b) Distance from highways and railways; (c) Distance to center of towns; (d) Elevation; (e) Slope.

Land-use planning based on ecological evaluation is of great significance to sustainable development [35]. The ecological benefits of land use can be evaluated by the ecosystem services value (ESV) [36], where different land-use types and zones have different ESVs. Xie et al. [37] established the ESV unit areas of Chinese terrestrial ecosystems, based on the partial global ESV evaluation results obtained by Costanza et al. [38]. This paper defines the level of ecological benefit and the corresponding coefficient of different land-use zones (see Table 2) in accordance with the foregoing results, integrated with the responses to ecological questionnaires from specialists of different departments in Yicheng City.

Table 2. The ecological benefit level and coefficients of different land-use zones.

Land-use zone	NHLPA	FLA	GALA	TLA	BFPA	CLV	CLT	IIMLA
Level	1	2	3	4	5	6	7	8
Coefficient	1	0.9	0.6	0.5	0.4	0.3	0.1	0

Table 2. The ecological benefit level and coefficients of different land-use zones.

Land-use zone	NHLPA	FLA	GALA	TLA	BFPA	CLV	CLT	IIMLA
Level	1	2	3	4	5	6	7	8
Coefficient	1	0.9	0.6	0.5	0.4	0.3	0.1	0

3. Methodology

3.1. Objective Function

Optimized land-use zones can effectively improve the land-use multi-efficiency, achieve optimal allocation and guarantee sustainable utilization of land resources; therefore, each land-use patch should be assigned to a certain zone, not only considering the natural and social characteristics of each land-use patch but also the global spatial compactness, spatial harmony of the land-use zones and the ecological benefits of land use. Hence, optimal land-use zones should reach the following objectives:

(1) The attribute difference between land-use zones maxf_AD

Land-use zoning needs to divide n patches x^d(d = 1,2,…,m, m is the number of attributes) into C land-use zones G_j(j = 1,2,…c). The difference between all the land-use zones is greatest when the sum of the distances from each land-use patch to the center of the corresponding land-use zone is smallest. So, the problem can be formulated as:

(2)

where n is the number of land-use patches and c is the number of land-use zones when patch x_k belongs tozone G_j, then u_kj is equal to 1, or otherwise equal to 0. v_j is the center of zone G_j that can be calculated by formula , is the value of attribute i for the center of zone G_j, is the value of attribute i for patch x_N that belongs to zone G_j, N_j is the total number of patches that belongs to zone G_j, and is the Euclidean distance between patch x_k and v_j that is given by formula .

(2) The spatial compactness of land-use zones maxf_SC

To meet the needs of land-use control, besides the optimization of the quantity and quality of land use, the optimization of the spatial pattern is also an important component of land-use zoning. Reducing the fragmentary zones benefits the spatial control. The problem can be formulated as Equation (3):

(3)

If land-use patch x_k is assigned to spatial cluster G_j, b_kj is the number of adjacent patches that also belong to G_j. f_SC achieves a maximum value when land-use patches with the same attributes are adjacent to each other, and f_SC achieves a minimum value when each patch has no adjacent patches that belong to the same zone, a small area with several patches in Yicheng is chosen to describe this vividly (Figure 3).

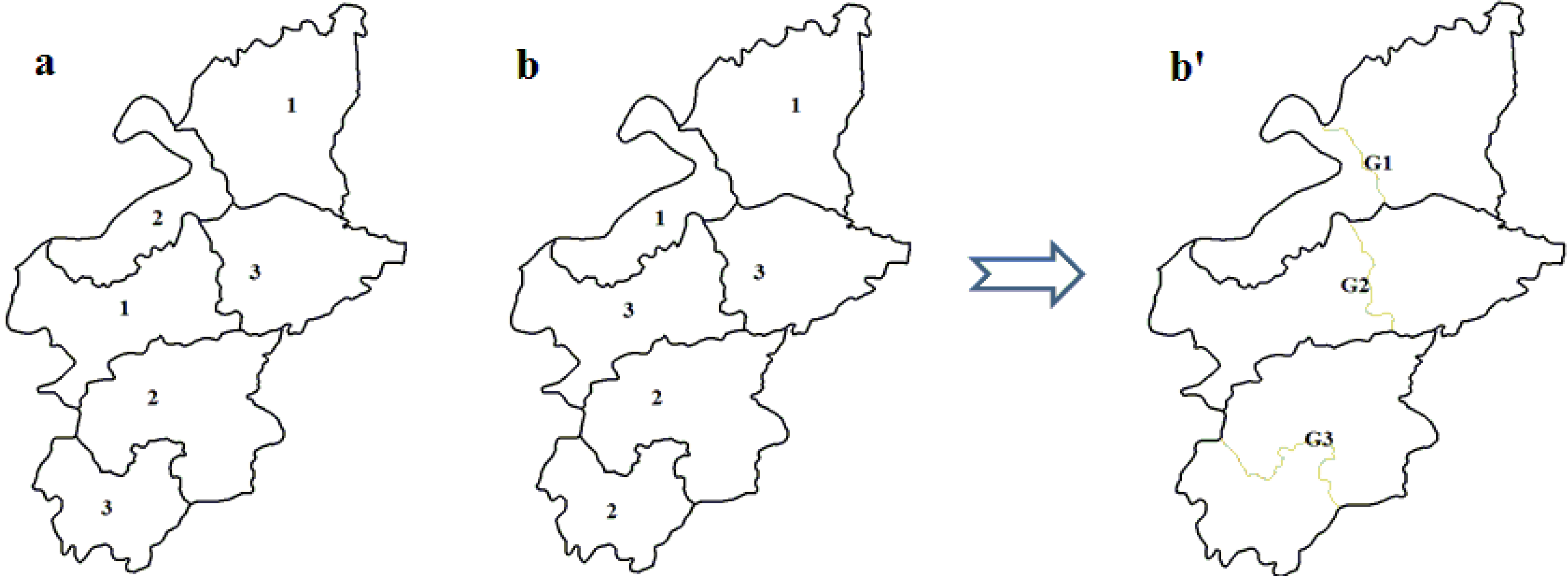

Figure 3. The spatial pattern of land-use zoning: the spatial compactness of b is obviously better than a; b′ represents the spatial clusters.

(3) The degree of spatial harmony of land-use zones maxf_HD

While in the process of partitioning the n patches into C land-use zones and D spatial clusters (Figure 3b), the state and influence of the neighborhood of each zone (spatial cluster) should be considered. The proper adjacent distribution of two land-use zones will promote the convenience degree of social production activities of human. Therefore, the problem can be expressed as in Equation (4):

(4)

where d is the number of spatial clusters, v_ij is equal to 1 when cluster i and cluster j are adjacent to each other, otherwise v_ij is equal to 0. hp_ij represents the spatial harmony index between cluster i and cluster j, which belong to two different zones, respectively. The spatial harmony index between different land-use zones is obtained according to a combination of expert experience and the Delphi method, the results are listed in Table 3.

The ecological benefits of land-use zones maxf_EB: Different land-use patterns provide a different ESV. Objective f_EB aims to improve the global ESV, based on the optimal land-use zones from an ecological point of view. So, the problem can be expressed as follows:

(5)

where ep_k represents the ecological benefit coefficient (refer to Table 2) when patch x_k is allotted to zonej. f_EB achieves a maximum value when all the land-use patches are assigned to the zone of FLA, and f_EB achieves a minimum value when all the patches are assigned to the zone of CLTV or IIMLA.

Table 3. The spatial harmony index between different land-use zones.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA	NHLPA
BFPA	1	0.8	0.6	0.5	0.1	0.1	0.3	0.4
GALA		1	0.8	0.5	0.2	0.1	0.3	0.4
FLA			1	0.3	0.3	0.3	0.8	0.8
CLV				1	0.8	0.6	0.4	0.2
CLT					1	0.3	0.2	0.1
IIMLA						1	0.1	0.1
TLA							1	0.6
NHLPA								1

Table 3. The spatial harmony index between different land-use zones.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA	NHLPA
BFPA	1	0.8	0.6	0.5	0.1	0.1	0.3	0.4
GALA		1	0.8	0.5	0.2	0.1	0.3	0.4
FLA			1	0.3	0.3	0.3	0.8	0.8
CLV				1	0.8	0.6	0.4	0.2
CLT					1	0.3	0.2	0.1
IIMLA						1	0.1	0.1
TLA							1	0.6
NHLPA								1

Since these four objective functions (Equations (2–5)) represent conflicting land use demands, the scenario of land-use zoning with the optimal spatial pattern does not promise to give the maximum ecological benefits; therefore, there does not exist a single ideal solution which simultaneously satisfies the decision makers across all criteria. So, a compromise solution is sought based on a linear weighting method, which is a simple and practical way to convert the multi-objective problem into a single-objective one by using the following expression:

(6)

where w₁, w₂, w₃ and w₄ are the weights of four objective functions, respectively, and subject to the condition w₁ + w₂ + w₃ +w₄ = 1. g_norm normalizes the values of the objectives within the range [0, 1] to eliminate the impact of different dimensions by:

(7)

3.2. Constraint Condition

3.2.1. The stipulation of a minimum parcel area in a land-use zoning map

The standards for CLUP at the county level make clear a regulation about the minimum parcel area (MPA) of different land-use zone types in the land-use zoning map (see Table 4). The parcels (also spatial clusters) with a conflict with the regulation should be merged into an adjacent parcel which has a maximal area.

Table 4. The MPA in a land-use zoning map with 1:10,000 scale.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA	NHLPA
Area in map (mm2)	20	20	100	20	20	20	20	100
Actual area (hm2)	0.2	0.2	1	0.2	0.2	0.2	0.2	1

Table 4. The MPA in a land-use zoning map with 1:10,000 scale.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA	NHLPA
Area in map (mm2)	20	20	100	20	20	20	20	100
Actual area (hm2)	0.2	0.2	1	0.2	0.2	0.2	0.2	1

3.2.2. The limitation of area of various land-use zones

In the process of land-use zoning, the quantity of land-use zones should meet the demands of the land-use plan, as well as the optimization of the spatial pattern. In accordance with the CLUP (2006–2020) for Yicheng, which states that the area of basic farmland should be not less than 62,462.14 hm² by 2020, and the amount of total construction land should not exceed 18,785.70 hm², the forest coverage rate will simultaneously have to reach 26.36% (55,563.16 hm²), so the area of BFPA, FLA, CLV, CLT and IIMLA should satisfy the inequality as follows:

3.2.3. The general regulations of land-use zoning

(1) Land-use zoning is conducted excluding the water areas. Therefore, the 527 land-use patches for the water areas will not participate in the land-use zoning and will be given a value of NONE in the attribute of land-use zone. The total area of water areas in the study area is 12,998.06 hm² (see Figure 4).

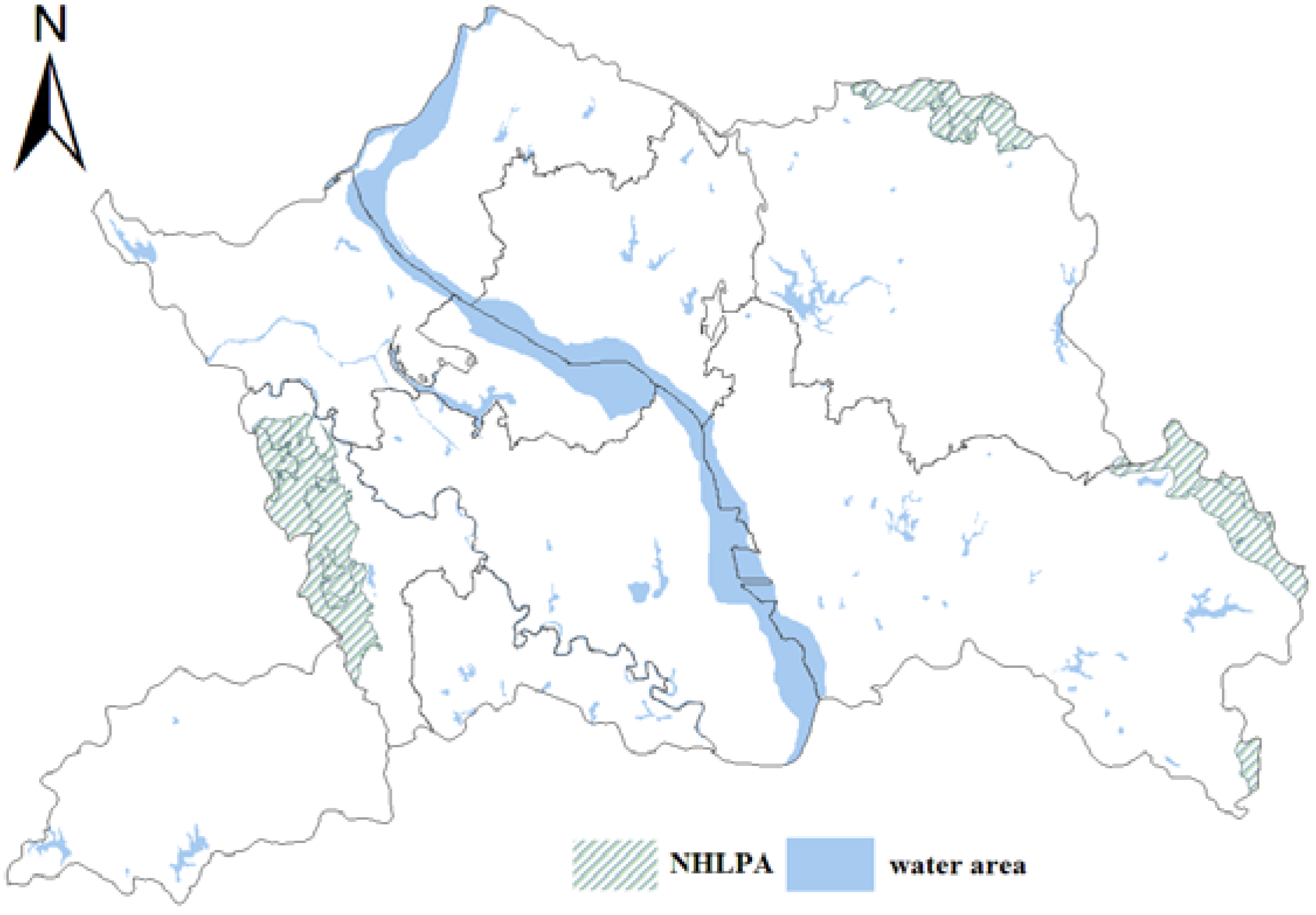

Figure 4. Water and nature reserve areas in Yicheng.

(2) Nature reserve areas with important ecological value, special cultural relics, historical sites and ecological forest must be assigned to NHLPA as a priority, and the attribute values of 112 land-use patches for the above types remain to the very end of the process of land-use zoning, with an area of 10,111.58 hm² (see Figure 4).

(3) There is little likelihood of built-up areas being converted into other land-use types, based on the general laws of land-use change [39,40], so the land-use patches for urban areas and towns, and industry and mining should be only assigned to CLT and IIMLA, respectively. The same applies for tourism land, which can only be assigned to TLA.

(4) Cheng et al. [41] defined the general dominant land use, allowable land use, and prohibited land use in various land-use zones. This paper also provides the relevant regulations for the eight land-use zones of Yicheng, in line with the local conditions (see Table 5). The probability interval of a land-use patch of a certain type being assigned to a zone is determined based on the information from Table 5, and is listed in Table 6. The zone label of each land-use patch should be decided referring to the table of probability intervals, for the initialization of different scenarios of land-use zoning, as follows:

(8)

where p is a random number and 0 ≤ p ≤ 1, PI_kj[a,b] is the probability interval of land-use type k being allocated to land-use zone type j.

Table 5. The dominant land use, allowable land use, and prohibited land use of the various land-use zones.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA
Cropland	△	□	□	―	―	―	―
Garden	□	△	□	―	―	―	□
Grassland	□	□	□	□	□	□	□
Forest land	□	□	△	□	□	□	□
Traffic land	□	□	□	□	□	□	□
Rural settlements	―	□	□	△	―	―	□
Tourism and special land	―	―	―	―	―	―	△
Badlands	―	―	―	□	□	□	□

△ dominant land use, □ allowable land use，― prohibited land use.

Table 5. The dominant land use, allowable land use, and prohibited land use of the various land-use zones.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA
Cropland	△	□	□	―	―	―	―
Garden	□	△	□	―	―	―	□
Grassland	□	□	□	□	□	□	□
Forest land	□	□	△	□	□	□	□
Traffic land	□	□	□	□	□	□	□
Rural settlements	―	□	□	△	―	―	□
Tourism and special land	―	―	―	―	―	―	△
Badlands	―	―	―	□	□	□	□

△ dominant land use, □ allowable land use，― prohibited land use.

Table 6. The probability intervals of certain land-use types being allocated to certain land-use zone types.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA
Cropland	[0, 0.8]	[0.8, 0.9]	[0.9, 1]	―	―	―	―
Garden	[0.7, 0.85]	[0, 0.7]	[0.85, 0.95]	―	―	―	[0.95, 1]
Grassland	[0.6, 0.7]	[0.7, 0.8]	[0.8, 0.9]	[0.2, 0.4]	[0, 0.2]	[0.9, 1]	[0.4, 0.6]
Forest land	[0.7, 0.75]	[0.75, 0.8]	[0, 0.7]	[0.8, 0.85]	[0.85, 0.9]	[0.9, 0.95]	[0.95, 1]
Traffic land	[0.6, 0.7]	[0.4, 0.6]	[0.7, 0.8]	[0, 0.2]	[0.2, 0.4]	[0.8, 0.9]	[0.9, 1]
Rural settlements	―	[0.7, 0.8]	[0.8, 0.9]	[0, 0.7]	―	―	[0.9, 1]
Badlands	―	―	―	[0, 0.25]	[0.25, 0.5]	[0.5, 0.75]	[0.75, 1]

Table 6. The probability intervals of certain land-use types being allocated to certain land-use zone types.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA
Cropland	[0, 0.8]	[0.8, 0.9]	[0.9, 1]	―	―	―	―
Garden	[0.7, 0.85]	[0, 0.7]	[0.85, 0.95]	―	―	―	[0.95, 1]
Grassland	[0.6, 0.7]	[0.7, 0.8]	[0.8, 0.9]	[0.2, 0.4]	[0, 0.2]	[0.9, 1]	[0.4, 0.6]
Forest land	[0.7, 0.75]	[0.75, 0.8]	[0, 0.7]	[0.8, 0.85]	[0.85, 0.9]	[0.9, 0.95]	[0.95, 1]
Traffic land	[0.6, 0.7]	[0.4, 0.6]	[0.7, 0.8]	[0, 0.2]	[0.2, 0.4]	[0.8, 0.9]	[0.9, 1]
Rural settlements	―	[0.7, 0.8]	[0.8, 0.9]	[0, 0.7]	―	―	[0.9, 1]
Badlands	―	―	―	[0, 0.25]	[0.25, 0.5]	[0.5, 0.75]	[0.75, 1]

3.3. The Particle Swarm Optimization Model

As an important branch of swarm intelligence, the PSO algorithm maintains a population of particles, where each particle represents a potential solution to an optimization problem. The set of particles, also known as a swarm, is flown through the D-dimensional search space of the problem. The position of each particle is changed, based on the experiences of the particle itself and those of its neighbors [42]. The particle in the model of land-use zoning, based on the multi-objective particle swarm optimization with constriction factor, and crossover and mutation operator (MOPSO-CCM), is seen as a potential scenario of land-use zoning. The velocity and position of the particle are updated under the guidance and restriction of the aforementioned objective functions and constraints. To implement the application of MOPSO-CCM in land-use zoning, it is necessary to define the coding scheme for the particle, design the crossover and mutation operator, and set up the updating mechanism for the particle’s position and velocity, according to the particular land-use zoning problem.

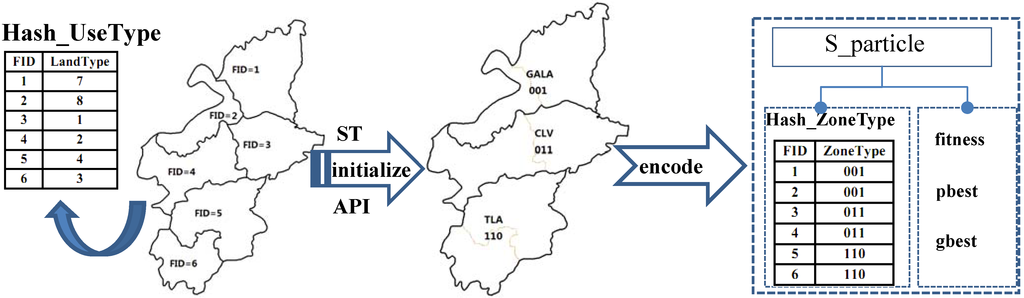

(1) Coding scheme of the particle (Figure 5)

The eight land-use zones are encoded with a hybrid code system consisting of both decimal code and binary code (see Table 7). Decimal code is defined for the updating of the particle’s position, and binary code is proposed for the crossover and mutation of the particle. The encoded information is stored in a relational table in the database, which is convenient for the operation of encoding and decoding.

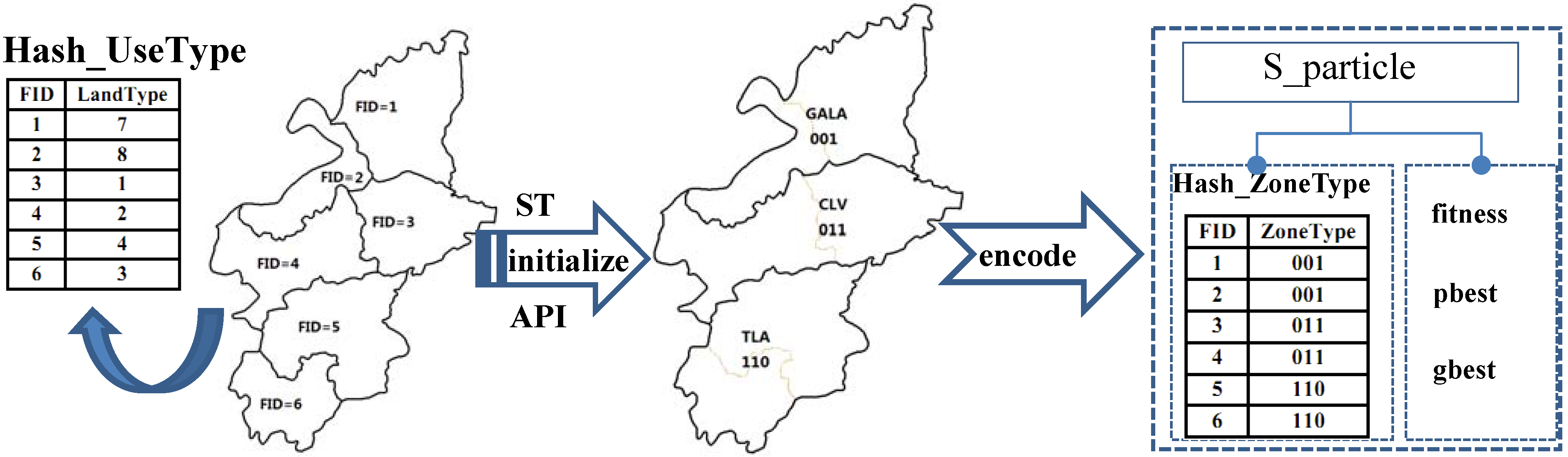

Figure 5. The coding scheme for a particle.

Table 7. The coding of the land-use zones.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA	NHLPA
Decimal code	0	1	2	3	4	5	6	7
Binary code	000	001	010	011	100	101	110	111

Table 7. The coding of the land-use zones.

Land-use zone	BFPA	GALA	FLA	CLV	CLT	IIMLA	TLA	NHLPA
Decimal code	0	1	2	3	4	5	6	7
Binary code	000	001	010	011	100	101	110	111

The land-use patches are encoded with a serial integer and unique numbers in ascending order. The code of each land-use patch and corresponding land-use type are stored in a hash table named as Hash-UseType.

When the initialization of a population of random particles starts, each land-use patch obtains the type of land-use zone, based on the stochastic technique (ST) integrated with assigning the probability interval (API, refer to Table 6). The relevant information is stored in a hash table named as Hash-ZoneType.

The particle can be represented by the structure named as S_particle, which consists of a hash table (Hash-LandZoneType), the current fitness (fitness), the best fitness achieved by itself (pbest) and the best fitness obtained by any particle in the population (gbest). The array of S_particles is used to represent the swarm of particles.

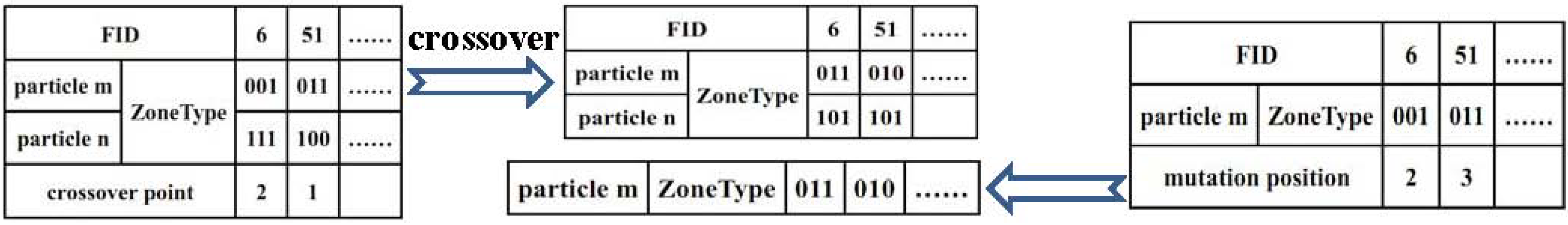

(2) Designing the crossover and mutation operator (Figure 6)

In the process of crossover or mutation, the particle will be seen as a chromosome, and a land-use patch will be seen as a gene.

Figure 6. The crossover and mutation operator.

A single-point crossover operator is adopted to reproduce offspring. The selection of parents for performing crossover is done at a specified probability and is displayed in the mating pool. The number and FID code of genes preparing for crossover are determined randomly. For the purpose of the crossover operation, the crossover point i (i∈{1,2,3}) is also chosen randomly, then the corresponding binary bits before and after the crossover point of the parents are interchanged, leading to two new individuals.

The mutation operator is designed as follows. A chromosome is chosen for mutation at a preset probability. Some genes and the corresponding position i (i∈{1,2,3}) for mutation then need to be chosen randomly. Thanks to the gene structure of the binary code, if the value at the mutation position is 1, then reset it to 0, otherwise to 1.

When crossover or mutation is proceeding, the constraint of API should be considered. For example, cropland is prohibited in the land-use zone of TLA, so if the transition of the gene offends against the constraint of API, the operation of crossover or mutation should be repeated until the transition is acceptable or reaches a preset try-number.

(3) Updating mechanism of the particle’s position and velocity

A new position for the particle is computed by the following formula in the basic PSO with inertial weight [43].

(9)

where x_id and v_id are the position and velocity of a particle, r₁ and r₂ are two distinct random values in [0, 1], c₁ and c₂ are acceleration constants, p_id and p_gd are the best previous position of the particle itself (pbest) and of all the particles of the swarm (gbest), respectively.

Eberhart and Shi [44] found that constriction factor k introduced by Clerc [45], combined with constraints on V_max (equal to x_max), significantly improved the PSO performance. The formula used to compute the velocity is then modified as:

(10)

The land-use zoning problem can be regarded as an integer programming problem, which is described as follows:

where Zⁿ is the n-dimensional integer space, and S is an integer set. In this paper, S can be represented as {x|0≤ x≤ 7 and x∈Zⁿ}.

When PSO is used to solve the land-use zoning problem, the new position of the particle may be changed to a real number, even though the previous location and velocity are both integers, because the parameters of k, r₁, r₂, c₁ and c₂ are all real numbers. To make sure the particles are flown through the integer number space of the problem, v_id (t + 1), including the three parts of kv_id (t), kc₁r₁ (p_id-x_id), and kc₂r₂(p_gd-x_id), must be an integer number in the evolutionary process. kv_id (t) can be changed into an integer number by function int(). kc₁r₁ (p_id-x_id) is defined as μ₁, when p_id > x_id, and μ₁ is a random number within [0, kc1 (pid-xid)], otherwise within [-kc₁(p_id-x_id),0], so we can also define μ₁ as a random number within [a₁, b₁] for simplification. On the assumption that there are n integer numbers in [a₁, b₁], any integer number can be chosen to set to μ₁, with an equivalent probability equal to 1/n. kc₂r₂(p_gd-x_id) is defined as μ₂ with the same processing method. So, the formula to compute the velocity of the particle can be modified again as:

(11)

As with the crossover and mutation, it may also offend against the constraint of API when the position of the particle is updating. Simultaneously, x_id(t + 1) of the particle may be outside the range of S. So, the attribute of the land-use patch will be randomly decided, subject to the API when the phenomenon mentioned above occurred.

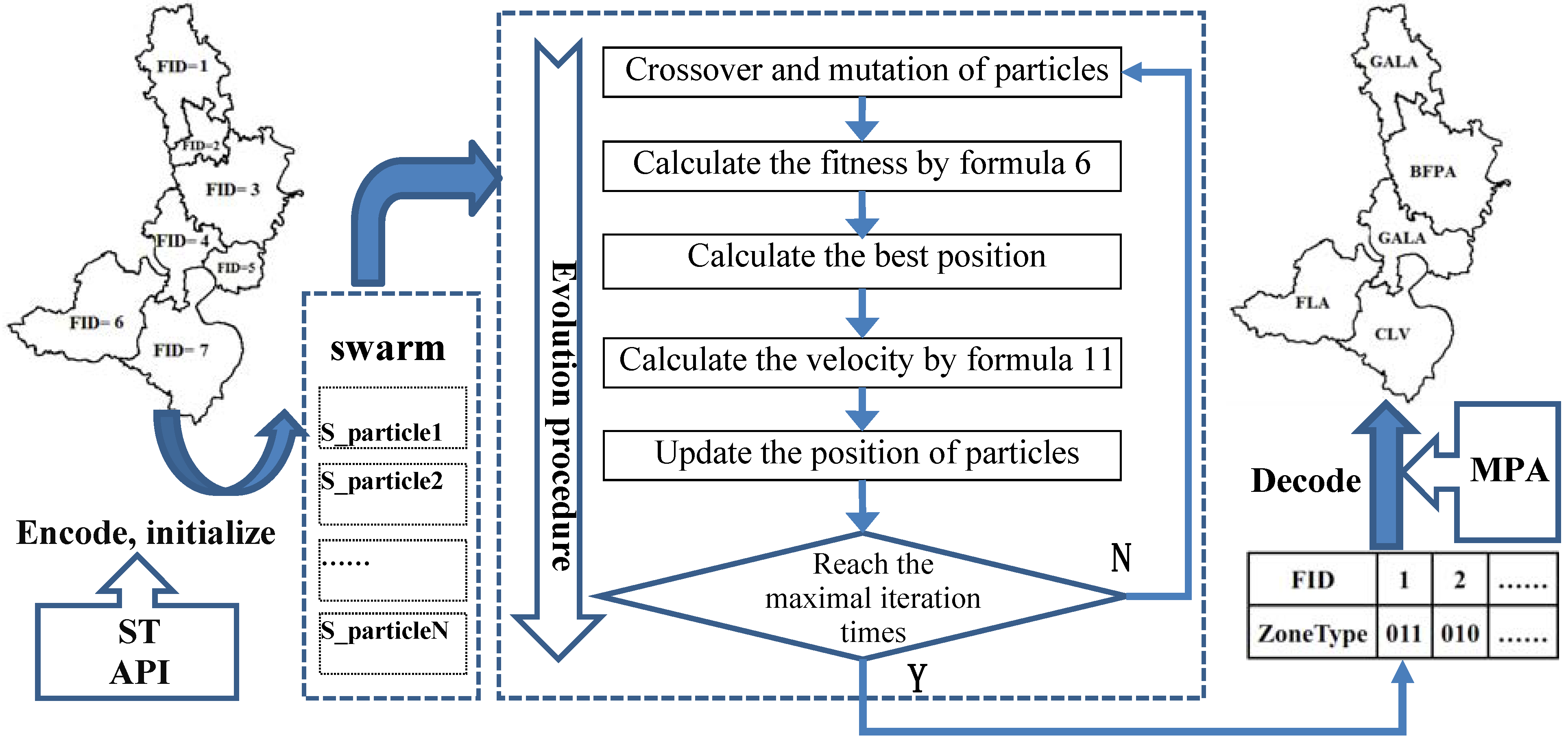

Figure 7 presents a flow diagram of the MOPSO-CCM model, which is based on the objective functions, constraint condition, encoding and decoding scheme, and updating mechanism for the swarm.

Figure 7. The crossover and mutation operator.

The performance of the model depends on several critical parameters [46], including the population size N, acceleration constants c₁ and c₂, constriction factor k and maximum velocity V_max. Carlisle and Doziert [47] put forward a classical combination of parameters, with N = 30, c₁ = 2.8, c₂ = 1.3 and k = 0.7299. Additionally, we set V_max = 7, and the maximum number of iterations Maxtimes = 200.

4. Results and Discussion

4.1. Comparison of the Different Scenarios

The MOPSO-CCM model adopted the crossover and mutation operator by setting the probability of mutation and crossover to 0.3 and 0.01, respectively, and the try-number to 3, and afforded several scenarios of land-use zoning by using different sets of weights applied to the four sub-objectives. The weights w_n given to the various objectives were obtained according to the sub-objective weighting schemes in the study of Santé et al. [19], and are listed in Table 8.

Table 8. Objective weighting schemes used in the MOPSO-CCM optimization.

Scenario	w1	w2	w3	w4
A	1	0	0	0
B	0.75	0.25	0	0
C	0.5	0.5	0	0
D	0.25	0.75	0	0
E	0.75	0	0.25	0
F	0.5	0	0.5	0
G	0.25	0	0.75	0
H	0.5	0	0	0.5
I	0.5	0.25	0.25	0
J	0.5	0.25	0	0.25
K	0.5	0	0.25	0.25
L	0.25	0.25	0.25	0.25
M	0.15	0.55	0.15	0.15
N	0.15	0.15	0.55	0.15
O	0.15	0.15	0.15	0.55

Table 8. Objective weighting schemes used in the MOPSO-CCM optimization.

Scenario	w1	w2	w3	w4
A	1	0	0	0
B	0.75	0.25	0	0
C	0.5	0.5	0	0
D	0.25	0.75	0	0
E	0.75	0	0.25	0
F	0.5	0	0.5	0
G	0.25	0	0.75	0
H	0.5	0	0	0.5
I	0.5	0.25	0.25	0
J	0.5	0.25	0	0.25
K	0.5	0	0.25	0.25
L	0.25	0.25	0.25	0.25
M	0.15	0.55	0.15	0.15
N	0.15	0.15	0.55	0.15
O	0.15	0.15	0.15	0.55

Table 9. The value of the four sub-objectives in the various weighted scenarios.

scenario	fAD	fSC	fHD	fEB
A(1/0/0/0)	0.0000524	189,563	13,632.8	104,486.6
B(0.75/0.25/0/0)	0.0000348	470,961	13,163.5	102,293.1
C(0.5/0.5/0/0)	0.0000335	487,165	12,836.3	101,294.5
D(0.25/0.75/0/0)	0.0000331	518,263	12,195.7	109,729.2
E(0.75/0/0.25/0)	0.0000448	178,954	18,875.9	101,195.4
F(0.5/0/0.5/0)	0.0000365	185,642	21,394.5	118,918.8
G(0.25/0/0.75/0)	0.0000342	169,637	23,163.2	110,073.9
H(0.5/0/0/0.5)	0.0000348	280,523	15,521.6	126,753.4
I(0.5/0.25/0.25/0)	0.0000339	365,651	17,915.5	115,095.3
J(0.5/0.25/0/0.25)	0.0000326	459,232	14,835.1	122,956.8
K(0.5/0/0.25/0.25)	0.0000345	238,632	19,933.7	123,346.1
L(0.25/0.25/0.25/0.25)	0.0000341	396,535	16,969.3	122,586.7
M(0.15/0.55/0.15/0.15)	0.0000329	445,689	16,289.6	121,366.5
N(0.15/0.15/0.55/0.15)	0.0000331	361,542	18,953.8	121,626.7
O(0.15/0.15/0.15/0.55)	0.0000325	402,549	17,386.4	124,054.2

Table 9. The value of the four sub-objectives in the various weighted scenarios.

scenario	fAD	fSC	fHD	fEB
A(1/0/0/0)	0.0000524	189,563	13,632.8	104,486.6
B(0.75/0.25/0/0)	0.0000348	470,961	13,163.5	102,293.1
C(0.5/0.5/0/0)	0.0000335	487,165	12,836.3	101,294.5
D(0.25/0.75/0/0)	0.0000331	518,263	12,195.7	109,729.2
E(0.75/0/0.25/0)	0.0000448	178,954	18,875.9	101,195.4
F(0.5/0/0.5/0)	0.0000365	185,642	21,394.5	118,918.8
G(0.25/0/0.75/0)	0.0000342	169,637	23,163.2	110,073.9
H(0.5/0/0/0.5)	0.0000348	280,523	15,521.6	126,753.4
I(0.5/0.25/0.25/0)	0.0000339	365,651	17,915.5	115,095.3
J(0.5/0.25/0/0.25)	0.0000326	459,232	14,835.1	122,956.8
K(0.5/0/0.25/0.25)	0.0000345	238,632	19,933.7	123,346.1
L(0.25/0.25/0.25/0.25)	0.0000341	396,535	16,969.3	122,586.7
M(0.15/0.55/0.15/0.15)	0.0000329	445,689	16,289.6	121,366.5
N(0.15/0.15/0.55/0.15)	0.0000331	361,542	18,953.8	121,626.7
O(0.15/0.15/0.15/0.55)	0.0000325	402,549	17,386.4	124,054.2

The values of the four sub-objectives were obtained by MOPSO-CCM from the varied weighting scheme scenarios listed in Table 8 (see Table 9). The results in Table 9 show that whenever the objective of spatial compactness was included in the MOPSO-CCM objective function, along with the sub-objective of difference between land-use zones, the solution obtained displayed a significant expected increase ranging from 90.72% to 173.4% in f_SC and a reduction ranging from 33.59% to 37.98% in f_AD, with comparison Scenarios B–D, I–J and L–O with Scenario A. The same can be seen for the degree of spatial harmony and ecological benefit sub-objectives, with respect to Scenario A, Scenarios E–G, I and K–O increase f_HD by 19.49% to 69.91%, in exchange for a reduction in f_AD of 14.5% to 37.98%, and Scenarios H and J–O get a slight increase in f_EB of 16.16% to 21.31%, at the expense of a reduction in f_AD of 33.59% to 37.98%.

When the objective function of the MOPSO-CCM model only included the sub-objective of spatial compactness (Scenarios B–D), the value of f_AD increased significantly by a factor of 2.5 as w₂ increased. The fundamental demand for attribute difference between land-use zones leads to a mass of fragmentary land-use zones; however, the sub-objective of spatial compactness can reduce the fragmentation by merging isolated land-use zones into a large contiguous land-use zone. For example, isolated CLV or GALA in a BFPA encourages merging into the BFPA. The garden land or rural settlements in BFPA will tend to be converted into farmland of high quality by consolidation of these lands in the future. Also, small BFPA or GALA showing up in a FLA encourages merging into the FLA, so the farmland with a slope greater than 25°, and a part of the farmland between 15° and 25°, should be transformed gradually into forest or grassland in the future. A typical small region is chosen from the villages of Qianfeng and Xinji to show how the sub-objective of spatial compactness optimizes the spatial pattern of land-use zones (see Figure 8).

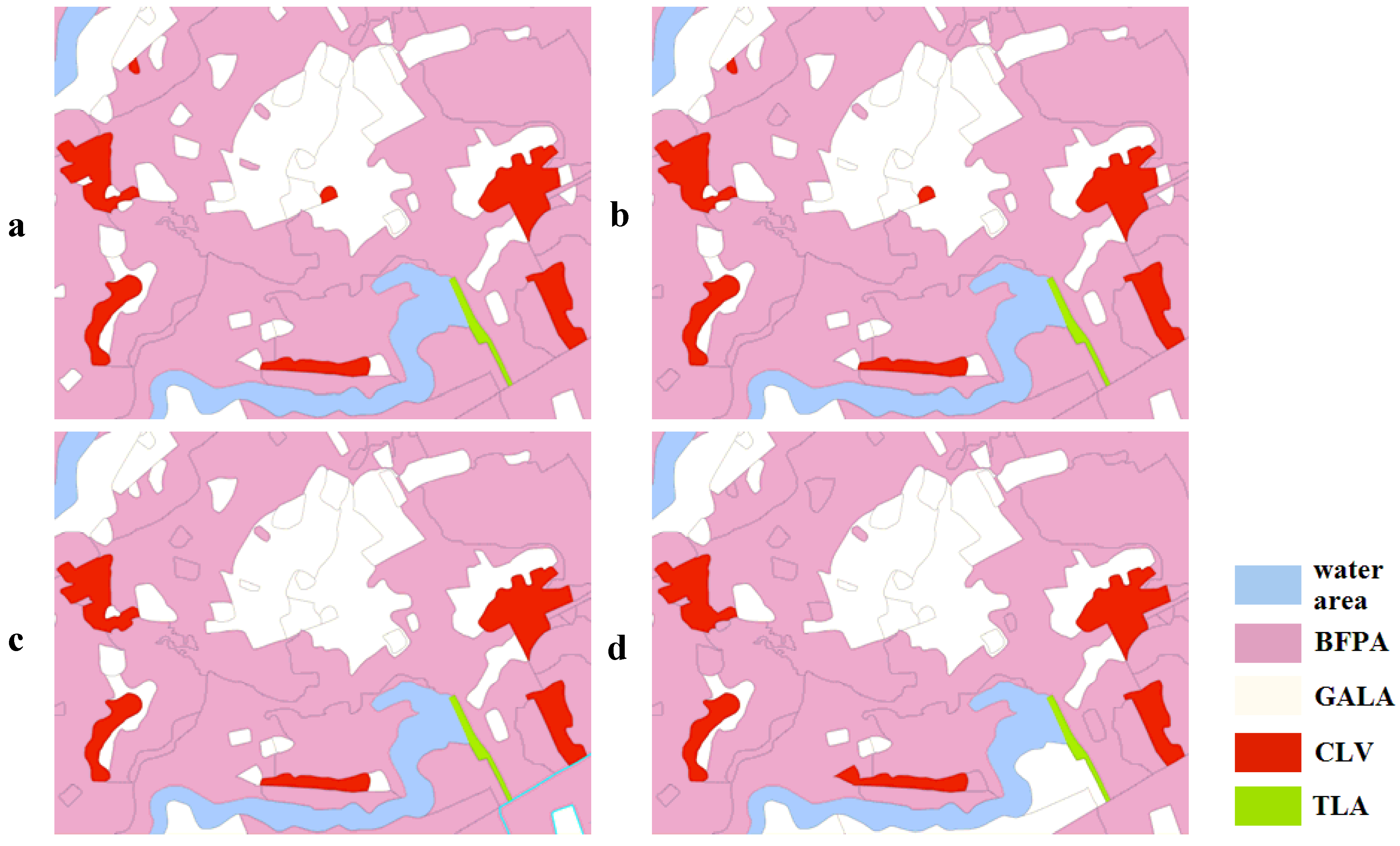

Figure 8. The effects of w₂ on optimizing the spatial pattern in different weighted scenarios: (a) A; (b) B; (c) C; (d) D.

When only the sub-objective of the degree of spatial harmony degree was included, f_HD had a gradual increase by a factor of more than 1.35 as w₃ increased, which can be seen from Scenarios E–G. The improvement of spatial harmony requires that the spatial pattern of BFPA is adjacent to GALA, NHLPA is contiguous to FLA, but IIMLA should be distant from BFPA, etc. A small area chosen from the village of Quanshui is presented in Figure 9 to show how the suitable neighbors are allocated to a certain land-use zone as w₃ increases.

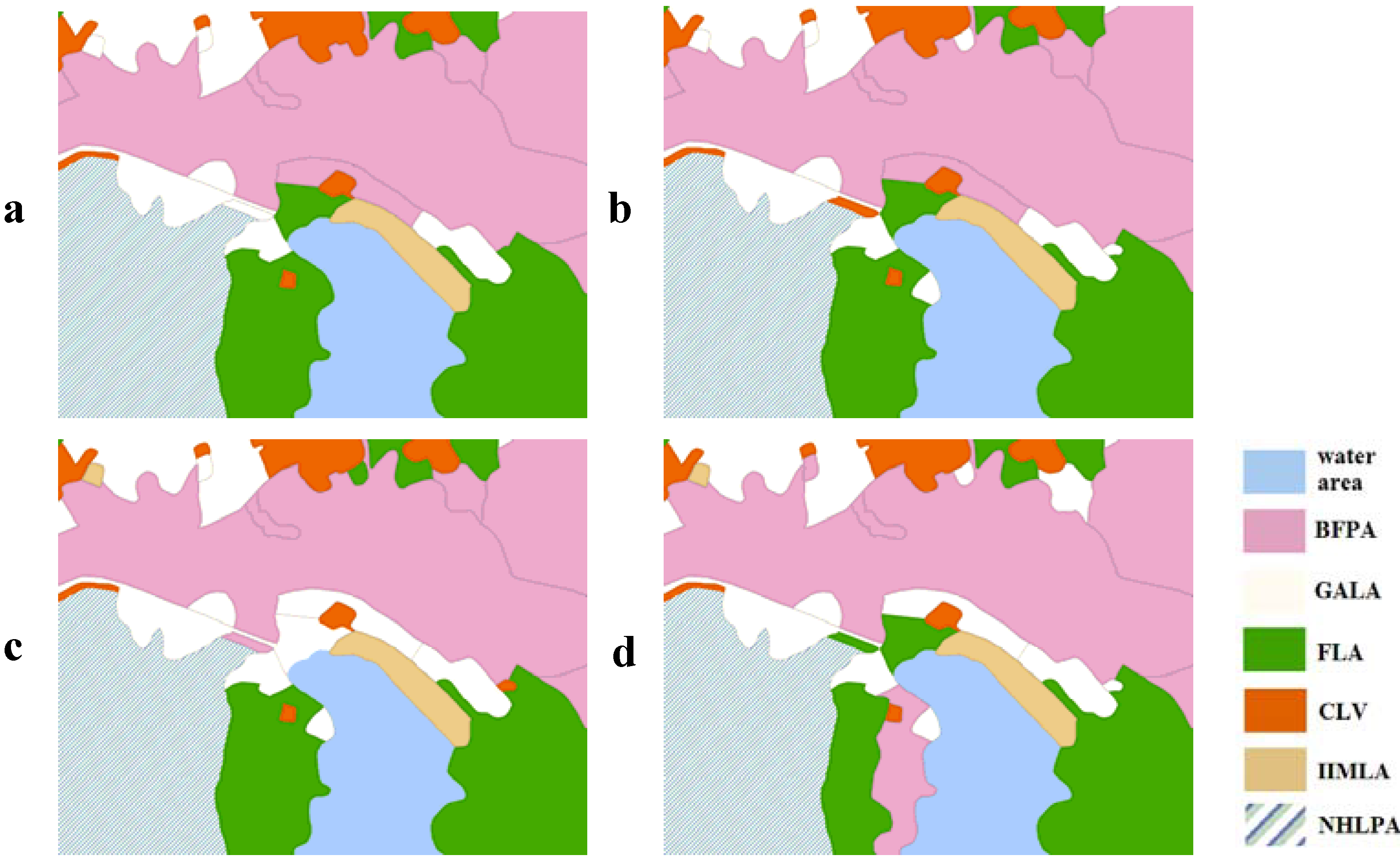

Figure 9. The effects of w₃ in improving the spatial harmony in different weighted scenarios: (a) A; (b) E; (c) F; (d) G.

When w₁ is fixed as 0.5, the remainder of the weight is assigned equally to w₂ and w₃ (Scenario I), with a distinct decrease in f_SC compared with the remainder of the weight being all assigned to w₂ (Scenario C). When it is equally assigned to w₂ and w₄ (Scenario I), in spite of f_SC, it still had a slight reduction compared to Scenario C, but it was obviously greater than Scenario I. This may suggest that the pursuit of spatial harmony will bring about more fragmented land-use zones, which means worse spatial compactness, which can also be seen from the comparison between Scenarios E–G and graphically in Figure 9. An increase in the ecological benefits can also improve the spatial compactness. From Scenarios A–D, we can see that f_HD reduced as f_SC increased, which proved that the spatial compactness also has a negative effect on spatial harmony. Another comparison of Scenario A with Scenarios H and J shows that f_HD increased by a factor of about 1.1 as f_EB increased, which suggests that the increase in ecological benefits will boost the degree of spatial harmony of the land-use zones.

From the comparison of Scenario L with Scenarios M–O, it can be seen that assigning more weight to a certain sub-objective, and the same weight to other sub-objectives, had the expected effect of increasing the value of the corresponding sub-objective, indicating that the fitness values are positively correlated with the weights. That is to say, a decision maker for land-use planning can obtain the Pareto solution to satisfy their subjective preference by giving a higher weight to the corresponding sub-objective. Figure 10 presents the area of each land-use zone determined in the aforementioned four scenarios.

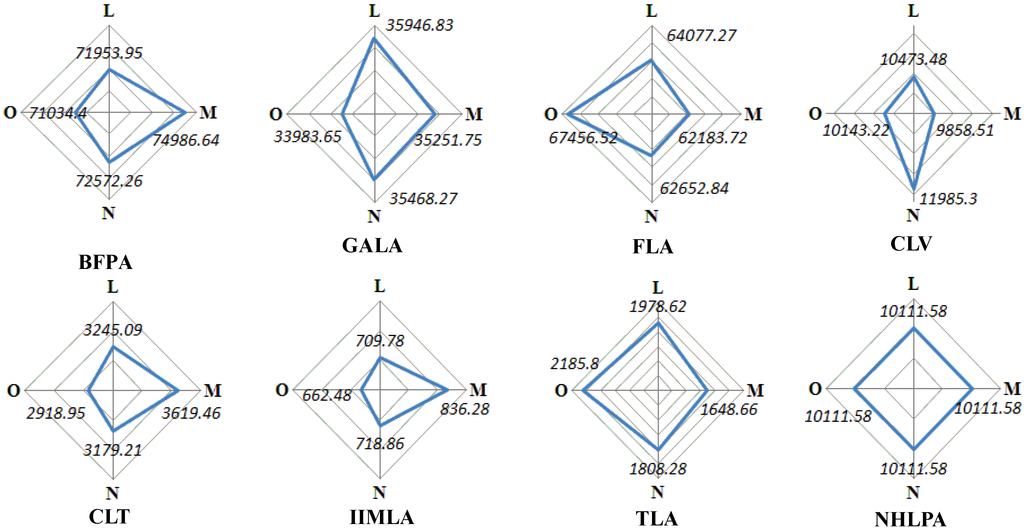

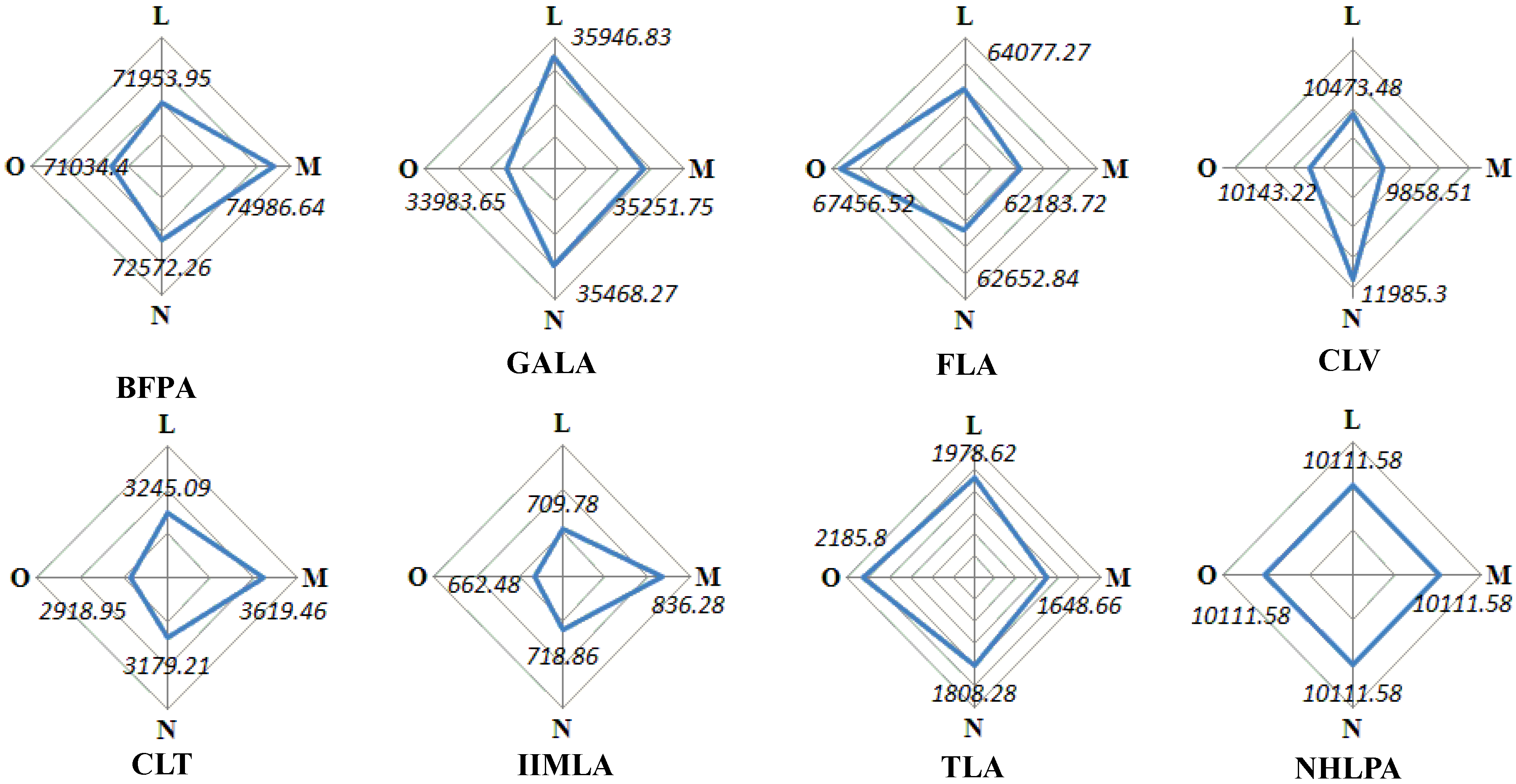

Figure 10. The area comparison of land-use zones between Scenarios L, M, N and O (hm²).

It can be seen from Figure 10 that: (1) NHLPA in each scenario have the same area, because of the priority of being fixed, based on the general regulations for land-use zoning. The areas of BFPA and FLA are greater than 62,462.14 hm² and 55,563.16 hm², respectively, in each scenario, and the sum of the areas of CLV, CLT and IIMLA is less than 18,785.7 hm², which indicated the efficiency of the constraint of area limitation of the various land-use zones; (2) Scenario M got the largest area of BFPA, CLT and IIMLA and the smallest area of FLA, CLV and TLA amongst the three scenarios. With the drive for spatial compactness, the large spatial clusters annexed the small clusters surrounding them to generate an optimal spatial pattern, simultaneously resulting in either a larger land-use zone or a smaller one; (3) Scenario N had the largest land-use zone of CLV and the second largest area of BFPA and GALA. This is because the spatial harmony between these land-use zones is higher than with the others; (4) The largest FLA was obtained in Scenario O because the forests can provide the greatest ESV. Meanwhile, Scenario O got the smallest BFPA and GALA. This suggests that the enforcement of the policy of ‘grain for green’ can improve the ESV of the land-use system; (5) Scenario L, assigning the same weight to each objective function, provided a compromise solution with a moderate value for each objective function (see Table 9) and area for each land-use zone.

The global spatial distribution of the eight land-use zones in the four Scenarios of L, M, N, O are similar to each other, with only some microscopic differences. The reason for these disparities has been described above, with a vivid depiction in Figure 8 and Figure 9. As far as Scenario L is concerned, the quantity structure and spatial pattern of the land-use zones are presented in Figure 11.

The BFPA is distributed mainly in the towns of Xiaohe, Zhengji, Kongwan, Wangji and Nanying, and accounts for 36.25% of the total area, excluding the water areas. A total of 85.62% of the fifth level and 63.25% of the fourth level of agricultural land in the study area are assigned to BFPA. (The quality of agricultural land in Yicheng is classified into five levels: first level—the worst quality, second level, third level, fourth level, and fifth level-the highest quality.) This zone is marked off to hold its ability to continue feeding a growing population and meet the food security goals. High-quality land with high productivity in this zone should be prohibited from converting to non-agricultural uses. The conversion of good-quality land with moderate productivity to non-agricultural uses is permitted by law under some circumstances, usually after a planned period of 5–10 years [48]. GALA is observed mainly in the towns of Wangji, Nanying, Banqiao and Liushui, and is contiguous with BFPA. This zone primarily contains the land for gardens, aquaculture, etc., with high ecological value, and the rural roads, infrastructural facilities, water conservancy facilities, protective forest, etc., serve the farmland. In this region, the land consolidation project is encouraged to make the ‘dynamic balance of farmland’ policy materialize. FLA is concentrated to the east and southwest of Yicheng and mainly consists of fast-growing and high-yield broad-leaf forests. In view of the functions of forests, such as soil and water conservation, and ecological protection, the conversion of forest land is severely restricted, except for approval by the competent forestry authorities. The spatial clusters of CLV are evenly dispersed across the maps, the surroundings of which are mostly of BFPA and GALA, which annex some isolated rural settlements. At the same time, some farmland patches surrounding rural settlements are merged into them. CLT is marked off, based on actual land use for urban areas and towns, including some agricultural land, which can be used as the preparatory land for the future expansion of the city. Small villages, ‘hollow-village’ and ‘villages-in-the-city’ [49] within CLV and CLT should be amalgamated so as to upgrade the scale and organization of villages and towns. The IIMLA only covers around 0.34% of the territory of the city, and mainly comprises some land for the mining and chemical industries. The land that was destroyed in the process of industrial production and construction should be reclaimed for new use, especially cultivated land, if the land is suitable for agriculture. TLA is located in the vicinity of the region’s water areas, and NHLPA is distributed in the west, southeast and northeast corner of the city. In these regions, a small amount of agricultural land is permitted to improve the biodiversity and maintain the ecological balance, and the land for enterprises with industrial pollution is strictly prohibited.

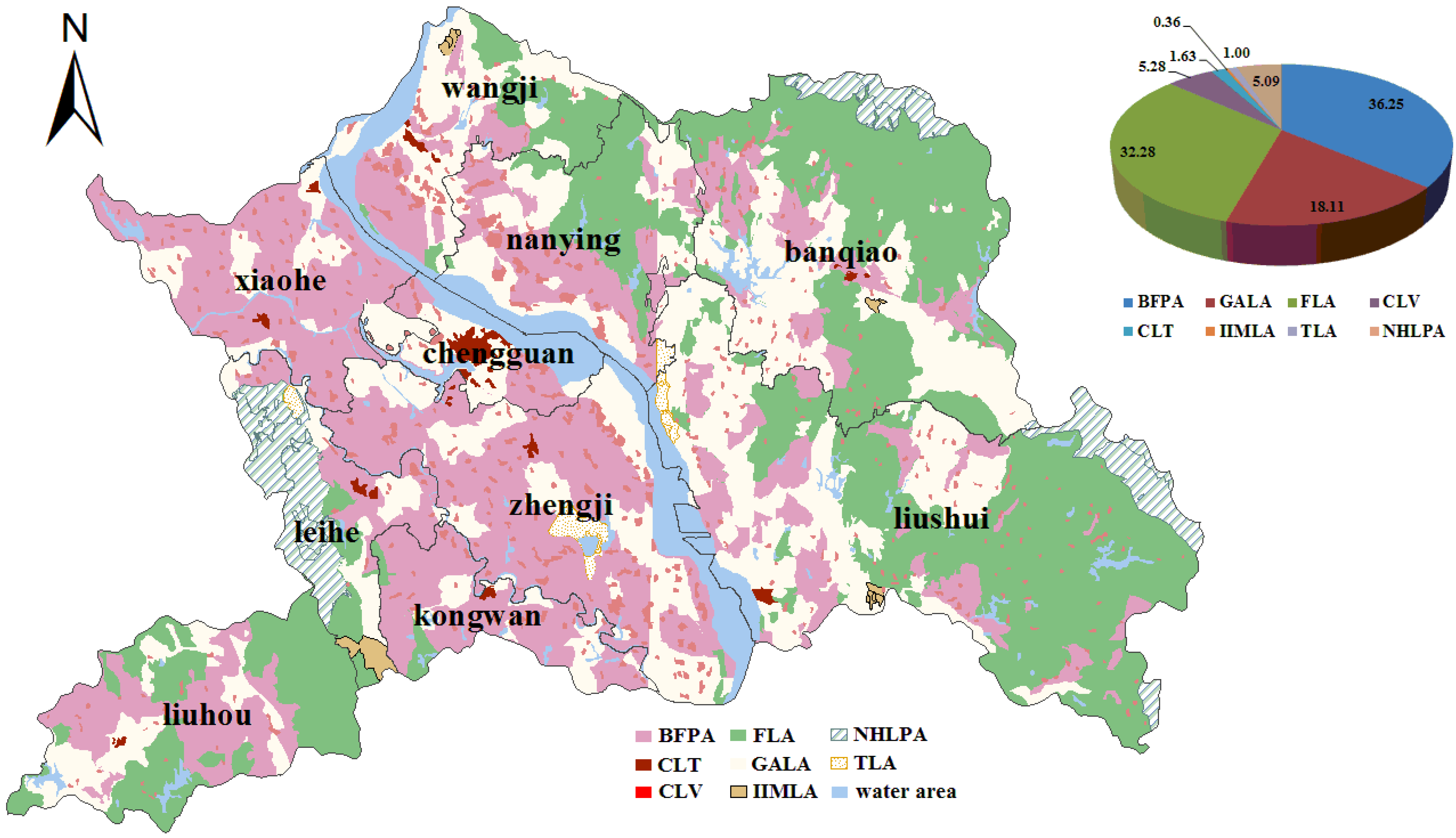

Figure 11. The spatial distribution and area proportions (%) of the eight land-use zones in Scenario L.

4.2. Analysis of the Effect of Improvements for the Model

The focal point of this subsection is to analyze the effect of the adoption of the crossover and mutation operator on acquiring the optimal solutions. A comparative analysis of the optimal fitness values, convergence speed and run time is made to evaluate the performance of the MOPSO-CCM model and the basic particle swarm optimization with only a constriction factor (MOPSO-BC), in Scenarios I, J, K and L.

It is observed in Table 10 that the optimal solution obtained by the MOPSO-CCM model exhibits the expected higher fitness value for each sub-objective in each scenario, with f_AD increasing by 15.6% to 17.48%, f_SC increasing by 14.61% to 16.89%, f_HD increasing by 9.6% to 14.18%, and f_EB increasing by 1.26% to 2.38%. Figure 12 clearly illustrates that the weighted sum fitness obtained by MOPSO-CCM in each generation is much higher than that of MOPSO-BC. At the same time, the convergence speed of MOPSO-CCM, with a sudden rise in its curve, is distinctly higher than that of MOPSO-BC, even if the initial normalized fitness value of MOPSO-CCM is lower than MOPSO-BC in Scenario K. The sudden rises in the curves of MOPSO-CCM in the later period of evolution show that the crossover and mutation operator helps the model to escape the local optimum and achieve a better solution. In summary, the convergence and exploration ability of the MOPSO-CCM model outperforms MOPSO-BC, which proves the validity of improvement for the PSO algorithm with land-use zoning. It is necessary, however, to note that MOPSO-CCM requires some computational cost to perform the operation of crossover and mutation on particles, based on a preset probability, so it is more time consuming than the MOPSO-BC model.

A discussion of the stability of the improved PSO model is conducted next. We ran the MOPSO-CCM and MOPSO-BC model 100 times, respectively, with weighted Scenario L, and calculated the mean value and standard deviation of the four sub-objectives in each optimal solution (see Table 11). Although the mean value of MOPSO-CCM is obviously higher than MOPSO-BC, what further proves the improved exploration ability of MOPSO-CCM is that the standard deviation of MOPSO-BC is lower than MOPSO-CCM, which indicates that MOPSO-CCM is not as stable as MOPSO-BC. The optimal fitness values of each sub-objective are plotted in the curves. The curves of MOPSO-CCM in Figure 13 show a greater fluctuation than MOPSO-BC. The statistics table and graph reveal that the adoption of the crossover and mutation operator remarkably increases the probability of acquisition of an optimal solution by improving the diversity of the particle swarm, but also brings about some disturbance to the exploitation and exploration ability of the model.

Table 10. The results obtained by MOPSO-CCM and MOPSO-BC with the four weighted scenarios.

Scenario	Model	Fitness value				Convergence	Run time (h)
		fAD	fSC	fHD	fEB
I	MOPSO-CCM	0.0000339	365,651	17,915.5	----	116	1.81
	MOPSO-BC	0.0000291	314,934	16,179.6	----	133	1.23
J	MOPSO-CCM	0.0000326	459,232	----	130,963.3	113	1.78
	MOPSO-BC	0.0000269	392,891	----	127,918.2	129	1.26
K	MOPSO-CCM	0.0000345	----	19,933.7	129,862.4	109	1.77
	MOPSO-BC	0.0000294	----	18,188.2	127,015.3	125	1.24
L	MOPSO-CCM	0.0000341	396,535	16,969.3	122,586.7	122	1.91
	MOPSO-BC	0.0000295	345,983	14,862.4	121,063.4	145	1.27

Table 10. The results obtained by MOPSO-CCM and MOPSO-BC with the four weighted scenarios.

Scenario	Model	Fitness value				Convergence	Run time (h)
		fAD	fSC	fHD	fEB
I	MOPSO-CCM	0.0000339	365,651	17,915.5	----	116	1.81
	MOPSO-BC	0.0000291	314,934	16,179.6	----	133	1.23
J	MOPSO-CCM	0.0000326	459,232	----	130,963.3	113	1.78
	MOPSO-BC	0.0000269	392,891	----	127,918.2	129	1.26
K	MOPSO-CCM	0.0000345	----	19,933.7	129,862.4	109	1.77
	MOPSO-BC	0.0000294	----	18,188.2	127,015.3	125	1.24
L	MOPSO-CCM	0.0000341	396,535	16,969.3	122,586.7	122	1.91
	MOPSO-BC	0.0000295	345,983	14,862.4	121,063.4	145	1.27

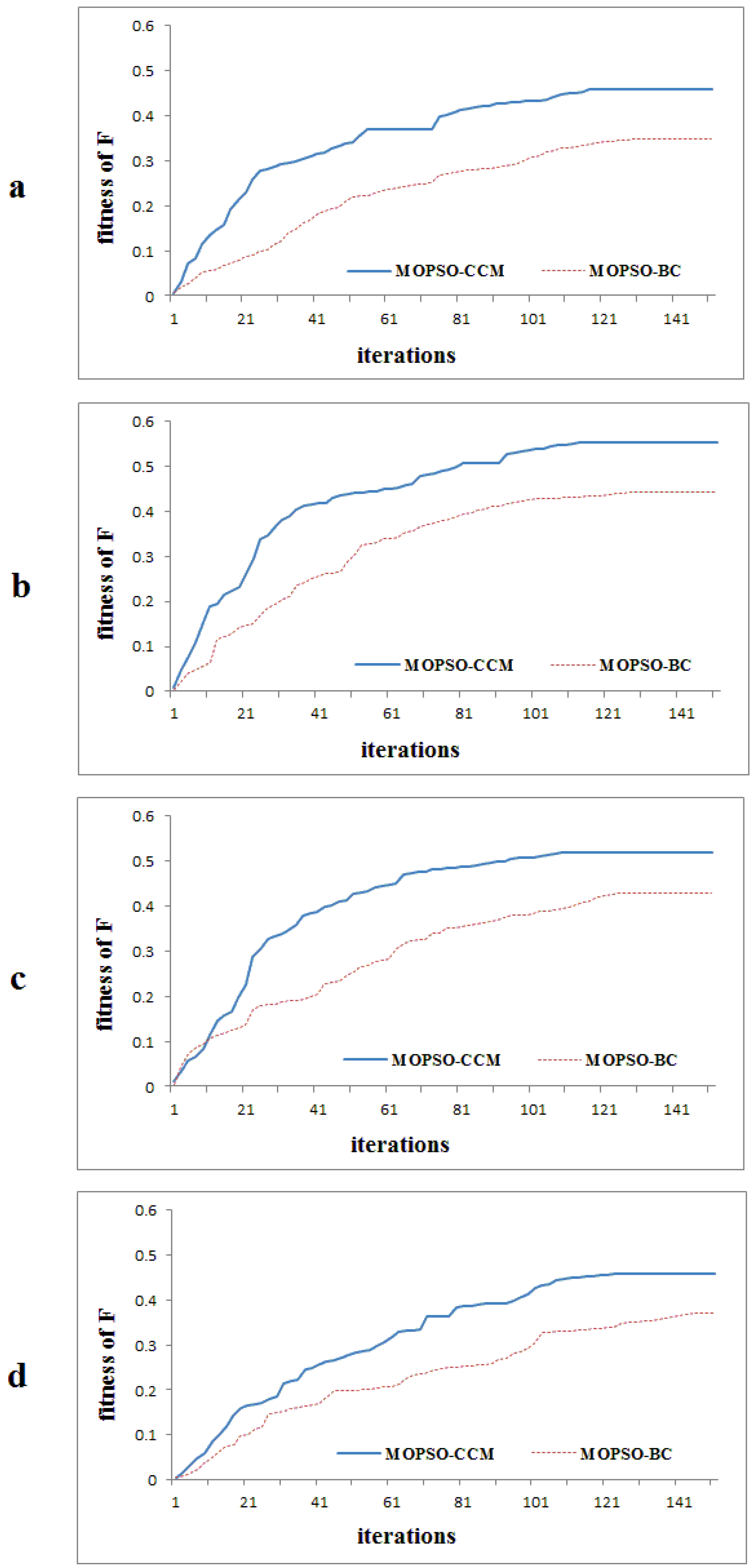

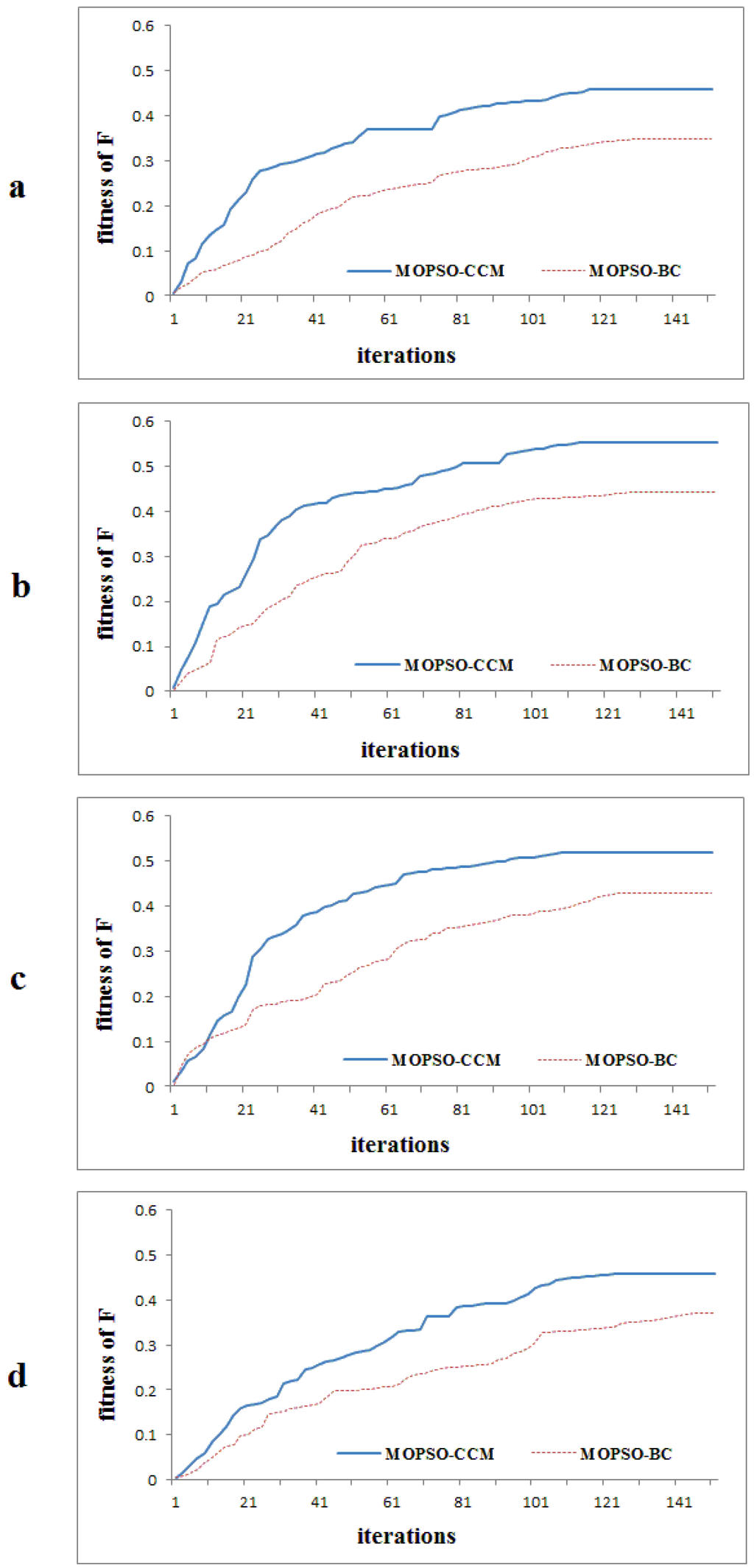

Figure 12. Optimization curves obtained by MOPSO-CCM and the MOPSO-BC model, respectively, with the four weighted scenarios: (a): I; (b): J; (c): K; (d): L.

Table 11. The mean values and standard deviation of each sub-objective when the MOPSO-CCM and MOPSO- BC models are run 100 times.

Model	Mean value				Standard deviation
	fAD	fSC	fHD	fEB	fAD	fSC	fHD	fEB
MOPSO-CCM	3.32E–05	409,341.2	17,852.36	121,834.6	3.05E–06	16,403.62	1,319.66	444
MOPSO-BC	2.92E–05	351,540.9	13,969.33	121,185.7	1.21E–06	5,619.41	281.29	116.56

Table 11. The mean values and standard deviation of each sub-objective when the MOPSO-CCM and MOPSO- BC models are run 100 times.

Model	Mean value				Standard deviation
	fAD	fSC	fHD	fEB	fAD	fSC	fHD	fEB
MOPSO-CCM	3.32E–05	409,341.2	17,852.36	121,834.6	3.05E–06	16,403.62	1,319.66	444
MOPSO-BC	2.92E–05	351,540.9	13,969.33	121,185.7	1.21E–06	5,619.41	281.29	116.56

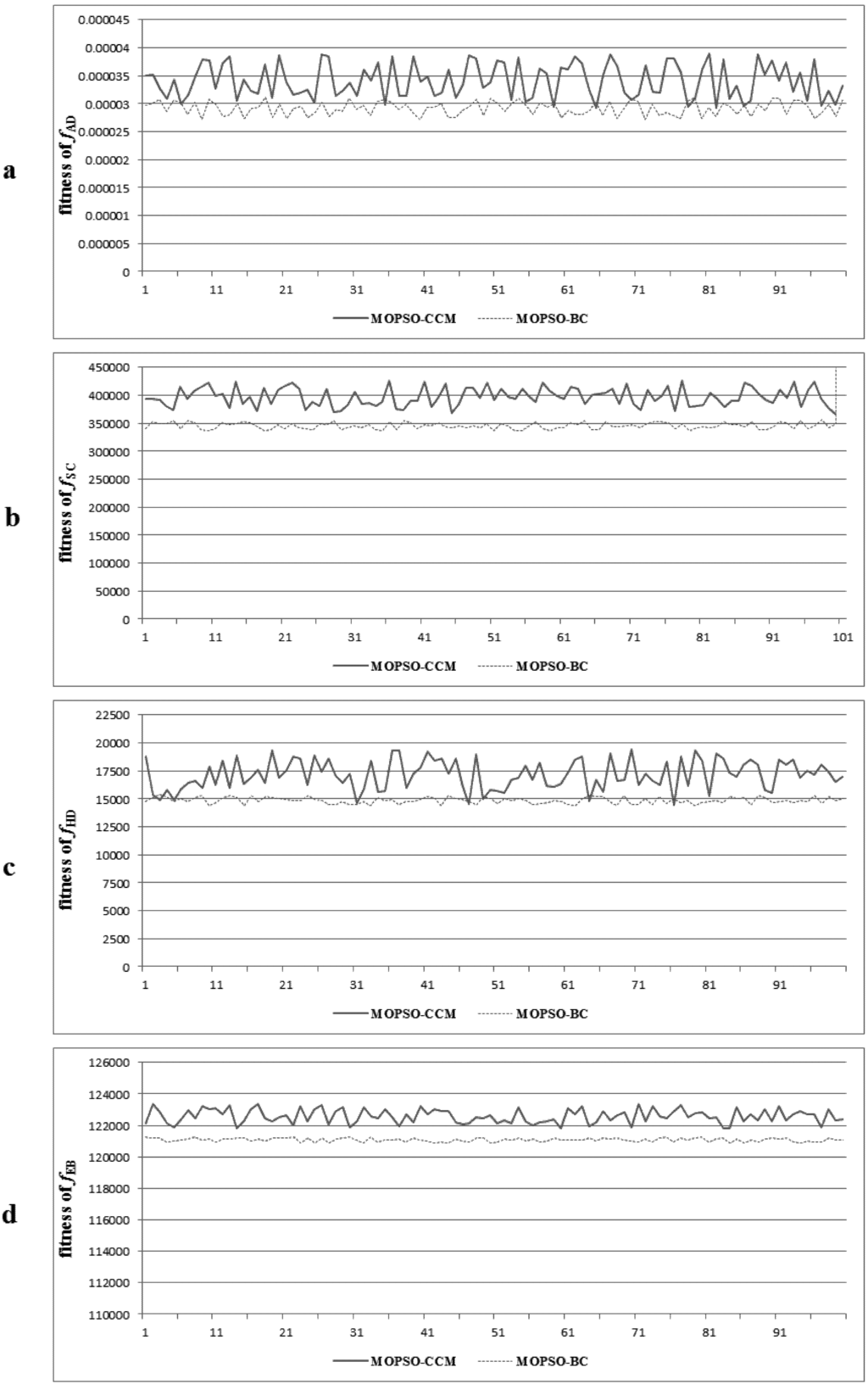

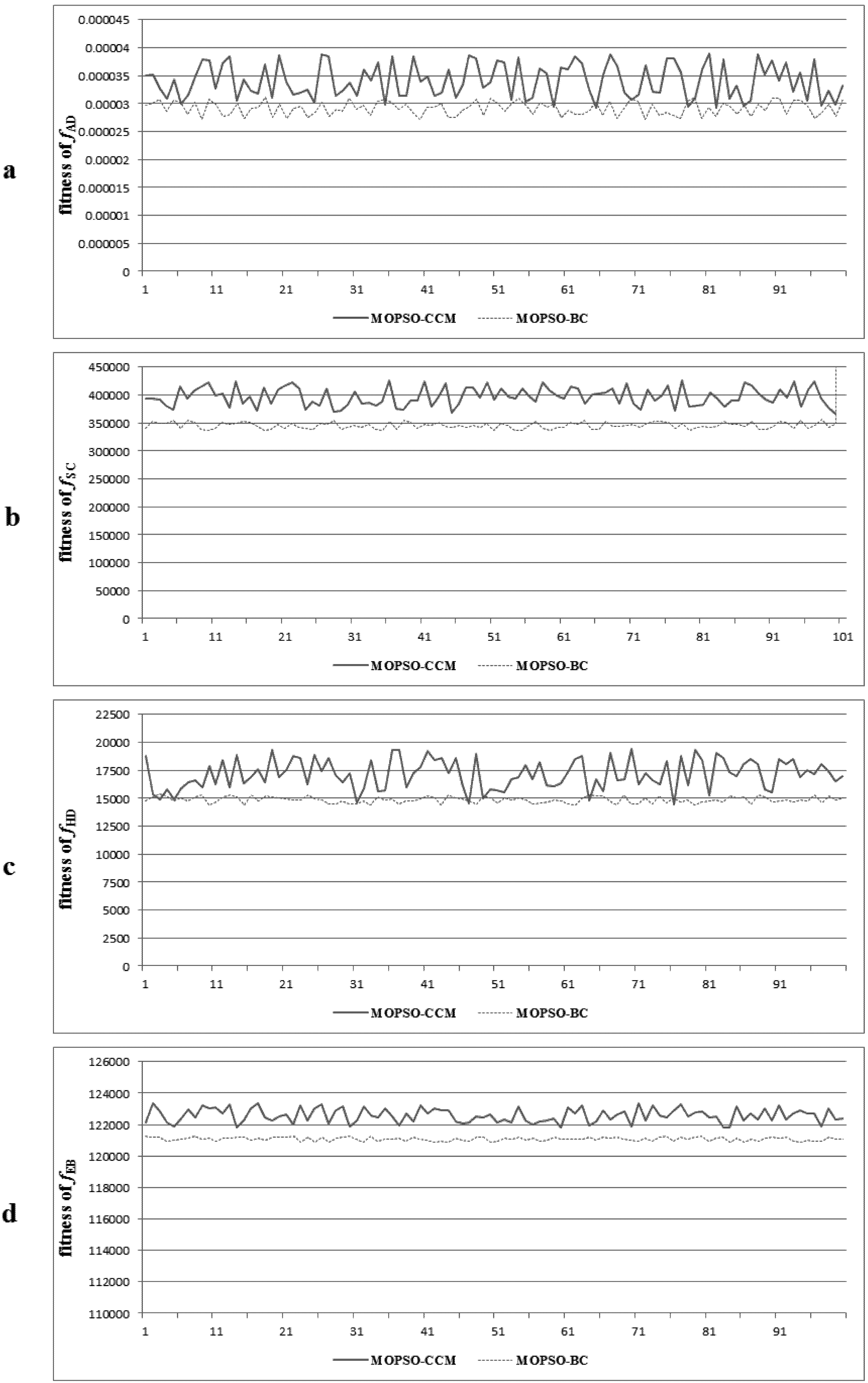

Figure 13. The fitness curves of the four sub-objectives obtained by MOPSO-CCM and MOPSO-BC with weighted scenario L: (a): f_AD; (b): f_SC; (c): f_HD; (d): f_EB.

5. Conclusions

The traditional approaches to the land-use zoning problem in China just take into consideration the characteristic attributes of the land units. In this article, the land-use zoning problem is treated as a MOP. Four objective functions were formulated, respectively, for attribute differences between land-use zones, spatial compactness, spatial harmony and the ecological benefits of land-use zones. A PSO-based model equipped with a crossover and mutation operator was constructed. The feasibility of the proposed approach in solving the land-use zoning problem was checked using a case study in Yicheng, China. The results obtained indicated that the integration of GIS and MOPSO-CCM is a promising and efficient approach for solving the land-use zoning problem. The inclusion of spatial compactness and spatial harmony in the objective functions allows the achievement of solutions with an optimal spatial pattern, and the inclusion of ecological benefits leads to a greater quantity of land-use zones with a high ESV. It is worth pointing out that the objective function can be extended in line with local conditions, such as the economic benefits for a county with a backward economy, spatial contiguity, etc. In this paper, a conventional weighted aggregation method is used for the MOPSO-CCM model to search for the Pareto-dominant solutions, the weakness of which is that an optimal solution can be obtained with only one run of the model. The next stage is to apply a dynamic weighted aggregation (DWA) technique to the MOPSO-CCM model to generate a series of Pareto-optimal solutions.

The incorporation of a crossover and mutation operator proved to be effective in improving the convergence and exploration ability, at the price of a relatively small increase in runtime and, simultaneously, a poorer stability than MOPSO-BC. As we know, the performance of PSO depends on a few different parameters [50]. Therefore, a further study will focus on choosing a group of parameters that will enable the MOPSO-CCM model to achieve a better performance with the land-use zoning problem.
