Spatial Modeling of the Potential Distribution of Dengue in the City of Manta, Ecuador
Abstract
1. Introduction
2. Materials and Methods

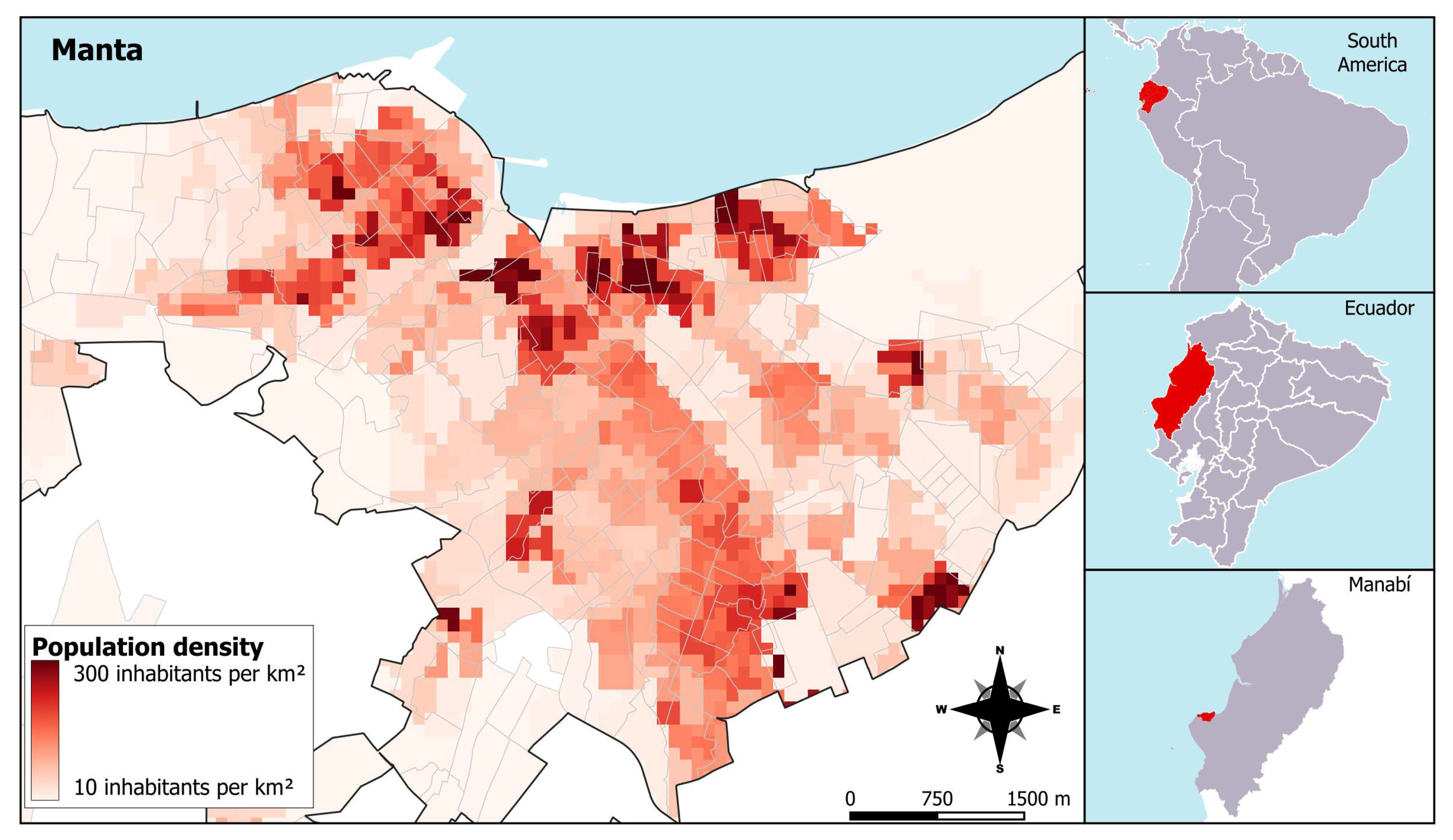

2.1. Study Area
2.2. Data Sources
2.3. Spatial Modeling of the Potential Distribution of Dengue
2.4. Multicriteria Model for Zoning Climatic and Social Variables
3. Results
3.1. Potential Habitat Distribution

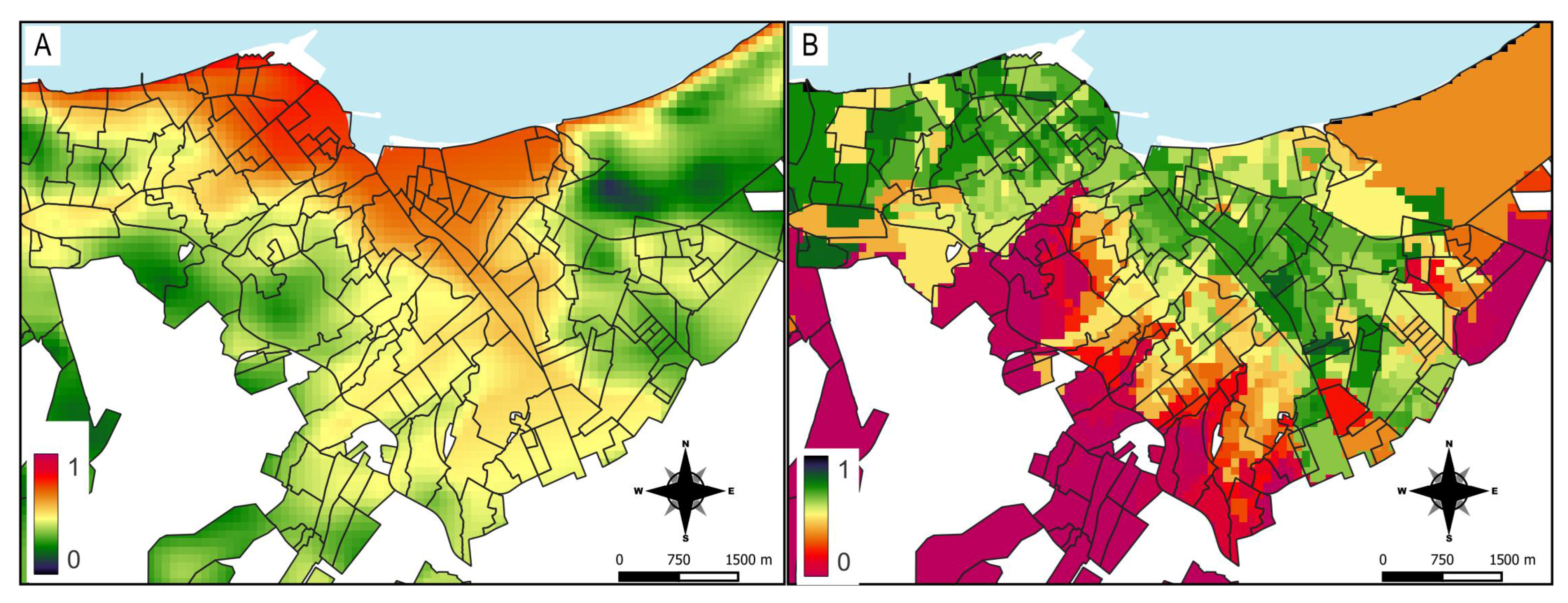

3.2. Climatic and Social Zoning
4. Discussion
4.1. Hotspots and Their Epidemiological Significance
4.2. Population Density as the Dominant Driver
4.3. Coastal Gradient and Climatic Buffering
4.4. Operational Implications for Dengue Control in Manta
4.5. Limitations
4.6. Future Research Directions
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
MSP | Ministry of Public Health |
INEC | Instituto Nacional de Estadísticas y Censos |
PCA | Principal Component Analysis |
MaxEnt | Maximum Entropy Model |
GIS | Geographic Information System |
ROC | Receiver Operating Characteristic |
SDM | Spatial Decision Modeling |
AUC | Area Under the Curve |
References
- World Health Organization (WHO). Dengue and Severe Dengue. Available online: https://www.who.int/news-room/fact-sheets/detail/dengue-and-severe-dengue (accessed on 26 June 2025).
- Katzelnick, L.C.; Quentin, E.; Colston, S.; Ha, T.-A.; Andrade, P.; Eisenberg, J.N.S.; Ponce, P.; Coloma, J.; Cevallos, V. Increasing Transmission of Dengue Virus across Ecologically Diverse Regions of Ecuador and Associated Risk Factors. PLoS Negl. Trop. Dis. 2024, 18, e0011408. [Google Scholar] [CrossRef] [PubMed]
- Ministerio de Salud Pública (MSP). Gacetas Vectoriales. Available online: https://www.salud.gob.ec/gacetas-vectoriales/ (accessed on 5 September 2025).
- Talbot, B.; Sander, B.; Cevallos, V.; González, C.; Benítez, D.; Carissimo, C.; Carrasquilla Ferro, M.C.; Gauto, N.; Litwiñiuk, S.; López, K.; et al. Determinants of Aedes Mosquito Density as an Indicator of Arbovirus Transmission Risk in Three Sites Affected by Co-Circulation of Globally Spreading Arboviruses in Colombia, Ecuador and Argentina. Parasit. Vectors 2021, 14, 482. [Google Scholar] [CrossRef] [PubMed]
- Instituto Nacional de Estadística y Censos (INEC). Censo Ecuador 2022. Available online: https://geo.cepal.org/censo-ecuador/ (accessed on 10 December 2024).
- Phillips, S.J.; Anderson, R.P.; Schapire, R.E. Maximum Entropy Modeling of Species Geographic Distributions. Ecol. Model. 2006, 190, 231–259. [Google Scholar] [CrossRef]
- Wisz, M.S.; Hijmans, R.J.; Li, J.; Peterson, A.T.; Graham, C.H.; Guisan, A.; NCEAS Predicting Species Distributions Working Group. Effects of Sample Size on the Performance of Species Distribution Models. Divers. Distrib. 2008, 14, 763–773. [Google Scholar] [CrossRef]
- Júnior, P.D.M.; Nóbrega, C.C. Evaluating collinearity effects on species distribution models: An approach based on virtual species simulation. PLoS ONE 2018, 13, e0202403. [Google Scholar] [CrossRef]
- Richman, R.; Diallo, D.; Diallo, M.; Sall, A.A.; Faye, O.; Diagne, C.T.; Dia, I.; Weaver, S.C.; Hanley, K.A.; Buenemann, M. Ecological Niche Modeling of Aedes Mosquito Vectors of Chikungunya Virus in Southeastern Senegal. Parasit. Vectors 2018, 11, 255. [Google Scholar] [CrossRef] [PubMed]
- Eastman, J.R. TerrSet Geospatial Monitoring and Modeling System. Available online: https://www.clarku.edu/centers/geospatial-analytics/terrset/download/ (accessed on 27 June 2025).
- Elith, J.; Phillips, S.J.; Hastie, T.; Dudík, M.; Chee, Y.E.; Yates, C.J. A Statistical Explanation of MaxEnt for Ecologists: Statistical Explanation of MaxEnt. Divers. Distrib. 2011, 17, 43–57. [Google Scholar] [CrossRef]
- Sánchez-Hernández, D.; Aguirre-Salado, C.A.; Sánchez-Díaz, G.; Aguirre-Salado, A.I.; Soubervielle-Montalvo, C.; Reyes-Cárdenas, O.; Reyes-Hernández, H.; Santana-Juárez, M.V. Modeling Spatial Pattern of Dengue in North Central Mexico Using Survey Data and Logistic Regression. Int. J. Environ. Health Res. 2021, 31, 872–888. [Google Scholar] [CrossRef] [PubMed]
- Gama, Z.P.; Yanuwiadi, B.; Rahayu, P.; Khalil, R.J.; Assiddiqy, M.F.; Rijalullah, M.A.; Kurniawan, N. Present and Future Distribution Model Using MaxEnt: A Risk Map for Dengue Haemorrhagic Fever Based on Aedes Aegypti Mosquitoes Distribution in Malang Region, East Java, Indonesia. J. Trop. Biodivers. Biotechnol. 2025, 10, jtbb12678. [Google Scholar] [CrossRef]
- Ordoñez-Sierra, R.; Mastachi-Loza, C.A.; Díaz-Delgado, C.; Cuervo-Robayo, A.P.; Fonseca Ortiz, C.R.; Gómez-Albores, M.A.; Medina Torres, I. Spatial Risk Distribution of Dengue Based on the Ecological Niche Model of Aedes Aegypti (Diptera: Culicidae) in the Central Mexican Highlands. J. Med. Entomol. 2020, 57, 728–737. [Google Scholar] [CrossRef] [PubMed]
- Ramasamy, R.; Surendran, S.N. Global Climate Change and Its Potential Impact on Disease Transmission by Salinity-Tolerant Mosquito Vectors in Coastal Zones. Front. Physiol. 2012, 3, 198. [Google Scholar] [CrossRef] [PubMed]
- Pan American Health Organization (PAHO). Handbook for Integrated Vector Management in the Americas. Available online: https://iris.paho.org/handle/10665.2/51759 (accessed on 9 September 2025).
- Ministerio de Salud Pública (MSP). MSP desarrolló la Minga Nacional “Todos Contra el Dengue” Para Promover la Corresponsabilidad Colectiva. Available online: https://www.salud.gob.ec/msp-desarrollo-la-minga-nacional-todos-contra-el-dengue-para-promover-la-corresponsabilidad-colectiva/ (accessed on 5 September 2025).
- United States Geological Survey (USGS). Shuttle Radar Topography Mission (SRTM). Available online: https://earthexplorer.usgs.gov/ (accessed on 27 June 2025).
- NASA Goddard Earth Sciences Data and Information Services Center (GES DISC). GPM IMERG Global Precipitation Data. Available online: https://gpm1.gesdisc.eosdis.nasa.gov/data/GPM_L3/GPM_3IMERGM.07/ (accessed on 27 June 2025).
- United States Geological Survey (USGS). MODIS Vegetation Index MOD13Q1. Available online: https://search.earthdata.nasa.gov/search?q=C1748066515-LPCLOUD (accessed on 27 June 2025).
- United States Geological Survey (USGS). MODIS Land Surface Temperature MOD11C3. Available online: https://search.earthdata.nasa.gov/search?q=C2565788897-LPCLOUD (accessed on 27 June 2025).
- Instituto Nacional de Estadística y Censos (INEC). Estimaciones y Proyecciones de Población. Available online: https://www.ecuadorencifras.gob.ec/proyecciones-poblacionales/ (accessed on 30 June 2025).
- Instituto Nacional de Estadística y Población y Demografía. Censo de Población y Vivienda 2010. Available online: https://www.ecuadorencifras.gob.ec/censo-de-poblacion-y-vivienda/ (accessed on 30 June 2025).
- Ministerio de Agricultura y Ganadería, Ecuador. Mapa de Cobertura y uso de la Tierra y Sistemas Productivos Agropecuarios Versión Editada 2020. Available online: https://datosabiertos.gob.ec/dataset/mapa-de-cobertura-y-uso-de-la-tierra-y-sistemas-productivos-agropecuarios (accessed on 30 June 2025).

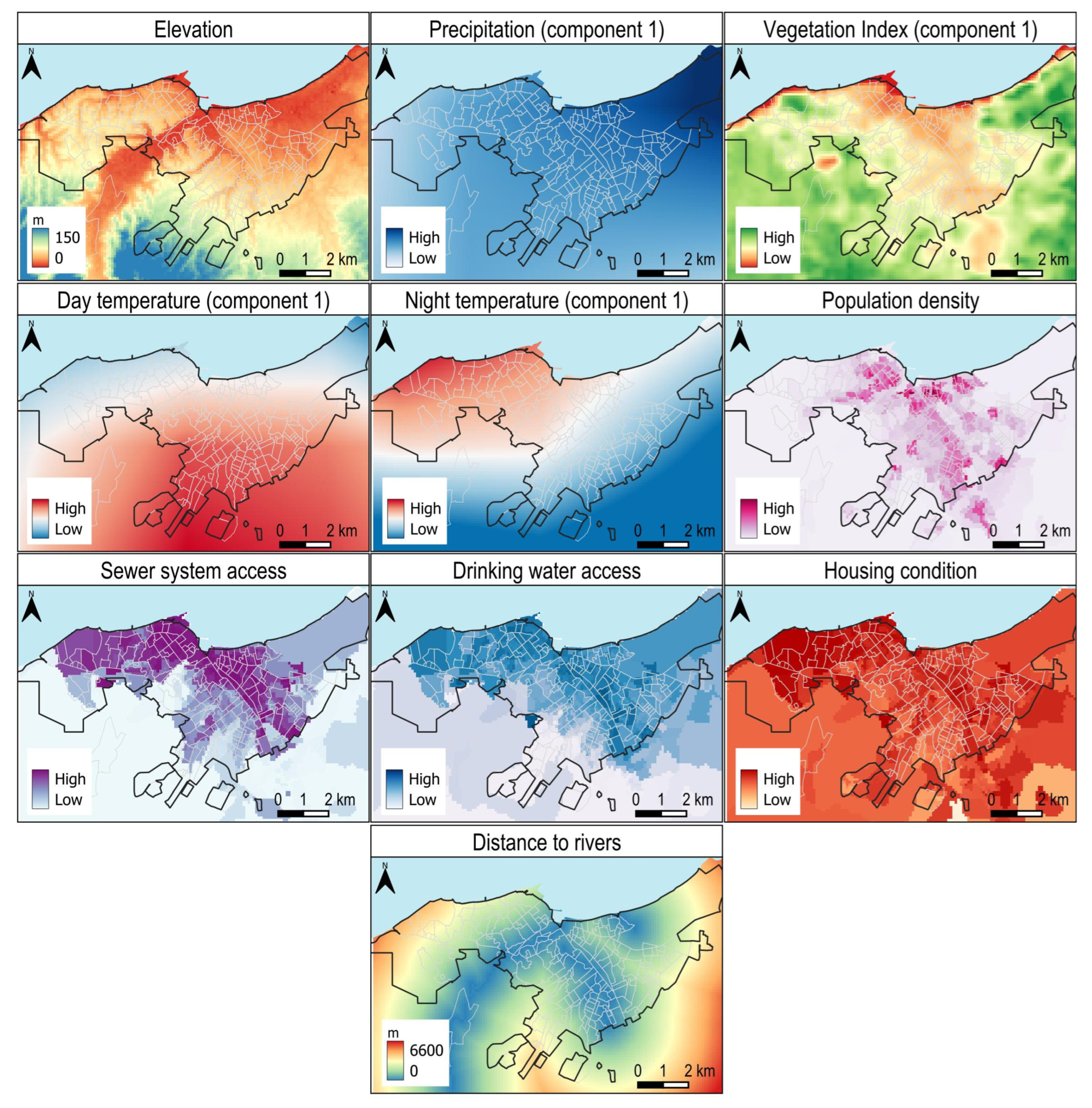

Explicative Variable | Measure Unit | Time | Time Unit |
---|---|---|---|
Elevation | m | 2000 | Year |
Precipitation | mm | 2018–2021 | Monthly |
Vegetation index | [−1.0 to +1.0] | 2018–2021 | 16 days |
Day temperature | °C | 2018–2021 | Monthly |
Night temperature | °C | 2018–2021 | Monthly |
Population | Density (inhab./ha) | 2020 (projection) | Census |
Sewer system access | % without sewer access | 2010 | Census |
Drinking water access | % without water access | 2010 | Census |
Housing condition | % of population in poorly maintained housing | 2010 | Census |
Rivers | Distance to rivers | 2020 | Year |

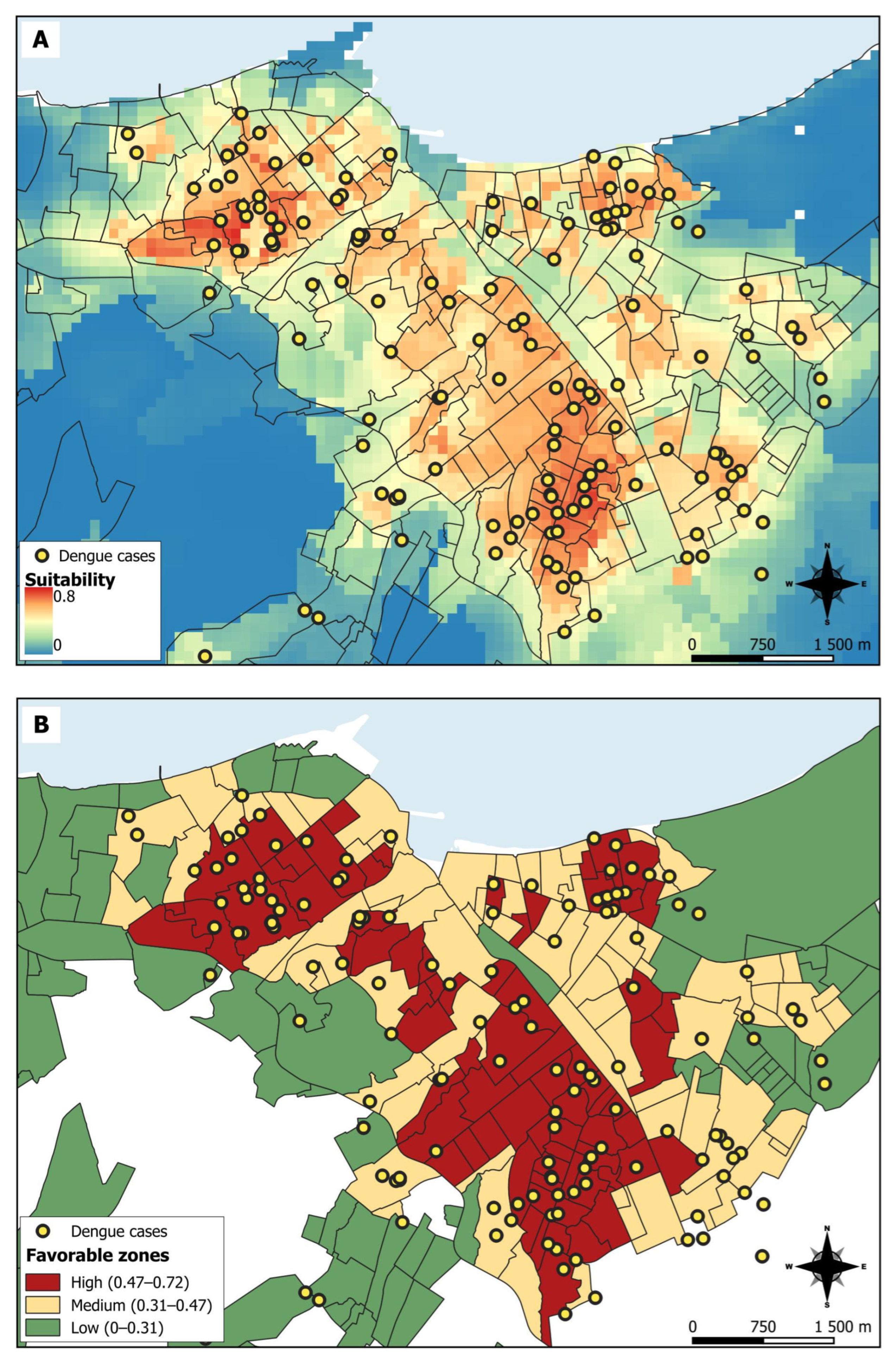

Favorable Zones | Area ha (%) | Population Affected (%) | Cases (%) * | Case Density (Cases/ha) |
---|---|---|---|---|
High | 957.38 (17.87) | 118,409 (47.21) | 84 (58.33) | 0.088 |
Medium | 1191.36 (22.24) | 96,752 (38.58) | 42 (29.17) | 0.036 |
Low | 3209.27 (59.90) | 35,635 (14.21) | 18 (12.5) | 0.006 |
Total | 5358 (100) | 250,796 (100) | 144 (100) | — |
Variable | Percent Contribution (%) |
---|---|
Population | 72.3 |
Sewer system access | 13 |
Distance to rivers | 2.5 |
Night temperature | 2.4 |
Drinking water access | 2.4 |
Precipitation | 1.9 |
Housing condition | 1.9 |
Vegetation index | 1.6 |
Elevation | 1.2 |
Day temperature | 0.7 |
