Article

On the Role of Atmospheric Weathering on Paint Dust Aerosol Generated by Mechanical Abrasion of TiO2 Containing Paints

by
Adam W. Nored
1,
Jacob S. Shedd
2,
Marie-Cecile G. Chalbot
2,3,* and
Ilias G. Kavouras
2,4
1
Interdisciplinary Engineering Program, School of Engineering, University of Alabama at Birmingham, 1075 13th St. S, Birmingham, AL 35205, USA
2
Department of Environmental Health Sciences, Ryals School of Public Health, University of Alabama at Birmingham, 1665 University Blvd, Birmingham, AL 35233, USA
3
Department of Biological Sciences, School of Arts and Sciences, New York City College of Technology, 285 Jay St., New York, NY 11201, USA
4
Department of Environmental, Occupational and Geospatial Health Sciences, CUNY Graduate School of Public Health and Health Policy, 55 W 125th Street, New York, NY 10024, USA
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(3), 1265; https://doi.org/10.3390/ijerph19031265
Submission received: 31 December 2021 / Revised: 18 January 2022 / Accepted: 21 January 2022 / Published: 24 January 2022
(This article belongs to the Section Environmental Science and Engineering)
Browse Figures
Versions Notes

Abstract

:
In recent years, the introduction and use of new nanomaterials in construction has increased at a rapid rate. Exterior surface paints have been a product that have had these nanomaterials added to them. In this study, the effects of natural weathering and exposure to atmospheric agents was examined to determine the detrimental effects on outdoor paint that has been created with nanomaterials. Data collected over the course of the yearlong study indicate that the nanoparticles of the titanium dioxide were eliminated rapidly. Further testing indicated that various elements of weathering were affecting the physical integrity of the paint. The weathering agents that appeared to have the greatest effect on the samples were acid deposition and total precipitation. There was a strong association between carbon monoxide and the effects on the panels. These results can lead to new plans for assessments involving the synergistic effects of all weathering agents.

1. Introduction

Engineered nanomaterials (ENMs) have been integrated into construction materials including paints [1]. These nano-enabled products (NEPs) are commercially desirable due to their improved structural integrity, thermal conductivity, fire prevention, and self-cleaning features as compared to conventional products, and, as such, they are extensively used in commercially available consumer products [2,3,4,5]. Despite these advantages, most commercially available NEPs are not properly identified as containing nanomaterials. Moreover, knowledge about their health and environmental effects is scarce, particularly throughout the lifecycle of the product. For paint, it includes preparation and application on indoor and outdoor surfaces, environmental weathering and aging, and final removal, typically by mechanical abrasion. Many ENMs, such as carbon nanotubes, silicon dioxide (SiO2), titanium dioxide (TiO2), and copper oxide (CuO) have been shown to be harmful to humans, with pristine nanoparticles translocating from the lungs into the circulatory, lymphatic, and nervous systems [6,7,8,9,10].
Exposures of painters and other construction workers are most likely to occur at the early and last stages of the paint lifecycle. The sanding dust of walls and wood coated with nano-containing products was dominated by particles in the 100–300 nm size range [11]. TiO2 and Ag nanoparticles were found in 80% of the collected paint dust particles [12]. The size of TiO2-containing paint dust and the abundance of nano-sized TiO2 agglomerates was related to the sandpaper grit size [13]. As a result, there is potential for occupational exposures to nanoparticles in paints. This may increase the probability of various diseases that involve the lungs, as painters already have consistently higher lung cancer mortality than other construction workers [14]. Additionally, the probability of a painter developing chronic obstructive pulmonary disease (COPD) is the second highest among all construction workers, following roofers [15].
Exposure to environmental conditions including weather and chemicals affects the integrity and stability of paint over time, leading to deterioration, breaks, and the release of chemical species. Kaegi et al. [16] determined that leachate from a two-year-old weather-exposed façade had significantly less ENMs than a freshly coated façade. Silver ENMs leaching showed that the first two months of exposure resulted in 30% of total ENM loss [17]. Atmospheric pollution can also be detrimental to coatings over time. Acid deposition is known to significantly deteriorate the integrity of outdoor surfaces [18,19]. TiO2, the most widely used pigment in paints, reacts with acids through photocatalysis, potentially leading to the destruction of the coating binders in the outer paint film [20,21]. This may be enhanced by the interaction of anatase nano TiO2 and UV light [22]. As a result, paint chemicals and ENMs may be released into the environment and enter the human body through a variety of pathways including hand-to-mouth for toddlers, the primary concern for Pb-based paint, and through the food chain (i.e., bioaccumulation) [23,24,25].
In the present work, we aim to evaluate the effect of environmental weathering on the release of TiO2-containing paint dust by mechanical abrasion. The premise behind this study is that environmental weathering may deteriorate the integrity of paint over time, affecting both the availability and ease of generation of TiO2-containing paint dust by mechanical abrasion. Using a previously developed methodological framework [13], the current work sought to realistically simulate the generation of TiO2-containing paint dust by mechanical abrasion on weathered wood panels for a year.

2. Materials and Methods

2.1. Atmospheric Weathering Experiment

To evaluate the role of environmental weathering on paint dust generated by mechanical abrasion, wood panels painted with TiO2-containing paint were exposed to weather conditions and air contaminants for regular intervals up to a year. More specifically, both sides of twelve (12) wood panels were prepared, conditioned, and coated as previously described [13]. Briefly, the two sides of the wood panels (61.25 cm [L] × 28.75 cm [W]) were painted with two layers of a commercially available water-based (49.6% w/w) latex paint and primer formulation containing TiO2 (3.2% w/w). The application was done manually using a 5-cm brush. The panels were conditioned at 20 °C and 30% RH for 48 h between coatings and for 24 h before exposure. All panels were placed on the roof of a 6-floor university building with restricted access and at least 10 m away from major air intake and outlets to prevent unwanted contamination and interference (latitude: 33.502001; longitude: −86.80382 (Datum: WGS84)) from 1 February 2017 to 31 January 2018. Every fifteen days, the panels were rotated to directly expose both sides to environmental conditions. A panel was randomly selected every 30 days for mechanical abrasion.
Meteorological conditions and air pollution concentrations measured at the US Environmental Protection Agency NCore site in Birmingham, Alabama (EPA AIRS ID: 01-073-0023) (latitude: 33.553056; longitude: −86.815000 (Datum: WGS84); Elevation 177 m above sea level) for 2017 and 2018 were retrieved from the US Environmental Protection Agency’s Air Quality System (AQS). The measured meteorological conditions included the hourly temperature (in °F), percent of relative humidity, barometric pressure (in mbar), total precipitation (in inches of water), resultant wind speed (in knots), and solar radiation (in Langley per minute). Gaseous pollutant criteria included hourly CO (in ppm), O3 (in ppm), NOx (in ppb), and SO2 (in ppb). The PM10 and PM2.5 mass (in μg/m3) were measured daily, and PM2.5 speciation data were obtained at a frequency of once every three days. More specific chemical components including the total sulfate (SO42−), nitrate (NO3−), ammonium bisulfate ((NH4)2SO4), and ammonium nitrate (NH4NO3) concentrations were obtained.

2.2. Paint Dust Generation and Characterization

The Coatings Aerosol Resuspension System (CARES) was used to generate TiO2 containing paint dust using an orbital sander and 120 grit size sandpaper in a polyvinylchloride glove box chamber (115 cm × 60 cm × 60 cm) (Lancs Industries, Kirkland, WA, USA) [13]. A wide particle spectrometer (WPS) (Model 1000XP, MSP Corp., Shoreview, MN, USA) and a condensation particle counter (CPC) (Model 3771, TSI Inc., Shoreview, MN, USA) were used to measure the particle number concentration and size distribution. Paint dust samples were collected on 13-mm cellulose filters and 47-mm Teflon filters (Pall Corp., Port Washington, NY, USA) at a 1.0 and 5.0 L/min flow rate, respectively, for chemical and imaging analysis, respectively. Chemical analysis was done by attenuated total reflectance Fourier-transform infrared spectrometer (ATR-FTIR; ALPHA II Platinum ATR, Bruker corp., Billerica, MA, USA) with a single reflection diamond ATR (range: 400–4000 cm−1, with a resolution of 2 cm−1). Morphological analysis was performed by scanning electron microscope (SEM; 650 FEG, Eindhoven, The Netherlands). The SEM was used at a low pressure setting of 0.53 torr, working distance of 10 mm, and accelerating voltage of 10 kV. Samples were examined at 5000× and 10,000× magnifications. The elemental composition was determined using the integrated energy-dispersive X-ray (EDX) at 5000× magnification.

2.3. Data Analysis

The count median diameter (CMD), geometric standard deviation (GSD), and PM10, PM2.5, and PM1 mass concentration of paint dust were computed using the WPS data, as previously described [13]. Daily descriptive statistics or meteorological and air pollution variables were computed from hourly measurements. Subsequently, daily estimates were further aggregated to compute the cumulative exposure conditions for each wood panel over the 48-week period. Aerosol acidity (in mol/m3) was computed as the sum of the molar concentrations of free SO42− (difference of total SO42− and neutralized (NH4)2SO4) and free NO3− (difference of total NO3− and neutralized NH4NO3). The sum of gaseous SO2 and NOx molar concentrations (in mol/m3) was defined as the gas acidity. Ordinary least squares regression analyses of CMD, GSD, PM2.5, and PM1 mass as well as source contributions were used to determine the monthly trends. A multivariate least squares linear regression analysis was used to estimate the synergistic effect of weathering conditions on paint dust levels. The following weather conditions were included in the analysis: dew point (computed from the ambient temperature, percent of relative humidity, and barometric pressure), molar CO and O3 concentrations, precipitation, wind speed, and aerosol and gas acidity, allowing for df = 4 (degrees of freedom of the model). The percent of relative effect of each variable was calculated as the product of the regression coefficient and cumulative exposure for each variable to the total effect of all variables. The intercept is interpreted as being the effect associated with other weathering variables not included in this study such as highly reactive radicals. All analyses were done using SPSS (Version 27; IBM Analytics, Armonk, NY, USA) and Origin Pro (Version 9.1; OriginLab, Northampton, MA, USA).

3. Results and Discussion

3.1. Paint Dust Concentrations and Trends

Table 1 presents the mean (±3× standard error) and monthly trend of the CMD, GSD, and reconstructed PM10, PM2.5, and PM1 mass concentrations. The CMD of paint dust varied from 39 ± 10 nm to 98 ± 29 nm with a monthly increase of 2.2 ± 1.2 nm/month. The GSDs of paint dust particles decreased from 3.9 ± 0.7 to 2.3 ± 0.1, at a rate of 0.12 ± 0.02 nm/month, suggesting a narrow size range of paint dust particles after weathering. The CMD and GSD of paint dust generated after one month of environmental weathering were somewhat different than those computed for paint dust generated from freshly painted wood panels using the same protocol (CMD of 39.4 ± 2.7 nm; GSD of 2.2 ± 0.1), albeit similar levels of particle mass (PM10, PM2.5, and PM1) levels were generated.
This may be suggestive of weathering processes affecting the physical integrity of paints and therefore the number and size of generated paint dust, but with no significant changes in the availability of paint. The PM10, PM2.5, and PM1 paint dust concentrations varied month by month; however, an overall decline was observed for all three fractions, from −123 ± 35 μg/m3/month for PM10 to −5 ± 3 μg/m3/month for PM2.5 and −1 ± 0.8 μg/m3/month for PM1. This trend indicated that weathering may reduce the quantity of paint available for mechanical abrasion through physical and chemical deterioration and break-up.

3.2. Chemical and Morphological Analysis

The ATR-FTIR absorbance spectra of paint dust at 0, 3, and 12 months are depicted in Figure 1. All paint dust samples retained the absorption bands at 1500–3500 cm−1 from wood cellulosic signatures and paint organic polymers [13,26]. However, there was a decline in the absorption bands of 1240–750 cm−1, attributed to the stretching of =C–H and C–O groups and bending vibration of the aromatic C–H groups.
Olefinic, aromatic, and hydroxyl functional groups may be more susceptible to reactions by atmospheric oxidants, leading to the rearrangement and break-up of the aliphatic chain in organic polymers and/or hydrogen bonds between polymers [27,28]. The abundance of broad bands in the 400–650 cm−1 regions previously assigned to TiO2 was observed to substantially decline following three months of environmental weathering, indicating the rapid elimination of TiO2 materials from painted surfaces due to weathering.
Figure 2 depicts the SEM backscattering images of paint dust at months (a) 0, (b) 3, and (c) 12. Released paint dust particles contained TiO2 nanomaterials of various shapes (spherical, amorphous) in the nano-size and submicron size range at 0 months. Both the size and concentration of TiO2 paint dust agglomerates declined following weathering, indicating that most of the TiO2 may be inadvertently released into the environment; however, the remaining TiO2 may be released in the nano-size range by mechanical abrasion.

3.3. Weathering

Figure 3, Figure 4 and Figure 5 show the daily variation of meteorological, particulate, and gas pollutants with the study period, respectively. The mean daily temperature and relative humidity were 18.3 °F and 66%, respectively. There was a total of 123 rain events for a total of 619.3 cm of H2O. The winds were blowing from a variable direction, mostly across the southwest–northeast axis, up to 1.77 m/s on average. The mean daily ambient PM10 and PM2.5 mass concentrations were 45.8 and 8.8 μg/m3, indicating that a large fraction of ambient PM10 was composed of coarse particles. The total sulfate and nitrate concentrations (2.7 μg/m3 and 0.9 μg/m3) were substantially higher than those computed from neutralized ammonium bisulfate (2.09 μg/m3) and ammonium nitrate (0.6 μg/m3), suggesting acidic aerosol conditions that favored the deposition of sulfuric and nitric acid to surfaces. The mean daily CO, O3, NOx, and SO2 concentrations were 360 ppb, 23 ppb, 14 ppb, and 9 ppb, respectively. The variation of meteorological and air pollution conditions was typical of an urban environment. It is worth noting that the air quality monitoring site was in close proximity of traffic and other industrial emissions, yielding reduced O3 concentrations due to titration by combustion-related NOx.
Figure 6 shows the percent of relative effect of weathering factors on paint dust CMD, GSD, PM2.5 and PM1 mass concentrations. The overall effect of meteorological conditions (dew point, rain, and wind) was positive, i.e., more paint dust being generated by abrasion, probably due to physical decomposition of paint and wood. The negative relative effect of CO and aerosol acidity for CMD and GSD indicated that smaller particles may be generated and that, therefore, the resultant PM2.5 and PM1 paint dust mass would decline, as computed by the regression analysis. On the other hand, the exposure to strong gas oxidants such as O3, NOx, and SO2 may result in the generation of a larger particle that was associated with an increase of paint dust mass.
The degradation of painted surfaces exposed to weathering occurs at the surface of the paint, inside the paint layer, and at the interface between the film and the substrate. Weathering conditions degrade painted surfaces through chain-scission and cross-linking reactions in the paint layer, deteriorating adhesion and the mechanical compatibility with the substrate. Previous studies clearly demonstrated the capacity of oxidative agents (e.g., acid rain, ozone, and radicals) to inadvertently cause significant damage to painted surfaces [29]. However, there is no evidence of chemical interactions of paint formulations, TiO2 materials, and CO [30]. In an urban environment, CO is released predominantly from automobiles. Traffic exhaust is also the primary source of volatile organic compounds that can readily react in the atmosphere and form hydroxyperoxy radicals. Paints may undergo oxidation and isomerization from a non-conjugated to a conjugated isomer and form hydroperoxides at allylic and vinylic carbons. This was in agreement with changes in the FTIR spectra of paint dust. These hydroperoxides may form dimers and polymers to an insoluble and infusible film. These reactions may occur throughout the life of the paint but at decreasing rates.
Water also accelerates deterioration by stimulating physical processes and volatile and water-soluble decomposition byproducts. In conjunction with a high ambient temperature, which is typical in the southeast US, degradation reactions may accelerate depending on the reactions’ activation energy. These processes may be further facilitated by TiO2 particles. Anatase titanium dioxide participates chemically in the deterioration reaction by acting as a catalyst in the oxidation of film by atmospheric oxygen [2].
The discharge of TiO2 particles in the environment has been hypothesized to involve their release from the outer layer due to dissolution followed by diffusion into the solution in cement surfaces [31]. Environmental releases of TiO2 particles appear to be negligible during the production of paints [32], but they have been previously found in environmental media including ambient air [33,34].

4. Conclusions

The effect of environmental weathering on TiO2-containing paint dust emissions by mechanical abrasion was investigated. This study showed that most TiO2 and paint polymers may have been depleted from weathered painted surfaces; PM10, PM2.5, and PM1 paint dust emissions declined as a narrow range (GSD decrease) of smaller particles (CMD decrease) was generated for weathered wood panels. The morphological and chemical analysis showed that the abundance of TiO2 agglomerates in the nano-size range declined over time. Weathering agents including meteorological conditions and air pollutants may act at different levels and rates, independently or synergistically in various combinations and in different sequences, resulting in highly variable outcomes. Gas and aerosol acidity and rain appeared to exert a strong influence on paint deterioration. The strong association with carbon monoxide, an indicator of incomplete combustion, may be indicative of the potential effect of highly reactive volatile organic compounds, co-emitted with CO from vehicles. This study demonstrated the need to assess the synergistic effects of environmental weathering on painted surfaces because of its potential to expose the environment and workers to appreciable quantities of TiO2-containing paint dust.

Author Contributions

Conceptualization, I.G.K. and M.-C.G.C.; methodology, A.W.N., J.S.S. and M.-C.G.C.; formal analysis, A.W.N.; investigation, A.W.N. and J.S.S.; resources, I.G.K. and M.-C.G.C.; data curation, A.W.N.; writing—original draft preparation, A.W.N.; writing—review and editing, I.G.K. and M.-C.G.C.; visualization, I.G.K.; supervision, I.G.K.; project administration, I.G.K. and M.-C.G.C.; funding acquisition, M.-C.G.C. All authors have read and agreed to the published version of the manuscript.

Funding

The study was partially supported by the NIOSH-funded Deep South Center for Occupational Health and Safety Education and Research Center (Award #: T42OH008436). The findings and conclusions in this report are those of the authors and do not necessarily represent the views of the National Institute for Occupational Safety and Health.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The SEM experiments were performed at the UAB School of Engineering Center for Nanoscale Materials and Biointegration. ATR-FTIR analysis was performed at the UAB Department of Chemistry Nanomaterials/Surface Characterization Facility.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Buzea, C.; Pacheco, I.I.; Robbie, K. Nanomaterials and nanoparticles: Sources and toxicity. Biointerphases 2007, 2, MR17–MR71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Carp, O.; Huisman, C.L.; Reller, A. Photoinduced reactivity of titanium dioxide. Prog. Solid State Chem. 2004, 32, 33–177. [Google Scholar] [CrossRef]
  3. Gladis, F.; Eggert, A.; Karsten, U.; Schumann, R. Prevention of biofilm growth on man-made surfaces: Evaluation of antialgal activity of two biocides and photocatalytic nanoparticles. Biofouling 2010, 26, 89–101. [Google Scholar] [CrossRef] [PubMed]
  4. Dallas, P.; Sharma, V.K.; Zboril, R. Silver polymeric nanocomposites as advanced antimicrobial agents: Classification, synthetic paths, applications, and perspectives. Adv. Colloid Interface Sci. 2011, 166, 119–135. [Google Scholar] [CrossRef] [PubMed]
  5. Hanus, M.J.; Harris, A.T. Nanotechnology innovations for the construction industry. Prog. Mater. Sci. 2013, 58, 1056–1102. [Google Scholar] [CrossRef]
  6. Lee, J.; Mahendra, S.; Alvarez, P.J.J. Nanomaterials in the Construction Industry: A Review of Their Applications and Environmental Health and Safety Considerations. ACS Nano 2010, 4, 3580–3590. [Google Scholar] [CrossRef]
  7. Hoet, P.H.; Brüske-Hohlfeld, I.; Salata, O.V. Nanoparticles—Known and unknown health risks. J. Nanobiotechnol. 2004, 2, 12. [Google Scholar] [CrossRef] [Green Version]
  8. Oberdörster, G.; Oberdörster, E.; Oberdörster, J. Nanotoxicology: An Emerging Discipline Evolving from Studies of Ultrafine Particles. Environ. Health Perspect. 2005, 113, 823–839. [Google Scholar] [CrossRef]
  9. Liu, J.; Wong, H.-L.; Moselhy, J.; Bowen, B.; Wu, X.Y.; Johnston, M.R. Targeting colloidal particulates to thoracic lymph nodes. Lung Cancer 2006, 51, 377–386. [Google Scholar] [CrossRef]
  10. Oberdörster, G.; Sharp, Z.; Atudorei, V.; Elder, A.; Gelein, R.; Kreyling, W.; Cox, C. Translocation of Inhaled Ultrafine Particles to the Brain. Inhal. Toxicol. 2004, 16, 437–445. [Google Scholar] [CrossRef]
  11. Koponen, I.K.; Jensen, K.A.; Schneider, T. Comparison of dust released from sanding conventional and nanoparticle-doped wall and wood coatings. J. Expo. Sci. Environ. Epidemiol. 2011, 21, 408–418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Gomez, V.; Levin, M.; Saber, A.T.; Irusta, S.; Maso, M.D.; Hanoi, R.; Santamaria, J.; Jensen, K.A.; Wallin, H.; Koponen, I.K. Comparison of Dust Release from Epoxy and Paint Nanocomposites and Conventional Products during Sanding and Sawing. Ann. Occup. Hyg. 2014, 58, 983–994. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Nored, A.W.; Chalbot, M.-C.G.; Kavouras, I.G. Characterization of paint dust aerosol generated from mechanical abrasion of TiO2-containing paints. J. Occup. Environ. Hyg. 2018, 15, 629–640. [Google Scholar] [CrossRef] [PubMed]
  14. Guha, N.; Merletti, F.; Steenland, N.K.; Altieri, A.; Cogliano, V.; Straif, K. Lung Cancer Risk in Painters: A Meta-Analysis. Environ. Health Perspect. 2010, 118, 303–312. [Google Scholar] [CrossRef] [PubMed]
  15. Ringen, K.; Dement, J.; Welch, L.; Dong, X.S.; Bingham, E.; Ba, P.S.Q. Risks of a lifetime in construction. Part II: Chronic occupational diseases. Am. J. Ind. Med. 2014, 57, 1235–1245. [Google Scholar] [CrossRef] [PubMed]
  16. Kaegi, R.; Ulrich, A.; Sinnet, B.; Vonbank, R.; Wichser, A.; Zuleeg, S.; Simmler, H.; Brunner, S.; Vonmont, H.; Burkhardt, M.; et al. Synthetic TiO2 nanoparticle emission from exterior facades into the aquatic environment. Environ. Pollut. 2008, 156, 233–239. [Google Scholar] [CrossRef]
  17. Kaegi, R.; Sinnet, B.; Zuleeg, S.; Hagendorfer, H.; Mueller, E.; Vonbank, R.; Boller, M.; Burkhardt, M. Release of silver nanoparticles from outdoor facades. Environ. Pollut. 2010, 158, 2900–2905. [Google Scholar] [CrossRef]
  18. Wang, X.; Kumagai, S.; Kobayashi, K.; Yoshimura, N. Investigation on Surface Contamination Performances of Outdoor Polymer Insulator Aged by Artificial Acid Rain. IEEJ Trans. Fundam. Mater. 1998, 118, 502–508. [Google Scholar] [CrossRef] [Green Version]
  19. Larssen, T.; Seip, H.M.; Semb, A.; Mulder, J.; Muniz, I.P.; Vogt, R.D.; Lydersen, E.; Angell, V.; Dagang, T.; Eilertsen, O. Acid deposition and its effects in China: An overview. Environ. Sci. Policy 1999, 2, 9–24. [Google Scholar] [CrossRef]
  20. Giraldo, A.L.; Peñuela, G.A.; Torres-Palma, R.A.; Pino, N.J.; Palominos, R.A.; Mansilla, H.D. Degradation of the antibiotic oxolinic acid by photocatalysis with TiO2 in suspension. Water Res. 2010, 44, 5158–5167. [Google Scholar] [CrossRef]
  21. Bahnemann, D.B.D.; Kholuiskaya, S.; Dillert, R.; Kulak, A.; Kokorin, A. Photodestruction of dichloroacetic acid catalyzed by nano-sized TiO2 particles. Appl. Catal. B Environ. 2002, 36, 161–169. [Google Scholar] [CrossRef]
  22. Marolt, T.; Škapin, A.S.; Bernard, J.; Živec, P.; Gaberšček, M. Photocatalytic activity of anatase-containing facade coatings. Surf. Coat. Technol. 2011, 206, 1355–1361. [Google Scholar] [CrossRef]
  23. Lin, G.; Peng, R.; Chen, Q.; Wu, Z.; Du, L. Lead in housing paints: An exposure source still not taken seriously for children lead poisoning in China. Environ. Res. 2009, 109, 1–5. [Google Scholar] [CrossRef] [PubMed]
  24. Lucas, J.-P.; Le Bot, B.; Glorennec, P.; Etchevers, A.; Bretin, P.; Douay, F.; Sébille, V.; Bellanger, L.; Mandin, C. Lead contamination in French children’s homes and environment. Environ. Res. 2012, 116, 58–65. [Google Scholar] [CrossRef]
  25. Rizwan, M.; Ali, S.; Qayyum, M.F.; Ok, Y.S.; Adrees, M.; Ibrahim, M.; Rehman, M.Z.U.; Farid, M.; Abbas, F. Effect of metal and metal oxide nanoparticles on growth and physiology of globally important food crops: A critical review. J. Hazard. Mater. 2017, 322, 2–16. [Google Scholar] [CrossRef] [PubMed]
  26. Vahur, S.; Teearu, A.; Leito, I. ATR-FT-IR spectroscopy in the region of 550–230 cm−1 for identification of inorganic pigments. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2010, 75, 1061–1072. [Google Scholar] [CrossRef]
  27. Stephens, E.R. Chemistry of Atmospheric Oxidants. J. Air Pollut. Control Assoc. 1969, 19, 181–185. [Google Scholar] [CrossRef]
  28. Minakata, D.; Li, K.; Westerhoff, P.; Crittenden, J. Development of a Group Contribution Method to Predict Aqueous Phase Hydroxyl Radical (HO•) Reaction Rate Constants. Environ. Sci. Technol. 2009, 43, 6220–6227. [Google Scholar] [CrossRef]
  29. Lipfert, F.W.; Dupuis, L.R.; Malone, R.G.; Schaedler, J. Case Study of Materials Damage due to Air Pollution and Acid Rain in New Haven, CT; Brookhaven National Lab.: Upton, NY, USA, 1985. [Google Scholar]
  30. Salthammer, T.; Fuhrmann, F. Photocatalytic Surface Reactions on Indoor Wall Paint. Environ. Sci. Technol. 2007, 41, 6573–6578. [Google Scholar] [CrossRef]
  31. Bossa, N.; Chaurand, P.; Levard, C.; Borschneck, D.; Miche, H.; Vicente, J.; Geantet, C.; Aguerre-Chariol, O.; Michel, F.M.; Rose, J. Environmental exposure to TiO2 nanomaterials incorporated in building material. Environ. Pollut. 2017, 220, 1160–1170. [Google Scholar] [CrossRef] [Green Version]
  32. Fonseca, A.S.; Viitanen, A.-K.; Kanerva, T.; Säämänen, A.; Aguerre-Chariol, O.; Fable, S.; Dermigny, A.; Karoski, N.; Fraboulet, I.; Koponen, I.K.; et al. Occupational Exposure and Environmental Release: The Case Study of Pouring TiO2 and Filler Materials for Paint Production. Int. J. Environ. Res. Public Health 2021, 18, 418. [Google Scholar] [CrossRef] [PubMed]
  33. Hong, H.; Adam, V.; Nowack, B. Form-Specific and Probabilistic Environmental Risk Assessment of 3 Engineered Nanomaterials (Nano-Ag, Nano-TiO2, and Nano-ZnO) in European Freshwaters. Environ. Toxicol. Chem. 2021, 40, 2629–2639. [Google Scholar] [CrossRef] [PubMed]
  34. Wilczyńska-Michalik, W.; Rzeźnikiewicz, K.; Pietras, B.; Michalik, M. Fine and ultrafine TiO2 particles in aerosol in Kraków (Poland). Mineralogia 2015, 45, 65–77. [Google Scholar] [CrossRef] [Green Version]
Ijerph 19 01265 g001 550

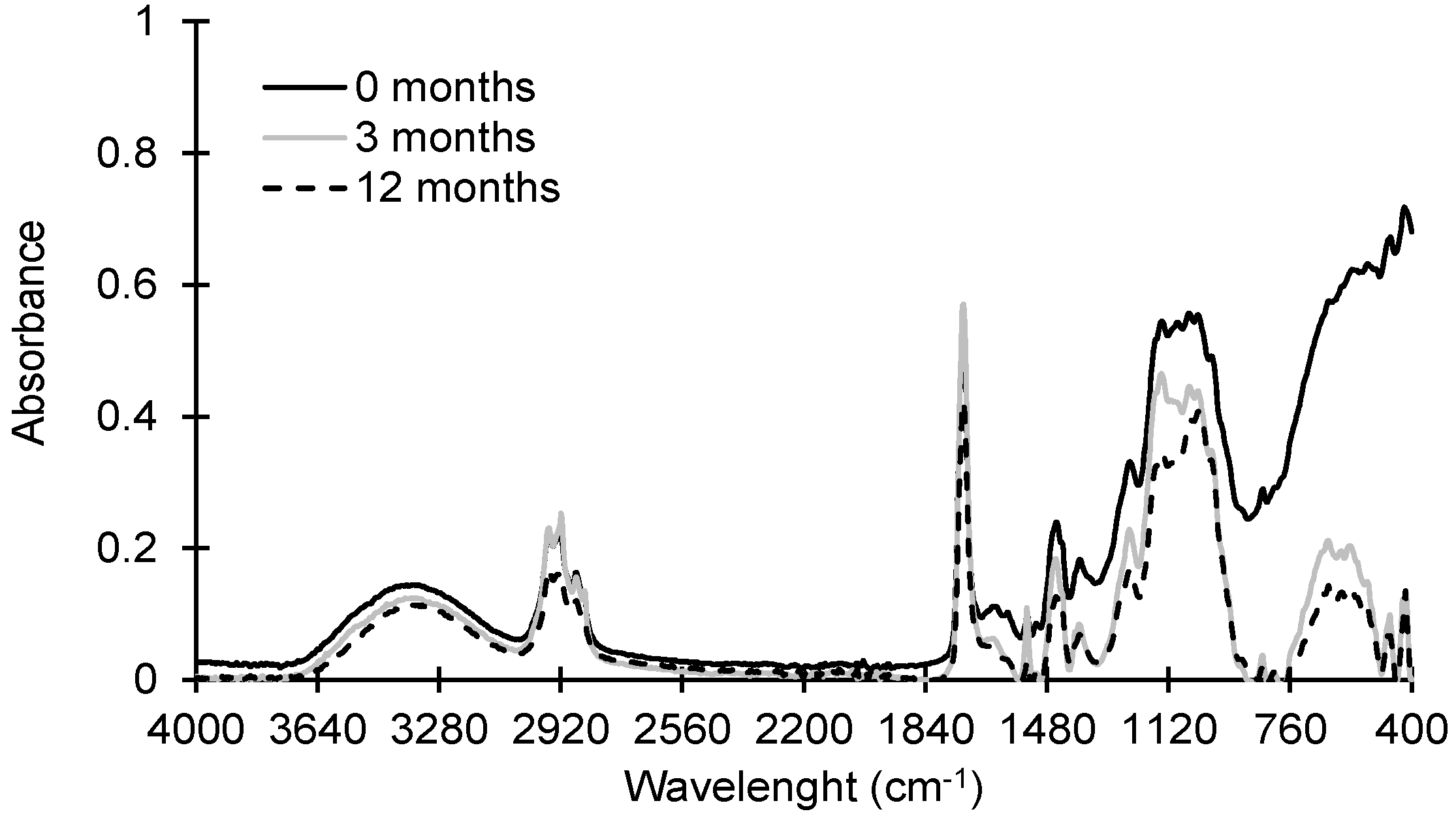

Figure 1. ATR-FTIR spectra of paint dust generated by sanding using P120 sandpaper after 0, 3, and 12 months of environmental weathering.
Figure 1. ATR-FTIR spectra of paint dust generated by sanding using P120 sandpaper after 0, 3, and 12 months of environmental weathering.
Ijerph 19 01265 g001
Ijerph 19 01265 g002 550
Figure 2. Backscattering SEM image of paint dust generated by sanding using P120 sandpaper after (a) 0, (b) 3, and (c) 12 months of environmental weathering.
Figure 2. Backscattering SEM image of paint dust generated by sanding using P120 sandpaper after (a) 0, (b) 3, and (c) 12 months of environmental weathering.
Ijerph 19 01265 g002
Ijerph 19 01265 g003 550

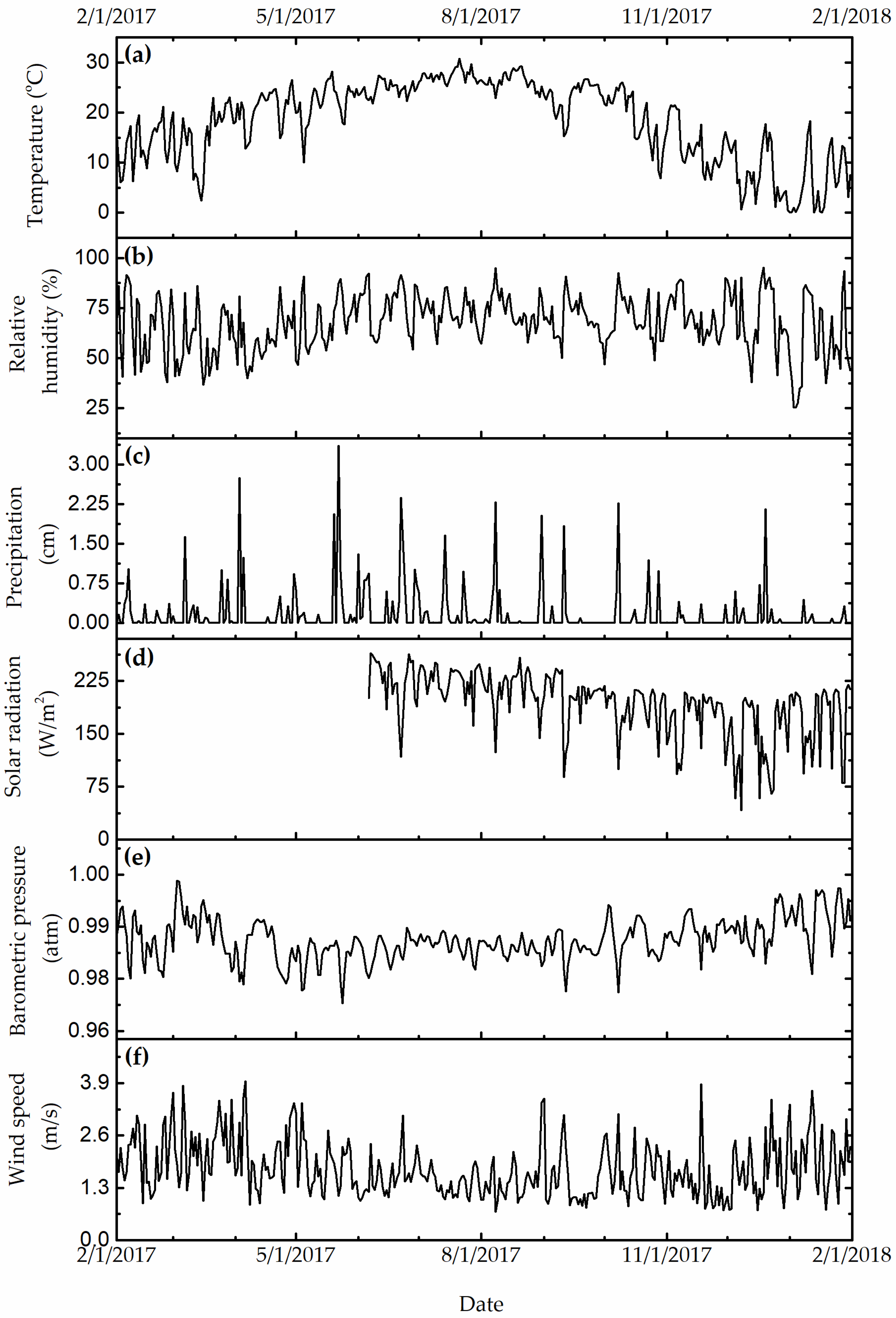

Figure 3. (a, °C) Daily temperature, (b, %) relative humidity, (c, cm of H2O) precipitation, (d, W/m2) solar radiation, (e, in mbar) barometric pressure, and (f, m/s) resultant wind speed.
Figure 3. (a, °C) Daily temperature, (b, %) relative humidity, (c, cm of H2O) precipitation, (d, W/m2) solar radiation, (e, in mbar) barometric pressure, and (f, m/s) resultant wind speed.
Ijerph 19 01265 g003
Ijerph 19 01265 g004 550
Figure 4. (a) Daily PM10, (b) PM2.5, (c) bisulfate, (d) nitrate, (e) total sulfate, and (f) total nitrate concentration (in μg/m3).
Figure 4. (a) Daily PM10, (b) PM2.5, (c) bisulfate, (d) nitrate, (e) total sulfate, and (f) total nitrate concentration (in μg/m3).
Ijerph 19 01265 g004
Ijerph 19 01265 g005 550

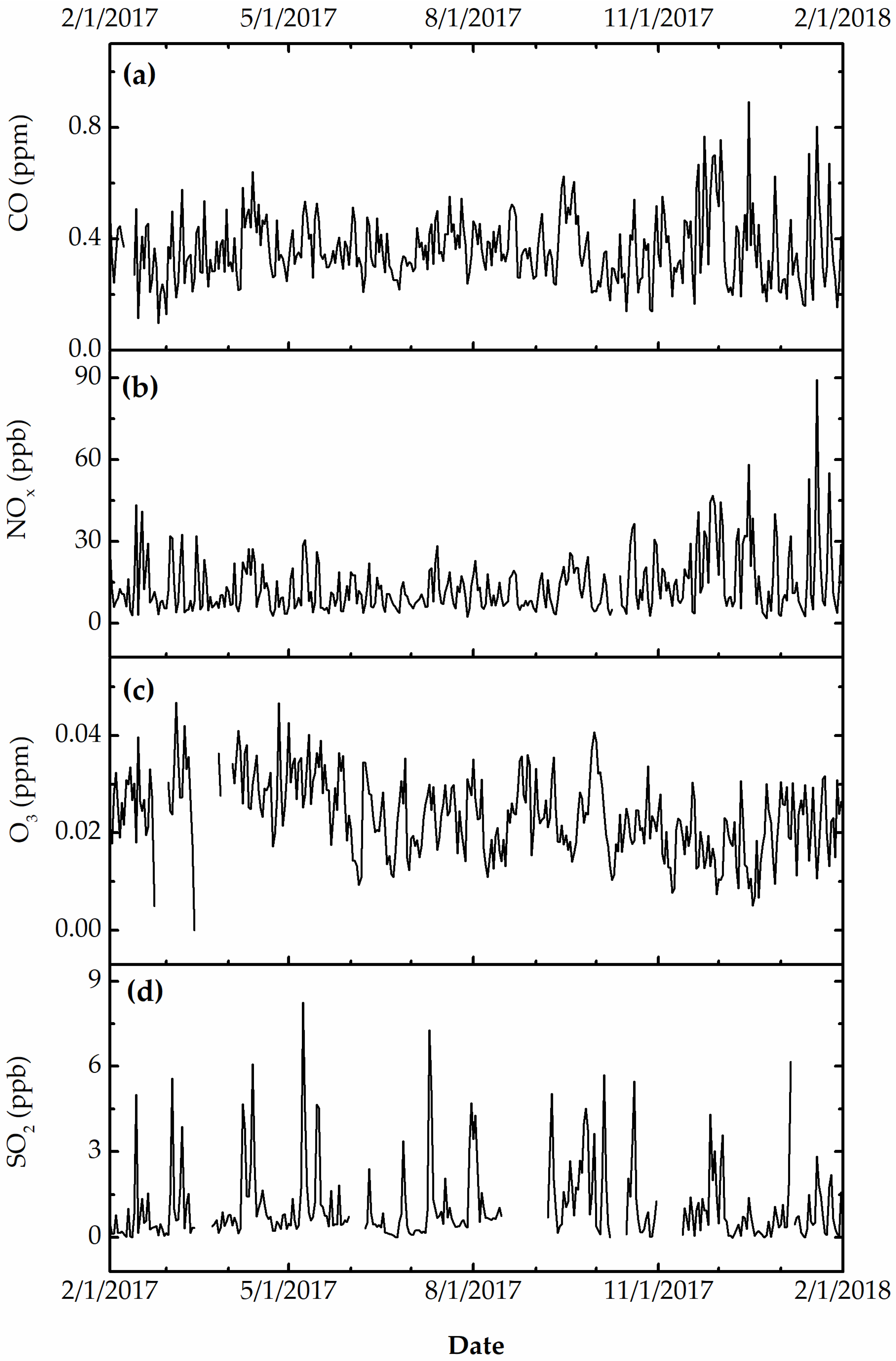

Figure 5. (a, in ppm) Daily carbon monoxide, (b, ppb) nitrogen oxides, (c, ppm) ozone, and (d, in ppb) sulfur dioxide.
Figure 5. (a, in ppm) Daily carbon monoxide, (b, ppb) nitrogen oxides, (c, ppm) ozone, and (d, in ppb) sulfur dioxide.
Ijerph 19 01265 g005
Ijerph 19 01265 g006 550

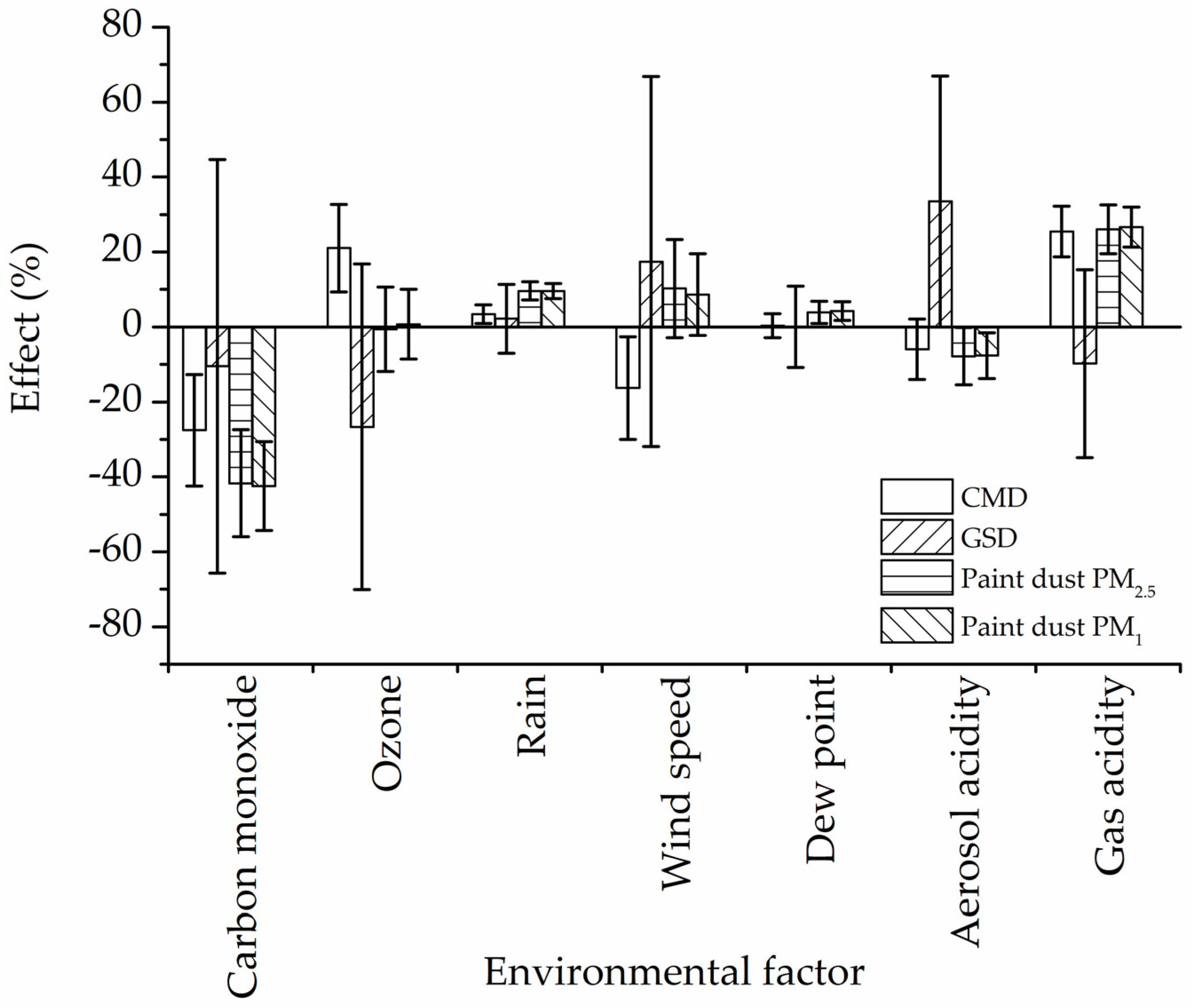

Figure 6. Effect (%) of environmental weathering conditions on paint dust PM2.5, PM1, CMD, and GSD.
Figure 6. Effect (%) of environmental weathering conditions on paint dust PM2.5, PM1, CMD, and GSD.
Ijerph 19 01265 g006
Table
Table 1. Monthly paint dust CMD, GSD, and mass concentrations and trend (mean ± 3× standard error).
Table 1. Monthly paint dust CMD, GSD, and mass concentrations and trend (mean ± 3× standard error).
Duration (Month)CMD (nm)GSDParticle Mass (μg/m3)
PM10PM2.5PM1
160 ± 223.4 ± 0.51250 ± 71571 ± 4318 ± 11
252 ± 123.9 ± 0.71573 ± 83384 ± 3922 ± 10
351 ± 142.9 ± 0.5764 ± 47138 ± 2010 ± 5
477 ± 282.9 ± 0.51443 ± 102392 ± 6825 ± 19
568 ± 182.8 ± 0.51887 ± 2325130 ± 14337 ± 8
662 ± 82.8 ± 0.2832 ± 35379 ± 3624 ± 11
739 ± 102.5 ± 0.1247 ± 16625 ± 169 ± 6
850 ± 122.7 ± 0.2315 ± 15426 ± 178 ± 5
961 ± 122.5 ± 0.1373 ± 41638 ± 3212 ± 8
1069 ± 102.3 ± 0.1315 ± 22539 ± 2213 ± 7
1198 ± 292.4 ± 0.2577 ± 38064 ± 2722 ± 7
1282 ± 92.3 ± 0.1118 ± 7813 ± 94 ± 3
Trend2.2 ± 1.2−0.12 ± 0.02 (1/month)−123 ± 35−5 ± 3−1 ± 0.8
(nm/month)(μg/m3/month)(μg/m3/month)(μg/m3/month)
