Racial Disparities in the Heavy Metal Contamination of Urban Soil in the Southeastern United States

Department of Public Health, University of Tennessee, Knoxville, TN 37996, USA
School of Public Health, University of Memphis, Memphis, TN 38152, USA
School of Energy and Environmental Engineering, University of Science and Technology Beijing, Beijing 100083, China
Authors to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(3), 1105;
Submission received: 13 December 2021 / Revised: 11 January 2022 / Accepted: 14 January 2022 / Published: 19 January 2022


(1) Background: Field monitoring data for addressing the disproportional burden of exposure to soil contamination in communities of minority and low socioeconomic status (SES) are sparse. This study aims to examine the association between soil heavy metal levels, SES, and racial composition. (2) Methods: A total of 423 soil samples were collected in the urban areas of eight cities across six Southern states in the U.S., in 2015. Samples were analyzed using inductively coupled plasma–mass spectrometry (ICP–MS) for eight heavy metals. The association was examined with mixed models with the log-transformed metal concentrations as the dependent variables and rankings of low-income or minority percentages as the explanatory variables. (3) Results: Model results showed that soil metal concentrations were significantly associated with rankings of poverty and minority percentages. The cadmium concentration significantly increased by 4.7% (p-value < 0.01), for every 10 percentiles of increase in poverty rank. For every 10 percentiles of increase in minority rank, the soil concentrations were significantly up (p-values < 0.01) for arsenic (13.5%), cadmium (5.5%), and lead (10.6%). Minority rank had significant direct effects on both arsenic and lead. (4) Conclusions: The findings confirmed elevated heavy metal contamination in urban soil in low-income and/or predominantly minority communities.

1. Introduction

Growing evidence has documented disproportionate exposure to environmental pollution among low-income and minority populations [1,2,3,4]. Previous studies examined spatial distributions of environmentally hazardous facilities and revealed the clustering of these facilities in or near communities of color, and in poverty [5,6]. In the past years, numerous studies have found a significant association between environmental exposure and socioeconomic status (SES)/racial compositions [1,2,3,5]. These two types of studies mostly had ecological designs in which the unit of analyses was census tract [1,5,6,7], zip code [5,6,8], or county [5,6,9]. A few studies conducted environmental disparity analyses at an individual level [10,11,12], for the need to determine individuals’ health risks. Noticeably, most individual-level studies utilized body burdens of chemical toxicants measured by the U.S. CDC’s National Health and Nutrition Examination Surveys (NHANEs). The results showed inconsistent functions of SES on toxicant exposures [10,12].
Knowledge gaps remain in the large body of environmental justice (EJ) literature. Air pollution exposure dominates EJ research [1,3,5,6], despite the fact that humans are exposed to multiple pollutants via multiple pathways. This domination results from the easy availability of air pollution data measured by the national air monitoring network [13] and those modeled by the National Air Toxics Assessment (NATA) programs [14]. As a major exposure route, the ingestion of microbial and chemical contaminants in drinking water, food, diet, and soil receives little attention in EJ studies, possibly due to data scarcity. This gap impedes our understanding of disparate exposures to complex pollution mixture as a major contributing factor in the production of health inequities.
Heavy metals in soil represent a palpable environmental hazard to human health. Heavy metals are metallic elements with a density five or more times higher than water [15]. Some low-density metals and metalloids, e.g., barium, arsenic, and selenium, are often considered heavy metals given their toxicity. Heavy metals are known to lower energy levels and damage the functioning of the brain, lungs, kidney, liver, blood composition, and other important organs [16]. Long-term exposure also lead to the progression of physical, muscular, and neurological degenerative processes that imitate diseases, such as multiple sclerosis, Parkinson’s disease, Alzheimer’s disease, muscular dystrophy, and cancer [16,17]. Populations of minorities and those in poverty have higher risks of heavy metal-related diseases, such as less control over cognitive tasks, lower testing scores, and a decline in memory [18,19]. This health disparity may be attributable to higher exposure to soil heavy metals among disadvantaged populations [2,20,21].
Few EJ studies have evidenced disproportionate exposure to soil metals. Very few studies have measured soil metal concentrations in residential urban and rural locations with regard to specific contaminant sources [2,22,23,24]. Even more so limited is the soil metal data in low-income residential communities [21]. Only a few studies have researched disparity and soil–metal contamination [2,21,25,26,27]. The lack of soil contamination data hampers the environmental disparity analyses. As an alternative, previous studies only examined the geographic clusters of soil–metal contamination in proximity to point sources, such as industrial facilities [2,21,25].
Documentation of disparities in soil metal exposures would supplement the current air pollution dominant EJ research, help explain health disparities of metal-related diseases, and inform environmental remediations and integrations [25]. The objective of this study is to examine the association between soil heavy metal levels, SES, and racial composition across the Southeastern area of the United States (U.S.), as a part of the EPA’s Regional Urban Background Study. We hypothesize that neighborhoods with a greater percentage of minority and low-income bracket individuals will have a greater risk of exposure to heavy metal contamination. We also aim to identify the key built environmental factors that serve as mediators of this exposure-SES/race association.

2. Materials and Methods

2.1. Monitoring of Heavy Metals in the Surface Soil

This study utilized the soil heavy metal data from EPA’s Urban Background Study conducted in southern states from 2015 to 2016. The Urban Background Study was conducted to document background concentrations of metals in surface soils of urban areas in the Southeastern U.S. [28]. The eight cities under investigation were Memphis, TN, Chattanooga, TN, Columbia, SC, Gainsville, FL, Lexington, KY, Louisville, KY, Raleigh, NC, and Winston-Salem, NC. The soil sample collection adopted a systematic random sampling approach. In each city, a grid of 7 mile × 7 mile was applied in and around the urban center, and then divided into 0.5 mile × 0.5 mile cells, resulting in 196 cells. At least 50 cells were randomly selected, and a sample was collected within each selected grid using simple random sampling. The maps of the study areas and sampling sites of each city are displayed on the project’s website [28]. Each sampling location was carefully determined to be representative of the larger urban setting. The location should be in a public area and undisturbed. Broad-spectrum locations were considered, i.e., sampling locations consisted of both EJ areas and more affluent urban areas. A total of 423 soil samples were collected in the eight participating cities.
At each selected sampling location, a grab surface soil sample was collected from the upper 2 inches of the soil in the undisturbed soil horizon using a coring device. The soil was homogenized in a disposable aluminum pan and then sealed in a pre-labeled, certified clean sample container. The soil samples were delivered to EPA Region 4 Science and Ecosystem Support Division (SESD) Laboratory for metal analysis. Soil samples were digested with a nitric acid (HNO3) and hydrogen peroxide (H2O2) mixture, and then analyzed for seven metals: arsenic (As); barium (Ba); cadmium (Cd); chromium (Cr); lead (Pb); selenium (Se); and silver (Ag). This involved two steps: target metals were first screened using inductively coupled plasma–atomic emission spectroscopy (ICP–AES) following the SW-846 Method 6010C [29], and then confirmed and quantified using inductively coupled plasma-mass spectrometry (ICP-MS) following the EPA Method 200.8 [30]. The data was verified by EPA Region 4 SESD Analytical Support Branch (ASB) in accordance with the Laboratory Operations and Quality Assurance Manual (LOQAM) [31]. Details of the siting, sampling, and analytical methods were described in the Quality Assurance Project Plan (QAPP) of this study [32].

2.2. Socio-Demographic and Built Environmental Factors

The census block group (CBG) number of each sampling location was identified by overlaying the 2015 CBG map [33] on the sampling location maps in ArcGIS (Version 10.5, Esri Inc., Redlands, CA, USA). The CBG-level data about demographics, socioeconomic status, racial composition, and built environmental characteristics for each sampling location were then obtained from EPA’s 2016 EJScreen dataset [34]. The EJScreen database contained demographic and environmental health data from a multitude of publicly available sources, which enabled researchers to compare EJ in marginalized communities to state, regional, and national averages [35,36,37]. After reviewing previous studies [2,21,25,36], we selected the following variables for disparity analyses: percent of the minority (minority ranking), percent of households below the poverty line (poverty ranking), proximity to traffic, proximity to treatment storage and disposal facilities, proximity to major and direct discharges to water, proximity to national priorities sites, and proximity to risk management plan facilities. We used national percentile rankings of these variables from the EJScreen database to make fair comparisons among multiple cities and the results easier to interpret.

2.3. Statistical Analysis

The overall goal of the statistical analysis was to explore the association between soil heavy metal contamination and SES/race in this region. All the metals had levels above the detection limits in all the soil samples, and thus there was no need to treat non-detects. The distributions of metal concentrations were right-skewed; thus, they were natural log-transformed for the following analyses. For each metal, the disparity was first examined using a crude model in which the log concentration was the dependent variable and poverty rank or minority rank was the explanatory variable. The crude model would display the direct relationship between metal exposure and income/race. The resulting coefficient meant the change in log concentration per unit change in the explanatory variables. A coefficient >1 indicated positive association and vice versa. For the convenience of interpretation, we translated each coefficient into percent change in the concentration per 10-percentile change in the ranking of income/race. The models were performed in SAS (Version 9.4, SAS Institute Inc., Cary, NC, USA).
The built environmental variables might serve as mediators that explain the process through which metal exposure and SES/race are related. For example, low-income people often live near industrial facilities due to low housing prices [38,39], where the surrounding soil is more contaminated [40,41]. Thus, we used path analysis to examine the comparative strength of social and environmental factors on exposure to heavy metals [42]. Figure 1 displays the hypothesized model of the relationship among SES, race, environmental factors, and soil heavy metal contamination. The hypothesized model is a just-identified model, in which the number of free parameters exactly equals the number of known values, meaning zero degrees of freedom [43]. The path analysis was conducted using the ‘Lavaan’ package [44] in R version 3.5.3 [45]. Statistical significance was set at p < 0.01 for all the regression and path analyses.

3. Results

3.1. Descriptive Statistics for Minority and Poverty across the Southern U.S.

Poverty and minority showed varying patterns across cities in the southeastern region of the states (Table 1). The average percentile for poverty was highest in Memphis (86.87) followed by Columbia (71.17). The poverty percentile of 86.87 in Memphis tells us that the poverty percentage in Memphis was equal to or greater than 86.87% of the rest of the cities in the nation. The average poverty percentile was lowest in Lexington (46.91). The highest average percentile for minority was also in Memphis (87.62) followed by Louisville (78.91), with the smallest average percentile for minority in Gainesville (53.60). Memphis’ minority percentile reveals that the minority percentage in Memphis is equal to or greater than 87.62% of cities across the US.

3.2. Descriptive Statistics for Heavy Metal Levels in Soil

Heavy metals displayed varying abundances in soil in southeastern states (Table 2). The most abundant metals were lead (95.8 mg/kg) and barium (86.8 mg/kg). Chromium and arsenic showed medium abundances of 13.8 mg/kg and 5.14 mg/kg, respectively. Selenium, cadmium, and silver had low concentrations below 1 mg/kg. The coefficient of variation (COV) indicates the spatial variability of the metal concentrations. Arsenic displayed a large variability (COV = 291%), whereas chromium had limited variability (COV = 67%). Other metals displayed a substantial variability of 94–161%. As later analyses show, SES and racial factors were contributors to this spatial variability.

3.3. Direct Relationship between Soil–Metal Contamination and SES/Race

Soil metal concentrations displayed associations with poverty and minority (Table 3). The crude models showed soil metal concentrations had inconsistent relationships with poverty, but were mostly insignificant. Only the cadmium concentration significantly increased by 4.7% (p-values < 0.01), for every 10 percentiles of increase in poverty rank. For minority, crude associations were more stable and positive. Arsenic, cadmium, and lead soil contamination had a significant positive relationship with minority. For every 10 percentiles of increase in minority rank, the soil concentrations were significantly up (p-values < 0.01) for arsenic (13.5%), cadmium (5.5%), and lead (10.6%). The results from crude models suggest that soil–metal contamination did not differ across different SES levels except for cadmium, but was elevated in minority-concentrated areas. Further analyses by city, however, showed insignificant associations (Table S2), possibly due to the small sample sizes.

3.4. Direct and Indirect Effects of SES and Race

We created seven trimmed models for each metal to evaluate the pathway between soil–metal contamination and SES, race, and built environmental factors. Models were trimmed by removing built environment variables if they did not have significant associations in the paths. A resulting example of the trimmed arsenic model can be seen in Figure 2, and the other models are displayed in Figure S1.
Proximity to sources mediated the relationship between SES/race and soil–metal contamination, as summarized in Table S1. Proximity to risk management facilities and national priorities sites were the most common factors that mediated the relationship between SES/race and soil metal exposure. Thus, soil–metal contamination indirectly increases in poverty-filled and minority areas, mainly due to risk management facilities and national priority sites. Proximity to risk management facilities was a common factor for barium, cadmium, lead, selenium, and silver. This result hints that poverty-filled and minority communities have an increase in soil contamination of barium, cadmium, lead, selenium, and silver due to risk management facilities. There are slight differences in the most common mediators for the affects it has on specific heavy metals. Proximity to national priorities sites was a common factor that mediated the relationship between SES/race and barium, chromium, lead, selenium and silver. The next common mediator was proximity to treatment and disposal facilities, which was present for barium, cadmium, chromium, and lead. Hence, the soil–metal contamination of barium, cadmium, chromium, and lead indirectly increases in poverty-filled areas and minority areas due to proximity to treatment and disposal facilities. Proximity to traffic was a common factor that mediated the relationship between SES/race and soil contamination for arsenic, barium, and silver. The least common factor was direct water discharge, only present for arsenic and barium. The results from direct water discharge indicated that this mediator was least important in indirectly assessing increasing soil–metal contamination in minority and poverty-filled areas. Despite the mediating effects of the built environment factors, SES and race still showed direct effects on soil–metal contamination. The Minority factor displayed significant direct effects for arsenic, chromium, and lead, whereas poverty showed direct effects for chromium, selenium, and silver.
The standardized estimates for direct, indirect, and total effects between minority/poverty and soil–metal contamination are presented in Table 3. Poverty rank had negative direct effects on soil–metal concentrations, i.e., higher poverty rank was associated with lower metal concentrations, and the association was significant for arsenic (β = −0.14) and selenium (β = −0.20) (p-values < 0.01). In terms of indirect effects, poverty rank showed significant indirect effects for cadmium (β = 0.15), selenium (β = 0.23), and silver (β = 0.18). Poverty did not display any significant total effects. These results were slightly different from our crude analysis, where poverty held only a significant positive direct effect on cadmium. Here, we found that the significant effect for cadmium was due to built environment characteristics, which was the indirect effect. Interestingly, we saw that selenium showed a significant negative direct effect, but a positive indirect effect through the mediators, or built environment characteristics.
Minority rank had significant direct effects on arsenic (β = 0.14) and lead (β = 0.15) (p-values < 0.01). The positive coefficients indicate that communities with higher minority percentages had higher soil–metal contamination. Minority also exhibited significant indirect effects for arsenic (β = 0.18), barium (β = 0.12), and lead (β = 0.09). Combining direct and indirect effects, minority showed significant total effects for arsenic (β = 0.32), barium (β = 0.18), and lead (β = 0.24). An interesting fact is that barium is now significant in terms of total effects, even though we did not see a significant direct effect. This new result is also due to the indirect effect of the built environment characteristics.

4. Discussion

Our analyses suggest that areas with a higher population of minorities have an increased exposure to heavy metal contamination in their environments. Though, on a lesser scale, there is also significant risk of select heavy metals for poverty-stricken areas. Path analyses also revealed that these relationships were mediated by proximity to emissions sources, confirming the pathways of SES/race -> proximity to emission sources -> soil–metal contamination.

4.1. Emission Sources and Soil Contamination

Proximity to emission sources should be a major cause of soil contamination, as confirmed by our results. The positive associations, indicated as indirect effects in Table 4, suggest higher soil–metal contamination near emission sources, which has been reported by numerous studies [46,47,48,49,50]. Specifically, traffic proximity, treatment and disposal facility proximity, and proximity to risk management facilities presented significant positive relationships for all metals (Table S1). Vehicular emissions, such as tire degradation and brake wear are sources of metals such as barium and chromium [51,52]. Opposite relationships, however, were found for proximity to direct water discharge and national priority sites. A nearby water resource can decrease the soil absorption of heavy metals [53], confirming the negative association found for proximity to direct water discharge. In addition, national priority sites are prioritized for soil, water, and air contaminated by organic chemicals and metals [54,55], and may not specifically release heavy metals to the surrounding soil.

4.2. Impacts of Poverty on Soil Contamination

Our analyses showed inconsistent and generally insignificant effects of poverty on the heavy metal contamination of soil. We observed a significant positive relationship between poverty and cadmium contamination, which agreed with many past studies that reported elevated soil–metal contamination for poverty filled areas [2,21,25,27]. In further analysis, we found that poverty-stricken individuals were more likely to be directly exposed to chromium, selenium, and silver (Figure S1), but indirectly exposed to other metals via closer proximity to emission sources. Hence, the finding that poverty has both direct and indirect effects on select heavy metal contamination in soil, but does not display any significant total effects (Table 4). Specifically, our results showed that there was a significant negative direct effect for selenium. We also see a significant positive indirect effect for selenium. One reason for seeing both a significant negative direct and positive indirect effect is due to the interference of the built environment characteristics, which play a role as mediators. As selenium has a wide distribution in almost all parent materials in the environment [56]; it can easily be leached into the soil. Hence, the positive indirect effect. In addition, plants are highly effective in removing selenium from contaminated sites, due to scavenging and their copious root systems [56]. This is another reason we see a negative direct effect.

4.3. Disproportionate Exposure of Minority to Soil Heavy Metals

Regarding minority, modeling results showed significant increased risk of exposure to heavy metal contamination for arsenic, cadmium, and lead 13.5%, 5.5%, 10.6%; (p-values < 0.01)]. These findings agree with past studies that minorities have increased exposure to soil–metal contamination [2,25,26]. Additional analysis determined that minority individuals are directly affected by arsenic and lead. Furthermore, depending on minority proximity to emissions, there is also increased exposure of barium (Table 4). It is expected that we see significant association through proximity to emissions sources in the environment. As mentioned earlier, proximity to emission sources is a major cause of soil contamination. An interesting result is the direct effects; race alone can increase exposure to select heavy metal contamination. A few explanations of the fact that we see significant direct effects for arsenic and lead could be due to presence of heavy metals in everyday life via the use of cosmetics, ingestion of fish or vegetables, use of pesticides, fertilizers, or detergents, pesticide use, contaminated irrigate water, ethnic foods, candy wrappers, certain spices, etc. [25,57,58,59]. In addition, recent research has shown that products (e.g., hair care, beauty, personal care, etc.) made specifically for minority groups are more hazardous and can contain harmful pollutants [60,61,62]. These everyday products can leach into waste water and soil, contaminating the environment with pollutants such as heavy metals [63,64].

4.4. Implications of Environmental Racism in the U.S.

Through our findings we have provided evidence of racial injustice in environmental pollution of heavy metals in soil. As social scientists and epidemiologists have long understood that racism is a fundamental cause of disease that operates through complex, ever-changing mechanisms [65,66], there is a need to address the unequal distribution of pollution in urban areas. Our findings can be shared with policy makers informing them of this serious environmental justice issue, to help create interventions and movements that can engage in aggressive primary prevention efforts that go further than soil remediation and urban gardening. New mechanisms are needed to decrease disparity in environmental exposures. Our findings can provide guidance for future interventions for vulnerable populations, such as an antiracist agenda with a special focus on soil contamination regulations that can be implemented across multiple scales, local, regional, and national, to decrease the occurrence of environmental racism in the U.S.
Our study also alludes to the notion that race and poverty are not interchangeable. Past studies that have researched disparities in soil–metal contamination, have not differentiated between race and income [2,26]. Thus, we are able to bring new information to the forefront regarding disparities in soil–metal contamination. Our results showed significant racial disparities but generally insignificant economic disparities in soil heavy metal exposures. This finding agrees with past research that has determined, though minorities are overrepresented among lower SES groups, race and SES have independent effects on health outcomes [67,68]. Furthermore, many studies have found that significant health inequalities between black and white Americans remain when SES is controlled [65,69,70]. Our results infer that race, more so than SES, plays a major role in exposure to heavy metal contamination, alluding to a significant racial disparity EJ problem. Hence, we can conclude the possibility of environmental racism, a term used to describe racial discrimination in environmental policy-making and the enforcement of regulations and laws, the deliberate targeting of communities of color for toxic waste facilities, the official sanctioning of the presence of life-threatening poisons and pollutants for communities of color, and the history of excluding people of color from leadership of the environmental movement [71,72].

4.5. Limitations

We have recognized several limitations, mainly from the original data collection. The small inner-city areas did not fully present the spatial variability or all the populations. Industrial facilities used to cluster in inner cities, which may have caused elevated soil contamination [21,25]. The urban sprawl has displaced middle- and upper-class people to the suburbs, leaving low-income and minority people in central cities [21,73]. The original soil sampling missed the suburban areas that typically have more mid- and high-income populations and fewer emission sources. The study areas explain the insignificant disparities within each city (Table S2). The soil sampling was a one-time sampling without collecting repeated samples. Although heavy metals are known to be stable in soil [74,75,76], the snapshot samples may not represent long-term exposures among local populations. The laboratory analysis only measured total metal concentrations without quantifying the assimilable fractions, the part available for body absorption and determining the toxicity. In terms of the disparity analysis, we only considered proximity to emission sources, which were presumably related to soil contamination. No information was available in the EJScreen database about whether the sources were specific to heavy metals. Moreover, studies have found other built features that cause soil–metal contamination, e.g., vacant properties [77], old housing [24,78], interior and exterior paints [79], and refuse incinerators [80].

5. Conclusions

This study confirmed racial disparities in the exposure to soil heavy metals. Higher heavy metal concentrations are detected in the soil of minority-concentrated neighborhoods in the Southeastern U.S. This is the first study to assess EJ and soil contamination across this region. This study is also unique in that it explored the mediating effects of the built environment factors in the context of environmental disparity. and differentiated between race and SES in the analysis. More research is needed to determine if this is a regional EJ issue or an EJ issue across the country. To better understand direct exposure of heavy metals in everyday life, future research could also use biomarkers to assess heavy metal exposure in individuals. Researching this EJ issue can lead to not only an improvement in population health, but also a reduction in racial inequalities across the U.S.

Supplementary Materials

The following are available online at, Figure S1: Display of the trimmed path diagrams of heavy metal contamination with the obtained path coefficients, or estimates, of the relationship between the social and environmental factors and soil contamination. A-G indicate the heavy metal assessed (arsenic, barium, cadmium, chromium, lead, selenium, and silver, respectively). The (***) indicate significance at <0.001. The (*) indicate significance at <0.05. Key: proximity to traffic (PTRAF), treatment storage and disposal facilities (PTSDF), major and direct discharges to water (PWDIS), national priorities sites (PNPL), and risk management plan facilities (PRMP), Table S1: Path coefficients of proximity variables in the trimmed models, Table S2: Unadjusted association between soil metal contamination and rankings of poverty and minority across cities in Southeastern U.S.

Author Contributions

Conceptualization, D.H.J., X.Y. and C.J.; methodology, D.H.J., X.Y. and C.J.; software, D.H.J.; validation, D.H.J., X.Y. and C.J.; formal analysis, D.H.J.; investigation, D.H.J.; resources, D.H.J. and C.J.; data curation, D.H.J., X.D. and Q.G.; writing—original draft preparation, D.H.J.; writing—review and editing, D.H.J., X.Y. and C.J.; visualization, D.H.J. and C.J.; supervision, C.J.; project administration, C.J.; funding acquisition, C.J. All authors have read and agreed to the published version of the manuscript.


This research is funded by the Agriculture and Food Technologies Research Cluster of the FedEx Institute of Technology, the University of Memphis.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available in a publicly accessible repository that does not issue DOIs. Publicly available datasets were analyzed in this study. This data can be found here: [;] (accessed on: 1 December 2021).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Apelberg, B.J.; Buckley, T.J.; White, R.H. Socioeconomic and racial disparities in cancer risk from air toxics in Maryland. Environ. Health Perspect. 2005, 113, 693–699. [Google Scholar] [CrossRef] [PubMed]
  2. Aelion, C.M.; Davis, H.T.; Lawson, A.B.; Cai, B.; McDermott, S. Associations between soil lead concentrations and populations by race/ethnicity and income-to-poverty ratio in urban and rural areas. Environ. Geochem. Health 2013, 35, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Bell, M.L.; Ebisu, K. Environmental inequality in exposures to airborne particulate matter components in the United States. Environ. Health Perspect. 2012, 120, 1699–1704. [Google Scholar] [CrossRef] [PubMed]
  4. Kravitz-Wirtz, N.; Crowder, K.; Hajat, A.; Sass, V. The long-term dynamics of racial/ethnic inequality in neighborhood air pollution exposure, 1990–2009. Du Bois Rev. Soc. Sci. Res. Race 2016, 13, 237–259. [Google Scholar] [CrossRef] [Green Version]
  5. Ringquist, E.J. Assessing evidence of environmental inequities: A meta-analysis. J. Policy Anal. Manag. J. Assoc. Public Policy Anal. Manag. 2005, 24, 223–247. [Google Scholar] [CrossRef]
  6. Chakraborty, J.; Maantay, J.A.; Brender, J.D. Disproportionate proximity to environmental health hazards: Methods, models, and measurement. Am. J. Public Health 2011, 101, S27–S36. [Google Scholar] [CrossRef] [PubMed]
  7. Been, V. Analyzing Evidnece of Environmental Justice. J. Land Use Environ. Law 1995, 11, 1. [Google Scholar]
  8. Justice, C.F.R. Toxic Wastes and Race in the United States; United Church of Christ and Public Data Access, Inc.: New York, NY, USA, 1987. [Google Scholar]
  9. Hird, J.A.; Reese, M. The distribution of environmental quality: An empirical analysis. Soc. Sci. Q. 1998, 79, 693–716. [Google Scholar]
  10. Tyrrell, J.; Melzer, D.; Henley, W.; Galloway, T.S.; Osborne, N.J. Associations between socioeconomic status and environmental toxicant concentrations in adults in the USA: NHANES 2001–2010. Environ. Int. 2013, 59, 328–335. [Google Scholar] [CrossRef] [PubMed]
  11. Borrell, L.N.; Factor-Litvak, P.; Wolff, M.S.; Susser, E.; Matte, T.D. Effect of socioeconomic status on exposures to polychlorinated biphenyls (PCBs) and dichlorodiphenyldichloroethylene (DDE) among pregnant African-American women. Arch. Environ. Health Int. J. 2004, 59, 250–255. [Google Scholar] [CrossRef] [PubMed]
  12. Vrijheid, M.; Martinez, D.; Aguilera, I.; Ballester, F.; Basterrechea, M.; Esplugues, A.; Guxens, M.; Larrañaga, M.; Lertxundi, A.; Mendez, M. Socioeconomic status and exposure to multiple environmental pollutants during pregnancy: Evidence for environmental inequity? J. Epidemiol. Community Health 2012, 66, 106–113. [Google Scholar] [CrossRef]
  13. USEPA. Outdoor Air Quality Data; USEPA: Washington, DC, USA, 2021. Available online: (accessed on 1 October 2021).
  14. USEPA. National Air Toxics Assessment; USEPA: Washington, DC, USA, 2021. Available online: (accessed on 1 May 2021).
  15. Fergusson, J.E. The Heavy Elements: Chemistry, Environmental Impact adn Health Effects\Jack E; Fergusson: Pune, India, 1990. [Google Scholar]
  16. Jaishankar, M.; Tseten, T.; Anbalagan, N.; Mathew, B.B.; Beeregowda, K.N. Toxicity, mechanism and health effects of some heavy metals. Interdiscip. Toxicol. 2014, 7, 60. [Google Scholar] [CrossRef] [Green Version]
  17. Järup, L. Hazards of heavy metal contamination. Br. Med. Bull. 2003, 68, 167–182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Masel, M.C.; Peek, M.K. Ethnic differences in cognitive function over time. Ann. Epidemiol. 2009, 19, 778–783. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Taylor, R.L.; Cooper, S.R.; Jackson, J.J.; Barch, D.M. Assessment of neighborhood poverty, cognitive function, and prefrontal and hippocampal volumes in children. JAMA Netw. Open 2020, 3, e2023774. [Google Scholar] [CrossRef] [PubMed]
  20. Gee, G.C.; Payne-Sturges, D.C. Environmental health disparities: A framework integrating psychosocial and environmental concepts. Environ. Health Perspect. 2004, 112, 1645–1653. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Sharma, K.; Basta, N.T.; Grewal, P.S. Soil heavy metal contamination in residential neighborhoods in post-industrial cities and its potential human exposure risk. Urban Ecosyst. 2015, 18, 115–132. [Google Scholar] [CrossRef]
  22. Birke, M.; Rauch, U. Urban geochemistry: Investigations in the Berlin metropolitan area. Environ. Geochem. Health 2000, 22, 233–248. [Google Scholar] [CrossRef]
  23. Langner, A.; Manu, A.; Tabatabai, M. Heavy metals distribution in an Iowa suburban landscape. J. Environ. Qual. 2011, 40, 83–89. [Google Scholar] [CrossRef] [PubMed]
  24. Yesilonis, I.; Pouyat, R.; Neerchal, N. Spatial distribution of metals in soils in Baltimore, Maryland: Role of native parent material, proximity to major roads, housing age and screening guidelines. Environ. Pollut. 2008, 156, 723–731. [Google Scholar] [CrossRef] [PubMed]
  25. McClintock, N. Assessing soil lead contamination at multiple scales in Oakland, California: Implications for urban agriculture and environmental justice. Appl. Geogr. 2012, 35, 460–473. [Google Scholar] [CrossRef] [Green Version]
  26. Davis, H.T.; Aelion, C.M.; Liu, J.; Burch, J.B.; Cai, B.; Lawson, A.B.; McDermott, S. Potential sources and racial disparities in the residential distribution of soil arsenic and lead among pregnant women. Sci. Total Environ. 2016, 551, 622–630. [Google Scholar] [CrossRef] [Green Version]
  27. Kanda, A.; Ncube, F.; Mushati, E.; Chiboiwa, E.; Mwanza, E.; Makumbe, P. Contamination and health risk assessment of trace elements in soil at play centers of urban low-income settings. Hum. Ecol. Risk Assess. Int. J. 2020, 26, 1663–1675. [Google Scholar] [CrossRef]
  28. USEPA. Regional Urban Background Study; USEPA: Washington, DC, USA, 2020. Available online: (accessed on 11 January 2021).
  29. USEPA. SW846: Test Methods for Evaluating Solid Waste: Physical/Chemical Methods; USEPA: Washington, DC, USA, 2021. Available online: (accessed on 1 February 2021).
  30. Creed, J.; Brockhoff, C.; Martin, T. EPA Method 200.8: Determination of Trace Elements in Waters and Wastes by Inductively Coupled Plasma-Mass Spectrometry (Revision 5.4). In Environmental Monitoring Systems Laboratory Office of Research and Development; United States Environmental Protection Agency: Cincinnati, OH, USA, 1994. [Google Scholar]
  31. USEPA. Region 4 Analytical Support Branch (Asb) Laboratory Operations and Quality Assurance Manual (Loqam); USEPA: Washington, DC, USA, 2021. Available online: (accessed on 1 May 2021).
  32. USEPA. Urban Background Study Sampling and Analysis Plan and Quality Assurance Project Plan; USEPA: Washington, DC, USA, 2016.
  33. Bureau, U.S.C. TIGER/Line with Selected Demographic and Economic Data. Available online: (accessed on 1 August 2021).
  34. USEPA. EJSCREEN: Environmental Justice Screening and Mapping Tool; USEPA: Washington, DC, USA, 2021. Available online: (accessed on 1 September 2021).
  35. USEPA. EJSCREEN Technical Documentation; USEPA: Washington, DC, USA, 2021. Available online: (accessed on 1 May 2021).
  36. Driver, A.; Mehdizadeh, C.; Bara-Garcia, S.; Bodenreider, C.; Lewis, J.; Wilson, S. Utilization of the Maryland environmental justice screening tool: A Bladensburg, Maryland case study. Int. J. Environ. Res. Public Health 2019, 16, 348. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Kuruppuarachchi, L.N.; Kumar, A.; Franchetti, M. A comparison of major environmental justice screening and mapping tools. Environ. Manag. Sustain. Dev 2017, 6, 59–71. [Google Scholar] [CrossRef] [Green Version]
  38. Stewart, B. Industrial Facilities, Public Parks and Community Composition: Examining Environmental Justice in Lincoln, Nebraska. Bachelor’s Thesis, University of Nebraska-Lincoln, Lincoln, NE, USA, 2015. [Google Scholar]
  39. Sicotte, D.; Swanson, S. Whose risk in Philadelphia? Proximity to unequally hazardous industrial facilities. Soc. Sci. Q. 2007, 88, 515–534. [Google Scholar] [CrossRef]
  40. Hovmand, M.; Kemp, K.; Kystol, J.; Johnsen, I.; Riis-Nielsen, T.; Pacyna, J. Atmospheric heavy metal deposition accumulated in rural forest soils of southern Scandinavia. Environ. Pollut. 2008, 155, 537–541. [Google Scholar] [CrossRef] [PubMed]
  41. Stafilov, T.; Šajn, R.; Pančevski, Z.; Boev, B.; Frontasyeva, M.V.; Strelkova, L.P. Heavy metal contamination of topsoils around a lead and zinc smelter in the Republic of Macedonia. J. Hazard. Mater. 2010, 175, 896–914. [Google Scholar] [CrossRef]
  42. Lleras, C. Path analysis. Encycl. Soc. Meas. 2005, 3, 25–30. [Google Scholar]
  43. Kenny, D.A. Path analysis. Retrieved March 2011, 9, 2016. [Google Scholar]
  44. Rosseel, Y. Lavaan: An R package for structural equation modeling and more. Version 0.5–12 (BETA). J. Stat. Softw. 2012, 48, 1–36. [Google Scholar] [CrossRef] [Green Version]
  45. RC Team. R (Version 3.5.3). R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. Available online: (accessed on 1 May 2021).
  46. Weissmannová, H.D.; Pavlovský, J. Indices of soil contamination by heavy metals–methodology of calculation for pollution assessment (minireview). Environ. Monit. Assess. 2017, 189, 1–25. [Google Scholar] [CrossRef] [PubMed]
  47. Yuan, X.; Xue, N.; Han, Z. A meta-analysis of heavy metals pollution in farmland and urban soils in China over the past 20 years. J. Environ. Sci. 2021, 101, 217–226. [Google Scholar] [CrossRef] [PubMed]
  48. Pastor, J.; Hernández, A. Heavy metals, salts and organic residues in old solid urban waste landfills and surface waters in their discharge areas: Determinants for restoring their impact. J. Environ. Manag. 2012, 95, S42–S49. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, Y.; Sikora, S.; Kim, H.; Dubey, B.; Townsend, T. Mobilization of iron and arsenic from soil by construction and demolition debris landfill leachate. Waste Manag. 2012, 32, 925–932. [Google Scholar] [CrossRef]
  50. Hu, Y.; Liu, X.; Bai, J.; Shih, K.; Zeng, E.Y.; Cheng, H. Assessing heavy metal pollution in the surface soils of a region that had undergone three decades of intense industrialization and urbanization. Environ. Sci. Pollut. Res. 2013, 20, 6150–6159. [Google Scholar] [CrossRef] [PubMed]
  51. Grigoratos, T.; Martini, G. Brake wear particle emissions: A review. Environ. Sci. Pollut. Res. 2015, 22, 2491–2504. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Ryder, O.S.; DeWinter, J.L.; Brown, S.G.; Hoffman, K.; Frey, B.; Mirzakhalili, A. Assessment of particulate toxic metals at an Environmental Justice community. Atmos. Environ. X 2020, 6, 100070. [Google Scholar] [CrossRef]
  53. Dong, X.; Li, C.; Li, J.; Wang, J.; Liu, S.; Ye, B. A novel approach for soil contamination assessment from heavy metal pollution: A linkage between discharge and adsorption. J. Hazard. Mater. 2010, 175, 1022–1030. [Google Scholar] [CrossRef]
  54. Magee, A.S. Challenging the National Priorities List. Ga. State Univ. Law Rev. 1993, 10, 725. [Google Scholar]
  55. USEPA. Superfund: National Priorities List (NPL); USEPA: Washington, DC, USA, 2021. Available online: (accessed on 8 November 2021).
  56. Zayed, A.; Pilon-Smits, E.; deSouza, M.; Lin, Z.-Q.; Terry, N. Remediation of selenium-polluted soils and waters by phytovolatilization. In Phytoremediation of Contaminated Soil and Water; CRC press: Boca Raton, MIA, USA, 2020; pp. 61–83. [Google Scholar]
  57. Borowska, S.; Brzóska, M.M. Metals in cosmetics: Implications for human health. J. Appl. Toxicol. 2015, 35, 551–572. [Google Scholar] [CrossRef] [PubMed]
  58. Isangedighi, I.A.; David, G.S. Heavy metals contamination in fish: Effects on human health. J. Aquat. Sci. Mar. Biol. 2019, 2, 7–12. [Google Scholar]
  59. Dignam, T.; Kaufmann, R.B.; LeStourgeon, L.; Brown, M.J. Control of lead sources in the United States, 1970–2017: Public health progress and current challenges to eliminating lead exposure. J. Public Health Manag. Pract. JPHMP 2019, 25, S13. [Google Scholar] [CrossRef] [PubMed]
  60. Zota, A.R.; Shamasunder, B. The environmental injustice of beauty: Framing chemical exposures from beauty products as a health disparities concern. Am. J. Obstet. Gynecol. 2017, 217, 418. e411–418. e416. [Google Scholar] [CrossRef] [Green Version]
  61. Varshavsky, J.R.; Zota, A.R.; Woodruff, T.J. A novel method for calculating potency-weighted cumulative phthalates exposure with implications for identifying racial/ethnic disparities among US reproductive-aged women in NHANES 2001–2012. Environ. Sci. Technol. 2016, 50, 10616–10624. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. James-Todd, T.M.; Chiu, Y.-H.; Zota, A.R. Racial/ethnic disparities in environmental endocrine disrupting chemicals and women’s reproductive health outcomes: Epidemiological examples across the life course. Curr. Epidemiol. Rep. 2016, 3, 161–180. [Google Scholar] [CrossRef] [Green Version]
  63. Kang, J.; Zhou, L.; Duan, X.; Sun, H.; Ao, Z.; Wang, S. Degradation of cosmetic microplastics via functionalized carbon nanosprings. Matter 2019, 1, 745–758. [Google Scholar] [CrossRef] [Green Version]
  64. Hardie, A.G.; Madubela, N.; Clarke, C.E.; Lategan, E.L. Impact of powdered and liquid laundry detergent greywater on soil degradation. J. Hydrol. 2021, 595, 126059. [Google Scholar] [CrossRef]
  65. Phelan, J.C.; Link, B.G. Is racism a fundamental cause of inequalities in health? Annu. Rev. Sociol. 2015, 41, 311–330. [Google Scholar] [CrossRef]
  66. Nigra, A.E. Environmental racism and the need for private well protections. Proc. Natl. Acad. Sci. USA 2020, 117, 17476–17478. [Google Scholar] [CrossRef] [PubMed]
  67. O’Neill, M.S.; Jerrett, M.; Kawachi, I.; Levy, J.I.; Cohen, A.J.; Gouveia, N.; Wilkinson, P.; Fletcher, T.; Cifuentes, L.; Schwartz, J. Health, wealth, and air pollution: Advancing theory and methods. Environ. Health Perspect. 2003, 111, 1861–1870. [Google Scholar] [CrossRef]
  68. Liu, B.; Jia, C. Effects of profession on urinary PAH metabolite levels in the US population. Int. Arch. Occup. Environ. Health 2016, 89, 123–135. [Google Scholar] [CrossRef]
  69. Franks, P.; Muennig, P.; Lubetkin, E.; Jia, H. The burden of disease associated with being African-American in the United States and the contribution of socio-economic status. Soc. Sci. Med. 2006, 62, 2469–2478. [Google Scholar] [CrossRef] [PubMed]
  70. Hayward, M.D.; Miles, T.P.; Crimmins, E.M.; Yang, Y. The significance of socioeconomic status in explaining the racial gap in chronic health conditions. Am. Sociol. Rev. 2000, 65, 910–930. [Google Scholar] [CrossRef]
  71. Bullard, R.D. Unequal protection: Environmental justice and communities of color. J. Public Health Policy 1994, 16, 364–367. [Google Scholar]
  72. Holifield, R. Defining environmental justice and environmental racism. Urban Geogr. 2001, 22, 78–90. [Google Scholar] [CrossRef]
  73. Adams, C.; Bartelt, D.; Elesh, D.; Goldstein, I. Philadelphia: Neighborhoods, Division, and Conflict in a Postindustrial City; Temple University Press: Philadelphia, PA, USA, 1993. [Google Scholar]
  74. Möller, A.; Müller, H.; Abdullah, A.; Abdelgawad, G.; Utermann, J. Urban soil pollution in Damascus, Syria: Concentrations and patterns of heavy metals in the soils of the Damascus Ghouta. Geoderma 2005, 124, 63–71. [Google Scholar] [CrossRef]
  75. Rieuwerts, J.; Thornton, I.; Farago, M.; Ashmore, M. Factors influencing metal bioavailability in soils: Preliminary investigations for the development of a critical loads approach for metals. Chem. Speciat. Bioavailab. 1998, 10, 61–75. [Google Scholar] [CrossRef] [Green Version]
  76. Erdogan, S.; Baysal, A.; Akba, O.; Hamamci, C. Interaction of metals with humic acid isolated from oxidized coal. Pol. J. Environ. Stud. 2007, 16, 671–675. [Google Scholar]
  77. Castro, I.E.; Larsen, D.A.; Hruska, B.; Parsons, P.J.; Palmer, C.D.; Gump, B.B. Variability in the spatial density of vacant properties contributes to background lead (Pb) exposure in children. Environ. Res. 2019, 170, 463–471. [Google Scholar] [CrossRef]
  78. Schwarz, K.; Pickett, S.T.; Lathrop, R.G.; Weathers, K.C.; Pouyat, R.V.; Cadenasso, M.L. The effects of the urban built environment on the spatial distribution of lead in residential soils. Environ. Pollut. 2012, 163, 32–39. [Google Scholar] [CrossRef] [PubMed]
  79. Davies, B.E.; Wixson, B.G. Lead in Soil: Issues and Guidelines; Science Reviews: Rushden, UK, 1988. [Google Scholar]
  80. Walsh, D.C.; Chillrud, S.N.; Simpson, H.J.; Bopp, R.F. Refuse incinerator particulate emissions and combustion residues for New York City during the 20th century. Environ. Sci. Technol. 2001, 35, 2441–2447. [Google Scholar] [CrossRef] [PubMed]

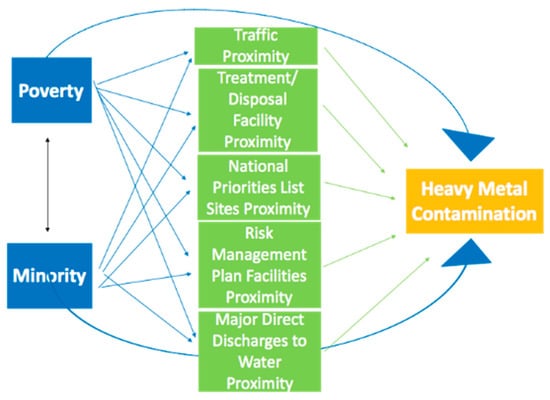

Figure 1. Path diagram of the relationship among income, race, built environment, and soil heavy metal contamination. Figure shows the hypothesized paths to examine the comparative strength of poverty and minority and environmental factors (proximity to traffic, treatment storage and disposal facilities, major and direct discharges to water, national priority sites, and risk management plan facilities) on exposure to heavy metals. Notes: Double-headed arrows indicate covariance. Single-headed arrows indicate path coefficient in relation to heavy metal contamination.
Figure 1. Path diagram of the relationship among income, race, built environment, and soil heavy metal contamination. Figure shows the hypothesized paths to examine the comparative strength of poverty and minority and environmental factors (proximity to traffic, treatment storage and disposal facilities, major and direct discharges to water, national priority sites, and risk management plan facilities) on exposure to heavy metals. Notes: Double-headed arrows indicate covariance. Single-headed arrows indicate path coefficient in relation to heavy metal contamination.
Ijerph 19 01105 g001

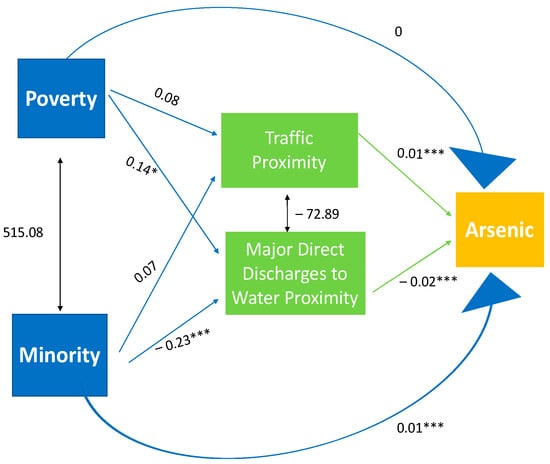

Figure 2. Standardized path coefficients for trimmed path diagram of heavy metal contamination. The figure shows the trimmed path model with nonsignificant paths deleted from model. This depiction clearly displays which paths, poverty, minority, and environmental factors are related to increased exposure to arsenic. Notes: *** indicate significance at <0.001; * indicate significance at <0.05. Double-headed arrows indicate covariance. Single-headed arrows indicate path coefficient in relation to arsenic contamination.
Figure 2. Standardized path coefficients for trimmed path diagram of heavy metal contamination. The figure shows the trimmed path model with nonsignificant paths deleted from model. This depiction clearly displays which paths, poverty, minority, and environmental factors are related to increased exposure to arsenic. Notes: *** indicate significance at <0.001; * indicate significance at <0.05. Double-headed arrows indicate covariance. Single-headed arrows indicate path coefficient in relation to arsenic contamination.
Ijerph 19 01105 g002
Table 1. Descriptive statistics of minority and poverty in (n = 423) in the Southern U.S.
Table 1. Descriptive statistics of minority and poverty in (n = 423) in the Southern U.S.
Poverty Minority
Table 2. Concentrations of heavy metal levels [mg/kg] in soil (n = 423) in the Southern U.S.
Table 2. Concentrations of heavy metal levels [mg/kg] in soil (n = 423) in the Southern U.S.
Heavy MetalMean MedianMaxMinStd. Dev.COV (%)
Table 3. Unadjusted association between soil–metal contamination and rankings of poverty and minority in the Southern U.S.
Table 3. Unadjusted association between soil–metal contamination and rankings of poverty and minority in the Southern U.S.
MetalRanking of Poverty
(n = 423)
Ranking of Minority
(n = 423)
Estimate 1%Change 2p-ValueEstimate 1%Change 2p-Value
Arsenic1.0474.7%0.0371.13413.5%<0.0001 *
Cadmium1.0474.7%0.0002 *,31.0555.5%<0.0001 *
Lead1.0545.4%0.0111.10610.6%<0.0001 *
Notes: 1. Estimate is β1 from the crude model: log [Metal Concentration] = β0 + β1 × Ranking of Poverty (or Minority). β1 > 0 suggests a positive association, and vice versa. 2. Percent change means percent change in the metal concentration per 10-percentile change in the ranking of poverty or minority. 3. * indicate significance at p-value < 0.01.
Table 4. Direct and indirect effects of major exposure variables in a hypothesized model.
Table 4. Direct and indirect effects of major exposure variables in a hypothesized model.
MetalRanking of Poverty
(n = 423)
Ranking of Minority
(n = 423)
Arsenic−0.14 *0.04−0.100.14 *0.18 *0.32 *
Barium−0.11−0.02− *0.18 *
Cadmium−0.060.15 *
Lead−0.050.03−0.020.15 *0.09 *0.24 *
Selenium−0.20 *0.23 *0.03−0.03−0.004−0.03
Silver−0.130.18 *0.05−
Notes: * indicate significance at p-value < 0.01.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jones, D.H.; Yu, X.; Guo, Q.; Duan, X.; Jia, C. Racial Disparities in the Heavy Metal Contamination of Urban Soil in the Southeastern United States. Int. J. Environ. Res. Public Health 2022, 19, 1105.

AMA Style

Jones DH, Yu X, Guo Q, Duan X, Jia C. Racial Disparities in the Heavy Metal Contamination of Urban Soil in the Southeastern United States. International Journal of Environmental Research and Public Health. 2022; 19(3):1105.

Chicago/Turabian Style

Jones, Daleniece Higgins, Xinhua Yu, Qian Guo, Xiaoli Duan, and Chunrong Jia. 2022. "Racial Disparities in the Heavy Metal Contamination of Urban Soil in the Southeastern United States" International Journal of Environmental Research and Public Health 19, no. 3: 1105.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
