Clinical Spectrum Associated with Wolfram Syndrome Type 1 and Type 2: A Review on Genotype–Phenotype Correlations

Maurizio Delvecchio
Matteo Iacoviello
Antonino Pantaleo
2,† and
Nicoletta Resta
Metabolic Diseases, Clinical Genetics and Diabetology Unit, Giovanni XXIII Children’s Hospital, 70126 Bari, Italy
Department of Biomedical Sciences and Human Oncology (DIMO), Division of Medical Genetics, University of Bari “Aldo Moro”, 70124 Bari, Italy
Author to whom correspondence should be addressed.
M.I. and A.P. equally contributed to the paper.
Int. J. Environ. Res. Public Health 2021, 18(9), 4796;
Submission received: 9 March 2021 / Revised: 27 April 2021 / Accepted: 27 April 2021 / Published: 30 April 2021
(This article belongs to the Special Issue Wolfram Syndrome in Pediatric Age)


Wolfram syndrome is a rare neurodegenerative disorder that is typically characterized by diabetes mellitus and optic atrophy. Other common features are diabetes insipidus and hearing loss, but additional less-frequent findings may also be present. The phenotype spectrum is quite wide, and penetrance may be incomplete. The syndrome is progressive, and thus, the clinical picture may change during follow-up. Currently, two different subtypes of this syndrome have been described, and they are associated with two different disease-genes, wolframin (WFS1) and CISD2. These genes encode a transmembrane protein and an endoplasmic reticulum intermembrane protein, respectively. These genes are detected in different organs and account for the pleiotropic features of this syndrome. In this review, we describe the phenotypes of both syndromes and discuss the most pertinent literature about the genotype–phenotype correlation. The clinical presentation of Wolfram syndrome type 1 suggests that the pathogenic variant does not predict the phenotype. There are few papers on Wolfram syndrome type 2 and, thus, predicting the phenotype on the basis of genotype is not yet supported. We also discuss the most pertinent approach to gene analysis.

1. Introduction

Wolfram syndrome (WS) is a rare neurodegenerative disorder that is sometimes referred to as Diabetes Insipidus, Diabetes Mellitus, Optic Atrophy, and Deafness (DIDMOAD), and it was described for the first time by Wolfram and Wagener in 1938 [1]. They described four siblings who were born to consanguineous parents with diabetes mellitus (DM) and optic atrophy, which are key elements that are used to diagnose this syndrome. In 1966, Rose et al. [2] reviewed the literature and suggested that this syndrome could be due to homozygous mutation in the disease gene. Furthermore, in consideration of the clinical heterogeneity and wide clinical spectrum involving different organs, they hypothesized that one or more additional genes could play a role in modulating the phenotype. In 1994, more than 50 years after the syndrome was first described, Polymeropoulos et al. [3] described the WS locus on the short arm of chromosome 4. Four years later, Inoue et al. [4] described the wolframin gene (WFS1; 606201) as the WS disease gene. They reported that WFS1 encodes a transmembrane protein in beta cells and neurons, which explains the pleiotropic features of the syndrome. In 2000, El-Shanti et al. [5] provided evidence that there are two different subtypes of WS. They studied Jordanian siblings who were born to consanguineous parents featuring the typical WS phenotype and gastrointestinal symptoms, and they provided conclusive evidence of the existence of a second autosomal recessive form of WS, called WS type 2 (WFS2; 604928). A linkage study later showed that a second locus could be localized in 4q22-q24. In 2007, Amr et al. [6] showed that the WFS2 disease gene is the CISD2 gene (611507.0001), which encodes the endoplasmic reticulum (ER) intermembrane small (ERIS) protein that is located in the ER.
In this review, we aimed to provide an overview the pertinent literature on the genetics of WS. In the first part of the manuscript, we present the clinical history of WS types 1 and 2 and the differences between them. We highlight the key points in a differential diagnosis and that support the choice of which gene should be analyzed. In the second part of the manuscript, we discuss the genotype–phenotype correlation for each gene.

2. Methods

A systematic literature review of the PubMed database up to 31 December 2020 was performed independently by two of the authors (M.I. and A.P.) to identify relevant papers. The search terms were “Wolfram syndrome” AND “CISD2” or “wolframin” or “ERIS”. Only papers on clinical and genetic findings about WS were considered for inclusion in this review. The search included clinical case reports, clinical case series, observational studies, and reviews. Potentially relevant papers were initially evaluated by checking the title and abstract, and all eligible studies were retrieved. For the purpose of this review, all papers that clearly stated that the WS diagnosis was genetically confirmed were considered to be eligible. Any other clinical description without genetic data or a Wolfram-like syndrome description was not considered. Additional papers were identified using a manual search of the references from the retrieved articles. Non-English manuscripts were not included in the search and review. This article is based on previously conducted studies, and it does not contain any studies with human participants or animals that were performed by any of the authors. Figure 1 shows the article selection process.

3. Epidemiology

WS is very rare. The first epidemiological study was a nationwide study that was conducted in the UK in 1995, and it showed a prevalence of one in 770,000 subjects [7]. This study showed results that were similar to data from Japan, which indicated a prevalence of one in 710,000 [8]. The prevalence is reported to be strikingly higher in Lebanon, where Zalloua et al. [9] found 22 patients with a genetically confirmed diagnosis of WFS1 out of 399 (5.5%) with juvenile onset diabetes. Other papers reported a lower prevalence of WS (<0.5%) in patients with DM from Italy [10,11] and China [12], and this prevalence was even lower (0.04%) in a large international multi-center pediatric diabetes registry [13]. No epidemiological data are available about WFS2 because patients have not been diagnosed in all countries. Only one paper distinguished between the two types, and four patients with genetically confirmed WS were reported, three with WS type 1 and one with WS type 2 [11].

4. Clinical Findings and Treatment

WS is a progressive neurodegenerative disorder, which should always be suspected in patients with insulin-dependent DM and optic atrophy. DM often occurs before 10 years of age. Diabetic ketoacidosis is rare, the insulin requirement is low, and the clinical course is not progressive, and it is also milder than type 1 DM [14]. Microvascular complications are uncommon, and they are likely related to residual insulin secretion. Unfortunately, hypoglycemia episodes may be frequent due to neurologic dysfunctions, which may lead to hypoglycemia unawareness. The treatment is based on the basal-bolus insulin regimen and the metabolic control is effective even on low doses [15].
Optic atrophy is progressive, and it is usually diagnosed before 15 years of age. It is characterized by a progressive decrease in visual acuity with a color vision defect, which leads to blindness. No treatment is currently available to stop the progression of eye involvement. Less frequent findings may include cataract, nystagmus, and pigmentary retinopathy [15].
Besides these two key elements for the diagnosis of WS, several other possible clinical findings that involve different organs may occur. The most frequent occurrence is sensorineural hearing loss, which is estimated to involve about two-thirds of these patients. The clinical spectrum may range from congenital deafness to mild impairment, which is sometimes progressive as a consequence of the central nervous system degenerative process [7]. It is usually diagnosed in the second decade of life. The audiogram typically shows a downward sloping progressive pattern of hearing loss [16]. Regular monitoring is suggested for appropriate treatment, and hearing aids and cochlear implants may be therapeutic tools for these patients [17].
DM is not the only endocrine disease in WS. Diabetes insipidus is frequent, and it occurs mostly in the second decade of life. It is characterized by the loss of ability to concentrate urine, leading to low osmolality urine with polyuria. It can be also partial, making this diagnosis more difficult, and thus, it is often delayed. Most of the patients respond well to treatment with desmopressin [18]. Male patients may present hypogonadism more frequently than female patients, secondary to hypothalamus–pituitary axis impairment or gonadal failure. Hypothyroidism and growth retardation have also been reported, and some pregnant patients have been described [15].
Neurologic abnormalities occur later, usually in the third and fourth decade of life in about 60% of the patients. A more detailed evaluation may show subclinical neurological abnormalities even in earlier stages of the disease (late puberty), and thus, the mean age at onset of these abnormalities is currently considered to be more precocious than in the past. They are progressive, leading to general brain atrophy, which is more prominent in the cerebellum, pons, and medulla, and there is brain stem and cranial nerve involvement [7,19,20]. There is no evident correlation between neurological imaging and clinical findings [21]. Other uncommon findings may be truncal or gait ataxia, central apnea, dementia, and intellectual disability. A significant increase in suicidal behavior and psychiatric illness has been reported [22]. Neurological abnormalities may also involve the urinary tract, causing neurogenic bladder with hydroureter, urinary incontinence, and recurrent infections. Incomplete bladder emptying or complete bladder atony may be detected by a urodynamic examination, which is required in patients with these symptoms.
De Heredia et al., analyzed clinical and genetic data from 412 patients with WS who were reported in the literature in the previous 15 years [23]. They showed that 98.2% of the patients had DM, 82.1% had optic atrophy, 48.2% had deafness, and 37.8% had diabetes insipidus. Urological manifestations and neurological symptoms were described in 19.4% and 17.1% of patients, respectively. However, the phenotype depends on the age of the patient, and thus, less frequent clinical findings may become more frequent in older patients. Death occurred at a median age of 30 years, with two frequency peaks around 24 and 45 years.
Life expectancy is shortened. About 65% of WFS1 patients die before 30–40 years and the average age of death is 30 (range 25–49) years [24].
The clinical picture that is reported above is the typical WS phenotype that is described in the literature. Over the past two decades, upper intestinal ulcers and defective platelet aggregation have been reported in some patients. These clinical findings are absent in WFS1 and are pathognomonic of WFS2 [25,26] and, thus, they represent important points for a differential diagnosis, which leads to analysis of the CISD2 rather than the WFS1 sequence. They have been observed in up to 90% of patients with WFS2 [27].
As in WFS1, optic atrophy is progressive and associated with the loss of ganglion cells, even if the eye impairment in WFS2 is milder and even if there is less progression [5]. Mozzillo et al., discussed eye involvement and provided data suggesting that involvement of the optic nerve is compatible with a diagnosis of optic neuropathy rather than that of optic atrophy [26].
Differences in the phenotype between WFS1 and WFS2 are related to a difference in tissue expression of WFS1 and CISD2. Table 1 summarizes the typical clinical findings in both types.

Treatment Perspective

Each disorder that is associated with WS can be properly treated, but the main goal of a specific treatment for WS would be to stop disease progression in all the involved tissues [29]. Possible specific drugs should aim to prevent cellular aging and the degenerative process, by the maintenance of ER, calcium homeostasis, protein folding, and redox regulation [29,30,31]. Current ongoing projects in regenerative medicine and gene therapy are great challenges for the treatment of WS and all neurodegenerative disorders [28], but the clinical application seems to remain unchanged. To date, there are no pharmacological therapies for WS.
The most suitable treatment strategy seems to be based on chemical chaperones, which play a role in protein folding in the ER. Two chemical chaperones, 4-phenylbutyricacid (PBA) and tauroursodeoxycholic acid (TUDCA), are under investigation. They preserve beta cell function by reducing stress and cell death. Furthermore, they slow down the neurodegeneration process [32]. Another approach is based on the prevention of calcium-mediated ER stress, and in turn, prevention of cell death, by modulating intracellular calcium levels. Dantrolene, which is used for some neurological disorders, suppresses the efflux of calcium from the ER to the cytosol, which preserves the integrity of beta and neural cells [33]. A similar effect could be exerted by drugs that bind to the sarco/ER Ca2+-ATPase, which is a substrate of Wolframin, or that target the calcium channel receptor that is activated by inositol triphosphate [34]. Finally, valproate acid is also being investigated as a novel drug treatment for neurodegeneration and diabetes in WS. Valproate acid is neuroprotective, and recently, a phase 2 clinical trial in patients with WS has been started.
Besides these experimental trials, different hypoglycemic agents, which are already licensed for DM, have been shown to improve glycemic control in these patients with limited and controversial effects on the generation process [28]. However, their use seems to be effective only on blood glucose homeostasis and not on the pathogenesis of WS.

5. Molecular Genetics

WFS1 is a nuclear gene that is composed of eight exons (a total of 33.4 kb), and it is located on chromosome 4 (4p16). This gene encodes for Wolframin, a protein that is embedded in the ER, and it is composed of nine transmembrane segments and large hydrophilic parts at each end [4,35]. Wolframin is highly expressed in pancreatic beta cells, heart, lung, placenta [18], and brain tissue [36].
Wolframin serves as an ER calcium channel, suggesting that this protein may play a role in ER homeostasis [37]. The ER is required for the folding and the secretion of newly synthesized secretory proteins such as proinsulin. ER stress, which is defined as an imbalance between the actual folding capacity of the ER and the folding demand placed on this organelle, causes activation of a cell death pathway through the unfolded protein response (UPR) [37]. The authors found that Wolframin protects beta cells against ER stress and, conversely, that ER chronic stress is caused by loss of function of WFS1. They also report that wolframin mRNA is induced by ER stress to maintain ER homeostasis and to prevent the death of pancreatic beta cells. CISD2 maps to chromosome 4 (4q22-q24), contains three exons (a total of 23 kb), codes for ERIS, which is embedded in mitochondria-associated ER membranes, and contains a transmembrane domain at the N-terminal and a single CDGSH domain at the C-terminal [38,39]. ERIS has a role in maintaining both the structural integrity and the functional cross-talk between the ER and mitochondria, acquiring a pivotal role in the regulation of glucose homeostasis and insulin sensitivity [40,41]. This protein is expressed in the pancreas, the brain, and other tissues [42,43].
Both Wolframin and ERIS seem to share an overlapping function and have important roles in regulating intracellular calcium homeostasis and the ER stress response [18,44,45].

5.1. Wolfram Syndrome Type 1 Genotype–Phenotype Correlations

WFS1 was identified as a disease gene in 1998, and since then, more than 170 different mutations have been identified [23]. Most mutations are situated on exon 8 and are inactivating mutations such as nonsense or frameshift mutations [46]. One of the most relevant studies about WS was performed by de Heredia et al. [23]. They reviewed clinical and genetic data from 412 patients from 49 studies and found 178 mutations in WFS1, which mostly involves the Wolframin N-end, transmembrane domains, and the last 100 amino acids. These mutations have been classified based on their effect on WFS1 expression [23] (see Table 2 and Table 3). Many other studies have tried to establish a genotype–phenotype correlation, which is a difficult task due to the molecular complexity of WFS1, the different clinical characteristics, and the small size of patient cohorts [46]. Basically, the clinical history may be different even among patients within the same pedigree, and the type or location of the pathogenic variant does not predict the phenotype.
WS1 patients can be homozygous or compound heterozygotes. Compound heterozygous patients have a higher risk of psychiatric disorders, DM, and hearing loss [23]. The inheritance pattern of WFS1 mutations together with the type of mutation that is inherited can affect both the onset and the severity of the main clinical features of WS [47]. Some studies have found that patients who are homozygous or compound heterozygotes for two inactivating mutations are characterized by an earlier onset of DM [14,24] and optic atrophy [14]. Furthermore, compound heterozygosity for missense mutations may lead to a mild phenotype [23,48].
Patients who have complete loss-of-function mutations seem to develop DM at an earlier age than those who have partial loss-of-function mutations [8]. Moreover, it seems that these mutations are predictive of isolated diabetes, isolated deafness, or isolated congenital cataracts without the development of the full syndrome [49]. WFS1 mutations are also responsible for “uncommon” WFS1 phenotypes such as autosomal dominant low-frequency sensorineural hearing loss or an association between optic atrophy and deafness [24,47,50].
There is ample literature about unusual WFS1 presentations. For example, Berry et al. [51] reported a family with isolated congenital cataracts that were associated with a missense mutation, which was inherited in an autosomal dominant manner. Bonnycastle et al. [52] reported another family with autosomal dominant, isolated, adult-onset diabetes secondary to another missense mutation. Elli et al. [53] found a complex structural rearrangement in a patient with neonatal diabetes insipidus, optic tract hypoplasia, psychomotor retardation, and central hypothyroidism. They found a new chromosomal abnormality in the absence of any WFS1 and CISD2 mutations that were previously reported. They suggested the possibility of uniparental heterodisomy (UPD) after observing non-Mendelian transmission of some polymorphisms in the promoter region. The authors tested this hypothesis by performing an analysis of genetic markers along the WFS1 region, and they showed evidence of a segmental paternal UPD, involving at least part of the promoter and the first exon. Chaussenot et al. [47] described a group of patients with an unusual presentation of WS. One patient was homozygous for a missense mutation and presented with optic atrophy (at 10 years of age), cerebellar ataxia, and neurogenic bladder (at 27 years of age), but no DM. Another patient was heterozygous for a single mutation and developed DM and deafness at 1 year of age, followed by glaucoma, bilateral cataracts, cerebellar ataxia, areflexia, short stature, hypothyroidism, and hypogonadism. Finally, 12 patients with late-onset WS (LOWFS) developed DM and optic atrophy at 15 years of age or later and they carried at least one WFS1 mutation. Although it is not a main feature of WFS1, other studies have found heterozygous WFS1 mutations that were associated with cataracts [54,55]. Figure 2 displays the genetic variant distribution in WFS1.
Papadimitriou et al. [56] reported a case of WFS1 that was caused by maternal UPD of chromosome 4 with a homozygous mutation in WFS1. The patient was a 10-year-old girl who developed an usual WFS1 presentation. She was diagnosed with type 1 DM (since 6 years of age), high-frequency sensorineural hearing loss, and a reduction in visual acuity. Her parents and her brother were all healthy. The mutation that was found in the patient was heterozygous in her mother but neither her father nor her brother were carriers. The authors then performed a combination of a single nucleotide polymorphism (SNP) array for genotyping and a microsatellite analysis to determine the origin of the second allele. The analysis indicated isodisomy due to uniparental segregation of the maternal alleles that may result from either meiosis II or post-zygotic duplication. Another issue related to the understanding of WFS1 genetics is the reduced penetrance in the dominant form because not all carriers of mutations develop the disease [50,57]. Riachi et al. [58] hypothesized about the involvement of a mechanism such as nonsense-mediated decay, methylation signatures, or post-transcriptional regulations in the modulation of penetrance.

5.2. Wolfram Syndrome Type 2 Genotype–Phenotype Correlations

CISD2 mutations are involved in WFS2, which is characterized by DM, optic atrophy, and deafness with an absence of diabetes insipidus and psychiatric disorders [5,6,25,39,59,60]. The locus was mapped for the first time in three large consanguineous Jordanian families [5]. Individuals with WFS2 show additional features that have not been described in patients with WFS1, such as defective platelet aggregation with collagen, bleeding tendency, and peptic ulcer disease [6,26,61]. Platelet aggregation is calcium mediated and the Human Protein Reference Database (accession number 17413) shows the presence of CISD2 transcripts in platelets. This may explain, at least in part, the bleeding phenotype [26].
The first Caucasian patient who was affected by WFS2 was described by Mozzillo et al. [26]. She was a 17-year-old patient who had DM, optic neuropathy, intestinal ulcers, sensorineural hearing loss, and defective platelet aggregation responses to adenosine diphosphate (ADP). A novel homozygous intragenic deletion of CISD2 was found in the proband, but her parents and brother were heterozygous for the same mutation and were apparently healthy except for subclinical defective platelet aggregation.
Rondinelli et al. [61] reported a novel CISD2 mutation that caused WFS2 in two Italian sisters. They found a homozygous substitution in both of them, while the parents carried the same mutation in a heterozygous state. Severe duodenal ulcers were the first symptom, and the two patients presented DM, optic atrophy, hearing loss limited to high frequencies, and polyuria. Other features included hypogonadism, rheumatologic diseases, and hypogammaglobulinemia. Figure 3 displays the genetic variant distribution in CISD2.
Recently, Pourreza et al. [60] discovered another novel pathogenic variant of CISD2, which is a homozygous substitution in a patient who was born of a consanguineous marriage to parents with WFS. The patient developed DM, optic atrophy, polyuria, and upper intestinal ulcers. The results presented thus far suggest a possible genotype-phenotype association that is peculiar to WFS2. It seems that all patients with CISD2 mutation develop peptic ulcer disease and bleeding tendency.
Conversely, Rouzier et al. [39] reported a Moroccan patient with an overlapping phenotype, which suggests that WFS1 and WFS2 form a clinical spectrum with genetic heterogeneity. They have identified a novel homozygous CISD2 mutation in a patient with “classical” WFS1 phenotype, which is childhood-onset DM and optic atrophy without peptic ulcers or defective platelet aggregation, as reported previously in CISD2 mutation carriers. Rouzier et al.’s [39] results suggested screening for CISD2 in patients who manifest the defining features of WS. In conclusion, further studies are necessary to better define the clinical aspects of WF1 and WF2.

6. Genetic Analysis of Wolfram Syndrome

According to the literature that was examined in this review, WS is caused by WFS1 and CISD2 mutations. Therefore, if WFS1 is suspected, it is appropriate to proceed to the sequencing of all eight of the exons and their flanking intronic regions. Similarly, if WFS2 is suspected, it is useful to sequence the three CISD2 exons and their flanking intronic regions.
Additionally, WS could be caused by point mutations and, in some cases, by the deletion of an entire exon. Thus, it is recommended to perform an exhaustive molecular analysis that is aimed to identify any type of genetic alteration including quantitative imbalance such as “copy number variation” (CNV) as well as the possible presence of UPD.

7. Conclusions

WS is a rare and severe neurodegenerative disorder that involves different organs. To consider the pleiotropic manifestations, a multidisciplinary, team approach to the different clinical problems should be used for these patients. This diagnosis should be considered in all the patients with DM and optic atrophy and with an overall absence of type 1 DM autoantibodies. We recommend that this diagnosis should also be suspected in patients with non-autoimmune DM who present less frequent clinical findings that are suggestive of WS, such as sensorineural hearing loss or bowel disease. We recommend particular attention is given to patients with likely WS and bowel disorders or a wild-type wolframin gene sequence because WFS2 is not as well-known and, thus, it is investigated less frequently. Furthermore, CISD2 gene sequencing is not performed in all the laboratories, and thus, WFS2 could be underdiagnosed.
From a basic science point of view, WS is an interesting model to investigate drugs and molecules that are involved with ER homeostasis and cellular senescence. Inflammatory pathologies, DM, atherosclerosis, neurodegenerative diseases, and even cancer are related to ER dysfunction. More insights into these mechanisms could be interesting for translational research.
An early diagnosis allows proper genetic counseling and proper follow-up to occur, which prompts clinicians to search for possible associated disorders. Unfortunately, the genotype does not predict the phenotype, and determining a prognosis for these patients is difficult.
Finally, we would like to comment about the possibility of diagnosing WS at pre-clinical or paucisymptomatic stage. Increasing knowledge about the genetic mechanisms of monogenic DM allows exome sequencing for a molecular diagnosis, which allows the diagnosis of many monogenic subtypes including WS. Besides the great advantages of this technique, more attention should be paid in the diagnosis of an untreatable neurodegenerative disorder, such as WS. What could be the backlash of a neurodegenerative disorder in a patient with DM? What is the advantage of diagnosing WS in a patient with non-autoimmune diabetes without eye involvement? Shall we tell a patient: “You have diabetes but it is very likely you will become blind; we do not know when, and we cannot do anything to prevent it”? This review highlights that the genetic variant will not strictly predict the clinical findings and, thus, we are not able to provide a reliable prognosis for patients with diabetes but without any other clinical manifestation.

Author Contributions

Conceptualization, M.D. and N.R.; methodology, M.I. and A.P.; resources, M.I. and A.P.; data curation, N.R.; writing—original draft preparation, M.D., M.I., A.P. and N.R.; writing—review and editing, M.D. and N.R.; supervision, N.R.; project administration, M.D. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Wolfram, D.J.; Wagener, H.P. Diabetes mellitus and simple optic atrophy among siblings: Report of four cases. Mayo. Clinproc. 1938, 13, 715–718. [Google Scholar]
  2. Rose, F.C.; Fraser, G.R.; Friedmann, A.I.; Kohner, E.M. The association of juvenile diabetes mellitus and optic atrophy: Clinical and genetical aspects. Quart. J. Med. 1966, 35, 385–405. [Google Scholar] [PubMed]
  3. Polymeropoulos, M.H.; Swift, R.G.; Swift, M. Linkage of the gene for Wolfram syndrome to markers on the short arm of chromosome 4. Nat. Genet. 1994, 8, 95–97. [Google Scholar] [CrossRef]
  4. Inoue, H.; Tanizawa, Y.; Wasson, J.; Behn, P.; Kalidas, K.; Bernal-Mizrachi, E.; Mueckler, M.; Marshall, H.; Donis-Keller, H.; Crock, P.; et al. A gene encoding a trans membrane protein is mutated in patients with diabetes mellitus and optic atrophy. Nat. Genet. 1998, 20, 143–148. [Google Scholar] [CrossRef] [PubMed]
  5. El-Shanti, H.; Lidral, A.C.; Jarrah, N.; Druhan, L.; Ajlouni, K. Homozygosity mapping identifies an additional locus for Wolfram syndrome on chromosome 4q. Am. J. Hum. Genet. 2000, 66, 1229–1236. [Google Scholar] [CrossRef] [Green Version]
  6. Amr, S.; Heisey, C.; Zhang, M.; Xia, X.J.; Shows, K.H.; Ajlouni, K.; Pandya, A.; Satin, L.S.; El-Shanti, H.; Shiang, R.A. Homozygous mutation in a novel zinc-finger protein, ERIS, is responsible for Wolfram syndrome 2. Am. J. Hum. Genet. 2007, 81, 673–683. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Barrett, T.G.; Bundey, S.E.; Macleod, A.F. Neurodegeneration and diabetes: UK nationwide study of Wolfram (DIDMOAD) syndrome. Lancet 1995, 346, 1458–1463. [Google Scholar] [CrossRef]
  8. Matsunaga, K.; Tanabe, K.; Inoue, H.; Okuya, S.; Ohta, Y.; Akiyama, M.; Taguchi, A.; Kora, Y.; Okayama, N.; Yamada, Y.; et al. Wolfram syndrome in the Japanese population; molecular analysis of WFS1 gene and characterization of clinical features. PLoS ONE 2014, 9, e106906. [Google Scholar] [CrossRef] [Green Version]
  9. Zalloua, P.A.; Azar, S.T.; Delépine, M.; Makhoul, N.J.; Blanc, H.; Sanyoura, M.; Lavergne, A.; Stankov, K.; Lemainque, A.; Baz, P.; et al. WFS1 mutations are frequent monogenic causes of juvenile-onset diabetes mellitus in Lebanon. Hum. Mol. Genet. 2008, 17, 4012–4021. [Google Scholar] [CrossRef] [PubMed]
  10. Mozzillo, E.; Salzano, G.; Barbetti, F.; Maffeis, C.; Lombardo, F.; Franzese, A.; Delvecchio, M.; Marigliano, M. Survey on etiological diagnosis of diabetes in 1244 Italian diabetic children and adolescents: Impact of access to genetic testing. Diabetes Res. Clin. Pract. 2015, 107, e15–e18. [Google Scholar] [CrossRef]
  11. Delvecchio, M.; Mozzillo, E.; Salzano, G.; Iafusco, D.; Frontino, G.; Patera, P.I.; Rabbone, I.; Cherubini, V.; Grasso, V.; Tinto, N.; et al. Diabetes Study Group of the Italian Society of Pediatric Endocrinology and Diabetes (ISPED). Monogenic Diabetes Accounts for 6.3% of Cases Referred to 15 Italian Pediatric Diabetes Centers During 2007 to 2012. J. Clin. Endocrinol. Metab. 2017, 102, 1826–1834. [Google Scholar] [CrossRef] [Green Version]
  12. Li, M.; Wang, S.; Xu, K.; Chen, Y.; Fu, Q.; Gu, Y.; Shi, Y.; Zhang, M.; Sun, M.; Chen, H.; et al. High Prevalence of a Monogenic Cause in Han Chinese Diagnosed with Type 1 Diabetes, Partly Driven by Nonsyndromic Recessive WFS1 Mutations. Diabetes 2020, 69, 121–126. [Google Scholar] [CrossRef] [Green Version]
  13. Pacaud, D.; Schwandt, A.; de Beaufort, C.; Casteels, K.; Beltrand, J.; Birkebaek, N.H.; Campagnoli, M.; Bratina, N.; Limbert, C.; Mp O’Riordan, S.; et al. A description of clinician reported diagnosis of type 2 diabetes and other non-type 1 diabetes included in a large international multicentered pediatric diabetes registry (SWEET). Pediatr. Diabetes 2016, 17 (Suppl. 23), 24–31. [Google Scholar] [CrossRef] [Green Version]
  14. Cano, A.; Rouzier, C.; Monnot, S.; Chabrol, B.; Conrath, J.; Lecomte, P.; Delobel, B.; Boileau, P.; Valero, R.; Procaccio, V.; et al. Identification of novel mutations in WFS1 and genotype-phenotype correlation in Wolfram syndrome. Am. J. Med. Genet. A 2007, 143A, 1605–1612. [Google Scholar] [CrossRef]
  15. Tranebjærg, L.; Barrett, T.; Rendtorff, N.D. WFS1 Wolfram Syndrome Spectrum Disorder; 2009 February 24 [updated 2020 April 9]; GeneReviews® [Internet]; Adam, M.P., Ardinger, H.H., Pagon, R.A., Wallace, S.E., Bean, L.J.H., Mirzaa, G., Amemiya, A., Eds.; University of Washington: Seattle, WA, USA, 1993–2021. [Google Scholar] [PubMed]
  16. Pennings, R.J.; Huygen, P.L.; van den Ouweland, J.M.; Cryns, K.; Dikkeschei, L.D.; Van Camp, G.; Cremers, C.W. Sex-related hearing impairment in Wolfram syndrome patients identified by inactivating WFS1 mutations. Audiol. Neurootol. 2004, 9, 51–62. [Google Scholar] [CrossRef]
  17. Karzon, R.; Narayanan, A.; Chen, L.; Lieu, J.E.C.; Hershey, T. Longitudinal hearing loss in Wolfram syndrome. Orphanet. J. Rare Dis. 2018, 13, 102. [Google Scholar] [CrossRef] [PubMed]
  18. Fonseca, S.G.; Ishigaki, S.; Oslowski, C.M.; Lu, S.; Lipson, K.L.; Ghosh, R.; Hayashi, E.; Ishihara, H.; Oka, Y.; Permutt, M.A.; et al. Wolfram syndrome 1 gene negatively regulates ER stress signaling in rodent and human cells. J. Clin. Investig. 2010, 120, 744–755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Pakdemirli, E.; Karabulut, N.; Bir, L.S.; Sermez, Y. Cranial magnetic resonance imaging of Wolfram (DIDMOAD) syndrome. Australas Radiol. 2005, 49, 189–191. [Google Scholar] [CrossRef] [PubMed]
  20. Domenech, E.; Gomez-Zaera, M.; Nunes, V. Wolfram/DIDMOAD syndrome, a heterogenic and molecularly complex neurodegenerative disease. Pediatr. Endocrinol. Rev. 2006, 3, 249–257. [Google Scholar]
  21. Ito, S.; Sakakibara, R.; Hattori, T. Wolfram syndrome presenting marked brain MR imaging abnormalities with few neurologic abnormalities. AJNR Am. J. Neuroradiol. 2007, 28, 305–306. [Google Scholar] [PubMed]
  22. Swift, R.G.; Polymeropoulos, M.H.; Torres, R.; Swift, M. Predisposition of Wolfram syndrome heterozygotes to psychiatric illness. Mol. Psychiatry 1998, 3, 86–91. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. de Heredia, M.L.; Clèries, R.; Nunes, V. Genotypic classification of patients with Wolfram syndrome: Insights into the natural history of the disease and correlation with phenotype. Genet. Med. 2013, 15, 497–506. [Google Scholar] [CrossRef] [Green Version]
  24. Rigoli, L.; Aloi, C.; Salina, A.; Di Bella, C.; Salzano, G.; Caruso, R.; Mazzon, E.; Maghnie, M.; Patti, G.; D’Annunzio, G.; et al. Wolfram syndrome 1 in the Italian population: Genotype-phenotype correlations. Pediatr. Res. 2020, 87, 456–462. [Google Scholar] [CrossRef] [PubMed]
  25. Al-Sheyyab, M.; Jarrah, N.; Younis, E.; Shennak, M.M.; Hadidi, A.; Awidi, A.; El-Shanti, H.; Ajlouni, K. Bleeding tendency in Wolfram syndrome: A newly identified feature with phenotype genotype correlation. Eur. J. Pediatr. 2001, 160, 243–246. [Google Scholar] [CrossRef]
  26. Mozzillo, E.; Delvecchio, M.; Carella, M.; Grandone, E.; Palumbo, P.; Salina, A.; Aloi, C.; Buono, P.; Izzo, A.; D’Annunzio, G.; et al. A novel CISD2 intragenic deletion, optic neuropathy and platelet aggregation defect in Wolfram syndrome type 2. BMC Med. Genet. 2014, 15, 88. [Google Scholar] [CrossRef] [Green Version]
  27. Ajlouni, K.; Jarrah, N.; El-Khateeb, M.; El-Zaheri, M.; El Shanti, H.; Lidral, A. A Wolfram syndrome: Identification of a phenotypic and genotypic variant from Jordan. Am. J. Med. Genet. 2002, 115, 61–65. [Google Scholar] [CrossRef] [PubMed]
  28. Pallotta, M.T.; Tascini, G.; Crispoldi, R.; Orabona, C.; Mondanelli, G.; Grohmann, U.; Esposito, S. Wolfram syndrome, a rare neurodegenerative disease: From pathogenesis to future treatment perspectives. J. Transl. Med. 2019, 17, 238. [Google Scholar] [CrossRef] [Green Version]
  29. Urano, F. Wolfram syndrome: Diagnosis, management, and treatment. Curr. Diabetes Rep. 2016, 16, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Engin, F.; Yermalovich, A.; Nguyen, T.; Hummasti, S.; Fu, W.; Eizirik, D.L.; Mathis, D.; Hotamisligil, G.S. Restoration of the unfolded protein response in pancreatic beta cells protects mice against type 1 diabetes. Sci. Transl. Med. 2013, 5, 211ra156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Ramadan, J.W.; Steiner, S.R.; O’Neill, C.M.; Nunemaker, C.S. The central role of calcium in the effects of cytokines on beta-cell function: Implications for type 1 and type 2 diabetes. Cell Calcium 2011, 50, 481–490. [Google Scholar] [CrossRef] [Green Version]
  32. Shang, L.; Hua, H.; Foo, K.; Martinez, H.; Watanabe, K.; Zimmer, M.; Kahler, D.J.; Freeby, M.; Chung, W.; LeDuc, C.; et al. beta-cell dysfunction due to increased ER stress in a stem cell model of Wolfram syndrome. Diabetes 2014, 63, 923–933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Krause, T.; Gerbershagen, M.U.; Fiege, M.; Weisshorn, R.; Wappler, F. Dantrolene–a review of its pharmacology, therapeutic use and new developments. Anaesthesia 2004, 59, 364–367. [Google Scholar] [CrossRef] [PubMed]
  34. Zatyka, M.; Da Silva Xavier, G.; Bellomo, E.A.; Leadbeater, W.; Astuti, D.; Smith, J.; Michelangeli, F.; Rutter, G.A.; Barrett, T.G. Sarco (endo) plasmic reticulum ATPase is a molecular partner of Wolfram syndrome 1 protein, which negatively regulates its expression. Hum. Mol. Genet. 2014, 24, 814–827. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Hofmann, S.; Philbrook, C.; Gerbitz, K.D.; Bauer, M.F. Wolfram syndrome: Structural and functional analyses of mutant and wild-type wolframin, the WFS1 gene product. Hum. Mol. Genet. 2003, 12, 2003–2012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Takeda, K.; Inoue, H.; Tanizawa, Y.; Matsuzaki, Y.; Oba, J.; Watanabe, Y.; Shinoda, K.; Oka, Y. WFS1 (Wolfram syndrome 1) gene product: Predominant subcellular localization to endoplasmic reticulum in cultured cells and neuronal expression in rat brain. Hum. Mol. Genet. 2001, 10, 477–484. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Fonseca, S.G.; Fukuma, M.; Lipson, K.L.; Nguyen, L.X.; Allen, J.R.; Oka, Y.; Urano, F. WFS1 is a novel component of the unfolded protein response and maintains homeostasis of the endoplasmic reticulum in pancreatic beta-cells. J. Biol. Chem. 2005, 280, 39609–39615. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Chen, Y.F.; Kao, C.H.; Chen, Y.T.; Wang, C.; Wu, C.; Tsai, C.; Liu, F.; Yang, C.; Wei, Y.; Hsu, M.; et al. Cisd2 deficiency drives premature aging and causes mitochondria-mediated defects in mice. Genes Dev. 2009, 15, 1183–1194. [Google Scholar] [CrossRef] [Green Version]
  39. Rouzier, C.; Moore, D.; Delorme, C.; Lacas-Gervais, S.; Ait-El-Mkadem, S.; Fragaki, K.; Burté, F.; Serre, V.; Bannwarth, S.; Chaussenot, A.; et al. A novel CISD2 mutation associated with a classical Wolfram syndrome phenotype alters Ca2+ homeostasis and ER-mitochondria interactions. Hum. Mol. Gen. 2017, 26, 1599–1611. [Google Scholar] [CrossRef]
  40. Wang, C.-H.; Chen, Y.-F.; Wu, C.-Y.; Wu, P.-C.; Huang, Y.-L.; Kao, C.-H.; Lin, C.-H.; Kao, L.-S.; Tsai, T.-F.; Wei, Y.-H. Cisd2 modulates the differentiation and functioning of adipocytes by regulating intracellular Ca2þ homeostasis. Hum. Mol. Genet. 2014, 23, 4770–4785. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, C.-H.; Tsai, T.-F.; Wei, Y.-H. Role of mitochondrial dysfunction and dysregulation of Ca(2þ) homeostasis in insulin insensitivity of mammalian cells. Ann. N. Y. Acad. Sci. 2015, 1350, 66–76. [Google Scholar] [CrossRef] [PubMed]
  42. Solovyova, N.; Veselovsky, N.; Toescu, E.C.; Verkhratsky, A. Ca(2+) dynamics in the lumen of the endoplasmic reticulum in sensory neurons: Direct visualization of Ca(2+)-induced Ca(2+) release triggered by physiological Ca(2+) entry. EMBO J. 2002, 21, 622–630. [Google Scholar] [CrossRef] [Green Version]
  43. Chen, Y.F.; Wu, C.Y.; Kirby, R.; Kao, C.H.; Tsai, T.F. A role for the CISD2 gene in lifespan control and human disease. Ann. N. Y. Acad. Sci. 2010, 1201, 58–64. [Google Scholar] [CrossRef]
  44. Chang, N.C.; Nguyen, M.; Germain, M.; Shore, G.C. Antagonism of Beclin 1-dependent autophagy by BCL-2 at the endoplasmic reticulum requires NAF-1. EMBO J. 2010, 29, 606–618. [Google Scholar] [CrossRef] [PubMed]
  45. Wiley, S.E.; Andreyev, A.Y.; Divakaruni, A.S.; Karisch, R.; Perkins, G.; Wall, E.A.; van der Geer, P.; Chen, Y.-F.; Tsai, T.-F.; Simon, M.I.; et al. Wolfram Syndrome protein, Miner1, regulates sulphydryl redox status, the unfolded protein response, and Ca2þ homeostasis. EMBO Mol. Med. 2013, 5, 904–918. [Google Scholar] [CrossRef]
  46. Rigoli, L.; Bramanti, P.; Di Bella, C.; De Luca, F. Correction: Genetic and clinical aspects of Wolfram syndrome 1, a severe neurodegenerative disease. Pediatr. Res. 2018, 84, 787, Erratum in Pediatr Res. 2018, 83, 921–929. [Google Scholar] [CrossRef]
  47. Chaussenot, A.; Rouzier, C.; Quere, M.; Plutino, M.; Ait-El-Mkadem, S.; Bannwarth, S.; Barth, M.; Dollfus, H.; Charles, P.; Nicolino, M.; et al. Mutation update and uncommon phenotypes in a French cohort of 96 patients with WFS1- related disorders. Clin. Genet. 2015, 87, 430–439. [Google Scholar] [CrossRef] [PubMed]
  48. d’Annunzio, G.; Minuto, N.; D’Amato, E.; de Toni, T.; Lombardo, F.; Pasquali, L.; Lorini, R. Wolfram syndrome (diabetes insipidus, diabetes, optic atrophy, and deafness): Clinical and genetic study. Diabetes Care 2008, 31, 1743–1745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Astuti, D.; Sabir, A.; Fulton, P.; Zatyka, M.; Williams, D.; Hardy, C.; Milan, G.; Favaretto, F.; Yu-Wai-Man, P.; Rohayem, J.; et al. Monogenic diabetes syndromes: Locus-specific databases for Alström, Wolfram, and Thiamine-responsive megaloblastic anemia. Hum. Mutat 2017, 38, 764–777. [Google Scholar] [CrossRef]
  50. Eiberg, H.; Hansen, L.; Kjer, B.; Hansen, T.; Pedersen, O.; Bille, M.; Rosenberg, T.; Tranebjaerg, L. Autosomal dominant optic atrophy associated with hearing impairment and impaired glucose regulation caused by a missense mutation in the WFS1 gene. J. Med. Genet. 2006, 43, 435–440. [Google Scholar] [CrossRef] [Green Version]
  51. Berry, V.; Gregory-Evans, C.; Emmett, W.; Waseem, N.; Raby, J.; Prescott, D.; Moore, A.T.; Bhattacharya, S.S. Wolfram gene (WFS1) mutation causes autosomal dominant congenital nuclear cataract in humans. Eur. J. Hum. Genet. 2013, 21, 1356–1360. [Google Scholar] [CrossRef] [Green Version]
  52. Bonnycastle, L.L.; Chines, P.S.; Hara, T.; Huyghe, J.R.; Swift, A.J.; Heikinheimo, P.; Mahadevan, J.; Peltonen, S.; Huopio, H.; Nuutila, P.; et al. Autosomal dominant diabetes arising from a Wolfram syndrome 1 mutation. Diabetes 2013, 62, 3943–3950. [Google Scholar] [CrossRef] [Green Version]
  53. Elli, F.M.; Ghirardello, S.; Giavoli, C.; Gangi, S.; Dioni, L.; Crippa, M.; Finelli, P.; Bergamaschi, S.; Mosca, F.; Spada, A.; et al. A new structural rearrangement associated to Wolfram syndrome in a child with a partial phenotype. Gene 2012, 509, 168–172. [Google Scholar] [CrossRef]
  54. Morikawa, S.; Tajima, T.; Nakamura, A.; Ishizu, K.; Ariga, T. A novel heterozygous mutation of the WFS1 gene leading to constitutive endoplasmic reticulum stress is the cause of Wolfram syndrome. Pediatr. Diabetes 2017, 8, 1–8. [Google Scholar] [CrossRef] [Green Version]
  55. De Franco, E.; Flanagan, S.E.; Yagi, T.; Abreu, V.; Mahadevan, J.; Johnson, M.B.; Jones, G.; Acosta, F.; Mulaudzi, M.; Lek, N.; et al. Dominant ER stress-inducing WFS1 mutations underlie a genetic syndrome of neonatal/infancy-onset diabetes, congenital sensorineural deafness, and congenital cataracts. Diabetes 2017, 66, 2044–2053. [Google Scholar] [CrossRef] [Green Version]
  56. Papadimitriou, D.T.; Manolakos, E.; Bothou, C.; Zoupanos, G.; Papoulidis, I.; Orru, S.; Skarmoutsos, F.; Delides, A.; Bakoula, C.; Papadimitriou, A.; et al. Maternal uniparental disomy of chromosome 4 and homozygous novel mutation in the WFS1 gene in a paediatric patient with Wolfram syndrome. Diabetes Metab. 2015, 41, 433–435. [Google Scholar] [CrossRef]
  57. Rendtorff, N.D.; Lodahl, M.; Boulahbel, H.; Johansen, I.R.; Pandya, A.; Welch, K.O.; Norris, V.W.; Arnos, K.S.; Bitner-Glindzicz, M.; Emery, S.B.; et al. Identification of p.A684V missense mutation in the WFS1 gene as a frequent cause of autosomal dominant optic atrophy and hearing impairment. Am. J. Med. Genet. A 2011, 155A, 1298–1313. [Google Scholar] [CrossRef] [Green Version]
  58. Riachi, M.; Yilmaz, S.; Kurnaz, E.; Aycan, Z.; Çetinkaya, S.; Tranebjærg, L.; Rendtorff, N.D.; Bitner-Glindzicz, M.; Bockenhauer, D.; Hussain, K. Functional assessment of variants associated with Wolfram syndrome. Hum. Mol. Genet. 2019, 28, 3815–3824. [Google Scholar] [CrossRef] [PubMed]
  59. Cattaneo, M.; La Sala, L.; Rondinelli, M.; Errichiello, E.; Zuffardi, O.; Puca, A.A.; Genovese, S.; Ceriello, A. A donor splice site mutation in CISD2 generates multiple truncated, non-functional isoforms in Wolfram syndrome type 2 patients. BMC Med. Genet. 2017, 18, 147. [Google Scholar] [CrossRef]
  60. Pourreza, M.R.; Sobhani, M.; Rahimi, A.; Aramideh, M.; Kajbafzadeh, A.M.; Noori-Daloii, M.R.; Tabatabaiefar, M.A. Homozygosity mapping and direct sequencing identify a novel pathogenic variant in the CISD2 gene in an Iranian Wolfram syndrome family. Acta Diabetol. 2020, 57, 81–87. [Google Scholar] [CrossRef]
  61. Rondinelli, M.; Novara, F.; Calcaterra, V.; Zuffardi, O.; Genovese, S. Wolfram syndrome 2: A novel CISD2 mutation identified in Italian siblings. Acta Diabetol. 2015, 52, 175–178. [Google Scholar] [CrossRef]

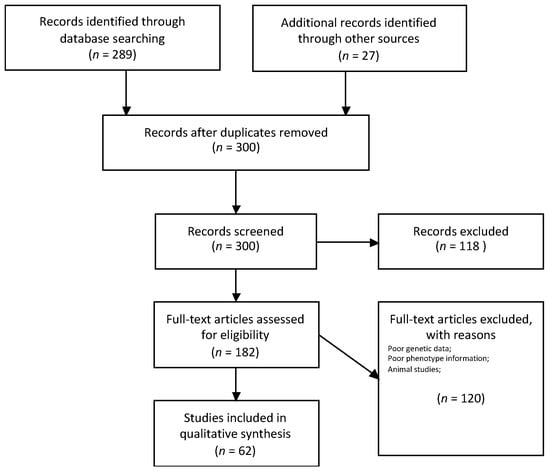

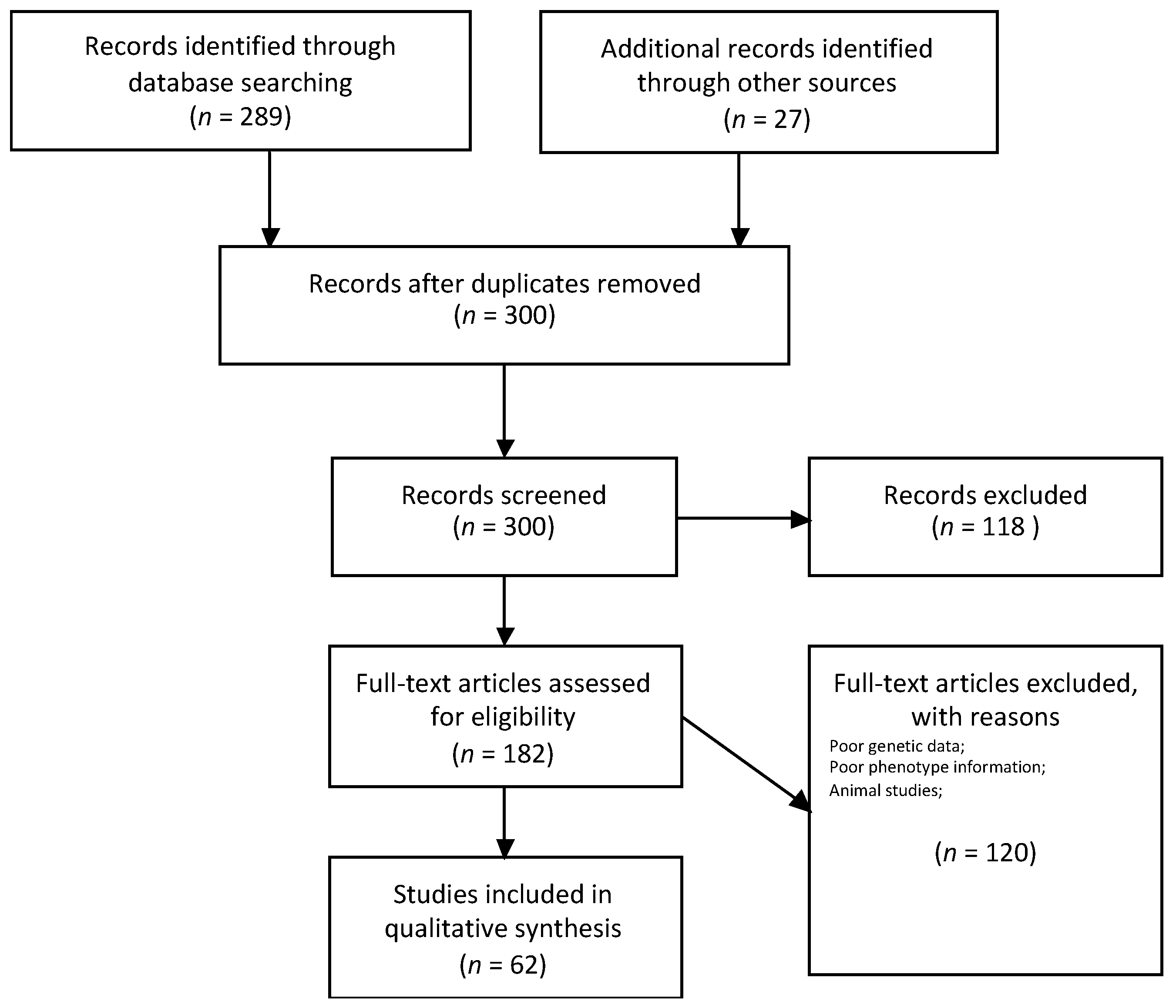

Figure 1. Flow diagram for article selection.
Figure 1. Flow diagram for article selection.
Ijerph 18 04796 g001

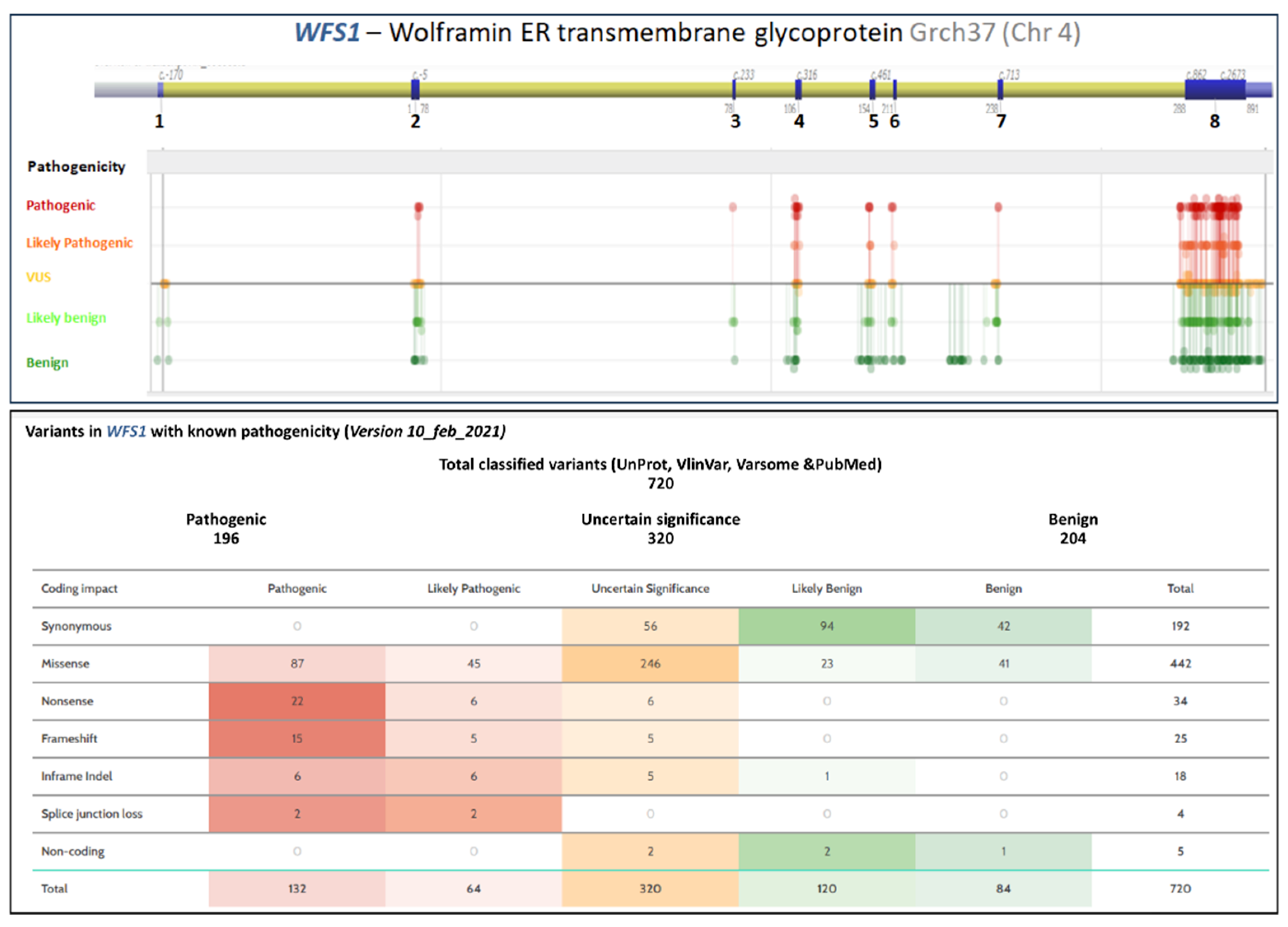

Figure 2. Genetic variant distribution in WFS1. Adapted from Alamut Visual version 2.15 (SOPHiA GENETICS, Lausanne, Switzerland) and from VarSome: The Human Genomic Variant Search Engine. Christos Kopanos, Vasilis Tsiolkas, Alexandros Kouris, Charles E. Chapple, Monica Albarca Aguilera, Richard Meyer, and Andreas Massouras. Oxford Bioinformatics, bty897, 30 October 2018. doi:10.1093/bioinformatics/bty897.
Figure 2. Genetic variant distribution in WFS1. Adapted from Alamut Visual version 2.15 (SOPHiA GENETICS, Lausanne, Switzerland) and from VarSome: The Human Genomic Variant Search Engine. Christos Kopanos, Vasilis Tsiolkas, Alexandros Kouris, Charles E. Chapple, Monica Albarca Aguilera, Richard Meyer, and Andreas Massouras. Oxford Bioinformatics, bty897, 30 October 2018. doi:10.1093/bioinformatics/bty897.
Ijerph 18 04796 g002

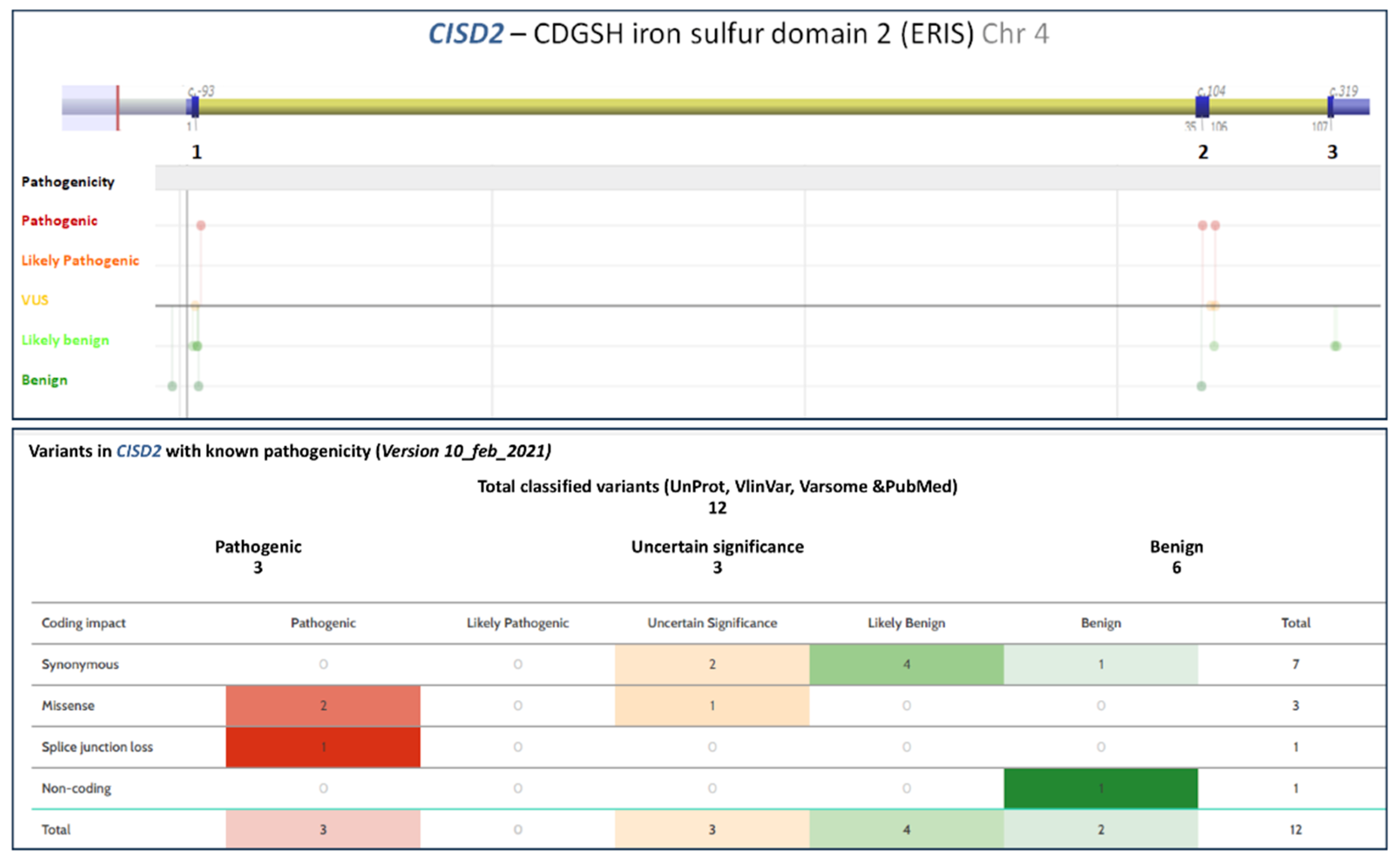

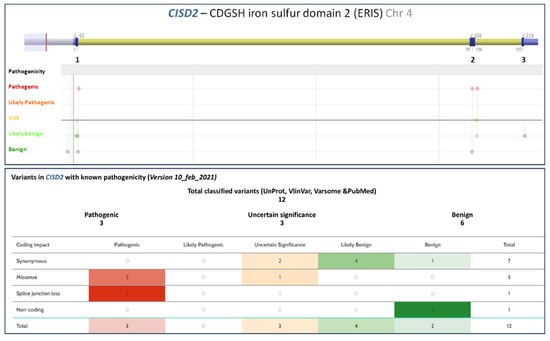

Figure 3. Genetic variant distribution in CISD2. Adapted from Alamut Visual version 2.15 (SOPHiA GENETICS, Lausanne, Switzerland) and from VarSome: The Human Genomic Variant Search Engine. Christos Kopanos, Vasilis Tsiolkas, Alexandros Kouris, Charles E. Chapple, Monica Albarca Aguilera, Richard Meyer, and Andreas Massouras. Oxford Bioinformatics, bty897, 30 October 2018. doi:10.1093/bioinformatics/bty897.
Figure 3. Genetic variant distribution in CISD2. Adapted from Alamut Visual version 2.15 (SOPHiA GENETICS, Lausanne, Switzerland) and from VarSome: The Human Genomic Variant Search Engine. Christos Kopanos, Vasilis Tsiolkas, Alexandros Kouris, Charles E. Chapple, Monica Albarca Aguilera, Richard Meyer, and Andreas Massouras. Oxford Bioinformatics, bty897, 30 October 2018. doi:10.1093/bioinformatics/bty897.
Ijerph 18 04796 g003
Table 1. Clinical features of Wolfram syndrome type 1 and type 2 and age at onset. Major clinical findings are reported in order of age at onset in the clinical history. Adapted from Pallotta et al. [28].
Table 1. Clinical features of Wolfram syndrome type 1 and type 2 and age at onset. Major clinical findings are reported in order of age at onset in the clinical history. Adapted from Pallotta et al. [28].
Major Clinical FindingsOther Clinical Findings
Diabetes mellitus (a)
Age at diagnosis: 6–10 years
Urinary tract problems and renal dysfunction (neurogenic bladder, bladder incontinence,
urinary tract infection)
Age of diagnosis: second decade of life
Optic atrophy (a)
Age at diagnosis: 10–15 years
Psychiatric symptoms (depression, psychosis, panic attacks, sleep abnormalities, mood swings)
Diabetes insipidus
Age at diagnosis: 14–20 years
Neurological manifestation/autonomic dysfunction (central apnea, dysphagia, areflexia, epilepsy, decreased ability to taste and detect odors, headache, orthostatic hypotension, hypothermia, hyperpyrexia, gastroparesis, constipation)
Sensorineural hearing loss
Age at diagnosis: 16–20 years
Endocrine disorders (hypogonadism, growth hormone deficiency, corticotropin deficiency, delayed menarche)
Age at diagnosis: 15–25 years
Dominant disease with or without diabetes mellitus and recessive Wolfram-like disease without diabetes mellitus
Upper intestinal ulcers and platelet aggregation defect (b)
(a) required for the diagnosis of Wolfram syndrome. It has been suggested that “optic neuropathy” could be more appropriate in Wolfram syndrome type 2. (b) absent in Wolfram syndrome type 1, typical of Wolfram syndrome type 2.
Table 2. Classification of Wolfram Syndrome type 1 mutations [23]. Adapted from Rigoli et al. [46].
Table 2. Classification of Wolfram Syndrome type 1 mutations [23]. Adapted from Rigoli et al. [46].
1before exon 8nonsense and frameshiftcomplete deletion
2aa 1–670
aa 701–890
complete degradation
3after exon 8 and before aa700
after exon 8
aa 671–700
defective or trun-cated protein
Table 3. Functional alterations of Wolframin [23]. Adapted from Rigoli et al. [46].
Table 3. Functional alterations of Wolframin [23]. Adapted from Rigoli et al. [46].
ClassFunctional Alterations
A1Wolframin depletion due to WFS1 mRNA degradation
A2Wolframin depletion due to WFS1 mRNA and protein degradation
A3Wolframin depletion due to protein degradation
BReduced expression of defective Wolframin
CExpression of defective Wolframin
