Vinyl-Asbestos Floor Risk Exposure in Three Different Simulations

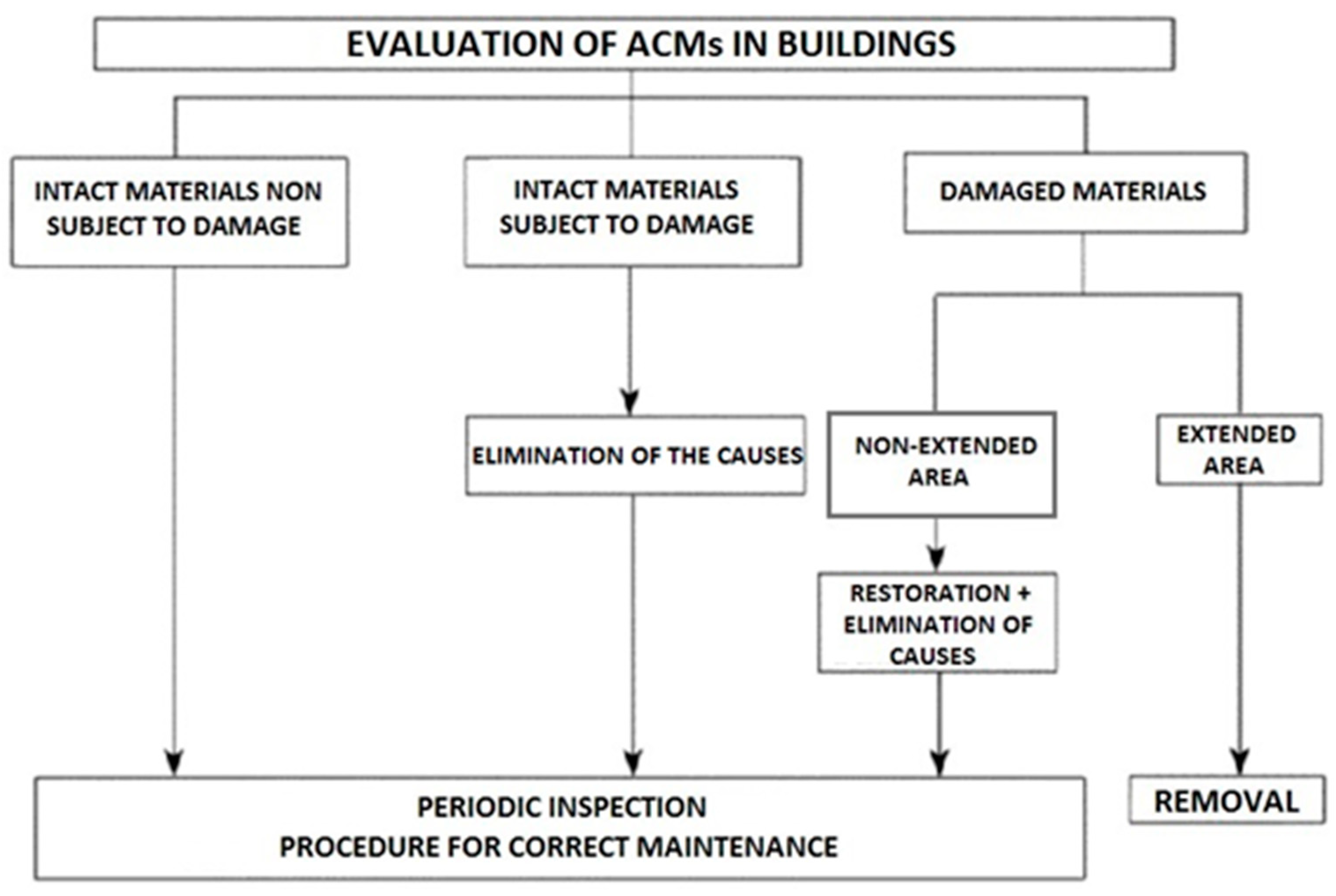

- Removal—it is mandatory for brittle materials and compact materials in the case of damages for more than 10% of its surface.
- Encapsulation—covering of the asbestos-containing materials (ACMs) with several layers of a specific encapsulation coating, producing a physical barrier between the contaminated matter and the external environment.
- Over coverage—occulting and sealing the ACMs by means of the physical barrier such as panels, walls or insulation.
2. Materials and Methods

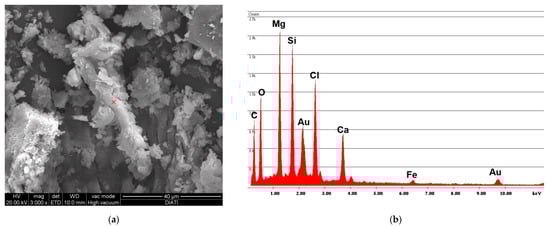

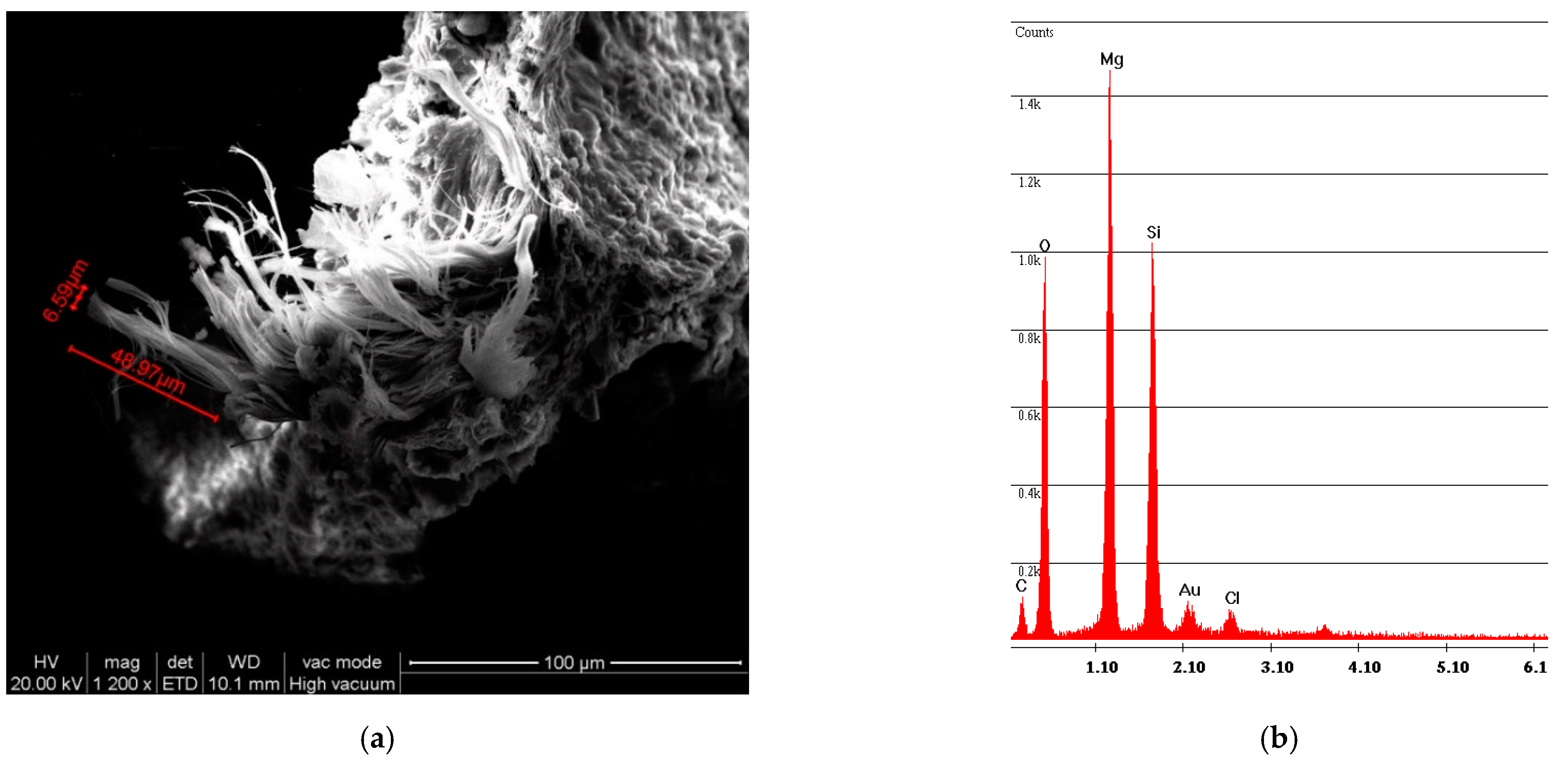

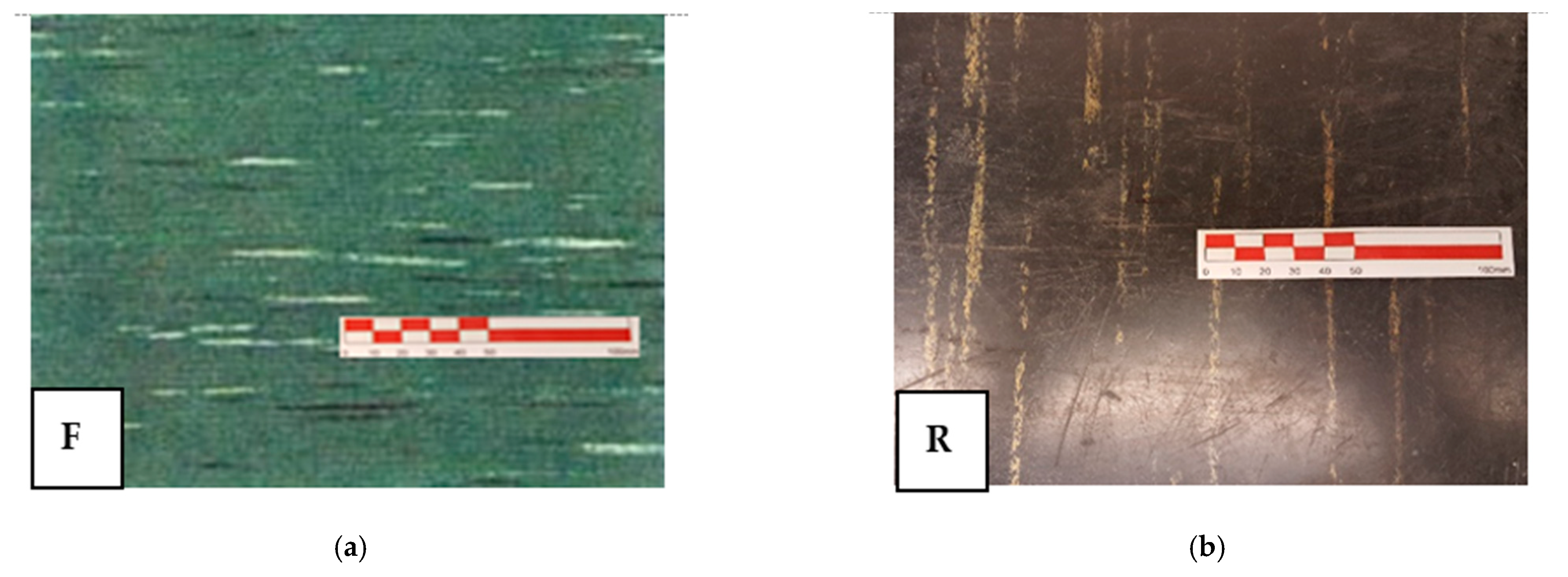

2.1. Vinyl-Asbestos Characterization
2.2. Simulation Tests
- − Multigrip plier breakage to simulate when workers break the vinyl floor tiles while replacing them or sampling to verify the presence of asbestos.
- − Impact and drag simulation with crampon; the effect of a small stone fragment stuck in the sole of rubber shoes was reproduced by striking the vinyl floor with a crampon.
- − Abrasion using two different sandpaper grain sizes to simulate the smoothing of a floor where the portion of asbestos vinyl tiles sometimes rub together with glue remaining on the surface.

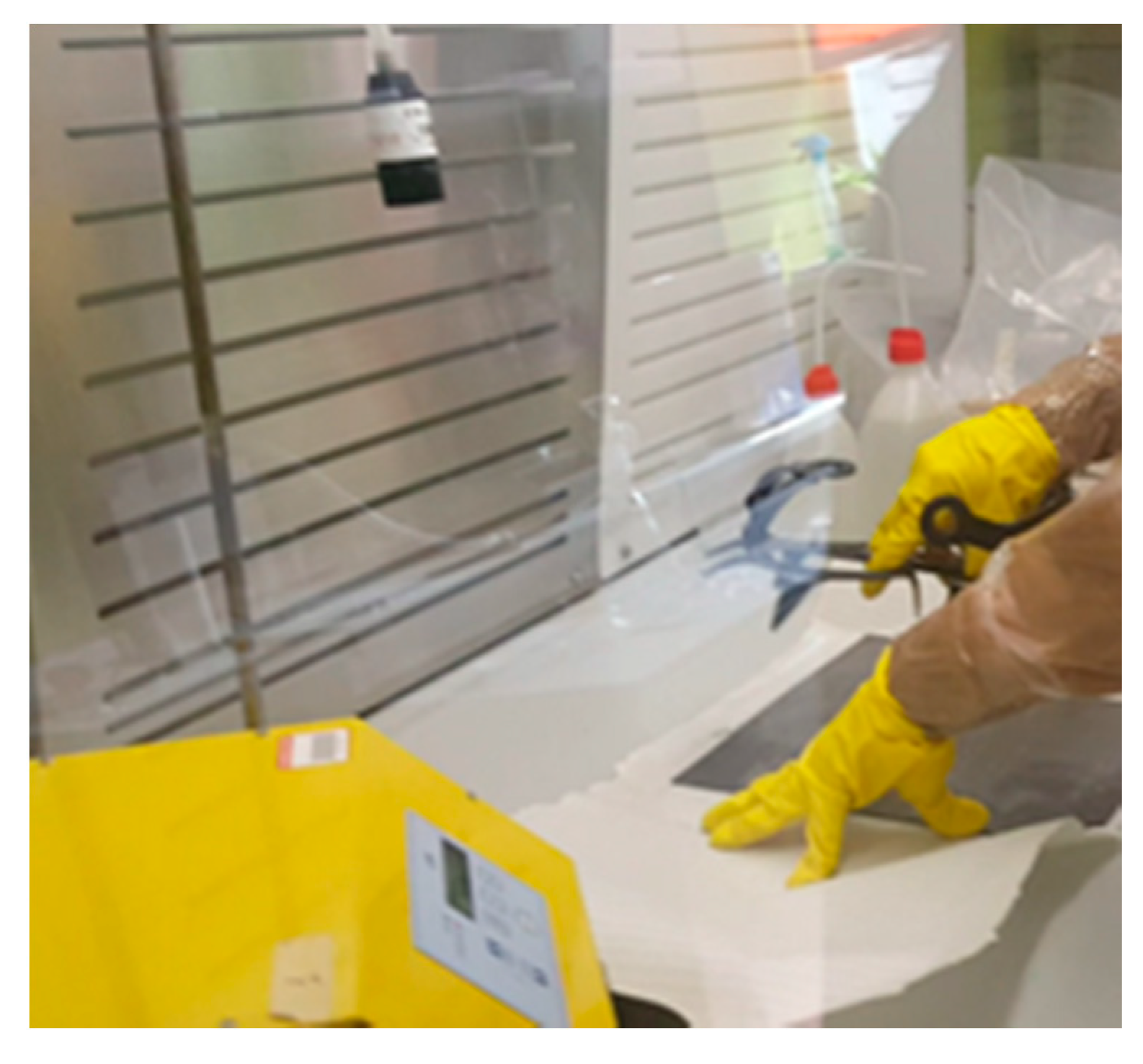

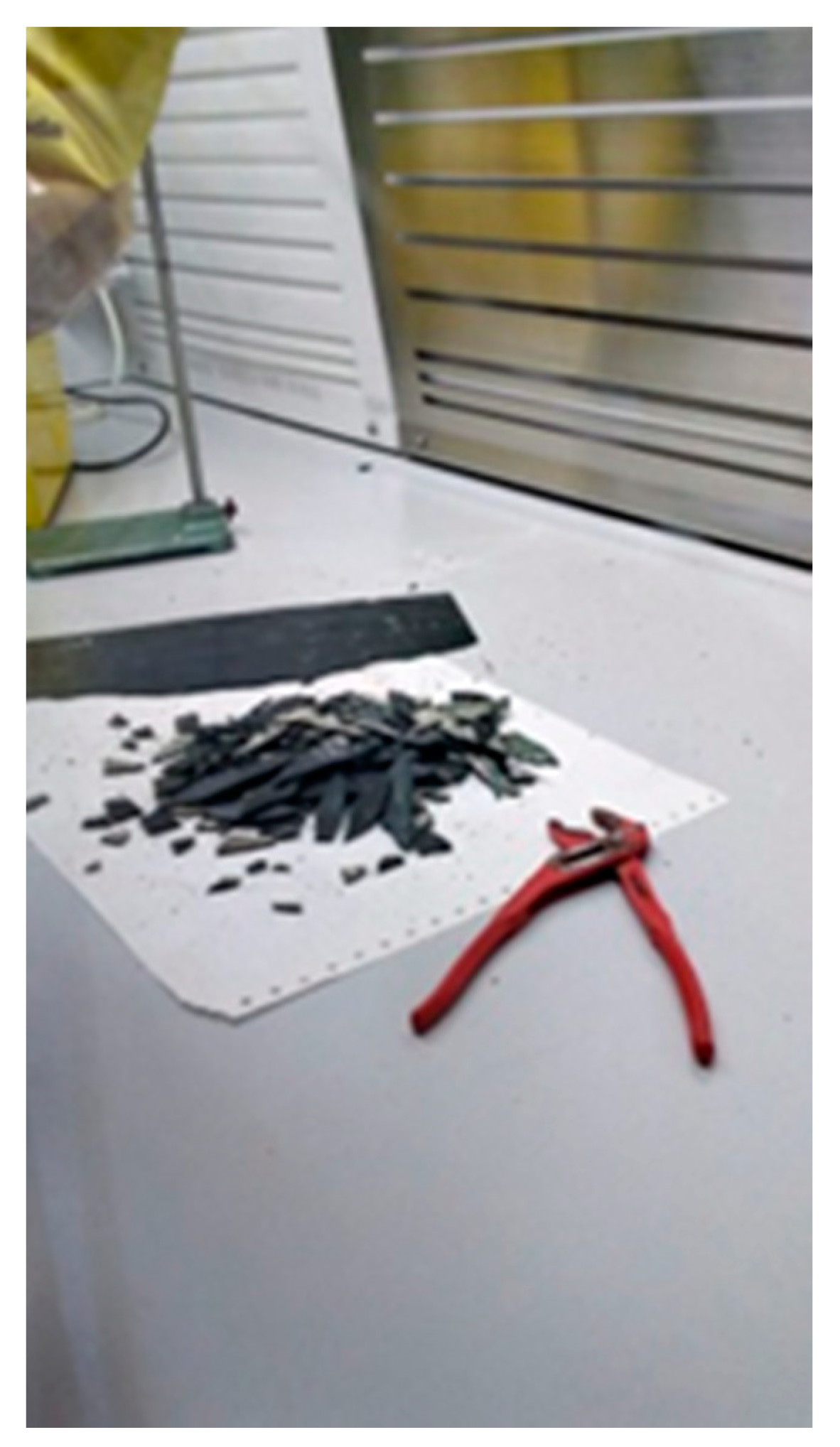

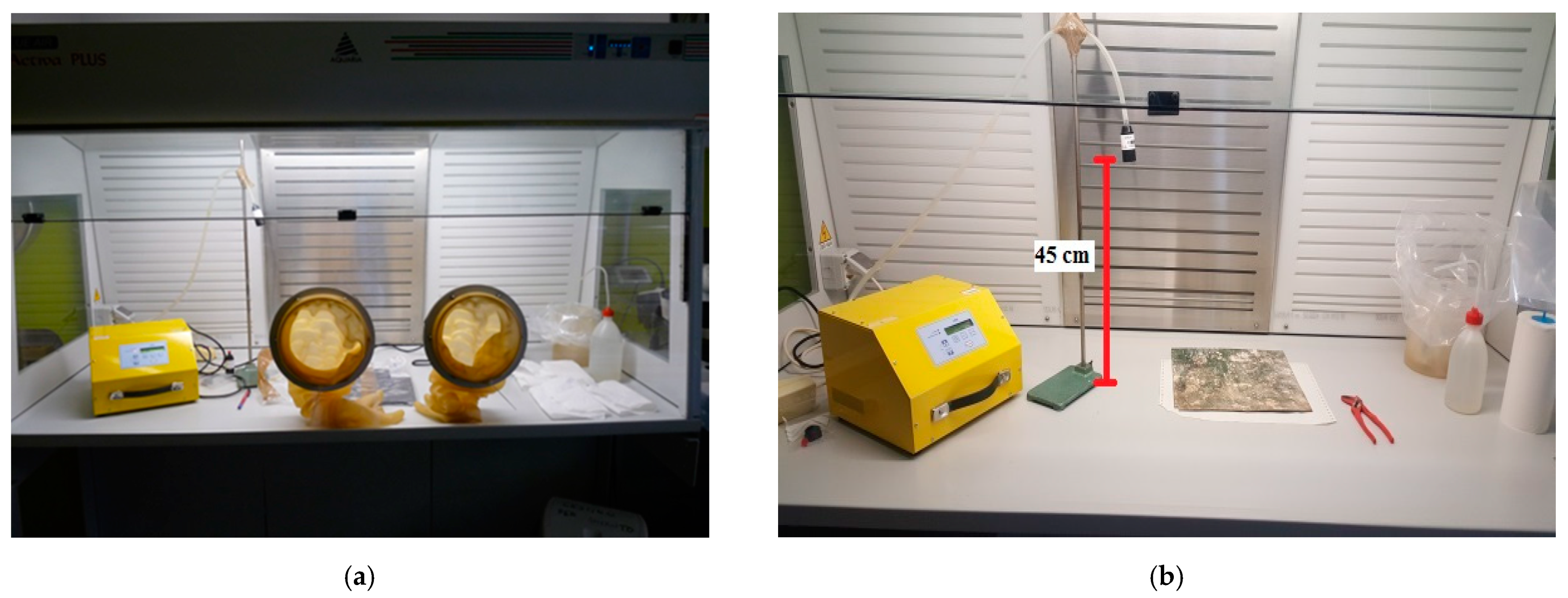

2.2.1. Sampling Simulation with Multigrip Plier Breakage in Dry Condition of Pieces of Vinyl Tile
2.2.2. Impact and Drag Simulation with Crampon in Dry Conditions

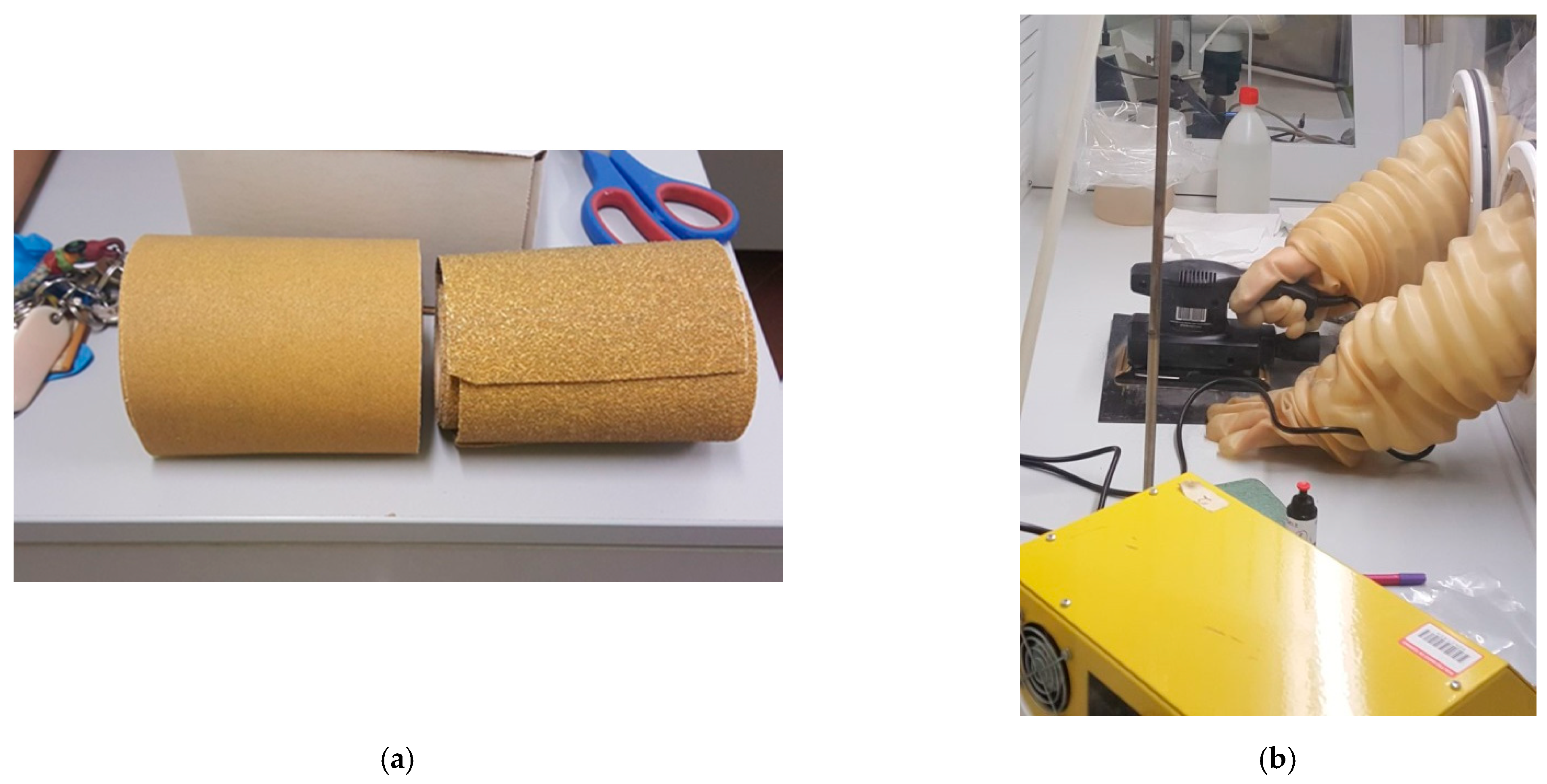

2.2.3. Abrasion Simulation Tests

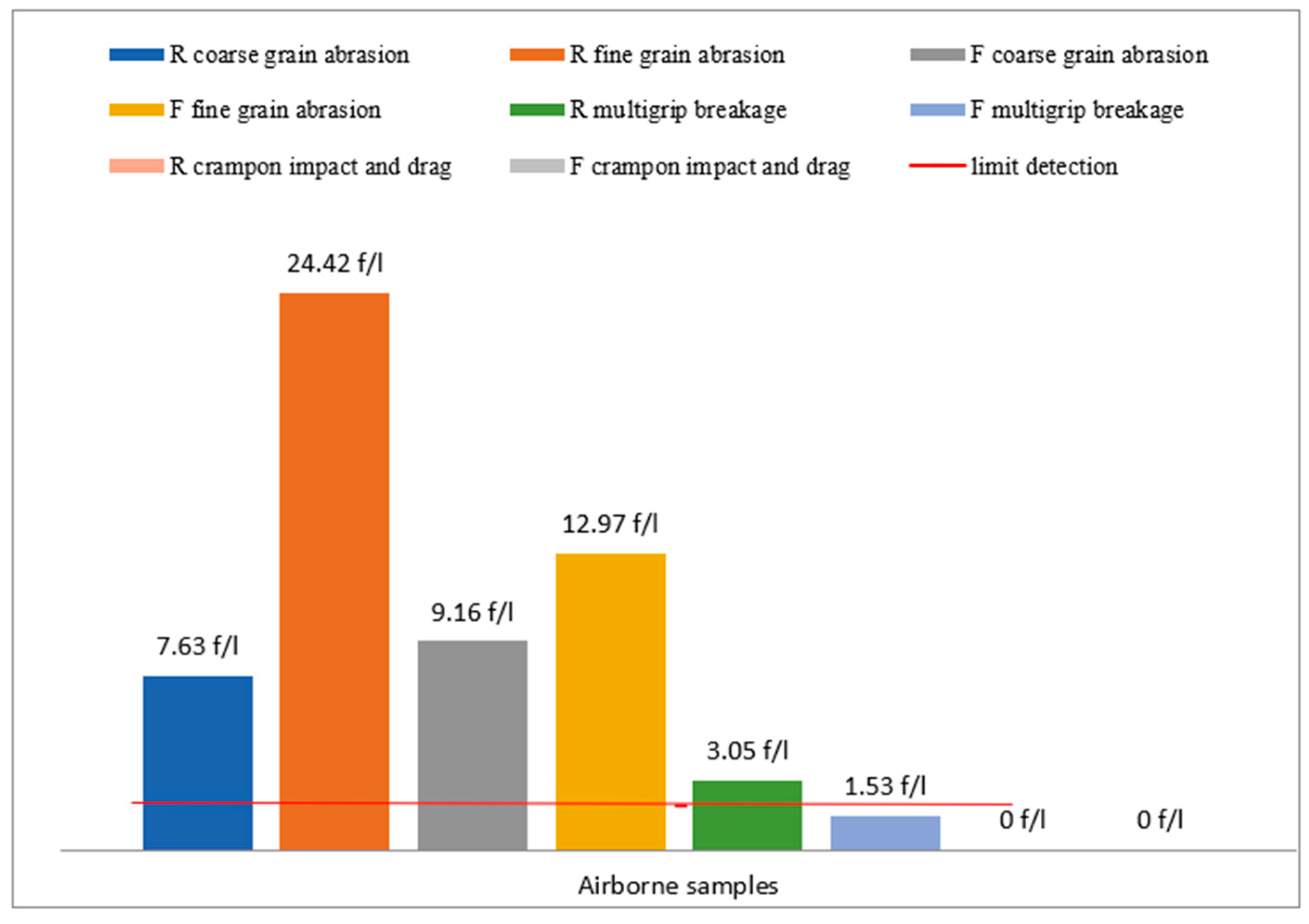

3. Results and Discussion

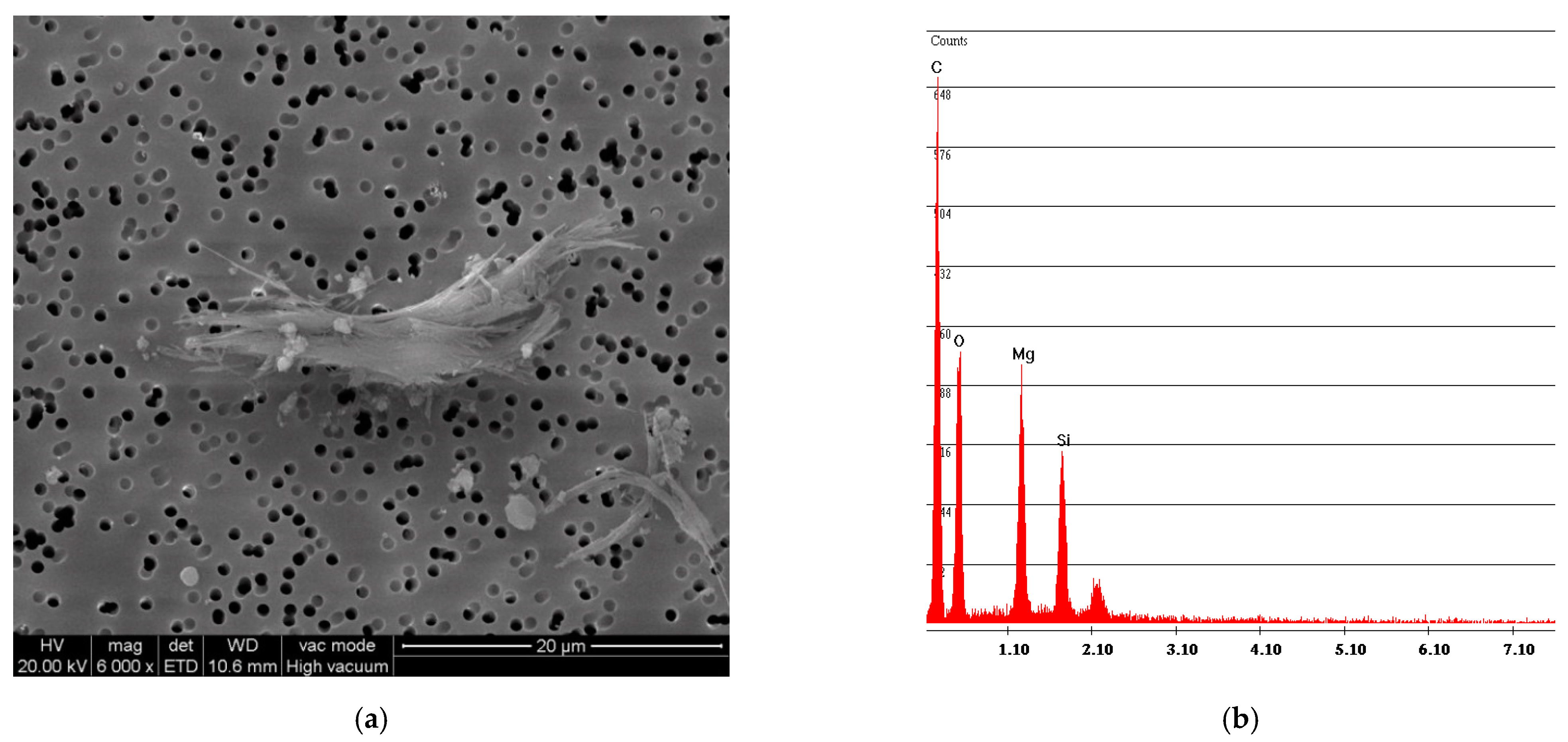

3.1. Multigrip Plier Breakage Results

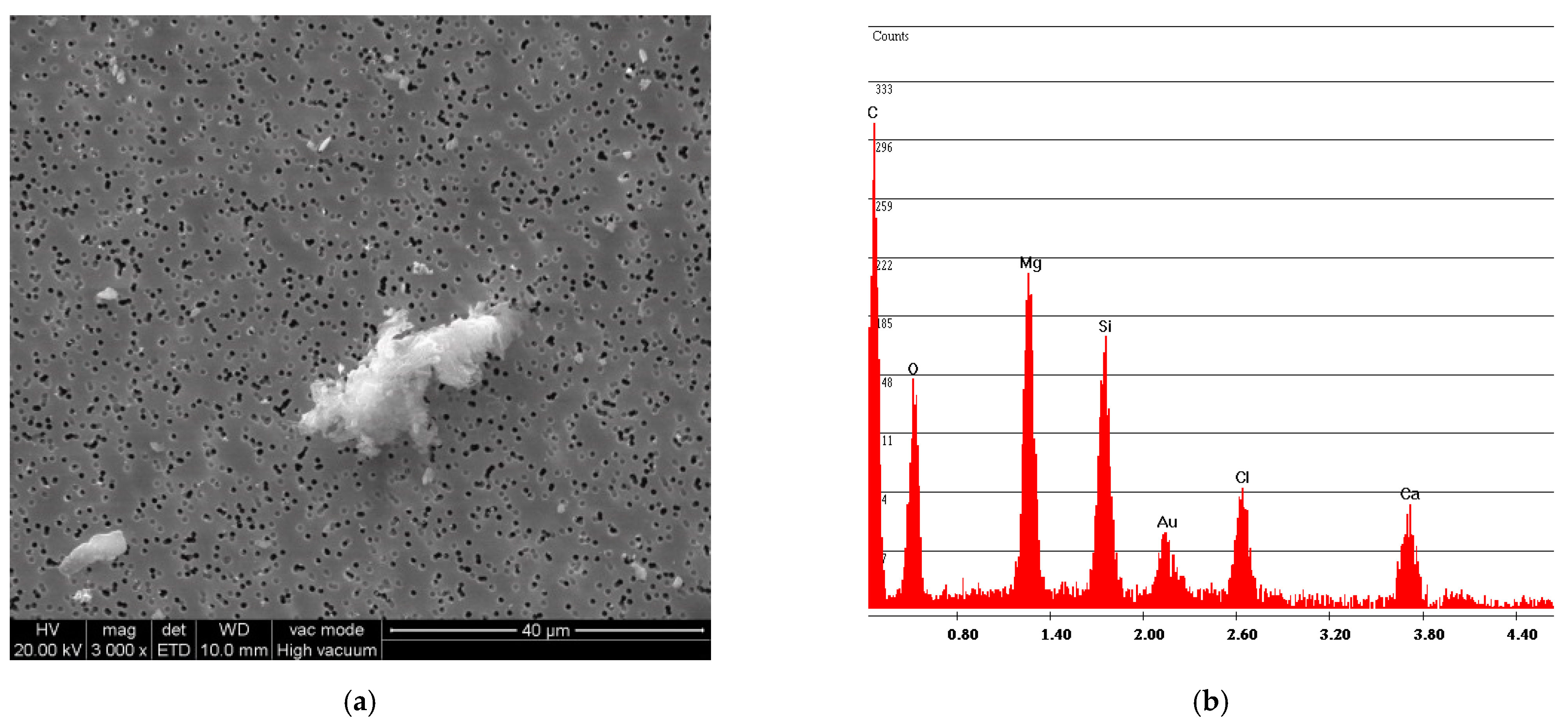

3.2. Impact and Drag with Crampons Results

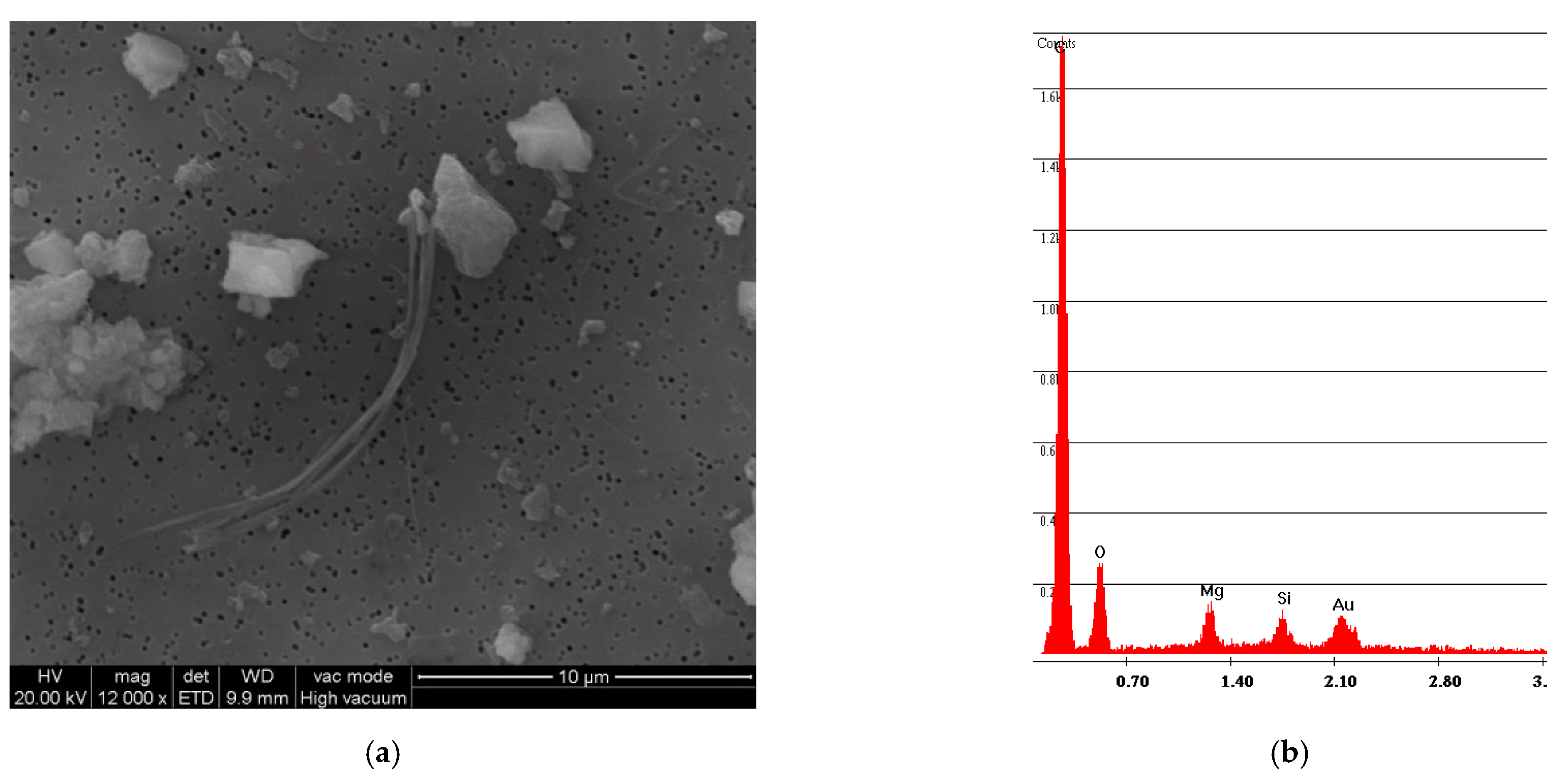

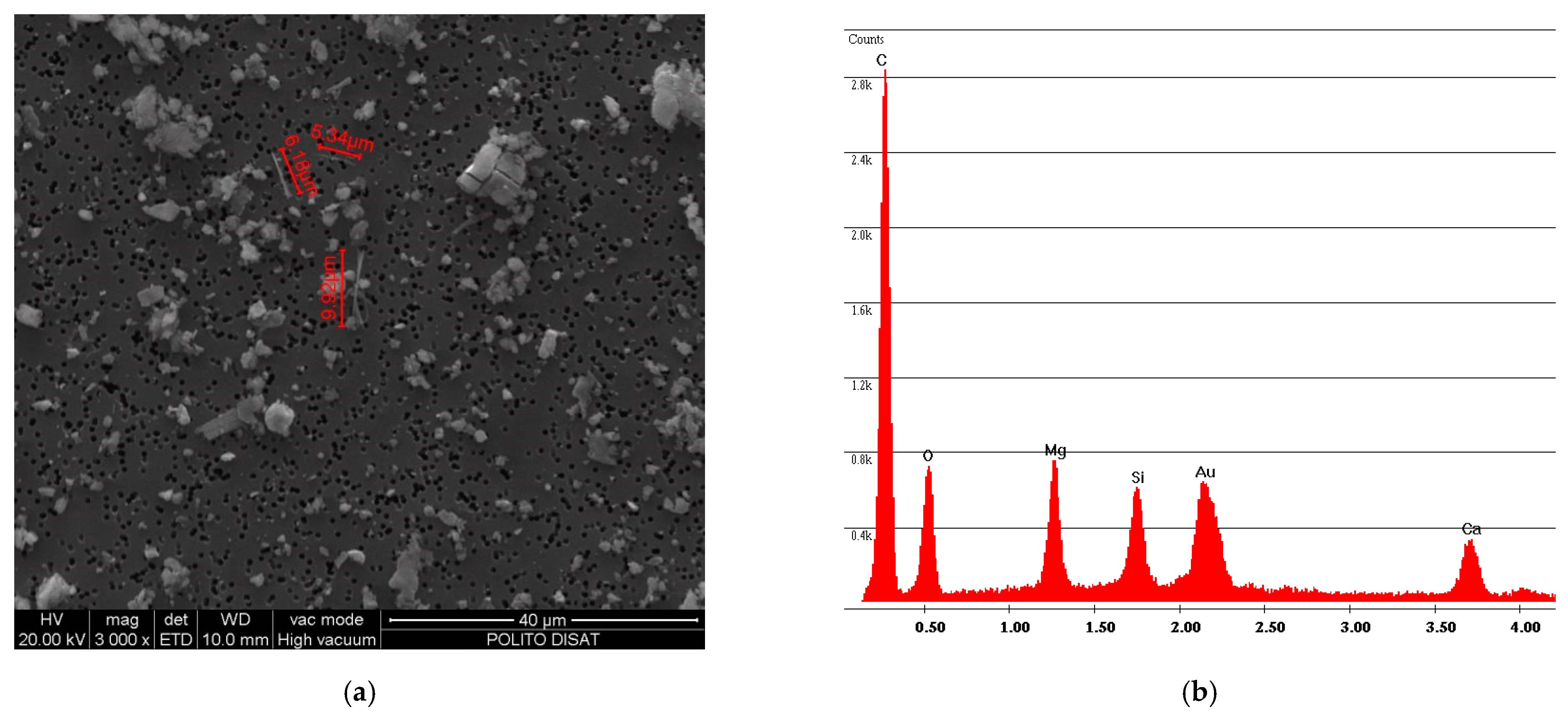

3.3. Abrasion Simulation Results
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
- Williams, M.G., Jr.; Crossman, R.N., Jr. Asbestos release during removal of resilient floor covering materials by recommended work practices of the resilient floor covering institute. Appl. Occup. Environ. Hyg. 2003, 18, 466–478. [Google Scholar] [CrossRef] [PubMed]
- Petry, R.K. Composition for Floor and Wall Covering Comprising Plasticized Vinyl Resin and Filler and Method of Making Same. U.S. Patent No. 2,558,378, 26 June 1951. [Google Scholar]
- Laurito, J.J.; Wheeler, H.B. Extender Resin for Vinyl Tile Formulations, Compositions Containing it and Process for Making it. U.S. Patent No. 3,523,095, 4 August 1970. [Google Scholar]
- Italian Ministerial Decree of 6 September 1994. Regulations and Technical Methods of Application of the Art. 6, Paragraph 3, and Art. 12, Paragraph 2, of the Law of 27 March 1992, n. 257, Relating to the Cessation of the Use of Asbestos. Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/eli/id/1994/09/20/094A5917/sg (accessed on 3 December 2020).
- Law 27/03/1992 n. 257. Rules Concerning the Termination of Employment Asbestos. (Published in the Suppl. Ord. in the Official Gazette No. 87 of April 13th1992). Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/eli/id/1992/04/13/092G0295/sg (accessed on 3 December 2020).
- Ministerial Decree 20/08/1999. Extension of Regulations and Technical Methodologies for Reclamation Interventions, Therein including Those to Render Asbestos Harmless, Provided by the Art. 5, Paragraph 1, Letter f), of Law 27 March 1992, n. 257, Laying down Rules Concerning the Cessation of the Use of Asbestos. Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/eli/id/1999/10/22/099A8683/sg (accessed on 3 December 2020).
- Law 23/3/2001 n. 93. Environmental Provisions. Art.20 Census of Asbestos and Remediation. Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/eli/id/2001/04/04/001G0148/sg (accessed on 3 December 2020).
- Ministerial Decree n.101 dated 18 March 2003, Ministry of the Environment (G.U. n.106 dated 9 May 2003) Regulation for the Realization of a Mapping of the Areas of the National Territory Affected by the Presence of Asbestos. Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/eli/id/2003/05/09/003G0126/sg (accessed on 3 December 2020).
- Legislative Decree 9 April 2008, n. 81. Text coordinated with Legislative Decree 3 August 2009, n. 106. Testo unico ON HEALTH AND SAFETY AT WORK. Implementation of Article 1 of the Law of 3 August 2007, n. 123 concerning the protection of health and safety in the workplace. (Official Journal No. 101 of April 30, 2008—Ordinary Supplement No. 108) (Additional and corrective decree: Official Journal No. 180 of August 5, 2009—Ordinary Supplement No. 142/L. Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/eli/id/2008/04/30/008G0104/sg (accessed on 3 December 2020).
- Legislative Decree 3 August 2009 n. 106. Supplementary and Corrective Provisions of the Legislative Decree 9 April 2008, n. 81, Concerning Protection Health and Safety in the Workplace. Gazzetta Ufficiale della Repubblica Italiana. Available online: https://www.gazzettaufficiale.it/atto/serie_generale/caricaDettaglioAtto/originario?atto.dataPubblicazioneGazzetta=2009-08-05&atto.codiceRedazionale=009G0119&elenco30giorni=false (accessed on 3 December 2020).
- Campopiano, A.; Casciardi, S.; Fioravanti, F.; Ramires, D. Airborne asbestos levels in school buildings in Italy. J. Occup. Environ. Hyg. 2004, 1, 256–261. [Google Scholar] [CrossRef] [PubMed]
- Resilient Floor Covering Institute. Recommended Work Practices for the Removal of Resilietn Floor Coverings; RFCI: Rockville, MD, USA, 1995. [Google Scholar]
- Kominsky, J.R.; Freyberg, R.W.; Clark, P.J.; Edwards, A.; Wilmoth, R.C.; Brackett, K.A. Asbestos exposures during routine floor tile maintenance. Part 1: Spray-buffing and wet-stripping. Appl. Occup. Environ. Hyg. 1998, 13, 101–106. [Google Scholar] [CrossRef]
- Boulanger, G.; Andujar, P.; Pairon, J.-C.; Billon-Galland, M.-A.; Dion, C.; Dumortier, P.; Brochard, P.; Sobaszek, A.; Bartsch, P.; Paris, C.; et al. Quantification of short and long asbestos fibers to assess asbestos exposure: A review of fiber size toxicity. Environ. Health 2014, 13, 59. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Dodson, R.F.; Atkinson, M.A.; Levin, J.L. Asbestos fiber length as related to potential pathogenicity: A critical review. Am. J. Ind. Med. 2003, 44, 291–297. [Google Scholar] [CrossRef] [PubMed]
- Eypert-Blaison, C.; Romero-Hariot, A.; Clerc, F.; Vincent, R. Assessment of occupational exposure to asbestos fibers: Contribution of analytical transmission electron microscopy analysis and comparison with phase-contrast microscopy. J. Occup. Environ. Hyg. 2018, 15, 263–274. [Google Scholar] [CrossRef] [PubMed]
- Perez, A.L.; Nelson, M.L.; Cheng, T.J.; Comerford, C.E.; Scott, P.K. A meta-analysis of airborne asbestos fiber concentrations from work with or around asbestos-containing floor tile. Int. J. Occup. Environ. Health 2018, 24, 134–148. [Google Scholar] [CrossRef] [PubMed]
- Occupational Safety and Health Administration (OSHA). Occupational Exposure to Asbestos; Final Rule. Federal Register 59:153; Office of the Federal Register, National Archives and Records Administration: College Park, MD, USA, 1994; pp. 40964–41158.
- Lange, J.H. Asbestos-containing floor tile and mastic abatement: is there enough exposure to cause asbestos-related disease? Indoor Built Environ. 2005, 14, 83–88. [Google Scholar] [CrossRef]
- ISO. ISO 14966 International Standard. Ambient Air. Determination of Numerical Concentration of Inorganic Fibrous Particles. Scanning Electron Microscopy Method; ISO: Geneva, Switzerland, 2002. [Google Scholar]
- Paustenbach, D.J.; Sage, A.; Bono, M.; Mowat, F. Occupational exposure to airborne asbestos from coatings, mastics, and adhesives. J. Expo. Sci. Environ. Epidemiol. 2004, 14, 234–244. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Lange, J.H. Impact of asbestos concentrations in floor tiles on exposure during removal. Int. J. Environ. Health Res. 2002, 12, 293–300. [Google Scholar] [CrossRef] [PubMed]
- Crossman, R.N., Jr.; Williams, M.G., Jr.; Lauderdale, J.; Schosek, K.; Dodson, R.F. Quantification of Fiber Releases for Various Floor Tile Removal Methods. Appl. Occup. Environ. Hyg. 1996, 11, 1113–1124. [Google Scholar] [CrossRef]
|Components||Parts by Weight: Range||Parts by Weight: Optimal Proportion||Particle Size Dimension (Mesh)|
|-fibrous fillers such as wood flour dispersed in plastic||<50|
|homopolymer vinyl chloride and copolymer||15–18|
|Sprayed coatings, lagging and insulations||Up to about 85% of asbestos (amosite, crocidolite) mainly amosite sprayed on steel bearing structures or other surfaces as thermal-acoustic insulators||High friability|
|Insulating pipes and boilers lagging||For pipe coatings, all types of asbestos, about 6–10%, usually mixed with calcium silicates. In cloths, felts and padding, in general, 100% of asbestos||High release potential in case of coating covering layer absent, not uniformed or deteriorated|
|Cardboard, paper and similar||Generally, only 100% chrysotile||Subjected to wear and tear due to their poorly compact structure|
|Tapes, cords and cloths||In the past, all types of asbestos were used. Later, only chrysotile||Possibility of fiber release when large quantities of material are stored|
|Asbestos cement products||Currently 10–15% of asbestos, usually chrysotile. Crocidolite and amosite can be found in some types of pipes and slabs||Possibility of fiber release when they are abraded, sawn, perforated or brushed, or if deteriorated|
|Bituminous and tar products, paper-backed vinyl tiles, vinyl floor tiles, PVC and plastic goods, coatings and paints, mastics, sealants and plaster||From 0.5 to 2% for mastics, sealants, adhesives, at 10–25% for floors and vinyl tiles||Unlikely release of fibers during normal use. Possibility of release of fibers if cut, abraded or perforated|
|Simulation Test||Vinyl Floor Tile Sample||Powder Produced from Abrasion (g)||Release of Asbestos Fibers (g)|
|Abrasion coarse-grain sandpaper||F||4.4||0.4|
|Abrasion fine-grain sandpaper||F||4||0.4|
