Rapid Discovery and Detection of Haemaphysalis longicornis through the Use of Passive Surveillance and Collaboration: Building a State Tick-Surveillance Network

by
Rebecca T. Trout Fryxell
1,*,
Dené N. Vann
2,
Rebecca A. Butler
1,
Dave J. Paulsen
1,
Jennifer G. Chandler
1,
Micah P. Willis
3,
Heidi M. Wyrosdick
2,
John J. Schaefer
2,
Richard W. Gerhold
2,
Daniel M. Grove
4,
Jennie Z. Ivey
5,
Kevin W. Thompson
6,
Roger D. Applegate
7,
Joy Sweaney
7,
Sterling Daniels
7,
Samantha Beaty
8,
Douglas Balthaser
8,
James D. Freye II
9,
James W. Mertins
10,
Denise L. Bonilla
11 and
Kevin Lahmers
12add Show full author list remove Hide full author list
1
Department of Entomology and Plant Pathology, University of Tennessee, Knoxville, TN 37996, USA
2
Department of Biomedical Diagnostic Sciences, College of Veterinary Medicine, University of Tennessee, Knoxville, TN 37996, USA
3
Department of Agricultural Leadership, Education and Communications, University of Tennessee, Knoxville, TN 37996, USA
4
Department of Forestry, Wildlife and Fisheries, University of Tennessee, Knoxville, TN 37996, USA
5
Department of Animal Science, University of Tennessee, Knoxville, TN 37996, USA
6
Middle Tennessee Research and Education Center, University of Tennessee, Knoxville, TN 37996, USA
7
Wildlife and Forestry Division, Tennessee Wildlife Resources Agency, Nashville, TN 37211, USA
8
State Veterinarians’ Office, Ellington Agricultural Center, Tennessee Department of Agriculture, Nashville, TN 37220, USA
9
Tennessee Veterinary Services, Animal and Plant Health Inspection Service, United States Department of Agriculture, Madison, TN 37220, USA
10
National Veterinary Services Laboratories, Veterinary Services, Animal and Plant Health Inspection Service, U.S. Department of Agriculture, Ames, IA 50010, USA
11
Veterinary Services, Animal and Plant Health Inspection Service, U.S. Department of Agriculture, Fort Collins, CO 80521, USA
12
Virginia Tech Animal Laboratory Services and Department of Biomedical Sciences and Pathobiology, VA Polytechnic Institute and State University, Blacksburg, VA 24061, USA

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(15), 7980; https://doi.org/10.3390/ijerph18157980
Submission received: 15 July 2021 / Accepted: 23 July 2021 / Published: 28 July 2021
(This article belongs to the Section Environmental Health)
Browse Figures
Versions Notes

Abstract

:
Between March 2019 and February 2020, Asian long-horned ticks (Haemaphysalis longicornis Neumann, 1901) were discovered and collected for the first time in one middle and seven eastern Tennessee counties, facilitated by a newly developed passive and collaborative tick-surveillance network. Network collaborators included federal, state, county, university, and private resource personnel working with companion animals, livestock, and wildlife. Specimens were collected primarily from dogs and cattle, with initial detections of female adult stage ticks by stakeholders associated with parasitology positions (e.g., entomologists and veterinary parasitologists). Initial county tick detections were confirmed with morphological and molecular identifications, and then screened for the presence of animal-associated pathogens (Anaplasma marginale, Babesia species, Ehrlichia species, and Theileria orientalis), for which all tests were negative. Herein, we describe the identification and confirmation of these tick specimens as well as other results of the surveillance collaboration.

1. Introduction

Haemaphysalis longicornis Neumann 1901, the Asian long-horned tick, is an invasive and exotic tick species in North America, an indirect human health threat, and a menace to livestock, companion animals, and wildlife [1]. Since its original detection in the fall of 2017 in New Jersey, the occurrence of H. longicornis has been confirmed in 15 states [2]. In its native range, this species can transmit a number of pathogens, uses animals for dispersal, and is an economic threat to the agricultural and livestock industries [1,3]. In geographic areas where H. longicornis has invaded, expanded, and proliferated (e.g., New Zealand), exotic and established tick populations can become hyperintense, where thousands of ticks can be found parasitizing a single animal as displayed on a pet sheep in New Jersey [4] and potentially causing tick-infested livestock to become quickly anemic [3,5]. Indirect effects associated with infestations by this species include the transmission of bovine pathogens (Anaplasma marginale, Babesia spp., and Theileria orientalis), dog pathogens (Babesia spp. and Hepatozoon canis), and human pathogens (e.g., Borrelia, Ehrlichia, Rickettsia, and several viruses) [6]. Recently, investigators in Virginia determined field-collected H. longicornis were infected with the Theileria orientalis Ikeda genotype and demonstrated that study ticks were competent experimental vectors for the Ikeda strain of the pathogen in local cattle [7,8,9,10].
Unlike most native and typical North American tick species, exotic and invasive H. longicornis ticks in the United States (US) have a univoltine life cycle and a parthenogenetic reproductive strategy, which permits rapid population growth because every single unmated female tick can lay hundreds of viable eggs and the resulting adults are all instantly reproductive females [3,11]. This species is a three-host tick (i.e., it uses a different host for each of its larval, nymphal, and adult stages and molts to the next stage off the host in the environment), and it feeds on a variety of potential hosts in the US, including humans, livestock (e.g., cow, sheep, goat, horse, and chicken), companion animals (e.g., dog and cat), and wildlife (e.g., white-tailed deer, raccoon, Virginia opossum, elk, coyote, red and gray fox, eastern cottontail rabbit, groundhog, black bear, Canada goose, great-horned owl, red-tailed hawk, brown booby, gray squirrel, and striped skunk) [2,12,13]. Clearly, its parthenogenetic reproductive strategy, univoltine life cycle, and use of a variety of hosts for dispersal and feeding will make management extremely difficult and emphasize the need for prevention and detection for population management.
In this context, we developed a collaborative tick-surveillance network for the state of Tennessee, which included academic, government, and other stakeholders, with the primary goals of (a) developing a comprehensive tick-surveillance program to detect this species as soon as possible, (b) using those tick collections to develop educational materials for stakeholders and researchers, and (c) documenting the early and first detection of H. longicornis in multiple Tennessee counties. Here we report on our collaborative efforts to identify both established and detected populations of H. longicornis in Tennessee (March 2019 to February 2020). Additionally, we report identification as morphological and genetic confirmation and determine the potential presence of animal pathogens within the collected ticks with molecular testing. Before this study, H. longicornis had not yet been detected in Tennessee, but it was identified in nearby states of North Carolina, Virginia, and West Virginia, and several researchers predicted that populations will expand across North America into Tennessee and westward into Arkansas [14,15,16]. When our study began (March 2019), known hosts of H. longicornis in the US were 17 wild and domestic mammal species and one hawk (a mammalian predator) [1,12]. Additionally, ticks had been collected from vegetation in yards, parks, pastures, and forested areas [12,16].

2. Materials and Methods

To develop a tick-surveillance network, our approach was to establish partnerships with Tennessee stakeholders to conduct host-targeted tick surveillance from previously identified companion animals, livestock, and wildlife hosts. To build partnerships, we enhanced our established collaborations with relevant Tennessee state departments (Agriculture, Health, Wildlife Resources). University of Tennessee faculty working with animals, such as those in the Departments of Animal Science, Forestry/Wildlife/Fisheries, in the College of Veterinary Medicine (CVM), and university-owned Research and Education Centers (RECs) were contacted to help with passive surveillance. In order to reach a broader community, we expanded our efforts and contacted animal shelters in the eastern region of Tennessee, as well as the general public through community engagement events (e.g., field days, agricultural days, trade shows). We identify participants recruited from these community engagement events as community scientists (formerly referred to as citizen scientists) because they collected ticks in this highly collaborative project to increase scientific knowledge. Additionally, throughout the project period, we hired and trained 20 undergraduate students in tick detection and had them search animals at livestock markets and hunter-check stations associated with the Tennessee Wildlife Resources Agency (TWRA).
We provided initial information and collection materials to all collectors to help in the collection process, and instructions on how to collect and submit ticks through demonstrations and videos. Educational products (e.g., infographic and posters) for stakeholders and network collectors were developed and reviewed by the coauthors and then shared with the network team. Print materials were developed in Adobe InDesign and Adobe Illustrator (Adobe Systems, San Jose, CA, USA), while how-to videos were compiled and edited in Adobe Premiere Pro (Adobe Systems), and effects and transitions were created in After Effects (Adobe Systems). These educational materials are available on our website (www.tnticks.org) and through University of Tennessee Extension publications [17,18,19]. We hosted and encouraged collaborators to attend training events, such as in-service trainings for Extension agents, virtual meetings or Hot Topics for those unable to visit campus, and we assisted with a two-day “external parasite” workshop with the U.S. Department of Agriculture, Animal and Plant Health Inspection Service (USDA-APHIS). To encourage recruitment and retention, we provided monthly updates of ranked results from different agencies (e.g., top-contributing agency), participating personnel (e.g., top collectors), and the geographical and temporal data (e.g., top tick-infested region), all shown previously to improve collaborations [20,21].
Groups were asked if they would collect ticks from targeted hosts, including companion animals, domestic livestock, and wildlife. To ease collector efforts, the Medical and Veterinary Entomology laboratory at the University of Tennessee Knoxville (UTK) assembled collection kits, each consisting of fifty 15-mL conical vials, each filled with 10 mL of 70% ethanol. Kits also included UTK Institutional Animal Care and Use Committee (IACUC) paperwork with a consent form containing collection and submission instructions, directions for sample labeling (e.g., county, date, host, at a minimum), worksheets to collect additional host information (e.g., age, breed, coat color, health status, etc.), and extra 70% ethanol. We then distributed collection kits to collaborators (those who agreed to collect) throughout Tennessee, with a focus on the eastern region of the state because of the proximity to established H. longicornis populations [21]. We contacted collaborators monthly to reinforce collection and submission efforts. Vials with collected ticks and accompanying worksheets were either picked up by the authors, the project team, or delivered by collaborators to the UTK campus for analysis. Tick collection protocols for the listed collaborators were approved by the UTK IACUC (#2192-0419, #2671-0211, and #0561-0814).
Once submissions arrived at UTK, project team members transferred specimens into new 80% ethanol vials to tentatively separate “suspected H. longicornis” and “non-H. longicornis” ticks pending preliminary analysis. Collected specimens were subsequently identified to species and life stage by means of specialized Haemaphysalis taxonomic materials [22] and general diagnostic keys associated with other tick species in the area [23,24,25,26,27,28]. The first H. longicornis collections for each infested county discovered were sent to the USDA-National Veterinary Services Laboratories (NVSL) in Ames, Iowa, for morphological confirmation, with requested additional notification of results to Tennessee Department of Agriculture and Health personnel.
After the NVSL had confirmed tentative identifications and returned the subject specimens to UTK, subsequent molecular diagnostic procedures were performed to genetically confirm identifications of those ticks by amplifying 16S ribosomal DNA (rDNA) and the cytochrome c oxidase 1 (cox-1) genes, as previously described for H. longicornis confirmation identification [29,30,31]. Additionally, verified specimens of H. longicornis were screened for animal-associated pathogens. Specifically, screening included Anaplasma and Ehrlichia via nested PCR amplification of the groEL genes [32], Babesia via nested PCR amplification of 18S rRNA [33], and Anaplasma and Theilieria via multiplex qPCR amplification of major surface protein 5 (msp5) and major piroplasm surface protein (mpsp), respectively [8]. Briefly, ticks were bisected longitudinally, and half of each specimen was saved as a voucher in a −20 °C freezer at UTK. Total DNA from the remaining half was extracted with the QIAamp 96 DNA QIAcube HT kit (QIAGEN, Hilden, Germany) and eluted in 200 µL AE buffer. All extracted DNA was stored at –20 °C until processed for species confirmation. For the identification of each tick (16S rDNA and cox-1) and the initial primary PCR reactions (groEL and 18S rRNA), a 20-μL reaction was mixed to include 2 μL eluted DNA, 10 μL of 2× DreamTaq HotStart Green PCR mix (ThermoFisher, Waltham, MA, USA), 0.25 µM each of forward and reverse primers, and 6 μL of nuclease-free water (Supplementary Material 1). The nested PCR for groEL and 18S rRNA was a 30-μL reaction of 2 μL primary reaction DNA, 15 μL of 2× DreamTaq HotStart Green PCR mix (ThermoFisher), 0.25 µM each of forward and reverse primers, and 11 μL of nuclease-free water (Supplementary Material 1). One positive control (previously positive tick with targeted DNA) and two negative controls (water and MasterMix without DNA, respectively) were used. For detection of A. marginale and T. orientalis Ikeda, we used a newly developed multiplex qPCR amplification of msp5 and mpsp [7,8]. If a tick was PCR positive (presence of band in a 1.5% agarose gel: 1 X TAE buffer with ethidium bromide for 2 h at 100 V), then that amplicon was bidirectionally sequenced at Eurofins Genomics (Louisville, KY, USA) using Sanger sequencing. Resulting sequences were cleaned and edited in BioEdit [34] and then compared to sequences deposited in GenBank as previously described [35].

3. Results

3.1. Network Submissions

A total of 1595 submissions was received from the network during the 12-month period (March 2019–February 2020), yielding 8057 ticks consisting of eight species: 3151 Ixodes scapularis Say, 2246 Amblyomma americanum L., 1730 Dermacentor variabilis (Say), 400 Rhipicephalus sanguineus Latreille, 190 A. maculatum Koch, 150 D. albipictus (Packard), 144 H. longicornis, and 46 H. leporispalustris Packard. Sample labeling data for each submitted vial (e.g., county, date, host at a minimum) were nearly complete for all of the submissions, but requested data on the additional worksheets associated with supplemental host information (e.g., age, breed, coat color, health status, etc.) were rarely completed. Only 15% of submissions did not have an associated collection date, 6% did not have an identified host, and 2% did not have an identified county locality. Of the 1595 submissions, only one submission did not have any identifying collection information (county, date, or host). Complete collection data were recorded for 17 of the 22 H. longicornis positive submissions, and five submissions with incomplete data were missing only the date of collection. Submissions arrived year-round, with peak times in the summer (May–August) and the fall (October–November), corresponding with the typical temporal activity peak for A. americanum, and the traditional white-tailed deer hunting season when many I. scapularis were collected, respectively (Figure 1).

3.2. Identification and Confirmation of Haemaphysalis longicornis

Through network partnerships, ticks were collected from 67 counties, and H. longicornis were identified in eight of the 95 total counties in Tennessee (Figure 2, Table 1). These eight counties included H. longicornis established (six or more specimens were identified) in Union, Roane, Jefferson, and Cocke Counties, and detected (a single life stage of less than six specimens were collected) in Knox, Claiborne, Putnam, and Sevier Counties (Figure 2). Personnel in the network collected and submitted a total of 144 H. longicornis, and all three life stages were represented (25 larvae, 69 nymphs, and 50 females). No male H. longicornis was collected and submitted in this study.
We deemed the first collection of the tick detected in each Tennessee county as most noteworthy, and each collection was documented by both morphological identification at the USDA-NVSL and molecular sequencing at UTK (Table 2). These 17 ticks were collected from dogs and submitted by animal shelters, collected from cattle by UTK students and staff at livestock markets, or collected from cattle by veterinarians and/or technicians within UTK College of Veterinary Medicine. Of the total 241 dog submissions, 13 (5.4%) vials contained H. longicornis, for a mean intensity (previously referred to as burden) of 6.9 H. longicornis per infested dog (range: 1–41). Six of 575 sampled cattle (1.04%) were infested with H. longicornis and had a mean intensity of 8.5 H. longicornis per infested cow (range: 1–41). We received a single H. longicornis from one sampled deer during this study, and this was on a Knox County fawn brought to UTK College of Veterinary Medicine in June 2019. Most of the sampled deer (88.7%) were examined during hunting season (November–December), when H. longicornis were either inactive or not collected and submitted. There was one deer found dead at a research and education center in Cumberland County that was highly infested with ticks; only the ears were searched, and a total of 795 A. americanum was collected and identified on this animal.
The 17 H. longicornis ticks initially collected from eight Tennessee counties (Table 2) were all confirmed morphologically at the NVSL, genetically identical to one another for both the 16S and cox-1 genes (sequences provided in Supplementary Material 2), and these sequences were also identical to sequences previously amplified from parthenogenetic tick populations from China and submitted to GenBank (16S accession no. MK49888, KX083342, and KP324925; and cox-1 accession no. MK439888, MF6668880). Importantly, sequences from these ticks were 100% identical to those of ticks collected from vegetation in New Jersey and Virginia, and identified by authors as cox-1 haplotype 2 (GenBank MT034061). The Tennessee specimens were also PCR negative for the genetic markers associated with Anaplasma marginale, Babesia spp., Ehrlichia spp., and Theileria orientalis.

4. Discussion

Data presented here provide a snapshot of collections made from March 2019 to February 2020, but the Tennessee tick-surveillance network is still actively collecting ticks. Although tick samples were submitted from every group within the tick collection network, H. longicornis ticks were identified from samples collected only by certain network partners. The most successful network collaborators tended to be those with a background in parasitology, including technicians at county rescue and animal shelters, veterinary medicine and laboratory technicians, and students directly involved in the project, as well as community scientists (Table 1). We suspect the varying rates of collection of H. longicornis and other ticks may derive from collection efforts limited by competing responsibilities and time available while handling each potential tick-infested animal. Although our study does not present data directly supporting this statement, we speculate that participants who collected many ticks and submitted numerous samples are likely to be those with a greater direct interest in the study [36], and that personnel working at animal shelters and community scientists had a greater interest in removing ticks from animals due to concerns about their animal’s health and welfare. Overall, the efforts of community scientists through passive surveillance, initial detections, and discoveries in our study align well with previously published literature [37,38,39].
Our access to animals sold at livestock markets resulted in the identification of H. longicornis from several counties because many producers will drive from different counties to sell animals at their preferred market. By searching animals at markets, we were able to collect H. longicornis and traceback the tick-infested cattle to owners, confirm H. longicornis-infested farms, and prevent those H. longicornis from moving onto additional farms. Importantly, through permission and conversation, we then earned trust with those producers who let us collect ticks from their properties to confirm H. longicornis populations at those sites and to evaluate the efficacy of available acaricides at killing field-collected H. longicornis nymphs in laboratory bioassays [40]. Tick surveillance and subsequent management efforts at livestock markets should be afforded a priority because these locations cohouse animals, allowing for comingling and interchange of animals from multiple farms, both tick-infested and tick-free (e.g., susceptible farm). Previous tick collection work at livestock markets indicated that animals sold at auctions were likely to have the greatest infestation prevalences of uncommon tick species and intensities of common tick species [41]. To our knowledge and according to the livestock market owners we worked with, animal owners do little (if any) pest management before, during, or after livestock sales. Herein, we identify this lack of pest management at livestock markets as a biosecurity threat to animal production.
Previous research identified dogs as excellent sentinels of human cases of tick-borne disease and as a predictor for tick distributions and range expansion [42,43,44,45,46,47,48,49,50]. Initial county detections of H. longicornis were largely traceable to animal shelters grooming tick-infested dogs (Table 2); thus, we propose dogs presenting to animal shelters can also help with future invasive-tick-species surveillance. After dogs in Union, Jefferson, and Claiborne Counties were identified as infested, we then observed that other animals (e.g., cattle) were identified in the same counties as infested shortly afterwards (approximately within the next two months). In addition, the H. longicornis-infested heifer from Roane County (Table 2) shared an environment with several farm dogs that were also infested with many H. longicornis. We recognize here that partnerships with animal shelters are extremely beneficial and should be included with all on-going tick surveillance efforts. Although the exact locations of where these animals are picked up may remain unknown, animal shelters still provide valuable general spatial (county-level) and temporal (date picked up) data for surveillance.
Our morphological and genetic confirmations of the 17 H. longicornis identifications are informative and allow for proper archiving of detections. Finding only a single mitochondrial genetic haplotype in Tennessee is notable because local H. longicornis cox-1 genes previously sequenced in the U.S. comprised at least three different haplotypes [51], and our finding of a single haplotype suggests that these Tennessee ticks are filial clones derived from a single introduction event. Additionally, the identical haplotypes in three disjunct populations (Tennessee, Virginia, and New Jersey) are notable because these haplotypes are common in nearby states with Theilieria-infected cattle [7,9,31,51]. Importantly and in hindsight, we should have digitally photographed samples and then deposited those confirmed collection records into a digital repository of physical samples (e.g., before mailing for confirmation, genetic analyses) [52]. Specimens are also accepted at the USDA-NVSL reference collection for permanent preservation. Archiving physical and digital specimens is especially important for new county records and should be standard procedure for future initial tick (and other vector) reports to preserve morphological features.
We collected 144 H. longicornis and screened 17 (females and nymphs) of these for evidence of various pathogens, but all of these tests were negative. Although this may seem an important result, the sample size is small, and the negative results do not prove an absence of pathogens in the study area. Conversely, if we had detected a pathogen in any of these samples, it would not prove transmission because all of these ticks were feeding on animal hosts that might have had pathogen-infected blood. Future efforts will be used to screen the rest of these ticks for potential pathogens.
The collection and identification of H. longicornis in multiple Tennessee counties highlights the success of this collaborative network in its goals. Remarkably, with a relatively minimal investment ($150,000), and in a short-time period, the statewide network was established by using already existing connections and resources. A majority of funding was used to provide supplies to connections, develop educational material, and hire students to assist with the project. With only a slightly larger investment in tick surveillance, we think that the network can be continued and expanded to include a more informative active-tick surveillance plan (e.g., environmental tick drags in known/unknown sites). Early detection is critical in preventing and controlling arthropod pests and vector-borne diseases in animals and humans. Unfortunately, due to many competing priorities, dedicated resources for this purpose have decreased across numerous states, potentially eroding their ability to quickly and accurately monitor both changes in vector populations and human/animal disease incidence. Nevertheless, based on the success of our passive surveillance efforts, we believe a sustained statewide coordinated network could be established to monitor the presence of ticks and associated zoonotic pathogens of public and animal health significance for a modest annual investment (approximately $200,000/year).
Employment of undergraduate students proved to be a broadly effective strategy because they had blocked hours available to do specific tasks; displayed a variety of tangential interests in the study (e.g., human and/or animal health, disease ecology, ecology, agriculture, science communication); gained an introduction to research and critical thinking (e.g., some students began undergraduate research projects with the network dataset); and some also felt a sense of duty in their work, with noticeable increases in confidence [53,54]. These outcomes mirror a similar experience with undergraduate students in a West Nile virus surveillance project in Montana, which not only provided learning opportunities for students, but also increased vector surveillance capacity [55]. Given that the University of Tennessee system has campuses, Extension offices, and research and education centers across the state, it is possible that vector surveillance can be broadened and expanded to incorporate additional undergraduate learning and internship opportunities.
Enhanced community and stakeholder awareness of H. longicornis (and other tick species) was an additional favorable outcome of this project. During the collection period, we were able to work with stakeholders and producers to help in making informed pest management decisions regarding their infested animals and properties.

5. Conclusions

Herein we report the results of a highly collaborative statewide tick-surveillance program in Tennessee. Our attempts to be inclusive and incorporate a number of agencies within the project showed us that including personnel trained in parasitology and engaging agencies with a direct connection to animal health and welfare provided the greatest likelihood of substantial tick submissions and of successfully collecting H. longicornis ticks, as indicated by higher rates of submissions and tick detections associated with those groups. Through employment of undergraduate students, we could work with producers at livestock markets, and animal shelters submitted many ticks, probably because we provided them with supplies and training and technicians were grooming animals. Additionally, by active engagement with multiple stakeholders, we gained recognition as a trusted resource and were then welcomed onto producer properties for additional collections and studies. Through this study, we detected the first collections of H. longicornis in one middle and several eastern Tennessee counties, and we built a cooperative network for statewide passive tick surveillance. These results will be important in monitoring and understanding the further dispersal of H. longicornis in Tennessee and in monitoring for incursions by other exotic and invasive tick species.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijerph18157980/s1, as well as www.tnticks.org. Supplementary Material 1; Table S1: Primers and thermal cycle conditions for amplifying genes used in the molecular identification of Haemaphysalis longicornis ticks and potential animal-associated pathogens. Supplementary Material 2; Table S2: Amplified genetic sequences from Haemaphysalis longicornis confirming their identification.

Author Contributions

Conceptualization, R.T.T.F.; methodology, R.T.T.F., D.N.V., R.A.B., D.J.P., J.G.C., M.P.W., H.M.W., J.J.S., R.W.G., D.M.G., J.Z.I., K.W.T., R.D.A., J.S., S.D., S.B., D.L.B., J.D.F.II, and K.L.; formal analysis, R.T.T.F., R.A.B., J.G.C., J.W.M.; resources, R.T.T.F., J.J.S., R.W.G., D.M.G., J.Z.I., K.W.T., R.D.A., J.J.S., S.D., S.B., D.B., J.D.F.II, K.L.; data curation, D.N.V., R.A.B., D.J.P., J.G.C., M.P.W.; writing—original draft preparation, R.T.T.F.; writing—review and editing, R.T.T.F., R.A.B., D.J.P., J.G.C., H.M.W., J.Z.I., J.W.M.; visualization, M.P.W.; project administration, R.T.T.F.; funding acquisition, R.T.T.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research and support for Butler, Vann, and the undergraduate students was funded by Foundation for Food and Agriculture Research (FFAR) under award number ROAR-0000000026. The content of this publication is solely the responsibility of the authors and does not necessarily represent the official views of the Foundation for Food and Agriculture Research. Additionally, this manuscript does not reflect the views of any government affiliation. Support for Trout Fryxell and Paulsen was provided by USDA National Institute of Food and Agriculture Multistate Hatch Projects S1076 (Fly management in animal and agriculture systems and impacts on animal health and food safety).

Institutional Review Board Statement

The study was conducted according to the guidelines of the University of Tennessee and approved by the Institutional Animal Care and Use Committee of University of Tennessee (protocol code (#2192-0419, #2671-0211, and #0561-0814).

Informed Consent Statement

Not applicable.

Data Availability Statement

Upon publication, data will be made available at our website (www.tnticks.org, accessed on 22 July 2021).

Acknowledgments

We want to acknowledge the many people who volunteered their time and energy into collecting and submitting ticks within this study. A snapshot of these people includes personnel working with county animal shelters (in Blount, Bradley, Campbell, Claiborne, Dyer, Fayette, Hawkins, Jefferson, Loudon, McMinn, Monroe, Roane, Union, Washington, White, Williamson Counties), city animal shelters (in Athens, Cookeville-Putnam, Oak Ridge, Elizabeth-Carter, Greenville, McKarney, Memphis, Morristown-Hamblen, Mt. Juliet), animal rescue centers (Companion Animal Rescue, Friends Animal Shelter, Pig Preserve), and UT Research and Education Centers (Middle Tennessee, Ames, Plateau). We also want to thank the UT Extension agents (Barron, Rose, Bell, Deist, Webb, Barker, Hicks, Hester, Correll, DeBusk, Wilson, Orr, Goddard, Wilkenson, Whitehouse, DeWitt, Hargrove, Neal, Mobley, Mallard, Scott, Mathenia, Leigh, and Muller) for circulating our invitation to collect ticks to the general public. Graduate students Davis and Rowe, as well as undergraduate students Rogers, Arzillo, Baker, O’Malley, Vollmer, Baxter, Hokkanen, Boback, Miller, Noh, and Riadigos, assisted with collections and identifications. Michelle Todd, with Virginia Tech Animal Laboratory Services and Department of Biomedical Sciences and Pathobiology, was instrumental in testing for Anaplasma marginale and Theileria orientalis. We want to also acknowledge the additional conversations and feedback with Moncayo, Beard, Krause, Olafson, and Scoles.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Beard, C.B.; Occi, J.; Bonilla, D.L.; Egizi, A.M.; Fonseca, D.M.; Mertins, J.W.; Bryon, P.; Backenson, M.S.; Bajwa, W.I.; Barbarin, A.M.; et al. Multistate infestation with the exotic disease-vector tick Haemaphysalis longicornis—United States, August 2017–September 2018. Morb. Mortal. Wkly. Rep. 2018, 67, 1310–1313. [Google Scholar] [CrossRef] [Green Version]
  2. USDA-APHIS. National Haemaphysalis longicornis (Asian Longhorned Tick) Situation Report. Available online: https://www.aphis.usda.gov/animal_health/animal_diseases/tick/downloads/longhorned-tick-sitrep.pdf (accessed on 24 May 2021).
  3. Heath, A.C.G. Biology, ecology and distribution of the tick, Haemaphysalis longicornis Neumann (Acari: Ixodidae) in New Zealand. N. Z. Vet. J. 2016, 64, 10–20. [Google Scholar] [CrossRef] [PubMed]
  4. Rainey, T.; Occi, J.L.; Robbins, R.G.; Egizi, A. Discovery of Haemaphysalis longicornis (Ixodida: Ixodidae) parasitizing a sheep in New Jersey, United States. J. Med. Entomol. 2018, 55, 757–759. [Google Scholar] [CrossRef] [PubMed]
  5. Neilson, F.J.A.; Mossman, D.H. Anaemia and deaths in red deer (Cervus elaphus) fawns associated with heavy infestations of cattle tick (Haemaphysalis longicornis). N. Z. Vet. J. 1982, 30, 125–126. [Google Scholar] [CrossRef] [PubMed]
  6. USDA-APHIS. Monitoring Haemaphysalis longicornis, the Asian Longhorned Tick, Populations in the United States. Available online: https://www.aphis.usda.gov/animal_health/animal_diseases/tick/downloads/h-longicornis-response-plan_usda.pdf (accessed on 3 January 2019).
  7. Oakes, V.J.; Yabsley, M.J.; Schwartz, D.; LeRoith, T.; Bissett, C.; Broaddus, C.; Schlater, J.L.; Todd, S.M.; Boes, K.M.; Brookhart, M.; et al. Theileria orientalis Ikeda genotype in cattle, Virginia, USA. Emerg. Infect. Dis. 2019, 25, 1653–1659. [Google Scholar] [CrossRef] [Green Version]
  8. Oakes, V.J.; Todd, S.M.; Carbonello, A.A.; Michalak, P.; Kevin, K.K. Co-infection of cattle in Virginia with Theileria orientalis Ikeda genotype and Anaplasma marginale. bioRxiv 2021. [Google Scholar] [CrossRef]
  9. Thompson, A.T.; White, S.; Shaw, D.; Egizi, A.; Lahmers, K.; Ruder, M.G.; Yabsley, M.J. Theileria orientalis Ikeda in host-seeking Haemaphysalis longicornis in Virginia, U.S.A. Ticks Tick-Borne Dis. 2020, 11, 101450. [Google Scholar] [CrossRef] [PubMed]
  10. Dinkel, K.D.; Herndon, D.R.; Noh, S.M.; Lahmers, K.K.; Todd, S.M.; Ueti, M.W.; Scoles, G.A.; Mason, K.L.; Fry, L.M. A U.S. isolate of Theileria orientalis, Ikeda genotype, is transmitted to cattle by the invasive Asian longhorned tick, Haemaphysalis longicornis. Parasites Vectors 2021, 14, 157. [Google Scholar] [CrossRef]
  11. Hoogstraal, H.; Roberts, F.H.S.; Kohls, G.M.; Tipton, V.J. Review of Haemaphysalis (Kaiseriana) longicornis Neumann (resurrected) of Australia, New Zealand, New Caledonia, Fiji, Japan, Korea, and northeastern China and USSR, and its parthenogenetic and bisexual populations (Ixodoidea, Ixodidae). J. Parasitol. 1968, 54, 1197–1213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Tufts, D.M.; Van Acker, M.C.; Fernandez, M.P.; DeNicola, A.; Egizi, A.; Diuk-Wasser, M.A. Distribution, host-seeking phenology, and host and habitat associations of Haemaphysalis longicornis ticks, Staten Island, New York, USA. Emerg. Infect. Dis. 2019, 25, 792–796. [Google Scholar] [CrossRef] [Green Version]
  13. White, S.A.; Bevins, S.N.; Ruder, M.G.; Shaw, D.; Vigil, S.L.; Randall, A.; Deliberto, T.J.; Dominguez, K.; Thompson, A.T.; Mertins, J.W.; et al. Surveys for ticks on wildlife hosts and in the environment at Asian longhorned tick (Haemaphysalis longicornis)-positive sites in Virginia and New Jersey, 2018. Transbound. Emerg. Dis. 2021, 68, 605–614. [Google Scholar] [CrossRef]
  14. Rochlin, I. Modeling the Asian longhorned tick (Acari: Ixodidae) suitable habitat in North America. J. Med. Entomol. 2019, 56, 384–391. [Google Scholar] [CrossRef]
  15. Raghavan, R.K.; Barker, S.C.; Cobos, M.E.; Barker, D.; Teo, E.J.M.; Foley, D.H.; Nakao, R.; Lawrence, K.; Heath, A.C.G.; Peterson, A.T. Potential spatial distribution of the newly introduced long-horned tick, Haemaphysalis longicornis in North America. Sci. Rep. 2019, 9, 498. [Google Scholar] [CrossRef] [PubMed]
  16. Price, K.J.; Witmier, B.J.; Eckert, R.A.; Boyer, C.N.; Helwig, M.W.; Kyle, A.D. Distribution and density of Haemaphysalis longicornis (Acari: Ixodidae) on public lands in Pennsylvania, United States. J. Med. Entomol. 2021, 58, 1433–1438. [Google Scholar] [CrossRef] [PubMed]
  17. Grove, D.; Trout Fryxell, R.T.; Hickling, G.; Vail, K.; Ivey, J. Asian Longhorned Tick. Available online: https://extension.tennessee.edu/publications/Documents/W826.pdf (accessed on 24 May 2021).
  18. Willis, M.; Trout Fryxell, R.T.; Grove, D. Asian Longhorned Tick- Infographic. Available online: https://extension.tennessee.edu/publications/Documents/SP824A.pdf (accessed on 24 May 2021).
  19. Willis, M.; Trout Fryxell, R.T.; Grove, D. Asian Longhorned Tick- Poster. Available online: https://extension.tennessee.edu/publications/Documents/SP824B.pdf (accessed on 24 May 2021).
  20. Rotman, D.; Preece, J.; Hammock, J.; Procita, K.; Hansen, D.; Parr, C.; Lewis, D.; Jacobs, D. Dynamic changes in motivation in collaborative citizen-science projects. In Proceedings of the ACM Conference on Computer Supported Cooperative Work (CSCW ’12), Seattle, WA, USA, 11–15 February 2012; Association for Computing Macinery: New York, NY, USA, 2012; pp. 217–226. [Google Scholar]
  21. Trout Fryxell, R.T.; Vogt, J.T. Collaborative-tick surveillance works: An academic and government partnership for tick surveillance in the southeastern United States (Acari: Ixodidae). J. Med. Entomol. 2019, 56, 1411–1419. [Google Scholar] [CrossRef] [PubMed]
  22. Egizi, A.M.; Robbins, R.G.; Beati, L.; Nava, S.; Evans, C.R.; Occi, J.L.; Fonseca, D.M. A pictorial key to differentiate the recently detected exotic Haemaphysalis longicornis Neumann, 1901 (Acari, Ixodidae) from native congeners in North America. ZooKeys 2019, 818, 117–128. [Google Scholar] [CrossRef] [Green Version]
  23. Cooley, R.A.; Kohls, G.M. The genus Ixodes in North America. Nat. Inst. Health Bull. 1945, 184, 1–246. [Google Scholar]
  24. Clifford, C.M.; Anastos, G.; Elbl, A. The larval ixodid ticks of the eastern United States (Acarina-Ixodidae). Misc. Publ. Entomol. Soc. Am. 1961, 2, 215–237. [Google Scholar]
  25. Keirans, J.E.; Litwak, T.R. Pictorial key to the adults of hard ticks, family Ixodidae (Ixodida: Ixodoidea), east of the Mississippi River. J. Med. Entomol. 1989, 26, 435–448. [Google Scholar] [CrossRef]
  26. Durden, L.A.; Keirans, J.E. Nymphs of the Genus Ixodes (Acari: Ixodidae) of the United States: Taxonomy, Identification Key, Distribution Hosts, and Medical/Veterinary Importance; Entomological Society of America: Lanham, MD, USA, 1996. [Google Scholar]
  27. Keirans, J.E.; Durden, L.A. Illustrated key to nymphs of the tick genus Amblyomma (Acari: Ixodidae) found in the United States. J. Med. Entomol. 1998, 35, 489–495. [Google Scholar] [CrossRef]
  28. Nava, S.; Beati, L.; Labruna, M.B.; Cáceres, A.G.; Mangold, A.J.; Guglielmone, A.A. Reassessment of the taxonomic status of Amblyomma cajennense (Fabricius, 1787) with the description of three new species, Amblyomma tonelliae n. sp., Amblyomma interandinum n. sp. and Amblyomma patinoi n. sp., and reinstatement of Amblyomma mixtum Koch, 1844, and Amblyomma sculptum, Berlese 1888 (Ixodida: Ixodidae). Ticks Tick-Borne. Dis. 2014, 5, 252–276. [Google Scholar] [CrossRef]
  29. Lv, J.; Wu, S.; Zhang, Y.; Chen, Y.; Feng, C.; Yuan, X.; Jia, G.; Deng, J.; Wang, C.; Wang, Q.; et al. Assessment of four DNA fragments (COI, 16S rDNA, ITS2, 12S rDNA) for species identification of the Ixodida (Acari: Ixodida). Parasites Vectors 2014, 7, 93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Chitimia, L.; Lin, R.-Q.; Cosoroaba, I.; Wu, X.-Y.; Song, H.-Q.; Yuan, Z.-G.; Zhu, X.-Q. Genetic characterization of ticks from southwestern Romania by sequences of mitochondrial cox1 and nad5 genes. Exp. Appl. Acarol. 2010, 52, 305–311. [Google Scholar] [CrossRef] [PubMed]
  31. Thompson, A.T.; Dominguez, K.; Cleveland, C.A.; Dergousoff, S.J.; Doi, K.; Falco, R.C.; Greay, T.; Irwin, P.; Lindsay, L.R.; Liu, J.; et al. Molecular characterization of Haemaphysalis species and a molecular genetic key for the identification of Haemaphysalis of North America. Front. Vet. Sci. 2020, 7, 141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Tabara, K.; Arai, S.; Kawabuchi, T.; Itagaki, A.; Ishihara, C.; Satoh, H.; Okabe, N.; Tsuji, M. Molecular survey of Babesia microti, Ehrlichia species and Candidatus Neoehrlichia mikurensis in wild rodents from Shimane Prefecture, Japan. Microbiol. Immunol. 2007, 51, 359–367. [Google Scholar] [CrossRef]
  33. Ueti, M.W.; Olafson, P.U.; Freeman, J.M.; Johnson, W.C.; Scoles, G.A. A virulent Babesia bovis strain failed to infect white-tailed deer (Odocoileus virginianus). PLoS ONE 2015, 10, e0131018. [Google Scholar] [CrossRef] [Green Version]
  34. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar]
  35. Trout Fryxell, R.T.; Hendricks, B.M.; Pompo, K.; Mays, S.E.; Paulsen, D.J.; Operario, D.J.; Houston, A.E. Investigating the adult ixodid tick populations and their associated Anaplasma, Ehrlichia, and Rickettsia bacteria at a Rocky Mountain spotted fever hotspot in western Tennessee. Vector-Borne Zoonotic Dis. 2017, 17, 527–538. [Google Scholar] [CrossRef]
  36. Conrad, C.C.; Hilchey, K.G. A review of citizen science and community-based environmental monitoring: Issues and opportunities. Environ. Monit. Assess. 2011, 176, 273–291. [Google Scholar] [CrossRef] [PubMed]
  37. Mader, E.M.; Ganser, C.; Geiger, A.; Harrington, L.C.; Foley, J.; Smith, R.L.; Mateus-Pinilla, N.; Teel, P.D.; Eisen, R.J. A survey of tick surveillance and control practices in the United States. J. Med. Entomol. 2021, in press. [Google Scholar] [CrossRef] [PubMed]
  38. Eisen, L.; Eisen, R.J. Benefits and drawbacks of citizen science to complement traditional data gathering approaches for medically important hard ticks (Acari: Ixodidae) in the United States. J. Med. Entomol. 2021, 58, 1–9. [Google Scholar] [CrossRef]
  39. Bron, G.M.; Fernandez, M.D.P.; Bartholomay, L.C.; Diuk-Wasser, M.A.; Paskewitz, S.M.; Tsao, J.I. Comment on Eisen and Eisen (2020) ‘Benefits and drawbacks of citizen science to complement traditional data gathering approaches for medically important hard ticks (Acari: Ixodidae) in the United States’ regarding the Tick App and research-based citizens. J. Med. Entomol. 2021, 58, 991–993. [Google Scholar] [CrossRef] [PubMed]
  40. Butler, R.A.; Chandler, J.G.; Vail, K.M.; Holderman, C.J.; Trout Fryxell, R.T. Spray and pour-on acaricides killed Tennessee (United States) field-collected Haemaphysalis longicornis nymphs (Acari: Ixodidae) in laboratory bioassays. J. Med. Entomol. 2021, 1–5. [Google Scholar] [CrossRef]
  41. Theuret, D.P.; Trout Fryxell, R.T. Beefing up biosecurity: Survey of ticks (Acari: Ixodidae) currently threatening the Tennessee beef cattle industry, and a proposed monitoring strategy for invasive ticks. J. Med. Entomol. 2018, 55, 1517–1526. [Google Scholar] [CrossRef]
  42. Hamer, S.A.; Tsao, J.I.; Walker, E.D.; Mansfield, L.S.; Foster, E.S.; Hickling, G.J. Use of tick surveys and serosurveys to evaluate pet dogs as a sentinel species for emerging Lyme disease. Am. J. Vet. Res. 2009, 70, 49–56. [Google Scholar] [CrossRef] [Green Version]
  43. Dewage, B.G.; Little, S.; Payton, M.; Beall, M.; Braff, J.; Szlosek, D.; Buch, J.; Knupp, A. Trends in canine seroprevalence to Borrelia burgdorferi and Anaplasma spp. in the eastern USA, 2010-2017. Parasites Vectors 2019, 12, 476. [Google Scholar] [CrossRef] [Green Version]
  44. Stich, R.W.; Blagburn, B.L.; Bowman, D.D.; Carpenter, C.; Cortinas, M.R.; Ewing, S.A.; Foley, D.; Foley, J.E.; Gaff, H.; Hickling, G.J.; et al. Quantitative factors proposed to influence the prevalence of canine tick-borne disease agents in the United States. Parasites Vectors 2014, 7, 417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Labruna, M.B.; McBride, J.W.; Camargo, L.M.A.; Aguiar, D.M.; Yabsley, M.J.; Davidson, W.R.; Stromdahl, E.Y.; Williamson, P.C.; Stich, R.W.; Long, S.W.; et al. A preliminary investigation of Ehrlichia species in ticks, humans, dogs, and capybaras from Brazil. Vet. Parasitol. 2007, 143, 189–195. [Google Scholar] [CrossRef]
  46. Self, S.C.W.; Liu, Y.; Nordone, S.K.; Yabsley, M.J.; Walden, H.S.; Lund, R.B.; Bowman, D.D.; Carpenter, C.; McMahan, C.S.; Gettings, J.R. Canine vector-borne disease: Mapping and the accuracy of forecasting using big data from the veterinary community. Anim. Health Res. Rev. 2019, 20, 47–60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Liu, Y.; Nordone, S.K.; Yabsley, M.J.; Lund, R.B.; McMahan, C.S.; Gettings, J.R. Quantifying the relationship between human Lyme disease and Borrelia burgdorferi exposure in domestic dogs. Geospat. Health 2019, 14, 750. [Google Scholar] [CrossRef] [PubMed]
  48. Saleh, M.N.; Sundstrom, K.D.; Duncan, K.T.; Ientile, M.M.; Jordy, J.; Ghosh, P.; Little, S.E. Show us your ticks: A survey of ticks infesting dogs and cats across the USA. Parasites Vectors 2019, 12, 595. [Google Scholar] [CrossRef] [PubMed]
  49. Trout Fryxell, R.T.; Steelman, C.D.; Szalanski, A.L.; Kvamme, K.L.; Billingsley, P.M.; Williamson, P.C. Survey of Borreliae in ticks, canines, and white-tailed deer from Arkansas, U.S.A. Parasit. Vectors 2012, 5, 139. [Google Scholar] [CrossRef] [Green Version]
  50. Trout, R.T.; Steelman, C.D. Ticks (Acari: Ixodidae) parasitizing canines and deer in Arkansas. J. Entomol. Sci. 2010, 45, 140–149. [Google Scholar] [CrossRef] [Green Version]
  51. Egizi, A.; Bulaga-Seraphin, L.; Alt, E.; Bajwa, W.I.; Bernick, J.; Bickerton, M.; Campbell, S.R.; Connally, N.; Doi, K.; Falco, R.C.; et al. First glimpse into the origin and spread of the Asian longhorned tick, Haemaphysalis longicornis, in the United States. Zoonoses Public Health 2020, 67, 637–650. [Google Scholar] [CrossRef]
  52. Devaraju, A.; Klump, J.; Tey, V.; Fraser, R.; Cox, S.; Wyborn, L. A digital repository for physical samples: Concepts, solutions and management. In Research and Advanced Technology for Digital Libraries; Kamps, J., Tsakonas, G., Manolopoulas, Y., Iliadis, L., Karydis, I., Eds.; Springer: Cham, Switzerland, 2017; pp. 74–85. [Google Scholar] [CrossRef]
  53. Petrella, J.K.; Jung, A.P. Undergraduate research: Importance, benefits, and challenges. Int. J. Exerc. Sci. 2008, 1, 91–95. [Google Scholar] [PubMed]
  54. Poh, K.C.; Tiffin, H.S.; Evans, J.R.; Brown, J.E.; Skvarla, M.J.; Machtinger, E.T. Tales from the field: Training undergraduate researchers for fieldwork. Am. Entomol. 2021, 67, 26–30. [Google Scholar] [CrossRef]
  55. Hokit, G.; Alvey, S.; Geiger, J.M.O.; Johnson, G.D.; Rolston, M.G.; Kinsey, D.T.; Tall Bear, N. Using undergraduate researchers to build vector and West Nile virus surveillance capacity. Int. J. Environ. Res. Public Health 2013, 10, 3192–3202. [Google Scholar] [CrossRef] [PubMed] [Green Version]

Short Biography of Author

Trout Fryxell is an Associate Professor of Medical and Veterinary Entomology in the Department of Entomology and Plant Pathology at the University of Tennessee. Her research program is focused on improving human and animal health and welfare by reducing the direct and indirect damage caused by arthropods such as mosquitoes, ticks, and flies.
Ijerph 18 07980 g001 550

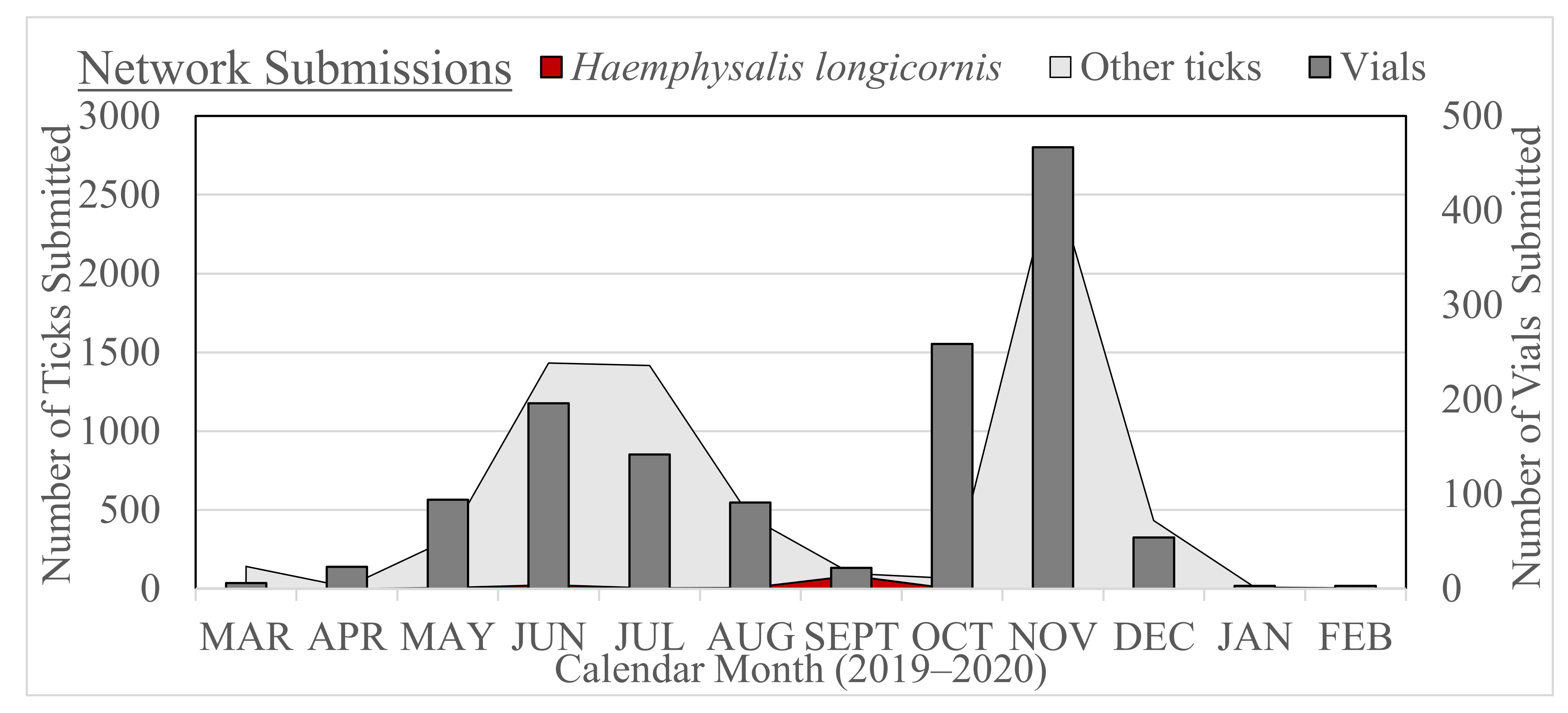

Figure 1. Seasonal distribution of Haemaphysalis longicornis (red) and other ticks (light gray) received at University of Tennessee from statewide cooperating network collectors (dark gray), 2019–2020.
Figure 1. Seasonal distribution of Haemaphysalis longicornis (red) and other ticks (light gray) received at University of Tennessee from statewide cooperating network collectors (dark gray), 2019–2020.
Ijerph 18 07980 g001
Ijerph 18 07980 g002 550

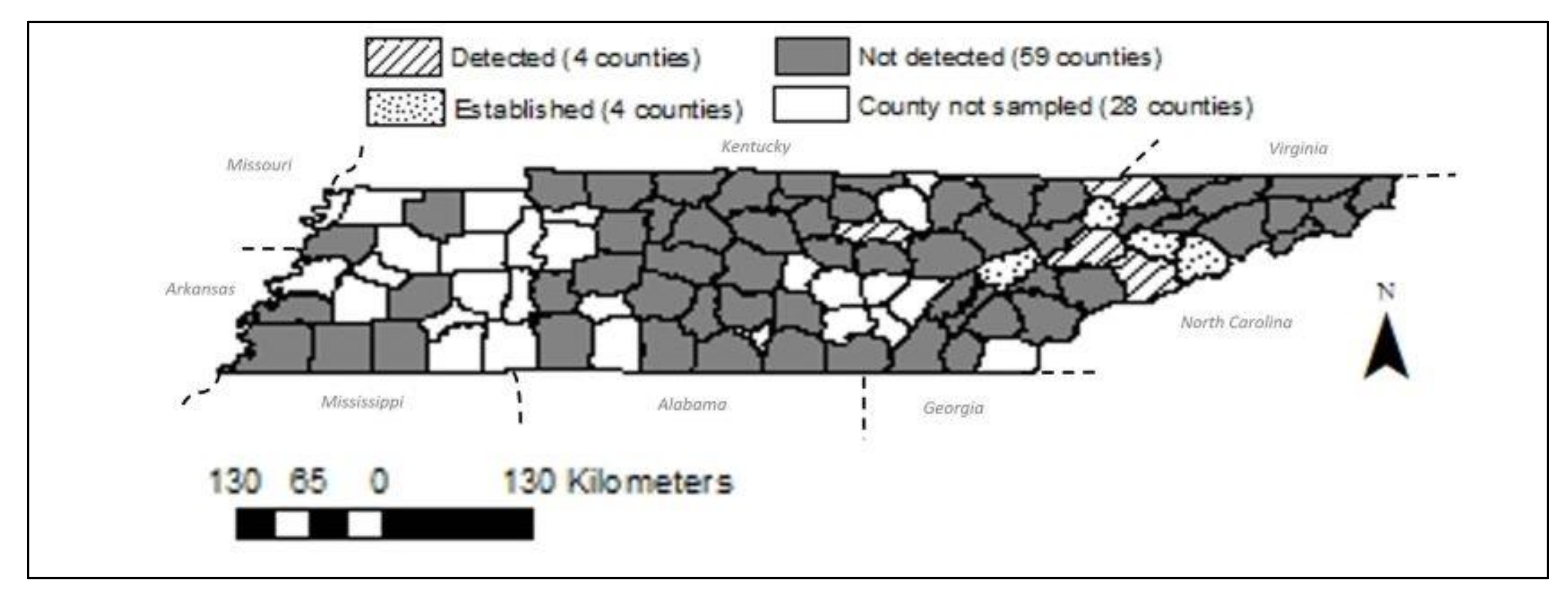

Figure 2. Known occurrence of Haemaphysalis longicornis in Tennessee, USA, as determined from samples submitted to the University of Tennessee by a cooperating statewide network of collectors, 2019–2020. We successfully reached 67 counties (gray) of the 95 counties in Tennessee and were able to identify established Haemaphysalis longicornis populations in Union, Roane, Jefferson, and Cocke Counties (dotted) and detect populations in Knox, Claiborne, Putnam, and Sevier Counties (striped) within this study period.
Figure 2. Known occurrence of Haemaphysalis longicornis in Tennessee, USA, as determined from samples submitted to the University of Tennessee by a cooperating statewide network of collectors, 2019–2020. We successfully reached 67 counties (gray) of the 95 counties in Tennessee and were able to identify established Haemaphysalis longicornis populations in Union, Roane, Jefferson, and Cocke Counties (dotted) and detect populations in Knox, Claiborne, Putnam, and Sevier Counties (striped) within this study period.
Ijerph 18 07980 g002
Table
Table 1. Summary of tick collections submitted by cooperating stakeholder groups in Tennessee, USA, March 2019–February 2020.
Table 1. Summary of tick collections submitted by cooperating stakeholder groups in Tennessee, USA, March 2019–February 2020.
Network CollectorNo. of Vials
Submitted		All Tick Statistics (Per Submission)No. of Haemaphysalis longicornis Individuals
(No. Vials with H. longicornis)
Mean ± SEMedian
(Mode)		Range
Collections made by Cooperative Stakeholders
County Animal Shelters
(companion animals)		4686.03 ± 0.7871 (1)0–22270 (11)
Univ. Tennessee Extension Agents311.19 ± 0.0971 (1)0–30 (0)
Univ. Tennessee Research & Education Centers 1762.81 ± 0.3462 (1)1–140 (0)
Univ. Tennessee Veterinary Medicine183.17 ± 0.7931.5 (1)1–138 (4)
Tennessee Wildlife Resources Agency (TWRA)3748.24 ± 0.6733 (0)0–800 (0)
Tennessee Department of Agriculture217.10 ± 4.3173 (1)1–930 (0)
Public (community scientists)83.38 ± 1.5231.5 (1)0–1321 (3)
U.S. Department of Agriculture, Animal & Plant Health Inspection Service–Wildlife Services365.58 ± 0.8744 (2)1–190 (0)
Undergraduates hired by Univ. Tennessee Medical and Veterinary Entomology laboratory
Collections from Livestock Markets4920.63 ± 0.2220 (0)0–9045 (4)
Collections from Companion Animals263.81 ± 0.8721.5 (1)1–190 (0)
Wildlife Trapping with TWRA446.02 ± 1.9132 (1)0–800 (0)
Total15944.56 ± 0.3091 (0)0–222144 (22)
1 1 deer was recovered with 795 ticks on its ears, and all were Amblyomma americanum; data were included in text body but not this table.
Table
Table 2. Chronological summary of stakeholder submissions of first collection records for Haemaphysalis longicornis ticks originating in eight counties of middle and eastern Tennessee, 2019–2020. Bisected specimens are retained as vouchers at the University of Tennessee Medical and Veterinary Entomology laboratory.
Table 2. Chronological summary of stakeholder submissions of first collection records for Haemaphysalis longicornis ticks originating in eight counties of middle and eastern Tennessee, 2019–2020. Bisected specimens are retained as vouchers at the University of Tennessee Medical and Veterinary Entomology laboratory.
CountyDateHostNumber
(Life Stage)		Collection SiteUSDA-NVSL 1
Accession No.
Union13 Maydog2 (nymphs)animal shelter19-015117
Roane22 Maycattle (heifer)5 (females) Univ. Tennessee Veterinary Medicine 19-015663
Knox7 Junecattle (bull)1 (female) Univ. Tennessee Veterinary Medicine 19-017385
Jefferson19 Julydog2 (females)animal shelter19-021846
Claiborne29 July2 dogs1 (female)
1 (female)		animal shelter19-027808
19-027809
Putnam17 Augustdog3 (females)animal shelter19-029860
Cocke31 Augustcattle (heifer)1 (female)livestock market19-027810
Sevier31 Augustcattle (heifer)1 (nymph)livestock market19-027811
1 U.S. Department of Agriculture, National Veterinary Services Laboratories.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Trout Fryxell, R.T.; Vann, D.N.; Butler, R.A.; Paulsen, D.J.; Chandler, J.G.; Willis, M.P.; Wyrosdick, H.M.; Schaefer, J.J.; Gerhold, R.W.; Grove, D.M.; et al. Rapid Discovery and Detection of Haemaphysalis longicornis through the Use of Passive Surveillance and Collaboration: Building a State Tick-Surveillance Network. Int. J. Environ. Res. Public Health 2021, 18, 7980. https://doi.org/10.3390/ijerph18157980

AMA Style

Trout Fryxell RT, Vann DN, Butler RA, Paulsen DJ, Chandler JG, Willis MP, Wyrosdick HM, Schaefer JJ, Gerhold RW, Grove DM, et al. Rapid Discovery and Detection of Haemaphysalis longicornis through the Use of Passive Surveillance and Collaboration: Building a State Tick-Surveillance Network. International Journal of Environmental Research and Public Health. 2021; 18(15):7980. https://doi.org/10.3390/ijerph18157980

Chicago/Turabian Style

Trout Fryxell, Rebecca T., Dené N. Vann, Rebecca A. Butler, Dave J. Paulsen, Jennifer G. Chandler, Micah P. Willis, Heidi M. Wyrosdick, John J. Schaefer, Richard W. Gerhold, Daniel M. Grove, and et al. 2021. "Rapid Discovery and Detection of Haemaphysalis longicornis through the Use of Passive Surveillance and Collaboration: Building a State Tick-Surveillance Network" International Journal of Environmental Research and Public Health 18, no. 15: 7980. https://doi.org/10.3390/ijerph18157980

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
