Int. J. Environ. Res. Public Health 2018, 15(1), 56; doi:10.3390/ijerph15010056

Article
The Development Evaluation of Economic Zones in China
1
Zhongshan Institute, University of Electronic Science and Technology of China, Zhongshan 528402, China
2
School of Economics and Management, Harbin Institute of Technology, Weihai 264209, China
3
Department of Urban Planning, University of Sydney, Sydney 2006, Australia
4
School of Economics and Management, Shanghai Institute of Technology, Shanghai 201418, China
*
Authors to whom correspondence should be addressed.
Received: 19 September 2017 / Accepted: 15 November 2017 / Published: 2 January 2018

Abstract

:
After the Chinese reform and opening up, the construction of economic zones, such as Special Economic Zones, Hi-tech Zones and Bonded Zones, has played an irreplaceable role in China’s economic development. Currently, against the background of Chinese economic transition, research on development evaluation of economic zones has become popular and necessary. Similar research usually focuses on one specific field, and the methods that are used to evaluate it are simple. This research aims to analyse the development evaluation of zones by synthesis. A new hybrid multiple criteria decision making (MCDM) model that combines the DEMATEL technique and the DANP method is proposed. After establishing the evaluation criterion system and acquiring data, the influential weights of dimensions and criteria can be calculated, which will be a guide for forming measures of development. Shandong Peninsula Blue Economic Zone is used in the empirical case analysis. The results show that Transportation Conditions, Industrial Structure and Business Climate are the main influencing criteria and measures based on these criteria are proposed.
Keywords:
economic zones; MCDM model; DANP method; sustainable economic; sustainability

1. Introduction

As the originator of the world’s economic zones, Leghoyn Freeport of Genoa Bay in Italy, which was founded in 1547, guided the development of the region’s economics. However, more and more countries (or regions) have had their own booming economic zones since “Silicon Valley” was founded by Stanford University in 1951. From this period, with the rapid development of science and technology, economic integration and marketization level improvement, the market competition is becoming more intense. Economic zones have received considerable attention [1]. There is no doubt that economic zones will play an irreplaceable role in economic development.
Until now, the concept of economic zones has not been specific or standardized. The classification and interpretation of economic zones in different countries are not the same. German economist Zimmert summed up seven kinds of economic zones: the Bonded Zone, the Free Zone, the Foreign Trade Zone, the Export Processing Zone, the Special Economic Zone, the Enterprise Zone and the Bank-Free Zone [2]. In China, economic zones usually refer to a region associated with technological and economic development that accumulates a number of research institutes and industrial enterprises and forms a regional economic model of synchronous development of education, technology and economy [3]. Since its reform and opening up, China has built up a variety of economic zones, such as Special Economic Zones (SEZs), Hi-tech Zones, Economic and Technological Development Zones, Bonded Zones, etc. They have all contributed to the rapid development of China’s economy [4]. With the completion of the Blue Economic Zones in 2009 and the China (Shanghai) Pilot Free Trade Zone in 2013, China focused on the marine economy and comprehensive economic aggregates to guide economic development in the transition period. Furthermore, they have become the core power of economic development in the new period.
However, with the accelerating pace of economic globalization and the further deepening of China’s reform and opening up, China’s economic zones undertake an important responsibility and face huge pressures from external and internal directions [5,6]. Transformation and selecting the development direction of economic zones is also difficult. Therefore, it is particularly important to establish a scientific and effective evaluation method for economic zones. This will not only help the government accurately grasp the stage of economic zones and coordinate the national economy, but also to guide the prompt adjustment of development strategies for economic zones according to their status quo and utilize the actual characteristics of different economic zones in order to maximize development benefits [7,8].
This study aims to analyse the development evaluation of economic zones. A new hybrid MCDM Model that combines DEMATEL and DEMATEL-based ANP (DANP) is used in this research [9]. In this model, a scientific evaluation criterion system is established, first by representative dimensions and criteria, which influence the development of economic zones [10]. Then, the DEMATEL is used to build an influential network relations map (INRM). After that, the DEMATEL is combined with the Analytic Network Process (ANP) method to form DANP to obtain influential weights for each dimension and criterion in the evaluation structure [11,12]. Therefore, based on this method, it is helpful to handle the complex interactions and interdependencies among dimensions and criteria to make measures of development of economic zones.
The remainder of this paper is organized as follows: the next section reviews the literature on regional development evaluation and describes different evaluation methods. Section 3 illustrates the research methods. Section 4 provides an empirical case analysis that selects the Shandong Peninsula Blue Economic Zone for the case and discusses the results. Section 5 draws the conclusions.

2. Literature Review

2.1. Economic Zone System in China

An economic zone is the type of community system with a comprehensive development of economy, environment and technology. Economic zones not only have their own structure, but also reflect the developing functions in the continuing process of interactive influence with the external environment. Basically, the economic zone system is divided into three components: organization, operation and support. Organization refers to the management agency with decision-making, consulting, implementation and monitoring functions and business agency with developing, production and marketing functions. Operation refers to the mode and mechanism of various departments and enterprises. Support refers to the infrastructure construction and social integrated service system in the zones such as business, taxation, finance and insurance. The environment is an important factor for maintaining and ensuring the development of the system. The external environment of economic zones, referring to all the external factors and conditions that can have an effect and influence on the system, generally includes political, economic, cultural and ecological conditions from the regional, national and international levels. Thus, as a kind of economic system with specific structure, economic zone system reflects its economic, environmental and technological functions via input-output form, which transfer intelligence, money and other resources into the developing outcomes of economy, society and technology [5,6].

2.2. Literature Review

Many researchers have studied regional development evaluation in recent decades. Taken together, this research shows a dynamic development process. The methods of evaluation are different in different countries and regions in different stages of development [13,14,15].
Among the analytical methods, the two main aspects are qualitative analysis and quantitative analysis [16]. Qualitative analysis was often used in the early stages. The most classic research example is the work of Rodgers and Larson, which evaluated the development of Silicon Valley using a qualitative analysis of the history of development, venture capital, technical innovation, corporate networks and aspects of lifestyle to reveal the “agglomeration economies” condition of the formation of Silicon Valley [17]. Although this method of qualitative analysis is very difficult for development zones to make a comprehensive, scientific and objective evaluation, it has been made a milestone by creating the precedent for comprehensive evaluation.
After turning to quantitative methods, the scientific soundness and accuracy of research improved significantly. The research was reflected by building evaluation index systems to evaluate economic zones. In some outstanding economic zones, governments set up official evaluation index systems for reference. In 1995, Joint Venture Silicon Valley first published the “Index of Silicon Valley” as a comprehensive regional development evaluation report. Five main indexes, including talent, economy, society, environment and government, were used as the dimensions [18,19]. The Ministry of Science and Technology of China set up the indexes of China’s science and technology zones in three times. Technological innovation ability, economic development and innovation and entrepreneurship environment were chosen as the first level indexes.
On the selection of indexes and structure of evaluation index system, many researchers selected different kinds of indexes for evaluation. Markusen made an evaluation indicator system with three aspects (economics, industry, and region) and 14 criteria [20]. Eng studied the impact of the development of Cambridge Park on British economics through the diffusion of knowledge as an evaluation factor [21]. However, it lacks the aspect of development evaluation itself in theory. Hung selected 367 Taiwan’s high-tech enterprises as the research object and evaluated small and medium enterprises’ development by choosing the aspects of enterprise performance and enterprise profitability as the main indexes [22]. Chen considered the whole system of China’s Hi-tech zones and selected the evaluation indexes from three aspects: economy, environment, science and technology [23]. These evaluation indexes reflect the main ideas and characteristics of China’s economic zones at that time. Xie evaluated the development of high-tech industrial development zones in the Yangtze River Delta with 29 indexes from the economic ability, operational performance, science and technology innovation ability, opening ability to the outside and ecological efficiency [24]. However, the selection of indexes has great limitations [25].
On the evaluation methods, some classical methods such as Principal Component Analysis (PCA), Analytic Hierarchy Process (AHP), the factor analysis method, and the measurement score method were used frequently. Kitchen used PCA to evaluate Saskatoon’s social development in Canada with 38 indexes from aspects such as population, education, labour, income, etc. [26]. Li selected nine economic indexes and used PCA to evaluate regional economic development level of 15 vice provincial cities [27]. However, the number of indexes that used the PCA method is small, and the coverage is not wide. The conclusion is simply a description of the level of economic development and cannot evaluate the level of regional development well. Li determined the framework of development evaluation system of Hi-tech Zones and used the measurement score method to evaluate, but it does not analyse historical data [28]. Tian proposed the factor analysis method to evaluate Hi-tech Zones with five factors [29].

2.3. Evaluation Index System

By reviewing the previous literature, it is seen that current researchers have conducted extensive research on the development evaluation at different levels, from different perspectives and with different methods. They all achieve a certain effect, but there are still some problems to be solved and some aspects to be improved. For indexes, compared with the above indexes that are mostly statistical and derived from statistical data, the indexes used in this research are non-statistical indexes because the data in this research comes from the consciousness of experts. Its advantage is that non-statistical indexes can better analyse future development trends in order to make a forward-looking guidance of development at present. For evaluation methods, the lack of strong scientific methods, low effectiveness of data analysis and the absence of generally accepted and unified theory are still problems that need to be solved. A new method for regional evaluation needs to be developed.
As a result of literature review, three dimensions, including region (D1), economy (D2) and society (D3), are compiled. Each dimension includes lower-level criteria that originate from related indexes in previous literature and innovate in the actual situation of economic zones in China. The evaluation index system of economic zones which consists of three dimensions and 10 criteria is arranged in Table 1.

3. Methodology

3.1. Constructing a New Hybrid MCDM Model for Development Evaluation

This research uses the DEMATEL technique and combines a DANP method to establish a new hybrid MCDM Model to address the problems of interdependence and feedback among certain criteria. The DEMATEL technique is used to build an INRM, and the DANP is expected to obtain the influential weights using the basic concept of ANP [30,31,32,33,34,35]. The research processes are concisely illustrated in Figure 1.

3.2. The DEMATEL Technique for Building INRM

3.2.1. Step 1: Calculate the Direct Influence Matrix by Scores

Knowledge-based experts were asked to assess the relationship between each mutual influence criterion in a personal sense using an integer scale ranging from 4 to 0, with the scores represented by natural language: “top influence (4)”, “high influence (3)”, “medium influence (2)”, “low influence (1)” and “absolutely no influence (0)”. The direct influence is indicated by pair-wise comparison. If the experts believe that criterion i has an effect and influence on criterion j, they should indicate this by dij. Then, the matrix D = [dij]n×n of direct relationships can be represented as in Equation (1) [36,37,38,39,40]:
D = ( d 11 d 1 j d 1 n d i 1 d i j d i n d n 1 d n j d n n )

3.2.2. Step 2: Normalize the Direct Influence Matrix R

Using matrix D, the normalized matrix R = [rij]n×n can be calculated by Equations (2) and (3) as below:
R = υ × D
v = min { 1 max i j = 1 n d i j , 1 max j i = 1 n d i j } , i , j { 1 , 2 , , n }

3.2.3. Step 3: Obtain the Total Influence Matrix T

The total influence matrix T for building influential network relationship map (INRM) can be obtained from Equation (4), in which I denotes the identity matrix [41,42,43,44,45]:
T = R + R 2 + + R X = R ( I R X ) ( I R ) 1
Then, T = R ( I R ) 1 when lim X R X , T = [0]n×n, where R = [rij]n×n, 0 ≤ R ≤1, 0 i R i j 1 , 0 j R i j 1 , and at least one row or one column of the summation, but not each, equals one. Accordingly, lim X R X = [ 0 ] n × n is guaranteed naturally.

3.2.4. Step 4: Analyse the Results and Build the INRM

After obtaining the total influence matrix T, its sum of rows and columns can be expressed respectively as vector r and vector c, which come from Equations (5) and (6):
r = [ j = 1 n t i j ] = [ t i ] n × 1 = ( r 1 , , r i , , r n ) , j { 1 , 2 , , n }
c = [ i = 1 n t i j ] 1 × n = [ t j ] n × 1 = ( r 1 , , r i , , r n ) , j { 1 , 2 , , n }
In equations above the superscript’ denotes the transpose. Because of the same number of elements in vector r and vector c, r + c and rc can establish two column vectors as Equations (7) and (8) [46,47,48,49]:
r + c = ( r 1 + c 1 , , r i + c i , , r n + c n ) , i { 1 , 2 , , n }
r c = ( r 1 c 1 , , r i c i , , r n c n ) , i { 1 , 2 , , n }
ri indicates the sum of the direct and indirect effects of criterion i on the other criteria. cj indicates the sum of the direct and indirect effects that criterion j has received from the other criteria. In addition, (ri + cj) indicates the degree of the total influences criterion i has in this system. Thus, if (ricj) is positive, then criterion i has a net influence on the other criteria. If (ricj) is negative, then criterion i is influenced by the other criteria in general. Therefore, a causal graph can be achieved by mapping the data set of (ri + cj, ricj), which is the so-called INRM. The INRM can provide a valuable idea for improvement on criterion.

3.3. Combing the ANP Method for Determining the Criterion’s Influence Weights

3.3.1. Step 1: Find the Normalized Matrix T C a Using the Dimensions and Take the Normalization of T C a 11 , for Instance

In this part, we specify the total influence matrix TC by the criteria and TD by the dimensions. T C = [ t C i j ] n × n , T D = [ t D i j ] m × m and TD can be obtained from TC. After obtaining TC, the normalized total influence matrix T C a for the criteria can be shown as Equation (9) [43,44,45,46]:
Ijerph 15 00056 i001

3.3.2. Step 2: Obtain the Unweighted Supermatrix WC

The unweighted supermatrix WC can be obtained based on transposing the normalized total influence matrix T C a using dimensions because of the interdependence between the relationships of the clusters and dimensions. Based on the basic concept of ANP, the supermatrix W C = ( T C a ) is shown as Equation (10):
Ijerph 15 00056 i002
In this equation, the supermatrix WC has a case that its dimensions and criteria are independent if a blank or zero appears in the matrix.

3.3.3. Step 3: Obtain the Weighted Normalized Supermatrix W C *

To obtain the weighted normalized supermatrix W C * , the unweighted supermatrix WC is the basis and the normalized total influence matrix T D a is of the essence. We can get W C * by multiplying T D a by the unweighted supermatrix WC. Meanwhile, T D a can be obtained by the total influence matrix TD. After normalizing the total influence matrix TD, we can obtain a new normalized total influence matrix T D a , which can be shown as Equation (11):
T D a = [ t D 11 d 1 t D 1 j d 1 t D 1 n d 1 t D i 1 d i t D i j d i t D i n d i t D n 1 d n t D n j d n t D n n d n ] = [ t C a 11 t C a 1 j t C a 1 n t C a i 1 t C a i j t C a i n t C a n 1 t C a n j t C a n n ]
After obtaining the normalized total influence matrix T D a , we can calculate and obtain the new weighted supermatrix W C * by the unweighted supermatrix WC . The result is shown in Equation (12):
W C * = T D a × W = [ t D a 11 × W 11 t D a 1 j × W i 1 t D a 1 n × W n 1 t D a i 1 × W 1 j t D a i j × W i j t D a 1 n × W n j t D a n 1 × W 1 n t D a n j × W i n t D a n n × W n n ]

3.3.4. Step 4: Obtain the DANP

Limit the weighted supermatrix by raising it to a sufficiently large power φ until it converges and becomes a long-term stable supermatrix to obtain global priority vector, i.e., lim φ ( W C * ) φ , where φ represents any number of powers when φ and the influential weights W = (W1,…,Wj,…,Wn). Then, we can call these the DANP influential weights.

4. Empirical Study

The methodology established in this study aims to evaluate the development of economic zones in China. As the characteristics of each economic zone are heterogeneous and the weight of each criteria within evaluation system is different, we chose Shandong Peninsula Blue Economic Zone as the case to test the methodology. In this study, we use the software Matlab to establish and calculate the models directly [50,51,52].

4.1. Background of Research Object

The blue economic zone is a new concept of an economic zone in China. As a new type of coastal economic zone with marine characteristics, the blue economic zone aims to enhance the comprehensive economic strength and international competitiveness using the marine economy as the remarkable feature, marine resources as the fundamental way and modern marine industry as the leading force [53,54,55]. The first blue economic zone in China is Shandong Peninsula Blue Economic Zone, which was planned in 2009 and built in 2011. As the first example of a blue economic zone, Shandong Peninsula Blue Economic Zone has the conditions and advantages on infrastructure, investment environment, factor resource and economic foundation [56,57]. However, some problems have been gradually reflected during the process of development. On one hand, the advantages of marine natural resources and marine science and technology resources are obvious in Shandong Peninsula Blue Economic Zone, while in the actual development, competitive industries do not reach the maximum utilization and are in a lower proportion of the industrial structure. Therefore, the economic development efficiency of the whole zone has not improved significantly. On the other hand, the government has formulated many development strategies and policies in the process of construction. However, it lacks unified development ideas and effective policy orientation. This problem has led to fuzzy development strategy and policy guidance. The development potential of the Shandong Peninsula Blue Economic Zone is not completely liberalized, so a method for evaluation of its development is urgently needed. Therefore, it is very meaningful and useful to regard Shandong Peninsula Blue Economic Zone of Shandong Peninsula as a research objective in order to obtain development decisions from development evaluation.

4.2. Data Collection

The data in this research was collected from an expert forecasting questionnaire. Ten representative experts were selected to complete the questionnaire. To reflect the comprehensiveness and representativeness, the selected experts have the following characteristics: four university professors that have studied in this area for more than 10 years, three entrepreneurs that have set up the companies in this zone for more than three years, and three civil servants that have worked for government of this zone for more than three years. After collecting the 10 expert forecasting questionnaires, the data needed to be processed and integrated. Then, the average impact score of each criterion can be obtained. The initial influence matrix D is shown by Table 2.

4.3. Model Calculation Process

Using the initial influence matrix D, the normalized matrix R can be calculated and is shown in Table 3.
The total influence matrices TC of the criteria and TD of the dimensions are calculated and shown in Table 4 and Table 5, respectively.
Then, r, c, r + c and rc are used for building the INRM are calculated and shown in Table 6.
The influence weights for the 10 criteria can be calculated using DANP, as shown in Table 7, Table 8 and Table 9.

5. Results and Discussions

Through the stable matrix of DANP lim φ ( W C * ) φ , the final results are sorted by Table 10.
According to the Table 10, it is easily seen that Transportation Conditions, Industrial Structure and Business Climate are the main influencing criteria, with results of 0.410, 0.392 and 0.392, respectively. Development Potential, Policy Support and Economic Scale are the less important criteria, with results of 0.344, 0.343 and 0.314, respectively. There are several important results in this research.
First, the result for Transportation Conditions is highest of all. It means that transportation conditions will be the most important index for improving the development of the Shandong Peninsula Blue Economic Zone. Therefore, the first suggestion is to improve the transportation conditions and strengthen the construction of the transportation system. As a region that has a long coastline, marine transportation is a unique advantage for the transportation system, so it is very important to construct large tonnage ports and improve port operational efficiency. To improve the ability of marine transportation, it is necessary to build up the fast convergence of marine transportation and other transportation modes, especially the railway transportation, and finally build marine transportation as the core of an integrated transportation system.
Second, as the second highest result, Industrial Structure is very valuable for the development of the Shandong Peninsula Blue Economic Zone. It is important to promote industrial development and accelerate the optimization of industrial structure. The zone’s development will not be possible without industrial development. On the one hand, industrial development patterns and industrial clusters need to be planned comprehensively and scientifically. Zones will select superior industries according to the actual situation in order to establish relevant supporting facilities and construct an integrated industrial chain.
Third, as far as the rest of criteria, the result of Business Climate is the highest. The Business Climate has two aspects: one is enterprise policy and the other is open environment. For enterprise policy, one must formulate some policies to attract the investment and construction of enterprises through the policy guidance, such as tax policies, to reduce the cost of business operations. For open environment, improving the openness of zones is important for the Business Climate. The Shandong Peninsula Blue Economic Zone has the geographical advantages of neighbouring South Korea and Japan and has a prominent historical and cultural environment for foreign trade. Therefore, the zone should take the initiative to attract foreign investment, play geopolitical advantages and promote Sino foreign cooperation.

6. Conclusions

This research reflects precious values. First, the entirety of the research is embodied by a quantitative method. It inherits many advantages of existing studies in this area, such as the thoughts of criteria determination and system construction. On this basis, it improves the method and obtains better results. Second, the model uses the DEMATEL technique and combines it with a DANP method to establish a new hybrid MCDM model. In the above sections, it can be seen that the model has a rigorous mathematical logic that obtains convincing results. It is a good solution to solve the problem, which lacks the precision of the results by the research data. This is due to the first application, which combines the DEMATEL technique and the DANP method in the area of regional development evaluation. Third, as the research objective, the significance of the development of economic zones is self-evident. This research gives a method to identify the valuable dimensions and criteria and is a guide for managers to develop economic zones more effectively. Furthermore, this research has huge potential. As a method of regional development evaluation, this method can be used on economic zones. It can expand the research objective, and it will be applied to the development evaluation of all specific regions. Finally, this method hopefully will become a representative solution for solving such problems.
There are several limitations to this research that require further study. First, the number of selected experts that are used for data collection from expert forecasting questionnaire needs to be expanded. More data samples can improve the credibility of research. Second, the selected experts should be more representative. The expert quality has a strong positive correlation with the results of the research. Finally, in the process of selecting dimensions and criteria, future researchers need to use a scientific method to establish a more practical evaluation index system that can improve the accuracy of the results.

Acknowledgments

This work was supported by the National Social Science Foundation of China (Grant No. 17CGJ002); Provincial Nature Science Foundation of Guangdong (Nos. 2015A030310271 and 2015A030313679); The National Social Science Foundation of China (No. 15BGL019); Shanghai Social Science Foundation (No. 2014BGL004); and Zhongshan City Science and Technology Bureau Project (No. 2017B1015).

Author Contributions

Writing: Wei Liu, Hong-Bo Shi, Zhe Zhang; Providing case and idea: Sang-Bing Tsai, Yuming Zhai, Quen Chen; Providing revised advice: Sang-Bing Tsai, Yuming Zhai, Quan Chen, Jiangtao Wang.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gray, A. Industry Clustering for Economic Development. Econ. Dev. Rev. 1994, 12, 26–32. [Google Scholar]
  2. Xia, S.C. China (Shanghai) Pilot Free Trade Zone: Concepts and Functions. Int. Econ. Cooper 2013, 7, 11–17. [Google Scholar]
  3. Gwynne, P. Directing Technology in Asia’s Dragons. Res. Technol. Manag. 1993, 3, 1512–1524. [Google Scholar] [CrossRef]
  4. Bai, X.J.; Yan, W.K.; Chiu, Y.H. Performance Evaluation of China’s Hi-tech Zones in the Post Financial Crisis Era—Analysis Based on the Dynamic Network SBM Model. China Econ. Rev. 2015, 34, 122–134. [Google Scholar] [CrossRef]
  5. Yiannakou, A.; Eppas, D.; Zeka, D. Spatial Interactions between the Settlement Network, Natural Landscape and Zones of Economic Activities: A Case Study in a Greek Region. Sustainability 2017, 9, 1715. [Google Scholar] [CrossRef]
  6. Chen, J.; Chen, W.; Zeng, G.; Li, G. Secular Trends in Growth and Nutritional Outcomes of Children under Five Years Old in Xiamen, China. Int. J. Environ. Res. Public Health 2016, 13, 1104. [Google Scholar] [CrossRef] [PubMed]
  7. Wu, F.; Deng, X.; Yin, F.; Yuan, Y. Projected Changes of Grassland Productivity along the Representative Concentration Pathways during 2010–2050 in China. Adv. Meteorol. 2013, 2013, 812723. [Google Scholar] [CrossRef]
  8. Soytong, P.; Perera, R. Use of GIS Tools for Environmental Conflict Resolution at Map Ta Phut Industrial Zone in Thailand. Sustainability 2014, 6, 2435–2458. [Google Scholar] [CrossRef]
  9. Opricovic, S.; Tzeng, G.H. Multicriteria Planning of Post-earthquake Sustainable Reconstruction. Comput.-Aided Civ. Infrastruct. Eng. 2002, 3, 211–220. [Google Scholar] [CrossRef]
  10. Opricovic, S.; Tzeng, G.H. Compromise solution by MCDM methods: A Comparative Analysis of VIKOR and TOPSIS. Eur. J. Oper. Res. 2004, 2, 445–455. [Google Scholar] [CrossRef]
  11. Lu, M.T.; Lin, S.W.; Tzeng, G.H. Improving RFID Adoption in Taiwan’s Healthcare Industry Based on a DEMATEL Technique with a Hybrid MCDM Model. Decis. Support Syst. 2013, 56, 259–269. [Google Scholar] [CrossRef]
  12. Chiu, W.Y.; Tzeng, G.H.; Li, H.L. New Hybrid MCDM Model Combining DANP with VIKOR to Improve E-store Business. Knowl.-Based Syst. 2013, 37, 48–61. [Google Scholar] [CrossRef]
  13. Zhang, X.M.; Tang, Q.Y. Research on the Evaluation of National Hi-Tech Industrial Development Zone. World Reg. Stud. 2013, 22, 114–120. [Google Scholar]
  14. Fu, Q.; Li, B.; Yang, L.; Wu, Z.; Zhang, X. Ecosystem Services Evaluation and Its Spatial Characteristics in Central Asia’s Arid Regions: A Case Study in Altay Prefecture, China. Sustainabiility 2015, 7, 8335–8353. [Google Scholar] [CrossRef]
  15. Zheng, J.; Sheng, P. The Impact of Foreign Direct Investment (FDI) on the Environment: Market Perspectives and Evidence from China. Economies 2017, 5, 8. [Google Scholar] [CrossRef]
  16. Zhang, X.X.; Bai, K.; Ge, B.S. Research on Evaluation Methods of Hi-Tech Industrial Development Zone. Stud. Sci. Sci. 1997, 15, 69–74. [Google Scholar]
  17. Rogers, E.M.; Larsen, J.K. Silicon Valley Fever: Growth of High-Technology Culture, 1st ed.; Basic Books: New York, NY, USA, 1984. [Google Scholar]
  18. Joint Venture Silicon Valley Network. Index of Silicon Valley; Joint Venture Silicon Valley Network: San Jose, CA, USA, 2005. [Google Scholar]
  19. Shalini, S. Speaking Like a Model Minority: “FOB” Styles, Gender and Racial Meanings among Desi Teens in Silicon Valley. Ling. Anthropol. 2008, 18, 268–289. [Google Scholar]
  20. Markusen, A. The Economic, Industrial and Regional Consequences of Defense-led Innovation. In Knowledge and Industrial Organization; Springer: Berlin/Heidelberg, Germany, 1989; pp. 251–269. [Google Scholar]
  21. Eng, T.Y. Implications of the Internet for knowledge creation and dissemination in clusters of Hi-tech firms. Eur. Manag. J. 2004, 2, 87–98. [Google Scholar] [CrossRef]
  22. Hung, S.W.; Wang, A.P. Entrepreneurs with Glamour DEA Performance Characterization of High-Tech and Older-Established Industries. Econ. Model. 2012, 29, 1146–1153. [Google Scholar] [CrossRef]
  23. Chen, Y.S.; Ouyang, Z.L. The Design of Evaluation Index System of NHTZs. Sci. Res. Manag. 1996, 17, 1–7. [Google Scholar]
  24. Xie, S.H.; Ji, L.P.; Ding, H. Study on the Sustainable Development of High-Tech Industrial Development Zones in Yangtze River Delta. World Reg. Stud. 2012, 21, 111–118. [Google Scholar]
  25. Siousiouras, P.; Chrysochou, G. The Aegean Dispute in the Context of Contemporary Judicial Decisions on Maritime Delimitation. Laws 2014, 3, 12–49. [Google Scholar] [CrossRef]
  26. Kitchen, P.; Williams, P. Measuring Neighborhood Social Changing in Saskatoon Canada: A Geographic Analysis. Urban Geogr. 2009, 3, 261–288. [Google Scholar] [CrossRef]
  27. Ma, L.; Shi, J.F. Positive Analysis of the Regional Economic Development Level of 15 Vice Provincial Cities of China. Sci. Technol. Prog. Policy 2006, 12, 88–90. [Google Scholar]
  28. Li, J.H. Research on the Development Evaluation System of Hi-tech Development Zone. Stat. Forecast. 2000, 108, 14–16. [Google Scholar]
  29. Tian, X.B.; Lu, C.M. Study on the Evaluation of Economy Development about National High-Tech Zone Based on Factor Analysis. Sci. Technol. Prog. Policy 2012, 29, 117–122. [Google Scholar]
  30. Chen, F.H.; Hsu, T.H.; Tzeng, G.H. A Balanced Scorecard Approach to Establish a Performance Evaluation and Relationship Model for Hot Spring Hotels Based on a Hybrid MCDM Model Combining DEMATEL and ANP. Int. J. Hosp. Manag. 2011, 30, 908–932. [Google Scholar] [CrossRef]
  31. Hung, Y.H.; Chou, S.C.; Tzeng, G.H. Knowledge Management Adoption and Assessment for SMEs by a Novel MCDM Approach. Decis. Support Syst. 2011, 51, 270–291. [Google Scholar] [CrossRef]
  32. Su, J.M.; Lee, S.C.; Tsai, S.B.; Lu, T.L. A comprehensive survey of the relationship between self-efficacy and performance for the governmental auditors. Springerplus 2016, 5, 508. [Google Scholar] [CrossRef] [PubMed]
  33. Tsai, S.B.; Huang, C.Y.; Wang, C.K.; Chen, Q.; Pan, J.; Wang, G.; Wang, J.; Chin, T.-C.; Chang, L.-C. Using a Mixed Model to Evaluate Job Satisfaction in High-Tech Industries. PLoS ONE 2016, 11, e0154071. [Google Scholar] [CrossRef] [PubMed]
  34. Tsai, S.B.; Wei, Y.M.; Chen, K.Y.; Xu, T.; Du, P.; Lee, H.C. Evaluating Green Suppliers from Green Environmental Perspective. Environ. Plan. B Plan. Des. 2016, 43, 941–959. [Google Scholar] [CrossRef]
  35. Tsai, S.B. Using Grey Models for Forecasting China’s Growth Trends in Renewable Energy Consumption. Clean Technol. Environ. Policy 2016, 18, 563–571. [Google Scholar] [CrossRef]
  36. Zhang, X.; Deng, Y.; Chan, F.T.; Xu, P.; Mahadevan, S.; Hu, Y. IFSJSP: A novel methodology for the Job-Shop Scheduling Problem based on intuitionistic fuzzy sets. Int. J. Prod. Res. 2013, 51, 5100–5119. [Google Scholar] [CrossRef]
  37. Guo, J.J.; Tsai, S.B. Discussing and Evaluating Green Supply Chain Suppliers: A Case Study of the Printed Circuit Board Industry in China. South Afr. J. Ind. Eng. 2015, 26, 56–67. [Google Scholar] [CrossRef]
  38. Lee, Y.C.; Chu, W.H.; Chen, Q.; Tsai, S.B.; Wang, J.; Dong, W. Integrating DEMATEL Model and Failure Mode and Effects Analysis to Determine the Priority in Solving Production Problems. Adv. Mech. Eng. 2016, 8, 1–12. [Google Scholar] [CrossRef]
  39. Tsai, S.B.; Xue, Y.; Zhang, J.; Chen, Q.; Liu, Y.; Zhou, J.; Dong, W. Models for Forecasting Growth Trends in Renewable Energy. Renew. Sustain. Energy Rev. 2016. [Google Scholar] [CrossRef]
  40. Qu, Q.; Chen, K.Y.; Wei, Y.M.; Liu, Y.; Tsai, S.-B.; Dong, W. Using Hybrid Model to Evaluate Performance of Innovation and Technology Professionals in Marine Logistics Industry. Math. Prob. Eng. 2015, 2015, 361275. [Google Scholar] [CrossRef]
  41. Zhou, J.; Wang, Q.; Tsai, S.B.; Xue, Y.; Dong, W. How to Evaluate the Job Satisfaction of Development Personnel. IEEE Trans. Syst. Man Cybern.-Syst. 2016. [Google Scholar] [CrossRef]
  42. Tsai, S.B.; Li, G.; Wu, C.H.; Zheng, Y.; Wang, J. An empirical research on evaluating banks’ credit assessment of corporate customers. Springerplus 2016, 5, 2088. [Google Scholar] [CrossRef] [PubMed]
  43. Tsai, S.B.; Lee, Y.C.; Guo, J.J. Using modified grey forecasting models to forecast the growth trends of green materials. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2014, 228, 931–940. [Google Scholar] [CrossRef]
  44. Lee, Y.C.; Chen, C.Y.; Tsai, S.B.; Wang, C.T. Discussing Green Environmental Performance and Competitive Strategies. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2014, 76, 190–198. [Google Scholar]
  45. Tsai, S.B.; Chen, K.Y.; Zhao, H.; Wei, Y.M.; Wang, C.; Zheng, Y.; Chang, L.; Wang, J. Using a Mixed Model to Explore Evaluation Criteria for Bank Supervision: A Banking Supervision Law Perspective. PLoS ONE 2016, 11, e0167710. [Google Scholar] [CrossRef] [PubMed]
  46. Chen, H.M.; Wu, C.H.; Tsai, S.B.; Yu, J.; Wang, J.; Zheng, J. Exploring key factors in online shopping with a hybrid model. Springerplus 2016, 5, 2046. [Google Scholar] [CrossRef] [PubMed]
  47. Deng, X.Y.; Hu, Y.; Deng, Y.; Mahadevan, S. Environmental impact assessment impact assessment based on numbers. Expert Syst. Appl. 2014, 41, 635–643. [Google Scholar] [CrossRef]
  48. Wang, J.; Yang, J.; Chen, Q.; Tsai, S.B. Collaborative Production Structure of Knowledge-sharing Behavior in Internet Communities. Mob. Inf. Syst. 2016, 2016, 8269474. [Google Scholar] [CrossRef]
  49. Wang, J.; Yang, J.; Chen, Q.; Tsai, S.B. Creating the Sustainable Conditions for Knowledge Information Sharing in Virtual Community. Springerplus 2016, 5, 1019. [Google Scholar] [CrossRef] [PubMed]
  50. Lee, Y.C.; Wang, Y.C.; Chien, C.H.; Wu, C.H.; Lu, S.C.; Tsai, S.B.; Dong, W. Applying Revised Gap Analysis Model in Measuring Hotel Service Quality. Springerplus 2016, 5, 1191. [Google Scholar] [CrossRef] [PubMed]
  51. Lee, Y.C.; Wang, Y.C.; Lu, S.C.; Hsieh, Y.F.; Chien, C.H.; Tsai, S.B.; Dong, W. An Empirical Research on Customer Satisfaction Study: A Consideration of Different Levels of Performance. Springerplus 2016, 5, 1577. [Google Scholar] [CrossRef] [PubMed]
  52. Lee, S.C.; Su, J.M.; Tsai, S.B.; Lu, T.L.; Dong, W. A comprehensive survey of government auditors’ self-efficacy and professional Development for improving audit quality. Springerplus 2016, 5, 1263. [Google Scholar] [CrossRef] [PubMed]
  53. Ge, B.; Jiang, D.; Gao, Y.; Tsai, S.B. The Influence of Legitimacy on a Proactive Green Orientation and Green Performance: A Study Basedon Transitional Economy Scenarios in China. Sustainability 2016, 8, 1344. [Google Scholar] [CrossRef]
  54. Zhu, L. Present Development Situation of the Blue Economic Zone in China. Mar. Econ. 2013, 3, 40–46. [Google Scholar]
  55. Stephen, J.; Thomas, K.; Frank, A.; Ritchie, H. European Experience in Marine Spatial Planning: Planning the German Exclusive Economic Zone. Eur. Plan. Stud. 2012, 20, 2013–2031. [Google Scholar]
  56. Zhang, J.W.; Ma, Y. A Research of Comprehensive Evaluation on the Economic Development of the Shandong Peninsula Blue Economic Zone. East China Econ. Manag. 2013, 27, 64–69. [Google Scholar]
  57. Zhang, X.; Wang, D.; Hao, H.; Zhang, F.; Hu, Y. Effects of Land Use/Cover Changes and Urban Forest Configureuration on Urban Heat Islands in a Loess Hilly Region: Case Study Based on Yan’an City, China. Int. J. Environ. Res. Public Health 2017, 14, 840. [Google Scholar] [CrossRef] [PubMed]

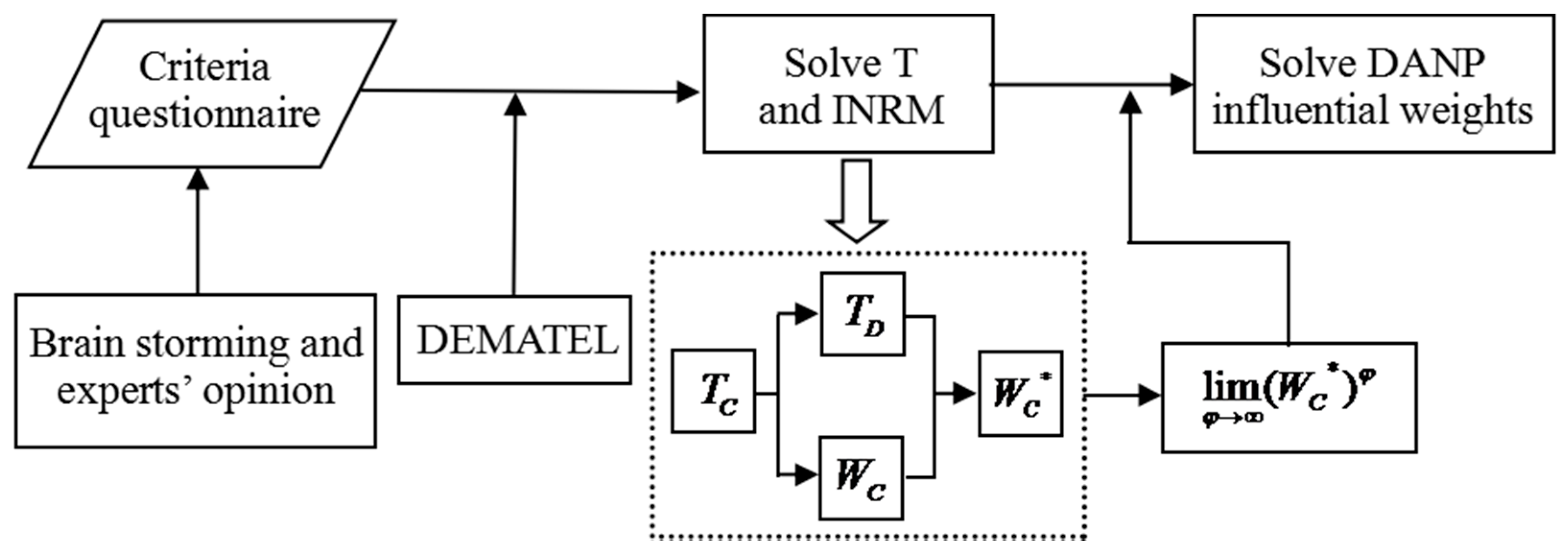

Figure 1. The research process of the new hybrid MCDM model.
Figure 1. The research process of the new hybrid MCDM model.
Ijerph 15 00056 g001
Table 1. The economic zones evaluation index system.
Table 1. The economic zones evaluation index system.
DimensionsCriteriaDescriptions
Region (D1)Transportation Conditions (C11)Information about various transportation in one region.
Resource Reserves (C12)Natural resources in one region which matched with the regional industry.
Ecological Protection (C13)The present situation of the environment and protection measures.
Economy (D2)Industrial Structure (C21)The composition of each industry and the proportion relationship among industries.
Economic Scale (C22)The overall economic level (e.g., regional GDP) in one region.
Business Climate (C23)The ability to attract enterprises, construction and investment.
External communications (C24)The regional economic openness and external links (e.g., external trade).
Society (D3)Educational Level (C31)The ability of regional talent cultivation and technology research cooperation.
Development Potential (C32)The potential of sustainable regional development.
Public and Policy Support (C33)The public goods and policy guidance that support the regional development.
Table 2. The initial influence matrix D for the criteria.
Table 2. The initial influence matrix D for the criteria.
CriteriaC11C12C13C21C22C23C24C31C32C33
C110.0002.4002.3002.4001.8002.8002.0003.0001.6002.600
C122.2000.0003.1002.4001.2002.2002.4002.0002.8001.800
C132.4002.4000.0003.0001.2001.8002.2002.2003.4002.200
C213.4002.2002.7000.0002.6003.2002.2002.2002.6002.400
C222.2002.0002.1002.2000.0002.8002.0001.6002.0002.800
C232.2001.8002.3002.4002.4000.0002.0002.6002.4001.600
C242.0001.8001.9002.4002.0002.4000.0001.8001.4001.600
C312.4002.4002.3002.2001.6002.4002.8000.0001.4002.200
C323.0001.6002.7002.8002.2002.4002.4002.4000.0002.200
C332.6002.0001.3002.2002.2002.0001.8001.8001.8000.000
Table 3. The normalized matrix R for the criteria.
Table 3. The normalized matrix R for the criteria.
CriteriaC11C12C13C21C22C23C24C31C32C33
C110.0000.0940.1020.1450.0940.0940.0850.1020.1280.111
C120.1020.0000.1020.0940.0850.0770.0770.1020.0680.085
C130.0980.1320.0000.1150.0890.0980.0810.0980.1150.055
C210.1020.1020.1280.0000.0940.1020.1020.0940.1190.094
C220.0770.0510.0510.1110.0000.1020.0850.0680.0940.094
C230.1190.0940.0770.1360.1190.0000.1020.1020.1020.085
C240.0850.1020.0940.0940.0850.0850.0000.1190.1020.077
C310.1280.0850.0940.0940.0680.1110.0770.0000.1020.077
C320.0680.1190.1450.1110.0850.1020.0600.0600.0000.077
C330.1110.0770.0940.1020.1190.0680.0680.0940.0940.000
Table 4. The total influence matrix TC, determined by the criteria.
Table 4. The total influence matrix TC, determined by the criteria.
CriteriaC11C12C13C21C22C23C24C31C32C33
C110.5970.6670.6960.7950.6510.6550.5830.6560.7360.614
C120.5970.4900.5990.6480.5550.5520.4970.5690.5890.512
C130.6430.6580.5600.7230.6060.6190.5440.6130.6800.531
C210.6780.6640.7050.6550.6410.6520.5880.6390.7170.590
C220.5400.5060.5230.6250.4460.5410.4760.5070.5750.491
C230.6930.6560.6630.7770.6620.5600.5890.6470.7040.585
C240.6100.6100.6210.6790.5800.5860.4480.6090.6450.529
C310.6460.5970.6220.6810.5680.6070.5210.5030.6470.530
C320.5870.6180.6560.6840.5740.5920.4990.5510.5440.521
C330.6200.5770.6100.6760.6000.5620.5040.5770.6290.450
Table 5. The total influence matrix TD of the dimensions.
Table 5. The total influence matrix TD of the dimensions.
DimensionsD1D2D3
D10.6120.6190.611
D20.6220.5940.603
D30.6150.5890.550
Table 6. The sum of influences given to and received by the dimensions.
Table 6. The sum of influences given to and received by the dimensions.
Dimensionsricj(ri + cj)(ricj)
D11.8421.8493.691−0.007
D21.8191.8023.6210.017
D31.7541.7643.518−0.010
Table 7. The unweighted supermatrix WC.
Table 7. The unweighted supermatrix WC.
CriteriaC11C12C13C21C22C23C24C31C32C33
C110.5970.5970.6430.6780.5400.6930.6100.6460.5870.620
C120.6670.4900.6580.6640.5060.6560.6100.5970.6180.577
C130.6960.5990.5600.7050.5230.6630.6210.6220.6560.610
C210.7950.6480.7230.6550.6250.7770.6790.6810.6840.676
C220.6510.5550.6060.6410.4460.6620.5800.5680.5740.600
C230.6550.5520.6190.6520.5410.5600.5860.6070.5920.562
C240.5830.4970.5440.5880.4760.5890.4480.5210.4990.504
C310.6560.5690.6130.6390.5070.6470.6090.5030.5510.577
C320.7360.5890.6800.7170.5750.7040.6450.6470.5440.629
C330.6140.5120.5310.5900.4910.5850.5290.5300.5210.450
Table 8. The weighted normalized supermatrix W C * .
Table 8. The weighted normalized supermatrix W C * .
CriteriaC11C12C13C21C22C23C24C31C32C33
C110.3650.3650.3940.4200.3350.4290.3780.3950.3590.379
C120.4080.3000.4030.4110.3130.4060.3780.3650.3780.353
C130.4260.3670.3430.4360.3240.4100.3840.3800.4010.373
C210.4950.4040.4500.3890.3710.4620.4030.4110.4130.408
C220.4050.3450.3770.3810.2650.3940.3450.3430.3460.362
C230.4080.3430.3850.3870.3210.3330.3480.3660.3570.339
C240.3630.3090.3380.3490.2830.3500.2660.3140.3010.304
C310.4030.3500.3770.3770.2990.3810.3590.2760.3030.317
C320.4520.3620.4180.4230.3390.4150.3800.3560.2990.346
C330.3780.3150.3270.3480.2890.3450.3110.2910.2860.247
Table 9. The stable matrix of DANP.
Table 9. The stable matrix of DANP.
CriteriaC11C12C13C21C22C23C24C31C32C33
C110.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C120.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C130.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C210.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C220.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C230.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C240.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C310.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C320.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
C330.4100.3460.3810.3920.3140.3920.3550.3500.3440.343
Table 10. Results Sort and Summary.
Table 10. Results Sort and Summary.
CriteriaResultsSort
Transportation Conditions (C11)0.4101
Resource Reserves (C12)0.3467
Ecological Protection (C13)0.3814
Industrial Structure (C21)0.3922
Economic Scale (C22)0.31410
Business Climate (C23)0.3923
External communications (C24)0.3555
Educational Level (C31)0.3506
Development Potential (C32)0.3448
Policy Support (C33)0.3439

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
