Multi-Source Generation Mechanisms for Low Frequency Noise Induced by Flood Discharge and Energy Dissipation from a High Dam with a Ski-Jump Type Spillway
Abstract
:1. Introduction
2. Materials and Methods
2.1. Prototype Observation
2.1.1. Prototype

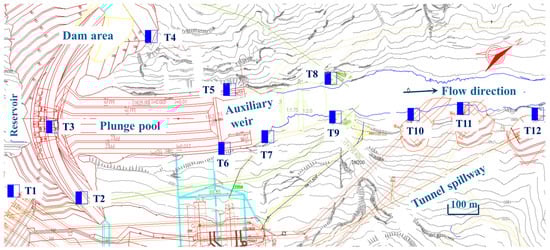

2.1.2. Observation System and Conditions

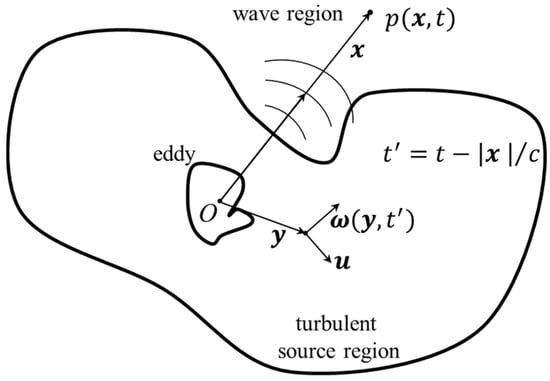

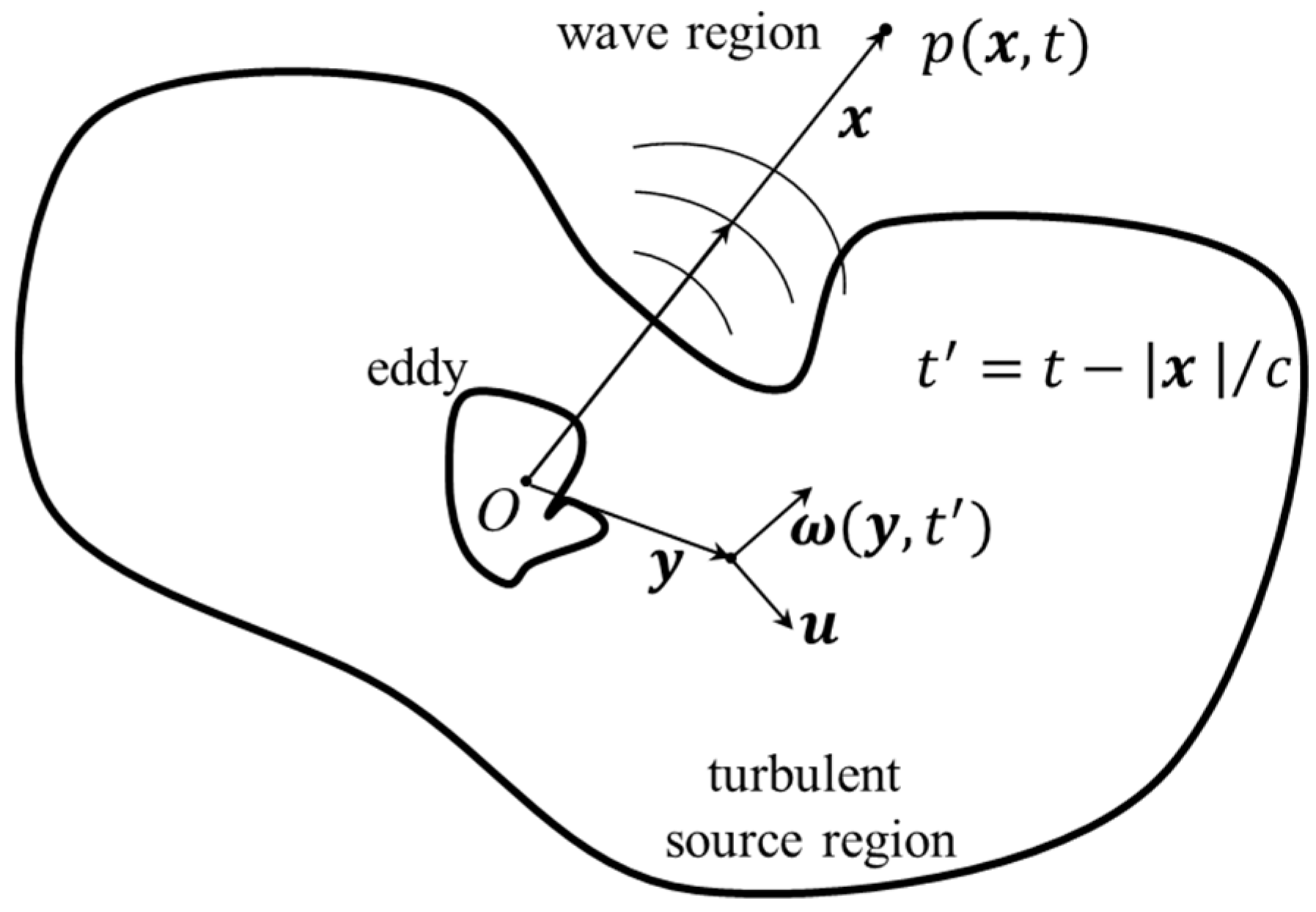

2.2. Theoretical Model of Vortex Sound

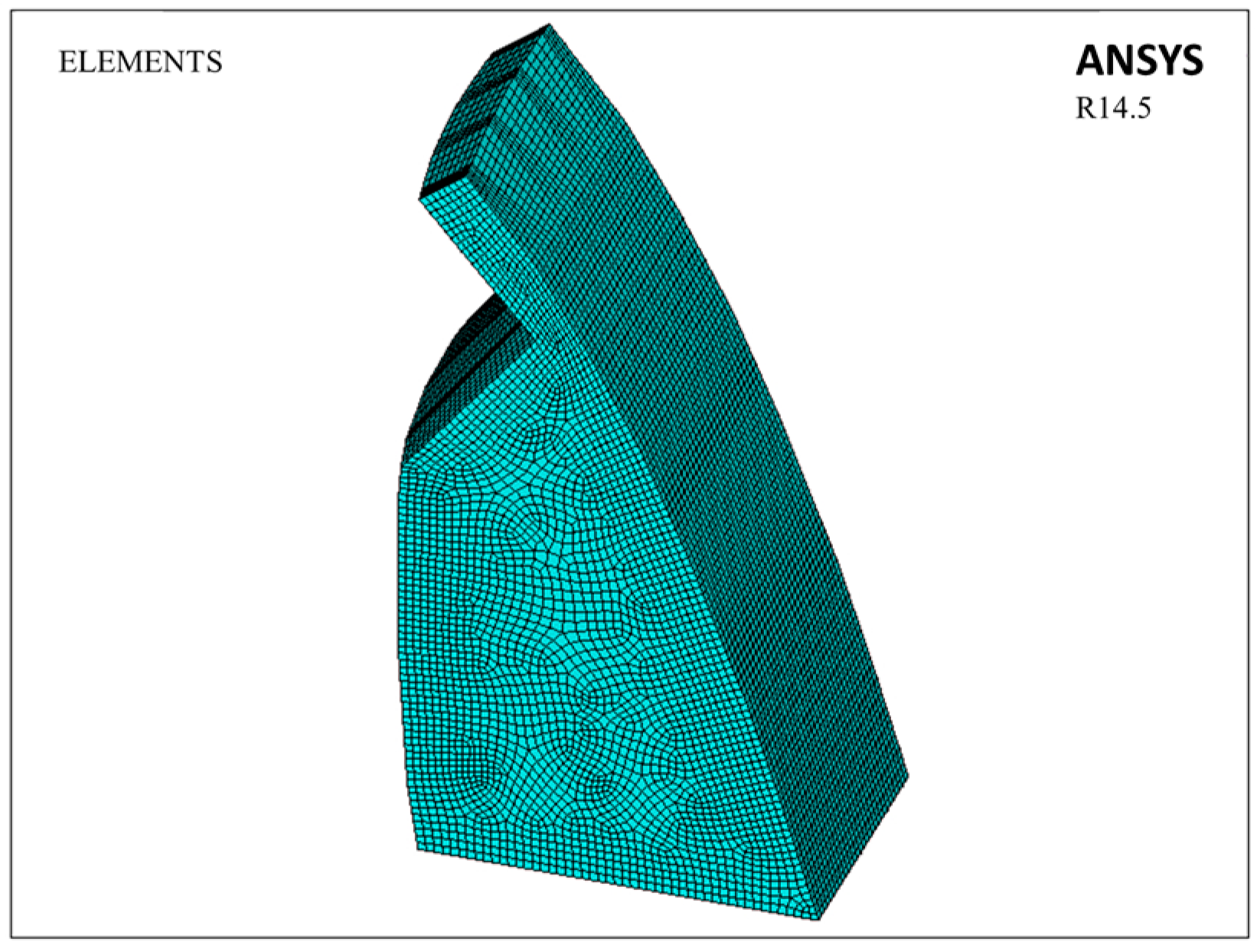

2.3. Acoustic Numerical Model of Nappe-Cavity
2.4. Numerical Turbulent Flow Model
2.4.1. Gas-Liquid Turbulent Model

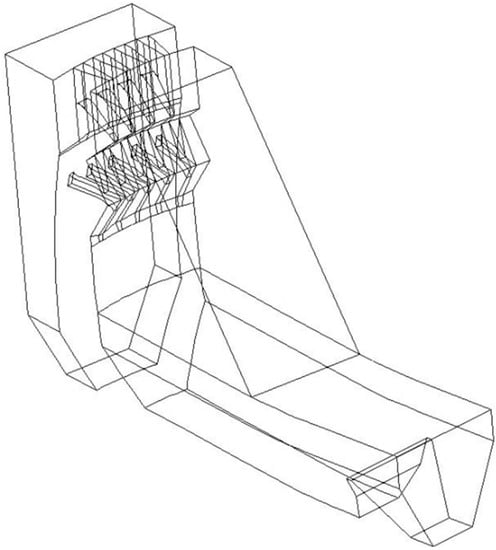

2.4.2. Simulation Domain and Boundary Conditions
3. Results and Discussion
3.1. Prototype Observation
3.1.1. Spatial Distribution and Propagation Patterns

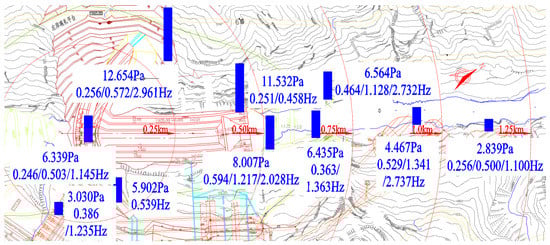

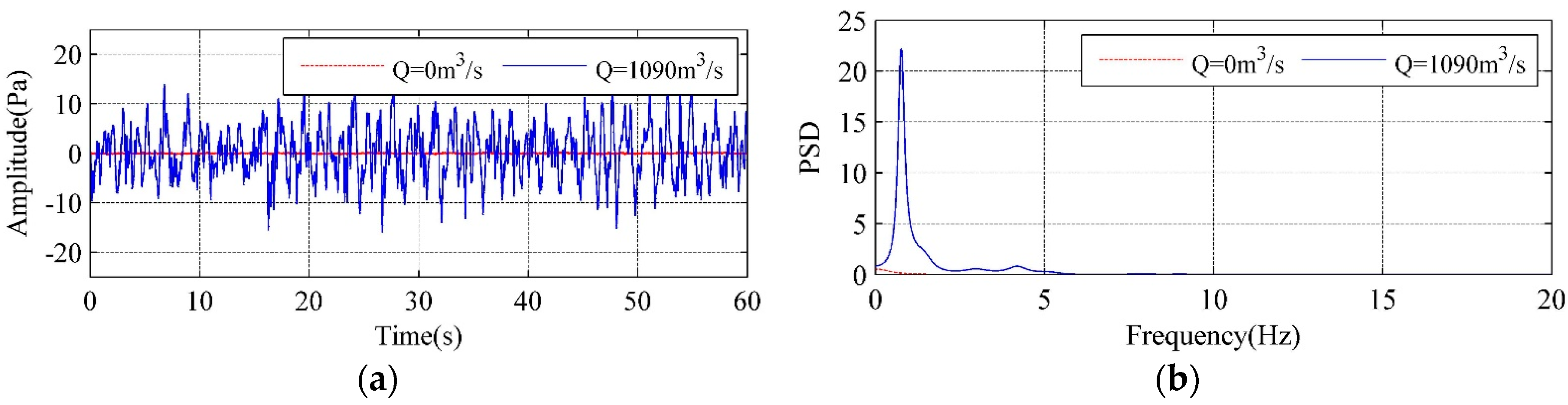

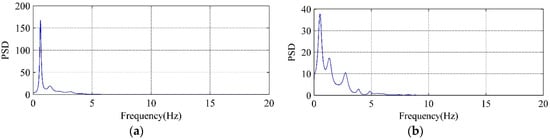

3.1.2. Correlation between LFN and Discharge Flow Regime
3.2. Generation Mechanism for LFN Induced by Submerged Jets

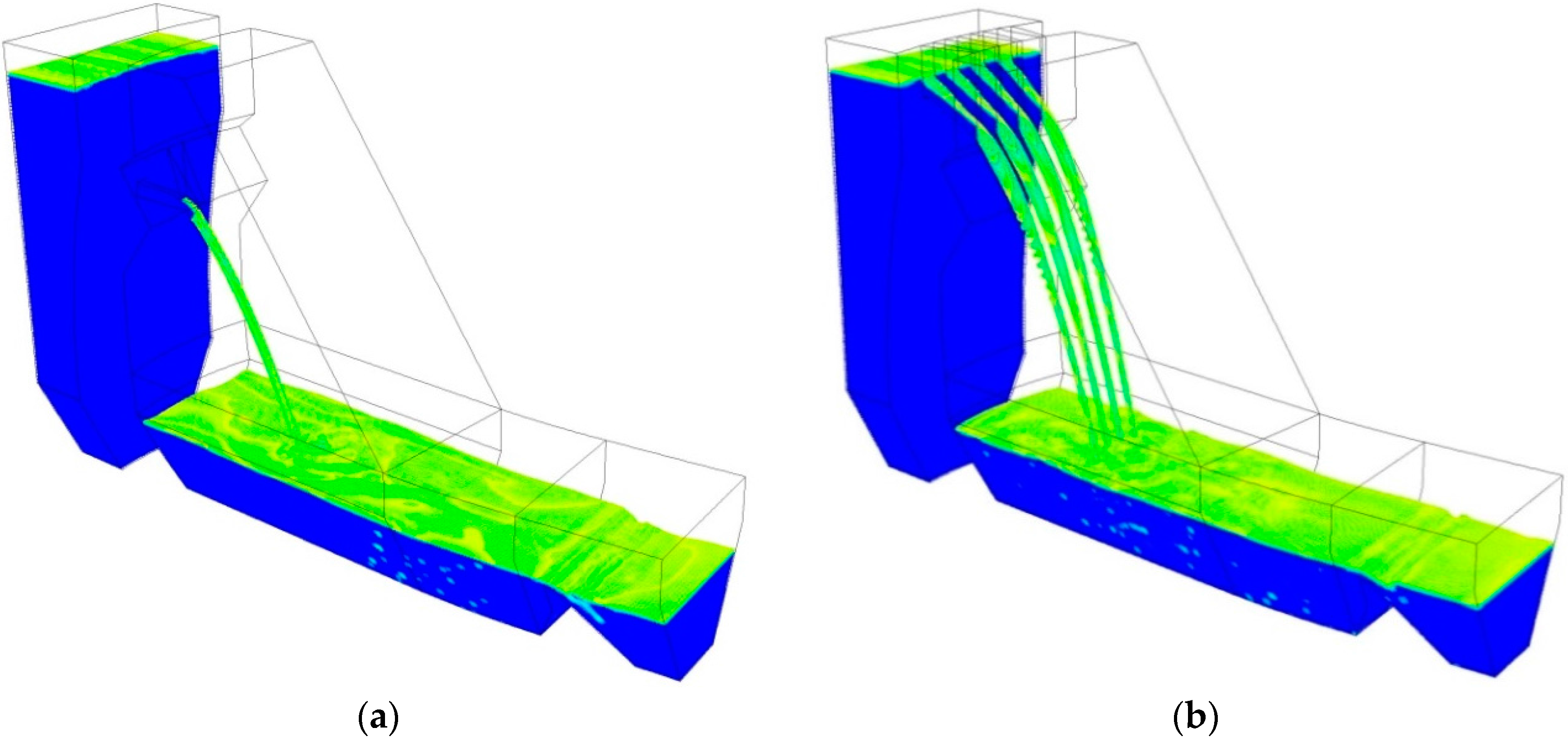

3.2.1. Validation of the Calculation of Turbulent Flow

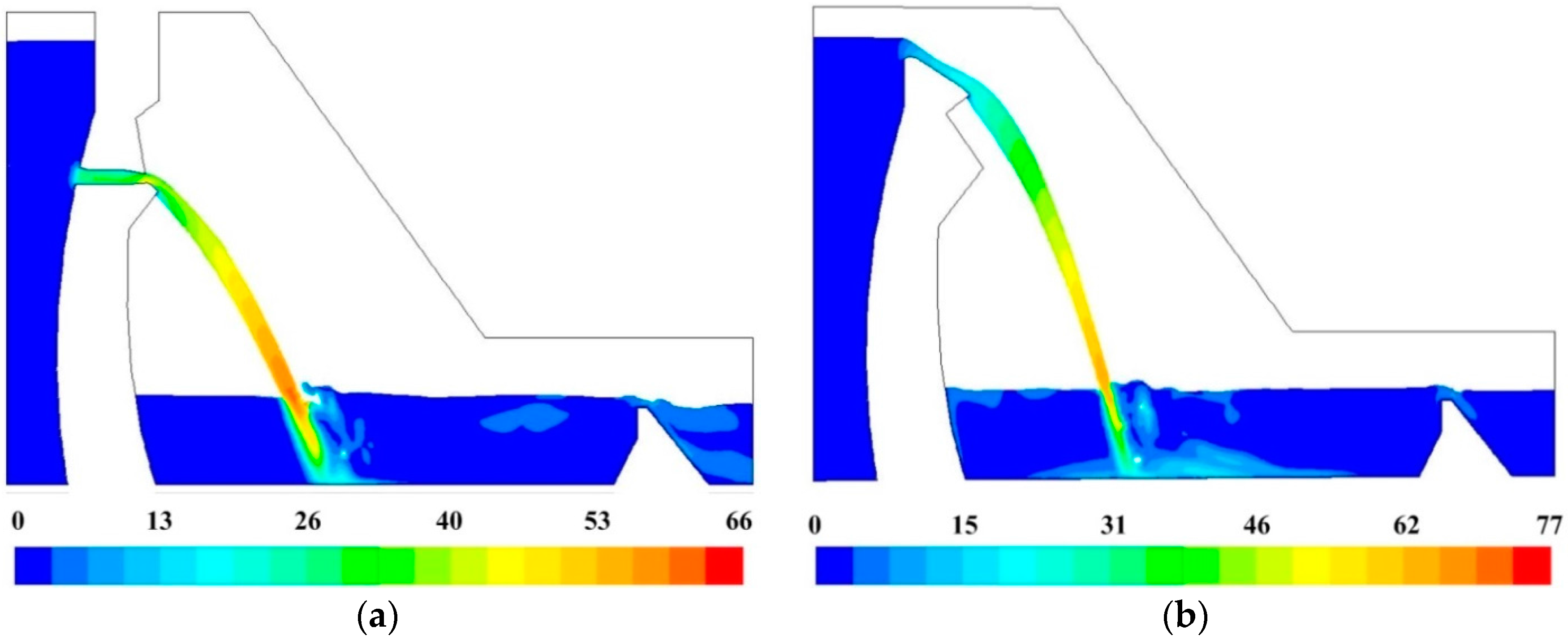

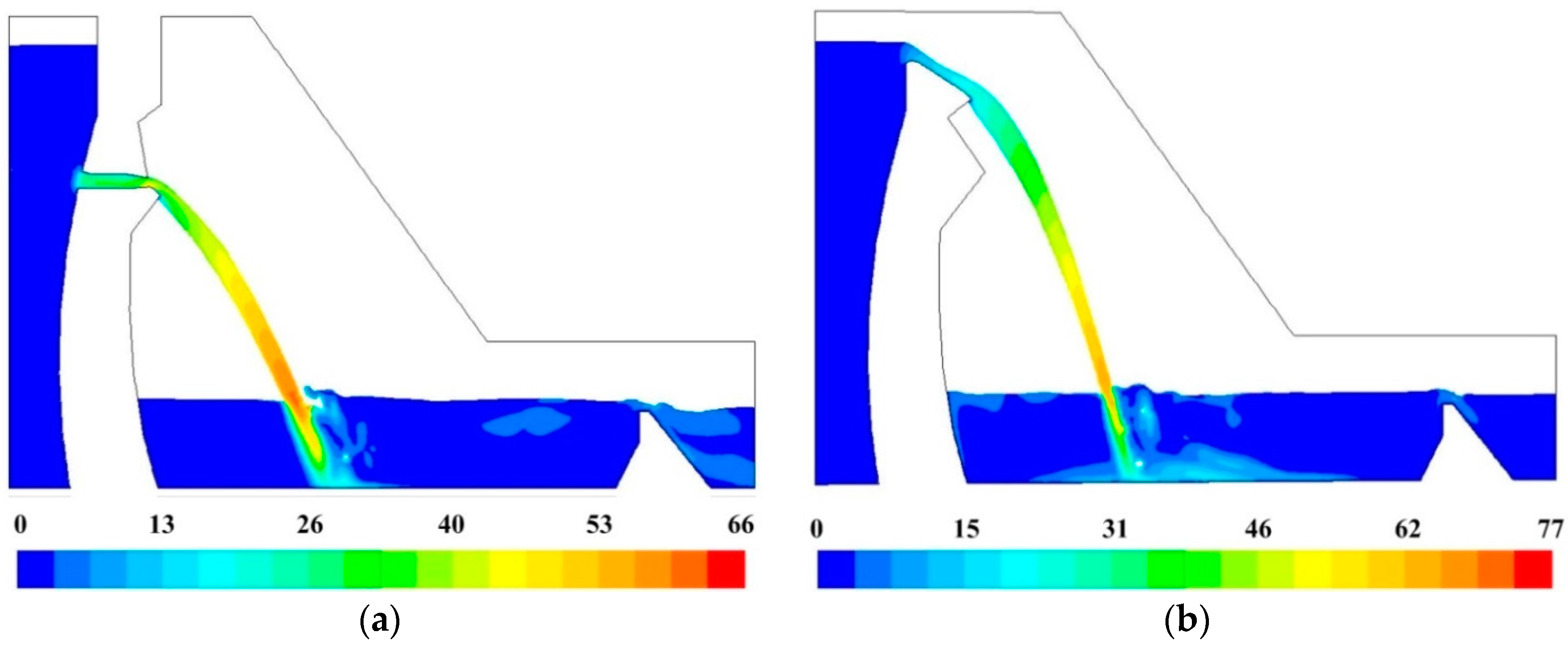

3.2.2. Flow Velocity Distribution

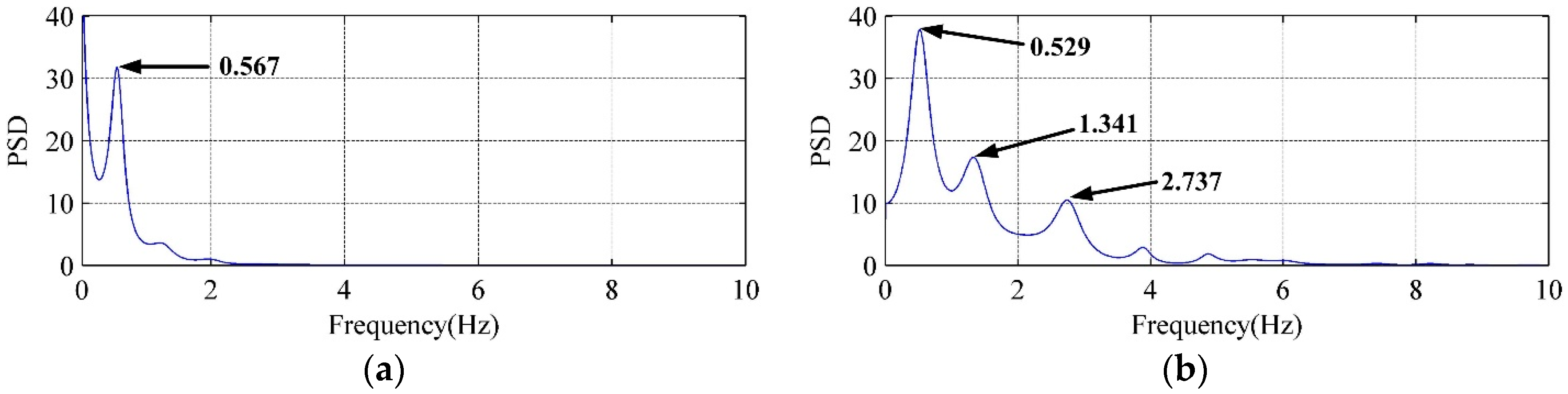

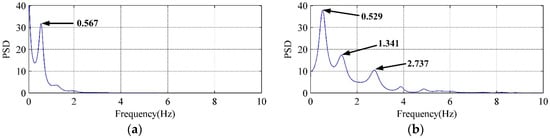

3.2.3. Correlation Analysis for the Acoustic Source

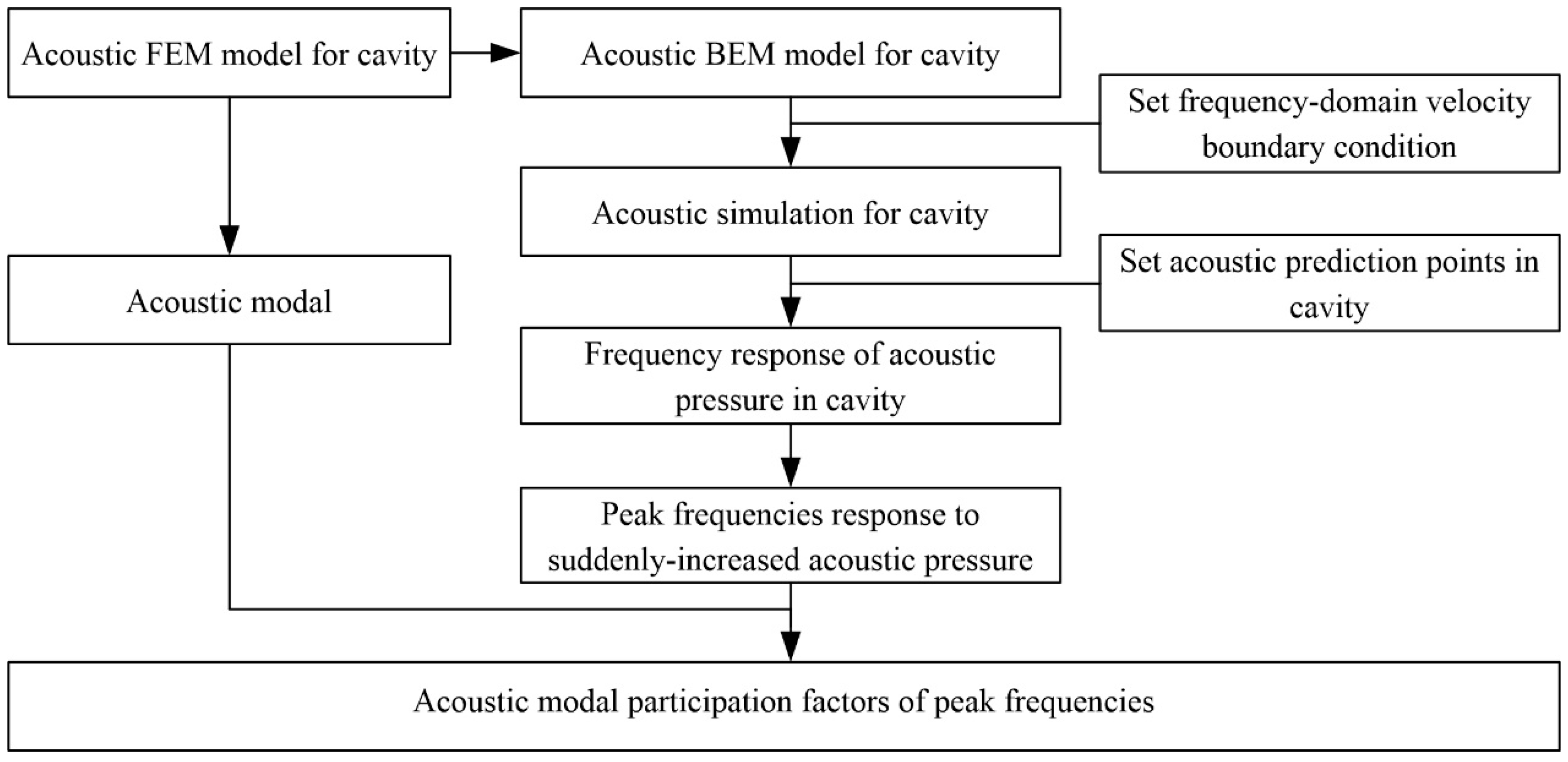

3.3. Generation Mechanism of LFN Induced by Nappe-Cavity Coupled Vibration

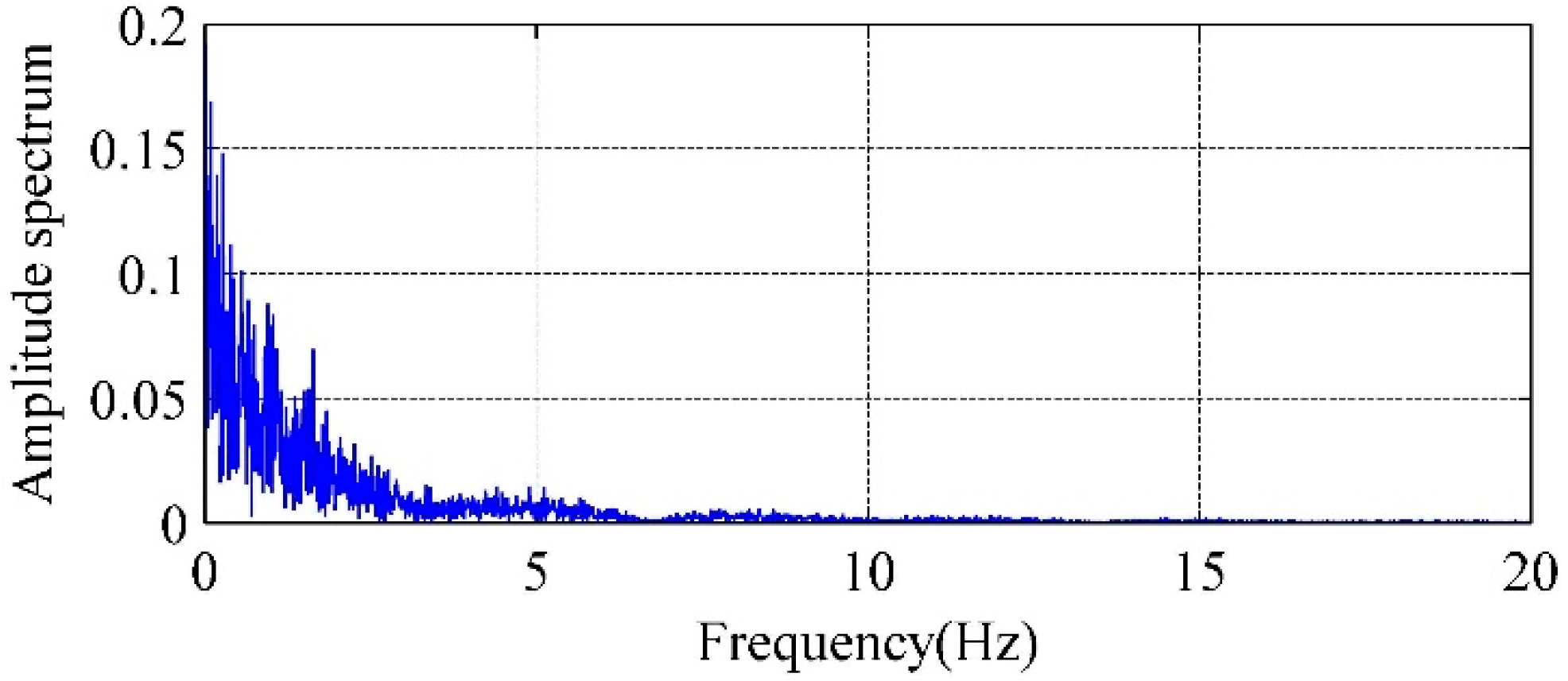

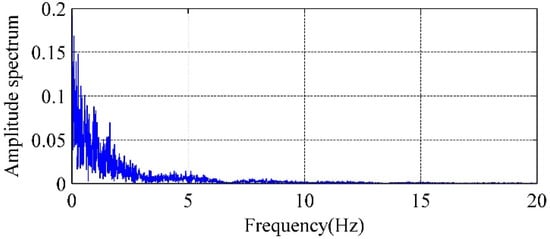

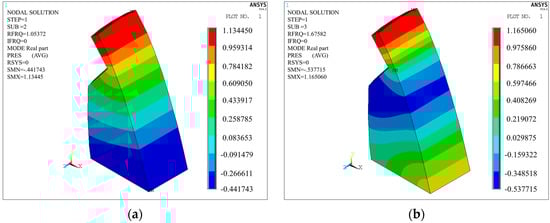

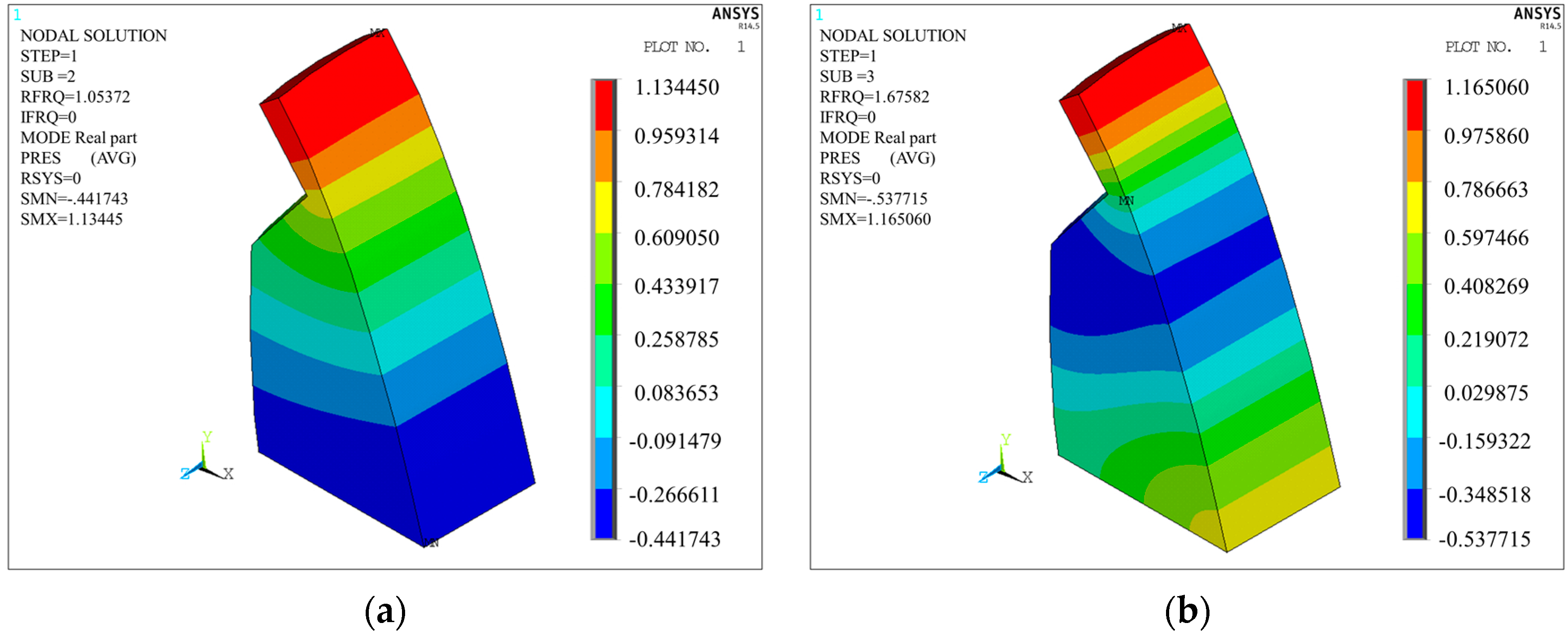

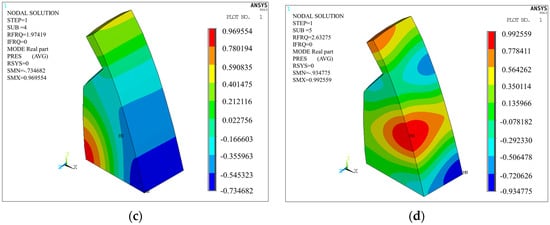

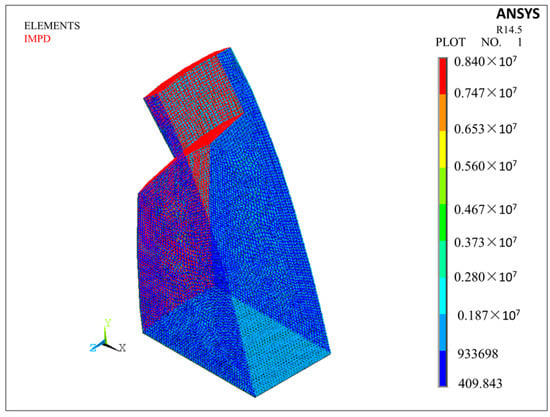

3.3.1. Analysis of Acoustic Modal of the Cavity behind the Nappe Jets

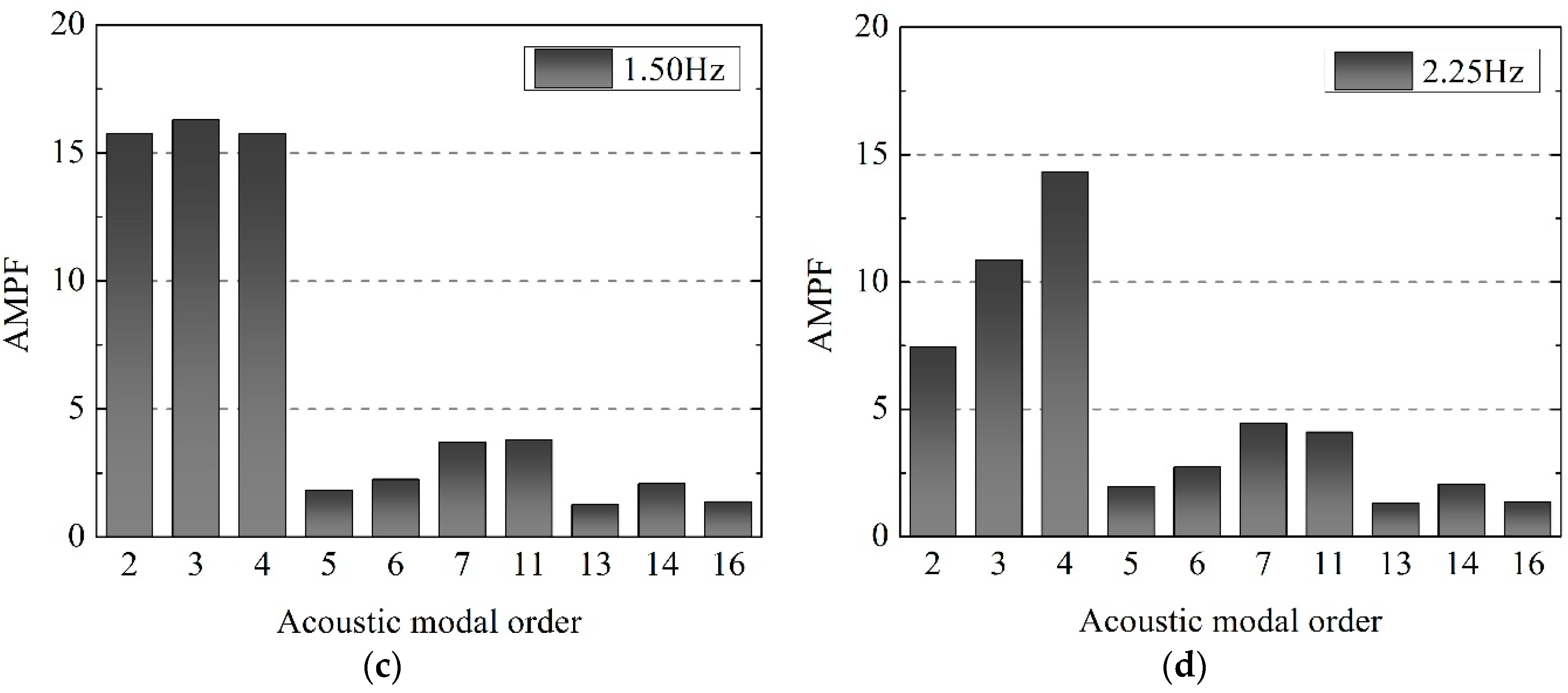

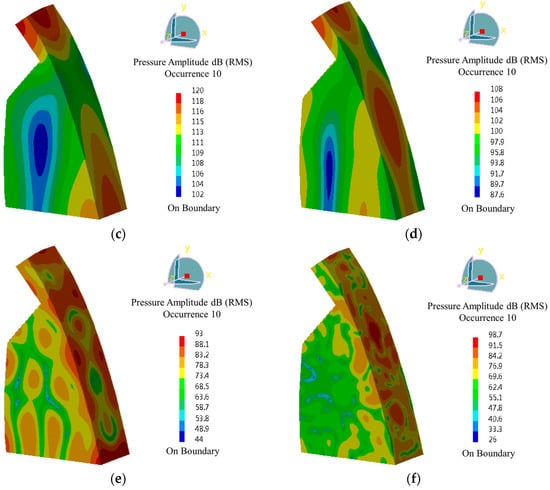

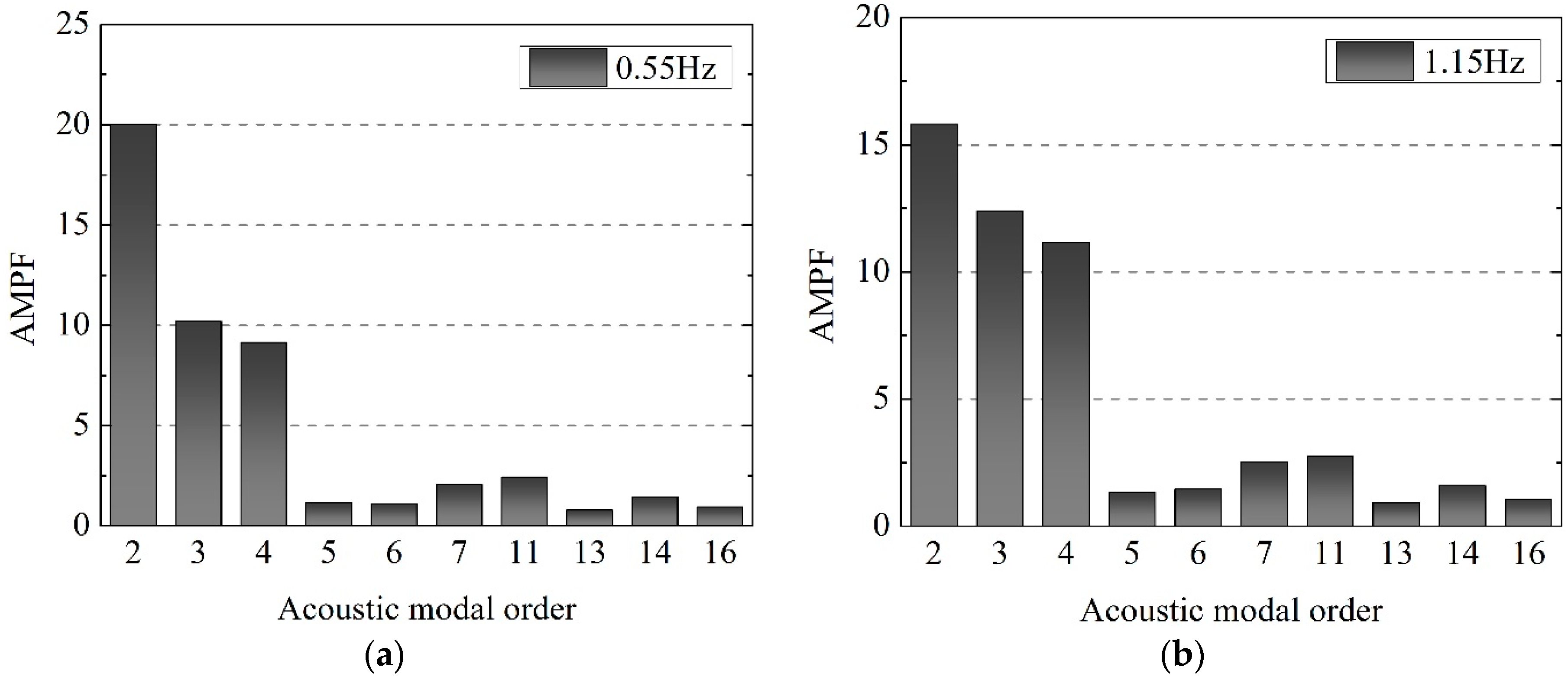

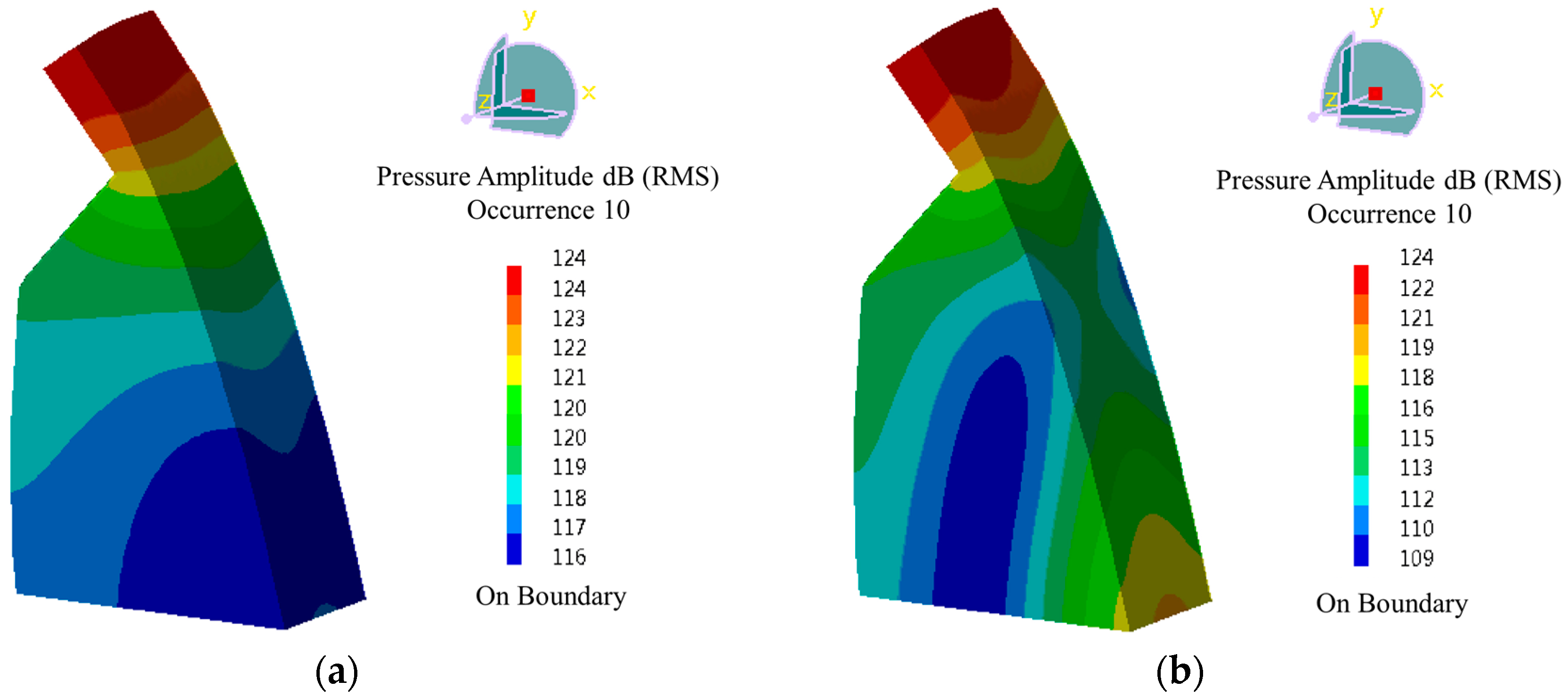

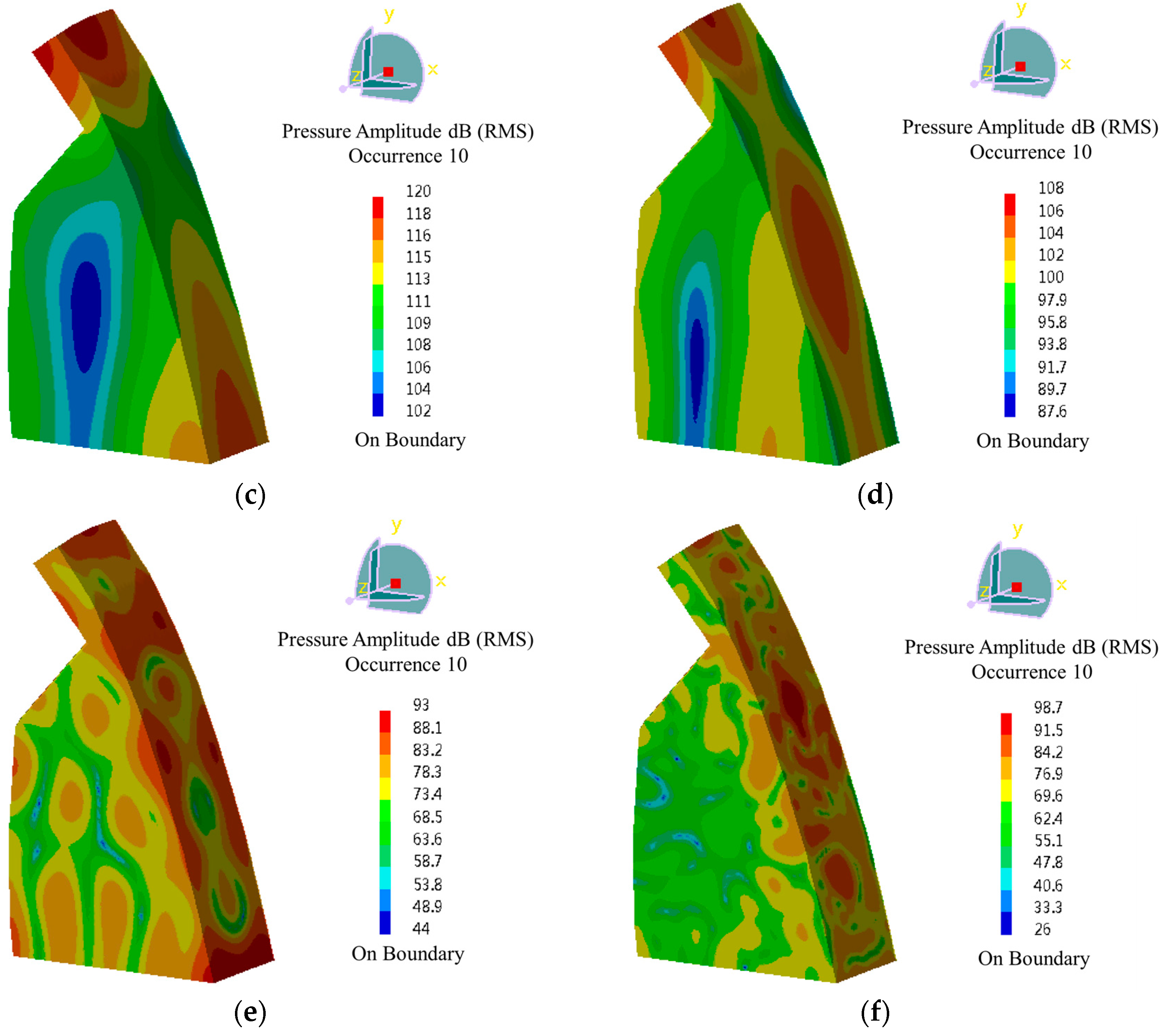

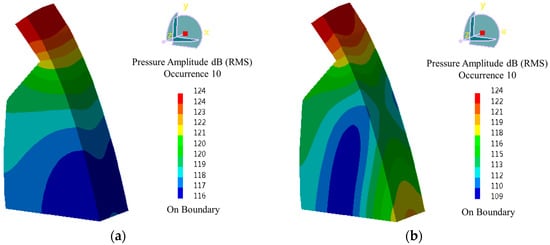

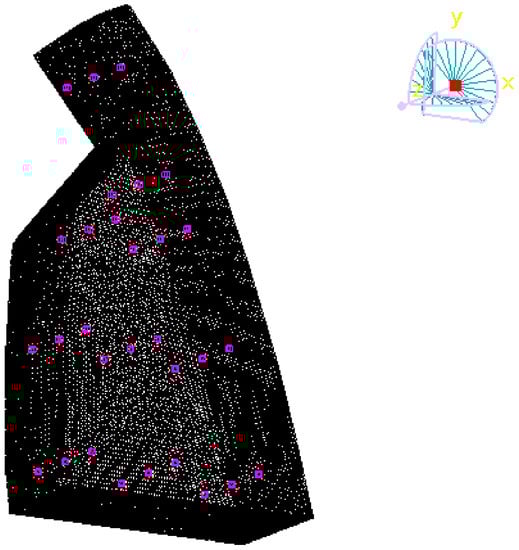

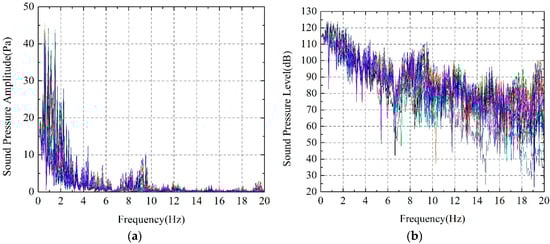

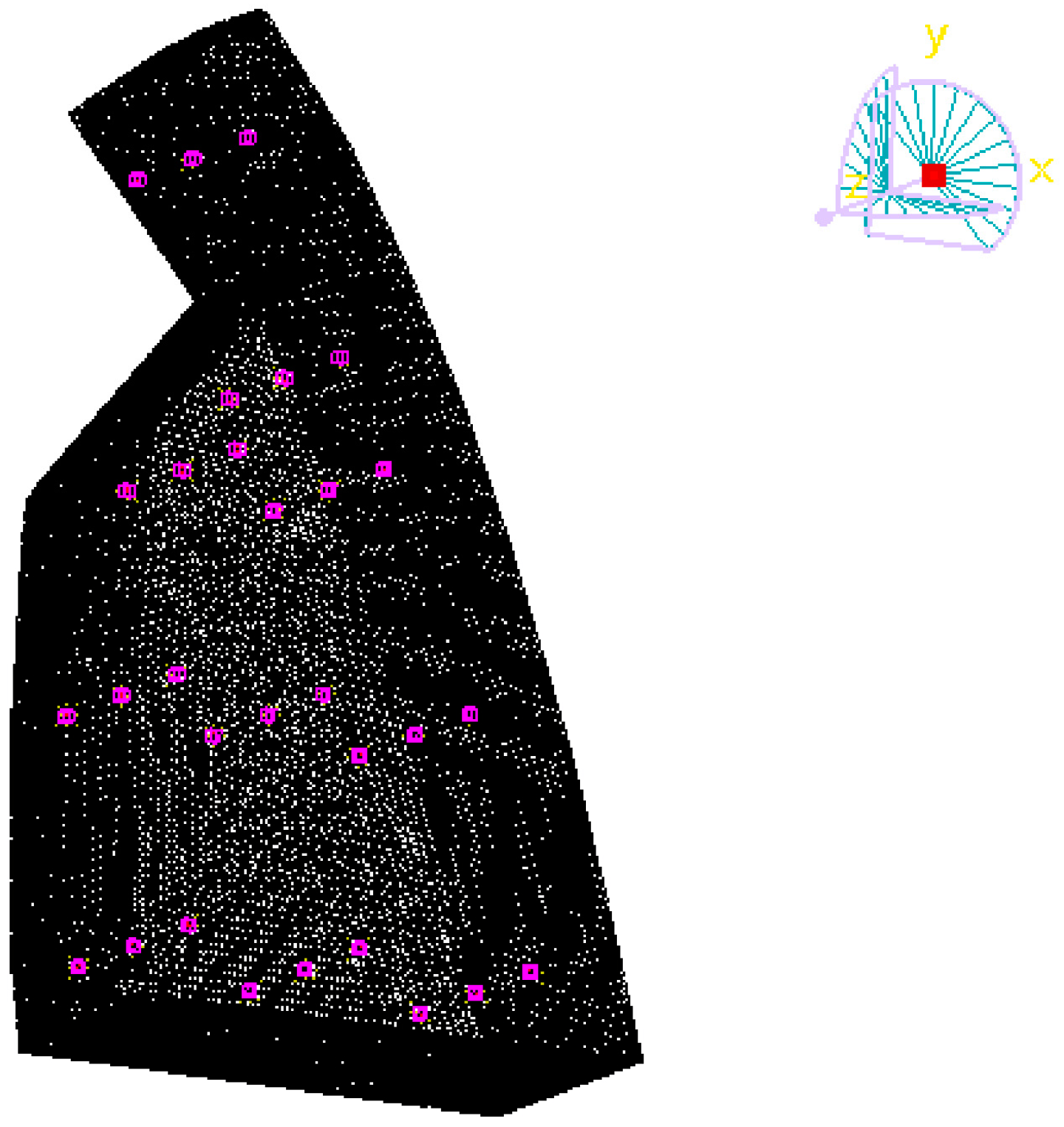

3.3.2. Acoustic Response Analysis
3.4. Analysis of Contribution Degree of Multi-Sources to LFN Energy
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Lian, J.J.; Liu, X.Z.; Ma, B. Safety Evaluation and the Static-dynamic Coupling Analysis of Counter-arched Slab in Plunge Pool. Sci. China Ser. E 2009, 52, 1397–1412. [Google Scholar] [CrossRef]
- Lian, J.J.; Li, H.K.; Zhang, J.W. ERA Modal Identification Method for Hydraulic Structures Based on Order Determination and Noise Reduction of Singular Entropy. Sci. China Ser. E 2009, 52, 400–412. [Google Scholar] [CrossRef]
- Lian, J.J.; Wang, J.M.; Gu, J.D. Similarity Law of Fluctuating Pressure Spectrum Beneath Hydraulic Jump. Chin. Sci. Bull. 2008, 53, 2230–2238. [Google Scholar] [CrossRef]
- Lian, J.J.; Li, C.Y.; Liu, F.; Wu, S.Q. A Prediction Method of Flood Discharge Atomization for High Dams. J. Hydraul. Res. 2014, 52, 274–282. [Google Scholar] [CrossRef]
- Lian, J.J.; Zhang, W.J.; Guo, Q.Z.; Fang, L. Generation Mechanism and Prediction Model for Low Frequency Noise Induced by Energy Dissipating Submerged Jets during Flood Discharge from a High Dam. Int. J. Environ. Res. Public Health 2016, 13, 594. [Google Scholar] [CrossRef] [PubMed]
- Lian, J.J.; Guo, J.S.; Liu, F. Analysis and Research of the Shutter Doors Vibration Induced by Low Frequency Noise of Flood Discharge. J. Hydraul. Eng. 2015, 46, 1207–1212. (In Chinese) [Google Scholar]
- Alimohammadi, I.; Sandrock, S.; Gohari, M.R. The Effects of Low Frequency Noise on Mental Performanceand Annoyance. Environ. Monit. Assess. 2013, 185, 7043–7051. [Google Scholar] [CrossRef] [PubMed]
- Salt, A.N.; Hullar, T.E. Responses of the Ear to Low Frequency Sounds, Infrasound and Wind Turbines. Hear. Res. 2010, 268, 12–21. [Google Scholar] [CrossRef] [PubMed]
- Nakamura, R. Problems of the Low Frequency Air Vibration. J. Environ. Conserv. Eng. 1978, 7, 848–849. (In Japanese) [Google Scholar]
- Takebayashi, S. Low Frequency Noise of Dam and Weir. J. INCE Jpn. 1999, 23, 324–328. (In Japanese) [Google Scholar]
- Nakagawa, H.; Takebayasi, S.; Mukuno, S. A Study on Low Frequency Noise of Water Fall. In Proceedings of the International Symposium on Hydraulics for High Dams, Beijing, China, 15–18 November 1988; pp. 1205–1217. [Google Scholar]
- Izumi, M. The Noise Characteristics in Sloping Channels of Hydraulic Jump-Type Drops. Jpn. Soc. Irrig. Drain. Rural Eng. 1995, 63, 507–512. (In Japanese) [Google Scholar]
- Ochiai, H.; Taya, K. On the Threshold Level of Rattling Fittings Due to Low Frequency Sound Pressure Level. J. INCE Jpn. 2002, 26, 120–128. (In Japanese) [Google Scholar]
- Muralawa, M.; Otomasu, H. A Technique for Reducing Low-frequency Noise Generated by Fully Opened Bottom-hinged Tilting Gate. Jpn. Soc. Irrig. Drain. Rural Eng. 2008, 76, 256–257. [Google Scholar]
- Gotoh, M.; Kobayashi, H.; Namihira, A.; Tsunesumi, N. Acoustical Properties of the Falling Water Sound according to Differences in the Downstream Slope Angle of a single weir. Jpn. Soc. Irrig. Drain. Rural Eng. 2006, 242, 169–177. [Google Scholar]
- Zhang, L.; Yang, Q.; Liu, Y. Long-term Stability Analysis of the Left Bank Abutment Slope at Jinping I Hydropower Stations. J. Rock Mech. Geotech. Eng. 2016, 8, 298–404. [Google Scholar] [CrossRef]
- Lin, J.Z. Coherent Structures of Turbulent Flow; China Machine Press: Beijing, China, 1995. [Google Scholar]
- Kline, S.J. The structure of turbulent boundary layers. J. Fluid Mech. 1967, 30, 741–773. [Google Scholar] [CrossRef]
- Powell, A. Theory of Vortex Sound. J. Acoust. Soc. Am. 1964, 36, 177–195. [Google Scholar] [CrossRef]
- Howe, M.S. Contribution to the Theories of Aerodynamic Sound with Application to Excess Jet Noise and to Theory of the Flute. J. Fluid Mech. 1975, 71, 625–673. [Google Scholar] [CrossRef]
- Howe, M.S. On the Absorption of Sound by Turbulence and Other Hydrodynamic Flow; Springer: New York, NY, USA, 1984; pp. 187–209. [Google Scholar]
- Mohring, W. On Vortex Sound at Low Mach Number. J. Fluid Mech. 1978, 85, 685–691. [Google Scholar] [CrossRef]
- Li, H.K.; Zhang, X.W.; Guo, C.; Zhang, X.F. Acoustic Resonance Analysis for Centrifugal Compressor and Experiment Verification. Chin. J. Mech. Eng. 2014, 50, 73–79. (In Chinese) [Google Scholar] [CrossRef]
- Wang, J.P.; Chang, S.; Liu, G.; Wu, L.Y.; Chang, L.H. Gearbox Noise Reduction Based on Modal Acoustic Contributions. J. Vib. Shock 2015, 34, 50–57. (In Chinese) [Google Scholar]
- Li, Z.G.; Zhan, F.L. Advanced Application Instances of Acoustic Simulation Calculation; National Defense Industry Press: Beijing, China, 2010. (In Chinese) [Google Scholar]
- Karim, O.A.; Ali, K.H.M. Prediction of Flow Patterns in Local Scour Holes Caused by Turbulent Water Jets. J. Hydraul. Res. 2000, 38, 279–287. [Google Scholar] [CrossRef]
- Deng, J.; Xu, W.L.; Zhang, J.M.; Qu, J.X.; Yang, Y.Q. A New Type of Plunge Pool—Multi-horizontal Submerged Jets. Sci. China Ser. E 2008, 51, 2128–2141. [Google Scholar] [CrossRef]
- Yakhot, V.; Orszag, S.A. Development of Turbulent Models for Shear Flows by a Double Expansion Technique. Phys. Fluids 1992, 4, 1510–1520. [Google Scholar] [CrossRef]
- Hirt, C.W.; Nichols, B.D. Volume of Fluid (VOF) for the Dynamics of Free Boundarier. J. Comput. Phys. 1981, 39, 201–225. [Google Scholar] [CrossRef]
- Ramamurthy, A.S.; Qu, J.; Vo, D. Numerical and experimental study of dividing open-channel flows. J. Hydraul. Eng. 2007, 133, 1135–1144. [Google Scholar] [CrossRef]
- Liu, S.H.; Qu, B. Investigation of plane aerated jet. J. Hydrodyn. 2002, 17, 376–381. [Google Scholar]
No. | Q (m3/s) | Water Level Elevation (m) | Bottom Dscharge Orifice | Crest Overflowing Orifice | |
---|---|---|---|---|---|
Upstream | Downstream | ||||
1 | 0 | / | / | / | / |
2 | 1090 | 1880.00 | 1646.61 | 3# | / |
3 | 2080 | 1880.00 | 1647.53 | 2#, 4# | / |
4 | 4360 | 1880.00 | 1650.08 | 1#, 2#, 4#, 5# | / |
5 | 5450 | 1880.00 | 1651.98 | 1#, 2#, 3#, 4#, 5# | / |
6 | 3840 | 1880.00 | 1650.02 | / | 1#2#3#4# |
7 | 4100 | 1880.00 | 1651.26 | 2#, 4# | 2#, 3# |
8 | 5190 | 1880.00 | 1651.69 | 2#, 3#, 4# | 2#, 3# |
Condition No. | Q (m3/s) | T7 | T9 | T11 | |||
---|---|---|---|---|---|---|---|
P (Pa) | P/Q (Pa/(m3/s)) | P (Pa) | P/Q (Pa/(m3/s)) | P (Pa) | P/Q (Pa/(m3/s)) | ||
2 | 1090 | 7.164 | 0.00657 | 6.404 | 0.00588 | 4.911 | 0.00451 |
3 | 2080 | 8.942 | 0.00430 | 7.155 | 0.00344 | 5.255 | 0.00253 |
4 | 4360 | 10.561 | 0.00242 | 8.893 | 0.00204 | 6.460 | 0.00148 |
5 | 5450 | 10.754 | 0.00197 | 8.971 | 0.00165 | 6.662 | 0.00122 |
6 | 3840 | 8.007 | 0.00209 | 6.435 | 0.00168 | 4.467 | 0.00116 |
7 | 4100 | 11.251 | 0.00274 | 8.726 | 0.00213 | 6.599 | 0.00161 |
8 | 5190 | 11.993 | 0.00231 | 10.249 | 0.00197 | 8.301 | 0.00160 |
Condition No. | Analysis Items of Nappe | Numerical Results | Theoretical Results | Relative Error (%) |
---|---|---|---|---|
2 | Trajectory distance of 3# bottom discharge orifice (m) | 85.634 | 88.657 | 3.410 |
Initial water-entry velocity of 3# bottom discharge orifice (m/s) | 58.991 | 60.930 | 3.182 | |
5 | Trajectory distance of 3# bottom discharge orifice (m) | 86.441 | 88.243 | 2.042 |
Initial water-entry velocity of 3# bottom discharge orifice (m/s) | 59.026 | 60.593 | 2.586 | |
6 | Trajectory distance of 3# crest overflowing orifice (m) | 87.526 | 89.181 | 1.856 |
Initial water-entry velocity of 3# crest overflowing orifice (m/s) | 63.832 | 65.375 | 2.360 | |
8 | Trajectory distance of 3# crest overflowing orifice (m) | 84.079 | 86.024 | 2.261 |
Initial water-entry velocity of 3# crest overflowing orifice (m/s) | 63.759 | 65.628 | 2.848 | |
Trajectory distance of 3# bottom discharge orifice (m) | 84.172 | 86.265 | 2.426 | |
Initial water-entry velocity of 3# bottom discharge orifice (m/s) | 58.133 | 60.121 | 3.307 |

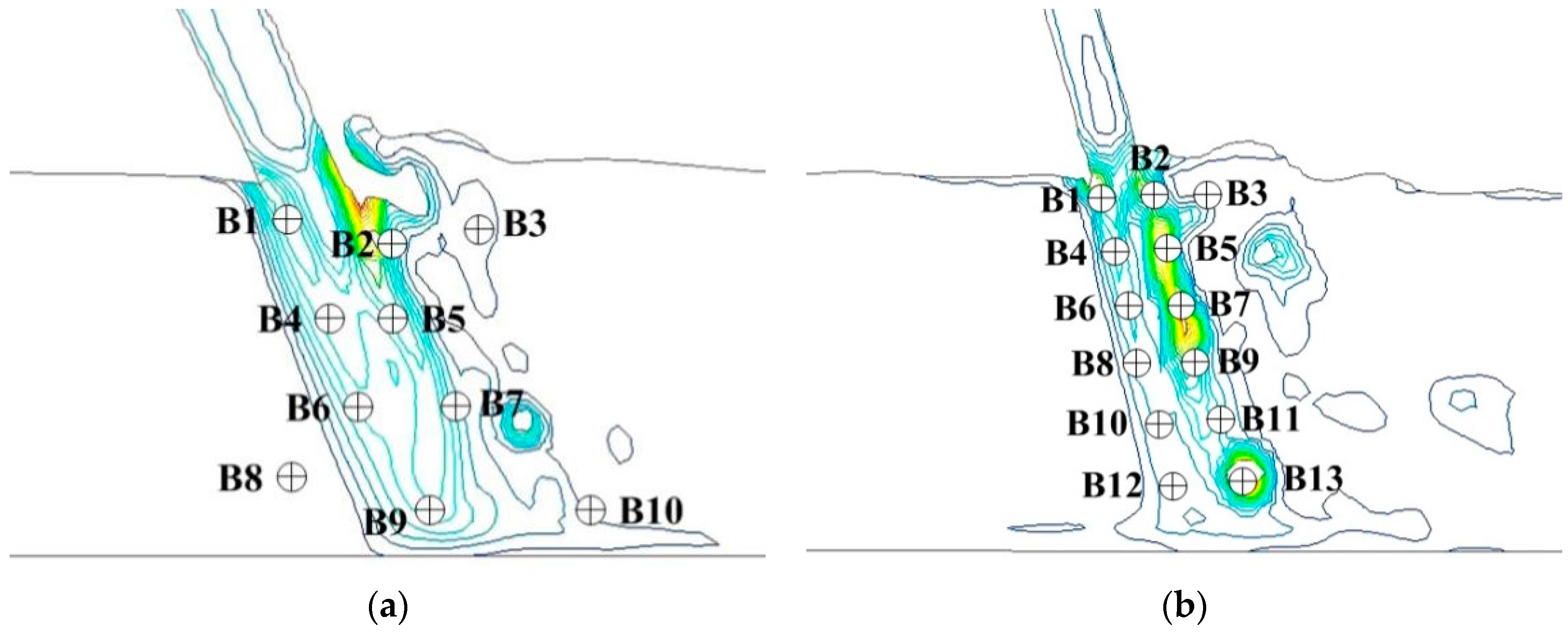

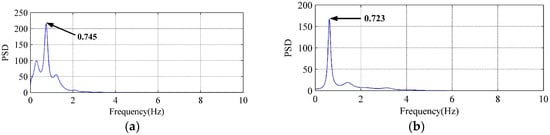

Condition 2 | Condition 6 | ||||||
---|---|---|---|---|---|---|---|
Monitoring Point | Time-Averaged Value (s−1) | RMS (s−1) | Dominant Frequency (Hz) | Monitoring Point | Time-Averaged Value (s−1) | RMS (s−1) | Dominant Frequency (Hz) |
B1 | 24.601 | 0.920 | 0.227 | B1 | 27.876 | 3.175 | 0.196 |
B2 | 26.961 | 11.406 | 0.745 | B2 | 24.723 | 3.756 | 0.471 |
B3 | 1.749 | 0.878 | 0.318 | B3 | 2.843 | 1.672 | 0.269 |
B4 | 17.823 | 1.333 | 0.182 | B4 | 19.889 | 2.825 | 0.318 |
B5 | 20.502 | 4.764 | 0.364 | B5 | 24.866 | 6.208 | 0.567 |
B6 | 12.744 | 2.448 | 0.182 | B6 | 16.235 | 1.505 | 0.269 |
B7 | 5.599 | 2.779 | 0.427 | B7 | 22.844 | 5.334 | 0.710 |
B8 | 0.249 | 0.032 | / | B8 | 12.099 | 1.205 | 0.196 |
B9 | 7.764 | 3.411 | 0.436 | B9 | 20.964 | 8.566 | 0.441 |
B10 | 3.181 | 0.974 | 0.182 | B10 | 8.010 | 1.513 | 0.196 |
B11 | 19.654 | 12.389 | 0.563 | ||||
B12 | 5.555 | 1.794 | 0.392 | ||||
B13 | 8.399 | 6.021 | 0.514 |
Order No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Modal Frequency | 0 | 1.054 | 1.676 | 1.974 | 2.633 | 2.657 | 2.797 | 2.900 | 3.169 | 3.318 |
Condition No. | Observation Point | P (Pa) | (Pa) | IC1 | (Pa) | IC2 |
---|---|---|---|---|---|---|
2 | T9 | 6.404 | 6.995 | ≡1 | / | / |
T11 | 4.911 | 5.151 | ≡1 | / | / | |
5 | T9 | 8.971 | 5.722 | 0.638 | 6.910 | 0.770 |
T11 | 6.662 | 4.109 | 0.617 | 5.244 | 0.787 | |
6 | T9 | 6.435 | 3.865 | 0.601 | 5.145 | 0.799 |
T11 | 4.467 | 2.775 | 0.621 | 3.500 | 0.784 | |
8 | T9 | 10.249 | 10.620 | ≡1 | / | / |
T11 | 8.301 | 9.172 | ≡1 | / | / |
Condition No. | Observation Point | IC1 | IC2 | (Pa) | (Pa) | PT (Pa) | PP (Pa) | Relative Error (%) |
---|---|---|---|---|---|---|---|---|
6 | T5 | 0.619 | 0.785 | 6.989 | 8.863 | 11.291 | 11.532 | 2.091 |
T12 | 1.734 | 2.199 | 2.801 | 2.839 | 1.339 |
