: We simulated commuter routes and long-term exposure to traffic-related air pollution during commute in a representative population sample in Basel (Switzerland), and evaluated three air pollution models with different spatial resolution for estimating commute exposures to nitrogen dioxide (NO2) as a marker of long-term exposure to traffic-related air pollution. Our approach includes spatially and temporally resolved data on actual commuter routes, travel modes and three air pollution models. Annual mean NO2 commuter exposures were similar between models. However, we found more within-city and within-subject variability in annual mean (±SD) NO2 commuter exposure with a high resolution dispersion model (40 ± 7 µg m−3, range: 21–61) than with a dispersion model with a lower resolution (39 ± 5 µg m−3; range: 24–51), and a land use regression model (41 ± 5 µg m−3; range: 24–54). Highest median cumulative exposures were calculated along motorized transport and bicycle routes, and the lowest for walking. For estimating commuter exposure within a city and being interested also in small-scale variability between roads, a model with a high resolution is recommended. For larger scale epidemiological health assessment studies, models with a coarser spatial resolution are likely sufficient, especially when study areas include suburban and rural areas.
air pollution; model comparison; traffic; travel mode; travel pattern

1. Introduction

Daily travel within urban areas is an important component of human exposure to traffic-related air pollutants. Levels of traffic-related air pollutants such as nitrogen dioxide (NO2), ultrafine particles (UFP), and carbon monoxide (CO) have consistently been shown to be higher in urban areas and in transit-related environments than at other non-occupational locations [1,2,3,4]. In Europe, people spend about 8% of the day in transport environments [5]. Many of those daily trips, especially the commutes to and from work or school, generally take place during times of the day with peak traffic flow and thus high concentration levels. In most epidemiological studies on health effects of long-term exposure to traffic-related air pollution, however, in-transit exposure is ignored [6]. The exposure assessment of these studies mostly relies on estimated levels at no more than one fixed-site per person such as average level of the respective pollutant at the person’s home or a fixed monitoring station nearby, or on traffic indicator variables, including distance to major roads and traffic intensity [6]. With technological advances and the development of personal monitors, several personal monitoring studies have been carried out to better quantify air pollution exposures in traffic (e.g., [1,7,8,9,10,11]). Although personal exposure studies provide important insights into exposure determinants, such studies are generally not feasible for large cohort studies due to the high costs and the commitment required of the study participants.

Only a few modeling approaches exist to estimate air pollution exposure in transit. Some long-term exposure assessment studies have applied the concept of microenvironments to take into account in-transit exposure (so-called compartment models). This approach uses the average concentrations within different transport environments, derived from personal or fixed station measurements, and multiplies them by the time spent in such microenvironments. While some studies differentiate between several transportation modes [12], others use only a general “transport” microenvironment [5]. For both approaches, uncertainties remain for pollutants with high spatial and temporal variability within microenvironments, such as for example NO2 concentrations, thus creating inter-subject variability [13,14]. More dynamic models account for people’s specific location throughout the day along with time-activity information and in-transit patterns. Exposures are estimated by overlaying air pollution models with information from census data, time-activity and/or geo-coded origin-destination information from surveys [13,15,16,17]. Another approach integrates activity-based transport models simulating spatially and temporally resolved vehicle volume, traffic emissions, and population density to predict population exposure [18,19,20]. Limitations of such exposure simulations include the imprecision of spatial in-transit data. Some models simulate trips as straight lines or the shortest or fastest route along roads between locations and zones without knowing the exact route and/or travel mode. Others are based on a synthetic population and routes are generated stochastically as in the case of activity-based transport models.

Simulated in-transit exposure estimates might be further impaired by the limited spatial resolution of the air pollutant models used which do not accurately represent the high spatial variability of pollutant concentrations, especially in urban streets [18,21]. Developing models of high resolution requires expertise, adequate data and can be costly. Air pollution models commonly used to assess long-term exposure to traffic-related NO2 include inverse-distance weighted interpolation of monitoring data (e.g., [15]), dispersion models (e.g., [17,22]) and land use regression (LUR) models (e.g., [23,24]). While dispersion models mostly rely on dispersion theory, emission and meteorological data, LUR models apply regression techniques using actual air pollution monitoring data and predictor variables obtained from geographic information systems (GIS). More recently, hybrid models were also developed (e.g., [25]) which combine personal or regional monitoring with other air pollution modeling methods [26].

Better quantification of daily in-traffic exposure of a general population is important to provide better estimates of total air pollution exposures in investigations of long-term health effects. The aim of this study was to develop an approach to estimate individual NO2 exposures in a representative sample of the population during commute within the metropolitan area of Basel (Switzerland). Our approach includes spatially and temporally resolved data on commuter trips within the study area, and three annual air pollution models with varying spatial resolution. This paper describes the simulation of commuter routes and the in-transit NO2 exposure from outdoor origin. It also evaluates the differences between these NO2 commuter estimates for the three models that may occur when applying them in long-term exposure assessments. The potential bias that can occur when ignoring these commute exposures but rely on home outdoor locations only in epidemiological studies on the long-term health effects of traffic-related outdoor air pollution is explored in Ragettli et al. [27]. As in many epidemiological studies, we chose NO2 as marker for traffic-related outdoor air pollution as it describes the spatial distribution of traffic-related air pollution well. But, in principle, the simulation is applicable to any other traffic-related pollutant.

2. Methods

2.1. Study Area

Our study was carried out in the region of Basel (Switzerland), which covers the two Swiss Counties (called Cantons) of Basel-City and Basel-Country (Figure 1). The area (550 km2) includes a population of 465,000 people. While the Canton of Basel-City is a predominantly urban area with buildings of usually three to five stories, Basel-Country is largely suburban and rural in character. Hereafter, we differentiate Basel-City from the total study area and present results separately. The region is a relatively low-pollution area with an annual mean NO2 suburban background concentration of 23.5 µg m−3 in 2010.

Figure 1. Annual mean NO2 concentrations from different air pollution models for total study area (1); and Basel-City (2).
Figure 1. Annual mean NO2 concentrations from different air pollution models for total study area (1); and Basel-City (2).
Ijerph 11 05049 g001 1024

2.1.1. Study Population and Commuter Routes

The study methodology is illustrated in Figure 2. We extracted information on commuter routes from the year 2010 Swiss Mobility and Transport Microcensus [28]. Our focus was on commutes between home, work or school locations as those trips account for a large fraction of travel time on work days and are usually carried out regularly over time. The telephone-based survey included geo-coded time-activity diaries covering one day of a representative number of randomly selected individuals of each Swiss Canton. Geo-codes were recorded for start locations, trip destinations and places where study participants changed their mode of transport during trips. In addition, the actual route of public transport and motorized transport legs were simulated based on the coordinates by an interactive routing tool during the interview. A leg is defined as each contiguous part of a trip that is covered with the same travel mode. For example, a trip of a person who walks to the train station, takes the train and then walks to work from the destination train station covers three legs. The routing was performed based on the TeleAtlas MultiNet road network and a public transport network with integrated time table. All public transport and motorized transport routes ≥3 km were verified during the interview.

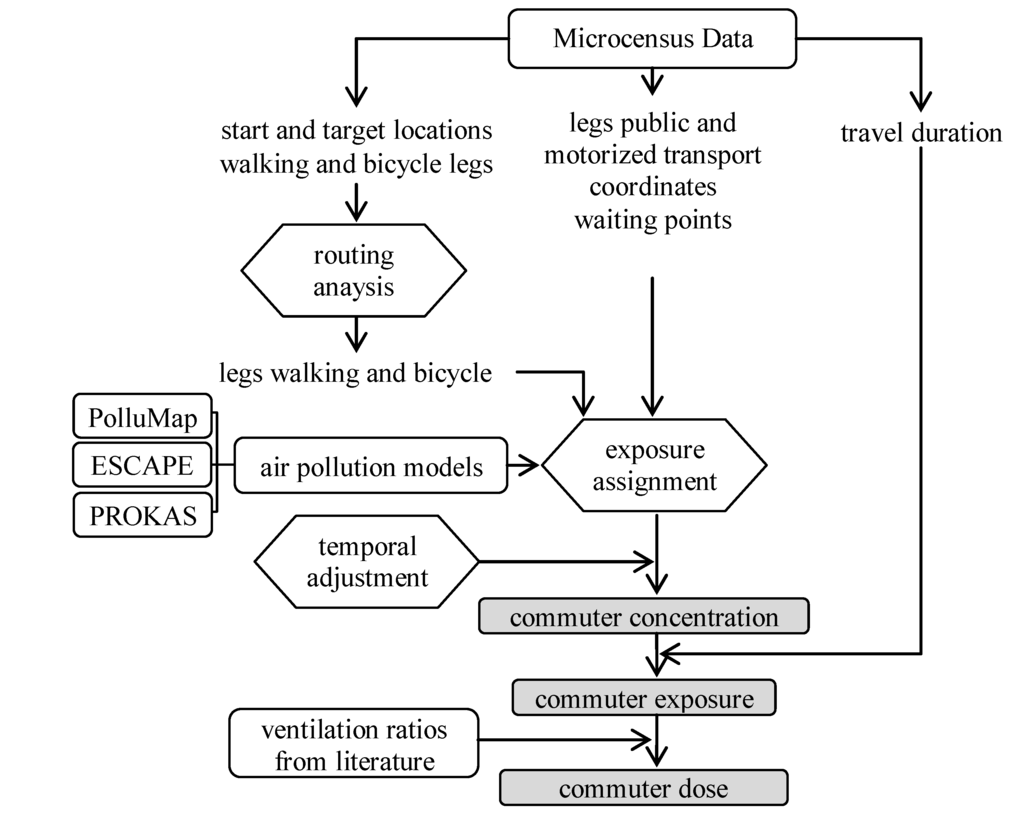

Figure 2. Schematic representation of the applied methodology. Boxes are inputs, and hexagons are analysis steps. Shadowed boxes indicate commuter estimates.
Figure 2. Schematic representation of the applied methodology. Boxes are inputs, and hexagons are analysis steps. Shadowed boxes indicate commuter estimates.
Ijerph 11 05049 g002 1024

We subsequently simulated both walking and bicycle routes based on the geo-coded start and target locations using the GIS based route finder Network Analyst by ESRI (ArcGIS 9.3, Redland, CA, USA). The routing was performed using the Swiss GIS road network VECTOR25 (Federal Office of Topography swisstopo, Wabern, Switzerland, 2008) which has been shown to be more complete than the TeleAltas road network for smaller side streets and pedestrian roads [29]. The shortest routes between the geo-codes were determined using the distance, i.e., the road segment length, as the cost factor in the analysis. We validated the routing performance of the GIS model by comparing real commutes of test persons with the simulated routes (for details, see Supplementary Section 1). Additionally, a quality check of the simulated distance versus reported distance of the Microcensus data of all legs and travel modes assured that large detours were avoided. Comparisons between the reported distance and routing distance of walking and bicycle legs showed moderate to high agreement (R2 = 0.6 to 0.8) for both the microcensus data and validation study (see Supplementary Section 2).

To evaluate the benefit of verifying car legs ≥3 km instead of modeling the shortest routes in terms of driving time between origin and destination location, we also simulated the fastest route based on the TeleAtlas road network for subjects who travel only by car between home and work/school locations (results of this sub-analysis are provided in the Supplementary Section 3).

We classified each commuter leg as either a main or a side street based on the longest road segments of the underlying road network. Major streets in TeleAtlas were defined as the functional road classes (FRC) 0–4. In VECTOR25, streets classified as highways and class 1 roads were used as main roads. Public transport legs that were not directly overlapping with the TeleAtlas road network were classified based on the length of the nearest road segments within a buffer of 15 m.

A total of 736 subjects (28% of all respondents with time-activity information in the study area) were selected based on the following inclusion criteria: (a) living and working, or attending a school within the study area, locations not being the same place; (b) reporting at least one trip between home and work location within the study area classified by purpose working or education; (c) quality of geo-codes being of sufficient quality (house number or street level). Indirect commuter trips, including for example a stop at a shop or day care, were also included. If an uneven number of trips between home and work/school location were reported (11% of the total), i.e., a trip from either home to work or vice-versa was missing, the reported single trip was duplicated. For these cases the time of the day when leaving home, work or school was used as time information.

2.2. Air Pollution Models

We used three spatially resolved annual mean ambient air pollution models to estimate exposure to NO2 during commute. The models were all originally developed for estimating outdoor air pollution exposure at home outdoor locations. Two models for Basel-City and one for the total study area were available (see Table 1). The first model, PROKAS, was developed for the calculation of traffic induced air pollution for the Basel department of air hygiene. It consist of a Gaussian plume model (PROKAS_V) to estimate the urban traffic background concentration for a given road network and meteorology, and an integrated building structure module (PROKAS_B) [30]. The latter is used to account for the rather complex built environment of urban areas. It is based on pre-calculated dimensionless concentrations for 20 different building structures and 36 air flow directions determined by the microscale dispersion model MISKAM [31]. Additional NO2 concentrations such as household (heating), shipping traffic from the river Rhine, industry and commerce were estimated with the three-dimensional model LASAT [32] and overlaid with the traffic-related NO2 concentrations. The road transport emissions for all major roads were computed by a local traffic model (mobility department Basel-City) and projected to the TeleAtlas road network. The second model, ESCAPE, was developed within the framework of the European Study of Cohorts for Air Pollution Effects (ESCAPE) using LUR modeling based on 2009 NO2 measurement data at 40 locations [33]. Given that the model was designed to estimate NO2 exposures at home outdoor locations and not in transport environments per se, we applied the LUR model to a 50 × 50 m grid corresponding to the quality of the model input data. More information on the Basel ESCAPE model is provided in the Supplementary Section 4. Finally, a nationwide dispersion model, PolluMap, was available from the Swiss Federal Office for the Environment (FOEN). The nationwide model computes source-specific annual concentrations based on a Gaussian plume model using emission inventories from 2010, a national road network map and meteorological data. Emission inventories considered include road traffic, rail traffic, aviation, industry, commerce, construction, household (heating), agriculture and forestry [34].

Table 1. Characteristics of the three air pollution models used to individually assign commute exposure.
Table 1. Characteristics of the three air pollution models used to individually assign commute exposure.
Grid size25 × 25 m50 × 50 m100 × 100 m
MethodGaussian dispersion, integrated building characteristicsLand use regressionGaussian dispersion
Comparison with measurementsNAR2 = 0.67 aR2 = 0.80 b
ReferenceAir Hygiene Department Basel and Lohmeyer 2008 [30]Beelen et al. 2013 [33]Federal Office for the Environment Switzerland (FOEN) [34]

Note: a unadjusted R2; b Measured values are the arithmetic mean of the three annual averages 2008, 2009, 2010.

2.3. NO2 Exposure Assessment

We overlaid maps (Figure 1) of annually averaged ambient NO2 concentrations from the three air pollution models on the commuter legs to estimate commuter exposure. NO2 concentration of a leg (Cleg) was computed based on the sum of the extracted NO2 grid concentrations (Cgrid) weighted by the length of the leg within the grid (Equation (1)):

Ijerph 11 05049 i001

We calculated temporal adjustment factors for each hour of the day separately for main roads and side streets to consider the diurnal pattern of NO2 levels and road-type specific differences in hourly traffic volume and composition of vehicles. NO2 data (30-min averages) from two fixed air pollution monitoring stations, a street site and an urban background site within the Canton of Basel-City, were used to derive the ratios. Ratios were computed between the annual weekday hourly means and the annual mean concentration measured at the monitoring stations for main streets (ratiom-h) and side streets (ratios-h) (for more details on ratios, street class distribution by travel mode see Supplementary Section 5). We then applied ratios to each leg concentration Cleg based on the road classification and start hour of the leg to compute subjects’ commuter NO2 concentration, Csubject (Equation (2)) and exposure, Esubject (Equation (3)). For the calculation of subjects’ commute exposure, waiting time between two legs (e.g., when transferring from one mode to another for example at public transport stops) and respective NO2 concentrations (Cwait) were also considered:

Ijerph 11 05049 i002
Ijerph 11 05049 i003
where tleg is the duration spent on the leg, and twait the time spent at a waiting location. Time-weighted commuter exposure is defined as the exposure divided by the total commuter duration of a subject. We used the reported travel time and waiting time information from the microcensus data for all travel modes.

Finally, as a proxy for the inhaled dose, we derived adjusted estimates of exposure, taking into account mode-specific ventilation rates (we use the term “dose” hereafter). Since neither physical activity measures nor adequate data on body weight and body height were available, we applied ventilation ratios extracted from the literature to each leg. A ratio of 1.7 [8] for walking and 2.0 for bicycle [8,35], respectively, relative to public transport and motorized transport was assumed.

Comparisons between the three air pollution models based on subjects’ commuter NO2 estimates (i.e., concentration, exposure and dose) and by travel mode (i.e., legs without waiting time) were then performed to evaluate the potential differences in outdoor NO2 estimates that may arise when applying models with varying modeling techniques, spatial resolution and input data. A validation of the in-transit NO2 exposure estimates—for the overall population and by travel mode—was neither the purpose of this study nor possible due to the unavailability of reliable real-time personal NO2 monitoring devices with appropriate sensitivity and specificity. As our focus was the long-term exposure to outdoor air pollution in transport environments, the benefit of validating the annual models with short-term personal measurements is limited. However, to evaluate the performance of the air pollution models, we compared the PROKAS, ESCAPE and PolluMap model to NO2 measurements from a total of 31 monitoring sites within Basel-City from the Swiss study on Air Pollution and Lung and Heart Diseases in Adults (SAPALDIA) (see Supplementary Section 6). These measurements were conducted outside subjects’ homes in three biweekly integrated sampling campaigns in 2011 using Passam passive diffusion samplers (Passam AG, Schellenstrasse, Männedorf, Switzerland). We compared the average ambient NO2 concentrations of each site to the respective grid value of the three models. The data analyses were conducted using the statistical software STATA (version 12.1, STATA Corp., College Station, TX, USA).

3. Results

3.1. Commuter Behavior of the Study Population

The majority (84%) of the study population reported two commuter trips per day. The remaining population traveled four times per day between home and work/school locations. The average number of legs (±standard deviation (SD)) per subject and day in Basel-City and the total area was 4.6 (±3.0) and 4.6 (±2.9), respectively. A summary of the characteristics of the study population (age, sex, working hours per week) is shown in Table S5 in the supplement. In the total study area, the main travel modes used for the daily commute to work/school (defined as the mode used for the longest distance of the commute trips per day) were motorized transport (car and motorcycle; 32%) and public transport (bus, tram, train; 30%). However, within Basel-City, the active transport (walking: 27%, bicycle: 30%) was the main travel mode, followed by public transport (32%). Motorized transport was used by 9% of the subjects living and working in Basel-City.

The average daily commuting distance within Basel-City was about half of that of the total study area (Table 2). However, the average trip duration between home and work/school locations (18.2 ± 11.5 min in Basel city) was only 14% shorter. Average daily travel time for all main travel modes were rather similar within Basel-City (30–35 min), except for public transport, which was about twice as long (62 min). Commuting mainly took place within the rush hours 6–8 am and 4–6 pm (Figure S4), coinciding with the diurnal peaks of air pollution.

Table 2. Daily commuter distance and commuter duration of subjects per main travel mode and study area.
Table 2. Daily commuter distance and commuter duration of subjects per main travel mode and study area.
Basel-CityTotal Area
n (subjects)mean(sd)minmaxn (subjects)mean(sd)minmax
commute distance (in m)
all modes2586,086(4,588)5229,09573613,976(15,329)2388,346
motorized transport229,128(4,128)3,56917,13623421,318(17,610)87788,346
public transport838,801(5,082)3,26129,09521919,081(15,204)203383,182
Commute duration (in minutes)
all modes25842(25)415573649(33)2204
motorized transport2235(14)196423443(26)4163
public transport8362(24)2314021978(32)23204

Note: sd: standard deviation; min: minimum; max: maximum.

3.2. Comparison of Air Pollution Models

In the overall comparison between the model-based NO2 estimates and the SAPALDIA NO2 measurements, the PROKAS model obtained best agreement (R2 = 0.58) whereas correlations were lower but similar for the ESCAPE (R2 = 0.41) and the PolluMap model (R2 = 0.46). While the PROKAS model predicted the street sites concentrations better than the other models, the urban background sites showed good agreement also with the nation-wide dispersion model PolluMap, which had the lowest resolution (see Supplementary Section 6).

Summary statistics of estimated time-weighted subjects’ commuter NO2 exposure during commute using the three air pollution models are shown in Table 3. Within Basel-City, mean and median NO2 concentrations and exposures were similar between the models. However, as illustrated by the standard deviations and confirmed by the Fisher Pitman test, the variability and range of model estimates were significantly increased with higher model resolution. Covering the total study area, the PolluMap model also allowed comparisons of within Basel-City commuter exposures to commutes within the total study area, i.e., including subjects traveling between the two Cantons and within Basel-Country. Average exposure estimates from the PolluMap model for the total study area were ~5 µg m−3 lower than within Basel-City, and the range was twice as large because of the smaller values on the lower end.

Table 3. Summary of time-weighted subjects’ NO2 exposure during commute (in µg m³) for Basel-City by air pollution model, and for the total area (only one model available).
Table 3. Summary of time-weighted subjects’ NO2 exposure during commute (in µg m³) for Basel-City by air pollution model, and for the total area (only one model available).
Modeln (subjects)mean(sd)minp5medianp95max
Total areaPolluMap73633.7(7.7)12.419.834.845.052.2

Note: sd: standard deviation; min: minimum; p5: 5th percentile; p95: 95th percentile; max: maximum.

In general, both leg and subject specific NO2 concentrations correlated well between the models (r = 0.81–0.91, Table S6). NO2 concentrations from PROKAS showed higher correlations with ESCAPE (the second highest resolution model) than with PolluMap, the lowest resolution model. Spearman correlation coefficients of subjects’ NO2 commuter exposures and dose estimates were almost identical for all model pairs and were close to 1.0 (Table S6).

As illustrated in Figure 3 and Figure 4, we observed a non-linear relationship between model estimates. Compared to PROKAS, a systematic underestimation of subjects’ highest NO2 commuter estimates and overestimations of the lowest values in both PolluMap and ESCAPE models was found. The relationship of the NO2 commuter concentrations between the model pairs PolluMap-PROKAS was best fitted by a quadratic function (R2 = 0.70), and between ESCAPE-PROKAS by a cubic function (R2 = 0.77). Average differences (and SD) between time-weighted NO2 commuter exposure estimates of the three model pairs PolluMap-PROKAS, ESCAPE-PROKAS and PolluMap-ESCAPE within Basel-City were 0.97 (±3.12), −1.08 (±3.71) and −2.04 (±2.61) µg m−3, respectively (Figure 4). Differences were significantly different from 0 (tested by a Wilcoxon signed rank test).

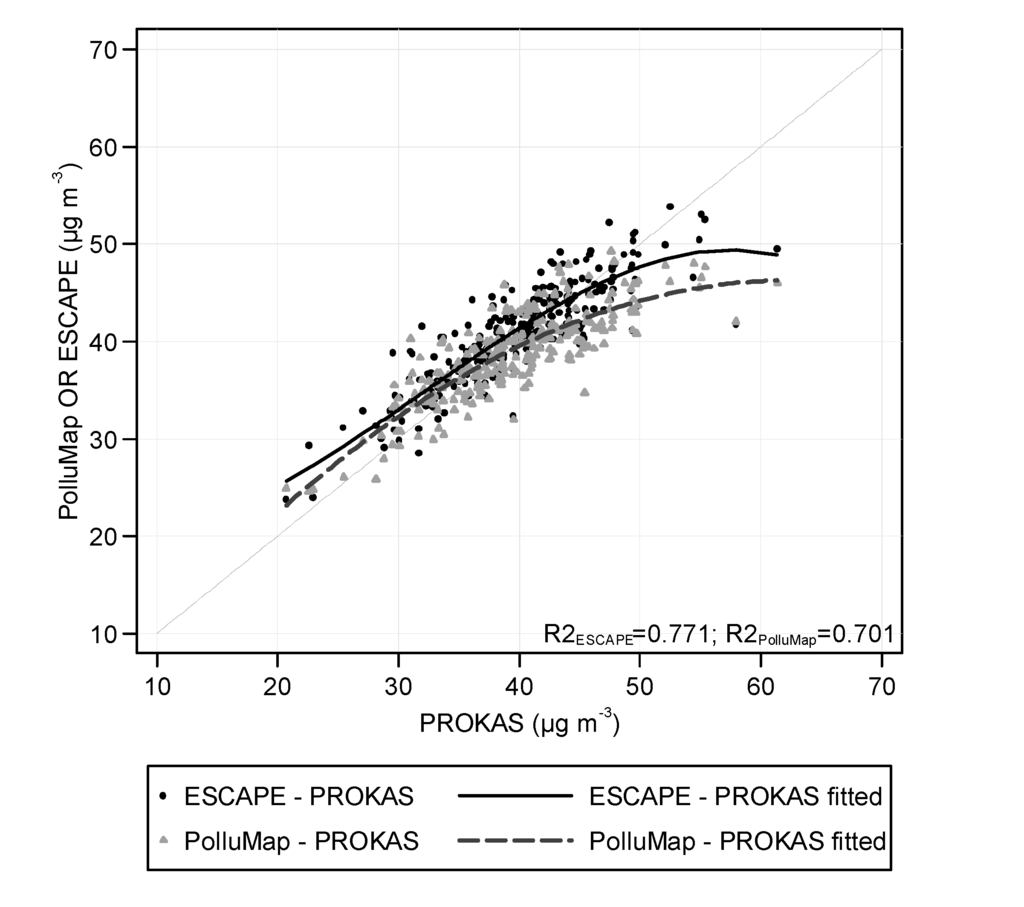

Figure 3. Scatter plot comparing subjects’ estimated commuter NO2 concentration based on the high spatial resolution model (PROKAS) with the estimates from PolluMap and ESCAPE models, respectively, using subjects from Basel-City (n = 258).
Figure 3. Scatter plot comparing subjects’ estimated commuter NO2 concentration based on the high spatial resolution model (PROKAS) with the estimates from PolluMap and ESCAPE models, respectively, using subjects from Basel-City (n = 258).
Ijerph 11 05049 g003 1024
Figure 4. Bland Altman plots of time-weighted commuter NO2 exposure of subjects commuting within Basel-City (n = 258). The lines represent the mean difference ±2 × standard deviation.
Figure 4. Bland Altman plots of time-weighted commuter NO2 exposure of subjects commuting within Basel-City (n = 258). The lines represent the mean difference ±2 × standard deviation.
Ijerph 11 05049 g004 1024

3.3. Commuter NO2 Concentration, Exposure and Dose by Travel Mode

The number of legs within Basel-City (and total study area) by travel mode walking, bicycle, motorized transport and public transport were 636 (1,614), 204 (385), 58 (602), and 259 (735), respectively. Based on the commuter legs, in-transit concentration, exposure and dose are displayed by travel mode in Figure 5. Results are shown for the PolluMap model to allow comparisons between study areas. Within Basel-City, the median NO2 commuter concentrations estimated by the PolluMap model for walking, bicycle and motorized transport were rather similar (~38 µg m−3), and were slightly lower than for public transport (40 µg m−3). A different modal pattern emerged when considering the travel time spent in the travel modes. Highest median cumulative exposures (i.e., the concentration multiplied by the duration) with the PolluMap model were obtained for motorized transport (468 µg m−3 × minutes) and bicycle (414 µg m−3 × minutes), and the lowest for walking (156 µg m−3 × minutes). The highest median dose was observed for bicycle commutes (829 µg m−3 × minutes × ventilation ratio) in the model where a two-fold increase in minute ventilation was assumed for bicycle versus public and motorized transport. Walking remained the mode with the smallest dose (266 µg m−3 × minutes × ventilation ratio), although a ventilation ratio of 1.7 relative to motorized transportation was applied. In the total study area, the modal pattern was similar to the one in Basel-City, albeit mode-specific NO2 estimates were generally lower.

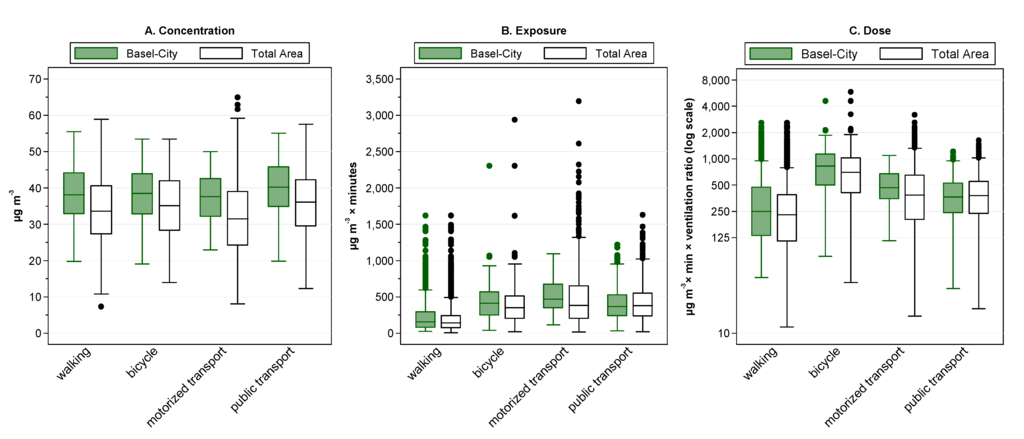

Figure 5. Box plots of in-traffic NO2 concentration (A); exposure (B); and dose (C) by travel mode and study area using the PolluMap model. Estimates are based on commute legs: boxes represent 25th to 75th percentile, central line the median, bars outside the box represent the most extreme values within 1.5 × the inter quartile range of the nearer quartile, and circles are outliers.
Figure 5. Box plots of in-traffic NO2 concentration (A); exposure (B); and dose (C) by travel mode and study area using the PolluMap model. Estimates are based on commute legs: boxes represent 25th to 75th percentile, central line the median, bars outside the box represent the most extreme values within 1.5 × the inter quartile range of the nearer quartile, and circles are outliers.
Ijerph 11 05049 g005 1024

With the higher resolution model, PROKAS, more variability in travel mode-specific commuter NO2 estimates was observed (data not shown). In addition, for the active transport legs—more often happening on side streets—the PROKAS model obtained 1%–2% lower estimates than the PolluMap model. In contrast, PROKAS provided 5%–6% higher estimates for passive transport legs which happen more frequently on busy roads. The percentage of the legs assigned as road class main roads within Basel-City to walking, bicycle, motorized and public transport legs was 23%, 35%, 52% and 61%, respectively (Table S2).

4. Discussion

The exposure to traffic-related air pollution during commute of the population living and working within Basel-City and Basel-Country was estimated using spatially and temporally resolved commuter route data, information on travel modes used and three NO2 air pollution models with different spatial resolutions. Within Basel-City, estimated average time-weighted population exposure was similar between all models (around 39–41 µg m−3). Compared to the dispersion model with the highest resolution, both the LUR model (applied to a 50 × 50 m grid) and the nation-wide dispersion model PolluMap (grid size 100 m), underestimated the concentrations on the higher end, and overestimated the values on the lower end. In the total study area, including also Basel-Country, average time-weighted commuter exposure estimated with just the PolluMap model was 34 µg m−3. Commuter estimates from the same model showed greater variability and covered a wider range in the total study area (12.4–52.2 µg m−3) than within Basel-City (range: 24.1–51.0 µg m−3).

Only a few studies have estimated NO2 in-transit exposures based on travel routes. De Nazelle et al. [36] extracted NO2 exposures from an annual dispersion model in Barcelona based on Global Positioning System (GPS) tracks from 36 working adults. The temporally adjusted in-transit exposure was twice as high as our estimates within Basel-City, illustrating both higher in-transit NO2 concentrations and the higher urban background NO2 concentration level in Barcelona (Spain). In Flanders and Brussels (Belgium), Dhondt et al. [19] predicted an average in-traffic population exposure of 38 µg m−3 over the total area using an activity-based transport model. In an exposure simulation study at census tracts level in Vancouver (BC, Canada) , annual average hourly means of NO2 levels were 34 µg m−3 on highways and arterial roads and 26 µg m−3 on less important roads using a dispersion model and census data [15].

To our knowledge, this is the first time that three air pollution models with different spatial scales were compared for estimating commuter exposure in the same area. We found more within-city and within-subject variability in NO2 concentrations with the city-specific dispersion model PROKAS than with the LUR model and the nation-wide PolluMap dispersion model. LUR models have been shown to better reflect the spatial variability of traffic-related pollutants within an urban area than conventional dispersion models [25,37] or inverse-distance weighted interpolation of monitoring data [15,23]. Compared to dispersion models, less spatially resolved input variables are required for LUR models to accurately predict within-city variability of traffic-related NO2 [26,37]. In our case, the NO2 PROKAS dispersion model performed somewhat better in our commuter exposure simulations. Beelen et al. [33] showed that the accuracy of LUR models to predict NO2 concentrations depends on the quality of the monitoring data and/or GIS variables. In particular, local traffic-intensity data have been shown to be important for achieving good model performance. The moderate model R2 of 0.67 of the LUR model used in this study is likely reflected by the limited availability of traffic input variables and possible the limited contrasts in traffic density in the City of Basel. The comparison with measurements from street sites supports this finding. However, it must be emphasized that, our LUR model was applied at a grid resolution of 50 × 50 m; therefore, the decrease in model performance may be due to both, the chosen resolution and the intrinsic limitation of the LUR model. In addition, our validation of the models with fixed-site NO2 measurements is not fully appropriate for the typical exposure during commute because measurements do not represent the concentrations on the traffic routes but rather home outdoor concentrations.

Comparing the two dispersion models, the model with the higher resolution showed greater variability between commuter exposures, and better agreement with measurements at street sites. The inclusion of traffic data and meteorological parameters at a more local scale and additional consideration of the building structure likely explain the higher variability, and wider range in commuter exposure estimates of the PROKAS model, and also the higher validity observed in the comparison with street sites measurements. Dispersion models have difficulties to predict within-city contrasts when interpolating meteorological data from sparse weather stations and from emission inventory data of low resolution [25]. Underestimation of NO2 concentration at street sites was also observed earlier in the previous version of the PolluMap model (year 2000, 200 × 200 m) [22].

Our comparison of the three models in Basel based on simulated commute exposure estimates suggests that the decision on the model to be used to estimating commuter exposure in long-term epidemiological studies depends on the aim of the study and the size and geographic diversity of the study area. For estimating commuter exposure within urban areas and examining small-scale variability between road classes, a model with a high resolution representing well the urban street environment is recommended. This seems to be especially relevant for exposure assessments within a city, where inclusion of local traffic variables of sufficient quality (hourly traffic counts, street configurations) in the model is indispensable. For larger scale longitudinal epidemiological health assessment studies, however, models with a coarser spatial resolution might be sufficient, especially when a study area is comprised of a mix of urban, suburban and rural regions. Also, higher resolution dispersion models that include detailed traffic and 3D building data, are particularly costly to develop, need adequate expertise and are often limited in spatial coverage.

Our in-transit NO2 estimates of long-term exposure were not validated with personal measurements. In line with the vast majority of epidemiological studies on long-term health effects of air pollution, our evaluation relies on the accuracy of the ambient models rather than personal measurements. Our objective was the estimation of exposure to air pollution during commute, using NO2 as the marker of traffic-related air pollution. As in the epidemiological studies, we were not interested in total personal exposure to NO2 per se as this would describe a mixture of exposure to pollution from traffic, gas cooking and other sources of combustion. Accordingly, our approach relies on the same ambient models used to derive home outdoor concentrations. Additional improvements in commuter exposure estimates may be expected when combining modelling methods with personal exposure data, as for example in hybrid models [26].

The strength of this study is the detailed data on travel behavior of a representative subset of the population. We had spatially and temporally resolved data on each leg of a commuter trip including information on travel modes used, time of day and locations where the mode of transport was changed. Our comparison of the cumulative NO2 commuter exposures and doses by leg shows considerable differences between travel modes and thus indicates the importance of differentiating between travel modes and related routes and travel times. Furthermore, unlike other exposure simulation studies, the estimation of commuter exposure was based on real geo-coded travel routes of a population. In this study, motorized and public transport legs comply closely with actual travel routes and are not based on assumptions. Simplified trip simulations in other studies such as the shortest route or straight line between two locations, zones or census tracts [15,16,17] may add uncertainties as drivers may prefer other routes avoiding red lights and congestions. In a short validation study with test persons (data not shown), car routes between home and work locations often did not correspond to the shortest or fastest route within the city of Basel. Thus, verifying car routes >3 km likely helps to prevent misclassification of air pollution exposure (Supplementary Section 3). However, walking and bicycle legs were also based on the shortest routing algorithm in this study. Cyclists, especially, may choose to avoid main roads and thus may have longer commuter distances. Several studies have shown that travelling by bicycle along a greener route reduces both exposures [7,38] and dose [39]. Therefore, exposure levels may be overestimated when assuming shortest routes [11]. Our comparison of the reported travel distance against routing distance, however, aimed to control for large route discrepancies (see Supplementary Section 2).

Our exposure simulation—besides potential inaccuracies of the air pollution models per se—had some sources of uncertainties. Comparison between travel modes are based on the spatial location of the route, distances and durations. We did not take into account travel microenvironments such as in-vehicle exposure modification due to the potential use of ventilation systems or the commuter’s position on the road. Therefore, we may have over- or underestimated in-vehicle NO2 concentrations. To our knowledge, there is no extensive measurement campaign of NO2 exposures between travel modes available, and literature on in-vehicle exposure modification of NO2 is very rare. Short-term measurements by Harrison et al. [9] in London found higher levels in buses (39 µg m−3) than in cars (25 µg m−3) or trains (16 µg m−3). A study by Chan and Chung [40] found significant differences in the indoor:outdoor (I/O) ratio for various ventilation modes and outdoor environments when driving in Hong Kong. On urban streets, a mean NO2 ratio of 0.8, 1.0 and 0.6 were reported for fresh-air intake, open windows, and air-recirculation, respectively. Ventilation characteristics of the vehicles vary by season and other vehicle characteristics. Therefore, an integration of different ventilation characteristics are expected to be small in the annual mean commuter estimates. In addition to ventilation characteristics, differences between mode-specific concentration levels and between studies vary by various factors such as meteorology, traffic parameters, and vehicle type, thus generalization from one study to another may not be appropriate [3]. A recent UFP monitoring study along a main road in Basel by Ragettli et al. [7] observed higher levels while driving a car or cycling compared to walking and public transportation. However, no consistent correlations between in-transit concentrations of UFP and NOx have been reported [3], and therefore no modification was applied in this study. De Nazelle et al. [36] used ratios of BC concentrations between transportation microenvironments as a proxy for NO2 ratios, which explains in part higher commuter exposures found in that study. Yet another limitation of this study was the relatively small area of the study. Commutes of the Basel population to other cities within Switzerland could not be included. It must be assumed that mean commute-related NO2 exposure and dose would be higher when including people spending more time on their daily commutes especially when commuting on highways and in tunnels [12,21,41].

So far, epidemiological studies on long-term effects of ambient air pollution rely on home outdoor concentrations to estimate total exposure. The expansion of this approach to integrate outdoor concentrations at work or school addresses—the second most frequent location of time—is straightforward. Our approach targets at the improvement of total exposure estimates for epidemiological studies on long-term health effects through integration of the third most important time window, namely commute related exposure to ambient air pollutants. The average annual time-weighted commuter exposure estimates (34–41 µg m−3) in the total study area were higher than the annual mean NO2 concentration at the suburban background (24 µg m−3) but similar to the urban background station in Basel-City (30 µg m−3). Therefore, the contribution of commute to total NO2 exposure and the related effect on long-term health outcomes might be small for the majority of the population in Basel. However, for some subgroups of the population the commuter exposure could be more important, as indicated by the range of NO2 exposures (Table 3). Further studies may expand toward the integration of other microenvironments such as time activity patterns during leisure time.

5. Conclusions

We provide an approach to simulate commute routes and related exposure to traffic-related NO2 that can be used to improve both in-transit exposure estimates and total daily exposure estimates for epidemiological studies assessing long-term effects of air pollution on health. Information to be collected from the study population should include home and work location, travel mode, travel behavior (number of trips within a day and week, travel duration) and route (fastest versus shortest route, detours, and habits on avoiding main roads). The relative contribution of these commuter estimates to total daily exposure needs to be investigated and further research is needed to validate such simulations.

The decision on which air pollution model to be used depends on the aim of the study, the local situation, and on practical issues. In general, it is important to gain an understanding of the available models, and to consider the type of information and uncertainty that could emerge when using one model over another. We recommend using air pollution models which represent well the urban street network within a city when being interested in small-scale variability and differences between travel modes. Our analysis indicates that for epidemiological health assessment studies over a larger geographic scale covering rural, suburban and urban areas, however, models with a coarser spatial resolution are likely adequate, but need to be formally evaluated.


This work is part of the European wide project Transportation Air pollution and Physical ActivitieS: an integrated health risk assessment program of climate change and urban policies (TAPAS), which is funded by the Coca-Cola Foundation. We also acknowledge the Federal Statistical Office for providing the microcensus data, the Air Hygiene Department Basel for supplying fixed site data and the PROKAS model, and the Federal Office of the Environment (FOEN) for providing the PolluMap model. NO2 data were provided by Swiss National Science Foundation, grant number 135673 (SAPALDIA-Exposure assessment). We are also grateful to Jörg Jermann from the Civil Engineering Department Canton Basel-Country, Switzerland, for his GIS support.

Author Contributions

Martina S. Ragettli: data collection, NO2 simulation, statistical analysis, manuscript writing; Ming-Yi Tsai: LUR modeling, collaboration manuscript writing; Charlotte Braun-Fahrländer: local project coordinator; Audrey de Nazelle: TAPAS project coordinator, collaboration data preparation and analyses; Christian Schindler: statistical analysis support; Alex Ineichen: GIS support; Regina E. Ducret-Stich: collaboration to statistical analysis and manuscript writing; Laura Perez: collaboration data treatment and interpretation; Nicole Probst-Hensch: SAPALDIA Project Leader and study design; Nino Künzli: scientific supervisor and study design; Harish C. Phuleria: scientific supervisor and study design.

Conflicts of Interest

The authors declare they have no conflict of interests.


  1. Physick, W.; Powell, J.; Cope, M.; Boast, K.; Lee, S. Measurements of personal exposure to NO2 and modelling using ambient concentrations and activity data. Atmos. Environ. 2011, 45, 2095–2102. [Google Scholar] [CrossRef]
  2. Morawska, L.; Ristovski, Z.; Jayaratne, E.R.; Keogh, D.U.; Ling, X. Ambient nano and ultrafine particles from motor vehicle emissions: Characteristics, ambient processing and implications on human exposure. Atmos. Environ. 2008, 42, 8113–8138. [Google Scholar] [CrossRef]
  3. Knibbs, L.D.; Cole-Hunter, T.; Morawska, L. A review of commuter exposure to ultrafine particles and its health effects. Atmos. Environ. 2011, 45, 2611–2622. [Google Scholar] [CrossRef]
  4. Piechocki-Minguy, A.; Plaisance, H.; Schadkowski, C.; Sagnier, I.; Saison, J.Y.; Galloo, J.C.; Guillermo, R. A case study of personal exposure to nitrogen dioxide using a new high sensitive diffusive sampler. Sci. Total Environ. 2006, 366, 55–64. [Google Scholar] [CrossRef]
  5. Hanninen, O.O.; Palonen, J.; Tuomisto, J.T.; Yli-Tuomi, T.; Seppänen, O.; Jantunen, M.J. Reduction potential of urban PM2.5 mortality risk using modern ventilation systems in buildings. Indoor Air 2005, 15, 246–256. [Google Scholar] [CrossRef]
  6. Health Effects Institute. Traffic-Related Air Pollution: A Critical Review of the Literature on Emissions, Exposure, and Health Effects. HEI Special Report 17; Health Effects Institute (HEI): Boston, MA, USA, 2010. [Google Scholar]
  7. Ragettli, M.S.; Corradi, E.; Braun-Fahrländer, C.; Schindler, C.; de Nazelle, A.; Jerrett, M.; Ducret-Stich, R.E.; Künzli, N.; Phuleria, H.C. Commuter exposure to ultrafine particles in different urban locations, transportation modes and routes. Atmos. Environ. 2013, 77, 376–384. [Google Scholar]
  8. De Nazelle, A.; Fruin, S.; Westerdahl, D.; Martinez, D.; Ripoll, A.; Kubesch, N.; Nieuwenhuijsen, M. A travel mode comparison of commuters’ exposures to air pollutants in Barcelona. Atmos. Environ. 2012, 59, 151–159. [Google Scholar] [CrossRef]
  9. Harrison, R.M.; Thornton, C.A.; Lawrence, R.G.; Mark, D.; Kinnersley, R.P.; Ayres, J.G. Personal exposure monitoring of particulate matter, nitrogen dioxide, and carbon monoxide, including susceptible groups. Occup. Environ. Med. 2002, 59, 671–679. [Google Scholar] [CrossRef]
  10. Int Panis, L.; de Geus, B.; Vandenbulcke, G.; Willems, H.; Degraeuwe, B.; Bleux, N.; Mishra, V.; Thomas, I.; Meeusen, R. Exposure to particulate matter in traffic: A comparison of cyclists and car passengers. Atmos. Environ. 2010, 44, 2263–2270. [Google Scholar] [CrossRef]
  11. Dons, E.; Panis, L.I.; Van Poppel, M.; Theunis, J.; Wets, G. Personal exposure to black carbon in transport microenvironments. Atmos. Environ. 2012, 55, 392–398. [Google Scholar] [CrossRef]
  12. Chau, C.K.; Tu, E.Y.; Chan, D.W.T.; Burnett, J. Estimating the total exposure to air pollutants for different population age groups in Hong Kong. Environ. Int. 2002, 27, 617–630. [Google Scholar]
  13. Gulliver, J.; Briggs, D.J. Time-space modeling of journey-time exposure to traffic-related air pollution using GIS. Environ. Res. 2005, 97, 10–25. [Google Scholar] [CrossRef]
  14. Steinle, S.; Reis, S.; Sabel, C.E. Quantifying human exposure to air pollution—Moving from static monitoring to spatio-temporally resolved personal exposure assessment. Sci. Total Environ. 2013, 443, 184–193. [Google Scholar] [CrossRef]
  15. Setton, E.M.; Keller, C.P.; Cloutier-Fisher, D.; Hystad, P.W. Spatial variations in estimated chronic exposure to traffic-related air pollution in working populations: A simulation. Int. J. Health Geogr. 2008, 7. [Google Scholar] [CrossRef]
  16. Mölter, A.; Lindley, S.; de Vocht, F.; Agius, R.; Kerry, G.; Johnson, K.; Ashmore, M.; Terry, A.; Dimitroulopoulou, S.; Simpson, A. Performance of a microenviromental model for estimating personal NO2 exposure in children. Atmos. Environ. 2012, 51, 225–233. [Google Scholar] [CrossRef]
  17. Marshall, J.D.; Granvold, P.W.; Hoats, A.S.; McKone, T.E.; Deakin, E.; Nazaroff, W. Inhalation intake of ambient air pollution in California’s South Coast Air Basin. Atmos. Environ. 2006, 40, 4381–4392. [Google Scholar] [CrossRef]
  18. Beckx, C.; Panis, L.I.; van de Vel, K.; Arentze, T.; Lefebvre, W.; Janssens, D.; Wets, G. The contribution of activity-based transport models to air quality modelling: A validation of the ALBATROSS-AURORA model chain. Sci. Total Environ. 2009, 407, 3814–3822. [Google Scholar]
  19. Dhondt, S.; Beckx, C.; Degraeuwe, B.; Lefebvre, W.; Kochan, B.; Bellemans, T.; Panis, L.I.; Macharis, C.; Putman, K. Health impact assessment of air pollution using a dynamic exposure profile: Implications for exposure and health impact estimates. Environ. Impact Assess. Rev. 2012, 36, 42–51. [Google Scholar] [CrossRef]
  20. De Nazelle, A.; Rodriguez, D.A.; Crawford-Brown, D. The built environment and health: Impacts of pedestrian-friendly designs on air pollution exposure. Sci. Total Environ. 2009, 407, 2525–2535. [Google Scholar] [CrossRef]
  21. Setton, E.; Marshall, J.D.; Brauer, M.; Lundquist, K.R.; Hystad, P.; Keller, P.; Cloutier-Fisher, D. The impact of daily mobility on exposure to traffic-related air pollution and health effect estimates. J. Expo. Sci. Environ. Epidemiol. 2011, 21, 42–48. [Google Scholar] [CrossRef]
  22. Liu, L.-J.S.; Curjuric, I.; Keidel, D.; Heldstab, J.; Künzli, N.; Bayer-Oglesby, L.; Ackermann-Liebrich, U.; Schindler, C.; Team, A.T.S. Characterization of source-specific air pollution exposure for a large population-based Swiss Cohort (SAPALDIA). Environ. Health Perspect. 2007, 115, 1638–1645. [Google Scholar] [CrossRef]
  23. Nethery, E.; Leckie, S.E.; Teschke, K.; Brauer, M. From measures to models: An evaluation of air pollution exposure assessment for epidemiological studies of pregnant women. Occup. Environ. Med. 2008, 65, 579–586. [Google Scholar] [CrossRef]
  24. Briggs, D.J.; Collins, S.; Elliott, P.; Fischer, P.; Kingham, S.; Lebret, E.; Pryl, K.; van Reeuwijk, H.; Smallbone, K.; van der Veen, A. Mapping urban air pollution using GIS: A regression-based approach. Int. J. Geogr. Inf. Sci. 1997, 11, 699–718. [Google Scholar] [CrossRef]
  25. Liu, L.-J.S.; Tsai, M.-Y.; Keidel, D.; Gemperli, A.; Ineichen, A.; Hazenkamp-von Arx, M.; Bayer-Oglesby, L.; Rochat, T.; Künzli, N.; Ackermann-Liebrich, U.; et al. Long-term exposure models for traffic related NO2 across geographically diverse areas over separate years. Atmos. Environ. 2012, 46, 460–471. [Google Scholar] [CrossRef]
  26. Jerrett, M.; Arain, A.; Kanaroglou, P.; Beckerman, B.; Potoglou, D.; Sahsuvaroglu, T.; Morrison, J.; Giovis, C. A review and evaluation of intraurban air pollution exposure models. J. Expo. Anal. Environ. Epidemiol. 2005, 15, 185–204. [Google Scholar] [CrossRef]
  27. Ragettli, M.S.; Phuleria, H.C.; Tsai, M.-Y.; Schindler, C.; de Nazelle, A.; Ducret-Stich, R.E.; Ineichen, A.; Perez, L.; Probst-Hensch, N.; Braun-Fahrländer, C.; et al. The relevance of commuter and work/school exposure in an epidemiological study on traffic-related air pollution. (manuscript under review).
  28. Federal Statistical Office (FSO); Federal Office for Spatial Development (ARE). Mobilität in der Schweiz, Ergebnisse des Mikrozensus Mobilität und Verkehr 2010; FSO, ARE: Neuchâtel and Berne, Switzerland, 2012; pp. 1–115. [Google Scholar]
  29. Federal Statistical Office (FSO); Federal Office for Spatial Development (ARE). Losungsansätze zur Erfassung der Routenwahl mittels Geokodierung wahrend CATI Befragungen; ARE: Neuchatel and Berne, Switzerland, 2008; pp. 1–44. [Google Scholar]
  30. Lohmeyer, A. PROKAS. Calculation Method to Determine Traffic Induced Pollution Levels; Ingenieurbüro Lohmeyer GmbH & Co. KG: Karlsruhe, Switzerland, 2008; pp. 1–15. [Google Scholar]
  31. Eichhorn, J. Validation of a Microscale Pollution Dispersal Model. In Air Pollution Modeling and Its Application XI; Gryning, S.-E., Schiermeier, F., Eds.; Springer US: New York, NY, USA, 1996; Volume 21, pp. 539–547. [Google Scholar]
  32. Janicke Consulting. The Dispersion Model LASAT (Lagrangian Simulation of Aerosol-Transport). A Computer Program for the Calculation of Pollutant Dispersion in the Atmosphere. Available online: (accessed on 11 February 2014).
  33. Beelen, R.; Hoek, G.; Vienneau, D.; Eeftens, M.; Dimakopoulou, K.; Pedeli, X.; Tsai, M.-Y.; Künzli, N.; Schikowski, T.; Marcon, A.; et al. Development of NO2 and NOx land use regression models for estimating air pollution exposure in 36 study areas in Europe—The ESCAPE project. Atmos. Environ. 2013, 72, 10–23. [Google Scholar] [CrossRef]
  34. FOEN. NO2 Ambient Concentrations in Switzerland. Modelling Results for 2005, 2010, 2015; Environmental Studies No. 1123; Federal Office for the Environment (FOEN): Berne, Switzerland, 2011; pp. 1–68. [Google Scholar]
  35. Zuurbier, M.; Hoek, G.; van den Hazel, P.; Brunekreef, B. Minute ventilation of cyclists, car and bus passengers: An experimental study. Environ. Health 2009, 8, 1–10. [Google Scholar] [CrossRef]
  36. De Nazelle, A.; Seto, E.; Donaire-Gonzalez, D.; Mendez, M.; Matamala, J.; Nieuwenhuijsen, M.J.; Jerrett, M. Improving estimates of air pollution exposure through ubiquitous sensing technologies. Environ. Pollut. 2013, 176, 92–99. [Google Scholar]
  37. Hoek, G.; Beelen, R.; de Hoogh, K.; Vienneau, D.; Gulliver, J.; Fischer, P.; Briggs, D. A review of land-use regression models to assess spatial variation of outdoor air pollution. Atmos. Environ. 2008, 42, 7561–7578. [Google Scholar]
  38. Hertel, O.; Hvidberg, M.; Ketzel, M.; Storm, L.; Stausgaard, L. A proper choice of route significantly reduces air pollution exposure—A study on bicycle and bus trips in urban streets. Sci. Total Environ. 2008, 389, 58–70. [Google Scholar]
  39. Cole-Hunter, T.; Morawska, L.; Stewart, I.; Jayaratne, R.; Solomon, C. Inhaled particle counts on bicycle commute routes of low and high proximity to motorised traffic. Atmos. Environ. 2012, 61, 197–203. [Google Scholar] [CrossRef]
  40. Chan, A.T.; Chung, M.W. Indoor-outdoor air quality relationships in vehicle: Effect of driving environment and ventilation modes. Atmos. Environ. 2003, 37, 3795–3808. [Google Scholar]
  41. Dons, E.; Temmerman, P.; van Poppel, M.; Bellemans, T.; Wets, G.; Panis, L.I. Street characteristics and traffic factors determining road users’ exposure to black carbon. Sci. Total Environ. 2013, 447, 72–79. [Google Scholar] [CrossRef]
