New Tetromycin Derivatives with Anti-Trypanosomal and Protease Inhibitory Activities †

Julius-von-Sachs Institute for Biological Sciences, University of Würzburg, Julius-von-Sachs-Platz 3, Würzburg 97082, Germany
Institute for Pharmacy and Food Chemistry, Am Hubland, Würzburg 97074, Germany
Institute of Organic Chemistry, University of Würzburg, Am Hubland, Würzburg 97074, Germany
Department of Medicinal Chemistry, University of Utah, Salt Lake City, UT 84112, USA
Author to whom correspondence should be addressed.
This work is dedicated to Johannes F. Imhoff on the occasion of his 60th birthday.
Current address: Department of Biochemistry and Biomedical Sciences, Health Sciences Centre, McMaster University, 1200 Main St. W. Hamilton, ON L8N 3Z5, Canada.
Current address: Kekulé Institute of Organic Chemistry and Biochemistry, University of Bonn, Gerhard-Domagk-Str. 1, Bonn 53121, Germany.
Current address: School of Pharmacy, University of Wisconsin-Madison, Madison, WI 53705, USA.
Current address: Institute of Pharmacy and Biochemistry, University of Mainz, Staudinger Weg 5, Mainz 55099, Germany.
Mar. Drugs 2011, 9(10), 1682-1697;
Submission received: 25 July 2011 / Revised: 9 September 2011 / Accepted: 16 September 2011 / Published: 26 September 2011


Four new tetromycin derivatives, tetromycins 14 and a previously known one, tetromycin B (5) were isolated from Streptomyces axinellae Pol001T cultivated from the Mediterranean sponge Axinella polypoides. Structures were assigned using extensive 1D and 2D NMR spectroscopy as well as HRESIMS analysis. The compounds were tested for antiparasitic activities against Leishmania major and Trypanosoma brucei, and for protease inhibition against several cysteine proteases such as falcipain, rhodesain, cathepsin L, cathepsin B, and viral proteases SARS-CoV Mpro, and PLpro. The compounds showed antiparasitic activities against T. brucei and time-dependent inhibition of cathepsin L-like proteases with Ki values in the low micromolar range.

1. Introduction

Protozoan diseases such as malaria, leishmaniasis, and African and South American trypanosomiasis afflict millions of people particularly in many tropical and subtropical countries. Coronaviruses are also important pathogens that mainly cause respiratory and enteric diseases in humans. For example, SARS-CoV causes severe acute respiratory syndrome (SARS) resulting in the epidemic in 2002–2003 with more than 8000 death cases worldwide [1]. The increasing resistance to current therapies and the toxicities of existing drugs aggravates the prevalence of these infectious diseases. These issues thus necessitate the need for alternative therapies. A promising strategy is to develop new drugs targeting the parasites’ cysteine proteases that are crucial for their growth, differentiation and pathogenicity. Examples of these proteolytic enzymes are rhodesain from Trypanosoma rhodesiense, falcipain from Plasmodium falciparum, and cysteine cathepsins from Leishmania spp. [2]. Moreover, the coronavirus main protease (Mpro, also named 3C-like protease 3CLpro) as well as the papain-like protease (SARS-CoV PLpro) are also considered to be major targets for new antiviral drugs against SARS and other coronavirus infections [3].
Marine sponges are the most prolific sources of bioactive metabolites in the marine environment. More than 5300 different natural products have so far been isolated from marine sponges and their associated bacteria and more than 200 new metabolites are reported from sponges annually [4]. Owing to their filter-feeding capacity and to the frequent presence of massive amounts of microbial symbiotic consortia in the mesohyl tissues, sponges are also rich sources of microorganisms, many of which produce interesting bioactivities [5,6]. Cultivation efforts have focused particularly on the actinomycetes, as this taxonomic clade is responsible for the production of about half of the discovered antibiotics to date [79]. We have recently described the isolation of a new actinomycete species, Streptomyces axinellae type strain Pol001 cultivated from the Mediterranean sponge, Axinella polypoides [10]. Here, the isolation of new tetromycin derivatives with unprecedented inhibitory activities against several clinically important cysteine proteases is reported. The choice to use cysteine proteases as possible target enzymes is based on the tetronic acid moiety which is part of all the isolated metabolites. Due to its lactone ring with the double bond activated for nucleophilic attack by its electron withdrawing substituents, this moiety is predestined to inhibit cysteine proteases.

2. Results and Discussion

2.1. Structure Elucidation

Streptomyces axinellae Pol001T was grown on MS [11] agar and the secondary metabolites were extracted with ethyl acetate. HPLC fractionation yielded five compounds, tetromycins 1–4 (14), and tetromycin B (5) [12]. HRESIMS and extensive 1D and 2D NMR analysis (Table 1) suggested that the compounds were new constitutional isomers with several tetromycins that had been previously isolated from a Streptomyces sp. strain MK67-CF9 [13]. Tetromycin 1 displayed a pseudo-molecular ion in the positive ESIMS spectrum at m/z 910.4388 [M + Na]+ that corresponded to a molecular formula of C50H65NO13 and was isomeric with tetromycin C5 [13]. Tetromycin 2 was observed to have a molecular ion in the positive ESIMS spectrum at m/z 911.4232 [M + Na]+ corresponding to a molecular formula of C50H64O14 which was isomeric with tetromycin C1 [13] and tetromycin 4 with m/z 897.4066 [M + Na]+ matching a molecular formula of C49H62O14 which was isomeric with tetromycin C2 [13].
The IR spectra of tetromycins 14 showed the expected absorption bands for hydroxy groups (~3200 cm−1), acid functions (~2800 cm−1), carbonyl groups (~1700 cm−1), conjugated carbonyl groups (~1640 cm−1), C–C-double bonds (~1300 cm−1), and aromatic rings (~1600 cm−1). The presence of these functional groups was further supported by the 1H, 13C and DEPT NMR data. The carbon-proton connectivities were unambiguously assigned by HSQC experiments. In all four compounds, the 13C NMR indicated the presence of a two-times hydroxy/alkoxy-substituted aromatic moiety made of carbons C33–38. The corresponding signals in the 1H NMR spectra showed only two aromatic protons (H35; H37) in meta-position to each other of the aromatic ring (see Table 1 for shifts, multiplicity, and coupling constants). HMBC correlations of the methyl group protons H34′ to the carbonyl C32 and to C33–C35 of the aromatic ring confirmed an additional ortho-substitution pattern. COSY interactions of H34′ to only one of the aromatic protons (H35) left C36 and C38 open for further substitution. Aromatic carbon shifts of C36 and C38 at ~160 ppm indicated the hydroxy or alkoxy substituents to be located at these positions. In tetromycins 2, 3, and 4, the hydroxy group at C38 is methylated, as evident from the correlations between methoxy group protons H38′ and C38 in the HMBC spectrum. By contrast, compound 1 is hydroxylated at C38. C36 carries a methoxy group in compounds 1 and 2 and hydroxy groups in 3 and 4 as clearly indicated by HMBC, 13C and 1H data (Figure 1).
HMBC correlations of H30 to C32 in tetromycins 14 revealed the connectivity of the aromatic ring to a pyran fragment via an ester or amide bond, respectively (Figure 1). The substitution pattern of this moiety was unambiguously established by HMBC and ROESY data. The connectivity of the pyran group to the decalin ring system consisting of C4, C5, C19–C26 via the acetal in para-position to the ester/amide junction was detected by bilateral HMBC correlations between carbons and protons C/H27 and C/H23 (Figure 1). The so far described fragments are in agreement with the published structures of tetromycins [13].
The main differences between tetromycins 1, 2, and 4 and their previously isolated congeners covered in a patent [13] lie in the presence of a double bond between C20 and C21 (instead of between C25 and C26 as stated for tetromycin C5) of the decalin ring system and the position of a methyl group at C21 instead of at C20. The following detailed NMR correlations accounting for these altered positions are exemplarily discussed for tetromycin 4 using selected key NMR interactions (Figure 2). HSQC spectra showed two diastereotopic protons H22 (δ 2.26, 1.95) attached to C22 (δ 39.7). Strong ROESY and COSY correlation of H22 (δ 2.26) to H23 (δ 3.39) and correlative coupling constants suggested a 3J-coupling and a direct connection between C23 and C22. In the HMBC H22 (δ 1.95) correlates with a methyl carbon at δ 18.9 (C21′) and two vinylic carbons at δ 125.8 (C20) and 140.4 (C21), the latter presumably carrying the methyl group in agreement with the higher shift and according to HMBC signals. Methyl protons H21′ (δ 1.69) showed three strong correlations, not only with vinylic carbons C21 and C20 but also with C22 suggesting again the positioning of the methyl group at C21 and not at C20 as described earlier [13]. This conclusion was further substantiated by a strong HMBC correlation of the vinylic proton H20 (δ 4.92) with C24 (δ 46.5). Closing the first six-membered ring of the decalin system, C24 is directly connected to C23 as evidenced by direct COSY interactions and HMBC correlations of H22 (δ 2.26) to C24. C24 also correlated with proton H26 (δ 2.09), which in turn showed HMBC correlation with C23 (δ 84.9), C25 (δ 37.8), C4 (δ 52.6) and C4′ (δ 15.6). Looking at the corresponding 13C NMR shifts, no C-C double bond could be located in the second six-membered ring of the decalin system, specifically not between C25 and C26 as featured in the previously described compounds. HMBC, 13C, and 1H data confirmed this result. We have thus discovered a series of tetromycin derivatives possessing a double bond between C20 and C21 and a methyl group at C21. The remaining partial structures of compounds 1, 2, and 4 are in turn in accordance with the already published compounds.
Interestingly, tetromycin 3 exhibiting a molecular ion in the positive ESIMS spectrum at m/z 861.4062 [M + H]+ corresponding to a molecular formula of C48H61O14 was found to be a completely new derivative. The differences are again found in the decalin ring system made of C4, C5, C19–C26 and additionally in the cyclohexene fragment (C12–C17) carrying the acid group at C14 (Figure 3). As seen for tetromycins 1, 2, and 4, HSQC data of tetromycin 3 revealed two diastereotopic protons H22 (δ 1.93, 2.32) located at C22 (δ 34.1). HMBC correlation of C23 with H22 (δ 1.93) again accounted for the single bond between C23 and C22 as discussed before. However, in this compound C23 also shows strong HMBC correlation to vinylic proton H21 (δ 4.95), suggesting close proximity to the carbon at δ 120.3 (C21) which is a CH-unit according to DEPT data. H21 furthermore correlates with methyl group C20′ (δ 14.3), C19 (δ 42.1), and interestingly also with C27 (δ 103.1), which reinforces the proposition of assigning δ 120.3 to C21 instead of to C20 as was found in our other isolated compounds. Unobserved in tetromycins 1, 2 and 4, methyl group protons H20′ of 3 correlated with C20, C21, and also with C19 (δ 42.07), the bridge atom of both six-membered rings of the decalin system, leading to the undoubted conclusion about the methyl group position at C20. The second six-membered ring only features saturated carbon atoms as was discussed above.
All tetromycin derivatives possess a cyclohexene fragment made of C12–17, with C12 and C17 being the bridge atoms to the adjacent ring systems and C14 carrying the acid functional group. There is a C–C-double bond present between C13 and C14 as was already described in the published patent. Bridge atom C12 in the published compounds and in our compounds 1, 2, 4, and 5 is a quaternary carbon carrying methyl group C12′ (see Table 1 for respective shifts) as unmistakably revealed by COSY coupling of H11 and H12′, HMBC correlation of C12′ with H13 and H16 and those of H12′ with C13, C14, C17, C11, and C12 (Figure 4).
After unambiguously confirming all positions of the cyclohexene carbons of tetromycin 3, none of the named correlations to a methyl group could be found. Furthermore, C12 showed a lower shift than in the other compounds and appeared as a CH in the DEPT spectrum. The loss of the methyl group at C12 was in accordance with the observed lower molecular mass, also indicating a formal loss of a CH2-fragment compared to the other compounds. We therefore report the discovery of the new tetromycin derivative (3) featuring a double bond between C20 and C21, a methyl substituent at C20, and hydrogen at C12. Lastly, compound 5 was found to be identical with tetromycin B [6] with m/z 557.3229 [M + Na]+ corresponding to a molecular formula of C34H46O5. Figure 5 shows the structures of tetromycins 14 and tetromycin B (5).

2.2. Antiparasitic Activities

The compounds were tested against the parasites Leishmania major and Trypanosoma brucei subsp. brucei and for cytotoxicity against 293T kidney epithelial cells and J774.1 macrophages (Table 2). Anti-Leishmania activity was only found for tetromycin 3. All five compounds exhibited anti-Trypanosoma activities at both 48 and 72 h time points as judged by IC50 values below 100 μM. The compounds also showed cytotoxic activities with IC50 < 100 μM against the kidney cell line and macrophages with the notable exception of tetromycin 1.

2.3. Protease Inhibition

The compounds were further subjected to protease inhibition assays with mammalian proteases cathepsin B and L, parasite cathepsin-L like proteases falcipain-2 (from P. falciparum) and rhodesain (from T. brucei rhodesiense), and with the coronaviral papain-like protease SARS-CoV PLpro as well as with the coronaviral main protease SARS-CoV Mpro. Initial screening assays were performed at 100 μM compound concentration. In a second step, compounds showing >50% enzyme inhibition at this concentration (compounds 35) were analyzed in detail. Substrate hydrolysis was monitored over 10–40 min in the absence or presence of various inhibitor concentrations (seven inhibitor concentrations spanning from zero to total inhibition of the respective enzyme). Interestingly, inhibition of the cathepsin L-like proteases was observed to be time-dependent, while inhibition of cathepsin B and the coronaviral papain-like protease was not (Figure 6). All compounds were inactive or only weakly active (<10% inhibition at 100 μM) against the SARS-CoV Mpro.
For cathepsin B and SARS-CoV PLpro, dissociation constants of enzyme-inhibitor complexes were calculated using the Dixon equation by fitting the residual enzyme activities against the inhibitor concentrations (Figure 7) and by correction to zero-substrate concentration (see Experimental Section).
In cases of time-dependent inhibition the pseudo-first order rate constants of inhibition kobs (obtained from the progress curves) were fitted against the inhibitor concentrations to obtain Ki, ki, and finally k2nd values (Figure 8, see Experimental Section for details).
In order to ascertain if inhibition was competitive with respect to the substrates, we determined the Ki values for inhibition of rhodesain by tetromycin B (5) at three different substrate concentrations, and found no significant differences, indicating competitive inhibition.
Interestingly, time-dependent inhibition was found only with cathepsin-L like enzymes, not with cathepsin B or the coronaviral protease PLpro. This observed time-dependent inhibition could either be due to an irreversible inhibition mechanism resulting from covalent reaction of the reactive moiety of the inhibitors, the tetronic acid containing an α,β-unsaturated lactone ring, with the cysteine residue of the active sites of the target proteases, or to a slow-binding mechanism resulting from conformational changes of the enzyme-inhibitor complex. The reasons for the differences between cathepsin-L like proteases (mammalian cathepsin L, falcipain, rhodesain) and the others are not yet clear and will require more detailed studies with smaller synthetic derivatives containing the tetronic acid moiety.
The inactivity against the SARS-CoV Mpro which is a cysteine protease differing from the other target proteases by the protonation state of its active site (Cys-SH/His instead of ion pair Cys-S/His-H+) and its three-dimensional fold (similar to the serine protease chymotrypsin instead of papain-like fold) shows that the compounds are not unselective frequent hitters. It also supports the hypothesis that the compounds are covalent inhibitors of cathepsin-L like proteases, since the active centre of these proteases is more nucleophilic and thus better capable for reaction with the tetronic acid moiety. The inhibition constants (k2nd values and Ki values) do not differ largely between the three compounds indicating a common inhibition mechanism. Table 3 summarizes the inhibition constants.

3. Experimental Section

3.1. General Experimental Procedures

High resolution ESIMS analyses were performed on a Micromass Q-Tof micro mass spectrometer. NMR spectra were obtained on Varian INOVA 500 (1H: 500 MHz, 13C: 125 MHz) and Varian INOVA 600 (1H: 600 MHz, 13C: 150 MHz) spectrometers with a 3 mm Nalorac MDBG probe and a 5 mm cold probe, respectively. UV spectra were acquired in spectroscopy grade MeOH using a Hewlett-Packard 8452A diode array spectrophotometer. IR spectra were recorded using a JASCO FT/IR-400 spectrophotometer. HPLC was performed on an Agilent 1100 system using a Luna C18 (Phenomenex, Inc.) (250 × 10 mm, 5 μm) column.

3.2. Biological Material

Streptomyces axinellae strain Pol001T was cultivated from the Mediterranean sponge Axinella polypoides [10]. The sponge was collected by scuba diving offshore from Banyuls-sur-Mer, France (GPS: 42°29′ N 03°08′E). Streptomyces axinellae strain Pol001T is deposited at the Deutsche Sammlung von Mikroorganismen und Zellkulturen GmbH (DSMZ 41948T) and the Collection de l’Institut Pasteur (CIP 109838T).

3.3. Extraction and Isolation

The bacterial strain was grown on 200 MS [11] agar plates at 30 °C for seven days. Mycelial mass together with the agar were cut into small pieces and macerated overnight with sufficient volume of ethyl acetate to fully submerge the biomass. The resulting solution was filtered and maceration with ethyl acetate was repeated. Both filtrates were combined and dried by rotary evaporation. The isolation of the compounds was carried out by semi-preparative HPLC using H2O + 0.1% TFA (A) and CH3CN (B) as the solvents and the following gradient: flow 4.5 mL/min; 0–10 min 90% B, 11–15 min 100% B to yield five compounds: tetromycin 1 (1, 2.7 mg, Rt = 5.94 min); tetromycin 2 (2, 4.4 mg, Rt = 7.75 min); tetromycin 3 (3, 2.2 mg, Rt = 9.67 min); tetromycin 4 (4, 4.4 mg, Rt = 12.24 min); tetromycin B (5, 2.1 mg, Rt = 17.47 min).
Tetromycin 1 (1): light yellow amorphous solid; [α]20 D −40.2 (c 1.92, MeOH); UV (MeOH) λmax (log ɛ) 210 (1.41), 244 (0.77), 268 (0.54); 1H and 13C NMR data, see Table 1; ESIMS m/z 910.4388 [M + Na]+ (calcd for C50H65NO13Na, 910.4354).
Tetromycin 2 (2): light yellow amorphous solid; [α]20 D −38.8 (c 2.50, MeOH); UV (MeOH) λmax (log ɛ) 212 (1.49), 242 (0.70), 268 (0.54); 1H and 13C NMR data, see Table 1; ESIMS m/z 911.4232 [M + Na)]+ (calcd for C50H64O14Na, 911.4219).
Tetromycin 3 (3): light yellow amorphous solid; [α]20 D −47.7 (c 3.00, MeOH); UV (MeOH) λmax (log ɛ) 214 (1.60), 244 (0.72), 266 (0.85); 1H and 13C NMR data, see Table 1; ESIMS m/z 861.4062 [M + H]+ (calcd for C48H61O14, 861.4062).
Tetromycin 4 (4): light yellow amorphous solid; [α]20 D −44.1 (c 3.83, MeOH); UV (MeOH) λmax (log ɛ) 214 (1.84), 246 (0.79), 266 (1.03); 1H and 13C data, see Table 1; ESIMS m/z 897.4066 [M + Na]+ (calcd for C49H62O14Na, 897.4037).
Tetromycin B (5): light yellow amorphous solid; [α]20 D −12.0 (c 1.83, MeOH); UV (MeOH) λmax (log ɛ) 210 (1.42), 244 (0.59), 268 (0.55); ESIMS m/z 557.3229 [M + Na]+ (calcd for C34H46O5Na, 557.3243).

3.4. Antiparasitic Activity Assays

Leishmania major promastigotes were seeded at a cell density of 1 × 107 cells/mL into 96-well plates in complete medium (RPMI with NaHCO3, 10% FCS, 2 mM glutamine, 10 mM Hepes pH 7.2, 100 U/mL penicillin, 50 μg/mL gentamicin, 50 mM 2-mercaptoethanol) without phenol red (200 mL), in the absence or presence of different concentrations of the compounds. These were then incubated for 24 h at 26 °C, 5% CO2 and 95% humidity. Following the addition of 20 μL of Alamar Blue, the plates were incubated again and the optical densities (ODs) measured 24 and 48 h later with an enzyme-linked immunosorbent assay (ELISA) reader (Multiskan Ascent, Germany) using a test wavelength of 540 nm and a reference wavelength of 630 nm. Absorbance in the absence of compounds was set as 100% of growth. Amphotericin B was used as a reference compound and positive control. The effects of cell density, incubation time and the concentration of DMSO were examined in control experiments. The final concentration of DMSO in the medium never exceeded 1% vol/vol and had no effect on the proliferation of extracellular or intracellular parasites. For every experiment, each drug concentration was assayed in duplicate wells [14].
Trypomastigote forms of Trypanosoma brucei subsp. brucei laboratory strain TC 221 were cultured in complete Baltz medium [80 mL Baltz medium basic solution, 0.8 mL 2-mercaptoethanol stock solution (20 mM), 0.8 mL penicillin/streptomycin (10,000 U/mL), 16 mL FCS (inactivated for 30 min at 56 °C)]. Baltz medium basic solution is composed of the following: 500 mL MEM with Earle’s salts and l-glutamine, 3 g Hepes, 0.5 g monohydrate glucose, 0.110 g sodium pyruvate, 0.007 g hypoxanthine, 0.002 g thymidine, 0.0107 g adenosine, 0.0141 g bathocuproinedisulfonic acid disodium salt, 0.146 g glutamine, 5 mL sterile non-essential amino acid concentrate (100×, pH 7.5). A defined number of parasites (104 trypanosomes per mL) in test chambers of 96-well plates were exposed to various concentrations of the test substances (dissolved in DMSO) to make a final volume of 200 μL in duplicate. Positive (trypanosomes in culture medium) and negative controls (test substance without trypanosomes) were run simultaneously with each plate. The plates were then incubated at 37 °C in an atmosphere of 5% CO2 for a total time period of 72 h. After 24 h, 20 μL of Alamar Blue were added. The activity of the test substances was measured by light absorption using MR 700 Microplate Reader at a wavelength of 550 nm with a reference wavelength of 630 nm. The first reading was done at 48 h and subsequently at 72 h. The effect of the test substances was quantified in IC50 values by linear interpolation of three independent measurements [15].

3.5. Cytotoxicity Assays

J774.1 macrophages were cultured in complete medium (RPMI with NaHCO3, 10% FCS, 2 mM glutamine, 10 mM Hepes pH 7.2, 100 U/mL penicillin, 50 μg/mL gentamicin, 50 M 2-mercaptoethanol) without phenol red in the absence or presence of increasing concentrations of the compounds at a cell density of 1 × 105 cells/mL (200 μL) for 24 h at 37 °C, 5% CO2 and 95% humidity. Following the addition of 20 μL of Alamar Blue, the plates were incubated and the ODs measured at 24, 48 and 72 h. The same Alamar Blue assay previously described for Leishmania was followed. Kidney epithelial 293T cells were tested in the same manner as the macrophages but using complete DMEM medium (4.5 g/L solution of DMEM high glucose solution with sodium pyruvate but without l-glutamine, FBS superior at final concentration of 20%, 200 mM l-glutamine 100×) and cell density (2 × 104 cells/mL).

3.6. Protease Inhibition Assays

The fluorometric enzyme assays were performed on a Cary Eclipse fluorescence spectrophotometer (Varian, Darmstadt, Germany) using a microplate reader (excitation 365 nm, emission 460 nm). Cathepsin B and L protease inhibition assays were performed at 25 °C in 50 mM Tris-HCl buffer pH 6.2, containing 5 mM EDTA, 2 mM DTT, 200 mM NaCl, 0.005% Brij 35 as described by Vicik et al. [1619].
Assays with falcipain-2 and rhodesain were performed in 50 mM acetate buffer pH 5.5 with 5 mM DTT, 5 mM EDTA, 200 mM NaCl, and 0.005% Brij 35. The substrate (Cbz-Phe-Arg-AMC for all four enzymes) and inhibitor stock solutions were prepared in DMSO (10% final concentration) and were diluted with assay buffer. The final substrate concentrations for the inhibition assays were 10.0 μM (RD), 25 μM (FP-2), 6.25 μM (CL), and 100 μM (CB).
The fluorometric SARS-CoV PL protease inhibition assays were performed at 25 °C in a 20 mM Tris-HCl buffer pH 7.5, containing 0.1 mM EDTA, 1 mM DTT, 200 mM NaCl, and 0.005% Brij 35. The final substrate concentration (Z-Arg-Leu-Arg-Gly-Gly-AMC-acetate salt) was 50 μM. Assays with SARS-CoV main protease were done in 20 mM Tris buffer pH 7.5 with 0.1 mM EDTA, 1 mM DTT, and 200 mM NaCl. The substrate used was Abz-Ser-Val-Thr-Leu-Gln-Ser-Tyr(NO2)-Arg, TFA salt (Abz, anthranilic acid) at 50 μM final substrate concentration (excitation 325 nm, emission 425 nm).
First, compounds were tested at 100 μM final concentration. For compounds showing considerable inhibition at this concentration (>50%), inhibition kinetics were analyzed in detail. Progress curves of substrate hydrolysis in absence or presence of inhibitor were monitored over a period of 10–40 min. For compounds showing non-time dependent inhibition the residual enzyme activities vi (obtained from the slopes of the progress curves) were fit to the inhibitor concentrations using the Dixon equation vi = vo/(1 + I/Ki app), and correction to zero substrate concentration by the Cheng-Prusoff equation [20,21] for competitive inhibitors: Ki = Ki app/(1 + [S]/Km). For compounds showing time-dependent inhibition the progress curves were fit to the exponential equation: y = limit × (1 − exp(−kobs × t)) + offset yielding the pseudo-first order rates of inhibition kobs. These were then fit to the inhibitor concentrations with kobs = ki × I/(Ki app + I) yielding ki and Ki app; Ki app values were corrected to zero substrate concentration by: Ki = Ki app/(1 + [S]/Km) and k2nd was calculated from k2nd = (ki/Ki). The Km values used to correct Ki app values were determined in previous work: 0.9 μM (RD), 21.5 (FP-2), 6.5 (CL), 150 (CB), 850 (SARS-CoV PLpro). The program GraFit (Erithacus Software Ltd., version 5.0.13) was used to calculate the inhibition constants.

4. Conclusions

These results presented herein highlight the importance of marine actinomycetes for drug discovery, as shown here by the identification of four structurally new tetromycin derivatives and a previously known compound, tetromycin B, from the marine sponge-derived isolate, Streptomyces axinellae. Antiparasitic activities against the causative agent of African sleeping disease, Trypansoma brucei, were reported. Furthermore, the compounds showed time-dependent inhibition of cathepsin L-like proteases with Ki values in the low micromolar range.
The selectivity for cathepsin-like enzymes gives a good starting point for further studies with the aim to elucidate the moiety of the inhibitors responsible for inhibition (probably the tetronic acid moiety), to improve selectivity between mammalian and parasite enzymes, which may lead to less cytotoxicity, and to enhance inhibition potency. Furthermore, additional targets within the parasites, have to be taken into account. In Trypanosoma brucei, e.g., the cathepsin-B like protease TbCatB is also known to be essential for the parasite’s life cycle, and activity against this protease could contribute to the antiparasitic activities of the compounds. Finally, future work will also address stereochemical aspects.


We thank A. Stich (Medical Mission Hospital, Würzburg) for his continuous efforts to raise awareness of tropical parasitic diseases, M.K. Harper (University of Utah) and U. Abdelmohsen (University of Würzburg) for insightful comments on the manuscript. Financial support was provided by the Deutsche Forschungsgemeinschaft SFB 630 TP A5 to U. Hentschel, TP A4 to T. Schirmeister, TP A2 to G. Bringmann, and NIH Grant CA36622 to C.M. Ireland.
  • This work is dedicated to Johannes F. Imhoff on the occasion of his 60th birthday.
  • Samples Availability: Available from the authors.


  1. Peiris, JS; Yuen, KY; Osterhaus, AD; Stohr, K. The severe acute respiratory syndrome. N. Engl. J. Med 2003, 349, 243–2441. [Google Scholar]
  2. Fear, G; Komarnytsky, S; Raskin, I. Protease inhibitors and their peptidomimetic derivatives as potential drugs. Pharmacol. Ther 2007, 113, 354–368. [Google Scholar]
  3. Anand, K; Ziebuhr, J; Wadhwani, P; Mesters, JR; Hilgenfeld, R. Coronavirus main proteinase (3CLpro) structure: Basis for design of anti-SARS drugs. Science 2003, 300, 1763–1767. [Google Scholar]
  4. Laport, MS; Santos, OS; Muricy, G. Marine sponges: Potential sources of new antimicrobial drugs. Curr. Pharm. Biotechnol 2009, 10, 86–105. [Google Scholar]
  5. Scheuermayer, M; Pimentel-Elardo, S; Fieseler, L; Grozdanov, L; Hentschel, U. Microorganisms of Sponges: Phylogenetic Diversity and Biotechnological Potential. In Frontiers in Marine Biotechnology; Proksch, P, Müller, WEG, Eds.; Horizon Bioscience: Norwich, UK, 2006; pp. 289–312. [Google Scholar]
  6. Thomas, TRA; Kavlekar, DP; LokaBharathi, A. Marine drugs from sponge-microbe association—A review. Mar. Drugs 2010, 8, 1417–1468. [Google Scholar]
  7. Fenical, W. Marine pharmaceuticals: Past, present and future. Oceanography 2006, 19, 110–119. [Google Scholar]
  8. Lam, KS. Discovery of novel metabolites from marine actinomycetes. Curr. Opin. Microbiol 2006, 9, 245–251. [Google Scholar]
  9. Bull, AT; Stach, JE. Marine actinobacteria: New opportunities for natural product search and discovery. Trends Microbiol 2007, 15, 491–499. [Google Scholar]
  10. Pimentel-Elardo, SM; Scheuermayer, M; Kozytska, S; Hentschel, U. Streptomyces axinellae sp. nov., isolated from the Mediterranean sponge Axinella polypoides (Porifera). Int. J. Syst. Evol. Microbiol 2009, 59, 1433–1437. [Google Scholar]
  11. Hobbs, G; Frazer, CM; Gardner, DCJ; Cullum, JA; Oliver, SG. Dispersed growth of Streptomyces in liquid culture. Appl. Microbiol. Biotechnol 1989, 31, 272–277. [Google Scholar]
  12. Takeuchi, T; Hamada, M; Osanawa, H; Takahashi, Y; Sawa, R. Tetromycin A and B manufacture with Streptomyces. Japanese Patent JP 08165286, April 1996. [Google Scholar]
  13. Takeuchi, T; Hamada, M; Nanagawa, H; Takahashi, Y; Sawa, R. Antibiotic tetromycin C1, C2, C3, C4 and C5 and their production. Japanese Patent JP 96-216484, March 1998. [Google Scholar]
  14. Ponte-Sucre, A; Vicik, R; Schultheis, M; Schirmeister, T; Moll, H. Aziridine-2,3-dicarboxylates, peptidomimetic cysteine protease inhibitors with antileishmanial activity. Antimicrob. Agents Chemother 2006, 50, 2439–2447. [Google Scholar]
  15. Huber, W; Koella, JC. A comparison of three methods of estimating EC50 in studies of drug resistance of malaria parasites. Acta Trop 1993, 55, 257–261. [Google Scholar]
  16. Vicik, R; Busemann, M; Gelhaus, C; Stiefl, N; Scheiber, J; Schmitz, W; Schulz, F; Mladenovic, M; Engels, B; Leippe, M; Baumann, K; Schirmeister, T. Aziridide-based inhibitors of cathepsin L: Synthesis, inhibition activity, and docking studies. Chem. Med. Chem 2006, 1, 1126–1141. [Google Scholar]
  17. Vicik, R; Hoerr, V; Glaser, M; Schultheis, M; Hansell, E; McKerrow, JK; Holzgrabe, U; Caffrey, CR; Ponte-Sucre, A; Moll, H; Stich, A; Schirmeister, T. Aziridine-2,3-dicarboxylate inhibitors targeting the major cysteine protease of Trypanosoma brucei as lead trypanocidal agents. Bioorg Med. Chem. Lett 2006, 16, 2753–2757. [Google Scholar]
  18. Breuning, A; Degel, B; Schulz, F; Buchold, C; Stempka, M; Machon, U; Heppner, S; Gelhaus, C; Leippe, M; Leyh, M; et al. Michael acceptor based antiplasmodial and antitrypanosomal cysteine protease inhibitors with unusual amino acids. J. Med. Chem 2010, 53, 1951–1963. [Google Scholar]
  19. Ehmke, V; Heindl, C; Rottmann, M; Freymond, C; Schweizer, WB; Brun, R; Stich, A; Schirmeister, T; Diederich, F. Potent and selective inhibition of cysteine proteases from Plasmodium falciparum and Trypanosoma brucei. ChemMedChem 2011, 6, 273–278. [Google Scholar]
  20. Cheng, Y; Prusoff, WH. Relationship between the inhibition constant (Ki) and the concentration of inhibitor, which causes 50 per cent inhibition (I50) of an enzymatic reaction. Biochem. Pharmacol 1973, 22, 3099–3108. [Google Scholar]
  21. Ludewig, S; Kossner, M; Schiller, M; Baumann, T; Schirmeister, T. Enzyme kinetics and hit validation in fluorometric protease assays. Curr. Top. Med. Chem 2010, 10, 368–382. [Google Scholar]

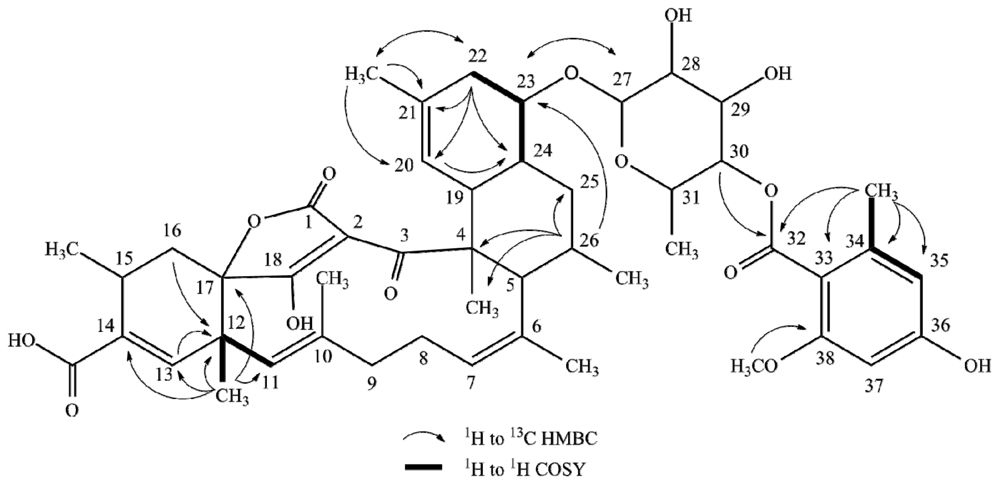

Figure 1. Selected 2D NMR correlations in tetromycin 4.
Figure 1. Selected 2D NMR correlations in tetromycin 4.
Marinedrugs 09 01682f1

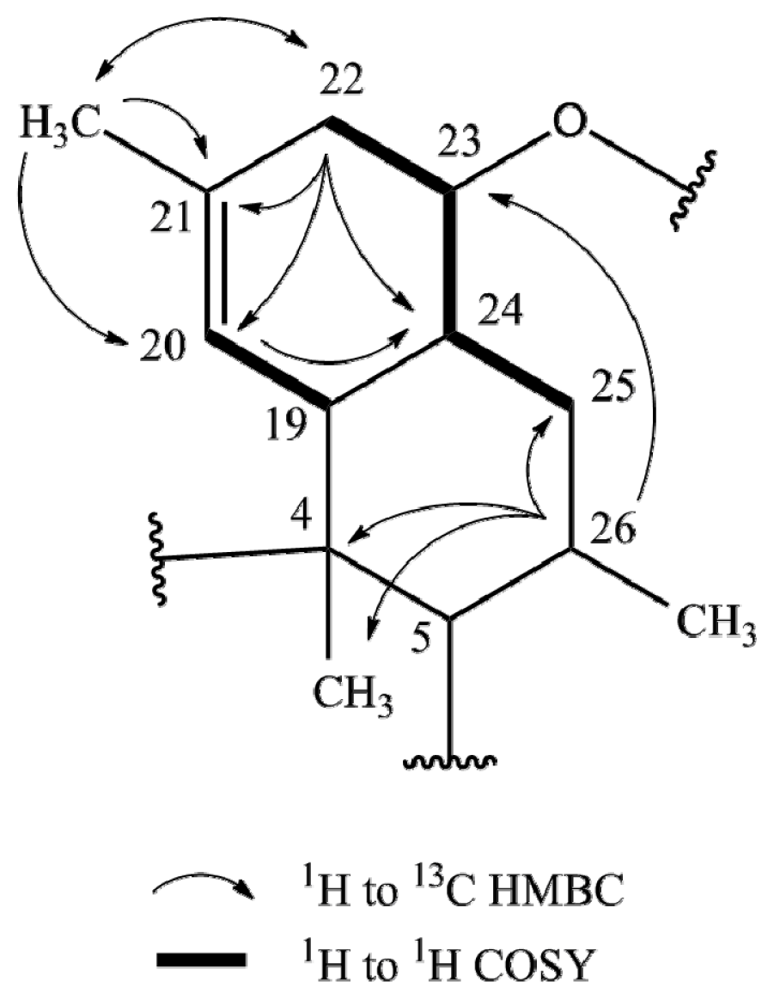

Figure 2. Selected 2D NMR correlations in decalin of tetromycin 4.
Figure 2. Selected 2D NMR correlations in decalin of tetromycin 4.
Marinedrugs 09 01682f2

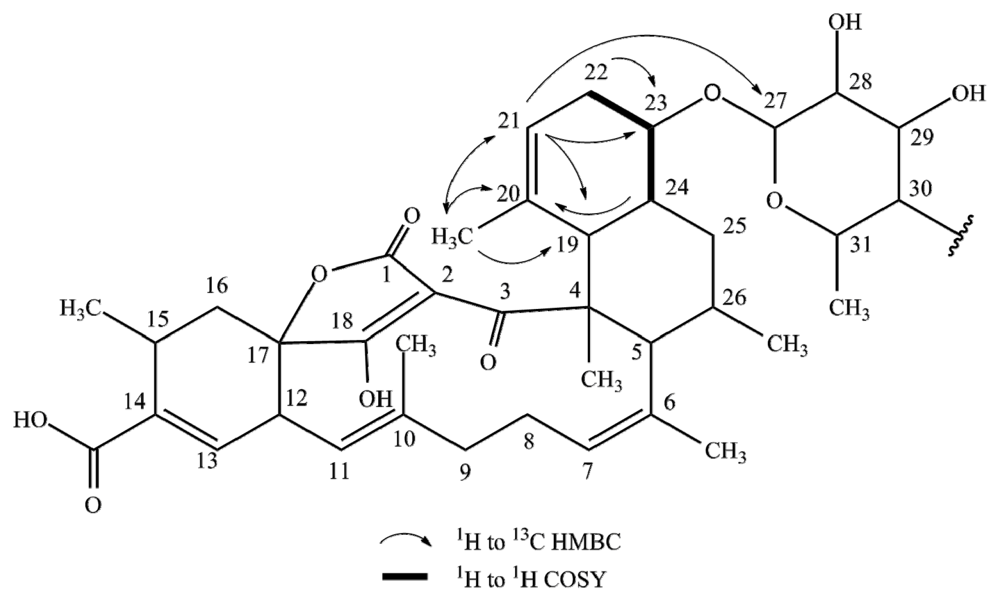

Figure 3. Selected 2D NMR correlations in decalin of tetromycin 3.
Figure 3. Selected 2D NMR correlations in decalin of tetromycin 3.
Marinedrugs 09 01682f3

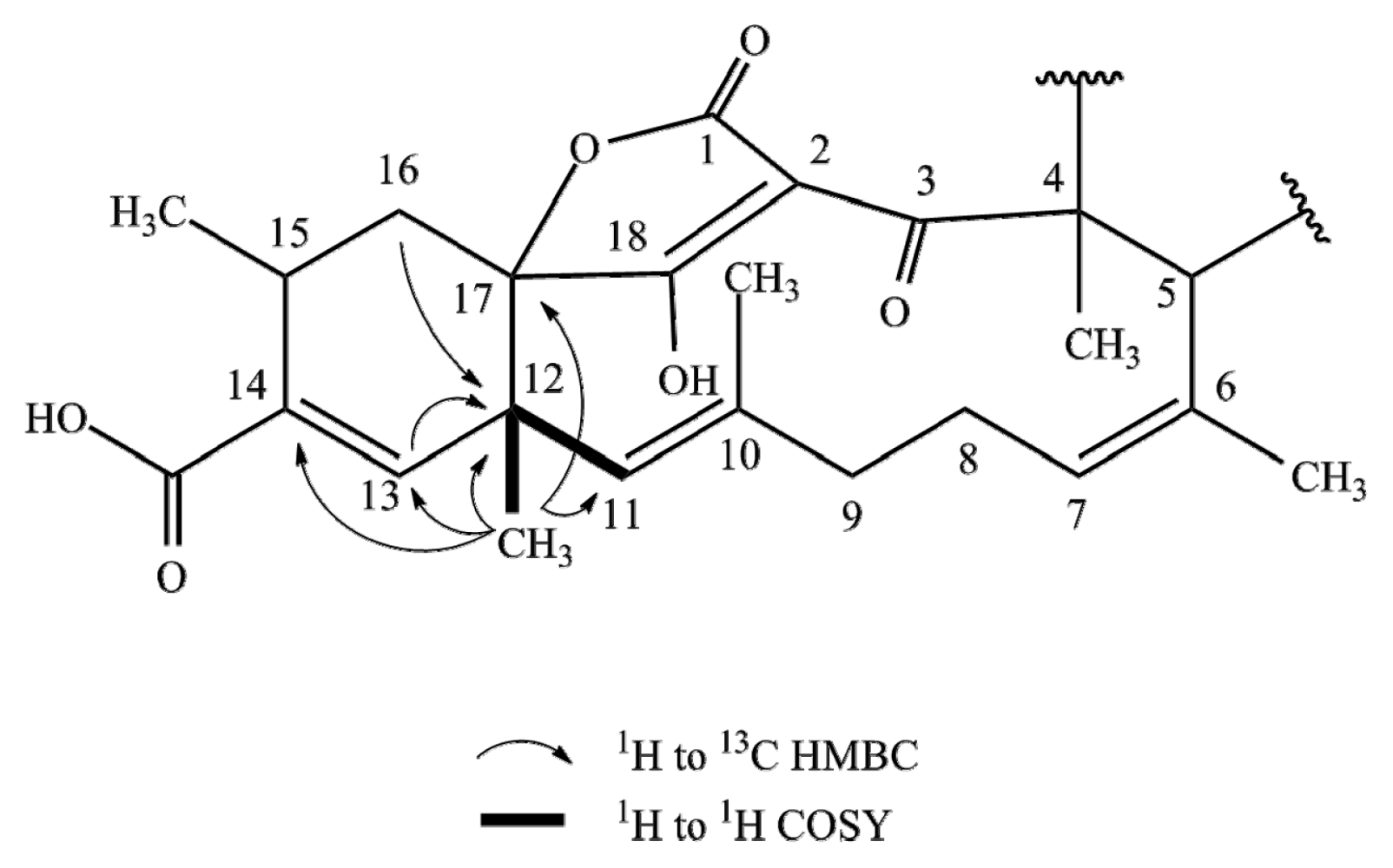

Figure 4. Selected 2D NMR correlations in the cyclohexene fragment of tetromycin 4.
Figure 4. Selected 2D NMR correlations in the cyclohexene fragment of tetromycin 4.
Marinedrugs 09 01682f4

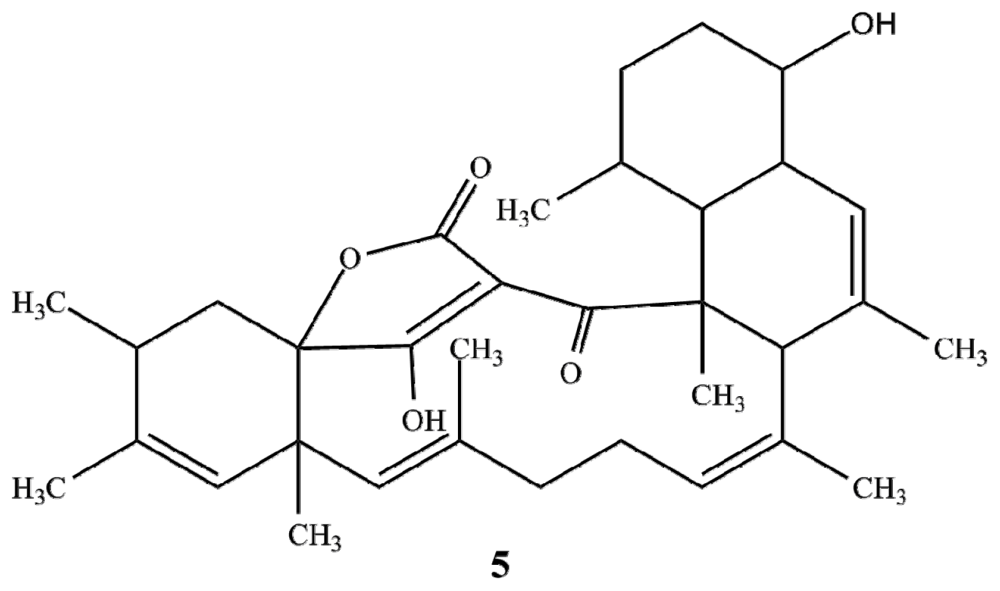

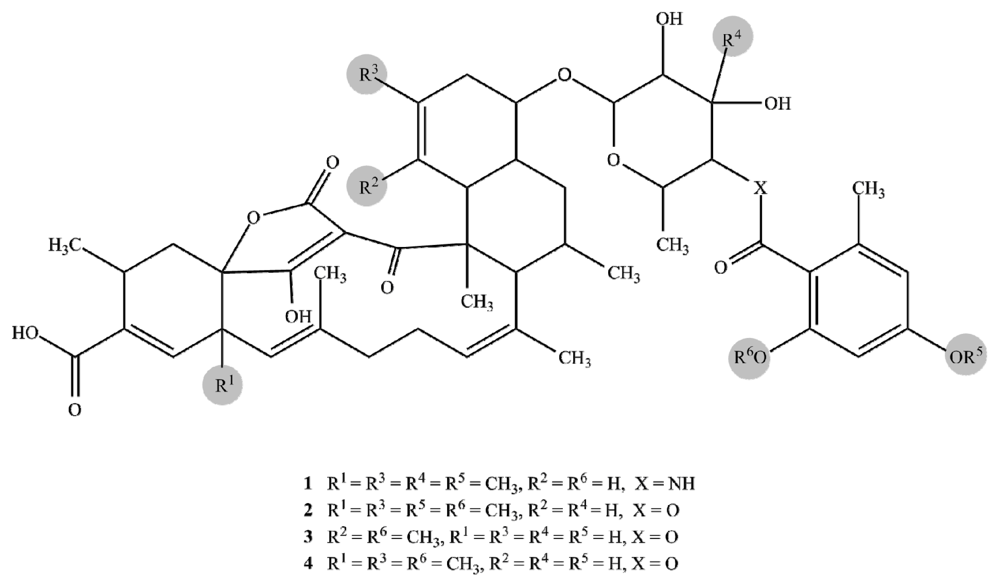

Figure 5. Structures of tetromycins 14 and tetromycin B (5).
Figure 5. Structures of tetromycins 14 and tetromycin B (5).
Marinedrugs 09 01682f5aMarinedrugs 09 01682f5b

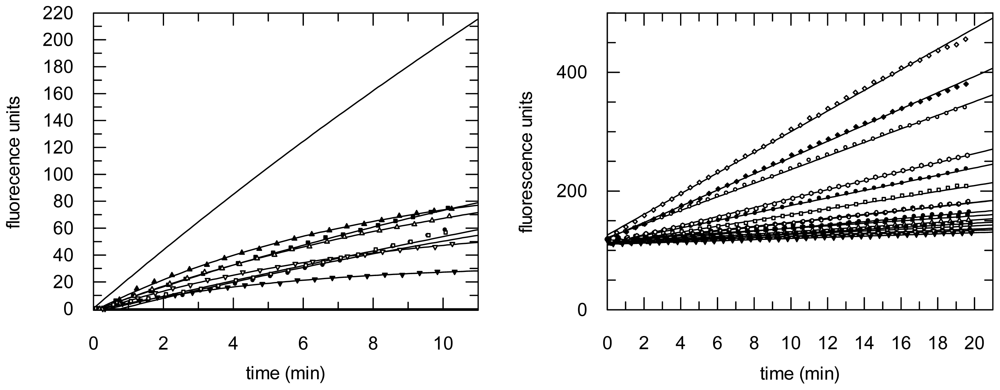

Figure 6. Inhibition of rhodesain (left, time-dependent inhibition) and cathepsin B (right, non-time dependent inhibition) by tetromycin B (5) (inhibitor concentrations from top to bottom: 0, 1.67, 3.34, 6.68, 8.35, 10.0, 13.4, 16.7 μM).
Figure 6. Inhibition of rhodesain (left, time-dependent inhibition) and cathepsin B (right, non-time dependent inhibition) by tetromycin B (5) (inhibitor concentrations from top to bottom: 0, 1.67, 3.34, 6.68, 8.35, 10.0, 13.4, 16.7 μM).
Marinedrugs 09 01682f6

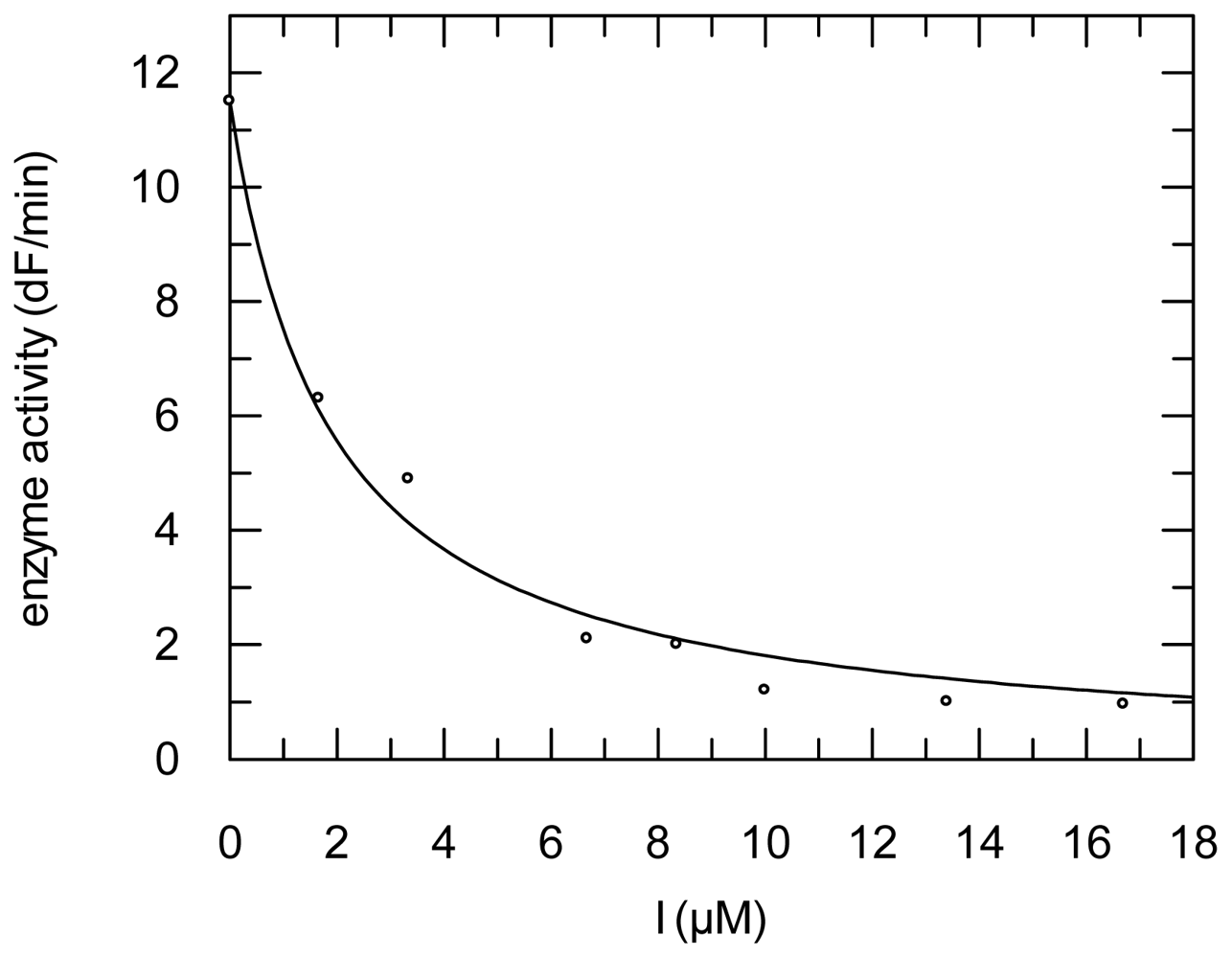

Figure 7. Inhibition of cathepsin B by tetromycin B (5). A Ki value of 1.50 μM was obtained.
Figure 7. Inhibition of cathepsin B by tetromycin B (5). A Ki value of 1.50 μM was obtained.
Marinedrugs 09 01682f7

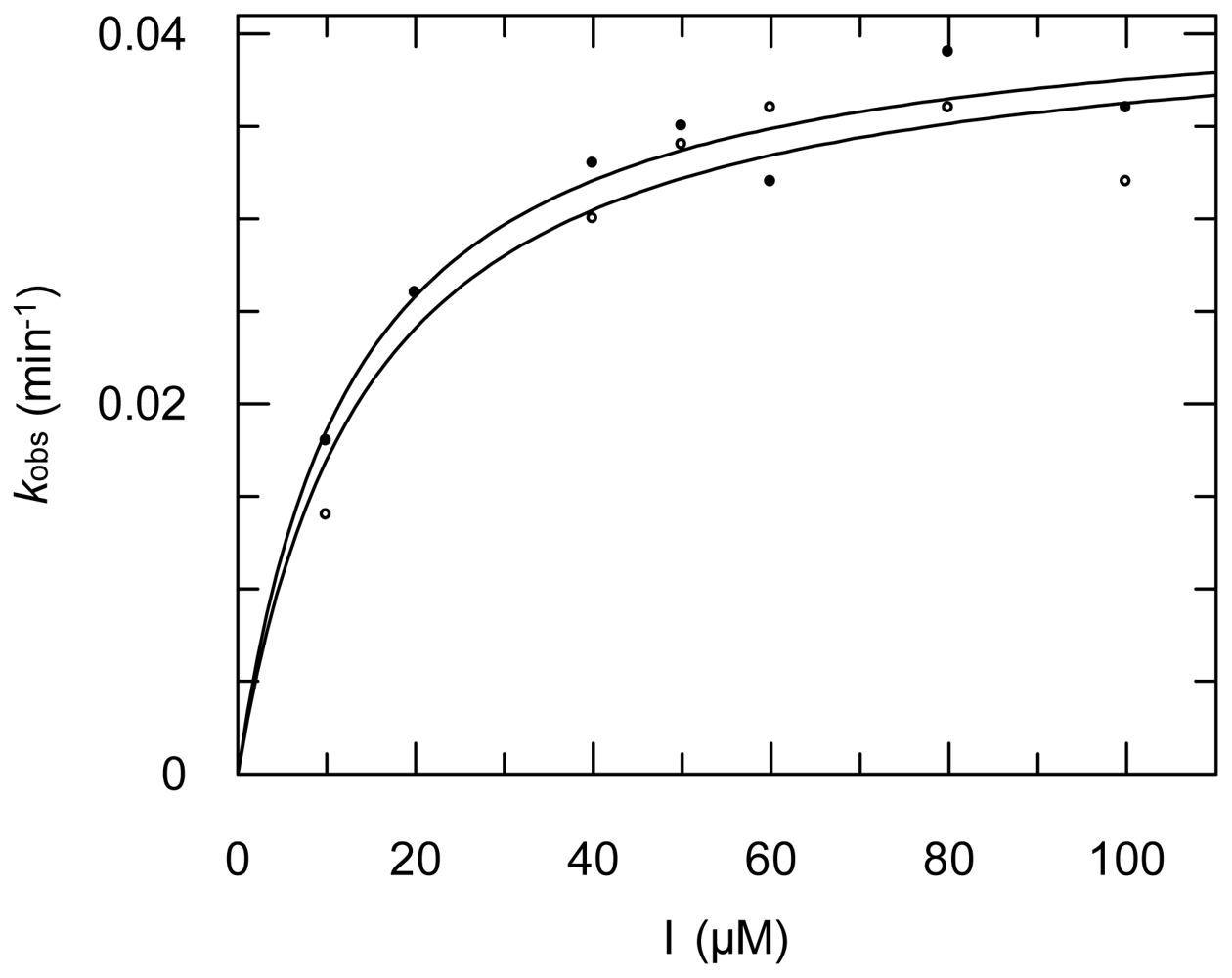

Figure 8. Inhibition of rhodesain by compound 3; data from two independent assays are shown. The following inhibition constants were obtained: Ki = 2.1 μM; ki = 0.042 min−1; k2nd = 38,100 M−1 min−1.
Figure 8. Inhibition of rhodesain by compound 3; data from two independent assays are shown. The following inhibition constants were obtained: Ki = 2.1 μM; ki = 0.042 min−1; k2nd = 38,100 M−1 min−1.
Marinedrugs 09 01682f8
Table 1. 13C and 1H NMR data of tetromycins 14 in acetone-d6.
Table 1. 13C and 1H NMR data of tetromycins 14 in acetone-d6.

δCmultδHmult, (JH-H)δCmultδHmult, (JH-H)δCmultδHmult, (JH-H)δCmultδHmult, (JH-H)

7131.5CH5.09d (8.2)131.5CH5.13d (6.6)130.6CH5.00d (9.2)131.1CH5.14d (7.1)
2.71dd (14.8, 7.9)2.65dd (14.4, 7.9)2.23m2.65dd (14.6, 7.9)
21140.9C140.2C120.3CH4.95d (2.3)140.4C
2384.4CH3.33dt (10.4, 4.8)85.0CH3.36dt (10.2, 4.8)84.56CH3.41dt (10.4, 4.8)84.9CH3.39dt (10.5, 4.8)
26′22.8CH30.68d (5.6)23.1CH30.70d (5.1)22.7CH30.68d (5.9)22.9CH30.69d (5.7)
27103.6CH4.67d (7.9)103.4CH4.77d (7.9)103.1CH4.81d (7.9)103.2CH4.81d (7.9)
2870.6CH3.79m72.4CH3.54dd (7.9, 2.9)71.9CH3.55dd (7.9, 3.1)72.0CH3.54dd (7.9, 3.1)
3058.4CH3.90d (10.0)76.1CH4.68dd (9.8, 2.4)76.8CH4.75dd (9.8, 2.8)76.8CH4.76dd (9.8, 2.7)
31′23.7CH31.32d (7.3)18.2CH31.31d (7.21)18.4CH31.24d (6.2)18.3CH31.25d (6.2)
35110.0CH6.33s111.8CH6.36br d111.7CH6.37d (2.3)111.7CH6.37d (2.5)
3799.9CH6.33s97.0CH6.45br d99.5CH6.34d (2.3)99.6CH6.34d (2.5)
Table 2. Antiparasitic and cytotoxic activities of tetromycins 14 and tetromycin B (5) (IC50, μM).
Table 2. Antiparasitic and cytotoxic activities of tetromycins 14 and tetromycin B (5) (IC50, μM).
CompoundL. majorT. brucei brucei (48 h)T. brucei brucei (72 h)293T Kidney cellsJ774.1 Macrophages
Table 3. Inhibition of various cysteine proteases by tetromycins 34 and tetromycin B (5).
Table 3. Inhibition of various cysteine proteases by tetromycins 34 and tetromycin B (5).
Ki (μM); k2nd (M−1 min−1)
Ki (μM); k2nd (M−1 min−1)
Ki (μM); k2nd (M−1 min−1)
Ki (μM)
Ki (μM)
32.1 ± 0.90; 36,600 ± 15901.65 ± 0.25; 617 ± 915.0 ± 1.95; 14,977 ± 20050.57 ± 0.04n.d.
44.00 ± 0.30; 8354 ± 15623.10 ± 0.20; 1836 ± 10822.40 ± 0.80; 14,700 ± 10001.60 ± 0.1040.00 ± 6.50
50.62 ± 0.03; 14,539 ± 19491.42 ± 0.01; 15,540 ± 129532.50 ± 0.05; 1576 ± 4131.59 ± 0.0969.60 ± 7.20
RD: rhodesain; FP: falcipain-2; CL: cathepsin L; CB: cathepsin B; n.d. not determined; Data presented are average values from at least two independent assays.
