Total Synthesis and Antimicrobial Activity of a Natural Cycloheptapeptide of Marine Origin

Department of Pharmaceutical Chemistry, NRI Institute of Pharmacy, Bhopal 462 021, Madhya Pradesh, India
Author to whom correspondence should be addressed.
Mar. Drugs 2010, 8(8), 2384-2394;
Received: 29 June 2010 / Revised: 26 July 2010 / Accepted: 30 July 2010 / Published: 19 August 2010


The present study deals with the first total synthesis of the proline-rich cyclopolypeptide stylisin 2 via a solution phase technique by coupling of the Boc-l-Pro-l-Ile-l-Pro-OH tripeptide unit with the l-Phe-l-Pro-l-Pro-l-Tyr-OMe tetrapeptide unit, followed by cyclization of the resulting linear heptapeptide fragment. The chemical structure of the finally synthesized peptide was elucidated by FTIR, 1H/13C-NMR and FAB MS spectral data, as well as elemental analyses. The newly synthesized peptide was subjected to antimicrobial screening against eight pathogenic microbes and found to exhibit potent antimicrobial activity against Pseudomonas aeruginosa, Klebsiella pneumoniae and Candida albicans, in addition to moderate antidermatophyte activity against pathogenic Trichophyton mentagrophytes and Microsporum audouinii when compared to standard drugs—gatifloxacin and griseofulvin.
Keywords: marine natural product; stylisin 2; Stylissa caribica; peptide synthesis; antimicrobial activity marine natural product; stylisin 2; Stylissa caribica; peptide synthesis; antimicrobial activity

1. Introduction

During past years, natural products derived from marine sponges have played a crucial role in the pharmaceutical research as biomedically useful agents or as lead compounds for drug development. Among them, bioactive cyclopeptides with unique structures have emerged as vital organic congeners which may prove better candidates to overcome the problem of widespread increase of microbial resistance towards conventional drugs [1]. Diverse biological activities possessed by marine sponge-derived natural cyclic peptides include antimicrobial, cytotoxic, anti-HIV, nematocidal, anti-inflammatory, serine protease and protein tyrosine phosphatase inhibitory activity [28]. Stylisin 2, a natural cyclic heptapeptide has been isolated from the Jamaican sponge Stylissa caribica and its structure was elucidated on the basis of 1D and 2D NMR data (1H, 13C, COSY, HMQC, HMBC, ROESY), followed by determination of absolute configuration of amino acids by Marfey’s analysis [9].
Prompted by the pharmacological properties of proline-rich cyclopeptides [1013] as well as to obtain a natural bioactive peptide in good yield and in continuation of our efforts toward synthesizing natural cyclopeptides [1427], the present study was aimed at the first total synthesis of stylisin 2 (8) using solution phase techniques. The synthesized cyclooligopeptide was also subjected to antibacterial and antifungal screening.

2. Results and Discussion

In present study, a disconnection strategy was employed to carry out the first total synthesis of stylisin 2. The cyclic heptapeptide molecule was split into three dipeptide units Boc-l-Pro-l-Ile-OMe (1), Boc-l-Phe-l-Pro-OMe (2), Boc-l-Pro-l-Tyr-OMe (3) and single amino acid unit l-Pro-OMe·HCl (4). The required dipeptides 13 were prepared by coupling of Boc-amino acids, viz. Boc-l-Pro and Boc-l-Phe with the corresponding amino acid methyl ester hydrochlorides viz. l-Ile-OMe·HCl, l-Pro-OMe·HCl and l-Tyr-OMe·HCl employing dicyclohexylcarbodiimide (DCC) as coupling agent [28]. Racemization was suitably controlled during normal peptide couplings by the use of less strenuous conditions, i.e., low temperature, controlled quantity of the base such as triethylamine (TEA) and a suitable solvent like dimethylformamide (DMF) or tetrahydrofuran (THF). The ester group of dipeptide 1 was removed by alkaline hydrolysis with LiOH and the deprotected peptide was coupled with amino acid methyl ester hydrochloride 4 using diisopropylcarbodiimide (DIPC)/DCC and triethylamine (TEA), to get the tripeptide unit Boc-l-Pro-l-Ile-l-Pro-OMe (5). Similarly, dipeptide 2 after deprotection at the carboxyl end, was coupled with dipeptide 3 deprotected at amino terminal, to get the tetrapeptide unit Boc-l-Phe-l-Pro-l-Pro-l-Tyr-OMe (6). After removal of the ester group of tripeptide 5 and the Boc group of tetrapeptide 6, these deprotected units were coupled to get the linear heptapeptide unit Boc-l-Pro-l-Ile-l-Pro-l-Phe-l-Pro-l-Pro-l-Tyr-OMe (7). The methyl ester group of the linear peptide fragment was replaced by a pentafluorophenyl (pfp)/p-nitrophenyl (pnp) ester group. The Boc-group of the resulting compound was removed using trifluoroacetic acid (TFA) and the deprotected linear fragment was now cyclized by keeping the whole contents at 0 °C for 7 days in the presence of catalytic amounts of TEA/NMM/pyridine to get cyclooligopeptide 8 (Scheme 1). The cyclization of the linear peptide was indicated by the disappearance of absorption bands at 1,750, 1,271 cm−1 and 1,389, 1,373 cm−1 (CO stretching of ester and CH deformation of tert-butyl group) in the IR spectrum of compound 8. Formation of cyclooligopeptide was further confirmed by the disappearance of the singlet at δ 1.49 corresponding to the nine protons of the Boc tert-butyl group and the singlet at d 3.54 corresponding to the three protons of the methyl ester in the 1H-NMR spectrum of compound 8. Seven signals between δ 4.39–3.85 in the proton spectrum of compound 8 agree with the expected peptidic structure for the compound, with these signals being attributable to the alpha protons of seven amino acids. The NMR data of the synthetic stylisin 2 are identical with those of the natural product within the error range of d 0.07 (1H) and 1 (13C), respectively. Furthermore, the 1H-NMR and 13C-NMR spectra of the synthesized cycloheptapeptide showed characteristic peaks confirming the presence of all the 57 protons and 44 carbon atoms. The presence of a [M + H]+ ion peak at m/z 812.9 corresponding to the molecular formula C44H57N7O8 in the ESI-MS/MS spectrum of compound 8, along with other fragment ion peaks resulting from cleavage at the ‘Ile-Pro’ and ‘Phe-Pro’ amide bond levels, showed the exact sequence of attachment of all the seven amino acid moieties in a chain. In addition, elemental analysis of compound 8 afforded values (±0.03) in accordance with the molecular composition. Synthesis of stylisin 2 (8) was thus carried out successfully with good yield and pyridine was proven to be an effective base for cyclization of the linear heptapeptide fragment.

Reagents and conditions

(i) LiOH, THF-H2O (1:1), RT, 1 h; (ii) TFA, CHCl3, RT, 1 h; (iii) DIPC/DCC, TEA, DMF/THF, RT, 24–36 h; (iv) DCC, pfp/pnp, RT, 12 h; (v) TEA/NMM/pyridine, CHCl3, 7 days, 0 °C.
Comparison of antimicrobial screening data (Table 1) suggested that cyclooligopeptide 8 exhibited higher antibacterial activity against the Gram negative bacteria Klebsiella pneumoniae and Pseudomonas aeruginosa, and potent antifungal activity against pathogenic Candida albicans with MIC values of 12.5–6 μg/mL, in comparison to a standard drug—gatifloxacin. Moreover, compound 8 displayed a moderate level of biological activity against the dermatophytes Microsporum audouinii and Trichophyton mentagrophytes with MIC values of 6 μg/mL. However, compound 8 displayed no significant activity neither against Gram positive bacteria nor against the fungus A. niger.
Analysis of the antimicrobial activity data revealed that the linear heptapeptide 7 displayed less bioactivity against pathogenic bacteria and fungi compared to its cyclic form 8. This is because cyclization of peptides reduces the degree of freedom for each constituent within the ring and thus leads to substantially reduced flexibility, increased potency and selectivity for cyclic peptides. Further, the inherent flexibility of linear peptides leads to different conformations which can bind to more than one receptor molecules, resulting in undesirable adverse effects.

3. Experimental

Melting points were determined by open capillary method and are uncorrected. l-Amino acids, di-tert-butylpyrocarbonate (Boc2O), DCC, DIPC, TFA, TEA, pyridine and NMM were procured from SpectroChem Limited (Mumbai, India). IR spectra were recorded on a Shimadzu 8700 FTIR spectrophotometer using a thin film supported on KBr pellets or utilizing chloroform solutions. 1H-NMR and 13C-NMR spectra were recorded on a Bruker AC NMR spectrometer (300 MHz) using CDCl3 as solvent and TMS as internal standard. The mass spectra were recorded on a JMS-DX 303 Mass spectrometer (Jeol, Tokyo, Japan) operating at 70 eV in ESI-MS/MS mode. Optical rotation of the synthesized peptide derivatives was measured in methanol on an automatic polarimeter in a 2 dm tube at 25 °C using a sodium lamp. Elemental analyses of all compounds were performed on a Vario EL III elemental analyzer. Purity of all synthesized compounds was checked by TLC on precoated silica gel G plates utilizing chloroform/methanol in different ratios (8:2/7:3, v/v) as developing solvent system and spots were detected by exposure to iodine vapours in a tightly closed chamber.

3.1. General procedure for the preparation of linear tri/tetrapeptide segments

To a solution of amino acid methyl ester hydrochloride or dipeptide methyl ester (0.01 mol) in DMF (25 mL), TEA (0.021 mol) was added in portions at 0 °C and the reaction mixture was stirred for 15 min, maintaining the temperature between 0–5 °C. Boc-dipeptide (0.01 mol) was dissolved in DMF (25 mL) and DIPC or DCC (0.01 mol) was added in portions with stirring. Stirring was first done for 1 h at 0–5 °C and then further for 24 h at room temperature (RT). Precaution was taken not to allow the reaction temperature to exceed RT to avoid the risk of racemization. After the completion of the reaction, the reaction mixture was diluted with an equal amount of water. The precipitated solid was filtered, washed with water and recrystallized from a mixture of chloroform and petroleum ether (bp 40–60 °C) followed by cooling at 0 °C to get the title compounds.

tert-Butyloxycarbonyl-l-prolyl-l-isoleucyl-l-proline methyl ester (5)

Semisolid mass; Yield 87%; [α]D –41.4°; Rf 0.78; IR (CHCl3): v 3,122 (N–H str, amide), 2,997–2,989 (C–H str, CH2, Pro), 2,965, 2,927 (C–H str, asym, CH3 and CH2), 2,869 (C–H str, sym, CH3), 1,752 (C=O str, ester), 1,678, 1,673, 1,644 (C=O str, 3° and 2° amide), 1,536 (N–H bend, 2° amide), 1,388, 1,375 (C–H bend, tert-butyl), 1,269 (C–O str, ester) cm−1; 1H-NMR (CDCl3): δ 6.25 (1H, br. s, NH), 4.52 (1H, t, J = 8.6 Hz, H-α, Ile), 4.11 (1H, t, J = 6.9 Hz, H-α, Pro-1), 3.92 (1H, t, J = 6.9 Hz, H-α, Pro-2), 3.62 (3H, s, OCH3), 3.41 (2H, t, J = 7.2 Hz, H-δ, Pro-2), 3.21 (2H, t, J = 7.1 Hz, H-δ, Pro-1), 2.55 (2H, q, H-β, Pro-1), 2.04 (3H, m, H-β, Pro-2 and H-β, Ile), 1.97 (2H, m, H-γ, Pro-2), 1.90 (2H, m, H-γ, Pro-1), 1.64 (2H, q, H-γ, Ile), 1.48 (9H, s, tert-butyl), 1.03 (3H, d, J = 5.9 Hz, H-γ′, Ile), 0.97 (3H, t, J = 7.8 Hz, H-δ, Ile); Anal. Calcd. for C32H37N3O6: C, 60.12; H, 8.48; N, 9.56. Found: C, 60.15; H, 8.49; N, 9.54%.

tert-Butyloxycarbonyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine methyl ester (6)

Semisolid mass; Yield 79%; [α]D –69.2°; Rf 0.59; IR (CHCl3): v 3,372 (O–H str, Tyr), 3,123, 3,119 (N–H str, amide), 3,069, 3,055 (C–H str, rings), 2,999–2,987 (C–H str, CH2, Pro), 2,929, 2,925 (C–H str, asym, CH2), 2,875, 2,852 (C–H str, sym, CH3 and CH2), 1,748 (C=O str, ester), 1,682–1,678, 1,645, 1,639 (C=O str, 3° and 2° amide), 1,588, 1,483 (skeletal bands), 1,539, 1,532 (N–H bend, 2° amide), 1,389, 1,374 (C–H bend, tert-butyl), 1,266 (C–O str, ester), 1,230 (C–O str, phenolic), 828, 725, 689 (C–H bend, out-of-plane (oop), rings) cm−1; 1H-NMR (CDCl3): δ 8.65 (1H, br. s, NH), 7.50 (2H, t, J = 7.2 Hz, 4.4 Hz, H at C-3 and C-5, Phe), 6.94 (1H, t, J = 6.2 Hz, H at C-4, Phe), 6.90 (2H, d, J = 8.5 Hz, H at C-2 and C-6, Tyr), 6.85 (2H, d, J = 8.8 Hz, 5.4 Hz, H at C-2 and C-6, Phe), 6.79 (2H, d, J = 8.6 Hz, H at C-3 and C-5, Tyr), 6.44 (1H, br. s, NH), 5.95 (1H, br. s, OH), 5.06 (1H, q, J = 7.9 Hz, H-α, Tyr), 4.60 (1H, q, J = 5.5 Hz, H-α, Phe), 4.55 (1H, t, J = 6.9 Hz, H-α, Pro-1), 4.39 (1H, t, J = 6.9 Hz, H-α, Pro-2), 3.68 (4H, m, H-δ, Pro-1 and Pro-2), 3.53 (3H, s, OCH3), 2.99 (4H, m, H-β, Phe and Tyr), 2.67 (4H, m, H-β, Pro-1 and Pro-2), 1.92 (4H, m, H-γ, Pro-1 and Pro-2), 1.55 (9H, s, tert-butyl); Anal. Calcd. for C34H44N4O8: C, 64.14; H, 6.96; N, 8.80. Found: C, 64.15; H, 6.99; N, 8.79%.

3.2. Deprotection of tripeptide unit at the carboxyl terminal

To a solution of the tripeptide 5 (4.4 g, 0.01 mol) in THF-H2O (1:1, 36 mL), 0.36 g (0.015 mol) of LiOH was added at 0 °C. The mixture was stirred at room temperature for 1 h and then acidified to pH 3.5 with 1 N H2SO4. The aqueous layer was extracted with Et2O (3 × 25 mL). The combined organic extracts were dried over anhydrous Na2SO4 and concentrated under reduced pressure. The crude product was finally crystallized from methanol and ether to afford pure deprotected compound.

3.3. Deprotection of tetrapeptide unit at amino terminal

Tetrapeptide 6 (6.36 g, 0.01 mol) was dissolved in CHCl3 (15 mL) and treated with CF3COOH (2.28 g, 0.02 mol). The resulting solution was stirred at room temperature for 1 h, washed with saturated NaHCO3 solution (25 mL). The organic layer was dried over anhydrous Na2SO4 and concentrated under reduced pressure. The crude product was purified by crystallization from CHCl3 and petroleum ether (bp 40–60 °C) to give the pure deprotected tetrapeptide unit.

3.4. Procedure for the synthesis of the linear heptapeptide unit

Deprotected tetrapeptide (5.36 g, 0.01 mol) was dissolved in tetrahydrofuran (THF, 35 mL). To this solution, TEA (2.8 mL, 0.021 mol) was added in portions at 0 °C and the resulting mixture was stirred for 15 min. Deprotected tripeptide (4.25 g, 0.01 mol) was dissolved in THF (35 mL) and DIPC (1.26 g, 0.01 mol) was added in portions to the above mixture with stirring, maintaining the temperature between 0–10 °C. Stirring was continued at room temperature for 36 h, after which the reaction mixture was filtered and the filtrate was washed with 5% NaHCO3 and saturated NaCl solutions (30 mL each). The organic layer was dried over anhydrous Na2SO4, filtered and evaporated in vacuum. The crude product was recrystallized from a mixture of chloroform and petroleum ether (bp 40–60 °C) followed by cooling at 0 °C.

tert-Butyloxycarbonyl-l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine methyl ester (7)

Semisolid mass; Yield 83%; [α]D –52.7°; Rf 0.85; IR (CHCl3): v 3,375 (O–H str, Tyr), 3,128–3,123 (N–H str, amide), 3,065 (C–H str, ring), 2,999–2,986 (C–H str, CH2, Pro), 2,968–2,963, 2,927–2,922 (C–H str, asym, CH3 and CH2), 2,876–2,872, 2,858–2,853 (C–H str, sym, CH3 and CH2), 1,750 (C=O str, ester), 1,679–1,673, 1,645 (C=O str, 3° and 2° amide), 1,589, 1,482 (skeletal bands), 1539, 1,534 (N–H bend, 2° amide), 1,389, 1,373 (C–H bend, tert-butyl), 1,271 (C–O str, ester), 1,233 (C–O str, phenolic), 829, 722, 687 (C–H bend, out-of-plane (oop), rings) cm−1; 1H-NMR (CDCl3): δ 9.85 (1H, br. s, NH), 8.62 (1H, br. s, NH), 7.17 (2H, dd, J = 7.2 Hz, 4.4 Hz, H at C-3 and C-5, Phe), 7.01 (1H, t, J = 6.2 Hz, H at C-4, Phe), 6.89, 6.81 (2H each, A2B2, J = 8.5 Hz, H at C-2, 6, 3 and 5, Tyr), 6.84 (2H, dd, J = 8.7 Hz, 5.3 Hz, H at C-2 and C-6, Phe), 6.25 (1H, br. s, NH), 5.97 (1H, br. s, OH), 5.11 (1H, m, H-α, Phe), 5.04 (1H, q, H-α, Tyr), 4.38 (1H, t, J = 6.9 Hz, H-α, Pro-2), 4.33 (1H, t, J = 8.6 Hz, H-α, Ile), 4.16 (1H, t, J = 6.9 Hz, H-α, Pro-1), 4.09 (2H, m, H-α, Pro-1 and Pro-2), 3.66 (2H, t, J = 7.1 Hz, H-δ, Pro-4), 3.54 (3H, s, OCH3), 3.33 (4H, m, H-δ, Pro-2 and Pro-3), 3.21 (2H, t, J = 7.2 Hz, H-δ, Pro-1), 3.01 (4H, m, H-β, Phe and Tyr), 2.68 (6H, m, H-β, Pro-2, Pro-3 and Pro-4), 2.54 (2H, q, H-β, Pro-1), 2.04 (1H, m, H-β, Ile), 1.92 (8H, m, H-δ, Pro-1-4), 1.64 (2H, m, H-γ, Ile), 1.49 (9H, s, tert-butyl), 1.00 (3H, d, J = 5.9 Hz, H-γ′, Ile), 0.96 (3H, t, J = 7.8 Hz, H-δ, Ile); Anal. Calcd. for C50H69N7O11: C, 63.61; H, 7.37; N, 10.38. Found: C, 63.60; H, 7.39; N, 10.40%.

3.5. Synthesis of the cyclic heptapeptide 8

To synthesize stylisin 2 (8), linear heptapeptide unit 7 (4.72 g, 0.005 mol) was deprotected at carboxyl end using LiOH (0.18 g, 0.0075 mol) to get Boc-l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine-OH. The deprotected heptapeptide unit (4.65 g, 0.005 mol) was now dissolved in CHCl3 (50 mL) at 0 °C. To this solution, p-nitrophenol or pentafluorophenol (0.94 g or 1.23 g, 0.0067 mol) and DIPC (0.63 g, 0.005 mol) were added and the mixture was stirred at room temperature for 12 h. The reaction mixture was filtered and the filtrate was washed with 10% NaHCO3 solution (3 × 25 mL) and finally washed with 5% HCl (2 × 30 mL) to get the corresponding p-nitro-phenyl or pentafluorophenyl ester Boc-l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine-Opnp or Boc-l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine-Opfp. To this compound (4.2 g or 4.38 g, 0.004 mol) dissolved in CHCl3 (35 mL), CF3COOH (0.91 g, 0.008 mol) was added, stirred at room temperature for 1 h and washed with 10% NaHCO3 solution (2 × 25 mL). The organic layer was dried over anhydrous Na2SO4 to get l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine-Opnp or l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosine-Opfp, which was dissolved in CHCl3 (25 mL) and TEA/NMM/pyridine (2.8 mL or 2.21 mL or 1.61 mL, 0.021 mol) was added. Then, above alkaline solution was kept at 0 °C for 7 days. The reaction mixture was washed with 10% NaHCO3 (3 × 25 mL) and 5% HCl (2 × 30 mL) solutions. The organic layer was dried over anhydrous Na2SO4 and crude cyclized product was crystallized from CHCl3/n-hexane to get pure cyclic product 8.

Cyclo(l-prolyl-l-isoleucyl-l-prolyl-l-phenylalanyl-l-prolyl-l-prolyl-l-tyrosinyl) (8)

White solid; Yield 89% (3.61 g, C5H5N), 82% (3.33 g, NMM), 79% (3.21 g, TEA); mp 216 °C (dec); [α]D –39.8° (c 0.2, MeOH) (−39.9 for natural stylisin 2); Rf 0.68 (CHCl3:AcOH:H2O, 3:2:5); IR (KBr): v 3,377 (O–H str, Tyr), 3,129, 3,125-3,121 (N–H str, amide), 3,069–3,066 (C–H str, ring), 2,998–2,985 (C–H str, CH2, Pro), 2,969–2,965, 2,929, 2,925 (C–H str, asym, CH3 and CH2), 2,875–2,872, 2,859–2,855 (C–H str, sym, CH3 and CH2), 1,676–1,672, 1,645–1,640 (C=O str, 3° and 2° amide), 1,587, 1,480 (skeletal bands), 1,537, 1,533–1,530 (N–H bend, 2° amide), 1,236 (C–O str, phenolic), 828, 720, 689 (C–H bend, out-of-plane (oop), rings) cm−1; 1H-NMR (CDCl3): δ 9.75 (1H, br. s, NH), 9.72 (1H, br. s, NH), 8.52 (1H, br. s, NH), 7.18 (2H, dd, J = 7.2 Hz, 4.4 Hz, H at C-3 and C-5, Phe), 7.03 (1H, t, J = 6.2 Hz, H at C-4, Phe), 6.97, 6.90 (2H each, A2B2, J = 8.5 Hz, H at C-2, 6, 3 and 5, Tyr), 6.85 (2H, d, J = 8.6 Hz, 5.4 Hz, H at C-2 and C-6, Phe), 5.95 (1H, br. s, OH), 4.39 (2H, m, H-α, Phe and Tyr), 4.25 (1H, t, J = 7.0 Hz, H-α, Pro-4), 4.21 (1H, t, J = 6.9 Hz, H-α, Pro-3), 3.91 (2H, m, H-α, Pro-1 and Pro-2), 3.85 (1H, t, J = 8.6 Hz, H-α, Ile), 3.60 (2H, t, J = 7.2 Hz, H-δ, Pro-4), 3.26 (6H, m, H-δ, Pro-1–3), 2.67 (8H, m, H-β, Pro-1–4), 2.61 (4H, m, H-β, Phe and Tyr), 1.83 (8H, m, H-δ, Pro-1–4), 1.61 (2H, m, H-γ, Ile), 1.55 (1H, m, H-β, Ile), 1.00 (3H, d, J = 5.9 Hz, H-γ′, Ile), 0.95 (3H, t, J = 7.8 Hz, H-δ, Ile); 13C-NMR (CDCl3): δ 173.5 (C=O, Ile), 172.8, 171.6 (2C, C=O, Pro-2 and Pro-4), 170.9 (C=O, Pro-1), 170.3, 169.9 (2C, C=O, Phe and Tyr), 169.3 (C=O, Pro-3), 153.9 (C-p, Tyr), 138.5, 133.4 (2C, C-γ, Phe and Tyr), 132.1 (2C, C-o, Phe), 129.5 (2C, C-o, Tyr), 128.9 (2C, C-m, Phe), 128.3 (2C, C-m, Tyr), 128.0 (C-p, Phe), 58.7 (2C, C-α, Pro-1 and Pro-2), 57.3, 55.7 (2C, C-α, Pro-4 and Pro-3), 54.3 (C-α, Ile), 53.6, 52.8 (2C, C-α, Phe and Tyr), 48.9, 48.2 (2C, C-δ, Pro-1 and Pro-3), 46.6, 45.8 (2C, C-δ, Pro-2 and Pro-4), 43.2 (C-β, Tyr), 37.8 (C-β, Phe), 35.6 (C-β, Ile), 34.4, 33.9 (2C, C-β, Pro-1 and Pro-4), 32.2, 30.5 (2C, C-β, Pro-2 and Pro-3), 24.8, 23.6 (2C, C-γ, Ile and Pro-3), 23.2, 22.6, 21.7 (3C, C-γ, Pro-1, Pro-2 and Pro-4), 16.2 (C-γ′, Ile), 10.3 (C-δ, Ile); ESI-MS/MS m/z [RI]: 812.9 [(M + 1)+, 100], 784.9 [(812.9 – CO)+, 14], 699.8 [(H-Pro-Phe-Pro-Pro-Tyr-Pro)+, 37], 671.8 [(699.8 – CO)+, 11], 665.8 [(H-Pro-Pro-Tyr-Pro-Ile-Pro)+, 29], 602.7 [(H-Pro-Phe-Pro-Pro-Tyr)+, 64], 574.7 [(602.7 – CO)+, 19], 455.5 [(H-Pro-Pro-Tyr-Pro)+, 38], 439.5 [(H-Pro-Phe-Pro-Pro)+, 49], 411.5 [(439.5 – CO)+, 21], 358.4 [(H-Pro-Pro-Tyr)+, 66], 342.4 [(H-Pro-Phe-Pro)+, 32], 330.4 [(358.4 – CO)+, 11], 245.3 [(H-Pro-Phe)+, 25], 217.2 [(245.3 – CO)+, 11], 195.2 [(H-Pro-Pro)+, 17], 136.1 [Tyr (C8H10NO)+, 14], 120.1 [Phe (C8H10N)+, 10], 107.1 [(C7H7O)+, 12], 98.1 [(Pro)+, 15], 93.1 [(C6H5O)+, 9], 91.1 [(C7H7)+, 11], 86.1 [Ile (C5H12N)+, 12], 77.1 [(C6H5)+, 7], 70.1 [H-Pro (C4H8N)+, 23], Ile: 57.1 [(C4H9)+, 6], 29.1 [(C2H5)+, 9], 15.0 [(CH3)+, 13]; Anal. Calcd. for C44H57N7O8: C, 65.09; H, 7.08; N, 12.08. Found: C, 65.11; H, 7.05; N, 12.10%.

3.6. Biological activity studies

3.6.1. Antibacterial screening

Newly synthesized linear and cyclic heptapeptides 7 and 8 were evaluated for their antibacterial potential against two Gram-positive bacteria—Bacillus subtilis and Staphylococcus aureus—and two Gram-negative bacteria—Pseudomonas aeruginosa and Klebsiella pneumonia—at concentrations of 50–6.25 μg/mL by using a modified Kirby-Bauer disc diffusion method [29]. MIC values of the test compounds were determined by the Tube Dilution Technique. Both linear and cyclic heptapeptides were dissolved separately using DMF to prepare a stock solution of 1 mg/mL. Stock solution was aseptically transferred and suitably diluted with sterile broth medium to contain seven different concentrations of each test compound ranging from 200–3.1 μg/mL in different test tubes. All the tubes were inoculated with one loopful of one of the test bacteria. The process was repeated with different test bacteria and different samples. Tubes inoculated with bacterial cultures were incubated at 37 °C for 18 h and the presence/absence of growth of the bacteria was observed. From these results, MIC of each test compound was determined against each test bacterium. A possible spore suspension was prepared in sterile distilled water from 5 days old culture of the test bacteria growing on nutrient broth media. About 20 mL of the growth medium was transferred into sterilized Petri plates and inoculated with 1.5 mL of spore suspension (spore concentration ~6 × 104 spores/mL). Filter paper disks of 6 mm diameter and 1 mm thickness were sterilized by autoclaving at 121 °C (15 psi) for 15 min. Each Petri plate was divided into five equal portions along the diameter to place one disc. Three discs of test sample were placed on three portions together with one disc with reference drug—gatifloxacin and a disk impregnated with the solvent (DMF) as negative control. The Petri plates inoculated with bacterial cultures were incubated at 37 °C for 18 h. Diameters of the inhibition zones (in mm) were measured and the average diameters for test sample were calculated in triplicate. The diameters obtained for the test sample were compared with that produced by the standard drug. The results of antibacterial studies are presented in Table 1.

3.6.2. Antifungal screening

Serial plate dilution method was used for the evaluation of antifungal activity against the diamorphic fungal strain C. albicans and three other fungal strains, including A. niger and two cutaneous fungal strains, M. audouinii and T. mentagrophytes, at concentrations of 50–6.25 μg/mL [30]. MIC values of the test compounds were determined by employing the same technique as used for antibacterial studies using DMSO instead of DMF and tubes inoculated with fungal cultures were incubated at 37 °C for 48 h. After incubation, the presence/absence of fungal growth was observed and MIC of test compounds was determined against each test fungus. A spore suspension in normal saline (0.91% w/v of NaCl) was prepared from culture of the test fungi on Sabouraud’s broth media. After transferring growth medium, Petri plates were inoculated with spore suspension. After drying, wells were made using an agar punch and test samples, reference drug—griseofulvin and negative control (DMSO) were placed in labeled wells in each Petri plate. The Petri plates inoculated with fungal cultures were incubated at 37 °C for 48 h. Antifungal activity was determined by measuring the diameter of the inhibition zone for triplicate sets. Activity of each compound was compared with reference standard. The results of antifungal studies are given in the Table 1.

4. Conclusions

The first total synthesis of the natural peptide stylisin 2 (8) was accomplished in good yield via coupling reactions utilizing different carbodiimides. Diisopropylcarbodiimide (DIPC)/TEA coupling method proved to be yield-effective, in comparison to methods utilizing DCC/TEA or NMM, providing 10–12% better yield. A pentafluorophenyl ester proved to be better for the activation of the acid functionality of the linear heptapeptide unit when compared to p-nitrophenol. Pyridine was found to be a good base for intramolecular cyclization of the linear peptide fragment in comparison to TEA and NMM. The synthesized cycloheptapeptide displayed high antibacterial activity against K. pneumoniae and P. aeruginosa, along with potent antifungal activity against C. albicans. In comparison, Gram negative bacteria were found to be more sensitive than Gram positive bacteria towards the newly synthesized peptide. On passing toxicity tests, synthesized cyclooligopeptide 8 may prove good candidate for clinical studies and can be new antimicrobial drug of future.


We greatly acknowledge the Head, U.S.I.C., DU, Delhi (India) and Head, R.S.I.C., I.I.T., Delhi (India) for spectral analysis and NRI Institute of Pharmacy, Bhopal, Madhya Pradesh (India) for providing necessary facilities for carrying out the research work.
  • Samples Availability: Available from the authors.


  1. Fusetani, N; Matsunaga, S. Bioactive Sponge Peptides. Chem. Rev 1993, 93, 1793–1806. [Google Scholar]
  2. Zainuddin, EN; Jansen, R; Nimtz, M; Wray, V; Preisitsch, M; Lalk, M; Mundt, S. Lyngbyazothrins A–D, Antimicrobial Cyclic Undecapeptides from the Cultured Cyanobacterium Lyngbya sp. J. Nat. Prod 2009, 72, 1373–1378. [Google Scholar]
  3. Williams, DE; Yu, K; Behrisch, HW; van Soest, R; Andersen, RJ. Rolloamides A and B, Cytotoxic Cyclic Heptapeptides isolated from the Caribbean Marine Sponge Eurypon laughlini. J. Nat. Prod 2009, 72, 1253–1257. [Google Scholar]
  4. Ford, PW; Gustafson, KR; McKee, TC; Shigematsu, N; Maurizi, LK; Pannell, LK; Williams, DE; de Silva, ED; Lassota, P; Allen, TM; van Soest, R; Andersen, RJ; Boyd, MR. Papuamides A–D, HIV-Inhibitory and Cytotoxic Depsipeptides from the Sponges Theonella mirabilis and Theonella swinhoei Collected in Papua New Guinea. J. Am. Chem. Soc 1999, 121, 5899–5909. [Google Scholar]
  5. Capon, RJ; Ford, J; Lacey, E; Gill, JH; Heiland, K; Friedel, T. Phoriospongin A and B: Two New Nematocidal Depsipeptides from the Australian Marine Sponges Phoriospongia sp. and Callyspongia bilamellata. J. Nat. Prod 2002, 65, 358–363. [Google Scholar]
  6. Randazzo, A; Bifulco, G; Giannini, C; Bucci, M; Debitus, C; Cirino, G; Gomez-Paloma, L. Halipeptins A and B: Two Novel Potent Anti-inflammatory Cyclic Depsipeptides from the Vanuatu Marine Sponge Haliclona species. J. Am. Chem. Soc 2001, 123, 10870–10876. [Google Scholar]
  7. Gunasekera, SP; Miller, MW; Kwan, JC; Luesch, H; Paul, VJ. Molassamide, A Depsipeptide Serine Protease Inhibitor from the Marine Cyanobacterium Dichothrix utahensis. J. Nat. Prod 2010, 73, 459–462. [Google Scholar]
  8. Muller, D; Krick, A; Kehraus, S; Mehner, C; Hart, M; Kupper, FC; Saxena, K; Prinz, H; Schwalbe, H; Janning, P; Waldmann, H; Konig, GM. Brunsvicamides A–C: Sponge-Related Cyanobacterial Peptides with Mycobacterium tuberculosis Protein Tyrosine Phosphatase Inhibitory Activity. J. Med. Chem 2006, 49, 4871–4878. [Google Scholar]
  9. Mohammed, R; Peng, J; Kelly, M; Hamann, MT. Cyclic Heptapeptides from the Jamaican Sponge Stylissa caribica. J. Nat. Prod 2006, 69, 1739–1744. [Google Scholar]
  10. Kobayashi, J; Tsuda, M; Nakamura, T; Mikami, Y; Shigemori, H. Hymenamides A and B, New Proline-Rich Cyclic Heptapeptides from the Okinawan Marine Sponge Hymeniacidon sp. Tetrahedron 1993, 49, 2391–2402. [Google Scholar]
  11. Dahiya, R; Pathak, D; Himaja, M; Bhatt, S. First Total Synthesis and Biological Screening of Hymenamide E. Acta Pharm 2006, 56, 399–415. [Google Scholar]
  12. Wele, A; Zhang, Y; Dubost, L; Pousset, J-L; Bodo, B. Cyclic Peptides from the Seeds of Annona glauca and A. cherimola. Chem. Pharm. Bull 2006, 54, 690–692. [Google Scholar]
  13. Dahiya, R; Kumar, A; Gupta, R. Synthesis, Cytotoxic and Antimicrobial Screening of a Proline- Rich Cyclopolypeptide. Chem. Pharm. Bull 2009, 57, 214–217. [Google Scholar]
  14. Dahiya, R. Synthesis and in vitro Cytotoxic Activity of a Natural Peptide of Plant Origin. J. Iran. Chem. Soc 2008, 5, 445–452. [Google Scholar]
  15. Dahiya, R. Synthetic Studies on a Cyclic Hexapeptide from Dianthus Superbus. Chem. Pap 2008, 62, 527–535. [Google Scholar]
  16. Dahiya, R. Total Synthesis and Biological Potential of Psammosilenin A. Arch. Pharm. Chem. Life Sci 2008, 341, 502–509. [Google Scholar]
  17. Dahiya, R. Synthesis, Spectroscopic and Biological Investigation of Cyclic Octapeptide: Cherimolacyclopeptide G. Turk. J. Chem 2008, 32, 205–215. [Google Scholar]
  18. Dahiya, R. Synthetic and Pharmacological Studies on Longicalycinin A. Pak. J. Pharm. Sci 2007, 20, 317–323. [Google Scholar]
  19. Dahiya, R. Synthesis of a Phenylalanine-Rich Peptide as Potential Anthelmintic and Cytotoxic Agent. Acta Pol. Pharm 2007, 64, 509–516. [Google Scholar]
  20. Dahiya, R. Synthesis, Characterization and Biological Evaluation of a Glycine-Rich Peptide—Cherimolacyclopeptide E. J. Chil. Chem. Soc 2007, 52, 1224–1229. [Google Scholar]
  21. Dahiya, R; Kaur, K. Synthetic and Biological Studies on Natural Cyclic Heptapeptide: Segetalin E. Arch. Pharm. Res 2007, 30, 1380–1386. [Google Scholar]
  22. Dahiya, R; Pathak, D. First Total Synthesis and Biological Evaluation of Halolitoralin A. J. Serb. Chem. Soc 2007, 72, 101–107. [Google Scholar]
  23. Dahiya, R; Kaur, K. Synthetic and Pharmacological Investigation of Segetalin C as a Novel Antifungal and Cytotoxic Agent. Arzneim. Forsch 2008, 58, 29–34. [Google Scholar]
  24. Dahiya, R; Kumar, A. Synthetic and Biological Studies on a Cyclopolypeptide of Plant Origin. J. Zhejiang Univ. Sci. B 2008, 9, 391–400. [Google Scholar]
  25. Dahiya, R; Sharma, RD. Synthesis and Bioactivity of a Novel Cyclic Hexapeptide from Stellaria delavayi. Eur. J. Sci. Res 2008, 21, 277–287. [Google Scholar]
  26. Dahiya, R; Maheshwari, M; Kumar, A. Toward the Synthesis and Biological Evaluation of Hirsutide. Monatsh. Chem 2009, 140, 121–127. [Google Scholar]
  27. Dahiya, R; Maheshwari, M; Yadav, R. Synthetic, Cytotoxic and Antimicrobial Activity Studies on Annomuricatin B. Z. Naturforsch 2009, 64b, 237–244. [Google Scholar]
  28. Bodanzsky, M; Bodanzsky, A. The Practice of Peptide Synthesis; Springer: New York, NY, USA, 1984; pp. 68–143. [Google Scholar]
  29. Bauer, AW; Kirby, WM; Sherris, JC; Turck, M. Antibiotic Susceptibility Testing by a Standardized Single Disk Method. Am. J. Clin. Pathol 1966, 45, 493–496. [Google Scholar]
  30. Khan, ZK; Gyanchandani, A. Verma, RS, Khan, IK, Singh, AP, Eds.; Trends in antifungals: past, present and future. In Antifungal Agents: Past, Present, Future Prospects; National Academy of Chemistry and Biology: Lucknow, India, 1998; pp. 55–128. [Google Scholar]

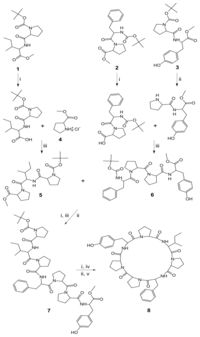

Scheme 1. Synthetic route for natural cycloheptapeptide stylisin 2 (8).
Scheme 1. Synthetic route for natural cycloheptapeptide stylisin 2 (8).
Marinedrugs 08 02384f1
Table 1. Antimicrobial activity data for compound 7 and 8.
Table 1. Antimicrobial activity data for compound 7 and 8.
CompoundDiameter of zone of inhibition (mm)
Bacterial strainsFungal strains

B. sub.S. aur.P. aeru.K. pneu.C. alb.M. audo.A. nigerT. menta.
Control *
B. sub.: Bacillus subtilis; S. aur.: Staphylococcus aureus; P. aeru.: Pseudomonas aeruginosa; K. pneu.: Klebsiella pneumoniae; C. alb.: Candida albicans; M. audo.:Microsporum audouinii; A. niger: Aspergillus niger; T. menta.: Trichophyton mentagrophytes.
Values in bracket are MIC values (μg/mL);
