Mar. Drugs 2013, 11(10), 3617-3631; doi:10.3390/md11103617

Article
Functional Genomics of Novel Secondary Metabolites from Diverse Cyanobacteria Using Untargeted Metabolomics
1
Life Sciences Division, Lawrence Berkeley National Laboratory, 1 Cyclotron Rd, MS977R0181A, Berkeley, CA 94720, USA
2
DOE Joint Genome Institute, Walnut Creek, CA 94598, USA
3
School of Life Sciences, Arizona State University, Tempe, AZ 85287, USA
4
Institute Pasteur, Collection of Cyanobacteria, Paris Cedex 15 75724, France
*
Author to whom correspondence should be addressed.
Received: 15 August 2013; in revised form: 21 August 2013 / Accepted: 9 September 2013 / Published: 30 September 2013

Abstract

: Mass spectrometry-based metabolomics has become a powerful tool for the detection of metabolites in complex biological systems and for the identification of novel metabolites. We previously identified a number of unexpected metabolites in the cyanobacterium Synechococcus sp. PCC 7002, such as histidine betaine, its derivatives and several unusual oligosaccharides. To test for the presence of these compounds and to assess the diversity of small polar metabolites in other cyanobacteria, we profiled cell extracts of nine strains representing much of the morphological and evolutionary diversification of this phylum. Spectral features in raw metabolite profiles obtained by normal phase liquid chromatography coupled to mass spectrometry (MS) were manually curated so that chemical formulae of metabolites could be assigned. For putative identification, retention times and MS/MS spectra were cross-referenced with those of standards or available sprectral library records. Overall, we detected 264 distinct metabolites. These included indeed different betaines, oligosaccharides as well as additional unidentified metabolites with chemical formulae not present in databases of metabolism. Some of these metabolites were detected only in a single strain, but some were present in more than one. Genomic interrogation of the strains revealed that generally, presence of a given metabolite corresponded well with the presence of its biosynthetic genes, if known. Our results show the potential of combining metabolite profiling and genomics for the identification of novel biosynthetic genes.
Keywords:
cyanobacteria; metabolomics; mass spectrometry; MS/MS; betaines; oligosaccharides

1. Introduction

Cyanobacteria are photoautotrophic bacteria capable of oxygenic photosynthesis. Members of the cyanobacteria phylum are important primary producers of organic matter in diverse ecosystems ranging from temperate terrestrial and marine to extreme environments [1,2,3,4]. Their broad ecological presence makes cyanobacteria important determinants of global geochemical cycles of carbon and nitrogen [5]. Cyanobacteria also commonly produce diverse secondary metabolites and bioactive compounds [6,7] and the ability of cyanobacteria to utilize solar energy and to fix carbon dioxide has drawn interest for biotechnological applications [8,9,10,11,12].

Improved understanding of cyanobacterial metabolites and their utilization have great potential for drug development. Unfortunately, functional characterization of microbial metabolism in general has lagged behind the pace of sequencing [13] and significant proportions of microbial genes have no assigned function as well as numerous biochemical activities are not assigned to any specific gene [14]. Microbial functional genomics has benefited from advances in comparative genomics [15], availability of bacterial expression [16] and mutant libraries [17], large scale phenotyping [18,19] and genome-scale metabolic modeling [20], all synergistically enabling advances in assigning functions to specific genes.

Mass spectrometry-based metabolomics is an established platform in microbial functional genomics [21,22]. Examples of successful assignments of gene function include incubations of complex mixtures of metabolites with purified proteins of unknown function to discovery enzymatic activities [23,24], and screening of libraries of bacterial mutants to identify genes of enzymes and transport proteins required for the utilization of specific metabolites [25]. Metabolite profiling often helps gene functional assignment but it more often points to novel metabolic capabilities. Uncharacterized biosynthetic capabilities are manifested by the frequent detection of novel metabolites or metabolites, which currently cannot be identified using mass spectrometry alone [26,27,28]. Additionally, utilization of uncharacterized metabolites from complex media or metabolite utilizations, which were not predicted based on available genome annotations, were also observed in bacteria [28,29].

Here we present untargeted metabolite profiling of cell extracts of nine additional cyanobacteria (Table 1) with available genome sequences [30,31,32] to test for the presence of unexpected metabolites previously detected in Synechococcus sp. PCC 7002 and to explore the diversity of small polar metabolites in this phylum. This exploratory study is intended to provide leads for downstream detailed structural and functional characterization of novel natural compounds.

Table 1. List of cyanobacteria used for metabolite profiling.
Table 1. List of cyanobacteria used for metabolite profiling.
Taxonomic SubsectionSpeciesStrainAbbreviationMedium
1 (Chroococcales)Halothece sp.PCC 74187418ASNIII/Tu4X
1 (Chroococcales)Synechococcus elongatusPCC 63016301BG11
1 (Chroococcales)Synechococcus sp.PCC 70027002ASNIII/BG11 + vit. B12
2 (Pleurocapsales)Chroococcidiopsis sp.PCC 67126712ASNIII/BG11
2 (Pleurocapsales)Pleurocapsa sp.PCC 73277327BG11
3 (Oscillatoriales)Geitlerinema sp.PCC 74077407BG11
3 (Oscillatoriales)Leptolyngbya sp.PCC 73767376ASNIII + vit. B12
3 (Oscillatoriales)Microcoleus vaginatusPCC 98029802BG11
4 (Nostocales)Calothrix sp.PCC 75077507BG11o
4 (Nostocales)Nostoc sp.PCC 71077107BG11o

BG11 and ASNIII as in ref. [33]; BG11o, BG11 without nitrate; vit. B12, Vitamin B12 at 10 μg/L final concentration; Tu4X, Turks Island salts 4× concentration.

2. Results and Discussion

Analysis of raw metabolite profile data of selected cyanobacteria (Table 1) led to the curation of 264 metabolites across the ten analyzed cyanobacteria (Supplementary Table S1). The data analysis was performed combining the MathDAMP package [34] with iterative manual curation as described in the Experimental section. Annotations of metabolites were also visualized on density plots (Figure 1) to find any unannotated metabolites. Our aim was to annotate polar metabolites with at least one of its spectral features above 10,000 ion counts.

Tandem mass spectrometry (MS/MS) was performed on characteristic ions (primarily [M + H]+ in positive mode and [M − H] in negative mode) of metabolites following spectral feature annotation (Figure 1, Supplementary Table S1). Putative identifications of metabolites were based on our in-house database, built with identifications from our previous studies [26,29,30] and analysis of MS/MS spectra using public spectral libraries [35,36]. MS/MS spectra do not always provide sufficient information for full structural characterization of metabolites without corresponding true chemical standards, which limits the characterization power and overall degree of certainty of untargeted metabolomics [37]. Out of 264 metabolites annotated in this study, we could assign chemical formulae to 157 and putatively identify only 105 metabolites. This further underscores the relative ease of detecting metabolites which are not included in databases of metabolism or spectral libraries using untargeted metabolite profiling.

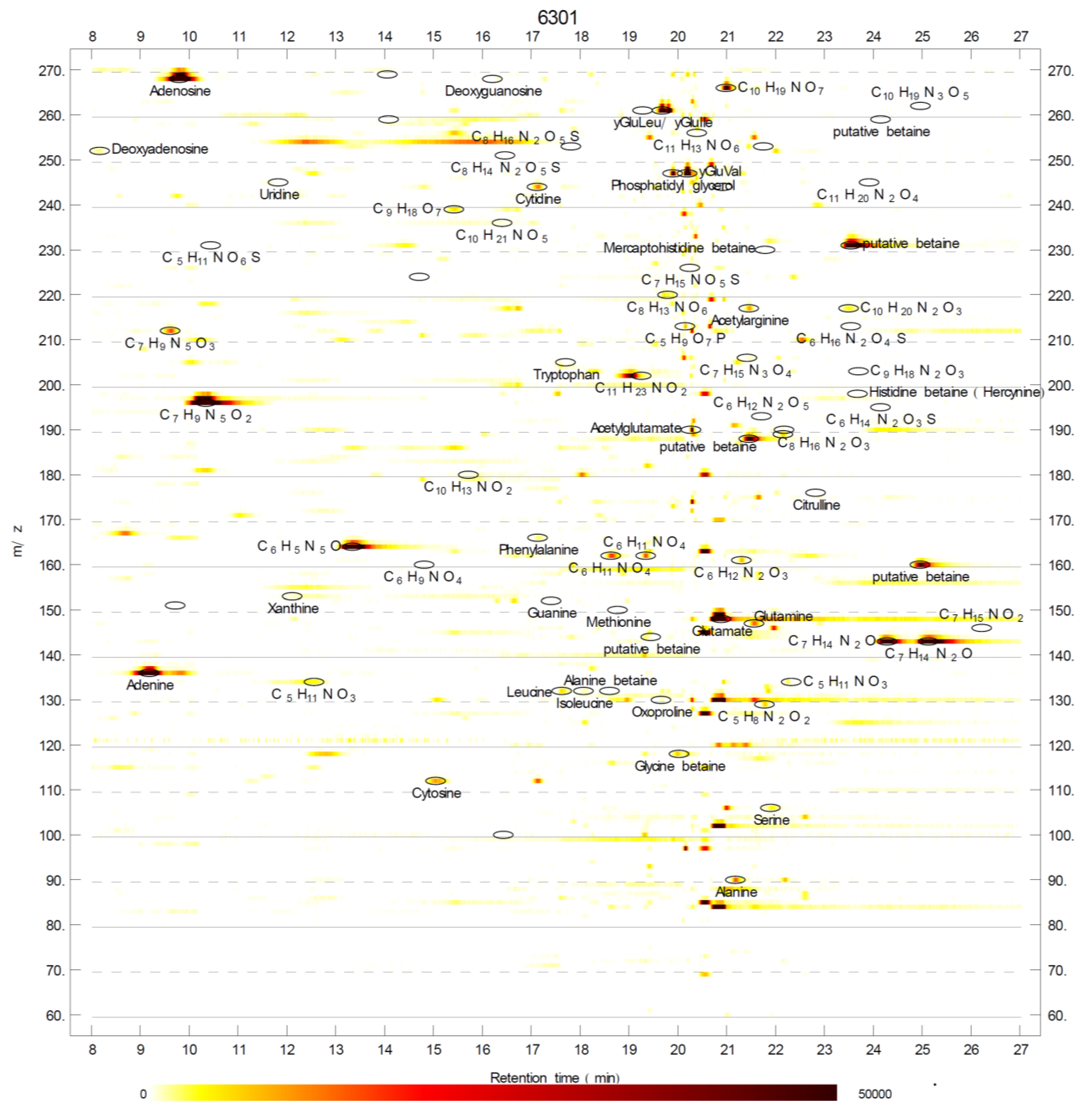

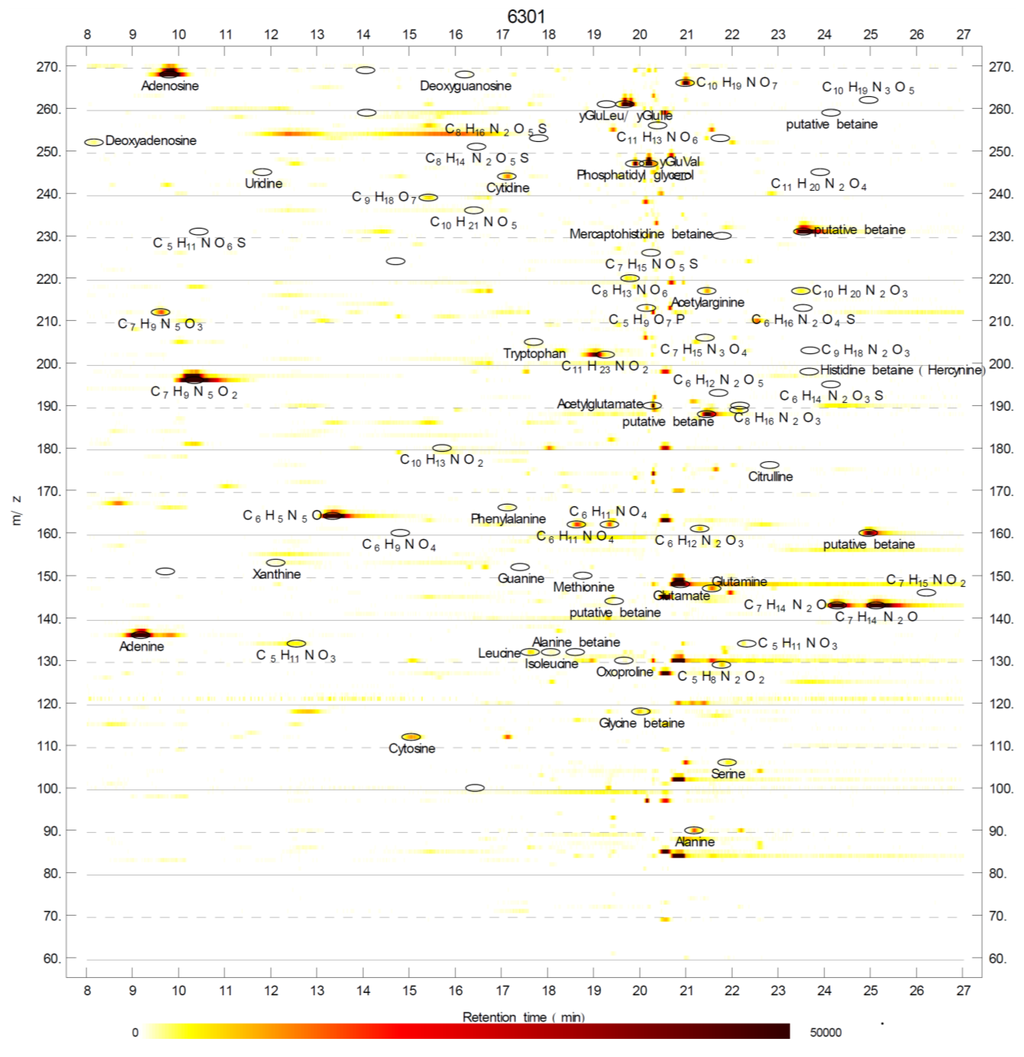

Figure 1. Three-dimensional visualization of a metabolite profile (from Synechococcus elongatus PCC 6301, partial). The X axis represents the retention time, the Y axis represents m/z, and the ion count intensity is color coded. Labels correspond to annotated metabolites (as found in Supplementary Table S1). Strong signals (>10,000 ion counts) without annotation labels correspond to redundant peaks (e.g., fragments or adducts) of annotated metabolites.
Figure 1. Three-dimensional visualization of a metabolite profile (from Synechococcus elongatus PCC 6301, partial). The X axis represents the retention time, the Y axis represents m/z, and the ion count intensity is color coded. Labels correspond to annotated metabolites (as found in Supplementary Table S1). Strong signals (>10,000 ion counts) without annotation labels correspond to redundant peaks (e.g., fragments or adducts) of annotated metabolites.
Marinedrugs 11 03617 g001 1024

2.1. Betaines and Their Biosynthetic Genes

Betaines are neutral zwitterionic metabolites that contain a cationic group such as a quaternary ammonium, and a negatively charged carboxyl group, and whose known metabolic function are as compatible solutes (osmolites). We have previously identified histidine betaine (hercynine) and a thiol of histidine betaine (possibly ergothioneine) in Synechococcus sp. PCC 7002 based on MS/MS data [28]. The consistency of our MS/MS spectra with those of authentic standards was later confirmed [25,38]. The biosynthesis of hercynine and ergothioneine has been characterized in mycobacteria. Homologs of mycobacterial genes for some steps of the biosynthesis have been reported for cyanobacteria [39]. In fact the biosynthesis of hercynine and ergothioneine has been confirmed experimentally in five cyanobacterial strains [40]. In this study, we detected hercynine in nine out of the ten strains, and a thiol of hercynine in eight of these nine (Figure 2). The genomes of these nine cyanobacteria contain homologs of some mycobacterial genes corresponding to ergothioneine biosynthesis, while the genome of Synechococcus elongatus PCC 6301 lacks homologs of these genes (Supplementary Table S2). Glycine betaine was detected only in Halothece sp. PCC 7418 (Figure 2) what is consistent with the presence of the glycine methylation pathway [41]. Interestingly, this strain, which is a representative of the most halotolerant cyanobacteria known [42], contains the most diverse set of putative betaines of all strains tested.

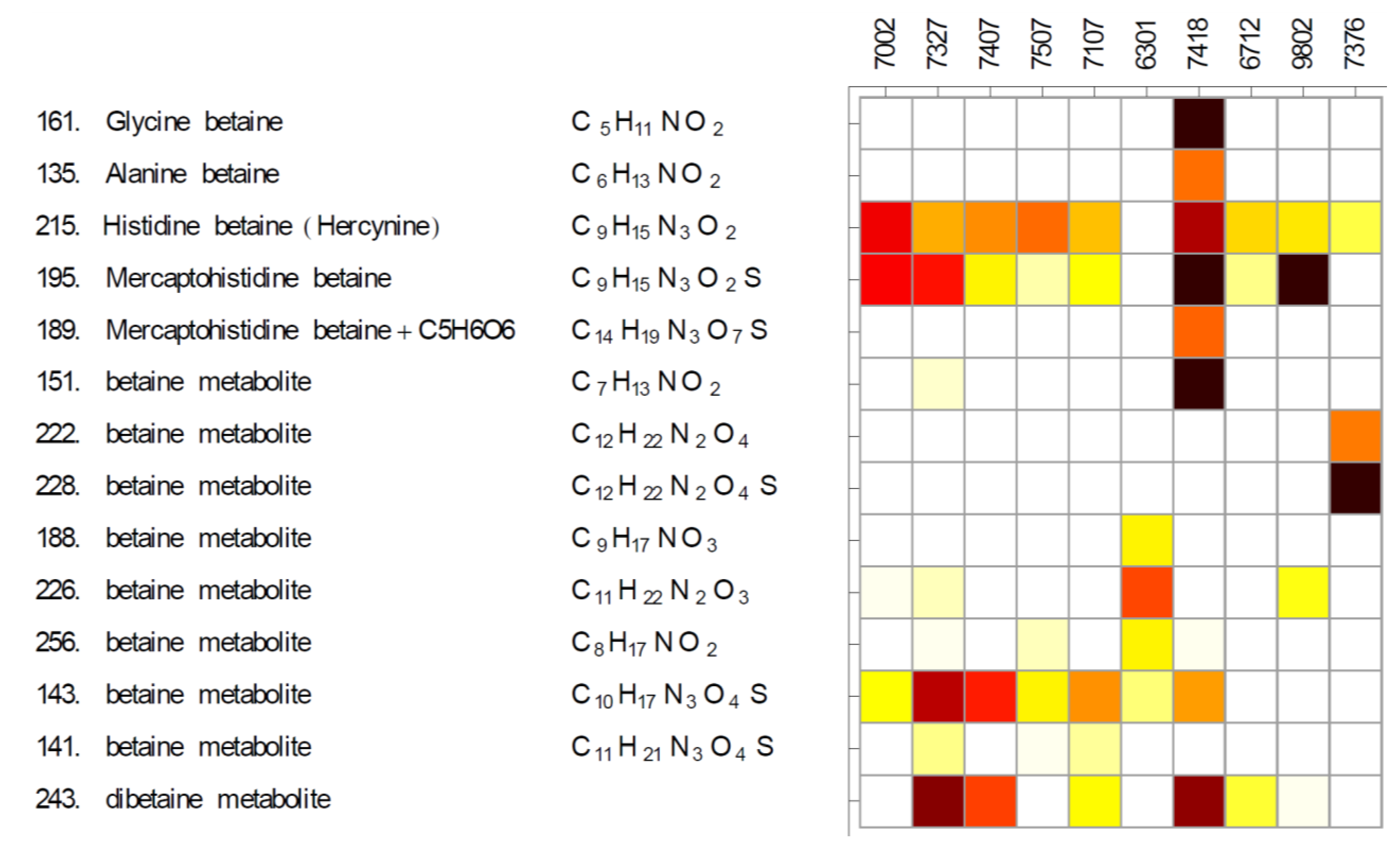

Figure 2. Diversity of betaines in analyzed cyanobacteria.
Figure 2. Diversity of betaines in analyzed cyanobacteria.
Marinedrugs 11 03617 g002 1024

Eleven additional metabolites were classified as betaines (Figure 2). Assignments to betaines were based on characteristic weak signals of their corresponding [M − H] ions in negative mode profile (MS1) mass spectra and the presence of trimethylamine-related fragments (m/z 60.0808, 59.0730, 58.0651) and trimethylamine neutral loss (59.0735) in positive mode MS/MS spectra (Supplementary Figure S1 and Table S1). Chemical formulae of some unidentified betaines correspond to a few candidate compounds (e.g., C7H13NO2 could correspond to crotonobetaine or proline betaine) but the analyses of MS/MS spectra were inconclusive. An interesting pair of betaines was detected exclusively in Leptolyngbya sp. PCC 7376. The chemical formulae of these two betaines differ by a single sulfur (C11H22N2O4, C11H22N2O4S)—an analogous pattern to hercynine and ergothioneine (Figure 2), pointing to a similar role. Accurate mass and isotopic profile of the betaine with metabolite number 243 is consistent with an oxidized form of ergothioneine (C18H28N6O4S2). This metabolite is also present in extracts of multiple strains in which the thiol of histidine betaine was detected (Figure 2). This coincidence and the mere presence of an oxidized form, would be consistent with an antioxidant role of ergothioneine [43].

2.2. Diversity of Glycosides and Oligosaccharides

Cyanobacteria are known to synthesize glycosides and oligosaccharides as compatible solutes [44], glycogen as a storage polysaccharide, and a variety of exopolysaccharides [45]. While glucosylglycerol and glucosylglycerate are common glycoside compatible solutes [44], other hexoses such as mannose and galactose may substitute for glucose [46]. Since we did not have authentic standards of these isomers to test if they have different chromatographic properties using our LC-MS method, we use combined names hexosylglycerol and hexosylglycerate for these glycerides (Figure 3). Homologs of glucosylglycerol-phosphate synthase and glucosylglycerol 3-phosphatase were identified by genomic annotation only in five of the strains analyzed (Supplementary Table S3), while hexosylglycerol was detected in all ten cyanobacteria (Figure 3, Supplementary Table S1). These findings suggest the presence of an alternative pathway for the biosynthesis of these glycerides. One simple possibility is transglycosylation reactions catalyzed by alpha-glucosidases, which have been shown to produce glucosylglycerol in vitro [47]. We detected hexosylglycerate in five of our strains (Figure 3, Supplementary Table S1). Homologs of glucosylglycerate biosynthetic genes were identified in four of these 5 cyanobacteria (Supplementary Table S4) showing overall good consistency between metabolite profiles and gene content while pointing to unusual hexosylglycerate biosynthesis in Calothrix sp. PCC 7507.

In addition to the detection of a hexose disaccharide, which could correspond to sucrose [44] or trehalose [31], a series of higher hexose oligomers was also detected (Figure 3). These could be storage glycogen-related maltooligosaccharides or structurally heterogeneous oligohexoses reported in different cyanobacteria [48,49]. Peak areas of ions of different metabolites cannot be used directly for absolute quantitative comparisons due to different ionization efficiencies of different metabolites [50]. However, results in Figure 3 clearly show different distribution of glycosides and oligosaccharides among the cyanobacteria studied here. Such comparisons may prove useful for identifying suitable starting points for engineering heterologous pathways or using cyanobacterial biomass as a feedstock for biotechnological applications.

We have previously identified an unusual trisaccharide of a hexose, N-acetylhexosamine and an oxidized version of N-acetylmuramic acid in Synechococcus sp. PCC 7002 [28]. This trisaccharide was detected as two distinct chromatographic peaks possibly caused by two anomers or mutarotation suggesting a reducing nature of this trisaccharide [28]. During this study, we detected this oligosaccharide in three additional cyanobacteria, also in two separate chromatographic peaks, yet at significantly lower signal intensities than in Synechococcus sp. PCC 7002 (Figure 3, Supplementary Table S1). Peak areas of the two peaks were combined and reported as a single metabolite number 158 (Supplementary Table S1). The role of this trisaccharide remains unclear; no other “decorated” hexosamine-based oligomers were identified in this study.

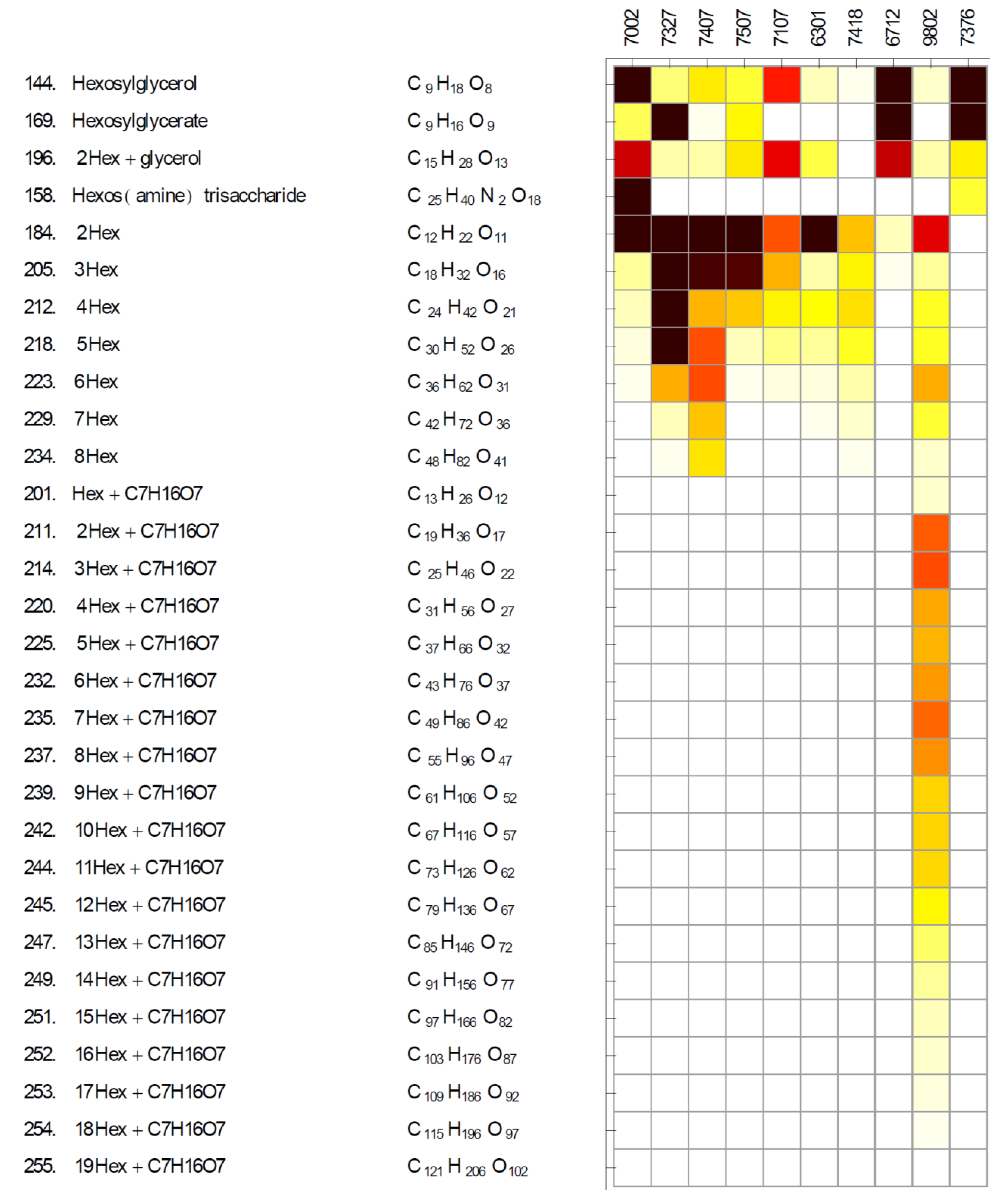

Figure 3. Diversity of glycosides and oligosaccharides in analyzed cyanobacteria.
Figure 3. Diversity of glycosides and oligosaccharides in analyzed cyanobacteria.
Marinedrugs 11 03617 g003 1024

A range of unusual oligosaccharides was detected exclusively in Microcoleus vaginatus PCC 9802 (Figure 3). These oligosaccharides are condensation products of oligohexoses with C7H16O7. This chemical formula is consistent with a chemical formula of seven-carbon sugar alcohols. Release of polysaccharides is considered to play a key role in cyanobacterial gliding [51] and oligohexoses with C7H16O7 could be related to motility in Microcoleus vaginatus, a vertical migrant in desert soils [52]. Another possibility is that these glycans are related to exopolysaccharides which are known to play an important ecological role in binding soils to form biological soil crusts [53]. Certainly, the large comparative diversity of these compounds in Microcoleus vaginatus PCC 9802 suggests that they may play a differential physiological role related to adaptations to life in desert soils.

2.3. Gamma-Glutamyl Dipeptides and Gamma-Glutamyltransferase (ggt)

A series of gamma-glutamyl dipeptides was among the unexpected findings in the profile of Synechococcus sp. PCC 7002 [28]. Gamma-glutamylation increases the solubility of non-polar amino acids [54] and may represent a strategy to prevent the loss of these amino acids via leakage through cell membranes [29]. Gamma-glutamyl dipeptides were detected in nine analyzed cyanobacteria and not detected in Calothrix sp. PCC 7507 (Figure 4). Homologs of gamma-glutamyltransferase gene (ggt) were identified in genomes of nine strains, interestingly; the strain missing the homolog is Leptolyngbya sp. PCC 7376 (Supplementary Table S5). Calothrix sp. PCC 7507 and two additional strains possess ggt sequences that are missing the catalytic threonine dyad shown to be important for autoprocessing in Helicobacter pylori ggt [55] (Supplementary Figure S2). This may indicate that ggt in Calothrix sp. PCC 7507 is not active or that it has some other (non-ggt) activity. Pleurocapsa sp. PCC 7327 has two additional ggt genes, at least one of them has perfectly conserved threonine dyad. And it is possible that both Halothece sp. PCC 7418, which has the same possibly inactive ggt as Calothrix sp. PCC 7507 and Leptolyngbya sp. PCC 7376, which has no ggt at all, have an alternative form of gamma-glutamyltransferase, which is not similar to the known ggt.

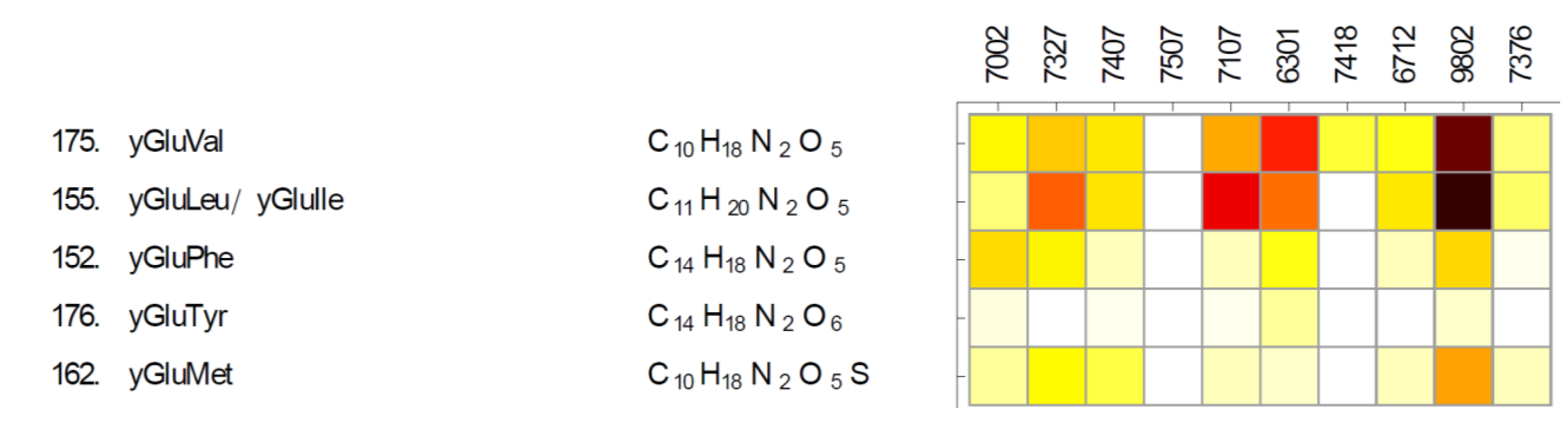

Figure 4. Distribution of gamma-glutamyl dipeptides in analyzed cyanobacteria.
Figure 4. Distribution of gamma-glutamyl dipeptides in analyzed cyanobacteria.
Marinedrugs 11 03617 g004 1024

2.4. Other Metabolites

Similarly to the differences in the distribution of oligosaccharides, we also observed differences in the profiles of fatty acids, especially unsaturated ones (Supplementary Figure S3). A large proportion of detected metabolites remained unidentified and their chemical formulae are not present in databases of metabolism KEGG [56] or MetaCyc [57]. These metabolites represent a valuable resource for the characterization of novel metabolic capabilities. Having metabolite profile data of only ten cyanobacterial strains proved insufficient to link specific genes to individual metabolites as the number of candidate genes correlating with the presence or absence of specific metabolites was too large. Nevertheless, we believe that scaling up untargeted metabolite profiling to a larger number of strains would enable to both detect novel metabolites as well as to zoom in on a small number of potential corresponding biosynthetic genes.

3. Experimental Section

3.1. Strains and Culture Conditions

All strains are available at Pasteur Culture collection of Cyanobacteria [58]. Biomass of the nine PCC strains for chemical analyses was obtained by growing in 1.25 L of media suitable for the strain. The cultures were grown at 25 °C under continuous light provided by Osram Universal White fluorescent tubes (20 µmol quanta m−2 s−1) with agitation and constant bubbling of 1% CO2. Culture media are specified in Table 1. Calothrix sp. PCC 7507 and Nostoc sp. PCC 7107 are heterocystous cyanobacteria and these two strains were grown in nitrate free media to promote the development of heterocysts. All chemicals for growth media were purchased from Sigma.

3.2. Metabolite Extraction

Two milliliters of methanol were added to lyophilized biomass originating from approximately 2 mL of packed cell volume for each cyanobacterium (Table 1). In the case of Microcoleus vaginatus PCC 9802, 2 mL of methanol were added to cell pellet of approximately 1 mL of packed cell volume. The suspensions were sonicated for 15 min in sonic bath (VWR symphony) and then transferred to 2 mL microcentrifuge tubes and centrifuged for 10 min at 2348 × g using an Eppendorf 5424 centrifuge. Supernatants were transferred to 1.8 mL glass vials and dried down using Savant Speedvac Plus (SC210A). 100 μL of methanol were added to each vial and the vials were stored at −20 °C. Prior to analysis by LC-MS, the samples were filtered using 0.22 μm PVDF microcentrifuge filters (Millipore).

3.3. LC-MS Analysis

An Agilent capillary 1200 liquid chromatography system coupled to an Agilent 6520 ESI-Q-TOF mass spectrometer was used for LC-MS analysis. ZIC-HILIC column (3.5 μm, 100 Å, 150 × 1 mm) for normal phase liquid chromatography using analytical conditions as described previously [28]. Profile mode data (MS1) were acquired using a fast polarity switching mode. One LC-MS run was performed for a single sample of each strain. Fragmentation (MS/MS) spectra were acquired as two separate positive and negative polarity runs for each sample using data-dependent selection of precursor ions (Auto MS/MS) using collision energy of 10 V. Sample injection volume was 2 μL.

3.4. Data Analysis

Raw datasets from profile mode (MS1) analysis were exported to mzdata format using Agilent MassHunter Qualitative analysis software (B.05.00) and preprocessed by MathDAMP package [34] to unit mass resolution for comparative analysis. Differences among preprocessed datasets of the ten analyzed cyanobacteria were identified using MathDAMP by direct comparisons identifying outliers using quartile analysis [34]. Redundant spectral features potentially corresponding to a single metabolite (adducts, multimers, fragments) were grouped by correlation of their peak shape along the chromatographic dimension as described previously [29]. Resulting groups of spectral features were manually curated using Agilent MassHunter Qualitative Analysis software for chemical formula calculation. Putative identification of metabolites was based on our previous results [28,29] and analysis of MS/MS spectra against spectral libraries Metlin [35] and MassBank [36].

3.5. Genome Analysis

Candidate genes and synthesis pathways were identified using the data and tools in Integrated Microbial Genomes database (IMG) [59]. GenBank accession numbers of 10 cyanobacterial genomes are as follows: CP003943 (Calothrix sp. PCC 7507), (Chroococcidiopsis sp. PCC 6712), CP003591 (Geitlerinema sp. PCC 7407), CP003945 (Halothece sp. PCC 7418), CP003946 (Leptolyngbya sp. PCC 7376), CP003548 (Nostoc sp. PCC 7107), CP003590 (Pleurocapsa sp. PCC 7327), AP008231 (Synechococcus elongatus PCC 6301), CP000951 (Synechococcus sp. PCC 7002). Putative orthologs of experimentally characterized proteins in cyanobacterial genomes have been identified as bi-directional best BLASTp [60] hits using e-value cutoffs of 1.0 × 10−5. Experimentally characterized proteins included in the analysis were ergothioneine biosynthesis proteins EgtB-E from Mycobacterium smegmatis MC2 155 [39], ovothiol biosynthesis protein OvoA from Erwinia tasmaniensis [61], GSMT and SDMT from Ectothiorhodospira halochloris [41], ggpPS from Synechocystis sp. PCC 6803 [62] and ggt from H. pylori [55]. Additional candidate genes in ergothioneine biosynthesis and gamma-glutamyltranspeptidase family proteins were identified by the matches to the corresponding TIGRfam models [63] and COG position-specific scoring matrices obtained from the CDD database [64].

4. Conclusions

In this study, we have shown that it is possible to correlate the presence of metabolites with known biosynthetic genes to the gene content of ten analyzed cyanobacteria. Additionally, we detected a series of novel betaines in some cyanobacteria and unusual oligohexoses with a degree of polymerization up to 19 with a single C7H16O7 moiety in Microcoleus vaginatus PCC 9802. The scale-up of such comparative metabolite profiling may enable the linking of genes of unknown function to the biosynthesis of novel natural compounds.

Acknowledgments

This work was supported by the U.S Department of Energy under Contract No. DE-AC02-05CH11231 and the Institut Pasteur.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Seckbach, J.; Oren, A. Oxygenic Photosynthetic Microorganisms in Extreme Environments. In Algae and Cyanobacteria in Extreme Environments; Seckbach, J., Ed.; Springer: Dordrecht, The Netherlands, 2007; pp. 5–25. [Google Scholar]
  2. Whitton, B.A.; Potts, M. Introduction to the Cyanobacteria. In Ecology of Cyanobacteria II; Whitton, B.A., Ed.; Springer: Dordrecht, The Netherlands, 2012; pp. 1–13. [Google Scholar]
  3. Garcia-Pichel, F.; Loza, V.; Marusenko, Y.; Mateo, P.; Potrafka, R.M. Temperature drives the continental-scale distribution of key microbes in topsoil communities. Science 2013, 340, 1574–1577. [Google Scholar] [CrossRef]
  4. Garcia-Pichel, F.; Belnap, J.; Neuer, S.; Schanz, F. Estimates of global cyanobacterial biomass and its distribution. Algol. Stud. 2003, 109, 213–227. [Google Scholar] [CrossRef]
  5. Falkowski, P.G.; Fenchel, T.; Delong, E.F. The microbial engines that drive Earth’s biogeochemical cycles. Science 2008, 320, 1034–1039. [Google Scholar] [CrossRef]
  6. Gerwick, W.H.; Moore, B.S. Lessons from the past and charting the future of marine natural products drug discovery and chemical biology. Chem. Biol. 2012, 19, 85–98. [Google Scholar] [CrossRef]
  7. Gao, Q.; Garcia-Pichel, F. Microbial ultraviolet sunscreens. Nat. Rev. Microbiol. 2011, 9, 791–802. [Google Scholar] [CrossRef]
  8. Atsumi, S.; Higashide, W.; Liao, J.C. Direct photosynthetic recycling of carbon dioxide to isobutyraldehyde. Nat. Biotechnol. 2009, 27, 1177–1180. [Google Scholar] [CrossRef]
  9. McNeely, K.; Xu, Y.; Bennette, N.; Bryant, D.A.; Dismukes, G.C. Redirecting reductant flux into hydrogen production via metabolic engineering of fermentative carbon metabolism in a cyanobacterium. Appl. Environ. Microbiol. 2010, 76, 5032–5038. [Google Scholar] [CrossRef]
  10. Ducat, D.C.; Way, J.C.; Silver, P.A. Engineering cyanobacteria to generate high-value products. Trends Biotechnol. 2011, 29, 95–103. [Google Scholar]
  11. Lan, E.I.; Liao, J.C. ATP drives direct photosynthetic production of 1-butanol in cyanobacteria. Proc. Natl. Acad. Sci. USA 2012, 109, 6018–6023. [Google Scholar] [CrossRef]
  12. Xu, Y.; Guerra, L.T.; Li, Z.; Ludwig, M.; Dismukes, G.C.; Bryant, D.A. Altered carbohydrate metabolism in glycogen synthase mutants of Synechococcus sp. strain PCC 7002: Cell factories for soluble sugars. Metab. Eng. 2013, 16, 56–67. [Google Scholar] [CrossRef]
  13. Galperin, M.Y.; Koonin, E.V. From complete genome sequence to “complete” understanding? Trends Biotechnol. 2010, 28, 398–406. [Google Scholar] [CrossRef]
  14. Hanson, A.D.; Pribat, A.; Waller, J.C.; de Crécy-Lagard, V. “Unknown” proteins and “orphan” enzymes: The missing half of the engineering parts list—and how to find it. Biochem. J. 2009, 425, 1–11. [Google Scholar]
  15. Gerdes, S.; El Yacoubi, B.; Bailly, M.; Blaby, I.K.; Blaby-Haas, C.E.; Jeanguenin, L.; Lara-Núñez, A.; Pribat, A.; Waller, J.C.; Wilke, A.; et al. Synergistic use of plant-prokaryote comparative genomics for functional annotations. BMC Genomics 2011, 12 (Suppl. 1), S2. [Google Scholar]
  16. Kitagawa, M.; Ara, T.; Arifuzzaman, M.; Ioka-Nakamichi, T.; Inamoto, E.; Toyonaga, H.; Mori, H. Complete set of ORF clones of Escherichia coli ASKA library (a complete set of E. coli K-12 ORF archive): Unique resources for biological research. DNA Res. 2005, 12, 291–299. [Google Scholar]
  17. Baba, T.; Ara, T.; Hasegawa, M.; Takai, Y.; Okumura, Y.; Baba, M.; Datsenko, K.A.; Tomita, M.; Wanner, B.L.; Mori, H. Construction of Escherichia coli K-12 in-frame, single-gene knockout mutants: The Keio collection. Mol. Syst. Biol. 2006, 2, 2006.0008. [Google Scholar]
  18. Nichols, R.J.; Sen, S.; Choo, Y.J.; Beltrao, P.; Zietek, M.; Chaba, R.; Lee, S.; Kazmierczak, K.M.; Lee, K.J.; Wong, A.; et al. Phenotypic landscape of a bacterial cell. Cell 2011, 144, 143–156. [Google Scholar] [CrossRef]
  19. Deutschbauer, A.; Price, M.N.; Wetmore, K.M.; Shao, W.; Baumohl, J.K.; Xu, Z.; Nguyen, M.; Tamse, R.; Davis, R.W.; Arkin, A.P. Evidence-based annotation of gene function in Shewanella oneidensis MR-1 using genome-wide fitness profiling across 121 conditions. PLoS Genet. 2011, 7, e1002385. [Google Scholar] [CrossRef]
  20. Reed, J.L.; Patel, T.R.; Chen, K.H.; Joyce, A.R.; Applebee, M.K.; Herring, C.D.; Bui, O.T.; Knight, E.M.; Fong, S.S.; Palsson, B.O. Systems approach to refining genome annotation. Proc. Natl. Acad. Sci. USA 2006, 103, 17480–17484. [Google Scholar] [CrossRef]
  21. Baran, R.; Reindl, W.; Northen, T.R. Mass spectrometry based metabolomics and enzymatic assays for functional genomics. Curr. Opin. Microbiol. 2009, 12, 547–552. [Google Scholar] [CrossRef]
  22. Saito, N.; Ohashi, Y.; Soga, T.; Tomita, M. Unveiling cellular biochemical reactions via metabolomics-driven approaches. Curr. Opin. Microbiol. 2010, 13, 358–362. [Google Scholar] [CrossRef]
  23. Saito, N.; Robert, M.; Kitamura, S.; Baran, R.; Soga, T.; Mori, H.; Nishioka, T.; Tomita, M. Metabolomics approach for enzyme discovery. J. Proteome Res. 2006, 5, 1979–1987. [Google Scholar] [CrossRef]
  24. Saito, N.; Robert, M.; Kochi, H.; Matsuo, G.; Kakazu, Y.; Soga, T.; Tomita, M. Metabolite profiling reveals YihU as a novel hydroxybutyrate dehydrogenase for alternative succinic semialdehyde metabolism in Escherichia coli. J. Biol. Chem. 2009, 284, 16442–16451. [Google Scholar]
  25. Baran, R.; Bowen, B.P.; Price, M.N.; Arkin, A.P.; Deutschbauer, A.M.; Northen, T.R. Metabolic footprinting of mutant libraries to map metabolite utilization to genotype. ACS Chem. Biol. 2013, 8, 189–199. [Google Scholar] [CrossRef]
  26. Kind, T.; Fiehn, O. Advances in structure elucidation of small molecules using mass spectrometry. Bioanal. Rev. 2010, 2, 23–60. [Google Scholar] [CrossRef]
  27. Bowen, B.P.; Northen, T.R. Dealing with the unknown: metabolomics and metabolite atlases. J. Am. Soc. Mass Spectrom. 2010, 21, 1471–1476. [Google Scholar] [CrossRef]
  28. Baran, R; Bowen, B.P.; Bouskill, N.J.; Brodie, E.L.; Yannone, S.M.; Northen, T.R. Metabolite identification in Synechococcus sp. PCC 7002 using untargeted stable isotope assisted metabolite profiling. Anal. Chem. 2010, 82, 9034–9042. [Google Scholar] [CrossRef]
  29. Baran, R.; Bowen, B.P.; Northen, T.R. Untargeted metabolic footprinting reveals a surprising breadth of metabolite uptake and release by Synechococcus sp. PCC 7002. Mol. Biosyst. 2011, 7, 3200–3206. [Google Scholar] [CrossRef]
  30. Sugita, C.; Ogata, K.; Shikata, M.; Jikuya, H.; Takano, J.; Furumichi, M.; Kanehisa, M.; Omata, T.; Sugiura, M.; Sugita, M. Complete nucleotide sequence of the freshwater unicellular cyanobacterium Synechococcus elongatus PCC 6301 chromosome: gene content and organization. Photosynth. Res. 2007, 93, 55–67. [Google Scholar] [CrossRef]
  31. Starkenburg, S.R.; Reitenga, K.G.; Freitas, T.; Johnson, S.; Chain, P.S.; Garcia-Pichel, F.; Kuske, C.R. Genome of the cyanobacterium Microcoleus vaginatus FGP-2, a photosynthetic ecosystem engineer of arid land soil biocrusts worldwide. J. Bacteriol. 2011, 193, 4569–4570. [Google Scholar] [CrossRef]
  32. Shih, P.M.; Wu, D.; Latifi, A.; Axen, S.D.; Fewer, D.P.; Talla, E.; Calteau, A.; Cai, F.; Tandeau de Marsac, N.; Rippka, R.; et al. Improving the coverage of the cyanobacterial phylum using diversity-driven genome sequencing. Proc. Natl. Acad. Sci. USA 2013, 110, 1053–1058. [Google Scholar] [CrossRef]
  33. Rippka, R.; Deruelles, J.; Waterbury, J.B.; Herdman, M.; Stainer, R.Y. Generic assignments, strain histories and properties of pure cultures of cyanobacteria. J. Gen. Microbiol. 1979, 111, 1–61. [Google Scholar] [CrossRef]
  34. Baran, R.; Kochi, H.; Saito, N.; Suematsu, M.; Soga, T.; Nishioka, T.; Robert, M.; Tomita, M. MathDAMP: A package for differential analysis of metabolite profiles. BMC Bioinforma. 2006, 7, 530. [Google Scholar] [CrossRef]
  35. Smith, C.A.; O’Maille, G.; Want, E.J.; Qin, C.; Trauger, S.A.; Brandon, T.R.; Custodio, D.E.; Abagyan, R.; Siuzdak, G. METLIN: A metabolite mass spectral database. Ther. Drug Monit. 2005, 27, 747–751. [Google Scholar] [CrossRef]
  36. Horai, H.; Arita, M.; Kanaya, S.; Nihei, Y.; Ikeda, T.; Suwa, K.; Ojima, Y.; Tanaka, K.; Tanaka, S.; Aoshima, K.; et al. MassBank: A public repository for sharing mass spectral data for life sciences. J. Mass Spectrom. 2010, 45, 703–714. [Google Scholar] [CrossRef]
  37. Scheubert, K.; Hufsky, F.; Böcker, S. Computational mass spectrometry for small molecules. J. Cheminforma. 2013, 5, 12. [Google Scholar] [CrossRef]
  38. Warren, C.R. Quaternary ammonium compounds can be abundant in some soils and are taken up as intact molecules by plants. New Phytol. 2013, 198, 476–485. [Google Scholar] [CrossRef]
  39. Seebeck, F.P. In vitro reconstitution of mycobacterial ergothioneine biosynthesis. J. Am. Chem. Soc. 2010, 132, 6632–6633. [Google Scholar] [CrossRef]
  40. Pfeiffer, C.; Bauer, T.; Surek, B.; Schomig, E.; Grundemann, D. Cyanobacteria produce high levels of ergothioneine. Food Chem. 2011, 129, 4. [Google Scholar]
  41. Nyyssola, A.; Kerovuo, J.; Kaukinen, P.; von Weymarn, N.; Reinikainen, T. Extreme halophiles synthesize betaine from glycine by methylation. J. Biol. Chem. 2000, 275, 22196–22201. [Google Scholar] [CrossRef]
  42. Garcia-Pichel, F.; Nübel, U.; Muyzer, G. The phylogeny of unicellular, extremely halotolerant cyanobacteria. Arch. Microbiol. 1998, 169, 469–482. [Google Scholar] [CrossRef]
  43. Bello, M.H.; Barrera-Perez, V.; Morin, D.; Epstein, L. The Neurospora crassa mutant NcΔEgt-1 identifies an ergothioneine biosynthetic gene and demonstrates that ergothioneine enhances conidial survival and protects against peroxide toxicity during conidial germination. Fungal Genet. Biol. 2012, 49, 160–172. [Google Scholar] [CrossRef]
  44. Hagemann, M. Molecular biology of cyanobacterial salt acclimation. FEMS Microbiol. Rev. 2011, 35, 87–123. [Google Scholar] [CrossRef]
  45. Pereira, S.; Zille, A.; Micheletti, E.; Moradas-Ferreira, P.; De Philippis, R.; Tamagnini, P. Complexity of cyanobacterial exopolysaccharides: composition, structures, inducing factors and putative genes involved in their biosynthesis and assembly. FEMS Microbiol. Rev. 2009, 33, 917–941. [Google Scholar] [CrossRef]
  46. Luley-Goedl, C.; Nidetzky, B. Glycosides as compatible solutes: Biosynthesis and applications. Nat. Prod. Rep. 2011, 28, 875–896. [Google Scholar] [CrossRef]
  47. Ojima, T.; Saburi, W.; Yamamoto, T.; Kudo, T. Characterization of Halomonas sp. strain H11 α-glucosidase activated by monovalent cations and its application for efficient synthesis of α-d-glucosylglycerol. Appl. Environ. Microbiol. 2012, 78, 1836–1845. [Google Scholar] [CrossRef]
  48. Wieneke, R.; Klein, S.; Geyer, A.; Loos, E. Structural and functional characterization of galactooligosaccharides in Nostoc commune: β-d-galactofuranosyl-(1→6)-[β-d-galactofuranosyl-(1→6)]2-β-d-1,4-anhydrogalactitol and β-(1→6)-galactofuranosylated homologues. Carbohydr. Res. 2007, 342, 2757–2765. [Google Scholar] [CrossRef]
  49. Pontis, H.G.; Vargas, W.A.; Salerno, G.L. Structural characterization of the members of a polymer series, compatible solutes in Anabaena cells exposed to salt stress. Plant Sci. 2007, 172, 29–35. [Google Scholar] [CrossRef]
  50. Oss, M.; Kruve, A.; Herodes, K.; Leito, I. Electrospray ionization efficiency scale of organic compounds. Anal. Chem. 2010, 82, 2865–2872. [Google Scholar] [CrossRef]
  51. Hoiczyk, E.; Baumeister, W. The junctional pore complex, a prokaryotic secretion organelle, is the molecular motor underlying gliding motility in cyanobacteria. Curr. Biol. 1998, 8, 1161–1168. [Google Scholar] [CrossRef]
  52. Garcia-Pichel, F.; Pringault, O. Microbiology: Cyanobacteria track water in desert soils. Nature 2001, 413, 380–381. [Google Scholar] [CrossRef]
  53. Rajeev, L.; da Rocha, U.N.; Klitgord, N.; Luning, E.G.; Fortney, J.; Axen, S.D.; Shih, P.M.; Bouskill, N.J.; Bowen, B.P.; Kerfeld, C.A.; et al. Dynamic cyanobacterial response to hydration and dehydration in a desert biological soil crust. ISME J. 2013. [Google Scholar] [CrossRef]
  54. Suzuki, H.; Yamada, C.; Kato, K. Gamma-glutamyl compounds and their enzymatic production using bacterial gamma-glutamyltranspeptidase. Amino Acids 2007, 32, 333–340. [Google Scholar] [CrossRef]
  55. Boanca, G.; Sand, A.; Okada, T.; Suzuki, H.; Kumagai, H.; Fukuyama, K.; Barycki, J.J. Autoprocessing of Helicobacter pylori gamma-glutamyltranspeptidase leads to the formation of a threonine-threonine catalytic dyad. J. Biol. Chem. 2007, 282, 534–541. [Google Scholar]
  56. Kanehisa, M.; Goto, S.; Sato, Y.; Furumichi, M.; Tanabe, M. KEGG for integration and interpretation of large-scale molecular data sets. Nucleic Acids Res. 2012, 40, D109–D114. [Google Scholar] [CrossRef]
  57. Caspi, R.; Altman, T.; Dreher, K.; Fulcher, C.A.; Subhraveti, P.; Keseler, I.M.; Kothari, A.; Krummenacker, M.; Latendresse, M.; Mueller, L.A.; et al. The MetaCyc database of metabolic pathways and enzymes and the BioCyc collection of pathway/genome databases. Nucleic Acids Res. 2012, 40, D742–D753. [Google Scholar] [CrossRef]
  58. The Pasteur Culture Collection of Cyanobacteria (PCC). Available online: http://www.pasteur.fr/pcc_cyanobacteria (accessed on 22 September 2013).
  59. Markowitz, V.M.; Chen, I.-M.A.; Palaniappan, K.; Chu, K.; Szeto, E.; Grechkin, Y.; Ratner, A.; Jacob, B.; Huang, J.; Williams, P.; et al. IMG: The integrated microbial genomes database and comparative analysis system. Nucleic Acids Res. 2012, 40, D115–D122. [Google Scholar] [CrossRef]
  60. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef]
  61. Braunshausen, A.; Seebeck, F.P. Identification and characterization of the first ovothiol biosynthetic enzyme. J. Am. Chem. Soc. 2011, 133, 1757–1759. [Google Scholar] [CrossRef]
  62. Schoor, A.; Hagemann, M.; Erdmann, N. Glucosylglycerol-phosphate synthase: target for ion-mediated regulation of osmolyte synthesis in the cyanobacterium Synechocystis sp. strain PCC 6803. Arch. Microbiol. 1999, 171, 101–106. [Google Scholar] [CrossRef]
  63. Haft, D.H.; Selengut, J.D.; White, O. The TIGRFAMs database of protein families. Nucleic Acids Res. 2003, 31, 371–373. [Google Scholar] [CrossRef]
  64. Marchler-Bauer, A.; Anderson, J.B.; Derbyshire, M.K.; DeWeese-Scott, C.; Gonzales, N.R.; Gwadz, M.; Hao, L.; He, S.; Hurwitz, D.I.; Jackson, J.D.; et al. CDD: A conserved domain database for interactive domain family analysis. Nucleic Acids Res. 2007, 35, D237–D240. [Google Scholar] [CrossRef]
