Chlorido-(η⁶-p-cymene)-(bis(pyrazol-1-yl)methane-κ²N,N′)Osmium(II) Tetrafluoroborate, C₁₇H₂₂BClF₄N₄Os

Abstract

The powder of the arene osmium(II) complex, [Os(II)(dpzm)(η⁶-p-cym)Cl]BF₄ (dpzm = di(1H-pyrazol-1-yl)methane; η⁶-p-cym = para-cymene), with a formula of C₁₇H₂₂BClF₄N₄Os (referred to herein as 1) was isolated from the reaction of [(η⁶-p-cym)Os(μ-Cl)(Cl)]₂ with dpzm dissolved in acetonitrile and under a flow of nitrogen gas. It was characterized by spectroscopic techniques (viz., FTIR, ¹H NMR, UV-Visible absorption). Yellow crystal blocks of 1 were grown by the slow evaporation from the methanolic solution of its powder. The single-crystal X-ray structure of 1 was solved by diffraction analysis on a Bruker APEX Duo CCD area detector diffractometer using the Cu(K_α), λ = 1.54178 Å as the radiation source, and 1 crystallizes in the monoclinic crystal system and the C2/c (no. 15) space group.

1. Introduction

The acute toxicity, side effects, and development of resistance are some of the disadvantages which have curtailed the widespread uptake and use of current platinum-based chemotherapeutics. This has prompted a continued search for alternatives that have improved efficacies and less physiologically threatening side effects. In addition to Pt(II/IV)complexes, there have been complexes of other metal ions, such as Ti(IV) [1], Au(III) [2], Os(II) [3], Fe(II) [4], and Ru(II) [5], which have been evaluated for their anticancer activities and found to be active. Some of these have shown the potential to overcome the limitations of their platinum(II) counterparts and some have undergone first-phase clinical trials [4].

The element osmium (Os) is a heavier congener of ruthenium (Ru) and shares the same period with platinum. Like ruthenium, it forms stable Os(II)/(III) complexes. Os(III) complexes are thermodynamically stable and kinetically inert. However, under the hyperacidity and hypoxia conditions of cancer cells, drug designers think that Os(III) complexes can be reduced spontaneously to form the kinetically more labile Os(II) analogues which are thought to be the relevant species for chemotherapy. The lability can be enhanced by the coordination of strong π-accepter ligands on the Os(II) ion. These ligands promote a stronger back-donation of electron density from metal d-orbitals of the complexes towards the ligands, thereby increasing the electrophilicity of the metal centre [6,7]. However, compared to Ru(II)’s, Os(II) complexes are expected to have slower ligand exchange kinetics, with rates that should be more comparable to those of Pt(II).

Arenes have been used extensively to stabilize organometallic Ru/Os(II) complexes. They coordinate facially as 6e⁻-π donors to the metal ion. These complexes have the general formula, [(arene)Ru/Os(II)(Y-/Z)X], where the arene is one of the non-leaving groups and ligates as a 6e⁻-π donor ligand. Ligand Y- or /and Z can be a bidentate chelating or two monodentate ligands, while X is a monodentate and good leaving group. They are known as ‘half-sandwiches’ and usually assume pseudo-octahedral coordination with a “piano-stool” geometry. The other non-leaving ligands of these complexes can be selected carefully to provide an optimum lipophilic–hydrophilic balance to the resultant complex. Both neutral and positively-charged air-stable complexes can be synthesised in moderate to high yields.

The chemotherapeutic applications of Os(II) complexes have not received as much attention as those of Pt(II) or Ru(II). However, some arene Os(II) complexes have been evaluated for their potential as anticancer agents. They have shown high cytotoxic levels, similar to cisplatin’s, including in cisplatin-resistant cancer cell lines [8]. These ‘piano-stool’ complexes have also shown potential as anticancer drugs, with a promising hope of them being alternate anticancer palliatives to the current first to third generation platinum complexes. The coordinated ligands can be tailor-designed to systematically alter the thermodynamic and kinetic properties, apart from the physical properties of the complexes [7]. The cationic complexes are water-soluble, yet they have a hydrophobic arene backbone, and thus exhibit good lipophilicity in lipidic phases, such as the lipo-bilayers of cell membranes [7]. Surprisingly, these complexes are relatively non-toxic. This may be due to the strong M–C bonds that are formed between the potentially toxic arene and the metal ion. The strong bonds prevent the premature release of the arene before the complexes reach their sites for biological activity. Some of the complexes have demonstrated good aqueous solubility and biodistribution in the bloodstream. Their cell membrane permeability is remarkable, and this may explain their unusual high efficacy and selectivity for cancer cells compared to Pt(II) drugs [9]. This paper reports the single-crystal structural data of [Os(II)(dpzm(η⁶-p-cym)Cl]BF₄ (C₁₇H₂₂BClF₄N₄Os), (dpzm = di(1H-pyrazol-1-yl)methane, η⁶-p-cym = para-cymene) and its other characterization data collected using various spectral techniques.

2. Results and Discussion

The need for alternative inorganic anticancer agents prompted us to synthesise C₁₇H₂₂BClF₄N₄Os (1). The crystal structure of 1 (cu_am_ro_am_10_5_0m) was solved by single-crystal X-ray diffraction analysis. The ORTEP representation of the asymmetric unit with the atom numbering scheme and cell packing structure of 1 are shown in Figure 1 and Figure 2, respectively.

The crystal data of 1 and its structure refinement details and the selected bond lengths and angles are presented in

Table 1. Crystal data and structure refinement parameters for 1 (C₁₇H₂₂BClF₄N₄Os).

Identification code for 1	cu_am_ro_am_10_5_0m
Crystal (Colour /Shape)	Yellow /Block
Formula Weight	594.84
Temperature (K)	102.22
Crystal system	Monoclinic
Space group	C2/c
a (Å)	27.4619(7)
b (Å)	10.2573(3)
c (Å)	14.4399(4)
α (°)	90
β (°)	100.8160(10)
Γ (°)	90
Volume (Å3)	3995.24(19)
Z	8
ρcalc, g/cm3	1.978
Μ (mm−1)	13.718
F(000)	2288
Crystal size (mm3)	0.475 × 0.33 × 0.15
Radiation source, λ (Å)	Cu(Kα), λ = 1.54178
2θ range for data collection (°)	6.554 to 136.734
Index ranges	−32 ≤ h ≤ 32, −12 ≤ k ≤ 12, −17 ≤ l ≤ 16
Reflections collected	17267
Independent reflections	3581 [Rint = 0.0446, Rσ = 0.0383]
Data/restraints/parameters	3581/0/256
Goodness-of-fit on F2	1.245
Final R indexes [I ≥ 2σ(I)]	R1 = 0.0275, wR2 = 0.0659
Final R indexes [all data]	R1 = 0.0277, wR2 = 0.0661
Largest diff. peak/hole / e Å−3	0.70/−1.68

and

Table 2. Selected bond length (Å) and angles (°) of 1 (C₁₇H₂₂BClF₄N₄Os).

Length, (Å)
Os1-Cl1	2.3982(8)
Os1-N1	2.122(3)
Os1-N4	2.105(3)
Angles/°
N4-Os1-Cl1	84.71(9)
N4-Os1-N1	83.17(11)
N1-Os1-Cl1	83.84(9)

, respectively. The atomic coordinates (× 10⁴) and the equivalent isotropic displacement parameters (Ų × 10³), as well as the bond lengths [Å] and angles [°] for 1 (cu_am_ro_am_10_5_0m), are given in Tables S1 and S2, respectively, in the supplementary information.

3. Discussion

Evaluative studies on the potential of half-sandwich arene Os(II) complexes as anticancer metallodrugs have appeared in the literature [10,11,12]. This has motivated us to explore this aspect. However, there remain fewer reports of arene Os(II) with the flexible N, N-chelates, apart from those reported recently in references [13,14,15] on the Ru(II) analogues.

The FTIR spectrum of 1 (see Figure S1) shows the stretching and compression bands synonymous with functional groups in the free dpzm and p-cym ligands. However, there are distinctive shifts (relative to the free ligand) in the vibration frequencies of some of the bonds of 1, especially those of the dpzm which are also in proximity to the N1/4_(donor)—Os coordination bonds. This indirectly confirms the coordination of the dpzm on the Os(II) metal ion. The shifts in the vibrational resonances are, however, less prominent on the bonds of the functional groups of the p-cym ligand. This may be due to efficient charge dispersal via delocalization within the arene ring such that its substituent, being also remotely located relative to the C_{(π = donor)}—Os coordination bonds, vibrates at frequencies that are also most similar to those of the free ligand. Additionally, there is a sharp absorption band at 1037.62 cm⁻¹ due to the vibronic stretch of the bond of the BF₄⁻ counter ion.

The UV-Visible absorption spectrum (see Figure S2) shows a strong absorption band below 300 nm and shoulder below 350 nm due to the strong π–π* and n–π* electron transitions, respectively. There is also a weak and broad band between 350 nm and 500 nm due to the weak metal-to-ligand charge transfer (MLCT) absorption band, which is characteristic of arene Ru/Os(II) complexes.

In the ¹H NMR spectrum (see Figure S3), the expected chemical shifts, the hyperfine splitting patterns and integrals of the distinctive protons of the dpzm and the p-cym ligands are all observed. As expected, the protons of 1 resonate at relatively deshielded chemical shifts (compared to the free ligand). This is in line with the σ/π-donation of the coordinated ligands towards the Os(II) ion. However, there is an orbit-spin (SO) shielding effect on the protons of the arene ligands due to the heavy atom (Os) effect of the Os(II) ion that shields the electron density of the donor atoms of the ligand. More indicative of the coordination of the dpzm are the distinctive resonances of the geminal methylene protons of the two arms of the dpzm ligand. They appear as pairs of doublet signals at δ_(ppm) values of 7.12 (d) and 6.05 (d), which is typical of the A(B)X spin system. The restricted fluxionality of the protons renders diastereotopicity in the conformations of the complex due to the inequivalence imposed on the -CH₂- protons of the bridging arms of dpzm upon its coordination to the Os(II) ion, which is observable in the timescale of the ¹H NMR experiment. The diastereotopicity of the bridging -CH₂-protons has been observed for the proton resonances of other isostructural and multidentate ligands with methylene spacer groups [16]. The η⁶-p-cym protons give rise to two different sets of resonances at δ_(ppm) values of 6.33 and 6.23 due to their XA(A’)—XB(B’) spin systems.

When a solution of 1 (3 mg in 30 mL of methanol which had been modified with 0.1% formic/formate buffer as a protonation-aiding agent) was electrosprayed with the voltage of the sprayer needle set at about +2.2 kV, ions with m/z values of 509 amu (100%) due to the [C₁₇H₂₂ClN₄Os]⁺ ions of 1 were detected (see Figure S4). The purity of the crystalline blocks of 1 was confirmed by elementary analysis, for which there was a good agreement between the theoretical and the experimental data; see the elementary data listed in the experimental section.

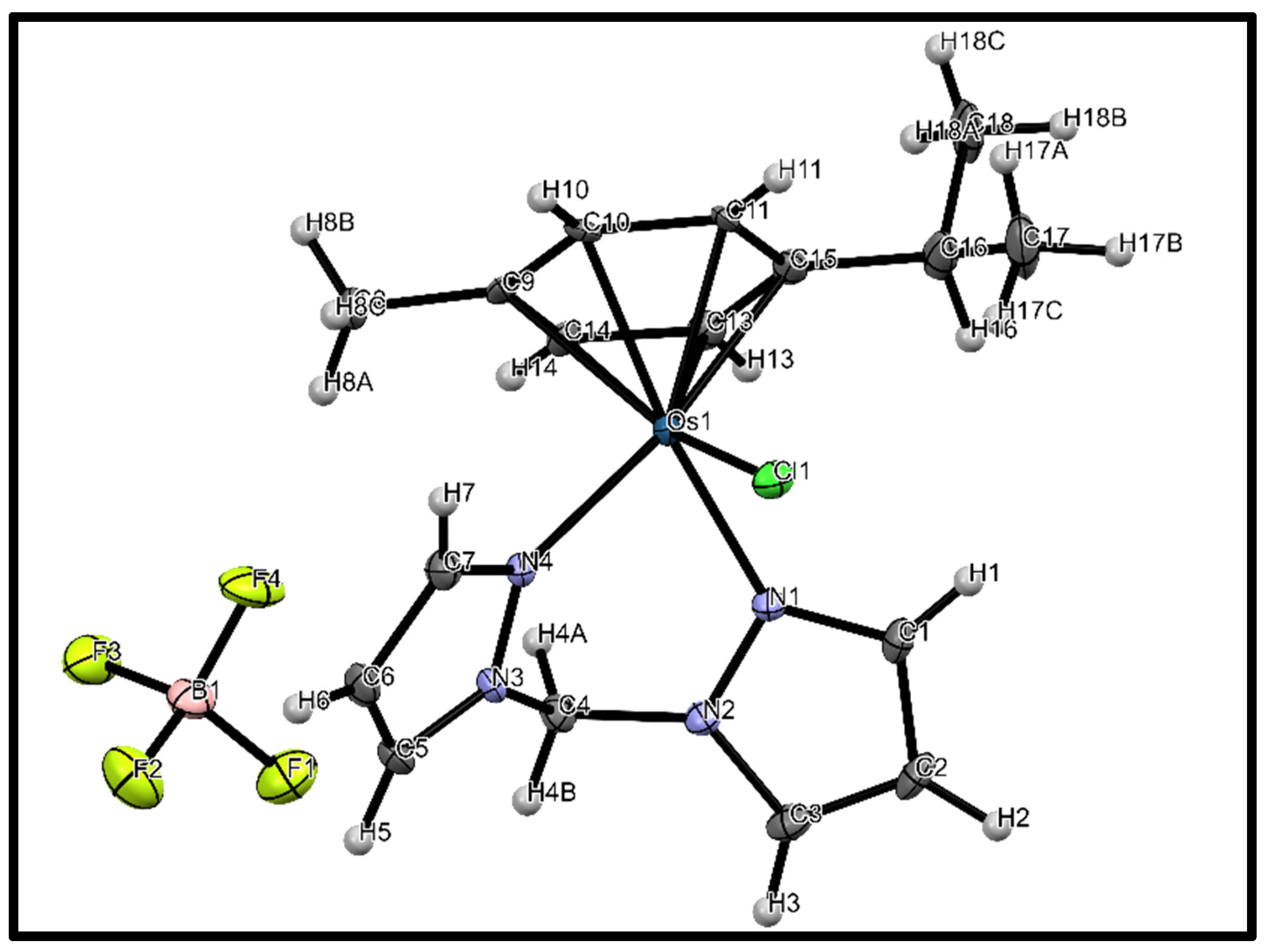

The crystal blocks of 1 (C₁₇H₂₂BClF₄N₄Os) were further analysed by single-crystal X-ray diffraction analysis, and details are given in the experimental section. The asymmetric unit of 1 (see Figure 1 for a perspective) comprises an [Os(II)(dpzm(η⁶-p-cym)Cl]⁺ cation and a tetraborate as an anion. The cation is formed by the η⁶–π-coordination of a p-cym and two N and Cl donor atoms to an Os(II) ion, leading to the pseudo-octahedral “three-leg piano stool” geometry [10,11,12,13,14,15,17]. For this geometry, the η⁶-p-cym constitutes the pseudo ‘seat’ of the stool and is π-bonded to Os(II) at the Os–C bond distances (Os1—(C9, C10,…..C15) ranging from 2.161(4) to 2.214(4) Å, making a centroid (p-cym ring-Os1) distance of 1.671 Å. The metal centre is σ-bonded to the flexible dpzm chelate at asymmetric bond distances of 2.122(3) Å (Os1—N1_.) and 2.105(3) Å (Os1—N4_.). The chlorido co-ligand is bonded at a distance of 2.3982(9) Å (Os1—Cl1). These bond distances are close to those reported for related Os(II) complexes [10,18]. The N1, N4 and Cl1 donor atoms are staggered relative to the carbon atoms of the cymene and form the pseudo legs of the piano-stool structure. The bond angles (∠s) are typical of octahedral half-sandwiches bearing a flexible N, N-bidentate chelates and are 83.83(9)° (∠N1—Os1—Cl1), 83.17(12) (∠N1—Os1—N4) and 84.71(9)° (∠ N4—Os1—Cl1). They do not differ by more than 8° from 90° for an ideal octahedral geometry. However, the flexibility foisted by the methylene carbon of the chelate makes the N1—Os1—N4 angle significantly larger compared to other complexes chelated by rigid and aromatic N, N-ligands. All C—C, C—N and B—F bond lengths and associated angles are in the expected ranges for N, N/O-chelated p-cym ring Os(II) complexes [18].

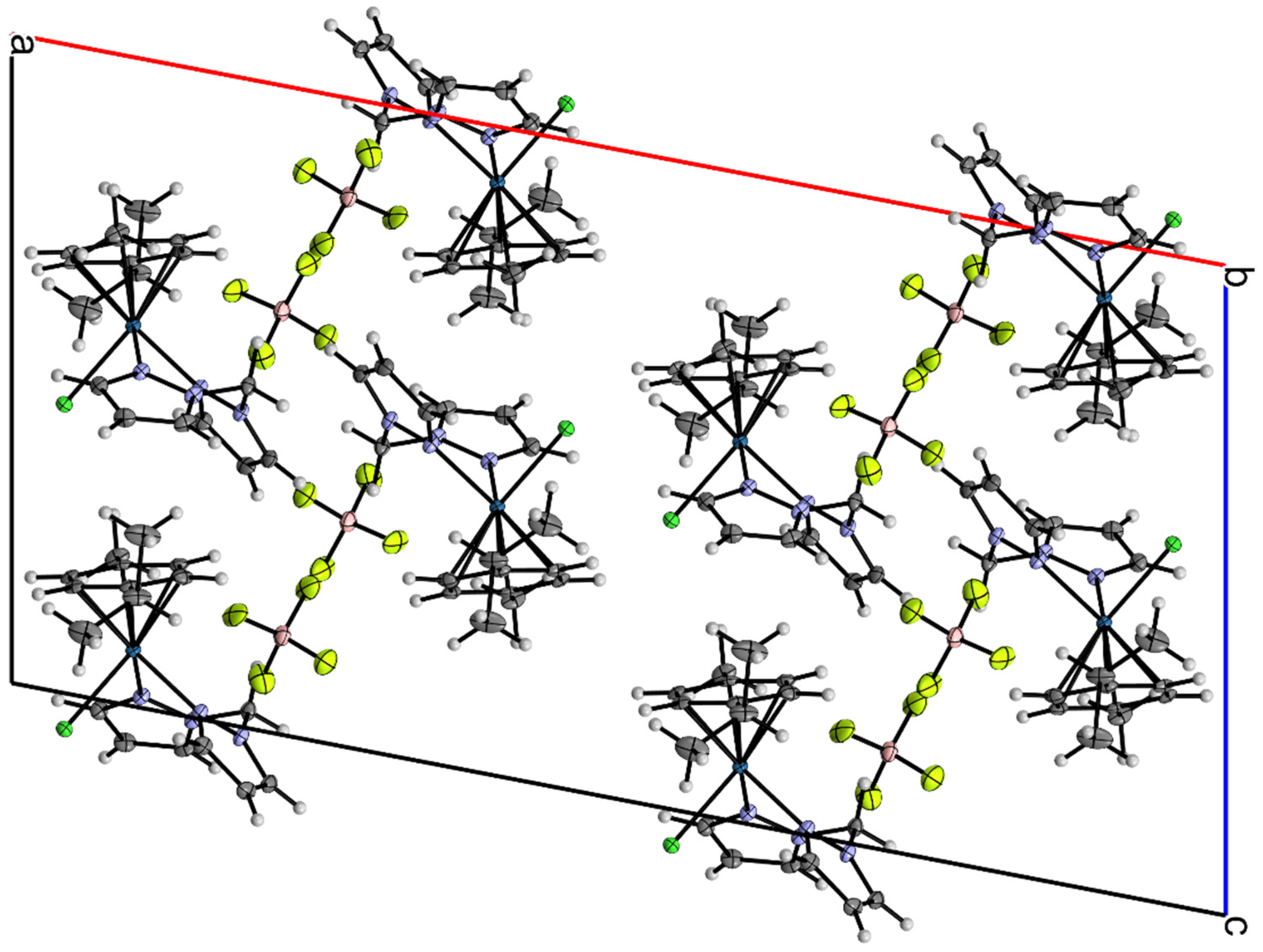

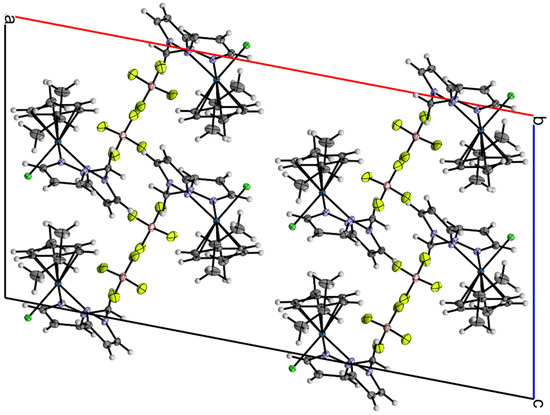

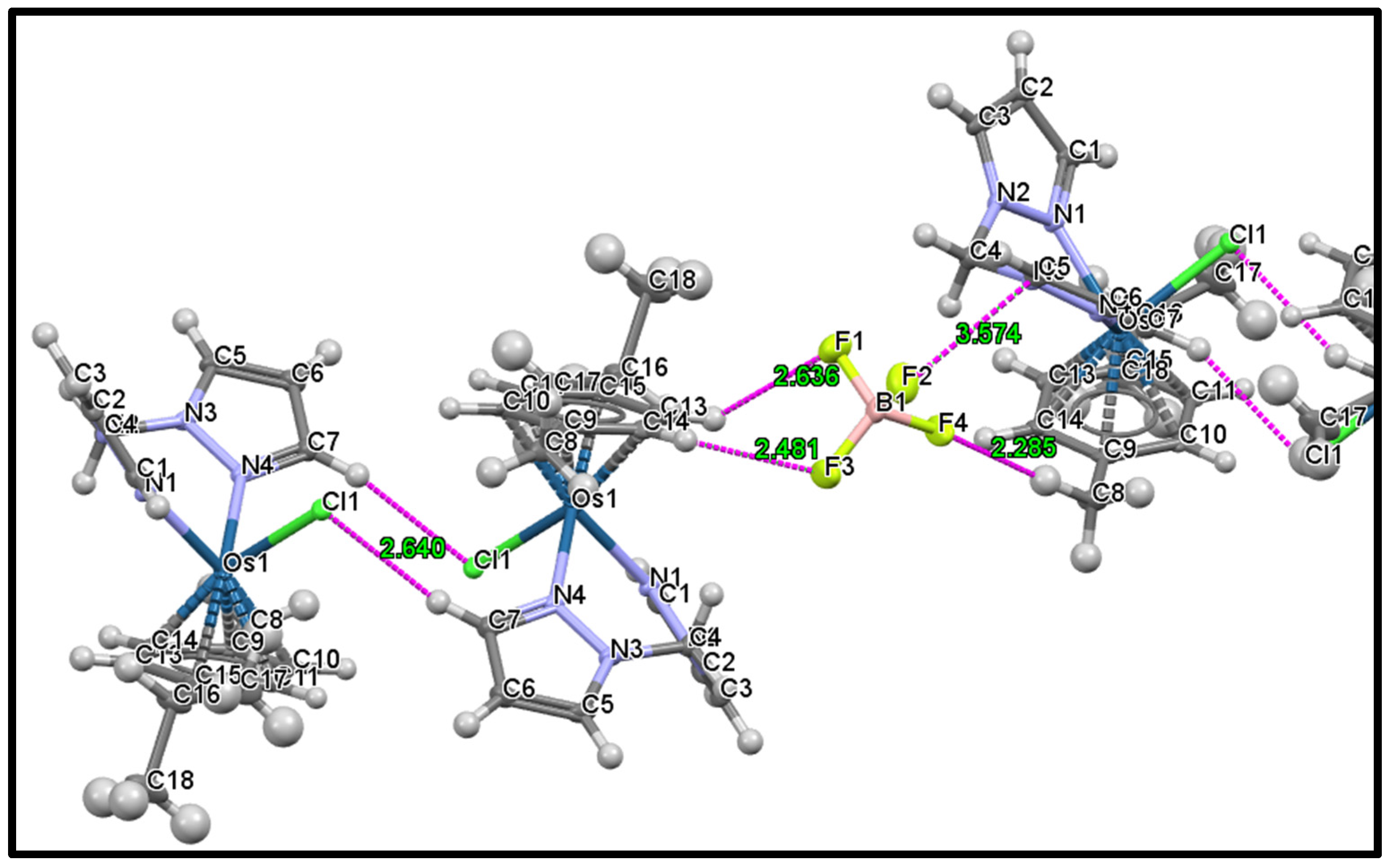

When viewed along the b-axis (see Figure 2 and Figure 3), the cations of 1 are packed as complementary columnal duets along the c-axis and are stabilized by Cl1…..H1_.—C (2.640 Å) short contacts. As shown in Figure 3, these dimeric stacks are bridged by tetra-furcated short-range interactions involving the fluorine and boron atoms of the tetraborate anions as hydrogen bond donors and acceptors, respectively. The quadruped and short range-interactions are the F1…..H13—C13 (2.636Å); F3…..H14—C13 (2.481Å); F4…..H8—C8 (2.235 Å) and C5 (π edge)…..B1 (3.574 Å). Numerous other short contacts further stabilized these cationic columns into a stable 3D structure.

4. Materials and Methods

4.1. Synthetic Procedure for 1

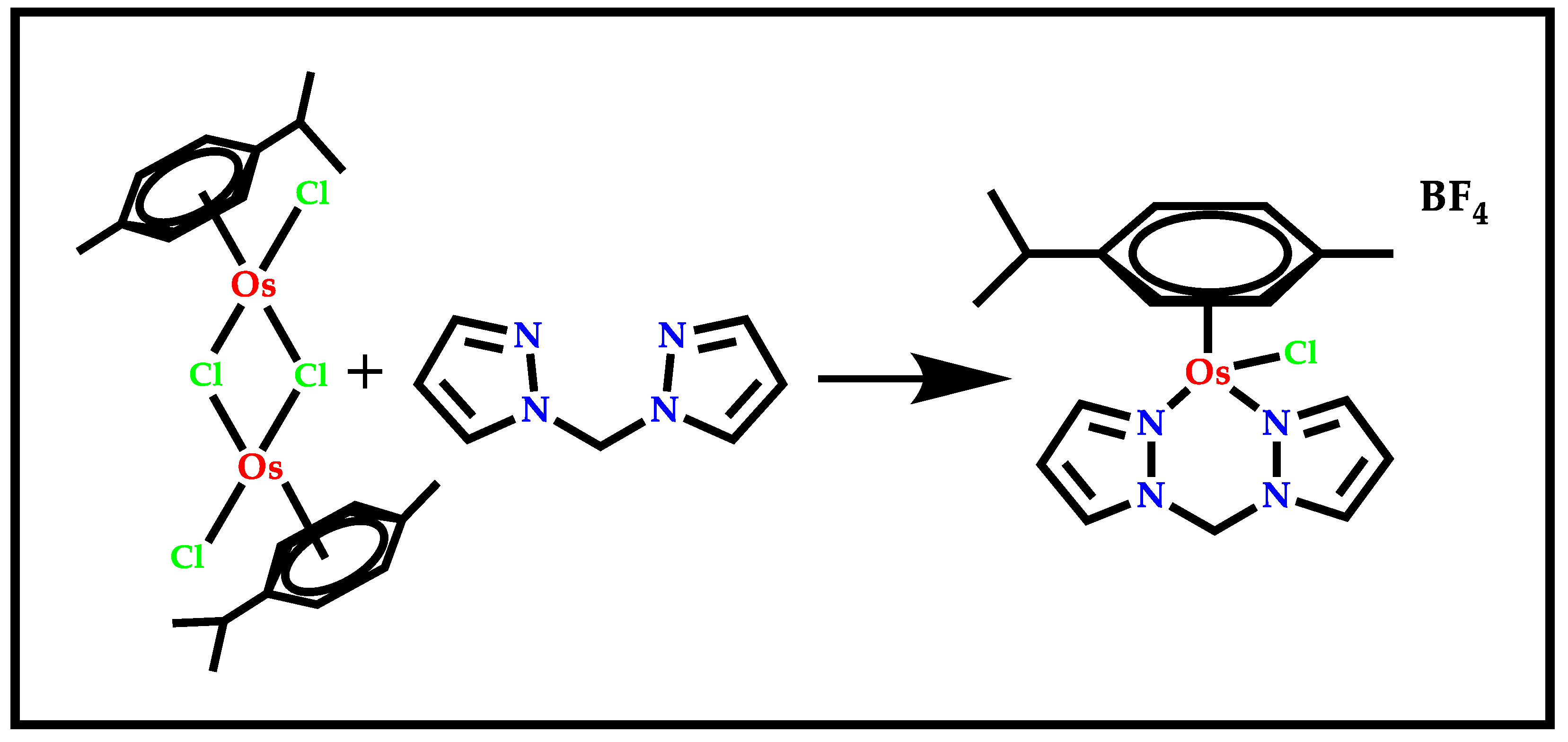

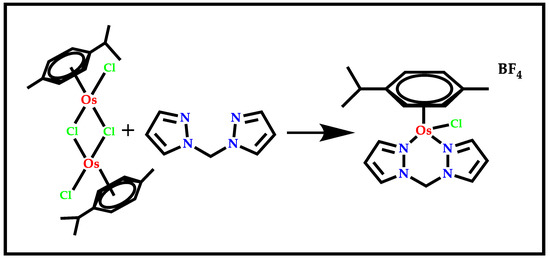

Compound 1 was synthesized under an inert atmosphere of N₂ gas using the Schlenk techniques [19]. A solution of [(η⁶-p-cym)Os(μ-Cl)(Cl)]₂ (100 mg, 0.1265 mmol in 10 mL acetonitrile) was added in drops to a solution of dpzm (2.2 mmol in 5 mL acetonitrile) over 30 min. The mixtures were stirred for 4 h at 40 °C (Scheme 1) The unreacted material was filtered off and the filtrate concentrated to about 2 mL. About 1 mL of an ethanolic solution of NH₄BF₄ (saturated) was slowly added to the mixture and further stirred for 1 h in the dark under a cooling bath of ice. The yellow precipitate was filtered and washed with cold diethyl ether and dried under vacuum. Crystal blocks for X-ray diffraction analysis were grown by slow evaporation from the methanol solutions of the powder.

4.2. Spectroscopic Characterization of 1

Compound 1 was characterized by several spectroscopic techniques. The NMR spectrum was recorded on a Bruker Avance 300 MHz spectrometer in DMSO-d6 with residual signals of the solvent as the internal standard at ambient temperature. Chemical shifts were reported in ppm δ units. Coupling constants (J) were calculated in Hertz (Hz.). Mass spectral data were acquired on a Shimadzu LC-MS 2020 Spectrometer. Elemental composition analysis was performed on Thermal Scientific Flash 2000 CHN combustion analyzer. The UV-visible absorption spectrum was acquired using Carry 100 Bio UV-visible spectrophotometer. The infrared spectrum was recorded using a PerkinElmer Spectrum 100 FT-IR spectrometer (Waltham, MA, USA). Yield 67.5 %, yellow crystal blocks, ¹H NMR (300 MHz, DMSO-d₆) δ (ppm), 8.16 (d, J = 2.1 Hz, 2H_(pzn), 7.91 (d, J = 2.1, 2H’_(pzn), 7.12 (d, J = 14.4 Hz, 1H_(pzn), 6.65 (t, J = 2.6 Hz, 2H_(pzn), 6.33 and 6.23 (d, J = 5.6 Hz, 5.7 Hz, 4H_(η6-p-cym.), 6.05 (d, J = 14.4 Hz, 1H_(pzn), 2.73 (septet, J = 6.9 Hz, 1H_{(η6-p-cym’s -CH(isopropyl)}, 2.05 (s, 3H_{(methyl grp. of η6-p-cym)}, 1.21 (d, J = 6.9 Hz, 6H_{(η6-p-cym’s two methyl grps. of the isopropyl)}. FTIR (KBr, v, cm^-1, _{w/m/s = weak/medium/strong intensity, shp/br =sharp/broad}); 3132_{(w, Carom-H)}, 2945_{(w, CH2methylene)}, 1516_{(m, (C=N)}, 1408_{(m. C=C)}, 1281_{(m, β(}c=c)-_CH), 1038 _{(s, br BF4-)}, 830_{(m, shp, Os-N)} and 620_{(m, shp, Os-Cl)}. Elementary analysis: Calculated for C₁₇H₂₂BClF₄N₄Os, %: C 34.30; %H, 3.75; N, 9.42; found, % C, 33.98; H, 3.85; N, 9.14. MS (ESI)⁺ m/z = 509 (100%) for pseudo molecular ion, [C₁₇H₂₂ClN₄Os + 2HJ]⁺_(g).

4.3. X-ray Diffraction Analysis of 1

Single crystal X-ray crystallographic data of 1 were collected on a Bruker APEX Duo [20,21] CCD area detector diffractometer with an Incoatec microsource operating at 30 W of power. The crystal was kept at 100.15 K during data collection using an Oxford Instruments Cryojet accessory. Diffraction was by graphite-monochromated Cu(K_α), λ = 1.54178), at a crystal-to-detector distance of 50 mm. Data collection was performed at the following set conditions: ω-/φ-scans with exposures taken at 30 W X-ray power and 0.50 frame widths using SAINTS’ APEX2 [22]. The crystal structure was solved with Olex2 [20], while the SHELXS [23] and SHELX [24] programs were used for structural refinement via direct methods. The non-hydrogen atoms were refined anisotropically by full-matrix least-squares minimization/refinement of F². Hydrogen atoms were included but not refined. Visualization of the crystallographic data was done in WinGX [25] and Mercury v.4.3 [26]. See Table 1 for alignment.

Crystal structure data: monoclinic crystal system, C2/c (no. 15) space group a = 27.4619(7) Å, b = 10.2573(3) Å, c = 14.4399(4) Å, _β = 100.8160(10)°, V = 3995.24(19) ų, Z = 8, T = 102.22 K, μ_{(Cu (Kα)} = 13.718 mm⁻¹, D_calc = 1.978 g/cm³, 17267_{(reflections measured)} (6.554° ≤ 2θ ≤ 136.734°), 3581_(unique) (R_int = 0.0446, R_σ = 0.0383), R_1(final) = 0.0275 (I > 2σ_(I)), wR₂ = 0.0661_{(all data)}.

5. Conclusions

C₁₇H₂₂BClF₄N₄Os (1), an [Os(II)(dpzm(η⁶-p-cym)Cl] tetrafluoroborate salt, was synthesised and characterized by several spectroscopic techniques. The slow evaporation of its methanolic solution afforded yellow crystal blocks of 1, of good quality, for the single X-ray diffraction analysis. The title compound crystallizes in the monoclinic crystal system and in the C2/c (no. 15) space group. Its crystal structure adopts the pseudo-octahedral “three-leg piano stool” geometry, as widely reported for other arene Ru(II)/Os(II) complexes. The bond distances and angles are comparable to those reported for other analogous arene Ru(II)/Os(II) complexes [10].
