Crystal Structure of 9-Dibenzylsulfide-7,8-dicarba-nido-undecaborane 9-Bn2S-7,8-C2B9H11

1
A.N. Nesmeyanov Institute of Organoelement Compounds, Russian Academy of Sciences, 28 Vavilov Str., 119991 Moscow, Russia
2
Higher Chemical College at the Russian Academy of Sciences, D.I. Mendeleev Russian Chemical Technological University, 9 Miusskaya Sq., 125047 Moscow, Russia
3
Basic Department of Chemistry of Innovative Materials and Technologies, G.V. Plekhanov Russian University of Economics, 36 Stremyannyi Line, 117997 Moscow, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Kristof Van Hecke
Molbank 2021, 2021(2), M1230; https://doi.org/10.3390/M1230
Received: 15 May 2021 / Revised: 28 May 2021 / Accepted: 2 June 2021 / Published: 7 June 2021
(This article belongs to the Section Structure Determination)

Abstract

The crystal structure of 9-dibenzylsulfide-7,8-dicarba-nido-undecaborane 9-Bn2S-7,8-C2B9H11 was determined by a single-crystal X-ray diffraction. One of the benzyl groups is located above the open face of the carborane cage with a short H···H distance (2.29 and 2.71 Å for two symmetrically independent molecules) between the BHB-bridging hydrogen atom of the carborane fragment and the ortho-CH group of the aromatic ring. Topological analysis has revealed the existence of a critical bond point with a calculated energy of −0.8 kcal/mol in accordance with an X-ray diffraction molecular geometry. The crystal packing analysis revealed that this benzyl group is also involved in π-stacking interactions, while another benzyl group participates in numerous weak H···π, H···H and van der Waals interactions.
Keywords: nido-carborane; sulfonium derivatives; single-crystal X-ray diffraction; quantum-chemical calculations nido-carborane; sulfonium derivatives; single-crystal X-ray diffraction; quantum-chemical calculations

1. Introduction

nido-Carborane derivatives bearing sulfonium and ammonium substituents are widely used for the synthesis of π-complexes of transition metals or metallacarboranes [1,2,3,4,5,6], as well as various neutral functional derivatives of nido-carboranes [7,8,9,10,11,12,13]. A single-crystal X-ray diffraction study of asymmetrically substituted dialkylsulfonium derivatives of nido-carborane 9-R2S-7,8-C2B9H11 [8,9,14] as well as their C- and B-substituted analogues [15,16,17,18,19,20], revealed that the SR2 group in all cases is turned in such way, that the lone pair of the sulfur atom is antiperiplanar to the B(9)–B(10) bond, while their 1H and 13C-NMR spectra indicate the absence of free rotation around the B(9)–S bond.
Analysis of the 1H-NMR spectrum of the previously synthesized 9-dibenzylsulfonium derivative of nido-carborane 9-Bn2S-7,8-C2B9H11 [21] revealed the nonequivalence of the benzyl groups: the signal of the CH2 protons of one benzyl group appears as a singlet, while the signal of the CH2 protons of the other group appears as two doublets. Taking into account the achirality of the sulfur atom in this compound, it can be assumed that there is an interaction between the carborane cage and one of the benzyl groups, which hinders its rotation resulting in non-equivalence of the benzyl protons. To shed light on this issue, we carried out a detailed study of the structure of 9-Bn2S-7,8-C2B9H11 using a single-crystal X-ray diffraction and quantum-chemical calculations.

2. Results and Discussion

The molecular crystal structure of 9-Bn2S-7,8-C2B9H11 was determined by a single-crystal X-ray diffraction study. An asymmetric unit cell contains two molecules (A and A′) which differ slightly in the orientation of the SBn2 substituent. As mentioned in the introduction, in the nido-carboranes substituted with the S(CH2R′)CH2R″ groups at position B(9), the orientation of the substituent is such that one C(8)-B(9)-S-C angle is in the range of 85–115° and the other in the range of 170–140°. In 9-Bn2S-7,8-C2B9H11, the corresponding torsion angles for both symmetrically independent molecules are characterized by expected values (Table 1).
At the same time, according to the literature data, no regularities in the orientation of the R′ and R″ groups were observed. For example, in recently studied 9-ClCH2(Me)S-7,8-C2B9H11 [9], three conformers with respect to rotation around the S–C bond were found by quantum-chemical calculations and intramolecular noncovalent attractive H···Cl contacts were observed in two of them. Due to the relatively low rotation barrier, all three conformers can exist in solution; however, no conformer with intramolecular noncovalent contacts was observed in the crystal structure.
In the case of 9-Bn2S-7,8-C2B9H11, the benzyl group directed downwards relatively to the open pentagonal face of the nido-carborane ligand does not form any intramolecular contacts, while the aromatic ring of the other benzyl group is located above the open face, which might imply intramolecular interactions. We found that the H(9A)···H(12) distance (shown by a dashed line in Figure 1) is 2.29 and 2.71 Å in two symmetrically independent molecules. It is interesting to note here that, in the recently studied 9-Bn(Me)S-7,8-C2B9H11 [8], no intramolecular shortened contacts were observed between the benzyl group and the carborane cage; as a consequence, the aryl ring is involved in extensive intermolecular bonding.
To find the preferred conformation of the isolated molecule of 9-Bn2S-7,8-C2B9H11 for a better understanding of both intra- and intermolecular contacts, we carried out quantum-chemical calculation using the Gaussian program [22] and PBE0 functional with a triple-zeta basis set, which proved to be reliable for studying of molecular geometry [23,24,25,26]. To search for noncovalent intramolecular interactions, the AIM topological theory [27] was utilized. The search for bond critical points was carried out using the AIMAll program [28]. The estimation of the interacting atoms’ energy was based on its correlation with the potential energy density at the bond critical point E = 1/2V(r) [29,30]. Such correlation is often utilized for energetic analysis of a variety of organic compounds [24,31,32,33].
The calculated geometry (Table 1) is close to the geometry of the A′ molecule. Topological analysis revealed the presence of the bond critical point between the H(9A) and H(12) atoms in accordance with our suggestion based on the X-ray geometry of the molecule (Figure 1). The calculated energy of this contact is −0.8 kcal/mol. The crystal packing analysis demonstrates that the upwards-directed benzyl group is involved in the π-stacking interactions (Figure 2), while the other benzyl group participates in numerical weak H···π, H···H and van-der-Waals interactions.
In conclusion, the molecular crystal structure of compound 9-Bn2S-7,8-C2B9H11 was determined. The observed relative orientation of the benzyl groups allowed the formation of both intramolecular noncovalent interactions, intermolecular π–π stacking and H···π interactions in addition to the ordinary van der Waals contacts.

3. Materials and Methods

Synthesis of the 9-dibenzylsulfonium derivative of nido-carborane 9-Bn2S-7,8-C2B9H11 was described in the literature [21]. Its NMR spectral data are as follows: 1H-NMR (400 MHz, CDCl3), δ: 7.38 (10H, m, Ph), 4.43 (1H, d, CHHPh, J = 13.3 Hz), 4.17 (2H, s, CH2Ph), 4.13 (1 H, d, CHHPh, J = 13.3 Hz), 1.93 (2H, br.s, CHcarb), −3.31 (1H, br.s, BHB bridge), 13C{1H}-NMR (100 MHz, CDCl3), δ: 130.34 (Ph), 130.05 (Ph), 129.97 (Ph), 129.76 (Ph), 129.61 (Ph), 129.57 (Ph), 129.52 (Ph), 129.43 (Ph), 52.01 (Ccarb), 47.98 (CH2), 46.10 (CH2), 38.52 (Ccarb), 11B-NMR (128 MHz, CDCl3), δ: −4.0 (1B, d, J = 130 Hz), −8.1 (1B, s), −11.5 (1B, d, J = 130 Hz), −16.7 (1B, d, J = 116 Hz), −17.8 (1B, d, J = 165 Hz), −23.3 (1B, d, J = 149 Hz), −26.0 (1B, d, J = 144 Hz), −29.5 (1B, d, J = 109 Hz), −36.5 (1B, d, J = 144 Hz). MS (EI): found; m/z: 347 (M); calculated for C16H25B9S (M) = 347.
A single-crystal X-ray diffraction experiment was carried out using the SMART APEX2 CCD diffractometer (λ(Mo-Kα) = 0.71073 Å, graphite monochromator, ω-scans) at 120 K. Collected data were processed by the SAINT and SADABS programs incorporated into the APEX2 program package [34]. The structure was solved by direct methods and refined by the full-matrix least-squares procedure against F2 in anisotropic approximation. The refinement was carried out with the SHELXTL program [35]. The CCDC number 2083954 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif.
Crystallographic data for 9-Bn2S-7,8-C2B9H11: C16H25B9S are monoclinic, the space group P21/n: a = 11.4570(6) Å, b = 25.5132(14) Å, c = 13.5873(7) Å, β = 102.813(3)°, V = 3872.7(4) Å3, Z = 8, M = 346.71, dcryst = 1.189 g·cm−3, wR2 = 0.0911 calculated on F2hkl for all 7507 independent reflections with 2θ < 52.0°, (GOF = 0.990, R = 0.0416 calculated on Fhkl for 6230 reflections with I > 2σ(I)).

Supplementary Materials

The following are available online, the NMR spectra X-ray diffraction data for 9-Bn2S-7,8-C2B9H11.

Author Contributions

Conceptualization, I.B.S.; investigation, S.A.A. and A.A.A.; project administration, V.I.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The Supplementary Materials for this paper are available.

Acknowledgments

The single-crystal X-ray diffraction data were obtained by using equipment from the Center for Molecular Structure Studies at the A.N. Nesmeyanov Institute of Organoelement Compounds, operating with support from the Ministry of Science and Higher Education of the Russian Federation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Timofeev, S.V.; Sivaev, I.B.; Prikaznova, E.A.; Bregadze, V.I. Transition metal complexes with charge-compensated dicarbol-lide ligands. J. Organomet. Chem. 2014, 751, 221–250. [Google Scholar] [CrossRef]
  2. Vinogradov, M.M.; Zakharova, M.V.; Timofeev, S.V.; Loginov, D.A.; Sivaev, I.B.; Nelyubina, Y.V.; Starikova, Z.A.; Bregadze, V.I.; Kudinov, A.R. The C-substituted charge-compensated dicarbollide [7-SMe2-7,8-C2B9H10]: Synthesis and room-temperature rearrangement of the iridium complex. Inorg. Chem. Commun. 2015, 51, 80–82. [Google Scholar] [CrossRef]
  3. Vinogradov, M.M.; Nelyubina, Y.V.; Pavlov, A.A.; Novikov, V.V.; Shvydkiy, N.V.; Kudinov, A.R. Polyhedral rearrange-ments in the complexes of rhodium and iridium with isomeric carborane anions [7,8-Me2-X-SMe2-7,8-nido-C2B9H8] (X = 9 and 10). Organometalics 2017, 36, 791–800. [Google Scholar] [CrossRef]
  4. Timofeev, S.V.; Zhidkova, O.B.; Sivaev, I.B.; Starikova, Z.A.; Suponitsky, K.Y.; Yan, H.; Bregadze, V.I. Synthesis of rhodacarboranes containing σ- and π-carboranyl ligands in one molecule. J. Organomet. Chem. 2018, 867, 342–346. [Google Scholar] [CrossRef]
  5. Vinogradov, M.M.; Loginov, D.A. Rhoda- and iridacarborane halide complexes: Synthesis, structure and application in homogeneous catalysis. J. Organomet. Chem. 2020, 910, 121135. [Google Scholar] [CrossRef]
  6. Vinogradov, M.M.; Nesterov, I.D.; Nelyubina, Y.V.; Pavlov, A.A. Pathway bifurcations in the cage rearrangement of metallacarboranes: Experimental and computational evidence. Dalton Trans. 2021, 50, 287–293. [Google Scholar] [CrossRef] [PubMed]
  7. Timofeev, S.V.; Zhidkova, O.B.; Prikaznova, E.A.; Sivaev, I.B.; Semioshkin, A.; Godovikov, I.A.; Starikova, Z.A.; Bregadze, V.I. Direct synthesis of nido-carborane derivatives with pendant functional groups by copper-promoted reactions with di-methylalkylamines. J. Organomet. Chem. 2014, 757, 21–27. [Google Scholar] [CrossRef]
  8. Zakharova, M.V.; Sivaev, I.B.; Anufriev, S.A.; Timofeev, S.V.; Suponitsky, K.Y.; Godovikov, I.A.; Bregadze, V.I. A new approach to the synthesis of functional derivatives of nido-carborane: Alkylation of [9-MeS-nido-7,8-C2B9H11]. Dalton Trans. 2014, 43, 5044–5053. [Google Scholar] [CrossRef]
  9. Anufriev, S.A.; Sivaev, I.B.; Suponitsky, K.Y.; Bregadze, V.I. Practical synthesis of 9-methylthio-7,8-nido-carborane [9-MeS-7,8-C2B9H11]. Some evidences of BH···X hydride-halogen bonds in 9-XCH2(Me)S-7,8-C2B9H11 (X = Cl, Br, I). J. Organomet. Chem. 2017, 849–850, 315–323. [Google Scholar] [CrossRef]
  10. Anufriev, S.A.; Zakharova, M.V.; Sivaev, I.B.; Bregadze, V.I. New carborane-containing acids and amines. Russ. Chem. Bull. 2017, 66, 1643–1649. [Google Scholar] [CrossRef]
  11. Anufriev, S.A.; Sivaev, I.B.; Suponitsky, K.Y.; Godovikov, I.A.; Bregadze, V.I. Synthesis of 10-methylsulfide and 10-alkylmethylsulfonium nido-carborane derivatives: B–H···π Interactions between the B–H–B hydrogen atom and alkyne group in 10-RC≡CCH2S(Me)-7,8-C2B9H11. Eur. J. Inorg. Chem. 2017, 4436–4443. [Google Scholar] [CrossRef]
  12. Erokhina, S.A.; Stogniy, M.Y.; Suponitsky, K.Y.; Kosenko, I.D.; Sivaev, I.B.; Bregadze, V.I. Synthesis of new nido-carborane based carboxylic acids and amines. Polyhedron 2018, 153, 145–151. [Google Scholar] [CrossRef]
  13. Druzina, A.A.; Zhidkova, O.B.; Dudarova, N.V.; Kosenko, I.D.; Ananyev, I.V.; Timofeev, S.V.; Bregadze, V.I. Synthesis and structure of nido-carboranyl azide and its “click” reactions. Molecules 2021, 26, 530. [Google Scholar] [CrossRef]
  14. Cowie, J.; Hamilton, E.J.M.; Laurie, J.C.V.; Welch, A.J. Structure of 10,11-μ-hydro-9-dimethylsulfido-7,8-dicarba-nido-undecaborane(11). Acta Cryst. C 1988, 44, 1648–1650. [Google Scholar] [CrossRef]
  15. Rosair, G.M.; Welch, A.J.; Weller, A.S.; Zahn, S.K. Sterically encumbered charge-compensated carbaboranes: Synthesis and reactivity molecular structures of 7-Ph-11-SMe2-7,8-nido-C2B9H10 and 1-Ph-3,3-(CO)2-7-SMe2-3,1,2-closo-RhC2B9H8. J. Organomet. Chem. 1997, 536–537, 299–308. [Google Scholar] [CrossRef]
  16. Ellis, D.; Rosair, G.M.; Robertson, S.; Welch, A.J. 7,8-Di­phenyl-9-di­methyl­sulfido-10,11-μ-hydro-7,8-dicarba-nido-undecaborane(9). Acta Cryst. C 2000, 56, 1399–1400. [Google Scholar] [CrossRef]
  17. Chen, M.; Zhao, D.; Xu, J.; Li, C.; Lu, C.; Yan, H. Electrooxidative B-H functionalization of nido-carboranes. Angew. Chem. Int. Ed. 2021, 60, 7838–7844. [Google Scholar] [CrossRef] [PubMed]
  18. Timofeev, S.V.; Rudakov, D.A.; Rakova, E.A.; Glukhov, I.V.; Starikova, Z.A.; Bragin, V.I.; Godovikov, I.A.; Shirokii, V.L.; Potkin, V.I.; Maier, N.A.; et al. Synthesis and structure of halogen derivatives of 9-dimethylsulfonium-7,8-dicarba-nido-undecaborane [9-Me2S-7,8-C2B9H11]. J. Organomet. Chem. 2007, 692, 5133–5140. [Google Scholar] [CrossRef]
  19. Grüner, B.; Holub, J.; Plešek, J.; Štíbr, B.; Thornton-Pett, M.; Kennedy, J.D. Dimethylsulfide-dicarbaborane chemistry. Isolation and characterisation of isomers [9-(SMe2)-nido-7,8-C2B9H10-X-Me] (where X = 1, 2, 3 and 4) and some related compounds. An unusual skeletal rearrangement. Dalton Trans. 2007, 4859–4865. [Google Scholar] [CrossRef]
  20. Kazheva, O.N.; Rudakov, D.A.; Shilov, G.V.; D’yachenko, O.A.; Potkin, V.I. Structure of 6,11-dichloro-9-dimethylthio-7,8-dicarba-nido-undecaborane [6,11-Cl2-9-SMe2-7,8-C2B9H9]. J. Struct. Chem. 2013, 54, 349–354. [Google Scholar] [CrossRef]
  21. Anufriev, S.A.; Erokhina, S.A.; Sivaev, I.B.; Bregadze, V.I. On the reaction of nido-carborane with thiourea. Russ. Chem. Bull. 2016, 65, 2704–2707. [Google Scholar] [CrossRef]
  22. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A.; Kudin, K.N., Jr.; Burant, J.C.; Millam, J.M.; et al. Gaussian 03; Revision E.01; Gaussian, Inc.: Wallingford, UK, 2004. [Google Scholar]
  23. Anufriev, S.A.; Erokhina, S.A.; Suponitsky, K.Y.; Godovikov, I.A.; Filippov, O.A.; Fabrizi de Biani, F.; Corsini, M.; Chizhov, A.O.; Sivaev, I.B. Methylsulfanyl-stabilized rotamers of cobalt bis(dicarbollide). Eur. J. Inorg. Chem. 2017, 4444–4451. [Google Scholar] [CrossRef]
  24. Suponitsky, K.Y.; Anisimov, A.A.; Anufriev, S.A.; Sivaev, I.B.; Bregadze, V.I. 1,12-Diiodo-ortho-carborane: A classic textbook example of the dihalogen bond. Crystals 2021, 11, 396. [Google Scholar] [CrossRef]
  25. Suponitsky, K.Y.; Burakov, N.I.; Kanibolotsky, A.L.; Mikhailov, V.A. Multiple noncovalent bonding in halogen complexes with oxygen organics. I. Tertiary amides. J. Phys. Chem. A 2016, 120, 4179–4190. [Google Scholar] [CrossRef] [PubMed]
  26. Suponitsky, K.Y.; Masunov, A.E.; Antipin, M.Y. Computational search for nonlinear optical materials: Are polarization functions important in the hyperpolarizability predictions of molecules and aggregates? Mendeleev Commun. 2009, 19, 311–313. [Google Scholar] [CrossRef]
  27. Bader, R.F.W. Atoms in Molecules. In A Quantum Theory; Clarendon Press: Oxford, UK, 1990. [Google Scholar]
  28. Keith, T.A. AIMAll (Version 15.05.18); TK Gristmill Software: Overland Park, KS, USA, 2015. [Google Scholar]
  29. Espinosa, E.; Molins, E.; Lecomte, C. Hydrogen bond strengths revealed by topological analyses of experimentally observed electron densities. Chem. Phys. Lett. 1998, 285, 170–173. [Google Scholar] [CrossRef]
  30. Espinosa, E.; Alkorta, I.; Rozas, I.; Elguero, J.; Molins, E. About the evaluation of the local kinetic, potential and total energy densities in closed-shell interactions. Chem. Phys. Lett. 2001, 336, 457–461. [Google Scholar] [CrossRef]
  31. Lyssenko, K.A. Analysis of supramolecular architectures: Beyond molecular packing diagrams. Mendeleev. Commun. 2012, 22, 1–7. [Google Scholar] [CrossRef]
  32. Palysaeva, N.V.; Gladyshkin, A.G.; Vatsadze, I.A.; Suponitsky, K.Y.; Dmitriev, D.E.; Sheremetev, A.B. N-(2-Fluoro-2,2-dinitroethyl)azoles: Novel assembly of diverse explosophoric building blocks for energetic compounds design. Org. Chem. Front. 2019, 6, 249–255. [Google Scholar] [CrossRef]
  33. Dalinger, I.L.; Suponitsky, K.Y.; Shkineva, T.K.; Lempert, D.B.; Sheremetev, A.B. Bipyrazole bearing ten nitro groups—Novel highly dense oxidizer for forward-looking rocket propulsions. J. Mater. Chem. A 2018, 6, 14780–14786. [Google Scholar] [CrossRef]
  34. APEX2 and SAINT; Bruker AXS Inc.: Madison, WI, USA, 2014.
  35. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]

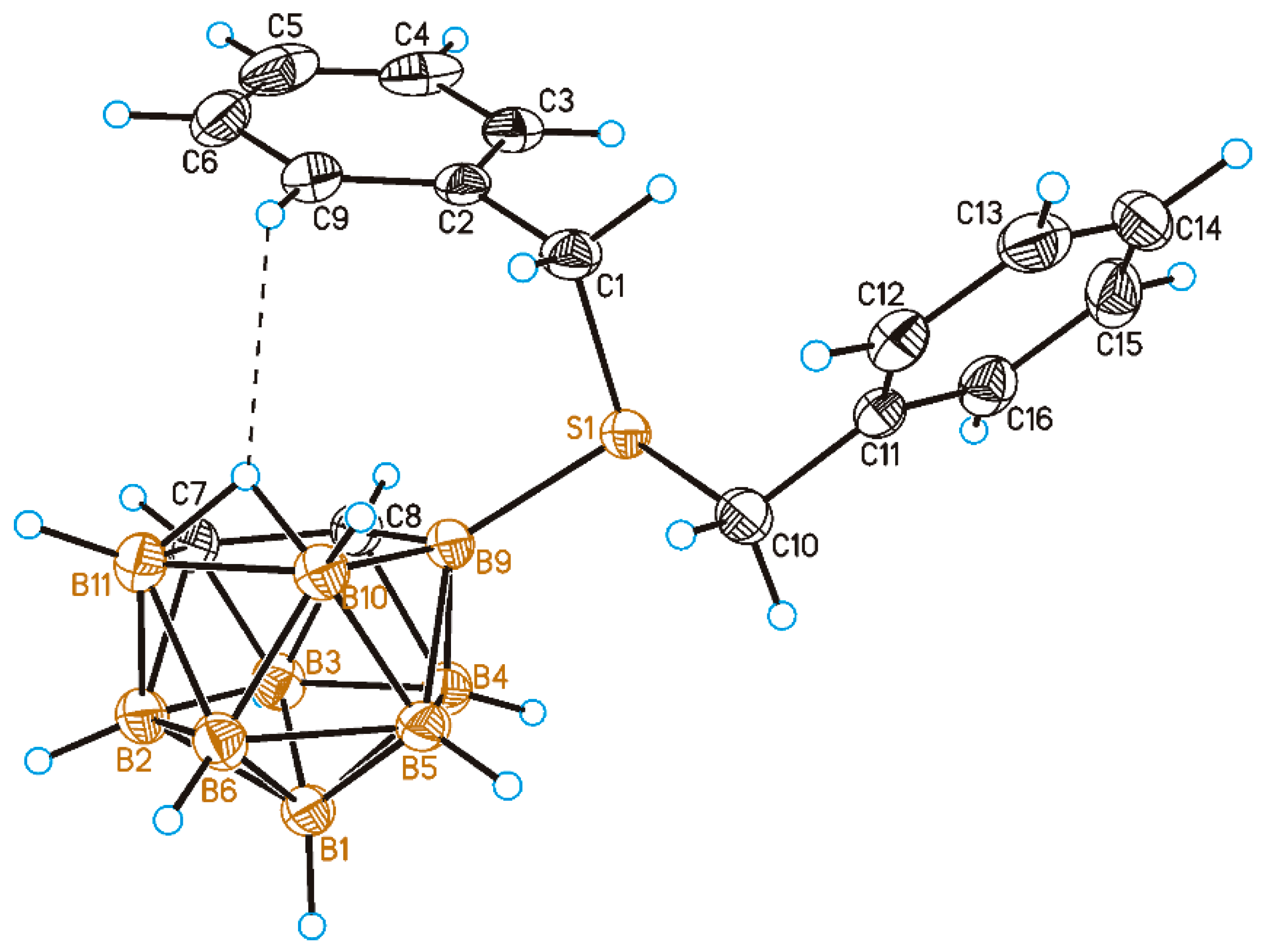

Figure 1. A general view of 9-Bn2S-7,8-C2B9H11 showing atomic numbering. Only the first independent molecule (A) is presented. Thermal ellipsoids are drawn at a 50% probability level. Noncovalent C-H···H-B interaction is shown by a dashed line.
Figure 1. A general view of 9-Bn2S-7,8-C2B9H11 showing atomic numbering. Only the first independent molecule (A) is presented. Thermal ellipsoids are drawn at a 50% probability level. Noncovalent C-H···H-B interaction is shown by a dashed line.
Molbank 2021 m1230 g001

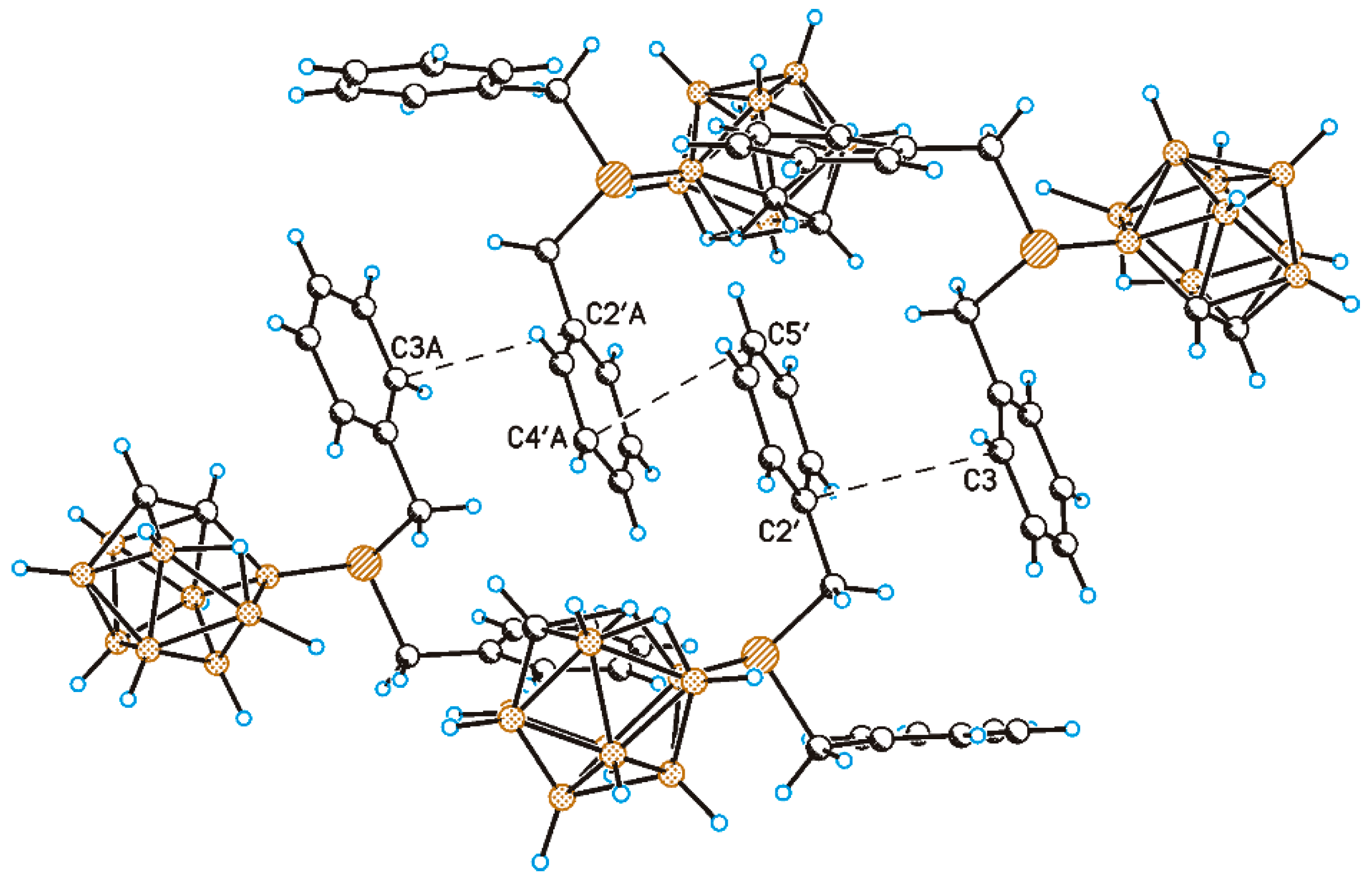

Figure 2. Crystal packing fragment of the titled compound showing stacking aggregates. The shortest intermolecular contacts are denoted by dashed lines. Distances C(3)···C(2′) and C(5′)···C(4′A) are equal to 3.383(3) and 3.364(3) Å, respectively.
Figure 2. Crystal packing fragment of the titled compound showing stacking aggregates. The shortest intermolecular contacts are denoted by dashed lines. Distances C(3)···C(2′) and C(5′)···C(4′A) are equal to 3.383(3) and 3.364(3) Å, respectively.
Molbank 2021 m1230 g002
Table 1. Selected torsion angles which define molecular conformation of the titled compound.
Table 1. Selected torsion angles which define molecular conformation of the titled compound.
Torsion AngleMolecule AMolecule A′Calculation
C(8)-B(9)-S(1)-C(1)91.2(2)113.4(2)112.9
C(8)-B(9)-S(1)-C(10)−163.5(2)−140.7(2)−141.0
B(9)-S(1)-C(1)-C(2)−65.8(2)−84.2(2)−77.8
B(9)-S(1)-C(10)-C(11)−165.0(2)179.7(2)−177.2
