Methyl 6-Methyl-1-(4-methylphenyl)-2-oxo-4-phenyl-1,2,3,4-tetrahydropyrimidine-5-carboxylate

by
Qing Chen
,
Qingjian Liu
* and
Haiping Wang
College of Chemistry, Chemical Engineering and Materials Science, Key Laboratory of Molecular and Nano Probes, Engineering Research Center of Pesticide and Medicine Intermediate Clean Production, Ministry of Education, Shandong Provincial Key Laboratory of Clean Production of Fine Chemicals, Shandong Normal University, Jinan 250014, China
*
Author to whom correspondence should be addressed.
Molbank 2012, 2012(2), M752; https://doi.org/10.3390/M752
Submission received: 20 December 2011 / Accepted: 9 April 2012 / Published: 17 April 2012
Browse Figures
Versions Notes

Abstract

:
Methyl 6-methyl-1-(4-methylphenyl)-2-oxo-4-phenyl-1,2,3,4-tetrahydro-pyrimidine-5-carboxylate has been synthesized via the modified Biginelli reaction from benzaldehyde, p-tolylurea, and methyl acetoacetate, promoted with microwave irradiation and catalyzed by TsOH under solvent-free conditions in high yield.

Graphical Abstract

Recently, dihydropyrimidinones (DHPMs) and their derivatives have draw intensive interest because of their biological and pharmaceutical properties [1,2]. So, the synthesis of DHPMs has been revalued. The classical synthesis of dihydropyrimidinone was the Biginelli reaction of aldehyde, ethyl acetoacetate, and urea under acidic conditions [3]. In the last few decades, many improvements and modifications have been developed, including microwave promotion [4,5,6], ultrasound irradiation [7,8], ionic liquids [9,10,11] and the use of Lewis acid catalysts, such as NbCl5/QN-NH2 [12], BF3·OEt2/CuCl [13], formic acid [14], Yb(OTf)3 [15], InCl3 [16], NH4Cl [17], Cu(OTf)2 [18], Cu(ClO4)2·6H2O [19], etc.
Chiral DHPMs via Biginelli condensation reaction have been realized [20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37].
A variety of substitutients including N-substituted urea [38] and β-acylpyruvates [39] in the components have been investigated to produce differently substitued DHPMs for searching for DHPMs with distinguished biological and medicinal activities.
Microwave-assisted chemistry [40,41,42] and solvent-free reactions [42,43] have received a considerable attention. Application of microwave irradiation in organic synthesis is becoming an increasingly popular technology because of its rapid reaction rates, cleaner reaction conditions and ease of manipulation [43,44,45,46,47,48,49,50,51].
Herein, we report the synthesis of methyl 6-methyl-1-(4-methylphenyl)-2-oxo-4-phenyl-1,2,3,4-tetrahydropyrimidine-5-carboxylate from benzaldehyde, methyl acetoacetate, and p-tolylurea via the modified Biginelli reaction promoted with microwave irradiation and catalyzed by p-toluenesulfonic acid (TsOH) under solvent-free conditions in high yield (Scheme 1). This procedure had the advantages of short reaction time, simple and easy work-up, and it is environmentally benign. The product has been characterized by NMR (1H and 13C), IR, MS, and elemental analysis.

Experimental Procedure

Benzaldehyde (2 mmol), methyl acetoacetate (3.6 mmol), p-tolylurea (2 mmol) and TsOH (anhydrous, 5% of aldehyde based) were irradiated in a microwave reactor (600 W) at 60 °C for 15 min and monitored by TLC. After completion of the reaction, the reaction mixture was poured into crushed ice with stirring and was filtrated, washed with ethanol (95%) to obtain the crude product. Recrystallization from ethanol afforded the pure target compound as white crystals, 0.59 g, yield of 87.7%, m.p. 159.5–162 °C.
Accordingly, our investigation showed that the best results were observed when the molar ratio of aldehyde, p-tolylurea and methyl acetoacetate was 1:1:1.8. Different catalysts including HCl, H2SO4, H3PO4, formic acid, acetic acid, TsOH, tartaric acid and iodine had been tested and it was found that TsOH was the best and that the yields were not obviously affected by the concentration of TsOH.
In summary, methyl 6-methyl-1-(4-methylphenyl)-2-oxo-4-phenyl-1,2,3,4-tetrahydropyrimidine-5-carboxylate has been synthesized from benzaldehyde, methyl acetoacetate, and p-tolylurea catalyzed by TsOH and promoted with microwave irradiation under solvent-free conditions in high yield and characterized by NMR (1H and 13C) and IR spectra. The preparation is characteristic of short reaction time, simple and easy work-up, and it is environmentally benign. This protocol developed a facile and green synthesis of N-substituted 1,2,3,4-tetrahydropyrimidin-2-one and extended the utility of subtituted urea in the venerable Biginelli reaction.

Structural Characterization

1H NMR (Bruker 300 MHz, DMSO-d6): δH 8.13 (br s, 1 H, N-H), 7.42–7.05 (m, 9 H, Ar-H), 5.26 (br s, 1 H, 4-CH), 3.58 (s, 3 H, OCH3), 2.33 (s, 3 H, ArCH3), 2.02 (s, 3 H, CH3) ppm. 13C NMR (75 MHz, DMSO-d6): δC 166.5, 152.7, 149.8, 144.4, 137.9, 135.6, 130.0, 129.9, 129.1, 128.0, 126.6, 103.9, 53.4, 51.6, 21.1, 18.5 ppm. IR (Bruker Tensor 27, KBr): νmax 3472, 1694, 1211, 1076 cm−1. HRMS (Bruker maXis, ESI): m/z 337.1535 ([M + H]+), C20H20N2O3 required: 337.1547 (M + H). Anal. calcd. (PE2400 II CHONS): calcd. for C20H20N2O3: C 71.41, H 5.99, N 8.33; found: C 71.68, H 5.82, N 8.53.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgments

Thanks go to College of Chemistry, Chemical Engineering and Materials Science, Shandong Normal University.

References

  1. Kappe, C.O. 100 Years of Biginelli dihydropyrimidine synthesis. Tetrahedron 1993, 49, 6937–6963. [Google Scholar] [CrossRef]
  2. Kappe, C.O. Recent advances in the Biginelli dihydropyrimidine synthesis. New tricks from an old dog. Acc. Chem. Res. 2000, 33, 879–888. [Google Scholar] [CrossRef] [PubMed]
  3. Biginelli, P. Aldehyde−urea derivatives of aceto- and oxaloacetic acids. Gazz. Chim. Ital. 1893, 23, 360–413. [Google Scholar]
  4. Li, Y.X.; Bao, W.L. Microwave-assisted Solventless Biginelli Reaction Catalyzed by Montmorillonite Clay-SmCl3. 6H2O System. Chin. Chem. Lett. 2003, 14, 993–995. [Google Scholar]
  5. Yadav, J.S.; Reddy, B.V.; Reddy, E.J.; Ramalingam, T. Microwave-assisted efficient synthesis of dihydropyrimidines: improved high yielding protocol for the Biginelli reaction. J. Chem. Res. (S) 2000, 7, 354–355. [Google Scholar] [CrossRef]
  6. Stefani, H.A.; Gatti, P.M. 3,4-Dihydropyrimidin-2(1H)-Ones: fast synthesis under microwave irradiation in solvent free conditions. Synth. Commun. 2000, 30, 2165–2173. [Google Scholar] [CrossRef]
  7. Yadav, J.S.; Reddy, K.B. Ultrasound-accelerated synthesis of 3,4-dihydropyrimidin-2(1H)-ones with ceric ammonium nitrate. J. Chem. Soc. 2001, 16, 1939–1941. [Google Scholar] [CrossRef]
  8. Li, J.T.; Han, J.F.; Yang, J.H.; Li, T.S. An efficient synthesis of 3,4-dihydropyrimidin-2-ones catalyzed by NH2SO3H under ultrasound irradiation. Ultrason. Sonochem. 2003, 10, 119–122. [Google Scholar] [CrossRef]
  9. Peng, J.J.; Deng, Y.Q. Ionic liquids catalyzed Biginelli reaction under solvent-free conditions. Tetrahedron Lett. 2001, 42, 5917–5919. [Google Scholar] [CrossRef]
  10. Shao, G.Q. Biginelli Condensation Assisted by Microwave Irradiation in Ionic Liquids. Chin. J. Synth. Chem. 2004, 12, 325–328. [Google Scholar]
  11. Niralwad, K.S.; Shingate, B.B.; Shingare, M.S. Ultrasound-assisted One-Pot Synthesis of Octahydroquinazolinone Derivatives Catalyzed by Acidic Ionic Liquid [tbmim]Cl2/AlCl3. J. Chin. Chem. Soc. 2010, 57, 89–92. [Google Scholar] [CrossRef]
  12. Cai, Y.F.; Yang, H.M.; Li, L.; Jiang, K.Z.; Lai, G.Q.; Jiang, J.X.; Xu, L.W. Cooperative and Enantioselective NbCl5/Primary Amine Catalyzed Biginelli Reaction. Eur. J. Org. Chem. 2010, 26, 4986–4990. [Google Scholar] [CrossRef]
  13. Hu, E.H.; Sidler, D.R.; Dolling, U.H. Unprecedented Catalytic Three Component One-Pot Condensation Reaction: An Efficient Synthesis of 5-Alkoxycarbonyl-4-aryl-3,4-dihydropyrimidin-2(1H)-ones. J. Org. Chem. 1998, 63, 3454–3457. [Google Scholar] [CrossRef]
  14. Cheng, J.; Qi, D.Y. An efficient and solvent-free one-pot synthesis of dihydropyrimidinones under microwave irradiation. Chin. Chem. Lett. 2007, 18, 647–650. [Google Scholar]
  15. Ma, Y.; Qian, C.T.; Wang, L.M.; Yang, M. Lanthanide triflate catalyzed Biginelli reaction. One-pot synthesis of dihydropyrimidinones under solvent-free conditions. J. Org. Chem. 2000, 65, 3864–3868. [Google Scholar] [CrossRef] [PubMed]
  16. Ranu, B.C.; Hajra, A.; Jana, U. Indium(III) Chloride Catalyzed One-Pot Synthesis of Dihydropyrimidinones by a Three-Component Coupling of 1,3-Dicarbonyl Compounds, Aldehydes, and Urea: An Improved Procedure for the Biginelli Reaction. J. Org. Chem. 2000, 65, 6270–6272. [Google Scholar] [CrossRef] [PubMed]
  17. Shaabani, A.; Bazgir, A.; Teimouri, F. Ammonium chloride-catalyzed one-pot synthesis of 3,4-dihydropyrimidin-2-(1H)-ones under solvent-free conditions. Tetrahedron Lett. 2003, 44, 857–859. [Google Scholar] [CrossRef]
  18. Paraskar, A.S.; Dewkar, G.K.; Sudalai, A. Cu(OTf)2: A reusable catalyst for high-yield synthesis of 3, 4-dihydropyrimidin-2(1H)-ones. Tetrahedron Lett. 2003, 44, 3305–3308. [Google Scholar] [CrossRef]
  19. Lei, M.; Ma, L.; Hu, L.H. Cu(ClO4)2·6H2O as an Efficient Catalyst for the Synthesis of 3,4-Dihydropyrimidin-2(1H)-ones Under Solvent-Free Conditions. Synth. Commun. 2011, 41, 3071–3077. [Google Scholar] [CrossRef]
  20. Dondoni, A.; Massi, A. Design and Synthesis of New Classes of Heterocyclic C-Glycoconjugates and Carbon-Linked Sugar and Heterocyclic Amino Acids by Asymmetric Multicomponent Reactions (AMCRs). Acc. Chem. Res. 2006, 39, 451–463. [Google Scholar] [CrossRef] [PubMed]
  21. Yu, J.; Shi, F.; Gong, L.-Z. Brφnsted-Acid-Catalyzed Asymmetric Multicomponent Reactions for the Facile Synthesis of Highly Enantioenriched Structurally Diverse Nitrogenous Heterocycles. Acc. Chem. Res. 2011, 44, 1156–1171. [Google Scholar] [CrossRef] [PubMed]
  22. Saha, S.; Moorthy, J.N. Enantioselective Organocatalytic Biginelli Reaction: Dependence of the Catalyst on Sterics, Hydrogen Bonding, and Reinforced Chirality. J. Org. Chem. 2011, 76, 396–402. [Google Scholar] [CrossRef] [PubMed]
  23. Li, N.; Chen, J.S.; Luo, S.-W.; Fan, W.; Gong, L.-Z. Highly Enantioselective Organocatalytic Biginelli and Biginelli-Like Condensations: Reversal of the Stereochemistry by Tuning the 3,3′-Disubstituents of Phosphoric Acids. J. Am. Chem. Soc. 2010, 132, 10953–10953. [Google Scholar] [CrossRef]
  24. Li, N.; Chen, X.-H.; Song, J.; Luo, S.-W.; Fan, W.; Gong, L.-Z. Highly Enantioselective Organocatalytic Biginelli and Biginelli-Like Condensations: Reversal of the Stereochemistry by Tuning the 3,3′-Disubstituents of Phosphoric Acids. J. Am. Chem. Soc. 2009, 131, 15301–15310. [Google Scholar] [CrossRef] [PubMed]
  25. Shen, Z.-L.; Xu, X.-P.; Ji, S.-J. Brφnsted Base-Catalyzed One-Pot Three-Component Biginelli-Type Reaction: An Efficient Synthesis of 4,5,6-Triaryl-3,4-dihydropyrimidin-2(1H)-one and Mechanistic Study. J. Org. Chem. 2010, 75, 1162–1167. [Google Scholar] [CrossRef] [PubMed]
  26. Nandi, G.C.; Samai, S.; Singh, M.S. Biginelli and Hantzsch-Type Reactions Leading to Highly Functionalized Dihydropyrimidinone, Thiocoumarin, and Pyridopyrimidinone Frameworks via Ring Annulation with β-Oxodithioesters. J. Org. Chem. 2010, 75, 7785–7795. [Google Scholar] [CrossRef] [PubMed]
  27. Lou, S.; Dai, P.; Schaus, S.E. Asymmetric Mannich Reaction of Dicarbonyl Compounds with α-Amido Sulfones Catalyzed by Cinchona Alkaloids and Synthesis of Chiral Dihydropyrimidones. J. Org. Chem. 2007, 72, 9998–10008. [Google Scholar] [CrossRef] [PubMed]
  28. Goss, J.M.; Schaus, S.E. Enantioselective Synthesis of SNAP-7941: Chiral Dihydropyrimidone Inhibitor of MCH1-R. J. Org. Chem. 2008, 73, 7651–7656. [Google Scholar] [CrossRef] [PubMed]
  29. Singh, K.; Singh, S. Chemical resolution of inherently racemic dihydropyrimidinones via a site selective functionalization of Biginelli compounds with chiral electrophiles: A case study. Tetrahedron 2009, 65, 4106–4112. [Google Scholar] [CrossRef]
  30. Liu, X.; Lin, L.; Feng, X. Amide-based bifunctional organocatalysts in asymmetric reactions. Chem. Commun. 2009, 6145–6158. [Google Scholar] [CrossRef] [PubMed]
  31. Wang, Y.; Yu, J.; Miao, J.; Chen, R. Bifunctional primary amine-thiourea–TfOH (BPAT·TfOH) as a chiral phase-transfer catalyst: the asymmetric synthesis of dihydropyrimidines. Org. Biomol. Chem. 2011, 9, 3050–2054. [Google Scholar] [CrossRef] [PubMed]
  32. Isambert, N.; Duque, M.M.S.; Plaquevent, J.C.; Genisson, Y.; Rodriguez, J.; Constantieux, T. Multicomponent reactions and ionic liquids: a perfect synergy for eco-compatible heterocyclic synthesis. Chem. Soc. Rev. 2011, 40, 1347–1357. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, X.-H.; Xu, X.-Y.; Liu, H.; Cun, L.-F.; Gong, L.-Z. Highly Enantioselective Organocatalytic Biginelli Reaction. J. Am. Chem. Soc. 2006, 128, 14802–14803. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, Y.; Yang, F.; Zhu, C. Highly Enantioseletive Biginelli Reaction Using a New Chiral Ytterbium Catalyst: Asymmetric Synthesis of Dihydropyrimidines. J. Am. Chem. Soc. 2005, 127, 16386–16387. [Google Scholar] [CrossRef] [PubMed]
  35. Wu, Y.-Y.; Chai, Z.; Liu, X.-Y.; Zhao, G.; Wang, S.-W. Synthesis of Substituted 5-(Pyrrolidin-2-yl)tetrazoles and Their Application in the Asymmetric Biginelli Reaction. Eur. J. Org. Chem. 2009, 904–911. [Google Scholar] [CrossRef]
  36. Goss, J.M.; Schaus, S.E. Enantioselective Synthesis of SNAP-7941: Chiral Dihydropyrimidone Inhibitor of MCH1-R. J. Org. Chem. 2008, 73, 7651–7656. [Google Scholar] [CrossRef] [PubMed]
  37. Wu, Y.-Y.; Chai, Z.; Liu, X.-Y.; Zhao, G.; Wang, S.-W. Synthesis of Substituted 5-(Pyrrolidin-2-yl)tetrazoles and Their Application in the Asymmetric Biginelli Reaction. Eur. J. Org. Chem. 2009, 904–911. [Google Scholar] [CrossRef]
  38. Salehi, H.; Guo, Q.X. Efficient Magnesium Bromide-Catalyzed One-pot Synthesis of Substituted 1,2,3,4-Tetrahydropyrimidin-2-ones Under Solvent-free Conditions. Chin. J. Chem. 2005, 23, 91–97. [Google Scholar] [CrossRef]
  39. Ryabukhin, S.V.; Plaskon, A.S.; Bondarenko, S.S.; Ostapchuk, E.N.; Grygorenko, O.O.; Shishkin, O.V.; Tolmachev, A.A. Acyl pyruvates as synthons in the Biginelli reaction. Tetrahedron Lett. 2010, 51, 4229–4232. [Google Scholar] [CrossRef]
  40. de la Hoz, A.; Diaz-Ortiz, A.; Moreno, A. Microwaves in organic synthesis. Thermal and non-thermal microwave effects. Chem. Soc. Rev. 2005, 34, 164–178. [Google Scholar] [CrossRef] [PubMed]
  41. Stadler, A.; Kappe, C.O. Automated Library Generation Using Sequential Microwave-Assisted Chemistry. Application toward the Biginelli Multicomponent Condensation. J. Comb. Chem. 2001, 3, 624–630. [Google Scholar] [CrossRef] [PubMed]
  42. Roberts, B.A.; Strauss, C.R. Toward Rapid, “Green”, Predictable Microwave-Assisted Synthesis. Acc. Chem. Res. 2005, 38, 653–661. [Google Scholar] [CrossRef] [PubMed]
  43. Loupy, A.; Petit, A.; Hamelin, J.; Texier-Boullet, F.; Jacquault, P.; Mathe, D. New Solvent-Free Organic Synthesis Using Focused Microwaves. Synthesis 1998, 9, 1213–1234. [Google Scholar] [CrossRef]
  44. Vanna, R.S. Solvent-free organic syntheses. Green Chem. 1999, 43. [Google Scholar]
  45. Xue, S; Shen, Y.-C.; Li, Y.-L.; Shen, X.-M.; Guo, Q.-X. Synthesis of 4-Aryl-3, 4-dihydropyrimidinones Using Microwaveassisted Solventless Biginelli Reaction. Chin. J. Chem. 2002, 20, 385–289. [Google Scholar]
  46. Jiang, C.; You, Q.D. An efficient and solvent-free one-pot synthesis of dihydropyrimidinones under microwave irradiation. Chin. Chem. Lett. 2007, 18, 647–650. [Google Scholar] [CrossRef]
  47. Zhan, H.W.; Wang, J.X.; Wang, X.T. Solvent- and catalyst-free synthesis of dihydropyrimidinthiones in one-pot under focused microwave irradiation conditions. Chin. Chem. Lett. 2008, 19, 1183–1185. [Google Scholar] [CrossRef]
  48. Polshettiway, V.; Varma, R.S. Microwave-Assisted Organic Synthesis and Transformations using Benign Reaction Media. Acc. Chem. Res. 2008, 41, 629–639. [Google Scholar] [CrossRef] [PubMed]
  49. Caddick, S.; Fitzmaurice, R. Microwave enhanced synthesis. Tetrahedron 2009, 65, 3325–3355. [Google Scholar] [CrossRef]
  50. Fang, Z.; Lam, Y. A rapid and convenient synthesis of 5-unsubstituted 3,4-dihydropyrimidin-2-ones and thiones. Tetrahedron 2011, 67, 1294–1297. [Google Scholar] [CrossRef]
  51. Sharma, A.; Appukkuttana, P.; Van der Eycken, E. Microwave-assisted synthesis of medium-sized heterocycles. Chem. Commun. 2012, 48, 1623–1637. [Google Scholar] [CrossRef] [PubMed]
Molbank 2012 m752 sch001 550

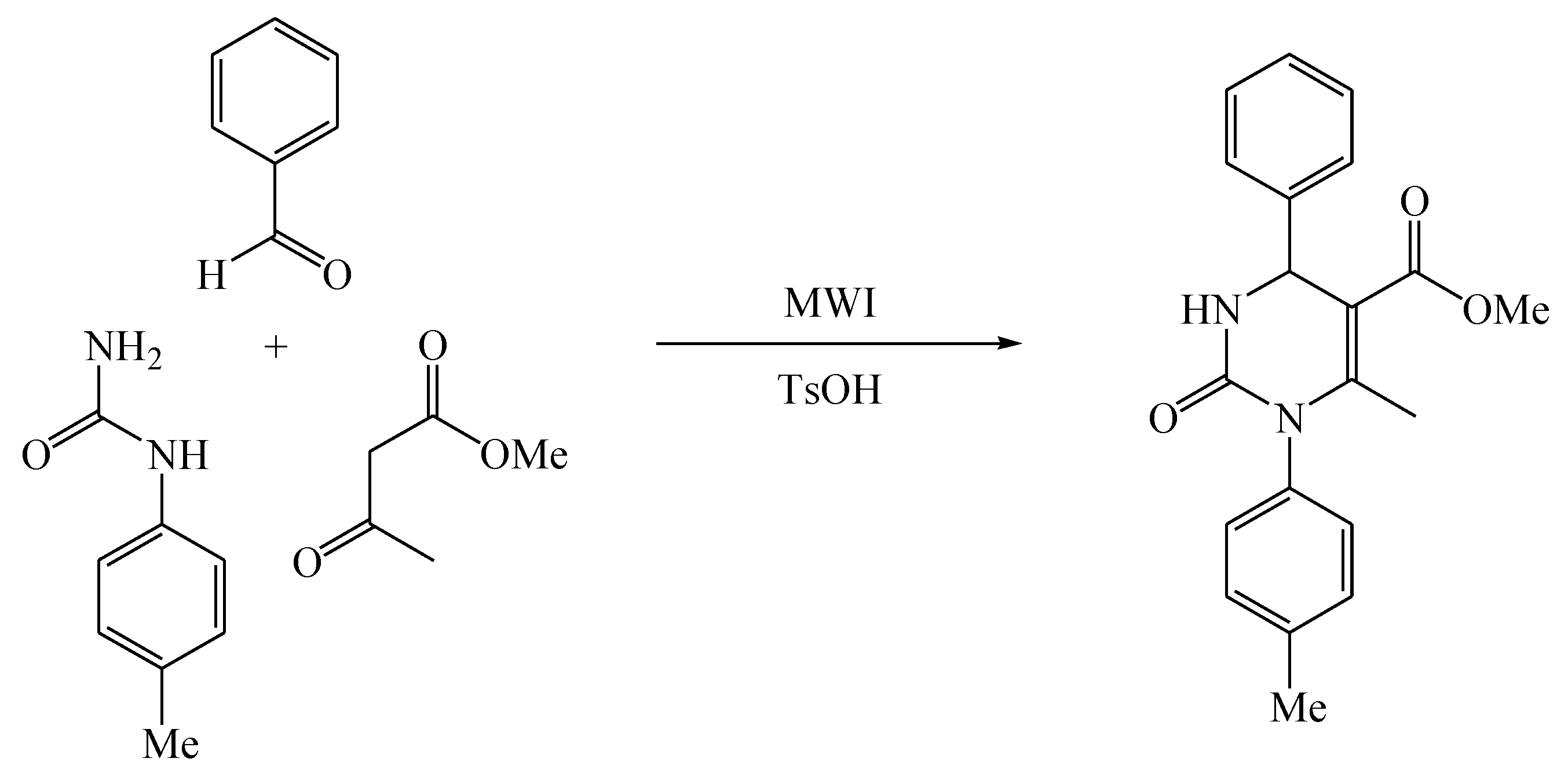

Scheme 1. The synthesis of the title compound via the modified Biginelli reaction.
Scheme 1. The synthesis of the title compound via the modified Biginelli reaction.
Molbank 2012 m752 sch001
