Search Results (2)

The interfacial bonding properties of stainless steel clad (SSC) rebars determine whether they can be widely used. In the industrial production of SSC rebars, the process of intermediate and finish rolling of the microstructure evolution, element diffusion behavior, and interfacial bonding properties of bimetallic interfaces are investigated. In this paper, 316L seamless stainless steel (SS) tube and HRB400E carbon steel (CS) bar were prepared by a vacuum oxidation-free composite round billet, and the industrial emergency stopping of SSC rebars’ hot rolling was carried out. The metallographic results showed that the thicknesses of the carburized austenite zone (CAZ) varied greatly (832–238 μm) and showed a parabolic downward trend, while the thicknesses of the decarburized ferrite zone (DFZ) varied little (85–99 μm). The elemental line scans showed that Fe and Cr had the same parabolic downward trend. The intermediate-rolling had a great influence on element diffusion, and, in S6–9, the diffusion distance of Fe and Cr decreased significantly. The diffusion distances of the elements in the intermediate-rolling back stage and finishing-rolling front stage (S9–12) were basically balanced. The elemental diffusion distances and interfacial bonding strength were not consistent. Among them, the shear strength (τ) of S13 was 410.7 MPa. Compared with ordinary rebars, the yield strength (Re) and tensile strength (Rm) of finished SSC rebars were increased by 7.05% (30.9 MPa) and 7.10% (43.0 MPa), respectively. The tensile properties exceed those of mixture effects. The paper provides a theoretical basis for the improvement of the interfacial bonding strength and optimization of the rolling process system for the industrial production of SSC rebars. Full article

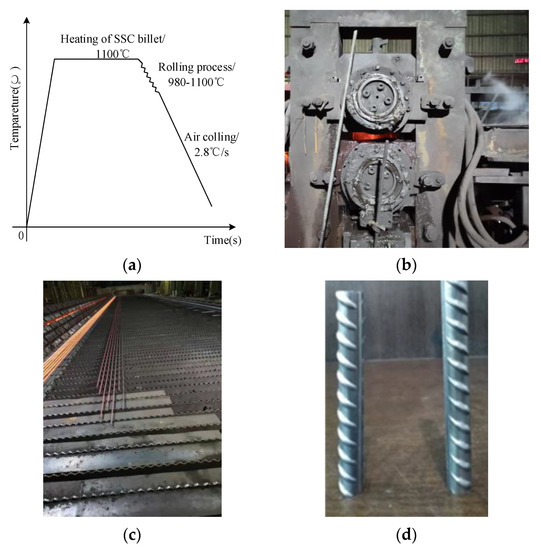

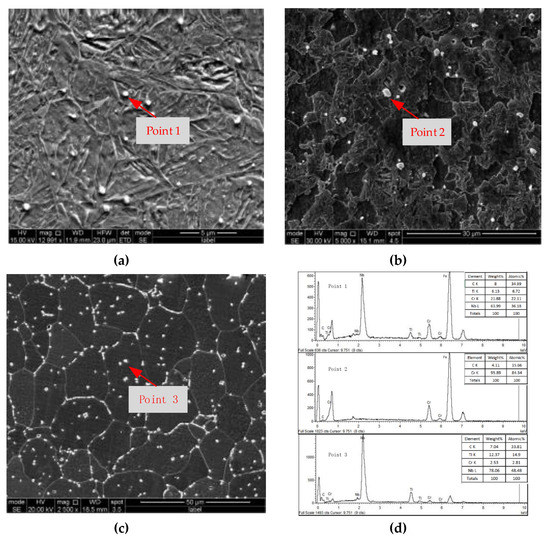

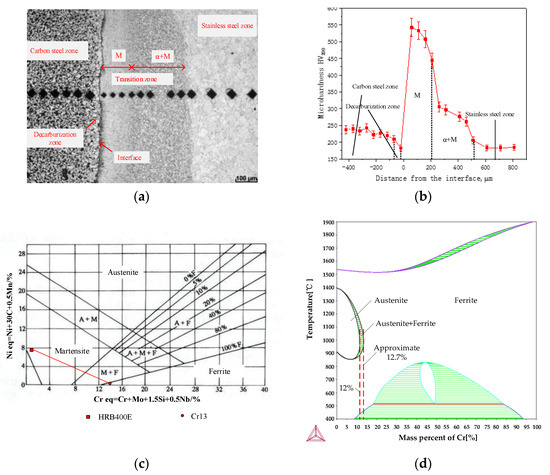

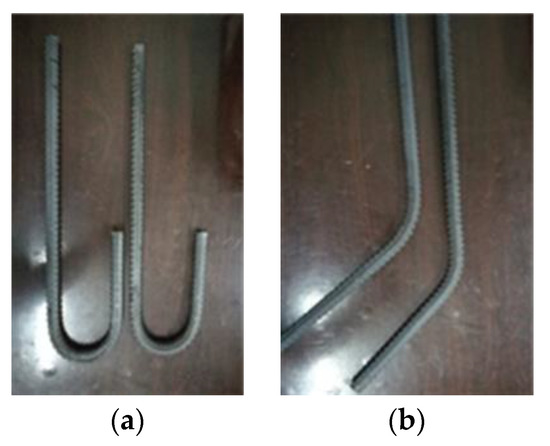

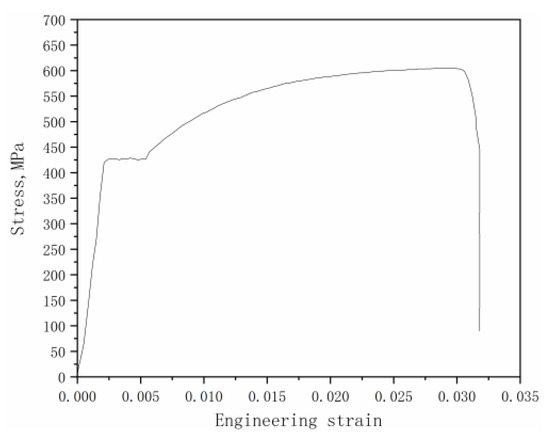

This paper aims at manufacturing stainless steel clad (SSC) rebars by metal deposition and a hot rolling method as well as characterizing its interface features and mechanical properties. The interface of the SSC rebar is relatively flat and clean, exhibiting a metallurgical bonding state at the microscale. Decarburization occurred at the interface in the carbon steel side of the SSC rebar. The diffusion of C, Cr, as well as Mn was measured across the interface of the SSC rebar, and the diffusion distance of Cr and Mn was found at 32 µm and 25 µm, respectively. The Vickers hardness testing in the transition zone of the SSC rebar near the carbon side showed 545 HV^0.2 due to the martensite phase formed by the diffusion of key elements C, Cr, and Mn. The microstructure in the transition zone near the stainless steel reveals the duplex structure of martensite and ferrite. The carbide precipitations were observed near the interface, both in the transition zone and in the base metal of the stainless steel zone. The yield strength, tensile strength, and elongation of the SSC rebar were found as 423 MPa, 602 MPa, and 22%. No macroscopic crack was observed after the positive or negative bending tests. Full article
