Search Results (2)

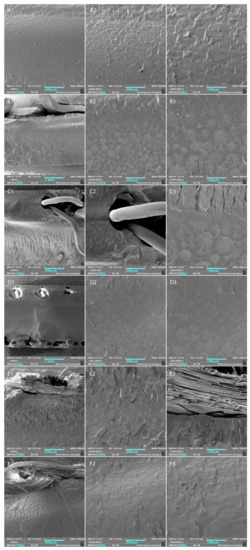

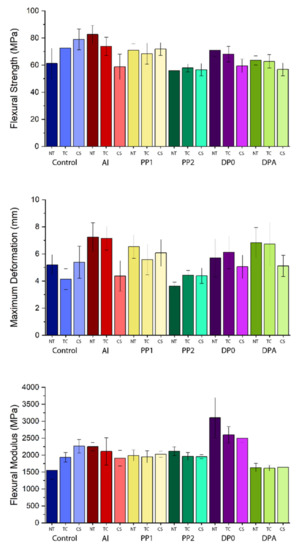

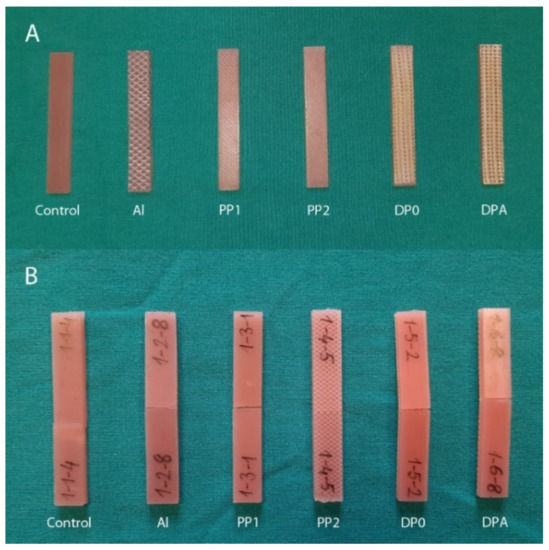

The aim of this study was to investigate the potential use of polypropylene (PP) hernia mesh as a reinforcement of PMMA denture base resin in comparison with metal and glass fiber meshes, with the expectation of enhancing the mechanical stability of the PMMA dentures in oral conditions. The control group with no mesh, the aluminum metal mesh (Al) group, the PP1 (PP mesh used on top) group, the PP2 (PP mesh used on both the top and bottom) group, the orthopedic casting tape with self-curing resin (DP0) group, and the flushed form (DPA) group were fabricated in a chromium mold. A total of 144 specimens were divided into three equal portions and subjected to: first, no treatment; second, thermal cycling only; and third, thermal cycling and chewing simulation. The flexural strength, maximum deformation, and flexural modulus were determined by a three-point bending test to compare mechanical properties. Fracture surfaces were evaluated by scanning electron microscopy. The obtained data were statistically analyzed by a two-way ANOVA test with Bonferroni corrections. The non-treated Al mesh reinforcement group exhibited the highest (82.66 ± 6.65 MPa) flexural strength, and the PP2 group treated with chewing simulation displayed the lowest (56.64 ± 4.59 MPa) flexural strength. The Al group showed the highest (7.25 ± 1.05 mm) maximum deformation and the PP2 group showed lowest (3.64 ± 0.28 mm) maximum deformation when both groups were not subjected to any treatment. The control group with no treatment exhibited the lowest (1556.98 ± 270.62 MPa) flexural modulus values, and the Al group with no treatment exhibited the highest (3106.07 ± 588.68 MPa) flexural modulus values. All the mesh groups displayed intact fractures. Any type of mesh used for reinforcement exhibited a significant change in all flexural properties (p < 0.001). The PP1 reinforcement group did not exhibit a significant change in mechanical properties when the effect of treatment was compared. Using PP hernia mesh on top enhanced the mechanical properties despite the weakening when it was used on both the top and bottom. The mechanical stability provided by the PP hernia mesh indicated it to be a promising candidate to be used for reinforcement. Full article

The aim of the present study was to evaluate the fracture loads of polymethyl methacrylate (PMMA) complete denture bases reinforced with glass-fiber mesh and orthopedic casting tape (OCT) in comparison to conventional PMMA dentures under artificial aging. Dental fiberglass framework (Group 1) and OCT (Group 2 and 3) reinforced PMMA acrylic dentures were fabricated on the edentulous ridge. Ten PMMA dentures without reinforcement (Group 4) were included as controls. All specimens were placed in a chewing simulator chamber, and fatigue load was applied. To assess the fracture loads, static loads with a universal testing machine were applied. Fractured specimens in each group were evaluated under a scanning electron microscope. The data were statistically analyzed employing analysis of variance and Tukey post-hoc test. The association of denture weight and thickness on fracture load was assessed using Pearson and Spearman correlations. Dental fiberglass (Group 1) displayed the highest fracture load (692.33 ± 751.41 N), and Group 4 (control) exhibited the lowest fracture loads (281.41 ± 302.51 N). Dentures reinforced with fiberglass mesh framework exhibited intact fractures. In contrast, Group 2 and 3 specimens using OCT demonstrated ditching fractures. It was observed that the thickness and weight of all the reinforced specimens influenced the load required to fracture the dentures (p < 0.001). Denture specimens strengthened with OCT (Groups 2 and 3) exhibited failure loads lower than dental fiberglass (Group 1) specimens but higher than unreinforced controls. Full article
