Search Results (2)

To achieve better process control of silicon (Si) alloy production using aluminum as a reductant of calcium silicate (CaO-SiO₂) slag, it is necessary to understand the reaction phenomena concerning the behavior of formed phases at the metal-slag interface during conversion. The interfacial interaction behavior of non-agitated melt was investigated using the sessile drop method for varying time and temperature, followed by EPMA phase analysis at the vicinity of the metal–slag interface. The most remarkable features of the reaction were the accumulation of solid calcium aluminate product layers at the Al alloy–slag interface and spontaneous emulsion of Si-alloy droplets in the slag phase. The reduction is strictly limited at 1550 °C due to the slow transfer of calcium aluminates away from the metal-slag interface into the partially liquid bulk slag. Reduction was significantly improved at 1600–1650 °C despite an interfacial layer being present, where the conversion rate is most intense in the first minutes of the liquid–liquid contact. A high mass transfer rate across the interface was shown related to the apparent interfacial tension depression of the wetting droplet along with a significant perturbed interface and emulsion due to Kelvin–Helmholtz instability driven by built-up interfacial charge at the interface. The increased reaction rate observed from 1550 °C to 1600–1650 °C for the non-agitated melt was attributed to the advantageous physical properties of the slag phase, which can be further regulated by the stoichiometry of metal–slag interactions and the composition of the slag. Full article

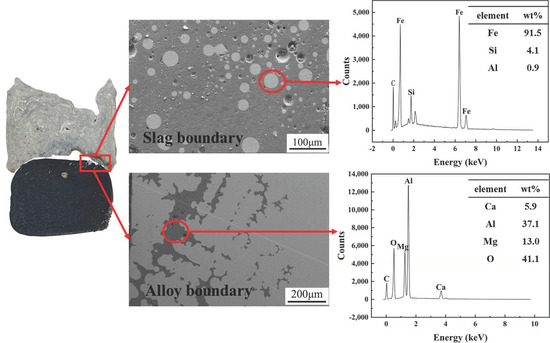

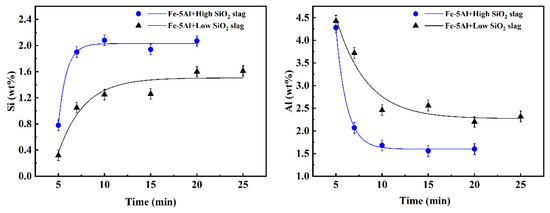

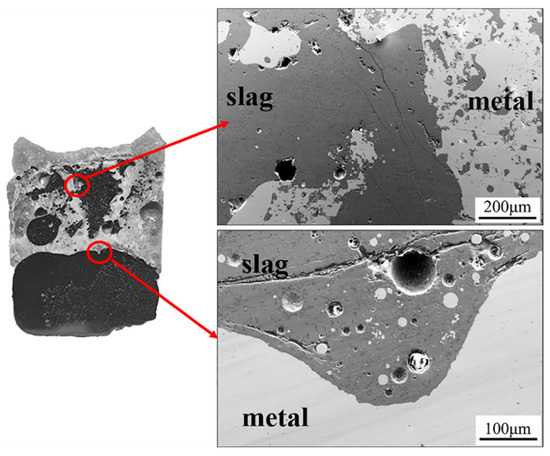

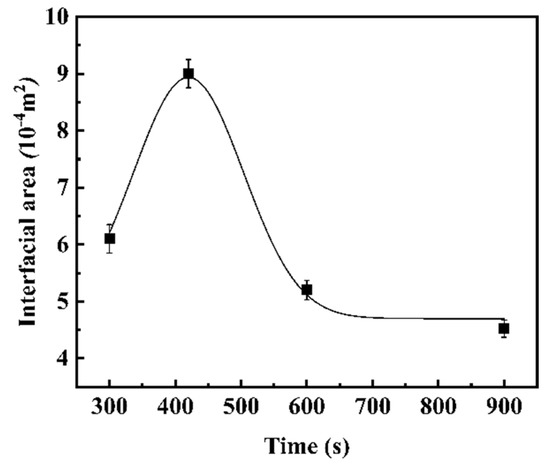

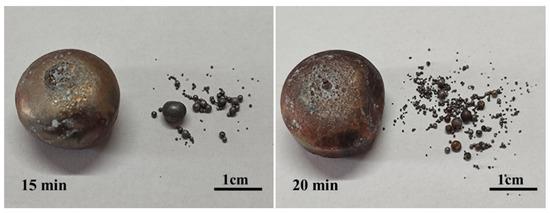

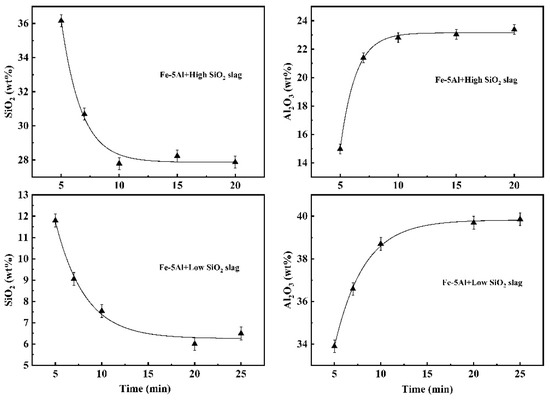

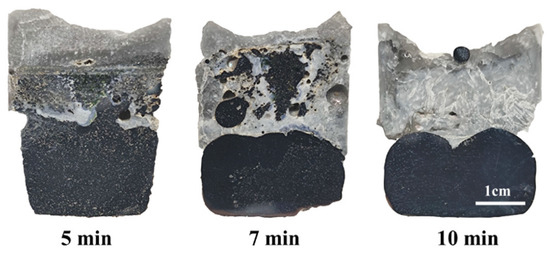

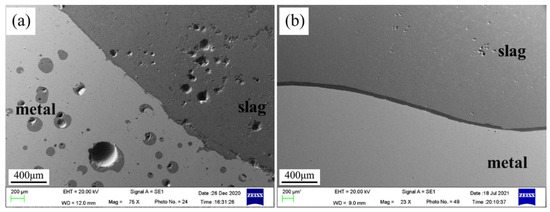

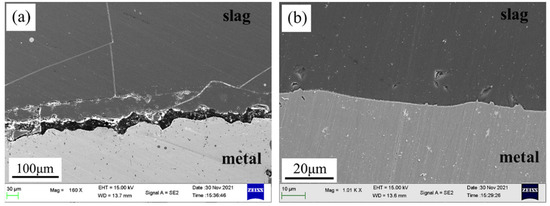

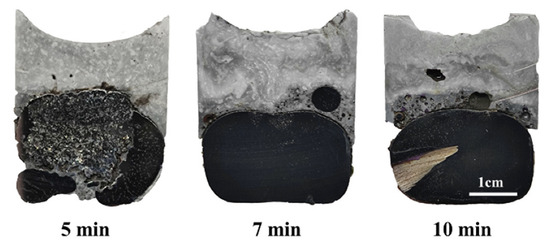

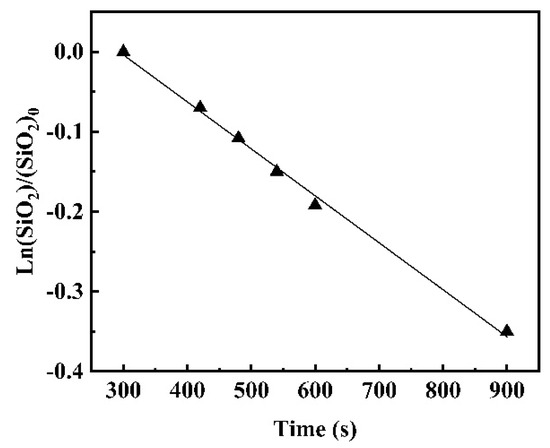

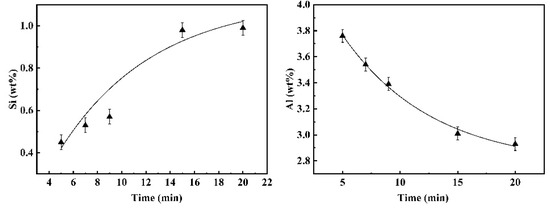

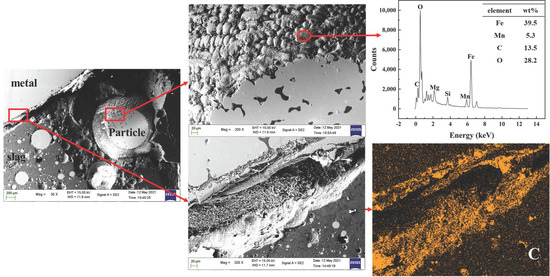

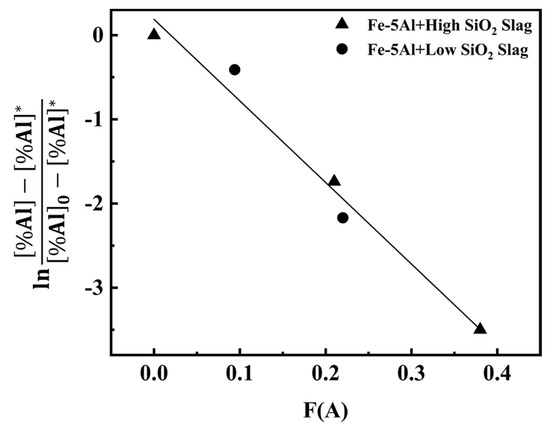

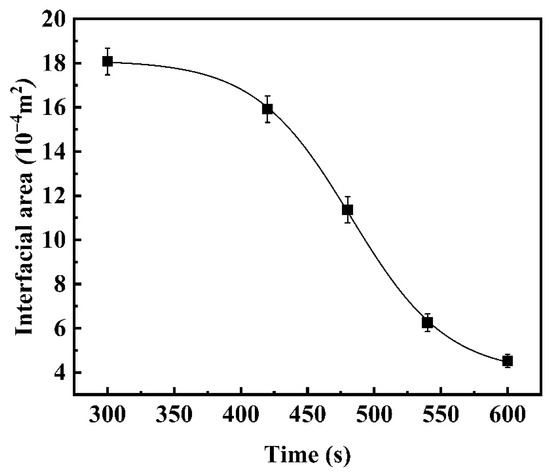

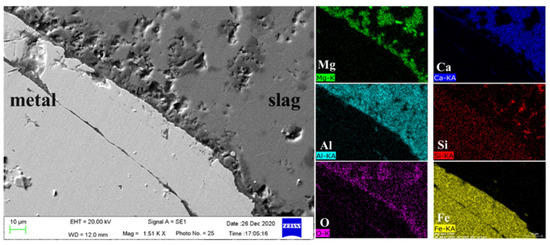

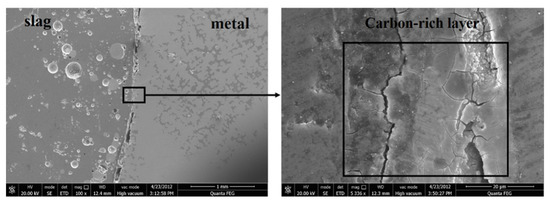

To understand the reaction mechanism between high Mn-high Al steel and slag, the reaction experiment of Fe-Mn-Al melts with CaO-SiO₂-type flux was carried out in MgO crucible at 1873 K. The evolution of the morphology of interface was inspected firstly, and then the global reaction kinetics was modeled in consideration of the effect of dynamic interfacial phenomena. The results show that in the reaction of Fe-5 mass % Al alloy with high SiO₂ or low SiO₂ protective slag, the strong chemical affinity between the metal and flux leads to strong spontaneous emulsification and attenuated with the progression of the reaction. Combined with the change of interfacial area caused by emulsification, it is found that the global reaction kinetics can be described satisfactorily by the mass transfer model of Al in liquid steel, and the determined mass transfer coefficient was about $k_{\left[Al\right]}=4.46\times {10}^{-5} \mathrm{m}/\mathrm{s}$. However, the emulsification phenomenon in the reaction of Fe-13%Mn-5%Al alloy with low SiO₂ slag did not disappear with the reaction, which can be attributed to the decreasing of the interfacial tension with Mn addition and the accumulation of C on the interface. This reaction process can be modeled by assuming the mass transfer of SiO₂ in the slag as the rate-controlling step with the estimated transfer coefficient of $k_{\left(Si{O}_2\right)}=5.12\times {10}^{-6} \mathrm{m}/\mathrm{s}$. Full article
