Search Results (6)

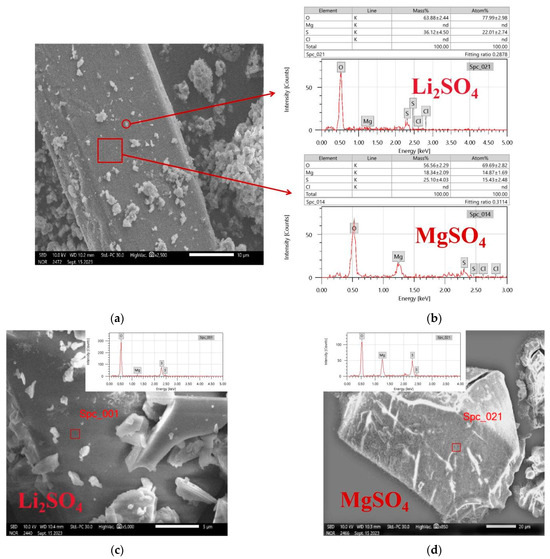

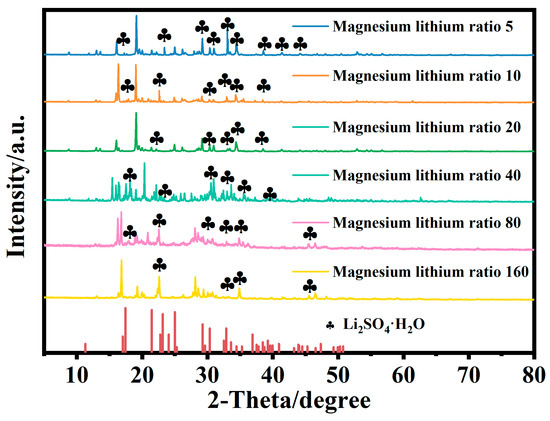

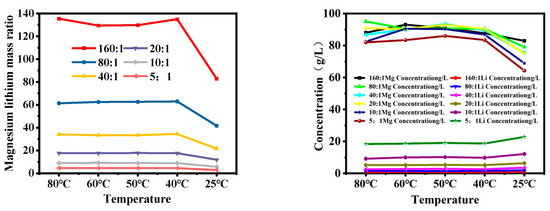

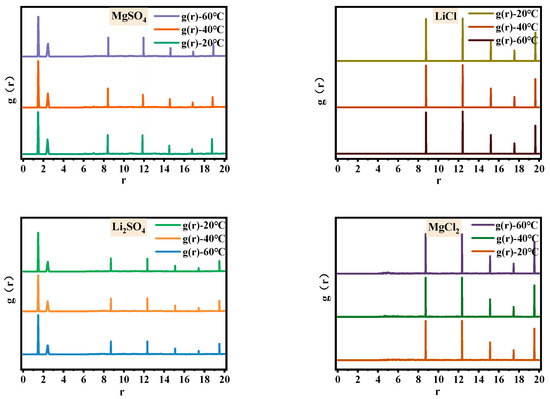

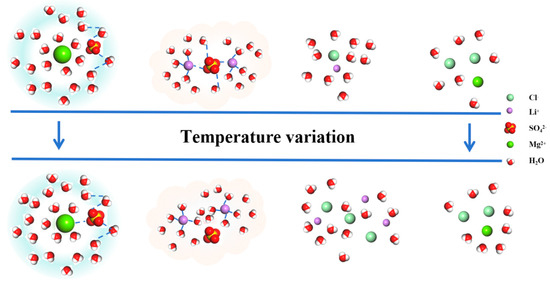

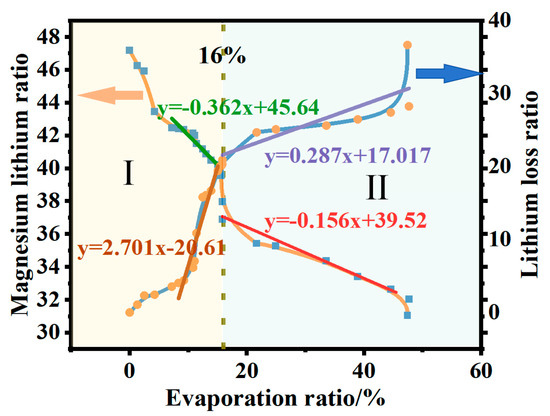

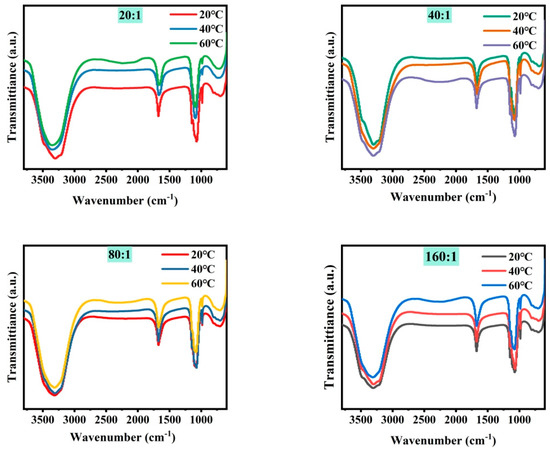

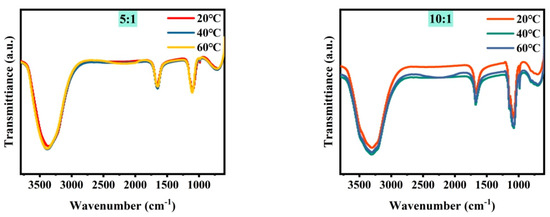

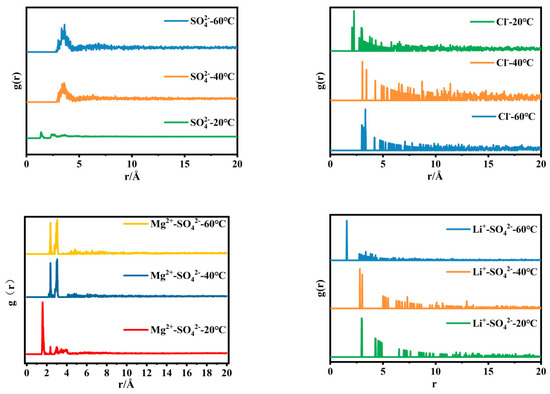

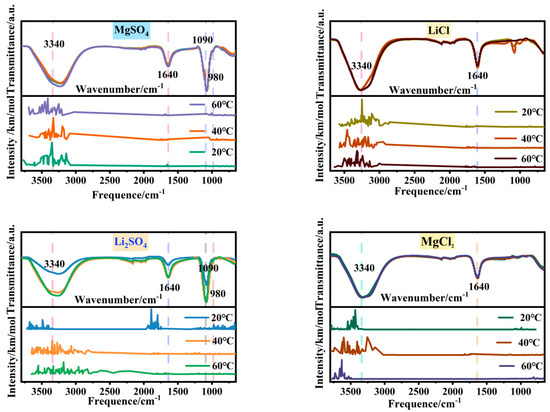

The difficult separation of magnesium–lithium has always been a problem that impedes the comprehensive utilization of salt lake brine resources. In this paper, a method for the separation of magnesium and lithium based on the crystallization of magnesium sulfate at high-temperature supersaturation and a low viscosity was investigated. The microstructure of soluble solutions was analyzed, and the results showed that, in a single-salt solution, controlling the temperature can change the contact ion pair structure of MgSO₄ solution, and the arrangement of SO₄²⁻ and H₂O in the second hydration layer changes. In the Li₂SO₄ solution, the hydrogen bonds between SO₄²⁻ and H₂O break, and the surrounding water structure changes, breaking the similarity of the microstructure of magnesium–lithium and enhancing the separation effect. In a multi-ion system, the change in water structure in the solution decreases with the increase in Cl⁻ concentration. Controlling the temperature of salt lake brine with different magnesium–lithium mass ratios, it was found that the magnesium–lithium mass ratio in the brine could be reduced by one-third; when the magnesium–lithium mass ratio was 10:1~160:1, the loss of lithium could be controlled within 5%, but when the magnesium–lithium mass ratio was 5:1, the loss of lithium was 25.06%. The main reason for lithium loss is that Li₂SO₄ in the liquid phase enters the solid phase as a cluster and is entrapped during the MgSO₄ crystallization process. The entire experiment shows that controlling the temperature process is more suitable for salt lake brine with a high magnesium–lithium ratio. Full article

Lithium, as a green energy metal used to promote world development, is an important raw material for lithium-ion, lithium–air, and lithium–sulfur batteries. It is challenging to directly extract lithium resources from brine with a high Mg/Li mass ratio. The microstructure study of salt solutions provides an important theoretical basis for the separation of lithium and magnesium. The changes in the hydrogen bond network structure and ion association of the Li₂SO₄ aqueous solution and Li₂SO₄-MgSO₄-H₂O mixed aqueous solution were studied by Raman spectroscopy. The SO₄²⁻ fully symmetric stretching vibration peak at 940~1020 cm⁻¹ and the O-H stretching vibration peak at 2800~3800 cm⁻¹ of the Li₂SO₄ aqueous solution at room temperature were studied by Raman spectroscopy and excess spectroscopy. According to the peak of the O-H stretching vibration spectrum, with an increase in the mass fraction of the Li₂SO₄ solution, the proportion of DAA-type and DDAA-type hydrogen bonds at low wavenumbers decreases gradually, while the proportion of DA-type hydrogen bonds at 3300 cm⁻¹ increases. When the mass fraction is greater than 6.00%, this proportion increases sharply. Although the spectra of hydrated water molecules and bulk water molecules are different, the spectra of the two water molecules seriously overlap. The spectrum of the anion hydration shell in a solution can be extracted via spectrum division. By analyzing the spectra of these hydration shells, the interaction between the solute and water molecules, the structure of the hydration shell and the number of water molecules are obtained. For the same ionic strength solution, different cationic salts have different hydration numbers of anions, indicating that there is a strong interaction between ions in a strong electrolytic solution, which will lead to ion aggregation and the formation of ion pairs. When the concentration of salt solution increases, the hydration number decreases rapidly, indicating that the degree of ion aggregation increases with increasing concentration. Full article

The preparation of Li₂CO₃ from brine with a high mass ratio of Mg/Li is a worldwide technology problem. Membrane separation is considered as a green and efficient method. In this paper, a comprehensive Li₂CO₃ preparation process, which involves electrochemical intercalation-deintercalation, nanofiltration, reverse osmosis, evaporation, and precipitation, was constructed. Concretely, the electrochemical intercalation-deintercalation method shows excellent separation performance of lithium and magnesium, and the mass ratio of Mg/Li decreased from the initial 58.5 in the brine to 0.93 in the obtained lithium-containing anolyte. Subsequently, the purification and concentration are performed based on nanofiltration and reverse osmosis technologies, which remove mass magnesium and enrich lithium, respectively. After further evaporation and purification, industrial-grade Li₂CO₃ can be prepared directly. The direct recovery of lithium from the high Mg/Li brine to the production of Li₂CO₃ can reach 68.7%, considering that most of the solutions are cycled in the system, the total recovery of lithium will be greater than 85%. In general, this new integrated lithium extraction system provides a new perspective for preparing lithium carbonate from high Mg/Li brine. Full article

50 billion cubic meters of brine every year creates ecological hazards to the environment. In order to reuse brine efficiently, rubidium and cesium were recovered in this experiment. On the other hand, the main impurities which were needed to be eliminated in brine were lithium, sodium, potassium, calcium, and magnesium. In the procedure, seawater was distilled and evaporated first to turn into simulated brine. Perchloric acid was then added into simulated brine to precipitate potassium perchlorate which could reduce the influence of potassium in the extraction procedure. After that, t-BAMBP and ammonia were separately used as extractant and stripping agent in the extraction and stripping procedures to get rubidium hydroxide solutions and cesium hydroxide solutions. Subsequently, they reacted with ammonium carbonate to get rubidium carbonate and cesium carbonate. In a nutshell, this study shows the optimal parameters of pH value to precipitate potassium perchlorate. Besides, pH value in the system, the concentration of t-BAMBP and ammonia, organic phase/aqueous phase ratio (O/A ratio), reaction time, and reaction temperature in solvent extraction step were investigated to get high purities of rubidium carbonate and cesium carbonate. Full article

We discuss the latest developments in alternative battery systems based on sodium, magnesium, zinc and aluminum. In each case, we categorize the individual metals by the overarching cathode material type, focusing on the energy storage mechanism. Specifically, sodium-ion batteries are the closest in technology and chemistry to today’s lithium-ion batteries. This lowers the technology transition barrier in the short term, but their low specific capacity creates a long-term problem. The lower reactivity of magnesium makes pure Mg metal anodes much safer than alkali ones. However, these are still reactive enough to be deactivated over time. Alloying magnesium with different metals can solve this problem. Combining this with different cathodes gives good specific capacities, but with a lower voltage (<1.3 V, compared with 3.8 V for Li-ion batteries). Zinc has the lowest theoretical specific capacity, but zinc metal anodes are so stable that they can be used without alterations. This results in comparable capacities to the other materials and can be immediately used in systems where weight is not a problem. Theoretically, aluminum is the most promising alternative, with its high specific capacity thanks to its three-electron redox reaction. However, the trade-off between stability and specific capacity is a problem. After analyzing each option separately, we compare them all via a political, economic, socio-cultural and technological (PEST) analysis. The review concludes with recommendations for future applications in the mobile and stationary power sectors. Full article

Various synthesis and rehydrogenation processes of lithium hydride (LiH) and magnesium amide (Mg(NH₂)₂) system with 8:3 molar ratio are investigated to understand the kinetic factors and effectively utilize the essential hydrogen desorption properties. For the hydrogen desorption with a solid-solid reaction, it is expected that the kinetic properties become worse by the sintering and phase separation. In fact, it is experimentally found that the low crystalline size and the close contact of LiH and Mg(NH₂)₂ lead to the fast hydrogen desorption. To preserve the potential hydrogen desorption properties, thermochemical and mechanochemical rehydrogenation processes are investigated. Although the only thermochemical process results in slowing the reaction rate due to the crystallization, the ball-milling can recover the original hydrogen desorption properties. Furthermore, the mechanochemical process at 150 °C is useful as the rehydrogenation technique to preserve the suitable crystalline size and mixing state of the reactants. As a result, it is demonstrated that the 8LiH and 3Mg(NH₂)₂ system is recognized as the potential hydrogen storage material to desorb more than 5.5 mass% of H₂ at 150 °C. Full article
