Search Results (3)

This study investigates the potential of thermally treated olive husk (OH)—a heterogeneous agro-industrial by-product comprising olive stones, pulp, and fibrous residues—as a multifunctional component in lightweight bio-concrete. Uniquely, this work harnesses the intrinsic dual nature of OH as both a fibrous reinforcement and a porous aggregate, without further fractionation, to evaluate its influence on the hygrothermal and mechanical behavior of cementitious composites. While prior studies have often focused selectively on thermal conductivity, this work provides a comprehensive assessment of all major thermal parameters; including diffusivity, effusivity, and specific heat capacity; offering deeper insights into the full thermal behavior of bio-based concretes. OH was incorporated at 0%, 10%, and 20% by weight, and the resulting concretes were subjected to a comprehensive characterization of their thermal, hygric, mechanical, and microstructural properties. Thermal performance metrics included conductivity, specific heat capacity, diffusivity, effusivity, time lag, and predicted energy savings. Hygric behavior was assessed through the moisture buffering value (MBV), while density, porosity, and mechanical strengths were also evaluated. At 20% OH content, thermal conductivity decreased to 0.405 W/m·K (a 72% reduction), thermal diffusivity dropped by 87%, and thermal effusivity reached 554 W·s^0.5/m²·K, collectively enhancing thermal inertia and increasing the time lag by 77% (to 2.32 h). MBVs improved to 2.18 g/m²·%RH, rated as “Excellent” for indoor moisture regulation. Despite the higher porosity, the bio-concrete maintained adequate mechanical integrity, with compressive and flexural strengths of 11.68 MPa and 3.58 MPa, respectively, attributed to the crack-bridging action of the fibrous inclusions. Microstructural analysis (SEM/XRD) revealed improved paste continuity and denser C–S–H formation, attributed to enhanced matrix compatibility following oil removal via thermal pre-treatment. These findings demonstrate the viability of OH as a new bio-based, multifunctional additive for fabricating thermally efficient, hygroscopically active, and structurally sound concretes suitable for sustainable construction. Full article

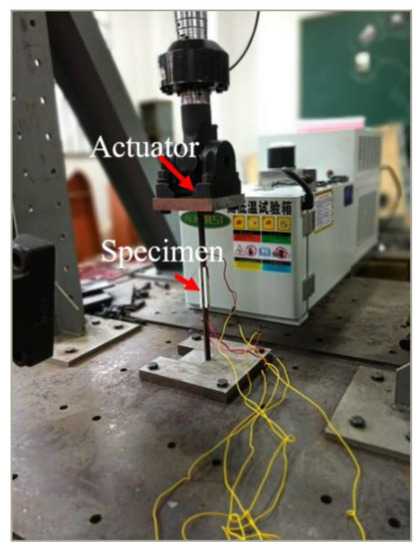

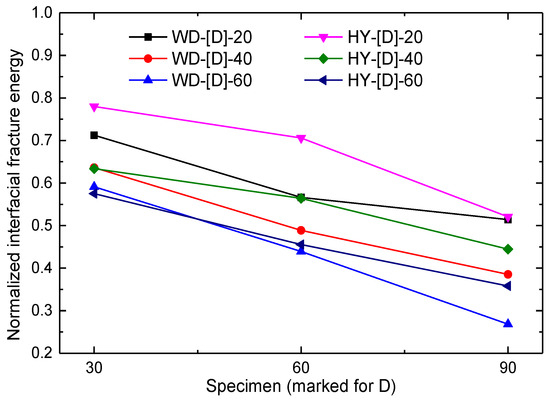

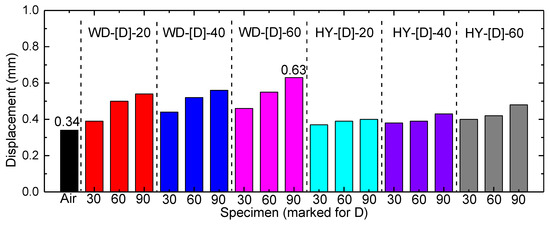

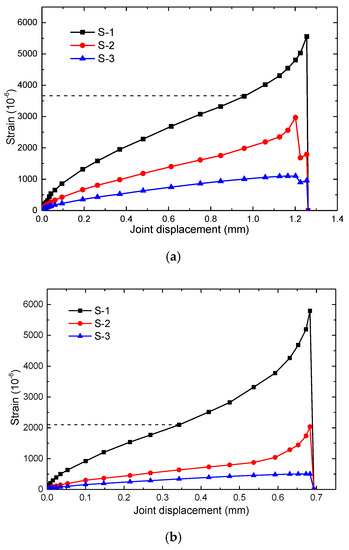

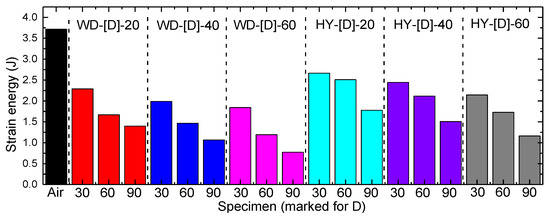

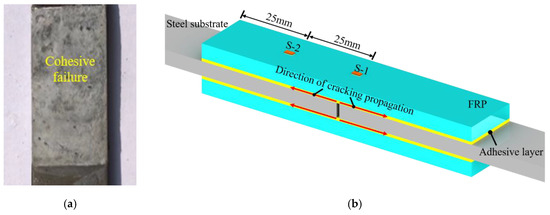

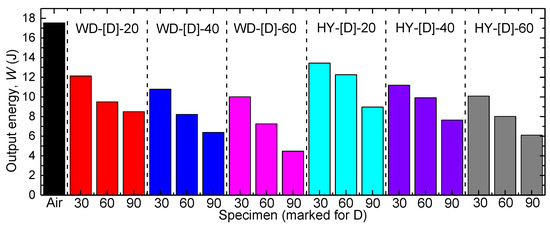

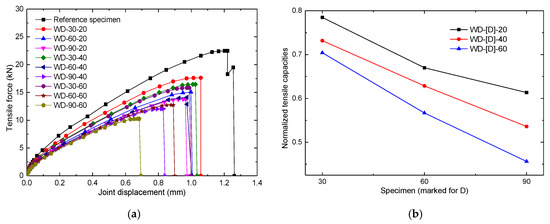

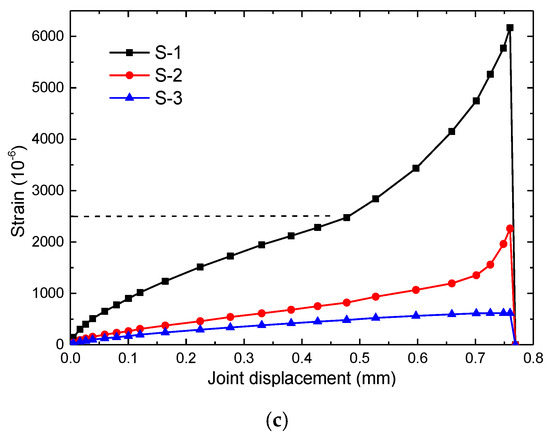

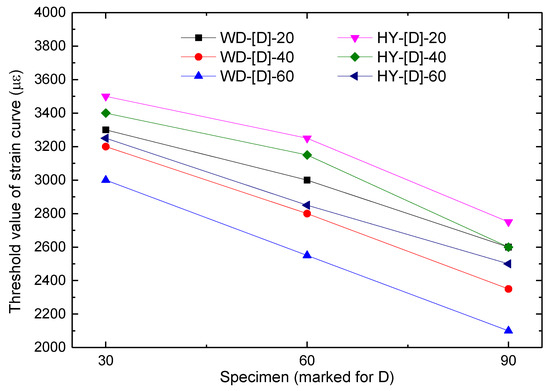

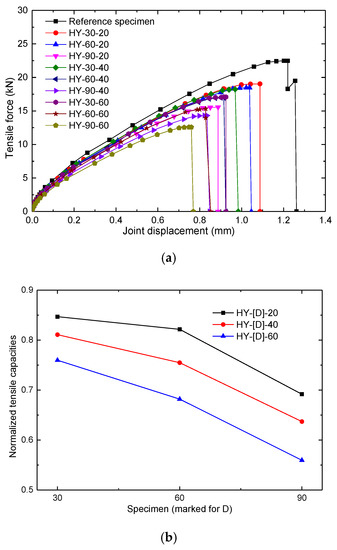

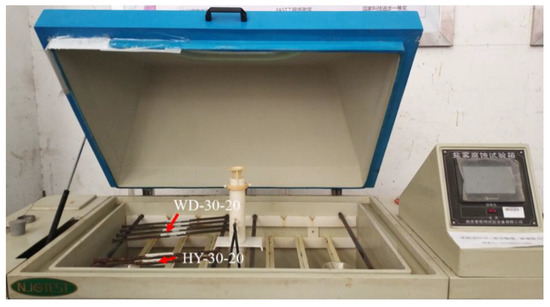

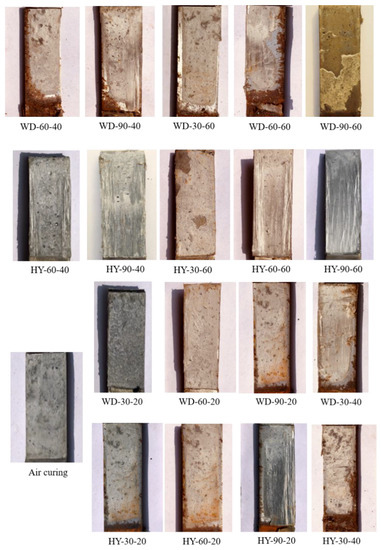

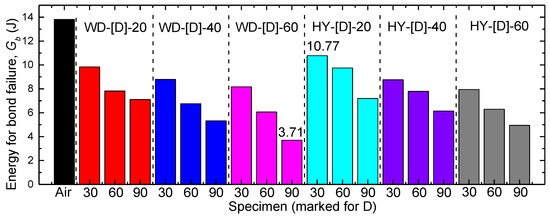

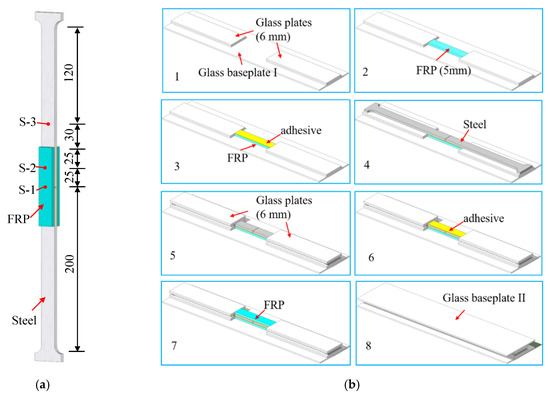

This paper presents the outcomes of a research program that tested and examined the behaviors of glass fiber-reinforced polymer (GFRP) bonded steel double-strap joints after being cured in a variety of harsh curing conditions. Nineteen specimens were manufactured, cured in an air environment (the reference specimen), treated with different wet–dry cyclic curing or hygrothermal pretreatment, and then tested under quasi-static loading. Based on the experimental studies, mixed failure modes, rather than the cohesive failure of the adhesive, were found in the harsh environmental cured specimens. Additionally, an approximately linear relationship of load–displacement curves was observed for all the GFRP/steel bonded specimens from which the tensile capacities and stiffness were discussed. By analyzing the strain development of the bonded specimens during quasi-static tensile testing, the fracture mechanism analysis focused on the threshold value of the strain curves for different cured specimens. Finally, based on the studies of interfacial fracture energy, G_f, the effects of harsh environmental curing were assessed. The results showed that the failure modes, joint tensile capacities, stiffness, and interfacial fracture energy G_f were highly dependent on the curing conditions, and a significant degradation of bonding performance could be introduced by the investigated harsh environments. Full article

Specific gas permeability of beech wood was determined and compared with values obtained after nanosilver-impregnation and heat-treatment in three mediums of air, water, and water steam at 150 °C for four durations of 1, 2, 3, and 4 h. Separate sets of specimens for each group were prepared and impregnated with a 400 ppm aqueous nanosilver suspension. The results revealed that the effect of heat treatment in hot-air depended on the duration of treatment. Hydrothermal treatment generally increased gas permeability, this was attributed to the dissolving of extractives in the hot water medium, although lower duration of one hour did not significantly change permeability. Hygrothermal treatment increased gas permeability at all four durations, revealing its effectiveness as a pre-treatment to improve penetration of preservatives and fire-retardants into wood texture in wood preservation industry. High thermal conductivity of silver nanoparticles intensified the effects of heat treatment in all mediums. Full article
