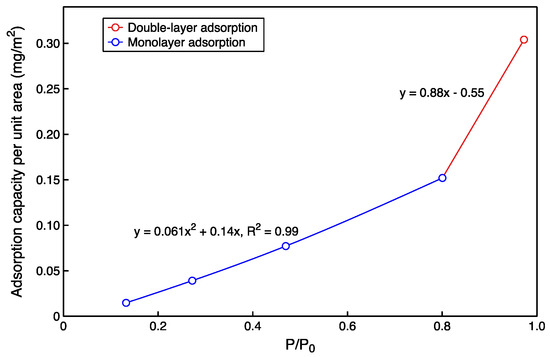

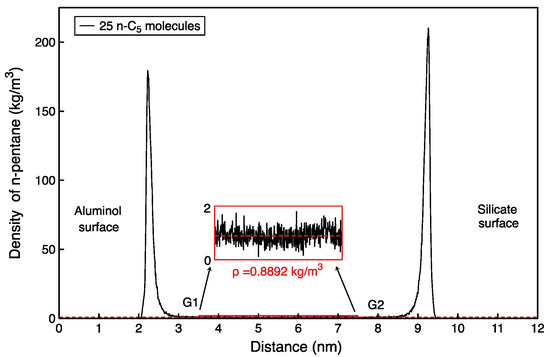

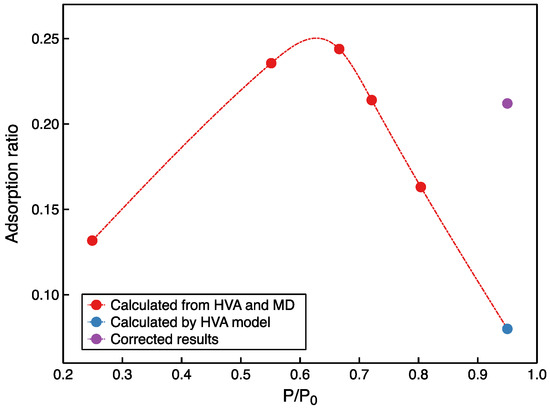

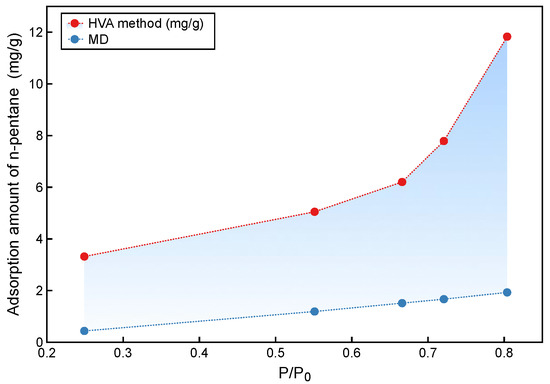

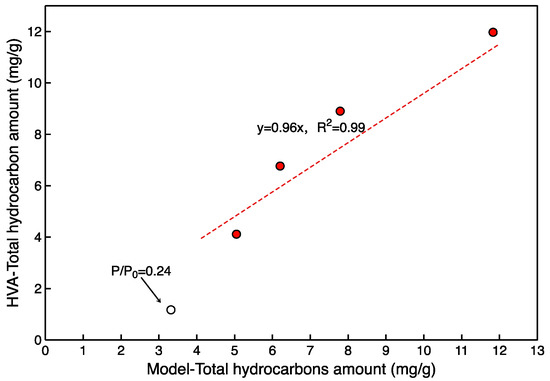

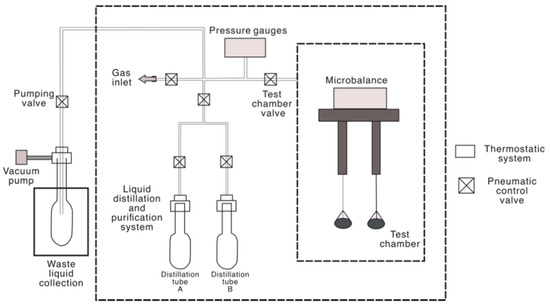

Hydrocarbon vapor adsorption experiments (HVAs) are one of the most prevalent methods used to evaluate the proportion of adsorbed state oil, critical in understanding the recoverable resources of shale oil. HVAs have some limitations, which cannot be directly used to evaluate the proportion of adsorbed state oil. The proportion of adsorbed state oil from HVA is always smaller than that in shale oil reservoirs, which is caused by the difference in adsorption characteristics of liquid and gaseous hydrocarbons. The results of HVA need to be corrected. In this paper, HVA was conducted with kaolinite, an important component of shale. A new method is reported here to evaluate the proportion of adsorbed state oil. Molecular dynamics simulations (MDs) of gaseous/liquid hydrocarbons with the same temperature and pressure as the HVAs were used as a reference to reveal the errors in the HVAs evaluation from the molecular scale. We determine the amount of free state of hydrocarbons by HVAs, and then calculate the proportion of adsorbed state oil by the liquid hydrocarbon MD simulation under the same conditions. The results show that gaseous hydrocarbons adsorptions are monolayer at low relative pressures and bilayer at high relative pressures. The liquid hydrocarbons adsorption is multilayer adsorption. The adsorption capacity of liquid hydrocarbons is over 2.7 times higher than gaseous hydrocarbons. The new method will be more effective and accurate to evaluate the proportion of adsorbed state oil. Full article

Adsorption of hydrocarbons may significantly affect hydrocarbon migration in unconventional reservoirs. Clay minerals form the primary adsorbent surfaces for hydrocarbons adsorbed in mudstone/shale. To study the adsorption properties of hydrocarbons (n-decane (C₁₀H₂₂), methyl cyclohexane (C₇H₁₄) and toluene (C₇H₈)) on clay minerals (i.e., cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite), hydrocarbon vapor adsorption (HVA) tests were conducted at 298.15 K. The results showed that (i) the adsorption amounts of C₁₀H₂₂, C₇H₁₄ and C₇H₈ ranged from 0.45–1.03 mg/m², 0.28–0.90 mg/m² and 0.16–0.53 mg/m², respectively; (ii) for cookeite, ripidolite and kaolinite, the adsorption capacity of C₁₀H₂₂ was less than C₇H₁₄, which was less than C₇H₈; (iii) for illite, Na-montmorillonite and Ca-montmorillonite, the adsorption capacity of C₁₀H₂₂ was greater than that of C₇H₈, and the adsorption capacity of C₇H₁₄ was the lowest; (iv) for an illite/smectite mixed-layer, C₇H₁₄ had the highest adsorption capacity, followed by C₁₀H₂₂, and C₇H₈ had the lowest capacity. Adsorption properties were correlated with the microscopic parameters of pores in clay minerals and with experimental pressure. Finally, the weighted average method was applied to evaluate the adsorption properties of C₁₀H₂₂, C₇H₁₄ and C₇H₈ on clay minerals in oil-bearing shale from the Shahejie Formation of Dongying Sag in the Bohai Bay Basin, China. For these samples, the adsorbed amounts of C₇H₁₄ ranged from 18.03–28.02 mg/g (mean 23.33 mg/g), which is larger than that of C₁₀H₂₂, which ranges from 15.40–21.72 mg/g (mean 18.82 mg/g). The adsorption capacity of C₇H₈ was slightly low, ranging from 10.51–14.60 mg/g (mean 12.78 mg/g). Full article
