Search Results (7)

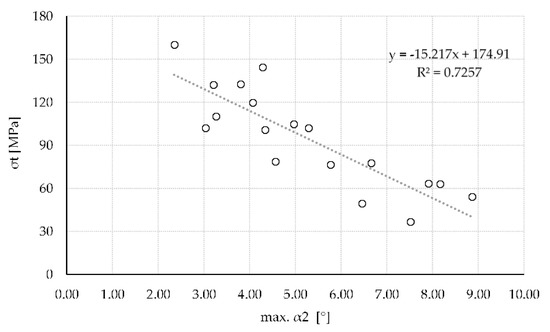

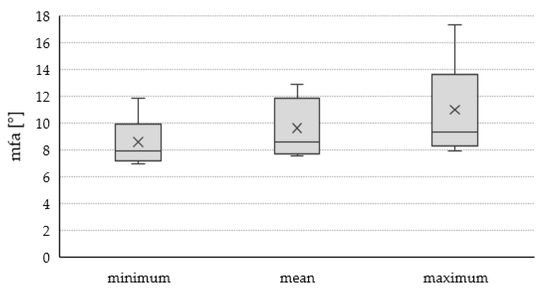

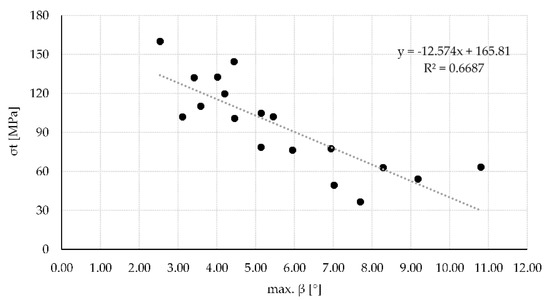

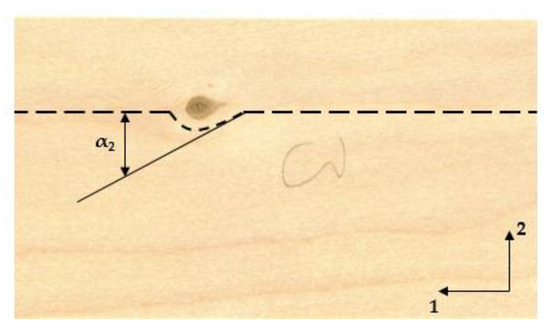

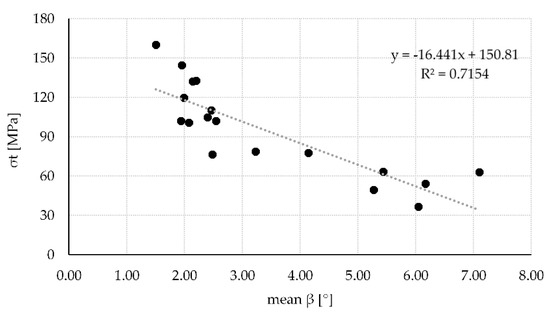

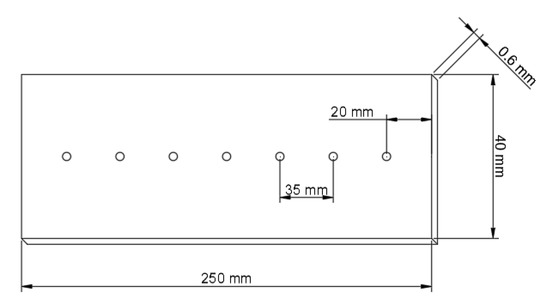

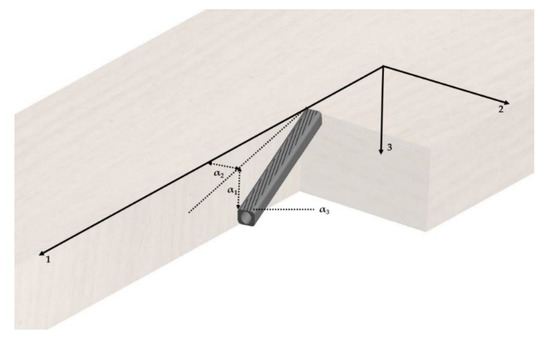

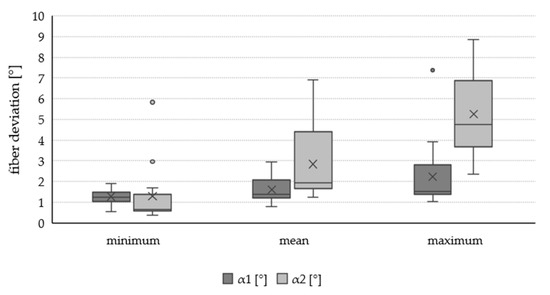

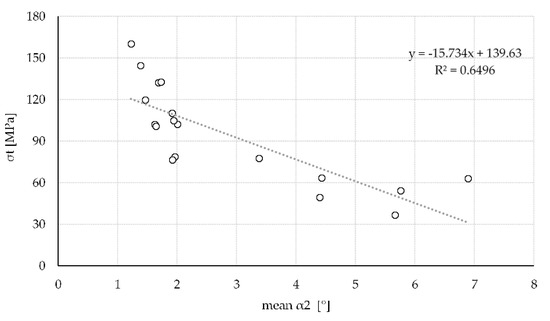

The currently pursued implementation of wood into novel high performance applications such as automotive parts require knowledge about the material behaviour including ultimate strength. Previous research has shown that fiber deviation seems to be the dominating factor influencing the strength of thin veneers. This study aims to further investigate and quantify the influence of fiber deviation in two dimension and different hierarchical levels on the tensile strength of thin birch veneers. The fiber deviation in- and out-of-plane as well as the micro fibril angle were assessed by means of wide-angle X-ray scattering. Tensile strength was determined in laboratory experiments. Results show a high variability for in-plane fiber deviation mainly constituted by knots and other growth influencing factors. Pearson correlations between strength and fiber deviation ranged from −0.594 up to −0.852. Best correlation (r = −0.852) was achieved for maximum in-plane fiber deviation directly followed by a combined angle of in- and out-of-plane fiber deviation (r = −0.846). Based on the results it was shown that fiber deviation in- and out-of-plane is the dominating factor influencing ultimate tensile strength of thin birch veneers. Further research in regard to non-destructive strength prediction is necessary. Full article

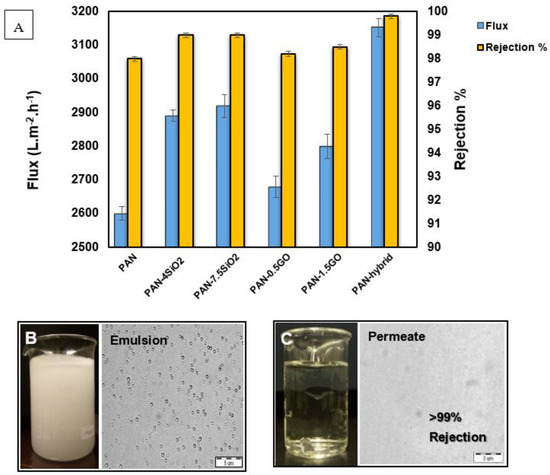

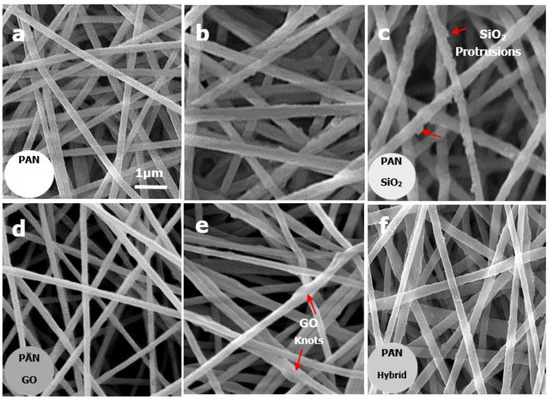

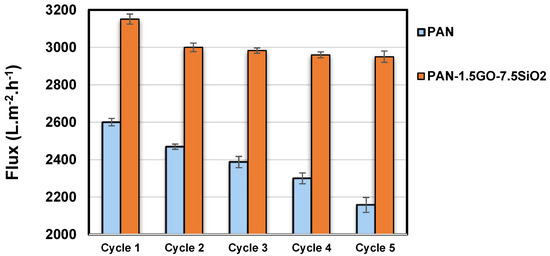

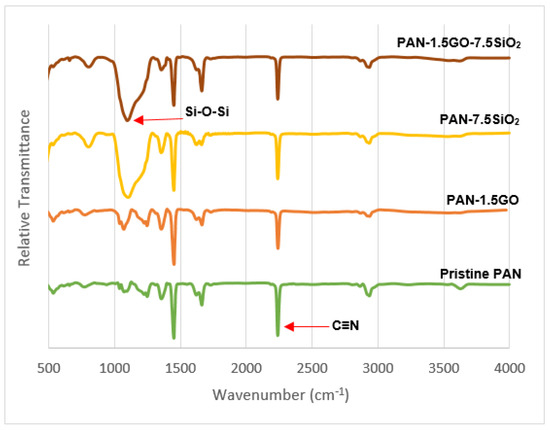

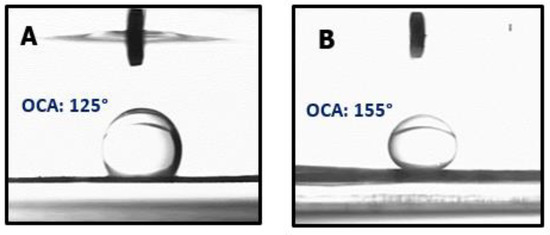

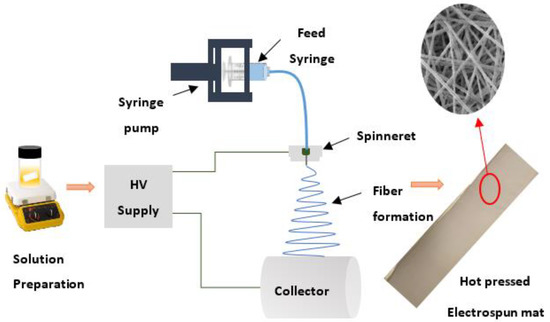

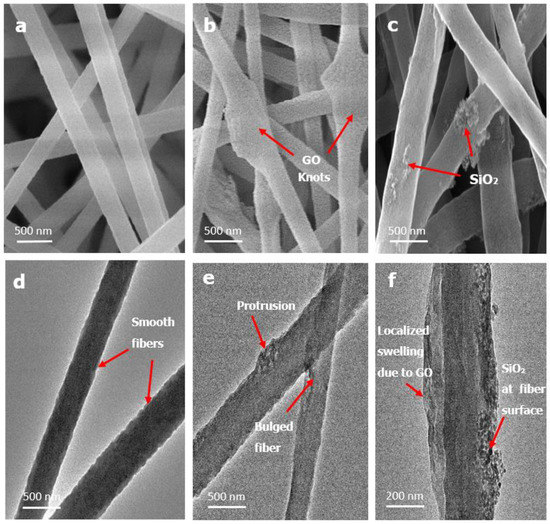

In this article, we report the development of a polyacrylonitrile-graphene oxide-silicon dioxide (PAN-GO-SiO₂) hybrid membrane for separation of oil and water from their emulsified mixture. The membrane was successfully fabricated using a one-step electrospinning process. GO and SiO₂ nanofillers were added in PAN in different concentrations to determine the optimized composition for the PAN-GO-SiO₂ hybrid membrane. A scanning electron microscopy (SEM) examination showed that the nanofillers were uniformly embedded in the nanofibrous structure of the electrospun hybrid membrane. The GO was mainly embedded inside the PAN nanofibers, causing knots while SiO₂ nanoparticles were found embedded on the nanofiber surface, resulting in the formation of micro-nano protrusions on the fiber surface. The formation of these hierarchical structures, together with enhanced hydrophilicity due to oxygen containing groups on both SiO₂ and GO, resulted in a high rejection (>99%) of oil from oil-water emulsion. Membrane performance evaluation under gravity separation tests showed that the separation flux and phase rejection was enhanced with the incorporation of nanofillers. The inclusion of nanofillers also enhanced the mechanical properties of the membrane. The best flux and phase separation performance was obtained for an optimized concentration of 7.5 wt % SiO₂ and 1.5 wt % GO in PAN. The flux of separated water was enhanced from 2600 L m⁻² h⁻¹ for pristine PAN to 3151 L m⁻² h⁻¹ for PAN-GO-SiO₂. The hybrid membrane also showed good mechanical and chemical stability, and antifouling propensity. Full article

Optical microknot fibers (OMFs) serve as localized devices, where photonic resonances (PRs) enable self-interfering elements sensitive to their environment. However, typical fragility and drifting of the knot severely limit the performance and durability of microknots as sensors in aqueous settings. Herein we present the fabrication, electrical fusing, preparation, and persistent detection of volatile liquids in multiple wetting–dewetting cycles of volatile compounds and quantify the persistent phase shifts with a simple model relating to the ambient liquid, enabling durable in-liquid sensing employing OMF PRs. Full article

Fiber micro-knots are a promising and a cheap solution for advanced fiber-based sensors. We investigated complex fiber micro-knots in theory and experiment. We compared the measured spectral response and present an analytical study of simple micro-knots with double twists, twin micro-knots, figure-eight micro-knots, and tangled micro-knots. This research brings the simple fabrication process and robustness of fiber micro-knots into the world of complex resonators which may lead to novel optical devices based on fiber micro-knots. Full article

We suggest a fiber micro-knot fabricated on a long-period fiber grating. The long-period fiber grating excites high-order modes into the micro-knot and transfers the output back to the Gaussian mode. We show theoretically and experimentally that these micro-knots have an improved Q-factor, higher stability, and have an increased evanescence wave coupling to the environment than single mode fiber micro-knots. These high-order fiber micro-knots can be beneficial for various fiber detectors and optical data processing systems. Full article

In this paper, we experimentally demonstrate an add-drop filter based on wavelength-dependent light coupling between a lithium-niobate (LN) microwaveguide chip and a microfiber knot ring (MKR). The MKR was fabricated from a standard single-mode fiber, and the LN microwaveguide chip works as a robust substrate to support the MKR. The guided light can be transmitted through add and drop functionality and the behaviors of the add-drop filter can be clearly observed. Furthermore, its performance dependence on the MKR diameter is also studied experimentally. The approach, using a LN microwaveguide chip as a platform to couple and integrate the MKR, may enable us to realize an optical interlink between the microstructured chip and the micro/nano fiber-optic device. Full article

Ocean internal-wave phenomena occur with the variation in seawater vertical temperature, and most internal-wave detections are dependent on the measurement of seawater vertical temperature. A seawater temperature sensor based on a microfiber knot resonator (MKR) is designed theoretically and demonstrated experimentally in this paper. Especially, the dependences of sensing sensitivity on fiber diameter and probing wavelength are studied. Calculated results show that sensing sensitivity increases with the increasing microfiber diameter with the range of 2.30–3.91 μm and increases with the increasing probing wavelength, which reach good agreement with results obtained by experiments. By choosing the appropriate parameters, the maximum sensitivity measured can reach to be 22.81 pm/°C. The seawater temperature sensor demonstrated here shows advantages of small size, high sensitivity, easy fabrication, and easy integration with fiber systems, which may offer a new optical method to detect temperature of seawater or ocean internal-wave phenomenon and offer valuable reference for assembling micro sensors used for other parameters related to seawater, such as salinity, refractive index, concentration of NO₃⁻ and so on. Full article
