15 pages, 6843 KiB
Article
Applications of a Semi-Crystalline Thermoplastic Constitutive Model to Mechanical Responses of Electronic Connector Structures
by Ting-Chuan Huang and Kuo-Chi Liao
Materials 2021, 14(19), 5812; https://doi.org/10.3390/ma14195812 - 4 Oct 2021
Viewed by 1811
Abstract

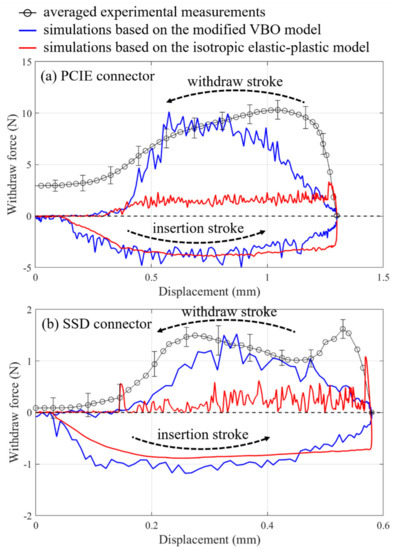

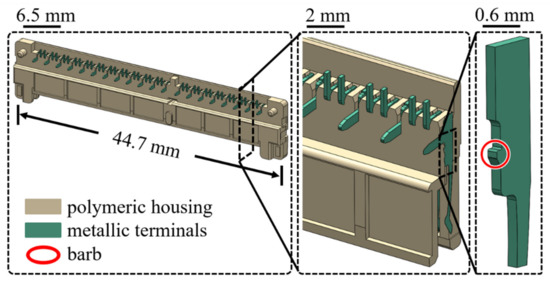

The retention force of electronic connectors, in general one of the essential specification requirements, is defined as a maximum force of metallic terminals withdrawn out of the corresponding plastic housing. Accurate prediction of the retention force is an important issue in the connector [...] Read more.

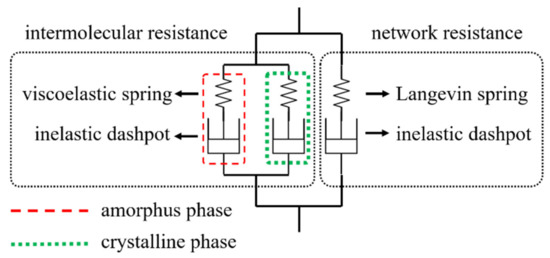

The retention force of electronic connectors, in general one of the essential specification requirements, is defined as a maximum force of metallic terminals withdrawn out of the corresponding plastic housing. Accurate prediction of the retention force is an important issue in the connector design stage; however, it is not an easy task to accurately assess the retention force based on the authors’ knowledge. A finite element analysis is performed in conjunction with a self-coded user subroutine accounting for relaxation/creep behaviors of semi-crystalline thermoplastic polymers under various loading conditions in order to appraise the mechanical performance of the plastic base structure. Material parameters adopted in the constitutive model are evaluated by utilizing the automated design exploration and optimization commercial software. Applications of the developed subroutine with several damage criteria to assess retention forces of two electronic connectors were conducted. Retention forces predicted by utilizing the current constitutive model agreed fairly well with the associated experimental measurements. A dramatic improvement of the underestimation of the retention force based on the approach commonly adopted in the industry is also demonstrated here. Full article
(This article belongs to the Section Materials Simulation and Design)
Show Figures

Figure 1
