Search Results (2)

A characterization study of chromite ore from South Africa was conducted using bulk assays, X-ray diffraction, optical, scanning electron microscopy (SEM), automated electron probe microanalysis (EPMA) and quantitative evaluation of mineral by scanning electron microscopy (QEMSCAN) mineralogical techniques, and quantitative EPMA. The aim was to identify all major gangue impurities, the degree of chromite liberation, and possible beneficiation options. The bulk material assayed 40.5% Cr₂O₃ with the major impurities being Al₂O₃ (13.2%), MgO (12.1%), and SiO₂ (7.5%). Quantitative mineral phase analysis showed that the sample mineralogy was dominated by a chrome-rich spinel phase with an average chemical composition (in wt.%) of: Cr₂O₃—47.8; FeO—26.0; Al₂O₃—15.4; and MgO—11.0. Contaminant phases included siliceous minerals enstatite, anorthite-rich plagioclase (bytownite), Cr-rich diopside (containing 1–2 wt.% Cr₂O₃), and phlogopite mica. QEMSCAN analysis of sized fractions indicated that (a) most silicate gangue species were in the +850 μm fractions, (b) the chrome-rich spinel in all fractions was >80% liberated, and (c) the most common mineral association for chromite was with enstatite. Based on the results, upgrading test work demonstrated that stage crushing followed by wet gravity concentration produced a chemical–metallurgical-grade ‘chromite’ product containing >46% Cr₂O₃ and <1% SiO₂. Full article

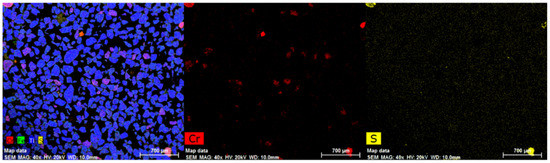

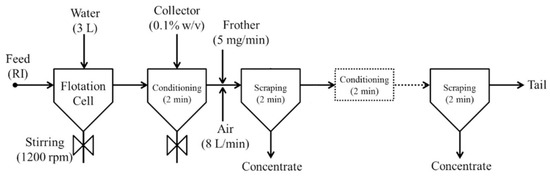

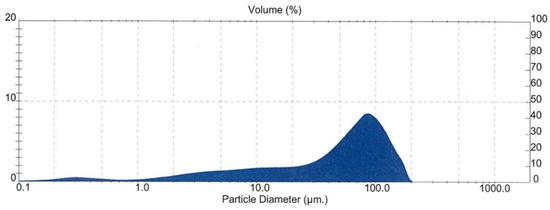

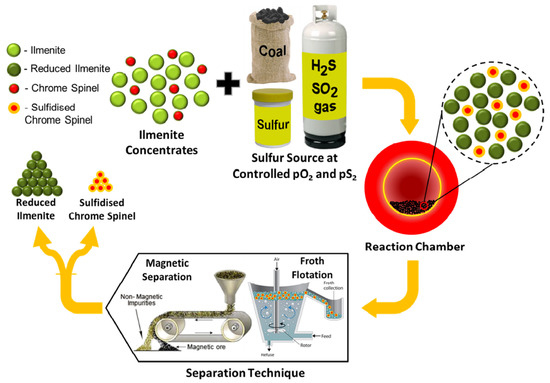

The removal of chromium-containing impurities, such as chrome spinel (ZCr₂O₄ where Z = Fe, Mg, Mn) from ilmenite (FeTiO₃) concentrates through selective sulphidation, has been investigated by the authors. Laboratory experimental studies using sulphur added to ilmenite concentrates under Becher-type reduction conditions showed it is possible to selectively sulphidise chrome spinels from different ilmenite deposits. In this paper, processes to remove the sulphidised chrome spinels from the bulk ilmenite concentrates were investigated using flotation and magnetic separation techniques. Clustering or fusing of the reduced ilmenite (RI) and sulphidised chrome spinel grains was found to have a detrimental effect on flotation performance and made it difficult to have clear separation. A light wet grind was effective for breaking the clustering, but it caused the sulphide rim to spall off from chrome spinel surfaces, which reduces flotation efficiency. The preliminary results obtained after a magnetic separation (0.7 A) of a demetallised sulphidised RI sample show that the sulphidised chrome spinels preferentially report to the magnetic fraction. Additional magnetic separation of the non-magnetic fraction at a lower current (0.3 A) improved the recovery of sulphidised chrome spinels. The demetallisation process followed by a magnetic separation provided insights into a potential route for the removal of chrome spinels from reduced ilmenite concentrates. These two steps simulate the aeration stage of the Becher process. Further studies are required to optimise the process parameters. Full article
